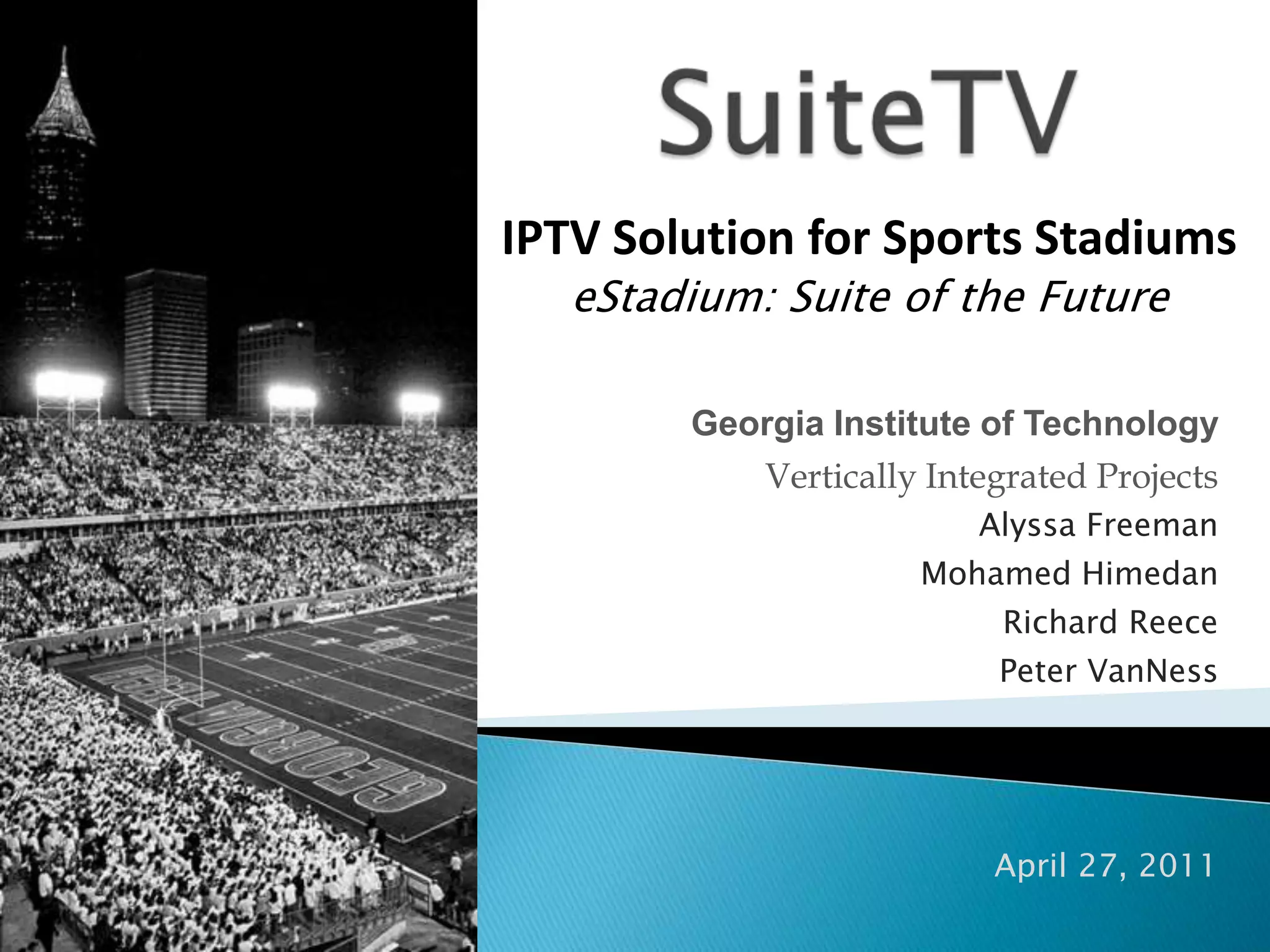

- 1. IPTV Solution forSports Stadiums eStadium: Suite of the Future Georgia Institute of Technology Vertically Integrated Projects Alyssa Freeman Mohamed Himedan Richard Reece Peter VanNess April 27, 2011

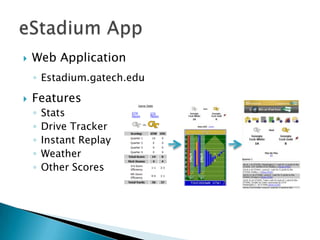

- 2. Web Application ◦ Estadium.gatech.edu Features ◦ Stats ◦ Drive Tracker ◦ Instant Replay ◦ Weather ◦ Other Scores

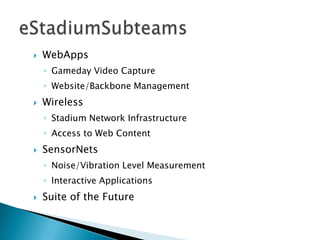

- 3. WebApps ◦ Gameday Video Capture ◦ Website/Backbone Management Wireless ◦ Stadium Network Infrastructure ◦ Access to Web Content SensorNets ◦ Noise/Vibration Level Measurement ◦ Interactive Applications Suite of the Future

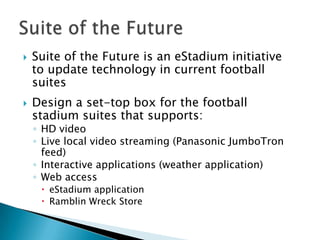

- 4. Suite of the Future is an eStadium initiative to update technology in current football suites Design a set-top box for the football stadium suites that supports: ◦ HD video ◦ Live local video streaming (Panasonic JumboTron feed) ◦ Interactive applications (weather application) ◦ Web access eStadium application Ramblin Wreck Store

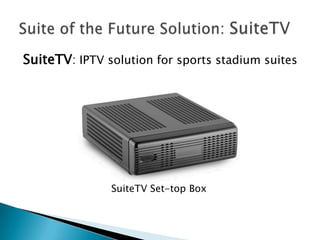

- 5. SuiteTV: IPTV solutionfor sports stadium suites SuiteTV Set-top Box

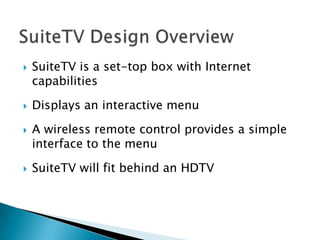

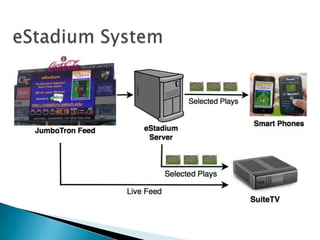

- 7. SuiteTV is a set-top box with Internet capabilities Displays an interactive menu A wireless remote control provides a simple interface to the menu SuiteTV will fit behind an HDTV

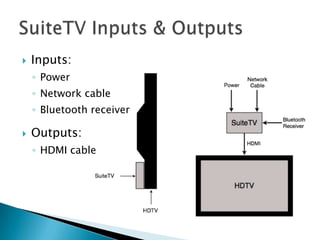

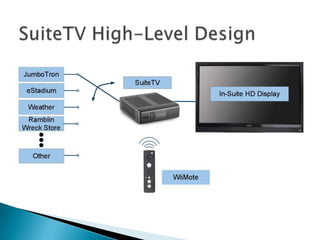

- 9. Inputs: ◦ Power ◦ Network cable ◦ Bluetooth receiver Outputs: ◦ HDMI cable

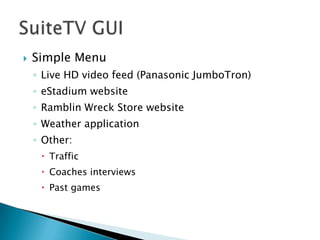

- 10. Simple Menu ◦ Live HD video feed (Panasonic JumboTron) ◦ eStadium website ◦ Ramblin Wreck Store website ◦ Weather application ◦ Other: Traffic Coaches interviews Past games

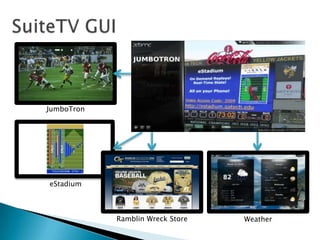

- 11. JumboTron eStadium Ramblin Wreck Store Weather
- 12. Intuitive graphical user interface (GUI) Simple wireless controls Silent / minimal maintenance

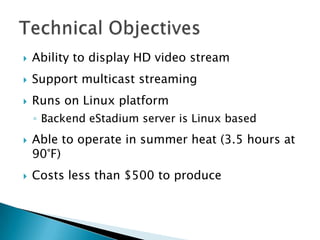

- 13. Ability to display HD video stream Support multicast streaming Runs on Linux platform ◦ Backend eStadium server is Linux based Able to operate in summer heat (3.5 hours at 90°F) Costs less than $500 to produce
- 14. Closed source software requires license fees Fees add up with number of football suites ◦ ~70 suites ◦ Letterwinners’ and Tech Terrace have 2+ SuiteTVs Solution: open source software

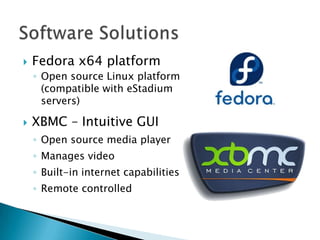

- 15. Fedora x64 platform ◦ Open source Linux platform (compatible with eStadium servers) XBMC – Intuitive GUI ◦ Open source media player ◦ Manages video ◦ Built-in internet capabilities ◦ Remote controlled

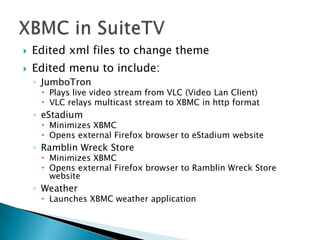

- 16. Edited xml files to change theme Edited menu to include: ◦ JumboTron Plays live video stream from VLC (Video Lan Client) VLC relays multicast stream to XBMC in http format ◦ eStadium Minimizes XBMC Opens external Firefox browser to eStadium website ◦ Ramblin Wreck Store Minimizes XBMC Opens external Firefox browser to Ramblin Wreck Store website ◦ Weather Launches XBMC weather application

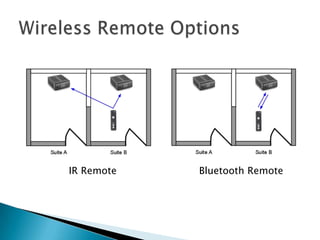

- 17. IR Remote Bluetooth Remote

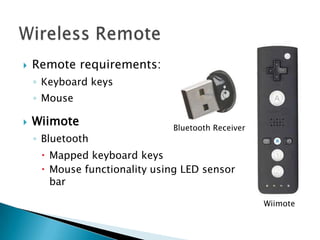

- 18. Remote requirements: ◦ Keyboard keys ◦ Mouse Wiimote Bluetooth Receiver ◦ Bluetooth Mapped keyboard keys Mouse functionality using LED sensor bar Wiimote

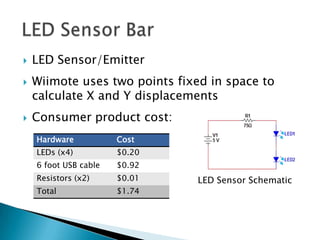

- 19. LED Sensor/Emitter Wiimote uses two points fixed in space to calculate X and Y displacements Consumer product cost: Hardware Cost LEDs (x4) $0.20 6 foot USB cable $0.92 Resistors (x2) $0.01 LED Sensor Schematic Total $1.74
- 20. Silent / low maintenance ◦ ASUS AT5IONT-I is fan-less ◦ HD is SSD

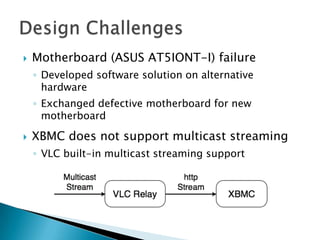

- 21. Motherboard (ASUS AT5IONT-I) failure ◦ Developed software solution on alternative hardware ◦ Exchanged defective motherboard for new motherboard XBMC does not support multicast streaming ◦ VLC built-in multicast streaming support

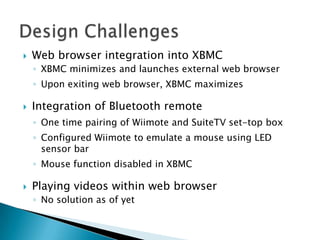

- 22. Web browser integration into XBMC ◦ XBMC minimizes and launches external web browser ◦ Upon exiting web browser, XBMC maximizes Integration of Bluetooth remote ◦ One time pairing of Wiimote and SuiteTV set-top box ◦ Configured Wiimote to emulate a mouse using LED sensor bar ◦ Mouse function disabled in XBMC Playing videos within web browser ◦ No solution as of yet

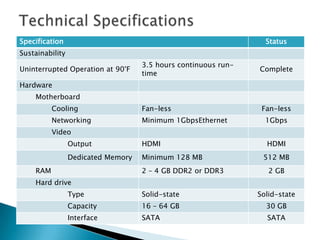

- 23. Specification Status Sustainability 3.5 hours continuous run- Uninterrupted Operation at 90°F Complete time Hardware Motherboard Cooling Fan-less Fan-less Networking Minimum 1GbpsEthernet 1Gbps Video Output HDMI HDMI Dedicated Memory Minimum 128 MB 512 MB RAM 2 – 4 GB DDR2 or DDR3 2 GB Hard drive Type Solid-state Solid-state Capacity 16 – 64 GB 30 GB Interface SATA SATA

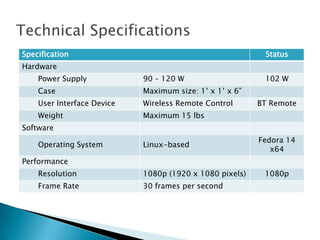

- 24. Technical Specifications Specification Status Hardware Power Supply 90 – 120 W 102 W Case Maximum size: 1’ x 1’ x 6” User Interface Device Wireless Remote Control BT Remote Weight Maximum 15 lbs Software Fedora 14 Operating System Linux-based x64 Performance Resolution 1080p (1920 x 1080 pixels) 1080p Frame Rate 30 frames per second

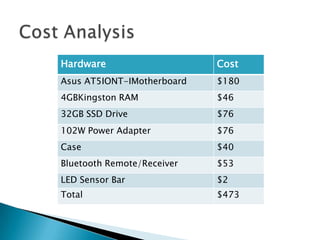

- 25. Hardware Cost Asus AT5IONT-IMotherboard $180 4GBKingston RAM $46 32GB SSD Drive $76 102W Power Adapter $76 Case $40 Bluetooth Remote/Receiver $53 LED Sensor Bar $2 Total $473

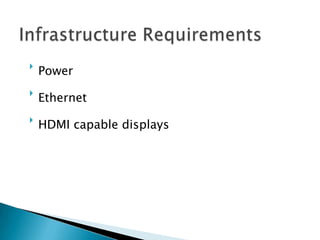

- 26. Power Ethernet HDMI capable displays

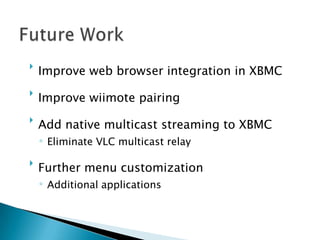

- 27. Improve web browser integration in XBMC Improve wiimote pairing Add native multicast streaming to XBMC ◦ Eliminate VLC multicast relay Further menu customization ◦ Additional applications
