1. E-COMMERCE
Heema Kumari
Priyanka Kumari
Manisha Kumari
Awanti Amrit

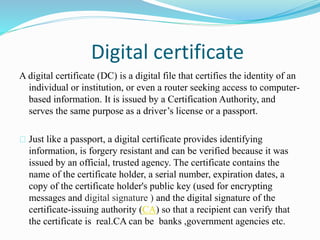

2. Digital certificate
A digital certificate (DC) is a digital file that certifies the identity of an
individual or institution, or even a router seeking access to computer-based
information. It is issued by a Certification Authority, and
serves the same purpose as a driver’s license or a passport.
Just like a passport, a digital certificate provides identifying
information, is forgery resistant and can be verified because it was
issued by an official, trusted agency. The certificate contains the
name of the certificate holder, a serial number, expiration dates, a
copy of the certificate holder's public key (used for encrypting
messages and digital signature ) and the digital signature of the
certificate-issuing authority (CA) so that a recipient can verify that
the certificate is real.CA can be banks ,government agencies etc.

3. Types of Digital Certificates
There are four main types of digital certificates:
1. Server Certificates
2. Personal Certificates
3. Organization Certificates
4. Developer Certificates
Certification Authority Functions:
Accept applications for certificates
Verify the identity of the person or organization applying for the
certificate
Issue certificates
Revoke/Expire certificates
Provide status information about the certificates that it has issued

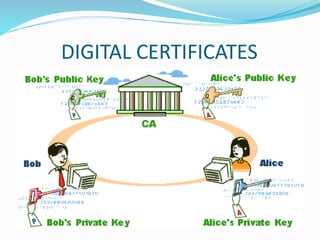

4. DIGITAL CERTIFICATES

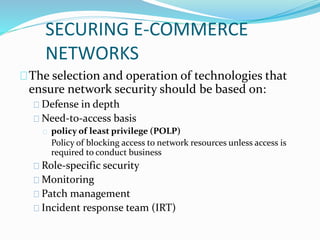

5. SECURING E-COMMERCE
NETWORKS
The selection and operation of technologies that
ensure network security should be based on:
Defense in depth
Need-to-access basis
policy of least privilege (POLP)
Policy of blocking access to network resources unless access is
required to conduct business
Role-specific security
Monitoring
Patch management
Incident response team (IRT)

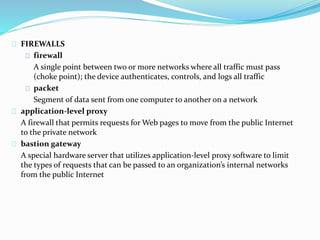

6. FIREWALLS
firewall
A single point between two or more networks where all traffic must pass
(choke point); the device authenticates, controls, and logs all traffic
packet
Segment of data sent from one computer to another on a network
application-level proxy
A firewall that permits requests for Web pages to move from the public Internet
to the private network
bastion gateway
A special hardware server that utilizes application-level proxy software to limit
the types of requests that can be passed to an organization’s internal networks
from the public Internet

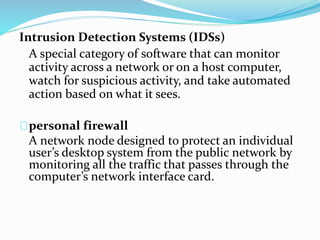

7. Intrusion Detection Systems (IDSs)
A special category of software that can monitor
activity across a network or on a host computer,
watch for suspicious activity, and take automated
action based on what it sees.
personal firewall
A network node designed to protect an individual
user’s desktop system from the public network by
monitoring all the traffic that passes through the
computer’s network interface card.

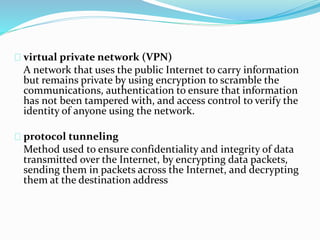

8. virtual private network (VPN)
A network that uses the public Internet to carry information
but remains private by using encryption to scramble the
communications, authentication to ensure that information
has not been tampered with, and access control to verify the
identity of anyone using the network.
protocol tunneling
Method used to ensure confidentiality and integrity of data
transmitted over the Internet, by encrypting data packets,
sending them in packets across the Internet, and decrypting
them at the destination address

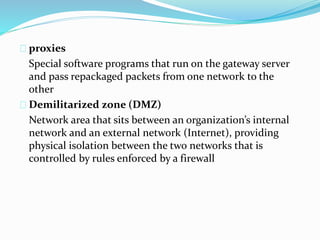

9. proxies
Special software programs that run on the gateway server
and pass repackaged packets from one network to the
other
Demilitarized zone (DMZ)
Network area that sits between an organization’s internal
network and an external network (Internet), providing
physical isolation between the two networks that is
controlled by rules enforced by a firewall

10. SECURING ECOMMERCE NETWORKS DIAGRAM

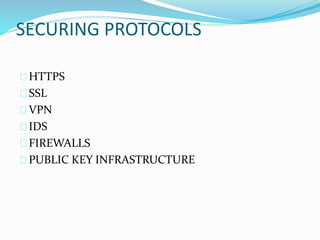

11. SECURING PROTOCOLS
HTTPS
SSL
VPN
IDS
FIREWALLS
PUBLIC KEY INFRASTRUCTURE

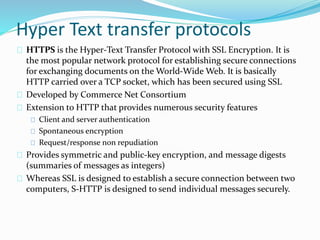

12. Hyper Text transfer protocols
HTTPS is the Hyper-Text Transfer Protocol with SSL Encryption. It is
the most popular network protocol for establishing secure connections
for exchanging documents on the World-Wide Web. It is basically
HTTP carried over a TCP socket, which has been secured using SSL
Developed by Commerce Net Consortium
Extension to HTTP that provides numerous security features
Client and server authentication
Spontaneous encryption
Request/response non repudiation
Provides symmetric and public-key encryption, and message digests
(summaries of messages as integers)
Whereas SSL is designed to establish a secure connection between two
computers, S-HTTP is designed to send individual messages securely.

13. HTTP messages contain two parts: the header and the body of
the message. The header contains instructions to the
recipients (browser and server) on how to process the
message’s body.
During the transfer transaction, both the client browser and
the server, use the information contained in the HTTP header
to negotiate formats they will use to transfer the requested
information.
The S-HTTP protocol extends this negotiation between the
client browser and the server to include the negotiation for
security matters. Hence S-HTTP uses additional headers for
message encryption, digital certificates and authentication in
the HTTP format which contains additional instructions on
how to decrypt the message body.

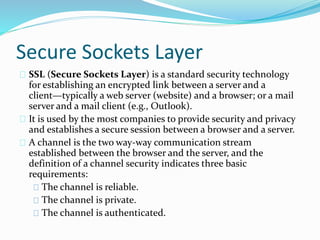

14. Secure Sockets Layer
SSL (Secure Sockets Layer) is a standard security technology
for establishing an encrypted link between a server and a
client—typically a web server (website) and a browser; or a mail
server and a mail client (e.g., Outlook).
It is used by the most companies to provide security and privacy
and establishes a secure session between a browser and a server.
A channel is the two way-way communication stream
established between the browser and the server, and the
definition of a channel security indicates three basic
requirements:
The channel is reliable.
The channel is private.
The channel is authenticated.

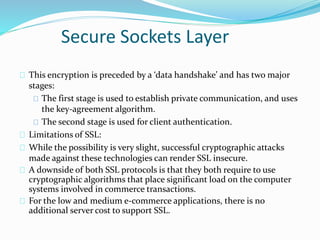

15. Secure Sockets Layer
This encryption is preceded by a ‘data handshake’ and has two major
stages:
The first stage is used to establish private communication, and uses
the key-agreement algorithm.
The second stage is used for client authentication.
Limitations of SSL:
While the possibility is very slight, successful cryptographic attacks
made against these technologies can render SSL insecure.
A downside of both SSL protocols is that they both require to use
cryptographic algorithms that place significant load on the computer
systems involved in commerce transactions.
For the low and medium e-commerce applications, there is no
additional server cost to support SSL.

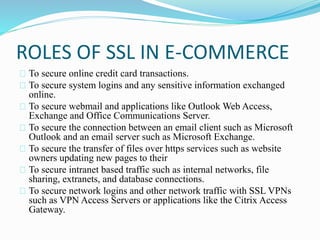

16. ROLES OF SSL IN E-COMMERCE
To secure online credit card transactions.
To secure system logins and any sensitive information exchanged
online.
To secure webmail and applications like Outlook Web Access,
Exchange and Office Communications Server.
To secure the connection between an email client such as Microsoft
Outlook and an email server such as Microsoft Exchange.
To secure the transfer of files over https services such as website
owners updating new pages to their
To secure intranet based traffic such as internal networks, file
sharing, extranets, and database connections.
To secure network logins and other network traffic with SSL VPNs
such as VPN Access Servers or applications like the Citrix Access
Gateway.

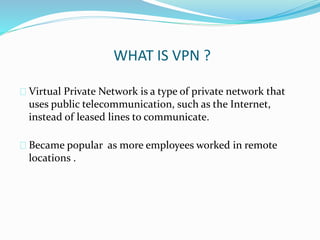

17. WHAT IS VPN ?
Virtual Private Network is a type of private network that
uses public telecommunication, such as the Internet,
instead of leased lines to communicate.
Became popular as more employees worked in remote
locations .

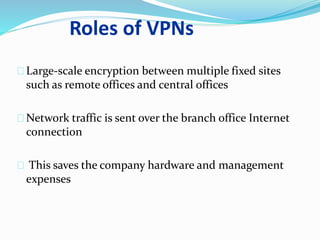

18. Roles of VPNs
Large-scale encryption between multiple fixed sites
such as remote offices and central offices
Network traffic is sent over the branch office Internet
connection
This saves the company hardware and management
expenses

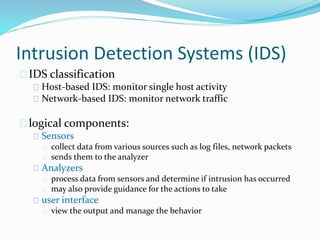

19. Intrusion Detection Systems (IDS)
IDS classification
Host-based IDS: monitor single host activity
Network-based IDS: monitor network traffic
logical components:
Sensors
collect data from various sources such as log files, network packets
sends them to the analyzer
Analyzers
process data from sensors and determine if intrusion has occurred
may also provide guidance for the actions to take
user interface
view the output and manage the behavior

20. IDS REQUIREMENT
o run continually with minimal human supervision
o be fault tolerant
o resist subversion
o minimal overhead on system
serve a large number of users
configured according to system security policies
o allow dynamic reconfiguration

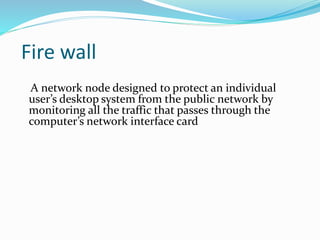

21. Fire wall
A network node designed to protect an individual
user’s desktop system from the public network by
monitoring all the traffic that passes through the
computer’s network interface card

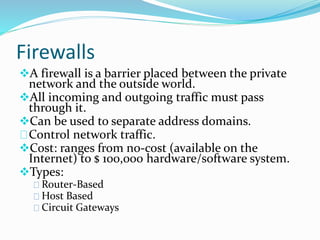

22. Firewalls
A firewall is a barrier placed between the private
network and the outside world.
All incoming and outgoing traffic must pass
through it.
Can be used to separate address domains.
Control network traffic.
Cost: ranges from no-cost (available on the
Internet) to $ 100,000 hardware/software system.
Types:
Router-Based
Host Based
Circuit Gateways

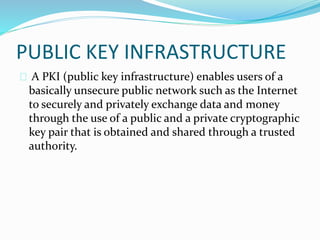

23. PUBLIC KEY INFRASTRUCTURE
A PKI (public key infrastructure) enables users of a
basically unsecure public network such as the Internet
to securely and privately exchange data and money
through the use of a public and a private cryptographic
key pair that is obtained and shared through a trusted
authority.
