1. Understanding Disaster Risk Assessment
Mr Takalani Daniel Makananisa, MA (California) USA, MM-PP (Wits)
PhD Candidate
School of Geography, Archaeology and Environmental Studies
University of the Witwatersrand,
Johannesburg
takiemak@yahoo.co.uk
DMISA
09 -10 September 2015
DISASTER RISK REDUCTION CONFERENCE
A new action agenda for Disaster Risk Reduction

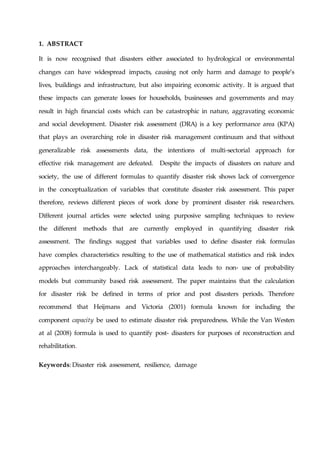

2. 1. ABSTRACT
It is now recognised that disasters either associated to hydrological or environmental
changes can have widespread impacts, causing not only harm and damage to people’s
lives, buildings and infrastructure, but also impairing economic activity. It is argued that
these impacts can generate losses for households, businesses and governments and may
result in high financial costs which can be catastrophic in nature, aggravating economic
and social development. Disaster risk assessment (DRA) is a key performance area (KPA)
that plays an overarching role in disaster risk management continuum and that without
generalizable risk assessments data, the intentions of multi-sectorial approach for
effective risk management are defeated. Despite the impacts of disasters on nature and
society, the use of different formulas to quantify disaster risk shows lack of convergence
in the conceptualization of variables that constitute disaster risk assessment. This paper
therefore, reviews different pieces of work done by prominent disaster risk researchers.
Different journal articles were selected using purposive sampling techniques to review
the different methods that are currently employed in quantifying disaster risk
assessment. The findings suggest that variables used to define disaster risk formulas
have complex characteristics resulting to the use of mathematical statistics and risk index
approaches interchangeably. Lack of statistical data leads to non- use of probability
models but community based risk assessment. The paper maintains that the calculation
for disaster risk be defined in terms of prior and post disasters periods. Therefore
recommend that Heijmans and Victoria (2001) formula known for including the
component capacity be used to estimate disaster risk preparedness. While the Van Westen
at al (2008) formula is used to quantify post- disasters for purposes of reconstruction and
rehabilitation.
Keywords: Disaster risk assessment, resilience, damage

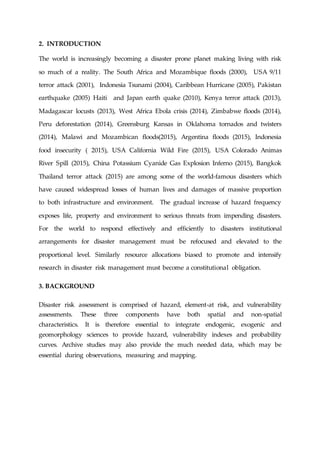

3. 2. INTRODUCTION
The world is increasingly becoming a disaster prone planet making living with risk
so much of a reality. The South Africa and Mozambique floods (2000), USA 9/11
terror attack (2001), Indonesia Tsunami (2004), Caribbean Hurricane (2005), Pakistan
earthquake (2005) Haiti and Japan earth quake (2010), Kenya terror attack (2013),
Madagascar locusts (2013), West Africa Ebola crisis (2014), Zimbabwe floods (2014),
Peru deforestation (2014), Greensburg Kansas in Oklahoma tornados and twisters
(2014), Malawi and Mozambican floods(2015), Argentina floods (2015), Indonesia
food insecurity ( 2015), USA California Wild Fire (2015), USA Colorado Animas
River Spill (2015), China Potassium Cyanide Gas Explosion Inferno (2015), Bangkok
Thailand terror attack (2015) are among some of the world-famous disasters which
have caused widespread losses of human lives and damages of massive proportion
to both infrastructure and environment. The gradual increase of hazard frequency
exposes life, property and environment to serious threats from impending disasters.
For the world to respond effectively and efficiently to disasters institutional
arrangements for disaster management must be refocused and elevated to the
proportional level. Similarly resource allocations biased to promote and intensify
research in disaster risk management must become a constitutional obligation.
3. BACKGROUND
Disaster risk assessment is comprised of hazard, element-at risk, and vulnerability
assessments. These three components have both spatial and non-spatial
characteristics. It is therefore essential to integrate endogenic, exogenic and
geomorphology sciences to provide hazard, vulnerability indexes and probability
curves. Archive studies may also provide the much needed data, which may be
essential during observations, measuring and mapping.

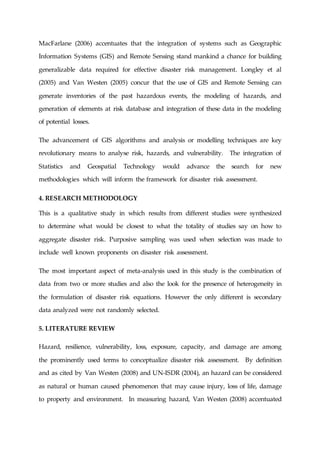

4. MacFarlane (2006) accentuates that the integration of systems such as Geographic
Information Systems (GIS) and Remote Sensing stand mankind a chance for building
generalizable data required for effective disaster risk management. Longley et al
(2005) and Van Westen (2005) concur that the use of GIS and Remote Sensing can
generate inventories of the past hazardous events, the modeling of hazards, and
generation of elements at risk database and integration of these data in the modeling
of potential losses.
The advancement of GIS algorithms and analysis or modelling techniques are key
revolutionary means to analyse risk, hazards, and vulnerability. The integration of
Statistics and Geospatial Technology would advance the search for new
methodologies which will inform the framework for disaster risk assessment.
4. RESEARCH METHODOLOGY
This is a qualitative study in which results from different studies were synthesized
to determine what would be closest to what the totality of studies say on how to
aggregate disaster risk. Purposive sampling was used when selection was made to
include well known proponents on disaster risk assessment.
The most important aspect of meta-analysis used in this study is the combination of
data from two or more studies and also the look for the presence of heterogeneity in
the formulation of disaster risk equations. However the only different is secondary
data analyzed were not randomly selected.
5. LITERATURE REVIEW
Hazard, resilience, vulnerability, loss, exposure, capacity, and damage are among
the prominently used terms to conceptualize disaster risk assessment. By definition
and as cited by Van Westen (2008) and UN-ISDR (2004), an hazard can be considered
as natural or human caused phenomenon that may cause injury, loss of life, damage
to property and environment. In measuring hazard, Van Westen (2008) accentuated

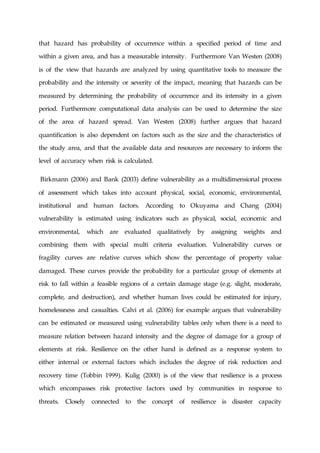

5. that hazard has probability of occurrence within a specified period of time and
within a given area, and has a measurable intensity. Furthermore Van Westen (2008)
is of the view that hazards are analyzed by using quantitative tools to measure the
probability and the intensity or severity of the impact, meaning that hazards can be
measured by determining the probability of occurrence and its intensity in a given
period. Furthermore computational data analysis can be used to determine the size
of the area of hazard spread. Van Westen (2008) further argues that hazard
quantification is also dependent on factors such as the size and the characteristics of
the study area, and that the available data and resources are necessary to inform the
level of accuracy when risk is calculated.
Birkmann (2006) and Bank (2003) define vulnerability as a multidimensional process
of assessment which takes into account physical, social, economic, environmental,
institutional and human factors. According to Okuyama and Chang (2004)
vulnerability is estimated using indicators such as physical, social, economic and
environmental, which are evaluated qualitatively by assigning weights and
combining them with special multi criteria evaluation. Vulnerability curves or
fragility curves are relative curves which show the percentage of property value
damaged. These curves provide the probability for a particular group of elements at
risk to fall within a feasible regions of a certain damage stage (e.g. slight, moderate,
complete, and destruction), and whether human lives could be estimated for injury,
homelessness and casualties. Calvi et al. (2006) for example argues that vulnerability
can be estimated or measured using vulnerability tables only when there is a need to
measure relation between hazard intensity and the degree of damage for a group of
elements at risk. Resilience on the other hand is defined as a response system to
either internal or external factors which includes the degree of risk reduction and
recovery time (Tobbin 1999). Kulig (2000) is of the view that resilience is a process
which encompasses risk protective factors used by communities in response to
threats. Closely connected to the concept of resilience is disaster capacity

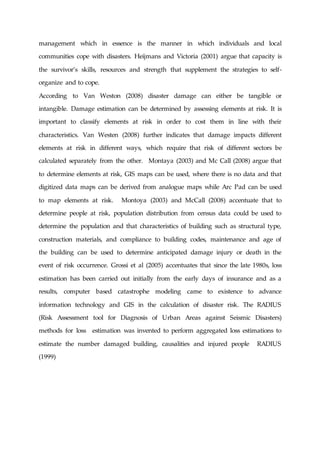

6. management which in essence is the manner in which individuals and local
communities cope with disasters. Heijmans and Victoria (2001) argue that capacity is
the survivor’s skills, resources and strength that supplement the strategies to self-
organize and to cope.
According to Van Weston (2008) disaster damage can either be tangible or
intangible. Damage estimation can be determined by assessing elements at risk. It is
important to classify elements at risk in order to cost them in line with their
characteristics. Van Westen (2008) further indicates that damage impacts different
elements at risk in different ways, which require that risk of different sectors be
calculated separately from the other. Montaya (2003) and Mc Call (2008) argue that
to determine elements at risk, GIS maps can be used, where there is no data and that
digitized data maps can be derived from analogue maps while Arc Pad can be used
to map elements at risk. Montoya (2003) and McCall (2008) accentuate that to
determine people at risk, population distribution from census data could be used to
determine the population and that characteristics of building such as structural type,
construction materials, and compliance to building codes, maintenance and age of
the building can be used to determine anticipated damage injury or death in the
event of risk occurrence. Grossi et al (2005) accentuates that since the late 1980s, loss
estimation has been carried out initially from the early days of insurance and as a
results, computer based catastrophe modeling came to existence to advance
information technology and GIS in the calculation of disaster risk. The RADIUS
(Risk Assessment tool for Diagnosis of Urban Areas against Seismic Disasters)
methods for loss estimation was invented to perform aggregated loss estimations to
estimate the number damaged building, causalities and injured people RADIUS
(1999)

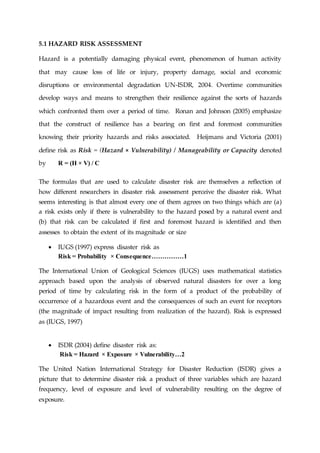

7. 5.1 HAZARD RISK ASSESSMENT
Hazard is a potentially damaging physical event, phenomenon of human activity
that may cause loss of life or injury, property damage, social and economic
disruptions or environmental degradation UN-ISDR, 2004. Overtime communities
develop ways and means to strengthen their resilience against the sorts of hazards
which confronted them over a period of time. Ronan and Johnson (2005) emphasize
that the construct of resilience has a bearing on first and foremost communities
knowing their priority hazards and risks associated. Heijmans and Victoria (2001)

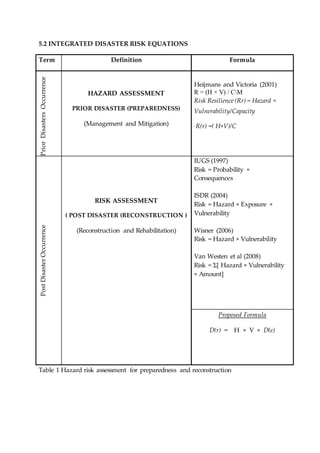

define risk as Risk = (Hazard × Vulnerability) / Manageability or Capacity denoted
by R = (H × V) / C
The formulas that are used to calculate disaster risk are themselves a reflection of
how different researchers in disaster risk assessment perceive the disaster risk. What
seems interesting is that almost every one of them agrees on two things which are (a)
a risk exists only if there is vulnerability to the hazard posed by a natural event and
(b) that risk can be calculated if first and foremost hazard is identified and then
assesses to obtain the extent of its magnitude or size
 IUGS (1997) express disaster risk as
Risk = Probability × Consequence……………1
The International Union of Geological Sciences (IUGS) uses mathematical statistics
approach based upon the analysis of observed natural disasters for over a long
period of time by calculating risk in the form of a product of the probability of
occurrence of a hazardous event and the consequences of such an event for receptors
(the magnitude of impact resulting from realization of the hazard). Risk is expressed
as (IUGS, 1997)
 ISDR (2004) define disaster risk as:
Risk = Hazard × Exposure × Vulnerability…2
The United Nation International Strategy for Disaster Reduction (ISDR) gives a
picture that to determine disaster risk a product of three variables which are hazard
frequency, level of exposure and level of vulnerability resulting on the degree of
exposure.

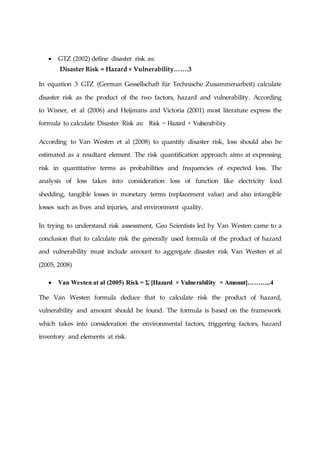

8.  GTZ (2002) define disaster risk as:
Disaster Risk = Hazard × Vulnerability…….3
In equation 3 GTZ (German Gessellschaft für Technische Zusammenarbeit) calculate
disaster risk as the product of the two factors, hazard and vulnerability. According
to Wisner, et al (2006) and Heijmans and Victoria (2001) most literature express the
formula to calculate Disaster Risk as: Risk = Hazard × Vulnerability
According to Van Westen et al (2008) to quantify disaster risk, loss should also be
estimated as a resultant element. The risk quantification approach aims at expressing
risk in quantitative terms as probabilities and frequencies of expected loss. The
analysis of loss takes into consideration loss of function like electricity load
shedding, tangible losses in monetary terms (replacement value) and also intangible
losses such as lives and injuries, and environment quality.
In trying to understand risk assessment, Geo Scientists led by Van Westen came to a
conclusion that to calculate risk the generally used formula of the product of hazard
and vulnerability must include amount to aggregate disaster risk Van Westen et al
(2005, 2008)
 Van Westen at al (2005) Risk = Ʃ [Hazard × Vulnerability × Amount]………..4
The Van Westen formula deduce that to calculate risk the product of hazard,
vulnerability and amount should be found. The formula is based on the framework
which takes into consideration the environmental factors, triggering factors, hazard
inventory and elements at risk.

9. Figure A: Van Westen et al (2005) Framework based on the use of GIS for multi-
hazard risk assessment.
The multi-hazard risk assessment framework in fig . A , above shows that :-

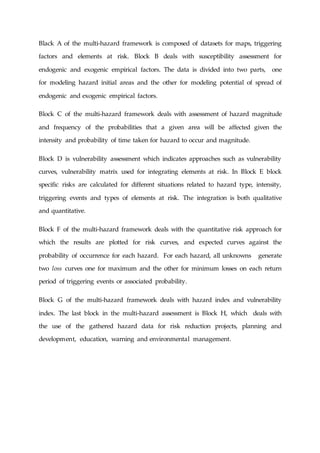

10. Black A of the multi-hazard framework is composed of datasets for maps, triggering
factors and elements at risk. Block B deals with susceptibility assessment for
endogenic and exogenic empirical factors. The data is divided into two parts, one
for modeling hazard initial areas and the other for modeling potential of spread of
endogenic and exogenic empirical factors.
Block C of the multi-hazard framework deals with assessment of hazard magnitude
and frequency of the probabilities that a given area will be affected given the
intensity and probability of time taken for hazard to occur and magnitude.
Block D is vulnerability assessment which indicates approaches such as vulnerability
curves, vulnerability matrix used for integrating elements at risk. In Block E block
specific risks are calculated for different situations related to hazard type, intensity,
triggering events and types of elements at risk. The integration is both qualitative
and quantitative.
Block F of the multi-hazard framework deals with the quantitative risk approach for
which the results are plotted for risk curves, and expected curves against the
probability of occurrence for each hazard. For each hazard, all unknowns generate
two loss curves one for maximum and the other for minimum losses on each return
period of triggering events or associated probability.
Block G of the multi-hazard framework deals with hazard index and vulnerability
index. The last block in the multi-hazard assessment is Block H, which deals with
the use of the gathered hazard data for risk reduction projects, planning and
development, education, warning and environmental management.

11. 5.2 INTEGRATED DISASTER RISK EQUATIONS
Term Definition Formula
PriorDisastersOccurrence
HAZARD ASSESSMENT
PRIOR DISASTER (PREPAREDNESS)
(Management and Mitigation)
Heijmans and Victoria (2001)
R = (H × V) / CM
Risk Resilience (Rr) = Hazard ×
Vulnerability/Capacity
R(r) =( H×V)/C
PostDisasterOccurrence
RISK ASSESSMENT
( POST DISASTER (RECONSTRUCTION )
(Reconstruction and Rehabilitation)
IUGS (1997)
Risk = Probability ×
Consequences
ISDR (2004)
Risk = Hazard × Exposure ×
Vulnerability
Wisner (2006)
Risk = Hazard × Vulnerability
Van Westen et al (2008)
Risk = Ʃ[ Hazard × Vulnerability
× Amount]
Proposed Formula
D(r) = H × V × D(e)
Table 1 Hazard risk assessment for preparedness and reconstruction

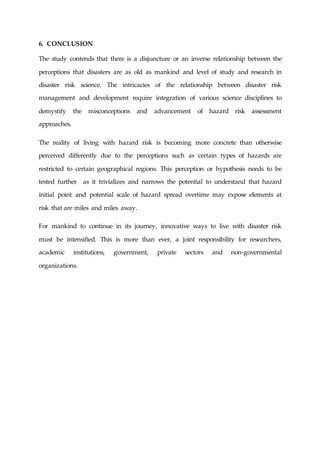

12. 6. CONCLUSION
The study contends that there is a disjuncture or an inverse relationship between the
perceptions that disasters are as old as mankind and level of study and research in
disaster risk science. The intricacies of the relationship between disaster risk
management and development require integration of various science disciplines to
demystify the misconceptions and advancement of hazard risk assessment
approaches.
The reality of living with hazard risk is becoming more concrete than otherwise
perceived differently due to the perceptions such as certain types of hazards are
restricted to certain geographical regions. This perception or hypothesis needs to be
tested further as it trivializes and narrows the potential to understand that hazard
initial point and potential scale of hazard spread overtime may expose elements at
risk that are miles and miles away.
For mankind to continue in its journey, innovative ways to live with disaster risk
must be intensified. This is more than ever, a joint responsibility for researchers,
academic institutions, government, private sectors and non-governmental
organizations.

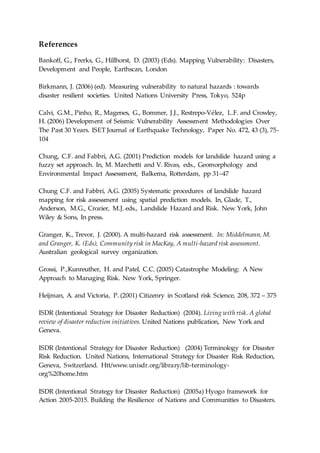

13. References
Bankoff, G., Frerks, G., Hillhorst, D. (2003) (Eds). Mapping Vulnerability: Disasters,
Development and People, Earthscan, London
Birkmann, J. (2006) (ed). Measuring vulnerability to natural hazards : towards
disaster resilient societies. United Nations University Press, Tokyo, 524p
Calvi, G.M., Pinho, R., Magenes, G., Bommer, J.J., Restrepo-Vélez, L.F. and Crowley,
H. (2006) Development of Seismic Vulnerability Assessment Methodologies Over
The Past 30 Years. ISET Journal of Earthquake Technology, Paper No. 472, 43 (3), 75-
104
Chung, C.F. and Fabbri, A.G. (2001) Prediction models for landslide hazard using a
fuzzy set approach. In, M. Marchetti and V. Rivas, eds., Geomorphology and
Environmental Impact Assessment, Balkema, Rotterdam, pp 31–47
Chung C.F. and Fabbri, A.G. (2005) Systematic procedures of landslide hazard
mapping for risk assessment using spatial prediction models. In, Glade, T.,
Anderson, M.G., Crozier, M.J. eds., Landslide Hazard and Risk. New York, John
Wiley & Sons, In press.
Granger, K., Trevor, J. (2000). A multi-hazard risk assessment. In: Middelmann, M.
and Granger, K. (Eds), Community risk in MacKay, A multi-hazard risk assessment.
Australian geological survey organization.
Grossi, P.,Kunreuther, H. and Patel, C.C. (2005) Catastrophe Modeling: A New
Approach to Managing Risk. New York, Springer.
Heijman, A. and Victoria, P. (2001) Citizenry in Scotland risk Science, 208, 372 – 375
ISDR (Intentional Strategy for Disaster Reduction) (2004). Living with risk. A global
review of disaster reduction initiatives. United Nations publication, New York and
Geneva.
ISDR (Intentional Strategy for Disaster Reduction) (2004) Terminology for Disaster
Risk Reduction. United Nations, International Strategy for Disaster Risk Reduction,
Geneva, Switzerland. Htt/www.unisdr.org/library/lib-terminology-
org%20home.htm
ISDR (Intentional Strategy for Disaster Reduction) (2005a) Hyogo framework for
Action 2005-2015. Building the Resilience of Nations and Communities to Disasters.

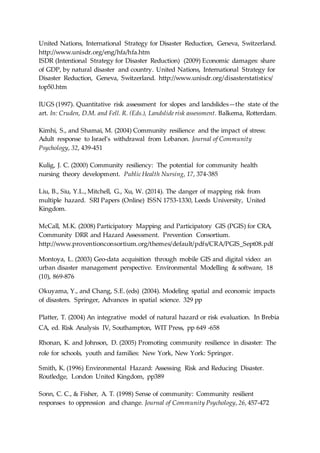

14. United Nations, International Strategy for Disaster Reduction, Geneva, Switzerland.
http://www.unisdr.org/eng/hfa/hfa.htm
ISDR (Intentional Strategy for Disaster Reduction) (2009) Economic damages: share
of GDP, by natural disaster and country. United Nations, International Strategy for
Disaster Reduction, Geneva, Switzerland. http://www.unisdr.org/disasterstatistics/
top50.htm
IUGS (1997). Quantitative risk assessment for slopes and landslides—the state of the
art. In: Cruden, D.M. and Fell. R. (Eds.), Landslide risk assessment. Balkema, Rotterdam.
Kimhi, S., and Shamai, M. (2004) Community resilience and the impact of stress:
Adult response to Israel’s withdrawal from Lebanon. Journal of Community
Psychology, 32, 439-451
Kulig, J. C. (2000) Community resiliency: The potential for community health
nursing theory development. Public Health Nursing, 17, 374-385
Liu, B., Siu, Y.L., Mitchell, G., Xu, W. (2014). The danger of mapping risk from
multiple hazard. SRI Papers (Online) ISSN 1753-1330, Leeds University, United
Kingdom.
McCall, M.K. (2008) Participatory Mapping and Participatory GIS (PGIS) for CRA,
Community DRR and Hazard Assessment. Prevention Consortium.
http://www.proventionconsortium.org/themes/default/pdfs/CRA/PGIS_Sept08.pdf
Montoya, L. (2003) Geo-data acquisition through mobile GIS and digital video: an
urban disaster management perspective. Environmental Modelling & software, 18
(10), 869-876
Okuyama, Y., and Chang, S.E. (eds) (2004). Modeling spatial and economic impacts
of disasters. Springer, Advances in spatial science. 329 pp
Platter, T. (2004) An integrative model of natural hazard or risk evaluation. In Brebia
CA, ed. Risk Analysis IV, Southampton, WIT Press, pp 649 -658
Rhonan, K. and Johnson, D. (2005) Promoting community resilience in disaster: The
role for schools, youth and families: New York, New York: Springer.
Smith, K. (1996) Environmental Hazard: Assessing Risk and Reducing Disaster.
Routledge, London United Kingdom, pp389
Sonn, C. C., & Fisher, A. T. (1998) Sense of community: Community resilient
responses to oppression and change. Journal of Community Psychology, 26, 457-472

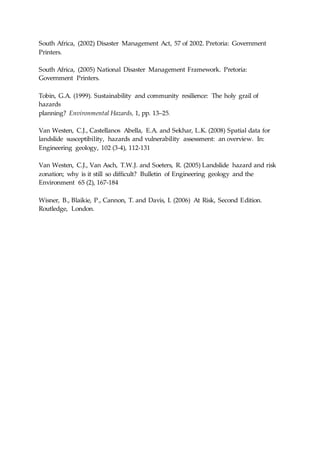

15. South Africa, (2002) Disaster Management Act, 57 of 2002. Pretoria: Government
Printers.
South Africa, (2005) National Disaster Management Framework. Pretoria:
Government Printers.
Tobin, G.A. (1999). Sustainability and community resilience: The holy grail of
hazards
planning? Environmental Hazards, 1, pp. 13–25.
Van Westen, C.J., Castellanos Abella, E.A. and Sekhar, L.K. (2008) Spatial data for
landslide susceptibility, hazards and vulnerability assessment: an overview. In:
Engineering geology, 102 (3-4), 112-131
Van Westen, C.J., Van Asch, T.W.J. and Soeters, R. (2005) Landslide hazard and risk
zonation; why is it still so difficult? Bulletin of Engineering geology and the
Environment 65 (2), 167-184
Wisner, B., Blaikie, P., Cannon, T. and Davis, I. (2006) At Risk, Second Edition.
Routledge, London.
