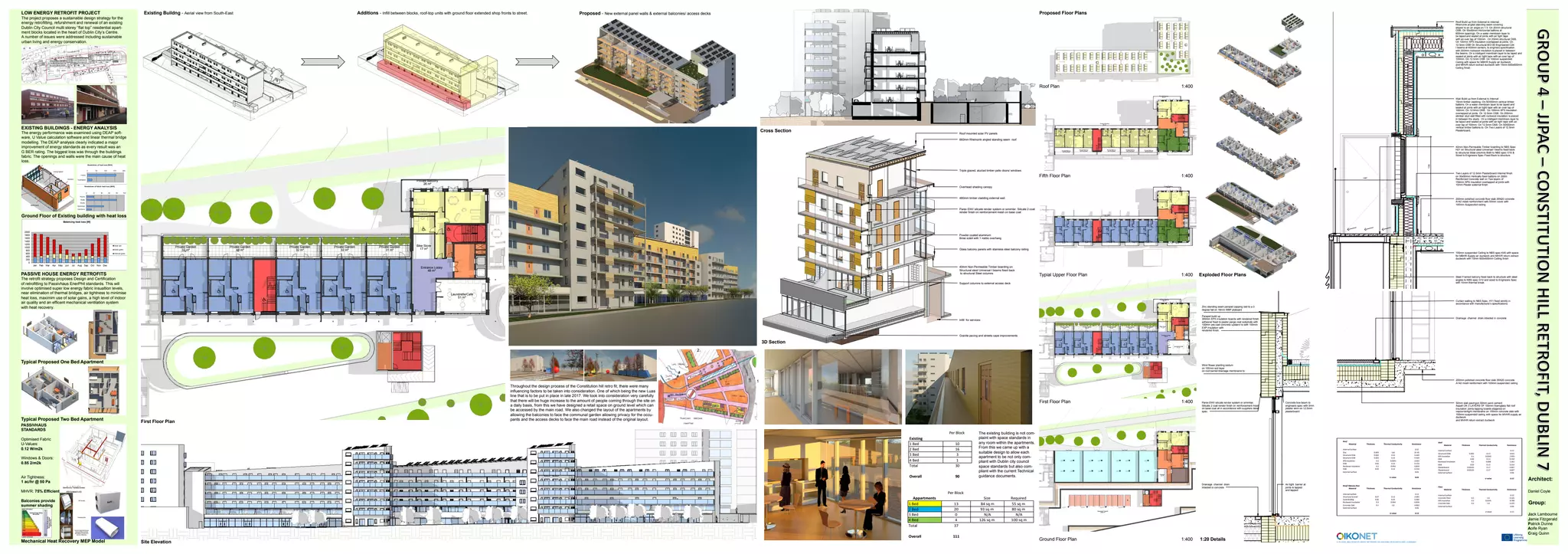

1. 22 m²
Storage
2586 m²
Basement Carpark
32 m²
Private Garden
48 m²
Private Garden
32 m²
Private Garden
32 m²
Private Garden
31 m²
Private Garden
51 m²
Laundrette/Cafe
26 m²
Private Balcony
48 m²
Entrance Lobby
17 m²
Bike Store
12 m²
Private Balcony
53 m²
Access Deck
9 m²
Private Balcony
12 m²
Private Balcony
9 m²
Private Balcony
9 m²
Private Balcony
24 m²
Private Balcony
20 m²
Private Balcony
Ground Floor Plan 1:400
First Floor Plan 1:400
Typial Upper Floor Plan 1:400
55 m²
Access Balcony
Not Enclosed
Private Balcony Not Enclosed
Private Balcony
Not Enclosed
Private Balcony
Not Enclosed
Private Balcony
Not Enclosed
Private Balcony
24 m²
Private Balcony
20 m²
Private Balcony
Fifth Floor Plan 1:400
Roof Plan 1:400
Roof mounted solar PV panels
660mm Rheinzink angled standing seem roof.
Overhead shading canopy
480mm timber cladding external wall.
Parex EWI/ silicate render system or simimlar. Silicate 2 coat
render finish on reinforcement mesh on base coat
Powder coated aluminum
Brise soleil with 1 metre overhang
Glass balcony panels with stainless steel balcony railing
40mm Non-Permeable Timber boarding on
Structural steel Universal I beams fixed back
to structural Steel columns
Support columns to external access deck
Granite paving and streets cape improvements
Infill for services
Triple glazed, aluclad timber patio doors/ windows
8151262
1287
Wall Build up from External to Internal:
15mm timber cladding. On 50X50mm vertical timber
battons. On a water membrain layer to be taped and
sealed at joints with air tight tape with an over lap of
100mm. On 12.5mm OSB. On 100mm XPS insulation
overlapped at joints. On 12.5mm OSB. On 200mm
stimber stud wall filled with rockwool insulation is placed
in between the studs. On a inteligent membrain layer to
be taped and sealed at joints with air tight tape with an
over lap of 100mm. On 12.5mm OSB. On 50X50mm
vertical timber battons to. On Two Layers of 12.5mm
Plasterboard.
Roof Build up from External to Internal:
Rheinzink angled standing seem covering
sloped to an an angle on 1:3. On 20mm structural
OSB. On 50x50mm Horizontal battons at
600mm spacings. On a water membrain layer to
be taped and sealed at joints with air tight tape
with an over lap of 100mm. On 20mm structural OSB.
On 100mm XPS insulation overlapped at joints. On
12.5mm OSB On Structural BCI 90 Engineered C24
I beams at 400mm centers, to enginers specification
with 300mm rockwool insulation is placed in between
the beams. On a inteligent membrain layer to be taped and
sealed at joints with air tight tape with an over lap of
100mm. On 12.5mm OSB. On 100mm suspended
Ceiling with space for MBHR Supply air ductwork
and MHVR return extract ductwork with 15mm 600x600mm
Ceiling finish
100mm suspended Ceiling to NBS spec K45 with space
for MBHR Supply air ductwork and MHVR return extract
ductwork with 15mm 600x600mm Ceiling finish
200mm polished concrete floor slab 35N20 concrete
A142 mesh reinforcment with 50mm cover with
100mm Suspended ceiling
Two Layers of 12.5mm Plasterboard Internal finish
on 50x50mm Vertically fixed battons on 200m
Reinforced Concrete wall on Two layers of
150mm XPS insulation overlapped at joints with
10mm Plaster external finish
40mm Non-Permeable Timber boarding to NBS Spec
H21 on Structural steel Universal I beams fixed back
to structural Steel columns Both to NBS spec G10 &
Sized to Engineers Spec Fixed Back to structure
Steel Framed balcony fixed back to structure with steel
angles to NBS spec G12 and sized to Engineers Spec
with 10mm thermal break
Structural steel column supporting balcony above
Drainage channel drain inbeded in concrete
Curtain walling to NBS Spec. H11 fixed strictly in
accordance with manufacturer’s specifications.
200mm polished concrete floor slab 35N20 concrete
A142 mesh reinforment with 100mm suspended ceiling
New 200mm polished concrete floor slab 35N20
concrete A142mesh reinforcement with 50mm cover laid
on 300mm XPS insulation with radon barrier at joints it is
taped and lapped.
foundation to engineers spec.
50mm slab pavingon 50mm sand cement
Aspalt ON 3 LAYERS OF 100mm foamglass flat roof
insulation Joints lapping boards stagered on
vapour/airtight membraine on 150mm concrete slab with
100mm suspended ceiling with space for MVHR supply air
ductwork
and MVHR return extract ductwork
Wind flower planting sedum
on 100mm soil layer
on root barrier/drainage membraine to
Concrete box beam to
engineers spec with 3mm
plaster skim on 12.5mm
plasterboard
Zinc standing seam parapet capping laid to a 3
degree fall on 18mm WBP plyboard
Drainage channel drain
inbeded in concrete
Parex EWI/ silicate render system or simimlar.
Silicate 2 coat render finish on reinforcement mesh
on base coat all in accordence with suppliers detail
spec.
Parapet build up
300mm EPS insulation boards with rendered finish
adhesive fixed to paster parge coat substrate with
150mm pre-cast concrete upstand to with 100mm
EXP insulation with
rendered finish.
Air tight barrier at
joints is tapped
and lapped
32 m²
Private Garden
48 m²
Private Garden
32 m²
Private Garden
32 m²
Private Garden
31 m²
Private Garden
51 m²
Laundrette/Cafe
26 m²
Private Balcony
48 m²
Entrance Lobby
17 m²
Bike Store
Throughout the design process of the Constitution hill retro fit, there were many
influencing factors to be taken into consideration. One of which being the new Luas
line that is to be put in place in late 2017. We took into consideration very carefully
that there will be huge increase to the amount of people coming through the site on
a daily basis, from this we have designed a retail space on ground level which can
be accessed by the main road. We also changed the layout of the apartments by
allowing the balconies to face the communal garden allowing privacy for the occu-
pants and the access decks to face the main road instead of the original layout.
The existing building is not com-
plaint with space standards in
any room within the apartments.
From this we came up with a
suitable design to allow each
apartment to be not only com-
pliant with Dublin city council
space standards but also com-
pliant with the current Technical
guidance documents.
Architect:
Daniel Coyle
Group:
Jack Lambourne
Jamie Fitzgerald
Patrick Dunne
Aoife Ryan
Craig Quinn
Kitchen
Living Space
Private Balcony
Bathroom
Hall
PASSIVHAUS
STANDARDS
Optimised Fabric
U-Values:
0.12 W/m2k
Windows & Doors:
0.85 2/m2k
Air Tightness:
1 ac/hr @ 50 Pa
MHVR: 75% Efficient
Balconies provide
summer shading
PASSIVE HOUSE ENERGY RETROFITS
The retrofit strategy proposes Design and Certification
of retrofitting to Passivhaus EnerPhit standards. This will
involve optimised super low energy fabric insualtion levels,
near elimination of thermal bridges, air tightness to minimise
heat loss, maximim use of solar gains, a high level of indoor
air quality and an efficent mechanical ventilation system
with heat recovery.
EXISTING BUILDINGS - ENERGY ANALYSIS
The energy performance was examined using DEAP soft-
ware, U Value calculation software and linear thermal bridge
modelling. The DEAP analysis clearly indicated a major
improvement of energy standards as every result was an
G BER rating. The biggest loss was through the buildings
fabric. The openings and walls were the main cause of heat
loss.
LOW ENERGY RETROFIT PROJECT
The project proposes a sustainable design strategy for the
energy retrofitting, refurshment and renewal of an existing
Dublin City Council multi storey “flat top” residential apart-
ment blocks located in the heart of Dublin City’s Centre.
A number of issues were addressed including sustainable
urban living and energy conservation.
Ground Floor of Existing building with heat loss
Typical Proposed One Bed Apartment
Typical Proposed Two Bed Apartment
Mechanical Heat Recovery MEP Model
Existing Buildng - Aerial view from South-East Additions - Infill between blocks, roof-top units with ground floor extended shop fronts to street. Proposed - New external panel walls & external balconies/ access decks
First Floor Plan
Site Elevation
1
2
Cross Section
3D Section
Exploded Floor Plans
1:20 Details
Proposed Floor Plans
Roof
Material Thickness Thermal Conductivity Resistance
Internal Surface 0.12
Zinc 0.003 116 3E‐05
Structural OSB 0.022 0.13 0.169
Structural OSB 0.022 0.13 0.169
XPS Insulation 0.1 0.0341 2.933
OSB 0.02 0.13 0.154
Rockwool Insulation 0.3 0.044 6.818
OSB 0.02 0.13 0.154
External Surface 0.06
U‐value 0.09
Roof/ Balcony floor
Material Thickness Thermal Conductivity Resistance
Internal Surface 0.12
Structural Screed 0.07 0.12 0.583
Sand Binding 0.05 0.25 0.200
Rockwool Insulation 0.3 0.044 6.818
Concrete Slab 0.1 1.6 0.063
External Surface 0.06
U‐value 0.13
Wall
Material Thickness Thermal Conductivity Resistance
Internal Surface 0.12
Structural OSB 0.002 0.13 0.015
XPS Insulation 0.1 0.0341 2.933
OSB 0.02 0.13 0.154
Rockwool Insulation 0.2 0.038 5.263
OSB 0.02 0.13 0.154
Plasterboard 0.00125 0.17 0.007
Plasterboard 0.00125 0.17 0.007
External Surface 0.06
Roof
Material Thickness Thermal Conductivity Resistance
Internal Surface 0.12
Zinc 0.003 116 3E‐05
Structural OSB 0.022 0.13 0.169
Structural OSB 0.022 0.13 0.169
XPS Insulation 0.1 0.0341 2.933
OSB 0.02 0.13 0.154
Rockwool Insulation 0.3 0.044 6.818
OSB 0.02 0.13 0.154
External Surface 0.06
U‐value 0.09
Roof/ Balcony floor
Material Thickness Thermal Conductivity Resistance
Internal Surface 0.12
Structural Screed 0.07 0.12 0.583
Sand Binding 0.05 0.25 0.200
Rockwool Insulation 0.3 0.044 6.818
Concrete Slab 0.1 1.6 0.063
External Surface 0.06
U‐value 0.13
Wall
Material Thickness Thermal Conductivity Resistance
Internal Surface 0.12
Structural OSB 0.002 0.13 0.015
XPS Insulation 0.1 0.0341 2.933
OSB 0.02 0.13 0.154
Rockwool Insulation 0.2 0.038 5.263
OSB 0.02 0.13 0.154
Plasterboard 0.00125 0.17 0.007
Plasterboard 0.00125 0.17 0.007
External Surface 0.06
U‐value 0.12
Floor
Material Thickness Thermal Conductivity Resistance
Internal Surface 0.12
Concrete Floor 0.2 1.6 0.125
XPS Insulation 0.3 0.0341 8.798
Concrete Slab 0.2 1.6 0.125
External Surface 0.06
U‐value 0.11
Per Block
Existing
1 Bed 10
2 Bed 16
3 Bed 3
4 Bed 1
Total 30
Overall 90
Per Block
Appartments Size Required
1 Bed 13 84 sq m 55 sq m
2 Bed 20 93 sq m 80 sq m
3 Bed 0 N/A N/A
4 Bed 4 126 sq m 100 sq m
Total 37
Overall 111
