The document discusses Feature-Driven Development (FDD), detailing its background and methodology as applied to a complex Java project for an international bank. Key aspects include the framework's structure, team roles, lifecycle stages, best practices, and benefits such as delivering frequent and tangible results. It highlights the significance of domain modeling, feature teams, and progress reporting in ensuring successful project outcomes.

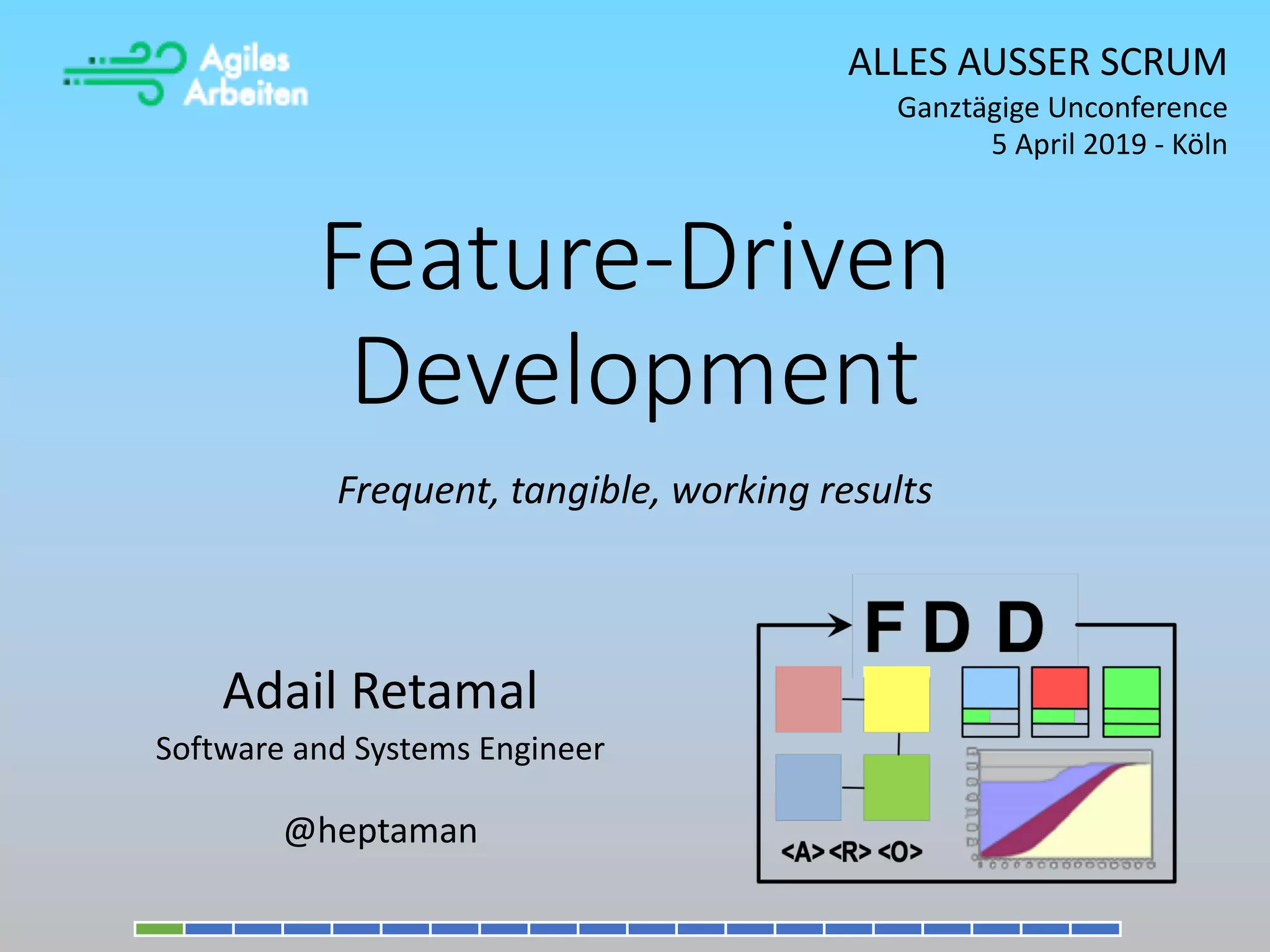

1. Feature-Driven
Development
Adail Retamal
Software and Systems Engineer
@heptaman
Frequent, tangible, working results
ALLES AUSSER SCRUM
Ganztägige Unconference
5 April 2019 - Köln

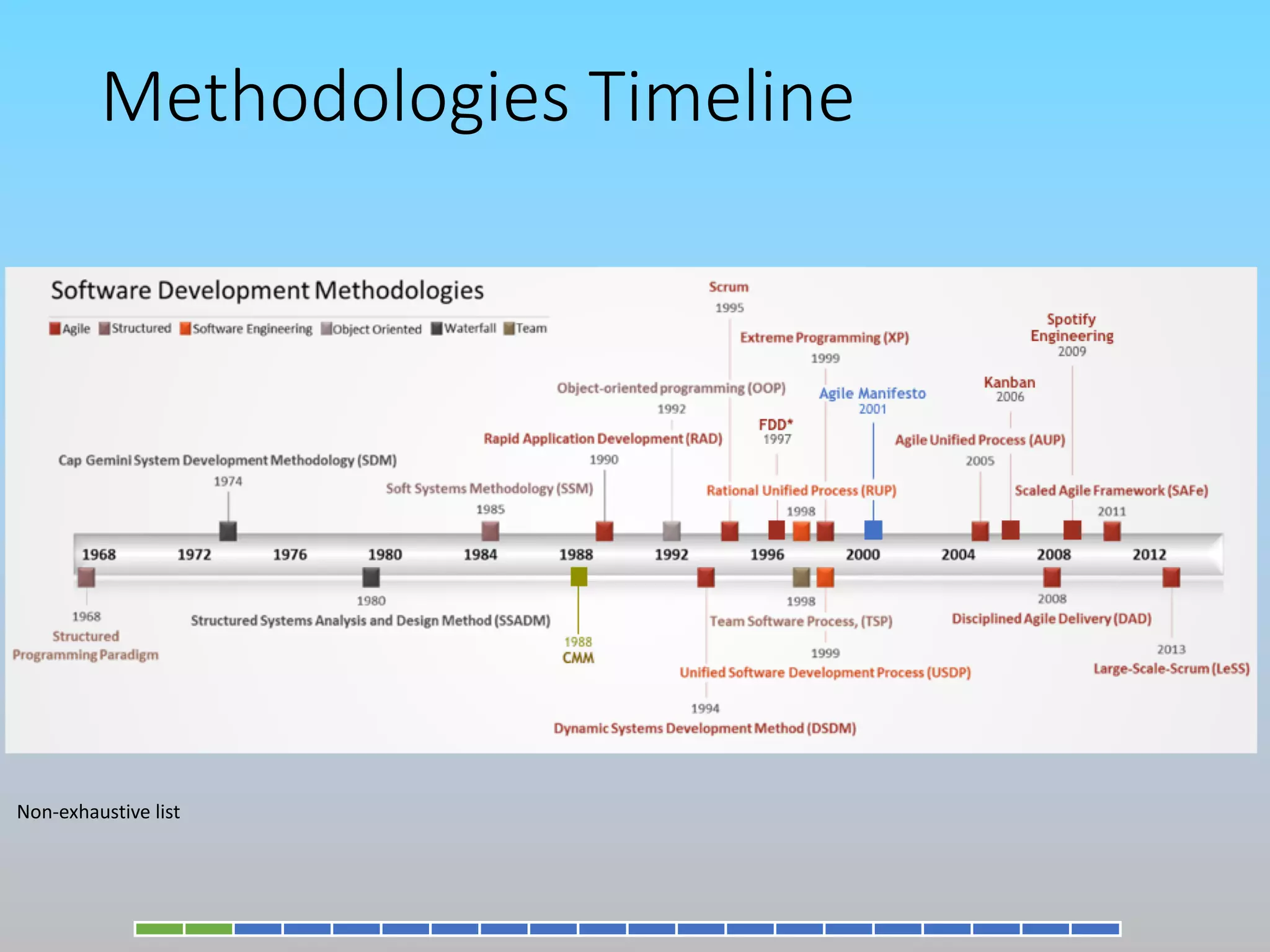

2. Methodologies Timeline
Non-exhaustive list

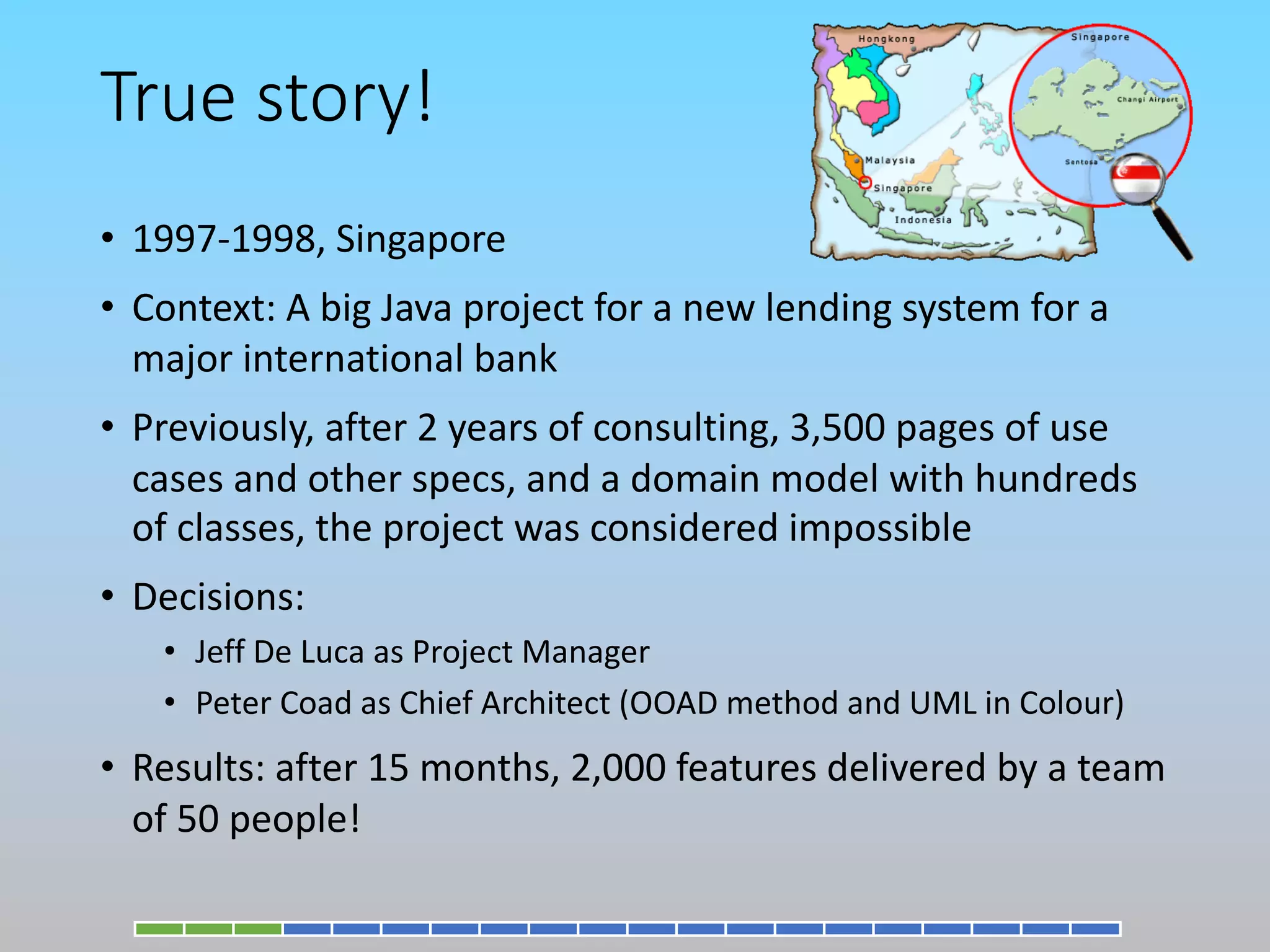

3. True story!
• 1997-1998, Singapore
• Context: A big Java project for a new lending system for a
major international bank
• Previously, after 2 years of consulting, 3,500 pages of use
cases and other specs, and a domain model with hundreds
of classes, the project was considered impossible
• Decisions:
• Jeff De Luca as Project Manager
• Peter Coad as Chief Architect (OOAD method and UML in Colour)
• Results: after 15 months, 2,000 features delivered by a team
of 50 people!

4. FDD: People and Books
Jeff De LucaPeter Coad
Stephen Palmer John Mac Felsing
David Anderson

5. FDD: Birthplace
United Overseas Bank HQ David Anderson, the GUI-Man
Peter Coad and
the Domain Team
Paul Szego and
Stephen Palmer
Jeff De Luca and the
Development Team

6. FDD: Main Benefits
• Enough structure for bigger teams
• Emphasis on quality production software
• Frequent, tangible, working results
• Meaningful upfront work before becoming highly
iterative (invaluable for fixed-price contracts!)
• Simple and meaningful progress and status reports
• Common language and mindset across customers,
managers and developers

7. Do Bit by Bit
Think A Bit
Construction
Startup
FDD: Lifecycle
More content in shape
More shape than content
Domain
Model
Work Packages
Product
Requirements
Development
Plan
Progress Reports
Develop
an Overall
Model
1
Build
Features
List
2 Planning3
Design by
Feature
4
Build by
Feature
5
FBS

8. FDD: Roles
Project
Manager
Chief
Architect
Domain
Specialists
Development
Manager
Chief
Programmers
Class
Owners

9. FDD: Best Practices (Then and Now)
• Domain object modelling
• Development by feature
• Situational class/code ownership
• Feature Teams
• Inspections
• Regular builds
• Configuration Management
• Simple and meaningful progress reports
à UML in Colour à DDD
à User Story à Full Stack Slice
à Pull Request
à Spotify organisation (~ Squads, Guilds)
à Design & Code Reviews à Automated Testing
à Git à CI/CD à DevOps
à Kanban

10. Domain Neutral Components (DNC) or
Archetypal Domain Shape (ADS)
<<mi>>
Moment_Interval
Status
ID
StartDateTime
FinishDateTime
…
AddDetail
Complete
Cancel
ComputeAmount
…
<<mi-detail>>
MI_Detail
Order
Quantity
…
ComputeAmount
…
<<role>>
Role
Status
ID
PerformanceIndicator
…
EvaluatePerformance
AvailableInThisRole
…
<<party/place/thing>>
Party_Place_Thing
SerialNumber
Name
Address
…
IsAvailable
EvaluateAcrossRoles
…
<<description>>
Description
ID
Description
DefaultValue
…
ComputeAvailableQty
ComputeAmountForQty
…
0..*1
0..*
0..11
0..*
1

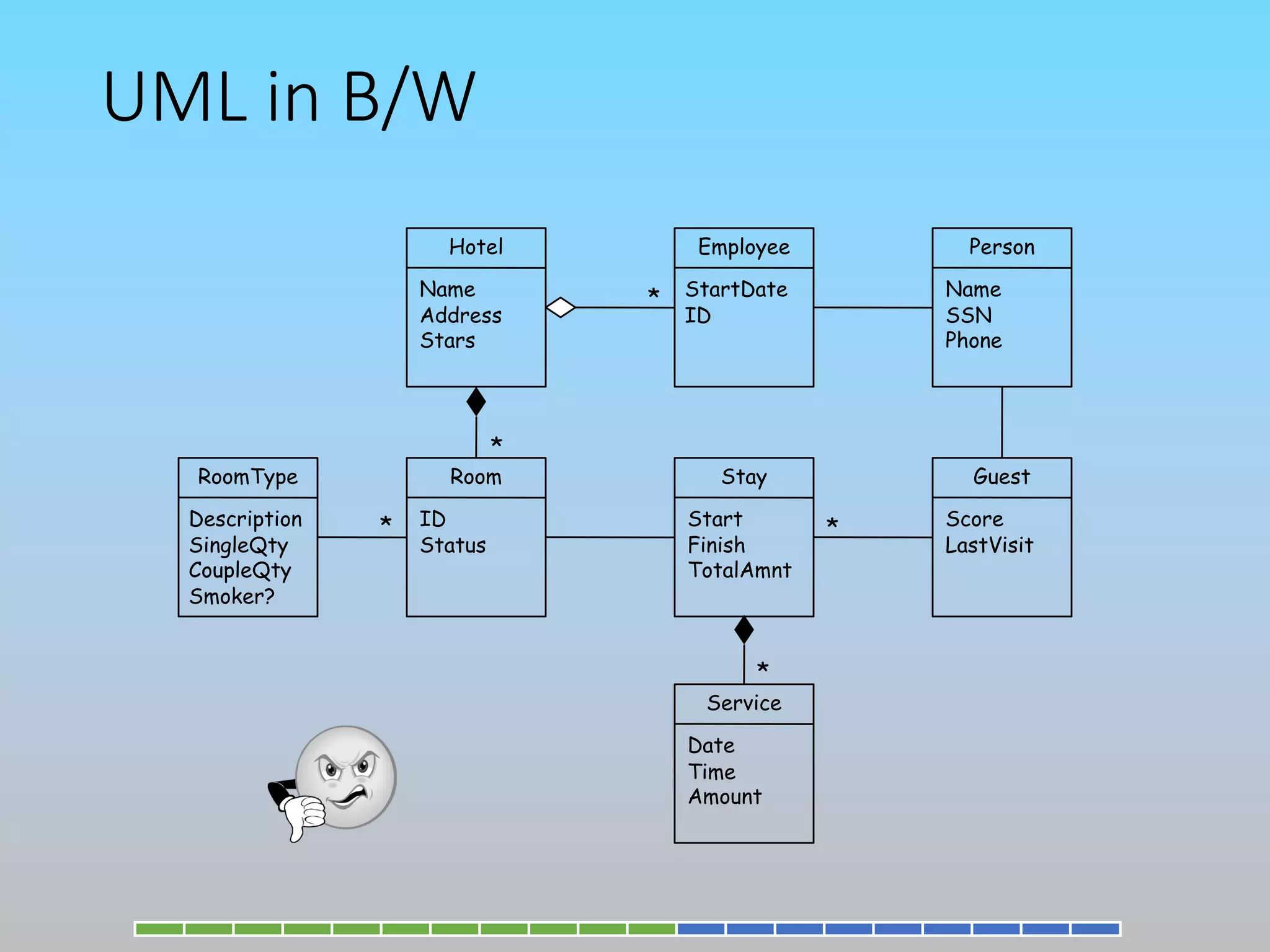

11. UML in B/W
Room
ID
Status
Guest
Score
LastVisit
Hotel
Name
Address
Stars
Person
Name
SSN
Phone
Stay
Start
Finish
TotalAmnt
*
Employee
StartDate
ID
*
*
Service
Date
Time
Amount
*
RoomType
Description
SingleQty
CoupleQty
Smoker?
*

12. UML in Colour
Room
ID
Status
Guest
Score
LastVisit
Hotel
Name
Address
Stars
Person
Name
SSN
Phone
Stay
Start
Finish
TotalAmnt
*
Employee
StartDate
ID
*
*
Service
Date
Time
Amount
*
RoomType
Description
SingleQty
CoupleQty
Smoker?
*
The Power of Archetypes!

13. FBS: Feature Breakdown Structure
System or
Application
Business Area Business Area Business Area
Business Activity
Business Activity
Business Activity
Business Activity
Business Activity
Business Activity
Business Activity
Business ActivityFeature
Feature
[Xyz] Management
<Noun>
<Verb In The Infinitive> ...
<Action> <Result> <Object>

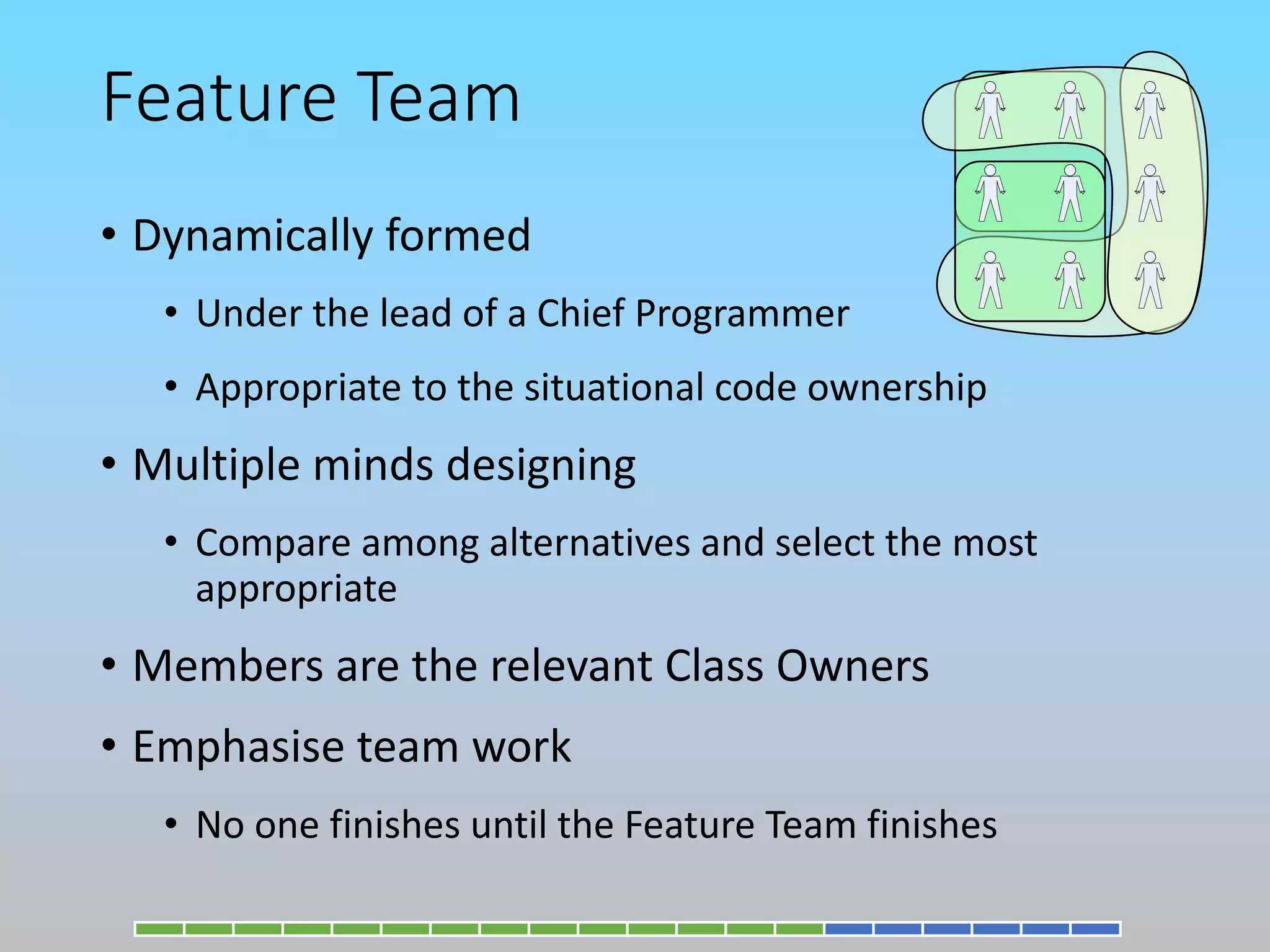

14. Feature Team
• Dynamically formed
• Under the lead of a Chief Programmer
• Appropriate to the situational code ownership
• Multiple minds designing
• Compare among alternatives and select the most
appropriate
• Members are the relevant Class Owners
• Emphasise team work
• No one finishes until the Feature Team finishes

15. Progress Report: Proto-Kanban
• During the iterative cycles (process #4 and #5) progress is measured
according to well defined milestones (6 in the original definition)
• When each milestone is reached its respective percentage is aggregated to
the total progress of the feature (kind of earned value)
Domain
Walkthrough
1%
Design
40%
Design
Inspection
3%
Code
45%
Code
Inspection
10%
Promote
to Build
1%
#4: Design by Feature #5: Build by Feature
DOM BFL PBF
DBF BBF

16. The Parking Lot Report
Key: Not started In Progress Attention Complete
Sales Management (SM) – 34%
Purchase
Orders
(33)
Jul 2019
CP-1
Contract
Management
(13)
Oct 2019
Product
Selling
(22)
Mar 2019
CP-1
Product
Shipment
(19)
Oct 2019
CP-1
10%
Product
Delivery
(10)
Sep 2019
CP-3
30%
Sales
Reports
(14)
May 2019
75%99% 3%
Customer Account Management (CAM) – 90%
New Account
Proposal
(23)
Feb 2019
95%
Account
Transaction
Records
(30)
Mar 2019
82%
New Account
Opening
(11)
Dec 2018
100%
Stock Management (SM) – 94%
SKU
Management
(26)
Dec 2018
100%
Stock
Reconciliation
(19)
Feb 2019
82%
CP-3
SKU
Movement
(18)
Jan 2019
97%
CP-3
CP-2 CP-1
CP-2 CP-2 CP-2 CP-3
Commercial
System
(238)
Nov 2019
65%
Current Date:
05-Mar-2019

17. CFD: Leading and Historical Indicator
Cumulative Flow Diagram
Key:
Not Started
In Progress
Complete
Time (weeks)
Features
Lead Time
Work in ProgressProduct Backlog

18. FDD to the Rescue
8. Product Increment
(potentially shippable)
6. Daily
5. Iteration
(2 - 4 weeks)4. Tasks
detailed
by the team
1. Vision
(ROI, milestones,
releases)
2. Product Feature Backlog, prioritized
by the Product Owner
3. Iteration
Backlog
7. Standup
Meetings
Startup
1
DOM
3
PBF
2
BFL
Construction
4
DBF
5
BBF
9. Inspect
and Adapt

19. FDD: Where to Learn More
• A Practical Guide to FDD (the book)
• Excerpt chapter 3 “Integrating Best Practices”
• www.featuredrivendevelopment.com
• FDD @ Nebulon (Jeff’s old company)
• Stephen Palmer’s STEP-10 Blog
• Software Engineering Radio: Jeff De Luca on FDD
• FDD on Wikipedia

20. Thanks and Q&A
Adail Retamal
@heptaman
linkedin.com/in/adail
