1. FAN CONCEPT & ANALYSIS IN CEMENT
INDUSTRY
BY –NITIN ASNANI (Certified Energy Auditor by BEE)
(CEA-28964)

2. Static Pressure
❑Static Pressure
❑Pressure exerts due to compression of air
❑Independent of gas velocity:- P
❑Changes as per system resistance
System Resistance?
Sum of static pressure is known as System resistance
Independent of Gas velocity?

3. System Resistance

4. Numerical no 1
Find the system resistance across mill?
a) Find the system resistance across mill?
b) System resistance across mill inlet to fan inlet?
Solution:-
Static pressure at mill inlet +Static pressure above nozzle +static pressure on sep
body= Mill outlet pressure

5. Independent of Gas Velocity?
Circular duct
Gas
Static Pressure is same at both
points.
Velocity Pressure is minimum Velocity Pressure is greater than
point1
Point1
Point2

6. Dynamic Pressure
❑Pressure exerts due to gas motion
❑Dependent upon Velocity:-1/2 ρ v2
❑Changes as per velocity profile inside the duct
❑Maximum at Centre:-
THUMB RULES
▪ Average dynamic pressure equals to 90 % of center value
▪ Due to eddy's formation the value may increase at side wall
▪ If flow is laminar then Dynamic pressure value increase from side wall to
centre.

7. Gas properties
❑Density of gases decreases as temperature increases
❑Total volumetric flow rate increases by increasing temperature.
❑Mass flow rate is independent of temperature
❑Actual Density/Normal Density *m3/hr=0.60/1.42*50,0,000
Nm3/hr.-Volume of gas standard temperature & pressure
m3/hr.-Volume of gas at temperature& pressure

8. Standard Gas Density
• Density of Air-1.29 kg/Nm3
• Density of Flue gases:-1.42 kg /Nm3
• Density of Flue gases at high oxygen Concentration:-1.35 kg/Nm3
• Average Density calculation by formulae

9. Barometric Pressure
• Atmospheric pressure is also known as Barometric pressure.
• Pressure caused by the weight of air above us
• Barometric pressure decreases with increasing Altitude(Reference
point-sea level)
• Effect on Fan power & compressor
P(h)=barometric pressure in kPa
h = Height above sea level in m
P(h)=barometric pressure in kPa
P(h)=101.325exp(-0.00012h)

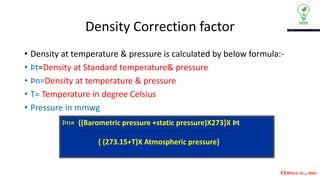

10. Density Correction factor
• Density at temperature & pressure is calculated by below formula:-
• Þt=Density at Standard temperature& pressure
• Þn=Density at temperature & pressure
• T= Temperature in degree Celsius
• Pressure in mmwg
Þn= {(Barometric pressure +static pressure)X273}X Þt
{ (273.15+T)X Atmospheric pressure}

11. Numerical Problem-1
• Find the density of air?
Given:-
❑Temp of cooler vent air:-250 degree C
❑Static pressure inside the duct: -30 mmwg
❑Density of air:-1.29 kg/Nm3
❑Atmospheric pressure:-10336 mmwg
❑Height above sea level:-300 m

12. Solutions
Step1:-Find Barometric pressure
Barometric Pressure = 101.325 x exp(-00012 x 300)
= 97.74 kPa
= 97.74x101.97
= 9966mmwg
Step2:-Apply density correction formula
= {(9966+(-30))x(273)/(273+250)x(10336)X1.29
= 0.65 kg/m3

13. Concept of pitot Tube

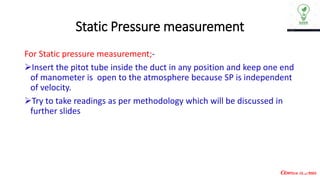

14. Static Pressure measurement
For Static pressure measurement;-
➢Insert the pitot tube inside the duct in any position and keep one end
of manometer is open to the atmosphere because SP is independent
of velocity.
➢Try to take readings as per methodology which will be discussed in
further slides

15. Dynamic pressure measurements:-
• Gas Flow
➢Put the pitot tube in along the gas direction.
➢Connect both end (+ or -) of manometer and then take readings from side wall of duct to
center.
➢Change the position(yellow end upwards now) of pitot tube for calibration point of view
in such a way the both readings should be come same .
➢Measurements should be carried by S type pitot tube for dust laden gas.
➢L type for clean air(Generally for bag filters)

16. Methodology to take correct readings

17. Numerical No-2
Find the average dynamic pressure of gas flow inside the horizontal duct?
Given readings:-
11,12,10,9
Solution
Average={ (sqrt(11)+sqrt(12)+sqrt(10)+sqrt(9)) }2
{ 4}
= 10.47 mmwg

18. Gas Flow Measurements
V = Pitot constant xSqrt{(2x9.8xdynamic pressure)}
{ (density at particular temp)}
g = 9.8 m/s2
Dynamic pressure = mmwg
Density = kg/m3
Q = AXV
• A = Area(m2)
• V = Velocity(m/s)
• Q = Total volumetric flow rate-(m3/s)

19. Numerical -
Find preheater gas flow in m3/hr,Nm3/hr, kg/hr,Nm3/kg clinker?
Given
Temp = 280 degree C
SP = -550 mmwg
dynamic Pressure = 12 mmwg
Duct diameter = 3.2 m
Height above sea level = 330m
density of flue gases = 1.42kg/Nm3
Clinker production = 4000TPD
Pitot constant = 0.85

20. Solution
Step 1 :-
Find barometric Pressure-
= Barometric Pressure
= 101.325 x exp(-00012 x 330)x101.97
= 9931 mmwg
Step 2:-
Find Density correction factor:-
Step2:-Apply density correction formula
= {(9931+(-550))x(273)/(273+270)x(10336)X1.42
= 0.64 kg/m3

21. Solution
Step 3:-
Find the velocity?
V = Pitot constant X Sqrt{(2x9.8xdynamic pressure)}
{ (density at particular temp)}
V = 0.85Xsqrt(2x9.8x12/0.64)
= 16 .34 m/s
Q = A XV
A = 3.14X3.5X3.5/4
Q = 16.34X9.62
= 16.34X9.62X3600

22. Solution
= 565764 m3/hr
Flow (kg/hr) = 565764x0.64
= 359961 kg/hr
Nm3/hr = m3/h x(corrected density/density at STP)
Nm3/hr = 565764 x(0.64/1.42)
= 253493 m3/hr
Nm3/kg Clink = 253493/4000x1000/24
= 1.52 Nm3/kg clinker

23. Concept of fan
• A centrifugal fan is a mechanical device for moving air or other
Gases, with rotating Impellers.
• They use the kinetic energy of the Impellers / the rotating blade to
increase the pressure of the air/gas stream which in turn moves
them against the resistance caused by ducts, dampers and other
components
• A rotary machine which maintains a continuous flow of air at a
pressure ratio not normally exceeding 1.3
• A device for moving air which utilizes a power driven rotating
impeller. A fan shall have at least one inlet opening and at least one
outlet opening. The openings may or may not have elements for
connection /duct

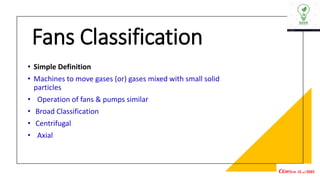

24. Fans Classification
• Simple Definition
• Machines to move gases (or) gases mixed with small solid
particles
• Operation of fans & pumps similar
• Broad Classification
• Centrifugal
• Axial

25. Difference between Fans & Blowers
• The property that distinguishes a centrifugal fan from a blower
is the pressure ratio it can achieve.
• A blower in general can produce higher pressure ratio.
• As per American Society of Mechanical Engineers (ASME) the
specific ratio – the ratio of the discharge pressure over the
suction pressure – is used for defining the fans and blowers

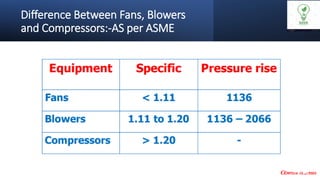

26. Difference Between Fans, Blowers
and Compressors:-AS per ASME

27. ILLUSTRATION

28. MAJOR PROCESS FANS
• 30% to 40% of the plants total electrical energy consumption are from
Major Process fans
• Major Process Fans:
• Pre Heater Fans
• Raw Mill Fan
• Coal Mill
• Raw Mill BH / ESP Fan
• Cooler Vent / ESP Fans
• Cement Mill Fans (CVRM)
• Raw Mill / Coal Mill / CVRM Booster Fans
• Clinker Cooler Fan

29. Thumb Rules
• FAN is a Rotary Machine
• Fan has a Pre- designed Capacity (Flow & Pressure)
• Fan works against a SYSTEM
• Fan utilizes a driving equipment & consumes Power,
against the work done
• Fan being a “ROTARY MACHINE”, helps in the movement
of Gas in a system from one location to another location.

30. Concept of System Resistance
• System resistance is the sum of Pressure losses in the system
• System resistance is a function of configuration of ducts, bends &
pressure drop across the equipment’s.
• The system resistance varies with the square of the volume of air
flowing through the system.
• The system resistance increases substantially as the volume of air
flowing through the system increases; square of air flow.

31. Resistance in the system
• Process Equipment
• Dampers
• Duct Losses ( due to duct layout / sizing)
• Cyclones
• ESP /BH
• Other sources of Resistance:
• Loss of energy due to sudden change in Gas velocity
• Improper change in Cross sectional area
• Change in direction of flow

32. Pressure HEAD VS FLOW
Head ∝ Volume 2

33. FAN LAW

34. Thumb Rules

35. Numericals
Given:-
Q1=300000 m3/hr;N1=800 RPM if rpm is reduced by 10% then find Q2?
Sol :-
Apply Fan law
N1/N2 = Q1/Q2
Q2 = N2XQ1/N1
Q2 = 300000 X 720/800
Q2 = 270000 m3/hr.
% = (300000-270000)/(300000)
= 10%
Flow is reduced by 10%

36. Numericals
Given:-
SP1=400 mmwg;N1=800 RPM if rpm is reduced by 10% then find SP2?
Solution :-
Apply Fan law
(N1/N2)2 = SP1/SP2
SP1/SP2 = (N1/N2)2
SP1/SP2 = (800/720)2
SP2 = 400/1.23
SP2 = 324 mmwg
% = (400-324)/(400)
Head reduced by19%

37. Fan Characteristic Curve

38. System curve and Fan curve
• System curve:
• Represents performance of duct system
• Shows the relationship between the flow rate and the
pressure required to create that flow through the duct
system
• Fan curve:
• Represents performance of fan
• Shows the relationship between the flow rate and pressure
created by the rotation of a fan impeller

39. System Curve & Fan Curve

40. Operating Point
The intersection of system curve and fan curve determine the operating point for the system

41. Factors Affecting Fan Performance
❖RPM
❖Diameter
❖Density
❖Temperature

42. Fan Efficiency
Formulae

43. Calculation of Fan Head & Power Saving
Fan head = Fan O/L-Fan I/L
Power Saving = Pressure Drop X Electrical Power
Fan Head

44. Numericals
N7:-If an existing raw mill old cyclones replace with new one and get the benefit
of 30 mmg then how much electrical saving will be achieved in terms of
SEC(kWh/ton of material)?
Given
Raw mill TPH = 300 TPH
Electrical Power of Fan = 2000 kW
Fan O/L pressure = -10 mmwg
Fan inlet Pressure = -1000 mmwg
Solution:-
Step 1
Calculate Fan Head
= ((-10 )-(-1000))
= 990 mmwg

45. Numericals
Step 2:-
How to Calculate pressure drop saving in terms of Power ?
= Pressure Drop X Electrical Power
Fan Head
= (30/990) X Electrical power
= 60 kW
SEC = 60/300
Saving = 0.20 kWh/ton of material

46. Fan Curve Analysis
Option-1
If actual Pressure is higher than the design pressure the operating point
shifts towards left side- Volume reduces
• Maximum Operating Pressure should be less than “Peak pressure” to avoid
getting into surging Zone.
Option-2
• Operating Pressure – Too Low
• Operating point shifts to right- efficiency level goes down.
• Design Efficiency is good – Operating Efficiency can be good by initiating
actions.
• Design Efficiency is Low- Operating Efficiency Low

47. OPTION 3
• A Fan with no margin on Parameters having margin on Motor
• Look for possibility of up gradation
• B. Fan with no margin on Parameters & no margin on Motors Look
for creating margin within the system
▪ Gas flow being function of process – look for reduction in system
Pressure.
▪ Once margin is created on system pressure, we get margin on Motor

48. GAS VELOCITY PROFILE
• Fan Inlet & Outlet velocities should be compatible to System duct
velocity(difference should not be greater than 8 m/s)
• Higher is the difference between Fan Inlet/Outlet velocity…& Duct
velocity Higher will the turbulence
• Higher the turbulence…more will be the pressure drop..

49. Fan efficiency Calculations….

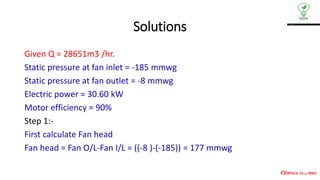

50. Solutions
Given Q = 28651m3 /hr.
Static pressure at fan inlet = -185 mmwg
Static pressure at fan outlet = -8 mmwg
Electric power = 30.60 kW
Motor efficiency = 90%
Step 1:-
First calculate Fan head
Fan head = Fan O/L-Fan I/L = ((-8 )-(-185)) = 177 mmwg

51. Solutions
Step 2:-
Then, calculate Mechanical Power
Q=m3 /hr; g=9.8 m/sec2
Mechanical power = QXFan headX9.8 /3600X1000
= 28651x177x9.8 /3600x1000
= 13.80 kW
= 13.80/(30.60X0.90) = 50.10%

52. How to Calculate Damper losses?

53. Fan Controlled Techniques
• Is it off the correct capacity/head?
• How is the fan controlled
• Damper throttling
• Guide vane control
• Speed control – GRR / SPRS / VFD/ON/OFF

54. Various Control Methods

55. GRR Losses Calculations
• Saving Calculations
• Fan1 rated RPM = 980
• Fan1 operating RPM = 845
• Slip = 1-(operating RPM/rated RPM) Slip = 0.138
• GRR Losses = Slip*(1-(Slip*Slip))*Present power
= 0.138*(1-(0.138*0.138))*1012
= 136.76 kW

56. Fan Retrofication Concept
• Retrofitting refers to the addition of new technology or features to
older systems.
• This is the up gradation of the Fan performance for improved capacity
or reduction in specific power consumption.
• During Retrofitting, look at the past performance of the fan and then
retrofit with the high efficiency impeller into the existing fan casings to
achieve highest performance.
• Practically it is replacement of Impeller within existing casing, to suit
the upgraded parameters with higher operating efficiency level

57. Fan Retrofication Concept
• Can the capacity/head be further fine tuned?
• What is the efficiency of fan?
• Can it be replaced by high efficiency fan
• Is it possible to reduce system resistance – Suction /
discharge side
• Can fan operation be interlocked with process operation?

58. ESP Exhaust fan-Case Study
• Fan Designed for 300 TPD Kiln output
• Fan Rating :-1,10,000 m3 /h, 200 mm WC, 110 kW
• Fan Operating With DC drive
• Present Operation – 450 TPD kiln output
• Actual fan parameters -1,48,000 m3 /h, 110 mmwg

60. ESP VENT
FAN CURVE

63. Fan retrofication opportunities
• Observations:-
• Fan Rated for 78.5% Efficiency
• Present Efficiency - Only 45%
• Fan efficiency is deteriorated because mismatch between design head
with operating head.
• Design Head:- 200 mmwg
• Operating Head :-110 mmwg

64. Fan retrofication opportunities
• Recommendations:-
• Replace Fan with new Correct head fan & flow(Efficiency -80%)
Specifications
• Q = 150000 m3 /hr
• Head = 120 mmwg
• Efficiency = 80%

66. Fan efficiency Concept –How to increase?
• Optimum margin in head & flow
• Higher efficiency
• Operation close to best efficiency point
• Suitable fan control system

67. Conclusion –Fan retrofication
• Assess the Process requirement
• Analyze the Fan design data
• Compare the actual performance data with design
• Fan Power is a function of Volume & Pressure
• Volume & Pressure- function of Process & system
• So we must investigate the System & try to optimize to reduce Fan
power.
• Look even beyond Fan & identify potential.

68. Considerations
❑Low Design & operating efficiency of the existing Fan
❑Up gradation of process system needs higher parameters
High / Low Margin
The scope should be limited to:
a) Impeller b) Shaft c) Inlet cone
2. Existing Static parts, e.g. Casing /pedestal etc. to be utilized
3. No change in Foundation
4. No change in Bearings / Housing (inventory aspect)
5. Shaft may remain identical, as far as possible
6. Retrofit Impeller to be designed to utilize Existing Motor.
7. Cost effective
8. Minimum time to install the Retrofit Impeller shaft

69. FAN MODIFICATIONS
• Increase in cooler ESP Stack height
• Reduction of suction pressure at cooler fan inlets through bell mouth
• Suction box modifications of process fans by reducing velocity at fan
inlet.
• Rectify the cone gap of cooler fans
• Reduce the pressure drop across the system through CFD Study.

70. Cooler exhaust fan in a Cement plant

71. Reducing SEC OF Cooler exhaust fan in a Cement plant
by Increasing Stack height
• When cooler upgradation
• Exhaust height to be increased
• From 23 m to 60 m
• Additional draft - 65 mm
• Net benefit - 50 mmwg
• Power consumption reduced by nearly 50%
• Saving potential 60 kW

72. Reducing SEC OF Cooler exhaust fan in a Cement plant by
Increasing Stack height

73. Reducing SEC OF Cooler exhaust fan in a Cement plant by
Increasing Stack height
Calculations

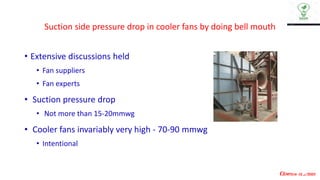

74. Suction side pressure drop in cooler fans by doing bell mouth
• Extensive discussions held
• Fan suppliers
• Fan experts
• Suction pressure drop
• Not more than 15-20mmwg
• Cooler fans invariably very high - 70-90 mmwg
• Intentional

75. Suction side pressure drop in cooler fans by doing bell mouth

76. Suction side pressure drop in cooler fans by doing bell mouth
• Typically flow measurement
• using Piezometer ring
• Additional pressure difference for accuracy
• Measures to be taken
• Reduce inlet pressure drop
• Measure air flow
• For reducing the inlet pressure drop
• Inlet Air velocity - 10-12 m/sec
• Reduction in entry loss – using bell mouth

77. Suction side pressure drop in cooler fans by doing bell mouth

78. Suction side pressure drop in cooler fans by doing bell mouth
❑Aerofoil in cooler fans
Initial apprehension – dust
Prone for wear due to dust
❑ Extensively practiced in power plants FD fans
Inlet Pressure – not more than 20 mm WC
Saving potential - 6-7%

79. Suction side pressure drop in cooler fans by doing bell mouth
❑Aerofoil in cooler fans
Initial apprehension – dust
Prone for wear due to dust
❑ Extensively practiced in power plants FD fans
Inlet Pressure – not more than 20 mm WC
Saving potential - 6-7%

80. CASE STUDY

81. Reduce the pressure drop in cement mill1 sep vent fan duct through
CFD Study

82. Path Lines Colored by Velocity Magnitude AS IS before duct modification
(High Velocity Profile-Turbulence)

83. Path Lines Colored by Velocity Magnitude after duct modification

84. FAN INLET SUCTION BOX MODIFICATION

85. FAN INLET SUCTION BOX MODIFICATION
❑ Difference between duct & suction box velocity is on higher side that creates
excessive pressure drop.
❑ Increase the width of suction box in such a way that the difference between duct
and fan inlet velocity could be minimized.
❑ Difference between the duct & Fan inlet velocity should be less than 7-8 m/s
❑ New Suction boxes should be designed by less than 30m/s
❑ Should not be greater than 35% of existing width(Limitation)
Saving potential:-42 kW & 35 mmwg

86. FAN INLET SUCTION BOX MODIFICATION

87. IMPROVE FAN EFFICIENCY BY INTERNAL INSPECTION
Different factors impacts the efficiency of a fan:
❑Build-up inside the impeller or between the impeller and the inlet
cone
❑Wears between the impeller and the inlet cone
❑ Inappropriate gap between impeller and inlet cone

88. IMPROVE FAN EFFICIENCY BY INTERNAL INSPECTION
-STEP1

89. IMPROVE FAN EFFICIENCY-STEP2
▪ In any centrifugal fan the gaps
between the rotating part and inlet;
the overlap of the inlet to the wheel is
crucial.
▪ Otherwise the internal recirculation of
air/gas increases (from positive side
outside the wheel to negative inside
the wheel) and thus increases the
wasted energy as well the fan’s
capacity to move gas.

90. IMPROVE FAN EFFICIENCY BY INTERNAL INSPECTION
-STEP3-BUILDUPS
Check all build-ups Between impeller and inlet cone
❑ This build up has a strong influence on fan efficiency.
❑It is common to be able to increase fan efficiency from 3 to 5 points with a
thorough cleaning.
❑Clean manually with a small scraper around the inlet cone until you can see again
the iron casing. Clean also the anti-rotating plate fixed on the inlet cone. They
avoid turbulences and are very important.

91. SOLUTION
Inside the impeller
A high pressure water jet can be used to
remove build-up

92. IMPROVE FAN EFFICIENCY BY INTERNAL INSPECTION
-STEP4-CHECK WEAR

93. Cone Gap of fan

94. FAN CONE GAP NORMS

95. CONE GAP NORMS

96. TYPES OF FAN ENTRY

97. AXIAL FAN
• Axial-flow fans produce lower pressure than centrifugal fans, and exhibit a
dip in pressure before reaching the peak pressure point
• Applications-Cooling tower, Ventilation fans

98. THANK YOU
