1. The Burp API allows extensions to overcome web application hurdles. Extensions can use IMessageEditorTab to decode custom encodings, processHTTPMessage to handle signed requests, ITab to provide new views of an application, and doPassiveScan to automate tasks with new scanner checks. 2. Common uses of extensions include decoding non-standard encodings, automatically signing requests, tracking unique response headers, and detecting encoded values like internal IPs in cookies. 3. Extensions are created with minimal coding by using Burp's extension interfaces to modify requests and responses, display content, and trigger passive scanning checks.

1. Extending Burp with
Python
Defeating web application idiosyncrasies
with common-sense, Python and minimal
knowledge of Java GUIs

2. What is Burp?

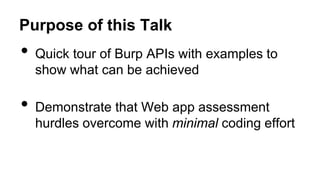

3. Purpose of this Talk
• Quick tour of Burp APIs with examples to
show what can be achieved
• Demonstrate that Web app assessment
hurdles overcome with minimal coding effort

4. Why would you need a custom extn?
1. Decode custom encoding/serialization
2. Handle anti-tamper or signed requests
3. Provide a new “view” into an application
4. Automate a manual task with a new scanner check

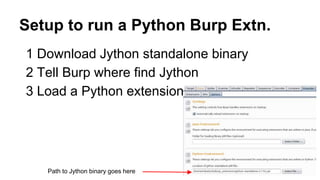

5. Setup to run a Python Burp Extn.
1 Download Jython standalone binary
2 Tell Burp where find Jython
3 Load a Python extension
Path to Jython binary goes here

6. The helloworld of Burp extensions
from burp import IBurpExtender
class BurpExtender(IBurpExtender):
# required
def registerExtenderCallbacks(self, callbacks):
# set our extension name
callbacks.setExtensionName("Hello world extension")
# write a message to the Burp alerts tab
callbacks.issueAlert("Hello alerts")
Just writes “Hello alerts” out to alerts tab

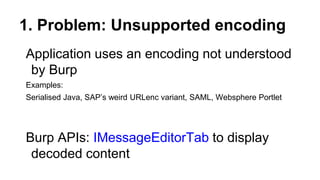

7. 1. Problem: Unsupported encoding
Application uses an encoding not understood
by Burp
Examples:
Serialised Java, SAP’s weird URLenc variant, SAML, Websphere Portlet
Burp APIs: IMessageEditorTab to display
decoded content

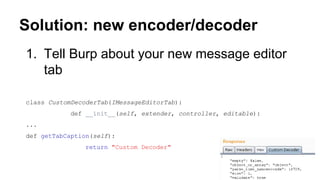

8. Solution: new encoder/decoder
1. Tell Burp about your new message editor
tab
class CustomDecoderTab(IMessageEditorTab):
def __init__(self, extender, controller, editable):
...
def getTabCaption(self):
return "Custom Decoder"

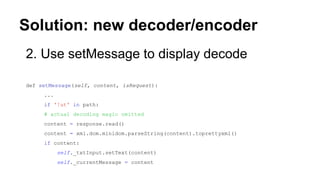

9. Solution: new decoder/encoder
2. Use setMessage to display decode
def setMessage(self, content, isRequest):
...
if '!ut' in path:
# actual decoding magic omitted
content = response.read()
content = xml.dom.minidom.parseString(content).toprettyxml()
if content:
self._txtInput.setText(content)
self._currentMessage = content

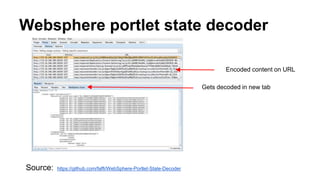

10. Websphere portlet state decoder
Source: https://github.com/faffi/WebSphere-Portlet-State-Decoder
Encoded content on URL
Gets decoded in new tab

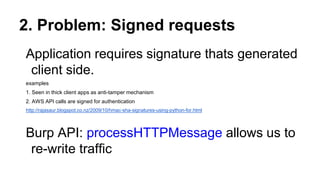

11. 2. Problem: Signed requests
Application requires signature thats generated
client side.
examples
1. Seen in thick client apps as anti-tamper mechanism
2. AWS API calls are signed for authentication
http://rajasaur.blogspot.co.nz/2009/10/hmac-sha-signatures-using-python-for.html
Burp API: processHTTPMessage allows us to
re-write traffic

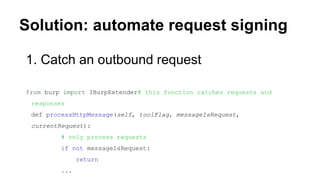

12. Solution: automate request signing
1. Catch an outbound request
from burp import IBurpExtender# this function catches requests and
responses
def processHttpMessage(self, toolFlag, messageIsRequest,
currentRequest):
# only process requests
if not messageIsRequest:
return
...

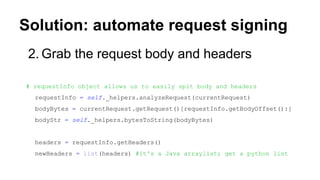

13. Solution: automate request signing
2. Grab the request body and headers
# requestInfo object allows us to easily spit body and headers
requestInfo = self._helpers.analyzeRequest(currentRequest)
bodyBytes = currentRequest.getRequest()[requestInfo.getBodyOffset():]
bodyStr = self._helpers.bytesToString(bodyBytes)
headers = requestInfo.getHeaders()
newHeaders = list(headers) #it's a Java arraylist; get a python list

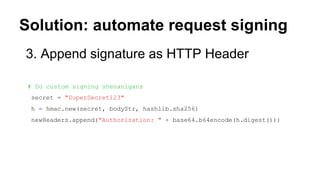

14. Solution: automate request signing
3. Append signature as HTTP Header
# Do custom signing shenanigans
secret = "SuperSecret123"
h = hmac.new(secret, bodyStr, hashlib.sha256)
newHeaders.append("Authorization: " + base64.b64encode(h.digest()))

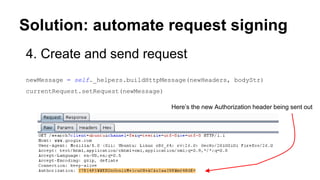

15. Solution: automate request signing
4. Create and send request
newMessage = self._helpers.buildHttpMessage(newHeaders, bodyStr)
currentRequest.setRequest(newMessage)
Here’s the new Authorization header being sent out

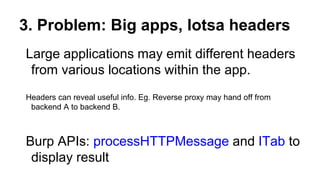

16. 3. Problem: Big apps, lotsa headers
Large applications may emit different headers
from various locations within the app.
Headers can reveal useful info. Eg. Reverse proxy may hand off from
backend A to backend B.
Burp APIs: processHTTPMessage and ITab to
display result

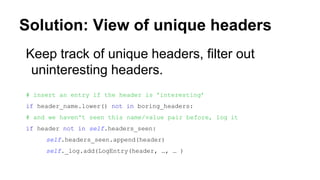

17. Solution: View of unique headers
Keep track of unique headers, filter out
uninteresting headers.
# insert an entry if the header is 'interesting’
if header_name.lower() not in boring_headers:
# and we haven't seen this name/value pair before, log it
if header not in self.headers_seen:
self.headers_seen.append(header)
self._log.add(LogEntry(header, …, … )

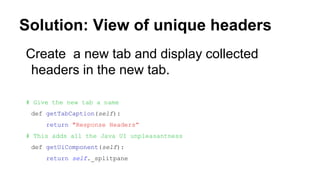

18. Solution: View of unique headers
Create a new tab and display collected
headers in the new tab.
# Give the new tab a name
def getTabCaption(self):
return "Response Headers”
# This adds all the Java UI unpleasantness
def getUiComponent(self):
return self._splitpane

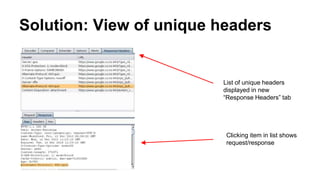

19. Solution: View of unique headers
List of unique headers
displayed in new
“Response Headers” tab
Clicking item in list shows
request/response

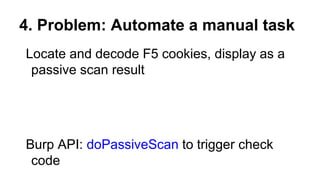

20. 4. Problem: Automate a manual task
Locate and decode F5 cookies, display as a
passive scan result
Burp API: doPassiveScan to trigger check
code

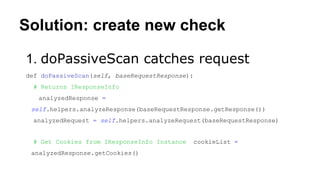

21. Solution: create new check
1. doPassiveScan catches request
def doPassiveScan(self, baseRequestResponse):
# Returns IResponseInfo
analyzedResponse =
self.helpers.analyzeResponse(baseRequestResponse.getResponse())
analyzedRequest = self.helpers.analyzeRequest(baseRequestResponse)
# Get Cookies from IResponseInfo Instance cookieList =
analyzedResponse.getCookies()

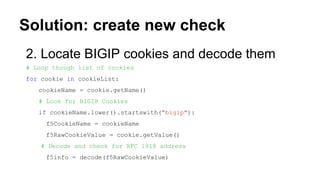

22. Solution: create new check
2. Locate BIGIP cookies and decode them
# Loop though list of cookies
for cookie in cookieList:
cookieName = cookie.getName()
# Look for BIGIP Cookies
if cookieName.lower().startswith("bigip"):
f5CookieName = cookieName
f5RawCookieValue = cookie.getValue()
# Decode and check for RFC 1918 address
f5info = decode(f5RawCookieValue)

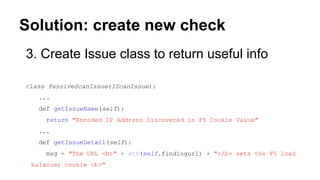

23. Solution: create new check
3. Create Issue class to return useful info
class PassiveScanIssue(IScanIssue):
...
def getIssueName(self):
return "Encoded IP Address Discovered in F5 Cookie Value"
...
def getIssueDetail(self):
msg = "The URL <b>" + str(self.findingurl) + "</b> sets the F5 load
balancer cookie <b>"

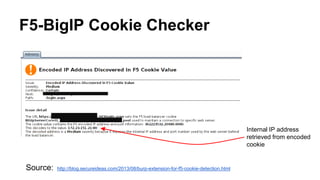

24. F5-BigIP Cookie Checker
Source: http://blog.secureideas.com/2013/08/burp-extension-for-f5-cookie-detection.html
Internal IP address
retrieved from encoded
cookie

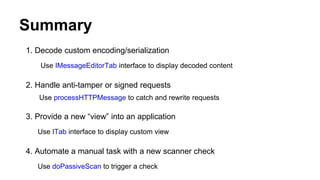

25. Summary
1. Decode custom encoding/serialization
Use IMessageEditorTab interface to display decoded content
2. Handle anti-tamper or signed requests
Use processHTTPMessage to catch and rewrite requests
3. Provide a new “view” into an application
Use ITab interface to display custom view
4. Automate a manual task with a new scanner check
Use doPassiveScan to trigger a check
