Extending BPMN 2.0
- 1. Centro de Investigacióny Desarrollo de Ingeniería en Sistemas de Información Universidad Tecnológica Nacional – Facultad Regional Santa Fe Stroppi, L.J.R., Chiotti, O., Villarreal, P.D.: Extending BPMN 2.0: Method and Tool Support. In: BPMN 2011: Proceedings of the 3rd International Workshop and Practitioner Day on BPMN. (November 2011) Extending BPMN 2.0: Method and Tool Support
- 2. Agenda Introduction Methodfor the Development of BPMN Extensions Tool Support Conclusions

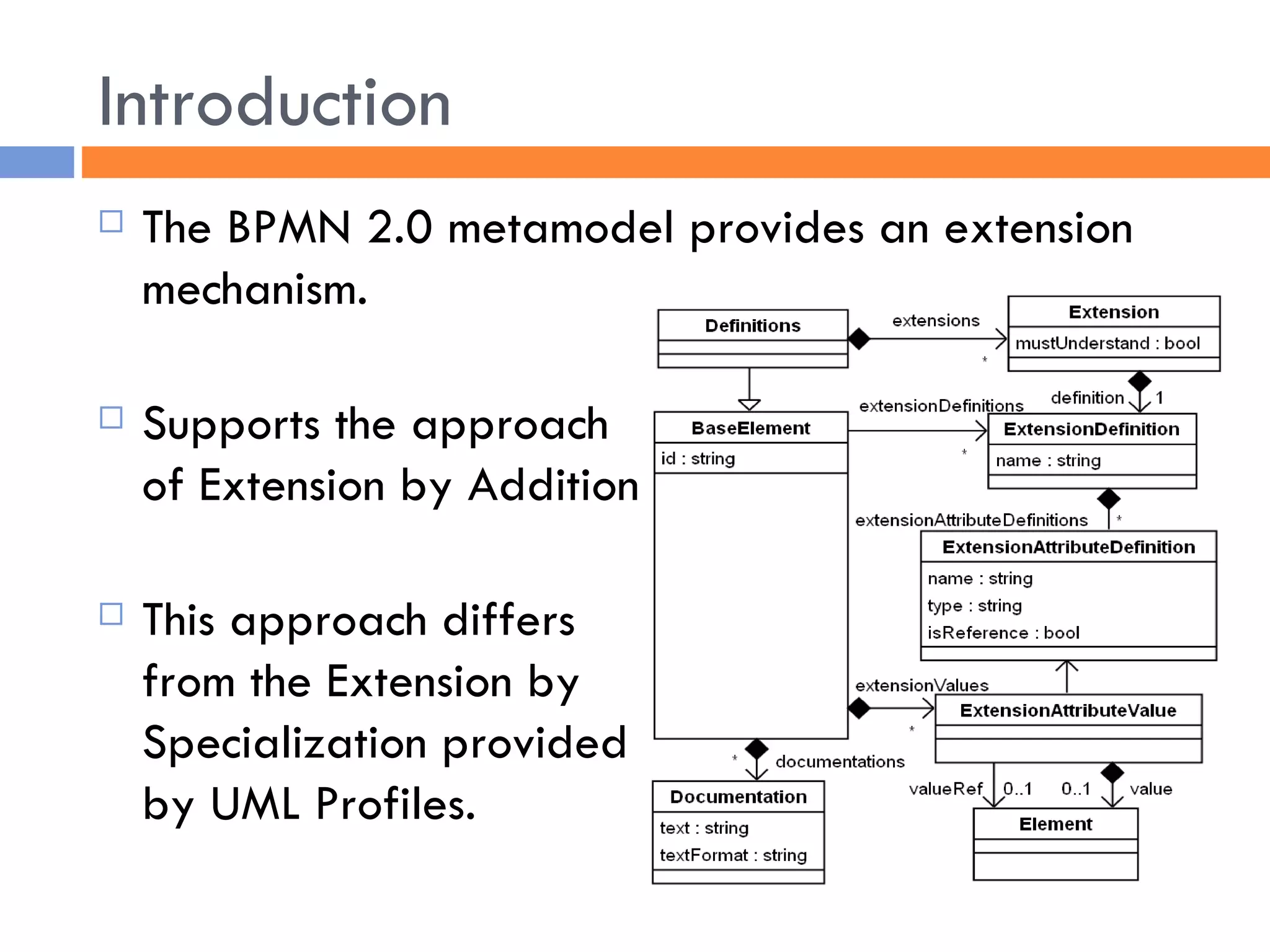

- 3. Introduction The BPMN2.0 metamodel provides an extension mechanism. Supports the approach of Extension by Addition. This approach differs from the Extension by Specialization provided by UML Profiles.

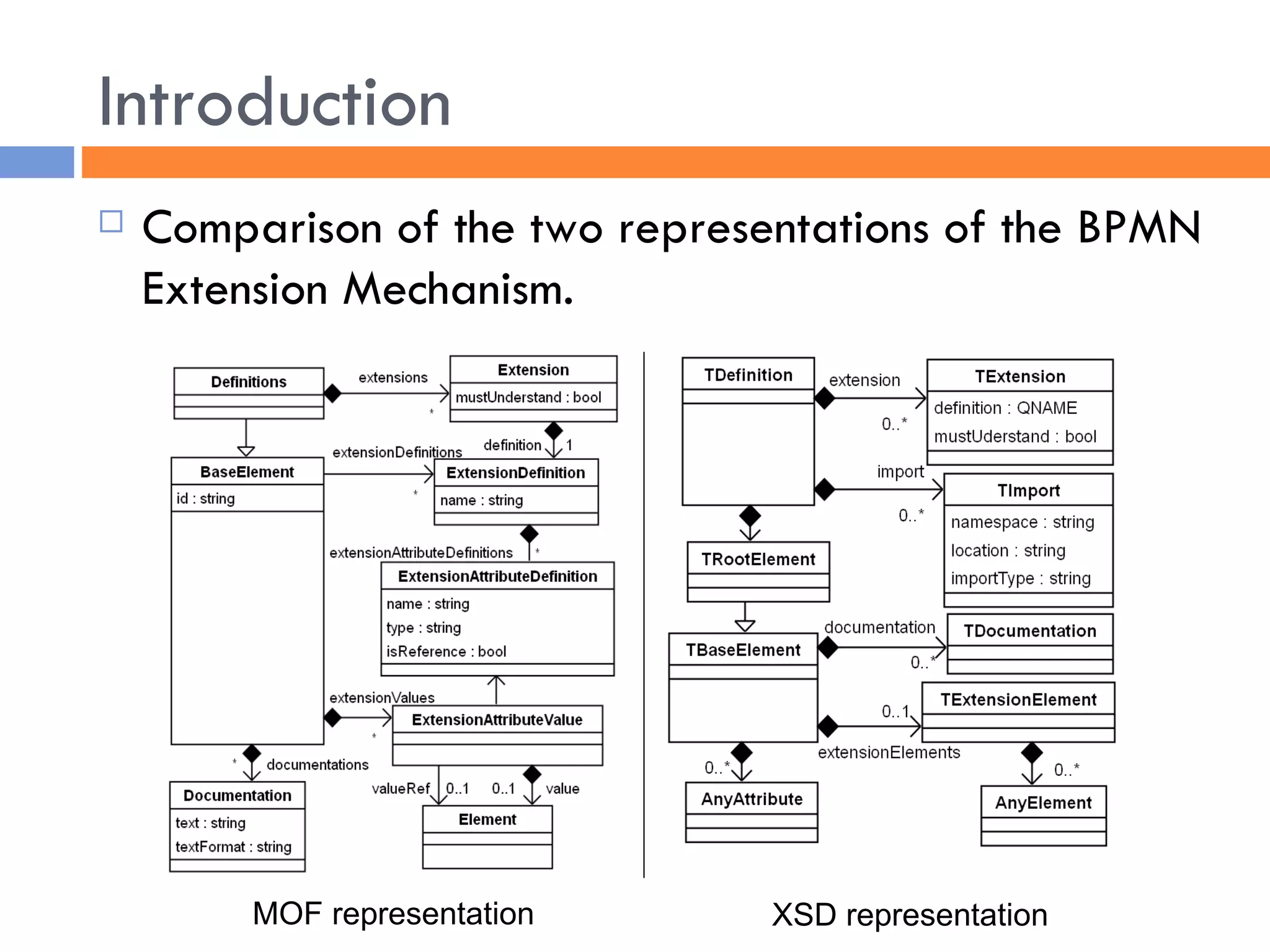

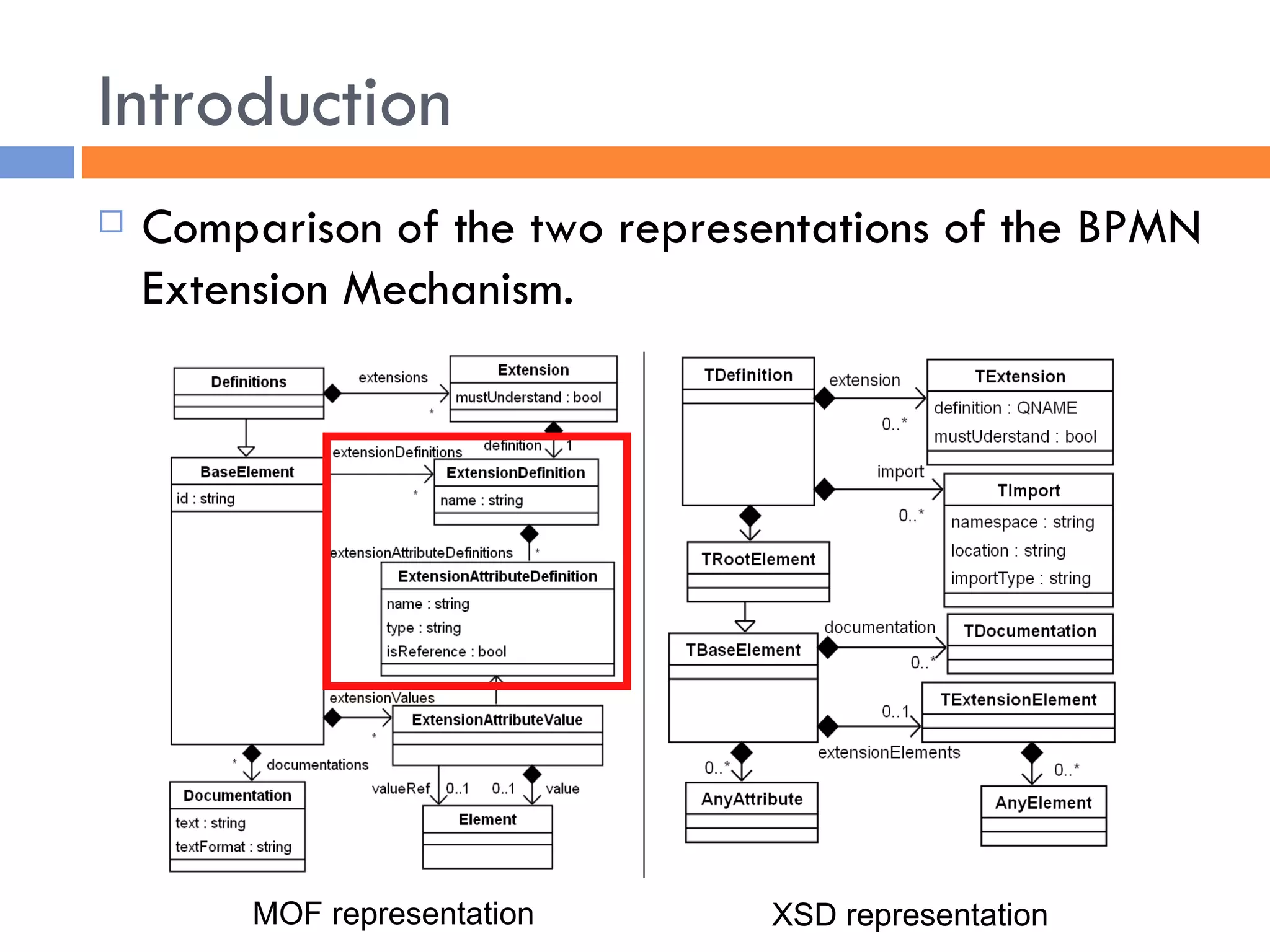

- 4. Introduction MOF representationXSD representation Comparison of the two representations of the BPMN Extension Mechanism.
- 5. Introduction MOF representationXSD representation Comparison of the two representations of the BPMN Extension Mechanism.
- 6. BPMN Extension MechanismThere are two major pitfalls in the development BPMN extensions: Lack of methodological guides supporting the BPMN extension approach. Lack of graphical notations for representing the structure of extensions.

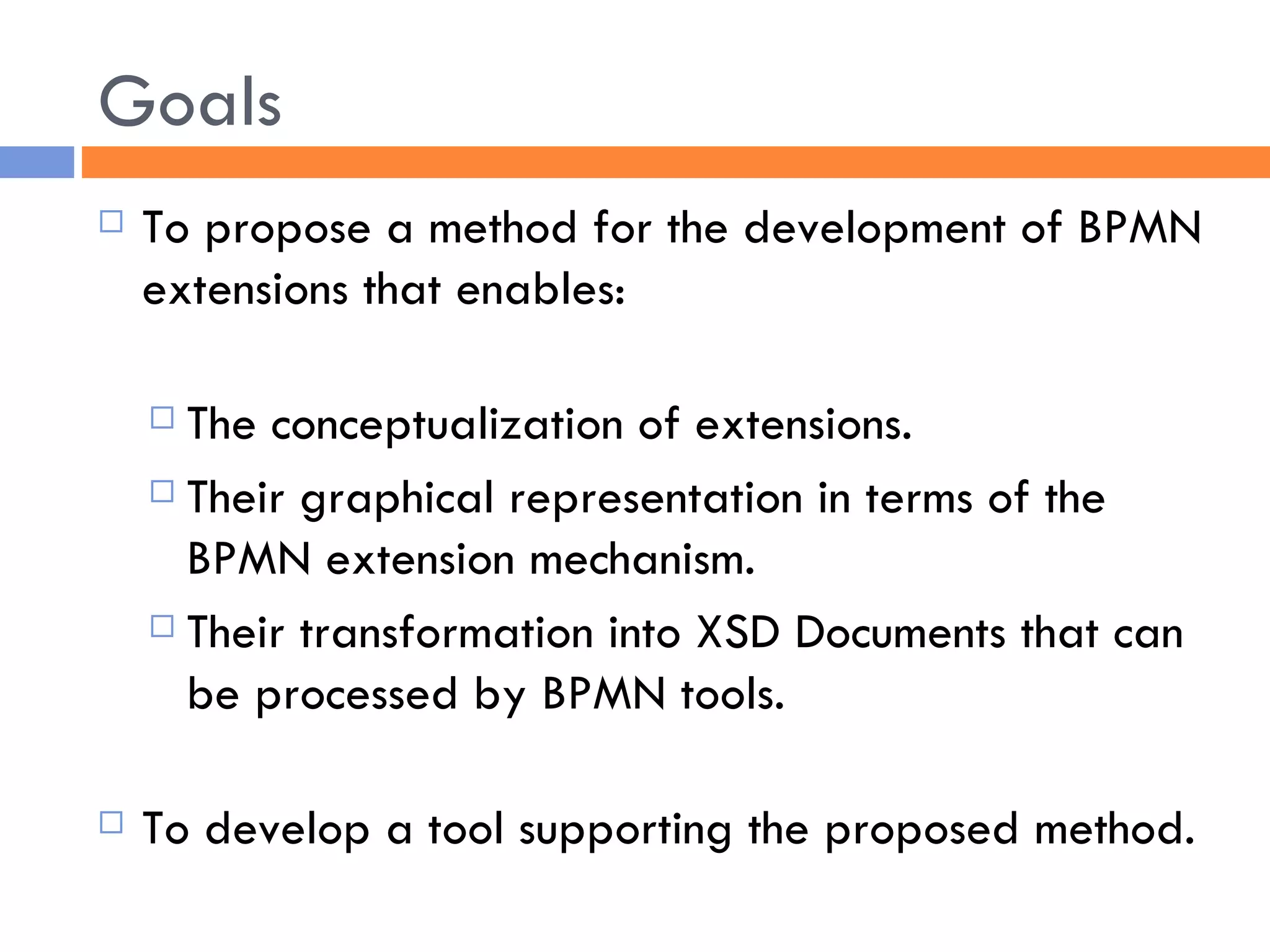

- 7. Goals To proposea method for the development of BPMN extensions that enables: The conceptualization of extensions. Their graphical representation in terms of the BPMN extension mechanism. Their transformation into XSD Documents that can be processed by BPMN tools. To develop a tool supporting the proposed method.
- 8. MDA-based Method forthe Development of BPMN 2.0 Extensions

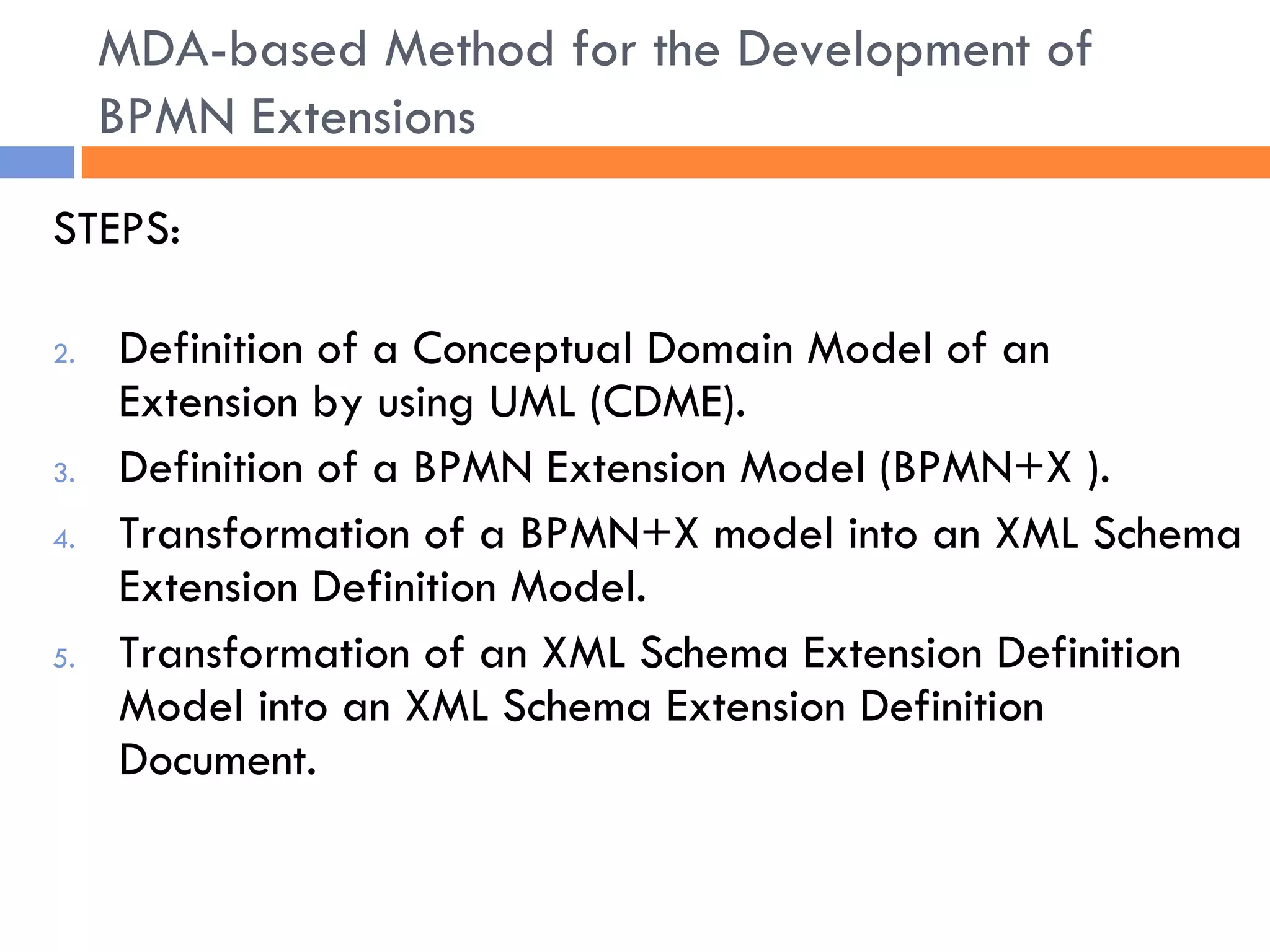

- 9. STEPS: Definition ofa Conceptual Domain Model of an Extension by using UML (CDME). Definition of a BPMN Extension Model (BPMN+X ). Transformation of a BPMN+X model into an XML Schema Extension Definition Model. Transformation of an XML Schema Extension Definition Model into an XML Schema Extension Definition Document. MDA-based Method for the Development of BPMN Extensions
- 10. STEPS: Definition ofa Conceptual Domain Model of an Extension by using UML (CDME). Definition of a BPMN Extension Model (BPMN+X ). Transformation of a BPMN+X model into a XML Schema Extension Definition Model. Transformation of an XML Schema Extension Definition Model into an XML Schema Extension Definition Document. MDA-based Method for the Development of BPMN Extensions

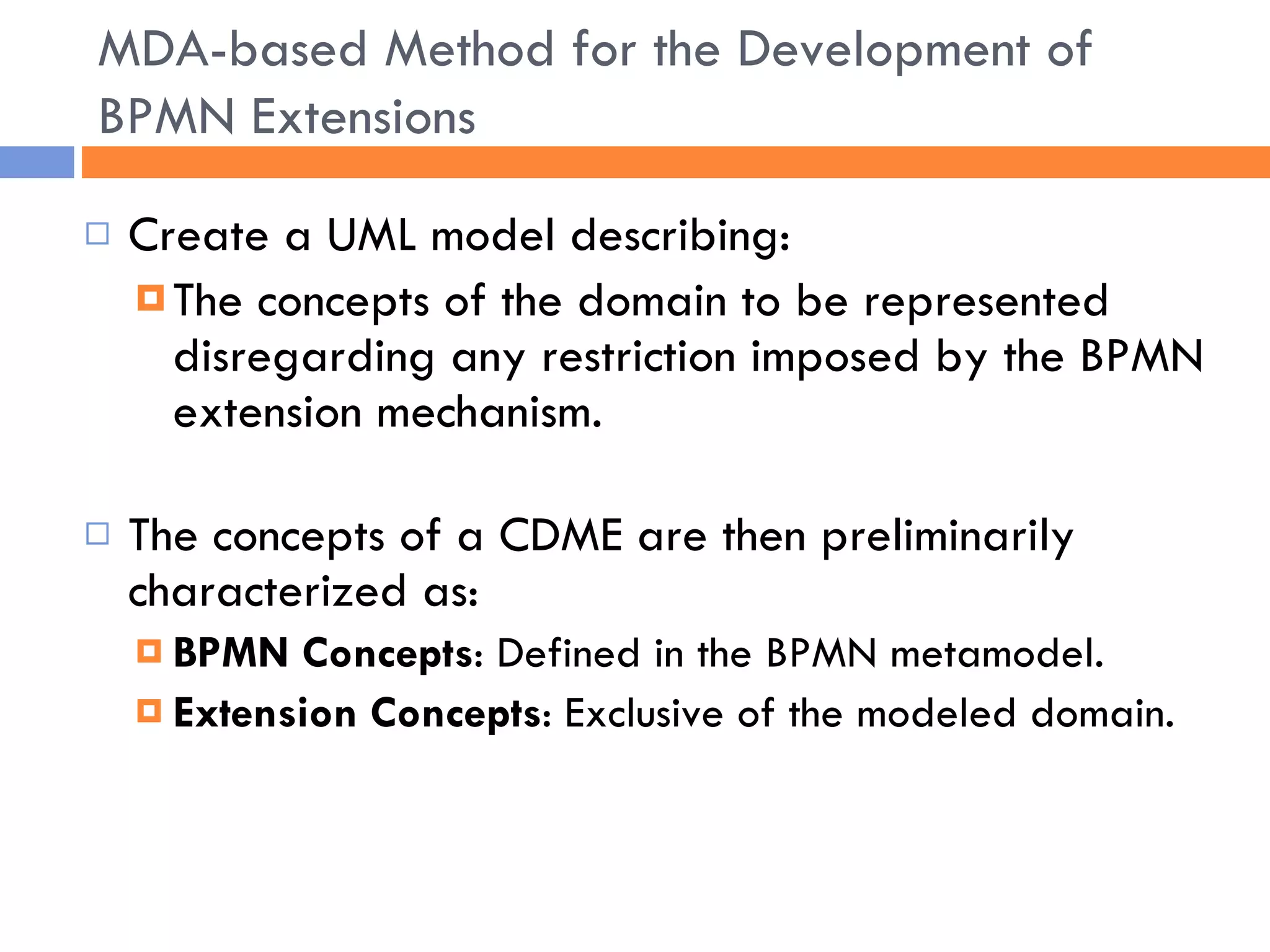

- 11. Create a UMLmodel describing: The concepts of the domain to be represented disregarding any restriction imposed by the BPMN extension mechanism. The concepts of a CDME are then preliminarily characterized as: BPMN Concepts : Defined in the BPMN metamodel. Extension Concepts : Exclusive of the modeled domain. MDA-based Method for the Development of BPMN Extensions

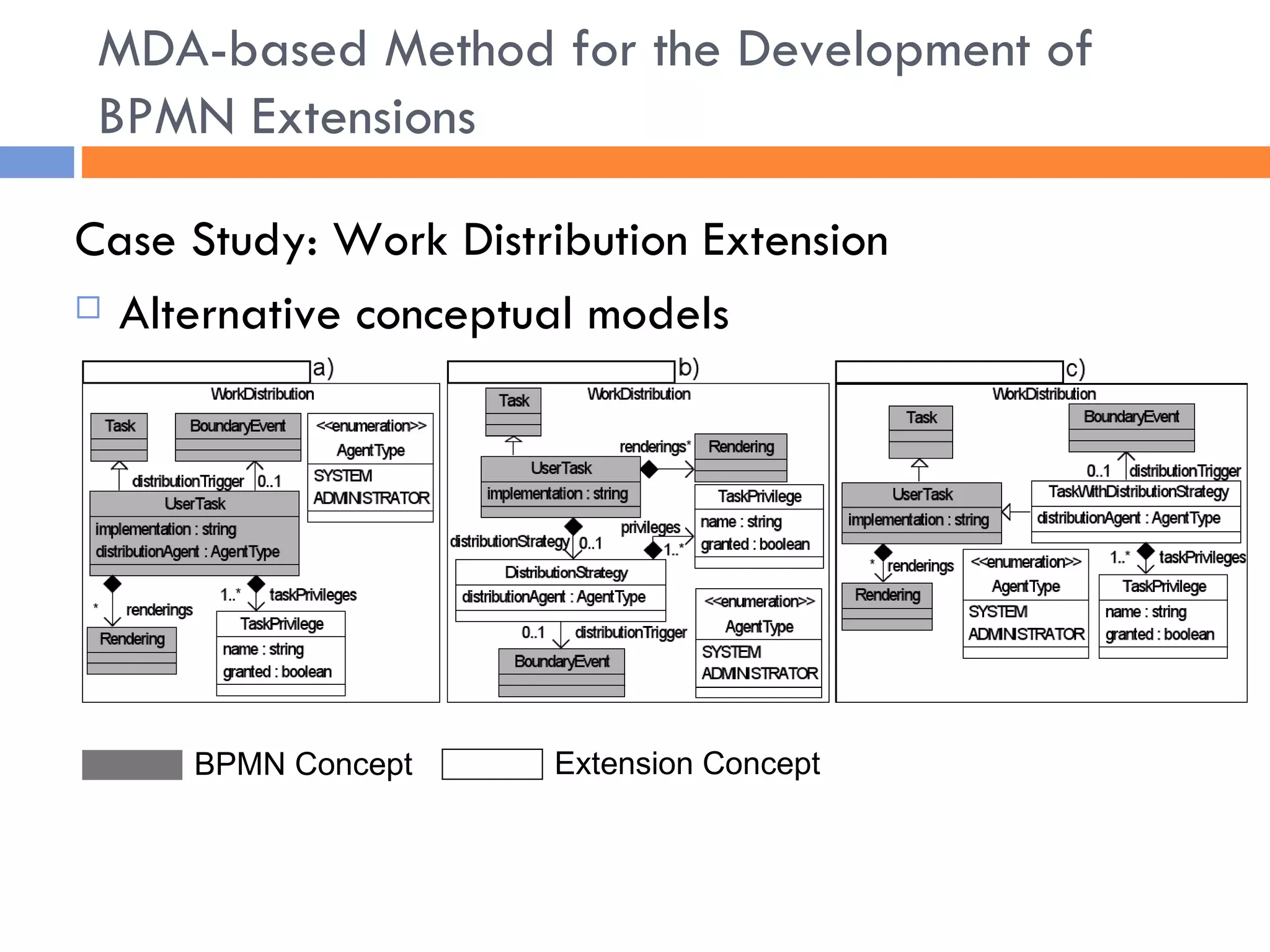

- 12. BPMN Concept ExtensionConcept MDA-based Method for the Development of BPMN Extensions Case Study: Work Distribution Extension Alternative conceptual models
- 13. STEPS: Definition ofa Conceptual Domain Model of an Extension by using UML (CDME). Definition of a BPMN Extension Model (BPMN+X ). Transformation of a BPMN+X model into a XML Schema Extension Definition Model. Transformation of an XML Schema Extension Definition Model into an XML Schema Extension Definition Document. MDA-based Method for the Development of BPMN Extensions

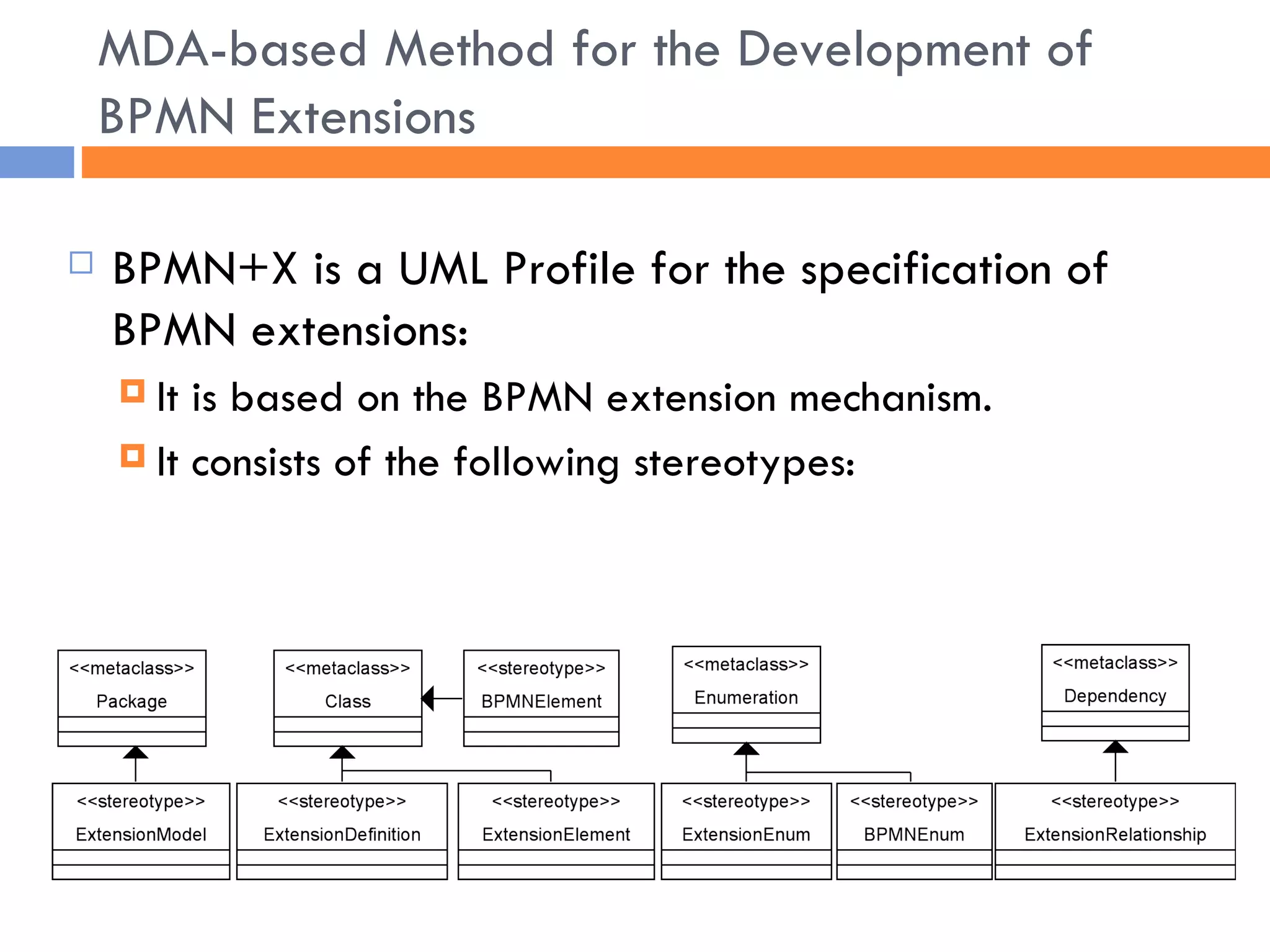

- 14. MDA-based Method forthe Development of BPMN Extensions BPMN+X is a UML Profile for the specification of BPMN extensions: It is based on the BPMN extension mechanism. It consists of the following stereotypes:

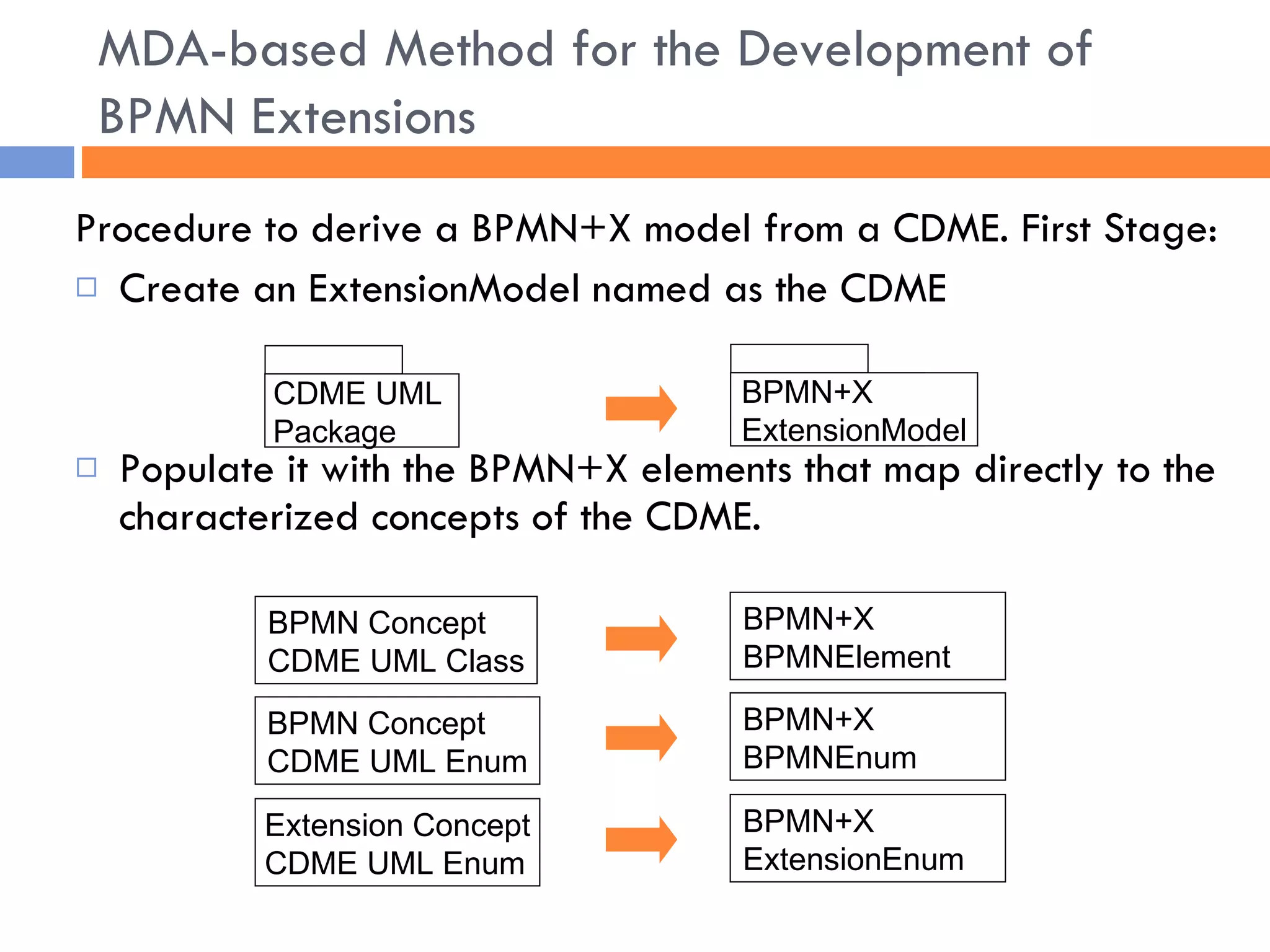

- 15. Procedure to derivea BPMN+X model from a CDME. First Stage: Create an ExtensionModel named as the CDME Populate it with the BPMN+X elements that map directly to the characterized concepts of the CDME. MDA-based Method for the Development of BPMN Extensions BPMN Concept CDME UML Class BPMN Concept CDME UML Enum BPMN+X BPMNElement BPMN+X BPMNEnum Extension Concept CDME UML Enum BPMN+X ExtensionEnum CDME UML Package BPMN+X ExtensionModel

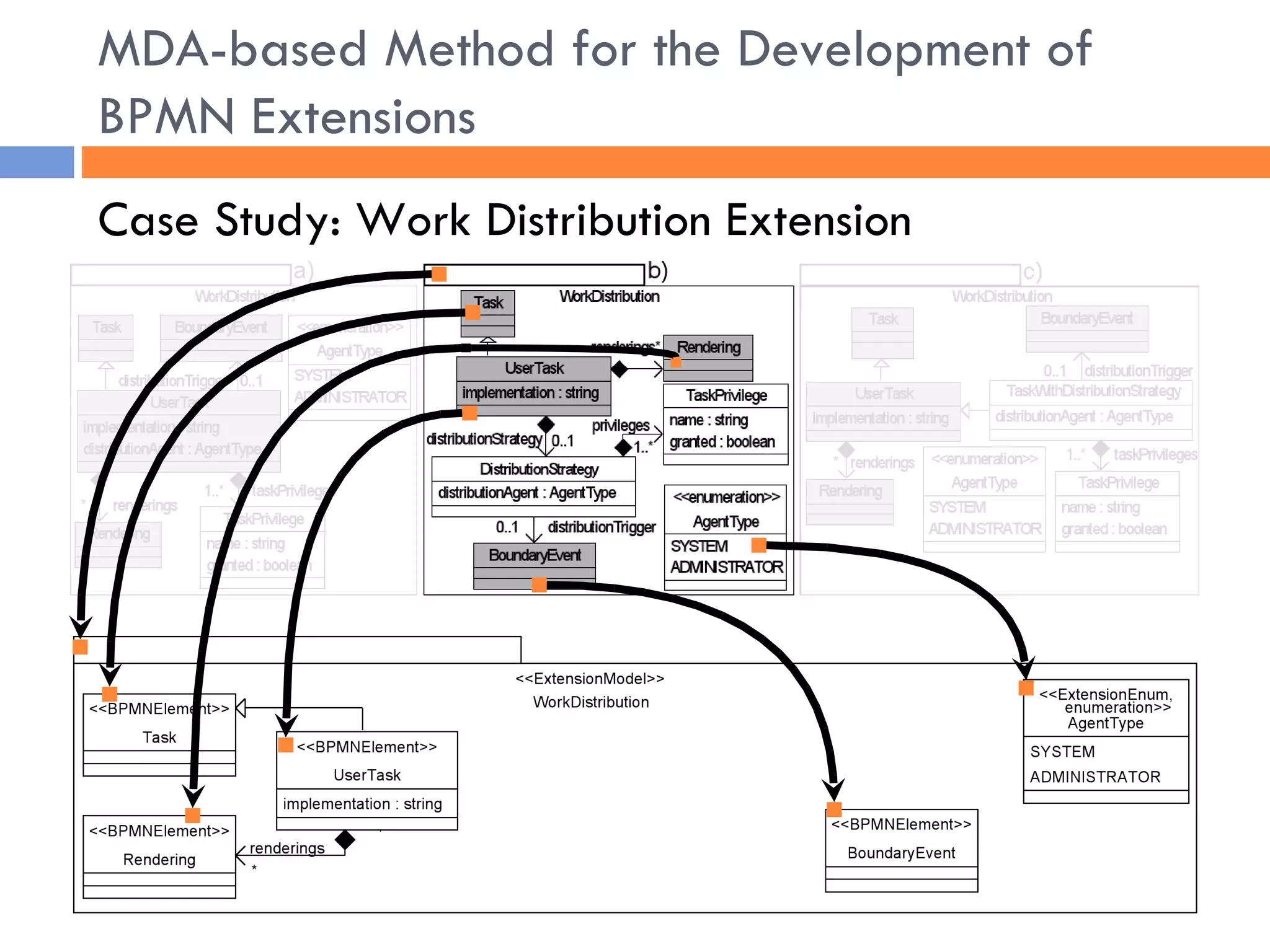

- 16. Case Study: WorkDistribution Extension MDA-based Method for the Development of BPMN Extensions

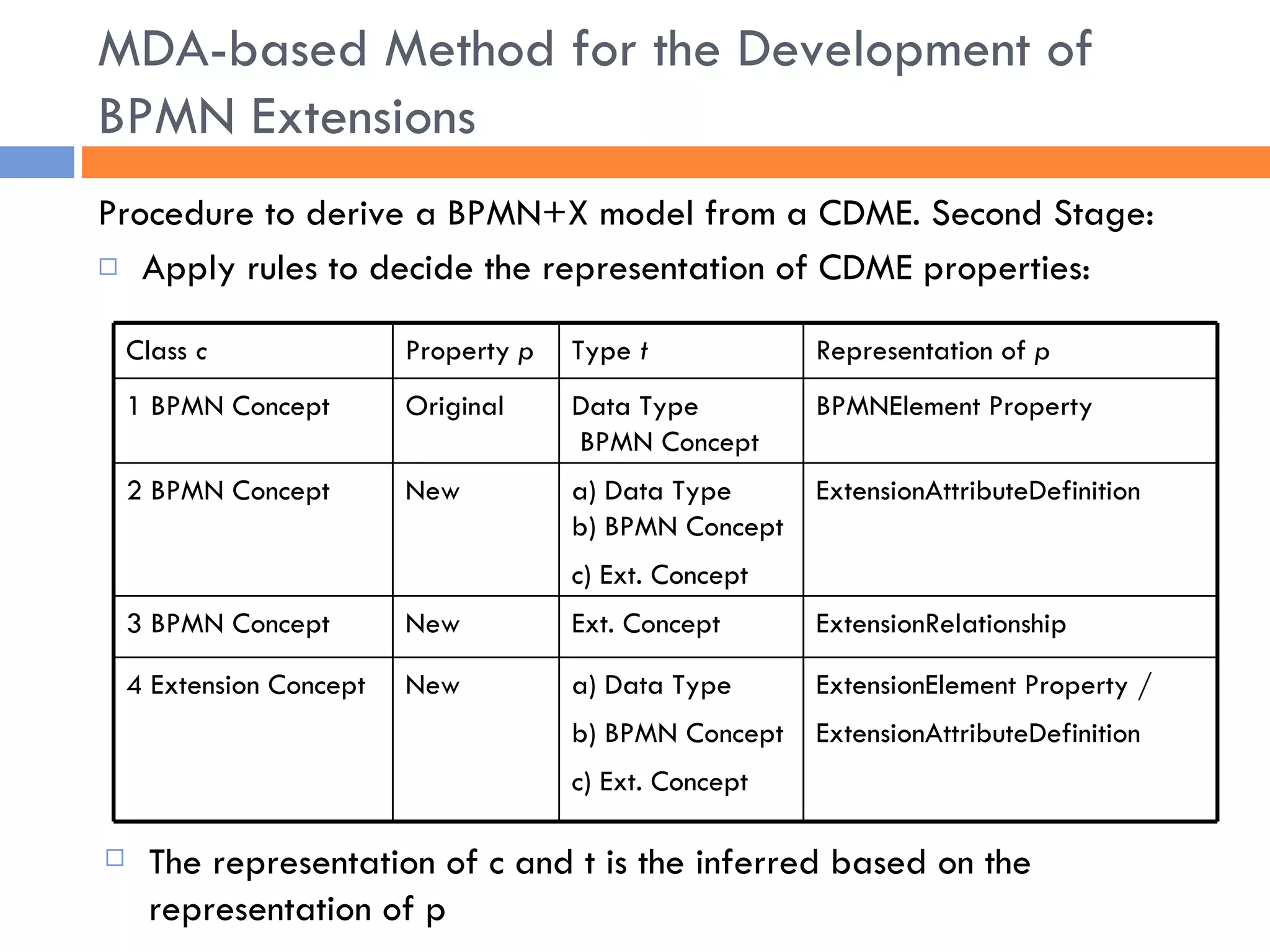

- 17. Procedure to derivea BPMN+X model from a CDME. Second Stage: Apply rules to decide the representation of CDME properties: MDA-based Method for the Development of BPMN Extensions The representation of c and t is the inferred based on the representation of p Class c Property p Type t Representation of p 1 BPMN Concept Original Data Type BPMN Concept BPMNElement Property 2 BPMN Concept New a) Data Type b) BPMN Concept c) Ext. Concept ExtensionAttributeDefinition 3 BPMN Concept New Ext. Concept ExtensionRelationship 4 Extension Concept New a) Data Type b) BPMN Concept c) Ext. Concept ExtensionElement Property / ExtensionAttributeDefinition

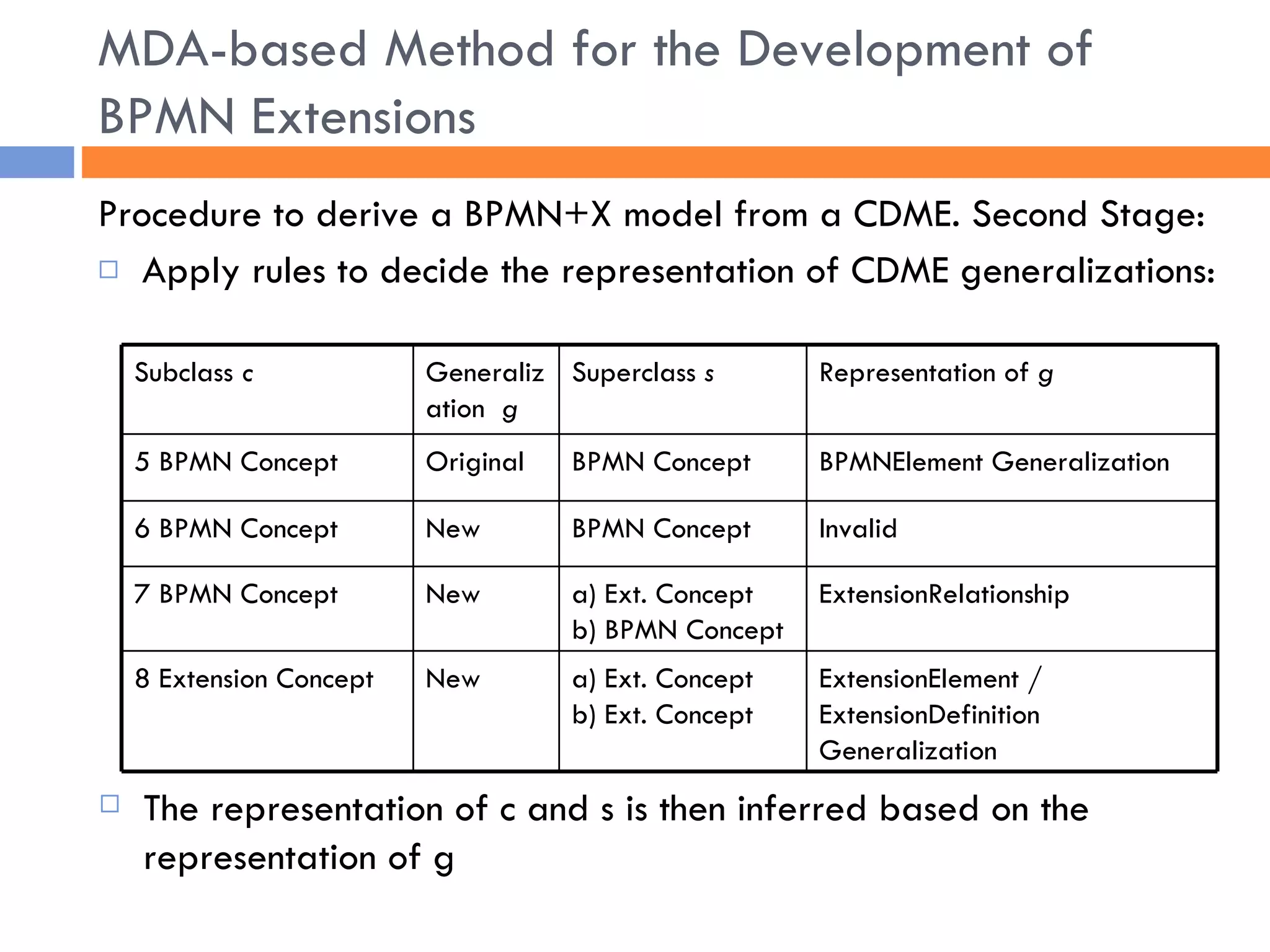

- 18. Procedure to derivea BPMN+X model from a CDME. Second Stage: Apply rules to decide the representation of CDME generalizations: MDA-based Method for the Development of BPMN Extensions The representation of c and s is then inferred based on the representation of g Subclass c Generalization g Superclass s Representation of g 5 BPMN Concept Original BPMN Concept BPMNElement Generalization 6 BPMN Concept New BPMN Concept Invalid 7 BPMN Concept New a) Ext. Concept b) BPMN Concept ExtensionRelationship 8 Extension Concept New a) Ext. Concept b) Ext. Concept ExtensionElement / ExtensionDefinition Generalization

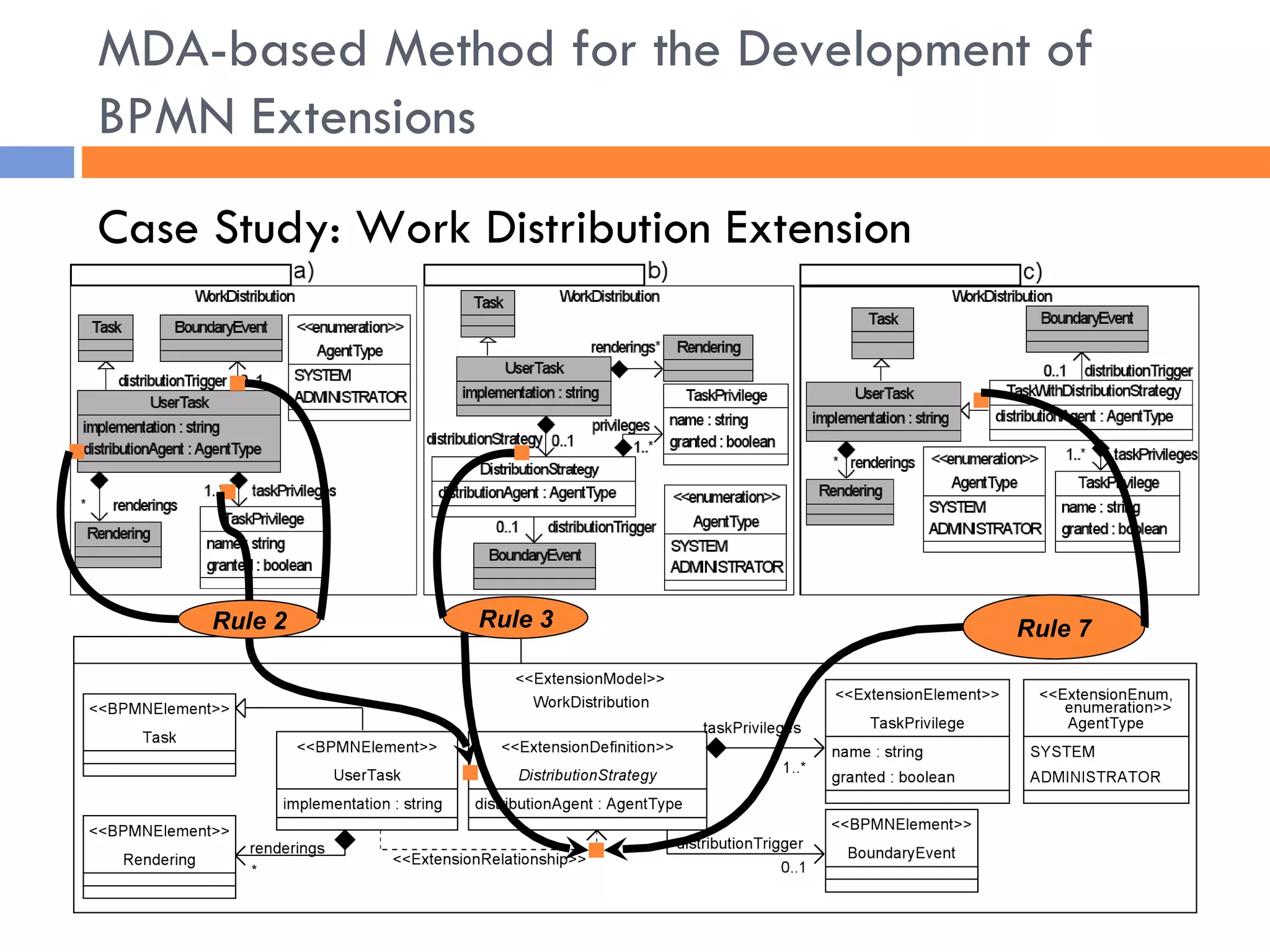

- 19. MDA-based Method forthe Development of BPMN Extensions Rule 3 Rule 2 Rule 7 Case Study: Work Distribution Extension

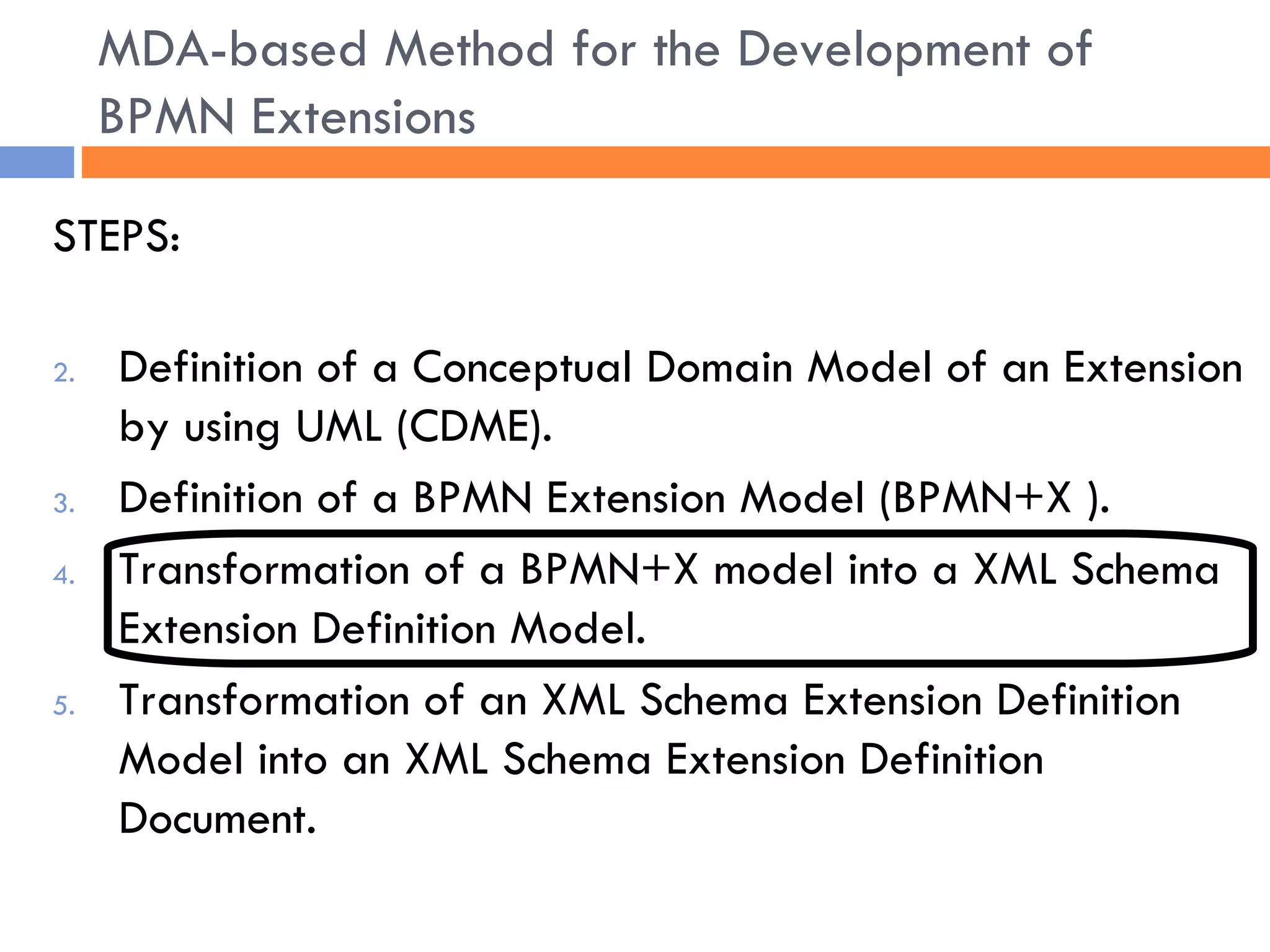

- 20. STEPS: Definition ofa Conceptual Domain Model of an Extension by using UML (CDME). Definition of a BPMN Extension Model (BPMN+X ). Transformation of a BPMN+X model into a XML Schema Extension Definition Model. Transformation of an XML Schema Extension Definition Model into an XML Schema Extension Definition Document. MDA-based Method for the Development of BPMN Extensions

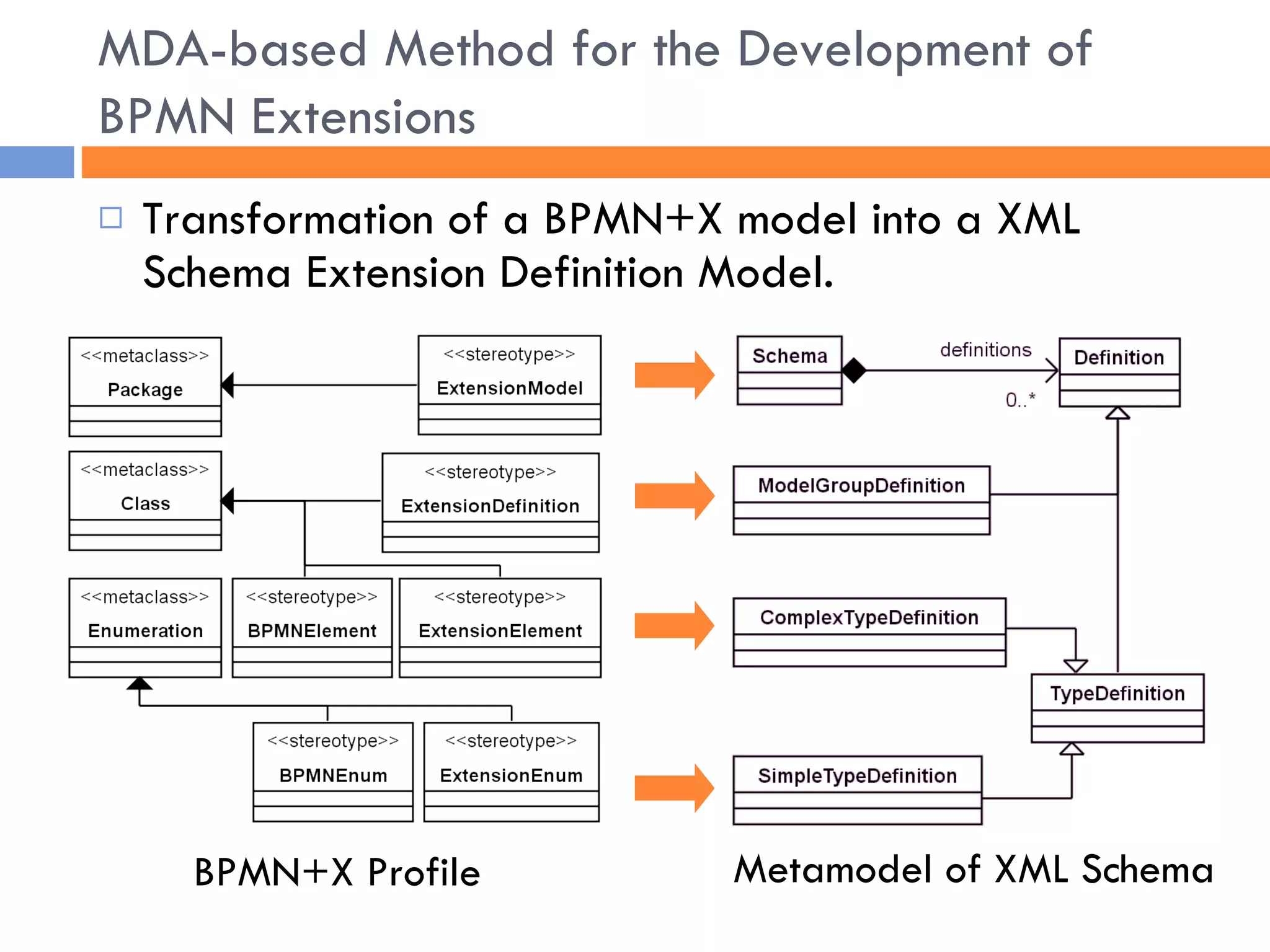

- 21. Transformation of aBPMN+X model into a XML Schema Extension Definition Model. MDA-based Method for the Development of BPMN Extensions BPMN+X Profile Metamodel of XML Schema

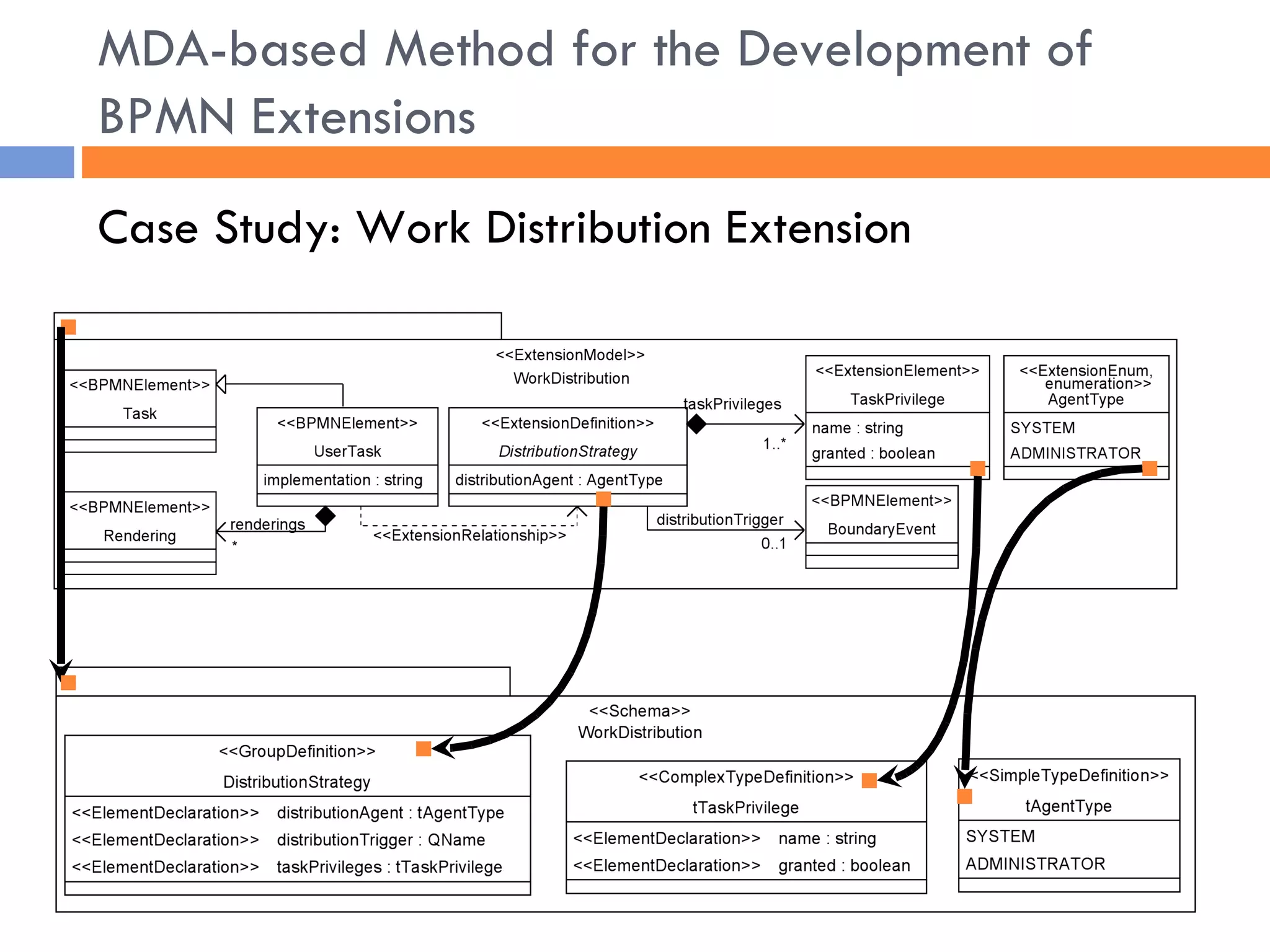

- 22. MDA-based Method forthe Development of BPMN Extensions Case Study: Work Distribution Extension
- 23. STEPS: Definition ofa Conceptual Domain Model of an Extension by using UML (CDME). Definition of a BPMN Extension Model (BPMN+X ) . Transformation of a BPMN+X model into a XML Schema Extension Definition Model. Transformation of an XML Schema Extension Definition Model into an XML Schema Extension Definition Document. MDA-based Method for the Development of BPMN Extensions

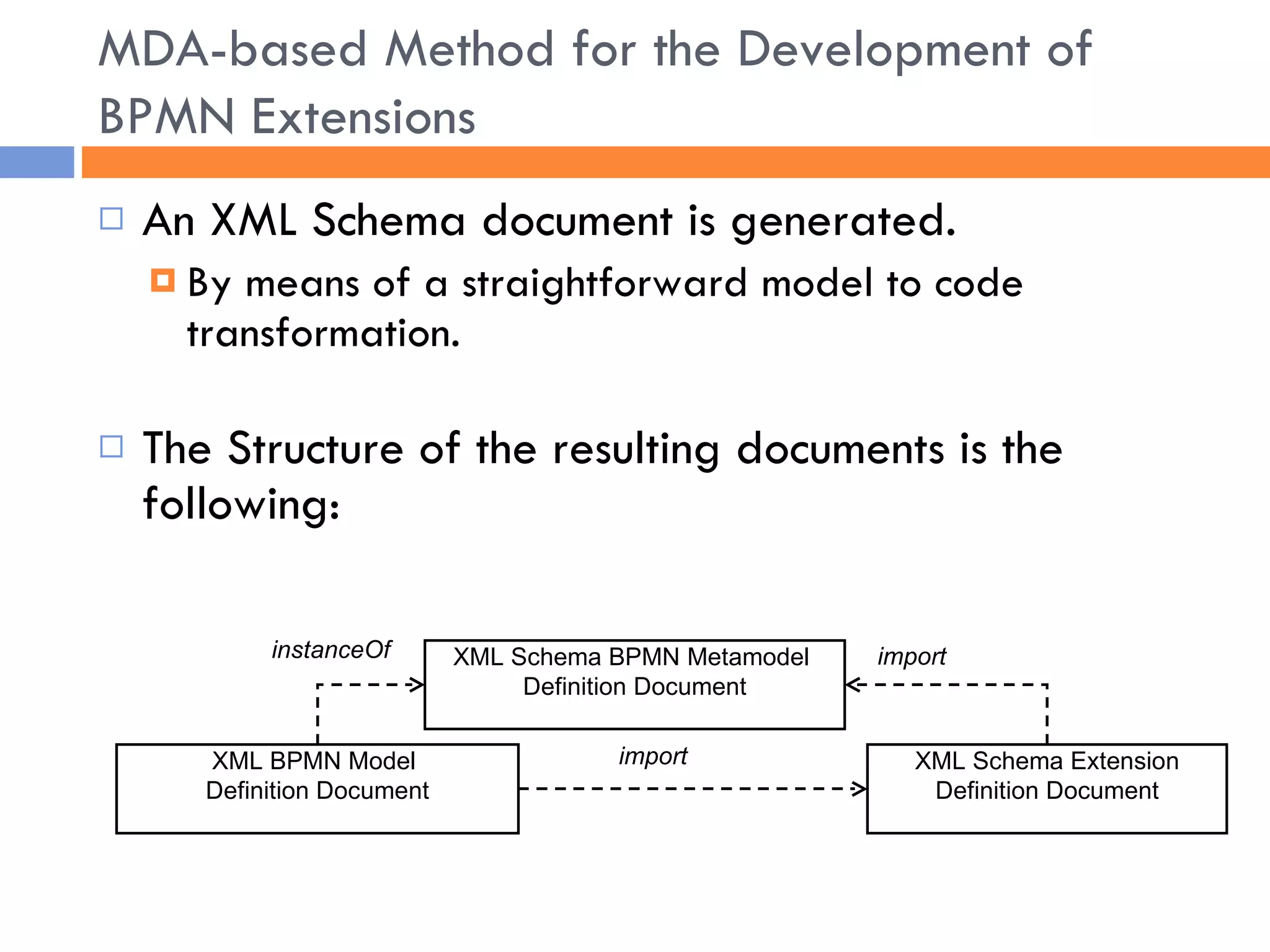

- 24. An XML Schemadocument is generated. By means of a straightforward model to code transformation. The Structure of the resulting documents is the following: MDA-based Method for the Development of BPMN Extensions instanceOf XML Schema BPMN Metamodel Definition Document XML BPMN Model Definition Document XML Schema Extension Definition Document import import

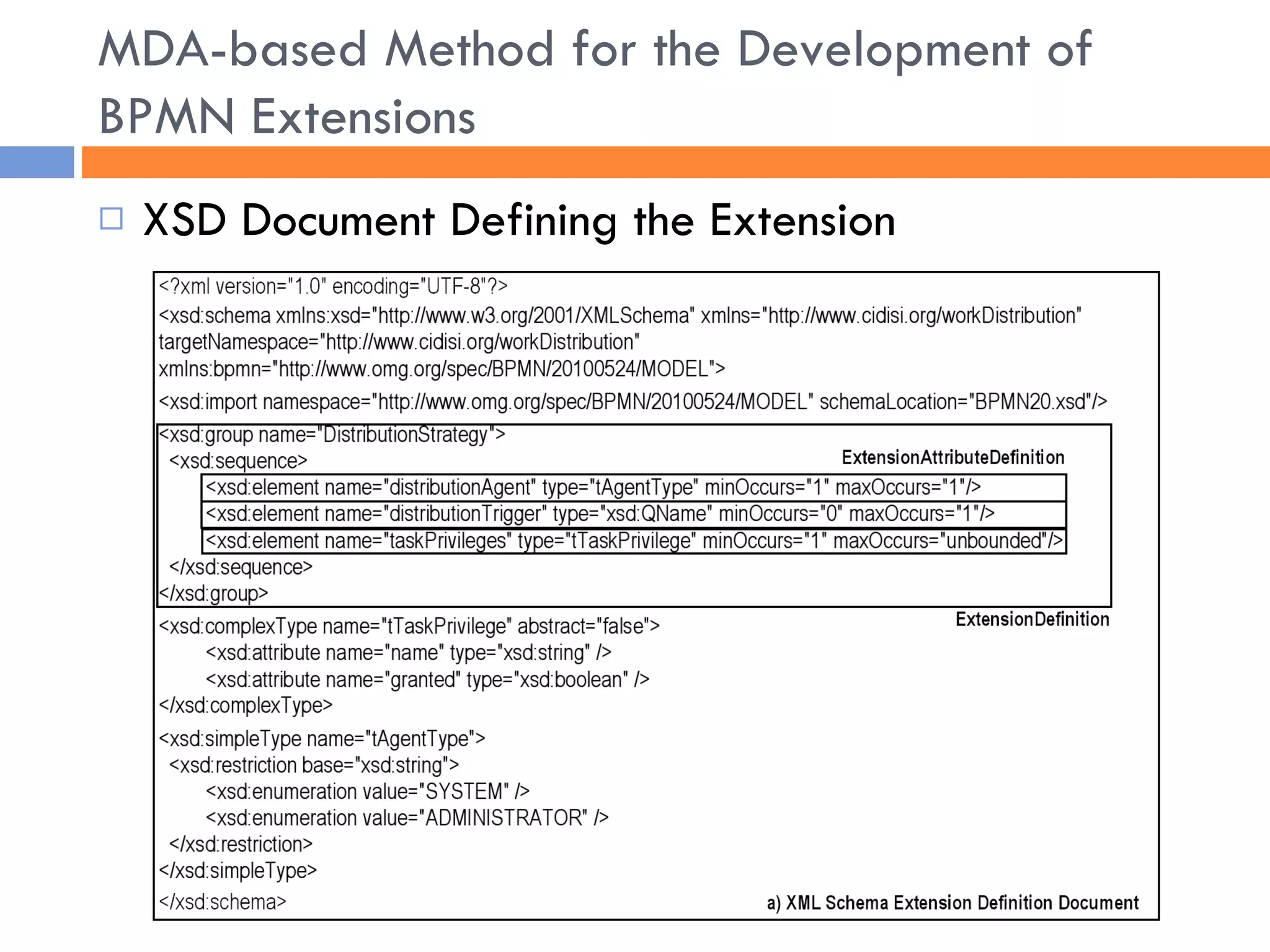

- 25. XSD Document Definingthe Extension MDA-based Method for the Development of BPMN Extensions

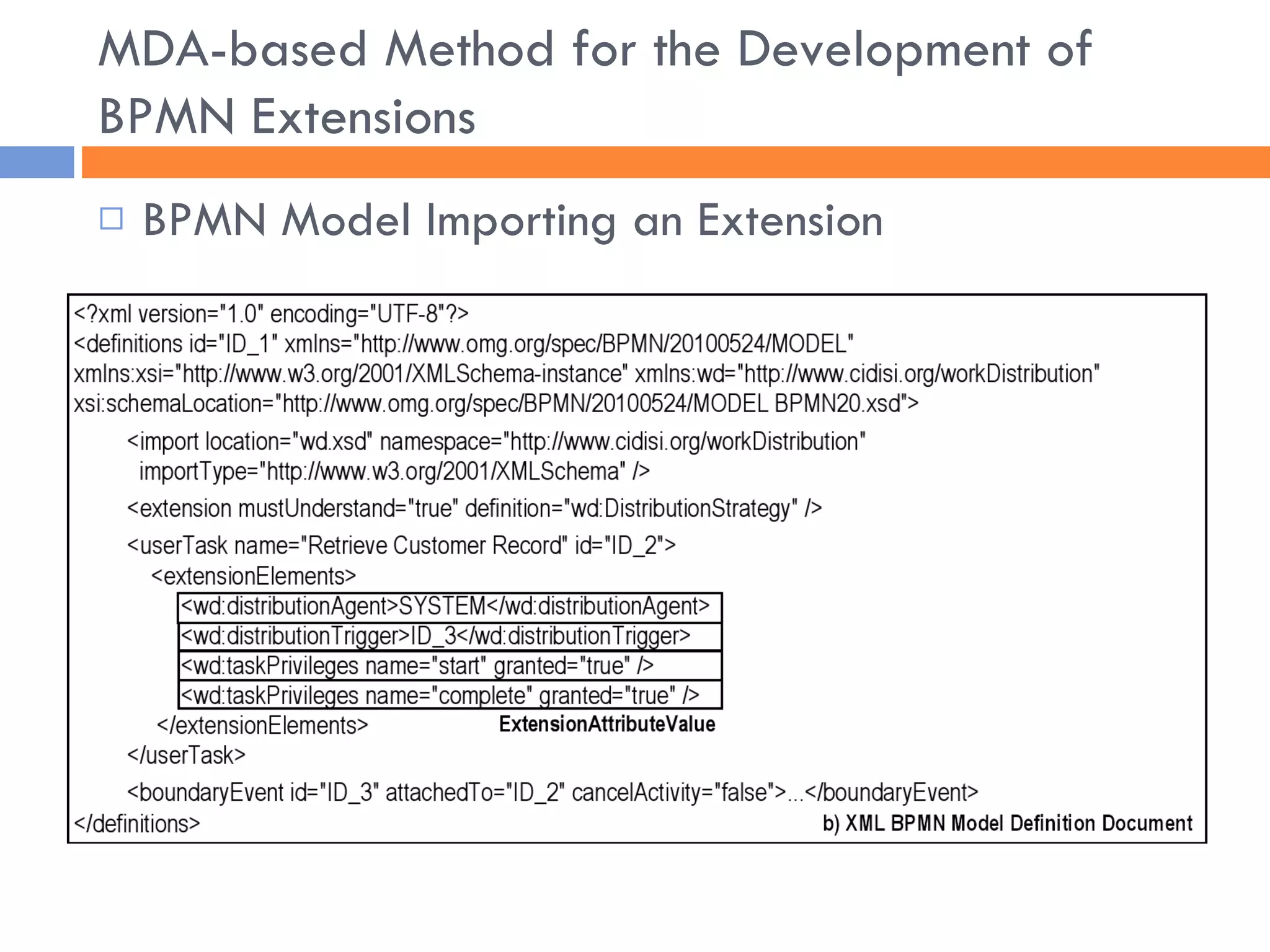

- 26. BPMN Model Importingan Extension MDA-based Method for the Development of BPMN Extensions
- 27.

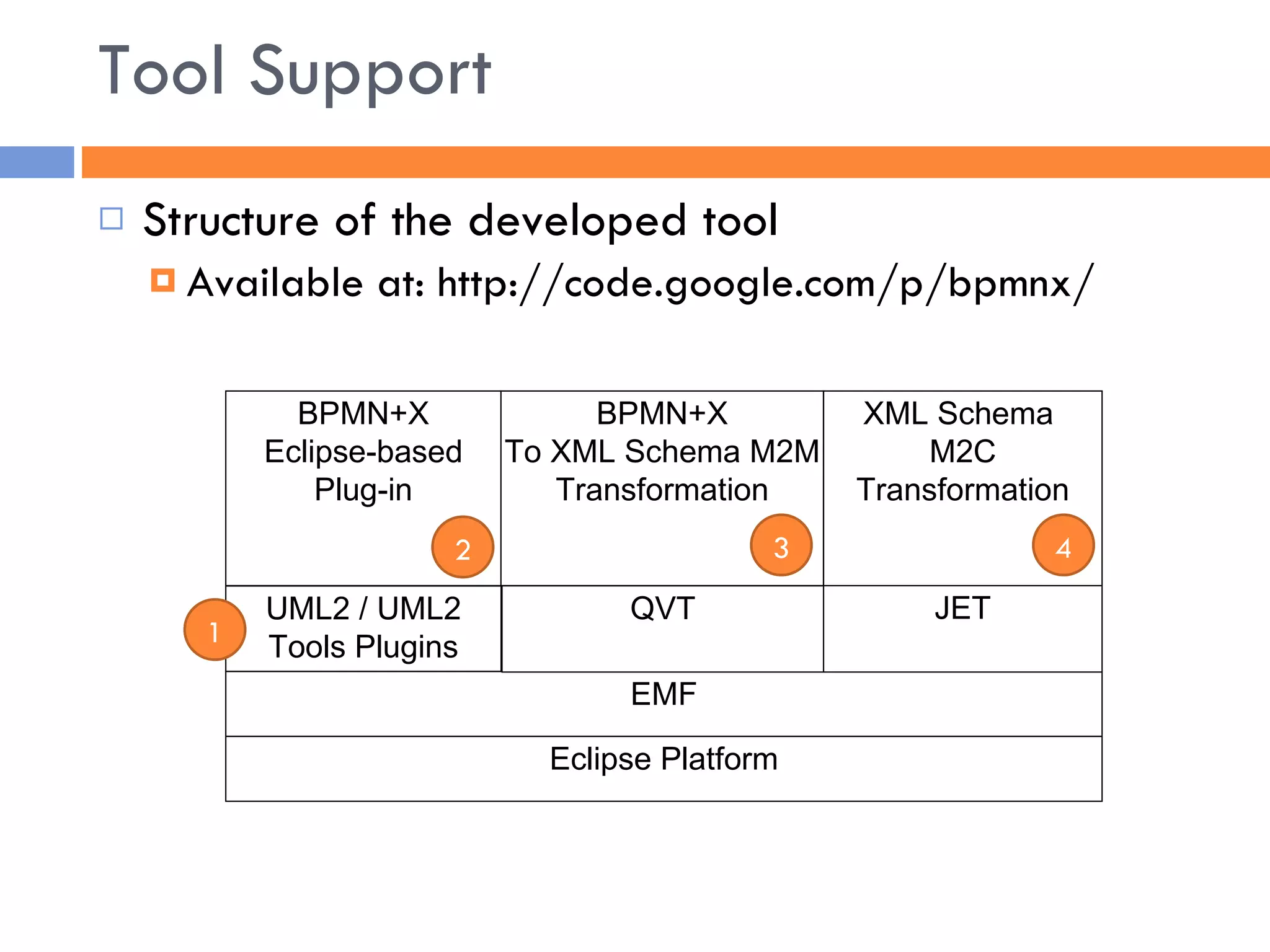

- 28. Tool Support Structureof the developed tool Available at: http://code.google.com/p/bpmnx/ 1 2 3 4 EMF Eclipse Platform UML2 / UML2 Tools Plugins QVT JET BPMN+X Eclipse-based Plug-in BPMN+X To XML Schema M2M Transformation XML Schema M2C Transformation

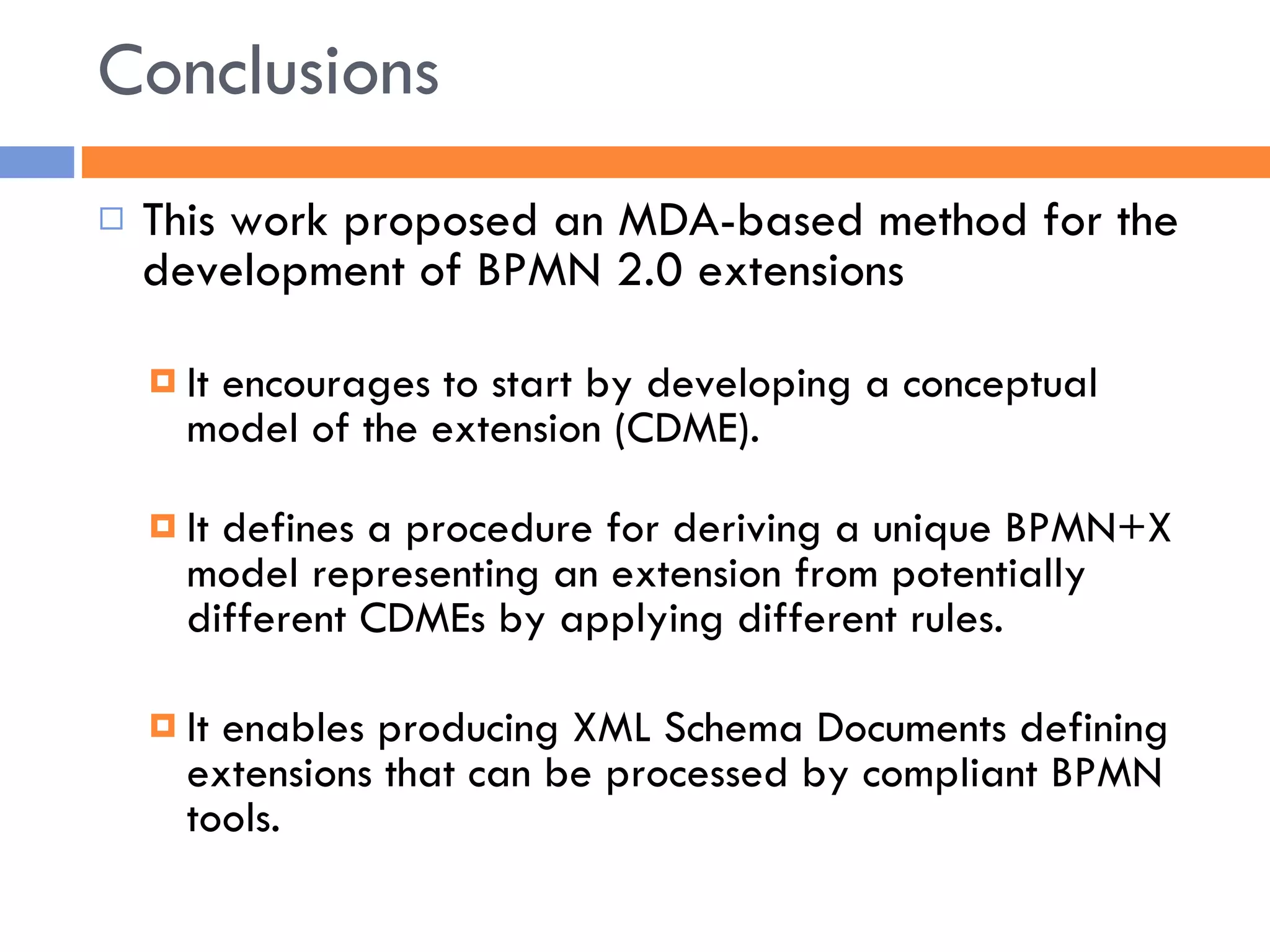

- 29. Conclusions This workproposed an MDA-based method for the development of BPMN 2.0 extensions It encourages to start by developing a conceptual model of the extension (CDME). It defines a procedure for deriving a unique BPMN+X model representing an extension from potentially different CDMEs by applying different rules. It enables producing XML Schema Documents defining extensions that can be processed by compliant BPMN tools.

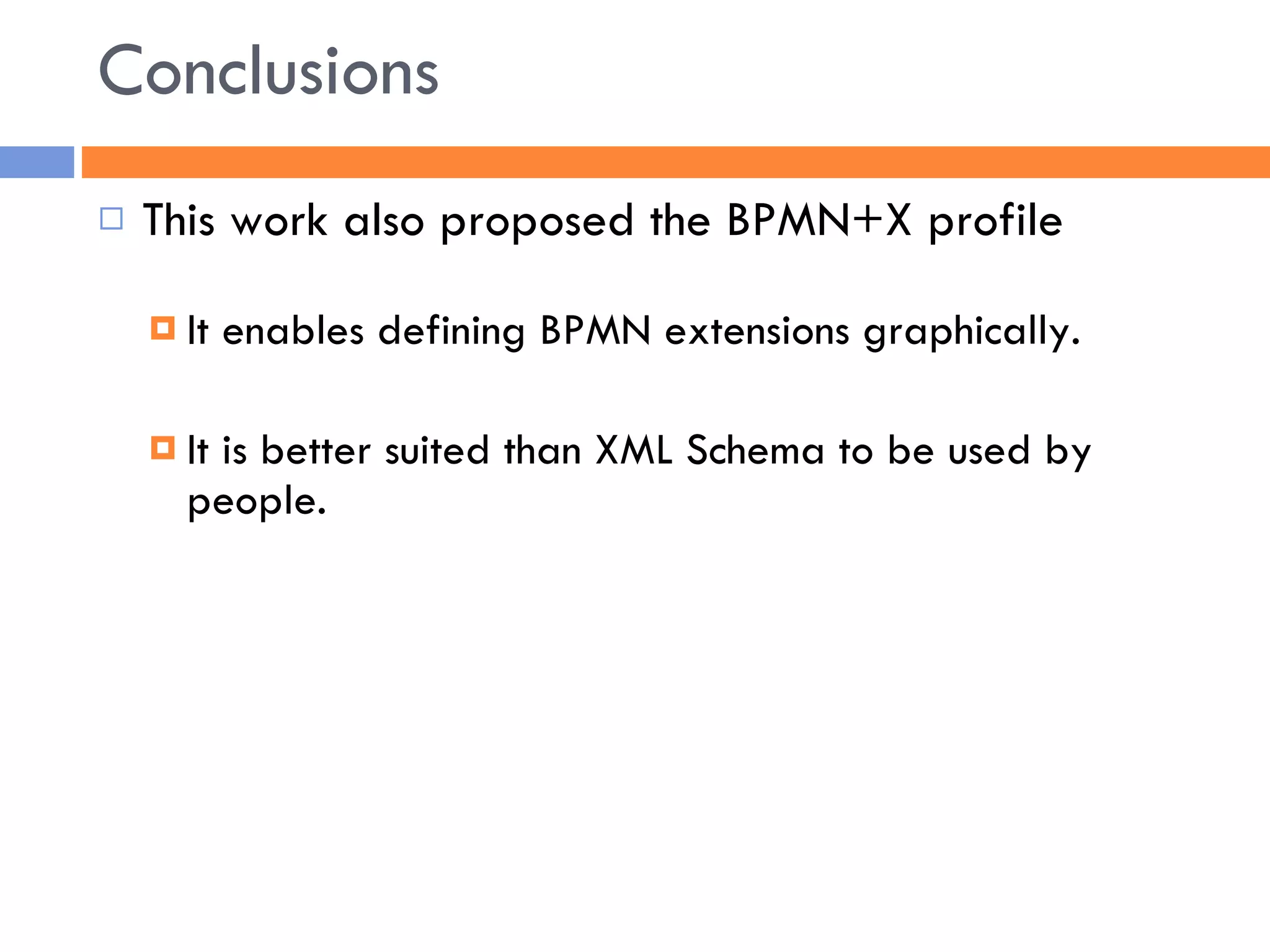

- 30. Conclusions This workalso proposed the BPMN+X profile It enables defining BPMN extensions graphically. It is better suited than XML Schema to be used by people.
- 31. Conclusions A toolsupporting the method was also developed : It allows creating BPMN+X models based on conceptual models and enables the automatic generation of XML Schema Documents defining BPMN extensions. It makes use of different plugins provided by the Eclipse platform such as UML2, QVT and JET. It was demonstrated that the method can be supported by using currently available tools.
- 32. The use ofontologies to conceptualize extensions and define Conceptual Domain Models of Extensions. The development of approaches for extending the BPMN notation to depict instances of extensions in BPMN diagrams. Future Work
Editor's Notes
