About My Research

1. Evolutionary Computation
And Applications
Deepak Dawar
04/25/15 DD - North Dakota State University 1

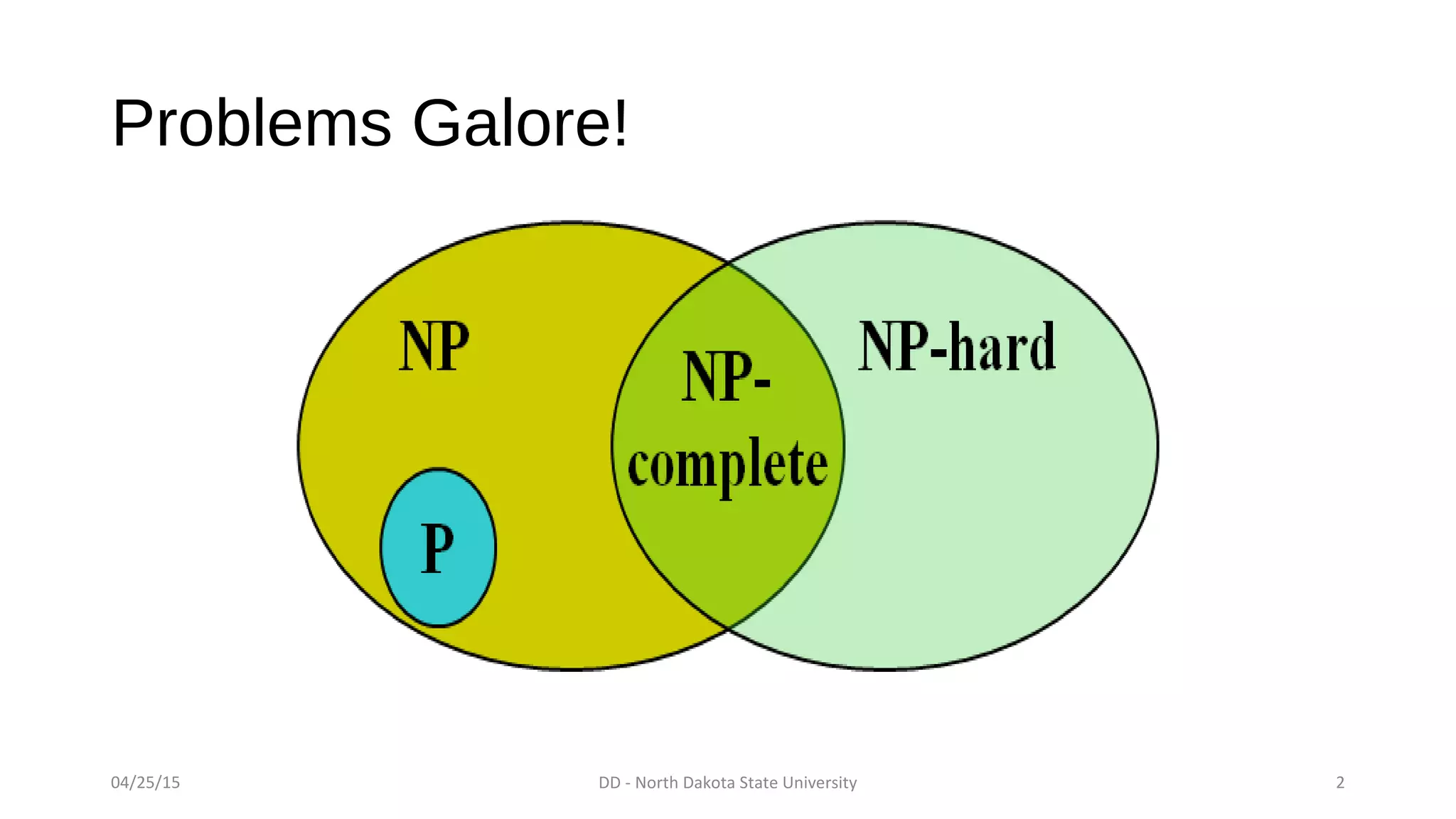

2. Problems Galore!
204/25/15 DD - North Dakota State University

3. The Traveling Salesman
• NP Complete
• It is likely that the worst case
running time for any algorithm
for the TSP increases
exponentially with the number
of cities.
304/25/15 DD - North Dakota State University

4. Evolutionary Algorithms
404/25/15 DD - North Dakota State University

5. Classes of Search Methods
Search Method
Calculus Based
Method
Guided Random Search
Method
Enumerative
Method
BFSDFS Dynamic
Programming
Tabu
Search
Hill
Climbing
Simulated
Anealing
Evolutionary
Algorithms
Genetic
Algorithms
Fibonacci Sort
Swarm
Intelligence
Particle
Swarm
Ant
Colony
Differential
Evolution
04/25/15 DD - North Dakota State University 5

6. Evolutionary Algorithms
• Emulate evolutionary processes.
• Operate on population of individuals.
604/25/15 DD - North Dakota State University

7. List of Parts for Real Parameter
Optimization with EA
• A function to optimize
• A domain in which to optimize
• An Evolutionary Algorithm
704/25/15 DD - North Dakota State University

8. The Function and The Domain
Function:
We want to find the minimum value on
the landscape.
8
Global
Minimum
04/25/15 DD - North Dakota State University

9. The Algorithm-Differential Evolution
• Real Parameter Optimizer
• Utilizes a pre-specified number of random solutions
• Continuously improves them through a series of mutations and re-
combinations
• Usually, the number of pre-specified solutions i.e. the population size
does not change during the lifetime of the algorithm
904/25/15 DD - North Dakota State University

10. Differential Evolution
1004/25/15 DD - North Dakota State University

11. Important Nomenclature
• D = Dimensionality of the problem
• NP = No. of solution vectors in a
population
• G = No. of generations the population has to go
through
• F = Scaling Factor
• Cr = Crossover rate
1104/25/15 DD - North Dakota State University

12. Initialization
1204/25/15 DD - North Dakota State University

13. Initial Population
1304/25/15 DD - North Dakota State University

14. Mutation
• Mutation is a change in the gene characteristics of a chromosome.
• Applied to evolutionary computation it means a change in the
parameters of the vector through a perturbation with a random
element.
1404/25/15 DD - North Dakota State University

15. Mutation
• A parent vector from the current generation is called target vector
• The mutant vector obtained through differential perturbation is
called donor vector
• The offspring obtained through recombination of target and donor is
called trial vector
1504/25/15 DD - North Dakota State University

16. Mutation
1604/25/15 DD - North Dakota State University

17. Mutation
1704/25/15 DD - North Dakota State University

18. Crossover
1804/25/15 DD - North Dakota State University

19. Create Trial Vector
• Suppose:
rand =0.945, Cr =0.9
• If rand < Cr, pick the
parameter from the
donor
• Else from the parent
• Do this for all 10
parameters
1904/25/15 DD - North Dakota State University

20. Selection- Choose between Parent and
Child/Trial Vector
2004/25/15 DD - North Dakota State University

21. Control Parameters
• NP, F and Cr are collectively termed as control parameters of DE
• The performance of DE is very sensitive to the values of control
parameters
• Every problem/function may respond differently to different sets of
control parameters.
2104/25/15 DD - North Dakota State University

22. Benchmark Functions-
IEEE CEC 2013 Test Suite
• State of the art benchmark functions used in CEC Real Parameter
Optimization Competitions and Conferences
• Emulate the properties of real world large scale optimization
problems
• IEEE CEC Test suites have constantly evolved over time with the
advances in the field of Large Scale Global Optimization
• All the problems listed in the Test Suite are minimization problems
2204/25/15 DD - North Dakota State University

23. Rotated Ackley’s Function
2304/25/15 DD - North Dakota State University

24. Scaling Factor
Scales the difference of solutions and controls the step size
Many Authors have reported that its effective values lie between [0.4, 1]
though it may ultimately also depend upon the problem landscape
Contradicting results have been reported for what should be good values
for the scaling factor
So what do we do?
04/25/15 DD - North Dakota State University 24

25. Altering the Scaling Vector
Deterministic - the parameters are altered based on some user defined rules
Adaptive - the parameters are allowed to adapt based on some feedback from
the algorithm
Evolutionary - the parameters are encoded into the solution itself and they
evolve as a part of the general population
04/25/15 DD - North Dakota State University 25

26. In Our First Paper
• We primarily focus our attention towards deterministic parameter
control methods and the control parameter, scale factor (F), in
particular.
04/25/15 DD - North Dakota State University 26

27. Dither
04/25/15 DD - North Dakota State University 27

28. DETVSF - DE with Time Varying Scale Factor
 Linear Reduction
04/25/15 DD - North Dakota State University 28

29. DEDASF - DE with Dither and Annealed Scale Factor
 Non Linear Reduction
04/25/15 DD - North Dakota State University 29

30. Birds Eye View
04/25/15 DD - North Dakota State University 30

31. What do we achieve?
04/25/15 DD - North Dakota State University 31

32. Result 1 - FriedMan’s Test - Ranks
04/25/15 DD - North Dakota State University 32

33. Result 2 - Hocheberg’s Post Hoc
Procedure: significance level 0.1
04/25/15 DD - North Dakota State University 33

34. Second Paper - Objective
• To detect, classify
and count the
type of moving
vehicles
34Source: http://www.123rf.com/stock-photo/highway.html04/25/15 DD - North Dakota State University

35. Vehicle Recognition Steps
3504/25/15 DD - North Dakota State University

36. How to Identify Axles?
• Axles are circular
• Shape recognition algorithm must be employed
3604/25/15 DD - North Dakota State University

37. Hough Transform
• Is a feature extraction technique used in image analysis
• Can be used to detect lines, circles, and ellipses or any shape
represented by a set of parameters
• We focus on circle detection
3704/25/15 DD - North Dakota State University

38. Recognition Example (1)
• Original Image
3804/25/15 DD - North Dakota State University

39. Recognition Example (1)
• dp (accumulator resolution)=1.25
3904/25/15 DD - North Dakota State University

40. Recognition Example (2)
4004/25/15 DD - North Dakota State University

41. Recognition Example (3)
4104/25/15 DD - North Dakota State University

42. 04/25/15 DD - North Dakota State University 42
DEMO

43. Paper 3 - Object Tracking
04/25/15 DD - North Dakota State University 43

44. Stages In Object Tracking
• Object Initialization
• Appearance model Initialization
• Search – Object Localization
• Appearance model Updation
04/25/15 DD - North Dakota State University 44

45. Modeling The Target
• Represent the target as
• Vector
• Matrix
• Histogram
• Wavelets
04/25/15 DD - North Dakota State University 45

46. Modeling – A Difficult Task
• Scene changes
• Illumination
• Background
• Occlusion
• Deformation
• Noise
04/25/15 DD - North Dakota State University 46

47. Univariate Gaussian
04/25/15 DD - North Dakota State University 47

48. Multivariate Gaussian
04/25/15 DD - North Dakota State University 48

49. Gaussian Mixture
04/25/15 DD - North Dakota State University 49

50. Segmentation using GMM
04/25/15 DD - North Dakota State University 50

51. Demo
04/25/15 DD - North Dakota State University 51

52. 04/25/15 DD - North Dakota State University 52
Thank You
