The document discusses evolutionary algorithms as heuristic optimizers that find good enough solutions rather than guaranteed optimal ones. It describes hill climbing, simulated annealing, and evolutionary algorithms, noting their tradeoffs in exploration versus exploitation and speed versus thoroughness. Evolutionary algorithms use populations of solutions that undergo selection, mutation/recombination, and repopulation over generations. While slower, they are less prone to getting stuck than hill climbing and can explore more than simulated annealing.

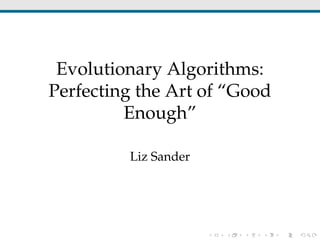

1. Evolutionary Algorithms:
Perfecting the Art of “Good
Enough”
Liz Sander

2. Source: wikipedia.org

3. Source: fishbase.org

4. Source: youtube.com

5. Sometimes, we can’t find the best solution.

6. Sometimes, we can’t find the best solution.
But most of the time, we don’t need to.

7. Sometimes, we can’t find the best solution.
But most of the time, we don’t need to.
Let’s focus on finding an answer that’s good
enough!

8. Evolutionary Algorithms

9. Evolutionary Algorithms

10. “Heuristic Optimizers with a Random
Component”

11. “Heuristic Optimizers with a Random
Component”

12. Heuristic:
Optimizer:
Random Component:

13. Heuristic: Rule of thumb
Optimizer:
Random Component:

14. Heuristic: Rule of thumb
Optimizer: Maximizing/minimizing a function
(objective function, cost function, fitness
function)
Random Component:

15. Heuristic: Rule of thumb
Optimizer: Maximizing/minimizing a function
(objective function, cost function, fitness
function)
Random Component: Non-deterministic

16. WHY HEURISTIC?
There are methods that guarantee we find the
true optimum...

17. WHY HEURISTIC?
There are methods that guarantee we find the
true optimum... if you meet the assumptions.

18. WHY HEURISTIC?
There are methods that guarantee we find the
true optimum... if you meet the assumptions.
Gradient descent:

19. WHY HEURISTIC?
There are methods that guarantee we find the
true optimum... if you meet the assumptions.
Gradient descent:
• Convex

20. WHY HEURISTIC?
There are methods that guarantee we find the
true optimum... if you meet the assumptions.
Gradient descent:
• Convex
• Differentiable

21. WHY HEURISTIC?

22. WHY HEURISTIC?

23. WHAT ARE WE OPTIMIZING?
• Often high-dimensional (many inputs, one
output)

24. WHAT ARE WE OPTIMIZING?
• Often high-dimensional (many inputs, one
output)
• Nearby solutions are of similar quality

25. WHAT ARE WE OPTIMIZING?
• Often high-dimensional (many inputs, one
output)
• Nearby solutions are of similar quality
• USPS: Minimize distance

26. WHAT ARE WE OPTIMIZING?
• Often high-dimensional (many inputs, one
output)
• Nearby solutions are of similar quality
• USPS: Minimize distance
• Zebrafish scheduling: Minimize conflicts

27. WHAT ARE WE OPTIMIZING?
• Often high-dimensional (many inputs, one
output)
• Nearby solutions are of similar quality
• USPS: Minimize distance
• Zebrafish scheduling: Minimize conflicts
• Skyrim looting: Maximize value

28. FITNESS FUNCTION
Weaver & Knight 2014

29. FITNESS FUNCTION
# example inputs
solution = [1, 0, 1, 1, 0]
weights = [1, 2, .5, 4, 1] #fixed
values = [40, 25, 10, 30, 15] #fixed
max_weight = 5
def Fitness(knapsack, weights, values, max_weight):
’’’Calculate the fitness of a knapsack of items.’’’
tot_weight = 0
tot_value = 0
for i, item in enumerate(knapsack):
if item:
tot_weight += weights[i]
tot_value += values[i]
if tot_weight > max_weight:
return 0
else:
return tot_value

30. HILL CLIMBER

31. HILL CLIMBER

32. HILL CLIMBER

33. HILL CLIMBER
X

34. HILL CLIMBER

35. HILL CLIMBER

36. HILL CLIMBER

37. HILL CLIMBER
• Gets stuck in local optima
• Fast!
• Almost no tuning

38. WHY HEURISTIC?

39. HILL CLIMBER: INITIALIZATION
import random
def InitializeSol(items):
’’’Random starting knapsack.
items: int, number of items in knapsack.
’’’
knapsack = [0] * items
for i in range(len(knapsack)):
knapsack[i] = random.randint(0,1)
return knapsack

40. HILL CLIMBER: MUTATION
import random
import copy
def Mutate(knapsack):
’’’Mutate a solution by flipping one bit.’’’
toSwap = random.randint(0, len(knapsack)-1)
if knapsack[toSwap] == 0:
knapsack[toSwap] = 1
else:
knapsack[toSwap] = 0
return knapsack

41. HILL CLIMBER
import random
from Initialize import InitializeSol
from Fitness import Fitness
from Mutate import Mutate
def HillClimber(steps, weights, values, max_wt, seed):
random.seed(seed) # reproducibility!
best = InitializeSol(len(weights))
bestFit = Fitness(best, weights, values, max_wt)
for i in range(steps):
# take a step
candidate = Mutate(best)
candidateFit = Fitness(candidate, weights,
values, max_wt)
if candidateFit > bestFit:
best = candidate
bestFit = candidateFit
return best

42. SIMULATED ANNEALING
Hill climbing with a changing temperature

43. SIMULATED ANNEALING
Hill climbing with a changing temperature
Temperature: probability of accepting a bad step
Hot: accept many bad steps (more random)
Cold: accept fewer bad steps (less random)

44. SIMULATED ANNEALING
Hill climbing with a changing temperature
Temperature: probability of accepting a bad step
Hot: accept many bad steps (more random)
Cold: accept fewer bad steps (less random)
Hot Cold
Random Walk Hill Climber

45. SIMULATED ANNEALING

46. SIMULATED ANNEALING

47. SIMULATED ANNEALING

48. SIMULATED ANNEALING
• Exploration and exploitation
• Still very fast
• More tuning: cooling schedules, reheating,
and variants

49. TUNING
It’s hard.

50. TUNING
It’s hard.
Do a grid search probably.

51. TUNING
It’s hard.
Do a grid search probably.

52. EVOLUTIONARY ALGORITHMS
Population

53. EVOLUTIONARY ALGORITHMS
1.Selection

54. EVOLUTIONARY ALGORITHMS
Tournament selection: choose n candidates. The
best becomes a parent.
import random
fits = [65, 2, 0, 30] #list of fitnesses
tournamentsize = 2 # candidates in tournament
def Select(fits, tournamentsize):
’’’Choose an individual to reproduce by having them
randomly compete in a given size tournament.’’’
solutions = len(fits)
competitors = random.sample(range(solutions),
tournamentsize)
compFits = [fits[i] for i in competitors]
# get the index of the best competitor
winner = competitors[compFits.index(max(compFits))]
return winner

55. EVOLUTIONARY ALGORITHMS
1.Selection
2.Mutation/Recombination

56. EVOLUTIONARY ALGORITHMS
1.Selection
2.Mutation/Recombination
3.Repopulation

57. EVOLUTIONARY ALGORITHMS
1.Selection
2.Mutation/Recombination
3.Repopulation

58. EVOLUTIONARY ALGORITHMS
• Pros:
• Unlikely to get stuck in a single local optimum
• Can explore lots of areas at once
• Biology connection is pretty cool!
• Cons:
• Can lose variation quickly
• More tuning: selection,
mutation/recombination, selection strength,
population size, mutation size
• Slow
• Memory-hungry

59. ALGORITHM ROUND-UP
• HC: fast but gets stuck easily

60. ALGORITHM ROUND-UP
• HC: fast but gets stuck easily
• SA: fast-ish, can explore better

61. ALGORITHM ROUND-UP
• HC: fast but gets stuck easily
• SA: fast-ish, can explore better
• EA: slow, memory-hungry, potentially very
powerful

62. ALGORITHM ROUND-UP
• HC: fast but gets stuck easily
• SA: fast-ish, can explore better
• EA: slow, memory-hungry, potentially very
powerful
• Metropolis-coupled MCMC (my personal
favorite): several parallel searches at
different (constant) temperatures, allow
them to swap every so often

63. WHAT NEXT?
• papers/books on optimization
• for discrete problems, “combinatorial
optimization”
• other EAs:
• differential evolution
• evolutionary strategies
• genetic programming
• ALPS

64. WHAT NEXT?
• How have I used these?
• Generating stable food webs
• Identifying similar species (parasites, top
predators) in an ecological system
• code: github.com/esander91/
GoodEnoughAlgs
• blog: lizsander.com
