1. ETL into Neo4j
Max De Marzi

2. About Me
Built the Neography Gem (Ruby
Wrapper to the Neo4j REST API)
Playing with Neo4j since 10/2009
• My Blog: http://maxdemarzi.com
• Find me on Twitter: @maxdemarzi
• Email me: maxdemarzi@gmail.com
• GitHub: http://github.com/maxdemarzi

3. Agenda
• ETL your mind
• ETL with Batch and the REST API
• ETL with Gremlin and Groovy
• ETL with the Batch Importer
• ETL from SQL

4. ETL your Mind
You have to start there

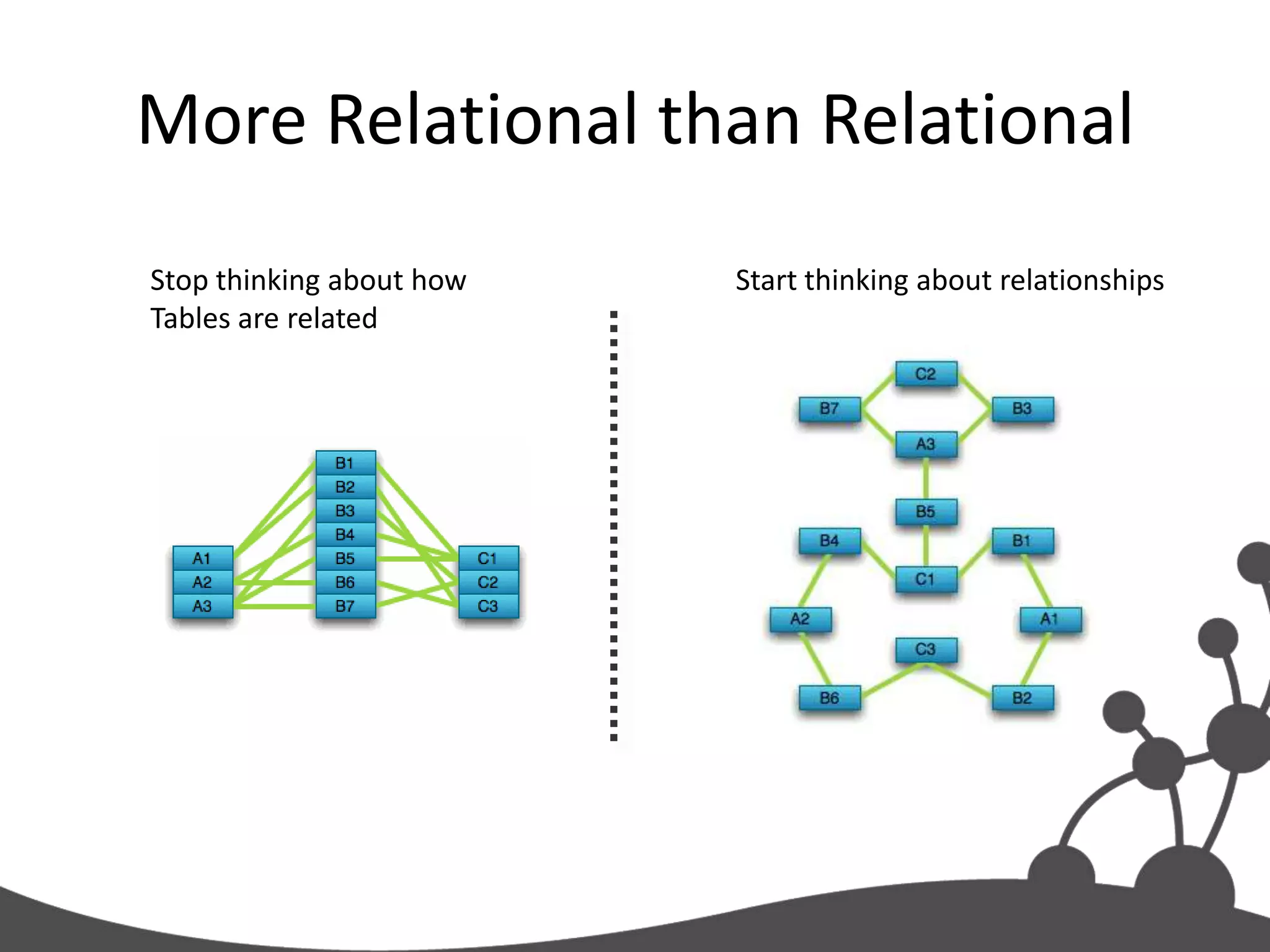

5. More Relational than Relational
Stop thinking about how Start thinking about relationships
Tables are related

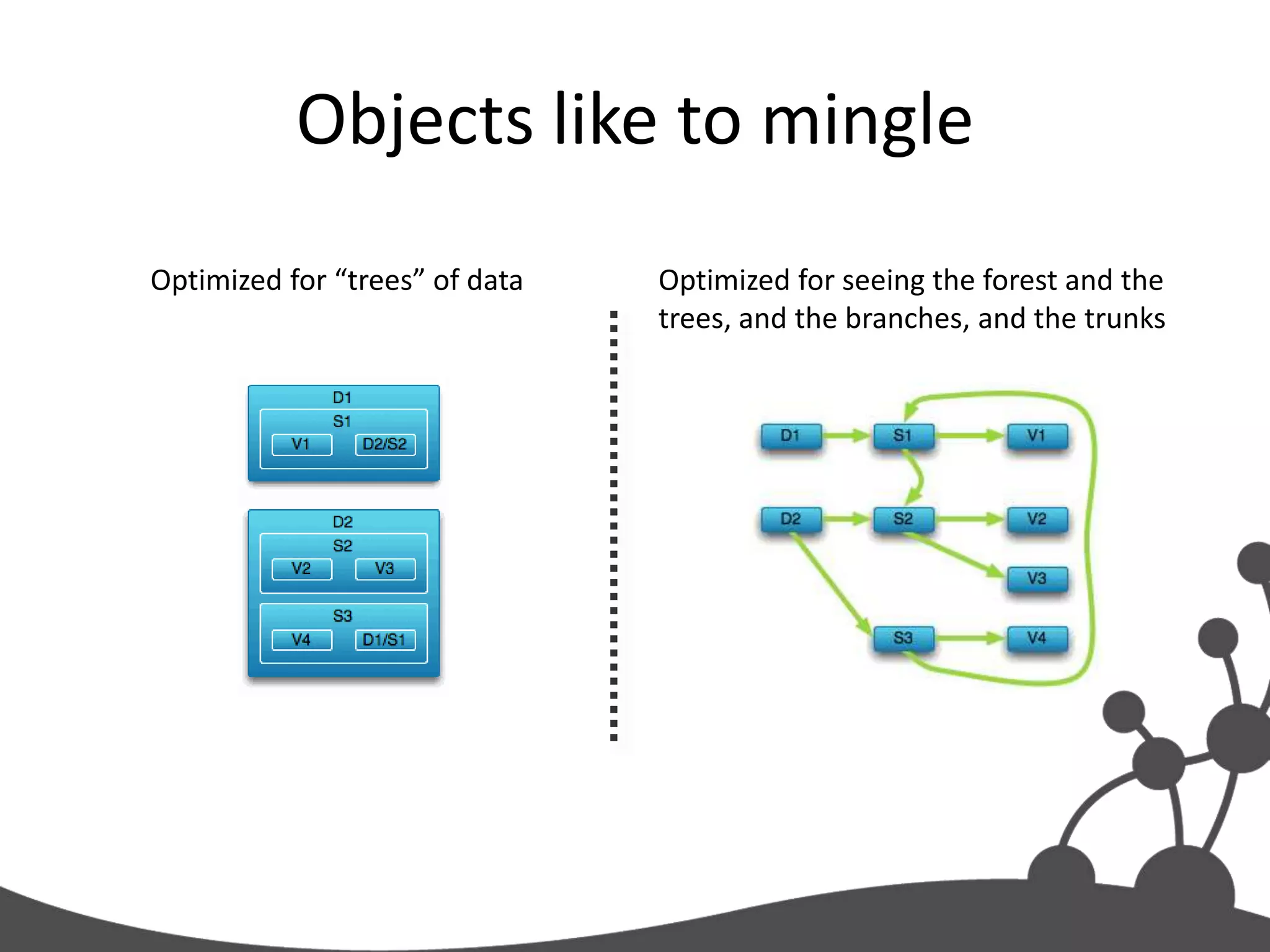

6. Objects like to mingle
Optimized for “trees” of data Optimized for seeing the forest and the
trees, and the branches, and the trunks

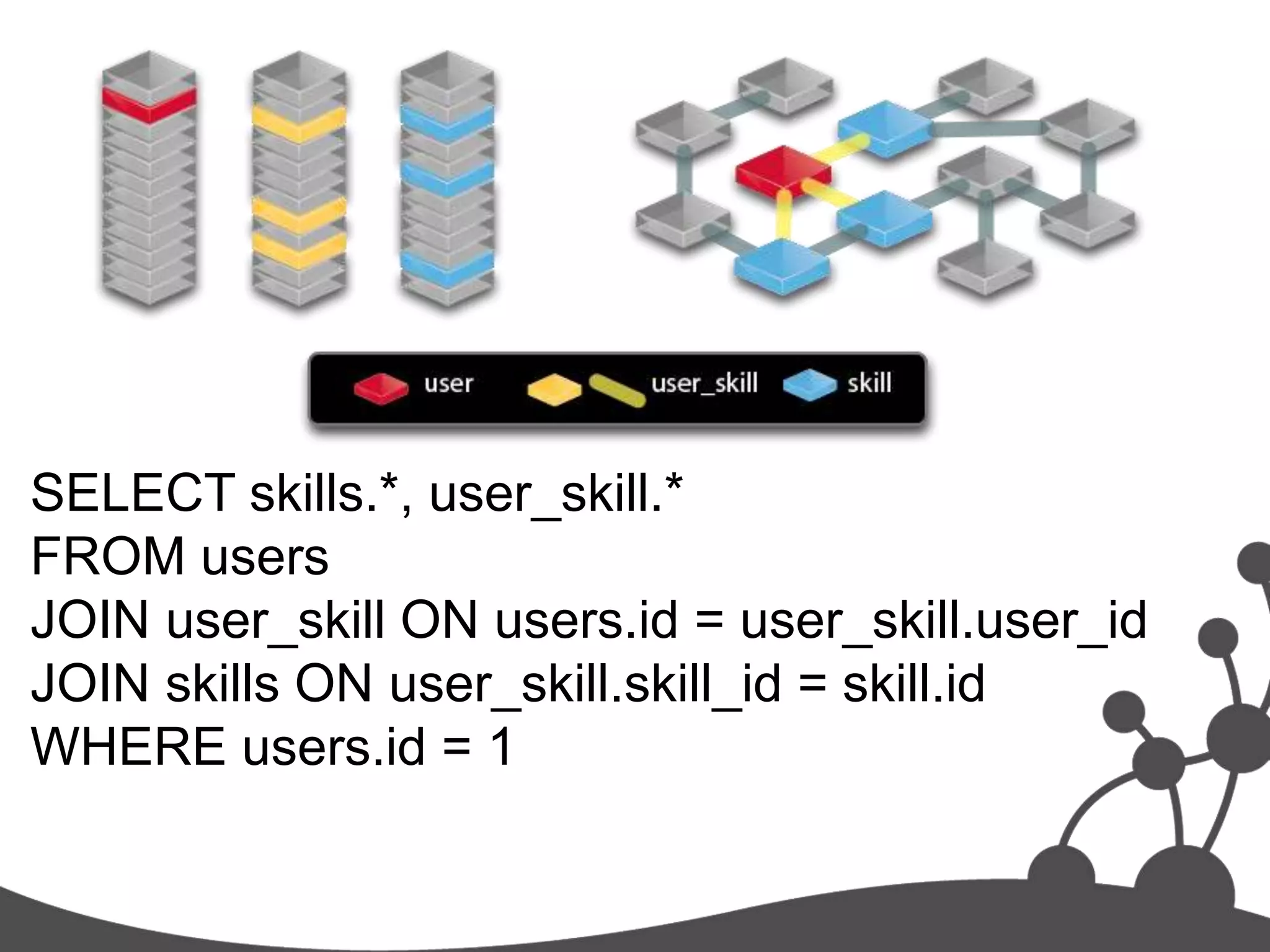

7. SELECT skills.*, user_skill.*
FROM users
JOIN user_skill ON users.id = user_skill.user_id
JOIN skills ON user_skill.skill_id = skill.id
WHERE users.id = 1

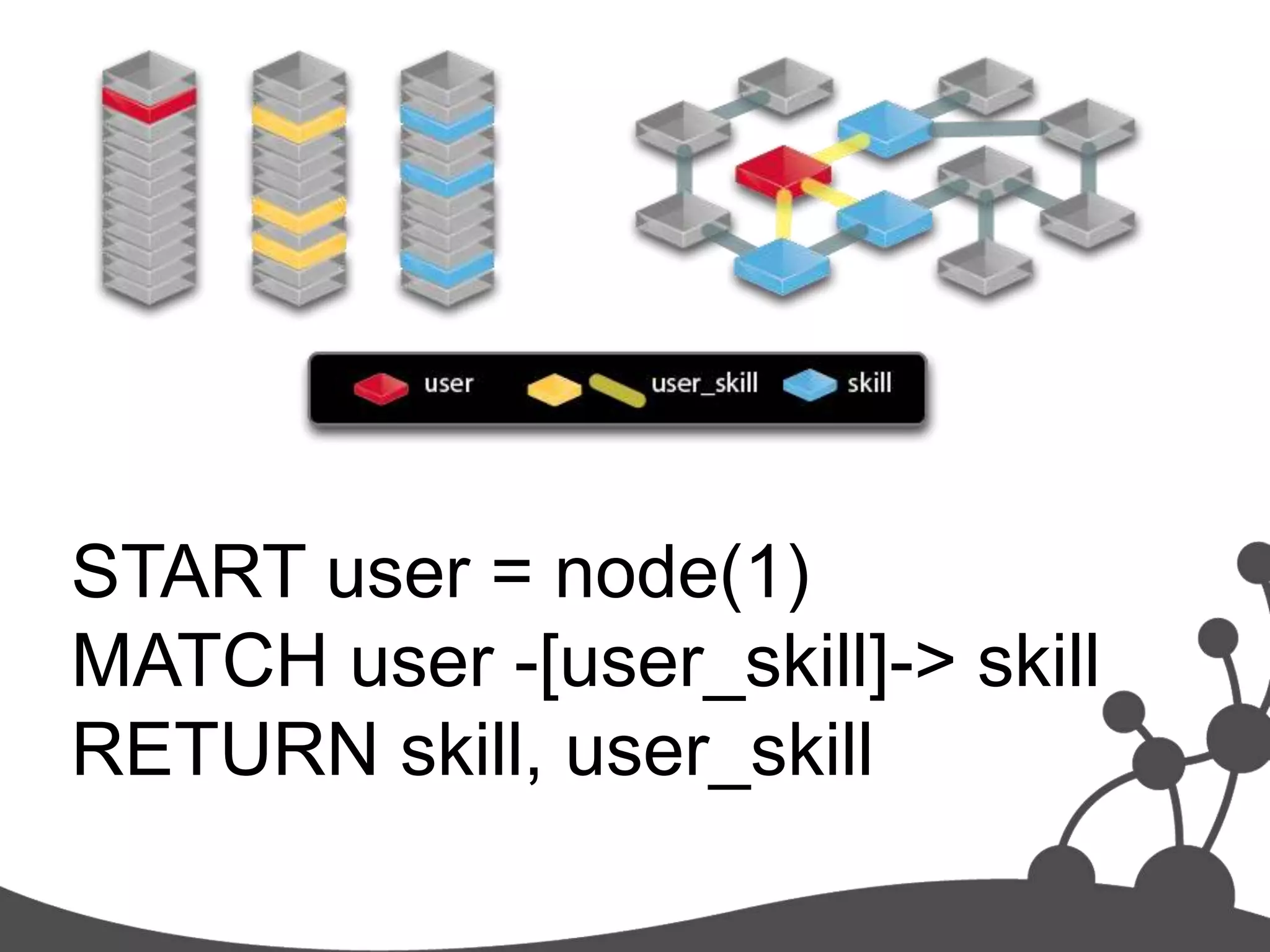

8. START user = node(1)
MATCH user -[user_skill]-> skill
RETURN skill, user_skill

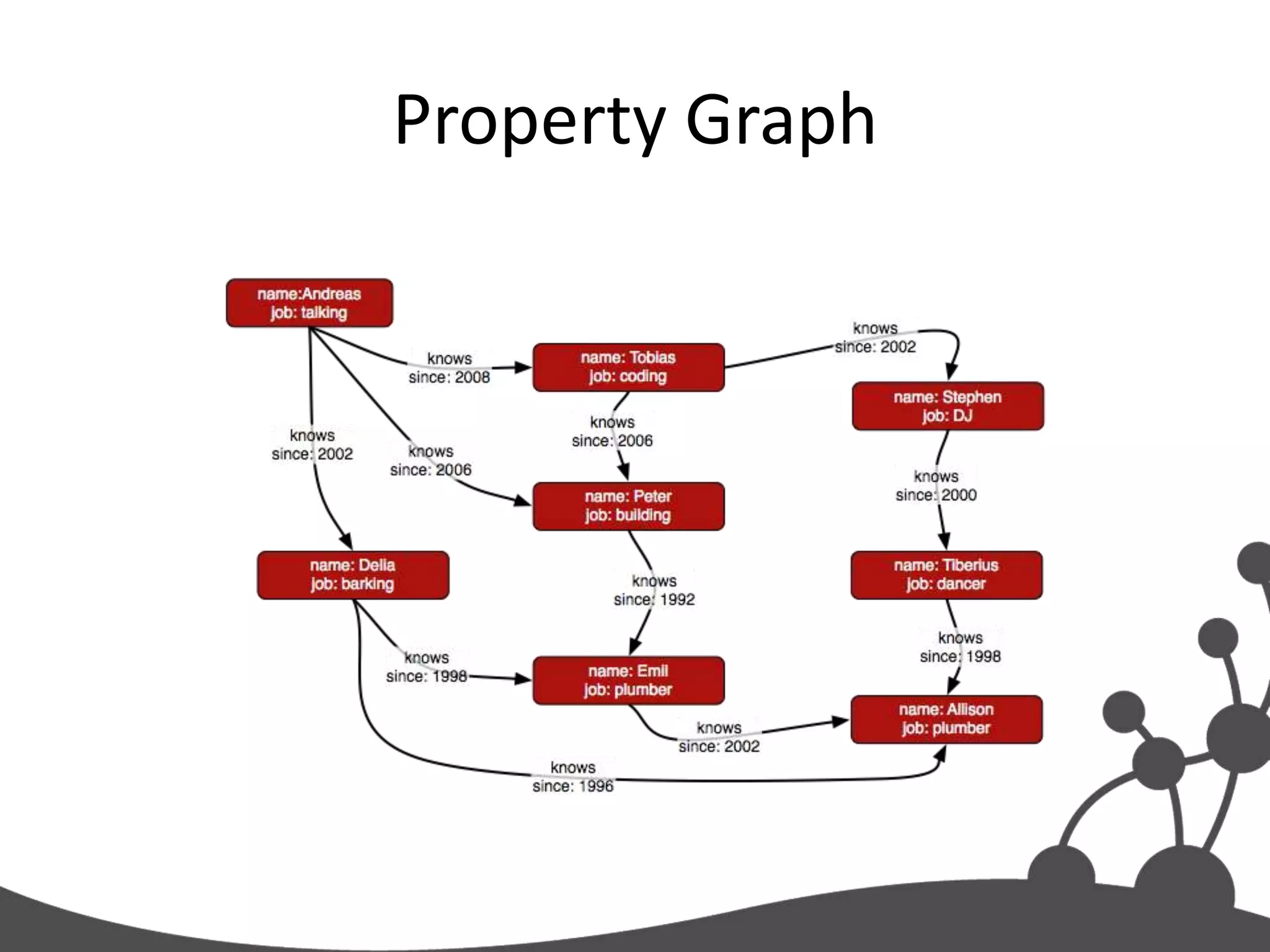

9. Property Graph

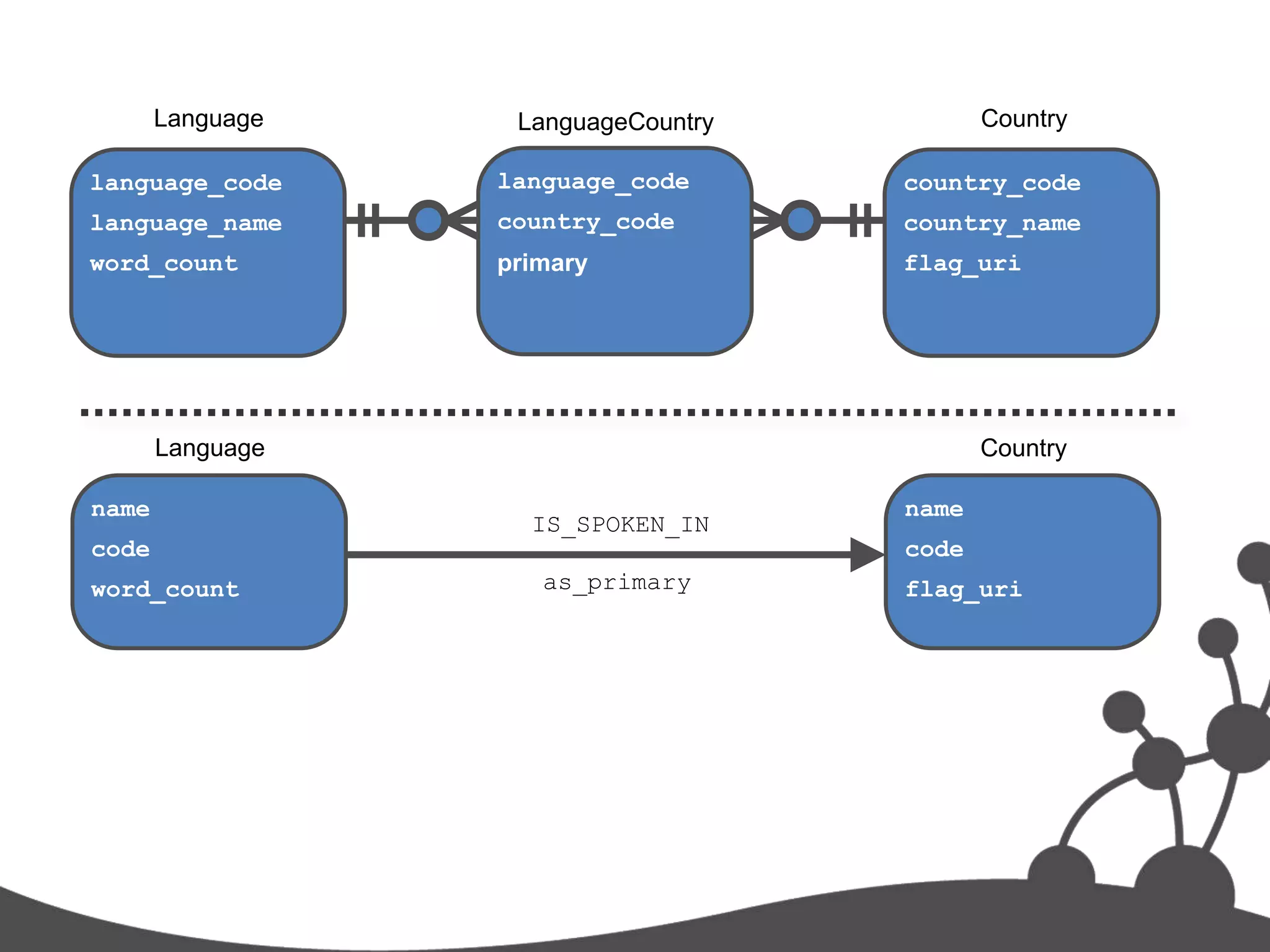

10. Language LanguageCountry Country
language_code language_code country_code
language_name country_code country_name
word_count primary flag_uri
Language Country
name name
IS_SPOKEN_IN
code code
word_count as_primary flag_uri

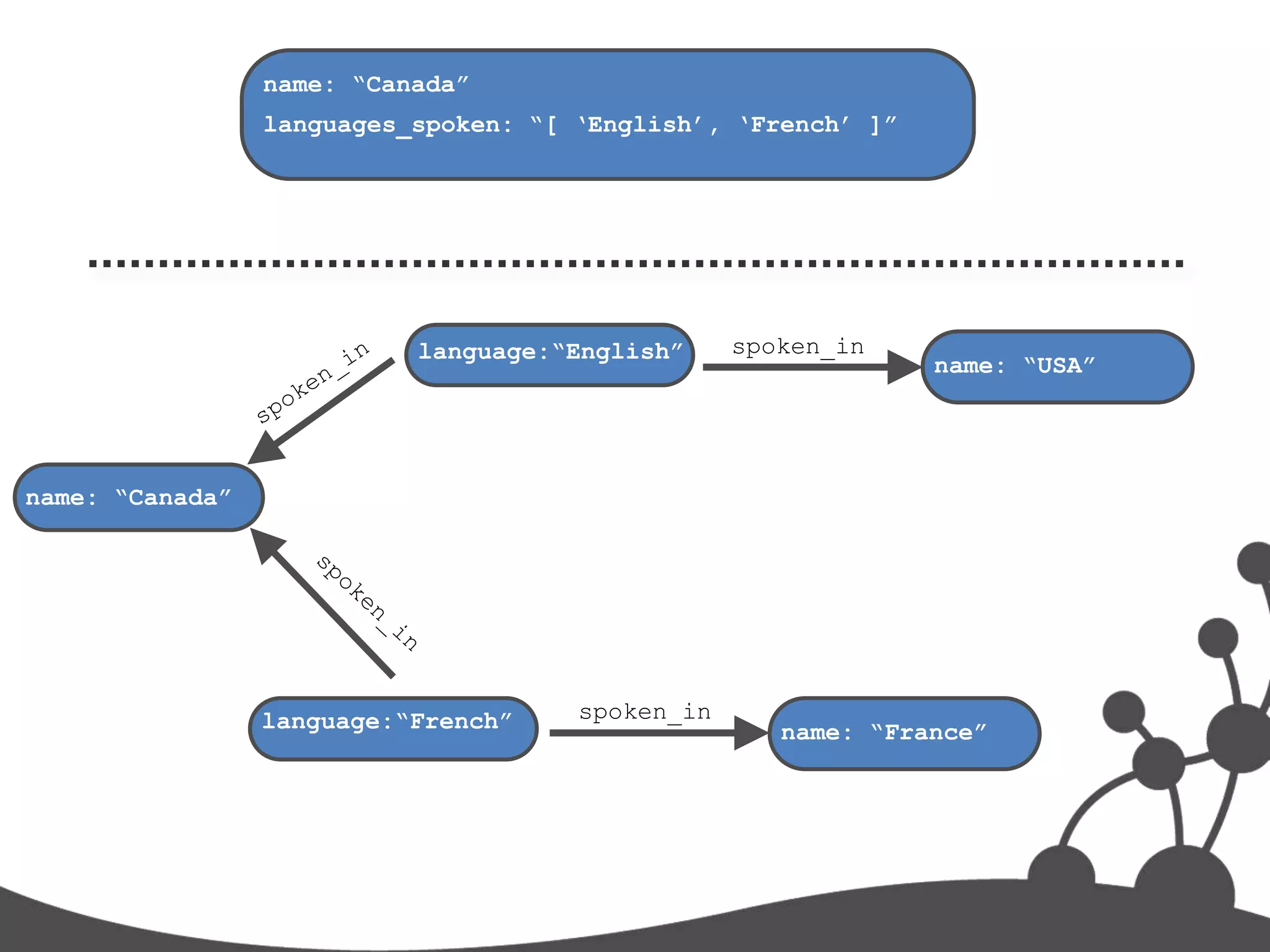

11. name: “Canada”
languages_spoken: “[ „English‟, „French‟ ]”
language:“English” spoken_in
name: “USA”
name: “Canada”
language:“French” spoken_in
name: “France”

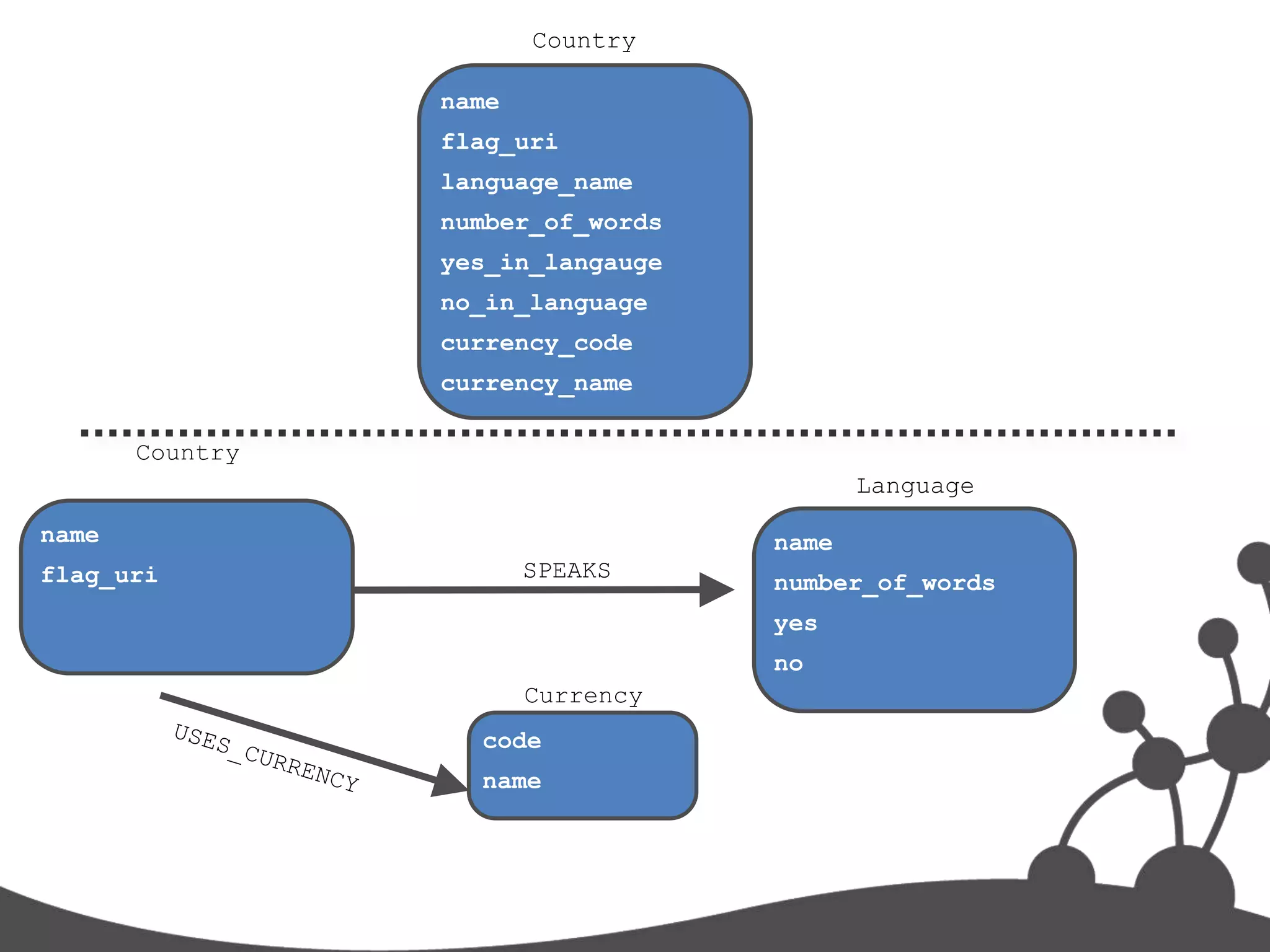

12. Country
name
flag_uri
language_name
number_of_words
yes_in_langauge
no_in_language
currency_code
currency_name
Country
Language
name name
flag_uri SPEAKS
number_of_words
yes
no
Currency
code
name

13. ETL with Batch and the REST API

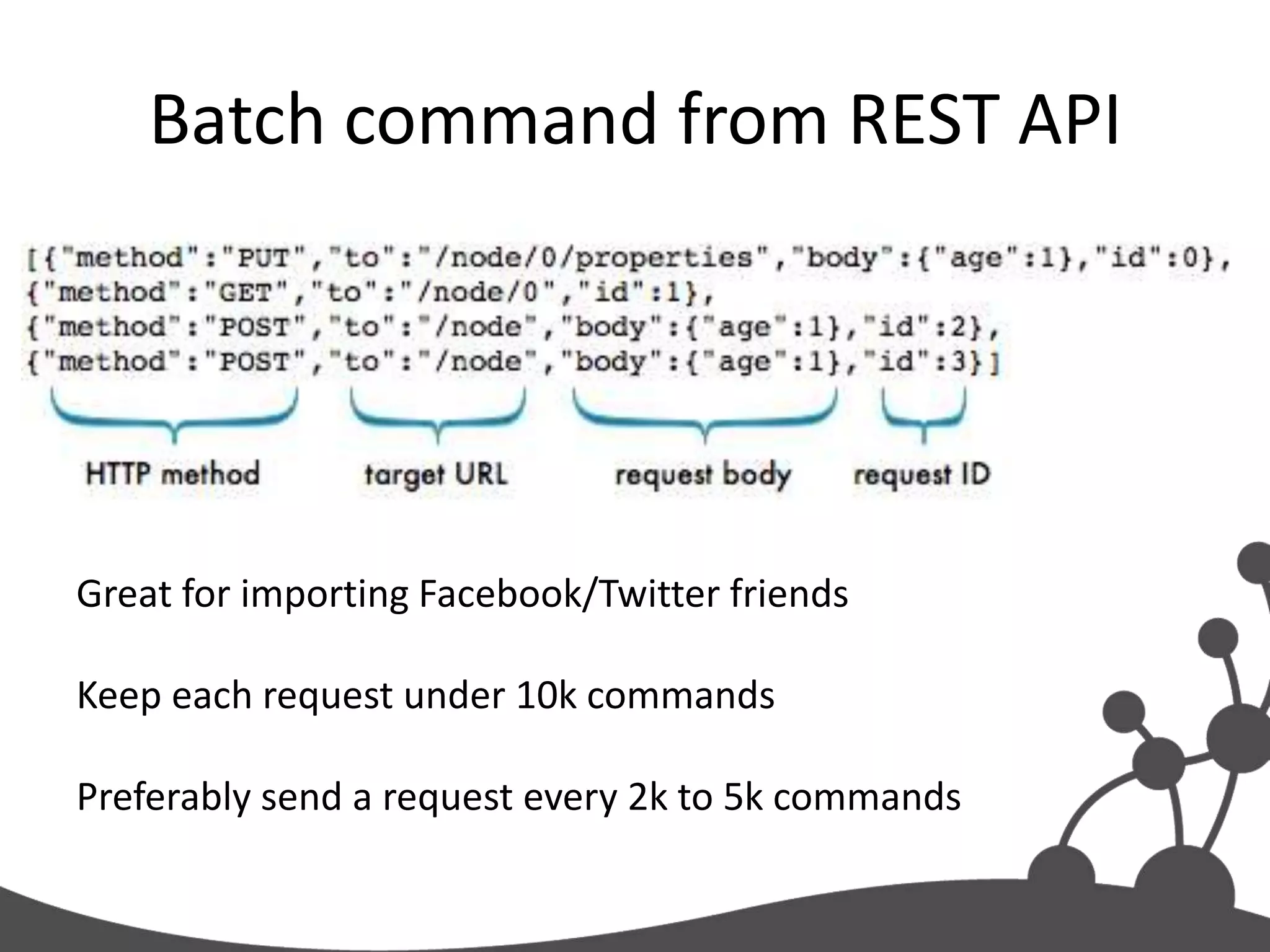

14. Batch command from REST API
Great for importing Facebook/Twitter friends
Keep each request under 10k commands
Preferably send a request every 2k to 5k commands

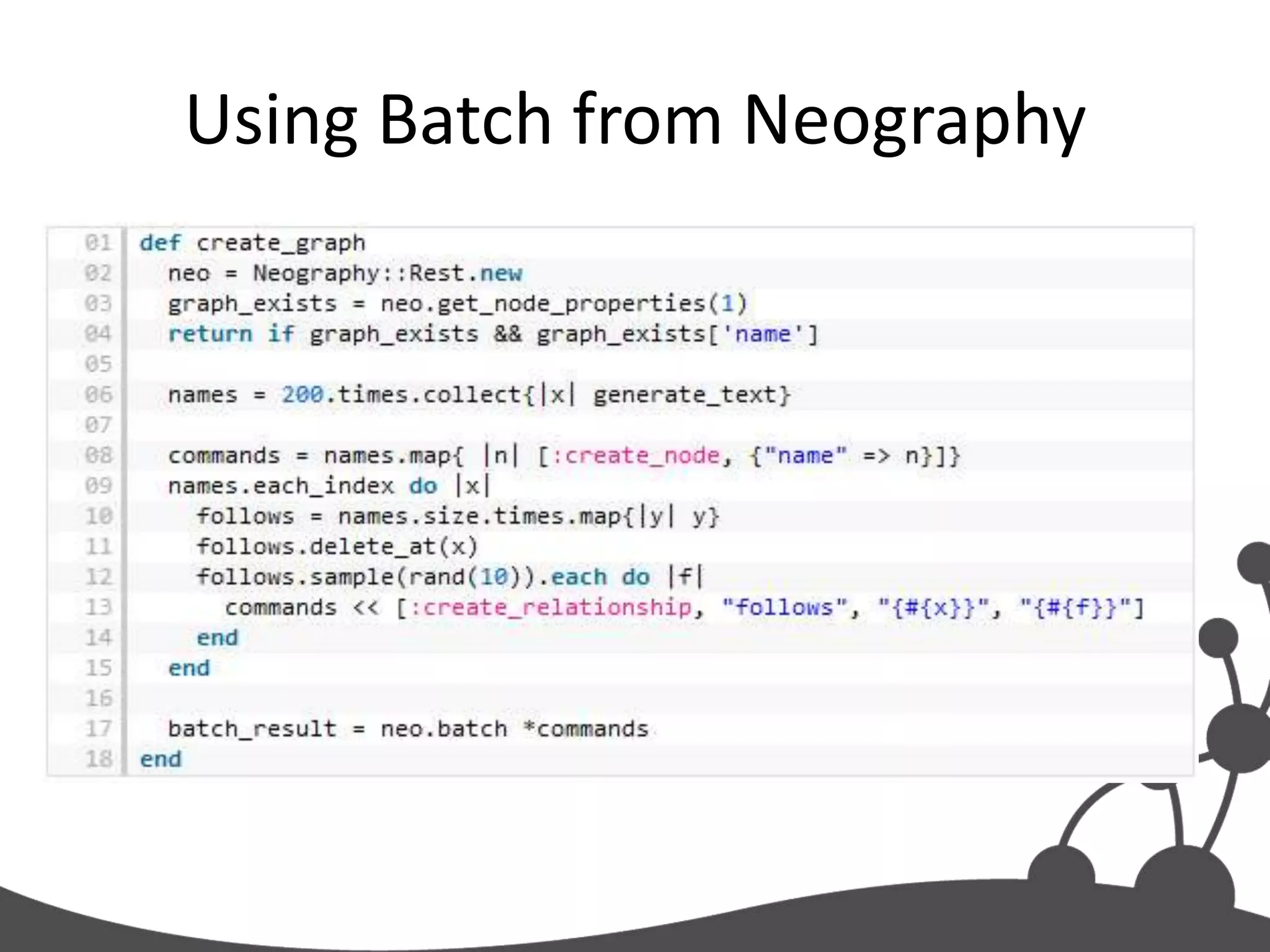

15. Using Batch from Neography

16. Why Batch
Transactional: any failures not
committed.
Ordered: responses guaranteed
to be in the same order as sent.
Continuous loading/updating
nodes and relationships in
spurts or streaming.

17. ETL with Gremlin and Groovy

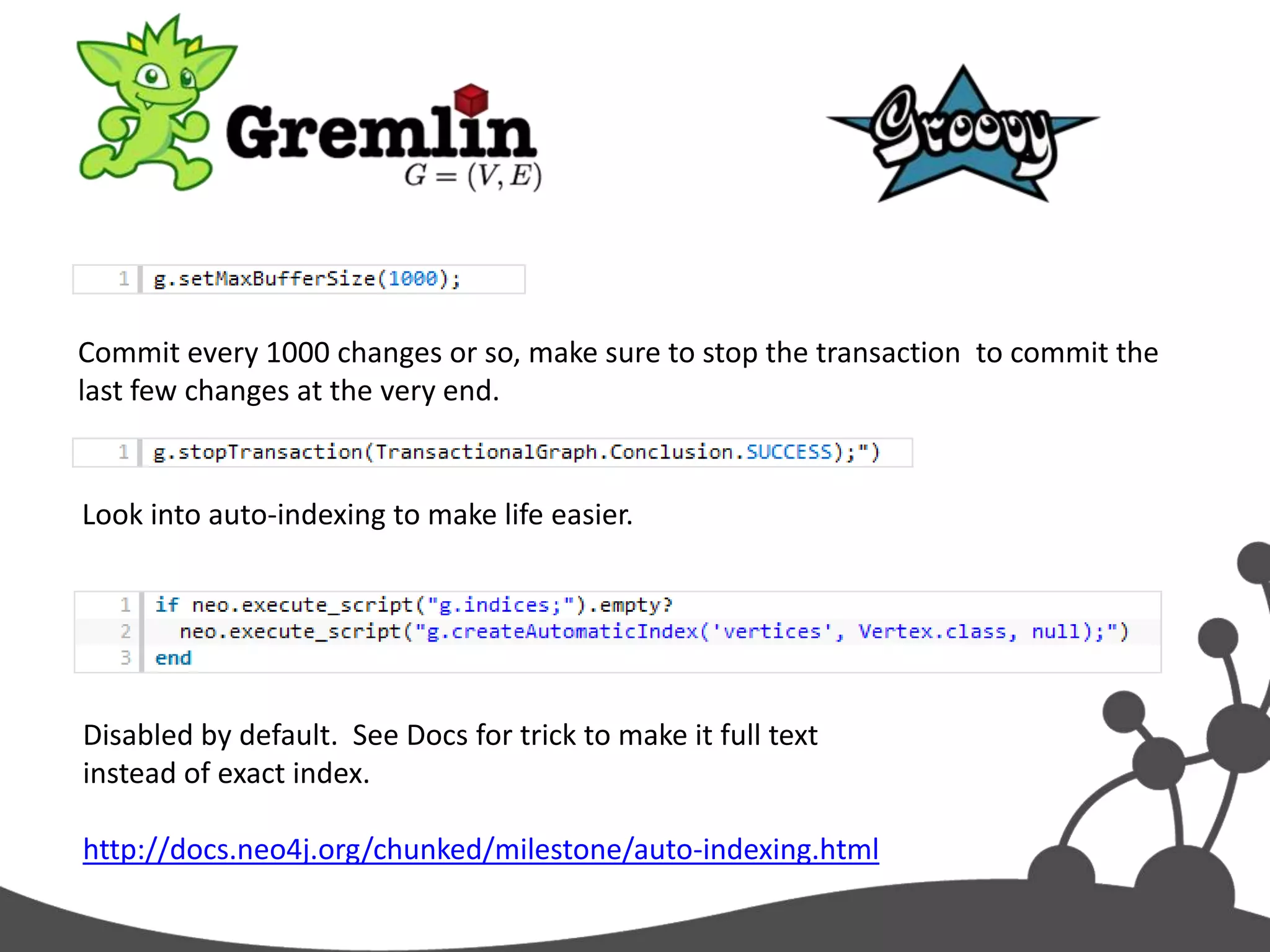

18. Commit every 1000 changes or so, make sure to stop the transaction to commit the
last few changes at the very end.
Look into auto-indexing to make life easier.
Disabled by default. See Docs for trick to make it full text
instead of exact index.
http://docs.neo4j.org/chunked/milestone/auto-indexing.html

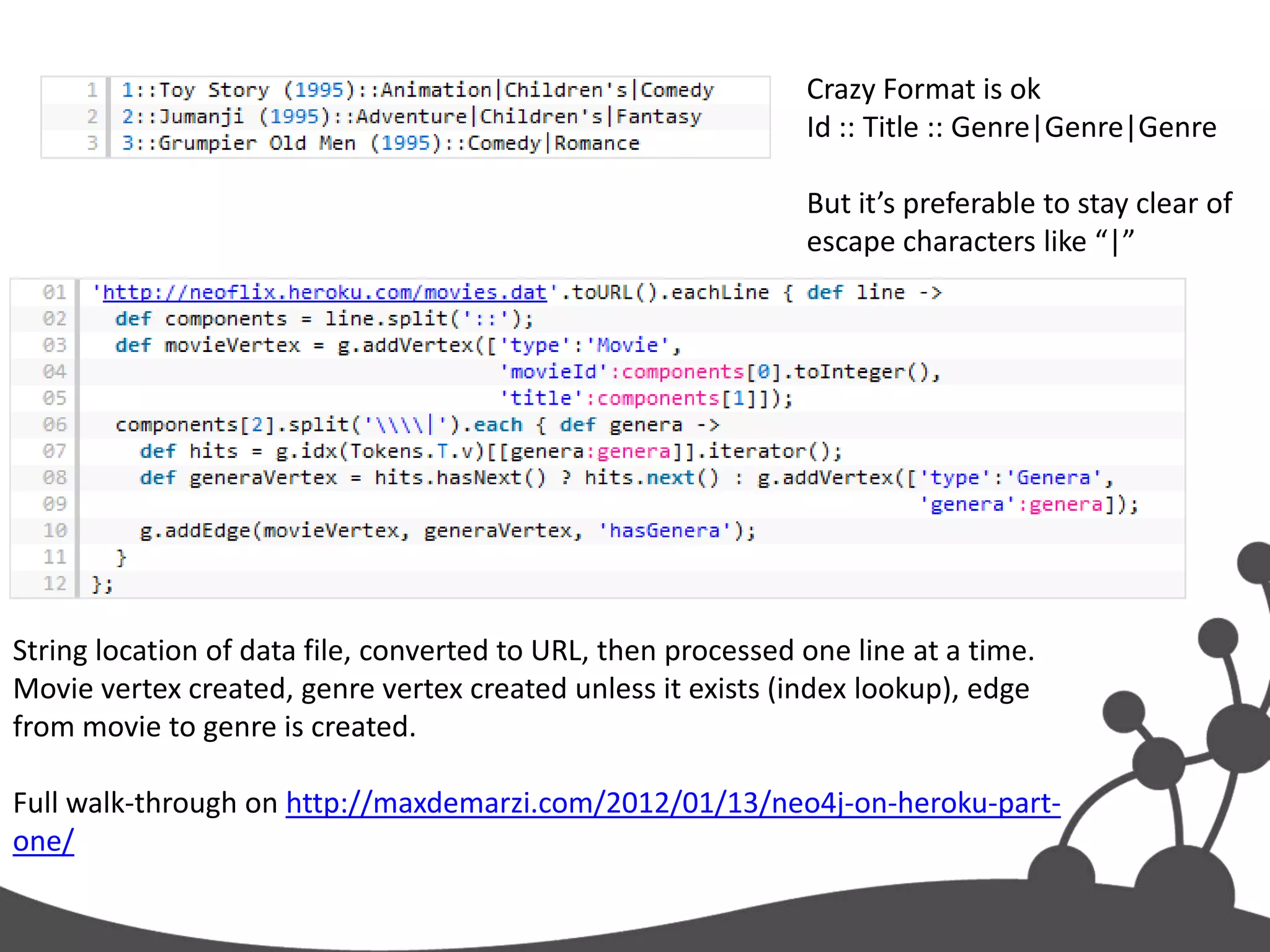

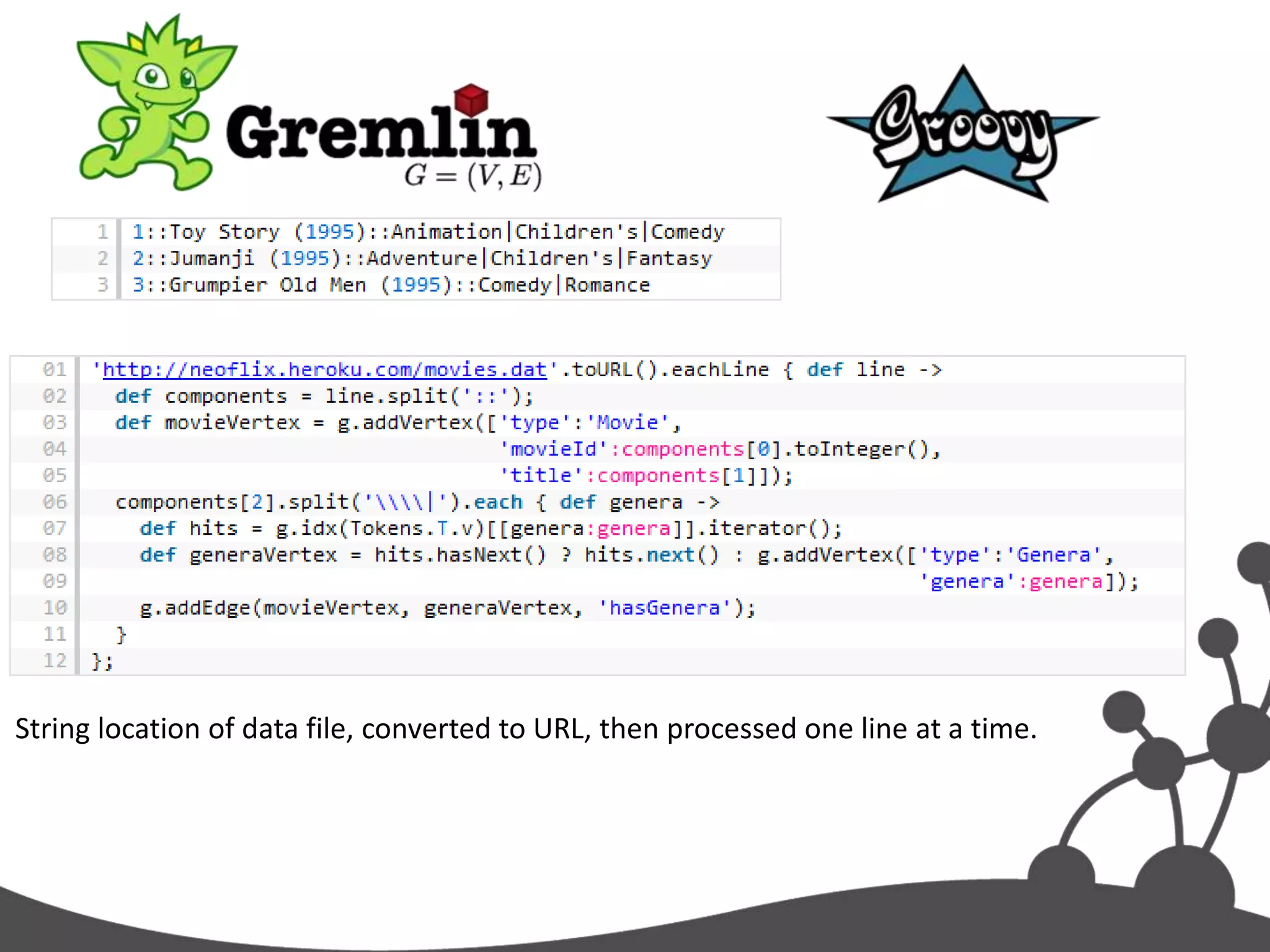

19. Crazy Format is ok
Id :: Title :: Genre|Genre|Genre
But it’s preferable to stay clear of
escape characters like “|”
String location of data file, converted to URL, then processed one line at a time.
Movie vertex created, genre vertex created unless it exists (index lookup), edge
from movie to genre is created.
Full walk-through on http://maxdemarzi.com/2012/01/13/neo4j-on-heroku-part-
one/

20. ETL with the Batch Importer

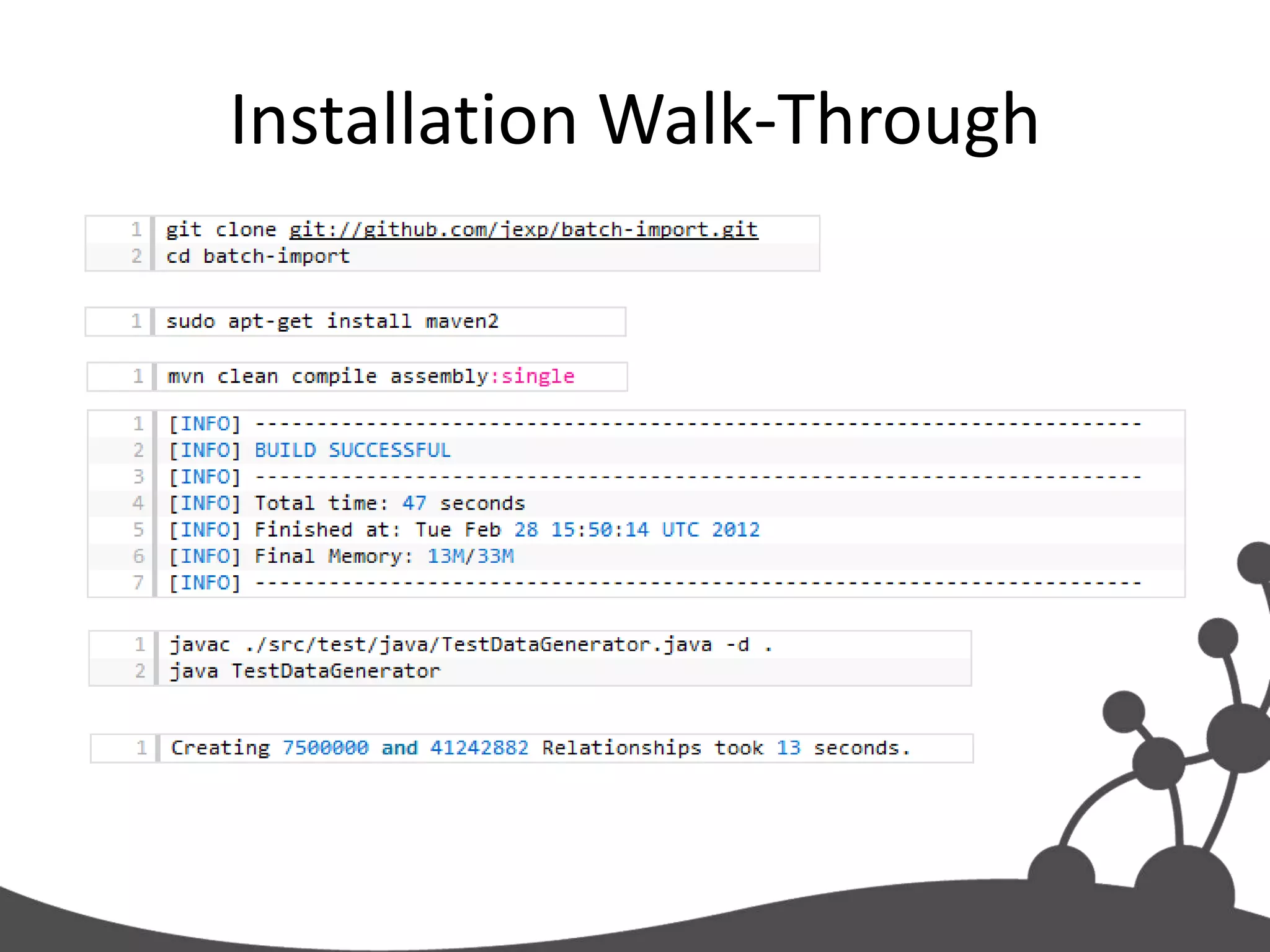

21. Installation Walk-Through

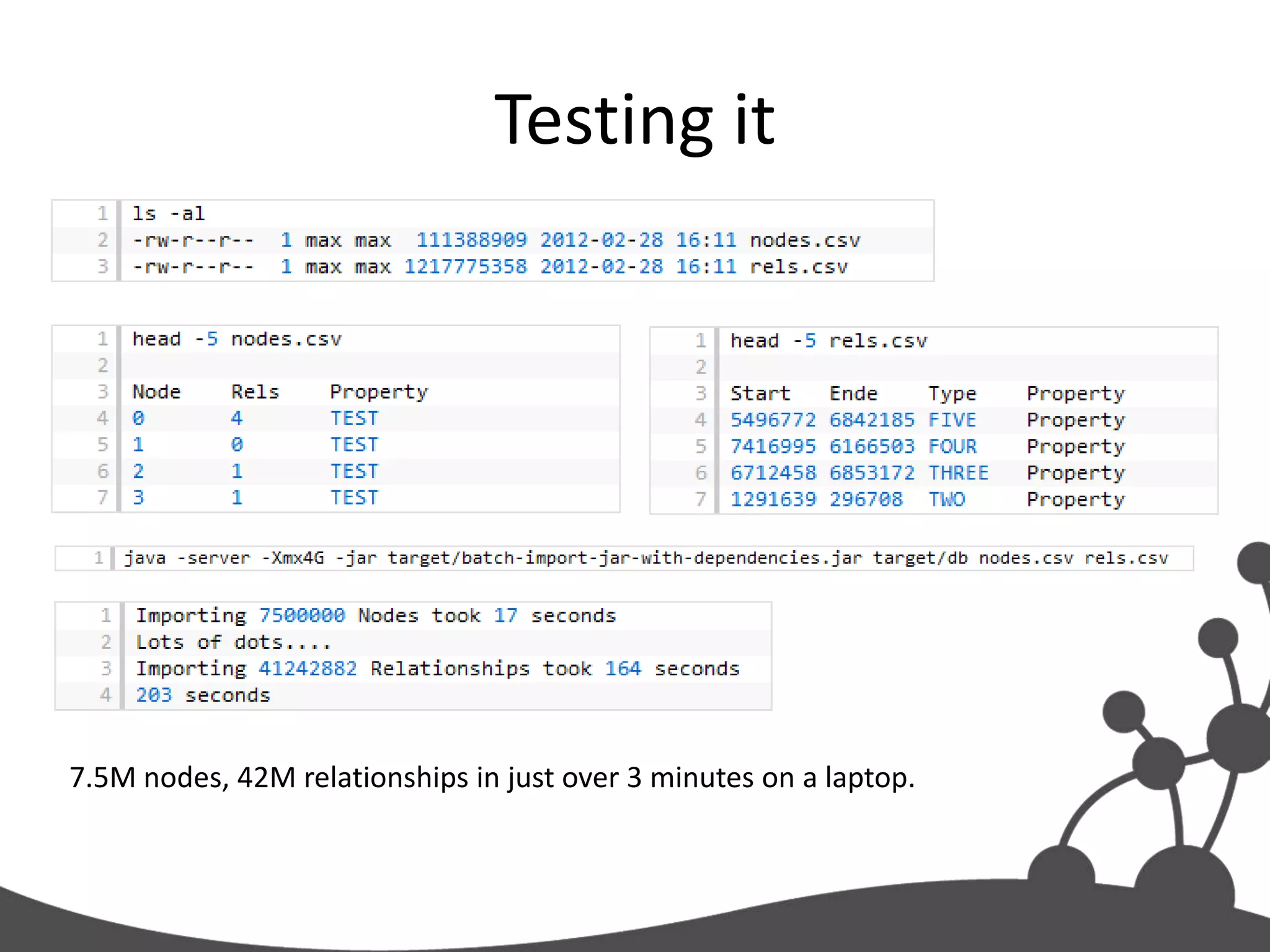

22. Testing it
7.5M nodes, 42M relationships in just over 3 minutes on a laptop.

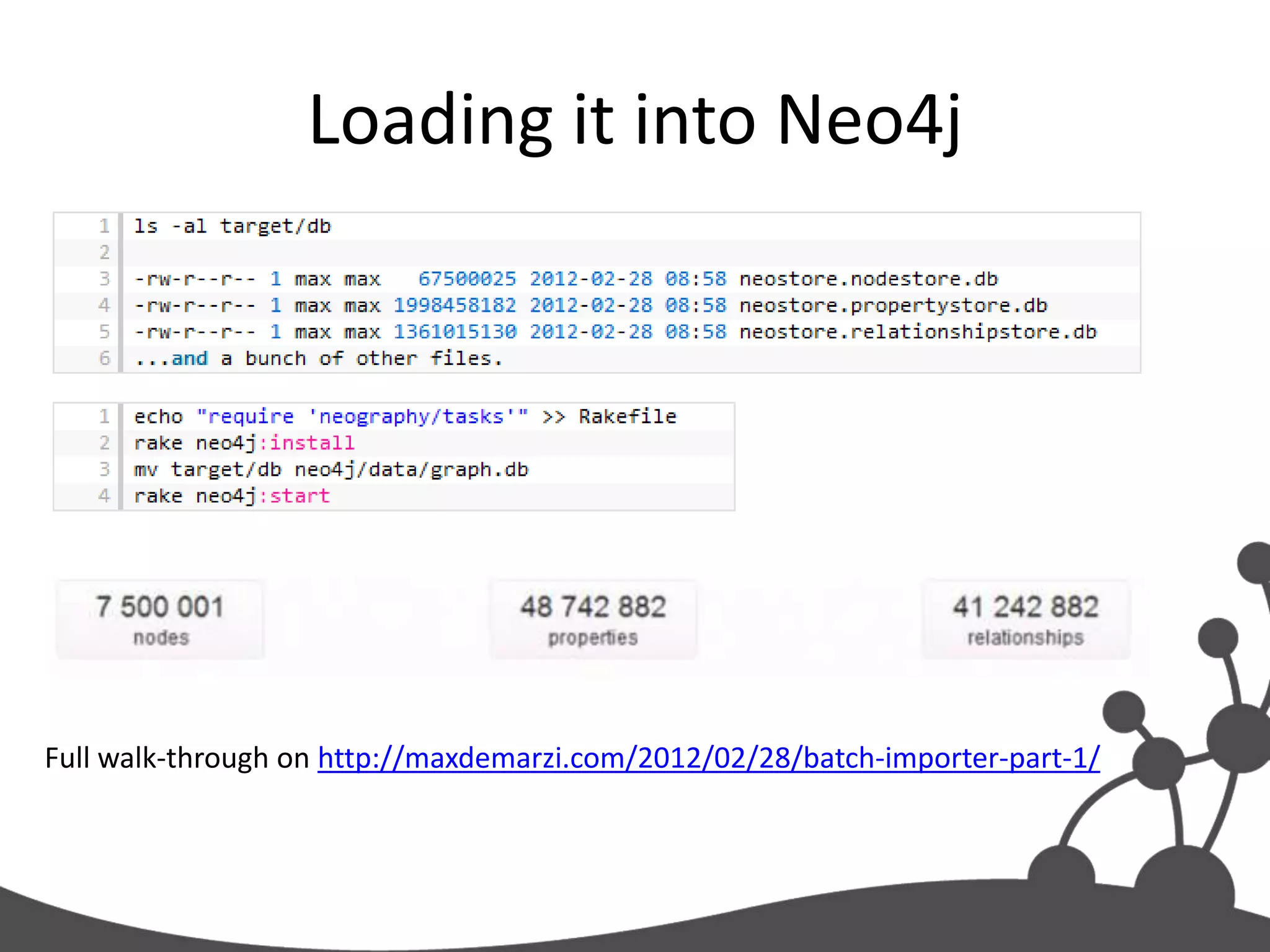

23. Loading it into Neo4j
Full walk-through on http://maxdemarzi.com/2012/02/28/batch-importer-part-1/

24. When to use the Batch Importer?
• 1st time loading or
periodic reloading
• When you need Speed
• When you don’t mind a
little Java

25. ETL from SQL

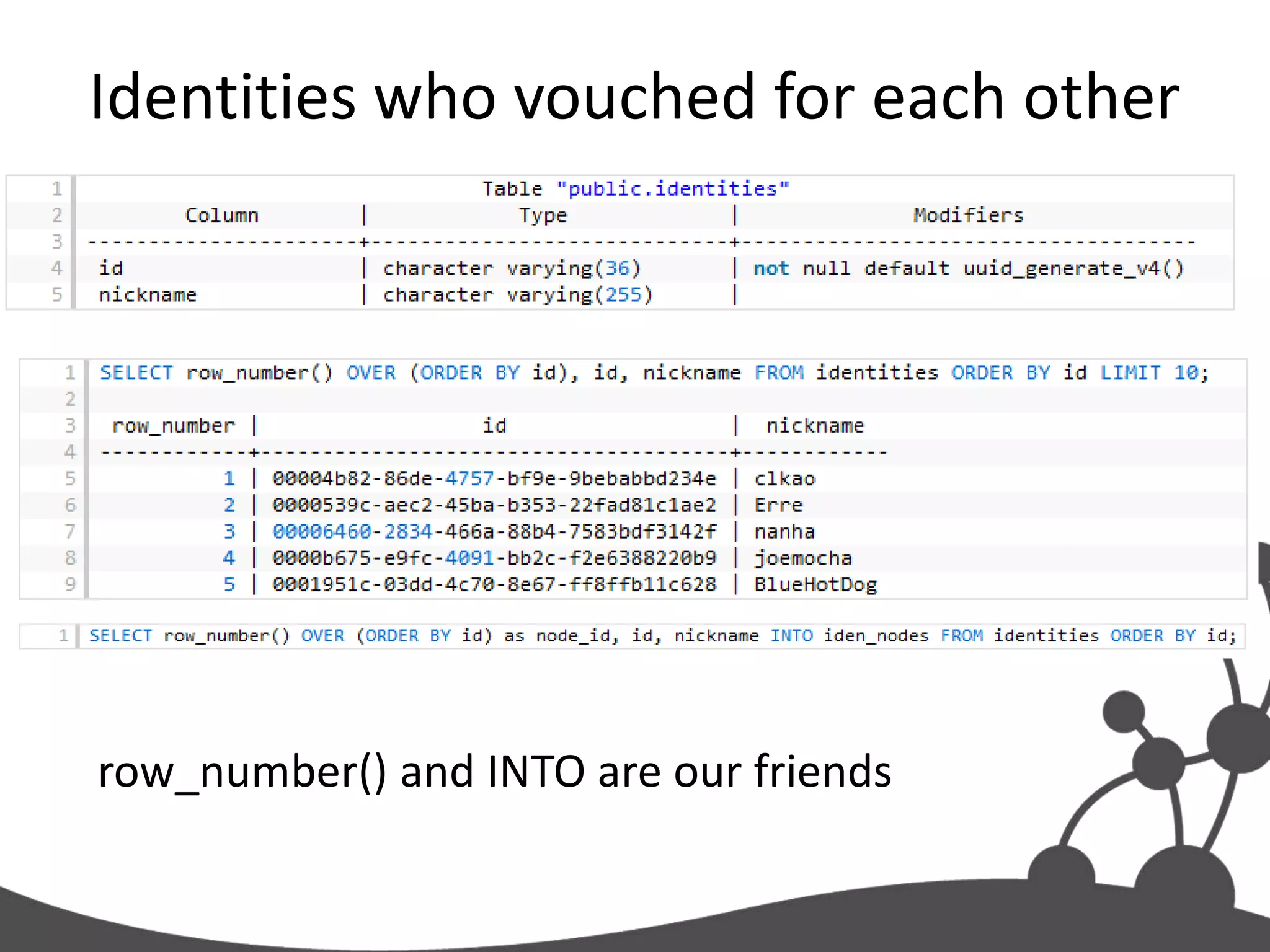

26. Identities who vouched for each other
row_number() and INTO are our friends

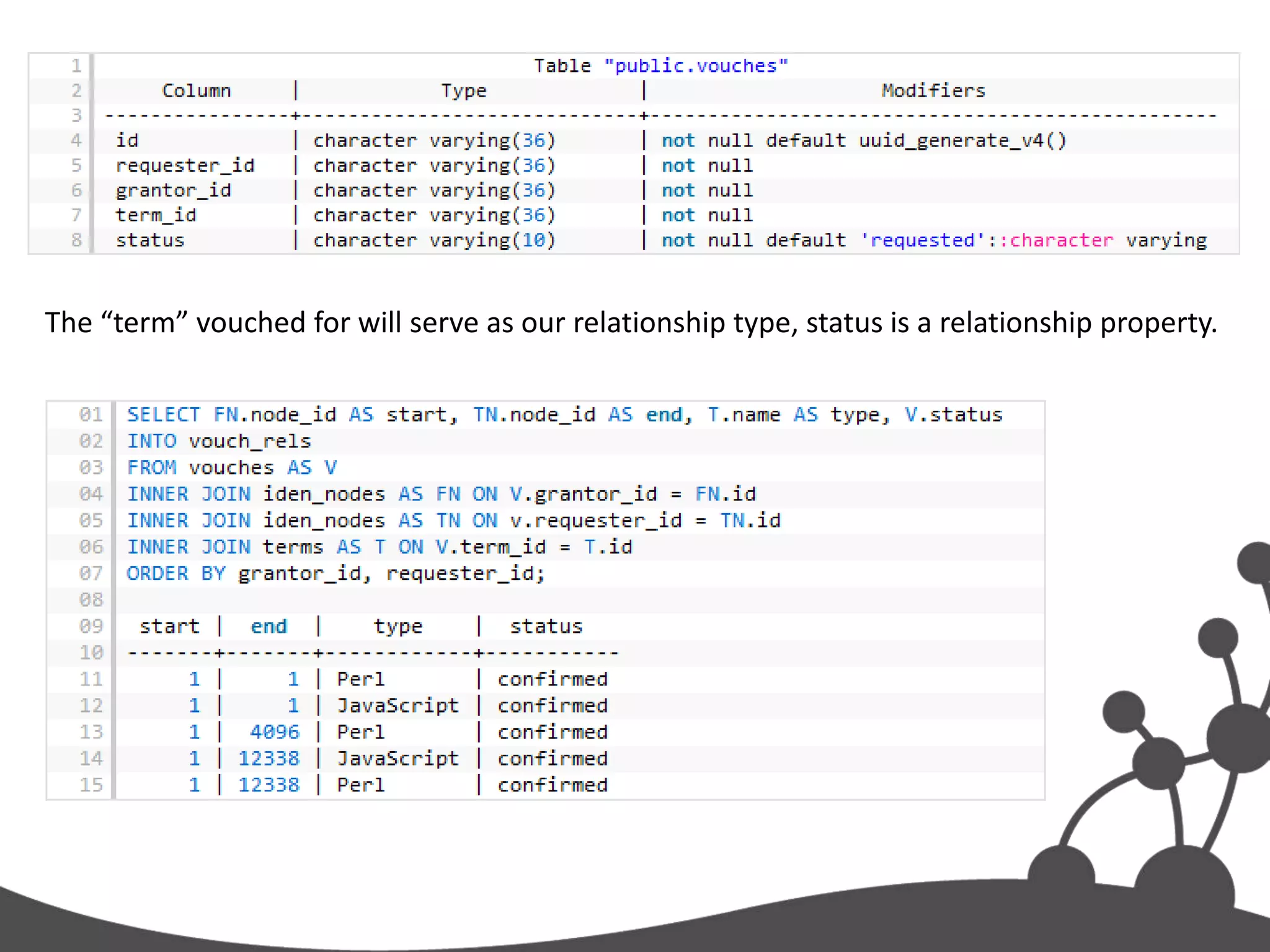

27. The “term” vouched for will serve as our relationship type, status is a relationship property.

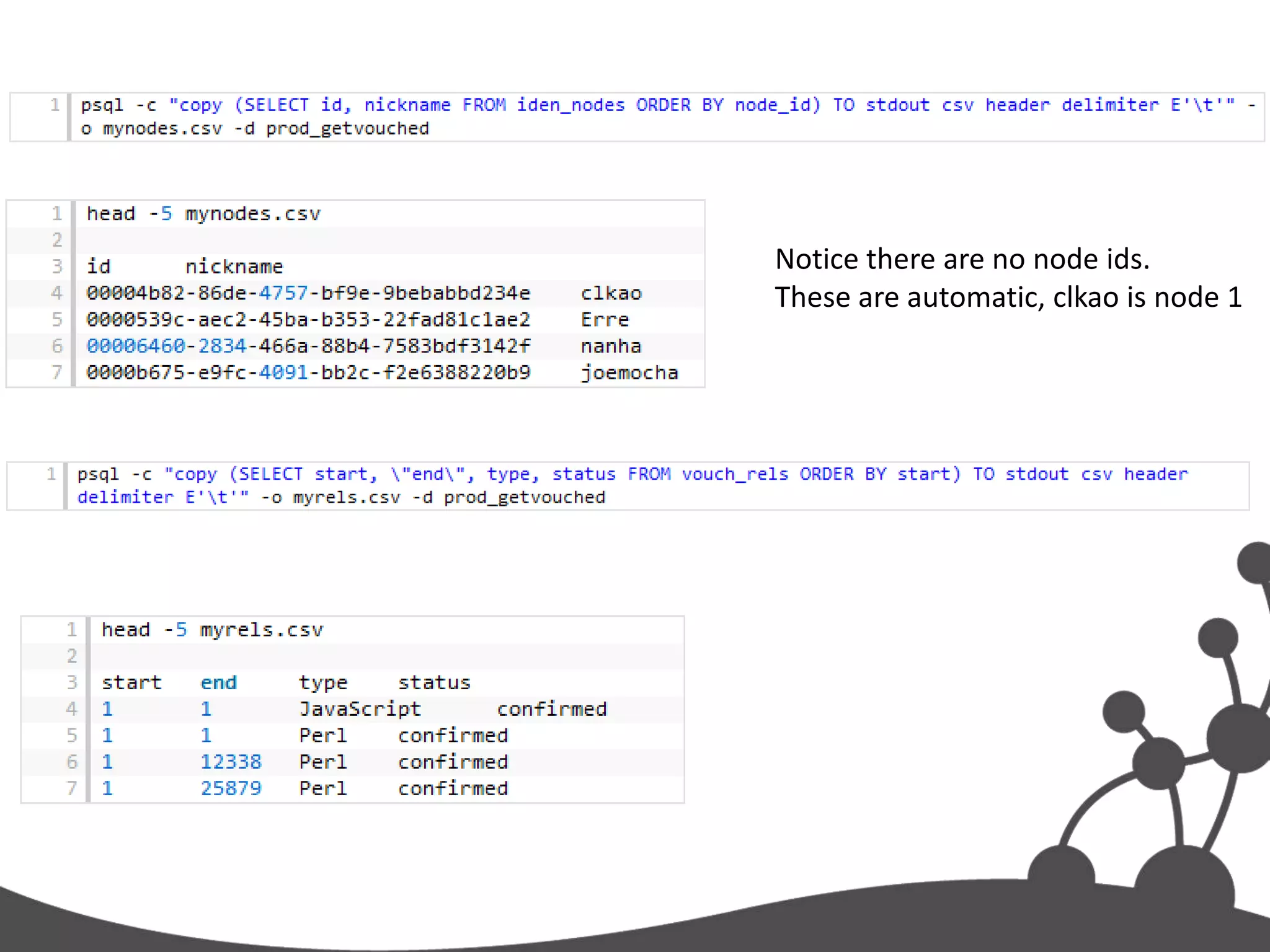

28. Notice there are no node ids.
These are automatic, clkao is node 1

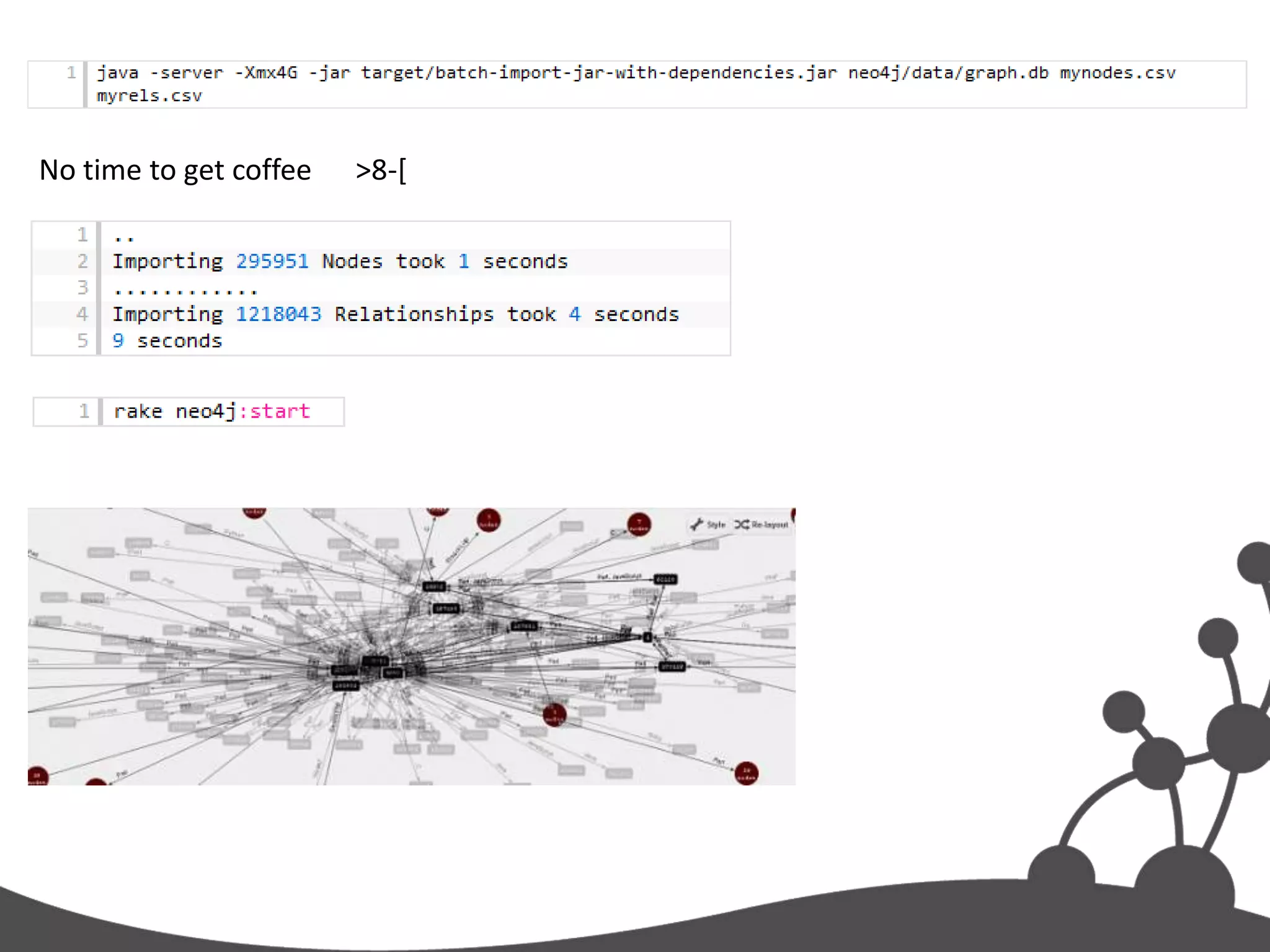

29. No time to get coffee >8-[

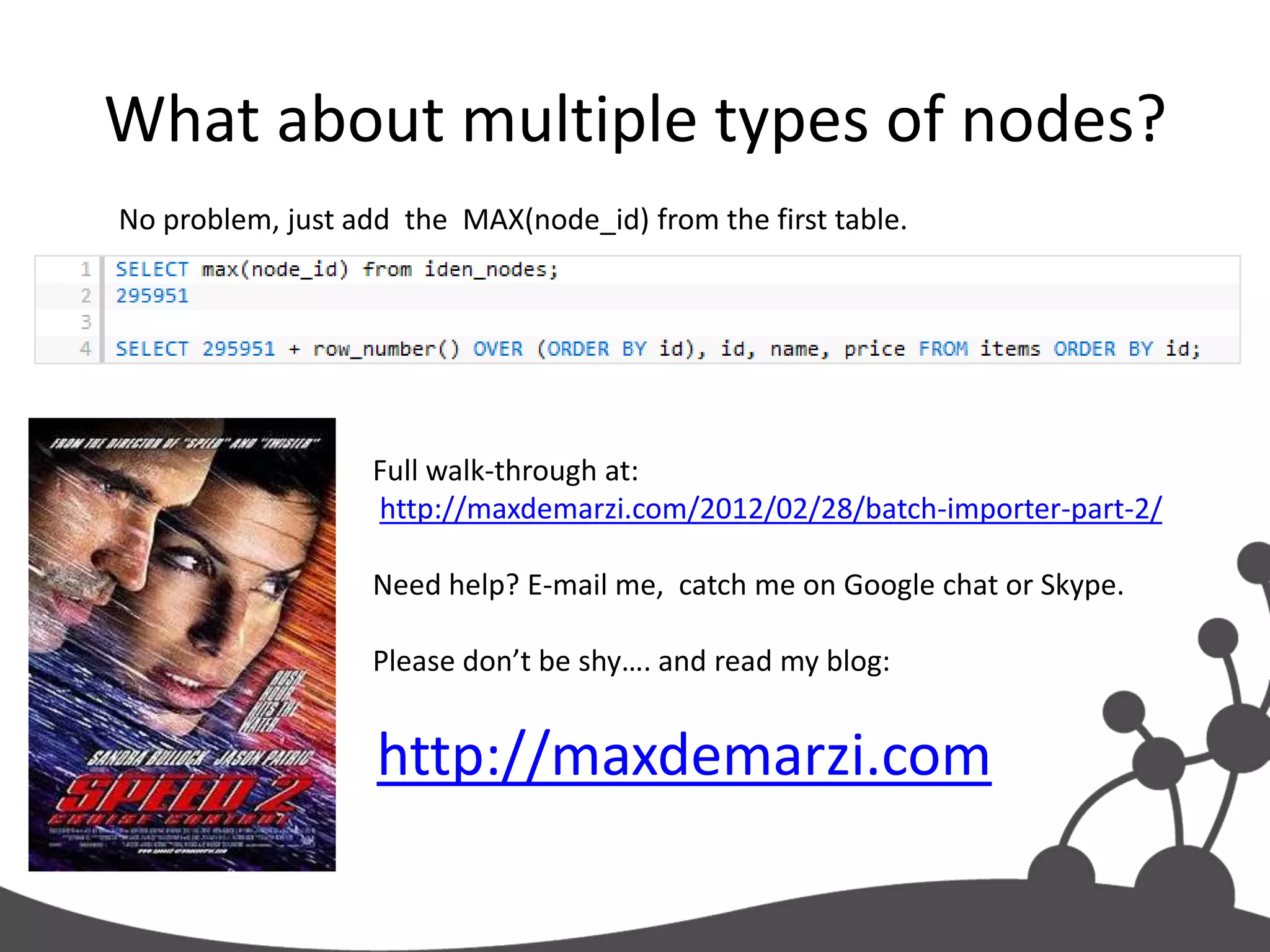

30. What about multiple types of nodes?
No problem, just add the MAX(node_id) from the first table.
Full walk-through at:
http://maxdemarzi.com/2012/02/28/batch-importer-part-2/
Need help? E-mail me, catch me on Google chat or Skype.
Please don’t be shy…. and read my blog:
http://maxdemarzi.com

31. Thank you!
http://maxdemarzi.com
