This document discusses the need for enterprise service buses (ESBs) and introduces MuleESB, an open source ESB. It explains that ESBs allow for centralized management of communication between software applications. MuleESB in particular supports integration through various protocols and provides functionality like message routing, transformation and fault tolerance. The document also provides an overview of MuleESB's architecture and configuration and demonstrates its use through an example integration with a website.

1. ESB’s-MuleESB
Swati Bansal 05-April-2012
© 2011 GrapeCity inc.

2. Agenda
• Need for ESB
• ESB Overview
• When use ESB?
• Open Source ESB-MuleESB
• MuleESB in Lifeway.com
© 2011 GrapeCity inc. 2

3. A Typical SOA Application
© 2011 GrapeCity inc.

4. SOA without ESB
Implies Point-to-point
application integration
• Troubleshooting
deployments is painful.
•Changing/adding new
components is tedious.
•No consistent
mechanism to react to
failures.
© 2011 GrapeCity inc. 4

5. ESB’s-Enterprise Service Bus
Use ESB as the backbone of all communications of SOA deployment
© 2011 GrapeCity inc.

6. What is ESB?
• Software
architecture model used
for designing and
implementing the
interaction and
communication between
mutually interacting
software applications in
Service Oriented
Architecture.
• SOA with ESB = Hub
and Spoke Architecture
(acts as central
"bridge" or "gateway"
to all applications
exposing services
underneath it)
© 2011 GrapeCity inc. 6

7. Key Terms:
• Bus: Analogous to a computer hardware bus, allows applications to plug in and out
with ease, without any need of a system restart. Allows for:
– Message Routing
– Message Monitoring
– Logging traffic
• ESB Commodity Services:
– Protocol conversion
– Mapping: between data formats
– Translation and transformation: Change data content based on rules.
– Event handling
• Message Queueing: Message queue is required to cope with differing handling speed
and temporary failure of services.
© 2011 GrapeCity inc. 7

8. ESB Acts As:
© 2011 GrapeCity inc. 8

9. ESB Acts As:
•Single Point of Access: Look for services in a single location. Change in
deployment simplified.
•Transaction Manager: Coordinate distributed transactions which multiple
services participate in, hence taking the load off the client.
•Security Manager: Security aspects like authentication and authorization
can be centralized.
•Service Proxy: Function as a proxy for appliations that do not expose a
standardized service interface to the world.
•Gateway to the World: For service running in the outside world.
© 2011 GrapeCity inc.

10. ESB Flavours
Product Vendor Connects with...
Matrix TIBCO SOAP, EMS, JMS, Rendezvous,
BusinessWorks MQ, BPEL
Mule ESB Open-source, SOAP, REST, JMS, MQ, JBI, AQ,
MuleSource, Inc. Caching, JavaSpaces, GigaSpaces,
Email, IM, JCA, AS400 Data
Queues, System I/O.
OpenESB Open-source, Sun JBI, JCA, JAX-RPC, JAX-WS
Microsystems
Sonic ESB Progress Software JMS, SOAP, JMX
Websphere ESB IBM JMS, MQ, SOAP; requires
additional adapters to interface
with other products and legacy
protocols; requires Websphere to
work
© 2011 GrapeCity inc. 10

11. Benefits of ESB:
• Increased flexibility; easier to change as requirements
change.
• Scales from point-solutions to enterprise-wide
deployment (distributed bus).
• More configuration rather than integration coding.
• No central rules-engine, no central broker.
• Incremental patching with zero down-time; enterprise
becomes "refactorable".
© 2011 GrapeCity inc. 11

12. MuleESB
© 2011 GrapeCity inc. 12

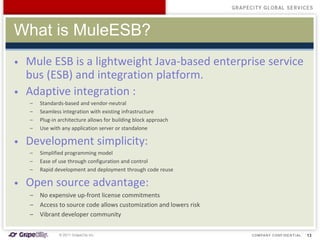

13. What is MuleESB?
• Mule ESB is a lightweight Java-based enterprise service
bus (ESB) and integration platform.
• Adaptive integration :
– Standards-based and vendor-neutral
– Seamless integration with existing infrastructure
– Plug-in architecture allows for building block approach
– Use with any application server or standalone
• Development simplicity:
– Simplified programming model
– Ease of use through configuration and control
– Rapid development and deployment through code reuse
• Open source advantage:
– No expensive up-front license commitments
– Access to source code allows customization and lowers risk
– Vibrant developer community
© 2011 GrapeCity inc. 13

14. Mule ESB Architecture
• Architecture is based on concepts discussed in Enterprise
Integration Patterns
© 2011 GrapeCity inc. 14

15. Mule Components
 Endpoint
– Channel, MessageReceiver, Connector
 Transformer
– Message transformation / enhancement
 Router
– Message flow control (inbound/outbound)
 Service Component
– Your integration logic lives here
© 2011 GrapeCity inc. 15

16. Mule Configuration
 Spring based
 mule-config.xml (default)
 Multiple config files using
import
© 2011 GrapeCity inc. 16

17. Mule Example
• http://www.youtube.com/watch?v=PXj48XoMalg&fea
ture=relmfu
© 2011 GrapeCity inc. 17

18. Mule ESB in Lifeway
© 2011 GrapeCity inc. 18

19. Why Choose Mule?
 No prescribed message format
– XML, CSV, Binary, Streams, Record, Java Objects
– Mix and match
 Zero code intrusion
– Mule does not impose an API on service objects
– Objects are fully portable
 Existing objects can be managed
– POJOs, IoC Objects, EJB Session Beans, Remote Objects
– REST & Web Services
 Easy to test
– Mule can be run easily from a JUnit test case
– Framework provides a Test compatibility kit
– Scales down as well as up
© 2011 GrapeCity inc. 19
