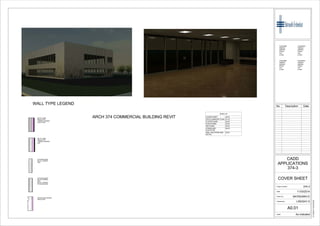

- 1. WALL TYPE LEGEND METALPANEL INSULATION THERMAL BARRIER STEEL STUD METAL PANEL INSULATION THERMAL BARRIER CMU GRADE BEAM 250X800 INSULATION GYPSUM BOARD METAL FURRING CMU GYPSUM BOARD METAL FURRING CMU METAL FURRING GYPSUM BOARD Scale Checked by Drawn by Date Project number Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail As indicated 31/10/201412:42:49PM COVER SHEET 374-3 374-3 CADD APPLICATIONS 11/03/2014 BATMUNKH.E LINDSAY.S A0.01 No. Description Date Sheet List COVER SHEET A0.01 SITE PLAN/ROOF PLAN A1.01 FLOOR PLANS A2.01 ELEVATIONS A3.01 SECTIONS A4.01 STAIRS AND ELEVATOR A6.01 WALL SECTIONS AND DETAIL A5.01 ARCH 374 COMMERCIAL BUILDING REVIT
- 2. A3.01 2 A3.011A3.01 3 A3.01 4 Scale Checked by Drawnby Date Project number Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail 1 : 200 31/10/201412:42:55PM SITE PLAN/ROOF PLAN 374-3 374-3 CADD APPLICATIONS 11/03/2014 BATMUNKH.E LINDSAY.S A1.01 No. Description Date 1 : 200 SITE PLAN 1

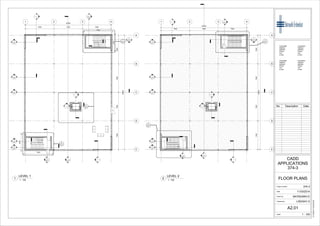

- 3. UP DN 1 2 34 A B C D E 2 A4.01 1 A4.01 9 A6.01 8 A6.01 7 A6.01 6 A6.01 3 A5.01 - --- 2 A5.01 - --- - --- - --- 1 A5.01 3 A6.01 7500 7500 7500 22500 7500750075007500 30000 7403 4403 4403 7403 2 A6.01 1 A6.01 1 2 3 4 A B C D E 2 A4.01 1 A4.01 9 A6.01 8 A6.01 7 A6.01 6 A6.01 3 A5.01 - --- 2 A5.01 - --- - --- - --- 5 A6.01 1 A5.01 7500 7500 7500 22500 7500750075007500 30000 4 A6.01 Scale Checked by Drawn by Date Project number Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail 1 : 100 31/10/201412:42:56PM FLOOR PLANS 374-3 374-3 CADD APPLICATIONS 11/03/2014 BATMUNKH.E LINDSAY.S A2.01 No. Description Date 1 : 100 LEVEL 1 1 1 : 100 LEVEL 2 2

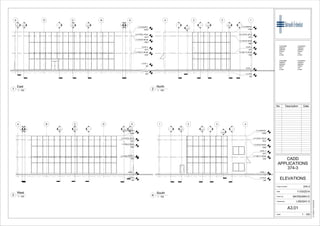

- 4. LEVEL 1 150 T.O 2NDFL BEAM 4350 T.O PILE -650 LEVEL 2 4514 T.O ROOF BEAM 8950 U.S STEEL DECK 9014 T.O PARAPET 10000 ABCDE 2 A4.01 8 A6.01 6 A6.01 3 A5.01 2 A5.01 - --- 1 A5.01 LEVEL 1 150 T.O 2ND FL BEAM 4350 T.O PILE -650 LEVEL 2 4514 T.O ROOF BEAM 8950 U.S STEEL DECK 9014 T.O PARAPET 10000 1234 1 A4.01 9 A6.01 7 A6.01 - --- - --- - --- LEVEL 1 150 T.O 2ND FL BEAM 4350 T.O PILE -650 LEVEL 2 4514 T.O ROOF BEAM 8950 U.S STEEL DECK 9014 T.O PARAPET 10000 A B C D E 2 A4.01 8 A6.01 6 A6.01 3 A5.01 2 A5.01 - --- 1 A5.01 LEVEL 1 150 T.O 2ND FL BEAM 4350 T.O PILE -650 LEVEL 2 4514 T.O ROOF BEAM 8950 U.S STEEL DECK 9014 T.O PARAPET 10000 1 2 3 4 1 A4.01 9 A6.01 7 A6.01 - --- - --- - --- Scale Checked by Drawn by Date Project number Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail 1 : 100 31/10/201412:42:58PM ELEVATIONS 374-3 374-3 CADD APPLICATIONS 11/03/2014 BATMUNKH.E LINDSAY.S A3.01 No. Description Date 1 : 100 East 1 1 : 100 North 2 1 : 100 West 3 1 : 100 South 4
- 5. LEVEL 1 150 T.O 2NDFL BEAM 4350 T.O PILE -650 LEVEL 2 4514 T.O ROOF BEAM 8950 U.S STEEL DECK 9014 T.O PARAPET 10000 ABCDE 2 A4.01 8 A6.01 3 A5.01 2 A5.01 - --- 1 A5.01 LEVEL 1 150 T.O 2ND FL BEAM 4350 T.O PILE -650 LEVEL 2 4514 T.O ROOF BEAM 8950 U.S STEEL DECK 9014 T.O PARAPET 10000 1 2 3 4 1 A4.01 7 A6.01 - --- - --- Scale Checked by Drawn by Date Project number Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail 1 : 100 31/10/201412:43:13PM SECTIONS 374-3 374-3 CADD APPLICATIONS 11/03/2014 BATMUNKH.E LINDSAY.S A4.01 No. Description Date 1 : 100 BUILDING SECTION-L 1 1 : 100 BUILDING SECTION-S 2 3D BUILDING SECTION 3
- 6. C38-PFC38-PF C39-W C38-PFC38-PF C39-W LEVEL 1 150 T.O 2NDFL BEAM 4350 T.O PILE -650 LEVEL 2 4514 T.O ROOF BEAM 8950 U.S STEEL DECK 9014 T.O PARAPET 10000 1 LEVEL 1 150 T.O 2ND FL BEAM 4350 T.O PILE -650 LEVEL 2 4514 T.O ROOF BEAM 8950 U.S STEEL DECK 9014 T.O PARAPET 10000 1 LEVEL 1 150 T.O 2ND FL BEAM 4350 T.O PILE -650 LEVEL 2 4514 T.O ROOF BEAM 8950 U.S STEEL DECK 9014 T.O PARAPET 10000 1 Sim 4 A5.01 STAGGEREDCLIPS TYPICAL STUD WALLVARIES 102 ROOF MEMBRANE INSULATION ACM WITH SYSTEM EXTRUSIONS WEATHER BARRIER EXTERIOR SHEATHING ACM REVEAL WEEP AND BAFFLE THERMALLY BROKEN CLIP ASSEMBLY 0.040" ALUMINUM PARAPET TROUGH ROOFING MEMBRANE SEALANT Scale Checked by Drawn by Date Project number Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail As indicated 31/10/201412:43:14PM WALL SECTIONS AND DETAIL 374-3 374-3 CADD APPLICATIONS 11/03/2014 BATMUNKH.E LINDSAY.S A5.01 No. Description Date 1 : 25 WALL SECTION- CURTAIN WALL1 1 : 25 WALL SECTION- PANEL ON CMU2 1 : 25 WALL SECTION- PANEL ON STEEL STUD3 1 : 2 PARAPET DETAIL 4

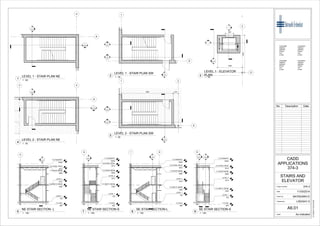

- 7. 4 A 7 A6.01 6 A6.01 1 E 9 A6.01 8 A6.01 2 A5.01 3 D 1 A4.01 - --- - --- 3256 4870 1067 3 4 A 7 A6.01 6 A6.01 1 2 E 9 A6.01 8 A6.01 2 A5.01 6356800 LEVEL1 150 T.O 2ND FL BEAM 4350 T.O PILE -650 LEVEL 2 4514 T.O ROOF BEAM 8950 U.S STEEL DECK 9014 T.O PARAPET 10000 4 7 A6.01 LEVEL 1 150 T.O 2ND FL BEAM 4350 T.O PILE -650 LEVEL 2 4514 T.O ROOF BEAM 8950 U.S STEEL DECK 9014 T.O PARAPET 10000 A 6 A6.01 LEVEL 1 150 T.O 2ND FL BEAM 4350 T.O PILE -650 LEVEL 2 4514 T.O ROOF BEAM 8950 U.S STEEL DECK 9014 T.O PARAPET 10000 1 2 9 A6.01 LEVEL 1 150 T.O 2ND FL BEAM 4350 T.O PILE -650 LEVEL 2 4514 T.O ROOF BEAM 8950 U.S STEEL DECK 9014 T.O PARAPET 10000 E 8 A6.01 2 A5.01 Scale Checked by Drawn by Date Project number Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail As indicated 31/10/201412:43:16PM STAIRS AND ELEVATOR 374-3 374-3 CADD APPLICATIONS 11/03/2014 BATMUNKH.E LINDSAY.S A6.01 No. Description Date 1 : 50 LEVEL 1 - STAIR PLAN NE 1 1 : 50 LEVEL 1 - STAIR PLAN SW 2 1 : 50 LEVEL 1 - ELEVATOR PLAN3 1 : 50 LEVEL 2 - STAIR PLAN NE 4 1 : 50 LEVEL 2 - STAIR PLAN SW 5 1 : 100 NE STAIR SECTION- L 6 1 : 100 NE STAIR SECTION-S 7 1 : 100 SE STAIR SECTION-L 8 1 : 100 SE STAIR SECTION-S 9
