A presentation about OpenStack controller nodes in production that presented in Iran OpenStack users group in 4th August of 2015.

1. Presentation By:
Roozbeh Shafiee
Summer 2015
IRAN OpenStack Users Group
MASTERING
OPENSTACK
(Episode 05)
Controller Nodes

2. IRAN Community| OpenStack.ir

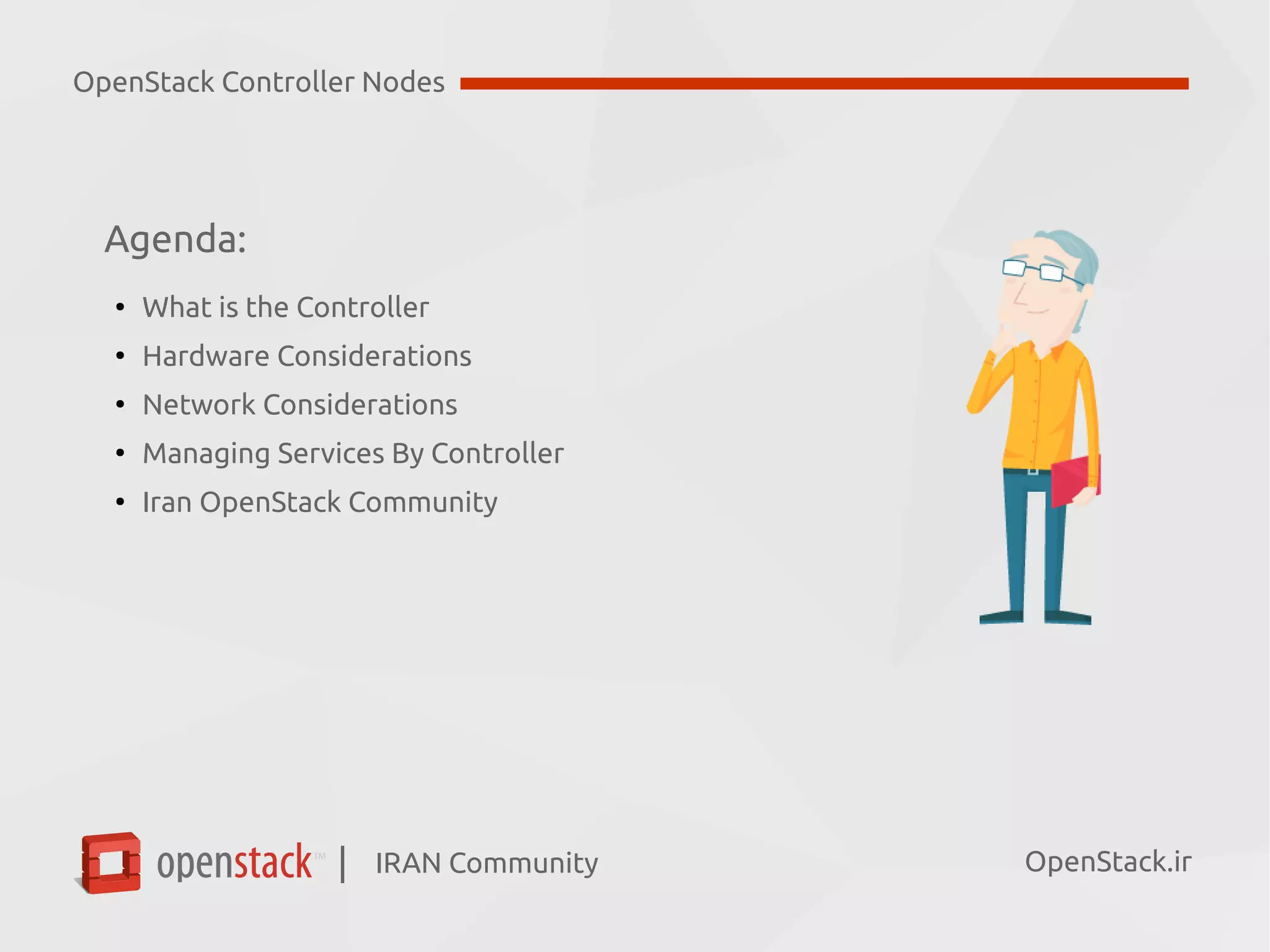

Agenda:
●
What is the Controller
●
Hardware Considerations
●
Network Considerations
●
Iran OpenStack Community
OpenStack Controller Nodes

3. IRAN Community| OpenStack.ir
What is the Controller?
OpenStack Controller Nodes

4. IRAN Community| OpenStack.ir
What is the Controller:
The cloud controller provides the central management system for OpenStack
deployments. Typically, the cloud controller manages authentication and sends
messaging to all the systems through a message queue.
OpenStack Controller Nodes

5. IRAN Community| OpenStack.ir
What Does Controller Do?
●
Collection of nova components that represent the global state of the cloud
●
Talks to services such as authentication
●
Maintains information about the cloud in a database
●
Communicates to all compute nodes and storage workers through a queue
●
Provides API access
Each service running on a designated cloud controller may be broken out into
separate nodes for scalability or availability.
OpenStack Controller Nodes

6. IRAN Community| OpenStack.ir
Hardware Considerations
OpenStack Controller Nodes

7. IRAN Community| OpenStack.ir
Hardware Specifications:
A cloud controller’s hardware can be the same as a compute node, though you
may want to further specify based on the size and type of cloud that you run.
It’s also possible to use virtual machines for all or some of the services that the
cloud controller manages, such as the message queuing. In this guide, we assume
that all services are running directly on the cloud controller.
OpenStack Controller Nodes

8. IRAN Community| OpenStack.ir
Cloud Controller Hardware Sizing Considerations
●
How many instances will run at once?
●
How many compute nodes will run at once?
●
How many users will access the API?
●
How many users will access the dashboard versus the REST API directly?
●
How many nova-api services do you run at once for your cloud?
●
How long does a single instance run?
●
Does your authentication system also verify externally?
OpenStack Controller Nodes

9. IRAN Community| OpenStack.ir
Separation of Services:
●
Run Glance servers on the swift-proxy server.
This deployment felt that the spare I/O on the Object Storage proxy server was
sufficient and that the Image Delivery portion of glance benefited from being
on physical hardware and having good connectivity to the Object Storage
backend it was using.
OpenStack Controller Nodes

10. IRAN Community| OpenStack.ir
Separation of Services:
● Run a central dedicated database server
This deployment used a central dedicated server to provide the databases for all
services. This approach simplified operations by isolating database server updates
and allowed for the simple creation of slave database servers for failover.
OpenStack Controller Nodes

11. IRAN Community| OpenStack.ir
Separation of Services:
● Run one VM per service
This deployment ran central services on a set of servers running KVM. A dedicated
VM was created for each service ( nova-scheduler , rabbitmq, database, etc). This
assisted the deployment with scaling because administrators could tune the
resources given to each virtual machine based on the load it received (something
that was not well understood during installation).
OpenStack Controller Nodes

12. IRAN Community| OpenStack.ir
Separation of Services:
● Use an external load balancer
This deployment had an expensive hardware load balancer in its organization. It
ran multiple nova-api and swift-proxy servers on different physical servers and
used the load balancer to switch between them.
OpenStack Controller Nodes

13. IRAN Community| OpenStack.ir
Network Considerations
OpenStack Controller Nodes

14. IRAN Community| OpenStack.ir
Network Considerations:
Because the cloud controller handles so many different services, it must be able
To handle the amount of traffic that hits it. For example, if you choose to host the
OpenStack Imaging Service on the cloud controller, the cloud controller should be
able to support the transferring of the images at an acceptable speed.
As another example, if you choose to use single-host networking where the cloud
controller is the network gateway for all instances, then the cloud controller must
support the total amount of traffic that travels between your cloud and the public
Internet.
OpenStack Controller Nodes

15. IRAN Community| OpenStack.ir
Network Considerations:
We recommend that you use a fast NIC, such as 10 GB. You can also choose to use
two 10 GB NICs and bond them together. While you might not be able to get a full
bonded 20 GB speed, different transmission streams use different NICs. For
Example, if the cloud controller transfers two images, each image uses a different
NIC and gets a full 10 GB of bandwidth.
OpenStack Controller Nodes

16. IRAN Community| OpenStack.ir
Iran OpenStack Community
OpenStack Controller Nodes

17. IRAN Community| OpenStack.ir
Stay in Touch and Join Us:
●
Home Page: OpenStack.ir
●
Meetup Page: Meetup.com/Iran-OpenStack
●
Mailing List: OpenStack-ir@Lists.OpenStack.org
●
Twitter: @OpenStackIR , #OpenStackIRAN
●
IRC Channel on FreeNode: #OpenStack-ir
OpenStack Controller Nodes

18. Roozbeh Shafiee
Iran OpenStack Community Manager
Roozbeh@OpenStack.ir
OpenStack.ir
Thank You
We need to work together to build a better community
