1. CAiSE 2013 - Valencia, Spain
1

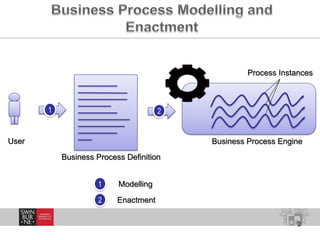

2. Process Instances
1
2
User
Business Process Engine
Business Process Definition
1
Modelling
2
Enactment
2

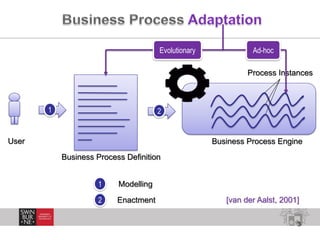

3. Evolutionary
Ad-hoc
Process Instances
1
2
User
Business Process Engine
Business Process Definition
1
Modelling
2
Enactment
[van der Aalst, 2001]
3

4. • RoSAS : Roadside Assistance as a Service.
A Motorist
RoSAS
Tow Trucks
Call Center
Garages
Paramedics
Taxis
4

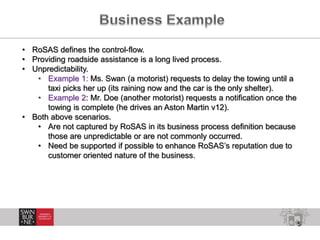

5. • RoSAS defines the control-flow.
• Providing roadside assistance is a long lived process.
• Unpredictability.
• Example 1: Ms. Swan (a motorist) requests to delay the towing until a
taxi picks her up (its raining now and the car is the only shelter).
• Example 2: Mr. Doe (another motorist) requests a notification once the
towing is complete (he drives an Aston Martin v12).
• Both above scenarios.
• Are not captured by RoSAS in its business process definition because
those are unpredictable or are not commonly occurred.
• Need be supported if possible to enhance RoSAS’s reputation due to
customer oriented nature of the business.
5

6. • WS-BPEL - the de-facto standard.
• Block structured control-flow (imperative programming).
• Have been criticized for lack of flexibility.
• Proposed improvements
• Template Customization, Aspect-orientation, ...
• Template customization
• A technique used to generate a highly optimized fitting process that suits
the situation in demand from a pre-defined template.
E.g., [Mietzner, 2008], [Ardagna, 2007]
• However, requires re-generating a new process.
• Aspect-Orientation
• A technique used to weave variation points to a core business process
(similar to Aspect oriented programming)
E.g., [Charfi, 2007], [Michiel, 2009]
• However, requires identifying the fixed and volatile parts.
• Other solutions
• Constraint-satisfaction. E.g., DecSerFlow [Pesic, 2006]
• Dynamic Changes. E.g., Skip/Retry [Fang, 2008]
6

7. • The tight coupling between activities/tasks of a business process as enforced
by the modelling language.
• The over-specification of control-flow. An unnecessary restriction to adapt
process instances.
tRequestTow
tTow
• Above denotes that, the pre-condition of task tTow is the completion of task
tRequetTow.
• What if a new dependency need to be introduced during the runtime?
• Looks like an over-specification of task dependencies.
7

8. • Be explicit about the dependencies in the specification.
• Tasks need to be decoupled by localizing the dependencies.
• Event-driven task-decoupling.
Loose-coupling
Post-conditions
Pre-conditions
tTow
tRequestTow
An Event Pattern
Task tRequestTow {
preEP "eComplaintRcvd AND eWithinTowZone";
postEP "eTowReqd";
}
Event-driven task decoupling
Task tTow {
preEP "eTowReqd";AND eTaxiProvided";
postEP "eTowSuccess XOR eTowFailed";
}
Task tSendSpecialNotification{
preEP “eTowSuccess";
postEP “SpecialNotifcationSent";
}
8

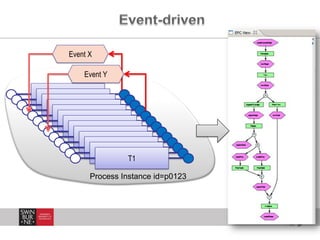

9. Event X
Event Y
T1
T1
T1
T1
T1
T1
T1
T1
T1
T1
T1
T1
T1
Process Instance id=p0123
9

10. • Tasks localize their pre- and post-conditions as patterns of events.
• Tasks are declaratively defined in modular units called Behaviour Units.
• A Process Definition is a collection of references to such Behaviour Units.
(Process re-use [Kapuruge, WISE 2011])
• A Process Definition also specifies the Condition of Start (CoS) and Condition
of Termination (CoT)
• Constraints are specified in both Behaviour Units and Process Definitions.
(Controlled-flexibility [Kapuruge, SCC 2011])
Behaviour bTowing{
Task CO.tRequestTow {
preEP "eComplaintRcvd * eWithinTowZone";
postEP "eTowReqd"; }
Task TT.tTow {
preEP "eTowReqd";
postEP "eTowSuccess ^ eTowFailed";
}
Task CO.tPay {
preEP "eTowSuccess";
postEP "eTTPaid"; }
Const c1: "(eTowSuccess>0) -> (eTTPaid>0)";
}
ProcessDefinition pdAssist {
CoS "eComplaintRcvd";
CoT "eMMNotifDone";
BehaviourRef bComplaining;
BehaviourRef bTowing;
BehaviourRef bRepairing;
BehaviourRef bTaxiProviding;
Const c5:"(eComplaintRcvd>0)->
(eComplainAcked>0)";
}
10

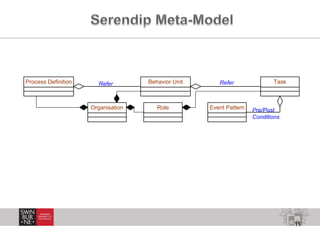

11. Process Definition
Refer
Organisation
Behavior Unit
Role
Refer
Event Pattern
Task
Pre/Post
Conditions
11

12. • Existing service orchestration runtimes (e.g., Apache ODE, Active VOS) are
designed to execute tightly-coupled control-flows.
• If used to enact Serendip processes, the flexibility at runtime is limited.
• A new service orchestration runtime is required.
• Models@runtime + Pub-sub mechanism.
AMS : Adaptation Management System
FS: Functional System
12

13. • Individual models corresponding to tasks (TiM) and process instances (PiM)
are maintained in Model-Provider-Factory (MPF).
• These models could be individually adapted (explained later).
• An EPC (Event-driven Process Chain) view is dynamically constructed based
on up-to-date models [Kapuruge, 2012]
Runtime
Models
Model Provider Factory
PiM
TiM
p004
p003
p002
p001
13

14. •
•
•
•
•
•
Event-cloud, a repository of events.
Publishers e.g., Tasks, can publish events in the event-cloud.
Subscribers e.g., Tasks, Process Instances can subscribe to these events.
Upon completion of subscribed event-pattern, the subscriber is notified.
Subscribers can be dynamically added.
Event-patterns can be subjected to late changes.
Publish
Publisher
e.g., TiM
Subscribe
Subscriber
e.g., TiM, PiM
The Event Cloud
e
e
e e
p001
e e
e
e
e
Event
e
e
Repo
e
s1
Notify
s2
s3
...
Subscriber List
14

15. • Designed to systematically manage adaptations.
• To ensure process consistency and business integrity.
• Adaptation commands can be issued as a batch (Adaptation Script).
• A Script can contain multiple adaptation commands (steps).
INST: p124{ Process instance id
updateTaskOfProcessInst tId= "tTow" prop="postEP"
value="(eTowSuccess AND (eInMetro XOR eInRegional)) XOR
eTowFailed " ;
addTaskToProcessInst tId= "tSendSpecialNotif" preEP=" eInMetro "
obligRole="CO" ;
}
• Adaptation commands of a single script are
• Carried out in a single transaction (to ensure ACID properties).
• Carried out in safe states (to ensure state-consistency of models).
• Rejected if not possible.
15

16. 16

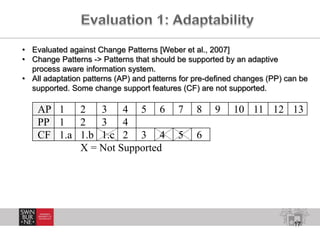

17. • Evaluated against Change Patterns [Weber et al., 2007]
• Change Patterns -> Patterns that should be supported by an adaptive
process aware information system.
• All adaptation patterns (AP) and patterns for pre-defined changes (PP) can be
supported. Some change support features (CF) are not supported.
AP 1 2
3 4 5 6
PP 1 2
3 4
CF 1.a 1.b 1.c 2 3 4
X = Not Supported
7
8
5
9
10 11 12 13
6
17

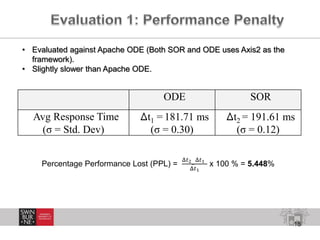

18. • Evaluated against Apache ODE (Both SOR and ODE uses Axis2 as the
framework).
• Slightly slower than Apache ODE.
ODE
Avg Response Time
(σ = Std. Dev)
SOR
Δt1 = 181.71 ms
(σ = 0.30)
Δt2 = 191.61 ms
(σ = 0.12)
Percentage Performance Lost (PPL) =
Δ𝑡2 Δ𝑡1
−
Δ𝑡1
x 100 % = 5.448%
18

19. •
•
•
•
•
•
•
•
•
•
•
•
[van der Aalst., 2001] : van der Aalst, W.M.P.: Exterminating the Dynamic Change Bug: A Concrete Approach to
Support Workflow Change. Information Systems Frontiers. Vol. 3,pp. 297-317 (2001)
[Mietzner, 2008]: Mietzner, R., Leymann, F.: Generation of BPEL Customization Processes for SaaS Applications
from Variability Descriptors. In: Services Computing (SCC), pp. 359-366. (2008)
[Ardagna, 2007]: Ardagna, D., Comuzzi, M., Mussi, E., Pernici, B., Plebani, P.: PAWS: A Framework for Executing
Adaptive Web-Service Processes. IEEE Software. Vol. 24,pp. 39-46 (2007)
[Charfi, 2007] : Charfi, A., Aspect-Oriented Workow Languages: AO4BPEL and Applications. Darmstadt University
of Technology, Darmstadt, Germany. (2007)
[Michiel, 2009]: Michiel, K., Chang-ai, S., Marco, S., Paris, A.: VxBPEL: Supporting variability for Web services in
BPEL. Information and Software Technology. Vol. 51,pp. 258-269 (2009)
[Pesic, 2006]: Pesic, M., van der Aalst, W.M.P.: A Declarative Approach for Flexible Business Processes
Management. Business Process Management Workshops, pp. 169-180 (2006)
[Fang, 2008]: Fang, R., Zou, Z.L., Stratan, C., Fong, L., Marston, D., Lam, L., Frank, D.: Dynamic Support for
BPEL Process Instance Adaptation. In: IEEE International Conference on Services Computing, pp. 327-334. IEEE
Computer Society, (2008)
[Dadam, 2007]: Dadam, P., Reichert, M.U., Rinderle, S.B., Jurisch, M., Acker, H., Göser, K., Kreher, U., Lauer, M.:
ADEPT2 - Next Generation Process Management Technology. In: Fourth Heidelberg Innovation Forum. D.punkt
Verlag, (2007)
[Kapuruge, WISE 2011]: Kapuruge, M., Colman, A., Han, J.: Achieving Multi-tenanted Business Processes in SaaS
Applications. In: Web Information System Engineering (WISE), pp. 143-157. Springer Berlin / Heidelberg, (2011)
[Kapuruge, SCC 2011]: Kapuruge, M., Colman, A., Han, J.: Controlled flexibility in business processes defined for
service compositions. In: Services Computing (SCC) pp. 346-353. IEEE Press, (2011)
[Kapuruge, 2012]: Kapuruge, M., Orchestration as Organisation. PhD Thesis, Swinburne University of Technology,
Melbourne. (2012)
[Weber, 2007]:Weber, B., Rinderle, S., Reichert, M.: Change Patterns and Change Support Features in ProcessAware Information Systems. Advanced Information Sys. Eng., pp. 574-588 (2007)
19
