1. 2014 Catalogue
Access
control

3. CAME
ACCESS TO
INNOVATION
EXPO 2015
This is the Universal Expo
that will be held in Milan in 2015 where
nations will come together to open
a discussion focusing on the relationship
between man and the planet and on the
essential values of economic and social
development.
2

4. 29
ACCESS POINTS
28
BARRIERS
250
TURNSTILES
100
HAND-HELD UNITS
10
VEHICLE
ENTRANCE GATES
80
BOLLARDS
Came for Expo 2015
Thanks to constant innovation
and the acquisition of new brands and
specialised know-how, Came expertise can
count on consolidated competence worldwide
to provide complete building control in terms
of systems for large public structures and
management of collective and urban areas,
providing integrated solutions that meet all
regulatory requirements on the regulation and
PRQLWRULQJRIWUDIĆFćRZV
and access control.
In occasion of Expo Milano 2015, Came will
be in charge of services for automation,
management and access control of visitors to
the Digital Smart City Expo.
Through its partnership with Expo 2015, Came
will develop an innovative access control model
to monitor and regulate the automation devices
for pedestrian and vehicle entrances and for
parking areas of the exhibition site.
Came will also handle access
of staff and visitors to exhibition areas
and other infrastructures.
Thanks to its acknowledged expertise
world-over and full commitment to the project,
Came will prove a competent and reliable
partner, able to offer all participants the best
technologies for the control, management and
enablement of visitor access to all exhibition
sites, from management of queues to pavilions,
up to the integrated and customised solutions
for the automation of buildings, all ideally
integrated with the Expo infrastructure.
Discover the access automation
and control solutions
for the Expo 2015
3

5. GENERAL INDEX
www.came.com
4

6. 6 KEY TO SYMBOLS
8 CAME PRESENTS he¡
10 TECHNOLOGY
10 BECOMES ART
12 CAME ACCESS CONTROL DIVISION
14 European norms
15 The safety
16 The standard installation
17 The solutions

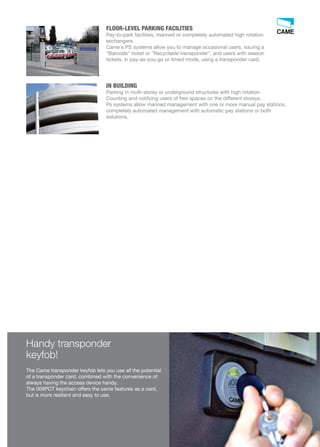

18 FLOOR-LEVEL PARKING FACILITIES
19 MULTI-LEVEL PARKING FACILITY

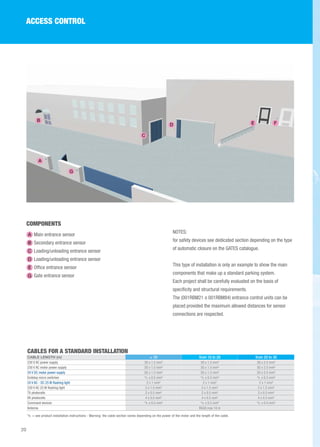

20 CONTROLLO ACCESSI

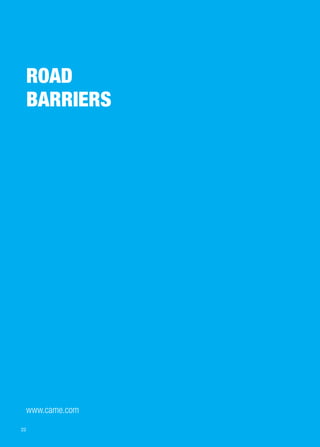

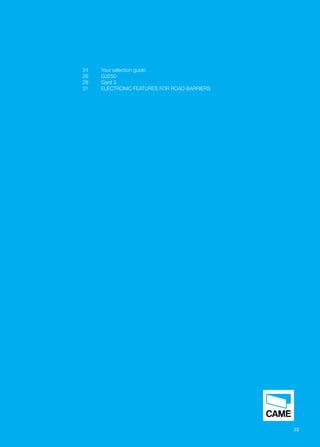

22 BARRIERS
22 ROAD
24 Your selection guide

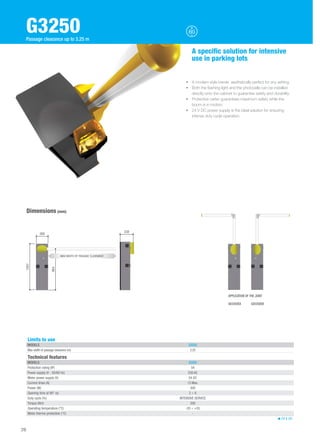

26 G3250

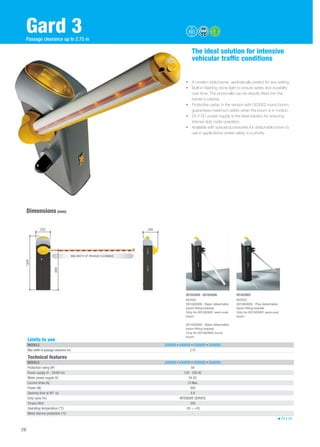

28 Gard 3

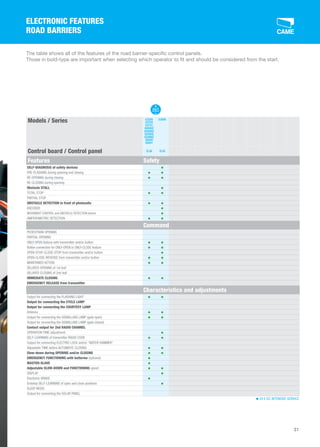

31 ELECTRONIC FEATURES FOR ROAD BARRIERS
32 TURNSTILES
34 Bridge

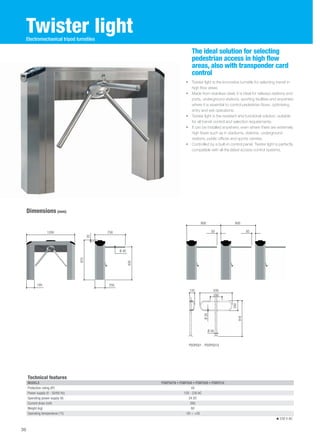

36 Twister light

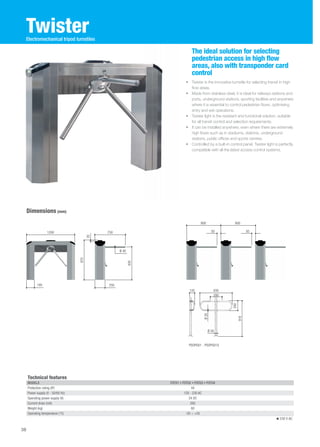

38 Twister

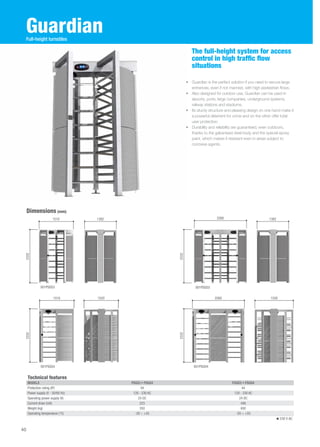

40 Guardian

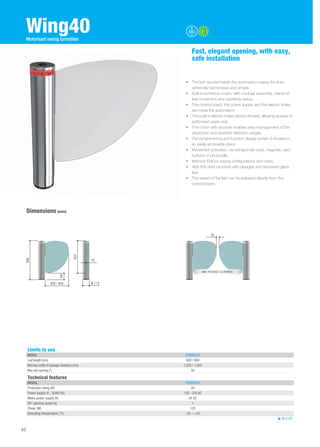

42 Wing40

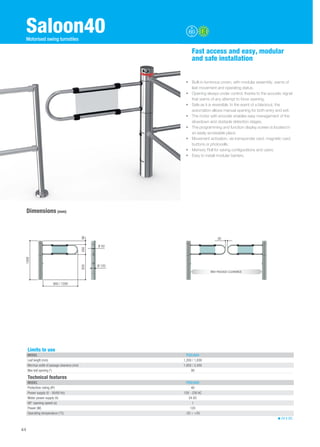

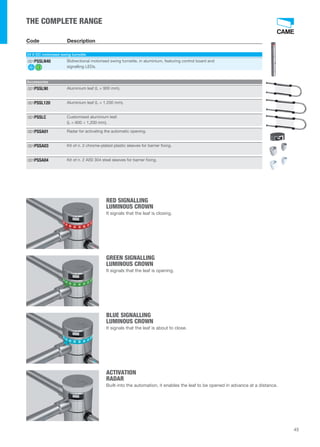

44 Saloon40

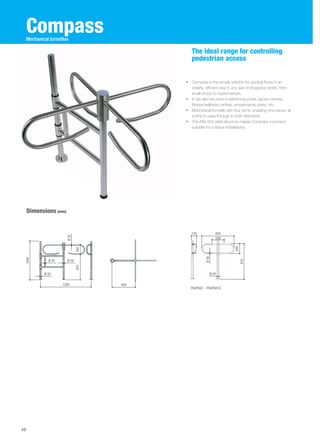

46 Compass

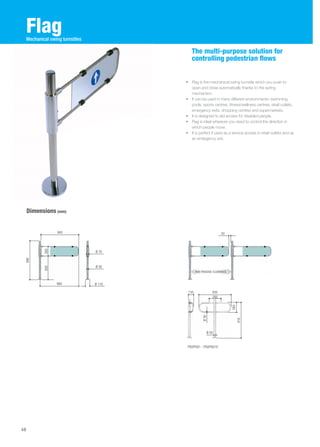

48 Flag

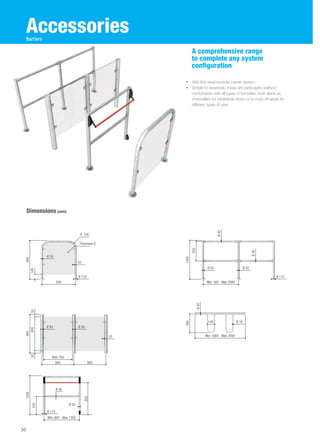

50 Accessories

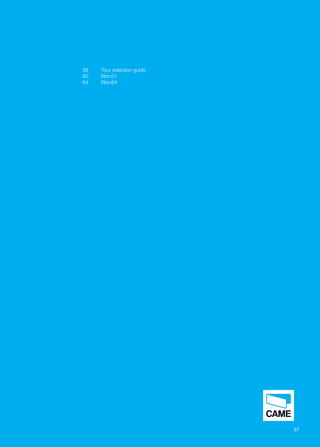

56 ACCESS CONTROL
58 Your selection guide

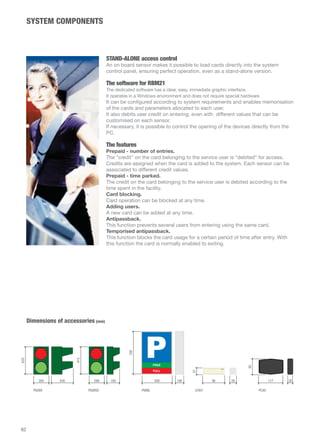

60 Rbm21

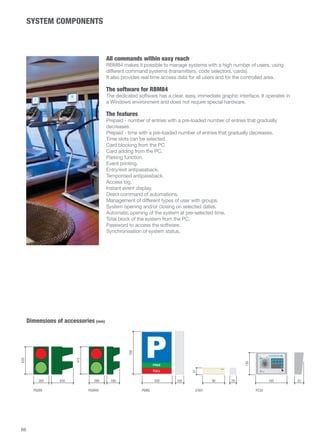

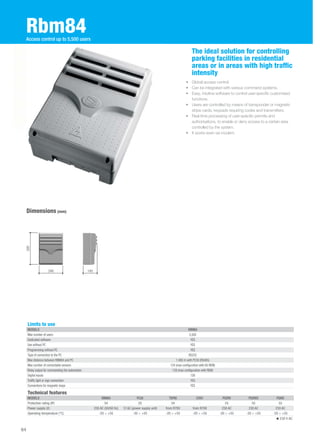

64 Rbm84

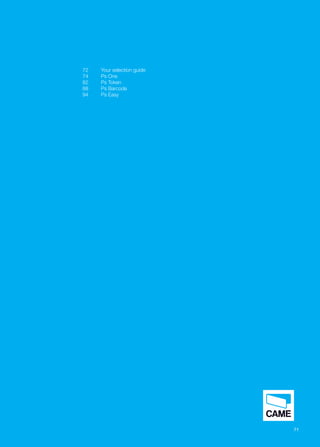

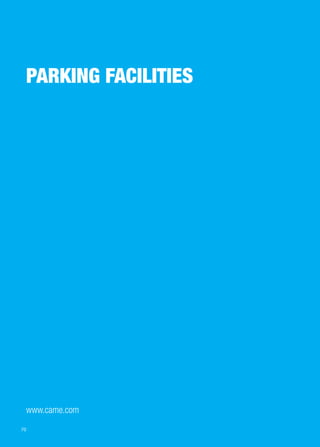

70 PARKING FACILITIES
72 Your selection guide
74 Ps One

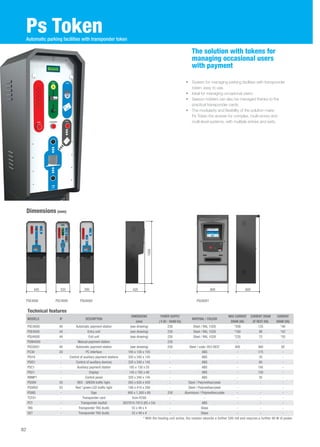

82 Ps Token
88 Ps Barcode

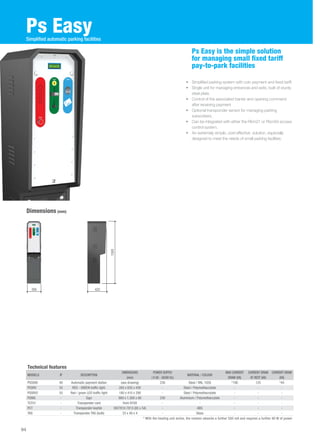

94 Ps Easy
96 Alphabetical index
5

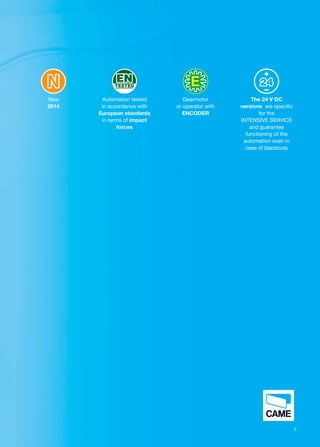

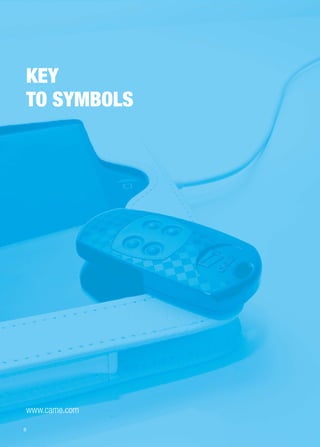

7. KEY
TO SYMBOLS
www.came.com
6

8. 7
Automation tested
in accordance with
European standards
in terms of impact
forces
New
2014
Gearmotor
or operator with
ENCODER
The 24 V DC
versions are specific
for the
INTENSIVE SERVICE
and guarantee
functioning of the
automation even in
case of blackouts

9. CAME PRESENTS
www.came.com
For more details request the HOME AUTOMATION and SAFETY catalogues from an authorized dealer.
8

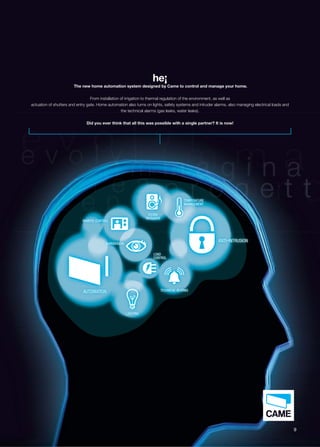

10. he¡
The new home automation system designed by Came to control and manage your home.
From installation of irrigation to thermal regulation of the environment, as well as
actuation of shutters and entry gate. Home automation also turns on lights, safety systems and intruder alarms, also managing electrical loads and
the technical alarms (gas leaks, water leaks).
Did you ever think that all this was possible with a single partner? It is now!
AUTOMATION
LIGHTING
REMOTE CONTROL
SUPERVISION
TECHNICAL ALARMS
ANTI-INTRUSION
SOUND
DIFFUSION
TEMPERATURE
MANAGEMENT
LOAD
CONTROL
L
N
A
CON
TE
M
9

11. TECHNOLOGY
BECOMES ART
www.came.com
For more details request the ART catalogue from an authorized dealer.
10

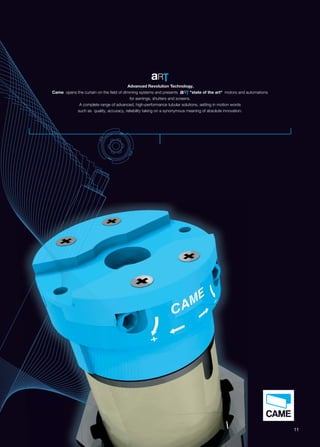

12. Advanced Revolution Technology.
Came opens the curtain on the field of dimming systems and presents state of the art motors and automations
for awnings, shutters and screens.
A complete range of advanced, high-performance tubular solutions, setting in motion words
such as quality, accuracy, reliability taking on a synonymous meaning of absolute innovation.
11

13. 12
CAME
ACCESS CONTROL DIVISION
www.came.com
For more details request the ACCESS CONTROL catalogue from an authorized dealer.

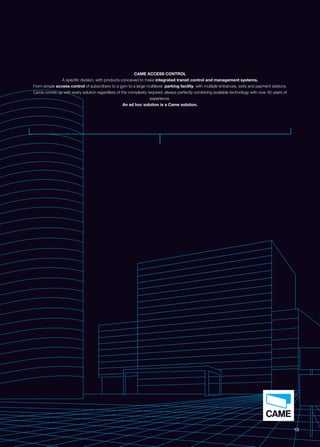

14. 13
CAME ACCESS CONTROL
A specific division, with products conceived to make integrated transit control and management systems.
From simple access control of subscribers to a gym to a large multilevel parking facility with multiple entrances, exits and payment stations.
Came comes up with every solution regardless of the complexity required, always perfectly combining available technology with over 40 years of
experience.
An ad hoc solution is a Came solution.

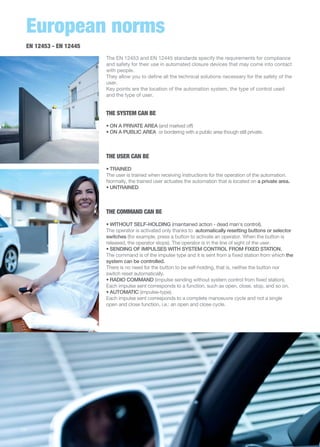

15. European norms
EN 12453 - EN 12445
The EN 12453 and EN 12445 standards specify the requirements for compliance
and safety for their use in automated closure devices that may come into contact
with people.
They allow you to define all the technical solutions necessary for the safety of the
user.
Key points are the location of the automation system, the type of control used
and the type of user.
THE SYSTEM CAN BE
• ON A PRIVATE AREA (and marked off)
• ON A PUBLIC AREA or bordering with a public area though still private.
THE USER CAN BE
• TRAINED
The user is trained when receiving instructions for the operation of the automation.
Normally, the trained user actuates the automation that is located on a private area.
• UNTRAINED
THE COMMAND CAN BE
• WITHOUT SELF-HOLDING (maintained action - dead man's control).
The operator is activated only thanks to automatically resetting buttons or selector
switches (for example, press a button to activate an operator. When the button is
released, the operator stops). The operator is in the line of sight of the user.
• SENDING OF IMPULSES WITH SYSTEM CONTROL FROM FIXED STATION.
The command is of the impulse type and it is sent from a fixed station from which the
system can be controlled.
There is no need for the button to be self-holding, that is, neither the button nor
switch reset automatically.
• RADIO COMMAND (impulse sending without system control from fixed station).
Each impulse sent corresponds to a function, such as open, close, stop, and so on.
• AUTOMATIC (impulse-type).
Each impulse sent corresponds to a complete manoeuvre cycle and not a single
open and close function, i.e.: an open and close cycle.
14

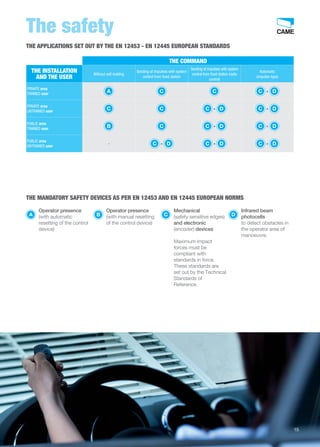

16. THE APPLICATIONS SET OUT BY THE EN 12453 - EN 12445 EUROPEAN STANDARDS
THE COMMAND
THE INSTALLATION
AND THE USER Without self-holding
Sending of impulses with system
control from fixed station
Sending of impulses with system
control from fixed station (radio
control)
Automatic
(impulse-type)
PRIVATE area
TRAINED user A C C C
+
D
PRIVATE area
UNTRAINED user C C C
+
D C
+
D
PUBLIC area
TRAINED user B C C
+
D C
+
D
PUBLIC area
UNTRAINED user
- C
+
D C
+
D C
+
D
The safety
THE MANDATORY SAFETY DEVICES AS PER EN 12453 AND EN 12445 EUROPEAN NORMS
Operator presence
(with automatic
resetting of the control
device)
A
Operator presence
(with manual resetting
of the control device)
B
Mechanical
(safety sensitive edges)
and electronic
(encoder) devices
Maximum impact
forces must be
compliant with
standards in force.
These standards are
set out by the Technical
Standards of
Reference.
C
Infrared beam
photocells
to detect obstacles in
the operator area of
manoeuvre.
D
15

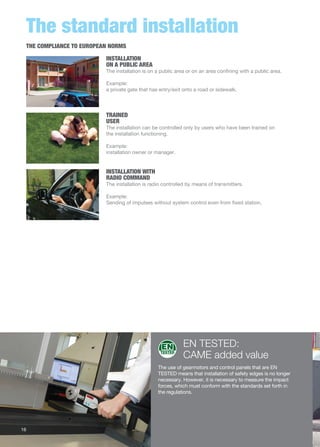

17. The standard installation
INSTALLATION
ON A PUBLIC AREA
The installation is on a public area or on an area confining with a public area.
Example:
a private gate that has entry/exit onto a road or sidewalk.
TRAINED
USER
The installation can be controlled only by users who have been trained on
the installation functioning.
INSTALLATION WITH
RADIO COMMAND
The installation is radio controlled by means of transmitters.
Example:
Sending of impulses without system control even from fixed station.
EN TESTED:
CAME added value
Example:
installation owner or manager.
The use of gearmotors and control panels that are EN
TESTED means that installation of safety edges is no longer
necessary. However, it is necessary to measure the impact
forces, which must conform with the standards set forth in
the regulations.
THE COMPLIANCE TO EUROPEAN NORMS
16

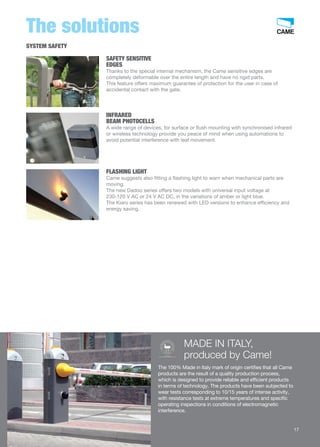

18. The solutions
SAFETY SENSITIVE
EDGES
Thanks to the special internal mechanism, the Came sensitive edges are
completely deformable over the entire length and have no rigid parts.
This feature offers maximum guarantee of protection for the user in case of
accidental contact with the gate.
INFRARED
BEAM PHOTOCELLS
A wide range of devices, for surface or flush mounting with synchronised infrared
or wireless technology provide you peace of mind when using automations to
avoid potential interference with leaf movement.
FLASHING LIGHT
Came suggests also fitting a flashing light to warn when mechanical parts are
moving.
The new Dadoo series offers two models with universal input voltage at
230-120 V AC or 24 V AC DC, in the variations of amber or light blue.
The Kiaro series has been renewed with LED versions to enhance efficiency and
energy saving.
MADE IN ITALY,
produced by Came!
100% MADE IN ITALY CERTIFICATE
ITPI.386
GARANZIA QUALITÀ ORIGINALE
The 100% Made in Italy mark of origin certifies that all Came
products are the result of a quality production process,
which is designed to provide reliable and efficient products
in terms of technology. The products have been subjected to
wear tests corresponding to 10/15 years of intense activity,
with resistance tests at extreme temperatures and specific
operating inspections in conditions of electromagnetic
interference.
SYSTEM SAFETY
17

19. FLOOR-LEVEL PARKING FACILITY
18
A Road barriers
K Automatic payment station
V Magnetic sensor to detect metal masses
B Entry unit
C Exit unit
Y Luminous sign or traffic light
Z Manual payment station
A
V
V
C
V
Y
K
NOTES:
For the safety devices see the ROAD BARRIERS section
on the GATES catalogue.
This type of installation is only an example to show the main
components that make up a standard parking system.
Each project shall be carefully evaluated on the basis of
specificity and structural requirements.
COMPONENTS
A
V
B
Z
CABLES FOR A STANDARD INSTALLATION
CABLE LENGTH (m) 10 from 10 to 20 from 20 to 30
230 V AC power supply 3G x 1.5 mm² 3G x 1.5 mm² 3G x 2.5 mm²
230 V AC motor power supply 3G x 1.5 mm² 3G x 1.5 mm² 3G x 2.5 mm²
24 V DC motor power supply 2G x 1.5 mm² 2G x 1.5 mm² 2G x 2.5 mm²
Endstop micro switches *n. x 0.5 mm² *n. x 0.5 mm² *n. x 0.5 mm²
24 V AC - DC 25 W flashing light 2 x 1 mm² 2 x 1 mm² 2 x 1 mm²
230 V AC 25 W flashing light 2 x 1.5 mm² 2 x 1.5 mm² 2 x 1.5 mm²
TX photocells 2 x 0.5 mm² 2 x 0.5 mm² 2 x 0.5 mm²
RX photocells 4 x 0.5 mm² 4 x 0.5 mm² 4 x 0.5 mm²
Command devices *n. x 0.5 mm² *n. x 0.5 mm² *n. x 0.5 mm²
Antenna RG58 max 10 m
*n. = see product installation instructions - Warning: the cable section varies depending on the power of the motor and the length of the cable.

20. MULTI-LEVEL PARKING FACILITY
19
K
V
A Road barriers
K Automatic payment station
V Magnetic sensor to detect metal masses
B Entry unit
C Exit unit
Y Luminous sign or traffic light
Z Manual payment station
Δ Camera
V
Δ
NOTES:
For the safety devices see the ROAD BARRIERS section
on the GATES catalogue.
This type of installation is only an example to show the main
components that make up a standard parking system.
Each project shall be carefully evaluated on the basis of
specificity and structural requirements.
COMPONENTS
A
A
K
K
B
C
Y
Y
V
Z
Δ
V
Δ
CABLES FOR A STANDARD INSTALLATION
Cable length (m) 10 from 10 to 20 from 20 to 30
230 V AC power supply 3G x 1.5 mm² 3G x 1.5 mm² 3G x 2.5 mm²
230 V AC motor power supply 3G x 1.5 mm² 3G x 1.5 mm² 3G x 2.5 mm²
24 V DC motor power supply 2G x 1.5 mm² 2G x 1.5 mm² 2G x 2.5 mm²
Endstop micro switches *n. x 0.5 mm² *n. x 0.5 mm² *n. x 0.5 mm²
24 V AC - DC 25 W flashing light 2 x 1 mm² 2 x 1 mm² 2 x 1 mm²
230 V AC 25 W flashing light 2 x 1.5 mm² 2 x 1.5 mm² 2 x 1.5 mm²
TX photocells 2 x 0.5 mm² 2 x 0.5 mm² 2 x 0.5 mm²
RX photocells 4 x 0.5 mm² 4 x 0.5 mm² 4 x 0.5 mm²
Command devices *n. x 0.5 mm² *n. x 0.5 mm² *n. x 0.5 mm²
Antenna RG58 max 10 m
*n. = see product installation instructions - Warning: the cable section varies depending on the power of the motor and the length of the cable.

21. ACCESS CONTROL
20
B
A
G
A Main entrance sensor
B Secondary entrance sensor
C Loading/unloading entrance sensor
D Loading/unloading entrance sensor
E Office entrance sensor
G Gate entrance sensor
D E F
NOTES:
for safety devices see dedicated section depending on the type
of automatic closure on the GATES catalogue.
This type of installation is only an example to show the main
components that make up a standard parking system.
Each project shall be carefully evaluated on the basis of
specificity and structural requirements.
The (001RBM21 o 001RBM84) entrance control units can be
placed provided the maximum allowed distances for sensor
connections are respected.
COMPONENTS
C
CABLES FOR A STANDARD INSTALLATION
CABLE LENGTH (m) 10 from 10 to 20 from 20 to 30
230 V AC power supply 3G x 1.5 mm² 3G x 1.5 mm² 3G x 2.5 mm²
230 V AC motor power supply 3G x 1.5 mm² 3G x 1.5 mm² 3G x 2.5 mm²
24 V DC motor power supply 2G x 1.5 mm² 2G x 1.5 mm² 2G x 2.5 mm²
Endstop micro switches *n. x 0.5 mm² *n. x 0.5 mm² *n. x 0.5 mm²
24 V AC - DC 25 W flashing light 2 x 1 mm² 2 x 1 mm² 2 x 1 mm²
230 V AC 25 W flashing light 2 x 1.5 mm² 2 x 1.5 mm² 2 x 1.5 mm²
TX photocells 2 x 0.5 mm² 2 x 0.5 mm² 2 x 0.5 mm²
RX photocells 4 x 0.5 mm² 4 x 0.5 mm² 4 x 0.5 mm²
Command devices *n. x 0.5 mm² *n. x 0.5 mm² *n. x 0.5 mm²
Antenna RG58 max 10 m
*n. = see product installation instructions - Warning: the cable section varies depending on the power of the motor and the length of the cable.

22. notes

23. 22
ROAD
BARRIERS
www.came.com

24. 23
24 Your selection guide
26 G3250
28 Gard 3
31 ELECTRONIC FEATURES FOR ROAD BARRIERS

25. Your selection guide
Road barriers
The table summarises the models with their limits to use depending on the max width of the barrier passage clearan-ce.
24
Series Model
Max width of passage clearance (m)
Gard 3 G3000DX
G3000SX
G3000IDX
G3000ISX
G3250 G3250
230 V AC 24 V DC INTENSIVE SERVICE

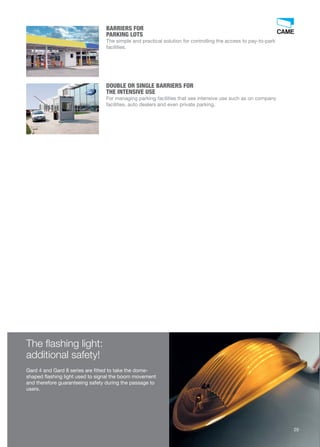

26. The flashing light:
additional safety!
Gard 4 and Gard 8 series are fitted to take the dome-shaped
flashing light used to signal the boom movement
and therefore guaranteeing safety during the passage to
users.
25
BARRIERS FOR
PARKING LOTS
The simple and practical solution for controlling the access to pay-to-park
facilities.
DOUBLE OR SINGLE BARRIERS FOR
THE INTENSIVE USE
For managing parking facilities that see intensive use such as on company
facilities, auto dealers and even private parking.

27. G3250
Passage clearance up to 3.25 m
Limits to use
MODELS G3250
Max width of passage clearance (m) 3.25
Technical features
MODELS G3250
Protection rating (IP) 54
Power supply (V - 50/60 Hz) 230 AC
Motor power supply (V) 24 DC
Current draw (A) 15 Max.
Power (W) 300
Opening time at 90° (s) 2 ÷ 6
Duty cycle (%) INTENSIVE SERVICE
Torque (Nm) 200
Operating temperature (°C) -20 ÷ +55
Motor thermo-protection (°C) -
24 V DC
Dimensions (mm)
A specific solution for intensive
use in parking lots
• A modern style barrier, aesthetically perfect for any setting.
• Both the flashing light and the photocells can be installed
directly onto the cabinet to guarantee safety and durability.
• Protective carter guarantees maximum safety while the
boom is in motion.
• 24 V DC power supply is the ideal solution for ensuring
intense duty cycle operation.
1007
260 338
884
MAX WIDTH OF PASSAGE CLEARANCE
26
APPLICATION OF THE JOINT
G03250SX G03250DX

28. THE COMPLETE RANGE
Code Description
Barrier with 24 V DC gearmotor and on-board control panel
001G3250 Barrier in galvanised and painted steel. Fitted to take accessories.
Accessories
White painted aluminium boom with semi-oval section, complete with profile for covering
the slot, rubber profile for impact protection, inner reinforcement, luminous cord,
connection cable and red adhesive refracting strips. Boom length: 3.5 m.
001G03250
White painted aluminium boom with semi-oval section, complete with profile for covering
the slot, rubber profile for impact protection, inner reinforcement and red adhesive refracting
strips. Boom length: 3.5 m.
001G03250K
001G0468 Support for applying on the cabinet the DELTA-I and DELTA-SI photocells.
Adapter for applying the Kiaro series flashing light
(KIAROS support is necessary).
001G04601
Accessories for: 001G03250K
001G03755DX Joint for semi-oval boom for right-hand barrier.
001G03755SX Joint for semi-oval boom for left-hand barrier.
27

29. Gard 3
The ideal solution for intensive
vehicular traffic conditions
• A modern style barrier, aesthetically perfect for any setting.
• Built-in flashing dome light to ensure safety and durability
over time. The photocells can be directly fitted into the
barrier's cabinet.
• Protective carter, in the version with G03002 round boom,
guarantees maximum safety when the boom is in motion.
• 24 V DC power supply is the ideal solution for ensuring
intense duty cycle operation.
• Available with special accessories for detachable boom to
use in applications where safety is a priority.
Dimensions (mm)
Technical features
MODELS G3000DX • G3000SX • G3000IDX • G3000ISX
Protection rating (IP) 54
Power supply (V - 50/60 Hz) 120 - 230 AC
Motor power supply (V) 24 DC
Current draw (A) 15 Max.
Power (W) 300
Opening time at 90° (s) 0.9
Duty cycle (%) INTENSIVE SERVICE
Torque (Nm) 200
Operating temperature (°C) -20 ÷ +55
Motor thermo-protection (°C) -
24 V DC
Limits to use
MODELS G3000DX • G3000SX • G3000IDX • G3000ISX
Max width of passage clearance (m) 2.75
28
Passage clearance up to 2.75 m
1204
332
884
340
MAX WIDTH OF PASSAGE CLEARANCE
884
001G03000 - 001G03006 001G03005
NOTES
001G03006 - Basic detachable
boom fitting bracket.
Only for 001G03001 semi-oval
boom
001G03000 - Basic detachable
boom fitting bracket.
Only for 001G03002 round
boom
NOTES
001G03005 - Plus detachable
boom fitting bracket.
Only for 001G03001 semi-oval
boom

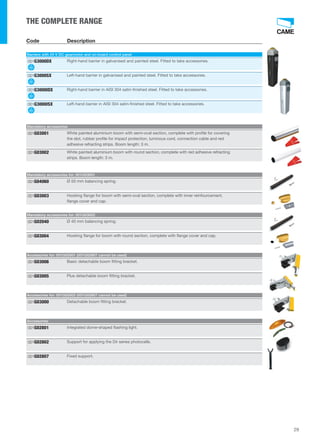

30. 29
THE COMPLETE RANGE
Code Description
Barriers with 24 V DC gearmotor and on-board control panel
001G3000DX Right-hand barrier in galvanised and painted steel. Fitted to take accessories.
001G3000SX Left-hand barrier in galvanised and painted steel. Fitted to take accessories.
001G3000IDX Right-hand barrier in AISI 304 satin-finished steel. Fitted to take accessories.
001G3000ISX Left-hand barrier in AISI 304 satin-finished steel. Fitted to take accessories.
Mandatory accessories
White painted aluminium boom with semi-oval section, complete with profile for covering
the slot, rubber profile for impact protection, luminous cord, connection cable and red
adhesive refracting strips. Boom length: 3 m.
001G03001
White painted aluminium boom with round section, complete with red adhesive refracting
strips. Boom length: 3 m.
001G03002
Mandatory accessories for: 001G03001
001G04060 Ø 50 mm balancing spring.
Hooking flange for boom with semi-oval section, complete with inner reinfourcement,
flange cover and cap.
001G03003
Mandatory accessories for: 001G03002
001G02040 Ø 40 mm balancing spring.
001G03004 Hooking flange for boom with round section, complete with flange cover and cap.
Accessories for: 001G03001 (001G02807 cannot be used)
001G03006 Basic detachable boom fitting bracket.
001G03005 Plus detachable boom fitting bracket.
Accessories for: 001G03002 (001G02807 cannot be used)
001G03000 Detachable boom fitting bracket.
Accessories
001G02801 Integrated dome-shaped flashing light.
001G02802 Support for applying the Dir series photocells.
001G02807 Fixed support.

31. 30

32. The table shows all of the features of the road barrier-specific control panels.
Those in bold-type are important when selecting which operator to fit and should be considered from the start.
Models / Series G3250
G3750
G3751
G4040Z
G4040IZ
G2080Z
G2080IZ
G6500
G6501
G3000
Control board / Control panel ZL38 ZL30
Features Safety
SELF-DIAGNOSIS of safety devices
PRE-FLASHING during opening and closing
RE-OPENING during closing
RE-CLOSING during opening
Obstacle STALL
TOTAL STOP
PARTIAL STOP
OBSTACLE DETECTION in front of photocells
ENCODER
MOVEMENT CONTROL and OBSTACLE DETECTION device
AMPEROMETRIC DETECTION
Command
PEDESTRIAN OPENING
PARTIAL OPENING
ONLY-OPEN feature with transmitter and/or button
Button connection for ONLY-OPEN or ONLY-CLOSE feature
OPEN-STOP-CLOSE-STOP from transmitter and/or button
OPEN-CLOSE-REVERSE from transmitter and/or button
MAINTAINED ACTION
DELAYED OPENING of 1st leaf
DELAYED CLOSING of 2nd leaf
IMMEDIATE CLOSING
EMERGENCY RELEASE from transmitter
Characteristics and adjustments
Output for connecting the FLASHING LIGHT
Output for connecting the CYCLE LAMP
Output for connecting the COURTESY LAMP
Antenna
Output for connecting the SIGNALLING LAMP (gate open)
Output for connecting the SIGNALLING LAMP (gate closed)
Contact output for 2nd RADIO CHANNEL
OPERATION TIME adjustment
SELF-LEARNING of transmitter RADIO CODE
Output for connecting ELECTRIC LOCK and/or WATER HAMMER
Adjustable TIME before AUTOMATIC CLOSING
Slow-down during OPENING and/or CLOSING
EMERGENCY FUNCTIONING with batteries (optional)
MASTER-SLAVE
Adjustable SLOW-DOWN and FUNCTIONING speed
DISPLAY
Electronic BRAKE
Endstop SELF-LEARNING of open and close positions
SLEEP MODE
Output for connecting the SOLAR PANEL
24 V DC INTENSIVE SERVICE
31
ELECTRONIC FEATURES
ROAD BARRIERS

33. 32
TURNSTILES
www.came.com

34. 33
34 Bridge
36 Twister light
38 Twister
40 Guardian
42 Wing40
44 Saloon40
46 Compass
48 Flag
50 Accessories

35. Bridge
The ideal solution for selecting
pedestrian access in high flow
areas
• Bridge is the silent, precise turnstile, ideal for entry and exit
control in small and medium-sized sports centres,
supermarkets and companies.
• Its small width ensures efficient flow control, even in limited
space, making it possible to create multiple controlled
openings.
• Available in three different models, all equipped with
hydraulic damper, Bridge is easy to integrate into any type of
environment.
• The care taken over aesthetic details, the shape and the
rounded corners are distinctive features of a product with a
sought-after design.
• The galvanised metal body makes Bridge a product that is
particularly resistant to vandalism and tampering. The
special epoxy powder paint also makes it weather-resistant.
Dimensions (mm)
Technical features
MODELS PSAP01 PSAP07N • PSAP08
Protection rating (IP) 44 44
Power supply (V - 50/60 Hz) - 120 - 230 AC
Operating power supply (V) - 24 DC
Current draw (mA) - 223
Weight (kg) 40 50
Operating temperature (°C) - -20 ÷ +55
230 V AC
34
Mechanical and electromechanical tripod turnstiles
920 255
750 800 800
740
140
Ø 40
910
930
830
50 50
PSOPG01 - PSOPG01X
260
916
135 830
280
Ø 30
Ø 50

36. 35

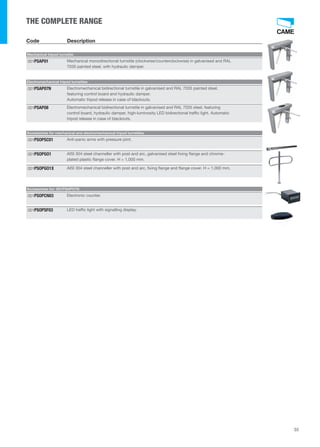

THE COMPLETE RANGE
Code Description
Mechanical tripod turnstile
Mechanical monodirectional turnstile (clockwise/counterclockwise) in galvanised and RAL
7035 painted steel, with hydraulic damper.
001PSAP01
Electromechanical tripod turnstiles
Electromechanical bidirectional turnstile in galvanised and RAL 7035 painted steel,
featuring control board and hydraulic damper.
Automatic tripod release in case of blackouts.
001PSAP07N
Electromechanical bidirectional turnstile in galvanised and RAL 7035 steel, featuring
control board, hydraulic damper, high-luminosity LED bidirectional traffic light. Automatic
tripod release in case of blackouts.
001PSAP08
Accessories for mechanical and electromechanical tripod turnstiles
001PSOPSC01 Anti-panic arms with pressure joint.
AISI 304 steel channeller with post and arc, galvanised steel fixing flange and chrome-plated
plastic flange cover. H = 1,000 mm.
001PSOPGO1
001PSOPGO1X AISI 304 steel channeller with post and arc, fixing flange and flange cover. H = 1,000 mm.
Accessories for: 001PSAP07N
001PSOPCN03 Electronic counter.
001PSOPSF03 LED traffic light with signalling display.

37. Twister light
• Twister light is the innovative turnstile for selecting transit in
high flow areas.
• Made from stainless steel, it is ideal for railways stations and
ports, underground stations, sporting facilities and anywhere
where it is essential to control pedestrian flows, optimising
entry and exit operations.
• Twister light is the resistant and functional solution, suitable
for all transit control and selection requirements.
• It can be installed anywhere, even where there are extremely
high flows such as in stadiums, stations, underground
stations, public offices and sports centres.
• Controlled by a built-in control panel, Twister light is perfectly
compatible with all the latest access control systems.
Dimensions (mm)
The ideal solution for selecting
pedestrian access in high flow
areas, also with transponder card
control
Electromechanical tripod turnstiles
800 800
Technical features
MODELS PSBPS07N • PSBPS08 • PSBPS09 • PSBPS10
Protection rating (IP) 44
Power supply (V - 50/60 Hz) 120 - 230 AC
Operating power supply (V) 24 DC
Current draw (mA) 260
Weight (kg) 60
Operating temperature (°C) -20 ÷ +55
230 V AC
1200 750
830
20
195 250
Ø 40
970
50 50
PSOPG01 - PSOPG01X
260
916
135 830
280
Ø 30
Ø 50
36

38. THE COMPLETE RANGE
Code Description
Electromechanical tripod turnstiles
AISI 304 steel electromechanical bidirectional turnstile with scotch-brite finishing,
featuring control board and hydraulic damper.
Automatic tripod release in case of blackouts.
001PSBPS07N
Electromechanical bidirectional turnstile in AISI 304 steel with scotch-brite finishing,
featuring control board, hydraulic damper, high-luminosity LED bidirectional traffic light.
Automatic tripod release in case of blackouts.
001PSBPS08
Electromechanical bidirectional turnstile in AISI 304 steel with scotch-brite finishing,
featuring control board, hydraulic damper, high-luminosity LED bidirectional traffic light
and system to prevent climbing over.
Automatic tripod release in case of blackouts.
001PSBPS09
AISI 304 steel electromechanical bidirectional turnstile with scotch-brite finishing,
featuring control board, hydraulic damper, high-luminosity LED bidirectional traffic light,
arm fall system and automatic release of the tripod in case of blackouts.
001PSBPS10
Accessories for electromechanical tripod turnstiles
001PSOPSC01 Anti-panic arms with pressure joint.
AISI 304 steel channeller with post and arc, galvanised steel fixing flange and chrome-plated
plastic flange cover. H = 1,000 mm.
001PSOPGO1
001PSOPGO1X AISI 304 steel channeller with post and arc, fixing flange and flange cover. H = 1,000 mm.
001PSOPCN03 Electronic counter.
001PSOPSF03 LED traffic light with signalling display.
37

39. Twister
• Twister is the innovative turnstile for selecting transit in high
flow areas.
• Made from stainless steel, it is ideal for railways stations and
ports, underground stations, sporting facilities and anywhere
where it is essential to control pedestrian flows, optimising
entry and exit operations.
• Twister light is the resistant and functional solution, suitable
for all transit control and selection requirements.
• It can be installed anywhere, even where there are extremely
high flows such as in stadiums, stations, underground
stations, public offices and sports centres.
• Controlled by a built-in control panel, Twister light is perfectly
compatible with all the latest access control systems.
Dimensions (mm)
The ideal solution for selecting
pedestrian access in high flow
areas, also with transponder card
control
Electromechanical tripod turnstiles
800 800
Technical features
MODELS PST01 • PST02 • PST03 • PST04
Protection rating (IP) 44
Power supply (V - 50/60 Hz) 120 - 230 AC
Operating power supply (V) 24 DC
Current draw (mA) 260
Weight (kg) 60
Operating temperature (°C) -20 ÷ +55
230 V AC
1200 750
830
20
195 250
Ø 40
970
50 50
PSOPG01 - PSOPG01X
260
916
135 830
280
Ø 30
Ø 50
38

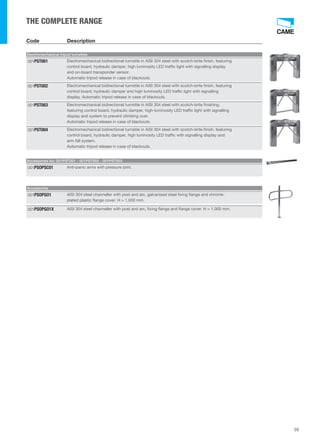

40. THE COMPLETE RANGE
Code Description
Electromechanical tripod turnstiles
Electromechanical bidirectional turnstile in AISI 304 steel with scotch-brite finish, featuring
control board, hydraulic damper, high luminosity LED traffic light with signalling display
and on-board transponder sensor.
Automatic tripod release in case of blackouts.
001PST001
Electromechanical bidirectional turnstile in AISI 304 steel with scotch-brite finish, featuring
control board, hydraulic damper and high luminosity LED traffic light with signalling
display. Automatic tripod release in case of blackouts.
001PST002
Electromechanical bidirectional turnstile in AISI 304 steel with scotch-brite finishing,
featuring control board, hydraulic damper, high-luminosity LED traffic light with signalling
display and system to prevent climbing over.
Automatic tripod release in case of blackouts.
001PST003
Electromechanical bidirectional turnstile in AISI 304 steel with scotch-brite finish, featuring
control board, hydraulic damper, high luminosity LED traffic with signalling display and
arm fall system.
Automatic tripod release in case of blackouts.
001PST004
Accessories for: 001PST001 - 001PST002 - 001PST003
001PSOPSC01 Anti-panic arms with pressure joint.
Accessories
AISI 304 steel channeller with post and arc, galvanised steel fixing flange and chrome-plated
plastic flange cover. H = 1,000 mm.
001PSOPGO1
001PSOPGO1X AISI 304 steel channeller with post and arc, fixing flange and flange cover. H = 1,000 mm.
39

41. Guardian
The full-height system for access
control in high traffic flow
situations
• Guardian is the perfect solution if you need to secure large
entrances, even if not manned, with high pedestrian flows.
• Also designed for outdoor use, Guardian can be used in
airports, ports, large companies, underground systems,
railway stations and stadiums.
• Its sturdy structure and pleasing design on one hand make it
a powerful deterrent for crime and on the other offer total
user protection.
• Durability and reliability are guaranteed, even outdoors,
thanks to the galvanised steel body and the special epoxy
paint, which makes it resistant even in areas subject to
corrosive agents.
Dimensions (mm)
1510 1382 1382
001PSGS3 001PSGD3
2332
2260
Technical features
MODELS PSGS3 • PSGS4 PSGD3 • PSGD4
Protection rating (IP) 44 44
Power supply (V - 50/60 Hz) 120 - 230 AC 120 - 230 AC
Operating power supply (V) 24 DC 24 DC
Current draw (mA) 223 446
Weight (kg) 350 650
Operating temperature (°C) -20 ÷ +55 -20 ÷ +55
230 V AC
40
Full-height turnstiles
001PSGS4 001PSGD4
2332 2332
2332
2260
1510
1520 1520

42. 41

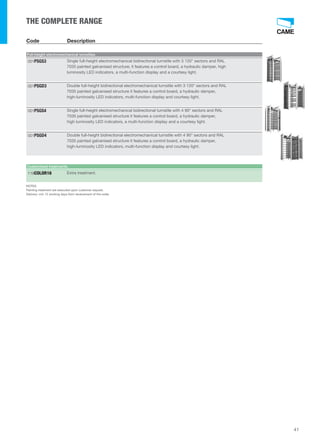

THE COMPLETE RANGE
Code Description
Full-height electromechanical turnstiles
Single full-height electromechanical bidirectional turnstile with 3 120° sectors and RAL
7035 painted galvanised structure; it features a control board, a hydraulic damper, high
luminosity LED indicators, a multi-function display and a courtesy light.
001PSGS3
Double full-height bidirectional electromechanical turnstile with 3 120° sectors and RAL
7035 painted galvanised structure it features a control board, a hydraulic damper,
high-luminosity LED indicators, multi-function display and courtesy light.
001PSGD3
Single full-height electromechanical bidirectional turnstile with 4 90° sectors and RAL
7035 painted galvanised structure it features a control board, a hydraulic damper,
high luminosity LED indicators, a multi-function display and a courtesy light.
001PSGS4
Double full-height bidirectional electromechanical turnstile with 4 90° sectors and RAL
7035 painted galvanised structure it features a control board, a hydraulic damper,
high-luminosity LED indicators, multi-function display and courtesy light.
001PSGD4
Customised treatments
119COLOR16 Extra treatment.
NOTES
Painting treatment are executed upon customer request.
Delivery: min 15 working days from receivement of the order.

43. Dimensions (mm)
• The leaf secured inside the automation makes the lines
extremely harmonious and simple.
• Built-in luminous crown, with modular assembly, warns of
leaf movement and operating status.
• The control board, the power supply and the electric brake
are inside the automation.
• The built-in electric brake blocks the leaf, allowing access to
authorised users only.
• The motor with encoder enables easy management of the
slowdown and obstacle detection stages.
• The programming and function display screen is located in
an easily accessible place.
• Movement activation, via transponder card, magnetic card,
buttons or photocells.
• Memory Roll for saving configurations and users.
• AISI 304 steel structure with plexiglas and tempered glass
leaf.
• The speed of the leaf can be adjusted directly from the
control board.
166
820
Technical features
MODEL PSWNG40
Protection rating (IP) 40
Power supply (V - 50/60 Hz) 120 - 230 AC
Motor power supply (V) 24 DC
90° opening speed (s) 1
Power (W) 120
Operating temperature (°C) -20 ÷ +55
24 V DC
Wing40
Fast, elegant opening, with easy,
safe installation
Limits to use
MODEL PSWNG40
Leaf length (mm) 600 / 900
Min/max width of passage clearance (mm) 1,250 / 1,850
Max leaf opening (°) 90
42
Motorised swing turnstiles
600 / 900 Ø 174
986
10
50
MAX PASSAGE CLEARANCE

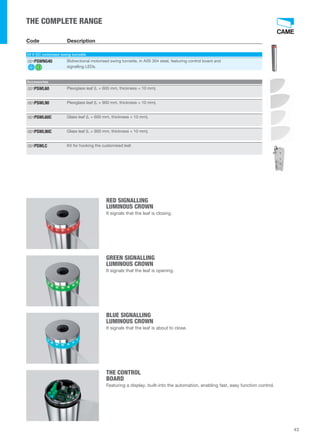

44. RED SIGNALLING
LUMINOUS CROWN
It signals that the leaf is closing.
GREEN SIGNALLING
LUMINOUS CROWN
It signals that the leaf is opening.
BLUE SIGNALLING
LUMINOUS CROWN
It signals that the leaf is about to close.
THE CONTROL
BOARD
Featuring a display, built-into the automation, enabling fast, easy function control.
43
THE COMPLETE RANGE
Code Description
24 V DC motorised swing turnstile
Bidirectional motorised swing turnstile, in AISI 304 steel, featuring control board and
signalling LEDs.
001PSWNG40
Accessories
001PSWL60 Plexiglass leaf (L = 600 mm, thickness = 10 mm).
001PSWL90 Plexiglass leaf (L = 900 mm, thickness = 10 mm).
001PSWL60C Glass leaf (L = 600 mm, thickness = 10 mm).
001PSWL90C Glass leaf (L = 900 mm, thickness = 10 mm).
001PSWLC Kit for hooking the customised leaf.

45. Saloon40
Dimensions (mm)
Fast access and easy, modular
and safe installation
• Built-in luminous crown, with modular assembly, warns of
leaf movement and operating status.
• Opening always under control, thanks to the acoustic signal
that warns of any attempt to force opening.
• Safe as it is reversible. In the event of a blackout, the
automation allows manual opening for both entry and exit.
• The motor with encoder enables easy management of the
slowdown and obstacle detection stages.
• The programming and function display screen is located in
an easily accessible place.
• Movement activation, via transponder card, magnetic card,
buttons or photocells.
• Memory Roll for saving configurations and users.
• Easy to install modular barriers.
Technical features
MODEL PSSLN40
Protection rating (IP) 40
Power supply (V - 50/60 Hz) 120 - 230 AC
Motor power supply (V) 24 DC
90° opening speed (s) 1
Power (W) 120
Operating temperature (°C) -20 ÷ +55
24 V DC
44
Motorised swing turnstiles
900 / 1200
Ø 120
650 260 98
1008
Ø 50
50
MAX PASSAGE CLEARANCE
Limits to use
MODEL PSSLN40
Leaf length (mm) 1,200 / 1,830
Min/max width of passage clearance (mm) 1,850 / 2,450
Max leaf opening (°) 90

46. RED SIGNALLING
LUMINOUS CROWN
It signals that the leaf is closing.
GREEN SIGNALLING
LUMINOUS CROWN
It signals that the leaf is opening.
BLUE SIGNALLING
LUMINOUS CROWN
It signals that the leaf is about to close.
ACTIVATION
RADAR
Built-into the automation, it enables the leaf to be opened in advance at a distance.
45
THE COMPLETE RANGE
Code Description
24 V DC motorised swing turnstile
Bidirectional motorised swing turnstile, in aluminium, featuring control board and
signalling LEDs.
001PSSLN40
Accessories
001PSSL90 Aluminium leaf (L = 900 mm).
001PSSL120 Aluminium leaf (L = 1,200 mm).
Customised aluminium leaf.
(L = 600 ÷ 1,200 mm).
001PSSLC
001PSSA01 Radar for activating the automatic opening.
001PSSA03 Kit of n. 2 chrome-plated plastic sleeves for barrier fixing.
001PSSA04 Kit of n. 2 AISI 304 steel sleeves for barrier fixing.

47. Compass
Dimensions (mm)
The ideal range for controlling
pedestrian access
• Compass is the simple solution for guiding flows in an
orderly, efficient way in any size of shopping centre, from
small shops to hypermarkets.
• It can also be used in swimming pools, sports centres,
fitness/wellness centres, amusements parks, etc.
• Mechanical turnstile with four arms, enabling one person at
a time to pass through in both directions.
• The AISI 304 steel structure makes Compass a product
suitable for outdoor installations.
46
Mechanical turnstiles
Ø 30
1200 600
1000
655 260
Ø 50
Ø 40
Ø 50
PSOPG01 - PSOPG01X
260
916
135 830
280 Ø 30
Ø 50

48. 47

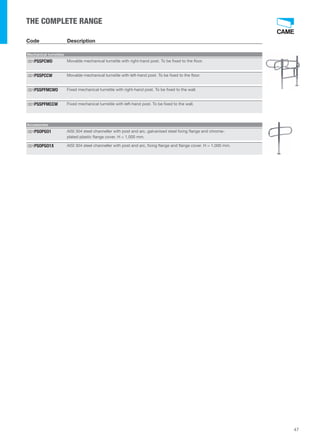

THE COMPLETE RANGE
Code Description
Mechanical turnstiles
001PSSPCWO Movable mechanical turnstile with right-hand post. To be fixed to the floor.
001PSSPCCW Movable mechanical turnstile with left-hand post. To be fixed to the floor.
001PSSPFMCWO Fixed mechanical turnstile with right-hand post. To be fixed to the wall.
001PSSPFMCCW Fixed mechanical turnstile with left-hand post. To be fixed to the wall.
Accessories
AISI 304 steel channeller with post and arc, galvanised steel fixing flange and chrome-plated
plastic flange cover. H = 1,000 mm.
001PSOPGO1
001PSOPGO1X AISI 304 steel channeller with post and arc, fixing flange and flange cover. H = 1,000 mm.

49. Flag
Dimensions (mm)
The multi-purpose solution for
controlling pedestrian flows
• Flag is the mechanical swing turnstile which you push to
open and close automatically thanks to the spring
mechanism.
• It can be used in many different environments: swimming
pools, sports centres, fitness/wellness centres, retail outlets,
emergency exits, shopping centres and supermarkets.
• It is designed to aid access for disabled people.
• Flag is ideal wherever you need to control the direction in
which people move.
• It is perfect if used as a service access in retail outlets and as
an emergency exit.
48
Mechanical swing turnstiles
945
980
Ø 70
Ø 50
Ø 110
990
600 260
50
MAX PASSAGE CLEARANCE
PSOPG01 - PSOPG01X
260
916
135 830
280
Ø 30
Ø 50

50. 49
THE COMPLETE RANGE
Code Description
Mechanical swing turnstiles
001PSBPCWOA Mechanical swing turnstiles with right-hand post and key lock.
001PSBPCCWA Mechanical swing turnstiles with left-hand post and key lock.
001PSBPOOA Bidirectional mechanical swing turnstile with key lock.
Accessories
AISI 304 steel channeller with post and arc, galvanised steel fixing flange and chrome-plated
plastic flange cover. H = 1,000 mm.
001PSOPGO1
001PSOPGO1X AISI 304 steel channeller with post and arc, fixing flange and flange cover. H = 1,000 mm.
Customised treatments
Extra-charge to change the leaf length.
(Min. = 500 mm - Max. = 900 mm).
001PSMLANT01
NOTES
001PSMLANT01 Specify width of customised leaf.

51. Accessories
• AISI 304 steel modular barrier system.
• Simple to assemble, these are particularly useful in
combination with all types of turnstiles, both alone as
channellers for pedestrian flows or to mark off areas for
different types of user.
Dimensions (mm)
A comprehensive range
to complete any system
configuration
Min. 900 - Max 1200 908 900 1000
50
Barriers
Ø 50
50
Ø 110
Ø 80 Ø 80
Max 750
860 860
50
R. 150
Thickness 6
830
50 800 50 145
430
850
Ø 110
Min. 580 - Max 2080
1000
520
Ø 40
Ø 40
Ø 50 Ø 50
Ø 110
Ø 50
Ø 40
390
Min. 1000 - Max 2000
Ø 40
140 Ø 18

52. 51

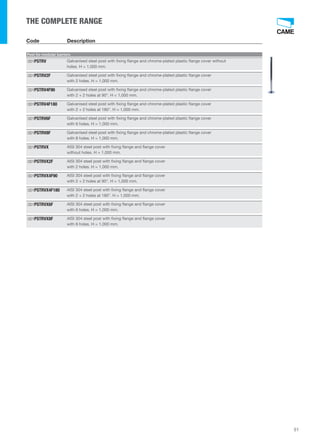

THE COMPLETE RANGE
Code Description
Post for modular barriers
Galvanised steel post with fixing flange and chrome-plated plastic flange cover without
holes. H = 1,000 mm.
001PSTRV
Galvanised steel post with fixing flange and chrome-plated plastic flange cover
with 2 holes. H = 1,000 mm.
001PSTRV2F
Galvanised steel post with fixing flange and chrome-plated plastic flange cover
with 2 + 2 holes at 90°. H = 1,000 mm.
001PSTRV4F90
Galvanised steel post with fixing flange and chrome-plated plastic flange cover
with 2 + 2 holes at 180°. H = 1,000 mm.
001PSTRV4F180
Galvanised steel post with fixing flange and chrome-plated plastic flange cover
with 6 holes. H = 1,000 mm.
001PSTRV6F
Galvanised steel post with fixing flange and chrome-plated plastic flange cover
with 8 holes. H = 1,000 mm.
001PSTRV8F
AISI 304 steel post with fixing flange and flange cover
without holes. H = 1,000 mm.
001PSTRVX
AISI 304 steel post with fixing flange and flange cover
with 2 holes. H = 1,000 mm.
001PSTRVX2F
AISI 304 steel post with fixing flange and flange cover
with 2 + 2 holes at 90°. H = 1,000 mm.
001PSTRVX4F90
AISI 304 steel post with fixing flange and flange cover
with 2 + 2 holes at 180°. H = 1,000 mm.
001PSTRVX4F180
AISI 304 steel post with fixing flange and flange cover
with 6 holes. H = 1,000 mm.
001PSTRVX6F
AISI 304 steel post with fixing flange and flange cover
with 8 holes. H = 1,000 mm.
001PSTRVX8F

53. 001PSTRM001 - 001PSTRM003 - 001PSTRM004
001PSTRV2F - 001PSTRVX2F
001PSTRV4F180 - 001PSTRVX4F180
001PSTRT050 - 001PSTRT100 - 001PSTRT150 - 001PSTRT200
001PSTRM001 - 001PSTRM003 - 001PSTRM004
001PSTRV2F - 001PSTRVX2F
001PSTRV4F090 - 001PSTRVX4F090
001PSTRT50 - 001PSTRT100 - 001PSTRT150 - 001PSTRT200
52
THE COMPLETE RANGE
Code Description
Tubes and sleeves for modular barriers
AISI 304 steel horizontal tube.
Ø 40 mm, thickness 1 mm, L = 500 mm.
001PSTRT050
AISI 304 steel horizontal tube.
Ø 40 mm, thickness 1 mm, L = 1,000 mm.
001PSTRT100
AISI 304 steel horizontal tube.
Ø 40 mm, thickness 1 mm, L = 1,500 mm.
001PSTRT150
AISI 304 steel horizontal tube.
Ø 40 mm, thickness 1 mm, L = 2.000 mm.
001PSTRT200
001PSTRM001 N. 2 chrome-plated plastic joint sleeves complete with fixing screws.
001PSTRM003 N. 2 AISI 304 steel joint sleeves complete with fixing screws.
001PSTRM004 N. 2 AISI 304 steel sleeves for wall fixing, complete with fixing screws.
90°
Compositions

54. 53

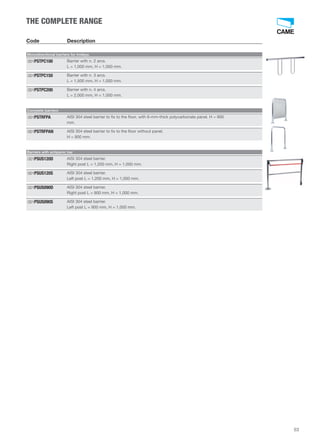

THE COMPLETE RANGE
Code Description
Monodirectional barriers for trolleys
Barrier with n. 2 arcs.
L = 1,000 mm, H = 1,000 mm.
001PSTPC100
Barrier with n. 3 arcs.
L = 1,500 mm, H = 1,000 mm.
001PSTPC150
Barrier with n. 4 arcs.
L = 2,000 mm, H = 1,000 mm.
001PSTPC200
Complete barriers
AISI 304 steel barrier to fix to the floor, with 6-mm-thick polycarbonate panel. H = 900
mm.
001PSTRFPA
AISI 304 steel barrier to fix to the floor without panel.
H = 900 mm.
001PSTRFPAN
Barriers with antipanic bar
AISI 304 steel barrier.
Right post L = 1,200 mm, H = 1,000 mm.
001PSUS120D
AISI 304 steel barrier.
Left post L = 1,200 mm, H = 1,000 mm.
001PSUS120S
AISI 304 steel barrier.
Right post L = 900 mm, H = 1,000 mm.
001PSUS090D
AISI 304 steel barrier.
Left post L = 900 mm, H = 1,000 mm.
001PSUS090S

55. 54

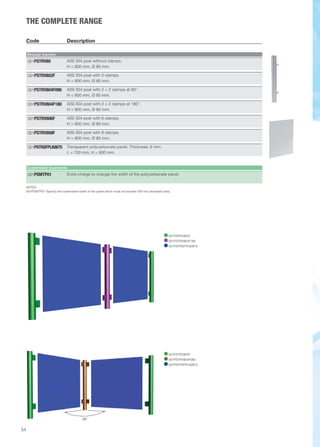

THE COMPLETE RANGE
Code Description
Modular barriers
AISI 304 post without clamps.
H = 900 mm, Ø 80 mm.
001PSTRV80
AISI 304 post with 2 clamps.
H = 900 mm, Ø 80 mm.
001PSTRV802F
AISI 304 post with 2 + 2 clamps at 90°.
H = 900 mm, Ø 80 mm.
001PSTRV804F090
AISI 304 post with 2 + 2 clamps at 180°.
H = 900 mm, Ø 80 mm.
001PSTRV804F180
AISI 304 post with 6 clamps.
H = 900 mm, Ø 80 mm.
001PSTRV806F
AISI 304 post with 8 clamps.
H = 900 mm, Ø 80 mm.
001PSTRV808F
Transparent polycarbonate panel. Thickness: 6 mm.
L = 750 mm, H = 800 mm.
001PSTRSFPL60875
Customised treatments
001PSMTP01 Extra-charge to change the width of the polycarbonate panel.
NOTES
001PSMTP01 Specify the customised width of the panel which must not exceed 750 mm (standard size).
001PSTRV802F
001PSTRV804F180
001PSTRSFPL60875
90°
001PSTRV802F
001PSTRV804F090
001PSTRSFPL60875

56. notes

57. 56
ACCESS CONTROL
www.came.com

58. 57
58 Your selection guide
60 Rbm21
64 Rbm84

59. Your selection guide
Access control
The tables summarise the series with maximum levels of use based on the number of users only.
58
Series Model
Max number of users
Rbm21 RBM21
Rbm84 RBM84
230 V AC

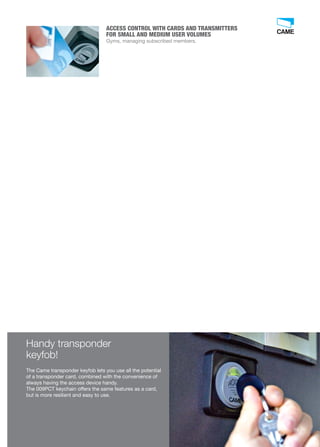

60. ACCESS CONTROL WITH CARDS AND TRANSMITTERS
FOR SMALL AND MEDIUM USER VOLUMES
Gyms, managing subscribed members.
Handy transponder
keyfob!
The Came transponder keyfob lets you use all the potential
of a transponder card, combined with the convenience of
always having the access device handy.
The 009PCT keychain offers the same features as a card,
but is more resilient and easy to use.
59

61. Rbm21
• Ideal for managing subscription services in gyms, sports
centres and small private parking facilities.
• Supplied with a dedicated software, it works with
transponder and magnetic stripe cards.
• Private parking facilities controlled by RBM21 are completed
by the PSSRV and PSINS traffic light and illuminated sign.
• An on board sensor makes it possible to load cards directly
into the system control panel, ensuring perfect operation,
even as a stand-alone version.
Dimensions (mm)
The ideal solution for controlling
pedestrian or vehicle transit with
or without payment
60
Access control up to 500 users
240 145
320
Limits to use
MODELS RBM21
Max number of users 500
Dedicated software YES
Use without PC YES (partial)
Type of connection to the PC RS232 - RS485
Max distance between RBM21 and PC 5 m without PC40 (with RS232) - 1.000 m with PC40 (with RS485)
Max number of connectable sensors 2 inputs + 2 outputs (or 2 input/output)
Relay output for commanding the automation NO)
Traffic light or sign connection YES
Additional memory Roll YES
On-board display YES
Number of connections for magnetic loops 2
On-board sensor YES (only for transponder card)
Technical features
MODELS RBM21 PC40 TSP00 PSSRV PSSRV2 PSINS
Protection rating (IP) 54 20 54 55 55 55
Power supply (V) 230 AC (50/60 Hz) 12 AC (power supply unit) from R700 230 AC 230 AC 230 AC
Operating temperature (°C) -20 ÷ +55 -20 ÷ +55 -20 ÷ +55 -20 ÷ +55 -20 ÷ +55 -20 ÷ +55
230 V AC

62. FREE
FULL
61
without PC40 - RS232 MAX 5 m
Type of command
OR
+
CONNECTION DIAGRAM
TSP00 TST01 PCT - TAG
+
LT001 TST02
OR
+
TSP00 TST01 PCT - TAG
+
LT001 TST02
OR
+
TSP00 TST01 PCT - TAG
+
LT001 TST02
OR
+
TSP00 TST01 PCT - TAG
+
LT001 TST02
OR
RBMP21
Control panel
PC40
PC interface
PSINS
FREE - FULL sign
PSSRV - PSSRV2
RED - GREEN traffic light.
with PC40 - RS485 MAX 1,000 m
2 x 0.5 mm²
MAX 50 m
2 x 0.5 mm²
MAX 50 m
2 x 0.5 mm²
MAX 50 m
2 x 0.5 mm²
MAX 50 m
4 x 1.5 mm² 5 x 1.5 mm²
PC (NOT SUPPLIED)
Software compatible with
Windows 98/2000
XP - VISTA o.s.
NOT SUPPLIED 230 V AC - 3 x 1.5 mm²

63. SYSTEM COMPONENTS
STAND-ALONE access control
An on board sensor makes it possible to load cards directly into the system
control panel, ensuring perfect operation, even as a stand-alone version.
The software for RBM21
The dedicated software has a clear, easy, immediate graphic interface.
It operates in a Windows environment and does not require special hardware.
It can be configured according to system requirements and enables memorisation
of the cards and parameters allocated to each user.
It also debits user credit on entering, even with different values that can be
customised on each sensor.
If necessary, it is possible to control the opening of the devices directly from the
PC.
The features
Prepaid - number of entries.
The credit on the card belonging to the service user is debited for access.
Credits are assigned when the card is added to the system. Each sensor can be
associated to different credit values.
Prepaid - time parked.
The credit on the card belonging to the service user is debited according to the
time spent in the facility.
Card blocking.
Card operation can be blocked at any time.
Adding users.
A new card can be added at any time.
Antipassback.
This function prevents several users from entering using the same card.
Temporised antipassback.
This function blocks the card usage for a certain period of time after entry. With
this function the card is normally enabled to exiting.
Dimensions of accessories (mm)
117 26
85
PC40
62
FREE
FULL
265 430 290 180 500 180 90 28
635
27
410
700
PSSRV PSSRV2 PSINS LT001

64. THE COMPLETE RANGE
Code Description
230 V AC access control unit
Access control unit for transponder sensors, magnetic loops and magnetic stripe card
readers complete with software.
001RBM21
Accessories for: 001RBM21
Serial interface for remote connection to the PC
(up to 1,000 m).
001PC40
Transponder sensors
001TSP00 Transponder sensor for cards, keyfobs and TAGs.
Accessories for: 001TSP00
001TST01 ISO 7810 – 7813 format transponder card.
009PCT Keyfob transponder.
009TAG Glass transponder tag.
Magnetic band strip readers
001LT001 Reader for magnetic cards.
Accessories for: 001LT001
001TST02 ISO 7810 - 7813 format magnetic band strip card.
001LTT Support for reader.
Signalling accessories
001PSINS Double-sided luminous sign (FREE - FULL).
001PSSRV ABS traffic light with red and green light, Ø 200 mm screen for lamp in polymethacrylate.
ABS traffic light with LED red and green light, Ø 125 mm screen for lamp in
polymethacrylate.
001PSSRV2
NOTES
001PSSRV - Max power for each lamp: 70 W at 230 V AC (not supplied).
001PSINS - We do not recommend the installation in places with direct exposure to the sun, so to guarantee a clear visibility of the device.
63

65. Rbm84
• Global access control.
• Can be integrated with various command systems.
• Easy, intuitive software to control user-specific customised
functions.
• Users are controlled by means of transponder or magnetic
stripe cards, keypads requiring codes and transmitters.
• Real time processing of user-specific permits and
authorisations, to enable or deny access to a certain area
controlled by the system.
• It works even via modem.
Dimensions (mm)
The ideal solution for controlling
parking facilities in residential
areas or in areas with high traffic
intensity
Access control up to 5,500 users
240 145
320
Technical features
MODELS RBM84 PC30 TSP00 LT001 PSSRV PSSRV2 PSINS
Protection rating (IP) 54 20 54 - 55 55 55
Power supply (V) 230 AC (50/60 Hz) 12 AC (power supply unit) from R700 from R700 230 AC 230 AC 230 AC
Operating temperature (°C) -20 ÷ +55 -20 ÷ +55 -20 ÷ +55 -20 ÷ +55 -20 ÷ +55 -20 ÷ +55 -20 ÷ +55
230 V AC
Limits to use
MODELS RBM84
Max number of users 5,500
Dedicated software YES
Use without PC YES
Programming without PC YES
Type of connection to the PC RS232
Max distance between RBM84 and PC 1.000 m with PC30 (RS485)
Max number of connectable sensors 124 (max configuration with 60 REM)
Relay output for commanding the automation 128 (max configuration with REM)
Digital inputs 128
Traffic light or sign connection YES
Connections for magnetic loops YES
64

66. 4 x 0.5 mm² + 4 x 0.5 mm² MAX 50 m for two transponder sensors
FREE
FULL
CONNECTION DIAGRAM
65
Turnstile
Turnstile
Barrier
Magnetic sensors:
LT001
TST02
Transponder:
PCT
TAG
Keypad selectors:
S5000
S6000
S7000
Sensor and cards:
TSP00
TST01
TAG
Transmitters of the
series:
Atomo
and Tam
2 x 1.5 mm²
4 x 1.5 mm²
3 x 1.5 mm²
REM
Expansion module
(max 60 units)
REM
Expansion module
(max 60 units)
Next REM
Bipolar
shielded
2 x 0.5 mm²
Bipolar
shielded
2 x 0.5 mm²
PC30
PC interface
Bipolar
shielded
2 x 0.5 mm²
MAX 1,000 m
PSINS
FREE - FULL sign
PSSRV - PSSRV2
RED - GREEN
traffic light
RBM84
Control panel
5 x 1.5 mm²
RS232 MAX 5 m
2 x 0.5 mm²
Types of command
5 x 1.5 mm²
Distance between
001RBM84
and last
001REM unit
MAX 1,000 m
NOT SUPPLIED 230 V AC - 3 x 1.5 mm²
PC (NOT SUPPLIED)
Software compatible with
Windows 98/2000
XP - VISTA o.s.

67. SYSTEM COMPONENTS
All commands within easy reach
RBM84 makes it possible to manage systems with a high number of users, using
different command systems (transmitters, code selectors, cards).
It also provides real time access data for all users and for the controlled area.
The software for RBM84
The dedicated software has a clear, easy, immediate graphic interface. It operates in
a Windows environment and does not require special hardware.
The features
Prepaid - number of entries with a pre-loaded number of entries that gradually
decreases.
Prepaid - time with a pre-loaded number of entries that gradually decreases.
Time slots can be selected.
Card blocking from the PC.
Card adding from the PC.
Parking function.
Event printing.
Entry/exit antipassback.
Temporised antipassback.
Access log.
Instant event display.
Direct command of automations.
Management of different types of user with groups.
System opening and/or closing on selected dates.
Automatic opening of the system at pre-selected time.
Total block of the system from the PC.
Password to access the software.
Synchronisation of system status.
Dimensions of accessories (mm)
FREE
FULL
265 430 290 180 500 180 90 28 185 55
635
27
130
410
700
PSSRV PSSRV2 PSINS LT001 PC30
66

68. THE COMPLETE RANGE
Code Description
230 V AC access control unit
Access control unit for transmitters, transponder sensors, magnetic loops and magnetic
stripe card readers complete with software.
001RBM84
Accessories for: 001RBM84
Serial interface for managing the unit via PC, with 12 V - 800 mA power supply unit and
serial connection cable.
001PC30
001REM Unit with built-in radio decoding for expanding the unit.
Transponder sensor
001TSP00 Transponder sensor for cards, keyfobs and TAGs.
Accessories for: 001TSP00
001TST01 ISO 7810 – 7813 format transponder card.
009PCT Keyfob transponder.
009TAG Glass transponder tag.
Magnetic band strip readers
001LT001 Reader for magnetic cards.
Accessories for: 001LT001
001TST02 ISO 7810 - 7813 format magnetic band strip card.
001LTT Support for reader.
Accessories for: 001S5000 - 001S6000 - 001S7000
001R800 Decoder and access control management card with keypad selectors.
Accessories for: 001TSP00 - 001LT001
001R700 Decoder and access control management card.
67

69. THE COMPLETE RANGE
Code Description
Radio module
001R501N Radio module.
Signalling accessories
001PSINS Double-sided luminous sign (FREE - FULL).
001PSSRV ABS traffic light with red and green light, Ø 200 mm screen for lamp in polymethacrylate.
ABS traffic light with LED red and green light, Ø 125 mm screen for lamp in
polymethacrylate.
001PSSRV2
24 V AC - DC magnetic sensors
009SMA Mono-channel magnetic sensor for metal mass detection.
009SMA2 Bi-channel magnetic sensor for metal mass detection.
230 V AC magnetic sensor
009SMA220 Bi-channel magnetic sensor for metal mass detection.
NOTES
001PSSRV - Max power for each lamp: 70 W at 230 V AC (not supplied).
001PSINS - We do not recommend the installation in places with direct exposure to the sun, so to guarantee a clear visibility of the device.
68

70. notes

71. 70
PARKING FACILITIES
www.came.com

72. 71
72 Your selection guide
74 Ps One
82 Ps Token
88 Ps Barcode
94 Ps Easy

73. Your selection guide
Parking facilities
The tables summarise the series with maximum limits of use based on the number of parking spaces
72
Series Model
Max number of users
Ps PS ONE
PS TOKEN
PS BARCODE
PS EASY
230 V AC

74. FLOOR-LEVEL PARKING FACILITIES
Pay-to-park facilities, manned or completely automated high rotation
exchangers.
Came's PS systems allow you to manage occasional users, issuing a
Barcode ticket or Recyclable transponder, and users with season
tickets, in pay-as-you-go or timed mode, using a transponder card.
Handy transponder
keyfob!
The Came transponder keyfob lets you use all the potential
of a transponder card, combined with the convenience of
always having the access device handy.
The 009PCT keychain offers the same features as a card,
but is more resilient and easy to use.
73
IN BUILDING
Parking in multi-storey or underground structures with high rotation.
Counting and notifying users of free spaces on the different storeys.
Ps systems allow manned management with one or more manual pay stations,
completely automated management with automatic pay stations or both
solutions.

75. Ps One
The barcode solution for
managing occasional users
with payment
• The result of Came research, PS ONE exploits technology,
creating devices with a native ETHERNET interface.
• This advanced system management offers the opportunity
to configure an unlimited number of peripherals such as
automatic pay stations, entry and exit units, openings for
season ticket holders, pedestrian readers and manned pay
stations.
• All these devices, connected to the ETHERNET network
with universal TCP/IP protocol, are managed via a central
server, which allows the connection of all the devices
necessary.
• A modular solution, designed especially to satisfy the typical
requirements of small, medium and large automated parking
facilities.
• Not only: connection to the ETHERNET network is very
versatile because it uses optical fibres, WiFi connections or a
combination of the two.
WARNING
Prices for single components, and their overall offer, are
available only on specific request by customers, and after our
technical team has seen all details of the project one wishes to
carry out.
74
Automatic parking facilities with barcode tickets
Technical features
MODELS IP DESCRIPTION
POWER SUPPLY
( V AC - 50/60 Hz)
MATERIAL / COLOUR
MAX CURRENT
DRAW (VA)
CURRENT DRAW
AT REST (VA)
CURRENT DRAW
(VA)
- - Automatic payment station 230 Steel 750 150 450
- - Entry unit 230 Steel 500 50 350
- - Exit unit 230 Steel 500 50 350
PSM101A - Manual payment station with printer 120 - 230 - - - -
PSM103 - Manual barcode reader - - - - -
PSSRV 55 RED - GREEN traffic light 120 - 230 Steel / Polymethacrylate - - -
PSSRV2 55 RED - GREEN LED traffic light - Steel / Polymethacrylate - - -
PSINS - Sign 230 Aluminium / Polymethacrylate 20 10 10
PSCST04A 44 Sign 120 - 230 Steel / Polymethacrylate - - 45
PSCST06A 44 Sign 120 - 230 Steel / Polymethacrylate - - 90
PSCST01A 44 Sign 120 - 230 Steel / Polymethacrylate - - 60
PSCST07A 44 Sign 120 - 230 Steel / Polymethacrylate - - 75
001PSAC119 54 Vehicle class detection 230 - - - 50
001PSAC105 65 License plate reader 120 - 230 - - - 10
001PSAC108 66 Photographic imaging Ethernet, IEEE 802af Class 1 - - - 3.2
TST01 - Transponder card - - - - -
PCT - Transponder keyfob - ABS - - -
TAG - Transponder TAG (bulb) - Glass - - -
230 V AC

76. 75
Dimensions (mm)
320 392 320 392
273 273
210 260
PSAC110A SERVER
267
1190
1190
ENTRY UNIT
750 530
PSINS2 SIGN
PSCST07A SIGN
FULL
PSCST04A SIGN PSCST06A SIGN PSCST01A SIGN
PSAC119
VEHICLE CLASS IDENTIFICATION
200 180
265 290
132 430
PSAC105
OCR LICENSE PLATE READING SYSTEM
PSAC108
VEHICLE PHOTO EYE SYSTEM
460
AUTOMATIC PAYMENT STATION EXIT UNIT
185 1300 1717
1100
900
890
850 850 850
80
100
130
70 70
110
110
70
328
1040
850
1360
38.5 1700
CUSTOMISABLE PART FREE
SPACES
FREE SPACES
PSSRV PSSRV2
500
410
307 8888

77. THE ENTRY AND EXIT UNITS
Built in plate steel, treated for anti-oxidation and varnished with epoxy powders.
Communication to the central management server takes place via ethernet
connection and TCP/IP communication protocol via a UTP CAT5 cable over
certified Ethernet network.
Provide real-time monitoring of every event and sending of data to the central
management server. They are fitted with different internal compartments (devices
and tickets), protected by locks and differentiated RGB light signals according to
the working state.
ENTRY UNIT
Components
• TFT 5.7” graphic display
• ISO STANDARD FAN FOLD ticket printer
• Transponder reader with 125 Khz, MiFare technology
• Ticket request button
• Detector for controlling vehicle presence magnetic sensors
• Barrier management
• Built-in video entry phone with VoIP technology
• Fans and heaters for internal air temperature control
• Container for 5,000 ISO STANDARD FAN FOLD pre-cut tickets
Optional components
• IMAGER reader for 1D or 2D barcode readers even on mobile devices (smartphones)
• Videocam for storing vehicle entrance images
• Video camera and OCR module for reading number plates
• Built-in device for reading and printing barcode tickets
EXIT UNIT
Components
• TFT 5.7” display
• Motorised ticket reader
• Card reader with 125 Khz, MiFare technology
• Detector for controlling vehicle presence magnetic sensors
• Barrier management
• Built-in video entry phone with VoIP technology
• Fans and heaters for internal air temperature control
Optional components
• IMAGER reader for 1D and 2D barcodes, also for mobile devices.
• Videocams for storing vehicle exit photos
• Video camera and OCR module for reading number plates
• Built-in device for printing and reading barcode tickets
76

78. PAYMENT STATION UNITS
77
Modular steel plate automatic payment station with anti-oxidation treatment and
epoxy powder varnished. Separate internal compartments (devices and
currencies), protected by different locks with security keys and an alarm system
fitted with a siren and vibration sensors.
Transponder card for accessing compartments to disarm the alarm and perform
maintenance or handle currencies.
Fitted with an RGB light signal, differentiated depending on the working state.
AUTOMATIC PAYMENT STATION
Components
• TFT 15” Wide vertical graphic display
• Coin reader
• Notes reader
• Self-charging note change-giver
• Printer for receipts
• Video entry phone with VoIP technology
• Built-in device for reading, printing barcodes (printing lost tickets)
• Sturdy boxes for collecting coins and notes with key
Optional components
• Self-charging note change-giver
• Manages credit or debit card payments
• Single denomination hopper (max 2 additional coin hoppers)
• IMAGER reader for 1D and 2D barcodes – even on mobile devices (smartphones)
• Banknote change hopper (1 denomination)
001PSM101A – MANUAL PAYMENT STATION WITH BUILT-IN RECEIPT PRINTER
Manual payment station composed of a PC with 15” touch screen
monitor, set up to read the following tickets:
Components
• 2D QR CODE tickets
• 1D or 2D “print at home” tickets
• RFID cards
• The payment station manages tariff payments based on the following modes:
coins or banknotes
• RFID cards
• 1D BARCODE tickets, even for subscriptions
• Any payments made with POS cards, credit or debit cards is not provided and is up to
the provider to fit.
Optional components
• 001PSM103 – Built-in device for reading and printing barcodes
• RFID card reader
• 001PSM102A – cash drawer

79. VIDEO AND HARDWARE COMPONENTS
The management software is installed on the central server, which manages all
entrance and exit units, via an integrated web server and stores all events onto a
relational database. Through web clients connected via standard browser, all
required query and statistical features will be available. The client number is
available; all users are assigned their own profiles through which they can access
any associated features. The server also allows you to monitor and manage, even
remotely, the entrances and exits. There are 32 standard static IP server
accesses. They can be expanded depending on the systems needs provided the
server is also set up to do so.
OCR LICENSE-PLATE READING VIDEOCAMS
The PS One features a PLATE READER, an OCR module coupled to a specific IP
video-camera to read and ID license plates.
Components
• PSAC105 - Camera for plate reading.
• PSAC106 – Software license valid for up to four PSAC105.
• PSAC107 – Support post for the PSAC105.
EYE SYSTEM FOR VEHICLE IMAGES
The EYE SYSTEM module is for associating high definition images of all four
sides of any admitted vehicle (not for license plate reading).
If needed, by making a simple license plate search (detected by the OCR) or
ticket search, the provider can view the previously recorded high-definition
images, one can verify whether a vehicle was damaged before entering the
parking lot, as a result of a claim.
Components
• PSAC108 – Two camera kit for entrance vehicle photos
• PSAC109 – Support post for taking photos of entry vehicles.
VEHICLE CLASSIFICATION SYSTEM
System for defining, at the entrance, different tariffs by vehicle classification
according to their height.
Photocells, together with a ground-based sensitive system, determine a vehicle's
height and so classify it in the system to assign its corresponding tariff. Example:
differentiated tariffs for cars, motorbikes and buses.
Components
• PSAC119 – Vehicle class detection kit.
EXTERNAL SIGNS
Indispensable for external signalling of parking space availability, both overall or
at single levels, the single-sided, modular signs featuring luminous displays can
be fitted perpendicularly or wall-mounted. Finishing the range, the RED – GREEN
stop or go lights provide easy signalling of space availability or free lanes.
Components
• PSINS two-sided FREE – FULL luminous sign.
• PSINS2 two-sided luminous sign with modular display for counting total available
spaces or single level availability.
• PSCST04A – Panel with 1 variable line.
• PSCST06A – Traffic light panel + place counter + 1 variable line.
• PSCST01A – One sided place counter panel.
• PSCST07A – LED level signboard.
• PSCST02 – Support post complete with anchoring base.
• PSCST08 – Kit for fitting the PSCST07A.
• PSSRV – Traffic light with green and red lights in two separate modules.
• PSSRV2 – Traffic light with green and red LED lights.
78

80. ENTRANCE TICKETS AND SOFTWARE
TICKET THAT CAN BE USED TO THE ENTRY/EXIT
The entry unit of the PS ONE system issues a disposable precut 1D BARCODE
FAN FOLD ISO STANDARD ticket, on which a thermal printer prints the bar code
needed for identifying customers.
Tickets come in packets of 5,000.
Components
• ISO 7810 – 7813 RFID cards with standard Came screen printed motif which can be
customised using a provider's own graphics.
Optional components
• 2D QR CODE tickets or 1D or 2D print at home tickets.
All subscriptions are configurable, depending on needs, with either pre-paid,
time-based, or hourly and/or on a calendar basis and are rechargeable directly at
the automatic pay station, without needing the providers assistance.
THE MANEGEMENT SOFTWARE
The management software provides high levels of customisation to the system
such as installation advantages and business park opportunities. During idle
moments, the pay station monitors and the post-fitted displays, can show any
customised messages, notices or ad campaigns, as well as, manage any custom
tariffs during particular times or events.
Features
• Web based
• For complete configuration of the parking facility
• Manage occasional users
• Manage subscribed users
• Manage custom tariffs
• Manage bookings via web
• Manage event vouchers
• Manage discounts
• Manage warnings and alarms via email or text messages
• Manage all event and payment histories
• Provides statistical reports on transactions and revenues
• Manages different zones within the same parking area
• Manages multi-level parking
79

81. ENTRY UNIT
ISSUED TICKET
• 1D BARCODE ticket
RECOGNISED TICKETS
• 2D QR CODE ticket
• 1D or 2D “print at home” ticket
• Proximity technology ticket
• Smartphone with proximity technology
• Subscriber transponder card
CONNECTIONS
• VOIP Video intercom
HUB
EXIT UNIT
PC STATION
ACCEPTED ENTRY TICKETS
• 2D QR CODE ticket
• 1D or 2D “print at home” ticket
• Proximity technology card
• Smartphone with proximity technology
• Subscriber transponder card
PAYMENT METHODS
• Credit and debit cards
CONNECTIONS
• VOIP Video intercom
ENTRY
DIRECTION
EXIT
DIRECTION
ENTRY N
ENTRY 2
ENTRY 1
EXIT 1
EXIT 2
EXIT N
SIGN 1
SIGN 2
SIGN N
WIFI
ENTRY
UNIT
BARRIER
ENTRY
LICENSE PLATE
OCR VIDEOCAM
VIDEOCAMERA
(Eye System)
UNIT
EXIT
LICENSE PLATE
OCR VIDEOCAM
BARRIER
EXIT
PC STATION
80
CONNECTION DIAGRAM
PRINTER (NOT SUPPLIED)

82. MANUAL PAYMENT STATION
RECOGNIZED TICKETS
• 1D or 2D “print at home” tickets
• Proximity technology cards
• Smartphones with proximity technology
• Subscriber transponder cards
PAYMENT METHOD
• Coins and banknotes
• Subscriber transponder cards
• 1D subscriber BARCODE tickets
AUTOMATIC PAYMENT STATION
AUTOMATIC PAYMENT STATION
• 2D QR CODE tickets
• 1D or 2D print at home ticket
• Proximity technology cards
• Smartphones with proximity technology
• Transponder cards
• 1D BARCODE subscriber tickets
PAYMENT METHOD
• Coins and banknotes
• Credit and debit cards
• Subscriber transponder cards
• 1D subscriber barcode tickets
CONNECTIONS
• VOIP video interphone
VIEWINGS
• Advertising messages feature
MANUAL PAYMENT STATION N
MANUAL PAYMENT STATION 2
MANUAL PAYMENT STATION 1
MANUAL
PAYMENT STATION
with built-in receipt
printer
PARKING MANAGEMENT SERVER
WEB BASED
WEB SERVICES
AUTOMATIC PAYMENT STATION 1
AUTOMATIC PAYMENT STATION 2
AUTOMATIC PAYMENT STATION N
MANAGEMENT SERVER
REMOTE PAYMENT
• Send sms/email
• 2D QR CODE ticket
• 1D or 2D ticket “print at home”
SNMP MONITORING
• Standard protocol for monitoring all events
and system statuses
AUTOMATIC
PAYMENT STATION
81
NOT SUPPLIED DATA CABLE UTP CAT5 - AWG24 - 2 x 0.5 mm² - MAX 1,000 m 12 V DC - 2 x 0.5 mm² 230 V AC - 3 x 1.5 mm²

83. Ps Token
• System for managing parking facilities with transponder
token, easy to use.
• Ideal for managing occasional users.
• Season holders can also be managed thanks to the
practical transponder cards.
• The modularity and flexibility of the solution make
Ps Token the answer for complex, multi-storey and
multi-level systems, with multiple entries and exits.
Dimensions (mm)
The solution with tokens for
managing occasional users
with payment
Automatic parking facilities with transponder token
1500
335 425 800 600
82
295
PSC4000 PSU4000
445
PSE4000 PSC6001
Technical features
DIMENSIONS
MODELS IP DESCRIPTION
(mm)
POWER SUPPLY
( V AC - 50/60 Hz)
MATERIAL / COLOUR
MAX CURRENT
DRAW (VA)
CURRENT DRAW
AT REST (VA)
CURRENT
DRAW (VA)
PSC4000 40 Automatic payment station (see drawing) 230 Steel / RAL 1028 *200 125 *46
PSE4000 44 Entry unit (see drawing) 230 Steel / RAL 1028 *180 98 *42
PSU4000 44 Exit unit (see drawing) 230 Steel / RAL 1028 *235 72 *55
PSM4000 - Manual payment station - 230 - - - -
PSC6001 40 Automatic payment station (see drawing) 230 Steel / code: 053 0837 400 360 92
PC30 20 PC interface 185 x 130 x 155 - ABS - 175 -
PSI16 - Control of auxiliary payment stations 320 x 240 x 145 - ABS - 35 -
PSIO1 - Control of auxiliary devices 320 x 240 x 145 - ABS - 60 -
PSC1 - Auxiliary payment station 185 x 130 x 55 - ABS - 195 -
PSD1 - Display 145 x 185 x 40 - ABS - 150 -
RBMP1 - Control panel 320 x 240 x 145 - ABS - 35 -
PSSRV 55 RED - GREEN traffic light. 265 x 635 x 430 - Steel / Polymethacrylate - - -
PSSRV2 55 Red / green LED traffic light 180 x 410 x 290 - Steel / Polymethacrylate - - -
PSINS - Sign 900 x 1,300 x 80 230 Aluminium / Polymethacrylate - - -
TST01 - Transponder card from R700 - - - - -
PCT - Transponder keyfob ISO7810-7813 (85 x 54) - ABS - - -
TAG - Transponder TAG (bulb) 33 x 49 x 4 - Glass - - -
GET - Transponder TAG (bulb) 33 x 49 x 4 - Glass - - -
* With the heating unit active, the resistor absorbs a further 500 mA and requires a further 90 W of power

84. FREE
FULL
CONNECTION DIAGRAM
83
001RBMP1
Control panel
001PSD1
Display
001PC30
PC interface
001PSI16
Control unit for
auxiliary payment stations
001PSI01
Control of auxiliary devices
es. Traffic lights - Magnetic loops
Signs - Lights - Sensors
(MAX 8 units)
PRINTER (NOT SUPPLIED)
The system manages up to 6
traffic lights and signs that can
be controlled using either unit
001RBMP1 or the 001PSIO1
panel.
001PSINS
FREE - FULL sign
PSM4000 control panel
Bipolar
shielded twisted
2 x 0.5 mm²
UTP CAT5 AWG24
Bipolar
shielded twisted
2 x 0.5 mm²
UTP CAT5 AWG24
Max distance
RBMP1- PC50
1,000 m
RS232 MAX 5 m
RS232 MAX 5 m
Bipolar
shielded twisted
2 x 0.5 mm²
UTP CAT5 AWG24
Max distance
PSI16 - PSC3
1,000 m
5 x 1.5 mm²
4 x 1.5 mm²
Bipolar
shielded twisted
2 x 0.5 mm²
UTP CAT5 AWG24
Bipolar
shielded twisted
2 x 0.5 mm²
UTP CAT5 AWG24
Bipolar
shielded twisted
2 x 0.5 mm²
UTP CAT5 AWG24
Bipolar
shielded twisted
2 x 0.5 mm²
UTP CAT5 AWG24
Bipolar
shielded twisted
2 x 0.5 mm²
UTP CAT5 AWG24
001PSE4000
Entry unit
(MAX 16 units)
001PSU4000
Exit unit
(MAX 16 units)
001PSC4000
Automatic payment
station
(MAX 8 units)
001PSC6001
Automatic payment station
(MAX 4 units)
RS232 MAX 5 m
001PSC1
Auxiliary payment station with reader for
transponder tokens
(MAX 16 units)
5 x 0.5 mm² MAGNETIC LOOP 5 x 0.5 mm² MAGNETIC LOOP
Bipolar
shielded twisted
2 x 0.5 mm²
UTP CAT5 AWG24
To the next unit:
001PSU4000
001PSE4000
001PSC4000
01PSC6001
Distance between
001RBMP1 and
last unit
MAX 1,000 m
ENTRY barrier ENTRY barrier
Metal mass detector sensors
009SMA - 009SMA2 - 009SMA220
2 x 1.5 mm² 2 x 1.5 mm²
RS232 MAX 5 m
001PSSRV - 001PSSRV2
RED -
GREEN traffic light.
NOT SUPPLIED 230 V AC - 3 x 1.5 mm²
PC (NOT SUPPLIED)
Software compatible with
Windows 98/2000
XP - VISTAO.S.
PRINTER (NOT SUPPLIED)

85. SYSTEM COMPONENTS
PSE4000
ENTRY UNIT
Designed to manage entry with barcode tickets, this has two buttons to request the
ticket (double height) and a reader for transponder cards to manage season ticket
holders. An intercom can be fitted.
Made from sturdy galvanised steel with epoxy paint, secured to the ground using the
anchoring base supplied.
PSU4000
EXIT UNIT
Allows the use of transponder tokens that have been validated (at the automatic or manual
payment station) to manage exiting the parking facility.
Complete with reader for transponder card to manage season ticket holders. An intercom
can be fitted.
Made from sturdy galvanised steel with epoxy paint, secured to the ground using the
anchoring base supplied.
PSC4000
AUTOMATIC PAYMENT STATION
Manages payment and validation of the transponder token. Complete with reader for various
denominations of coin, reader for transponder cards to manage season ticket holders and
thermographic paper printer for issuing receipts.
Made from sturdy galvanised steel with epoxy paint, secured to the ground using the
anchoring base supplied.
PSC6001
TOUCH SCREEN AUTOMATIC PAYMENT STATION
The automatic TOUCH SCREEN payment station in break-in resistant steel.
Payment with coins, notes and credit cards if the option is available.
Season ticket holders can top up their transponder card directly at the payment station.
Features
• Multilingual menu with 6 language choices.
• Coin and note reader than can be programmed according to the currency in the
country of installation.
• Information during payment: amount paid - still to pay - change.
• SMS diagnosis with real time check on system status (optional).
• An intercom with HELP call button can be fitted.
• Season ticket management with transponder cards, which can be topped up
directly at the automatic pay station.
• Advertising or service messages available for customers.
PSC1
AUXILIARY PAYMENT STATION
A special unit for creating multiple validation or payment points, even without PC.
Very useful at supermarket checkouts, or anywhere a business owner wants to reward loyal
customers by paying for parking in whole or in part.
84

86. 200
Dimensions of accessories (mm)
200 180
265 290
Dimensions of anchoring bases (mm)
FREE
FULL
300
PSINS
500
300 800 480
300
500 180
700
PSM4000
PSIO1
PSI16
PSC6001 PSE4000
85
PSU34000
PSC4000
240 145
320
PSSRV PSSRV2
500
410

87. 86
THE COMPLETE RANGE
Code Description
230 V AC system for automatic parking facilities
Galvanised and painted steel entry unit, complete with sensor for transponder cards and
keyfobs plus token collector (009GET).
001PSE4000
Galvanised and painted steel exit unit, complete with sensor for transponder cards and
keyfobs plus token collector (009GET).
001PSU4000
Automatic payment station with galvanised and painted cabinet. It features: a sensor for
transponder cards and keyfobs, a token reader (009GET) and a display (without change-giving
device, it issues receipts). Payment can be done with coins.
001PSC4000
Automatic payment station with galvanised and painted cabinet and panel in satin-finished
AISI 304 steel. It features: PC, coin and notes reader with change-giving device.
001PSC6001
Manned payment station with control unit, management software, display and PC30
interface for connection to PC.
001PSM4000
Auxiliary device control for connecting traffic lights, lightbox signs, magnetic sensors and
safety sensors (max 8 outputs).
002PSIO1
Auxiliary payment station. Together with PSI16, it is possible to create a payment station
without a stable connection to a PC.
001PSC1
001PSI16 Interface for connecting max 16 unit (auxiliary manual payment station).
009GET Transponder token.
Signalling accessories
001PSINS Double-sided luminous sign (FREE - FULL).
001PSSRV ABS traffic light with red and green light, Ø 200 mm screen for lamp in polymethacrylate.
ABS traffic light with LED red and green light, Ø 125 mm screen for lamp in
polymethacrylate.
001PSSRV2
NOTES
001PSSRV - Max power of each lamp 70 W at 230 V AC, complete with rain guard for each module (rain guard dimensions Ø 220 mm L = 200 mm)
THE LAMPS ARE NOT INCLUDED.

88. 87
THE COMPLETE RANGE
Code Description
Accessories for: 001PSE4000 - 001PSU4000 - 001PSC4000 - 001PSC6001
001TST01 ISO 7810 – 7813 format transponder card.
009PCT Keyfob transponder.
009TAG Glass transponder tag.
001PSV01 Ventilation kit for cabinet with n. 2 fans.
24 V AC - DC magnetic sensors
009SMA Mono-channel magnetic sensor for metal mass detection.
009SMA2 Bi-channel magnetic sensor for metal mass detection.
230 V AC magnetic sensor
009SMA220 Bi-channel magnetic sensor for metal mass detection.
NOTE
001PSV01 Especially recommended for installation in hot climate countries.

89. Ps Barcode
• System for managing occasional users and season ticket
holders.
• The system can be customised according to the owner's
actual requirements.
• It ensures a reduction in running costs and greater system
profitability.
• It enables business relationships to be established with
public or private bodies.
• Top modularity and efficiency of the service offered.
• Barcode tickets on pre-cut ISO STANDARD FANFOLD
thermographic paper.
Dimensions (mm)
The barcode solution for
managing occasional users with
payment
Automatic parking facilities with barcode tickets
1500
335 425 800 600
88
295
PSC3000 PSU3000
295
PSE3000 PSC7001
Technical features
MODELS IP DESCRIPTION
DIMENSIONS
(mm)
POWER SUPPLY
( V AC - 50/60 Hz)
MATERIAL / COLOUR
MAX CURRENT
DRAW (VA)
CURRENT DRAW
AT REST (VA)
CURRENT DRAW
(VA)
PSC3000 40 Automatic payment station (see drawing) 230 Steel / RAL 1028 *200 125 *46
PSE3000 44 Entry unit (see drawing) 230 Steel / RAL 1028 *180 98 *42
PSU3000 44 Exit unit (see drawing) 230 Steel / RAL 1028 *235 72 *55
PSM3000 - Manual payment station - 230 - - - -
PSC7001 40 Automatic payment station (see drawing) 230 Steel / code: 053 0837 400 360 92
PC50 20 PC interface 185 x 130 x 155 - ABS - 175 -
PSI16 - Control of auxiliary payment stations 320 x 240 x 145 - ABS - 35 -
PSIO1 - Control of auxiliary devices 320 x 240 x 145 - ABS - 60 -
PSC3 - Auxiliary payment station 185 x 130 x 55 - ABS - 195 -
PSD1 - Display 145 x 185 x 40 - ABS - 150 -
RBMP1 - Control panel 320 x 240 x 145 - ABS - 35 -
PSSRV 55 RED - GREEN traffic light. 265 x 635 x 430 - Steel / Polymethacrylate - - -
PSSRV2 55 Red / green LED traffic light 180 x 410 x 290 - Steel / Polymethacrylate - - -
PSINS - Sign 900 x 1,300 x 80 230 Aluminium / Polymethacrylate - - -
TST01 - Transponder card from R700 - - - - -
PCT - Transponder keyfob ISO7810-7813 (85 x 54) - ABS - - -
TAG - Transponder TAG (bulb) 33 x 49 x 4 - Glass - - -
* With the heating unit active, the resistor absorbs a further 500 mA and requires a further 90 W of power

90. FREE
FULL
CONNECTION DIAGRAM
89
001RBMP1
Control panel
001PSD1
Display
001PC50
PC interface
001PSI16
Control unit for
auxiliary payment stations
001PSI01
Control of auxiliary devices
es. Traffic lights - Magnetic loops
Signs - Lights - Sensors
(MAX 8 units)
PRINTER (NOT SUPPLIED)
The system manages up to 6
traffic lights and signs that can
be controlled using either unit
001RBMP1 or the 001PSIO1
panel.
001PSINS
FREE - FULL sign
PSM3000 control panel
Bipolar
shielded twisted
2 x 0.5 mm²
UTP CAT5 AWG24
Bipolar
shielded twisted
2 x 0.5 mm²
UTP CAT5 AWG24
Max distance
RBMP1- PC50
1,000 m
RS232 MAX 5 m
RS232 MAX 5 m
Bipolar
shielded twisted
2 x 0.5 mm²
UTP CAT5 AWG24
Max distance
PSI16 - PSC3
1,000 m
5 x 1.5 mm²
4 x 1.5 mm²
Bipolar
shielded twisted
2 x 0.5 mm²
UTP CAT5 AWG24
Bipolar
shielded twisted
2 x 0.5 mm²
UTP CAT5 AWG24
Bipolar
shielded twisted
2 x 0.5 mm²
UTP CAT5 AWG24
Bipolar
shielded twisted
2 x 0.5 mm²
UTP CAT5 AWG24
Bipolar
shielded twisted
2 x 0.5 mm²
UTP CAT5 AWG24
001PSE3000
Entry unit
(MAX 16 units)
001PSU3000
Exit unit
(MAX 16 units)
001PSC3000
Automatic payment
station
(MAX 8 units)
001PSC7001
Automatic payment station
(MAX 4 units)
RS232 MAX 5 m
001PSC3
Auxiliary payment station
119RIR372 Ticket barcode reader
(MAX 16 units)
5 x 0.5 mm² MAGNETIC LOOP 5 x 0.5 mm² MAGNETIC LOOP
Bipolar
shielded twisted
2 x 0.5 mm²
UTP CAT5 AWG24
To the next unit:
001PSU3000
001PSE3000
001PSC3000
01PSC7001
Distance between
001RBMP1 and
last unit
MAX 1,000 m
ENTRY barrier ENTRY barrier
Metal mass detector sensors
009SMA - 009SMA2 - 009SMA220
2 x 1.5 mm² 2 x 1.5 mm²
RS232 MAX 5 m
001PSSRV - 001PSSRV2
RED -
GREEN traffic light.
PC (NOT SUPPLIED)
Software compatible with
Windows 98/2000
XP - VISTA s.o.
PRINTER (NOT SUPPLIED)
NOT SUPPLIED 230 V AC - 3 x 1.5 mm²

91. SYSTEM COMPONENTS
PSE3000
ENTRY UNIT
Designed to manage entry with barcode tickets, this has two buttons to request the
ticket (double height) and a reader for transponder cards to manage season ticket
holders. An intercom can be fitted.
Made from sturdy galvanised steel with epoxy paint, secured to the ground using the
anchoring base supplied.
PSU3000
EXIT UNIT
Allows the use of barcode tickets that have been validated (at the automatic or manual pay
station) to manage exiting the parking facility. Complete with reader for transponder card to
manage season ticket holders. An intercom can be fitted.
Made from sturdy galvanised steel with epoxy paint, secured to the ground using the
anchoring base supplied.
PSC3000
AUTOMATIC PAYMENT STATION
Manages payment and validation of barcode tickets, complete with reader for various
denominations of coin, reader for transponder cards to manage season ticket holders and
thermographic paper printer for issuing receipts.
Made from sturdy galvanised steel with epoxy paint, secured to the ground using the
anchoring base supplied.
PSC7001
TOUCH SCREEN AUTOMATIC PAYMENT STATION
The automatic TOUCH SCREEN pay station in break-in resistant steel.
Payment with coins, notes and credit cards if the option is available.
Season ticket holders can top up their transponder card directly at the payment station.
Features
• Multilingual menu with 6 language choices.
• Coin and note reader than can be programmed according to the currency in the
country of installation.
• Information during payment: amount paid - still to pay - change.
• SMS diagnosis with real time check on system status (optional).
• An intercom with HELP call button can be fitted.
• Season ticket management with transponder cards, which can be topped up directly
at the automatic pay station.
• Advertising or service messages available for customers.
PSC3
AUXILIARY PAYMENT STATION
A special unit for creating multiple validation or payment points, even without PC.
Very useful at supermarket checkouts, or anywhere a
business owner wants to reward loyal customers by paying for parking in whole or
in part.
90

92. Dimensions of accessories (mm)
91
200 180
265 290
240 145
320
Dimensions of anchoring bases (mm)
300
300 800
500
PSM3000
PSIO1
PSI16
PSE3000 PSC6001
PSU3000
PSC3000
500 180
FREE
FULL
700
PSSRV PSSRV2 PSINS
500
410

93. 92
THE COMPLETE RANGE
Code Description
230 V AC system for automatic parking facilities
Galvanised and painted steel entry unit, with sensor for transponder card and keyfobs,
ticket issuer and display for visualising season ticket holders credit.
001PSE3000
Galvanised and painted steel exit unit, with sensor for transponder card and keyfobs,
ticket issuer and display for visualising season ticket holders credit.
001PSU3000
Automatic payment station with galvanised and painted cabinet. It features: a sensor for
transponder cards and keyfobs and a display (without change-giving device, it issues
receipts).
001PSC3000
Automatic payment station with galvanised and painted cabinet and panel in satin-finished
AISI 304 steel. It features: PC, coin and notes reader with change-giving device
and reader for barcode tickets.
001PSC7001
Manned payment station with control unit, management software, display and PC30
interface for connection to PC.
001PSM3000
Auxiliary device control for connecting traffic lights, lightbox signs, magnetic sensors and
safety sensors (max 8 outputs).
002PSIO1
Auxiliary payment station. Together with PSI16, it is possible to create a payment station
without a stable connection to a PC.
001PSC3
001PSI16 Interface for connecting max 16 unit (auxiliary manual payment station).
001PSTICKET2A Package of n. 2,000 pre-cut FANFOLD ISO STANDARD type tickets.
Signalling accessories
001PSINS Double-sided luminous sign (FREE - FULL).
001PSSRV ABS traffic light with red and green light, Ø 200 mm screen for lamp in polymethacrylate.
ABS traffic light with LED red and green light, Ø 125 mm screen for lamp in
polymethacrylate.
001PSSRV2
NOTES
001PSSRV - Max power of each lamp 70 W at 230 V AC, complete with rain guard for each module (rain guard dimensions Ø 220 mm L = 200 mm)
THE LAMPS ARE NOT INCLUDED.
001PSC3 – The auxiliary manual payment station DOES NOT include the barcode ticket reader wich is optional (item 119RIR372)

94. 93
THE COMPLETE RANGE
Code Description
Accessories for: 001PSE3000 - 001PSU3000 - 001PSC3000 - 001PSC7001
001TST01 ISO 7810 – 7813 format transponder card.
009PCT Keyfob transponder.
009TAG Glass transponder tag.
001PSV01 Ventilation kit for cabinet with n. 2 fans.
24 V AC - DC magnetic sensors
009SMA Mono-channel magnetic sensor for metal mass detection.
009SMA2 Bi-channel magnetic sensor for metal mass detection.
230 V AC magnetic sensor
009SMA220 Bi-channel magnetic sensor for metal mass detection.
NOTE
001PSV01 Especially recommended for installation in hot climate countries.

95. Ps Easy
• Simplified parking system with coin payment and fixed tariff.
• Single unit for managing entrances and exits, built of sturdy
steel plate.
• Control of the associated barrier and opening command
after receiving payment
• Optional transponder sensor for managing parking
subscribers.
• Can be integrated with either the Rbm21 or Rbm84 access
control system.
• An extremely simple, cost-effective solution, especially
designed to meet the needs of small parking facilities.
Dimensions (mm)
Ps Easy is the simple solution
for managing small fixed tariff
pay-to-park facilities
Simplified automatic parking facilities
425
1500
94
295
Technical features
MODELS IP DESCRIPTION
DIMENSIONS
(mm)
POWER SUPPLY
( V AC - 50/60 Hz)
MATERIAL / COLOUR
MAX CURRENT
DRAW (VA)
CURRENT DRAW
AT REST (VA)
CURRENT DRAW
(VA)
PS5000 40 Automatic payment station (see drawing) 230 Steel / RAL 1028 *190 125 *44
PSSRV 55 RED - GREEN traffic light. 265 x 635 x 430 - Steel / Polymethacrylate - - -
PSSRV2 55 Red / green LED traffic light 180 x 410 x 290 - Steel / Polymethacrylate - - -
PSINS - Sign 900 x 1,300 x 80 230 Aluminium / Polymethacrylate - - -
TST01 - Transponder card from R700 - - - - -
PCT - Transponder keyfob ISO7810-7813 (85 x 54) - ABS - - -
TAG - Transponder TAG (bulb) 33 x 49 x 4 - Glass - - -
* With the heating unit active, the resistor absorbs a further 500 mA and requires a further 90 W of power

96. 95
THE COMPLETE RANGE
Code Description
230 V AC system for automatic parking facilities
Galvanised and painted steel entry unit, with sensor for transponder card and keyfobs,
ticket issuer and display for visualising season ticket holders credit.
001PS5000
Payment station made of varnished, galvanised steel,
complete with coin payment system and display
(fixed tariff – without change-giver).
Accessories for: 001PSE3000 - 001PSU3000 - 001PSC3000 - 001PSC7001
001TST01 ISO 7810 – 7813 format transponder card.
009PCT Keyfob transponder.
009TAG Glass transponder tag.
001PSV01 Ventilation kit for cabinet with n. 2 fans.
24 V AC - DC magnetic sensors
009SMA Mono-channel magnetic sensor for metal mass detection.
009SMA2 Bi-channel magnetic sensor for metal mass detection.
230 V AC magnetic sensor
009SMA220 Bi-channel magnetic sensor for metal mass detection.
NOTES
001PSV01 Especially recommended for installation in hot climate countries.
For signalling accessories, traffic lights, signs and for combining to the access cont
control systems, see Rbm21 or Rbm84 series.
Dimensions of anchoring bases (mm)
300
300
PS5000

97. 96
Alphabetical index
Pg. - Code Pg. - Code Pg. - Code Pg. - Code
27 001G0468
29 001G02040
29 001G02801
29 001G02802
29 001G02807
29 001G03000
29 001G3000DX
29 001G3000IDX
29 001G3000ISX
29 001G3000SX
29 001G03001
29 001G03002
29 001G03003
29 001G03004
29 001G03005
29 001G03006
27 001G3250
27 001G03250
27 001G03250K
27 001G03755DX
27 001G03755SX
29 001G04060
27 001G04601
63 001LT001
63 001LTT
67 001PC30
63 001PC40
93 001PS5000
35 001PSAP01
35 001PSAP07N
35 001PSAP08
49 001PSBPCCWA
49 001PSBPCWOA
49 001PSBPOOA
37 001PSBPS07N
37 001PSBPS08
37 001PSBPS09
37 001PSBPS10
84 001PSC1
90 001PSC3
90 001PSC3000
84 001PSC4000
84 001PSC6001
90 001PSC7001
90 001PSE3000
84 001PSE4000
41 001PSGD3
41 001PSGD4
41 001PSGS3
41 001PSGS4
84 001PSI16
90 001PSINS
90 001PSM3000
84 001PSM4000
49 001PSMLANT01
54 001PSMTP01
35 001PSOPCN03
49 001PSOPGO1
35 001PSOPGO1X
39 001PSOPSC01
35 001PSOPSF03
45 001PSSA01
45 001PSSA03
45 001PSSA04
45 001PSSL90
45 001PSSL120
45 001PSSLC
45 001PSSLN40
47 001PSSPCCW
47 001PSSPCWO
47 001PSSPFMCCW
47 001PSSPFMCWO
63 001PSSRV
90 001PSSRV2
39 001PST001
39 001PST002
39 001PST003
39 001PST004
90 001PSTICKET2A
53 001PSTPC100
53 001PSTPC150
53 001PSTPC200
53 001PSTRFPA
53 001PSTRFPAN
52 001PSTRM001
52 001PSTRM003
52 001PSTRM004
54 001PSTRSFPL60875
52 001PSTRT050
52 001PSTRT100
52 001PSTRT150
52 001PSTRT200
51 001PSTRV
51 001PSTRV2F
51 001PSTRV4F90
51 001PSTRV4F180
51 001PSTRV6F
51 001PSTRV8F
54 001PSTRV80
54 001PSTRV802F
54 001PSTRV804F090
54 001PSTRV804F180
54 001PSTRV806F
54 001PSTRV808F
51 001PSTRVX
51 001PSTRVX2F
51 001PSTRVX4F90
51 001PSTRVX4F180
51 001PSTRVX6F
51 001PSTRVX8F
90 001PSU3000
84 001PSU4000
53 001PSUS090D
53 001PSUS090S
53 001PSUS120D
53 001PSUS120S
85 001PSV01
43 001PSWL60
43 001PSWL60C
43 001PSWL90
43 001PSWL90C
43 001PSWLC
43 001PSWNG40
68 001R501N
67 001R700
67 001R800
63 001RBM21
67 001RBM84
67 001REM
63 001TSP00
93 001TST01
63 001TST02
90 002PSIO1
84 009GET
63 009PCT
93 009SMA
68 009SMA2
93 009SMA220
63 009TAG
41 119COLOR16

98. 97
note

99. 98
Came
training
courses
Check our updated schedule for the Came technical training courses and
those about reference norms on came.com website.

100. Le foto contenute in questo catalogo sono indicative del prodotto e non rappresantano vincolo contrattuale.
Tutti dati sono stati redatti con la massima cura da Cancelli Automatici S.p.A. che si riserva di apportare variazioni e aggiornamenti in qualsiasi momento e senza obbligo di preavviso.
© CAME Cancelli Automatici S.p.A. - Tutti i diritti sono riservati.
99

101. note
100

102. 101
note

103. note
102

104. 103
note

106. Came Nord Est
Udine – Italy
Came Centro
Brescia – Italy
Came Sud
Napoli – Italy
Came United Kingdom
Nottingham - UK
Came France
Paris - France
Came Spain
Madrid - Spain
Came Portugal
Lisbon - Portugal
Came Seefeld
Berlin - Germany
Came Korntal
Stuttgart - Germany
Came Group Benelux
Lessines - Belgium
Came Nederland
Breda - Netherlands
Came Poland Sp. z o.o.
Warszawa - Polska
Came Americas Automation
Miami - USA
Came Adriatic
Kastav – Croatia
Came do Brasil Serviços de Automaçao
São Paulo – Brazil
Came Automatismos de Mexico
Mexico City – Mexico
Came Rus
Moscow - Russia
Came Gulf
Dubai – U.A.E.
Came India Automation Solutions
New Delhi - India
TRI-Bpt Automation
Germiston - South Africa
Came
Cancelli Automatici
S.p.A.
via Martiri della Libertà, 15
Dosson di Casier - Treviso - Italy
tel. (+39) 0422 4940
fax (+39) 0422 4941
www.came.com - info@came.it
100% MADE IN ITALY CERTIFICATE
ITPI.386
GARANZIA QUALITÀ ORIGINALE
Progettato e prodotto
in ITALIA
Came cancelli automatici S.p.A.
è certificata
Qualità e Ambiente
UNI EN ISO 9001
UNI EN ISO 14001
Came is a company of
KSUP#CEN26724 - MAR_2014 - EN_EXPORT
