How remote control can help with underground mining? - line-of-sight remote allows operation within 200 meters; - Tele remote control allows centralized operation 100 miles away; For more mining automation advice, contact ALPHA: Sophie sophie.guan@alpha-technology.com.au

1. Mining Automation
A L P H A Industrial Technology Pty Ltd
www.alpha-technology.com.au

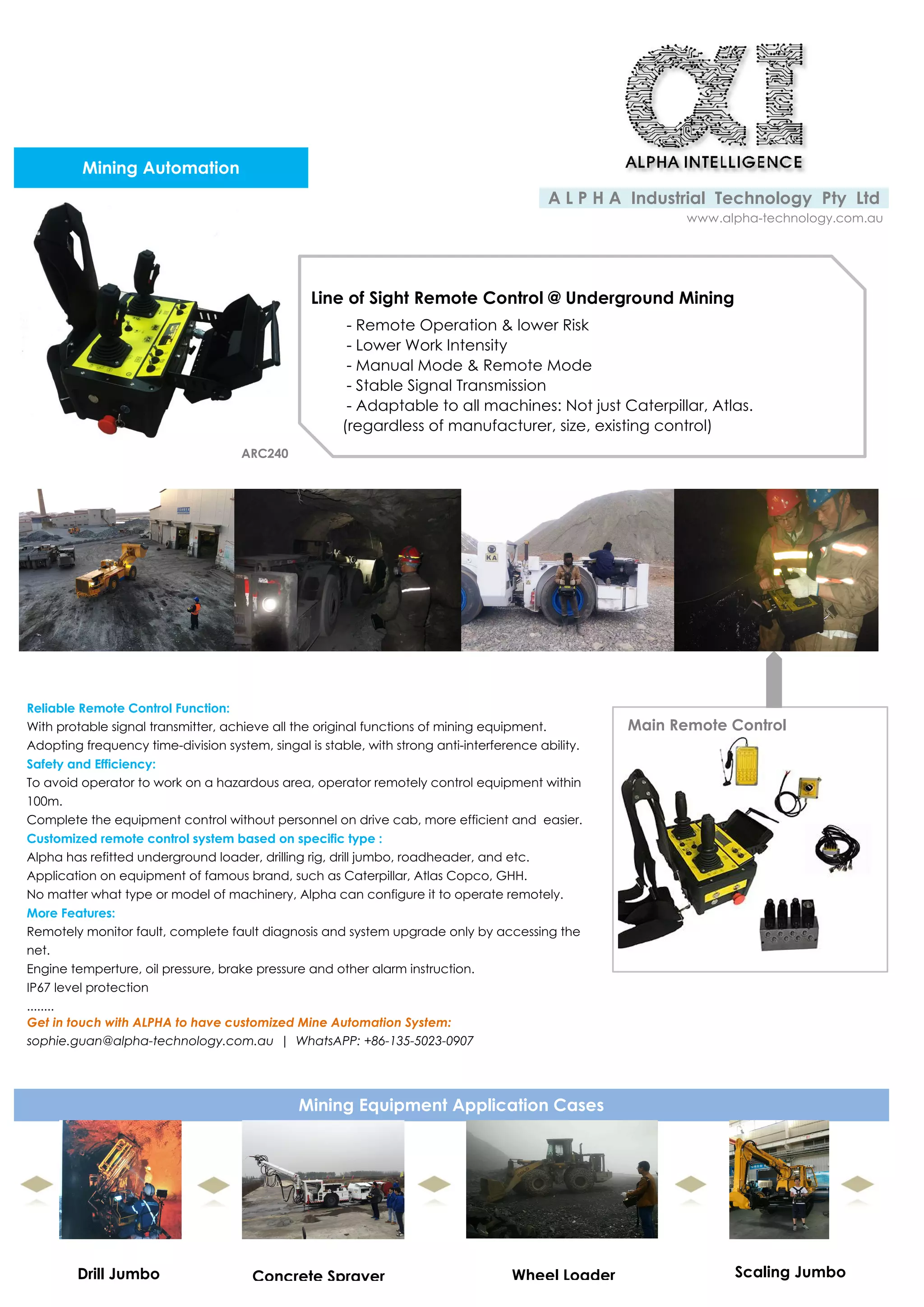

Line of Sight Remote Control @ Underground Mining
Mining Equipment Application Cases
ARC240
Reliable Remote Control Function:
With protable signal transmitter, achieve all the original functions of mining equipment.
Adopting frequency time-division system, singal is stable, with strong anti-interference ability.
Safety and Efficiency:
To avoid operator to work on a hazardous area, operator remotely control equipment within
100m.
Complete the equipment control without personnel on drive cab, more efficient and easier.
Customized remote control system based on specific type :
Alpha has refitted underground loader, drilling rig, drill jumbo, roadheader, and etc.
Application on equipment of famous brand, such as Caterpillar, Atlas Copco, GHH.
No matter what type or model of machinery, Alpha can configure it to operate remotely.
More Features:
Remotely monitor fault, complete fault diagnosis and system upgrade only by accessing the
net.
Engine temperture, oil pressure, brake pressure and other alarm instruction.
IP67 level protection
........
Get in touch with ALPHA to have customized Mine Automation System:
sophie.guan@alpha-technology.com.au | WhatsAPP: +86-135-5023-0907
Data Resource: SANDVIK
Main Remote Control
- Remote Operation & lower Risk
- Lower Work Intensity
- Manual Mode & Remote Mode
- Stable Signal Transmission
- Adaptable to all machines: Not just Caterpillar, Atlas.
(regardless of manufacturer, size, existing control)
Drill Jumbo Concrete Sprayer Wheel Loader Scaling Jumbo

2. Mining Automation
A L P H A Industrial Technology Pty Ltd
www.alpha-technology.com.au
Tele Remote Control @ Underground Mining
Data Tells the Truth
KIDD MINE FINSCH MINE NORTHPARKES
LHD/productivity Ore Cost/Tons Ore Cost/Tons
Optimization in equipment utilization brings: Higher Speed and utilization brings: Optimization in equipment utilization brings:
- 121% Increased Daily Production - Trucks decreased from 10 to 7 - 23% Increased Daily Production
- 52% Enhanced Daily Traffic - Operators decreased from 10 to 2 - Operators decreased from 7 to 3
- Maintenance cost 60% decreased - More stable and continuous production
- Equipment service life 35% increased
ATC131
Production Automation:
Automated Steer and Dump with higher accuracy
Automated or Remote Control Loading
Keep operators far away from working face:
One operator can control multi equipment
Customized Solutions based on specific mining conditions:
- Tele remote v1.0: easy to install and remote control
- Tele remote v2.0: one equipment / Single production area, Automated operation
- Tele remote v3.0: Multi equipment remote controlled, and 1-in-1 production
automated operation
Extended Features:
Anti-Collision between tunnel and equipment
Access control in production area & Emergency system
Equipment Monitoring & Maintenance system
.....
Get in touch with ALPHA to have customized Mine Automation System:
sophie.guan@alpha-technology.com.au
WhatsAPP: +86-135-5023-0907
Data Resource: SANDVIK
Manned Automated Manned Automated
100
221 100
~50
76
100
Manned Automated
INDEXED INDEXED INDEXED
Multi Working Face
Tele Remote Console
- Remote Operation & lower Risk
- Anti-Collision system
- Automated Load and Dump
- Higher Equipment Utilization
