Project Savanna automates the deployment of Apache Hadoop on OpenStack. It provisions Hadoop clusters using templates, allows for elastic scaling of nodes, and provides multi-tenancy. The Hortonworks OpenStack plugin uses Ambari to install and manage Hadoop clusters on OpenStack. It demonstrates provisioning a Hadoop cluster with Ambari, installing services, and monitoring the cluster through the Ambari UI. OpenStack provides operational agility while Hadoop is well-suited for its scale-out architecture.

1. © Hortonworks Inc. 2013
Hadoop meet OpenStack
Himanshu Bari, Hortonworks
Ilya Elterman, Mirantis
John Spiedel, Hortonworks
June 26th, 2013

2. © Hortonworks Inc. 2013

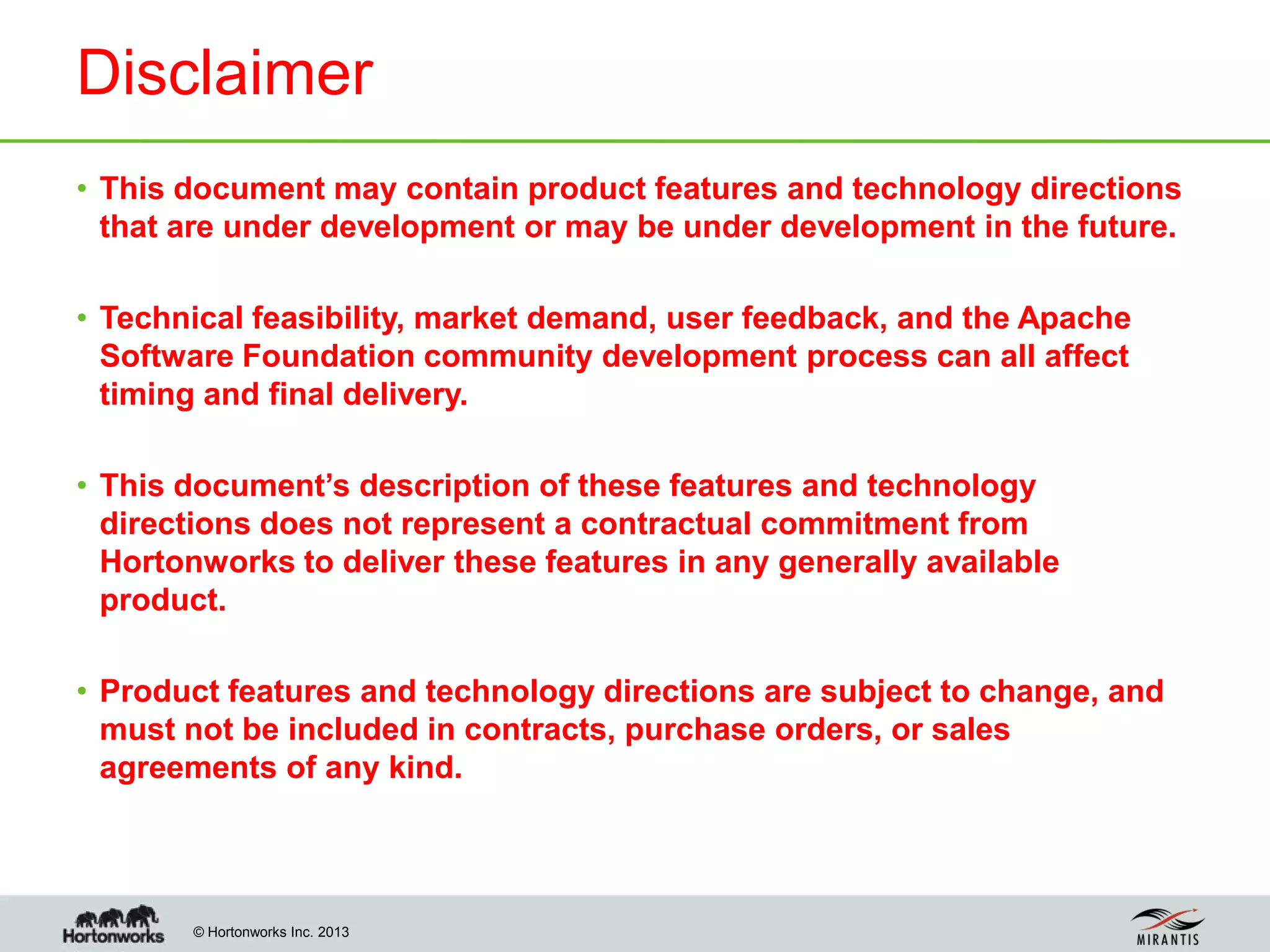

Disclaimer
• This document may contain product features and technology directions
that are under development or may be under development in the future.
• Technical feasibility, market demand, user feedback, and the Apache
Software Foundation community development process can all affect
timing and final delivery.
• This document’s description of these features and technology
directions does not represent a contractual commitment from
Hortonworks to deliver these features in any generally available
product.
• Product features and technology directions are subject to change, and
must not be included in contracts, purchase orders, or sales
agreements of any kind.

3. © Hortonworks Inc. 2013

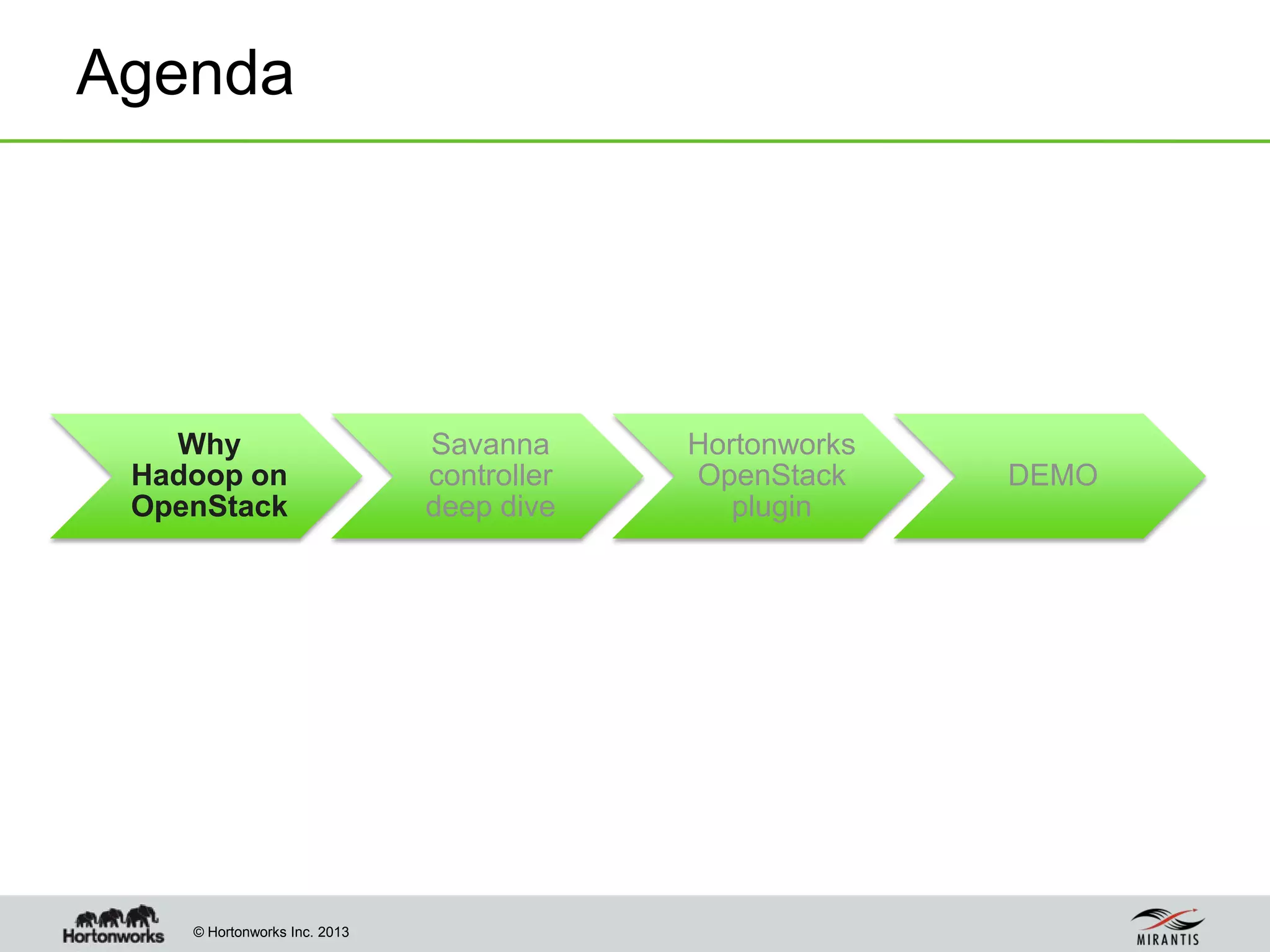

Agenda
Why
Hadoop on
OpenStack
Savanna
controller
deep dive
Hortonworks
OpenStack
plugin
DEMO

4. © Hortonworks Inc. 2013

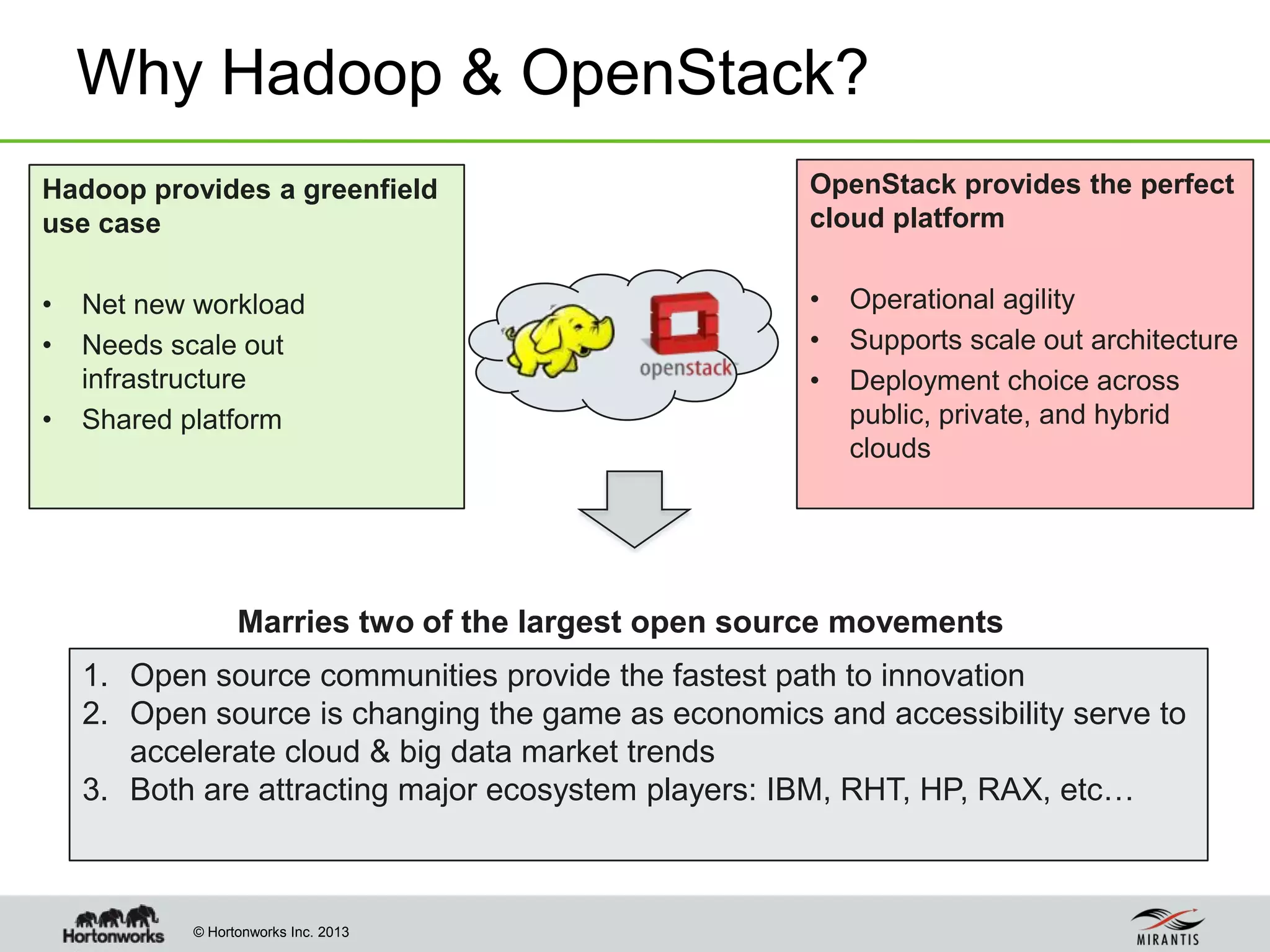

Why Hadoop & OpenStack?
Hadoop provides a greenfield
use case
• Net new workload
• Needs scale out
infrastructure
• Shared platform
OpenStack provides the perfect
cloud platform
• Operational agility
• Supports scale out architecture
• Deployment choice across
public, private, and hybrid
clouds
1. Open source communities provide the fastest path to innovation
2. Open source is changing the game as economics and accessibility serve to
accelerate cloud & big data market trends
3. Both are attracting major ecosystem players: IBM, RHT, HP, RAX, etc…
Marries two of the largest open source movements

5. © Hortonworks Inc. 2013

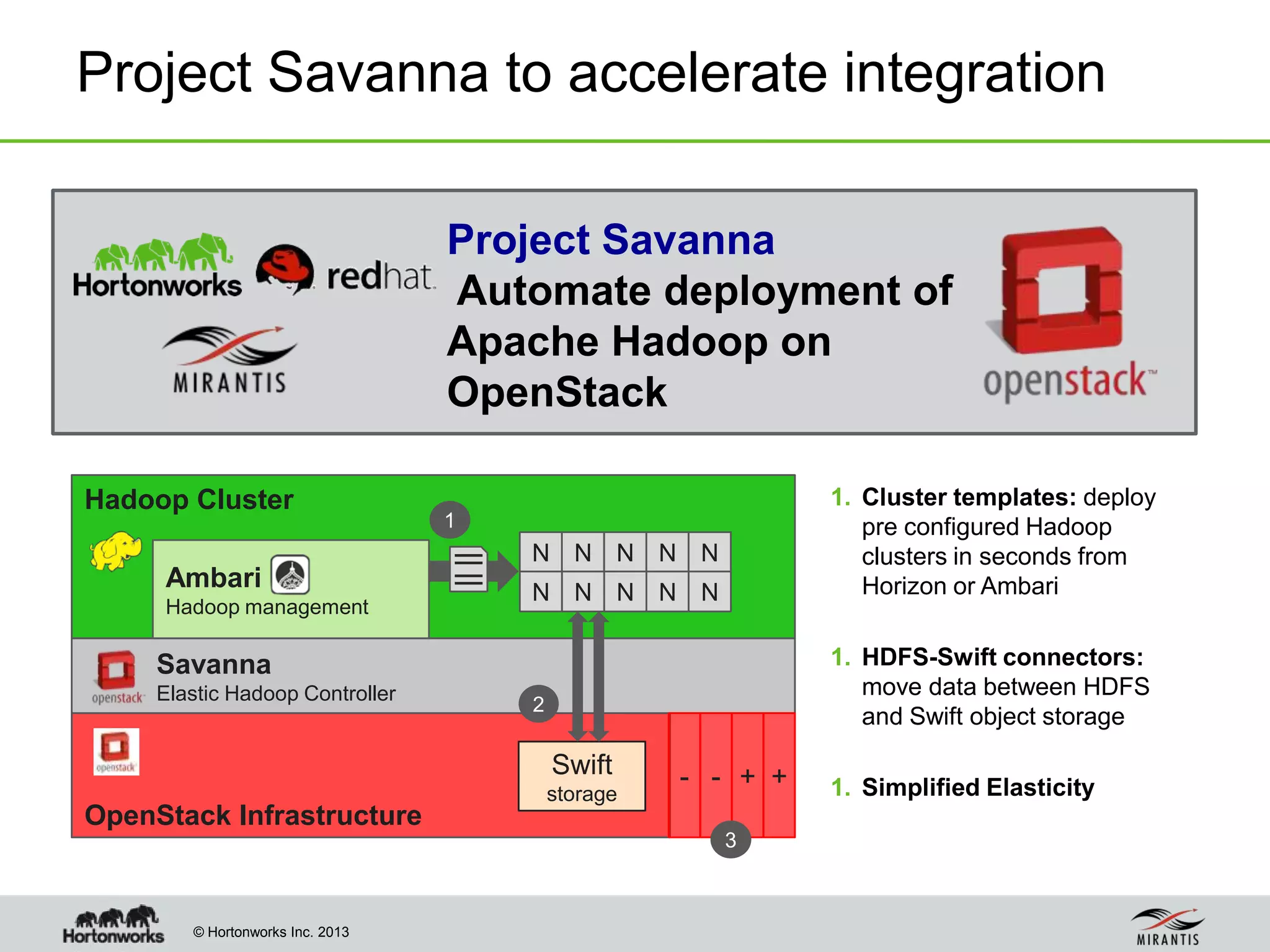

OpenStack Infrastructure
Savanna
Elastic Hadoop Controller
Project Savanna to accelerate integration
Swift
storage
Hadoop Cluster
N
N
N
N
N
N
2
Ambari
Hadoop management
- - + +
N
N
N
N
1
3
1. Cluster templates: deploy
pre configured Hadoop
clusters in seconds from
Horizon or Ambari
1. HDFS-Swift connectors:
move data between HDFS
and Swift object storage
1. Simplified Elasticity
Project Savanna
Automate deployment of
Apache Hadoop on
OpenStack

6. © Hortonworks Inc. 2013

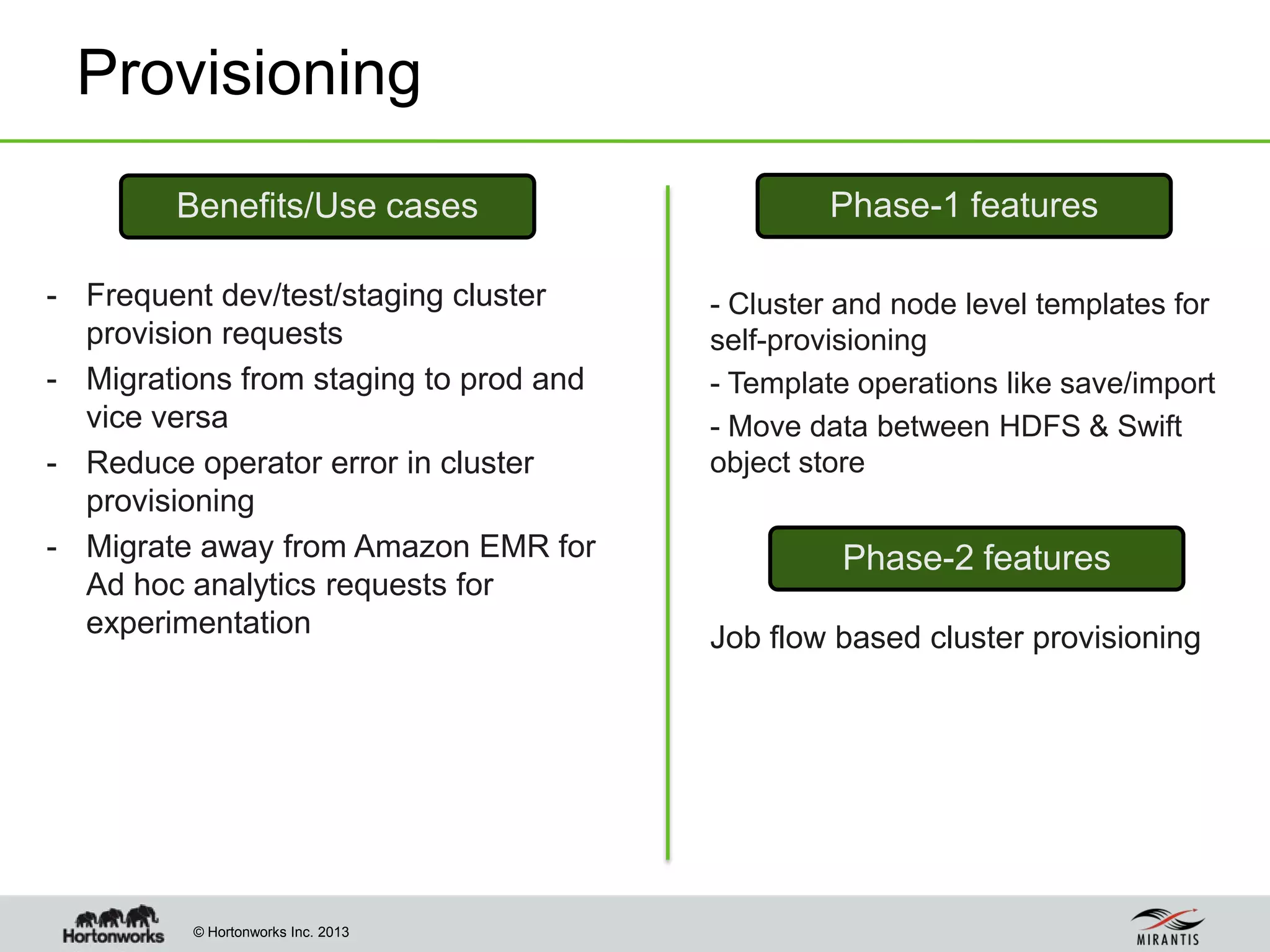

Provisioning
Phase-1 features
- Frequent dev/test/staging cluster
provision requests
- Migrations from staging to prod and
vice versa
- Reduce operator error in cluster
provisioning
- Migrate away from Amazon EMR for
Ad hoc analytics requests for
experimentation
- Cluster and node level templates for
self-provisioning
- Template operations like save/import
- Move data between HDFS & Swift
object store
Job flow based cluster provisioning
Phase-2 features
Benefits/Use cases

7. © Hortonworks Inc. 2013

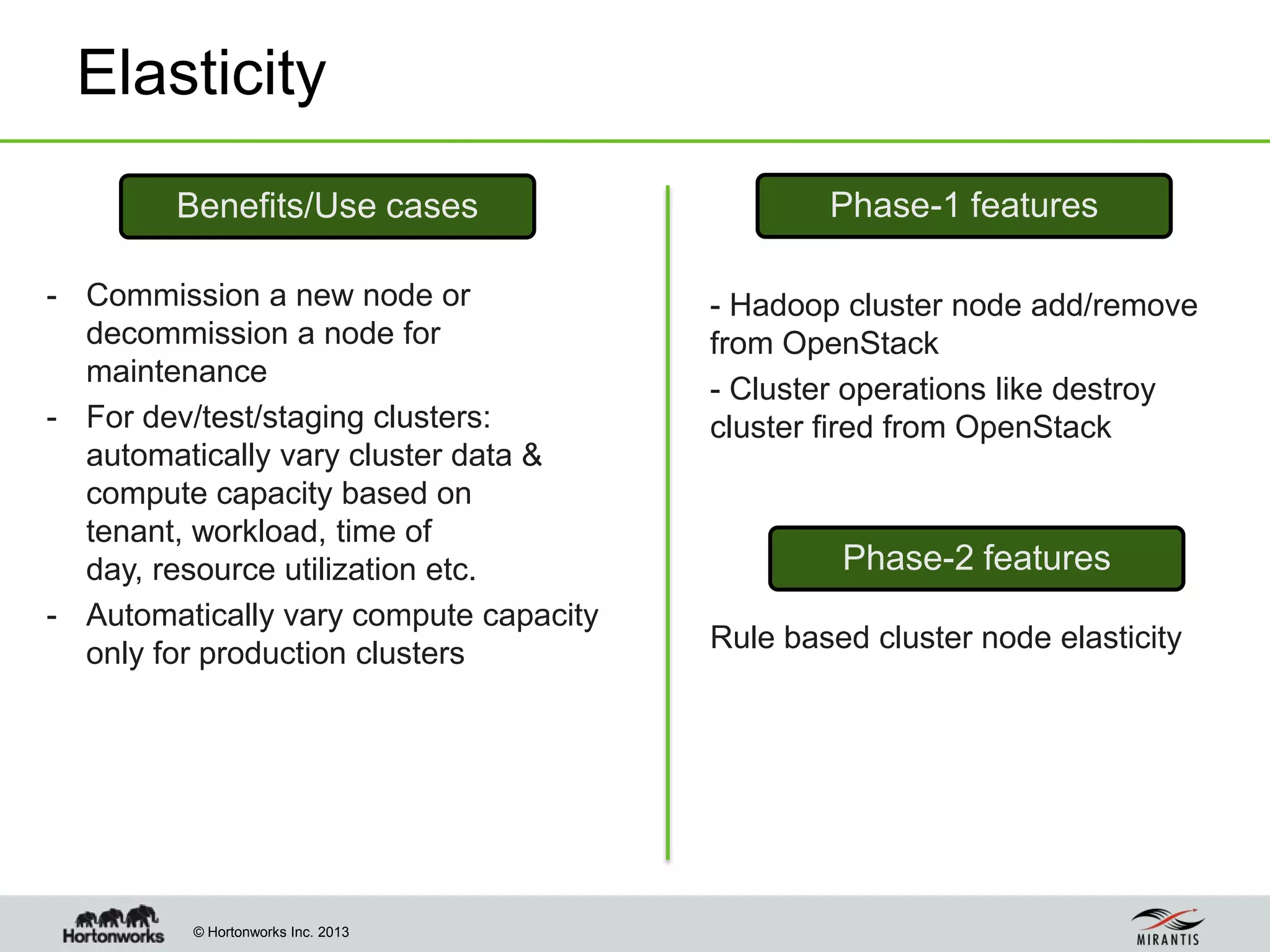

Elasticity
Phase-1 features
- Commission a new node or
decommission a node for
maintenance
- For dev/test/staging clusters:
automatically vary cluster data &
compute capacity based on
tenant, workload, time of
day, resource utilization etc.
- Automatically vary compute capacity
only for production clusters
- Hadoop cluster node add/remove
from OpenStack
- Cluster operations like destroy
cluster fired from OpenStack
Rule based cluster node elasticity
Phase-2 features
Benefits/Use cases

8. © Hortonworks Inc. 2013

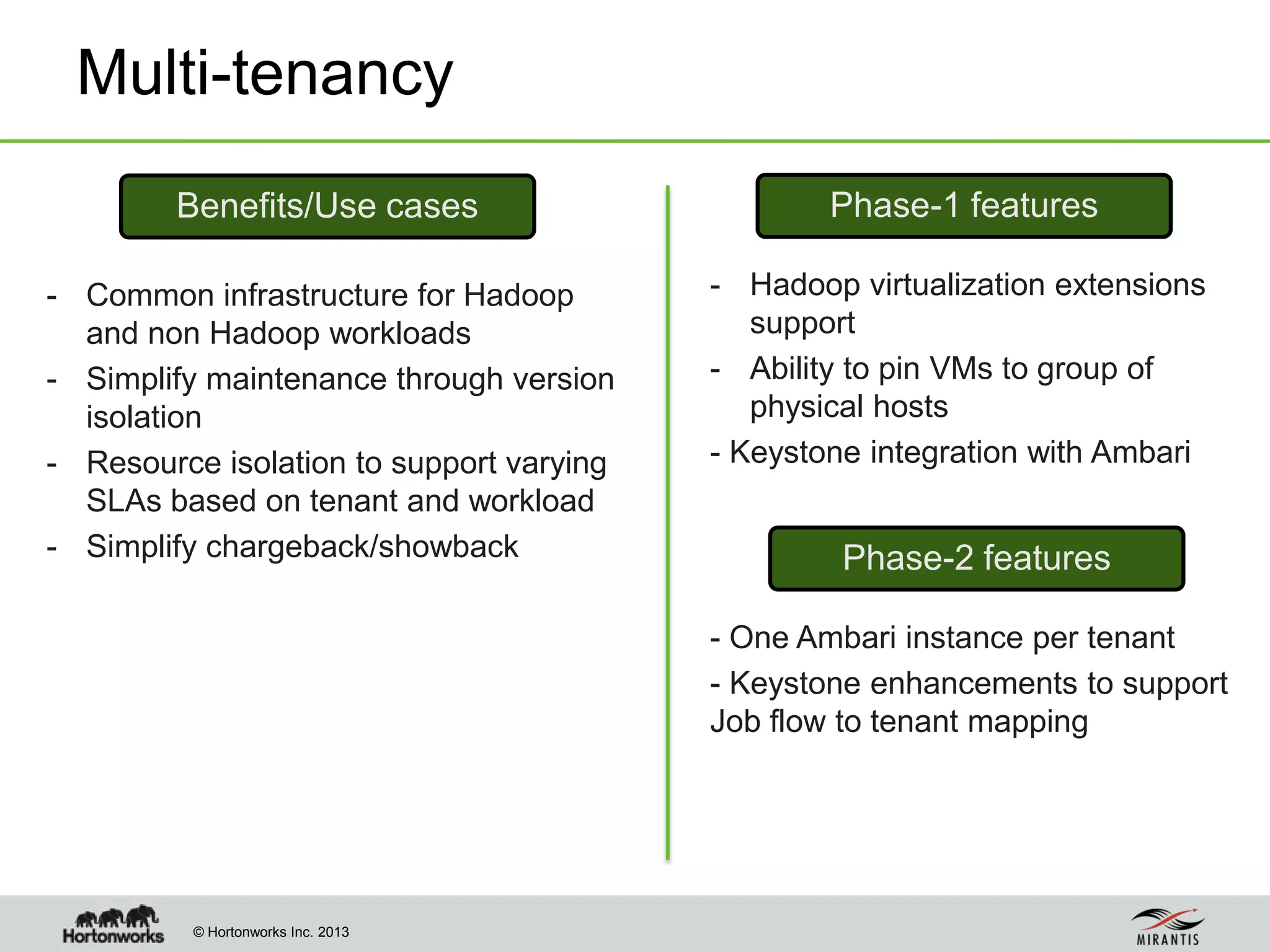

Multi-tenancy
Phase-1 features
- Common infrastructure for Hadoop
and non Hadoop workloads
- Simplify maintenance through version
isolation
- Resource isolation to support varying
SLAs based on tenant and workload
- Simplify chargeback/showback
- Hadoop virtualization extensions
support
- Ability to pin VMs to group of
physical hosts
- Keystone integration with Ambari
- One Ambari instance per tenant
- Keystone enhancements to support
Job flow to tenant mapping
Phase-2 features
Benefits/Use cases

9. © Hortonworks Inc. 2013

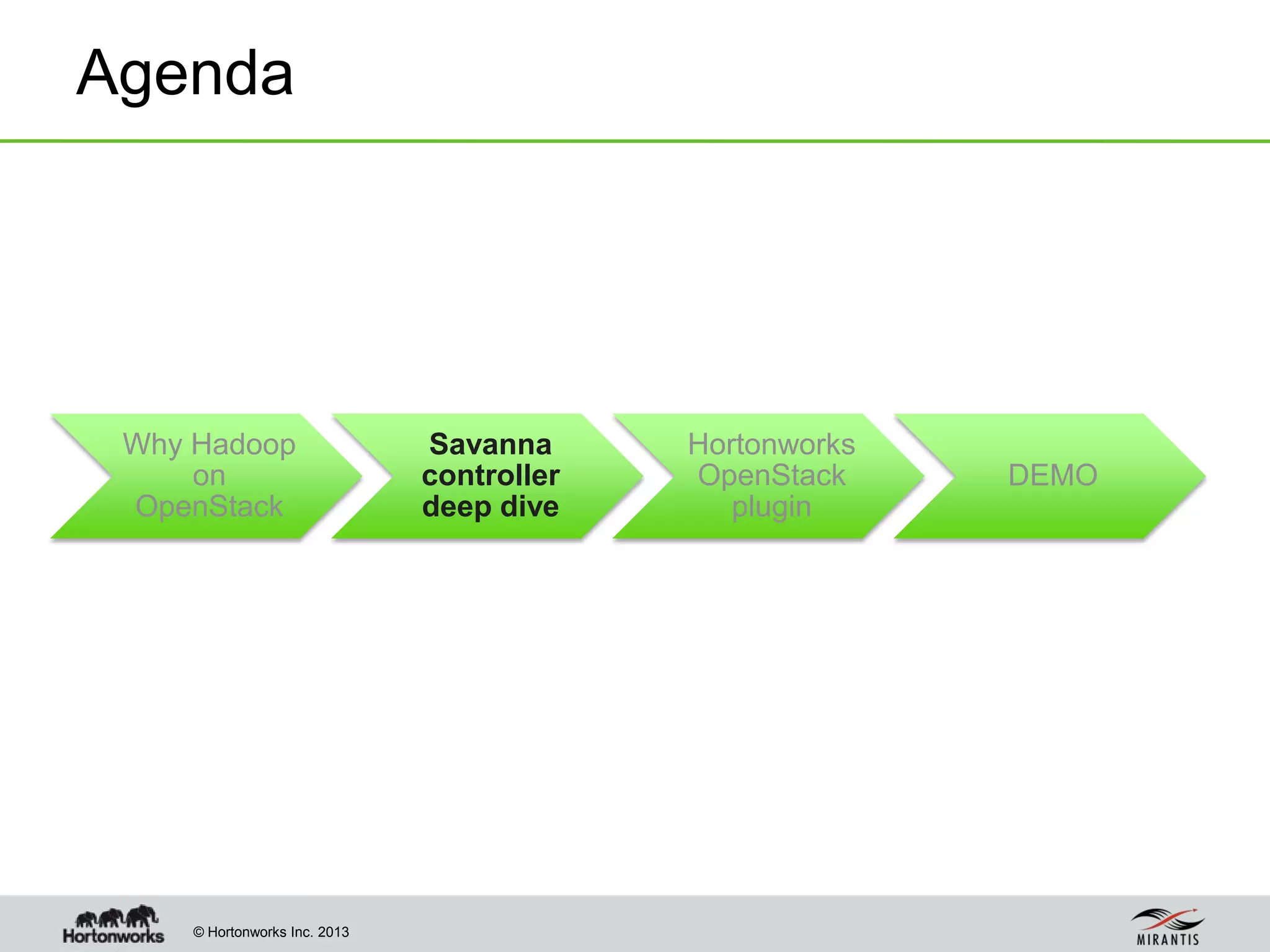

Agenda
Why Hadoop
on
OpenStack
Savanna
controller
deep dive
Hortonworks
OpenStack
plugin
DEMO

10. © Hortonworks Inc. 2013

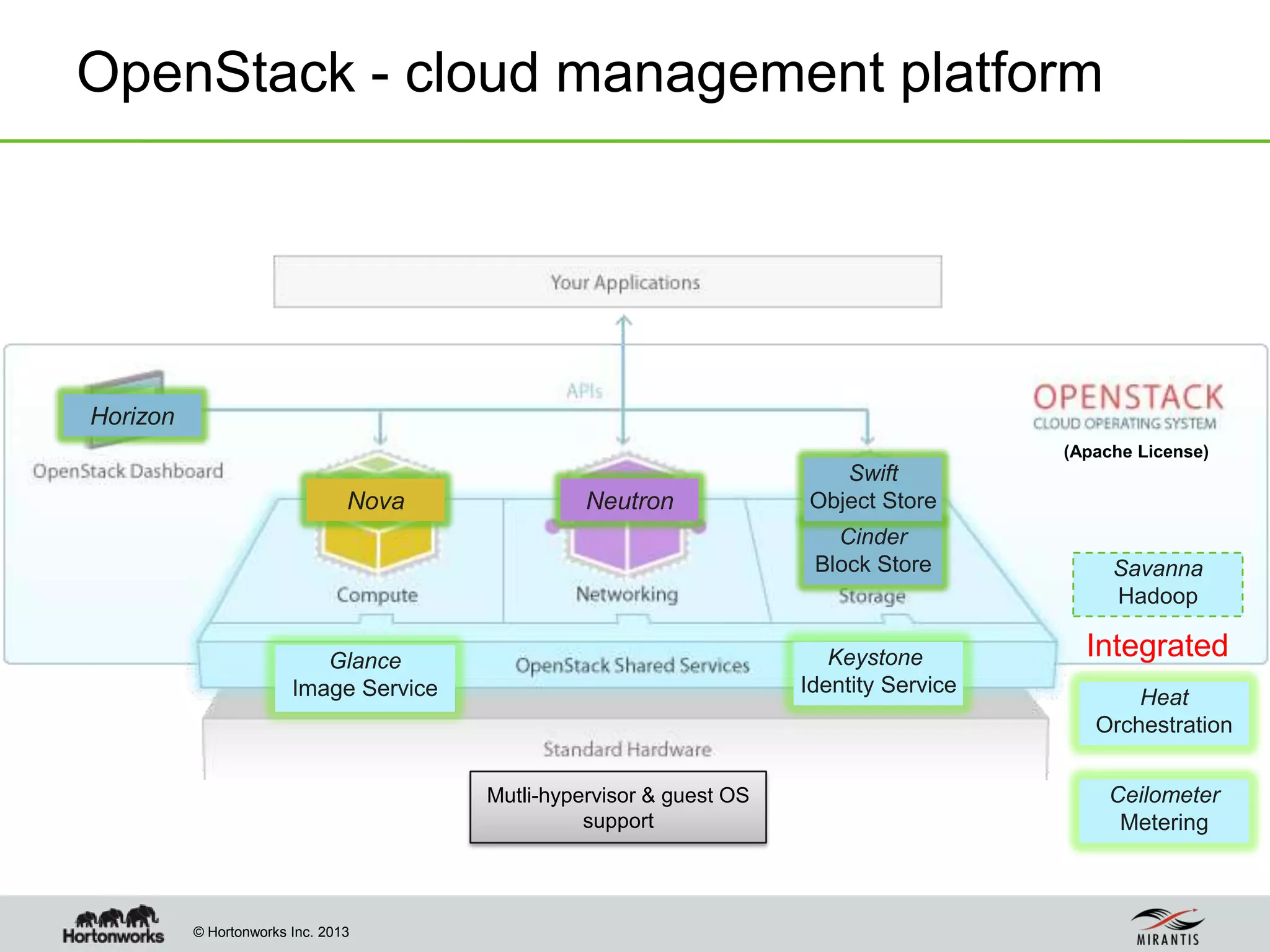

OpenStack - cloud management platform
Glance
Image Service
Keystone
Identity Service
Horizon
NeutronNova
Cinder
Block Store
Swift
Object Store
(Apache License)
Ceilometer
Metering
Heat
Orchestration
Integrated
Mutli-hypervisor & guest OS
support
Savanna
Hadoop

11. © Hortonworks Inc. 2013

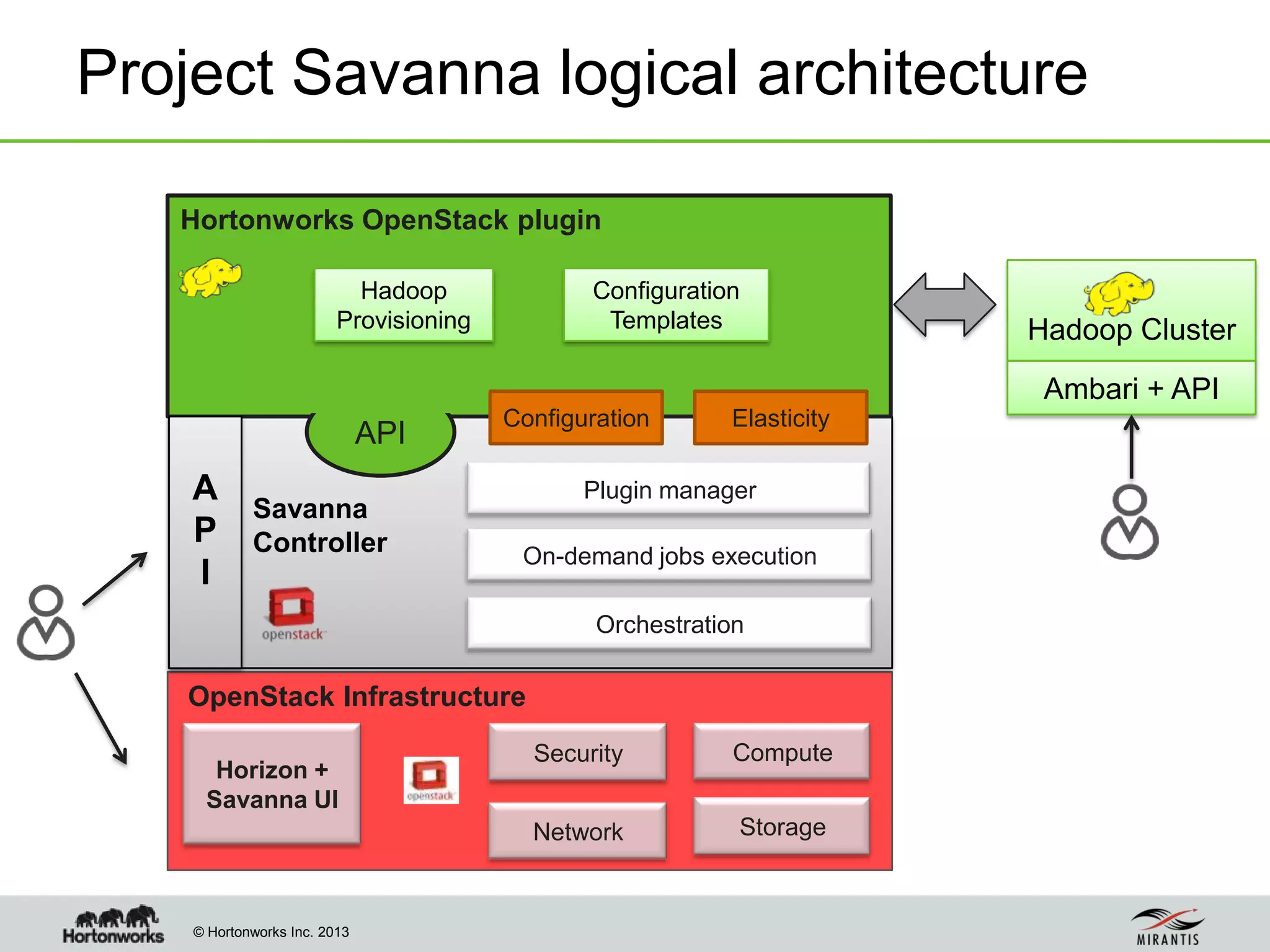

Project Savanna logical architecture
OpenStack Infrastructure
Network Storage
Security Compute
Savanna
Controller
Hortonworks OpenStack plugin
API
Hadoop
Provisioning
Configuration
Templates
Horizon +
Savanna UI
A
P
I
Configuration Elasticity
Orchestration
On-demand jobs execution
Hadoop Cluster
Ambari + API
Plugin manager

12. © Hortonworks Inc. 2013

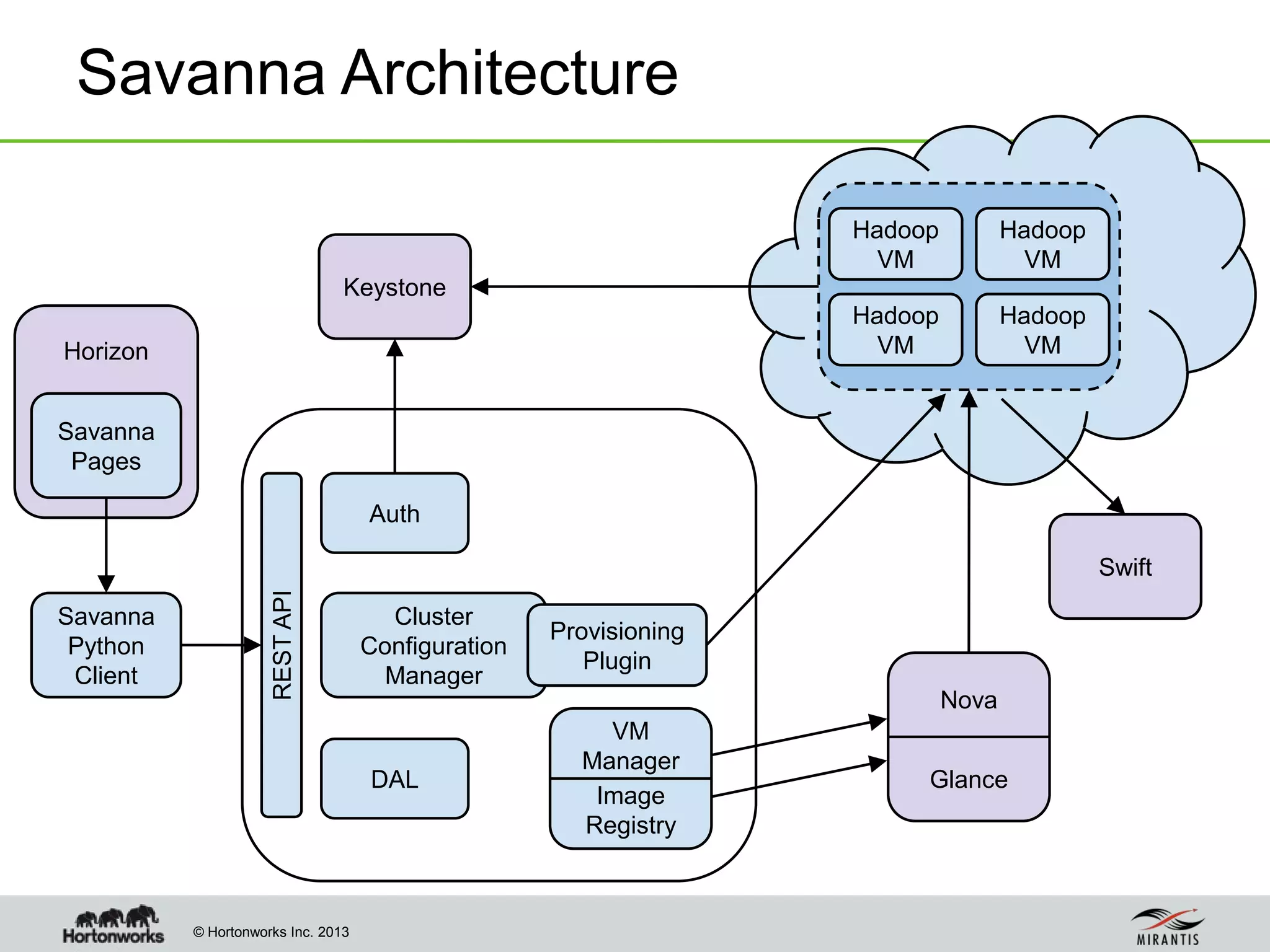

Savanna Architecture
Savanna
Python
Client
RESTAPI
Cluster
Configuration
Manager
Horizon
Keystone
Auth
DAL
Nova
Glance
Swift
Savanna
Pages
Hadoop
VM
Provisioning
Plugin
Hadoop
VM
Hadoop
VM
Hadoop
VM
VM
Manager
Registry

13. © Hortonworks Inc. 2013

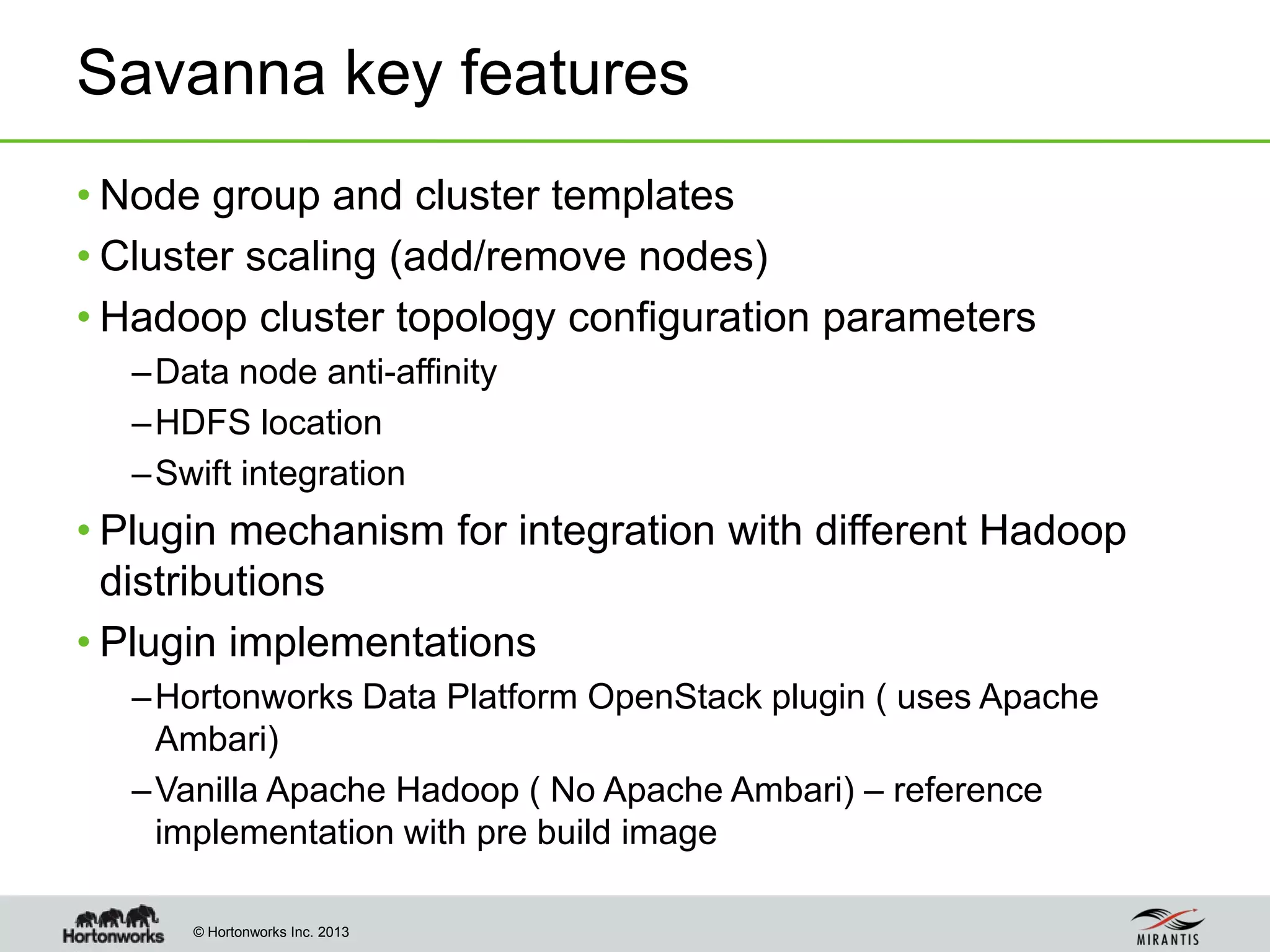

Savanna key features
• Node group and cluster templates
• Cluster scaling (add/remove nodes)
• Hadoop cluster topology configuration parameters
–Data node anti-affinity
–HDFS location
–Swift integration
• Plugin mechanism for integration with different Hadoop
distributions
• Plugin implementations
–Hortonworks Data Platform OpenStack plugin ( uses Apache
Ambari)
–Vanilla Apache Hadoop ( No Apache Ambari) – reference
implementation with pre build image

14. © Hortonworks Inc. 2013

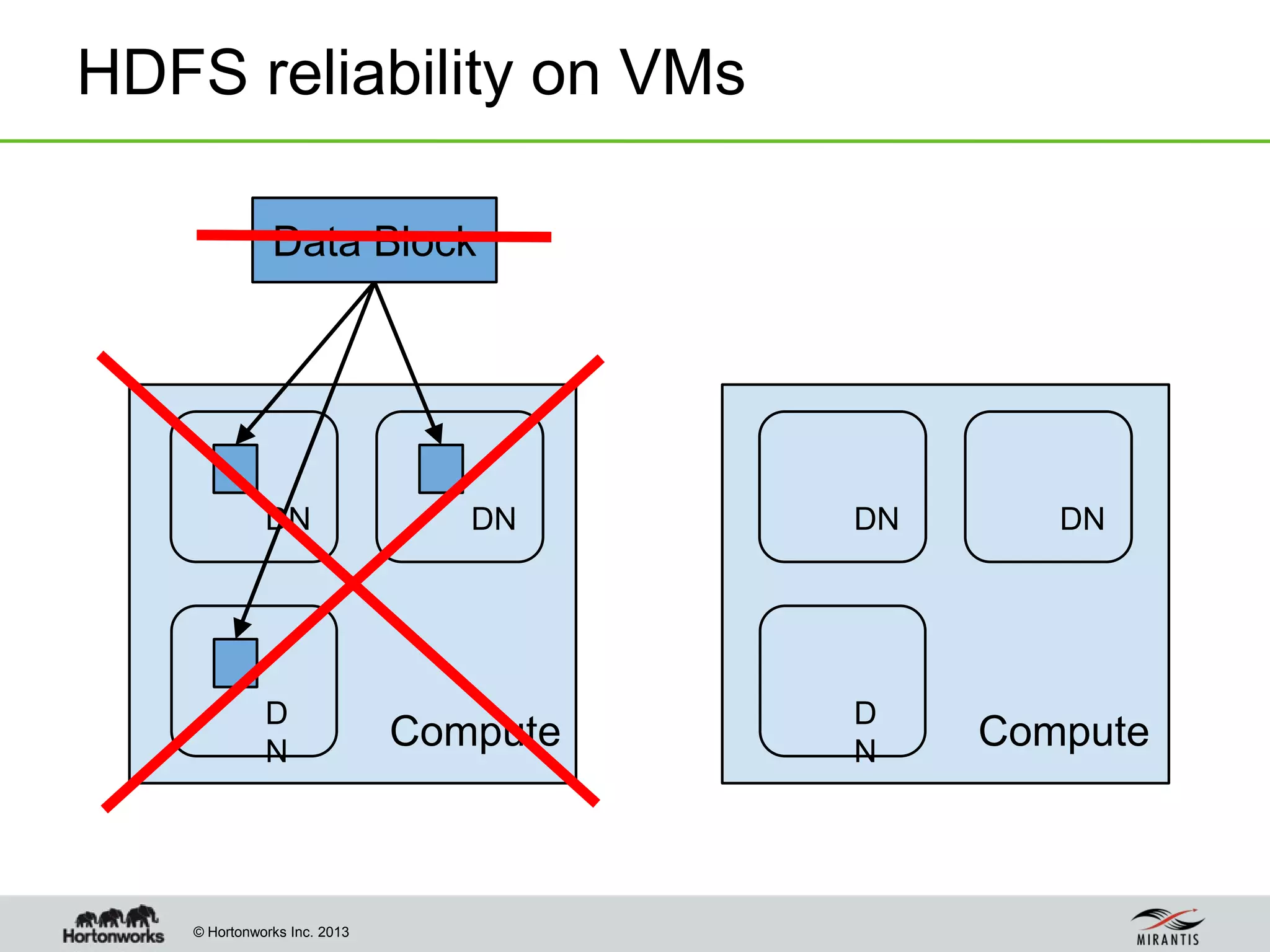

HDFS reliability on VMs
Compute
DN DN
D
N
DN DN
D
N
Data Block
Compute

15. © Hortonworks Inc. 2013

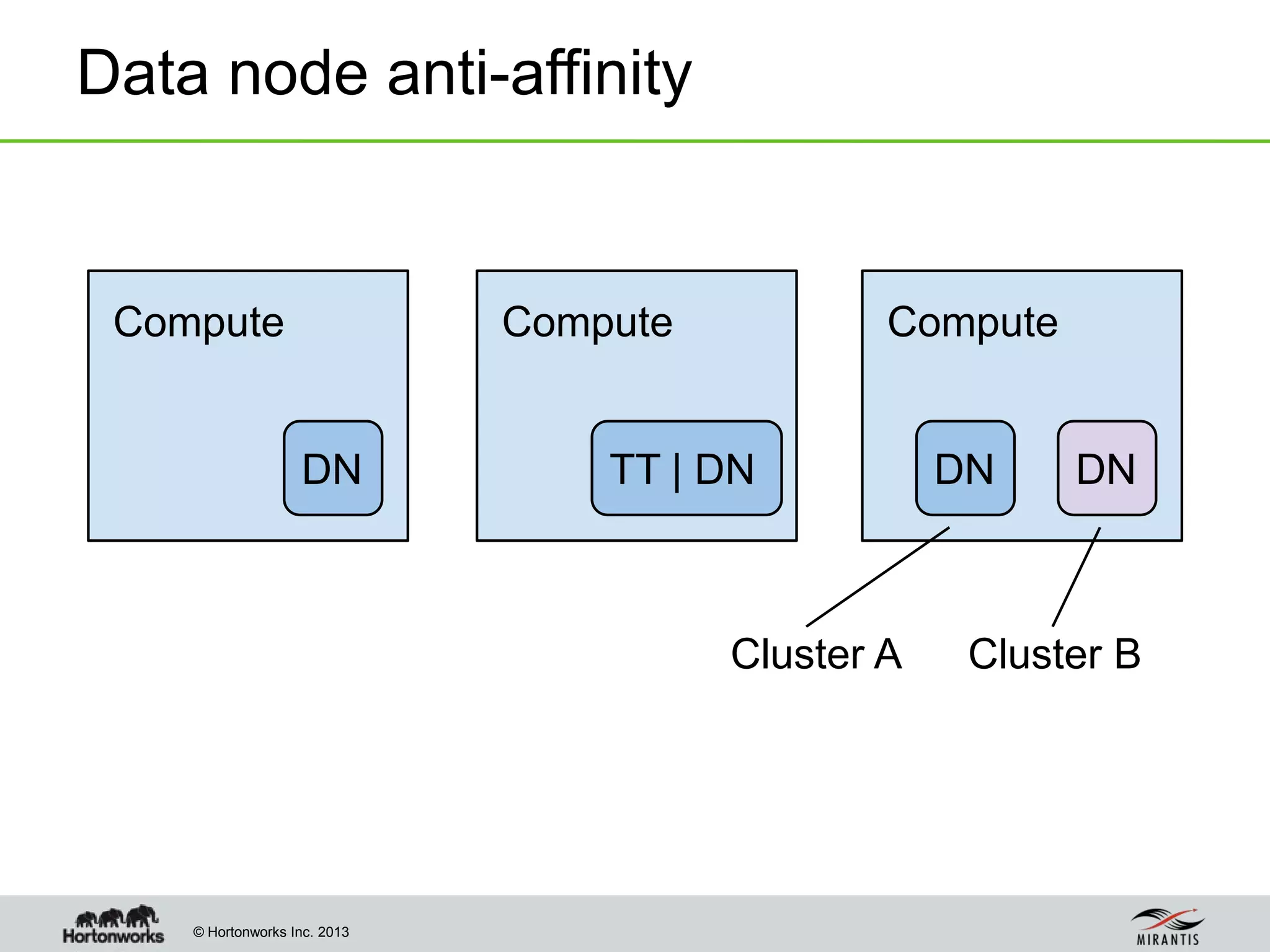

Data node anti-affinity
DN
Compute
TT | DN
Compute
DN
Compute
DN
Cluster A Cluster B

16. © Hortonworks Inc. 2013

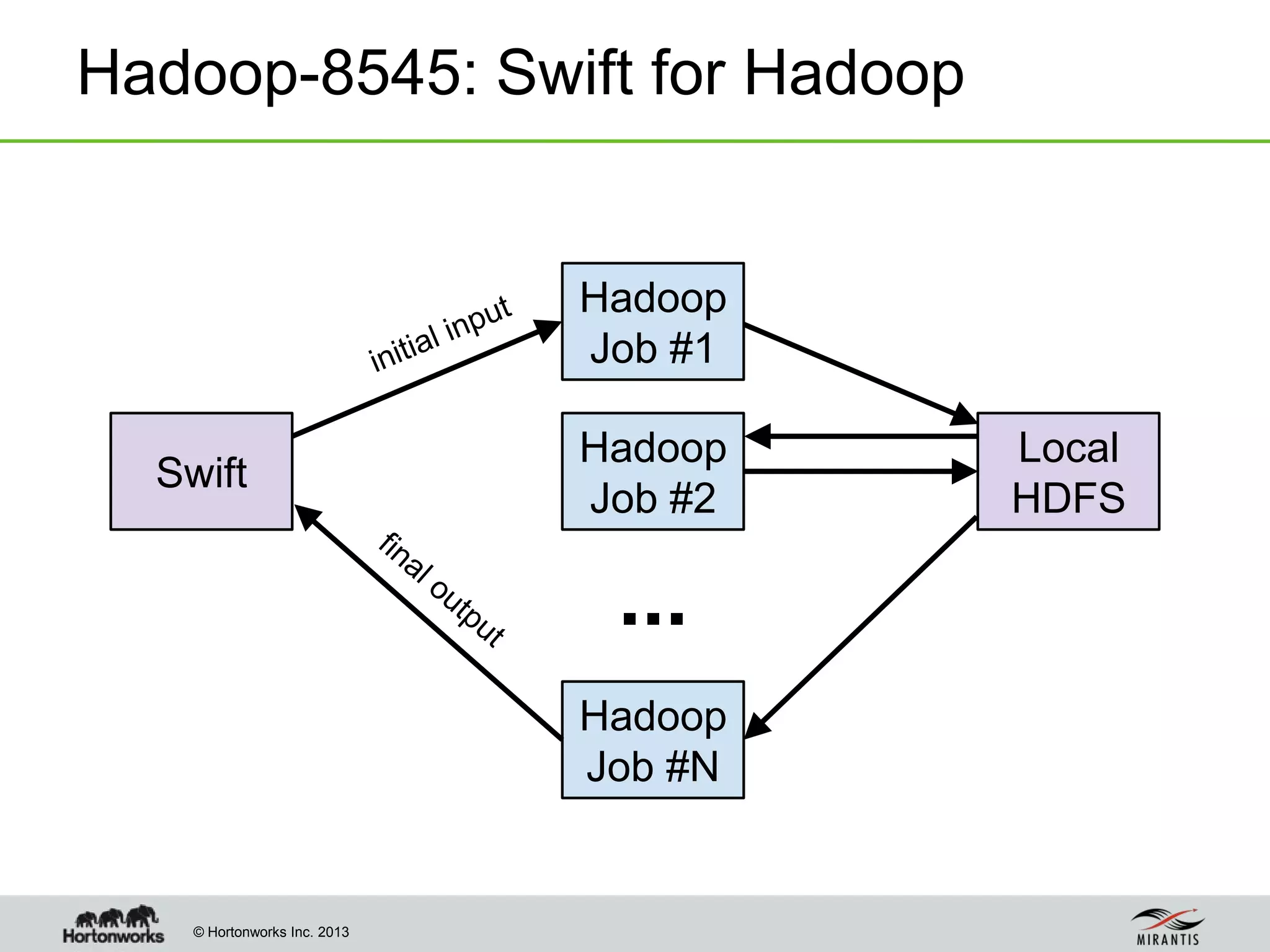

Hadoop-8545: Swift for Hadoop
Swift
Hadoop
Job #1
Local
HDFS
Hadoop
Job #2
...
Hadoop
Job #N

17. © Hortonworks Inc. 2013

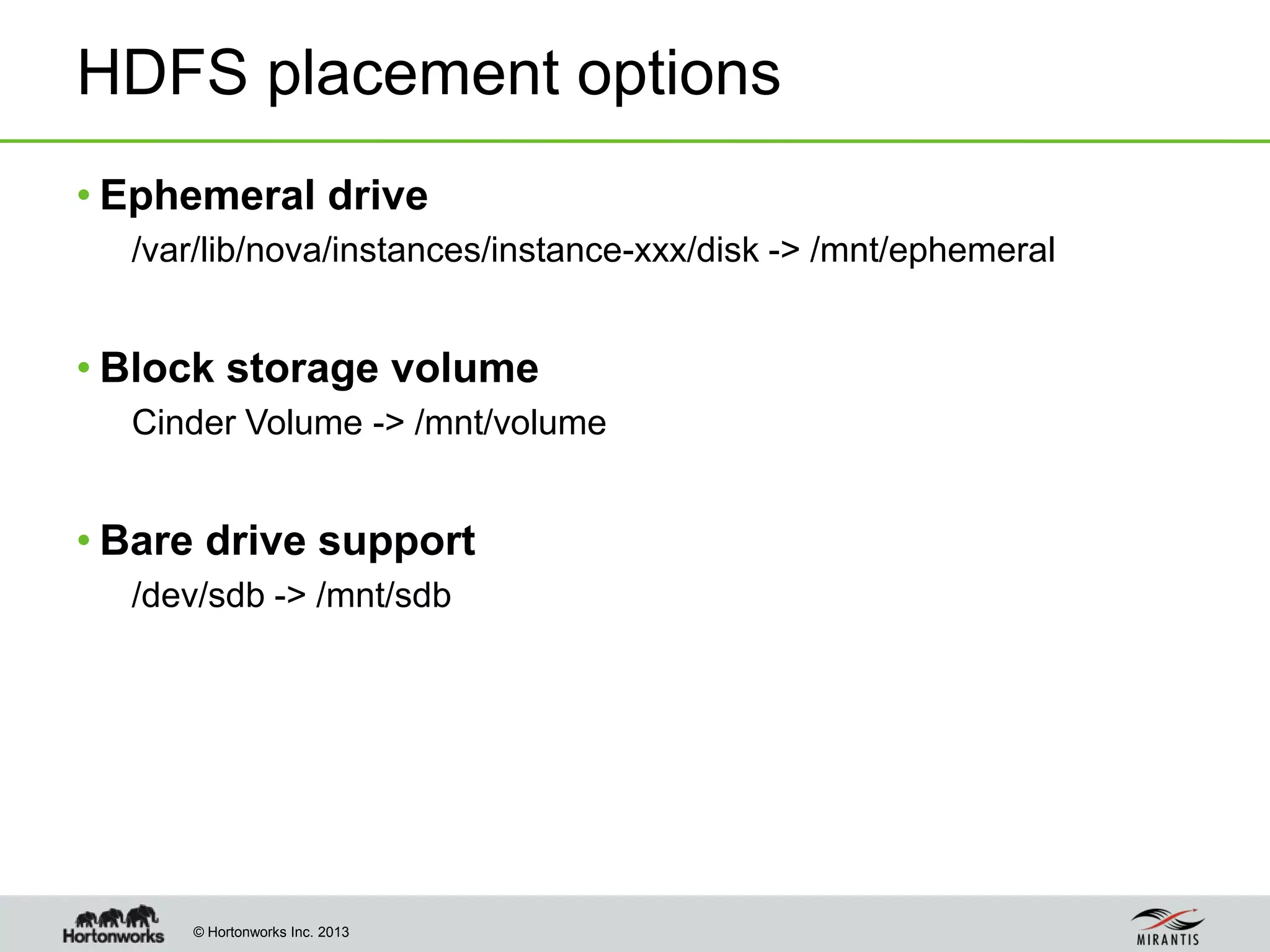

HDFS placement options
• Ephemeral drive
/var/lib/nova/instances/instance-xxx/disk -> /mnt/ephemeral
• Block storage volume
Cinder Volume -> /mnt/volume
• Bare drive support
/dev/sdb -> /mnt/sdb

18. © Hortonworks Inc. 2013

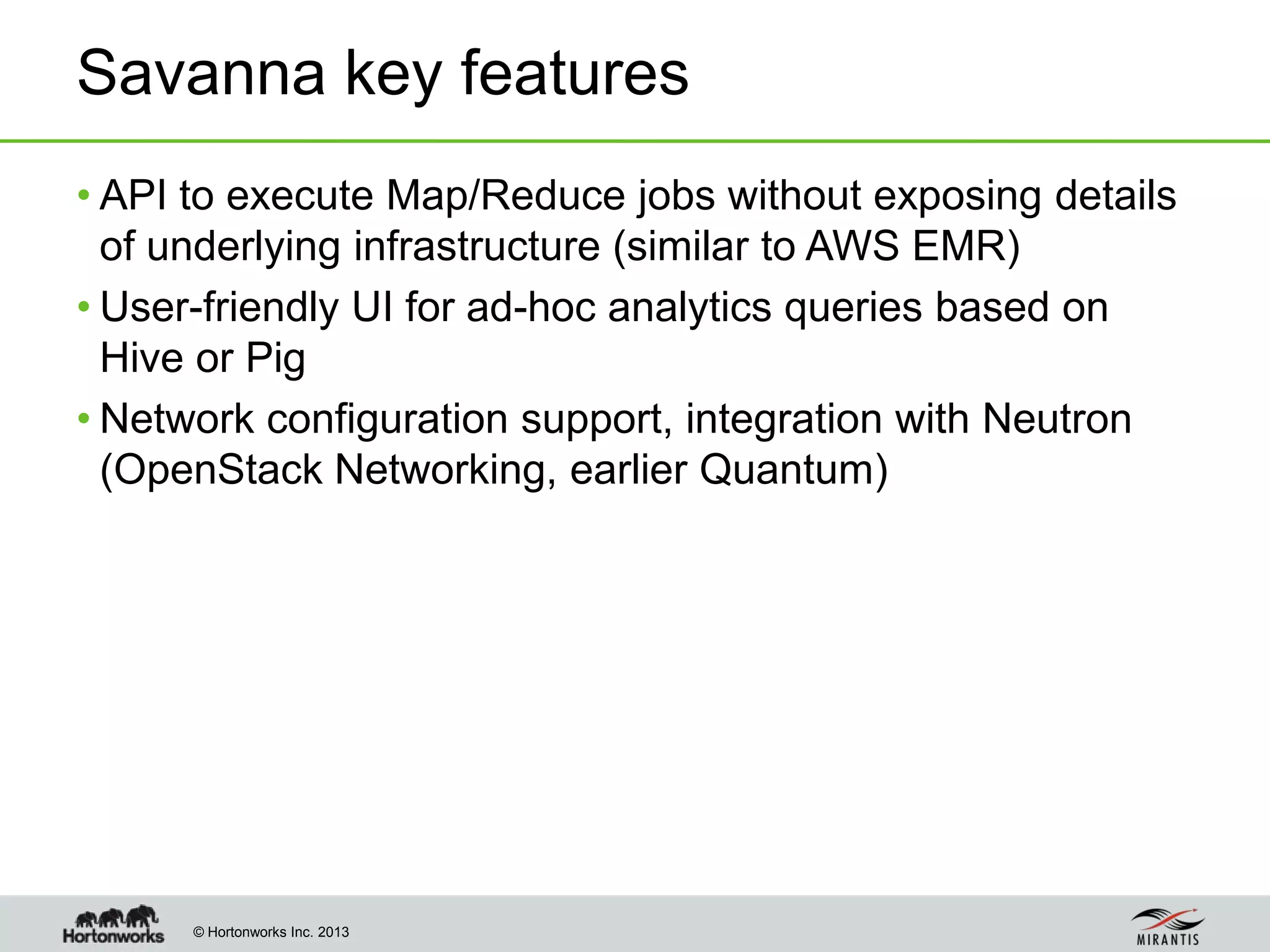

Savanna key features
• API to execute Map/Reduce jobs without exposing details
of underlying infrastructure (similar to AWS EMR)
• User-friendly UI for ad-hoc analytics queries based on
Hive or Pig
• Network configuration support, integration with Neutron
(OpenStack Networking, earlier Quantum)

19. © Hortonworks Inc. 2013
Agenda
Why Hadoop
on
OpenStack
Savanna
Controller
deep dive
Hortonworks
OpenStack
plugin
DEMO

20. © Hortonworks Inc. 2013
Hortonworks Data Platform OpenStack
plugin
• Provision HDP cluster using Ambari
• Supports generic or pre-packaged VM images
• Supports standard Savanna configuration templates
• Supports Ambari templates (aka blueprints)
configuration
–https://issues.apache.org/jira/browse/AMBARI-1783

21. © Hortonworks Inc. 2013

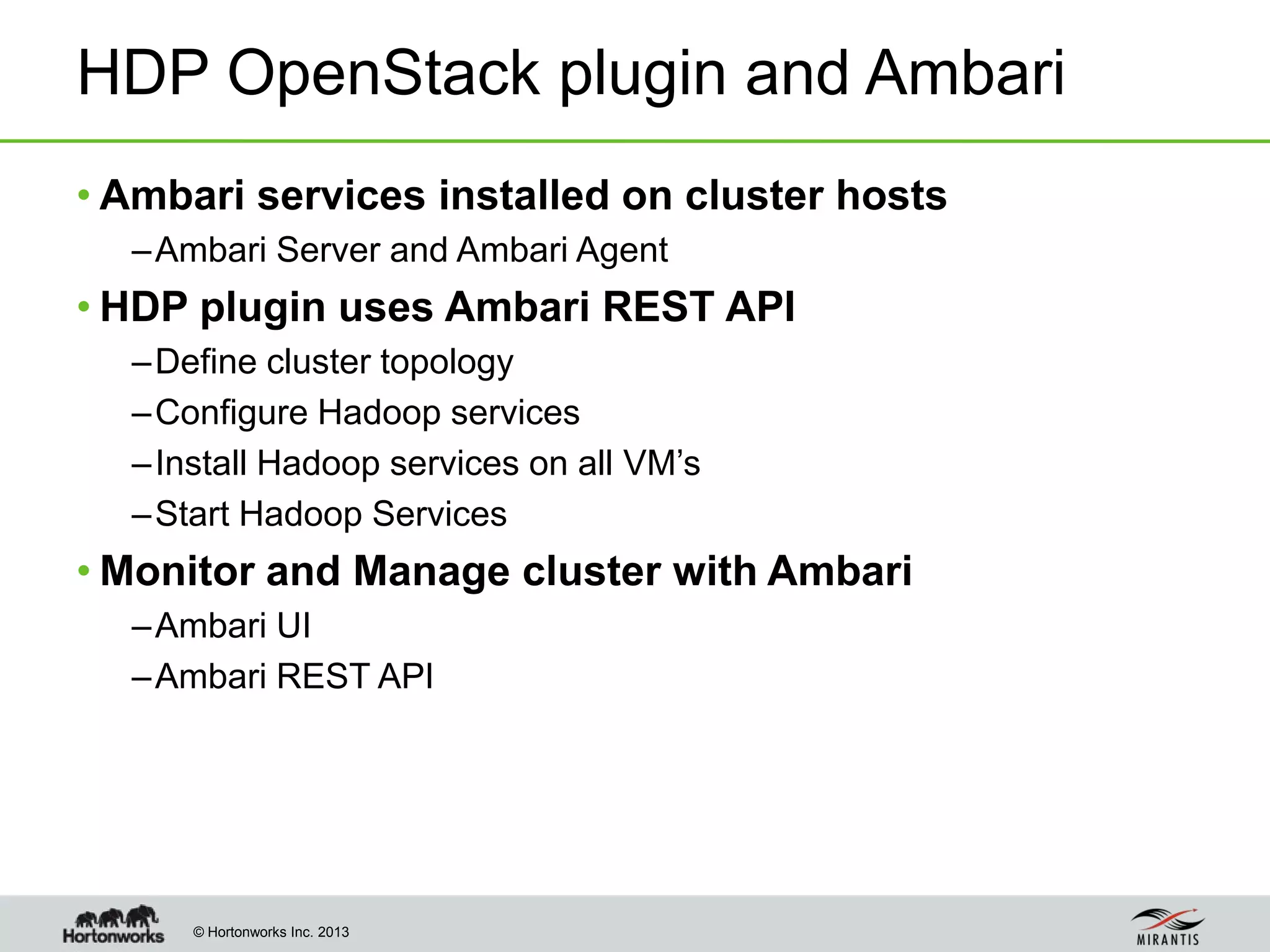

HDP OpenStack plugin and Ambari
• Ambari services installed on cluster hosts
–Ambari Server and Ambari Agent
• HDP plugin uses Ambari REST API
–Define cluster topology
–Configure Hadoop services
–Install Hadoop services on all VM’s
–Start Hadoop Services
• Monitor and Manage cluster with Ambari
–Ambari UI
–Ambari REST API

22. © Hortonworks Inc. 2013
Red Hat RDO
RDO is a freely-available, community supported
distribution of OpenStack, packaged and integrated for
Red Hat Enterprise Linux and its clones, and for Fedora
http://openstack.redhat.com

23. © Hortonworks Inc. 2013

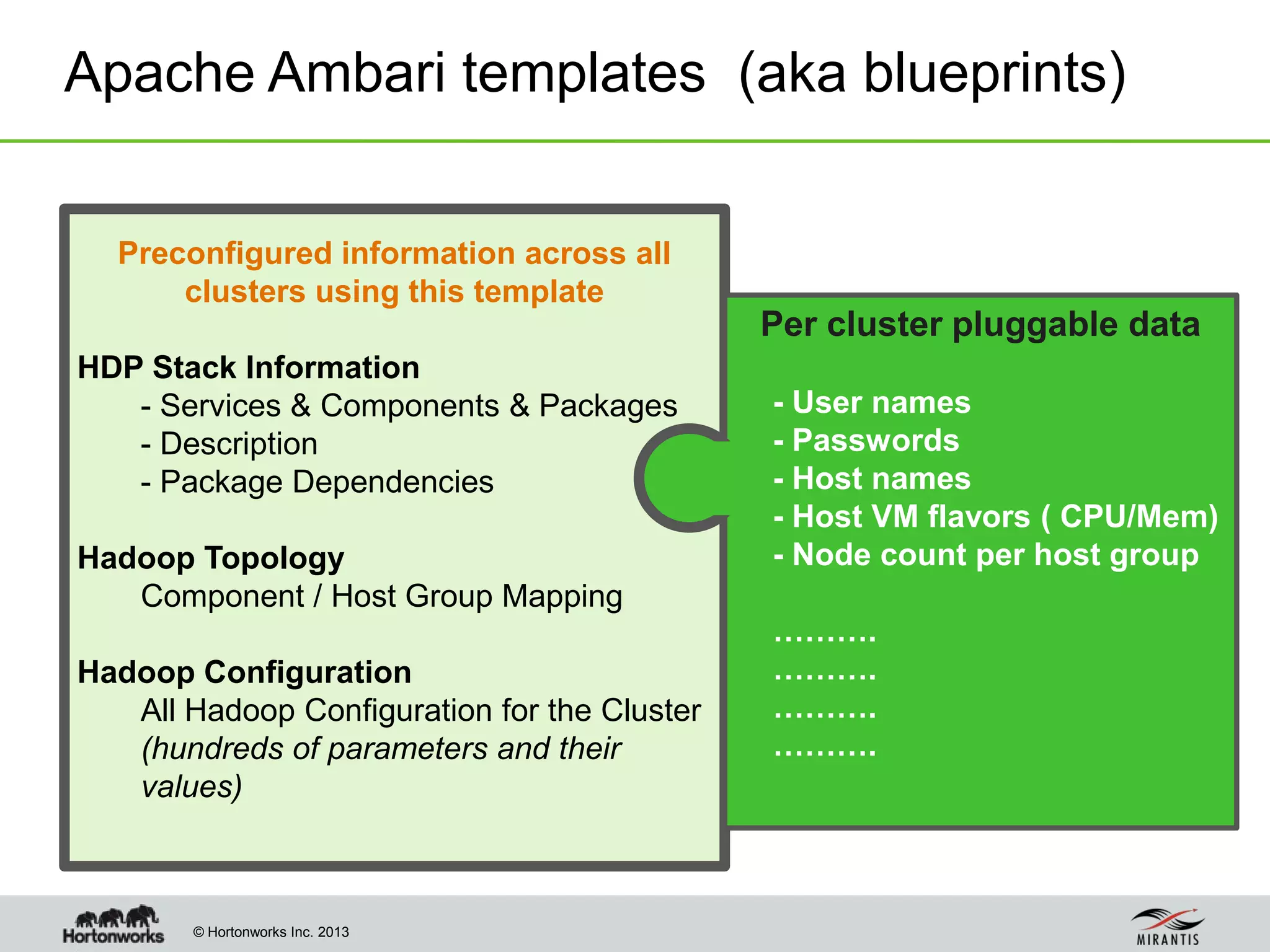

Apache Ambari templates (aka blueprints)
Preconfigured information across all
clusters using this template
HDP Stack Information
- Services & Components & Packages
- Description
- Package Dependencies
Hadoop Topology
Component / Host Group Mapping
Hadoop Configuration
All Hadoop Configuration for the Cluster
(hundreds of parameters and their
values)
Per cluster pluggable data
- User names
- Passwords
- Host names
- Host VM flavors ( CPU/Mem)
- Node count per host group
……….
……….
……….
……….

24. © Hortonworks Inc. 2013

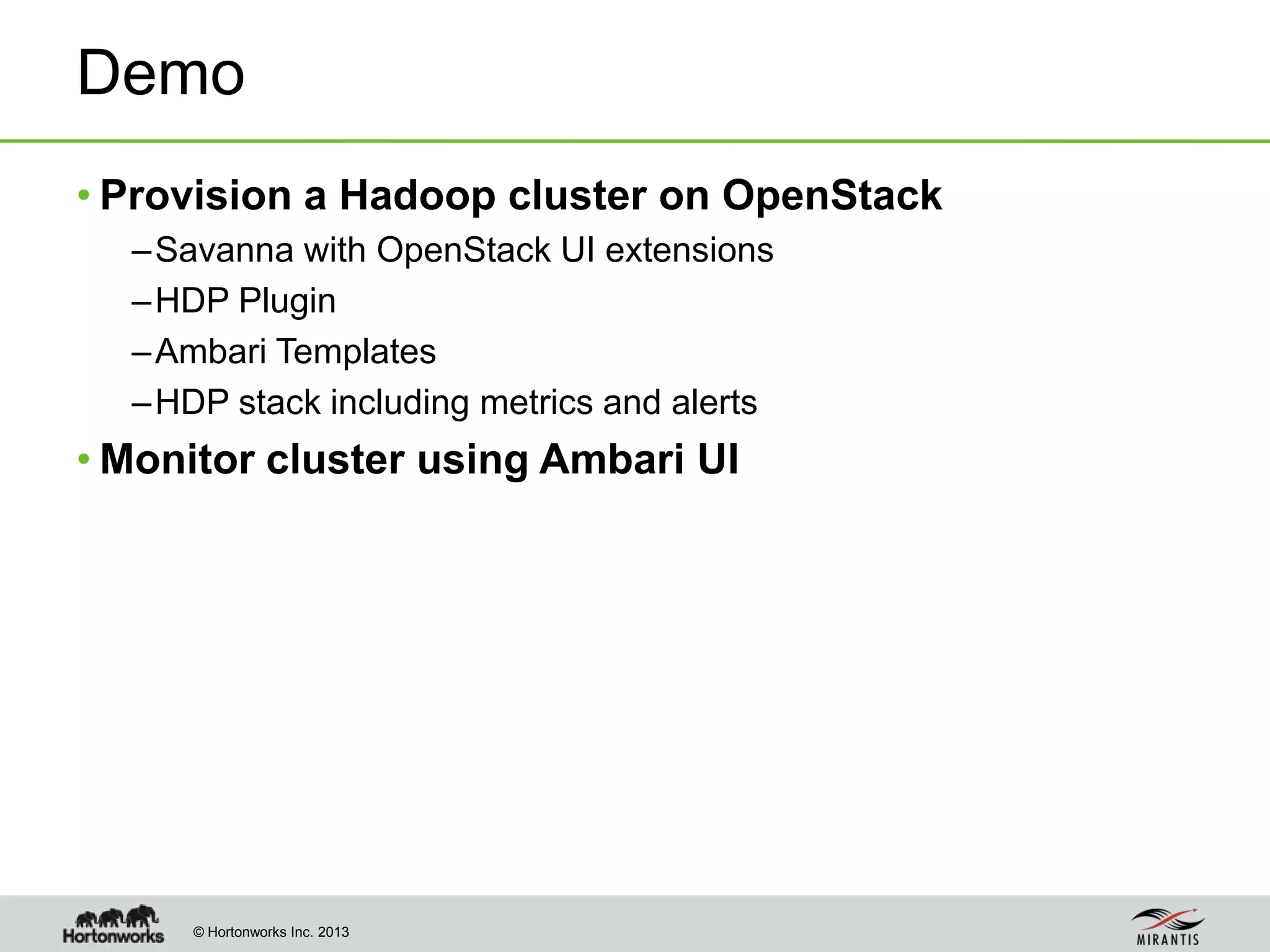

Demo
• Provision a Hadoop cluster on OpenStack
–Savanna with OpenStack UI extensions
–HDP Plugin
–Ambari Templates
–HDP stack including metrics and alerts
• Monitor cluster using Ambari UI

25. © Hortonworks Inc. 2013

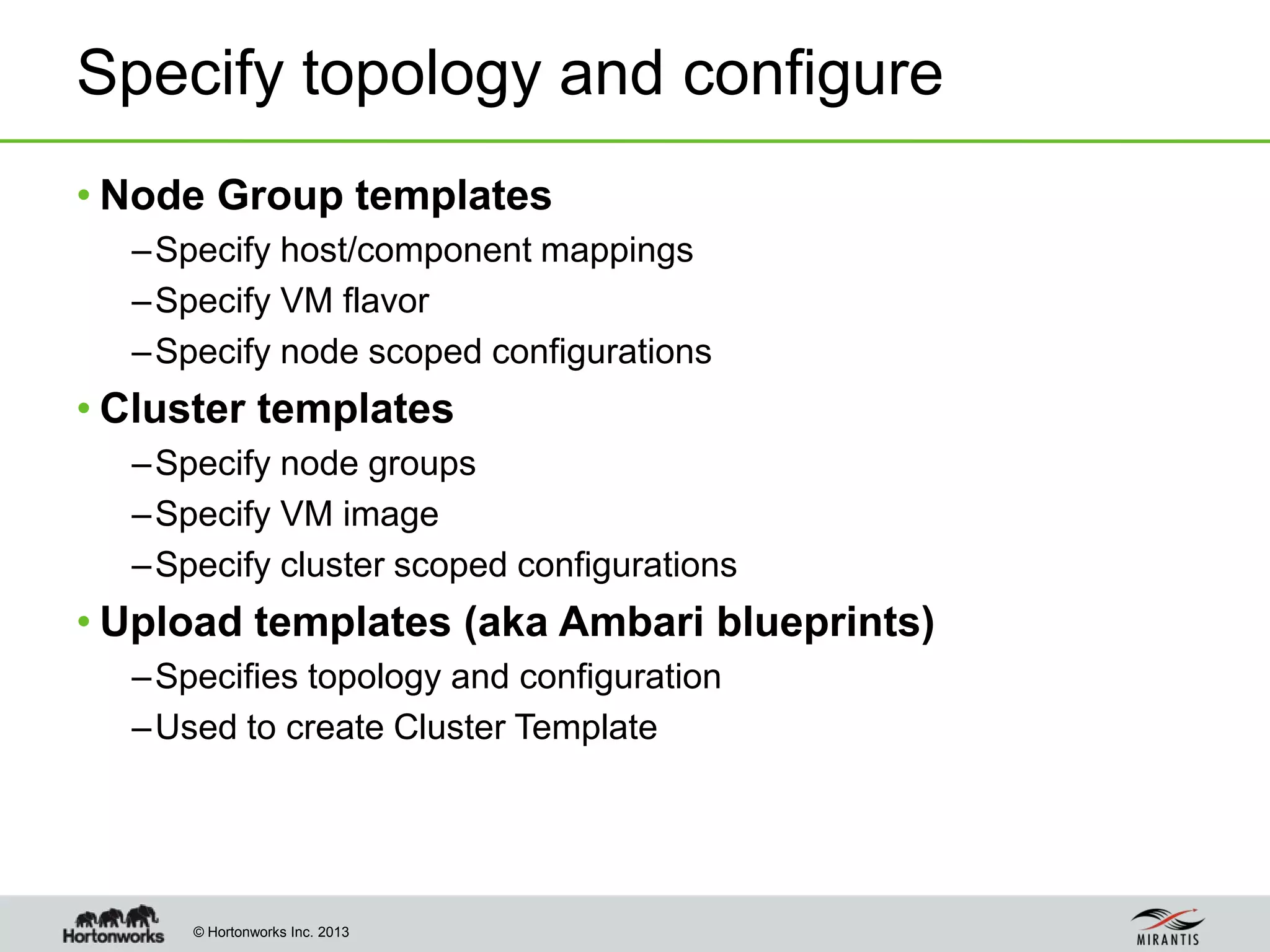

Specify topology and configure
• Node Group templates
–Specify host/component mappings
–Specify VM flavor
–Specify node scoped configurations
• Cluster templates
–Specify node groups
–Specify VM image
–Specify cluster scoped configurations
• Upload templates (aka Ambari blueprints)
–Specifies topology and configuration
–Used to create Cluster Template

26. © Hortonworks Inc. 2013

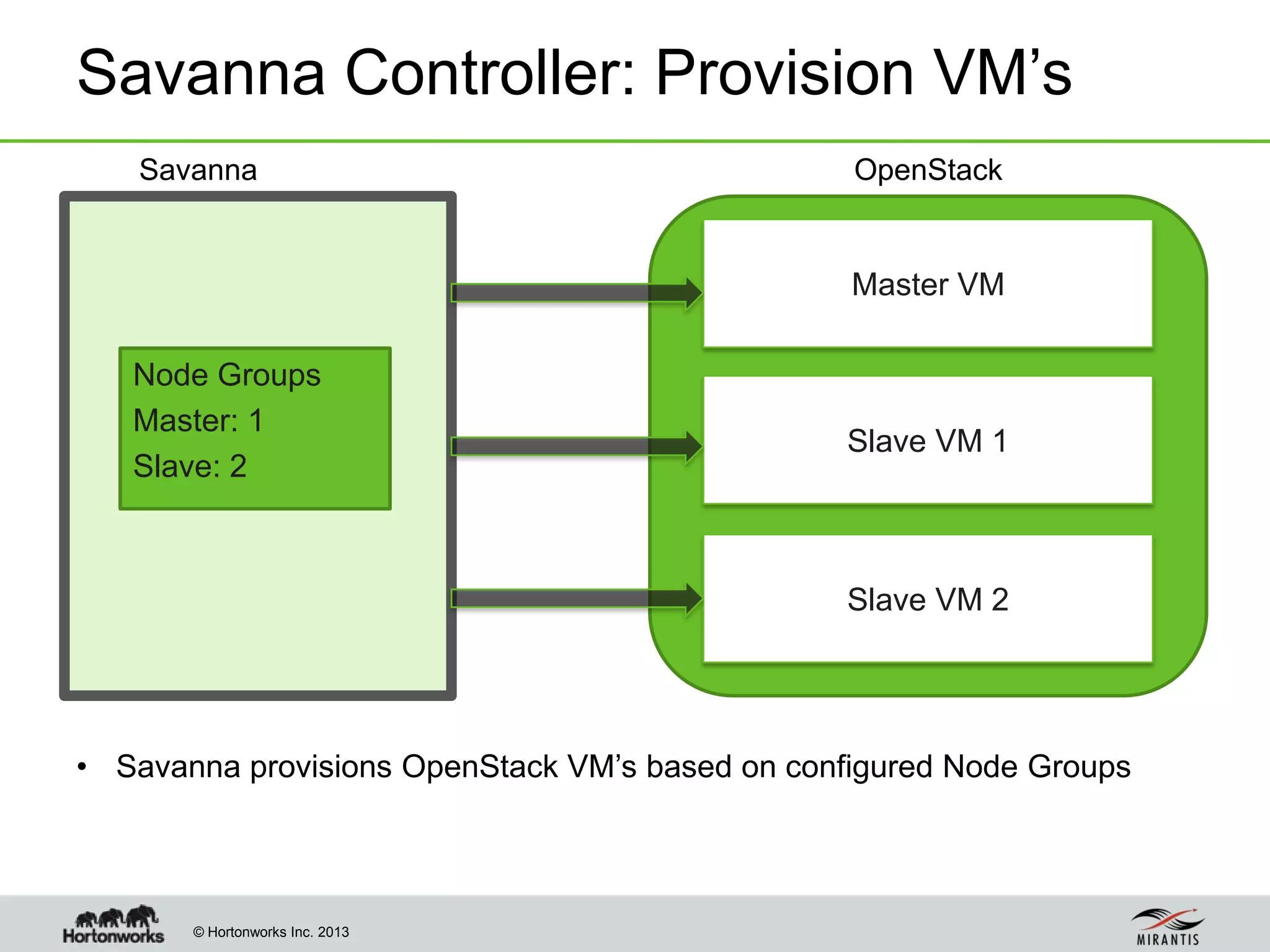

Savanna Controller: Provision VM’s
Master VM
Slave VM 1
Node Groups
Master: 1
Slave: 2
Slave VM 2
Savanna OpenStack
• Savanna provisions OpenStack VM’s based on configured Node Groups

27. © Hortonworks Inc. 2013

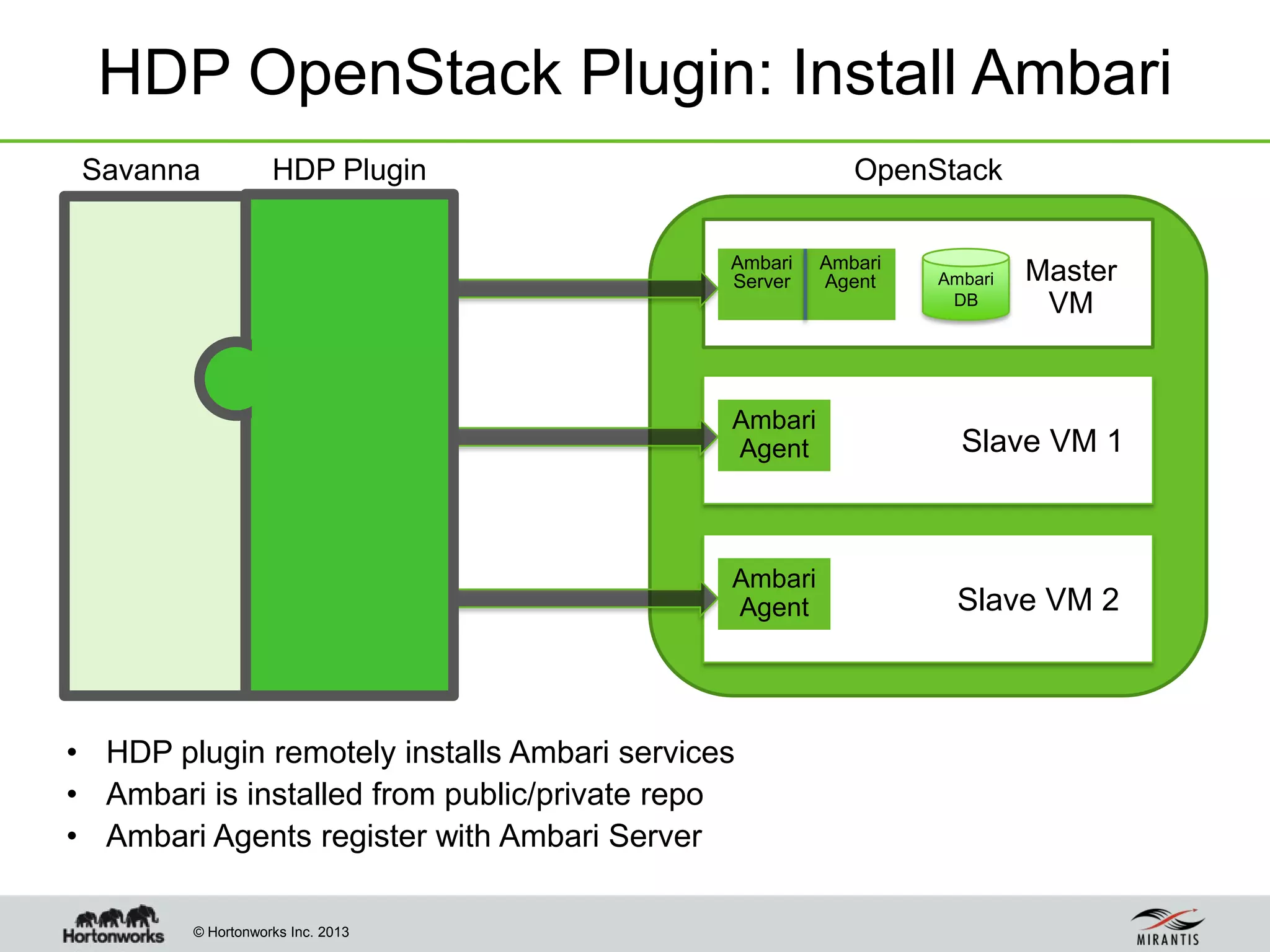

HDP OpenStack Plugin: Install Ambari
Slave VM 1
Slave VM 2
Savanna OpenStackHDP Plugin
Ambari
Server
Ambari
Agent
Ambari
Agent
• HDP plugin remotely installs Ambari services
• Ambari is installed from public/private repo
• Ambari Agents register with Ambari Server
Ambari
DB
Master
VM
Ambari
Agent

28. © Hortonworks Inc. 2013

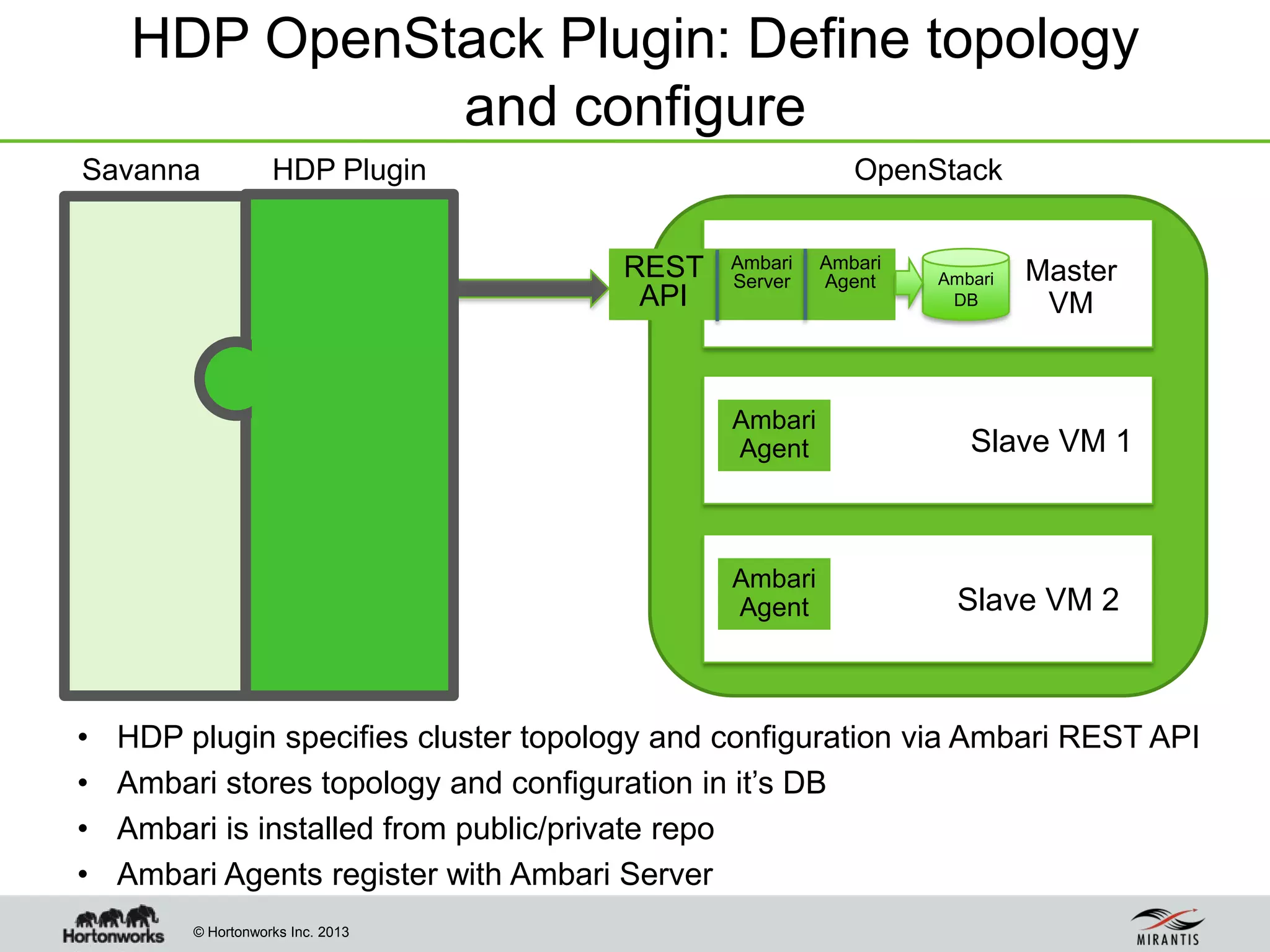

HDP OpenStack Plugin: Define topology
and configure
Savanna HDP Plugin
• HDP plugin specifies cluster topology and configuration via Ambari REST API
• Ambari stores topology and configuration in it’s DB
• Ambari is installed from public/private repo
• Ambari Agents register with Ambari Server
Slave VM 1
Slave VM 2
OpenStack
Ambari
Agent
Ambari
Agent
Ambari
Server Ambari
DB
Master
VM
Ambari
Agent
REST
API

29. © Hortonworks Inc. 2013

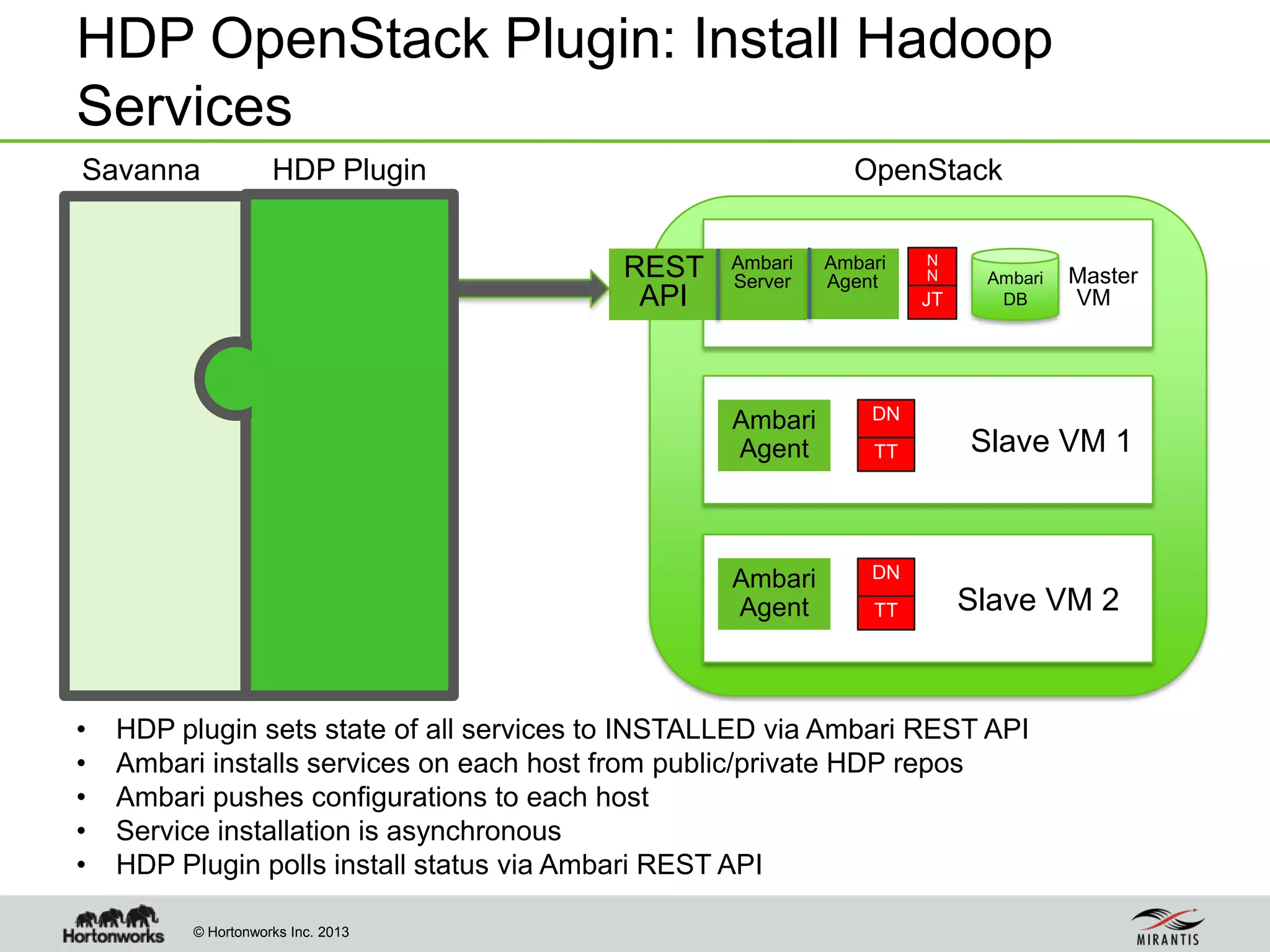

HDP OpenStack Plugin: Install Hadoop
Services
Savanna HDP Plugin
• HDP plugin sets state of all services to INSTALLED via Ambari REST API
• Ambari installs services on each host from public/private HDP repos
• Ambari pushes configurations to each host
• Service installation is asynchronous
• HDP Plugin polls install status via Ambari REST API
Slave VM 1
Slave VM 2
OpenStack
Ambari
Server
Ambari
Agent
Ambari
Agent
Ambari
DB
REST
API
DN
TT
DN
TT
N
N
JT
Master
VM
Ambari
Agent

30. © Hortonworks Inc. 2013

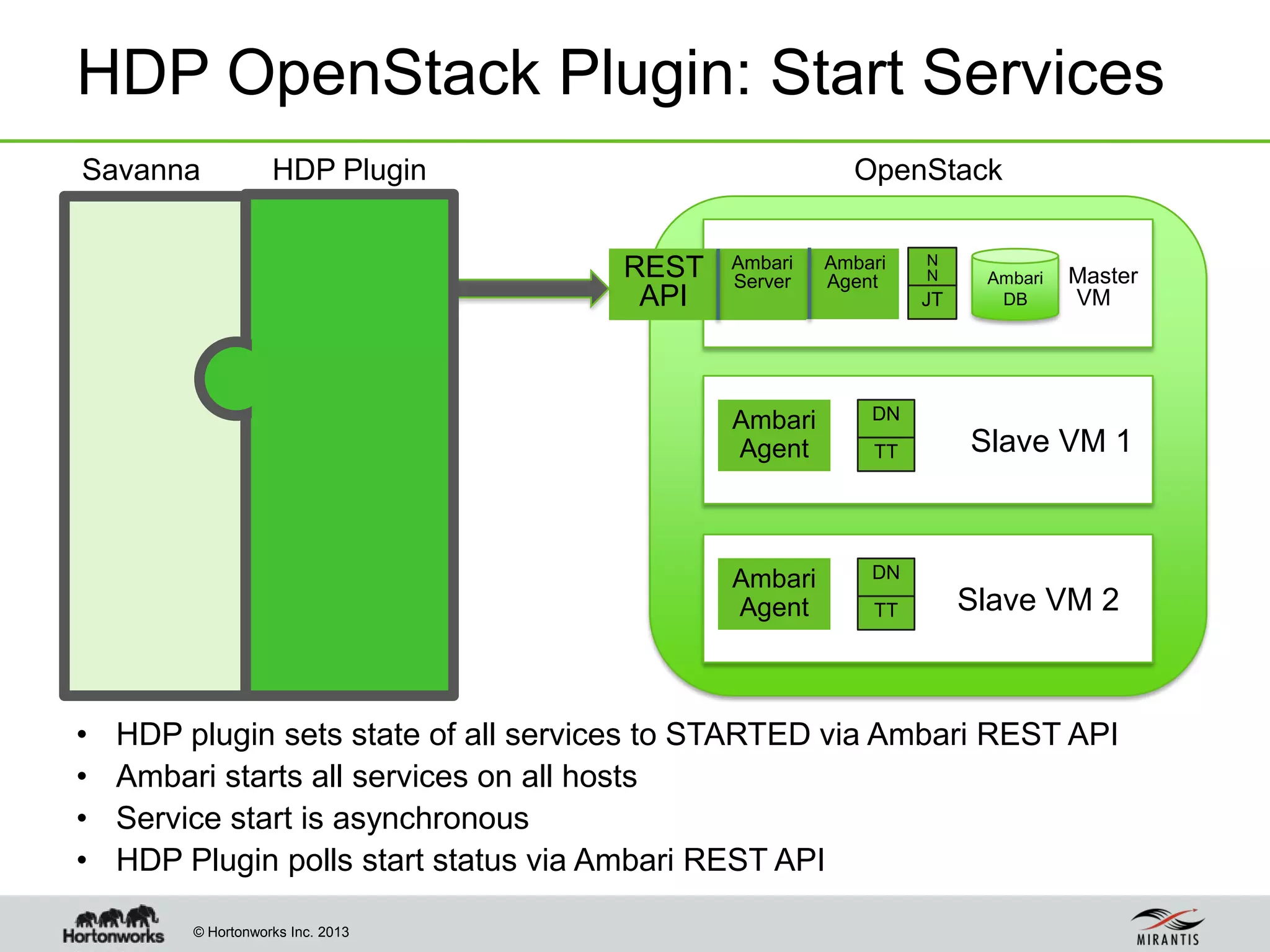

HDP OpenStack Plugin: Start Services
Savanna HDP Plugin
• HDP plugin sets state of all services to STARTED via Ambari REST API
• Ambari starts all services on all hosts
• Service start is asynchronous
• HDP Plugin polls start status via Ambari REST API
Slave VM 1
Slave VM 2
OpenStack
Ambari
Server
Ambari
Agent
Ambari
Agent
Ambari
DB
REST
API
Master
VM
Ambari
Agent
N
N
JT
DN
TT
DN
TT

31. © Hortonworks Inc. 2013

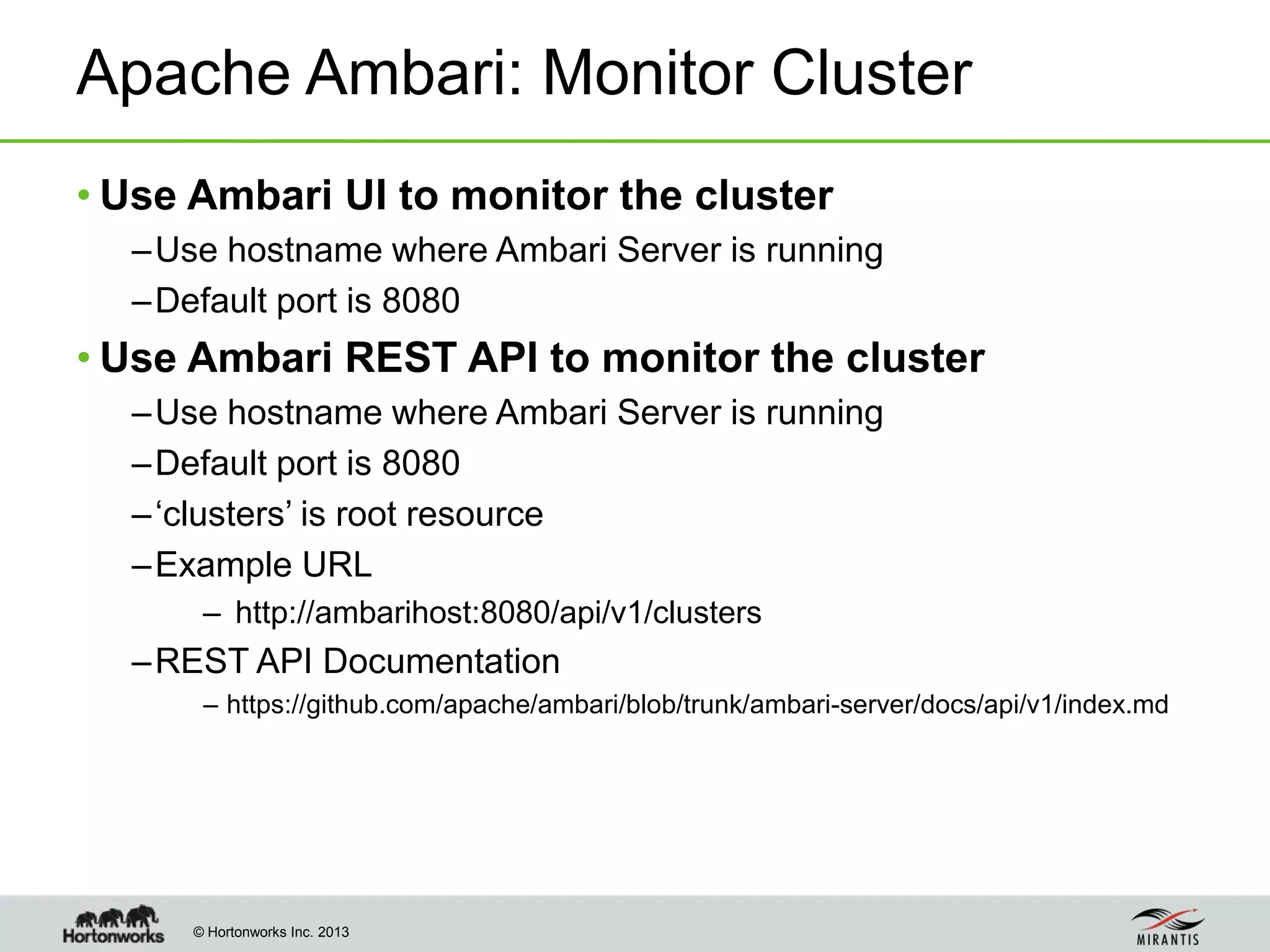

Apache Ambari: Monitor Cluster
• Use Ambari UI to monitor the cluster
–Use hostname where Ambari Server is running
–Default port is 8080
• Use Ambari REST API to monitor the cluster
–Use hostname where Ambari Server is running
–Default port is 8080
–‘clusters’ is root resource
–Example URL
– http://ambarihost:8080/api/v1/clusters
–REST API Documentation
– https://github.com/apache/ambari/blob/trunk/ambari-server/docs/api/v1/index.md

32. © Hortonworks Inc. 2013

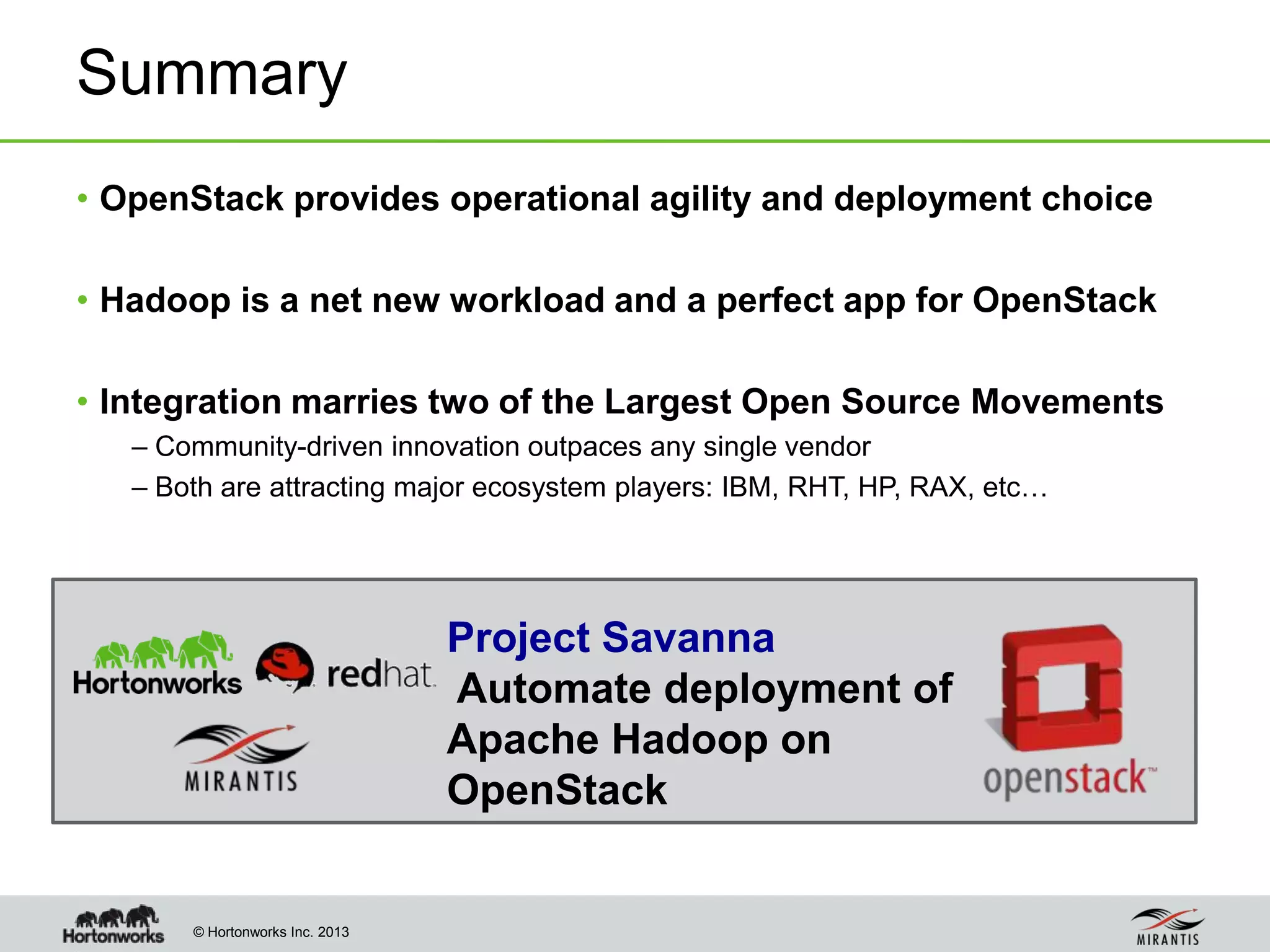

• OpenStack provides operational agility and deployment choice
• Hadoop is a net new workload and a perfect app for OpenStack
• Integration marries two of the Largest Open Source Movements
– Community-driven innovation outpaces any single vendor
– Both are attracting major ecosystem players: IBM, RHT, HP, RAX, etc…
Summary
Project Savanna
Automate deployment of
Apache Hadoop on
OpenStack

33. © Hortonworks Inc. 2013
Learn More & Get Involved!
Download Hortonworks Data Platform
www.hortonworks.com/download
Follow…
@hortonworks
Email questions to:
Project Savanna:
https://launchpad.net/Savanna
https://wiki.openstack.org/wiki/Savanna/HowToParticipate
hbari@hortonworks.com
ielterman@mirantis.com
