This document discusses Hortonworks' Ambari extensibility features of stacks and blueprints. Stacks define services and components and their lifecycles. Blueprints allow defining cluster layouts using stacks. The document provides examples of stack and service definitions as well as blueprint APIs and a single node blueprint definition. However, it notes that some features discussed may still be under development.

1. © Hortonworks Inc. 2014: DO NOT SHARE. CONTAINS HORTONWORKS CONFIDENTIAL & PROPRIETARY INFORMATION
Disclaimer
• This document may contain product features and technology directions
that are under development or may be under development in the future.
• Technical feasibility, market demand, user feedback, and the Apache
Software Foundation community development process can all affect
timing and final delivery.
• This document’s description of these features and technology
directions does not represent a contractual commitment from
Hortonworks to deliver these features in any generally available
product.
• Product features and technology directions are subject to change, and
must not be included in contracts, purchase orders, or sales
agreements of any kind.
1

2. © Hortonworks Inc. 2014: DO NOT SHARE. CONTAINS HORTONWORKS CONFIDENTIAL & PROPRIETARY INFORMATION
Ambari Extensibility
Blueprints + Stacks
May 2014
Page 2

3. © Hortonworks Inc. 2014: DO NOT SHARE. CONTAINS HORTONWORKS CONFIDENTIAL & PROPRIETARY INFORMATION

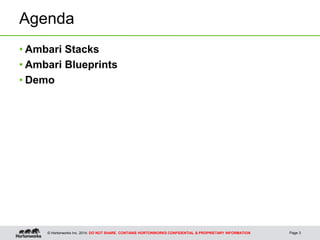

Agenda
• Ambari Stacks
• Ambari Blueprints
• Demo
Page 3

4. © Hortonworks Inc. 2014: DO NOT SHARE. CONTAINS HORTONWORKS CONFIDENTIAL & PROPRIETARY INFORMATION
Ambari Stacks
Page 4

5. © Hortonworks Inc. 2014: DO NOT SHARE. CONTAINS HORTONWORKS CONFIDENTIAL & PROPRIETARY INFORMATION
Ambari Stacks
• Separates “Stack” from “Ambari”
• Makes it easier to bring more than a traditional
“Hadoop Stack” under Ambari management
• Define a consistent Service lifecycle management
interface that can be dynamically extended
Page 5

6. © Hortonworks Inc. 2014: DO NOT SHARE. CONTAINS HORTONWORKS CONFIDENTIAL & PROPRIETARY INFORMATION

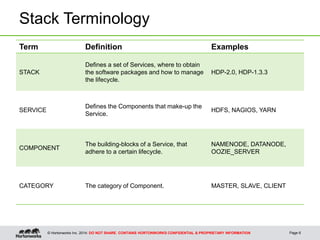

Stack Terminology
Page 6
Term Definition Examples
STACK
Defines a set of Services, where to obtain
the software packages and how to manage
the lifecycle.
HDP-2.0, HDP-1.3.3
SERVICE
Defines the Components that make-up the
Service.
HDFS, NAGIOS, YARN
COMPONENT
The building-blocks of a Service, that
adhere to a certain lifecycle.
NAMENODE, DATANODE,
OOZIE_SERVER
CATEGORY The category of Component. MASTER, SLAVE, CLIENT

7. © Hortonworks Inc. 2014: DO NOT SHARE. CONTAINS HORTONWORKS CONFIDENTIAL & PROPRIETARY INFORMATION
Stack Mechanics
• Stacks define Services + Repos
–What is in the Stack, and where to get the bits
• Each Service has a definition
–What Components are part of the Service
• Each Service has defined lifecycle commands
–start, stop, status, install, configure
• Lifecycle is controlled via command scripts
• Ability to define “custom” commands
Page 7
AMBARI
SERVER
Stack
Command
Scripts
Service
Definitions
AMBARI
AGENT/S
AMBARI
AGENT/S
AMBARI
AGENT/S
pythonxml
Repos

8. © Hortonworks Inc. 2014: DO NOT SHARE. CONTAINS HORTONWORKS CONFIDENTIAL & PROPRIETARY INFORMATION
Ambari Blueprints
Tech Preview
Page 8

9. © Hortonworks Inc. 2014: DO NOT SHARE. CONTAINS HORTONWORKS CONFIDENTIAL & PROPRIETARY INFORMATION

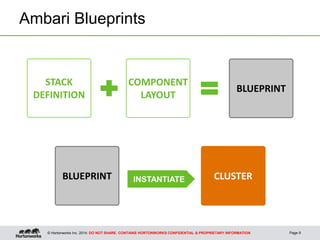

Ambari Blueprints
Page 9
STACK
DEFINITION
COMPONENT
LAYOUT
BLUEPRINT
BLUEPRINT INSTANTIATE CLUSTER

10. © Hortonworks Inc. 2014: DO NOT SHARE. CONTAINS HORTONWORKS CONFIDENTIAL & PROPRIETARY INFORMATION

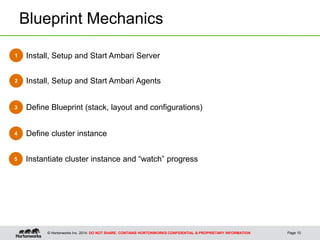

Blueprint Mechanics
Page 10
Install, Setup and Start Ambari Server1
Install, Setup and Start Ambari Agents2
Define Blueprint (stack, layout and configurations)3
Define cluster instance4
Instantiate cluster instance and “watch” progress5

11. © Hortonworks Inc. 2014: DO NOT SHARE. CONTAINS HORTONWORKS CONFIDENTIAL & PROPRIETARY INFORMATION
Key API Calls
• GET /blueprints
• POST /blueprints/{name}
• POST /clusters/{name}
• GET /clusters/{name}?format=blueprint
Page 11

12. © Hortonworks Inc. 2014: DO NOT SHARE. CONTAINS HORTONWORKS CONFIDENTIAL & PROPRIETARY INFORMATION
Blueprint API
Page 12
BLUEPRINT
POST /blueprints/my-blueprint
CLUSTER
INSTANCE POST /clusters/MyCluster
1
2

13. © Hortonworks Inc. 2014: DO NOT SHARE. CONTAINS HORTONWORKS CONFIDENTIAL & PROPRIETARY INFORMATION
Example: Single-Node Definitions
Page 13
{
"configurations" : [
{
”hdfs-site" : {
"dfs.namenode.name.dir" : ”/hadoop/nn"
}
}
],
"host_groups" : [
{
"name" : ”uber-host",
"components" : [
{ "name" : "NAMENODE” },
{ "name" : "SECONDARY_NAMENODE” },
{ "name" : "DATANODE” },
{ "name" : "HDFS_CLIENT” },
{ "name" : "RESOURCEMANAGER” },
{ "name" : "NODEMANAGER” },
{ "name" : "YARN_CLIENT” },
{ "name" : "HISTORYSERVER” },
{ "name" : "MAPREDUCE2_CLIENT” }
],
"cardinality" : "1"
}
],
"Blueprints" : {
"blueprint_name" : "single-node-hdfs-yarn",
"stack_name" : "HDP",
"stack_version" : "2.0"
}
}
{
"blueprint" : "single-node-hdfs-yarn",
"host_groups" :[
{
"name" : ”uber-host",
"hosts" : [
{
"fqdn" : "c6401.ambari.apache.org”
}
]
}
]
}
BLUEPRINT
CLUSTER INSTANCE
Description
• Single-node cluster
• Use HDP 2.0 Stack
• HDFS + YARN + MR2
• Everything on c6401

14. © Hortonworks Inc. 2014: DO NOT SHARE. CONTAINS HORTONWORKS CONFIDENTIAL & PROPRIETARY INFORMATION
Status of Blueprints
• Basics covered here:
https://cwiki.apache.org/confluence/display/AMBARI/Blueprints
• “GA” with Ambari 1.6.0
Page 14
