1. Mike Fowler, PGConf.EU 2017-10-26, Warsaw, Poland
Elephants in the Cloud

2. ●
Senior Site Reliability Engineer in the Public Cloud
Practice of claranet
●
Background in Software Engineering, Systems
Engineering, System & Database Administration
●
Been using PostgreSQL since 7.4
●
Contributed to YAWL, PostgreSQL & Terraform open
source projects
– XMLEXISTS/xpath_exists()
– xml_is_well_formed()
●
Regular speaker at PGDay UK
About Me

3. ●
Hosted PostgreSQL
●
Overview of public cloud hosting options
●
Database migration strategies
Overview

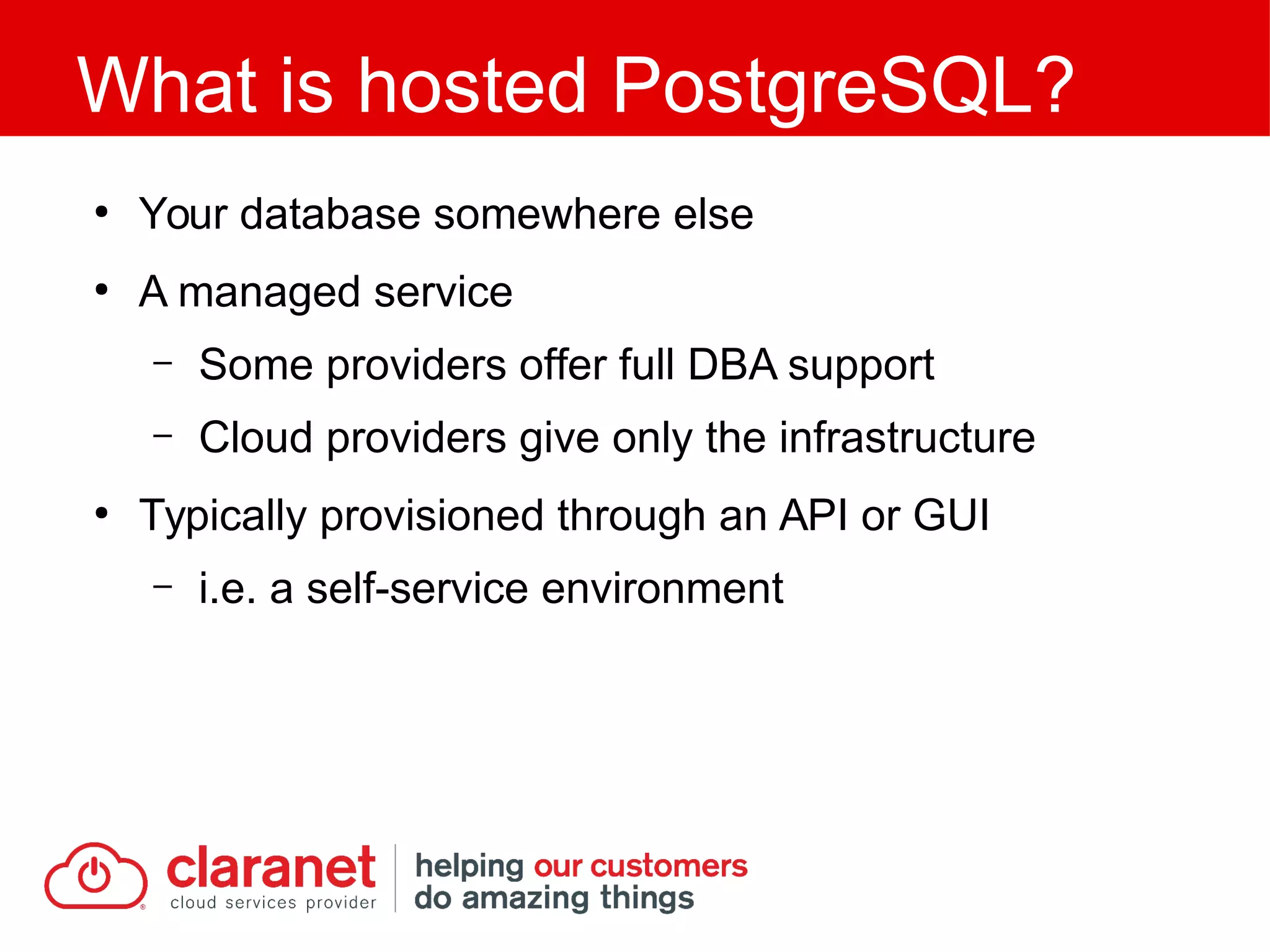

4. ●
Your database somewhere else
●
A managed service
– Some providers offer full DBA support
– Cloud providers give only the infrastructure
●
Typically provisioned through an API or GUI
– i.e. a self-service environment
What is hosted PostgreSQL?

5. ●
Reduces adoption costs
●
Installation & configuration is already done
– Generally sane defaults, some tuning often required
●
Needn’t worry about physical servers
●
Opex instead of Capex
●
Most routine DBA tasks are done for you
●
Easier to grow
Benefits of Hosted PostgreSQL

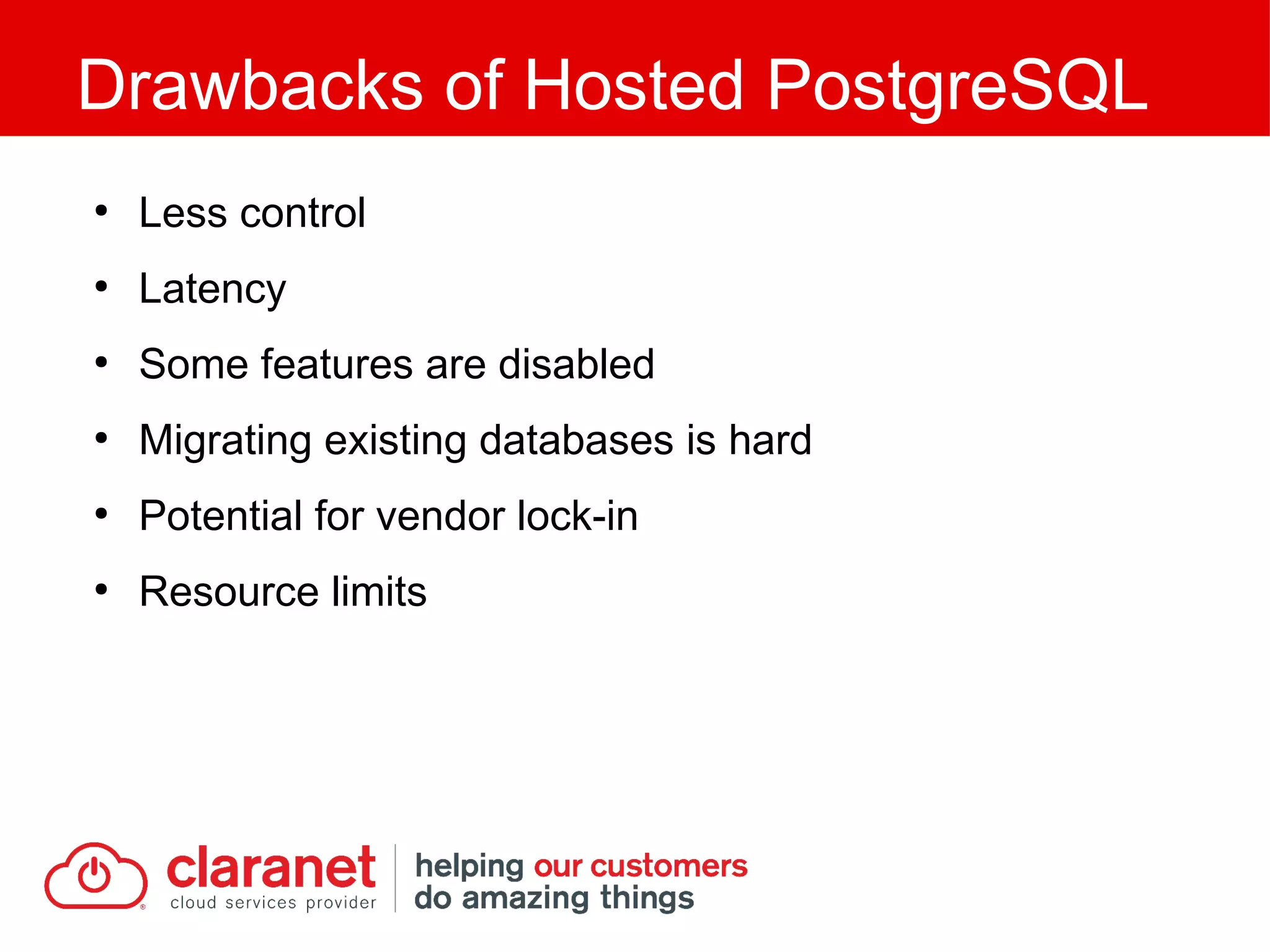

6. ●
Less control
●
Latency
●
Some features are disabled
●
Migrating existing databases is hard
●
Potential for vendor lock-in
●
Resource limits
Drawbacks of Hosted PostgreSQL

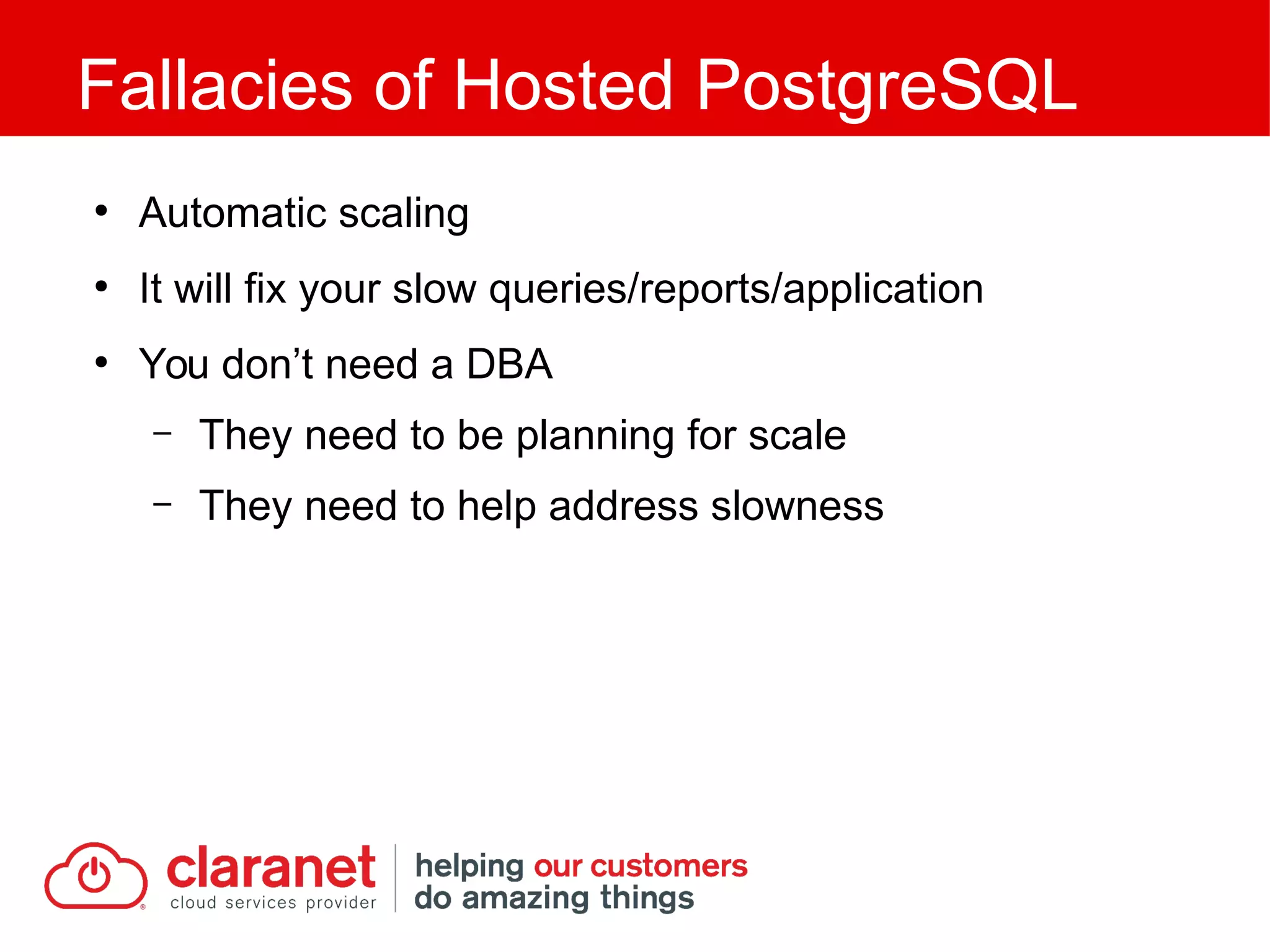

7. ●
Automatic scaling
●
It will fix your slow queries/reports/application
●
You don’t need a DBA
– They need to be planning for scale
– They need to help address slowness
Fallacies of Hosted PostgreSQL

8. ●
We’ll look only at Public Cloud offerings
●
Current major offerings
– Amazon Relation Database Service (RDS)
– Amazon Aurora
– Heroku
●
Future major offerings
– Google Cloud SQL
– Microsoft Azure
Hosting Options

9. ●
PostgreSQL 9.3.12 – 9.6.3 supported
●
Numerous instance types
– Costs range from $0.018 to $7.96 per hour
– Select from 1 vCPU up to 64 vCPUs, all 64-bit
– Memory ranges from 1GB to 488GB
●
Flexible storage options
– Choose between SSD or Provisioned IOPS
– Up to 6TB with up to 30,000 IOPS
Amazon RDS

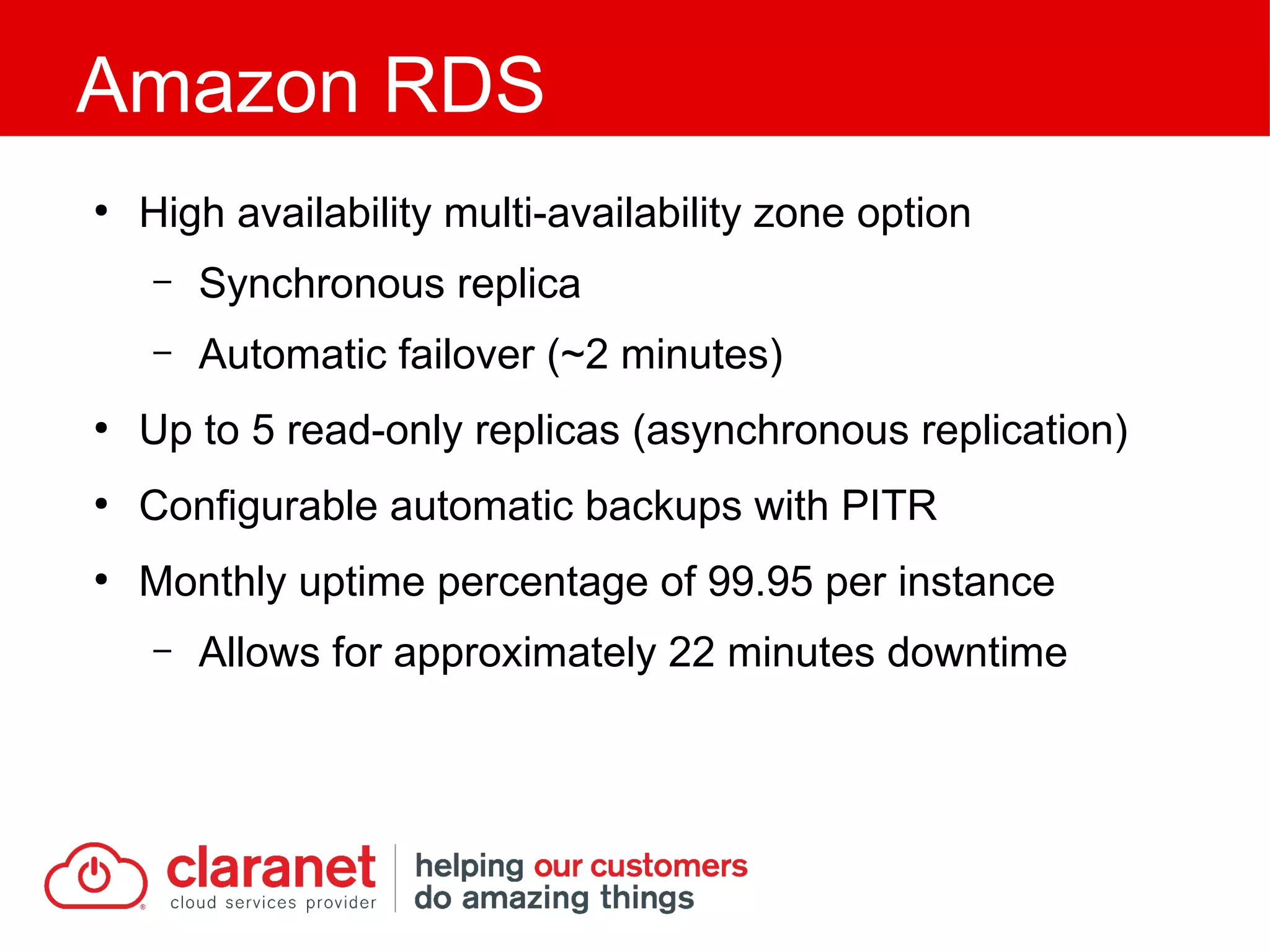

10. ●
High availability multi-availability zone option
– Synchronous replica
– Automatic failover (~2 minutes)
●
Up to 5 read-only replicas (asynchronous replication)
●
Configurable automatic backups with PITR
●
Monthly uptime percentage of 99.95 per instance
– Allows for approximately 22 minutes downtime
Amazon RDS

11. ●
Became generally available yesterday (2017-10-25)
●
Currently available in 3 US regions and Ireland
●
6 instance types costing from $0.29 to $9.28 per hour
●
Compatible with PostgreSQL 9.6
●
Up to 2x throughput of conventional PostgreSQL
●
Up to 16 read replicas with sub-10ms replica lag
●
Auto-growing filesystem up to 64TB
– Filesystem is shared between 3 availability zones
Amazon Aurora

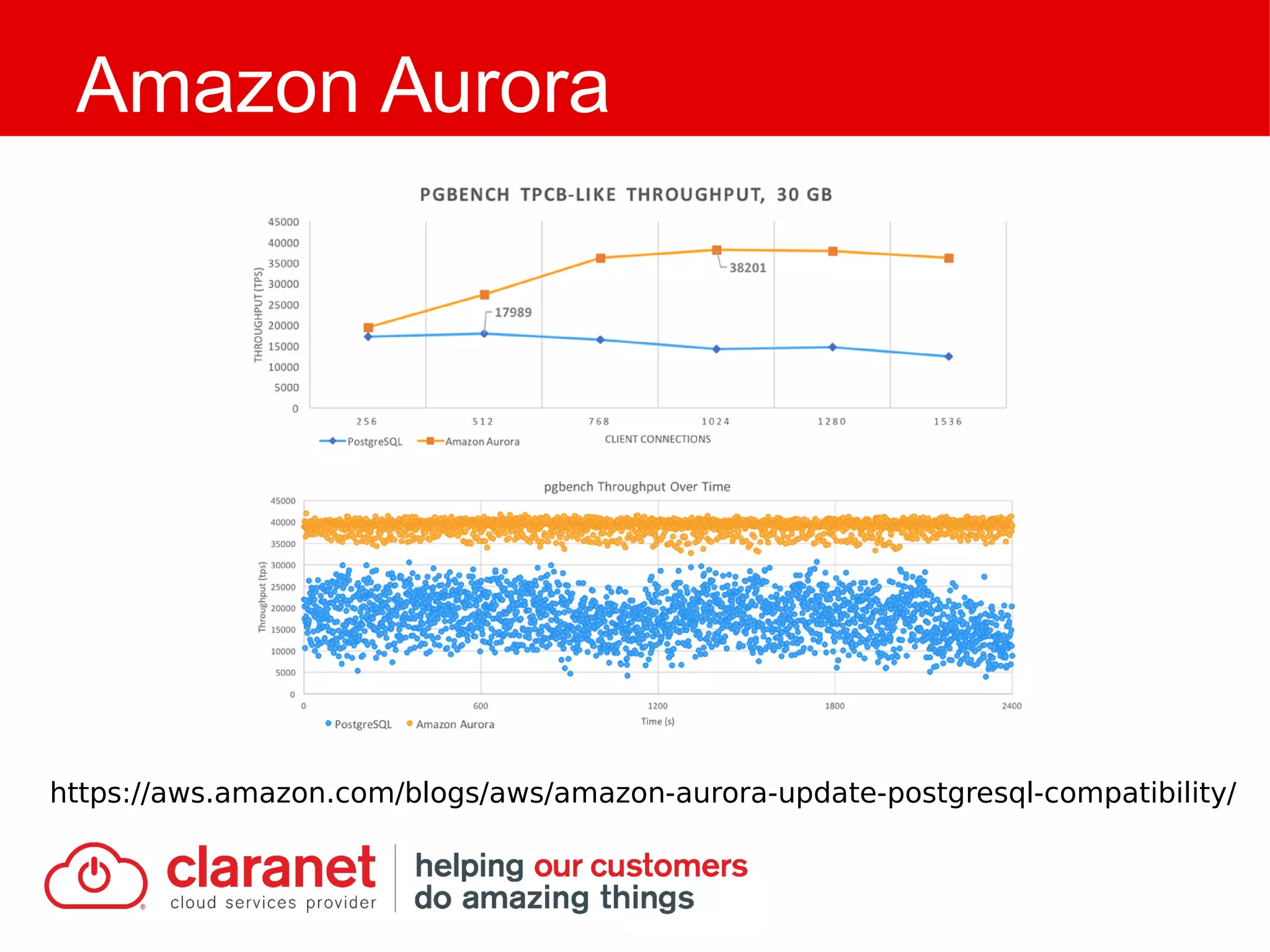

12. Amazon Aurora
https://aws.amazon.com/blogs/aws/amazon-aurora-update-postgresql-compatibility/

13. ●
Supports PostgreSQL 9.3, 9.4, 9.5 & 9.6 (10 in beta)
●
Simpler pricing based on choice of tier ($0-8.5k pcm)
●
Tier dictates resource limits
– Maximum number of rows (Hobby only)
– Cache size (1GB - 240GB)
– Storage limit (64GB - 1TB)
– Connection limit (120 - 500)
– Rollback (4 days – 1 week)
Heroku

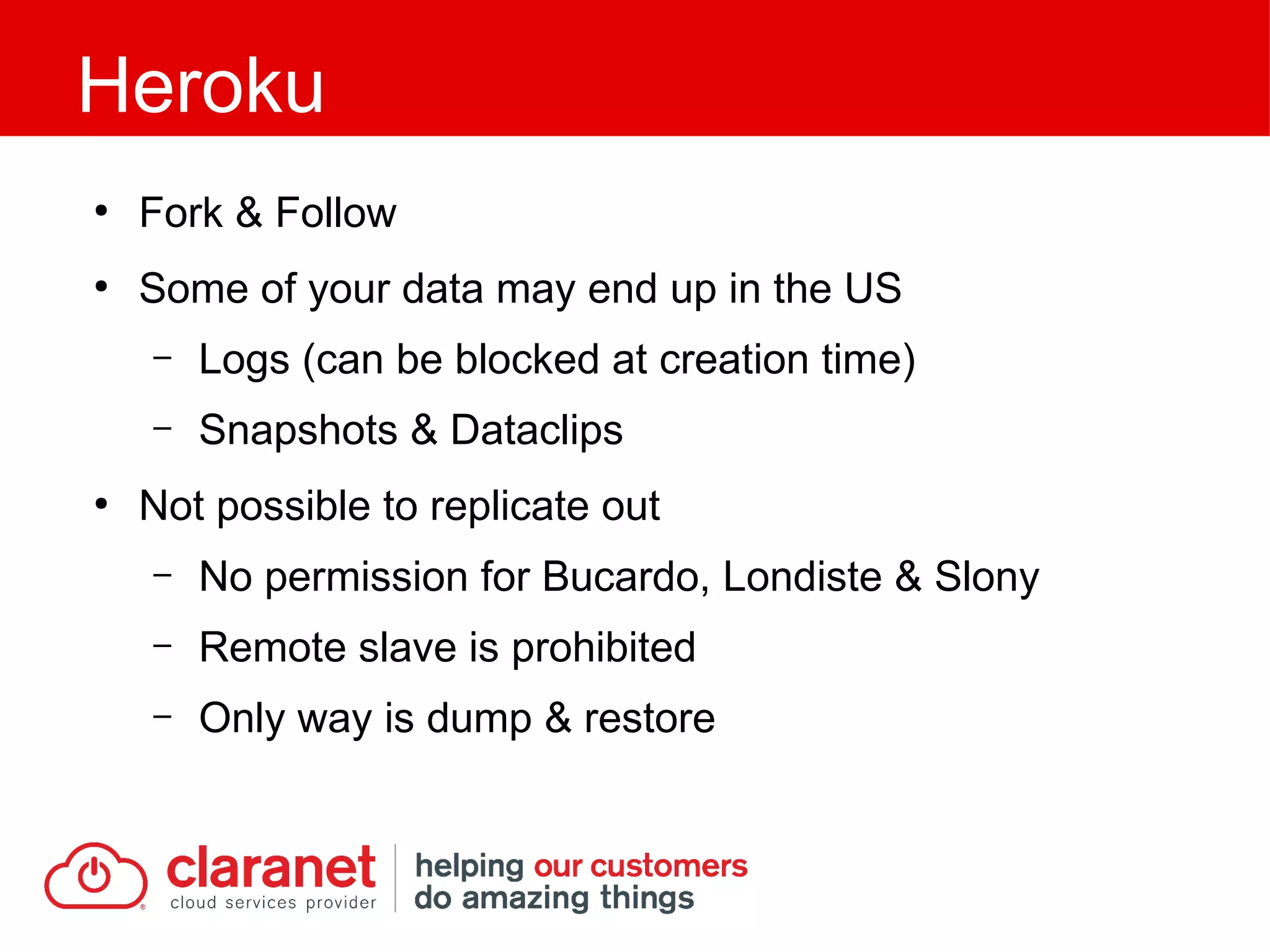

14. ●
Fork & Follow
●
Some of your data may end up in the US
– Logs (can be blocked at creation time)
– Snapshots & Dataclips
●
Not possible to replicate out
– No permission for Bucardo, Londiste & Slony
– Remote slave is prohibited
– Only way is dump & restore
Heroku

15. ●
Currently in Beta (no SLA)
●
Only supports PostgreSQL 9.6
●
No replication support
●
Posed to be a serious rival to RDS
– Billing per minute
– Automatic scaling of filesystem
– Similar variety of instance types
Google Cloud SQL

16. ●
Currently in preview (no SLA)
●
Supports PostgreSQL 9.5 & 9.6
●
Replication is seamless
– Automated failover
– PITR
●
Selectable compute units
– Roughly equates to maximum connections
Microsoft Azure

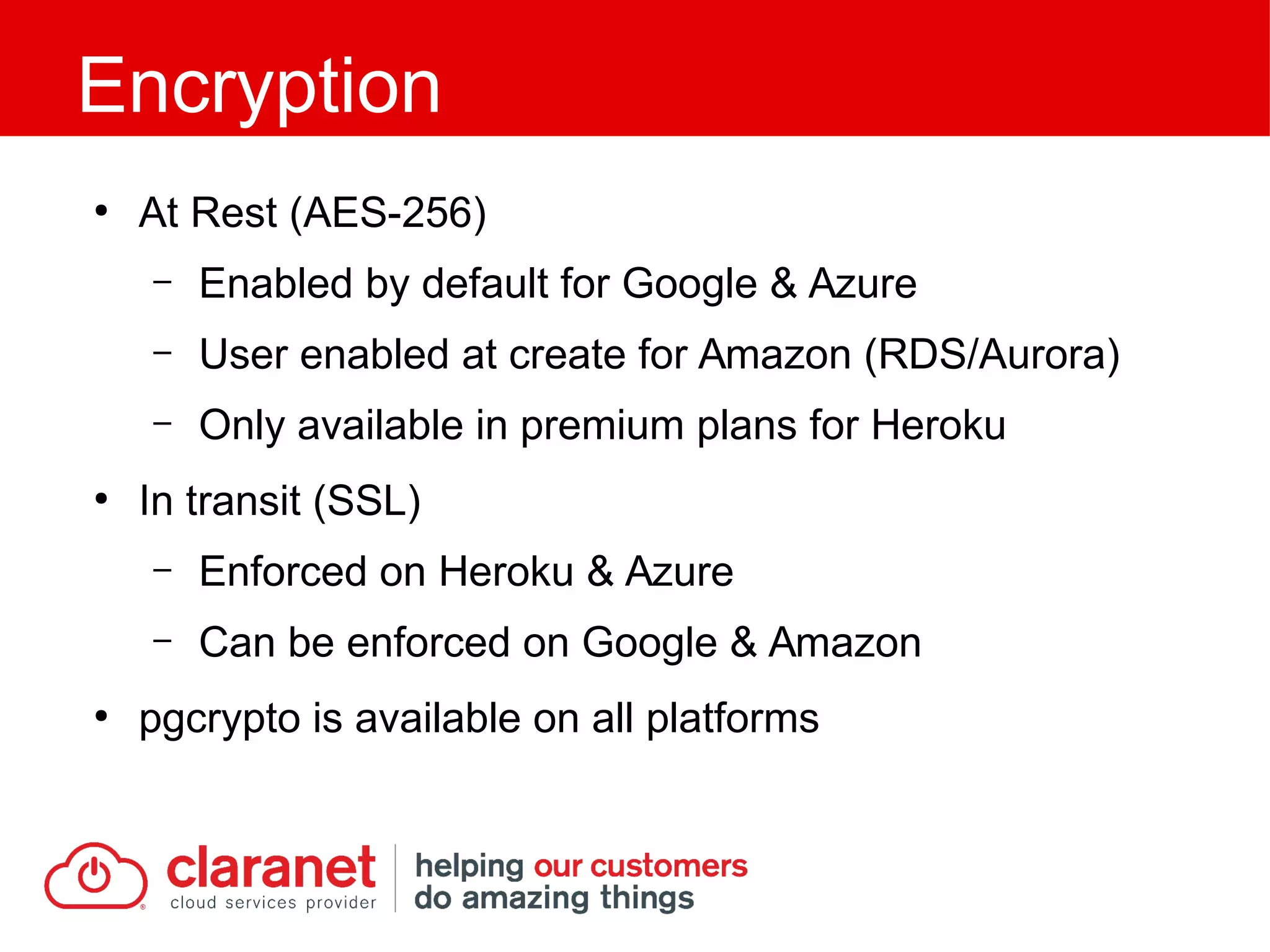

17. ●
At Rest (AES-256)
– Enabled by default for Google & Azure
– User enabled at create for Amazon (RDS/Aurora)
– Only available in premium plans for Heroku
●
In transit (SSL)
– Enforced on Heroku & Azure
– Can be enforced on Google & Amazon
●
pgcrypto is available on all platforms
Encryption

18. ●
Providers dictate the availability of extensions
– Well documented except for Aurora
●
Only step required is to run CREATE EXTENSION
●
Many extensions are widely available
– pgcrypto
– PostGIS
– pg_stat_statements
– hstore
– plpgsql
Extensions

19. ●
Dump & Restore
●
Replication failover
●
Amazon’s Database Migration Service
●
PITR + Logical decoding
Migration Strategies

20. ●
Simplest strategy
– Perceived as low risk for data loss
– Less “moving parts”
●
Just a pg_dump & pg_restore
●
Downtime is function of database size
Dump & Restore

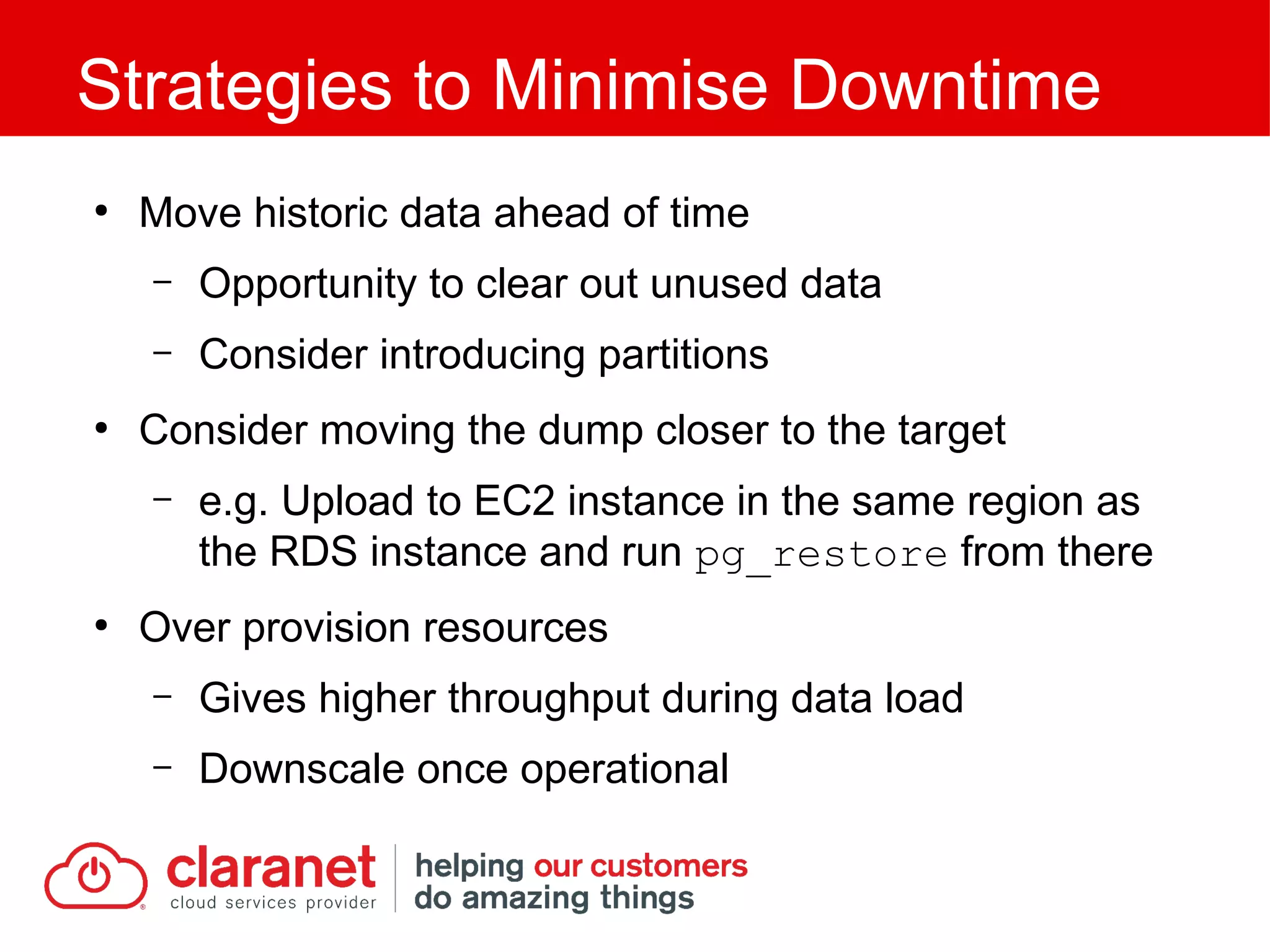

21. ●
Move historic data ahead of time
– Opportunity to clear out unused data
– Consider introducing partitions
●
Consider moving the dump closer to the target
– e.g. Upload to EC2 instance in the same region as
the RDS instance and run pg_restore from there
●
Over provision resources
– Gives higher throughput during data load
– Downscale once operational
Strategies to Minimise Downtime

22. ●
No one supports external masters!
●
Trigger based replication failover
– Slony, Londiste & Bucardo
●
Can be used on most any version of PostgreSQL
●
Some restrictions apply
– DDL is not supported
– Rows must be uniquely identifiable
Replication Failover

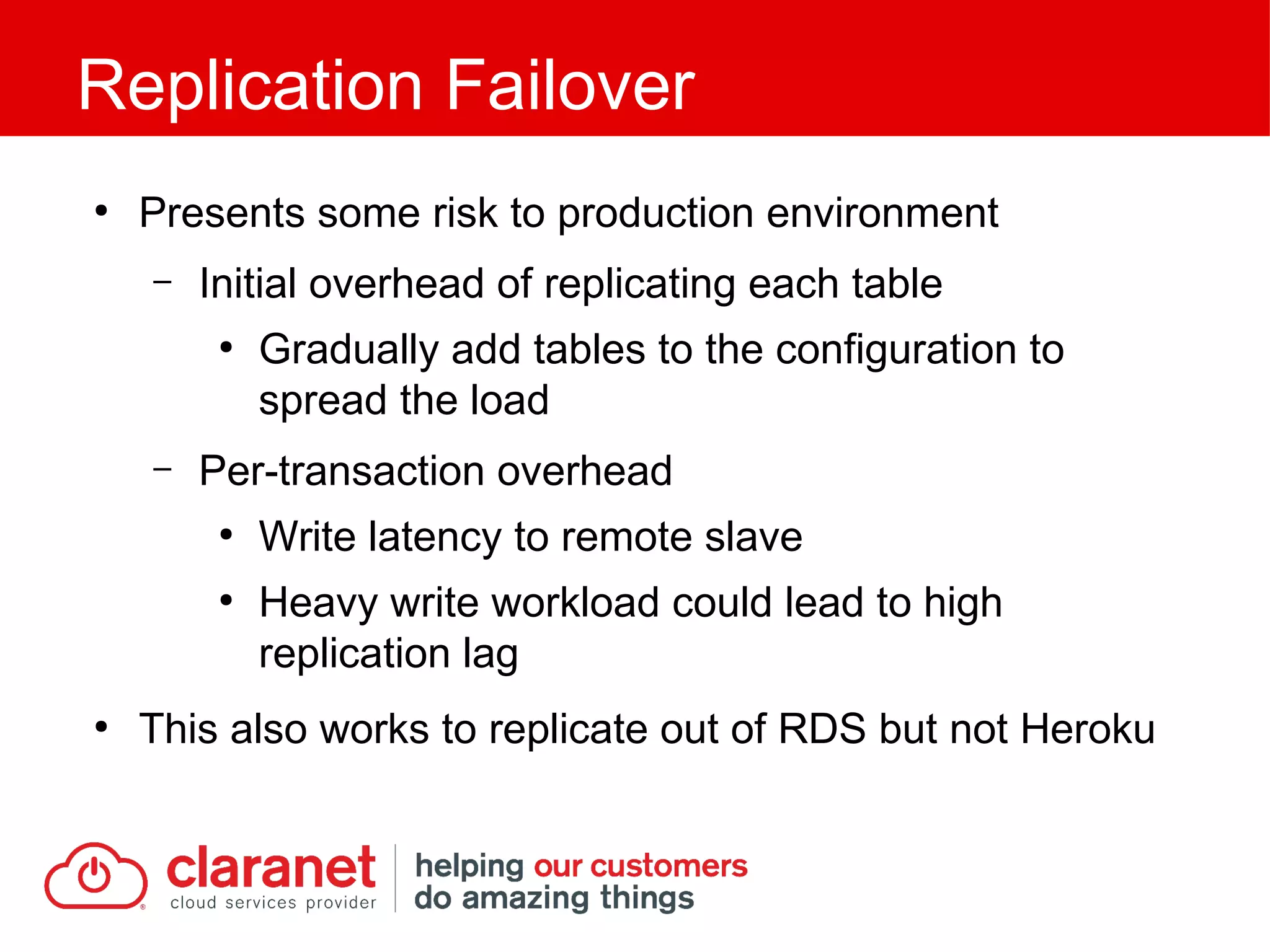

23. ●
Presents some risk to production environment
– Initial overhead of replicating each table
●
Gradually add tables to the configuration to
spread the load
– Per-transaction overhead
●
Write latency to remote slave
●
Heavy write workload could lead to high
replication lag
●
This also works to replicate out of RDS but not Heroku
Replication Failover

24. ●
Web service supporting migration to/from AWS
– Can be RDS or an EC2 instance
– External DB can be anywhere
●
Perform a one time load or continual load
– Change Data Capture
●
“Supports” heterogeneous migrations
– Oracle, MySQL, SQL Server, MongoDB
– Schema Conversion Tool exists to assist
AWS Database Migration Service

25. ●
PostgreSQL as a source database
– User only needs to see all data
●
PostgreSQL as a streaming source database
– Tables must have a primary key
– Requires 9.4 with wal_level = logical
– Must have room for a new replication slot
– User must be a SUPERUSER
AWS Database Migration Service

26. ●
PostgreSQL as a target database
– Import your schema using pg_dump
– session_replication_role needs to be set to
replica
– Set target table preparation mode to DO_NOTHING
●
There are drawbacks of using DMS
– Replication lag
– Process is fiddly
AWS Database Migration Service

27. ●
Most involved approach, least downtime
●
Combines point-in-time recovery with the changes
captured by logical decoding to create a replica
●
Need to be running at least PostgreSQL 9.4 with WAL
level logical and have WAL archiving configured
●
DDL not supported, still need unique rows
●
Recommend barman for managing WAL
http://www.pgbarman.org/
●
Recommend decoder_raw as logical decoding plugin
github.com/michaelpq/pg_plugins/tree/master/decoder_raw
PITR & Logical decoding

28. 1. Create a logical replication slot
SELECT * FROM
pg_create_logical_replication_slot
('logical_slot', 'decoder_raw');
2. Note the transaction ID (catalog_xmin)
SELECT catalog_xmin FROM
pg_replication_slots WHERE slot_name =
‘logical_slot’;
PITR & Logical decoding

29. 3. Perform a barman backup
$ barman backup master
4. Perform a barman PITR
$ barman recover –target-xid
(catalog_xmin - 1) master latest
5. Start database and verify correct recovery
PITR & Logical decoding

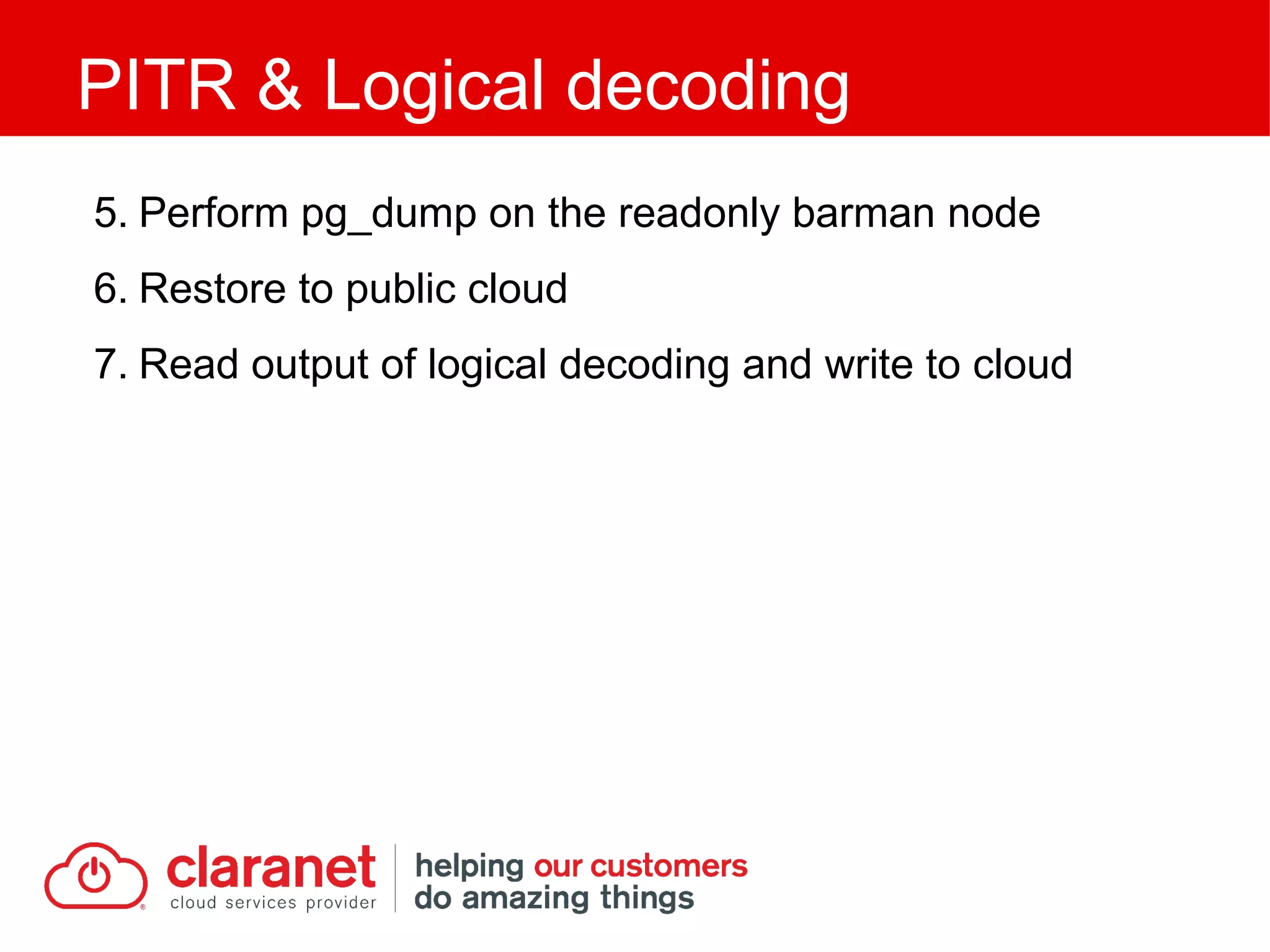

30. 5. Perform pg_dump on the readonly barman node
6. Restore to public cloud
7. Read output of logical decoding and write to cloud
PITR & Logical decoding

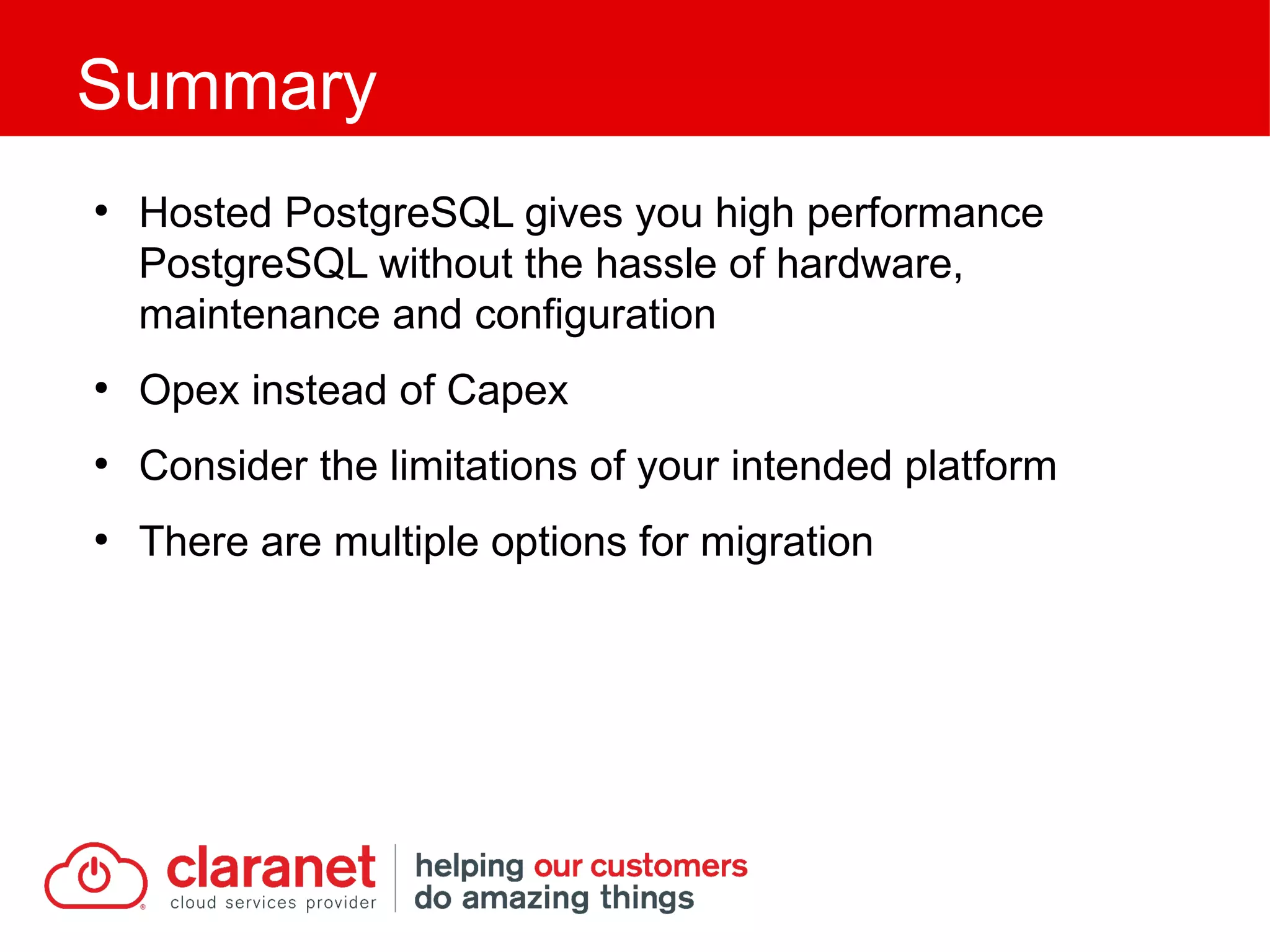

31. ●
Hosted PostgreSQL gives you high performance
PostgreSQL without the hassle of hardware,
maintenance and configuration
●
Opex instead of Capex
●
Consider the limitations of your intended platform
●
There are multiple options for migration
Summary

32. Questions?
Please remember to leave feedback about my talk, other
talks and the conference in general at
https://2017.pgconf.eu/f
Mike Fowler
gh-mlfowler
mlfowler
mike dot fowler at claranet dot uk
