Elastic SQL Database: Oxymoron or Emerging Reality? (Database Month, June 2017)

Ariff Kassam, VP of Products – akassam@nuodb.com
Christina Wong, Dir. of Product Marketing – cwong@nuodb.com
ELASTIC SQL: FROM OXYMORON
TO EMERGING REALITY
June 23, 2017

Copyright © 2017 NuoDB

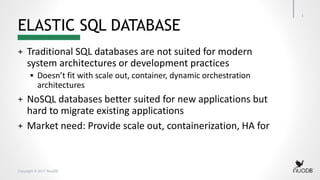

ELASTIC SQL DATABASE
+ Traditional SQL databases are not suited for modern
system architectures or development practices
 Doesn’t fit with scale out, container, dynamic orchestration
architectures
+ NoSQL databases better suited for new applications but
hard to migrate existing applications
+ Market need: Provide scale out, containerization, HA for
1

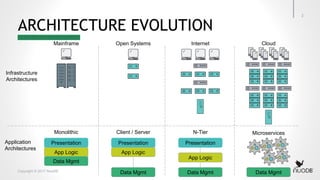

ARCHITECTURE EVOLUTION
Mainframe
Presentation
App Logic
Data Mgmt
Monolithic
Open Systems
Presentation
App Logic
Data Mgmt
Client / Server
Presentation
App Logic
Data Mgmt
N-Tier
Internet Cloud
Microservices
Data Mgmt
Infrastructure
Architectures
Application
Architectures
2

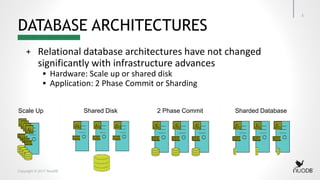

DATABASE ARCHITECTURES
+ Relational database architectures have not changed
significantly with infrastructure advances
 Hardware: Scale up or shared disk
 Application: 2 Phase Commit or Sharding
3
Scale Up Shared Disk 2 Phase Commit Sharded Database

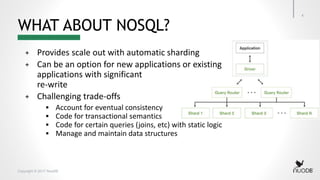

WHAT ABOUT NOSQL?
+ Provides scale out with automatic sharding
+ Can be an option for new applications or existing
applications with significant
re-write
+ Challenging trade-offs
 Account for eventual consistency
 Code for transactional semantics
 Code for certain queries (joins, etc) with static logic
 Manage and maintain data structures
4

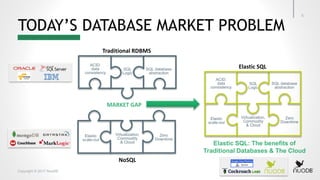

TODAY’S DATABASE MARKET PROBLEM
Elastic SQL
Elastic SQL: The benefits of
Traditional Databases & The Cloud
SQL
Logic
ACID:
data
consistency
Zero
Downtime
Elastic
scale-out
SQL database
abstraction
Virtualization,
Commodity
& Cloud
Traditional RDBMS
NoSQL
MARKET GAP
SQL
Logic
ACID:
data
consistency
SQL database
abstraction
Zero
Downtime
Elastic
scale-out
Virtualization,
Commodity
& Cloud
5

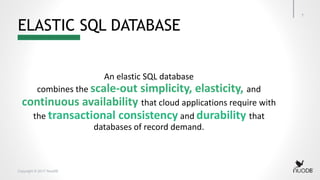

ELASTIC SQL DATABASE
An elastic SQL database
combines the scale-out simplicity, elasticity, and
continuous availability that cloud applications require with
the transactional consistency and durability that
databases of record demand.
7

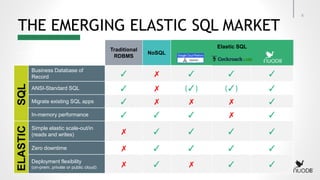

THE EMERGING ELASTIC SQL MARKET
Traditional
RDBMS
NoSQL
Elastic SQL
Business Database of
Record ✓ ✗ ✓ ✓ ✓
ANSI-Standard SQL ✓ ✗ (✓) (✓) ✓
Migrate existing SQL apps ✓ ✗ ✗ ✗ ✓
In-memory performance ✓ ✓ ✓ ✗ ✓
Simple elastic scale-out/in
(reads and writes) ✗ ✓ ✓ ✓ ✓
Zero downtime ✗ ✓ ✓ ✓ ✓
Deployment flexibility
(on-prem, private or public cloud) ✗ ✓ ✗ ✓ ✓
SQLELASTIC
8

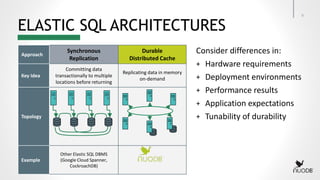

ELASTIC SQL ARCHITECTURES
Consider differences in:
+ Hardware requirements
+ Deployment environments
+ Performance results
+ Application expectations
+ Tunability of durability
Approach
Synchronous
Replication
Durable
Distributed Cache
Key Idea
Committing data
transactionally to multiple
locations before returning
Replicating data in memory
on-demand
Topology
Example
Other Elastic SQL DBMS
(Google Cloud Spanner,
CockroachDB)
9

WHAT DOES THIS MEAN…
+ For the business
 Easy migration to cloud
 Continuous application availability
 Reduced licensing, hardware, and operational costs
+ For the architect
 NoSQL scale out for SQL applications
 No need to re-architect existing applications
 Less complexity data management environments
+ For the developer
 Reuse SQL skills
 Focus on new features development versus data management logic
10

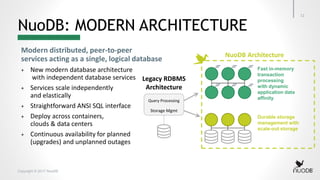

NuoDB: MODERN ARCHITECTURE
Fast in-memory
transaction
processing
with dynamic
application data
affinity
Durable storage
management with
scale-out storage
NuoDB Architecture
Legacy RDBMS
Architecture
Storage Mgmt
Query Processing
Modern distributed, peer-to-peer
services acting as a single, logical database
+ New modern database architecture
with independent database services
+ Services scale independently
and elastically
+ Straightforward ANSI SQL interface
+ Deploy across containers,
clouds & data centers
+ Continuous availability for planned
(upgrades) and unplanned outages
11

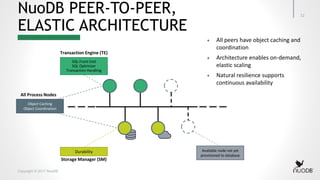

NuoDB PEER-TO-PEER,
ELASTIC ARCHITECTURE
Durability
SQL Front End
SQL Optimizer
Transaction Handling
Object Caching
Object Coordination
Transaction Engine (TE)
Storage Manager (SM)
All Process Nodes
Available node not yet
provisioned to database
+ All peers have object caching and
coordination
+ Architecture enables on-demand,
elastic scaling
+ Natural resilience supports
continuous availability
12

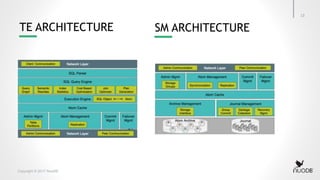

SM ARCHITECTURETE ARCHITECTURE
13

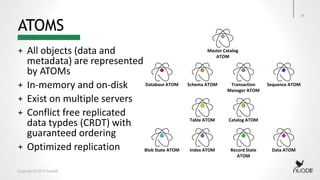

ATOMS
+ All objects (data and
metadata) are represented
by ATOMs
+ In-memory and on-disk
+ Exist on multiple servers
+ Conflict free replicated
data typdes (CRDT) with
guaranteed ordering
+ Optimized replication
Table ATOM Catalog ATOM
Master Catalog
ATOM
Database ATOM Schema ATOM Sequence ATOMTransaction
Manager ATOM
Index ATOMBlob State ATOM Record State
ATOM
Data ATOM
14

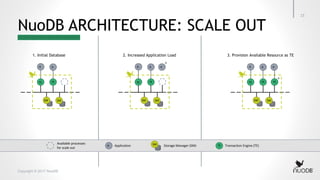

NuoDB ARCHITECTURE: SCALE OUT
Available processes
for scale out
ApplicationA Storage Manager (SM)SM Transaction Engine (TE)TE
1. Initial Database 2. Increased Application Load 3. Provision Available Resource as TE
TE
A A
TE
SMSM
TE
A A
TE
SMSM
A
TETE
A A
TE
SMSM
A
15

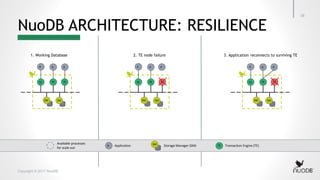

NuoDB ARCHITECTURE: RESILIENCE
Available processes
for scale out
ApplicationA Storage Manager (SM)SM Transaction Engine (TE)TE
1. Working Database 2. TE node failure 3. Application reconnects to surviving TE
TETE
A A
TE
SMSM
A
TETE
A A
TE
SMSM
A
TETE
A A
TE
SMSM
A
16

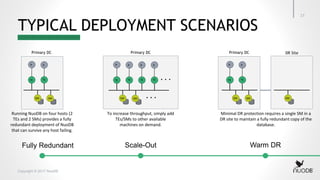

TYPICAL DEPLOYMENT SCENARIOS
Fully Redundant Scale-Out
Running NuoDB on four hosts (2
TEs and 2 SMs) provides a fully
redundant deployment of NuoDB
that can survive any host failing.
To increase throughput, simply add
TEs/SMs to other available
machines on demand.
Warm DR
Minimal DR protection requires a single SM in a
DR site to maintain a fully redundant copy of the
database.
TE
A A
TE
SMSM
Primary DC
SM
DR Site
TE
A A
TE
SMSM
Primary DC
TE
A A
TE
SMSM
A
TE
A
TE
Primary DC
17

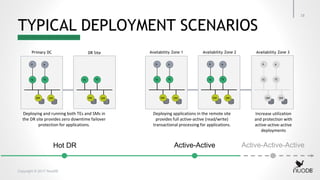

TYPICAL DEPLOYMENT SCENARIOS
Hot DR Active-Active
Deploying and running both TEs and SMs in
the DR site provides zero downtime failover
protection for applications.
Deploying applications in the remote site
provides full active-active (read/write)
transactional processing for applications.
Active-Active-Active
TE
A A
TE
SMSM
Primary DC
TE TE
SMSM
DR Site
TE
A A
TE
SMSM
Availability Zone 1
SMSM
Availability Zone 2
TE
A A
TE
SM
Availability Zone 3
TE TE
A A
SM
Increase utilization
and protection with
active-active-active
deployments
18

MULTI-DC SUPPORT & CAP
+ NuoDB preserves consistency during network partition
 Automatically shuts down minority
TE
A A
TE
SMSM
Availability Zone 1
SMSM
Availability Zone 2
TE
A A
TE
A
TE
19

SCALE OUT DEMO
www.nuodb.com/full-demo

End-to-end Asset Finance Software Platform
CHALLENGE
+ Migrating industry-leading
application to SaaS model
+ Lack of cloud offering
inhibiting growth
+ MySQL couldn’t scale far
enough; Oracle licensing
on AWS too expensive
WHY NuoDB
+ Designed for elastic cloud
scalability
+ Continuous availability
with active-active
architecture
+ Maintains transactional
integrity
BENEFITS
+ Strong ROI for Alfa – and
their clients
+ Reduce infrastructure cost
by 90% over Oracle
+ Increase application
availability and minimize
response time

NuoDB
+ Founded in 2010
+ Management team and investors
are database pioneers
+ Patented elastic SQL database
+ Strong Gartner validation
+ Leading SaaS & on-premises
applications run on NuoDB
+ HQ in Cambridge, MA
22

SUMMARY
+ Application architectures have evolved
+ Relational databases remain locked in the past
 Single monolithic process
 Requires special considerations to scale performance
+ Elastic SQL databases
 Scale out and availability benefits of NoSQL
 No sacrificing the advantages of SQL databases
23

THANK YOU!
The Elastic SQL Database facebook.com/nuodb/
@NuoDB
youtube.com/nuoDB
linkedin.com/company/nuodb
github.com/nuodb
NuoDB.com
FOLLOW US:
24
