1. Important updates
EFORE
Energy for electronics
Newsletter N. 4 – December 2015

2. OPUS C
with INVERTERS
19” 12U sub-rack for DC and AC loads

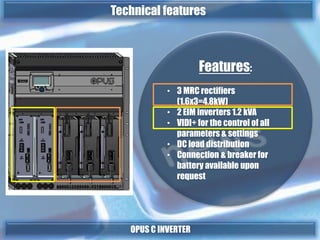

3. Features:
• 3 MRC rectifiers
(1.6x3=4,8kW)
• 2 EIM inverters 1.2 kVA
• VIDI+ for the control of all
parameters & settings
• DC load distribution
• Connection & breaker for
battery available upon
request
OPUS C INVERTER
Technical features

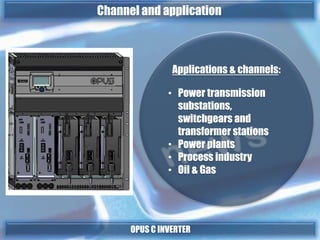

4. Applications & channels:
• Power transmission
substations,
switchgears and
transformer stations
• Power plants
• Process industry
• Oil & Gas
OPUS C INVERTER
Channel and application

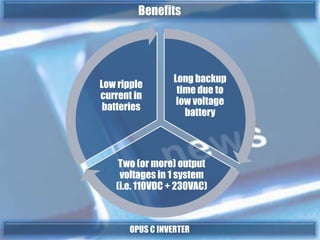

5. Long backup
time due to
low voltage
battery
Two (or more) output
voltages in 1 system
(i.e. 110VDC + 230VAC)
Low ripple
current in
batteries
OPUS C INVERTER
Benefits

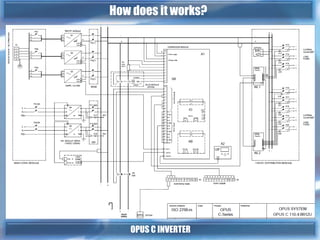

6. OPUS C INVERTER
How does it works?

7. OPUS & EPOS MINI
Configurable DC backup systems (24VDC to 220VDC),
with inverters & batteries – product lineup
CONVECTION COOLING
HIGH reliability modules

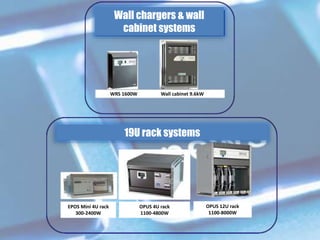

8. EPOS Mini 4U rack
300-2400W
OPUS 4U rack
1100-4800W
OPUS 12U rack
1100-8000W
WRS 1600W Wall cabinet 9.6kW
Wall chargers & wall
cabinet systems
19U rack systems

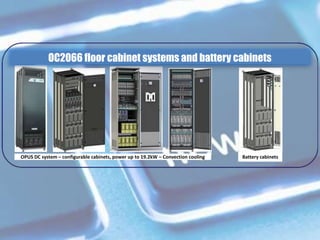

9. OPUS DC system – configurable cabinets, power up to 19.2kW – Convection cooling Battery cabinets
OC2066 floor cabinet systems and battery cabinets

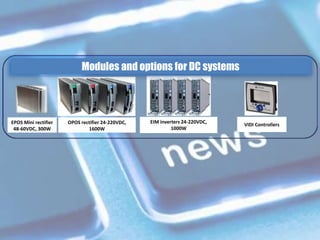

10. EPOS Mini rectifier
48-60VDC, 300W
OPOS rectifier 24-220VDC,
1600W
EIM inverters 24-220VDC,
1000W
VIDI Controllers
Modules and options for DC systems

11. Thanks for your
attention!
For info:
Mikko Paakkinen
Product Marketing manager
EFORE Industrial
Mikko.paakkinen@efore.com
