This document provides details about Paley Park, a small urban park located in Midtown Manhattan, New York City. It summarizes the park's history, design, features, and intended uses. Paley Park was the first pocket park created in New York City during the 1960s urban renewal movement. Financed by CBS founder William Paley and designed by landscape architect Robert Zion, the park covers 4,200 square feet and includes a waterfall, trees, moveable chairs, and walls covered in ivy. Its design was intended to provide a quiet space for office workers and shoppers to sit and relax during lunch breaks in the busy midtown area.

1. EFFECTIVE PUBLIC
COMMUNICATION
FINAL PROJECT
NAME:NG JI YANN
ID:0323713
TUTOR:MR.RIDHWAN

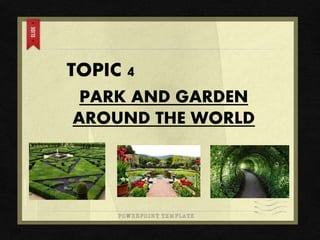

2. TOPIC 4
PARK AND GARDEN
AROUND THE WORLD

3. PALEY PARK
PALEY PARK
PALEY PARK
PALEY PARK
PALEY PARK
PALEY
PARK

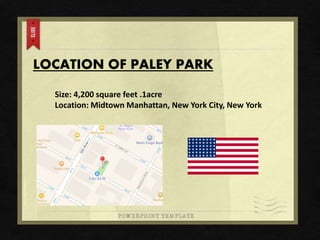

6. LOCATION OF PALEY PARK
Size: 4,200 square feet .1acre
Location: Midtown Manhattan, New York City, New York

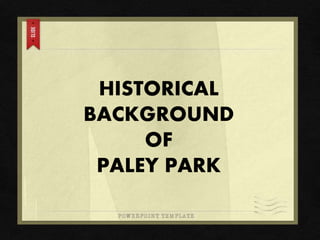

7. HISTORICAL
BACKGROUND
OF
PALEY PARK

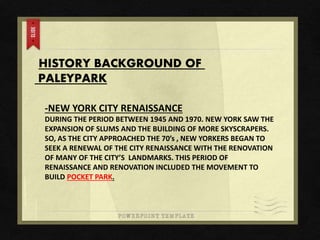

8. HISTORY BACKGROUND OF
PALEYPARK
-NEW YORK CITY RENAISSANCE
DURING THE PERIOD BETWEEN 1945 AND 1970. NEW YORK SAW THE
EXPANSION OF SLUMS AND THE BUILDING OF MORE SKYSCRAPERS.
SO, AS THE CITY APPROACHED THE 70’s , NEW YORKERS BEGAN TO
SEEK A RENEWAL OF THE CITY RENAISSANCE WITH THE RENOVATION
OF MANY OF THE CITY’S LANDMARKS. THIS PERIOD OF
RENAISSANCE AND RENOVATION INCLUDED THE MOVEMENT TO
BUILD POCKET PARK.

9. HISTORY BACKGROUND OF
PALEYPARK
-THE FIRST POCKET PARK EMERGED
PALEY PARK WAS NEW YORK CITY’S FIRST VEST POCKET PARK.
BEFORE NEW CITY RENAISSANCE KICKED INTO FULL GEAR ,THREE
IMPORTANT FIGURES IN NEW YORK SOCIAL HISTORY UNDERTOOK
THE PROJECT OF RESHAPPING THE PUBLIC SPACE .

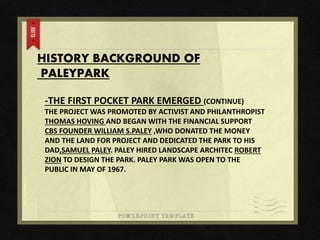

10. HISTORY BACKGROUND OF
PALEYPARK
-THE FIRST POCKET PARK EMERGED (CONTINUE)
THE PROJECT WAS PROMOTED BY ACTIVIST AND PHILANTHROPIST
THOMAS HOVING AND BEGAN WITH THE FINANCIAL SUPPORT
CBS FOUNDER WILLIAM S.PALEY ,WHO DONATED THE MONEY
AND THE LAND FOR PROJECT AND DEDICATED THE PARK TO HIS
DAD,SAMUEL PALEY. PALEY HIRED LANDSCAPE ARCHITEC ROBERT
ZION TO DESIGN THE PARK. PALEY PARK WAS OPEN TO THE
PUBLIC IN MAY OF 1967.

11. THOMAS HOVING
THE PERSON WHO
PROMOTED POCKET PARK
WILLIAM S.PALEY
CBS FOUNDER

12. SAMUEL PALEY
FATHER OF WILLIAM
S.PALEY
ROBERT ZION
LANDSCAPE ARHITECT

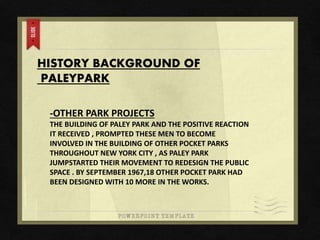

13. HISTORY BACKGROUND OF
PALEYPARK
-OTHER PARK PROJECTS
THE BUILDING OF PALEY PARK AND THE POSITIVE REACTION
IT RECEIVED , PROMPTED THESE MEN TO BECOME
INVOLVED IN THE BUILDING OF OTHER POCKET PARKS
THROUGHOUT NEW YORK CITY , AS PALEY PARK
JUMPSTARTED THEIR MOVEMENT TO REDESIGN THE PUBLIC
SPACE . BY SEPTEMBER 1967,18 OTHER POCKET PARK HAD
BEEN DESIGNED WITH 10 MORE IN THE WORKS.

14. STRUCTURE & LAYOUT
OF
PALEY PARK

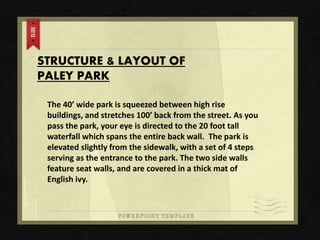

15. STRUCTURE & LAYOUT OF
PALEY PARK
The 40’ wide park is squeezed between high rise
buildings, and stretches 100’ back from the street. As you
pass the park, your eye is directed to the 20 foot tall
waterfall which spans the entire back wall. The park is
elevated slightly from the sidewalk, with a set of 4 steps
serving as the entrance to the park. The two side walls
feature seat walls, and are covered in a thick mat of
English ivy.

16. PLAN OF PALEY PARK

17. LAYOUT PLAN 2 OF PALEY PARK

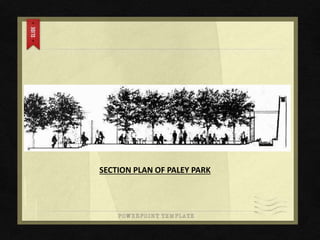

18. SECTION PLAN OF PALEY PARK

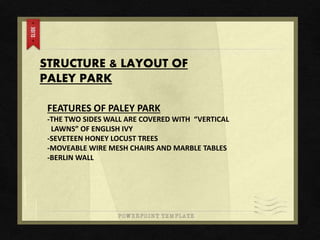

19. STRUCTURE & LAYOUT OF
PALEY PARK
FEATURES OF PALEY PARK
-THE TWO SIDES WALL ARE COVERED WITH “VERTICAL
LAWNS” OF ENGLISH IVY
-SEVETEEN HONEY LOCUST TREES
-MOVEABLE WIRE MESH CHAIRS AND MARBLE TABLES
-BERLIN WALL

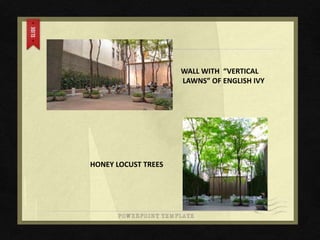

20. WALL WITH “VERTICAL
LAWNS” OF ENGLISH IVY
HONEY LOCUST TREES

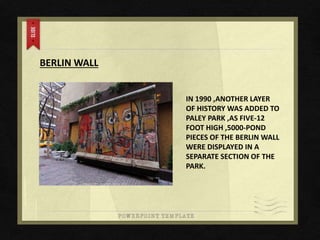

21. BERLIN WALL
IN 1990 ,ANOTHER LAYER
OF HISTORY WAS ADDED TO
PALEY PARK ,AS FIVE-12
FOOT HIGH ,5000-POND
PIECES OF THE BERLIN WALL
WERE DISPLAYED IN A
SEPARATE SECTION OF THE
PARK.

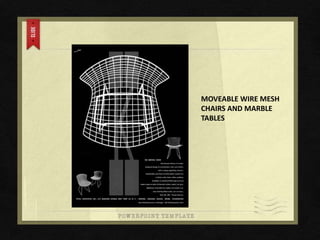

22. MOVEABLE WIRE MESH
CHAIRS AND MARBLE
TABLES

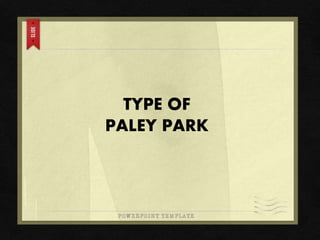

23. TYPE OF
PALEY PARK

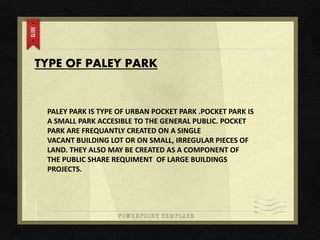

24. TYPE OF PALEY PARK
PALEY PARK IS TYPE OF URBAN POCKET PARK .POCKET PARK IS
A SMALL PARK ACCESIBLE TO THE GENERAL PUBLIC. POCKET
PARK ARE FREQUANTLY CREATED ON A SINGLE
VACANT BUILDING LOT OR ON SMALL, IRREGULAR PIECES OF
LAND. THEY ALSO MAY BE CREATED AS A COMPONENT OF
THE PUBLIC SHARE REQUIMENT OF LARGE BUILDINGS
PROJECTS.

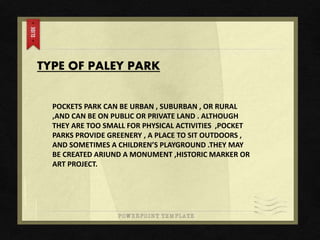

25. TYPE OF PALEY PARK
POCKETS PARK CAN BE URBAN , SUBURBAN , OR RURAL
,AND CAN BE ON PUBLIC OR PRIVATE LAND . ALTHOUGH
THEY ARE TOO SMALL FOR PHYSICAL ACTIVITIES ,POCKET
PARKS PROVIDE GREENERY , A PLACE TO SIT OUTDOORS ,
AND SOMETIMES A CHILDREN’S PLAYGROUND .THEY MAY
BE CREATED ARIUND A MONUMENT ,HISTORIC MARKER OR
ART PROJECT.

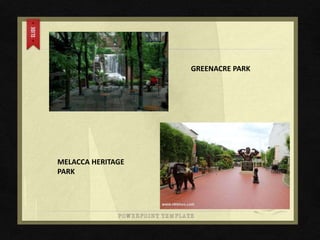

26. GREENACRE PARK
MELACCA HERITAGE
PARK

27. RECREATIONAL ACTIVITIES
IN
PALEY PARK

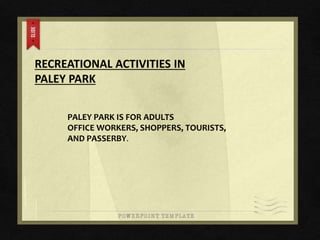

28. RECREATIONAL ACTIVITIES IN
PALEY PARK
PALEY PARK IS FOR ADULTS
OFFICE WORKERS, SHOPPERS, TOURISTS,
AND PASSERBY.

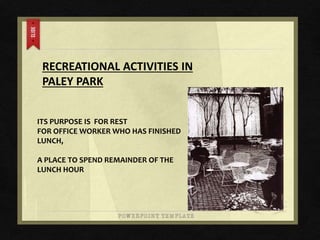

29. RECREATIONAL ACTIVITIES IN
PALEY PARK
ITS PURPOSE IS FOR REST
FOR OFFICE WORKER WHO HAS FINISHED
LUNCH,
A PLACE TO SPEND REMAINDER OF THE
LUNCH HOUR

30. RECREATIONAL ACTIVITIES IN
PALEY PARK
FOR SHOPPER
TO PUT DOWN THEIR
PARCEL,
RECLINE IN A
COMFORTABLE PLACE,
SIP COFFEE BEFORE
CONTINUE

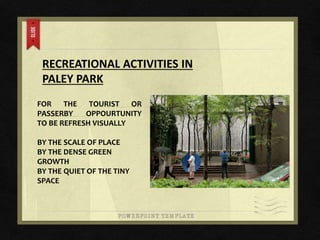

31. RECREATIONAL ACTIVITIES IN
PALEY PARK
FOR THE TOURIST OR
PASSERBY OPPOURTUNITY
TO BE REFRESH VISUALLY
BY THE SCALE OF PLACE
BY THE DENSE GREEN
GROWTH
BY THE QUIET OF THE TINY
SPACE

32. TYPE OF MATERIAL
USED TO BUILT
PALEY PARK

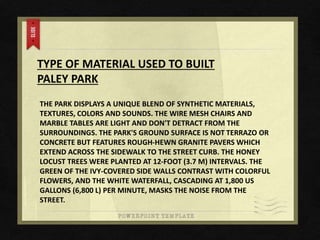

33. TYPE OF MATERIAL USED TO BUILT
PALEY PARK
THE PARK DISPLAYS A UNIQUE BLEND OF SYNTHETIC MATERIALS,
TEXTURES, COLORS AND SOUNDS. THE WIRE MESH CHAIRS AND
MARBLE TABLES ARE LIGHT AND DON'T DETRACT FROM THE
SURROUNDINGS. THE PARK'S GROUND SURFACE IS NOT TERRAZO OR
CONCRETE BUT FEATURES ROUGH-HEWN GRANITE PAVERS WHICH
EXTEND ACROSS THE SIDEWALK TO THE STREET CURB. THE HONEY
LOCUST TREES WERE PLANTED AT 12-FOOT (3.7 M) INTERVALS. THE
GREEN OF THE IVY-COVERED SIDE WALLS CONTRAST WITH COLORFUL
FLOWERS, AND THE WHITE WATERFALL, CASCADING AT 1,800 US
GALLONS (6,800 L) PER MINUTE, MASKS THE NOISE FROM THE
STREET.

34. TYPE OF MATERIAL USED TO BUILT
PALEY PARK
THE CENTRAL PAVING IS 100
MM RED BROWN RANITE
SETTS IN A SQAURE GRID-
CONTROLLED BUT NOT
TOO STIFF
IRREGULARY SET STONES
SLOW FOOT TRAFFIC
INSIDE THE PARK

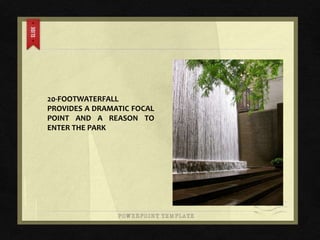

35. 20-FOOTWATERFALL
PROVIDES A DRAMATIC FOCAL
POINT AND A REASON TO
ENTER THE PARK

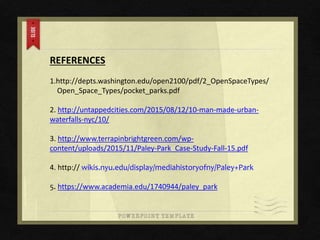

36. REFERENCES
1.http://depts.washington.edu/open2100/pdf/2_OpenSpaceTypes/
Open_Space_Types/pocket_parks.pdf
2. http://untappedcities.com/2015/08/12/10-man-made-urban-
waterfalls-nyc/10/
3. http://www.terrapinbrightgreen.com/wp-
content/uploads/2015/11/Paley-Park_Case-Study-Fall-15.pdf
4. http:// wikis.nyu.edu/display/mediahistoryofny/Paley+Park
5. https://www.academia.edu/1740944/paley_park

37. ~THE END~
THANK YOU
