- 1. Federated Identity, Accessing World-WideServices with your Campus Id Brook Schofield Project Development Officer, TERENA schofield@terena.org 27 September 2012, edutic Chile Innovation through participation
- 2. About me… BrookSchofield mailto:schofield@terena.org skype://brookschofield tel:+31651553991 http://terena.org/~schofield linkedin.com/in/brookschofield Australian living in The Netherlands. Grew up on the island state of Tasmania (named after a Dutchman). Task Leader in the GN3 Project for eduGAIN. Secretary of the Global eduroam Governance Committee. Innovation through participation

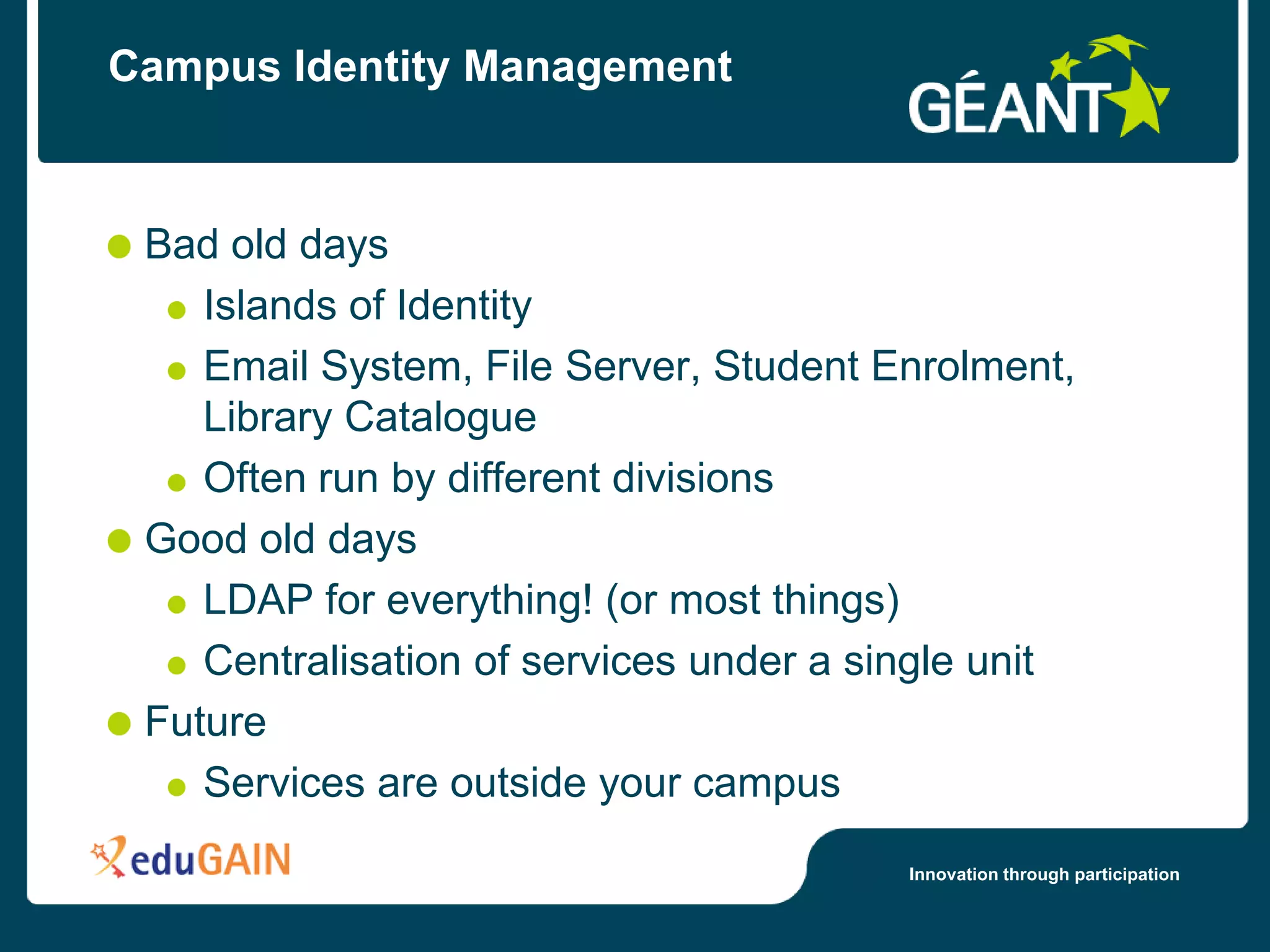

- 3. Campus Identity Management Bad old days Islands of Identity Email System, File Server, Student Enrolment, Library Catalogue Often run by different divisions Good old days LDAP for everything! (or most things) Centralisation of services under a single unit Future Services are outside your campus Innovation through participation

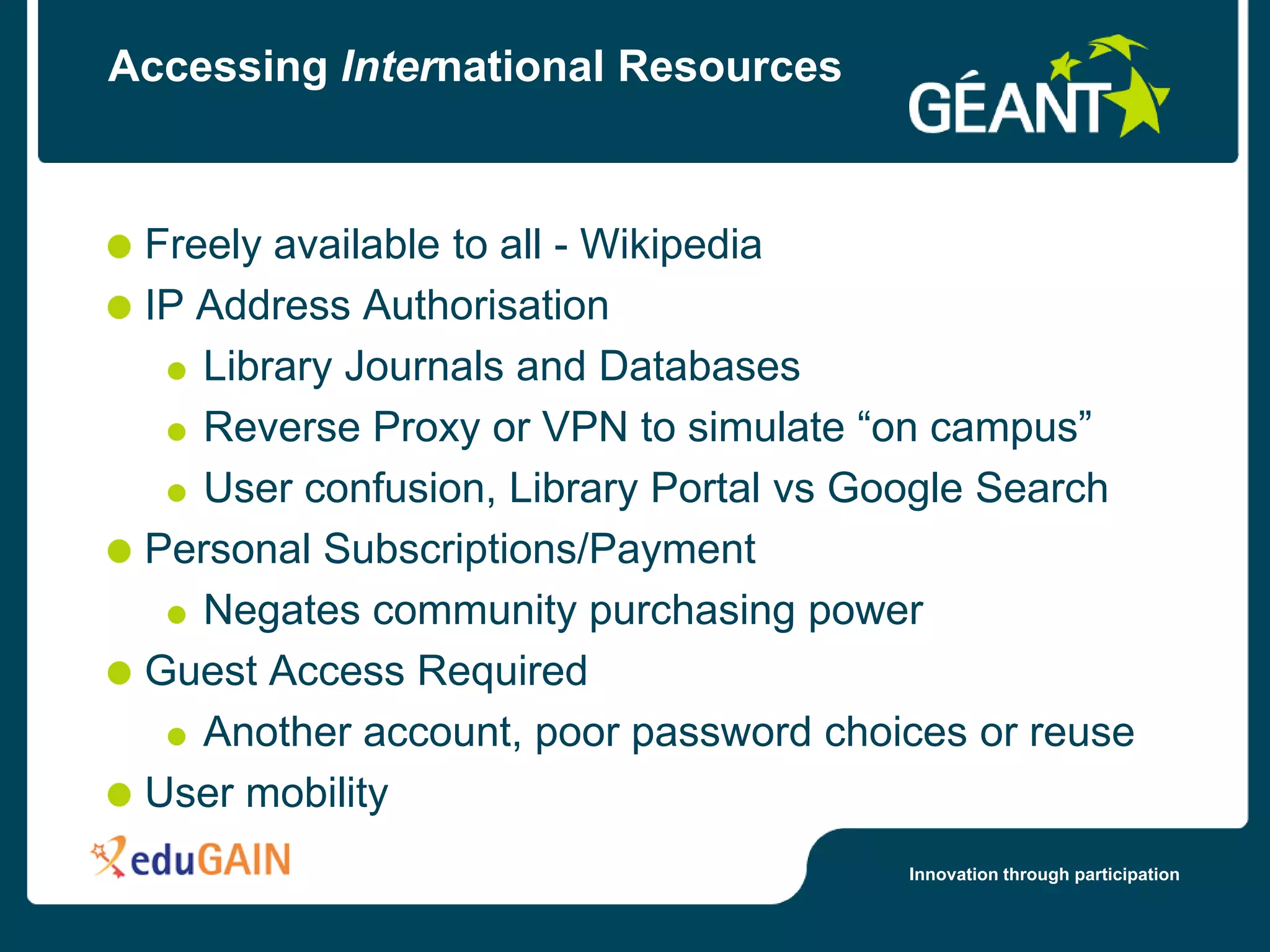

- 4. Accessing International Resources Freely available to all - Wikipedia IP Address Authorisation Library Journals and Databases Reverse Proxy or VPN to simulate “on campus” User confusion, Library Portal vs Google Search Personal Subscriptions/Payment Negates community purchasing power Guest Access Required Another account, poor password choices or reuse User mobility Innovation through participation
- 5. A family offederated services Innovation through participation
- 6. eduroam: 10 yearsof development …now available in Chile
- 7. Promotional video (availablein Spanish) 7

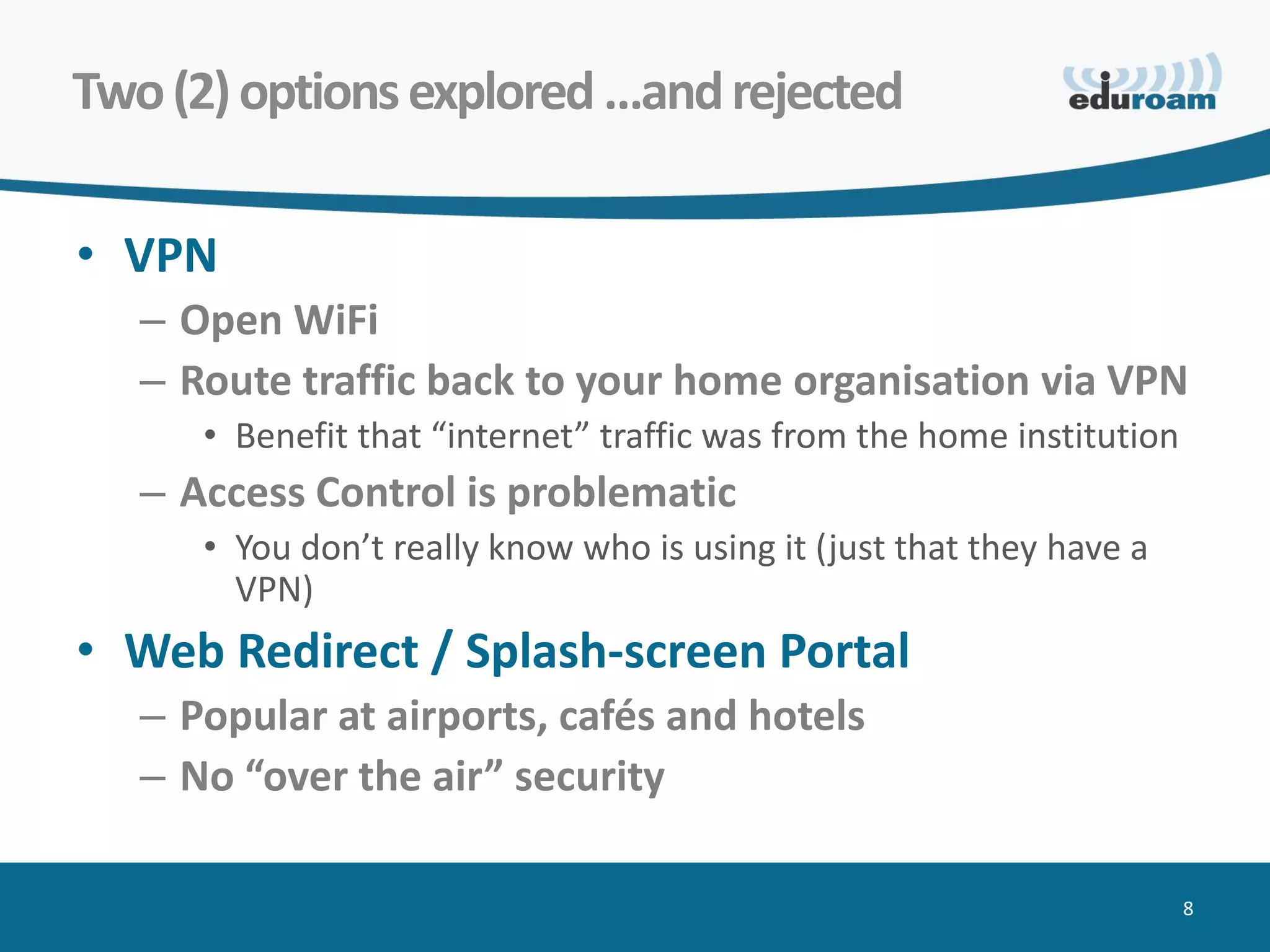

- 8. Two (2) optionsexplored …and rejected • VPN – Open WiFi – Route traffic back to your home organisation via VPN • Benefit that “internet” traffic was from the home institution – Access Control is problematic • You don’t really know who is using it (just that they have a VPN) • Web Redirect / Splash-screen Portal – Popular at airports, cafés and hotels – No “over the air” security 8

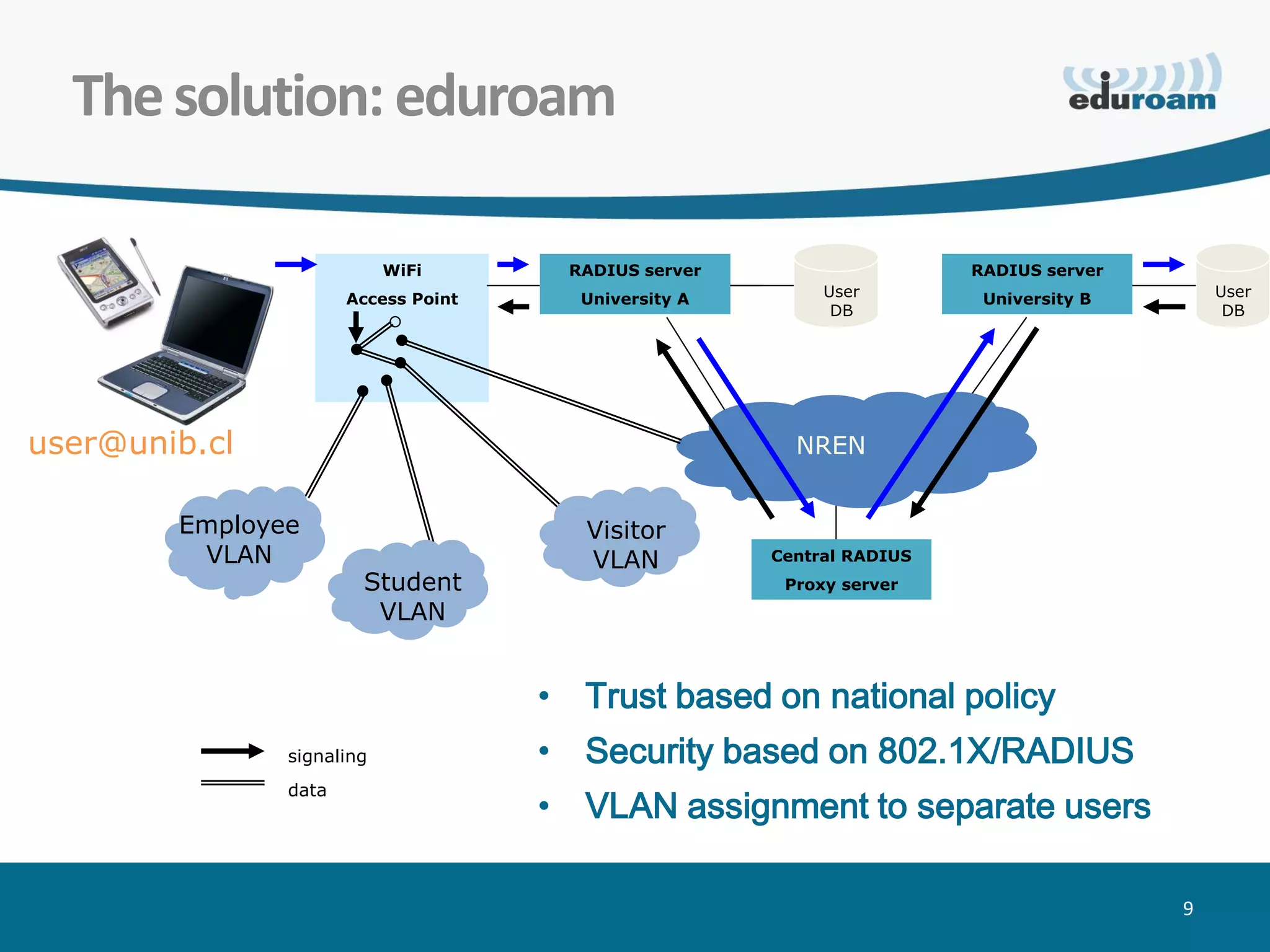

- 9. The solution: eduroam WiFi RADIUS server RADIUS server Access Point University A User University B User DB DB user@unib.cl NREN Employee Visitor VLAN VLAN Central RADIUS Student Proxy server VLAN • Trust based on national policy signaling • Security based on 802.1X/RADIUS data • VLAN assignment to separate users 9

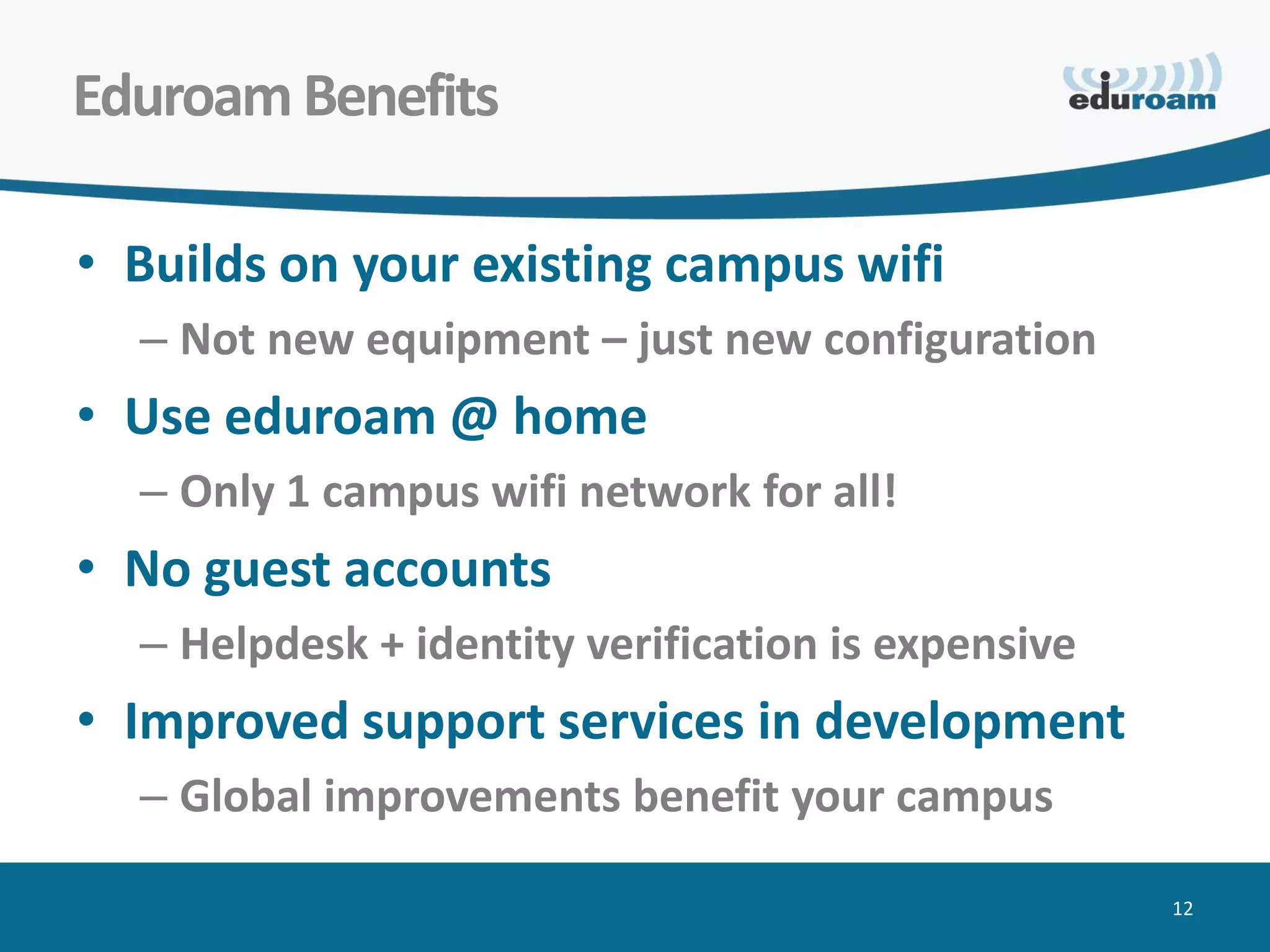

- 12. Eduroam Benefits • Buildson your existing campus wifi – Not new equipment – just new configuration • Use eduroam @ home – Only 1 campus wifi network for all! • No guest accounts – Helpdesk + identity verification is expensive • Improved support services in development – Global improvements benefit your campus 12
- 13. Identity Federation Technologies Innovation through participation
- 14.

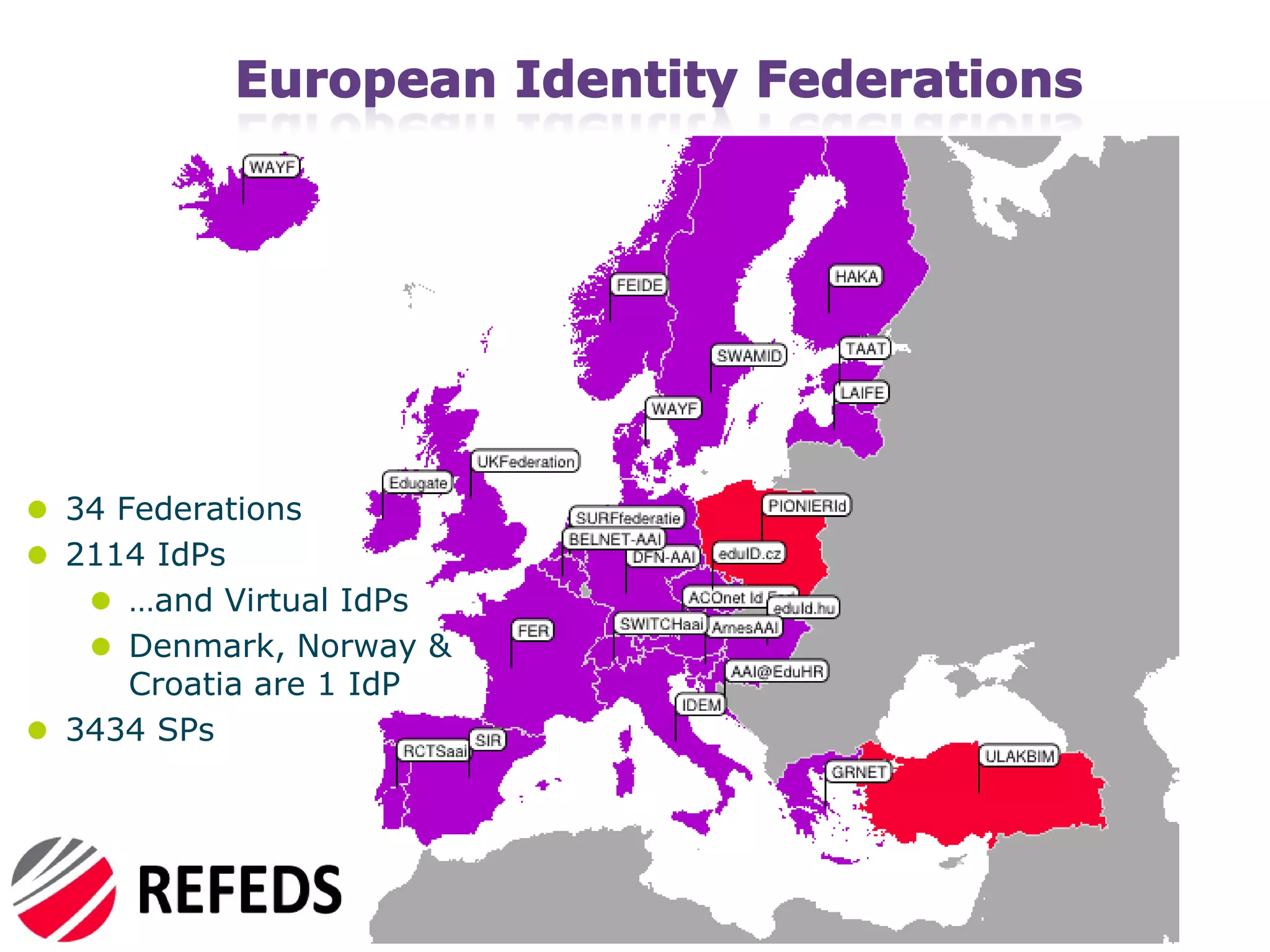

- 15. 34 Federations 2114 IdPs …and Virtual IdPs Denmark, Norway & Croatia are 1 IdP 3434 SPs

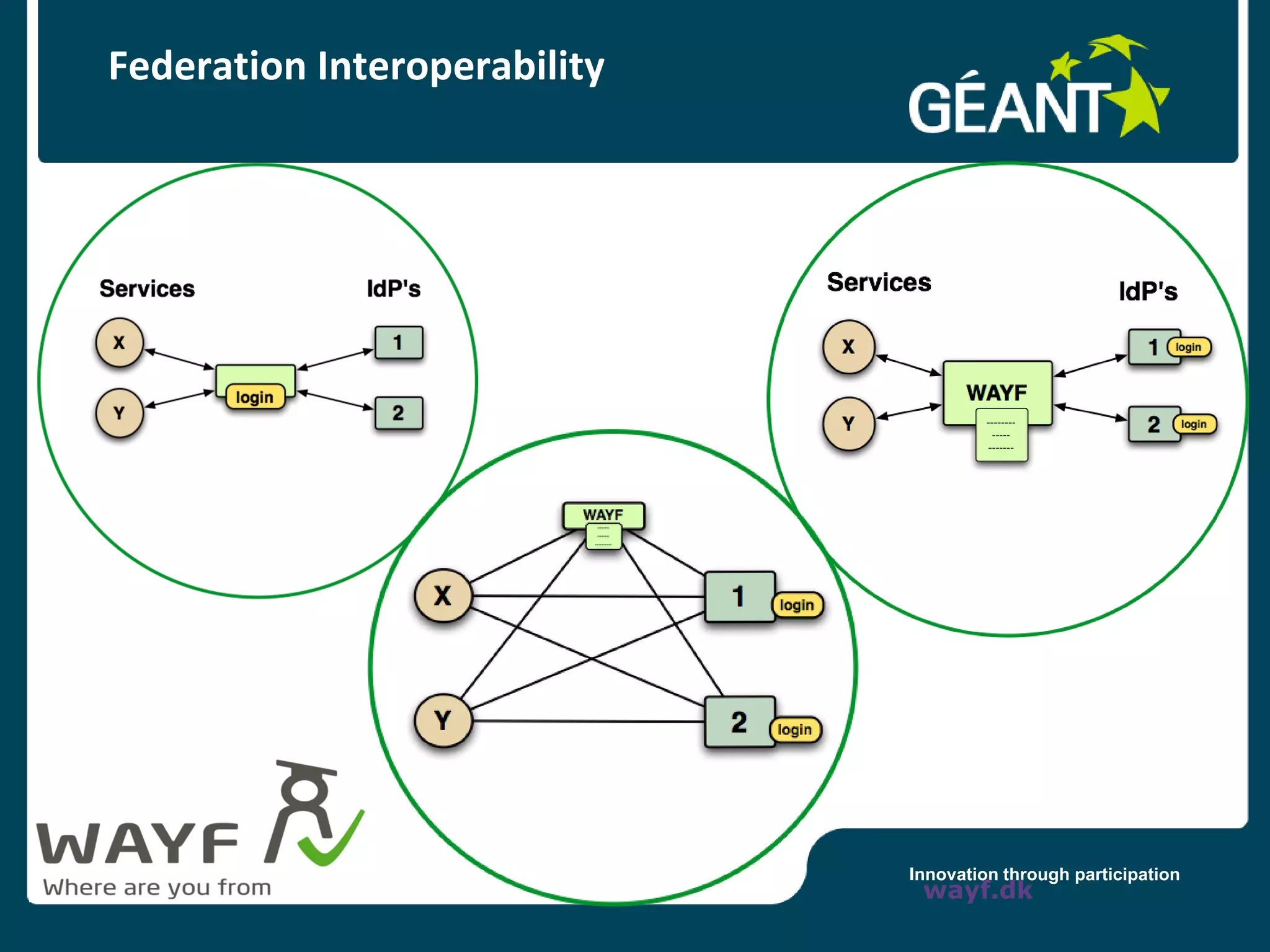

- 17. Federation Interoperability Innovation through participation wayf.dk

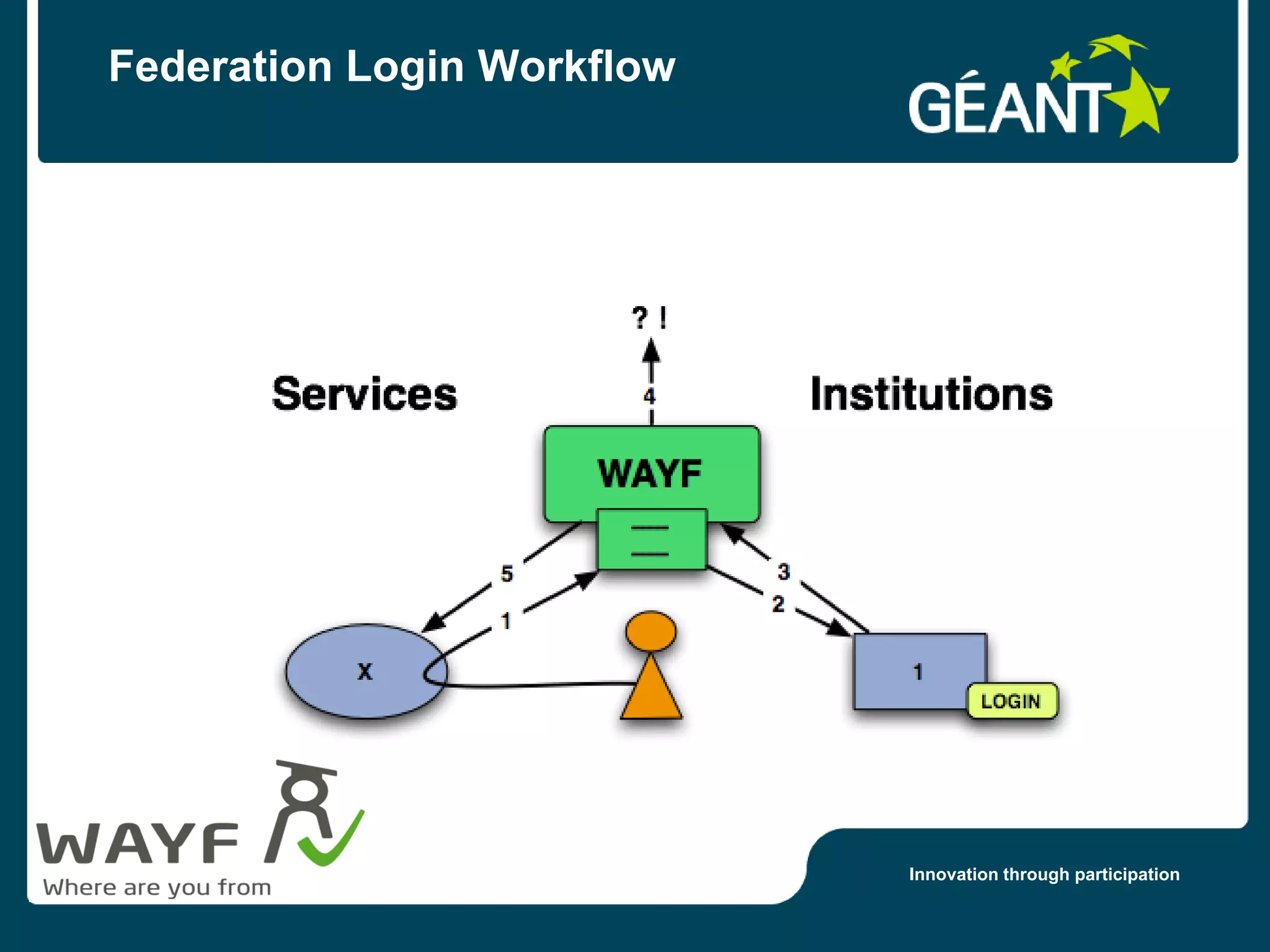

- 18. Federation Login Workflow Innovation through participation

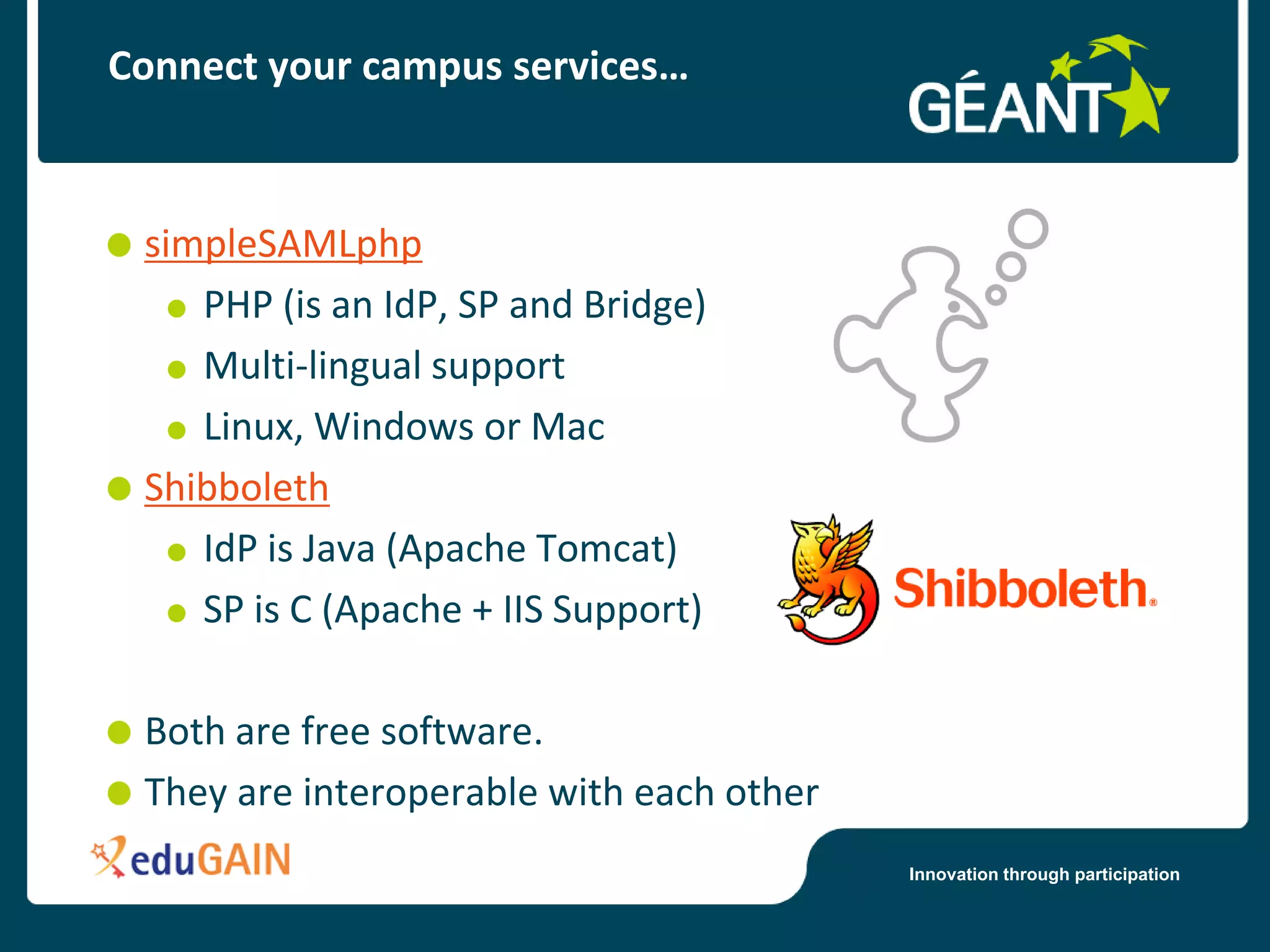

- 19. Connect your campusservices… simpleSAMLphp PHP (is an IdP, SP and Bridge) Multi-lingual support Linux, Windows or Mac Shibboleth IdP is Java (Apache Tomcat) SP is C (Apache + IIS Support) Both are free software. They are interoperable with each other Innovation through participation

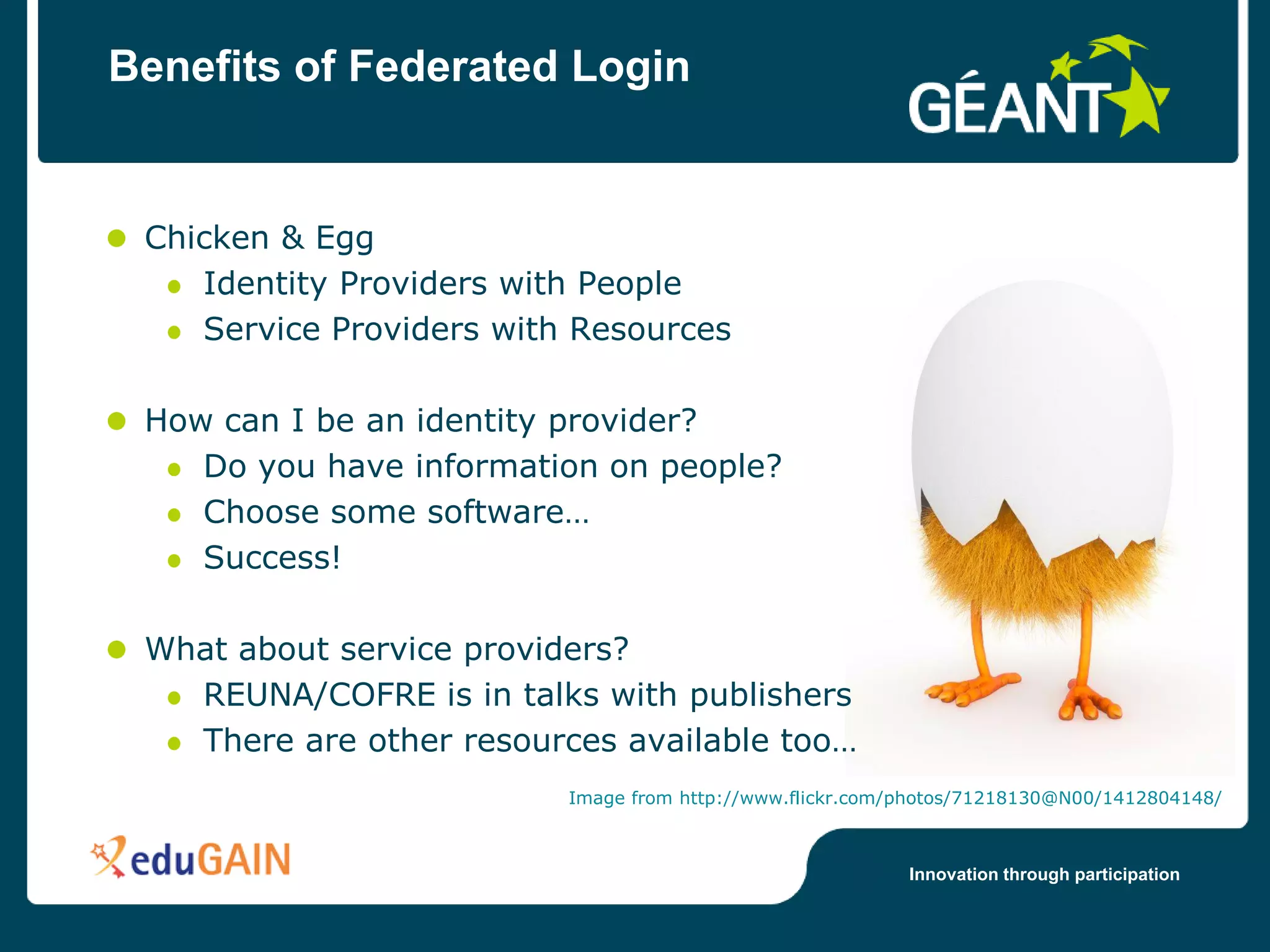

- 20. Benefits of FederatedLogin Chicken & Egg Identity Providers with People Service Providers with Resources How can I be an identity provider? Do you have information on people? Choose some software… Success! What about service providers? REUNA/COFRE is in talks with publishers There are other resources available too… Image from http://www.flickr.com/photos/71218130@N00/1412804148/ Innovation through participation

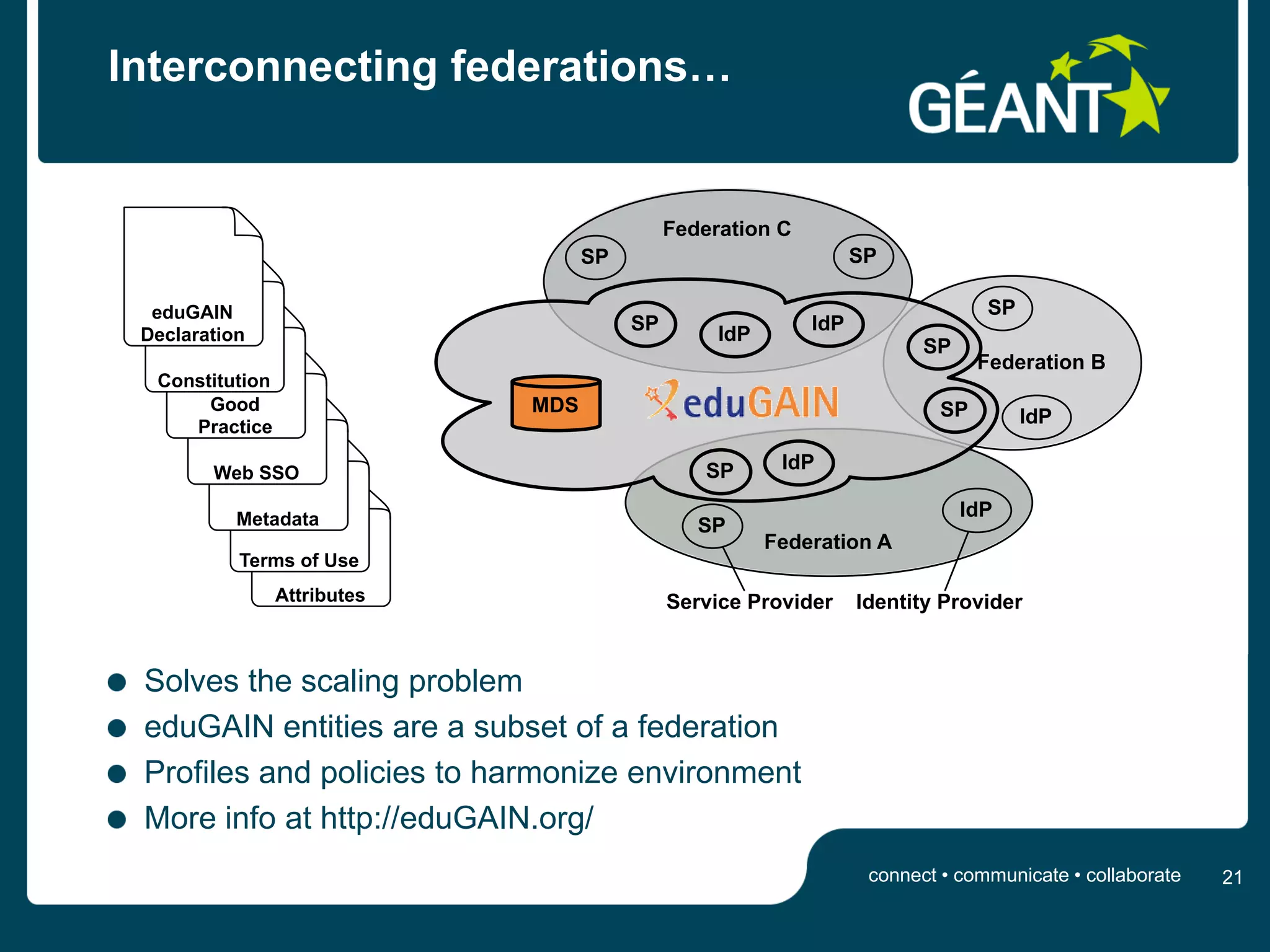

- 21. IdP IdP SP SP MDS SP SP Interconnecting federations… Your Federation 2 Other Federation 3 Downstream eduGAIN Metadata Federation C SP SP eduGAIN SP SP IdP Declaration IdP SP Federation B Constitution Good MDS SP Practice IdP Web SSO SP IdP Metadata IdP SP Federation A Terms of Use Attributes Service Provider Identity Provider Solves the scaling problem eduGAIN entities are a subset of a federation Profiles and policies to harmonize environment Upstream Federation More info at http://eduGAIN.org/Metadata 21 1 1 connect •B Innovation through • collaborate communicate participation 21 A IdP IdP SP SP MDS SP SP

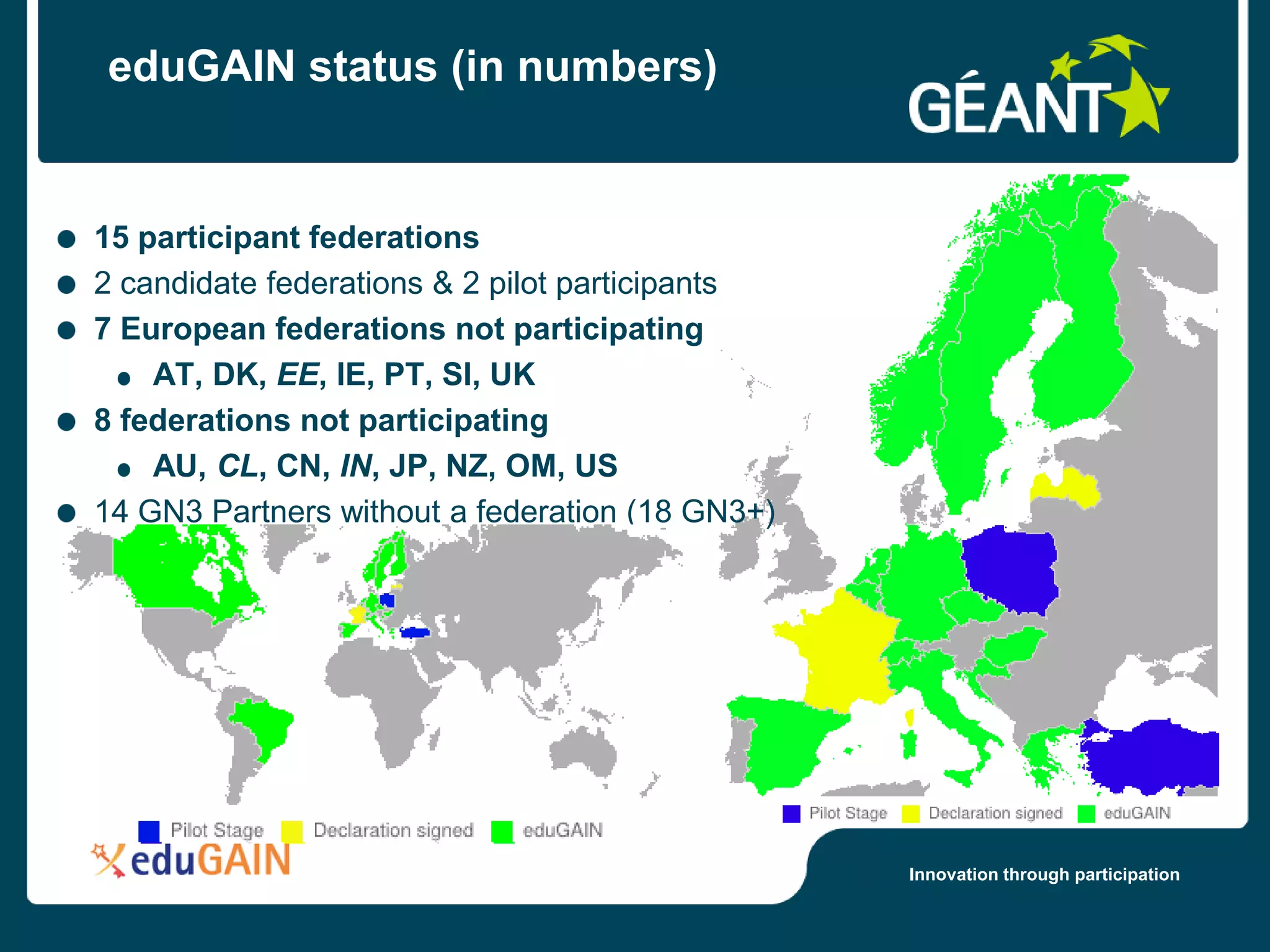

- 22. eduGAIN status (innumbers) 15 participant federations 2 candidate federations & 2 pilot participants 7 European federations not participating AT, DK, EE, IE, PT, SI, UK 8 federations not participating AU, CL, CN, IN, JP, NZ, OM, US 14 GN3 Partners without a federation (18 GN3+) Innovation through participation

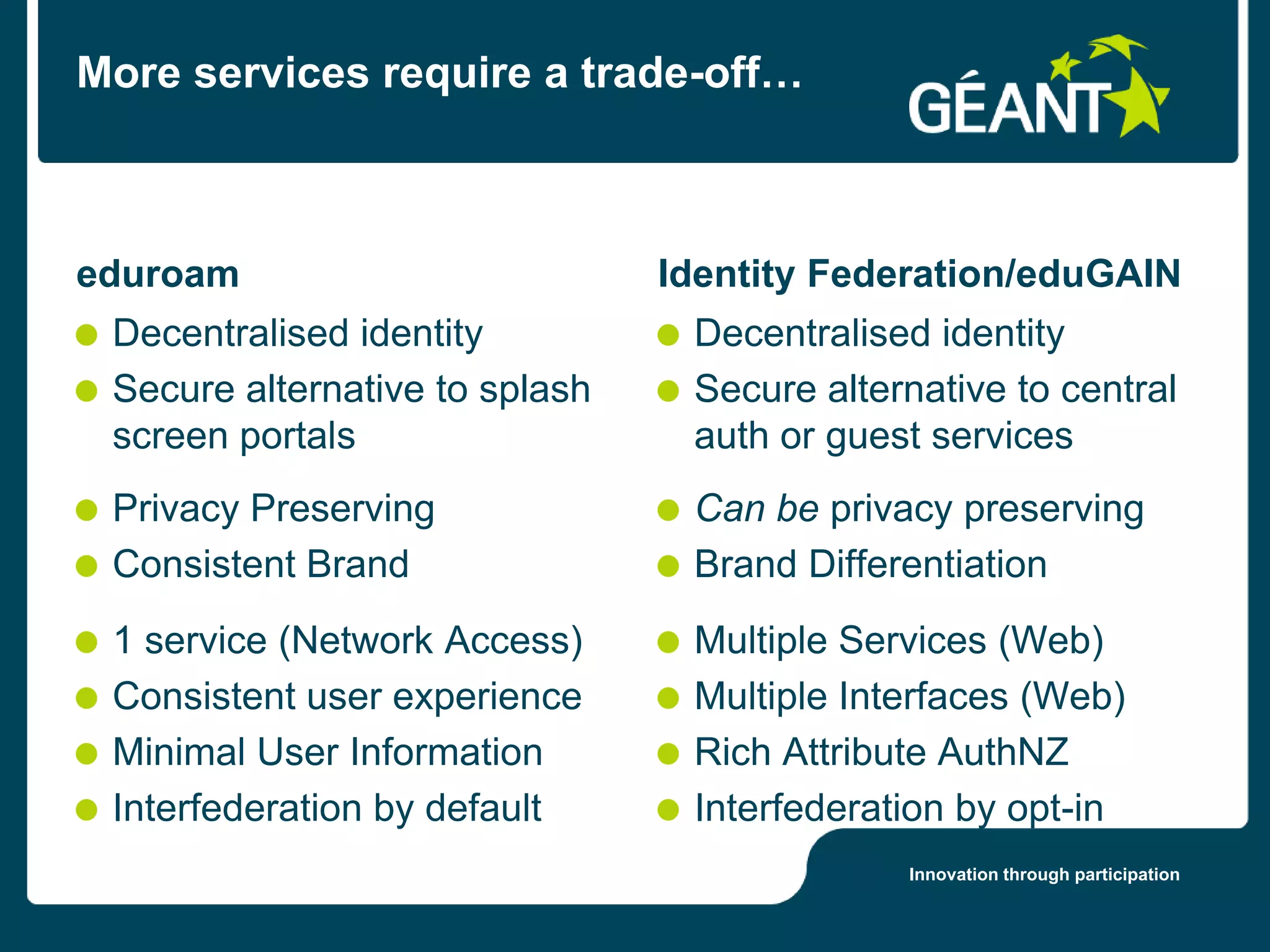

- 23. More services requirea trade-off… eduroam Identity Federation/eduGAIN Decentralised identity Decentralised identity Secure alternative to splash Secure alternative to central screen portals auth or guest services Privacy Preserving Can be privacy preserving Consistent Brand Brand Differentiation 1 service (Network Access) Multiple Services (Web) Consistent user experience Multiple Interfaces (Web) Minimal User Information Rich Attribute AuthNZ Interfederation by default Interfederation by opt-in Innovation through participation
- 24. linkedin.com/in/brookschofield facebook.com/brook.schofield skype://brookschofield brook@terena.org @BrookSchofield +31651553991 Slide 24
