1. Building an IDE for Apache Cassandra
With Eclipse RCP, e4 and XText
Michaël Figuière
Software Architect

2. © 2014 DataStax, All Rights Reserved.

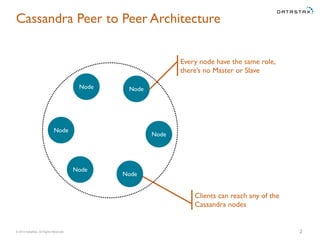

Cassandra Peer to Peer Architecture
2
Node
Node Node
Node
Node
Node
Clients can reach any of the
Cassandra nodes
Every node have the same role,
there’s no Master or Slave

3. © 2014 DataStax, All Rights Reserved.

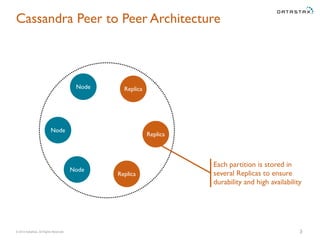

Cassandra Peer to Peer Architecture
3
Node
Node Replica
Replica
Replica
Node
Each partition is stored in
several Replicas to ensure
durability and high availability

4. © 2014 DataStax, All Rights Reserved.

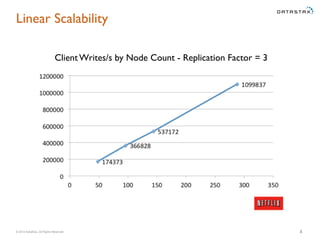

Linear Scalability
4
Client Writes/s by Node Count - Replication Factor = 3

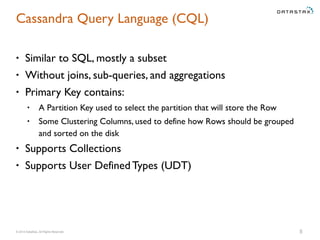

5. © 2014 DataStax, All Rights Reserved.
Cassandra Query Language (CQL)
• Similar to SQL, mostly a subset
• Without joins, sub-queries, and aggregations
• Primary Key contains:
• A Partition Key used to select the partition that will store the Row
• Some Clustering Columns, used to define how Rows should be grouped
and sorted on the disk
• Supports Collections
• Supports User Defined Types (UDT)
5

6. © 2014 DataStax, All Rights Reserved. 6
CQL: Create Table
CREATE TABLE users (
login text,
name text,
age int,
...
PRIMARY KEY (login));
login is the partition key, it will
be hashed and rows will be
spread over the cluster on
different partitions
Just like in SQL!

7. © 2014 DataStax, All Rights Reserved. 7

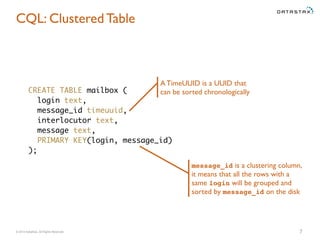

CQL: Clustered Table
CREATE TABLE mailbox (
login text,
message_id timeuuid,
interlocutor text,
message text,
PRIMARY KEY(login, message_id)
);
message_id is a clustering column,
it means that all the rows with a
same login will be grouped and
sorted by message_id on the disk
A TimeUUID is a UUID that
can be sorted chronologically

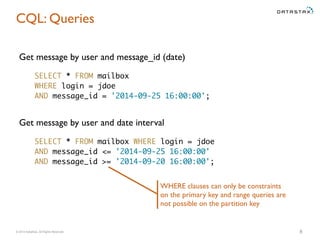

8. © 2014 DataStax, All Rights Reserved. 8
CQL: Queries
SELECT * FROM mailbox
WHERE login = jdoe
AND message_id = '2014-09-25 16:00:00';
Get message by user and message_id (date)
SELECT * FROM mailbox WHERE login = jdoe
AND message_id <= '2014-09-25 16:00:00'
AND message_id >= '2014-09-20 16:00:00';
Get message by user and date interval
WHERE clauses can only be constraints
on the primary key and range queries are
not possible on the partition key

9. © 2014 DataStax, All Rights Reserved.

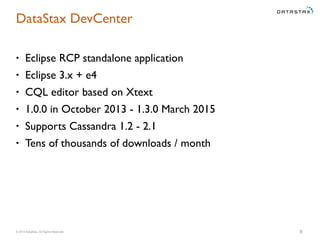

DataStax DevCenter
• Eclipse RCP standalone application
• Eclipse 3.x + e4
• CQL editor based on Xtext
• 1.0.0 in October 2013 - 1.3.0 March 2015
• Supports Cassandra 1.2 - 2.1
• Tens of thousands of downloads / month
9

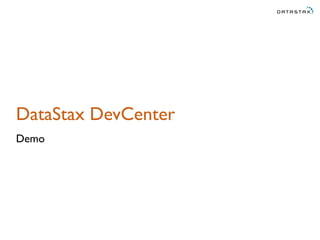

10. DataStax DevCenter
Demo

11. © 2014 DataStax, All Rights Reserved.

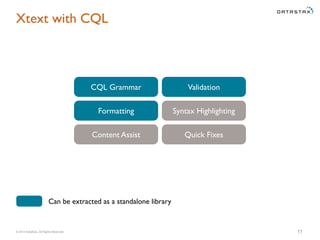

Xtext with CQL
11
ValidationCQL Grammar
Content Assist Quick Fixes
Syntax HighlightingFormatting
Can be extracted as a standalone library

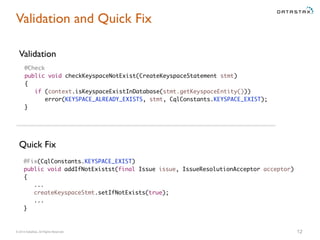

12. © 2014 DataStax, All Rights Reserved. 12
Validation and Quick Fix
Validation
@Fix(CqlConstants.KEYSPACE_EXIST)
public void addIfNotExistst(final Issue issue, IssueResolutionAcceptor acceptor)
{
...
createKeyspaceStmt.setIfNotExists(true);
...
}
Quick Fix
@Check
public void checkKeyspaceNotExist(CreateKeyspaceStatement stmt)
{
if (context.isKeyspaceExistInDatabase(stmt.getKeyspaceEntity()))
error(KEYSPACE_ALREADY_EXISTS, stmt, CqlConstants.KEYSPACE_EXIST);
}

13. © 2014 DataStax, All Rights Reserved.

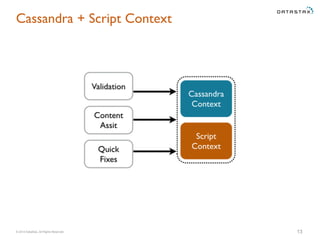

Cassandra + Script Context
13

14. © 2014 DataStax, All Rights Reserved.

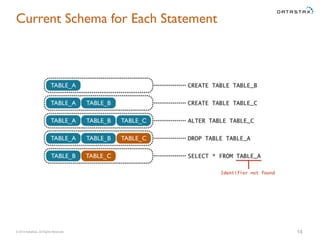

Current Schema for Each Statement
14

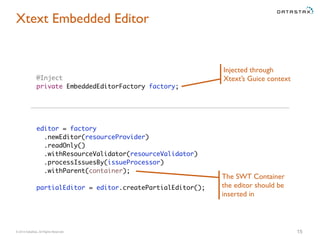

15. © 2014 DataStax, All Rights Reserved. 15
Xtext Embedded Editor
@Inject
private EmbeddedEditorFactory factory;
editor = factory
.newEditor(resourceProvider)
.readOnly()
.withResourceValidator(resourceValidator)
.processIssuesBy(issueProcessor)
.withParent(container);
partialEditor = editor.createPartialEditor();
Injected through
Xtext’s Guice context
The SWT Container
the editor should be
inserted in

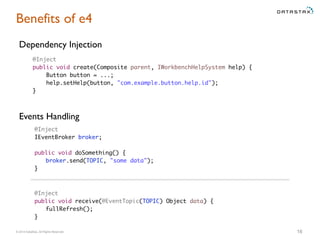

16. © 2014 DataStax, All Rights Reserved. 16
Benefits of e4
Dependency Injection
@Inject
IEventBroker broker;
public void doSomething() {
broker.send(TOPIC, "some data");
}
Events Handling
@Inject
public void create(Composite parent, IWorkbenchHelpSystem help) {
Button button = ...;
help.setHelp(button, "com.example.button.help.id");
}
@Inject
public void receive(@EventTopic(TOPIC) Object data) {
fullRefresh();
}

17. © 2014 DataStax, All Rights Reserved.
DevCenter and e4
• DevCenter cannot be a pure e4 application…
• Relies on Xtext and Eclipse Editor
• Eclipse IDE doesn’t rely on the e4 Application Model yet
• …but can still use e4 through adapters on top of Eclipse 3.x
17

18. © 2014 DataStax, All Rights Reserved.

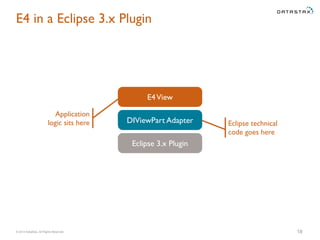

E4 in a Eclipse 3.x Plugin
18
DIViewPart Adapter
E4View
Eclipse 3.x Plugin
Eclipse technical
code goes here
Application
logic sits here

19. Questions?
@mfiguiere
blog.datastax.com
github.com/datastax
