Kai Tödter presented on styling the Eclipse 4.0 user interface with CSS. He discussed limitations with previous UI styling approaches in Eclipse and how CSS addresses many issues. Examples were shown applying different CSS themes to a contacts demo application, and how to enable and switch between CSS themes at runtime. Guidelines were provided on using custom attributes and potential future CSS editors.

1. Eclipse 4.0
Styling the UI with CSS
Kai Tödter
Siemens Corporate Technology
1/30/2015 1© Kai Tödter and others, Licensed under Creative Commons Attribution-Noncommercial-No Derivative Works 3.0 Germany License.

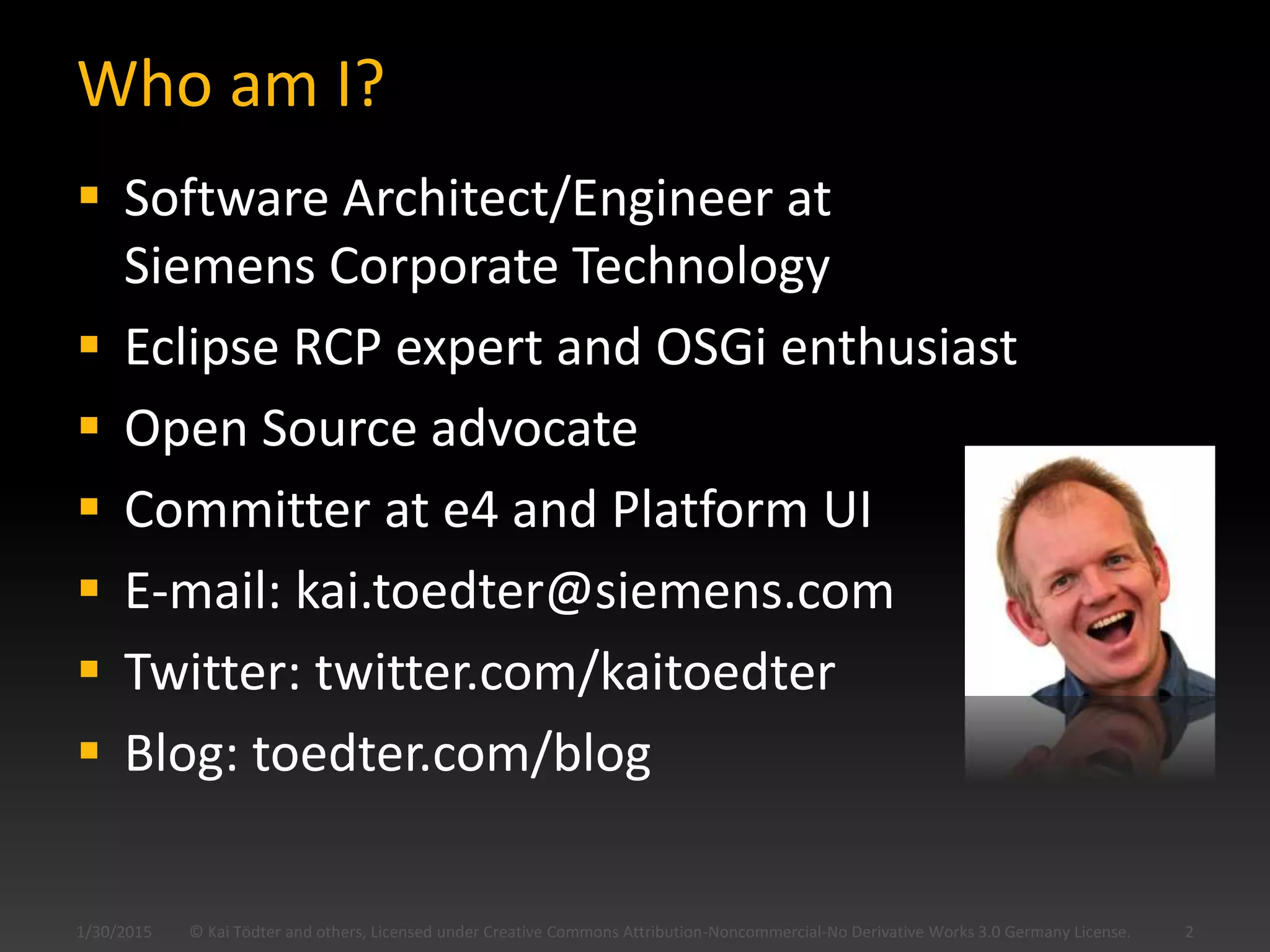

2. Who am I?
 Software Architect/Engineer at
Siemens Corporate Technology
 Eclipse RCP expert and OSGi enthusiast
 Open Source advocate
 Committer at e4 and Platform UI
 E-mail: kai.toedter@siemens.com
 Twitter: twitter.com/kaitoedter
 Blog: toedter.com/blog
1/30/2015 2© Kai Tödter and others, Licensed under Creative Commons Attribution-Noncommercial-No Derivative Works 3.0 Germany License.

3. UI Styling
1/30/2015 © Kai Tödter and others, Licensed under Creative Commons Attribution-Noncommercial-No Derivative Works 3.0 Germany License. 3
Picture from
http://www.sxc.hu/photo/1089931

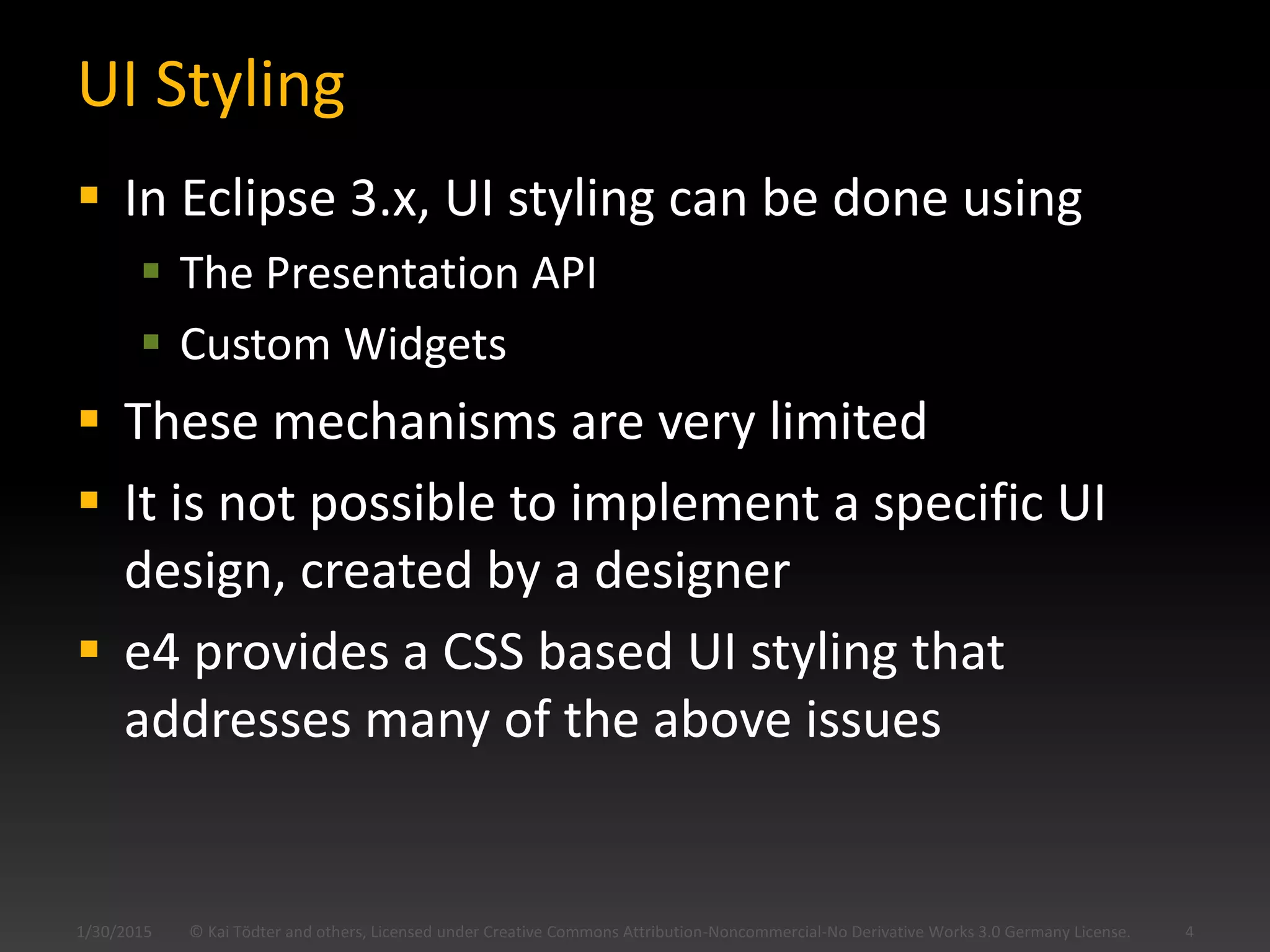

4. UI Styling
 In Eclipse 3.x, UI styling can be done using
 The Presentation API
 Custom Widgets
 These mechanisms are very limited
 It is not possible to implement a specific UI
design, created by a designer
 e4 provides a CSS based UI styling that
addresses many of the above issues
© Kai Tödter and others, Licensed under Creative Commons Attribution-Noncommercial-No Derivative Works 3.0 Germany License. 41/30/2015

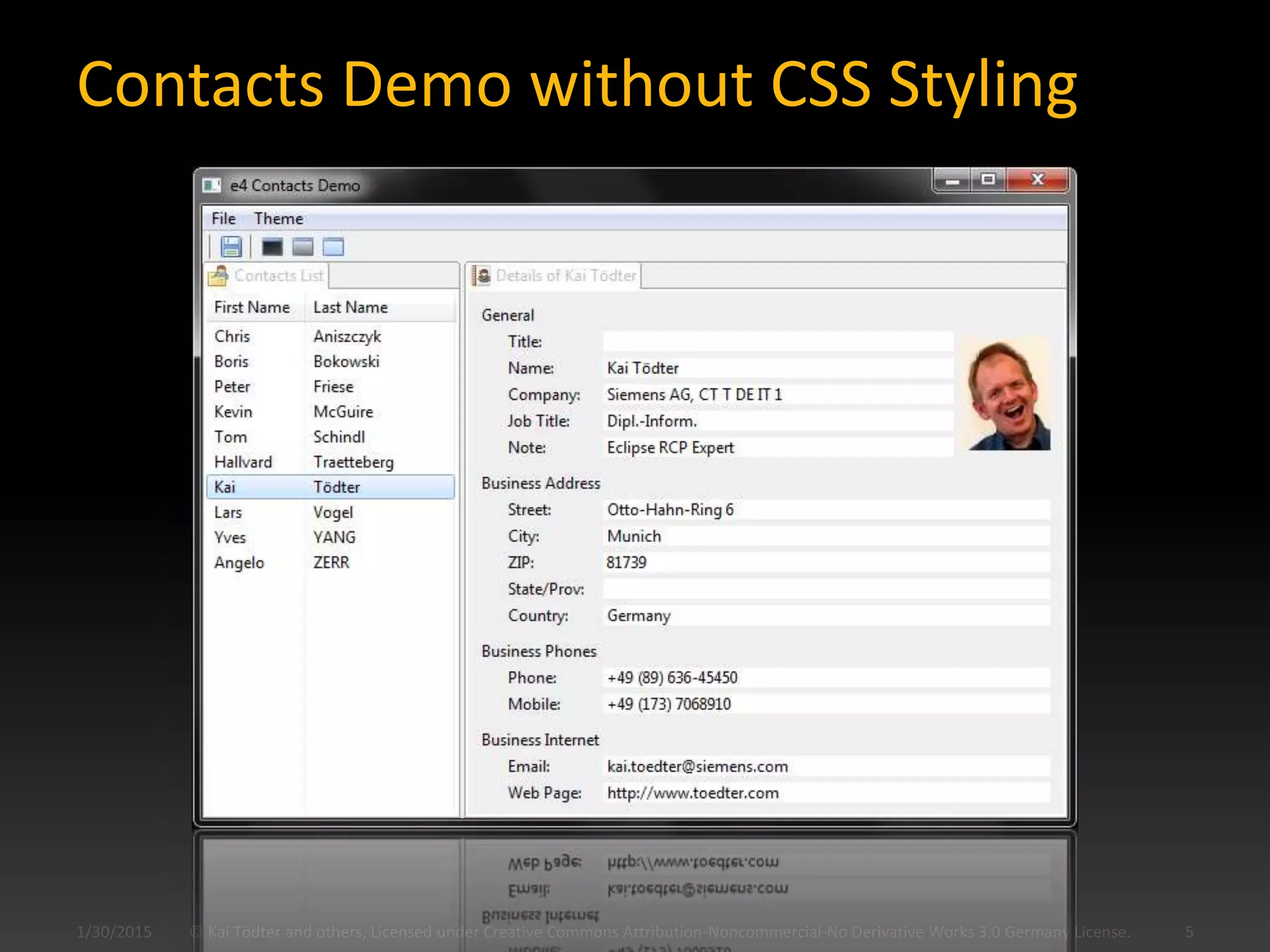

5. Contacts Demo without CSS Styling
1/30/2015 © Kai Tödter and others, Licensed under Creative Commons Attribution-Noncommercial-No Derivative Works 3.0 Germany License. 5

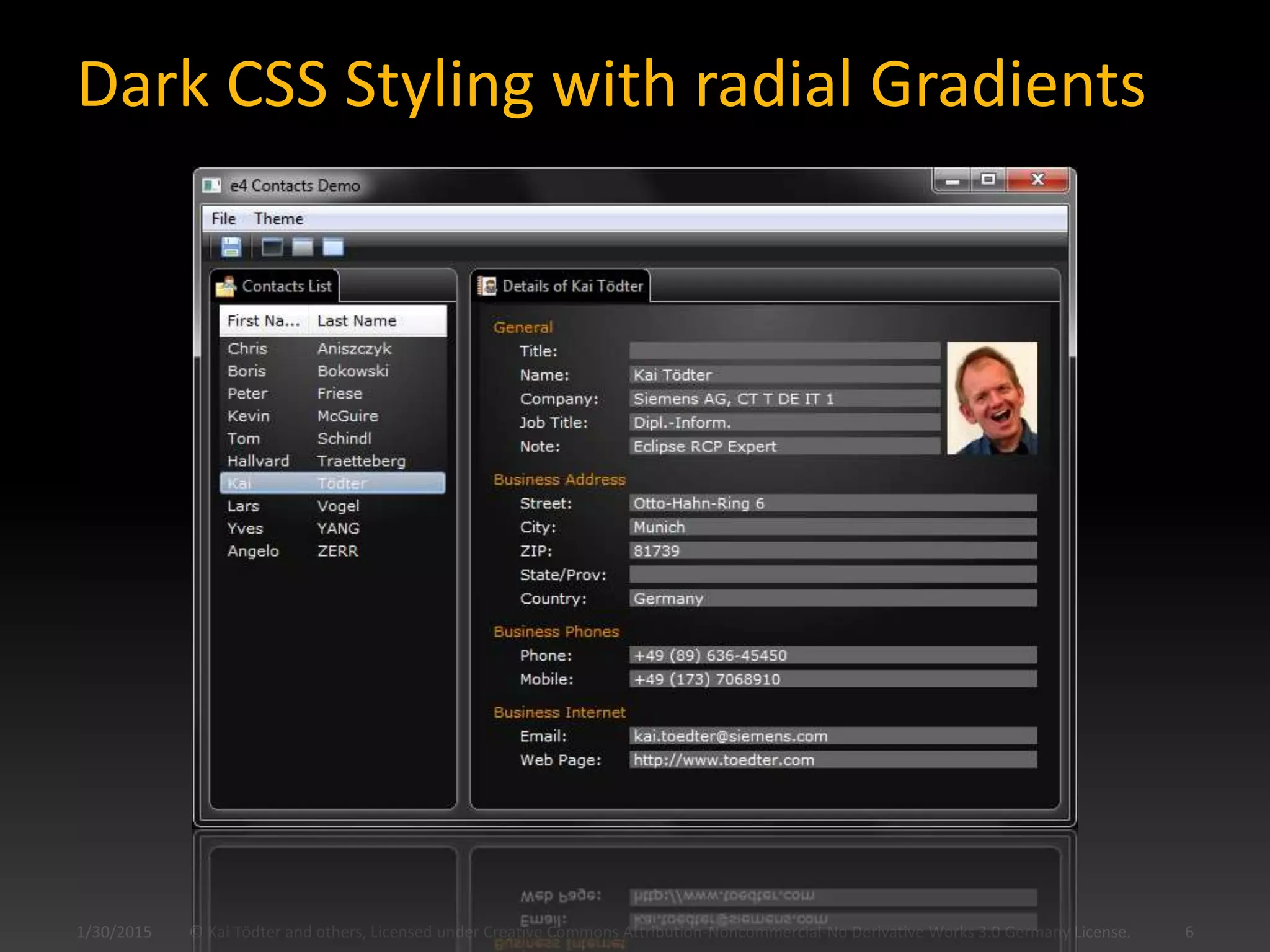

6. Dark CSS Styling with radial Gradients
© Kai Tödter and others, Licensed under Creative Commons Attribution-Noncommercial-No Derivative Works 3.0 Germany License. 61/30/2015

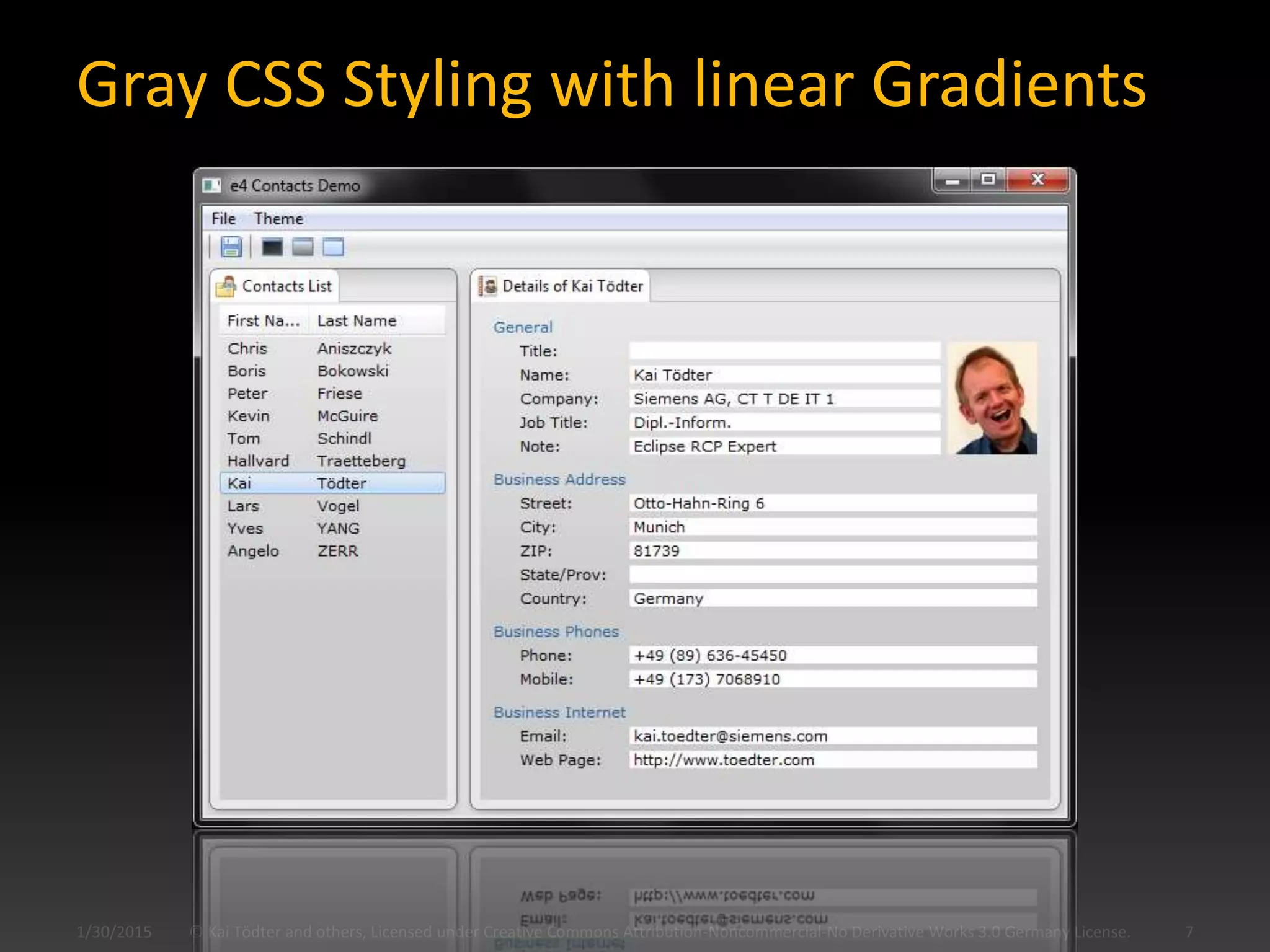

7. Gray CSS Styling with linear Gradients
© Kai Tödter and others, Licensed under Creative Commons Attribution-Noncommercial-No Derivative Works 3.0 Germany License. 71/30/2015

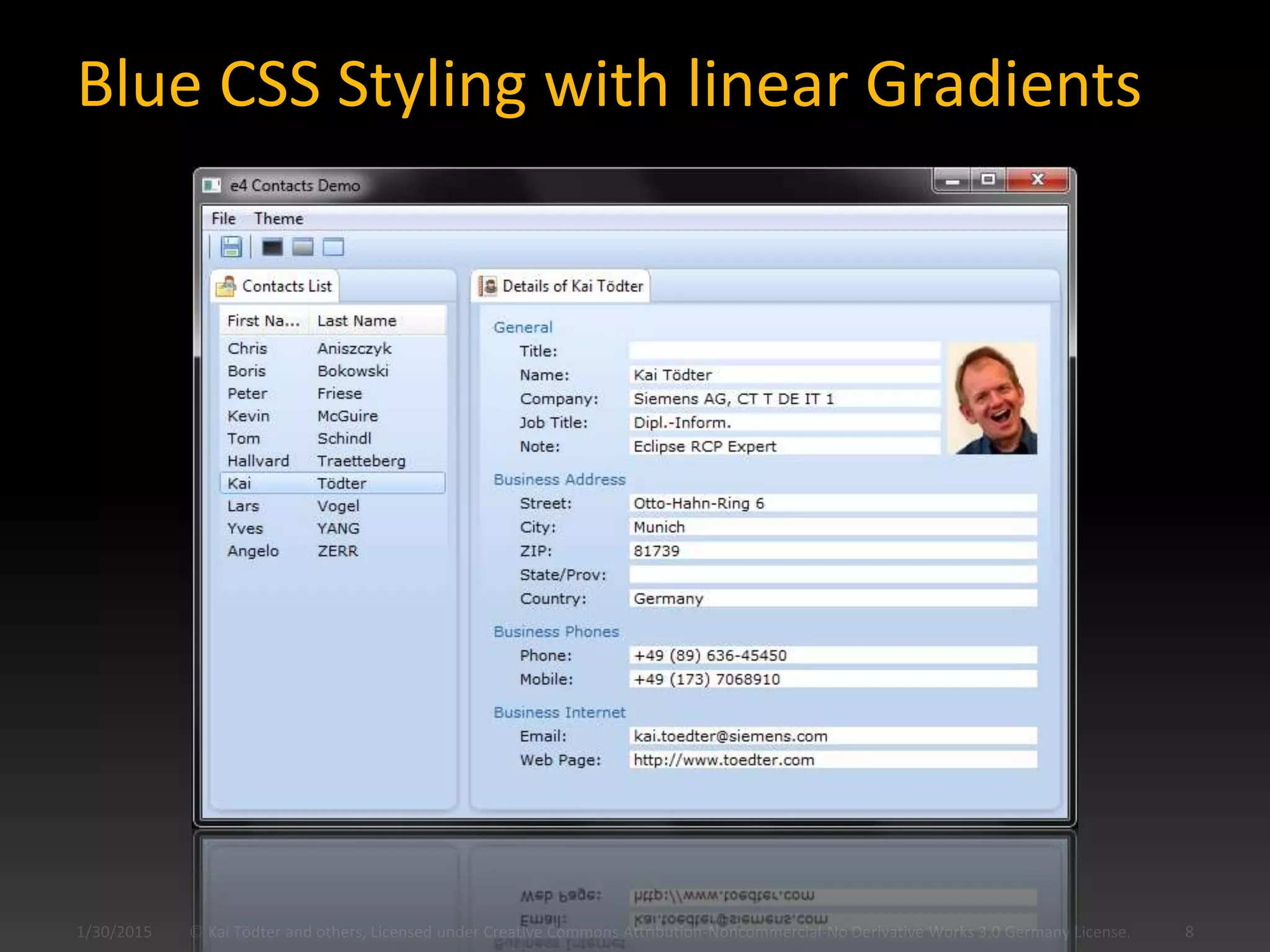

8. Blue CSS Styling with linear Gradients
1/30/2015 © Kai Tödter and others, Licensed under Creative Commons Attribution-Noncommercial-No Derivative Works 3.0 Germany License. 8

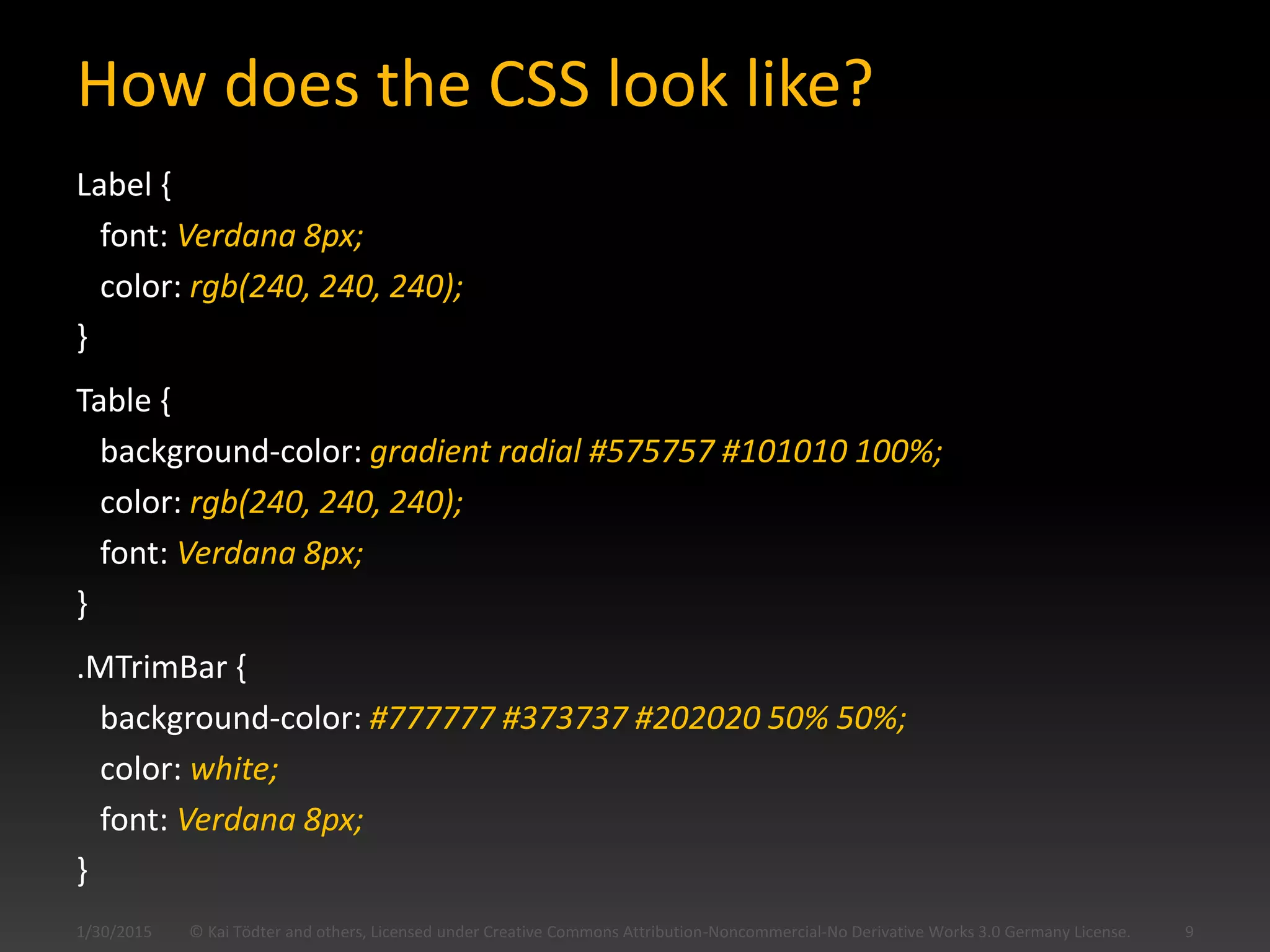

9. How does the CSS look like?
Label {
font: Verdana 8px;
color: rgb(240, 240, 240);
}
Table {
background-color: gradient radial #575757 #101010 100%;
color: rgb(240, 240, 240);
font: Verdana 8px;
}
.MTrimBar {
background-color: #777777 #373737 #202020 50% 50%;
color: white;
font: Verdana 8px;
}
© Kai Tödter and others, Licensed under Creative Commons Attribution-Noncommercial-No Derivative Works 3.0 Germany License. 91/30/2015

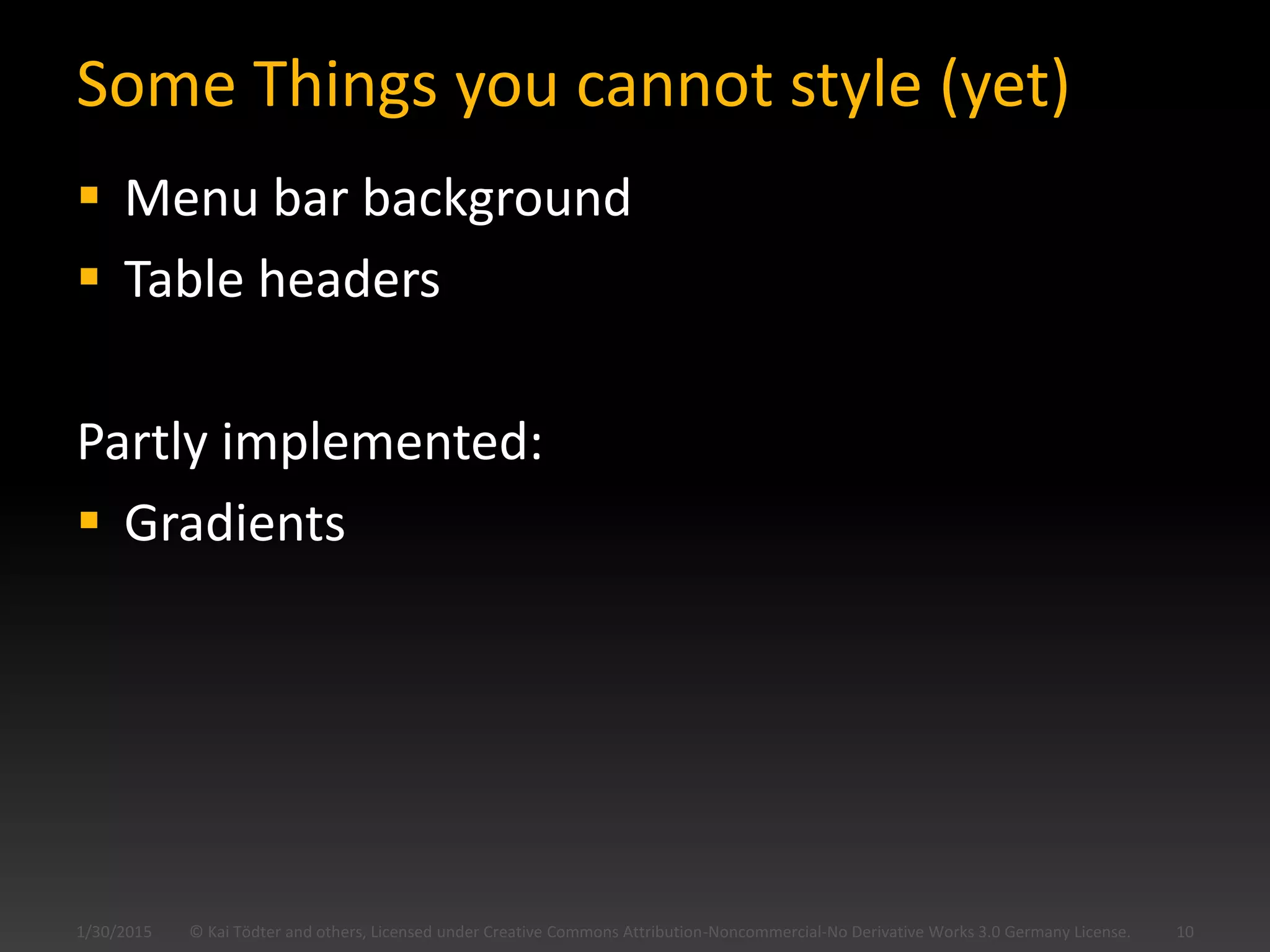

10. Some Things you cannot style (yet)
 Menu bar background
 Table headers
Partly implemented:
 Gradients
© Kai Tödter and others, Licensed under Creative Commons Attribution-Noncommercial-No Derivative Works 3.0 Germany License. 101/30/2015

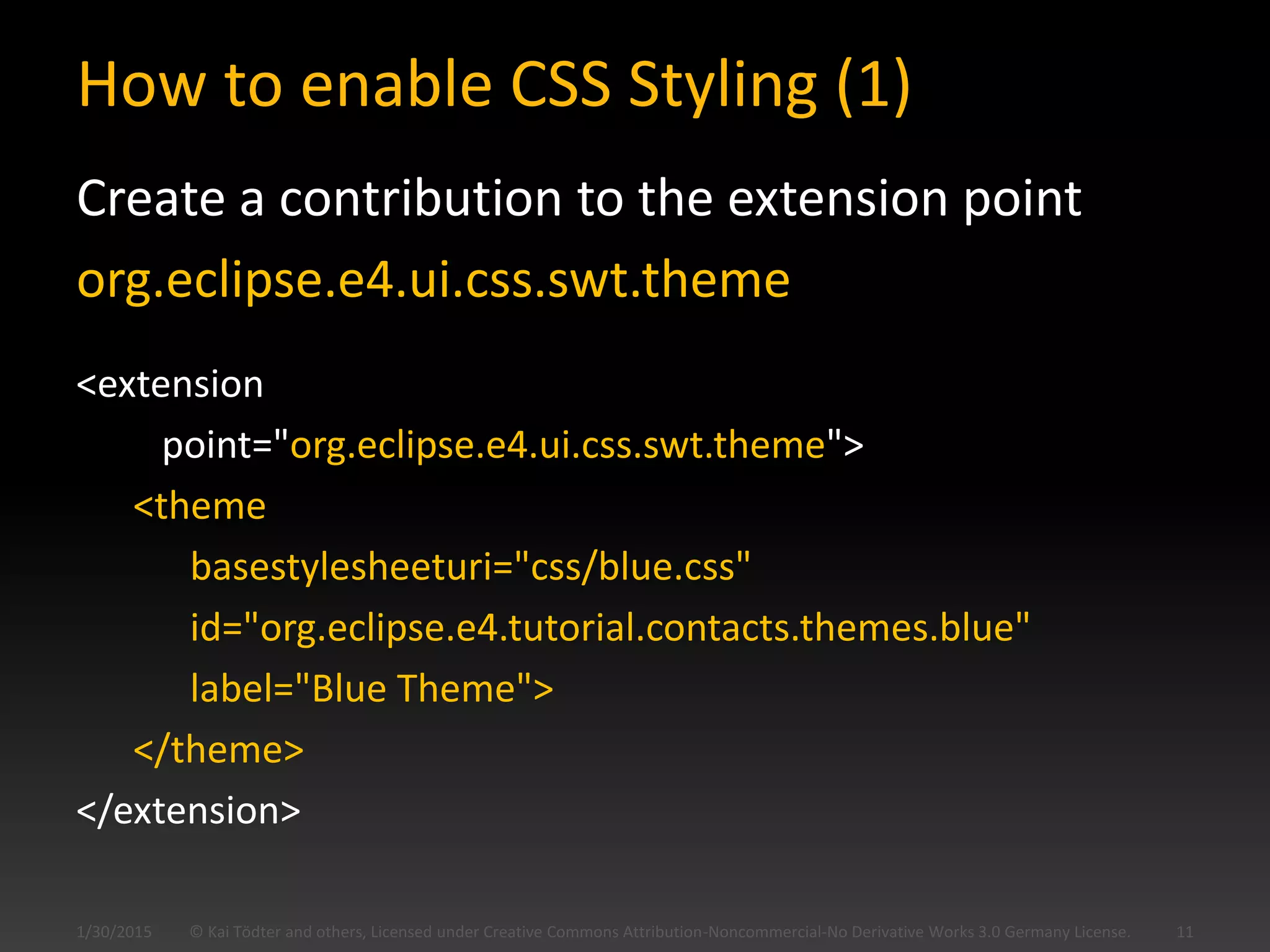

11. How to enable CSS Styling (1)
Create a contribution to the extension point
org.eclipse.e4.ui.css.swt.theme
<extension
point="org.eclipse.e4.ui.css.swt.theme">
<theme
basestylesheeturi="css/blue.css"
id="org.eclipse.e4.tutorial.contacts.themes.blue"
label="Blue Theme">
</theme>
</extension>
© Kai Tödter and others, Licensed under Creative Commons Attribution-Noncommercial-No Derivative Works 3.0 Germany License. 111/30/2015

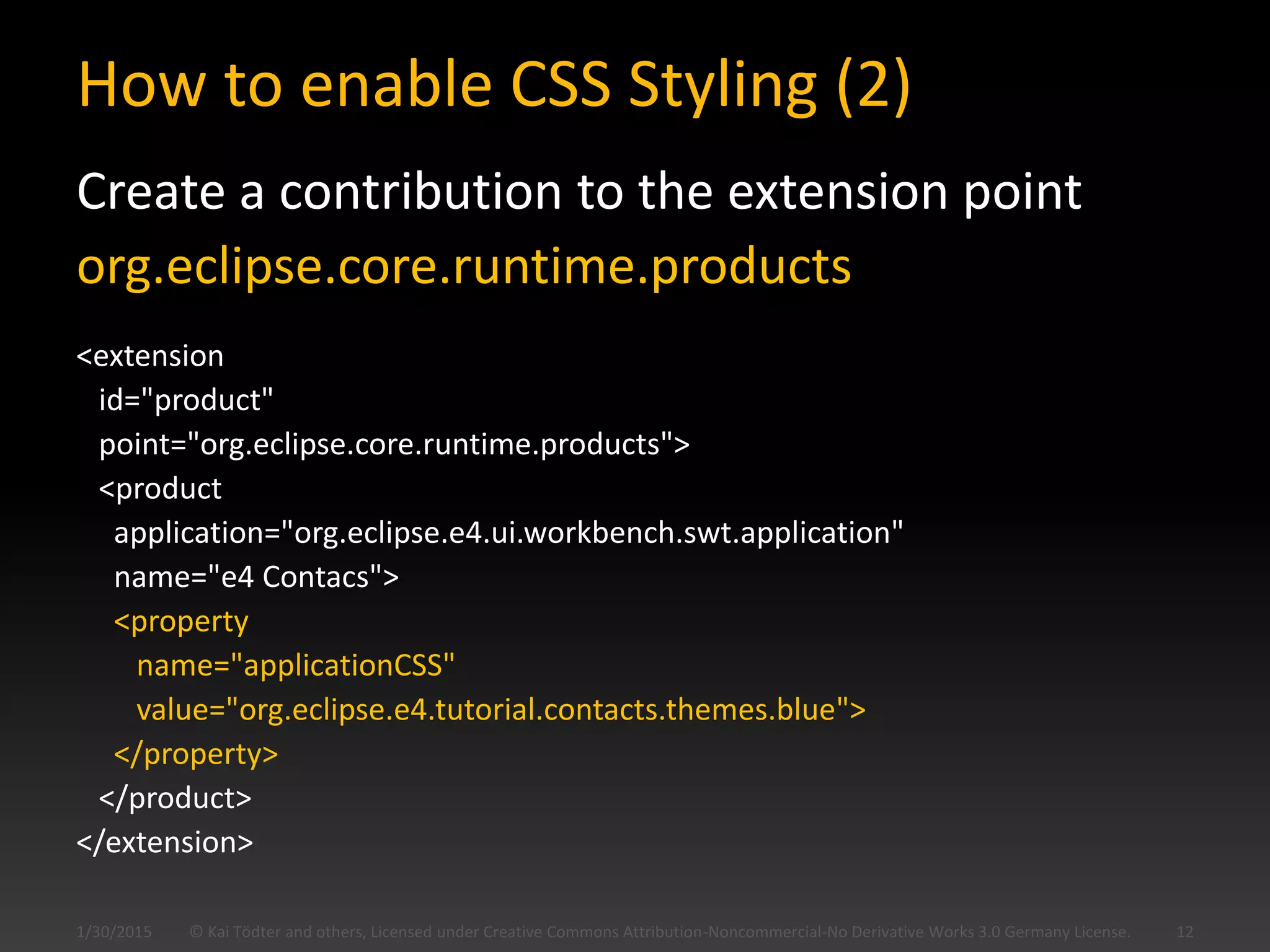

12. How to enable CSS Styling (2)
Create a contribution to the extension point
org.eclipse.core.runtime.products
<extension
id="product"
point="org.eclipse.core.runtime.products">
<product
application="org.eclipse.e4.ui.workbench.swt.application"
name="e4 Contacs">
<property
name="applicationCSS"
value="org.eclipse.e4.tutorial.contacts.themes.blue">
</property>
</product>
</extension>
© Kai Tödter and others, Licensed under Creative Commons Attribution-Noncommercial-No Derivative Works 3.0 Germany License. 121/30/2015

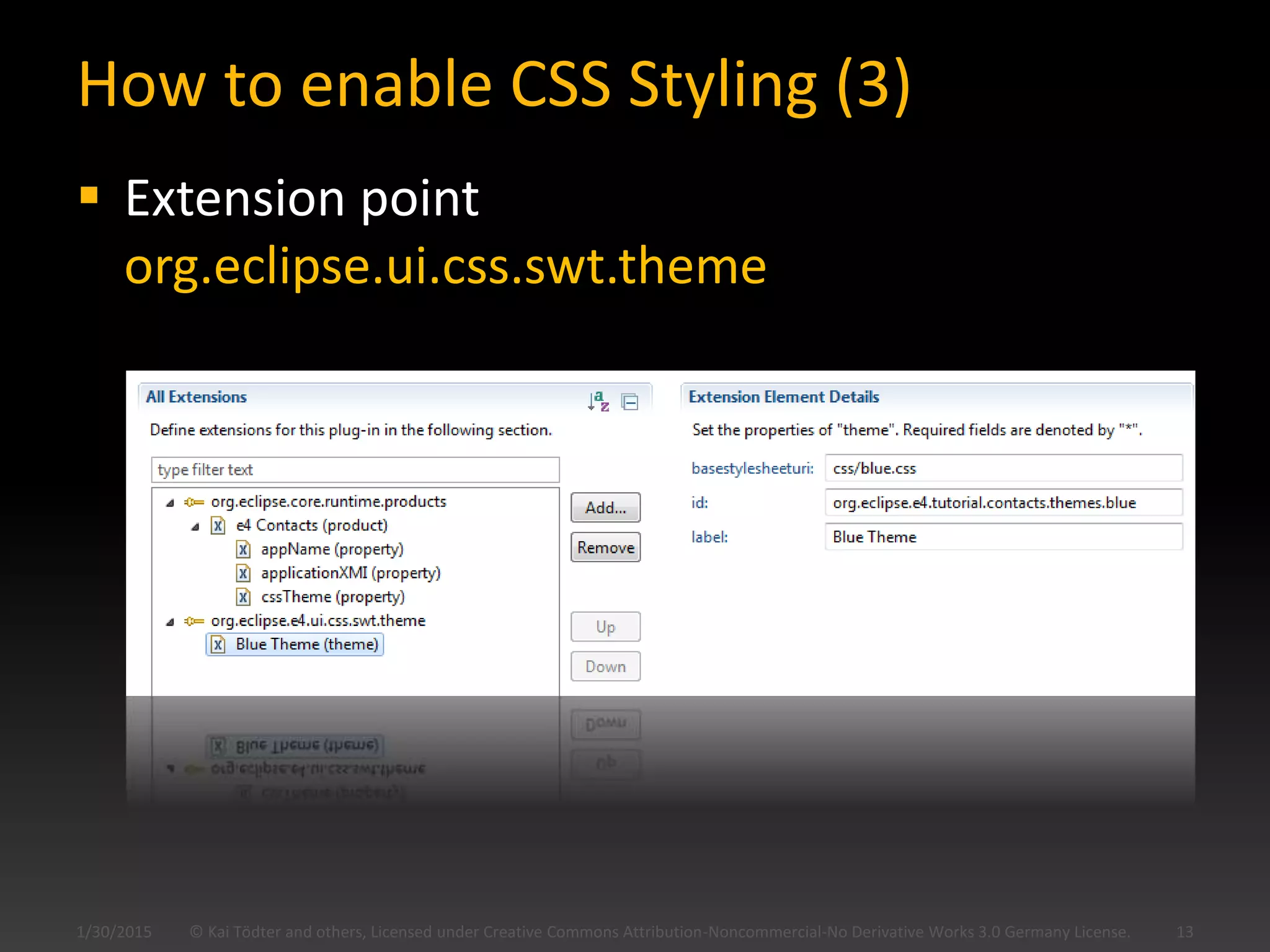

13. How to enable CSS Styling (3)
 Extension point
org.eclipse.ui.css.swt.theme
© Kai Tödter and others, Licensed under Creative Commons Attribution-Noncommercial-No Derivative Works 3.0 Germany License. 131/30/2015

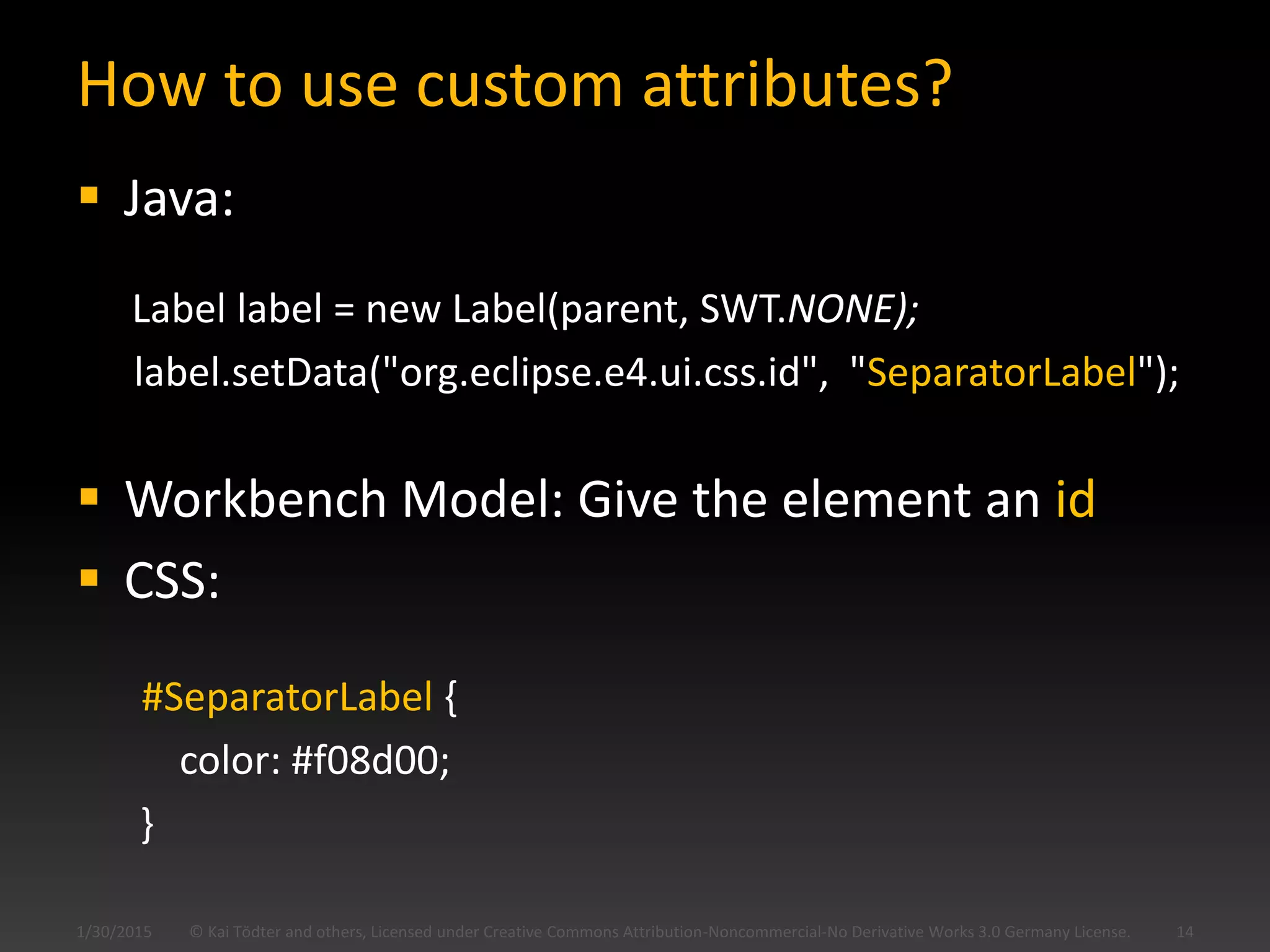

14. How to use custom attributes?
 Java:
Label label = new Label(parent, SWT.NONE);
label.setData("org.eclipse.e4.ui.css.id", "SeparatorLabel");
 Workbench Model: Give the element an id
 CSS:
#SeparatorLabel {
color: #f08d00;
}
© Kai Tödter and others, Licensed under Creative Commons Attribution-Noncommercial-No Derivative Works 3.0 Germany License. 141/30/2015

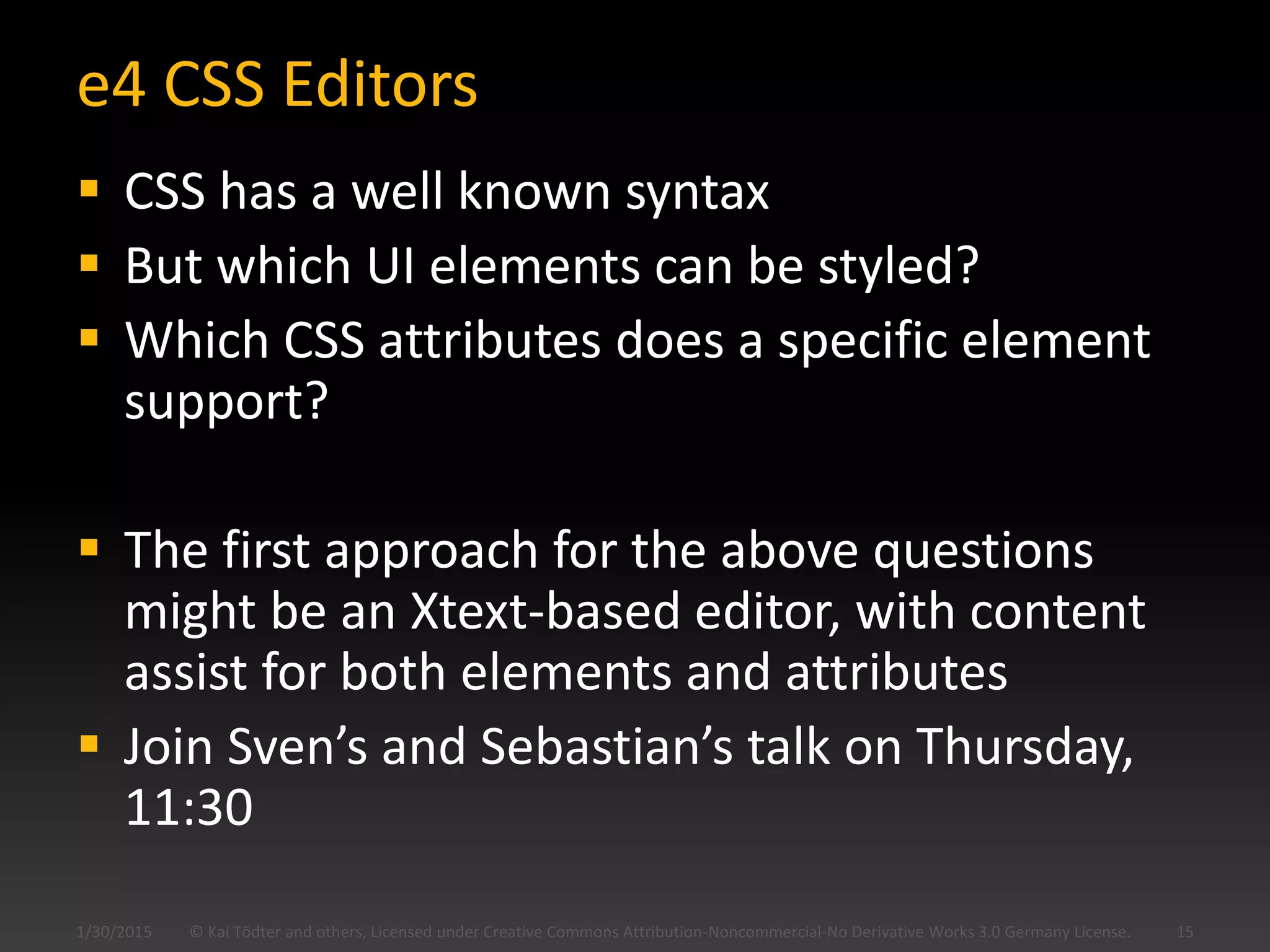

15. e4 CSS Editors
 CSS has a well known syntax
 But which UI elements can be styled?
 Which CSS attributes does a specific element
support?
 The first approach for the above questions
might be an Xtext-based editor, with content
assist for both elements and attributes
 Join Sven’s and Sebastian’s talk on Thursday,
11:30
© Kai Tödter and others, Licensed under Creative Commons Attribution-Noncommercial-No Derivative Works 3.0 Germany License. 151/30/2015

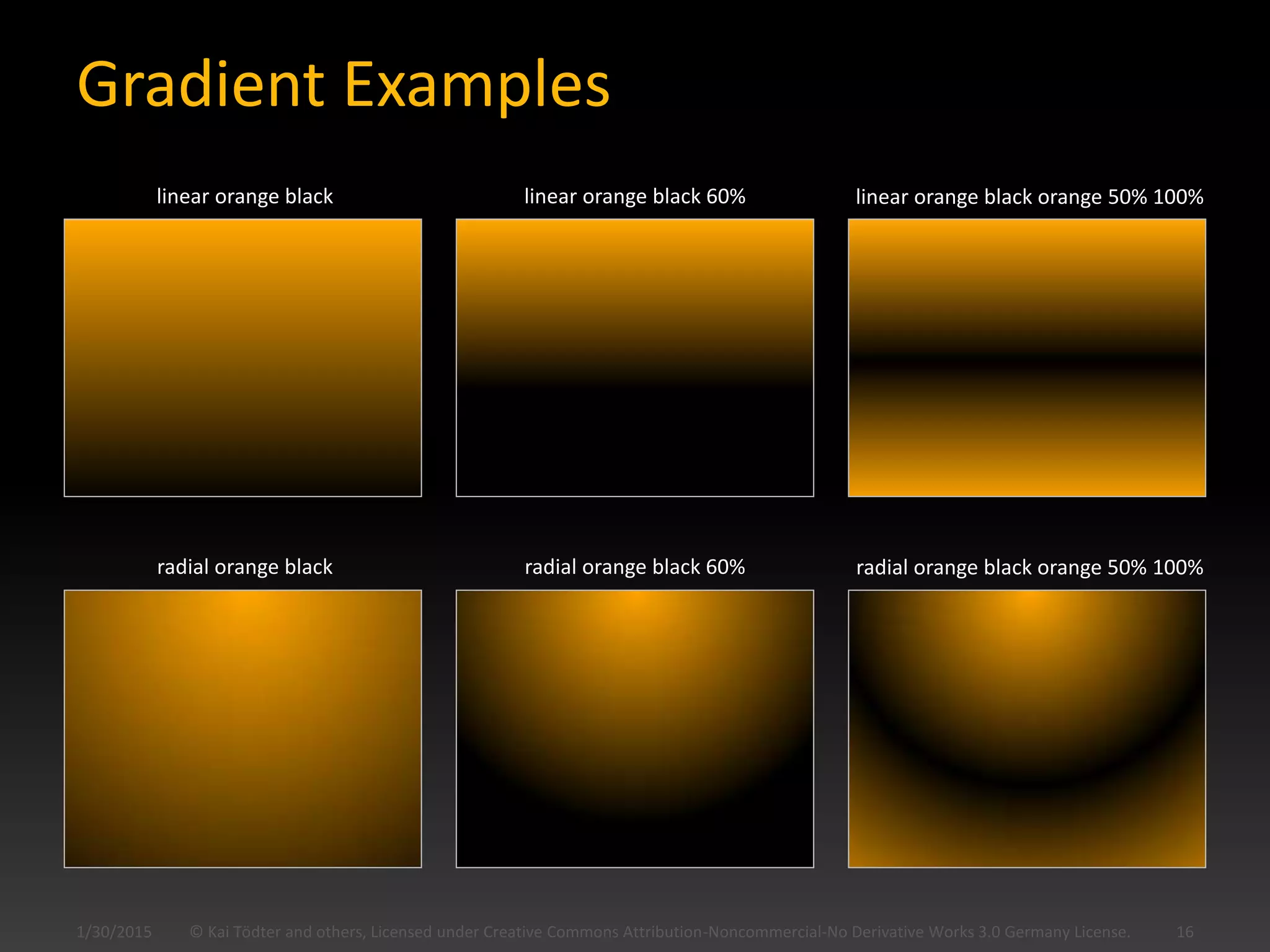

16. Gradient Examples
© Kai Tödter and others, Licensed under Creative Commons Attribution-Noncommercial-No Derivative Works 3.0 Germany License. 161/30/2015
linear orange black linear orange black 60% linear orange black orange 50% 100%
radial orange black radial orange black 60% radial orange black orange 50% 100%

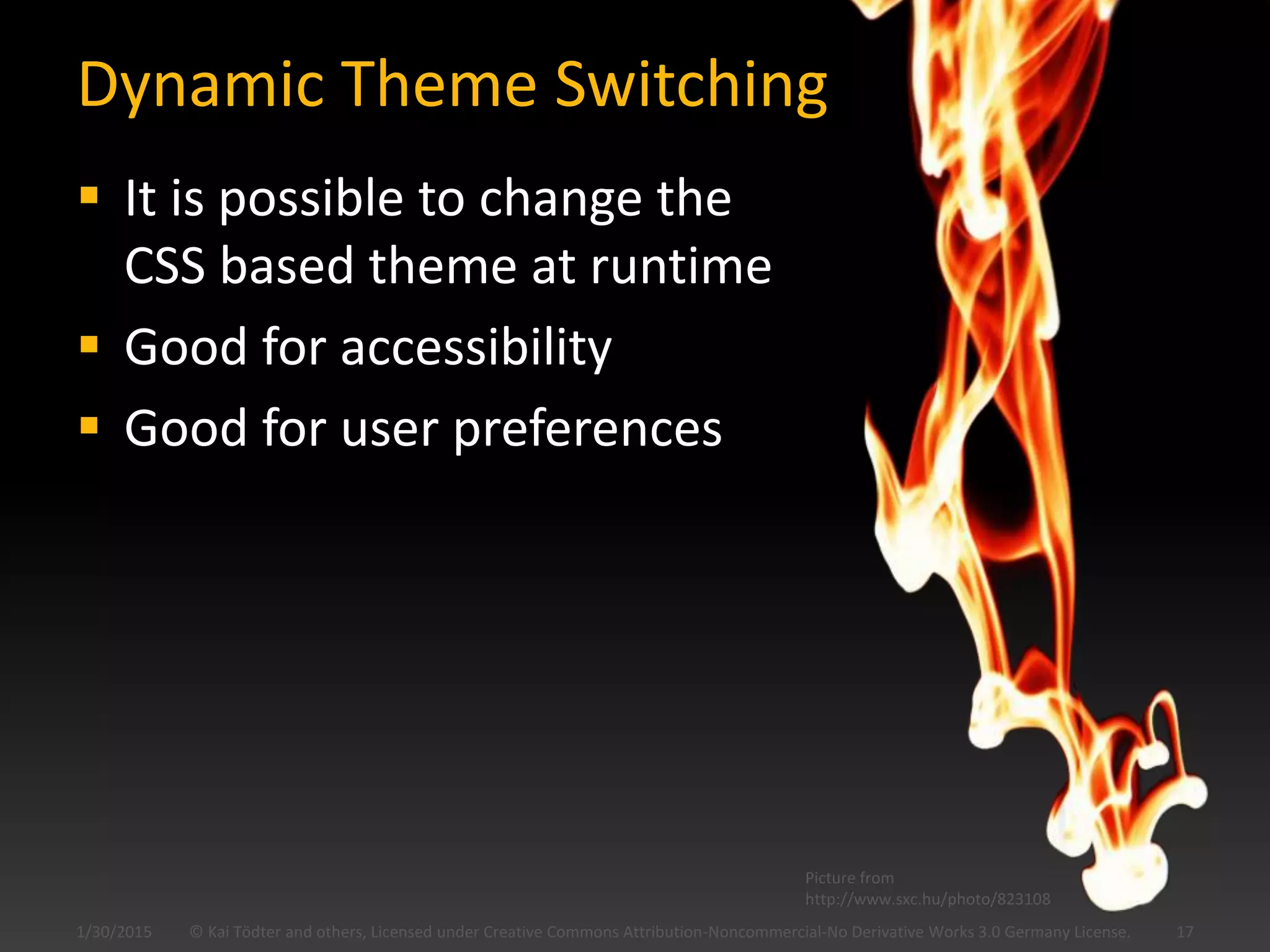

17. Dynamic Theme Switching
 It is possible to change the
CSS based theme at runtime
 Good for accessibility
 Good for user preferences
1/30/2015 © Kai Tödter and others, Licensed under Creative Commons Attribution-Noncommercial-No Derivative Works 3.0 Germany License. 17
Picture from
http://www.sxc.hu/photo/823108

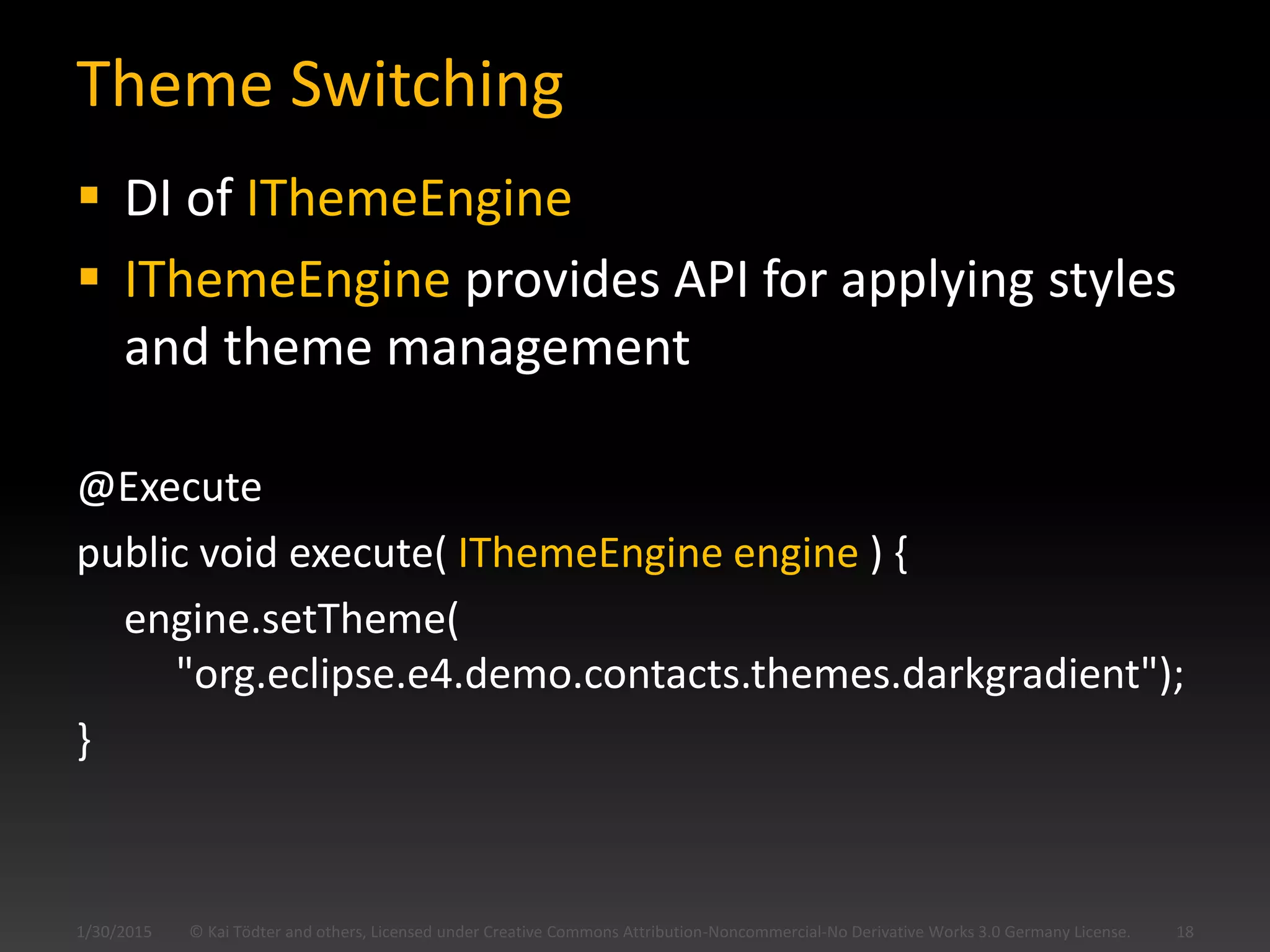

18. Theme Switching
 DI of IThemeEngine
 IThemeEngine provides API for applying styles
and theme management
@Execute
public void execute( IThemeEngine engine ) {
engine.setTheme(
"org.eclipse.e4.demo.contacts.themes.darkgradient");
}
© Kai Tödter and others, Licensed under Creative Commons Attribution-Noncommercial-No Derivative Works 3.0 Germany License. 181/30/2015

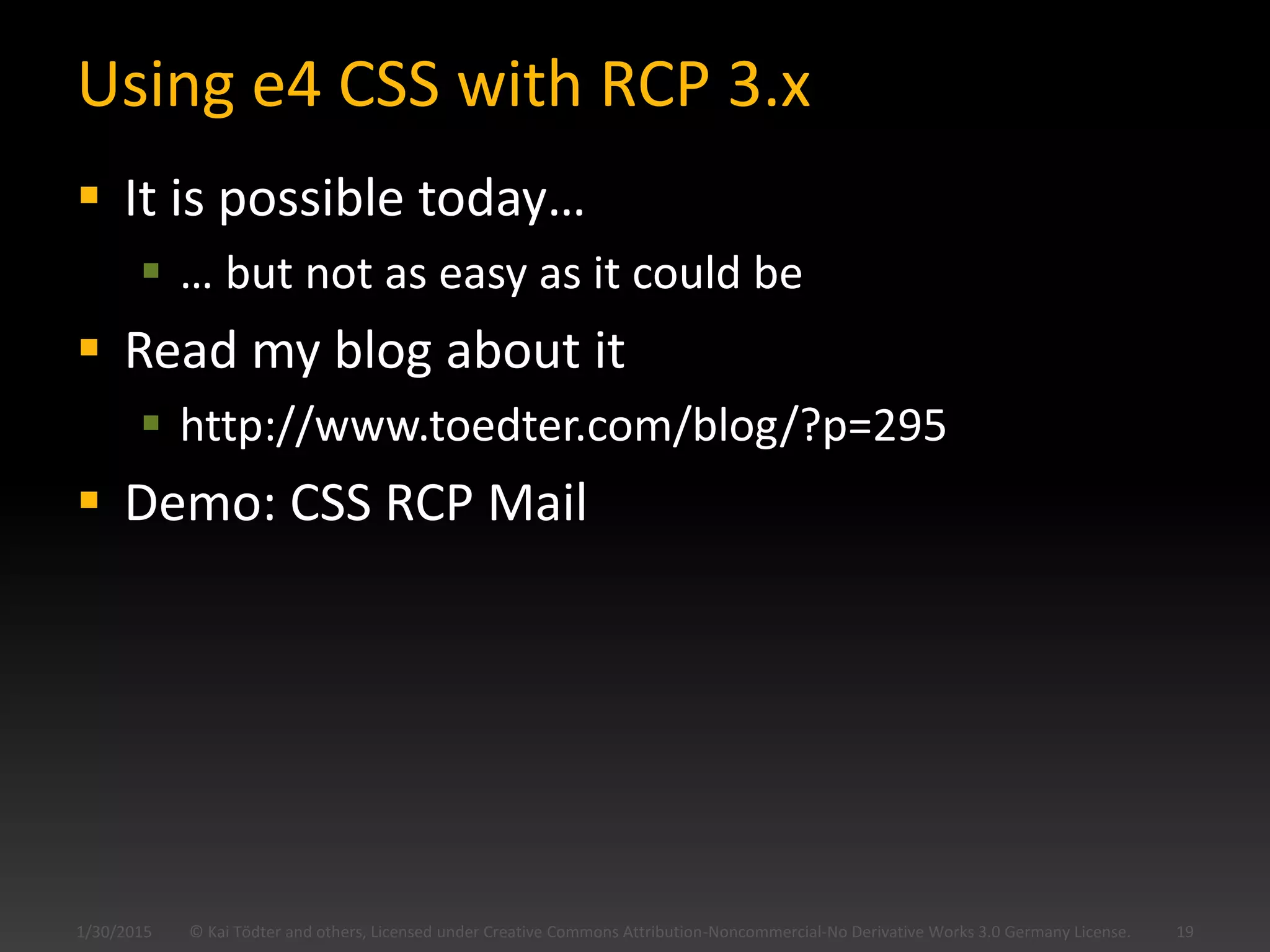

19. Using e4 CSS with RCP 3.x
 It is possible today…
 … but not as easy as it could be
 Read my blog about it
 http://www.toedter.com/blog/?p=295
 Demo: CSS RCP Mail
1/30/2015 © Kai Tödter and others, Licensed under Creative Commons Attribution-Noncommercial-No Derivative Works 3.0 Germany License. 19

20. 1/30/2015 © Kai Tödter and others, Licensed under Creative Commons Attribution-Noncommercial-No Derivative Works 3.0 Germany License. 20
Picture from
http://www.sxc.hu/photo/922004

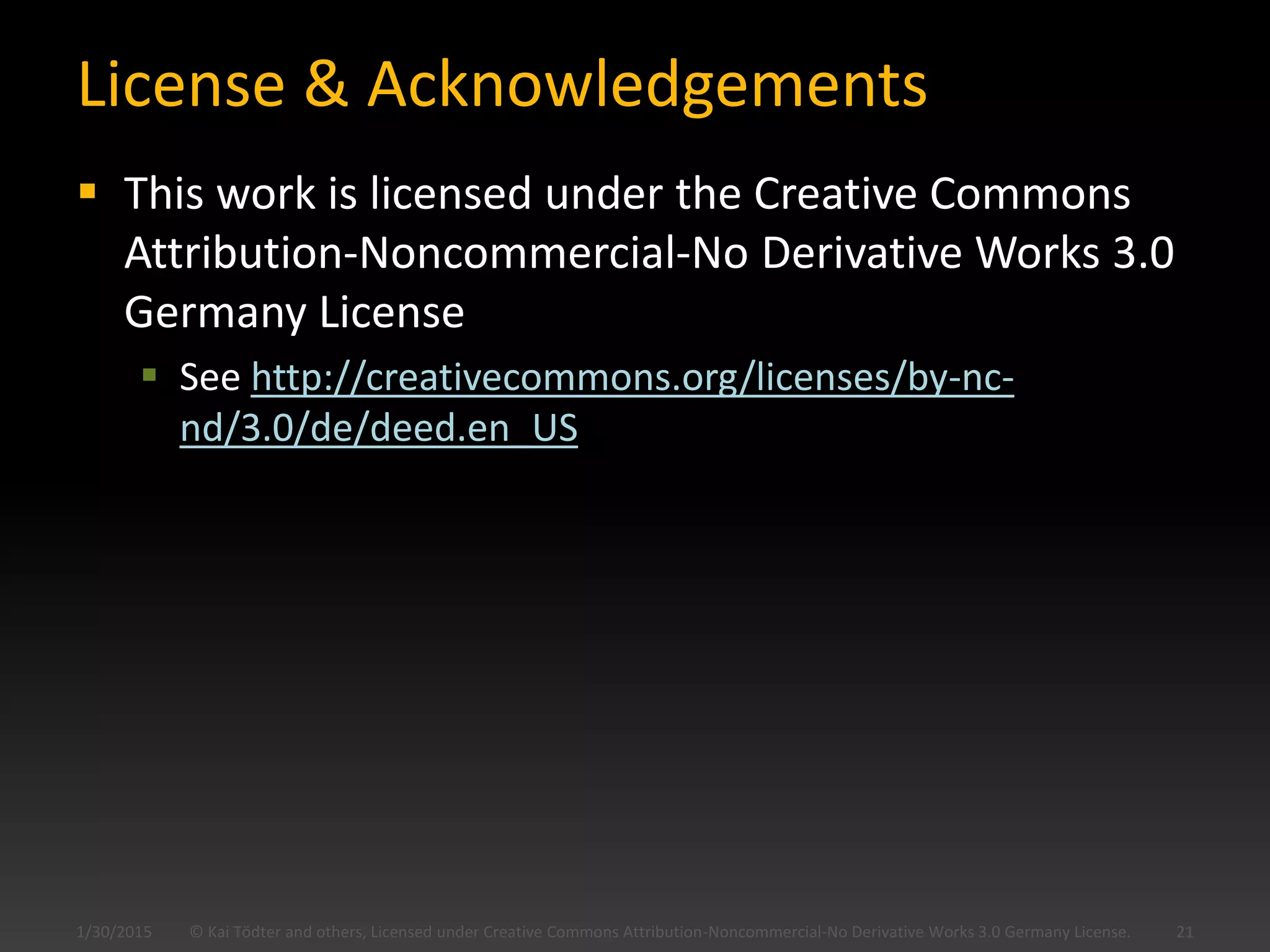

21. License & Acknowledgements
 This work is licensed under the Creative Commons
Attribution-Noncommercial-No Derivative Works 3.0
Germany License
 See http://creativecommons.org/licenses/by-nc-
nd/3.0/de/deed.en_US
1/30/2015 © Kai Tödter and others, Licensed under Creative Commons Attribution-Noncommercial-No Derivative Works 3.0 Germany License. 21

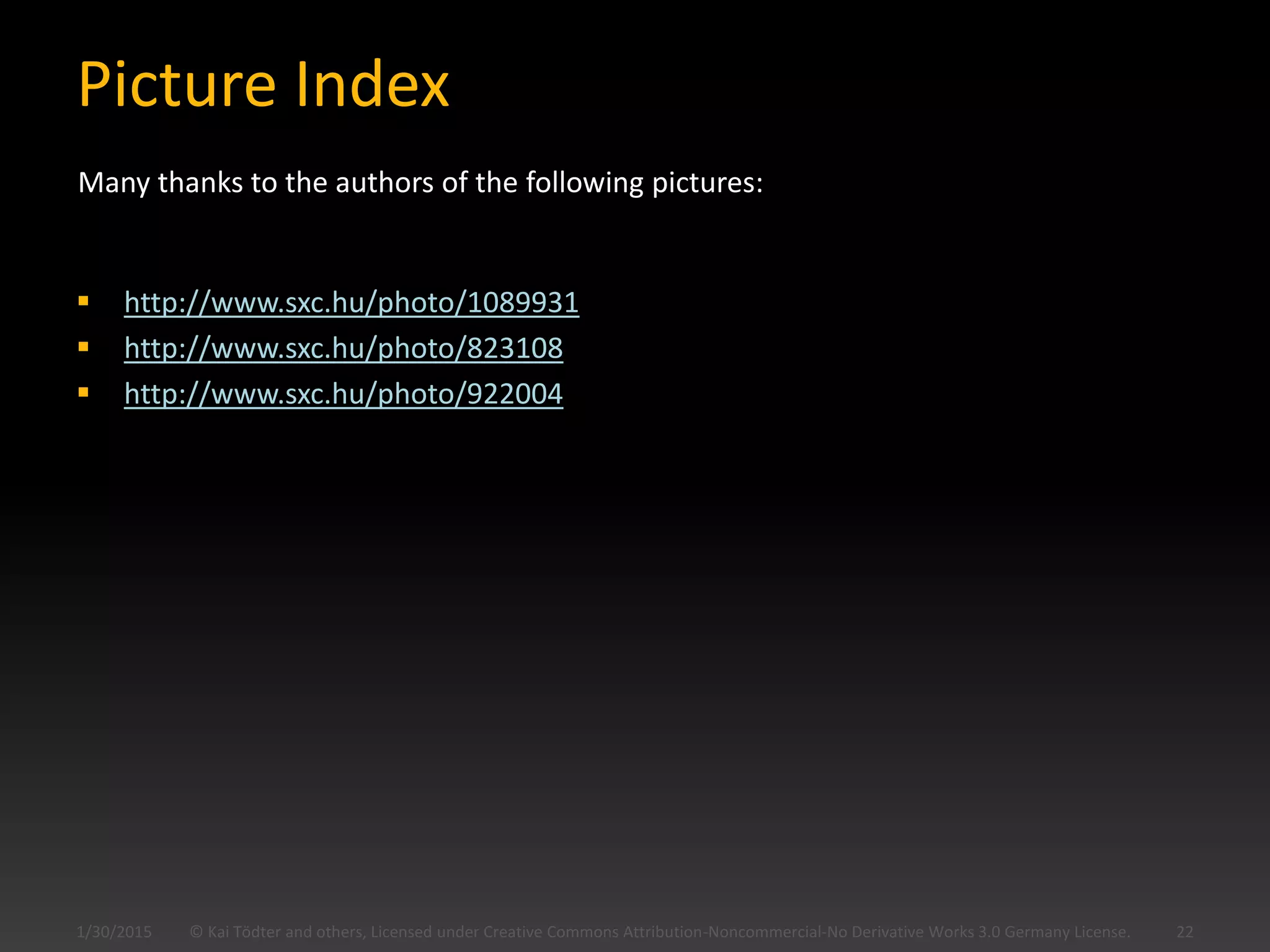

22. Picture Index
