1. |
Dependency Library injection
How to extend any app without a single line of code.

2. |
Przemek Jakubczyk
Android Technical Lead
Applause

3. |

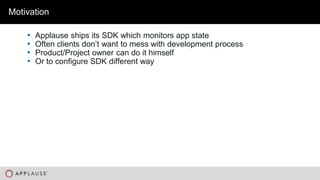

Motivation
• Applause ships its SDK which monitors app state
• Often clients don’t want to mess with development process
• Product/Project owner can do it himself
• Or to configure SDK different way

4. |
The hack

5. |

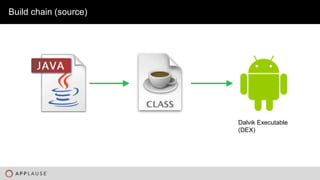

Build chain (source)
Dalvik Executable
(DEX)

6. |

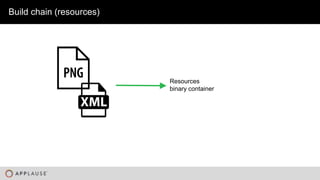

Build chain (resources)
Resources
binary container

7. |

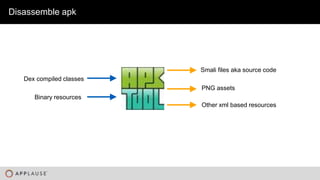

Disassemble apk
Dex compiled classes
Binary resources
Smali files aka source code
PNG assets
Other xml based resources

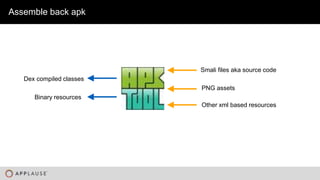

8. |
Assemble back apk
Dex compiled classes
Binary resources
Smali files aka source code
PNG assets
Other xml based resources

9. |

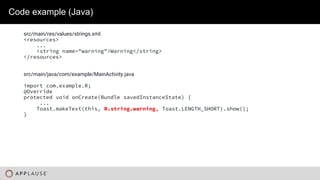

Code example (Java)
src/main/res/values/strings.xml
<resources>
...
<string name="warning">Warning</string>
</resources>
src/main/java/com/example/MainActivity.java
import com.example.R;
@Override
protected void onCreate(Bundle savedInstanceState) {
...
Toast.makeText(this, R.string.warning, Toast.LENGTH_SHORT).show();
}

10. |

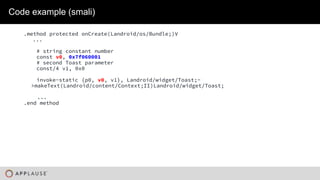

Code example (smali)
.method protected onCreate(Landroid/os/Bundle;)V
...
# string constant number
const v0, 0x7f060001
# second Toast parameter
const/4 v1, 0x0
invoke-static {p0, v0, v1}, Landroid/widget/Toast;-
>makeText(Landroid/content/Context;II)Landroid/widget/Toast;
...
.end method

11. |

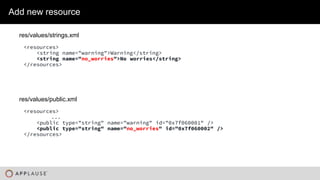

<resources>
<string name="warning">Warning</string>
<string name="no_worries">No worries</string>
</resources>
Add new resource
res/values/strings.xml
<resources>
...
<public type="string" name="warning" id="0x7f060001" />
<public type="string" name="no_worries" id="0x7f060002" />
</resources>
res/values/public.xml

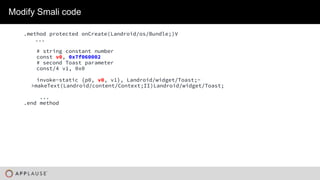

12. |
Modify Smali code
.method protected onCreate(Landroid/os/Bundle;)V
...
# string constant number
const v0, 0x7f060002
# second Toast parameter
const/4 v1, 0x0
invoke-static {p0, v0, v1}, Landroid/widget/Toast;-
>makeText(Landroid/content/Context;II)Landroid/widget/Toast;
...
.end method

13. |

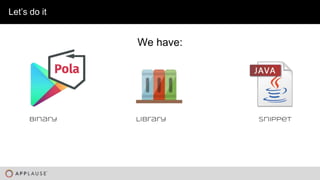

Let’s do it
We have:
Binary Library Snippet

14. |

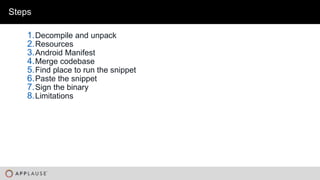

Steps
1.Decompile and unpack
2.Resources
3.Android Manifest
4.Merge codebase
5.Find place to run the snippet
6.Paste the snippet
7.Sign the binary
8.Limitations

15. |

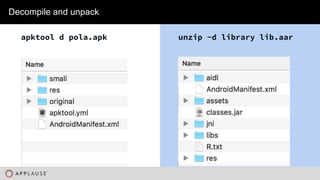

apktool d pola.apk
Decompile and unpack
unzip -d library lib.aar

16. |

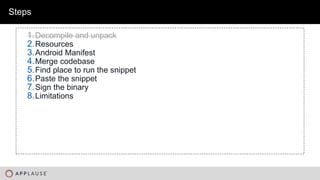

Steps
1.Decompile and unpack
2.Resources
3.Android Manifest
4.Merge codebase
5.Find place to run the snippet
6.Paste the snippet
7.Sign the binary
8.Limitations

17. |

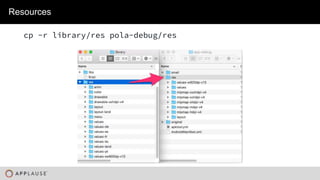

cp -r library/res pola-debug/res
Resources

18. |

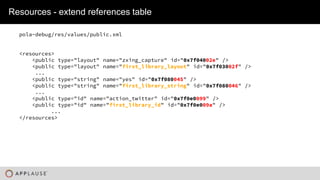

Resources - extend references table
pola-debug/res/values/public.xml
<resources>
<public type="layout" name="zxing_capture" id="0x7f04002e" />
<public type="layout" name="first_library_layout" id="0x7f03002f" />
...
<public type="string" name="yes" id="0x7f080045" />
<public type="string" name="first_library_string" id="0x7f080046" />
...
<public type="id" name="action_twitter" id="0x7f0e0099" />
<public type="id" name="first_library_id" id="0x7f0e009a" />
...
</resources>

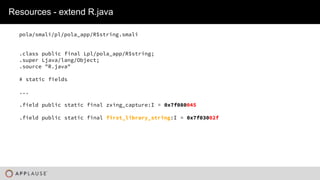

19. |
Resources - extend R.java
pola/smali/pl/pola_app/R$string.smali
.class public final Lpl/pola_app/R$string;
.super Ljava/lang/Object;
.source "R.java"
# static fields
...
.field public static final zxing_capture:I = 0x7f080045
.field public static final first_library_string:I = 0x7f03002f

20. |

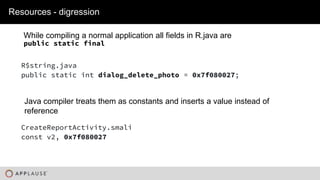

While compiling a normal application all fields in R.java are
public static final
Resources - digression
CreateReportActivity.smali
const v2, 0x7f080027
R$string.java
public static int dialog_delete_photo = 0x7f080027;
Java compiler treats them as constants and inserts a value instead of
reference

21. |

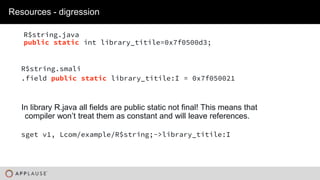

R$string.java
public static int library_titile=0x7f0500d3;
Resources - digression
sget v1, Lcom/example/R$string;->library_titile:I
In library R.java all fields are public static not final! This means that
compiler won’t treat them as constant and will leave references.
R$string.smali
.field public static library_titile:I = 0x7f050021

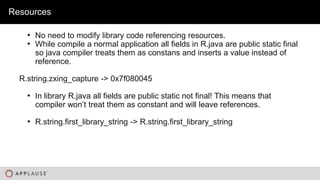

22. |
• No need to modify library code referencing resources.
• While compile a normal application all fields in R.java are public static final
so java compiler treats them as constans and inserts a value instead of
reference.
R.string.zxing_capture -> 0x7f080045
• In library R.java all fields are public static not final! This means that
compiler won’t treat them as constant and will leave references.
• R.string.first_library_string -> R.string.first_library_string
Resources

23. |

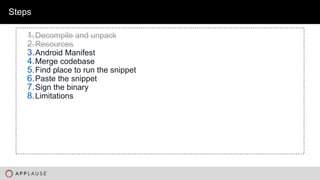

Steps
1.Decompile and unpack
2.Resources
3.Android Manifest
4.Merge codebase
5.Find place to run the snippet
6.Paste the snippet
7.Sign the binary
8.Limitations

24. |

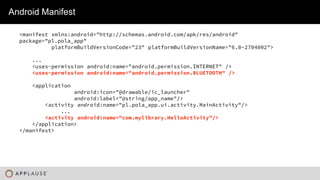

Android Manifest
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
package="pl.pola_app"
platformBuildVersionCode="23" platformBuildVersionName="6.0-2704002">
...
<uses-permission android:name="android.permission.INTERNET" />
<uses-permission android:name="android.permission.BLUETOOTH" />
<application
android:icon="@drawable/ic_launcher"
android:label="@string/app_name"/>
<activity android:name="pl.pola_app.ui.activity.MainActivity"/>
...
<activity android:name="com.mylibrary.HelloActivity"/>
</application>
</manifest>

25. |
Steps
1.Decompile and unpack
2.Resources
3.Android Manifest
4.Merge codebase
5.Find place to run the snippet
6.Paste the snippet
7.Sign the binary
8.Limitations

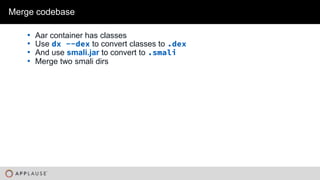

26. |
• Aar container has classes
• Use dx --dex to convert classes to .dex
• And use smali.jar to convert to .smali
• Merge two smali dirs
Merge codebase

27. |

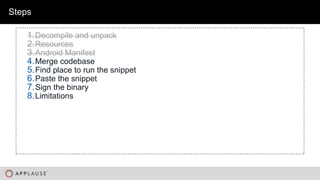

Steps
1.Decompile and unpack
2.Resources
3.Android Manifest
4.Merge codebase
5.Find place to run the snippet
6.Paste the snippet
7.Sign the binary
8.Limitations

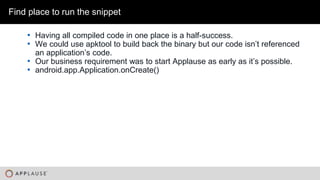

28. |
• Having all compiled code in one place is a half-success.
• We could use apktool to build back the binary but our code isn’t referenced
an application’s code.
• Our business requirement was to start Applause as early as it’s possible.
• android.app.Application.onCreate()
Find place to run the snippet

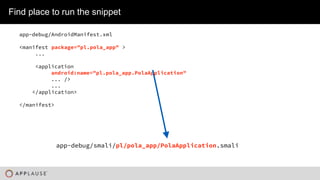

29. |
Find place to run the snippet
app-debug/AndroidManifest.xml
<manifest package="pl.pola_app" >
...
<application
android:name="pl.pola_app.PolaApplication"
... />
...
</application>
</manifest>
app-debug/smali/pl/pola_app/PolaApplication.smali

30. |
Steps

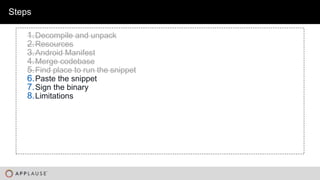

1.Decompile and unpack
2.Resources
3.Android Manifest
4.Merge codebase
5.Find place to run the snippet
6.Paste the snippet
7.Sign the binary
8.Limitations

31. |

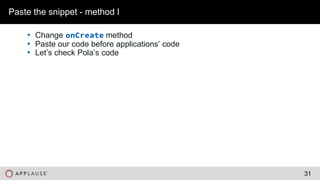

• Change onCreate method
• Paste our code before applications’ code
• Let’s check Pola’s code
Paste the snippet - method I
31

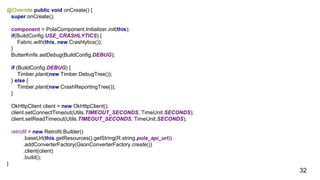

32. |
@Override public void onCreate() {
super.onCreate();
component = PolaComponent.Initializer.init(this);
if(BuildConfig.USE_CRASHLYTICS) {
Fabric.with(this, new Crashlytics());
}
ButterKnife.setDebug(BuildConfig.DEBUG);
if (BuildConfig.DEBUG) {
Timber.plant(new Timber.DebugTree());
} else {
Timber.plant(new CrashReportingTree());
}
OkHttpClient client = new OkHttpClient();
client.setConnectTimeout(Utils.TIMEOUT_SECONDS, TimeUnit.SECONDS);
client.setReadTimeout(Utils.TIMEOUT_SECONDS, TimeUnit.SECONDS);
retrofit = new Retrofit.Builder()
.baseUrl(this.getResources().getString(R.string.pola_api_url))
.addConverterFactory(GsonConverterFactory.create())
.client(client)
.build();
}
32

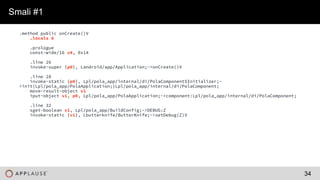

33. |
Transforms to ...

34. |
.method public onCreate()V
.locals 6
.prologue
const-wide/16 v4, 0x14
.line 26
invoke-super {p0}, Landroid/app/Application;->onCreate()V
.line 28
invoke-static {p0}, Lpl/pola_app/internal/di/PolaComponent$Initializer;-
>init(Lpl/pola_app/PolaApplication;)Lpl/pola_app/internal/di/PolaComponent;
move-result-object v1
iput-object v1, p0, Lpl/pola_app/PolaApplication;->component:Lpl/pola_app/internal/di/PolaComponent;
.line 32
sget-boolean v1, Lpl/pola_app/BuildConfig;->DEBUG:Z
invoke-static {v1}, Lbutterknife/ButterKnife;->setDebug(Z)V
Smali #1
34

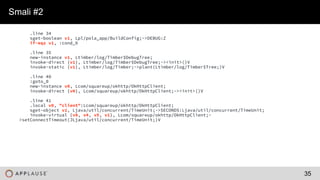

35. |
.line 34
sget-boolean v1, Lpl/pola_app/BuildConfig;->DEBUG:Z
if-eqz v1, :cond_0
.line 35
new-instance v1, Ltimber/log/Timber$DebugTree;
invoke-direct {v1}, Ltimber/log/Timber$DebugTree;-><init>()V
invoke-static {v1}, Ltimber/log/Timber;->plant(Ltimber/log/Timber$Tree;)V
.line 40
:goto_0
new-instance v0, Lcom/squareup/okhttp/OkHttpClient;
invoke-direct {v0}, Lcom/squareup/okhttp/OkHttpClient;-><init>()V
.line 41
.local v0, "client":Lcom/squareup/okhttp/OkHttpClient;
sget-object v1, Ljava/util/concurrent/TimeUnit;->SECONDS:Ljava/util/concurrent/TimeUnit;
invoke-virtual {v0, v4, v5, v1}, Lcom/squareup/okhttp/OkHttpClient;-
>setConnectTimeout(JLjava/util/concurrent/TimeUnit;)V
Smali #2
35

36. |

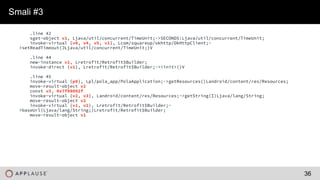

.line 42
sget-object v1, Ljava/util/concurrent/TimeUnit;->SECONDS:Ljava/util/concurrent/TimeUnit;
invoke-virtual {v0, v4, v5, v1}, Lcom/squareup/okhttp/OkHttpClient;-
>setReadTimeout(JLjava/util/concurrent/TimeUnit;)V
.line 44
new-instance v1, Lretrofit/Retrofit$Builder;
invoke-direct {v1}, Lretrofit/Retrofit$Builder;-><init>()V
.line 45
invoke-virtual {p0}, Lpl/pola_app/PolaApplication;->getResources()Landroid/content/res/Resources;
move-result-object v2
const v3, 0x7f08002f
invoke-virtual {v2, v3}, Landroid/content/res/Resources;->getString(I)Ljava/lang/String;
move-result-object v2
invoke-virtual {v1, v2}, Lretrofit/Retrofit$Builder;-
>baseUrl(Ljava/lang/String;)Lretrofit/Retrofit$Builder;
move-result-object v1
Smali #3
36

37. |

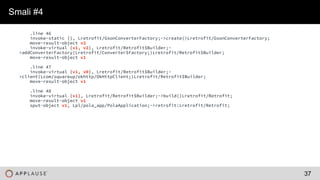

.line 46
invoke-static {}, Lretrofit/GsonConverterFactory;->create()Lretrofit/GsonConverterFactory;
move-result-object v2
invoke-virtual {v1, v2}, Lretrofit/Retrofit$Builder;-
>addConverterFactory(Lretrofit/Converter$Factory;)Lretrofit/Retrofit$Builder;
move-result-object v1
.line 47
invoke-virtual {v1, v0}, Lretrofit/Retrofit$Builder;-
>client(Lcom/squareup/okhttp/OkHttpClient;)Lretrofit/Retrofit$Builder;
move-result-object v1
.line 48
invoke-virtual {v1}, Lretrofit/Retrofit$Builder;->build()Lretrofit/Retrofit;
move-result-object v1
sput-object v1, Lpl/pola_app/PolaApplication;->retrofit:Lretrofit/Retrofit;
Smali #4
37

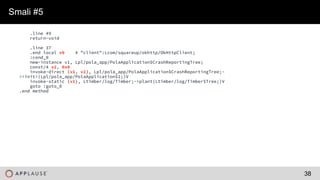

38. |
.line 49
return-void
.line 37
.end local v0 # "client":Lcom/squareup/okhttp/OkHttpClient;
:cond_0
new-instance v1, Lpl/pola_app/PolaApplication$CrashReportingTree;
const/4 v2, 0x0
invoke-direct {v1, v2}, Lpl/pola_app/PolaApplication$CrashReportingTree;-
><init>(Lpl/pola_app/PolaApplication$1;)V
invoke-static {v1}, Ltimber/log/Timber;->plant(Ltimber/log/Timber$Tree;)V
goto :goto_0
.end method
Smali #5
38

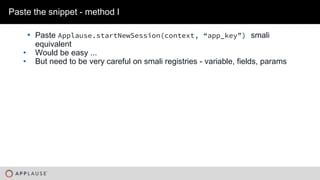

39. |
• Paste Applause.startNewSession(context, “app_key”) smali
equivalent
• Would be easy ...
• But need to be very careful on smali registries - variable, fields, params
Paste the snippet - method I

40. |
• Replace application:name in
Android Manifest to
LibraryApplication
Paste the snippet - method II
import android.app.Application
class LibraryApplication extends
Application {}
import pl.pola_app.PolaApplication
class LibraryApplication extends
PolaApplication {}
• Change base class of our
LibraryApplication to one
found in original Android
Manifest
• Ensure all super calls
<application
android:name=".PolApplication”
... >
<application
android:name=".LibraryApplication”
... >

41. |
• Replace super class in header
to LibraryApplication
Paste the snippet - method II (PolaApplication.smali)
.method public onCreate()V
.line 26
invoke-super {p0},
Landroid/app/Application;
->onCreate()V
.method public onCreate()V
.line 26
invoke-super {p0},
Lcom/example/LibraryApplication;
->onCreate()V
• Change all super calls
.class public
Lpl/pola_app/PolaApplication;
.super Landroid/app/Application;
.source "PolaApplication.java"
.class public
Lpl/pola_app/PolaApplication;
.super Lcom/example/LibraryApplication;
.source "PolaApplication.java"

42. |

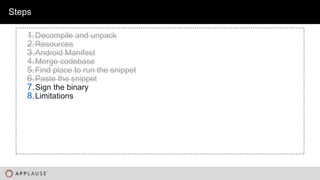

Steps
1.Decompile and unpack
2.Resources
3.Android Manifest
4.Merge codebase
5.Find place to run the snippet
6.Paste the snippet
7.Sign the binary
8.Limitations

43. |

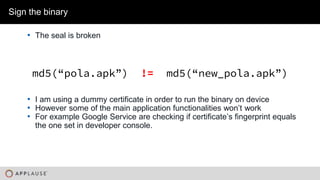

• The seal is broken
Sign the binary
md5(“pola.apk”) != md5(“new_pola.apk”)
• I am using a dummy certificate in order to run the binary on device
• However some of the main application functionalities won’t work
• For example Google Service are checking if certificate’s fingerprint equals
the one set in developer console.

44. |

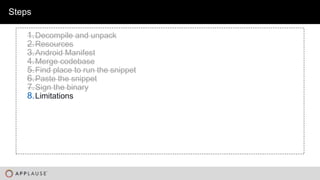

Steps
1.Decompile and unpack
2.Resources
3.Android Manifest
4.Merge codebase
5.Find place to run the snippet
6.Paste the snippet
7.Sign the binary
8.Limitations

45. |

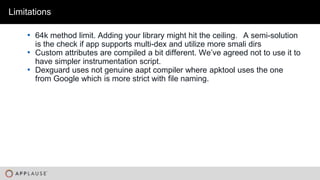

• 64k method limit. Adding your library might hit the ceiling. A semi-solution
is the check if app supports multi-dex and utilize more smali dirs
• Custom attributes are compiled a bit different. We’ve agreed not to use it to
have simpler instrumentation script.
• Dexguard uses not genuine aapt compiler where apktool uses the one
from Google which is more strict with file naming.
Limitations

46. |
Run and enjoy!

47. |
Questions?

48. |
THANK YOU
Thanks
and catch me on evening beer session
