- 1. Dynamic Power Consumption InLarge FPGAs WILLIAM GARCIA, ANDREW MORTELLARO

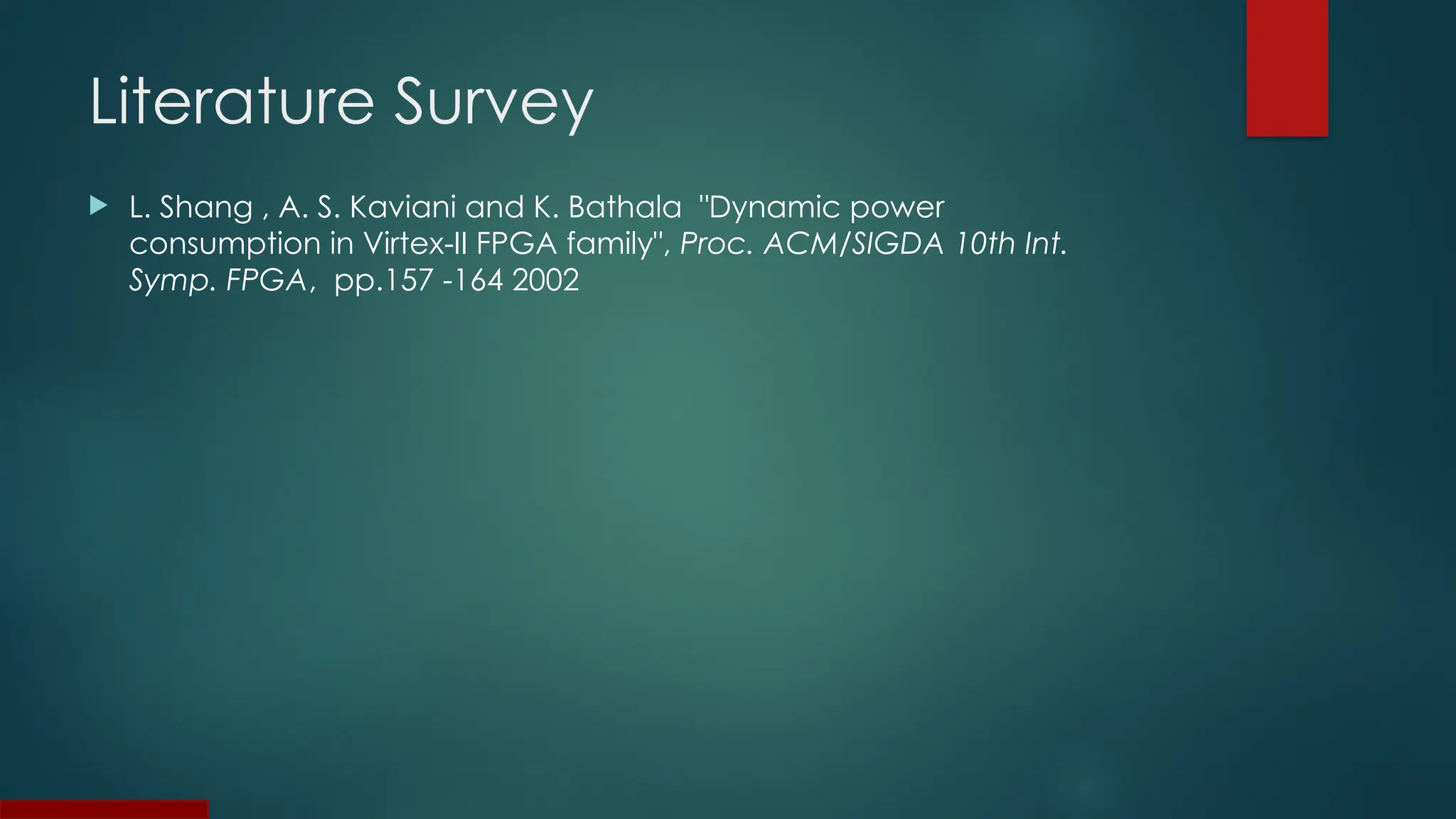

- 2. Literature Survey L.Shang , A. S. Kaviani and K. Bathala "Dynamic power consumption in Virtex-II FPGA family", Proc. ACM/SIGDA 10th Int. Symp. FPGA, pp.157 -164 2002
- 3. Introduction Recent advancesin semiconductor process technology has led to rapid scaling of transistor dimensions High density of transistors on the same chip has made power consumption one of the major challenges of deep submicron IC design Need to identify utilized logic and routing resources that contribute to the dynamic power consumption Goals of the paper: Better understanding of where power is consumed in FPGAs Use this understanding to help expert designers reduce or control the power characteristics of their design
- 4. Related Work FPGA-specificpower studies lagging behind those of ASIC Recent studies: Power distribution of the Xilinx 4000 family Power dissipation of FPGA interconnection Manhattan distances between logic blocks This study Consideration of state-of-the-art FPGA Advanced process technology and reduced power supply More accurate results Access to detailed schematics of FPGA circuits Larger circuits tested

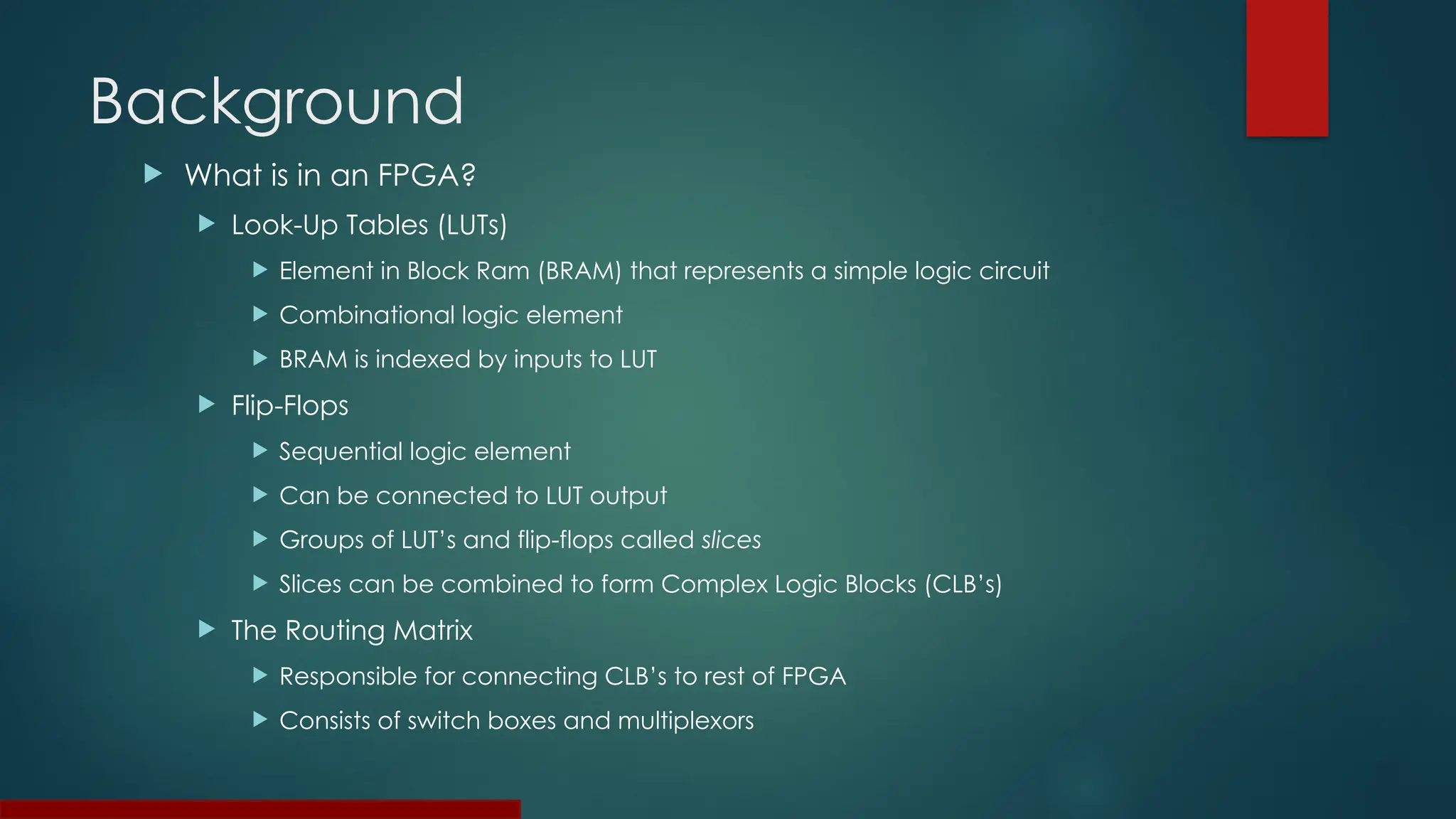

- 5. Background What isin an FPGA? Look-Up Tables (LUTs) Element in Block Ram (BRAM) that represents a simple logic circuit Combinational logic element BRAM is indexed by inputs to LUT Flip-Flops Sequential logic element Can be connected to LUT output Groups of LUT’s and flip-flops called slices Slices can be combined to form Complex Logic Blocks (CLB’s) The Routing Matrix Responsible for connecting CLB’s to rest of FPGA Consists of switch boxes and multiplexors

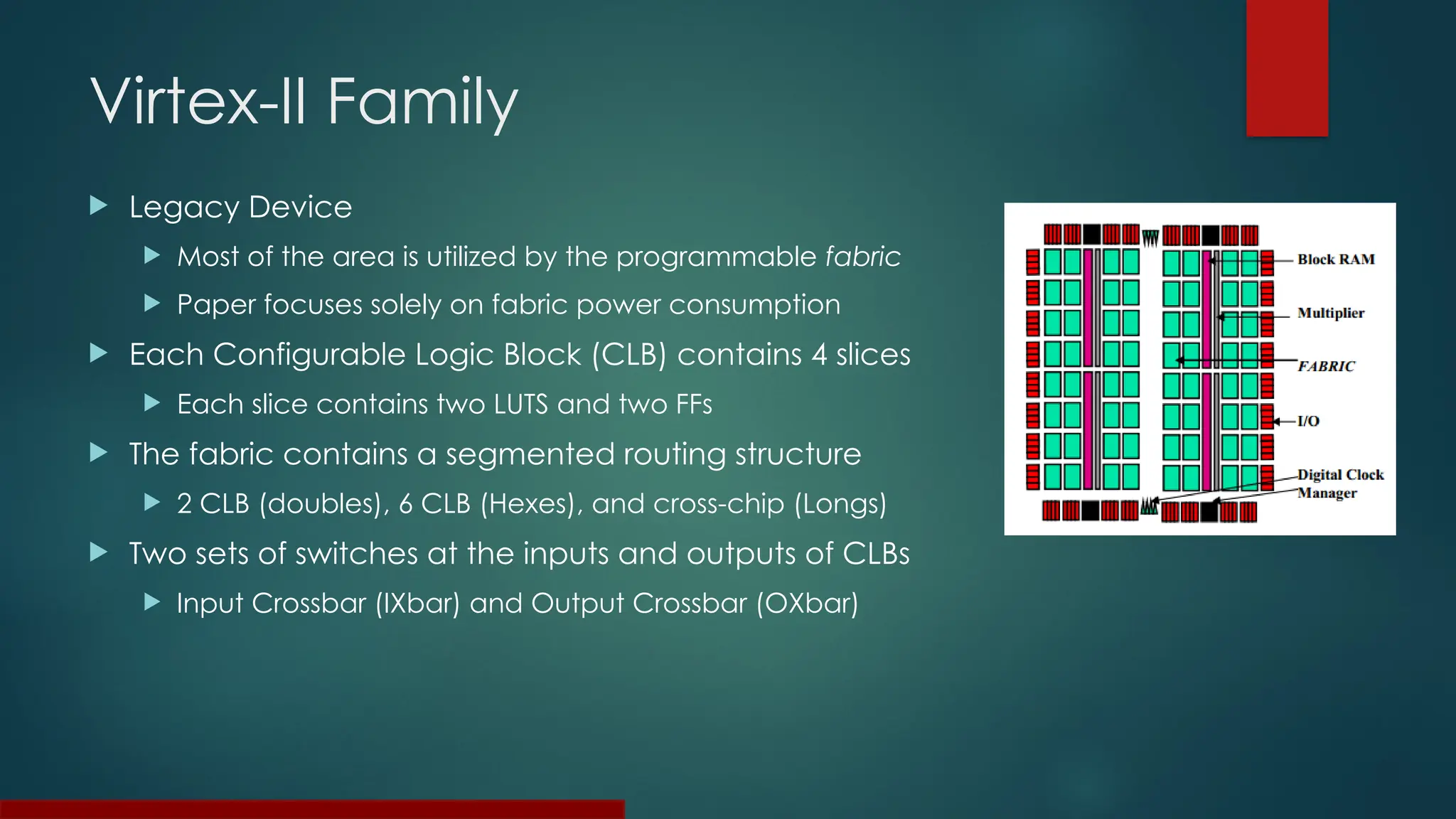

- 6. Virtex-II Family LegacyDevice Most of the area is utilized by the programmable fabric Paper focuses solely on fabric power consumption Each Configurable Logic Block (CLB) contains 4 slices Each slice contains two LUTS and two FFs The fabric contains a segmented routing structure 2 CLB (doubles), 6 CLB (Hexes), and cross-chip (Longs) Two sets of switches at the inputs and outputs of CLBs Input Crossbar (IXbar) and Output Crossbar (OXbar)

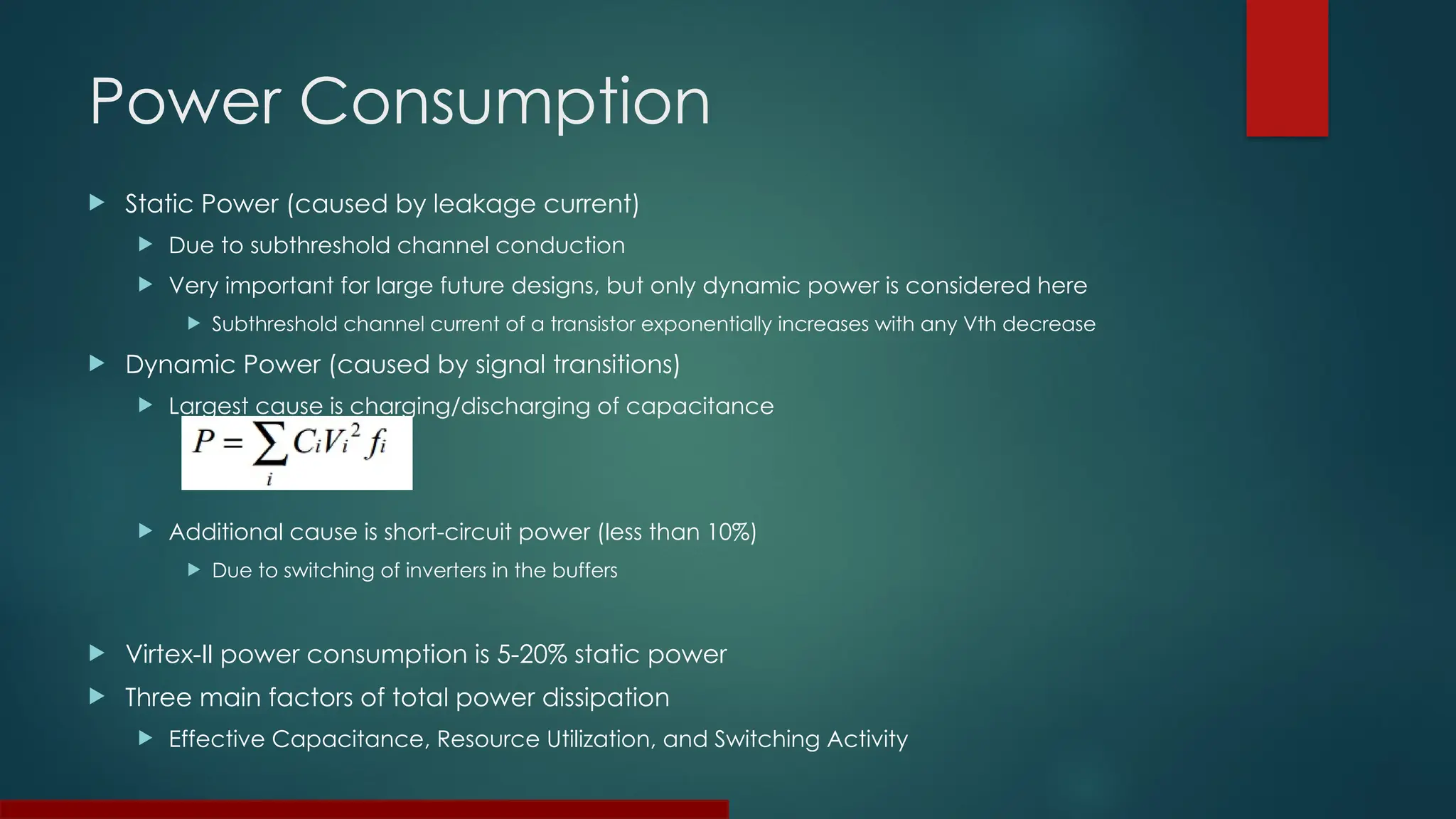

- 7. Power Consumption StaticPower (caused by leakage current) Due to subthreshold channel conduction Very important for large future designs, but only dynamic power is considered here Subthreshold channel current of a transistor exponentially increases with any Vth decrease Dynamic Power (caused by signal transitions) Largest cause is charging/discharging of capacitance Additional cause is short-circuit power (less than 10%) Due to switching of inverters in the buffers Virtex-II power consumption is 5-20% static power Three main factors of total power dissipation Effective Capacitance, Resource Utilization, and Switching Activity
- 8. Effective Capacitance PowerMeasurements Target resource is added to reference circuit to calculate power difference Linear relationship between frequency and power insures correctness Spice Simulation Needed because some resources not easily isolated Using Cadence and Hspice transistors are simulated from vendor schematics Results Found for device 2v1000FG256-5

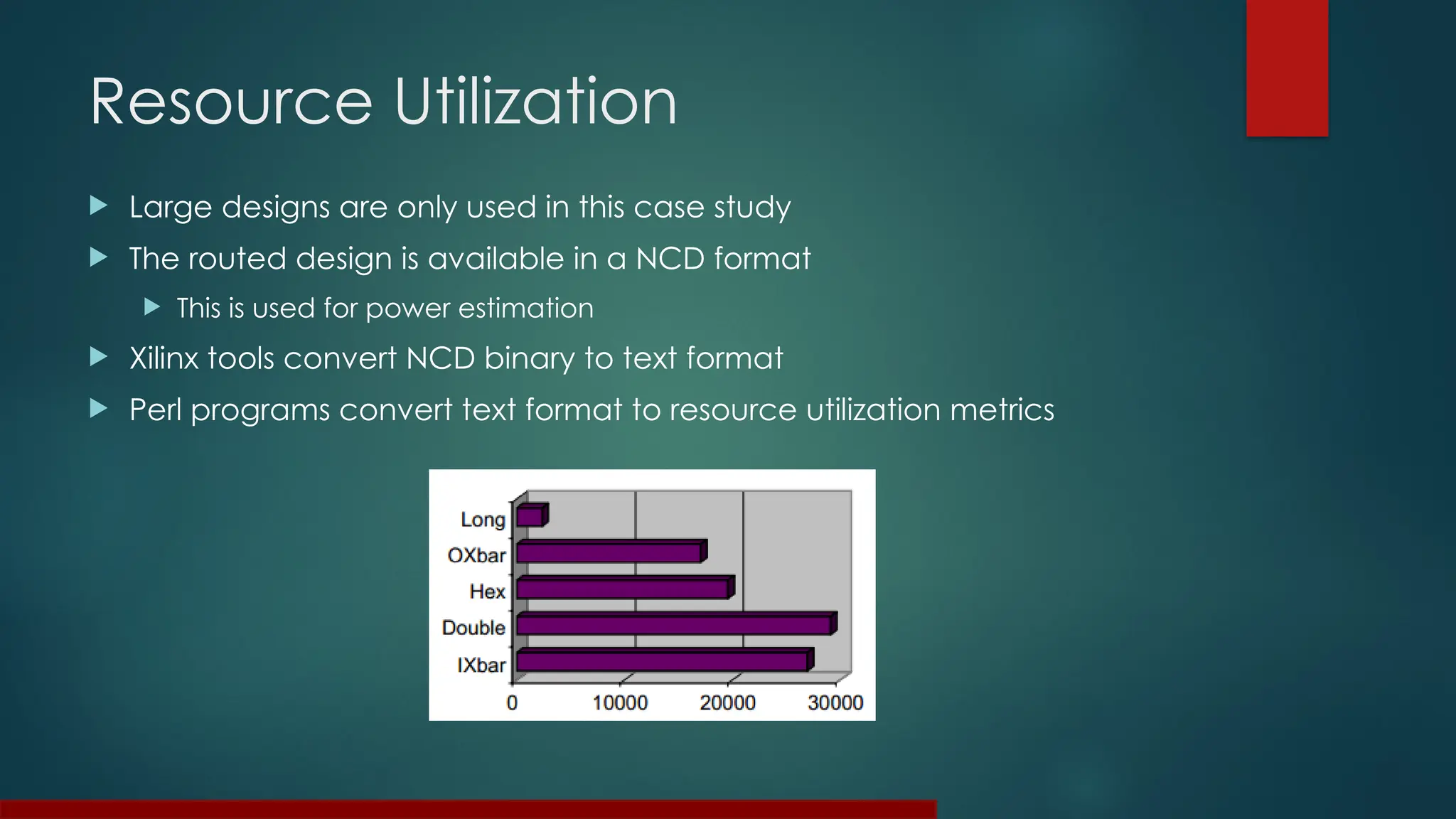

- 9. Resource Utilization Largedesigns are only used in this case study The routed design is available in a NCD format This is used for power estimation Xilinx tools convert NCD binary to text format Perl programs convert text format to resource utilization metrics

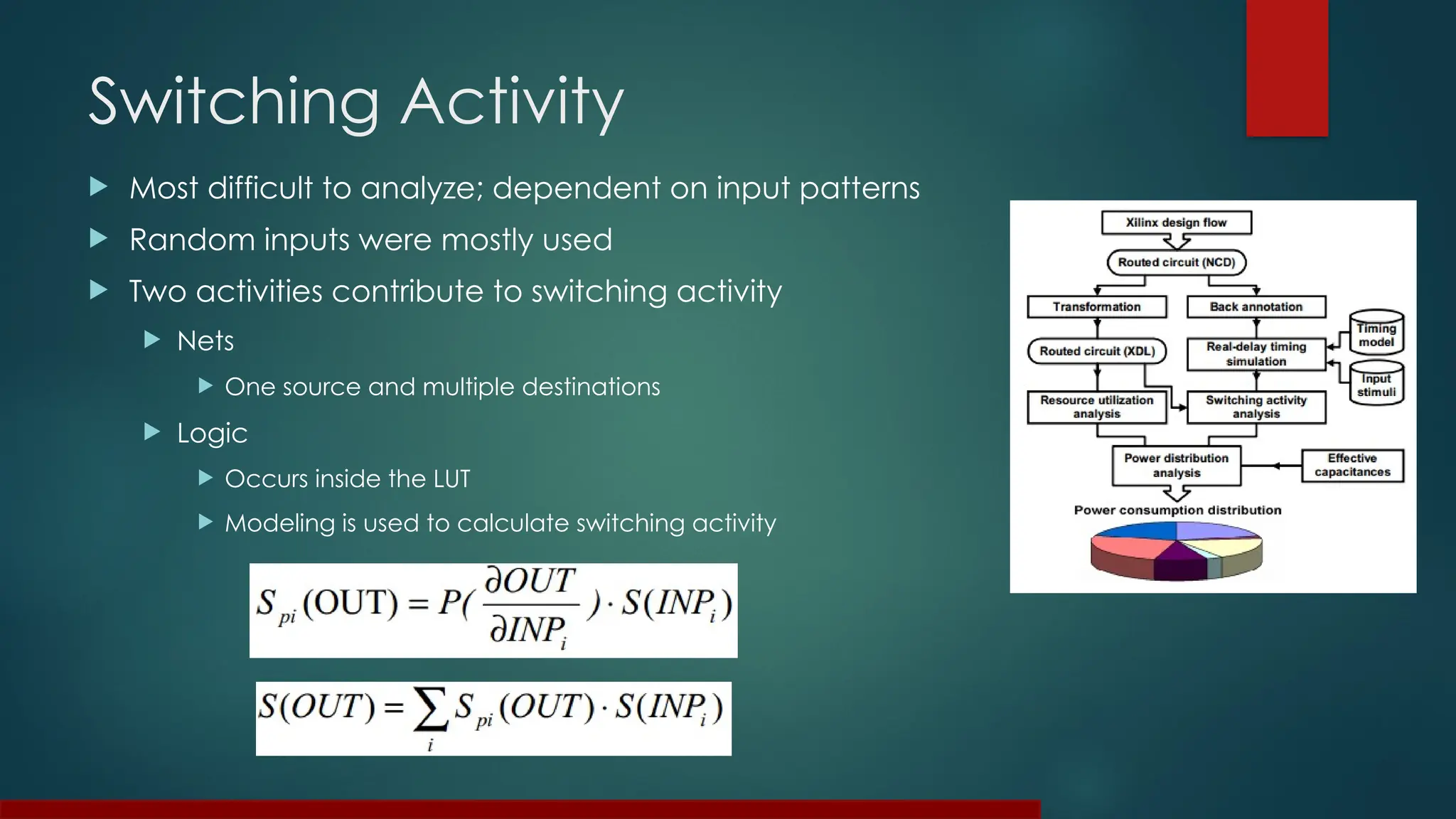

- 10. Switching Activity Mostdifficult to analyze; dependent on input patterns Random inputs were mostly used Two activities contribute to switching activity Nets One source and multiple destinations Logic Occurs inside the LUT Modeling is used to calculate switching activity

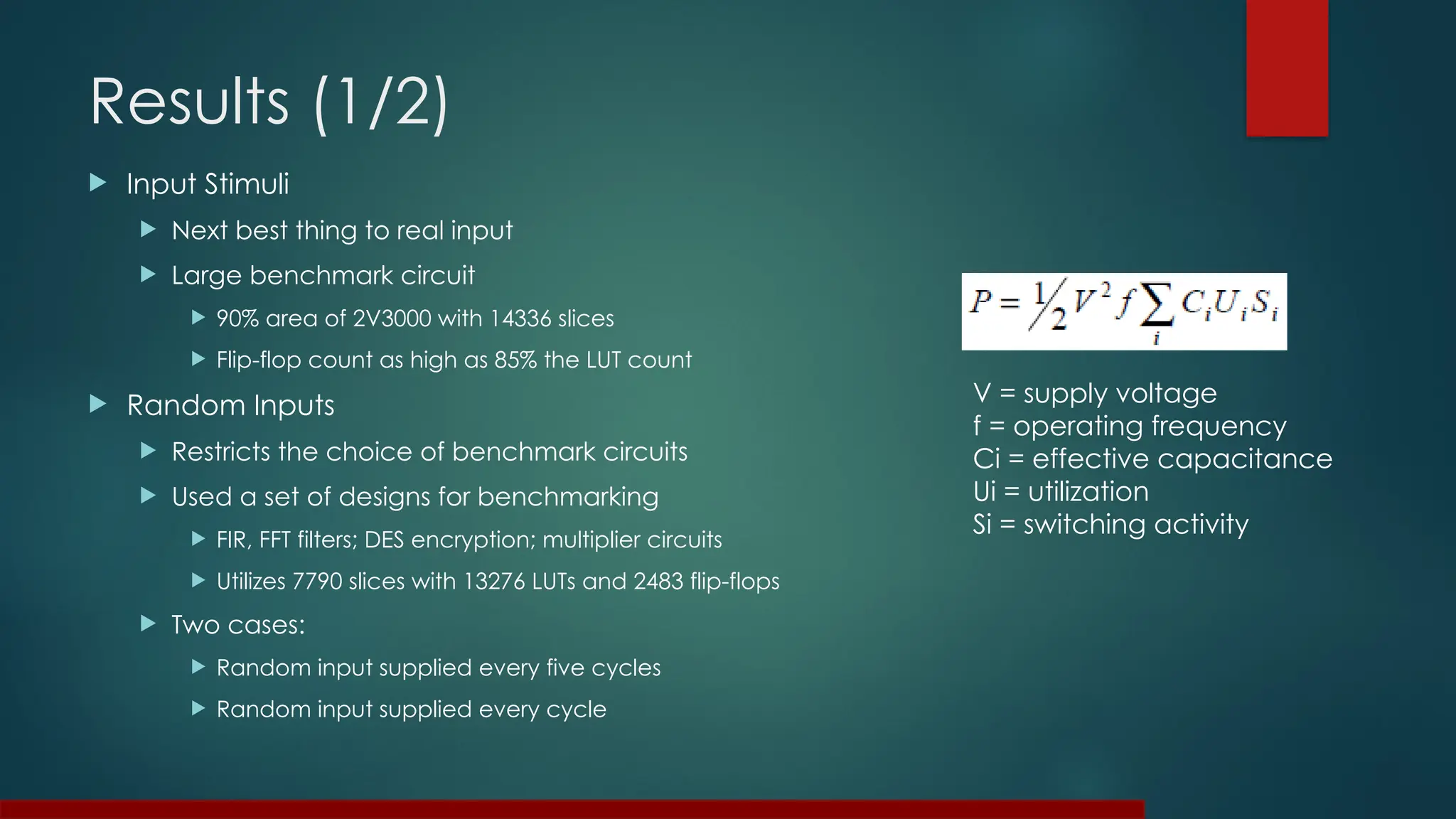

- 11. Results (1/2) InputStimuli Next best thing to real input Large benchmark circuit 90% area of 2V3000 with 14336 slices Flip-flop count as high as 85% the LUT count Random Inputs Restricts the choice of benchmark circuits Used a set of designs for benchmarking FIR, FFT filters; DES encryption; multiplier circuits Utilizes 7790 slices with 13276 LUTs and 2483 flip-flops Two cases: Random input supplied every five cycles Random input supplied every cycle V = supply voltage f = operating frequency Ci = effective capacitance Ui = utilization Si = switching activity

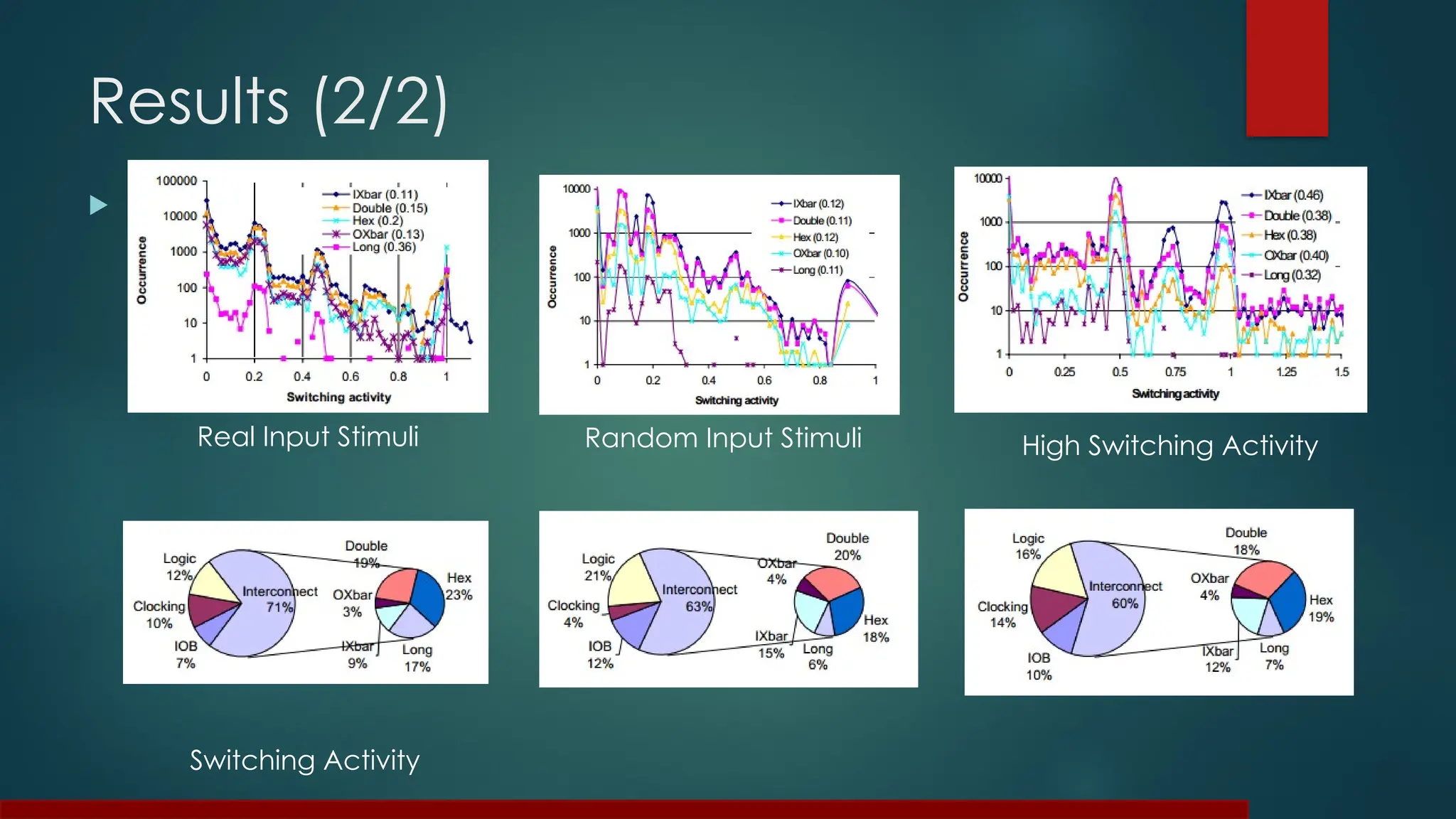

- 12. Results (2/2) All HighSwitching Activity Switching Activity Real Input Stimuli Random Input Stimuli

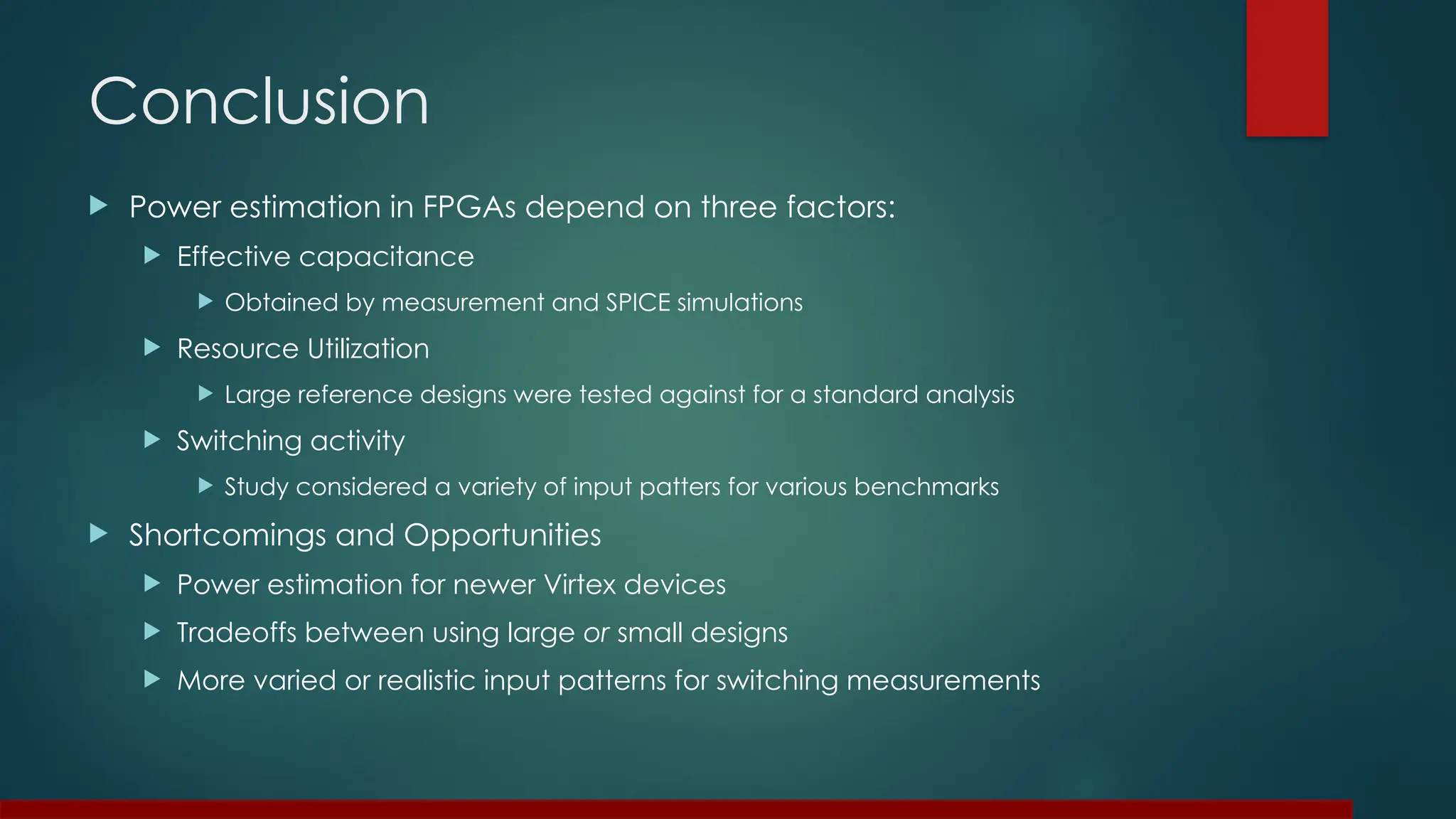

- 13. Conclusion Power estimationin FPGAs depend on three factors: Effective capacitance Obtained by measurement and SPICE simulations Resource Utilization Large reference designs were tested against for a standard analysis Switching activity Study considered a variety of input patters for various benchmarks Shortcomings and Opportunities Power estimation for newer Virtex devices Tradeoffs between using large or small designs More varied or realistic input patterns for switching measurements
