This document summarizes Adrian Lienhard's PhD defense on dynamic object flow analysis. The defense addressed tracking object references and aliasing at runtime to visualize object flows between classes and features. The thesis proposed explicitly modeling object references using an object flow metamodel to capture activation contexts, object origins, and value transfers. This allows visualizing low-level object dependencies to support tasks like feature location, impact analysis, and test blueprint generation.

1. Dynamic
Object Flow Analysis
PhD defense
Adrian Lienhard
Advisor: Oscar Nierstrasz

2. 2

3. 3

4. 4

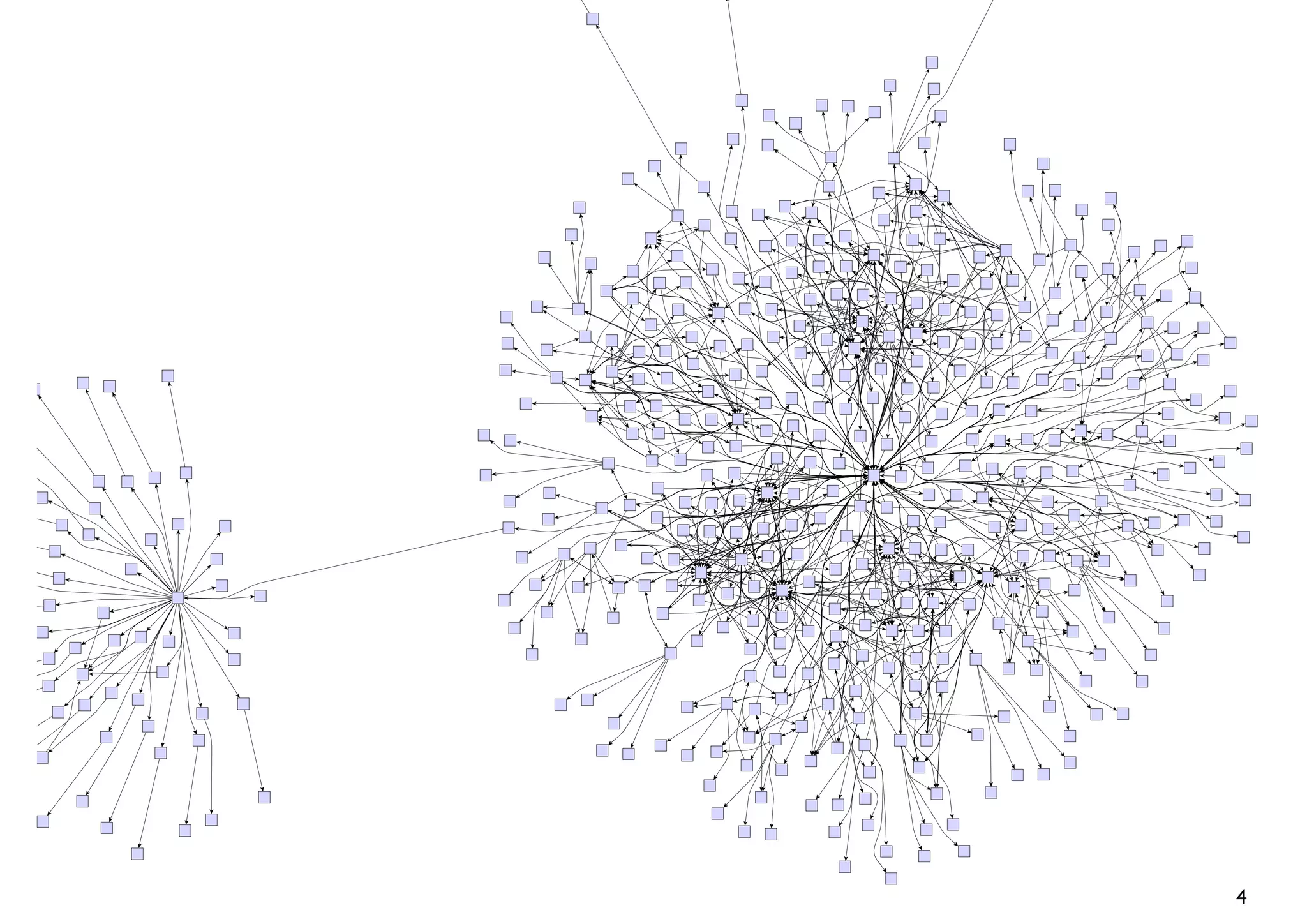

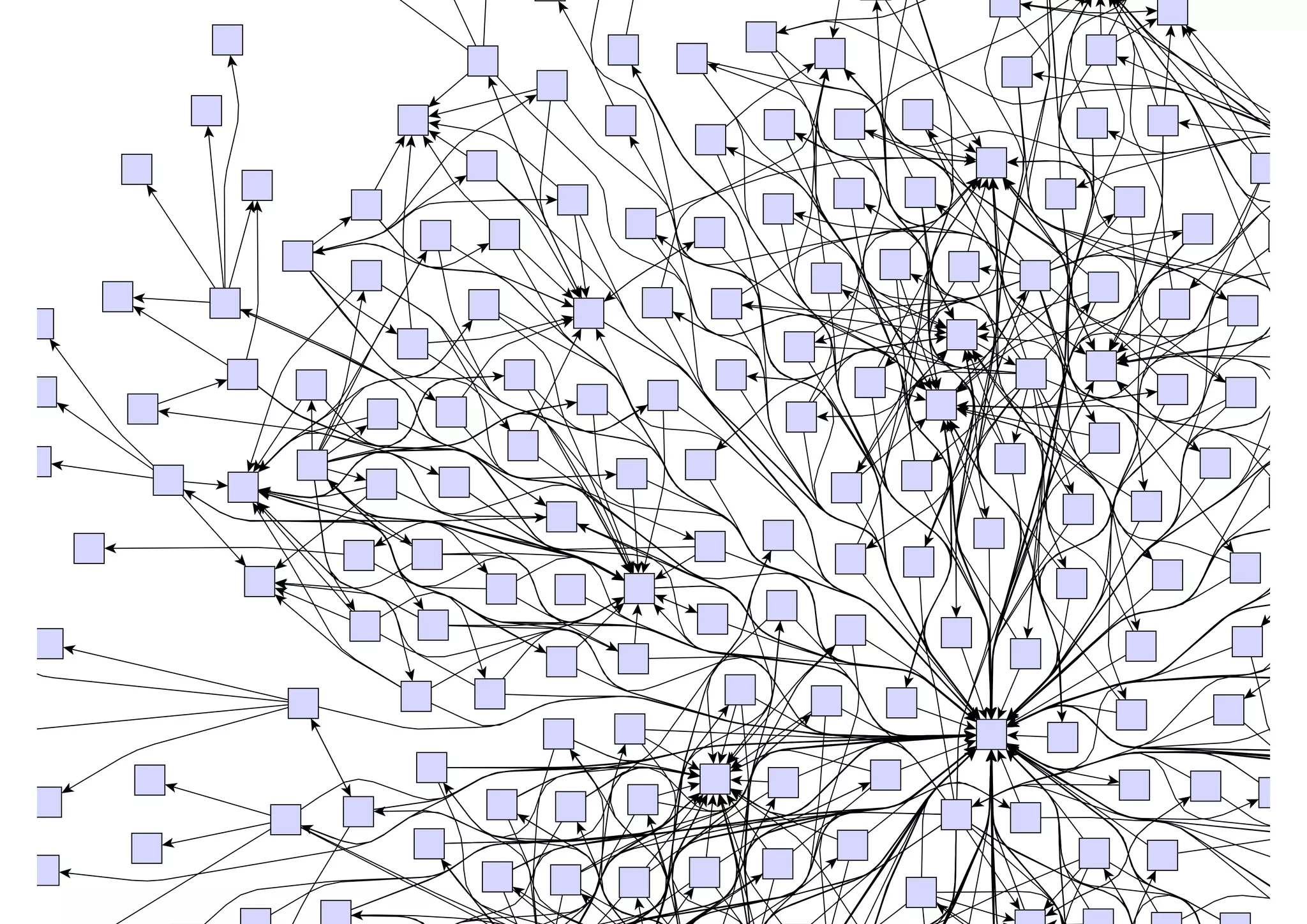

5. 5

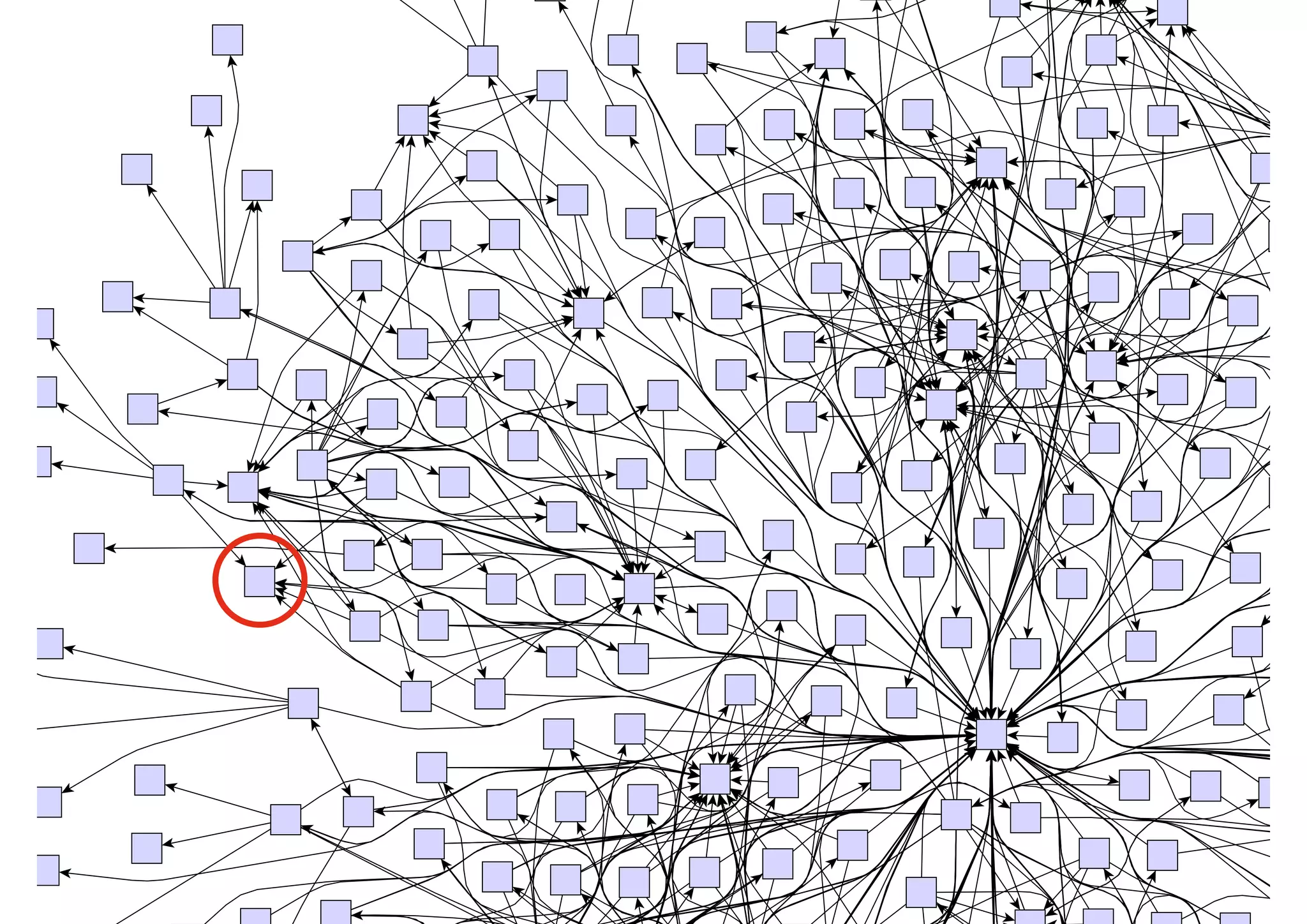

6. 6

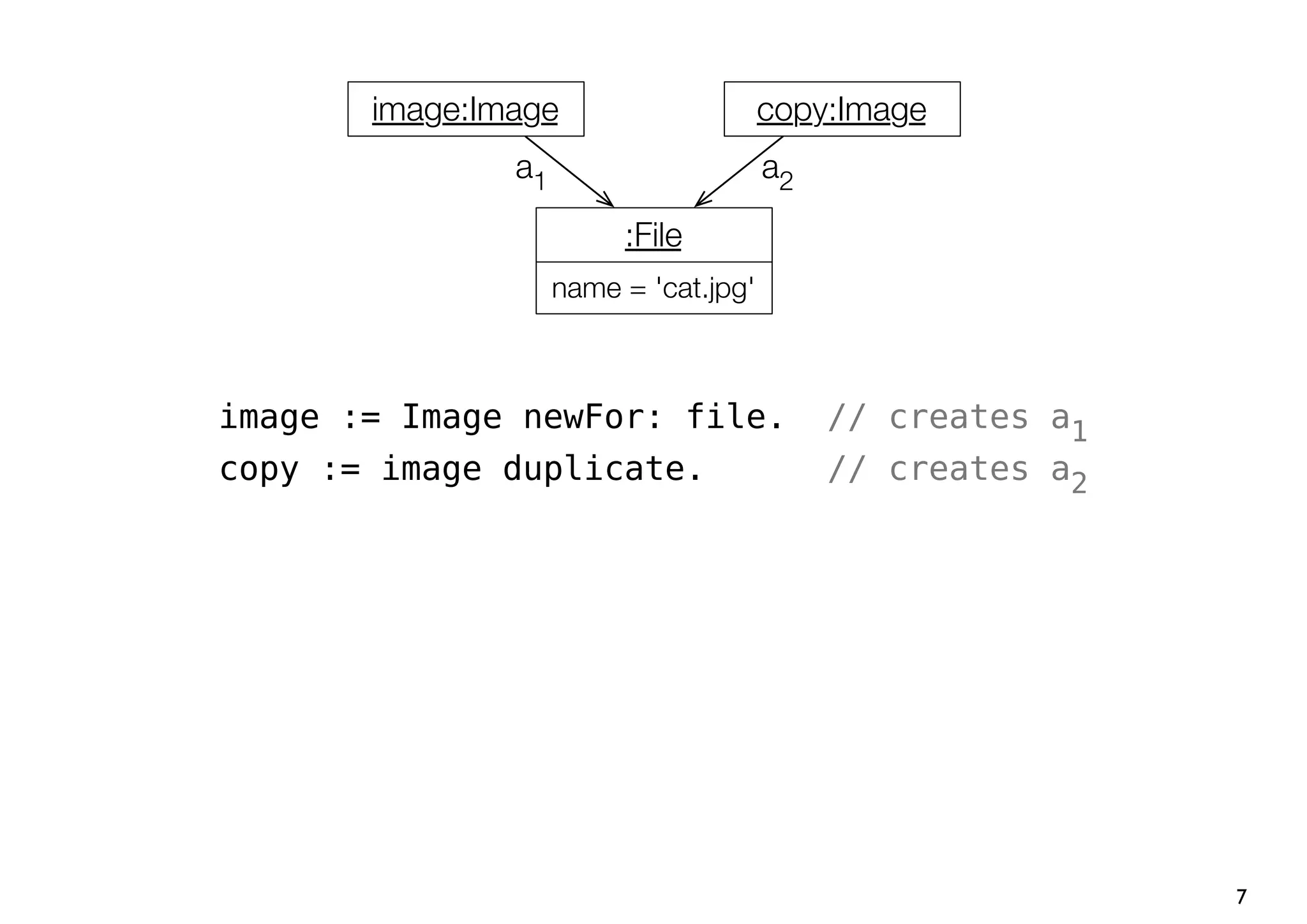

7. image:Image copy:Image
a1 a2
:File
name = 'cat.jpg'
image := Image newFor: file. // creates a1
copy := image duplicate. // creates a2
7

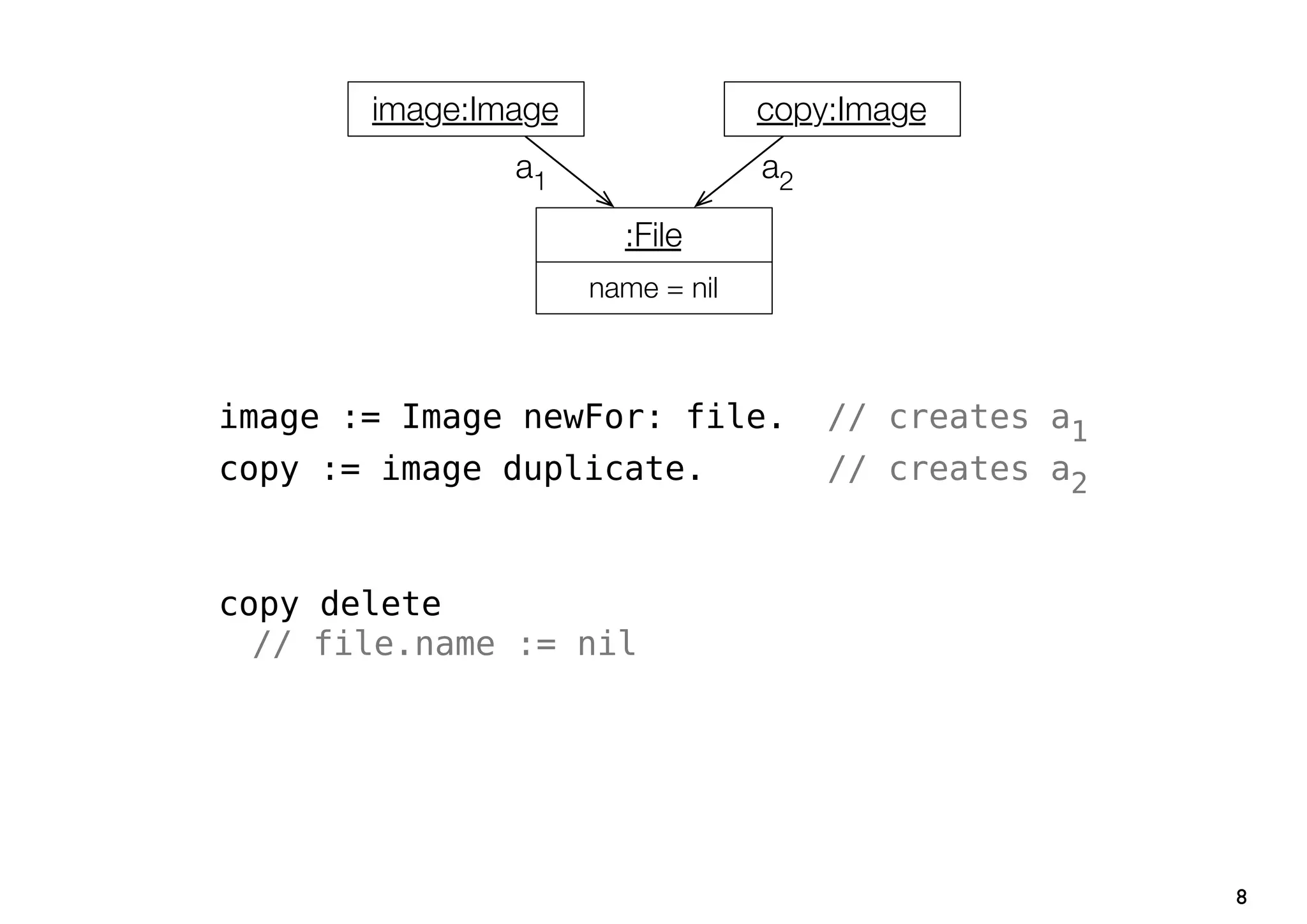

8. image:Image copy:Image
a1 a2
:File
name = nil
image := Image newFor: file. // creates a1
copy := image duplicate. // creates a2
copy delete
// file.name := nil
8

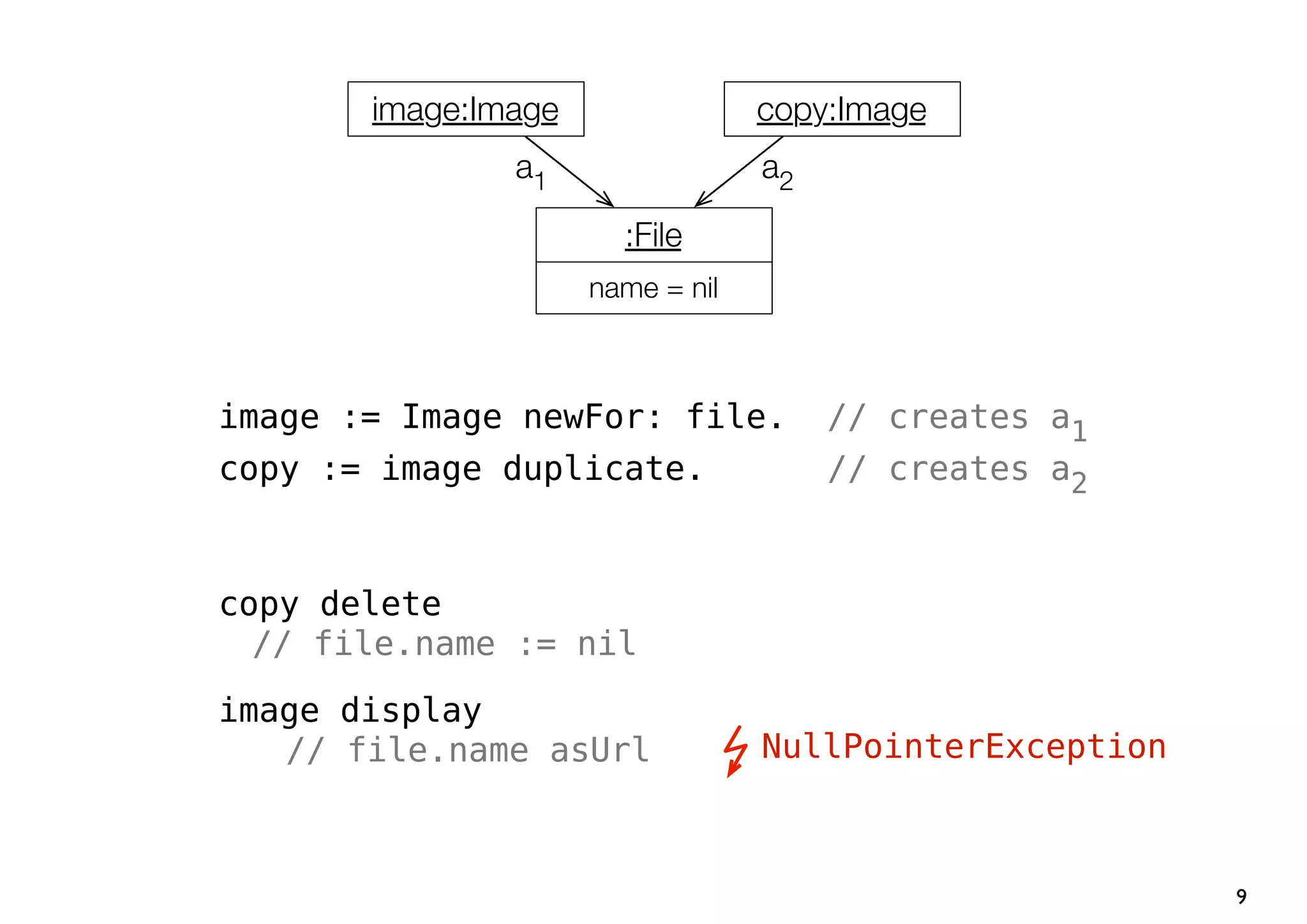

9. image:Image copy:Image
a1 a2
:File
name = nil
image := Image newFor: file. // creates a1
copy := image duplicate. // creates a2
copy delete
// file.name := nil
image display
// file.name asUrl NullPointerException
9

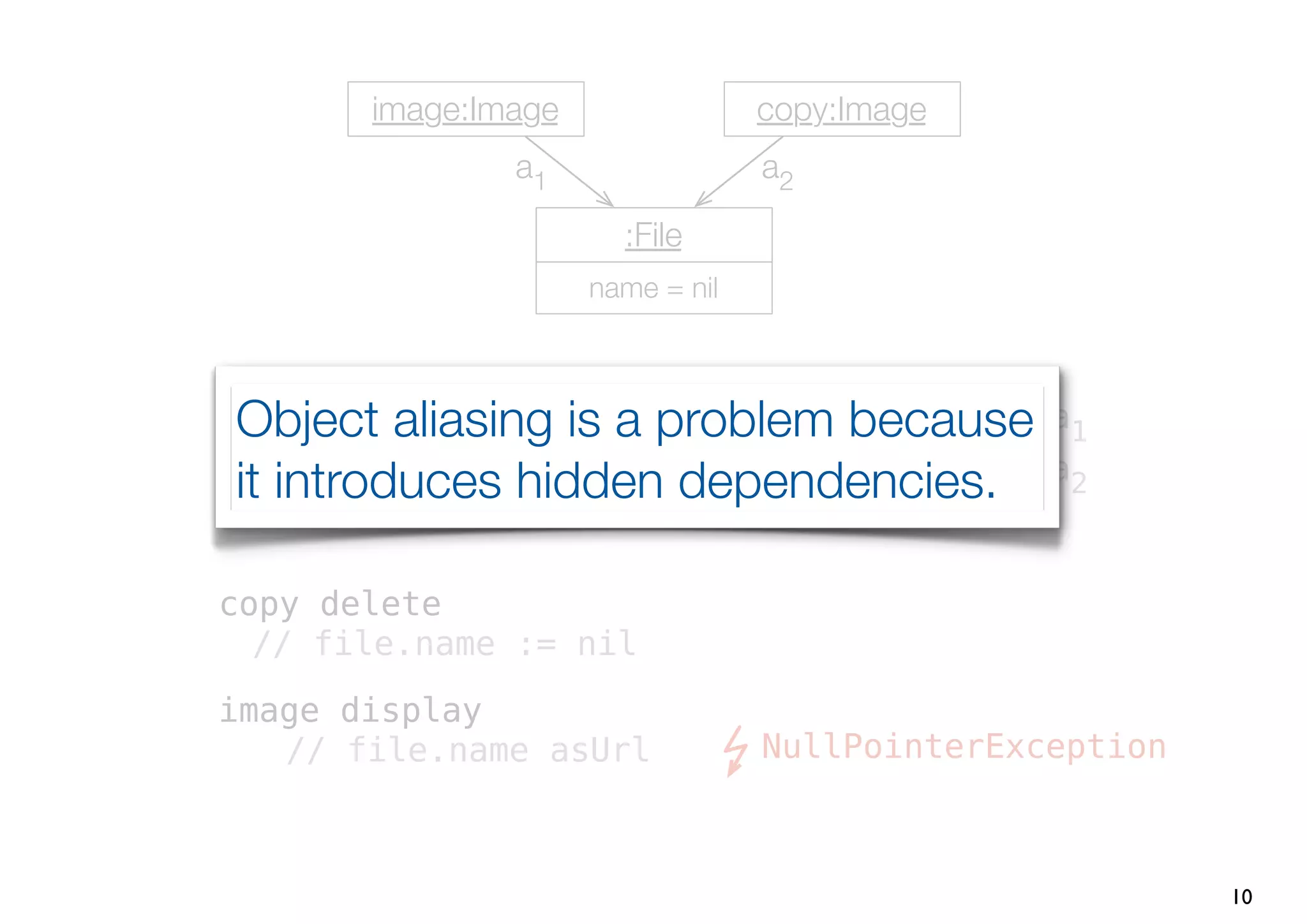

10. image:Image copy:Image
a1 a2
:File
name = nil
image := aliasing is a problem because a1
Object Image newFor: file. // creates
copy := image duplicate. // creates a2
it introduces hidden dependencies.
copy delete
// file.name := nil
image display
// file.name asUrl NullPointerException
10

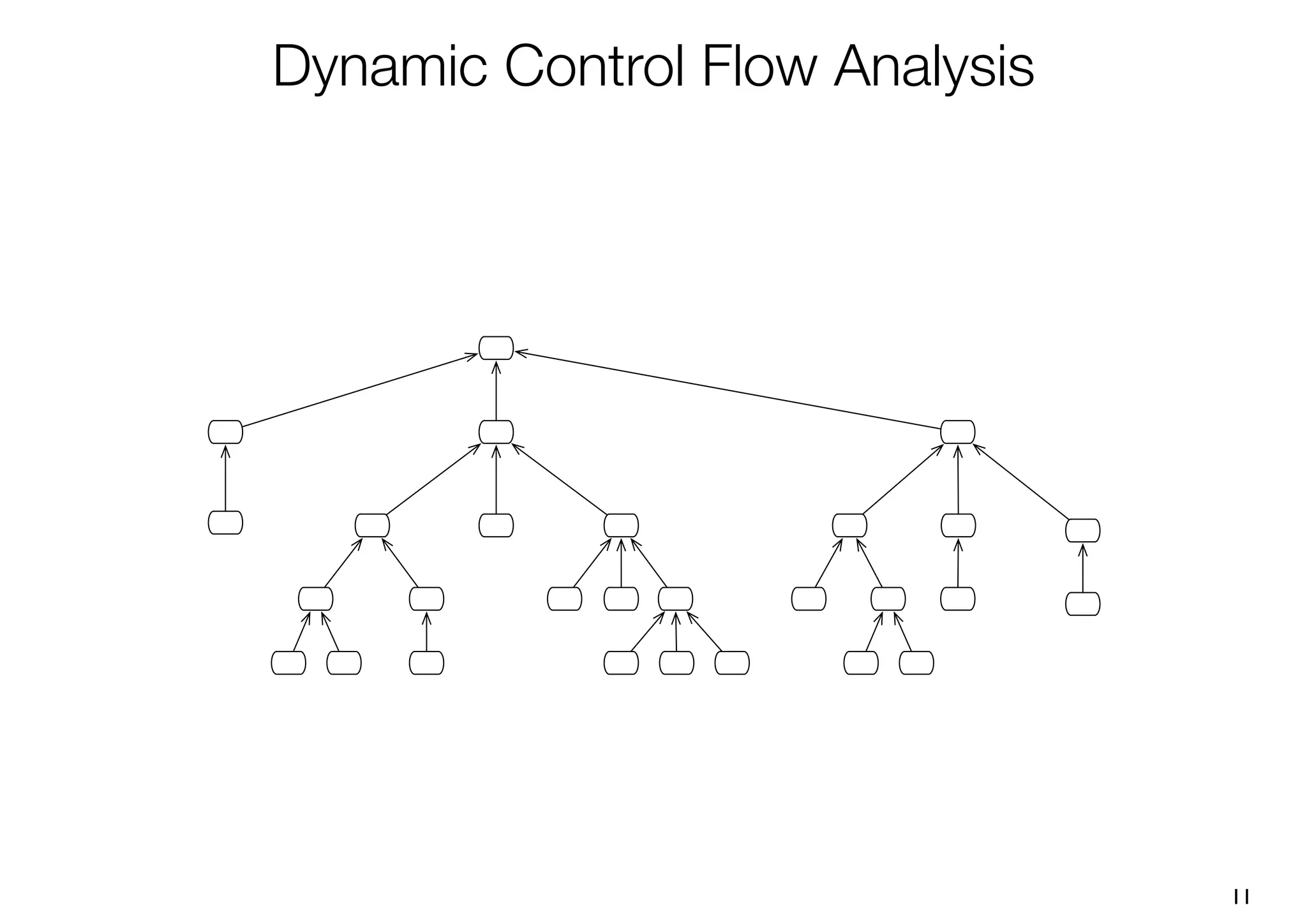

11. Dynamic Control Flow Analysis
11

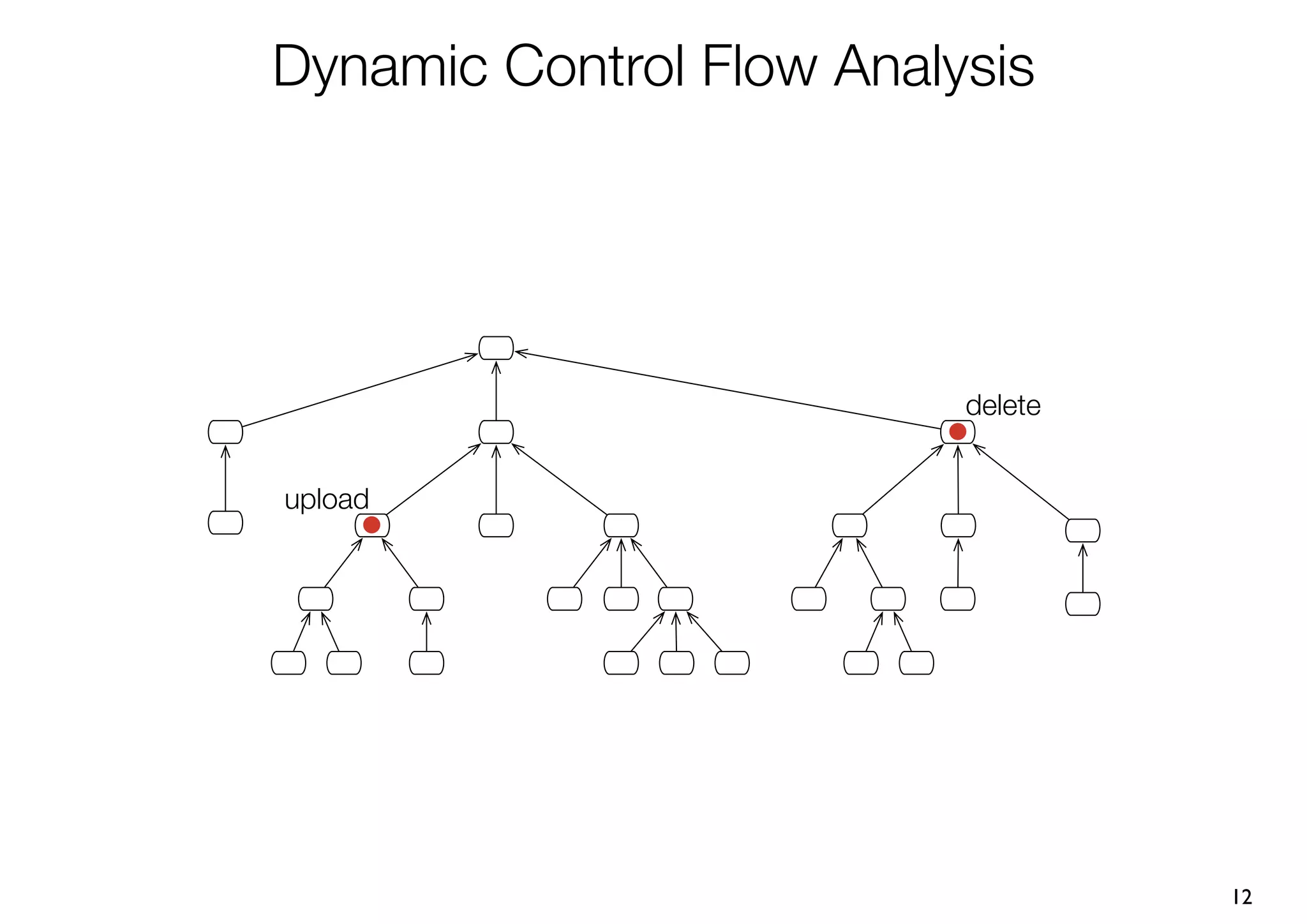

12. Dynamic Control Flow Analysis
delete
upload
12

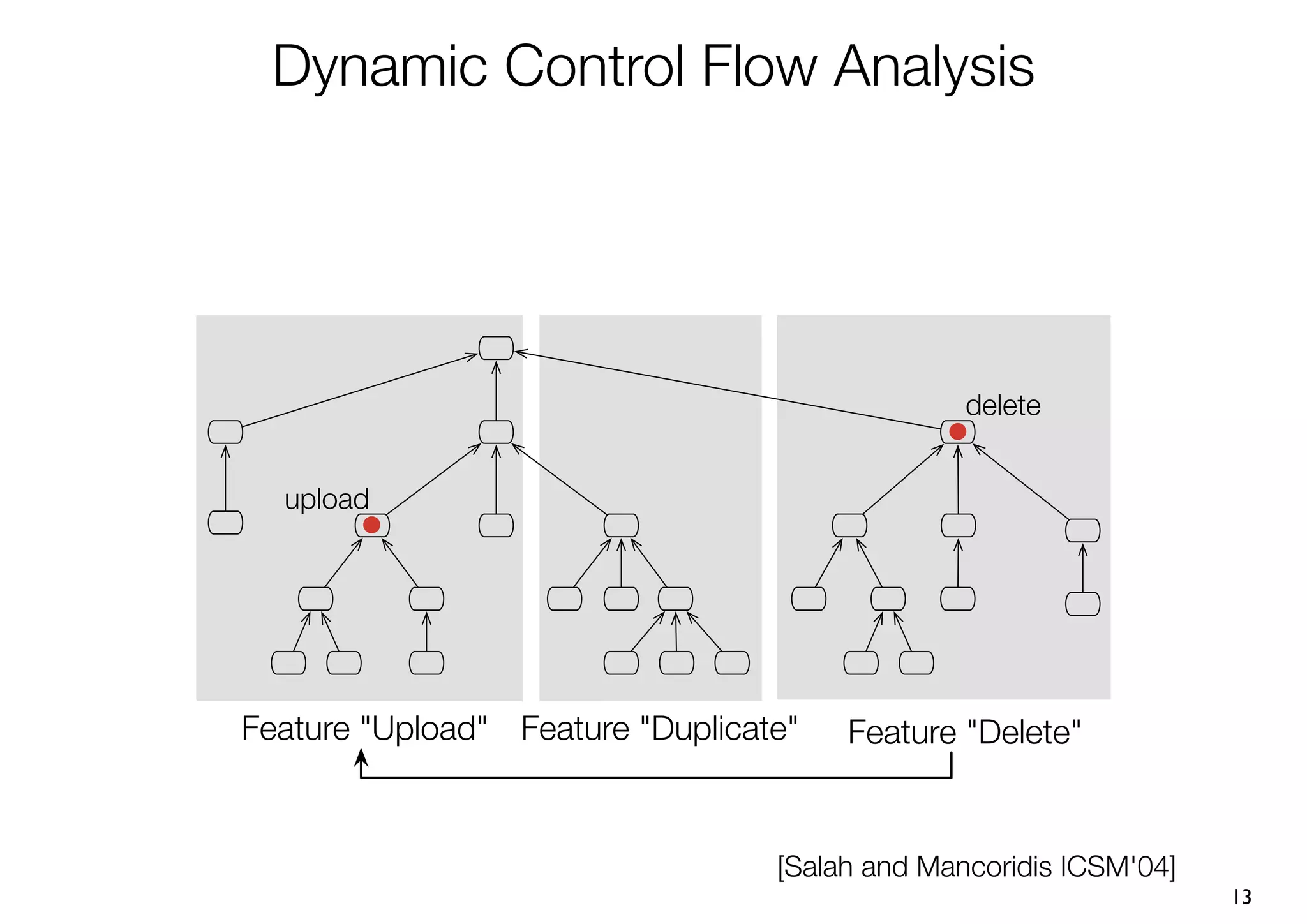

13. Dynamic Control Flow Analysis
delete
upload
Feature "Upload" Feature "Duplicate" Feature "Delete"
[Salah and Mancoridis ICSM'04]
13

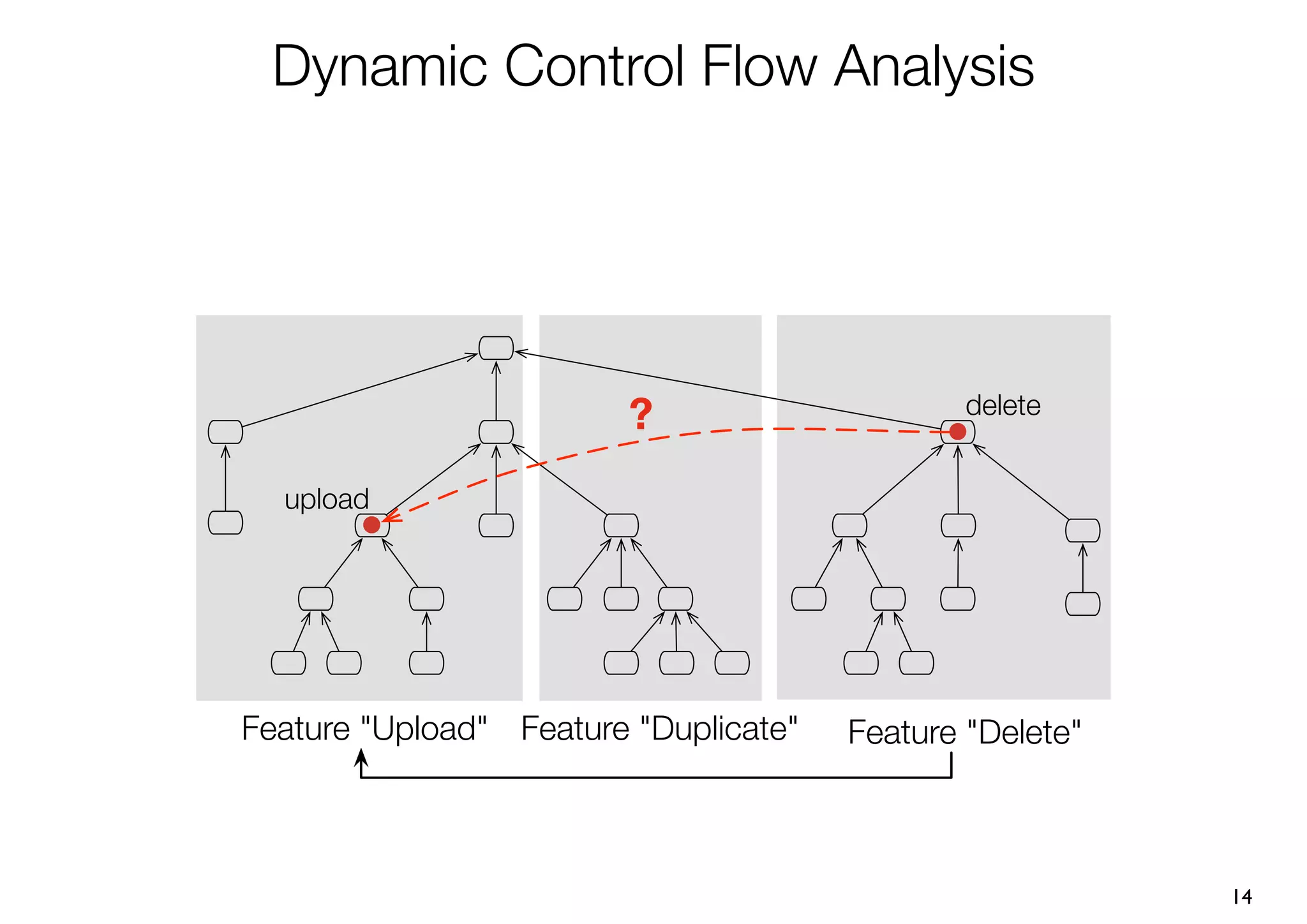

14. Dynamic Control Flow Analysis
? delete
upload
Feature "Upload" Feature "Duplicate" Feature "Delete"
14

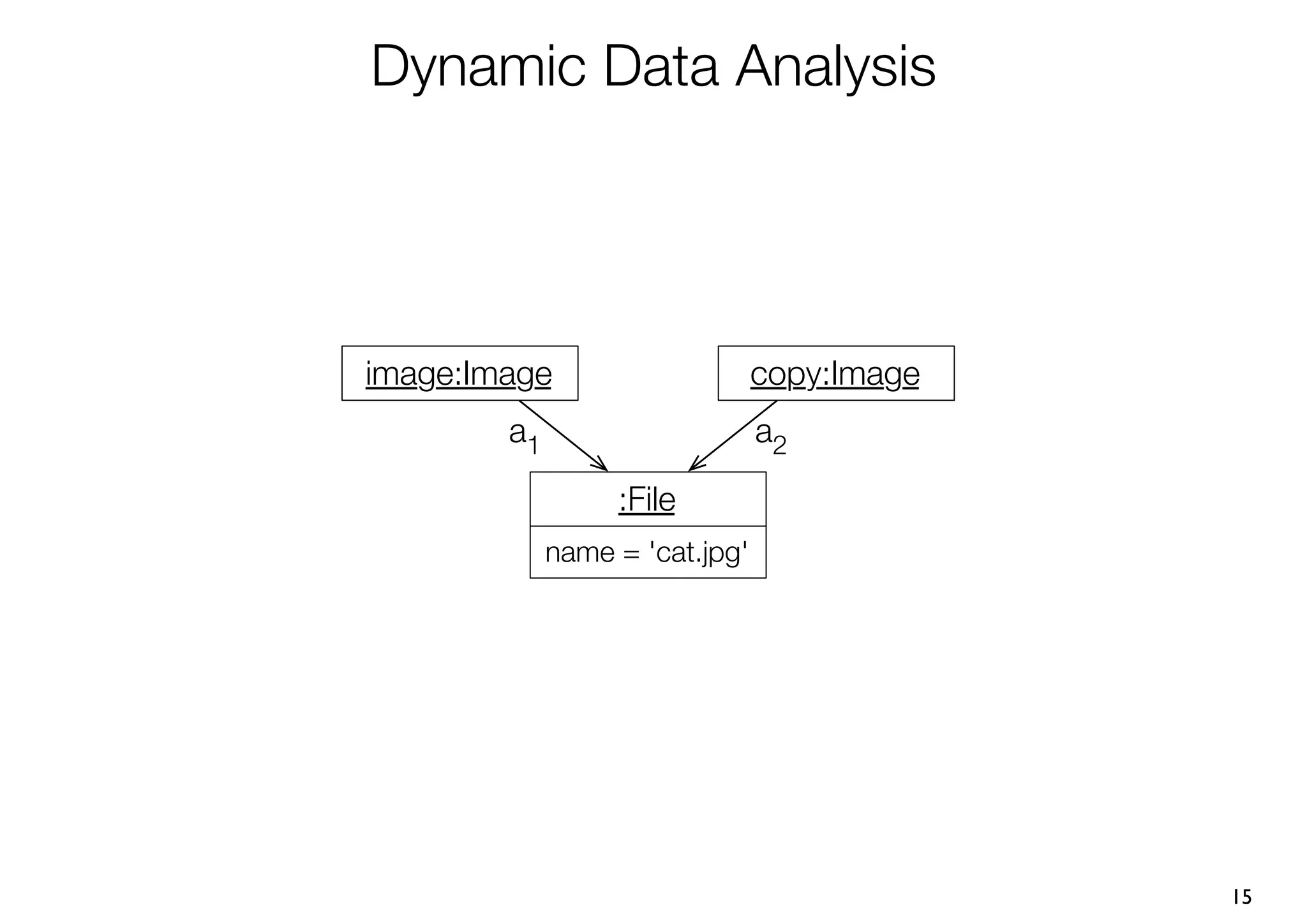

15. Dynamic Data Analysis
image:Image copy:Image
a1 a2
:File
name = 'cat.jpg'
15

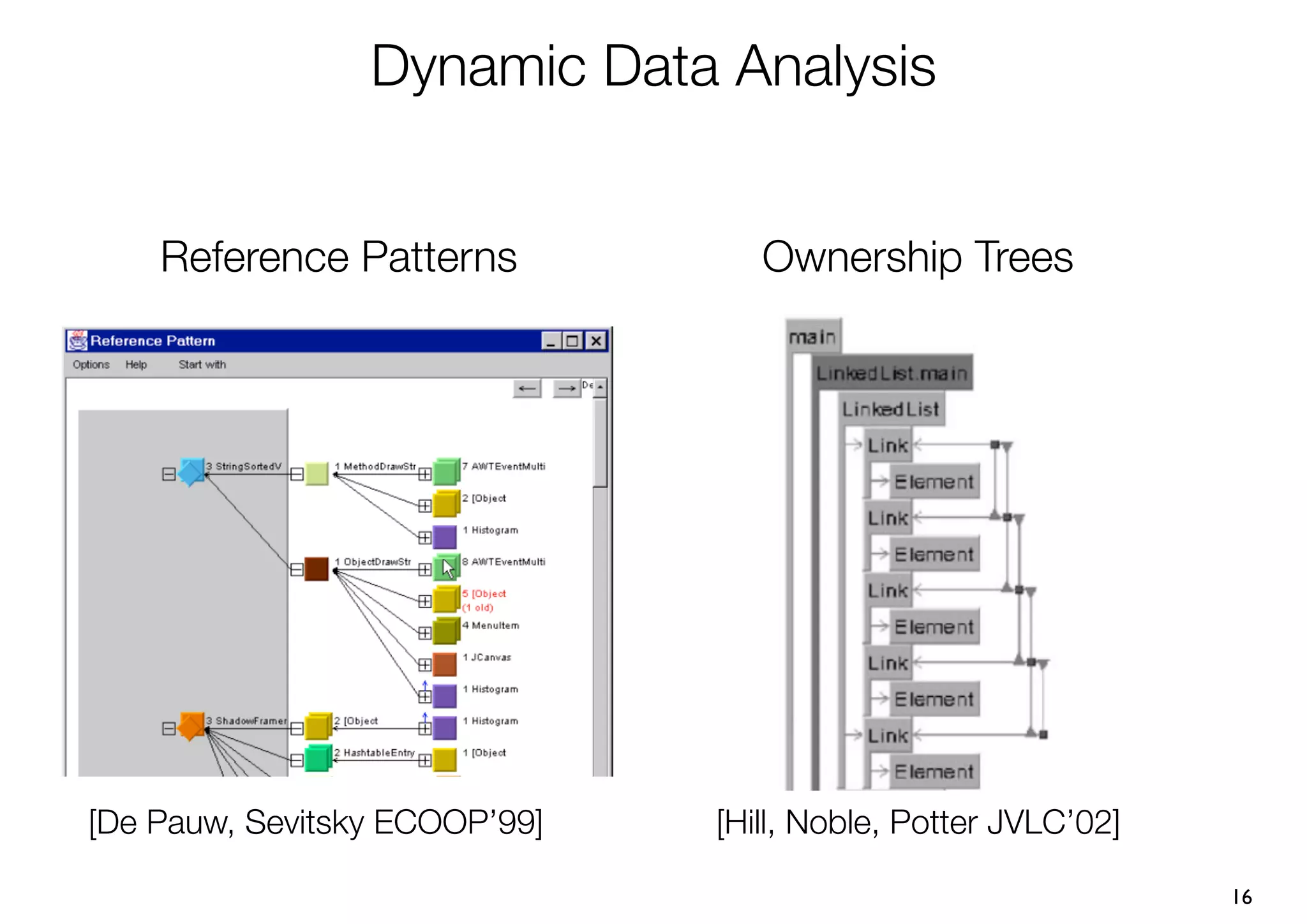

16. Dynamic Data Analysis
Reference Patterns Ownership Trees
[De Pauw, Sevitsky ECOOP’99] [Hill, Noble, Potter JVLC’02]
16

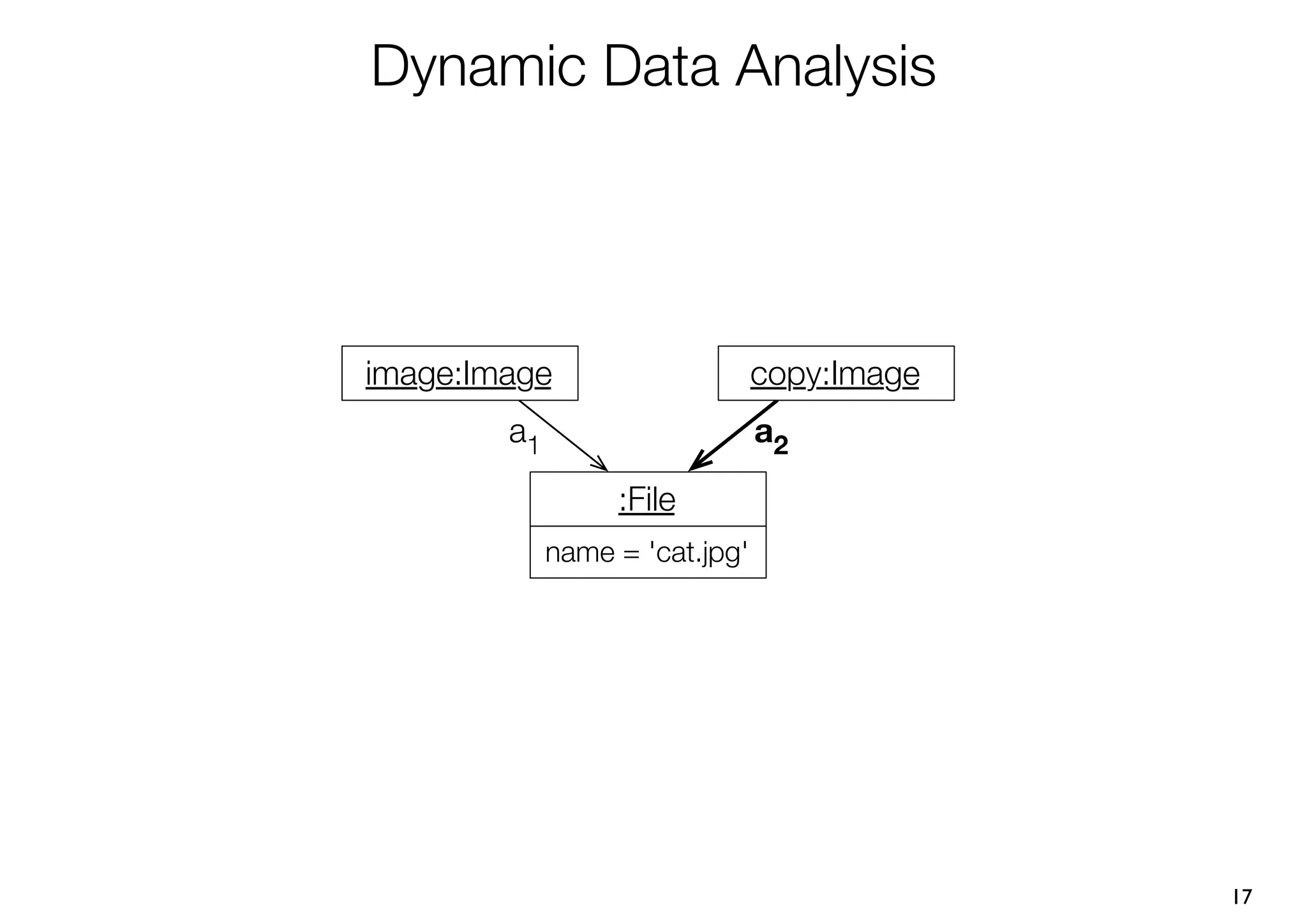

17. Dynamic Data Analysis
image:Image copy:Image
a1 a2
:File
name = 'cat.jpg'
17

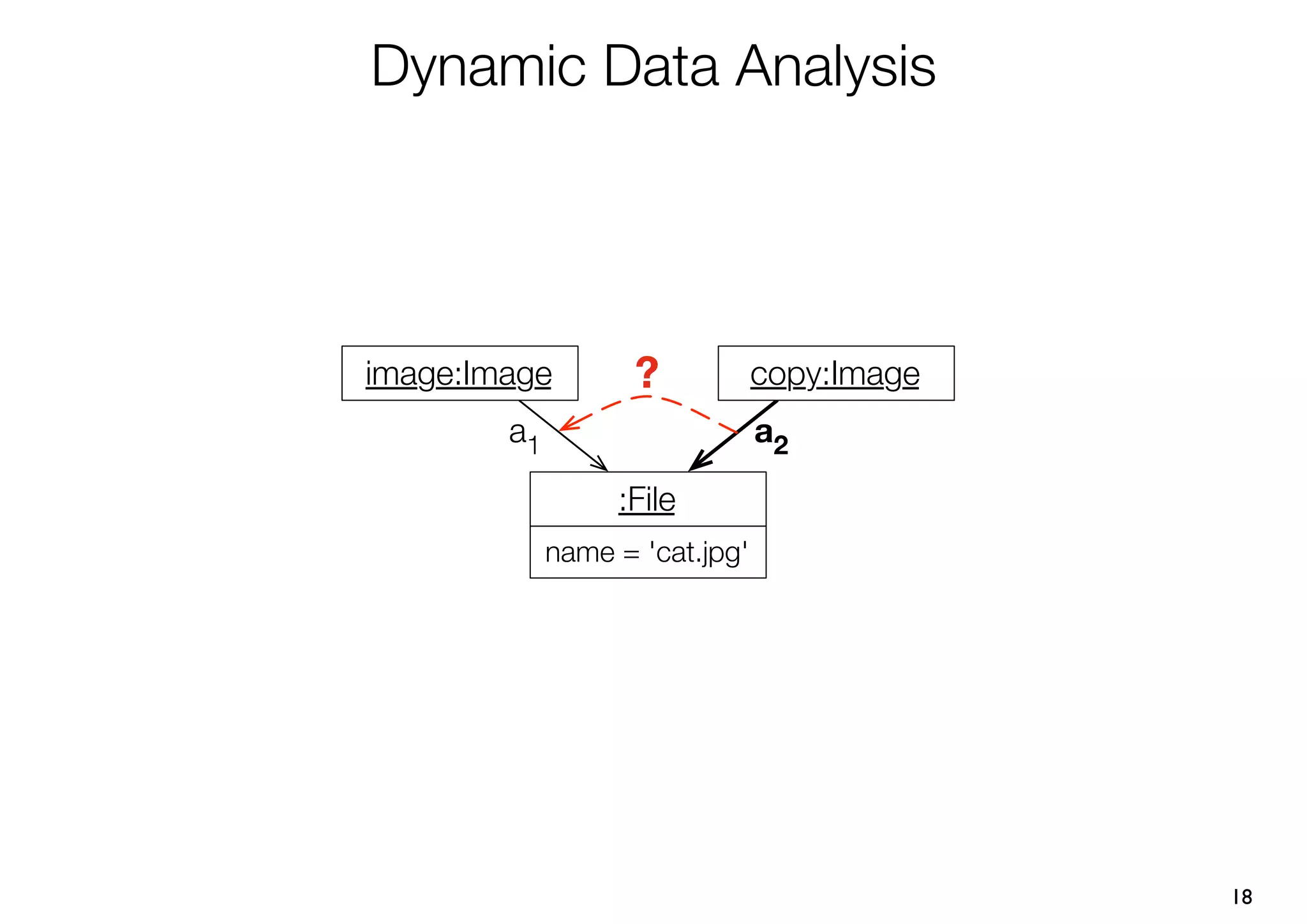

18. Dynamic Data Analysis
image:Image ? copy:Image
a1 a2
:File
name = 'cat.jpg'
18

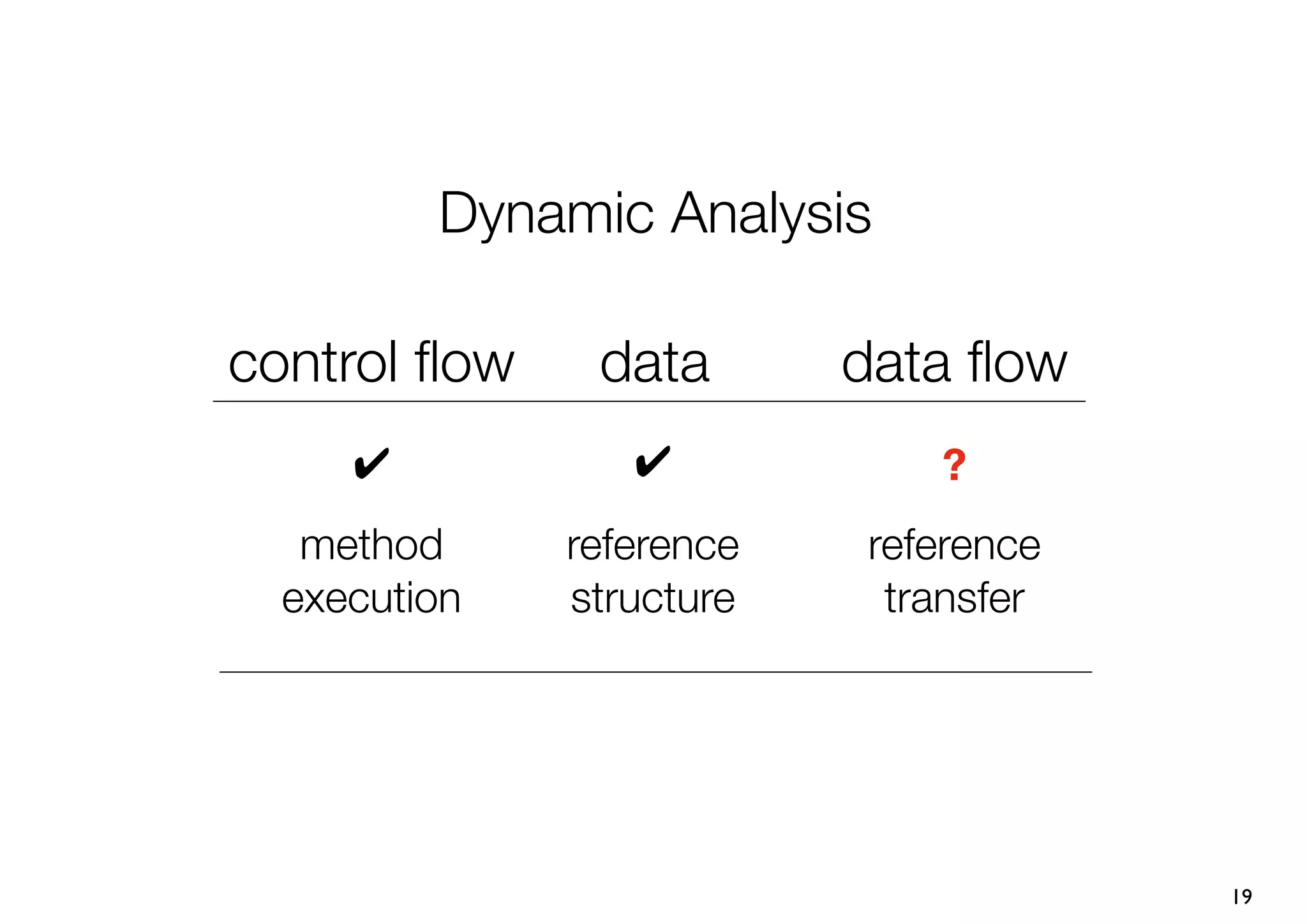

19. Dynamic Analysis
control flow data data flow
! ! ?
method reference reference
execution structure transfer
19

20. Dynamic Analysis
control flow data data flow
! ! ?
method reference reference
execution structure transfer
20

21. Thesis
Object references must be
captured and modeled explicitly.
21

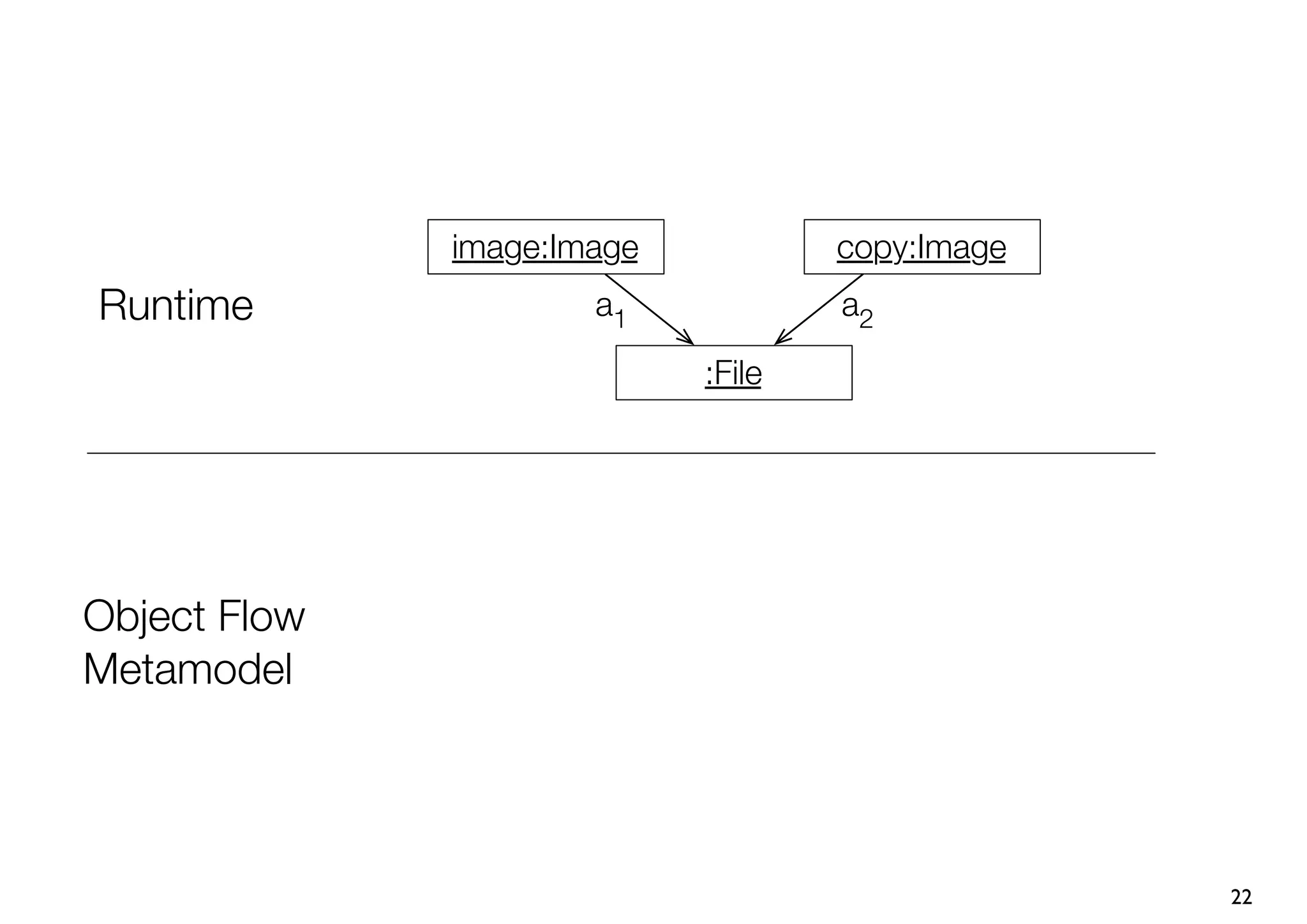

22. image:Image copy:Image
Runtime a1 a2
:File
Object Flow
Metamodel
22

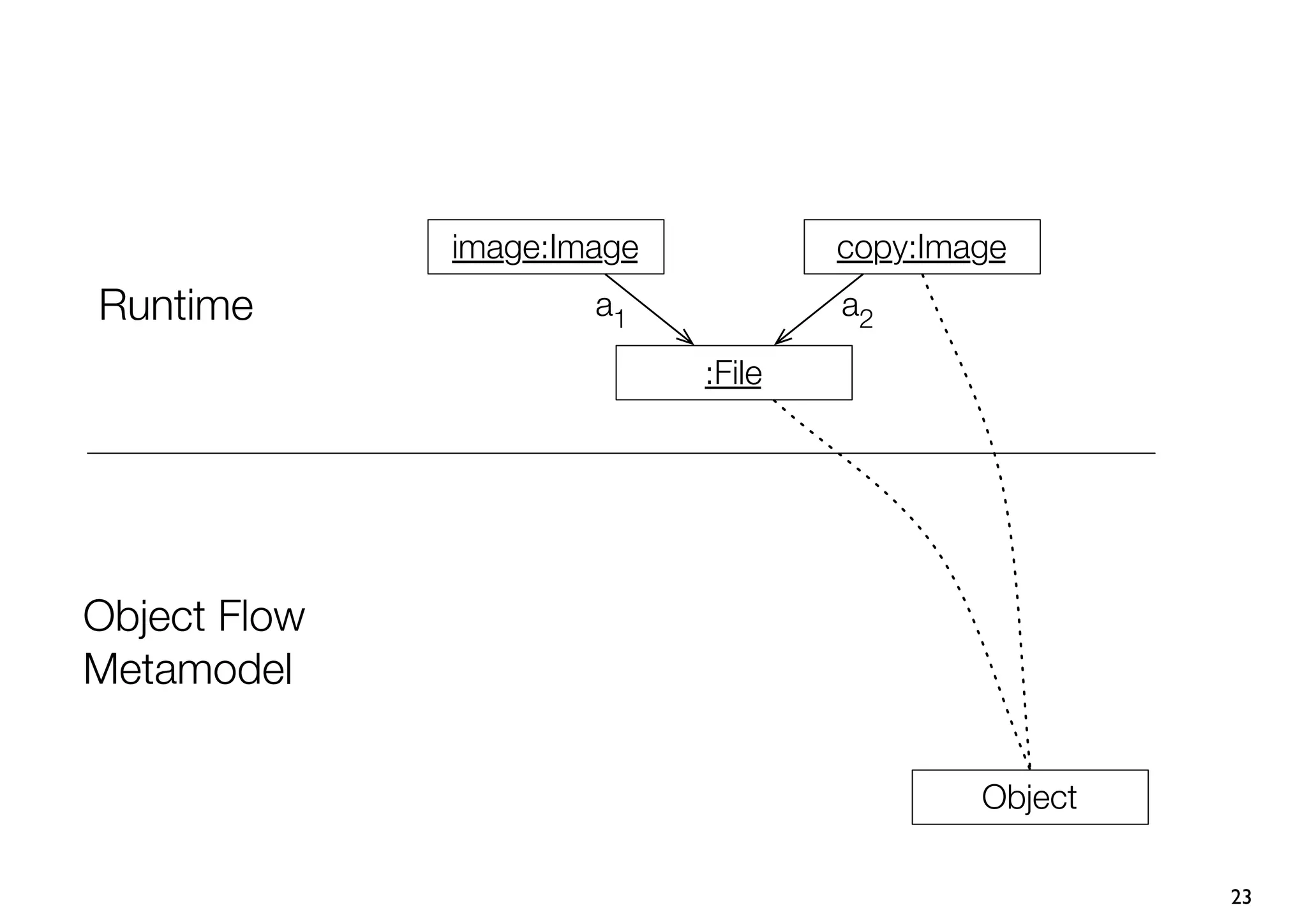

23. image:Image copy:Image
Runtime a1 a2
:File
Object Flow
Metamodel
Object
23

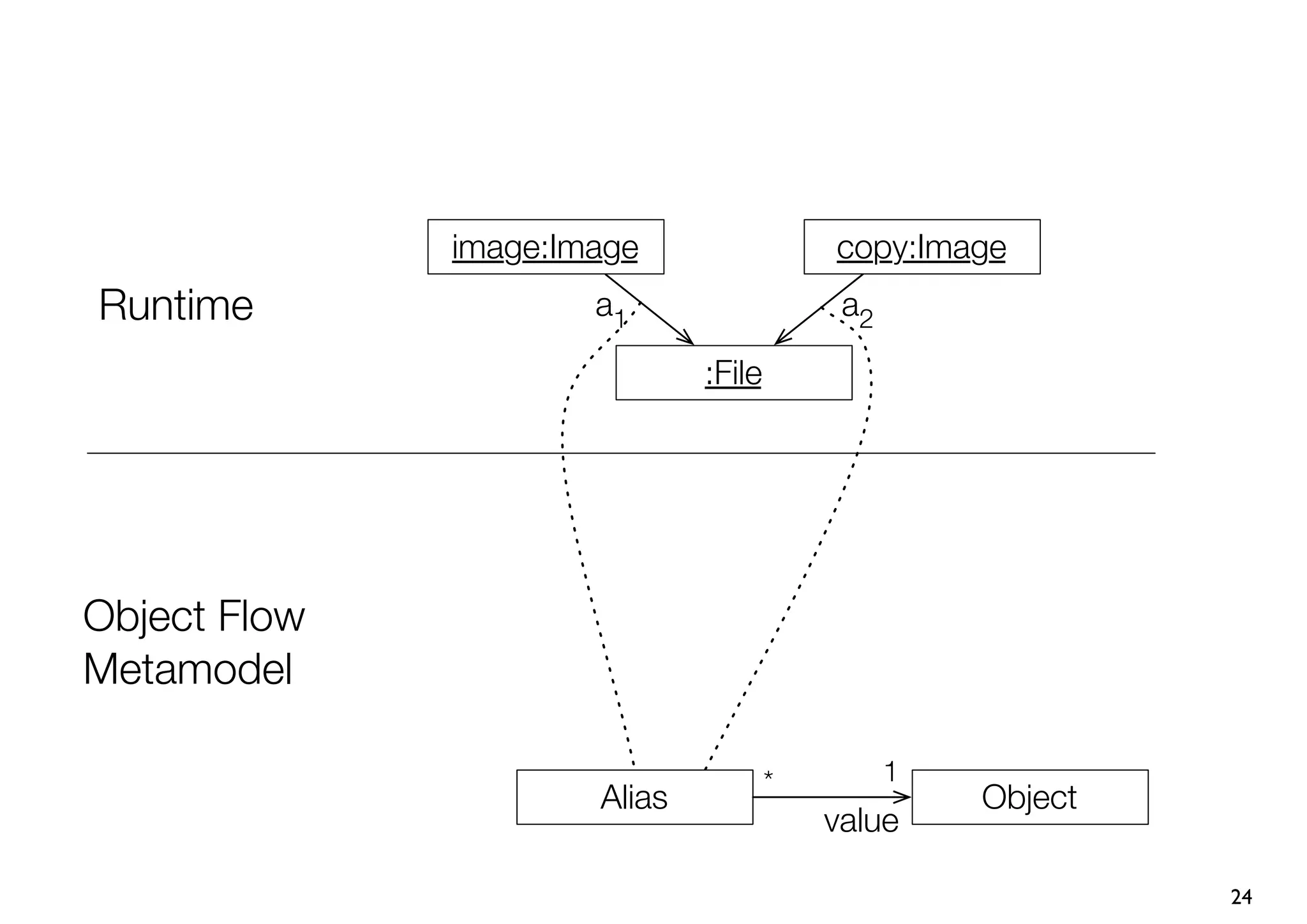

24. image:Image copy:Image
Runtime a1 a2
:File
Object Flow
Metamodel
* 1
Alias Object
value
24

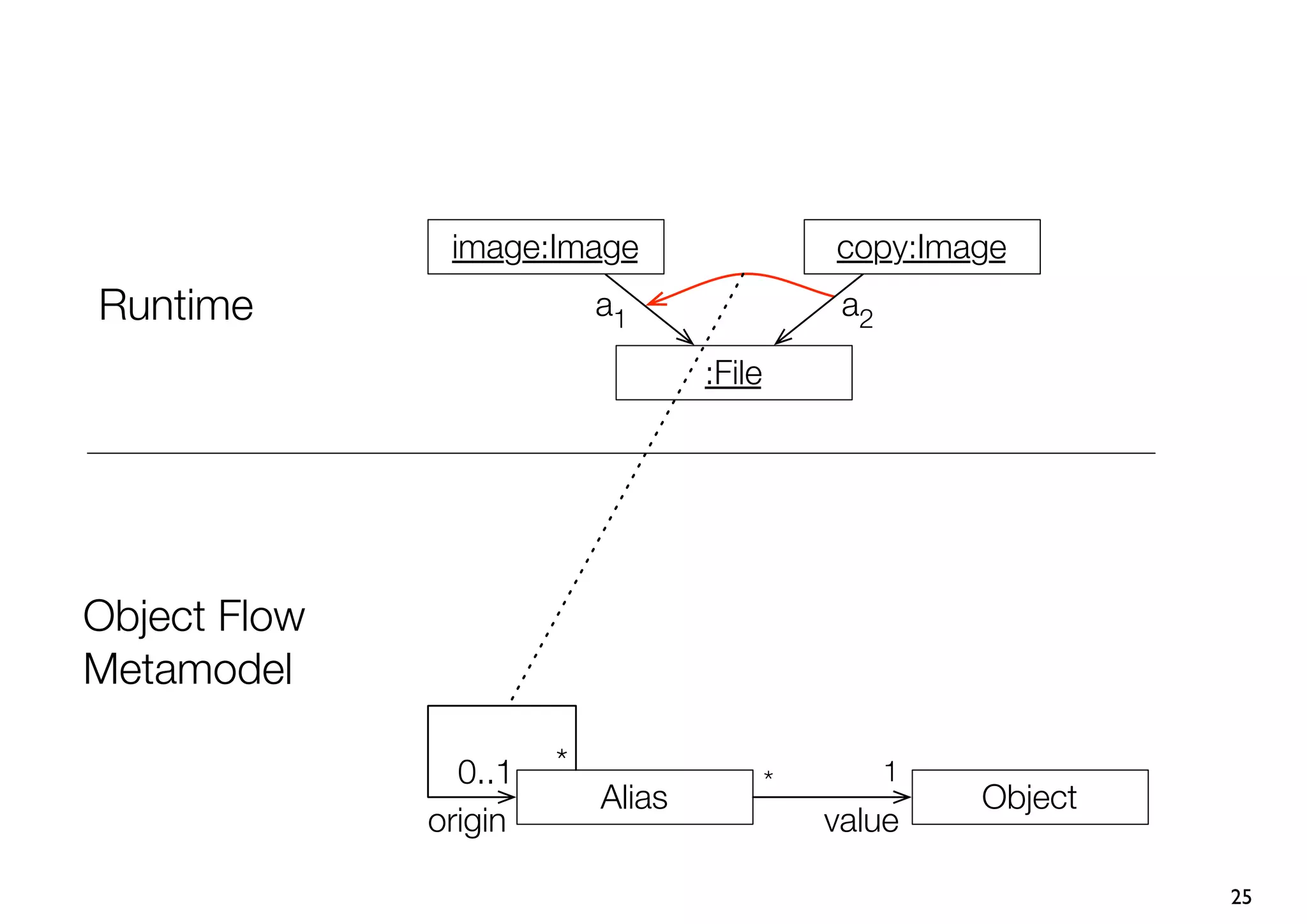

25. image:Image copy:Image
Runtime a1 a2
:File
Object Flow
Metamodel
0..1 * 1
*
Alias Object
origin value
25

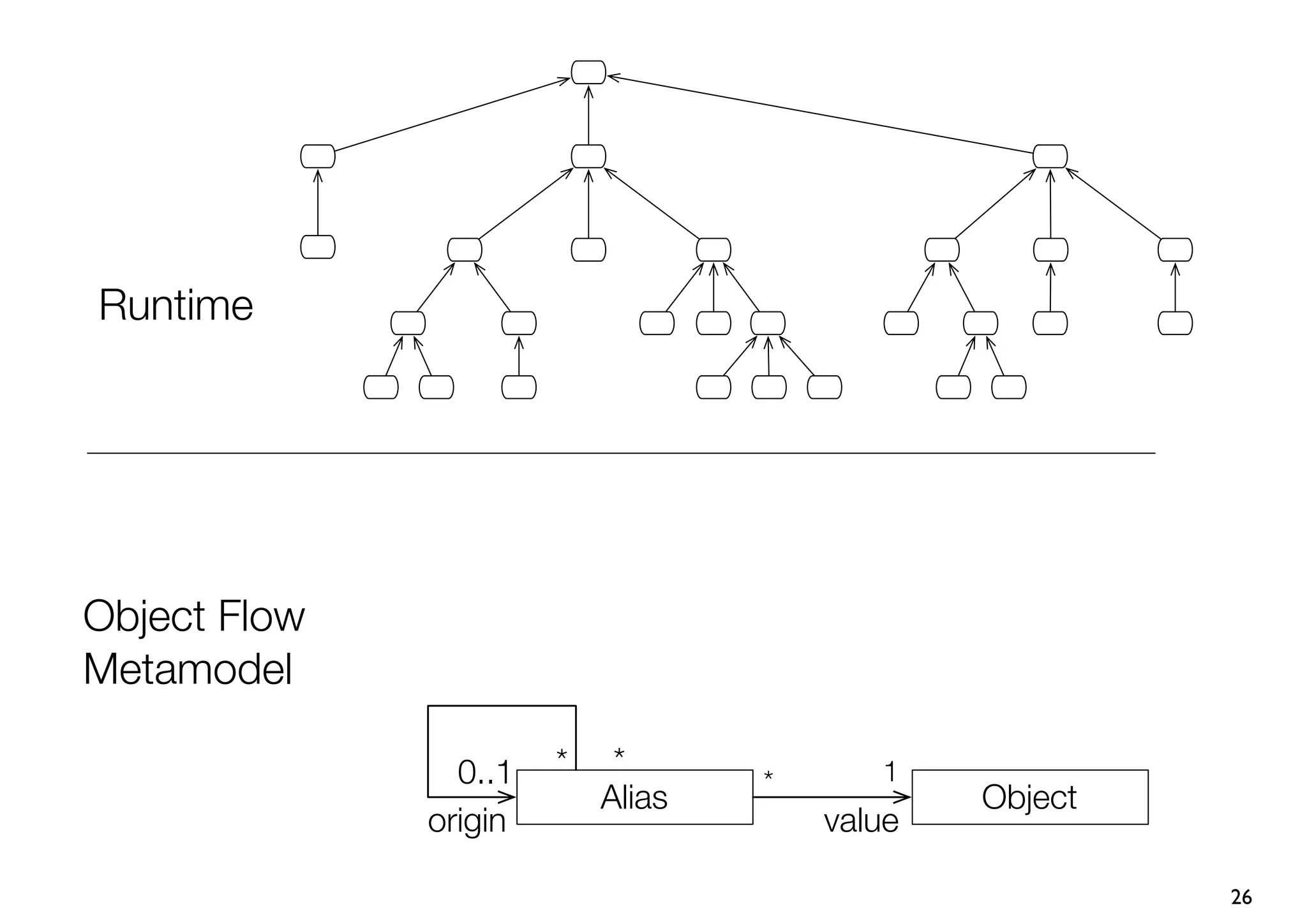

26. Runtime
Object Flow
Metamodel
0..1 * * 1
*
Alias Object
origin value
26

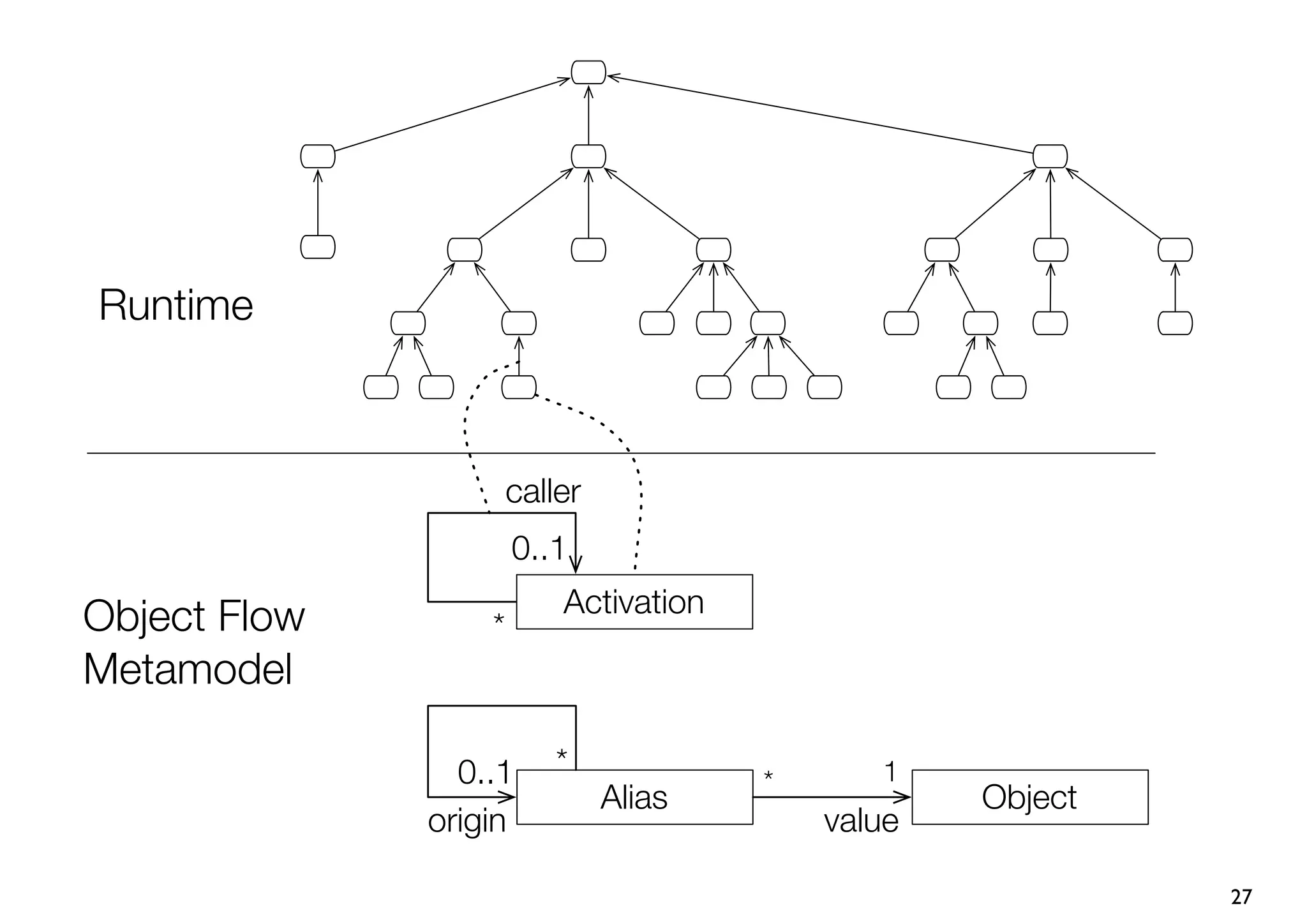

27. Runtime
caller
0..1
Activation
Object Flow *
Metamodel
0..1 * 1
*
Alias Object
origin value
27

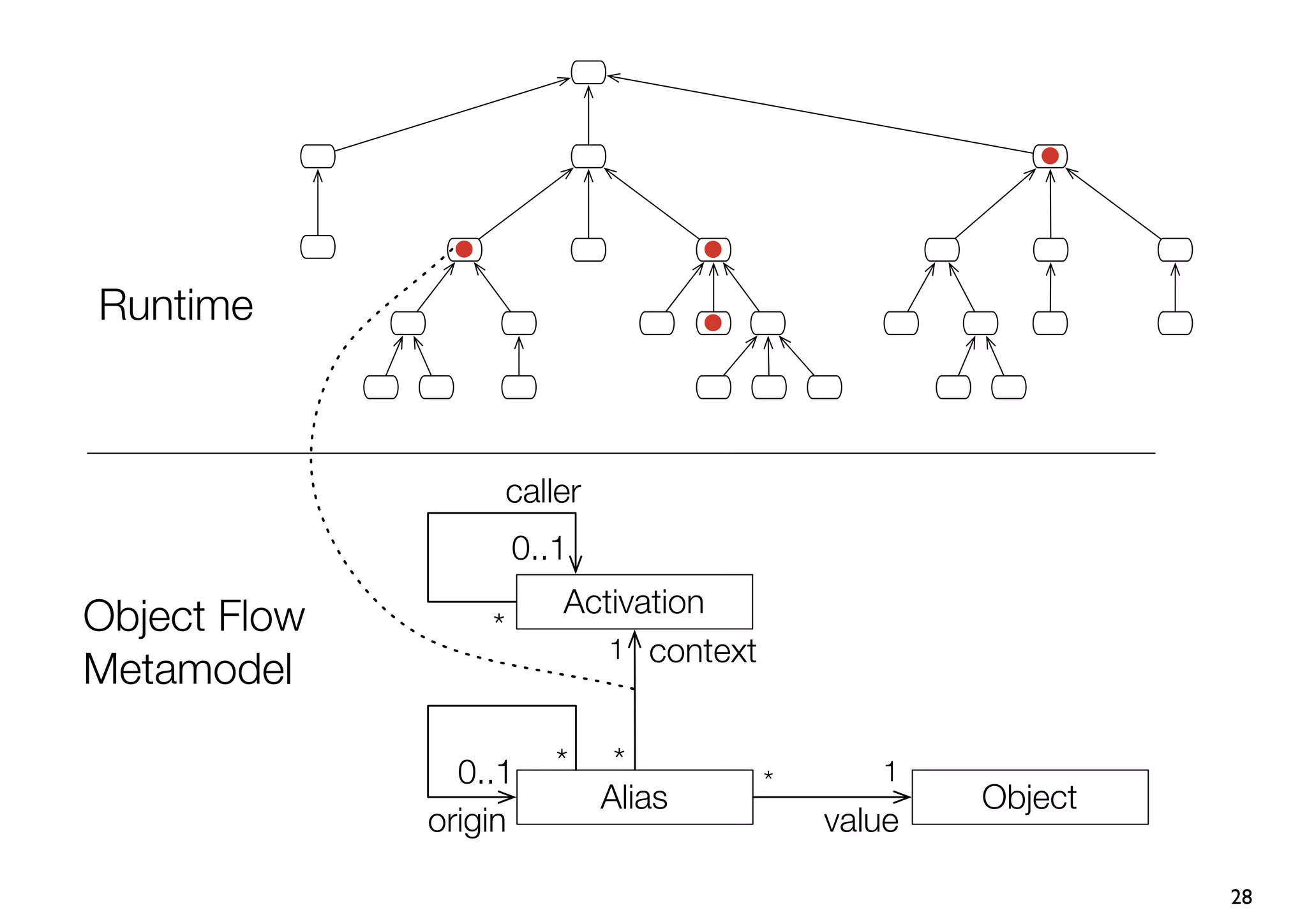

28. Runtime
caller
0..1
Activation
Object Flow *
1 context
Metamodel
0..1 * * 1
*
Alias Object
origin value
28

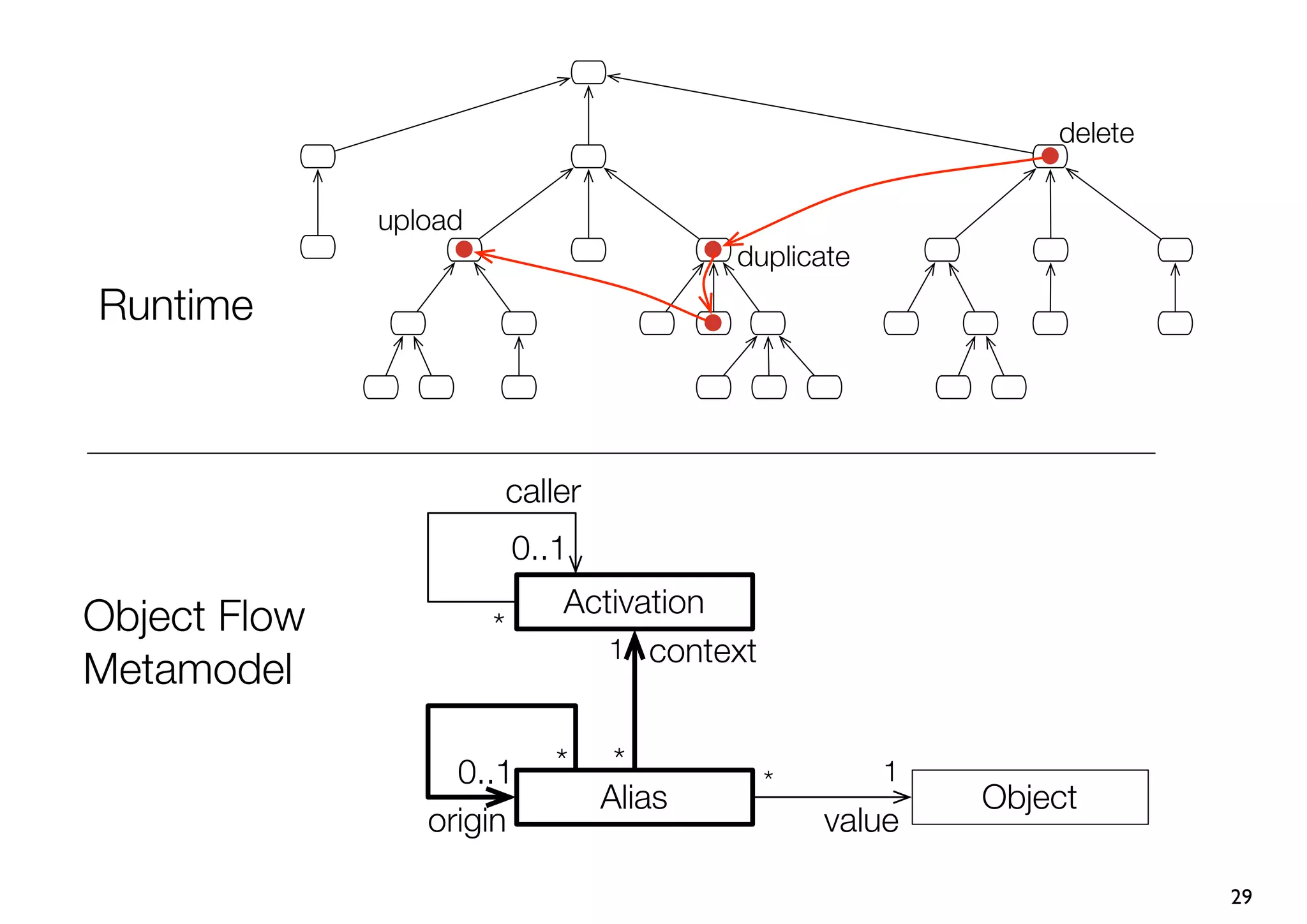

29. delete
upload
duplicate
Runtime
caller
0..1
Activation
Object Flow *
1 context
Metamodel
0..1 * * 1
*
Alias Object
origin value
29

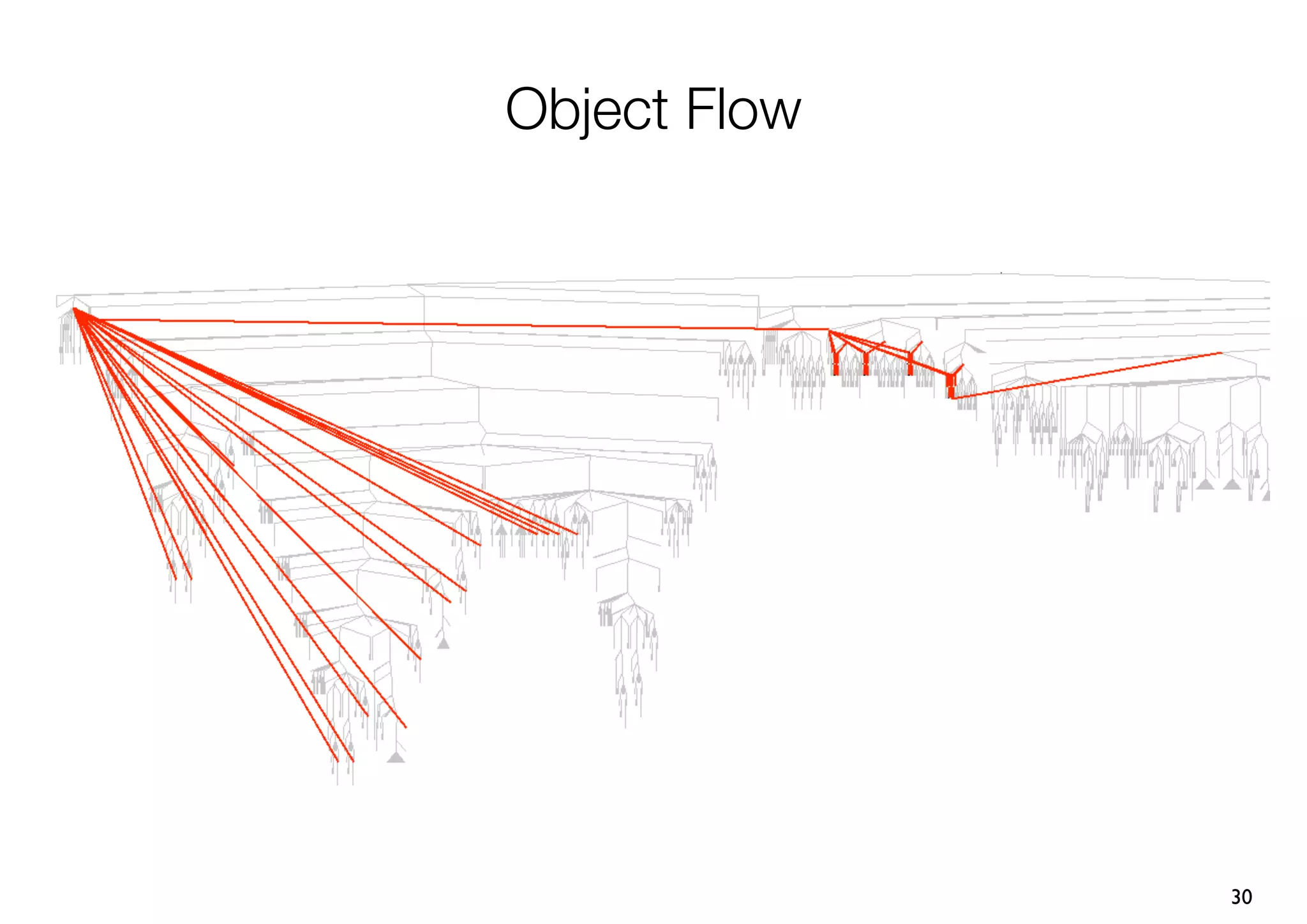

30. Object Flow
30

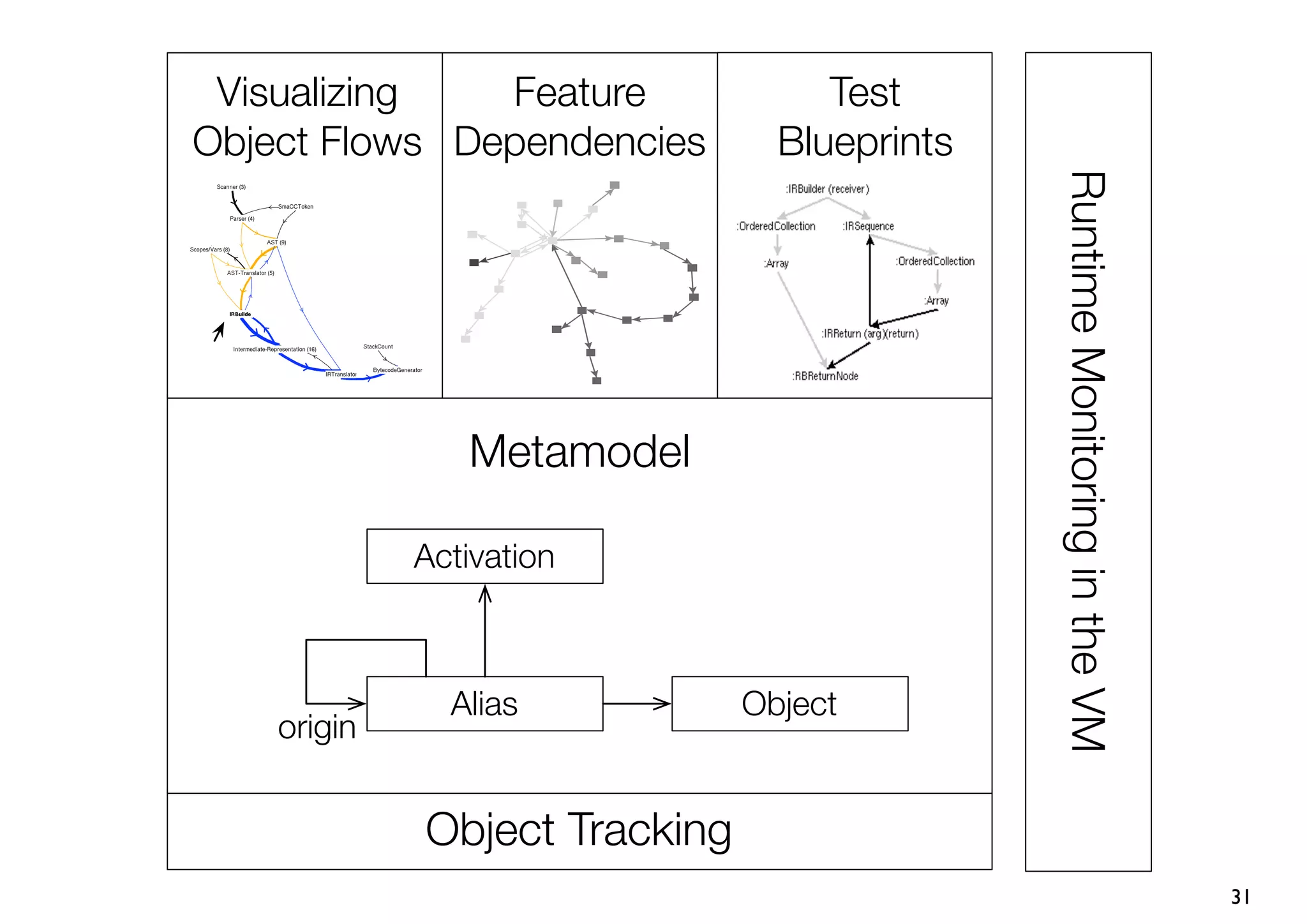

31. Visualizing Feature Test
Object Flows Dependencies Blueprints
Runtime Monitoring in the VM
Metamodel
Activation
Alias Object
origin
Object Tracking
31

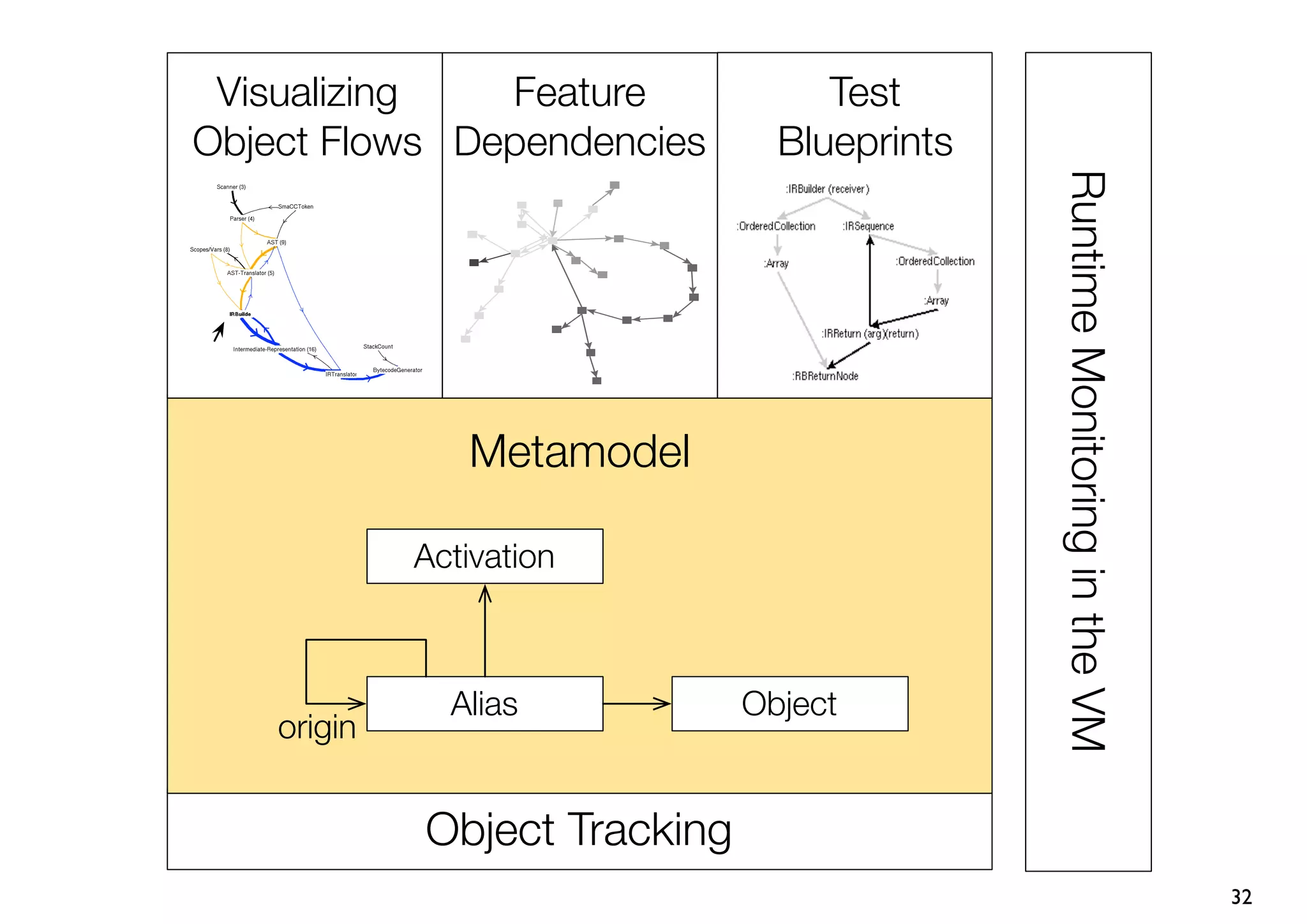

32. Visualizing Feature Test
Object Flows Dependencies Blueprints
Runtime Monitoring in the VM
Metamodel
Activation
Alias Object
origin
Object Tracking
32

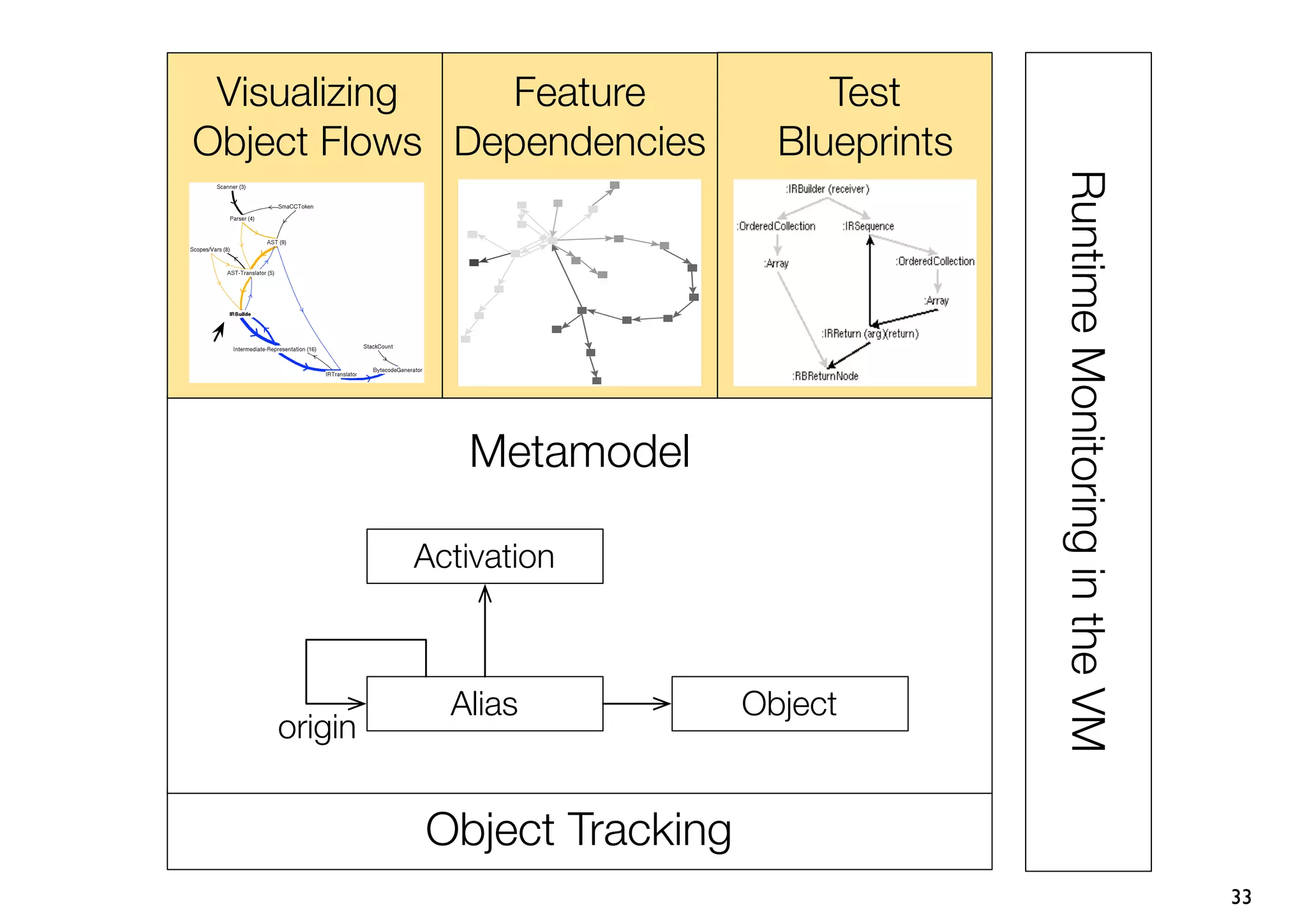

33. Visualizing Feature Test
Object Flows Dependencies Blueprints
Runtime Monitoring in the VM
Metamodel
Activation
Alias Object
origin
Object Tracking
33

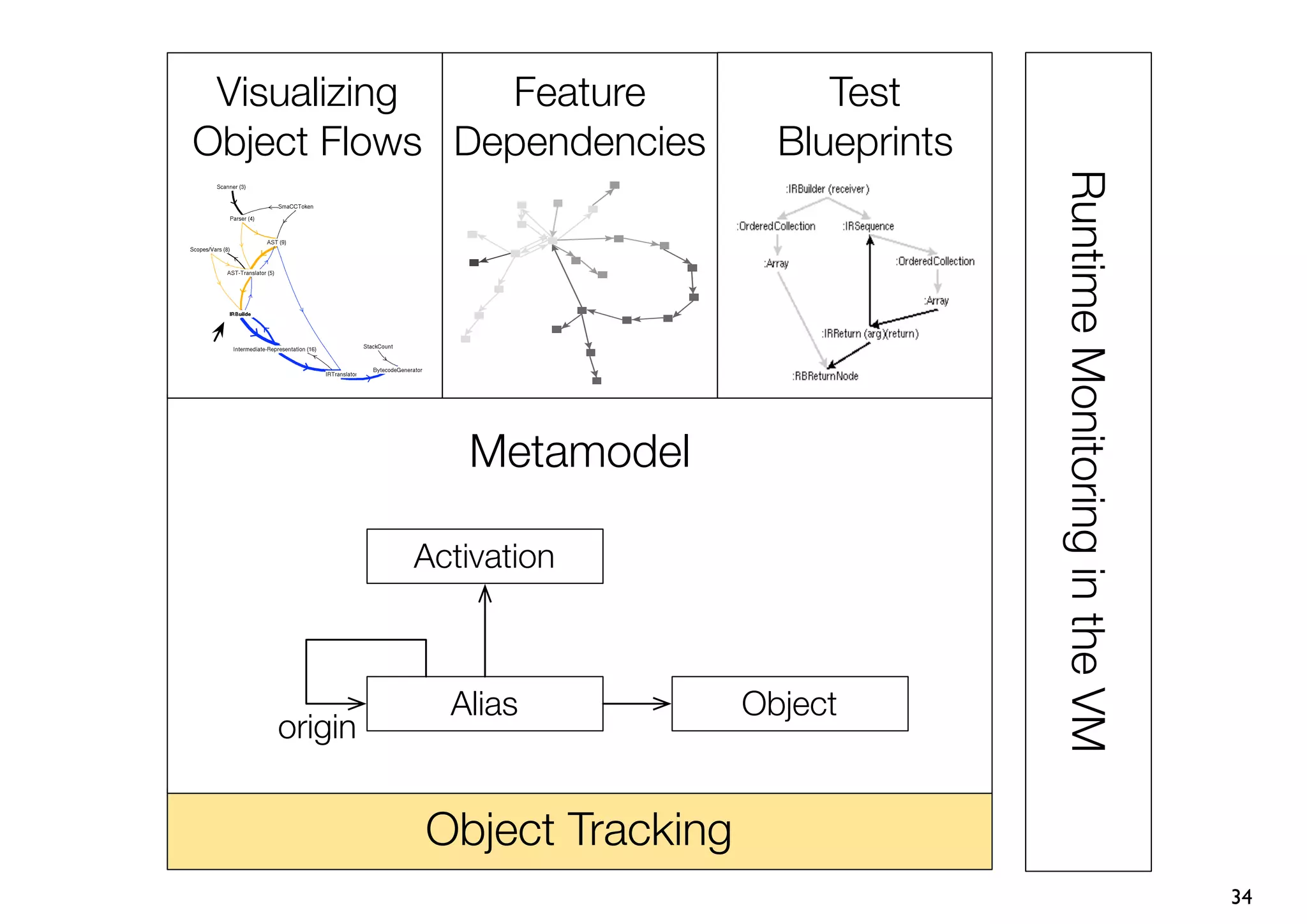

34. Visualizing Feature Test
Object Flows Dependencies Blueprints
Runtime Monitoring in the VM
Metamodel
Activation
Alias Object
origin
Object Tracking
34

35. Visualizing Feature Test
Object Flows Dependencies Blueprints
Runtime Monitoring in the VM
Metamodel
Activation
Alias Object
origin
Object Tracking
35

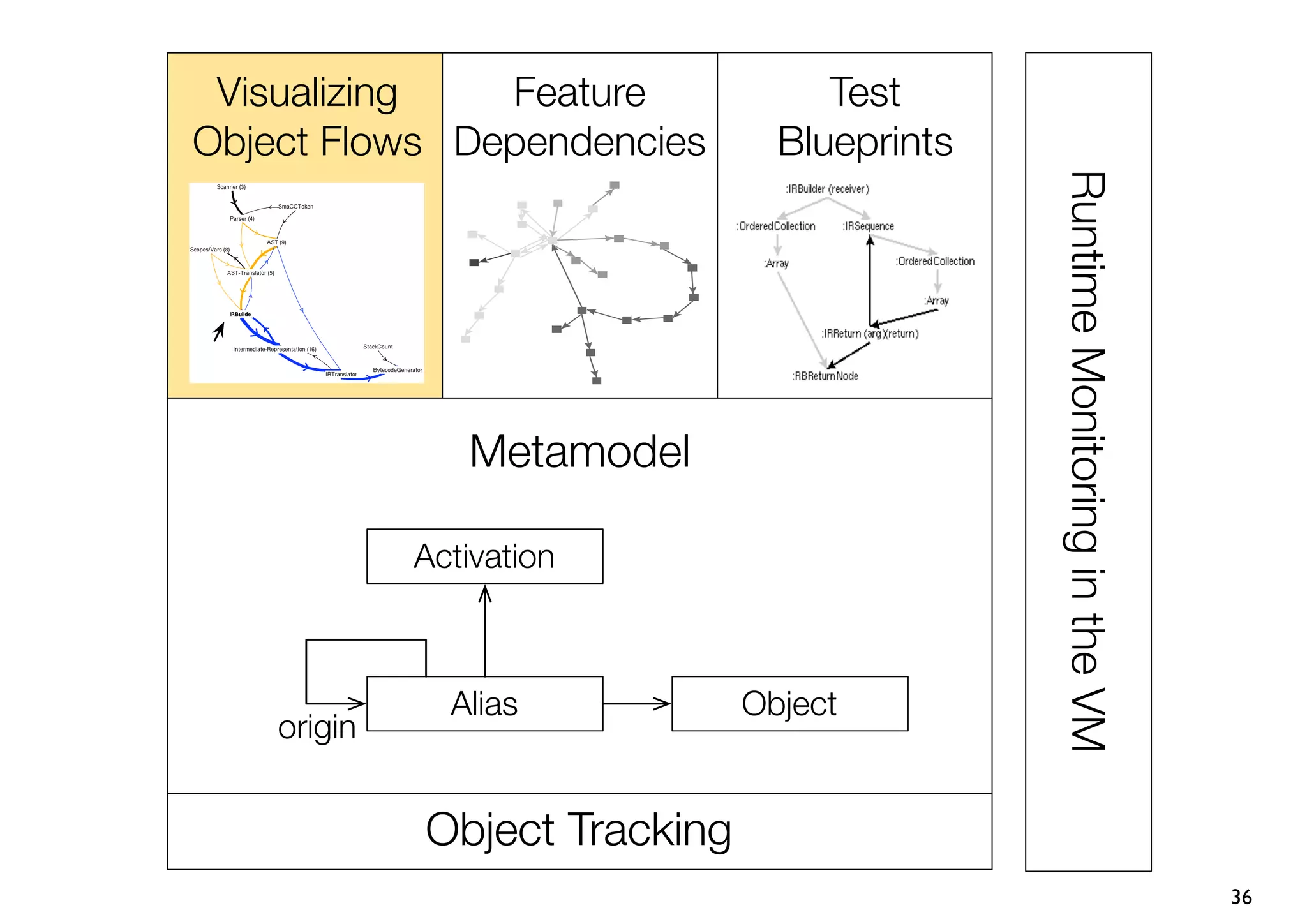

36. Visualizing Feature Test
Object Flows Dependencies Blueprints
Runtime Monitoring in the VM
Metamodel
Activation
Alias Object
origin
Object Tracking
36

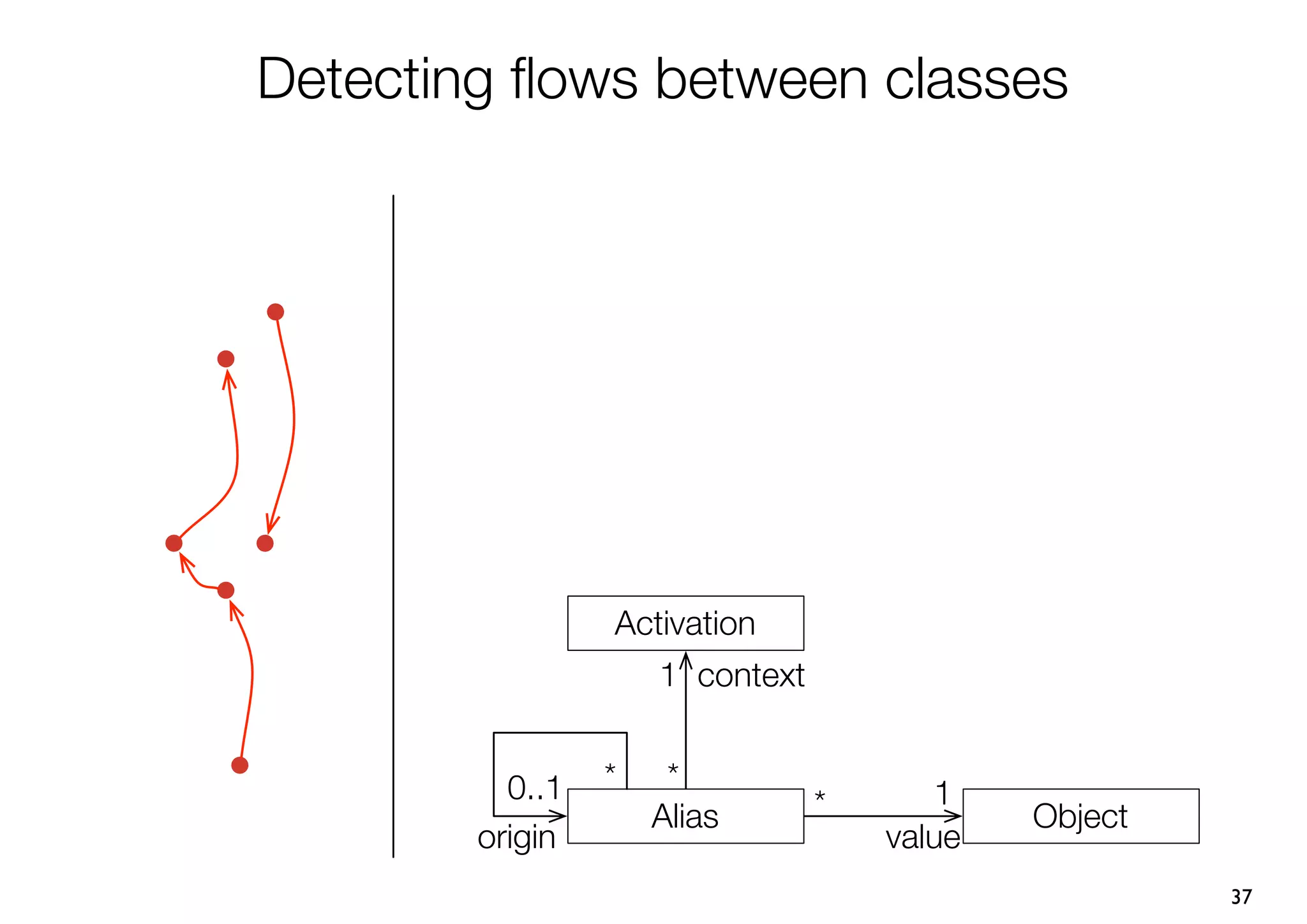

37. Detecting flows between classes
Activation
1 context
0..1 * *
* 1
Alias Object
origin value
37

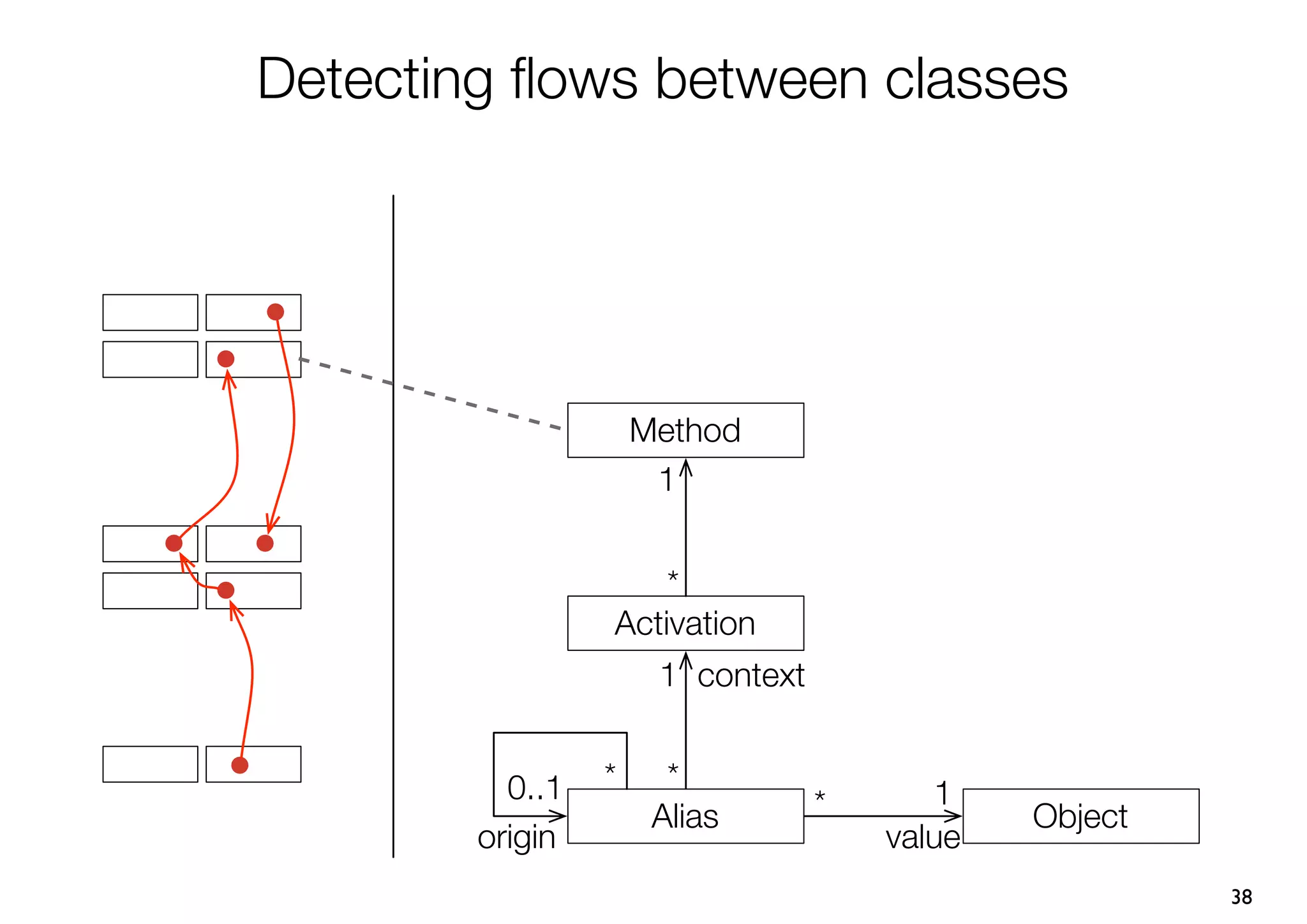

38. Detecting flows between classes
Method
1
*
Activation
1 context
0..1 * *
* 1
Alias Object
origin value
38

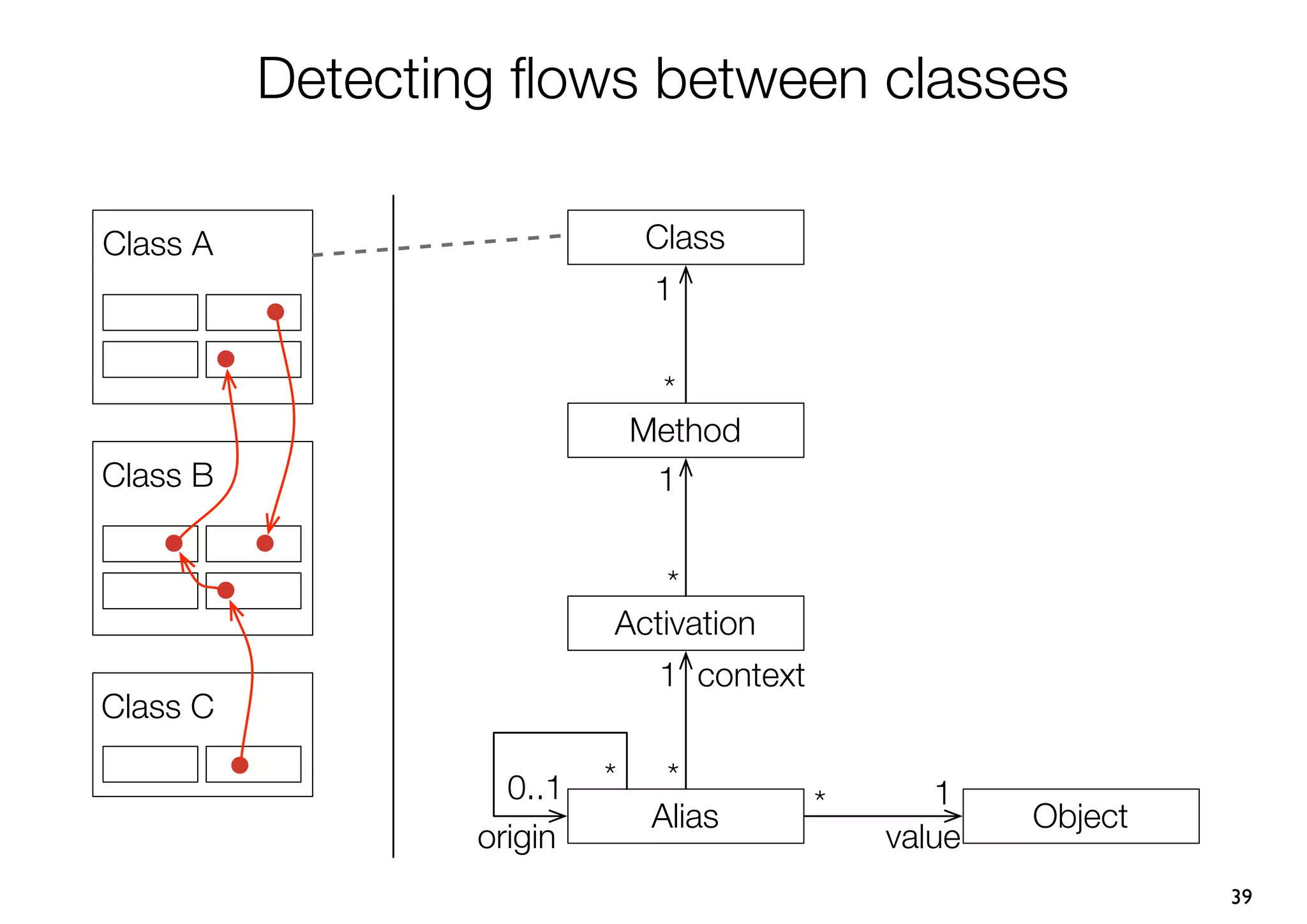

39. Detecting flows between classes
Class A Class
1
*
Method
Class B 1
*
Activation
1 context
Class C
0..1 * *
* 1
Alias Object
origin value
39

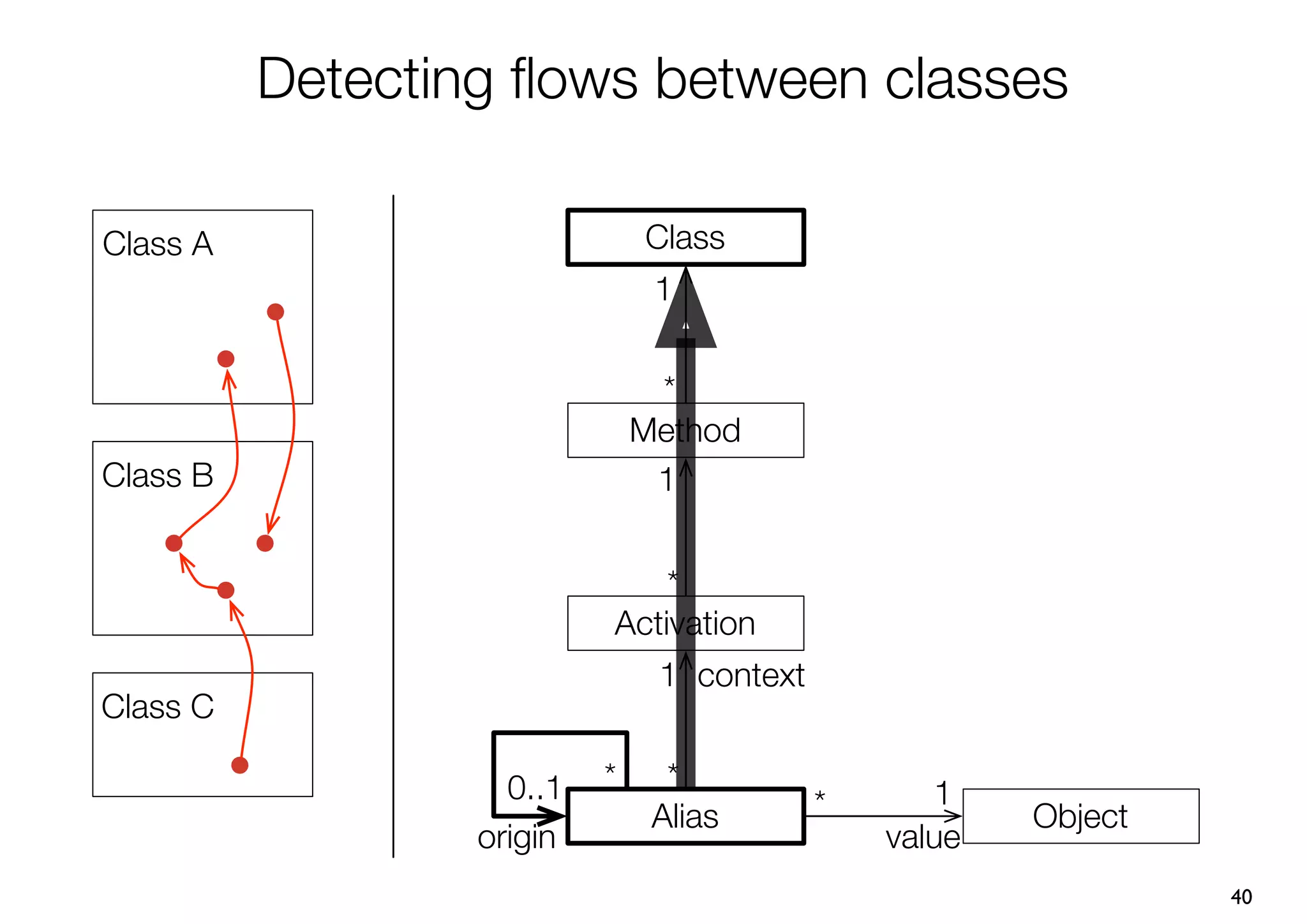

40. Detecting flows between classes
Class A Class
1
*
Method
Class B 1
*
Activation
1 context
Class C
0..1 * *
* 1
Alias Object
origin value
40

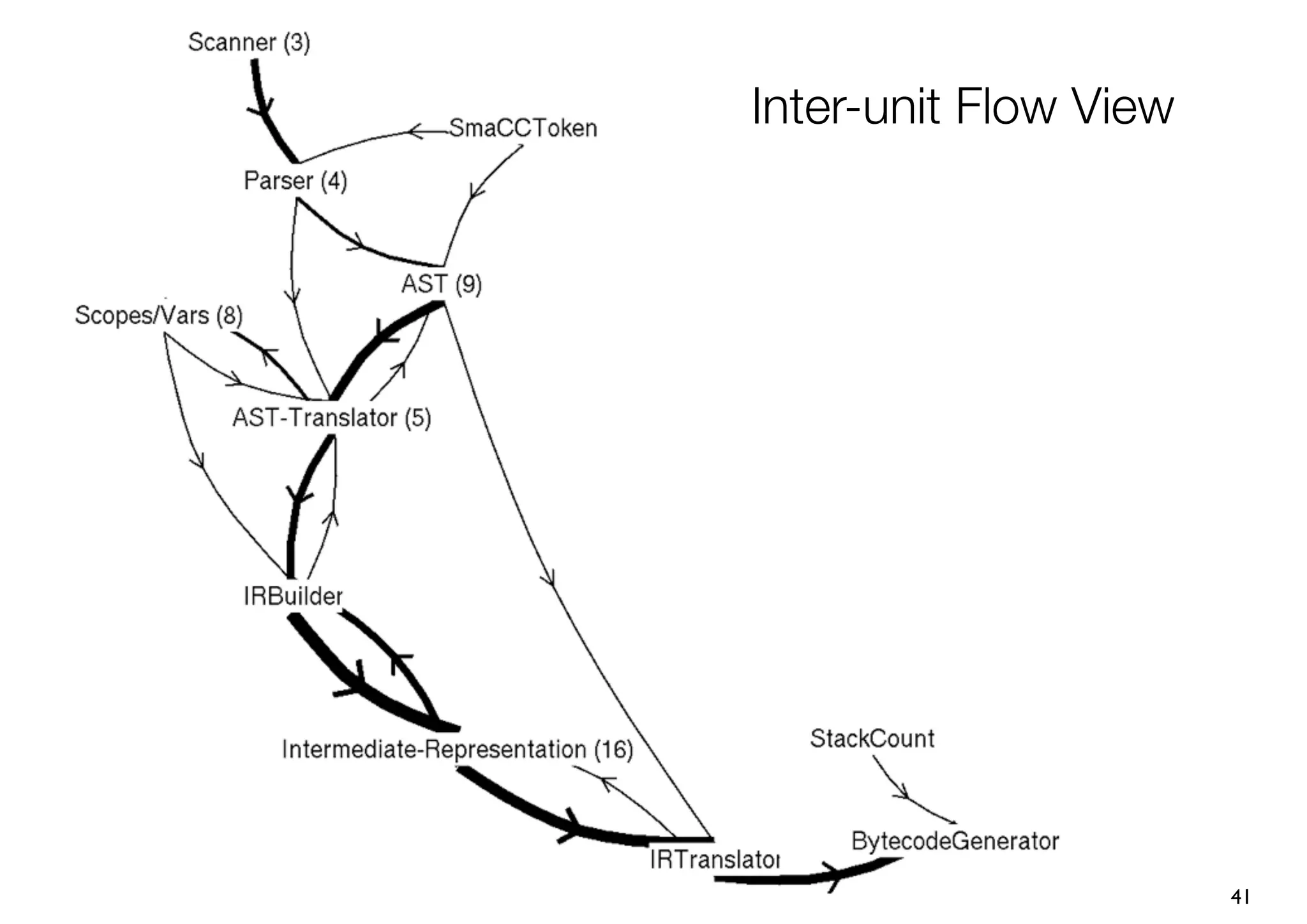

41. Inter-unit Flow View
41

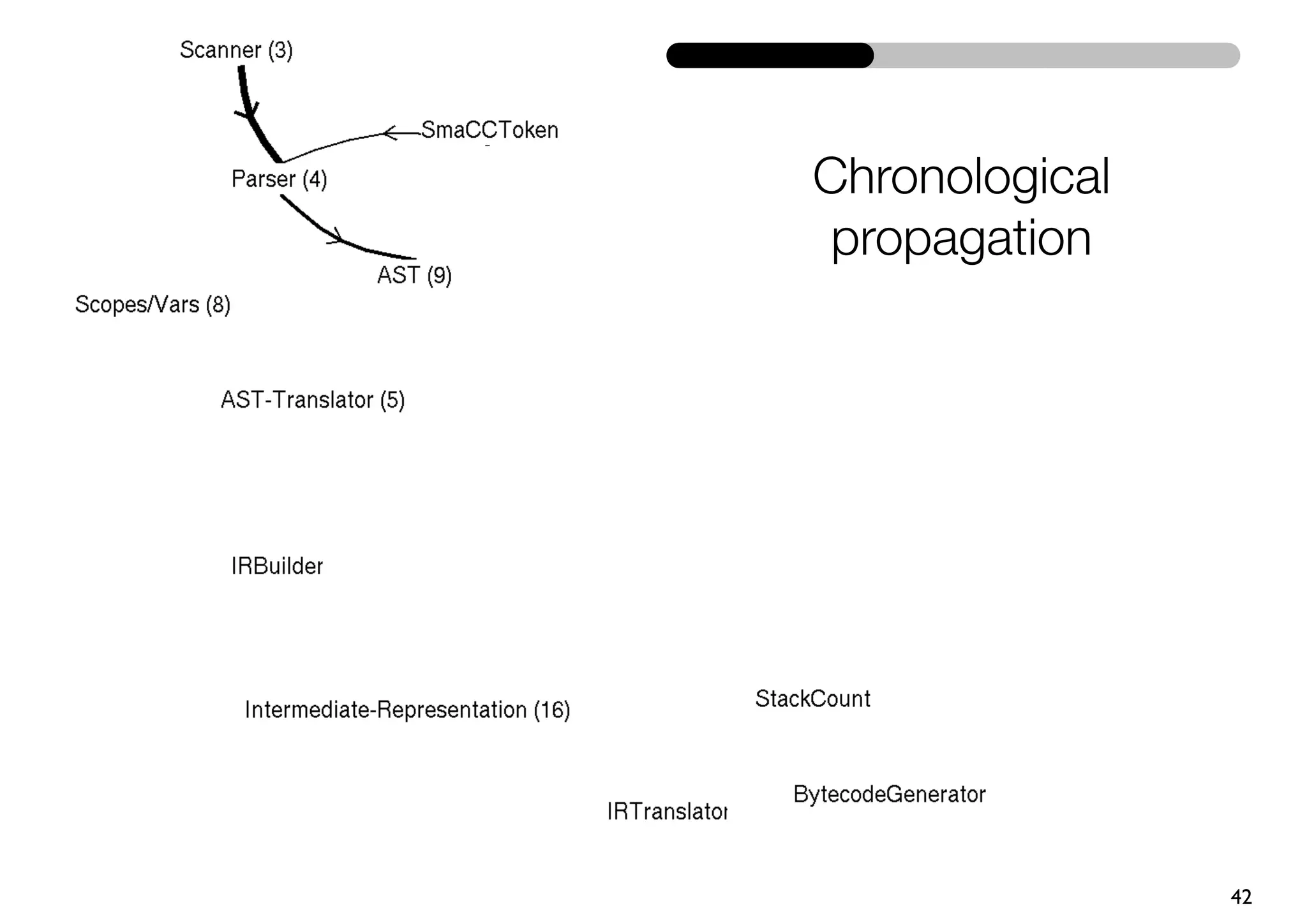

42. Chronological
propagation
42

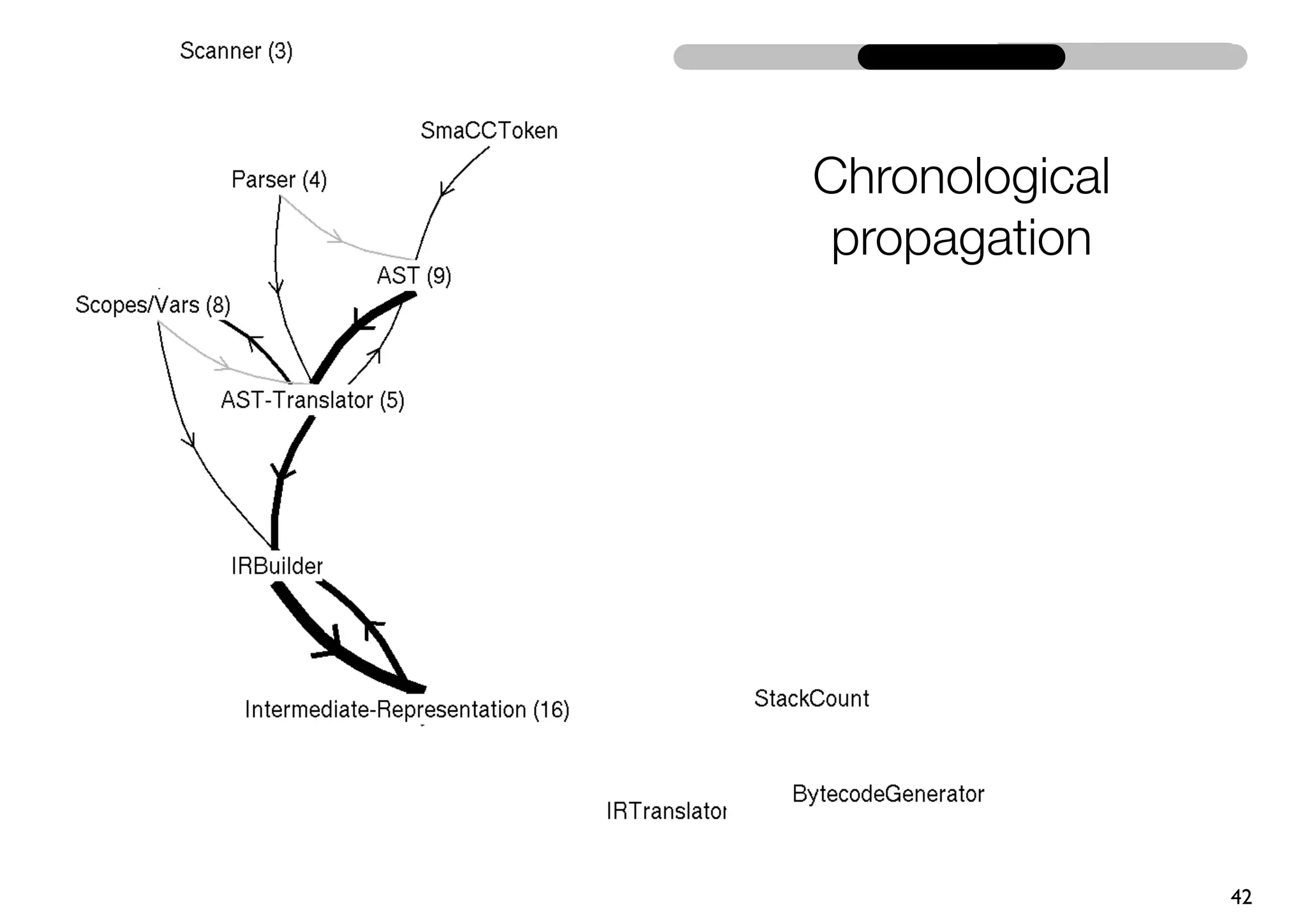

43. Chronological
propagation
42

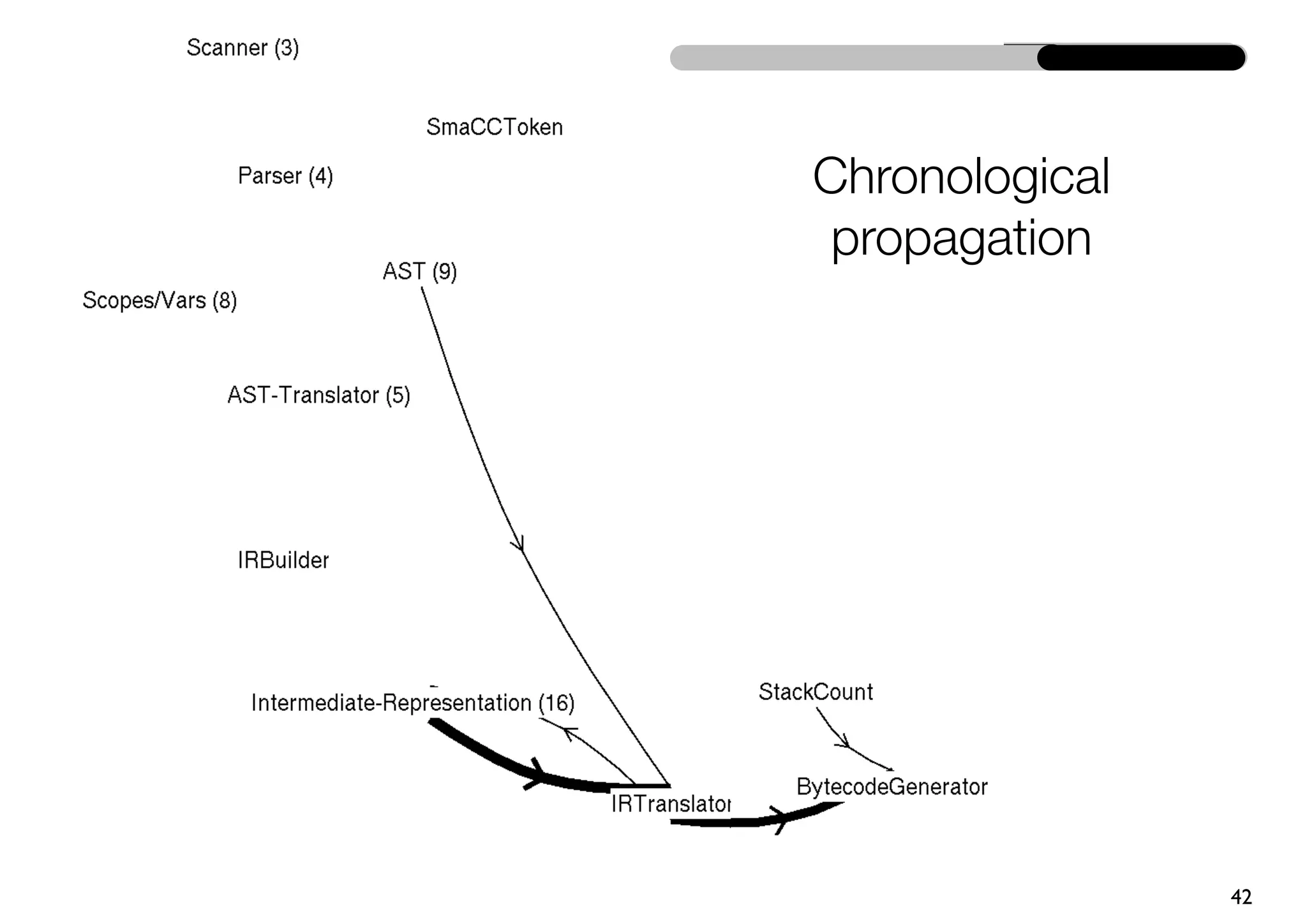

44. Chronological
propagation
42

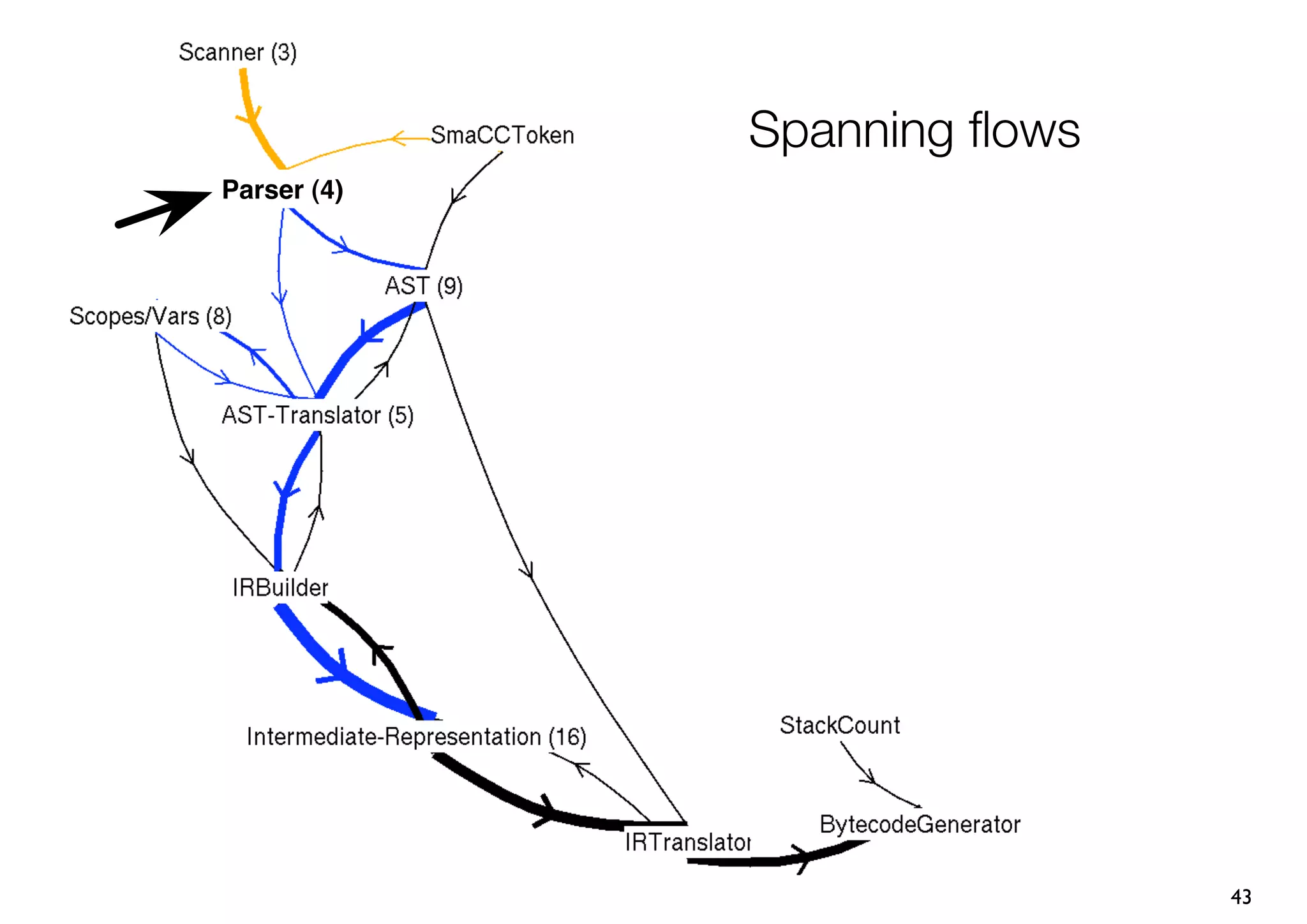

45. Spanning flows
Parser (4)
43

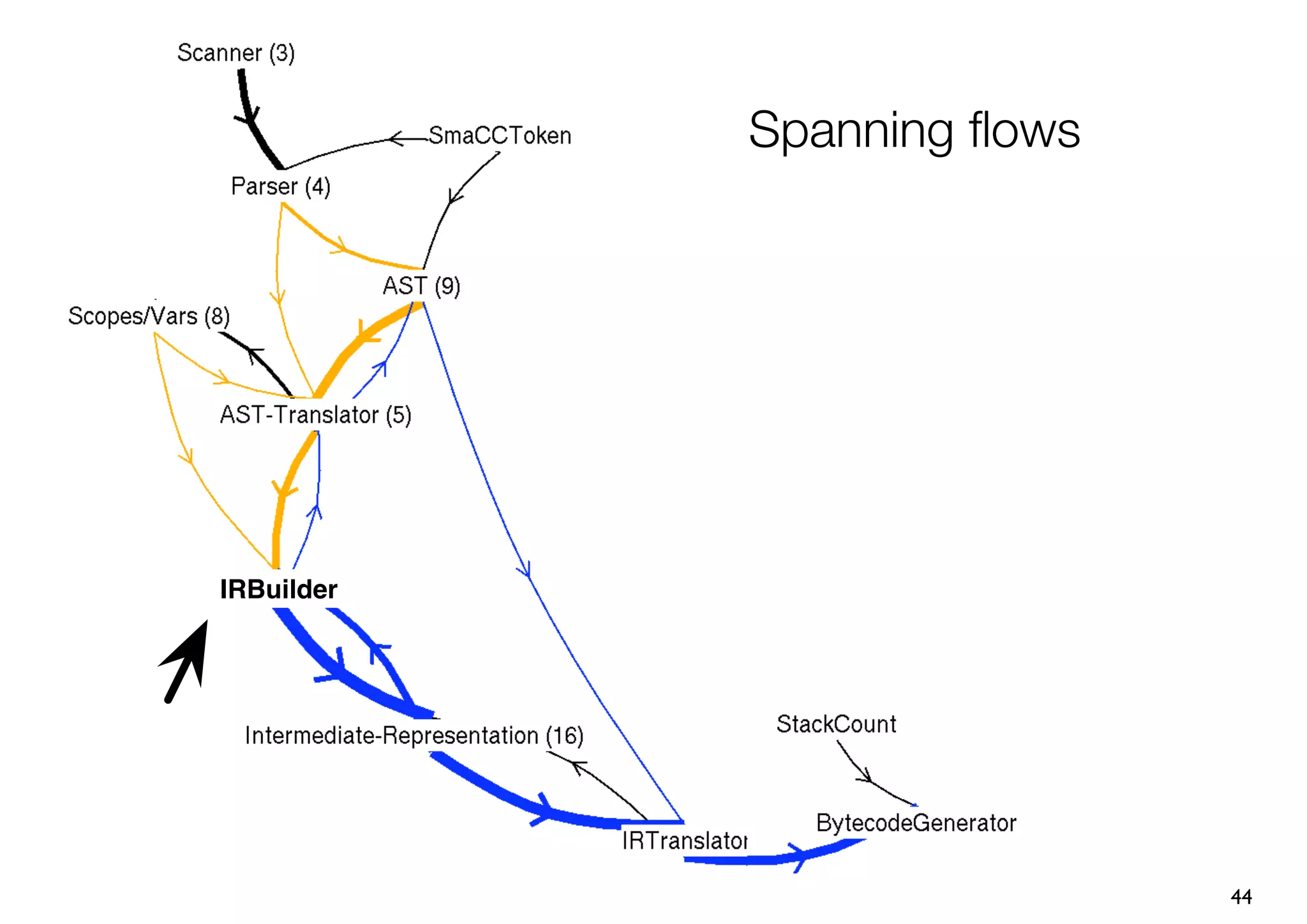

46. Spanning flows
IRBuilder
44

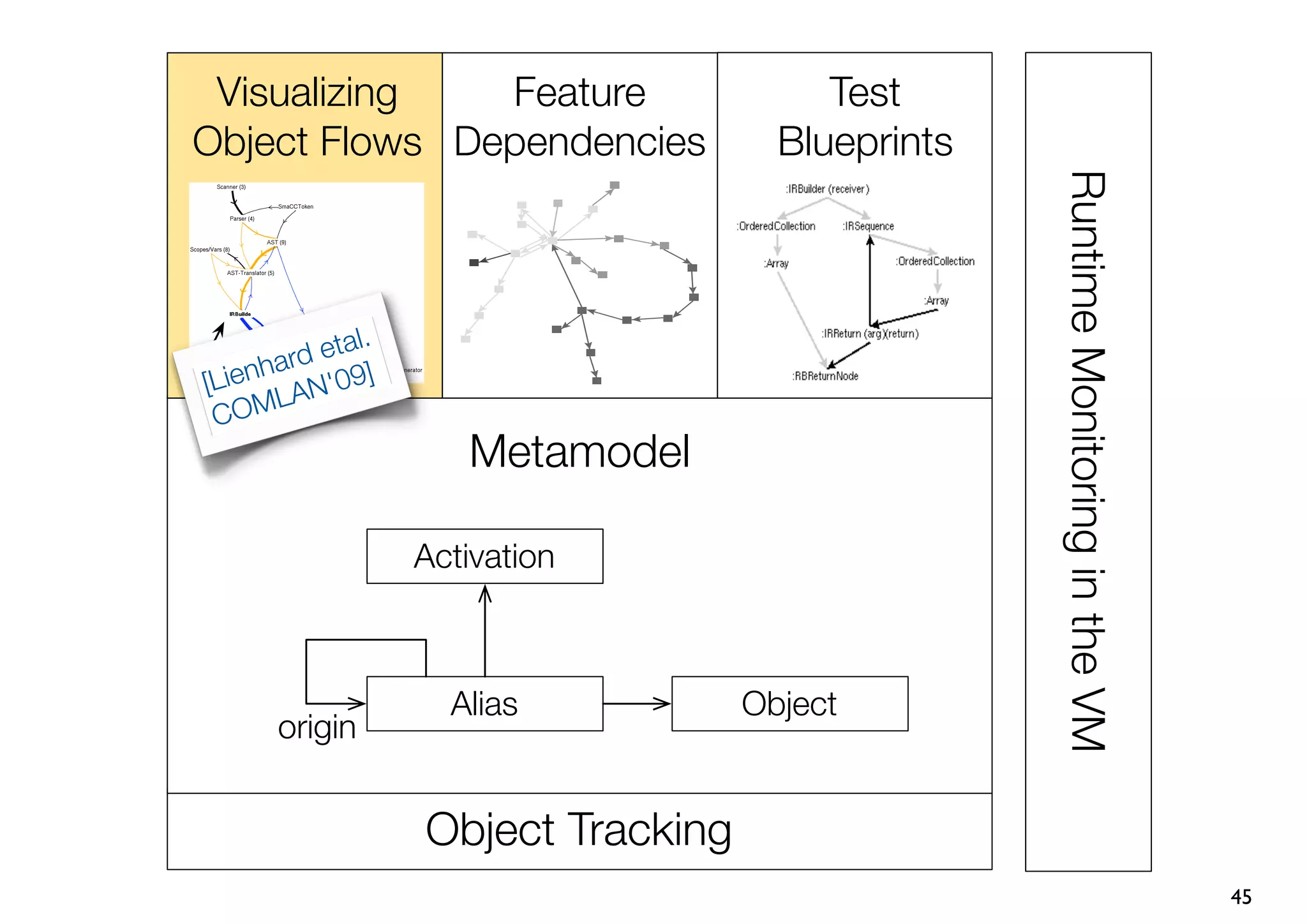

47. Visualizing Feature Test
Object Flows Dependencies Blueprints
Runtime Monitoring in the VM
l.
ard eta
[ Lienh AN'09]
L
COM
Metamodel
Activation
Alias Object
origin
Object Tracking
45

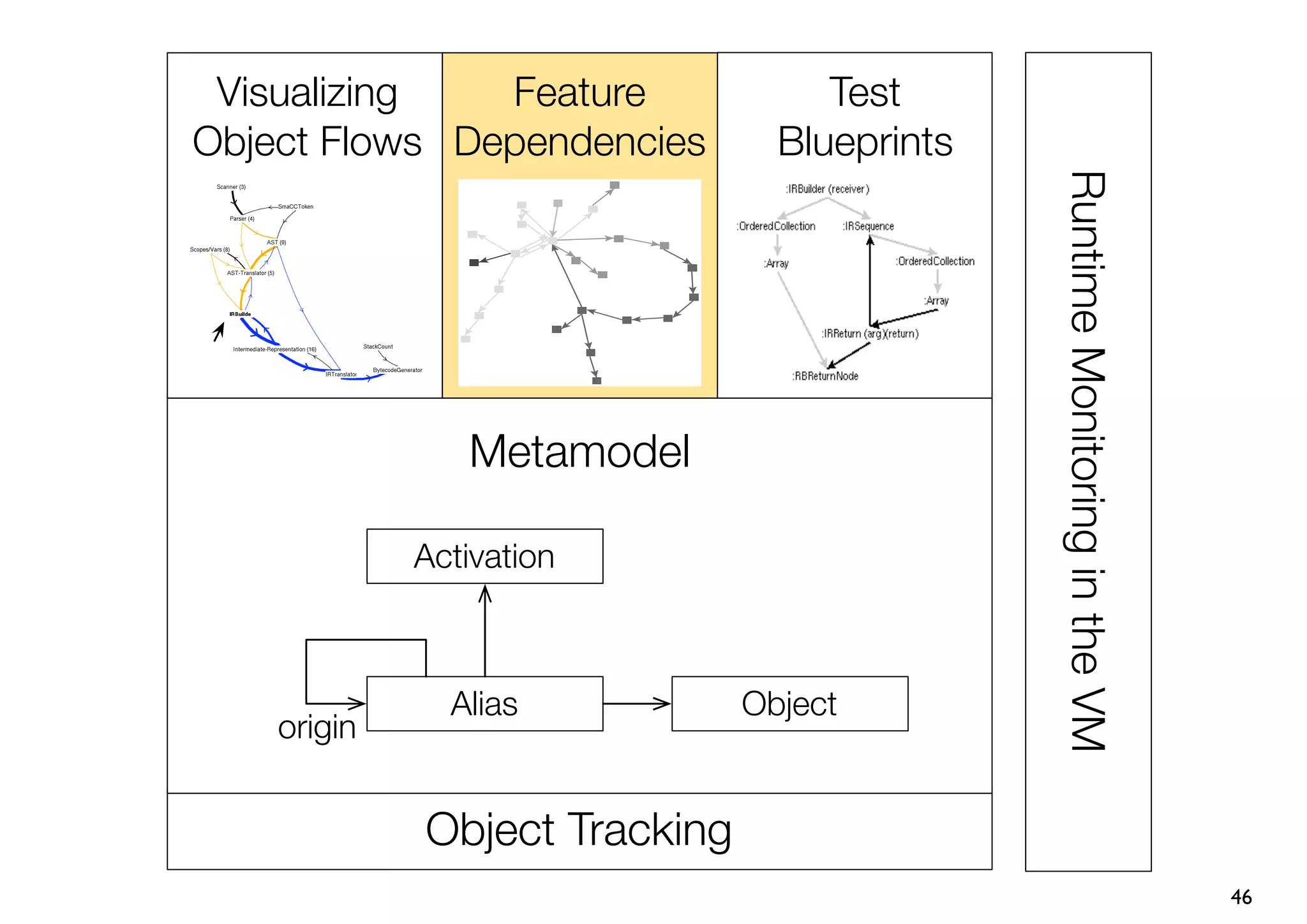

48. Visualizing Feature Test
Object Flows Dependencies Blueprints
Runtime Monitoring in the VM
Metamodel
Activation
Alias Object
origin
Object Tracking
46

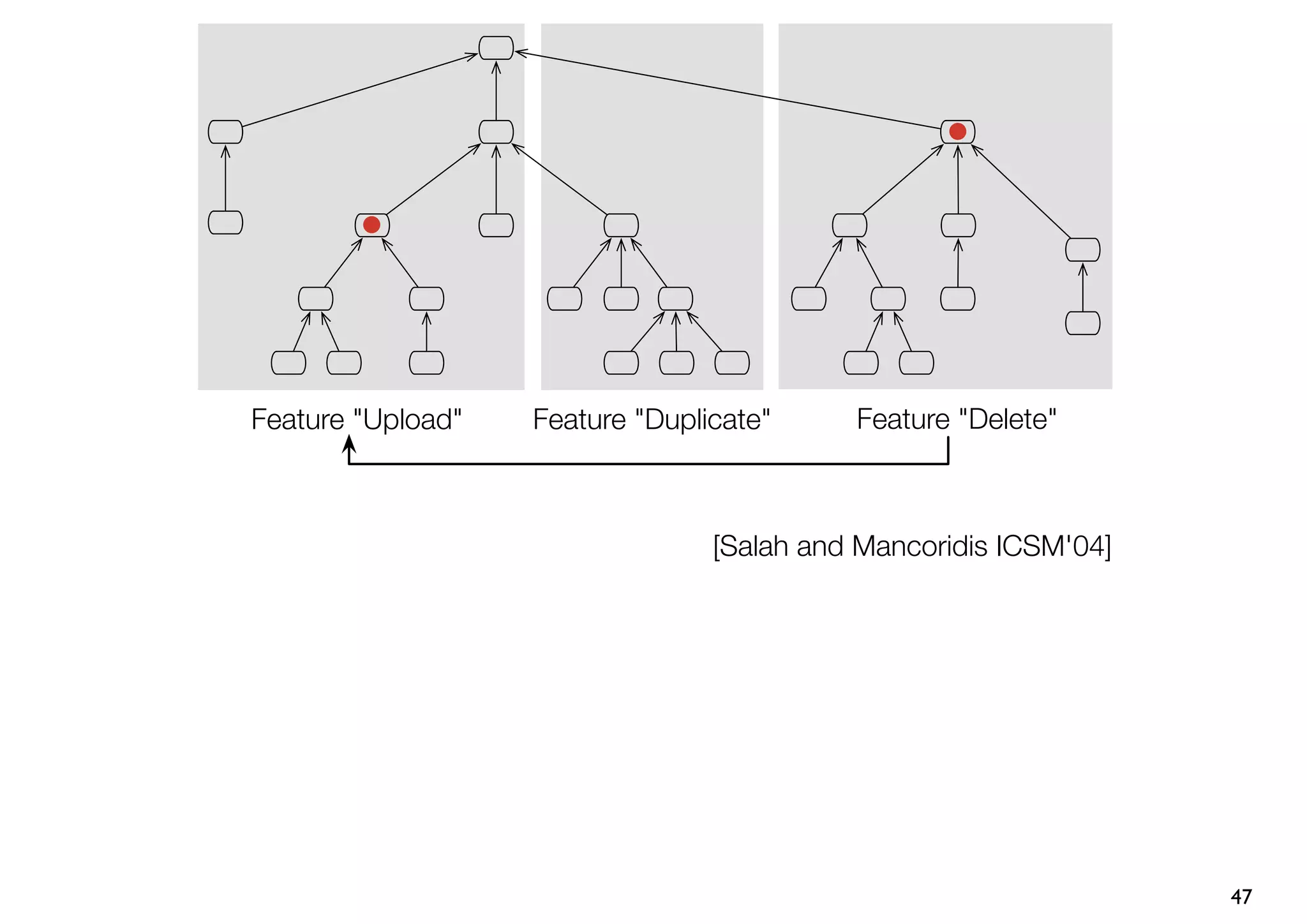

49. Feature "Upload" Feature "Duplicate" Feature "Delete"
[Salah and Mancoridis ICSM'04]
47

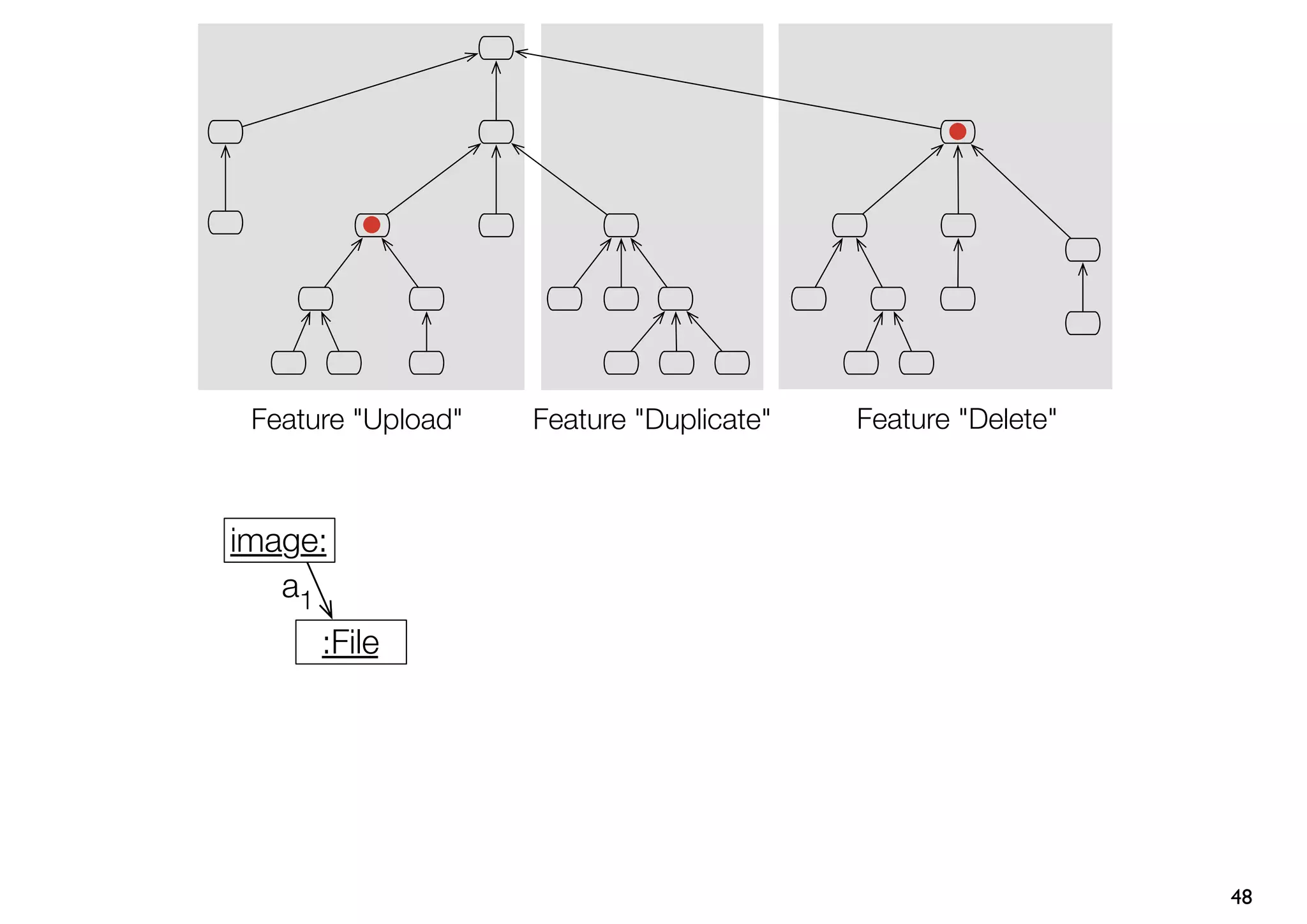

50. Feature "Upload" Feature "Duplicate" Feature "Delete"
image:
a1
:File
48

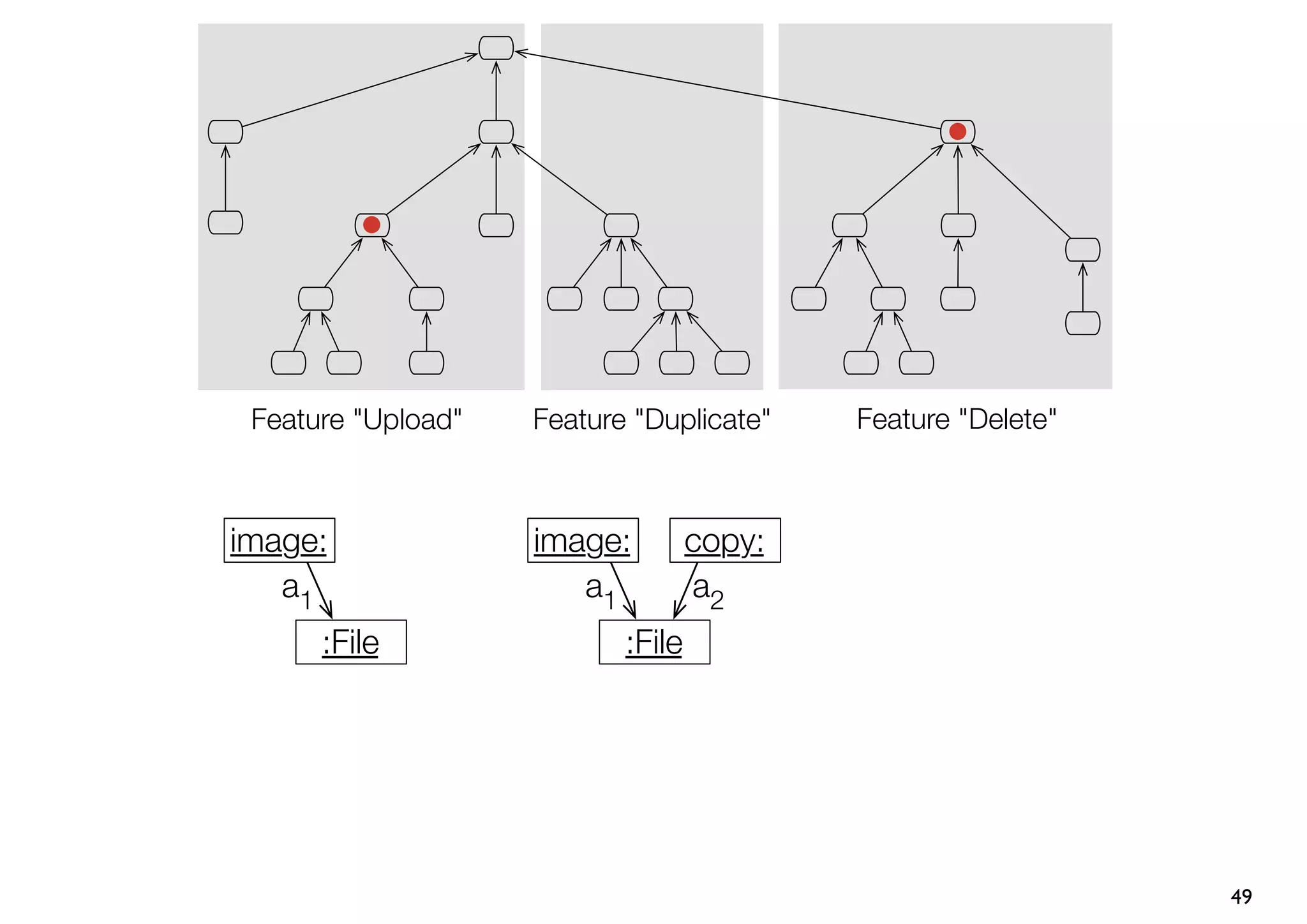

51. Feature "Upload" Feature "Duplicate" Feature "Delete"
image: image: copy:
a1 a1 a2
:File :File
49

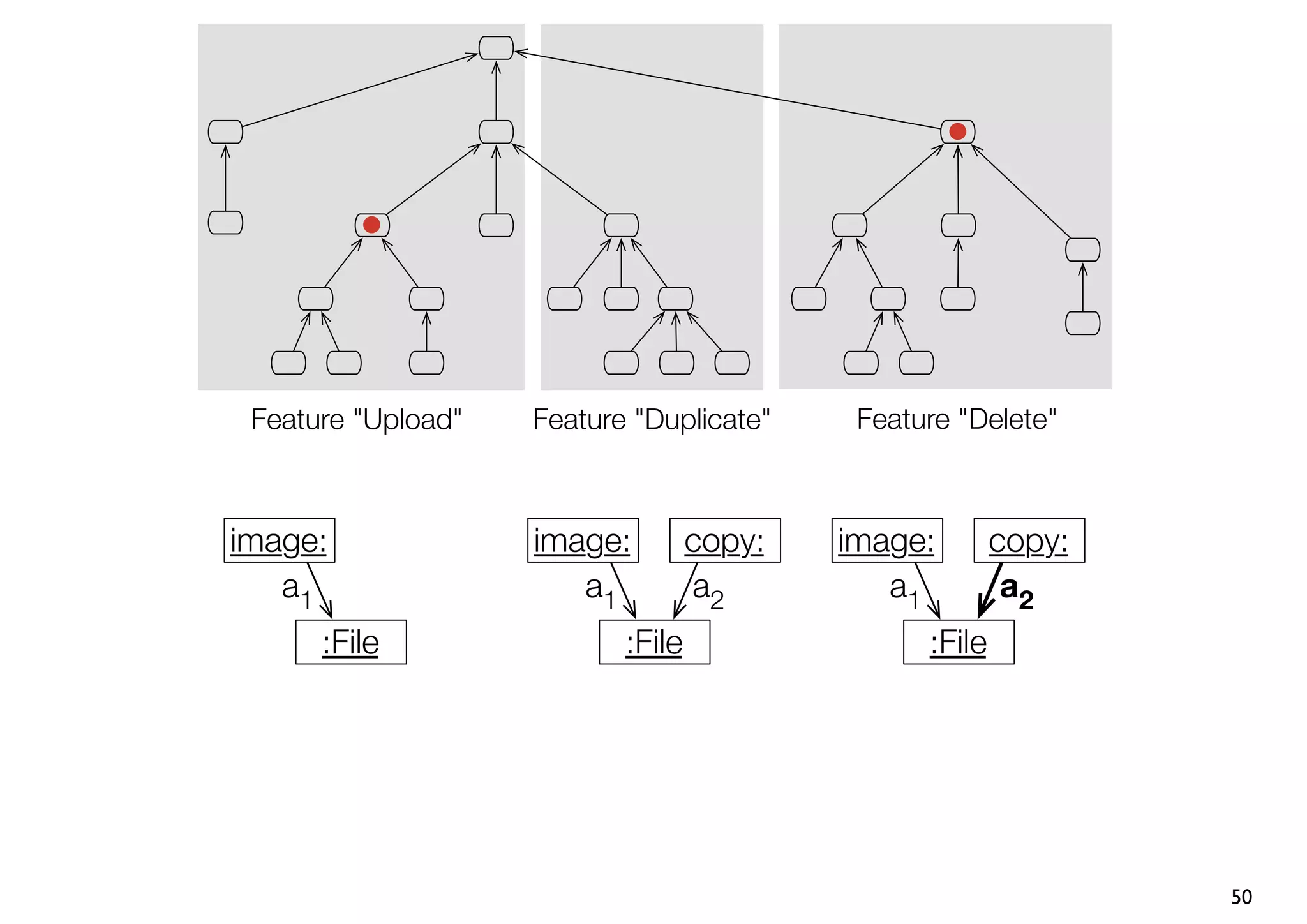

52. Feature "Upload" Feature "Duplicate" Feature "Delete"
image: image: copy: image: copy:
a1 a1 a2 a1 a2
:File :File :File
50

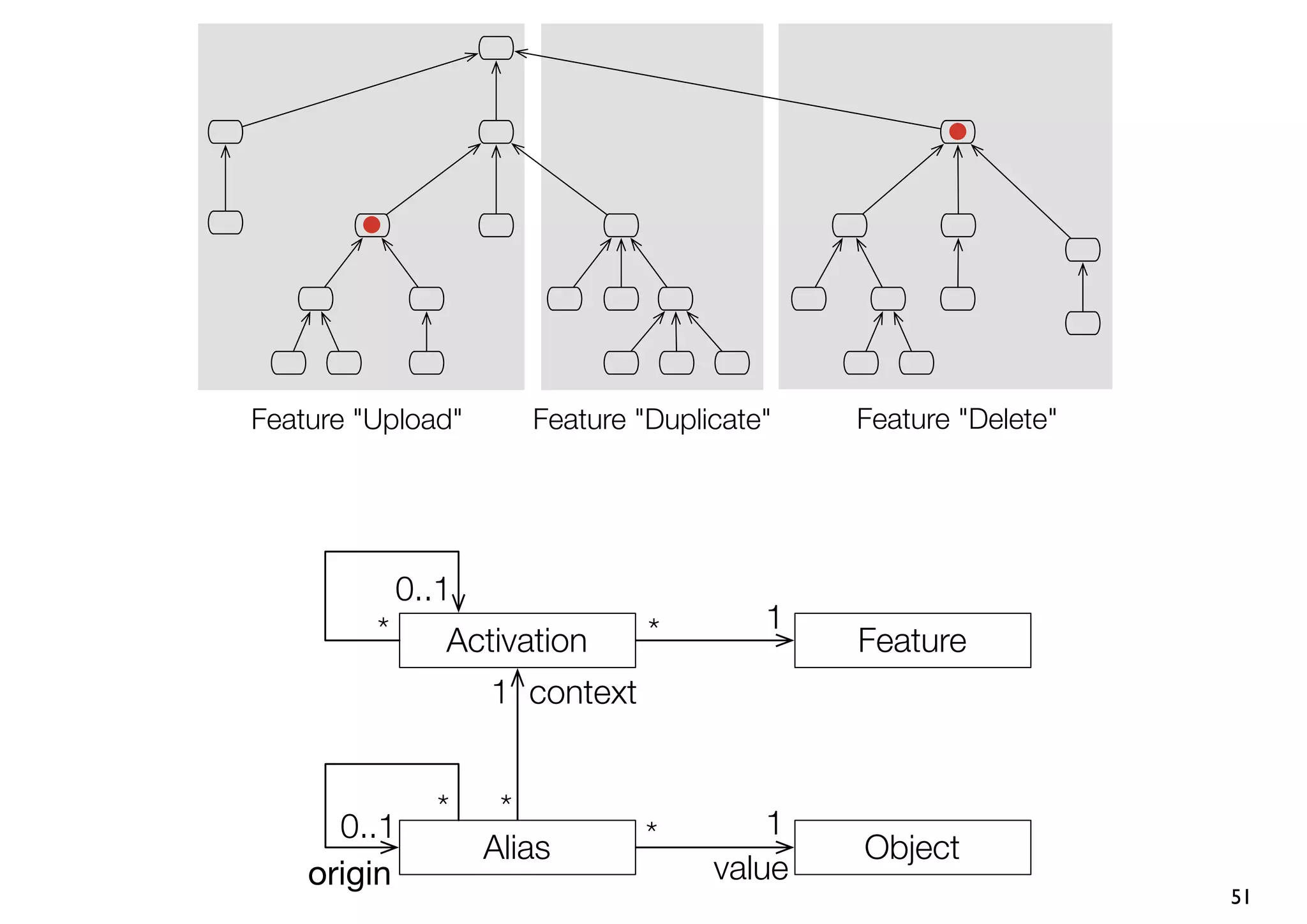

53. Feature "Upload" Feature "Duplicate" Feature "Delete"
0..1
* * 1
Activation Feature
1 context
* * 1
0..1 *
Alias Object
origin value
51

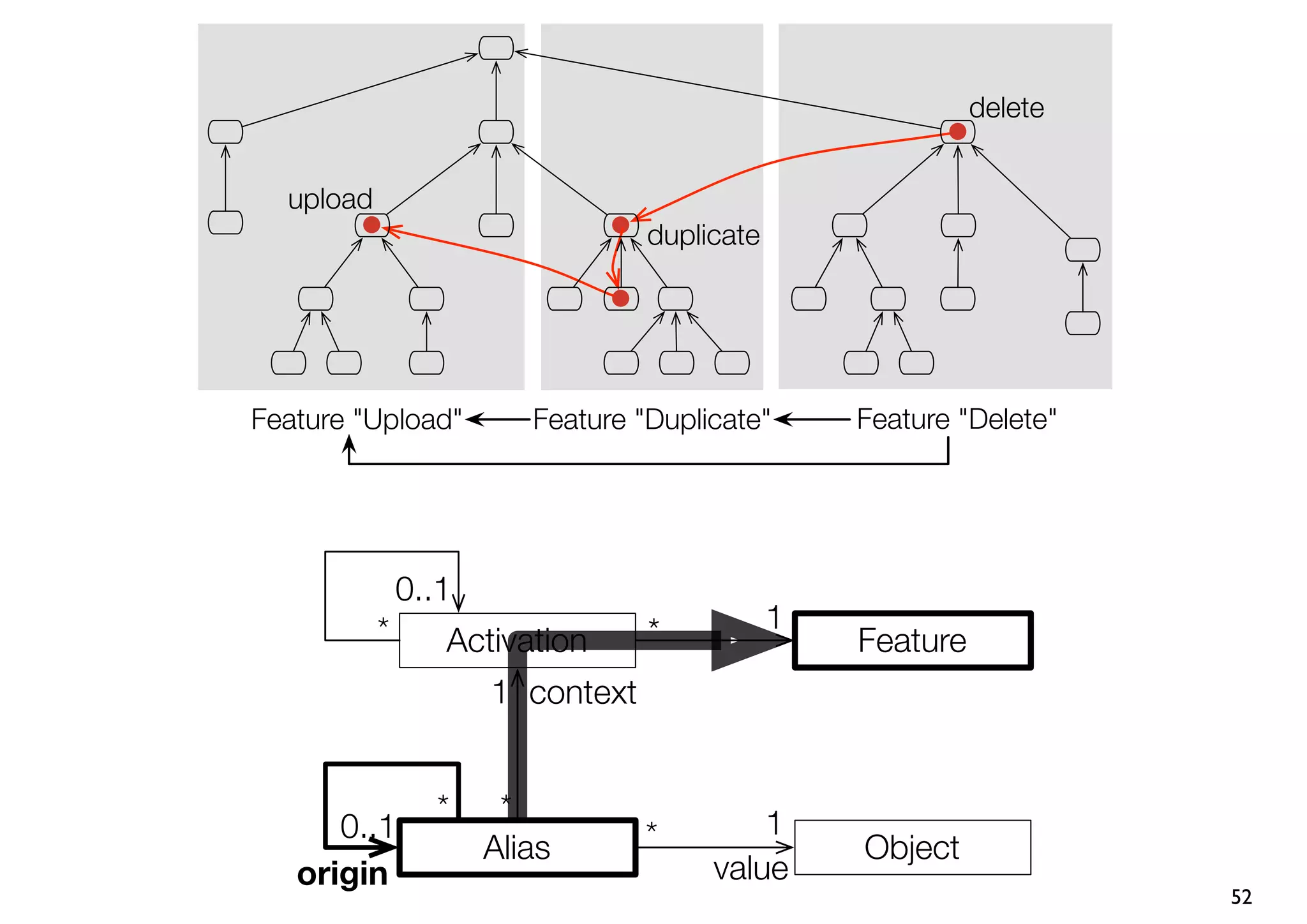

54. delete
upload
duplicate
Feature "Upload" Feature "Duplicate" Feature "Delete"
0..1
* * 1
Activation Feature
1 context
* * 1
0..1 *
Alias Object
origin value
52

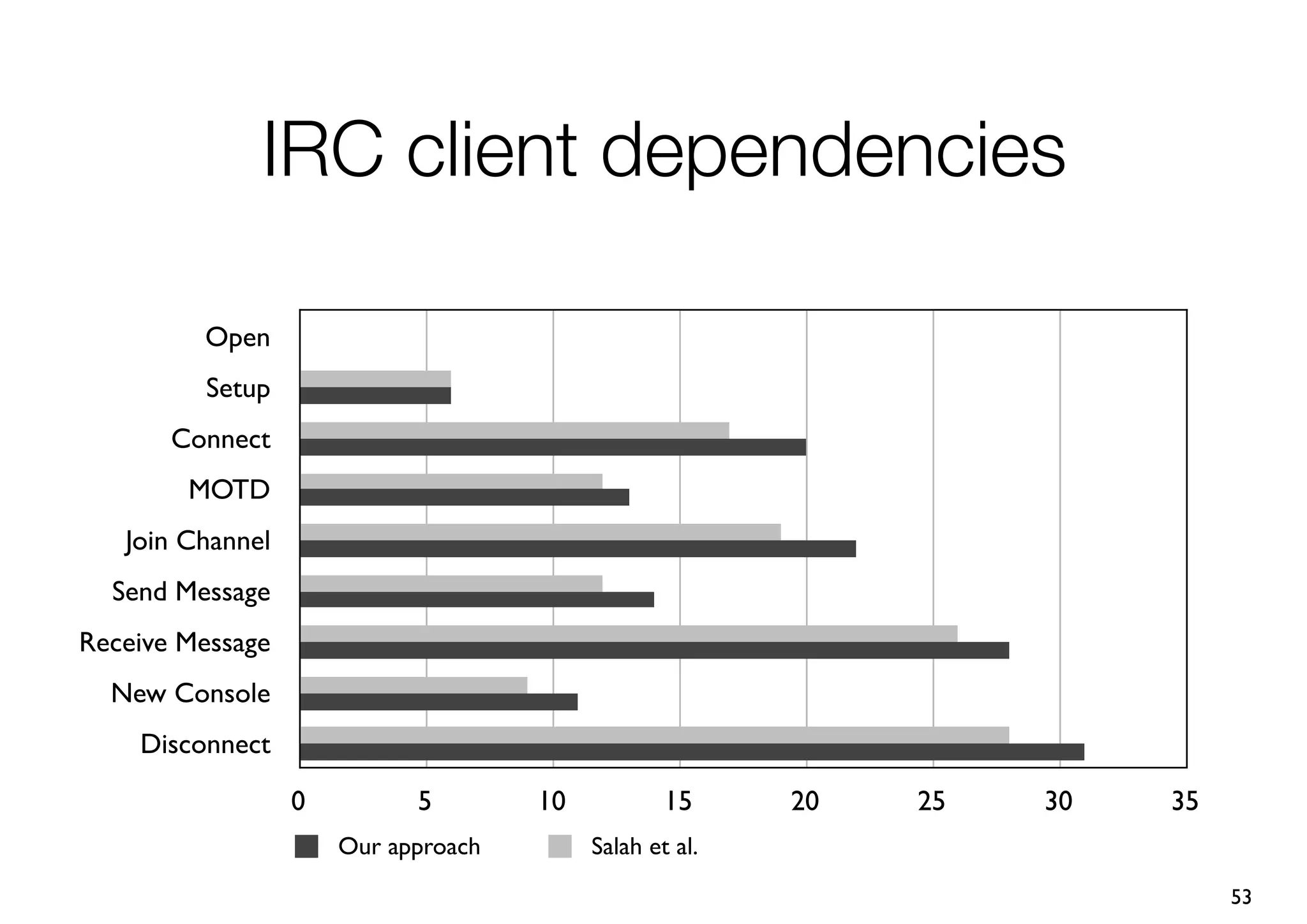

55. IRC client dependencies
Open
Setup
Connect
MOTD
Join Channel
Send Message
Receive Message
New Console
Disconnect
0 5 10 15 20 25 30 35
Our approach Salah et al.
53

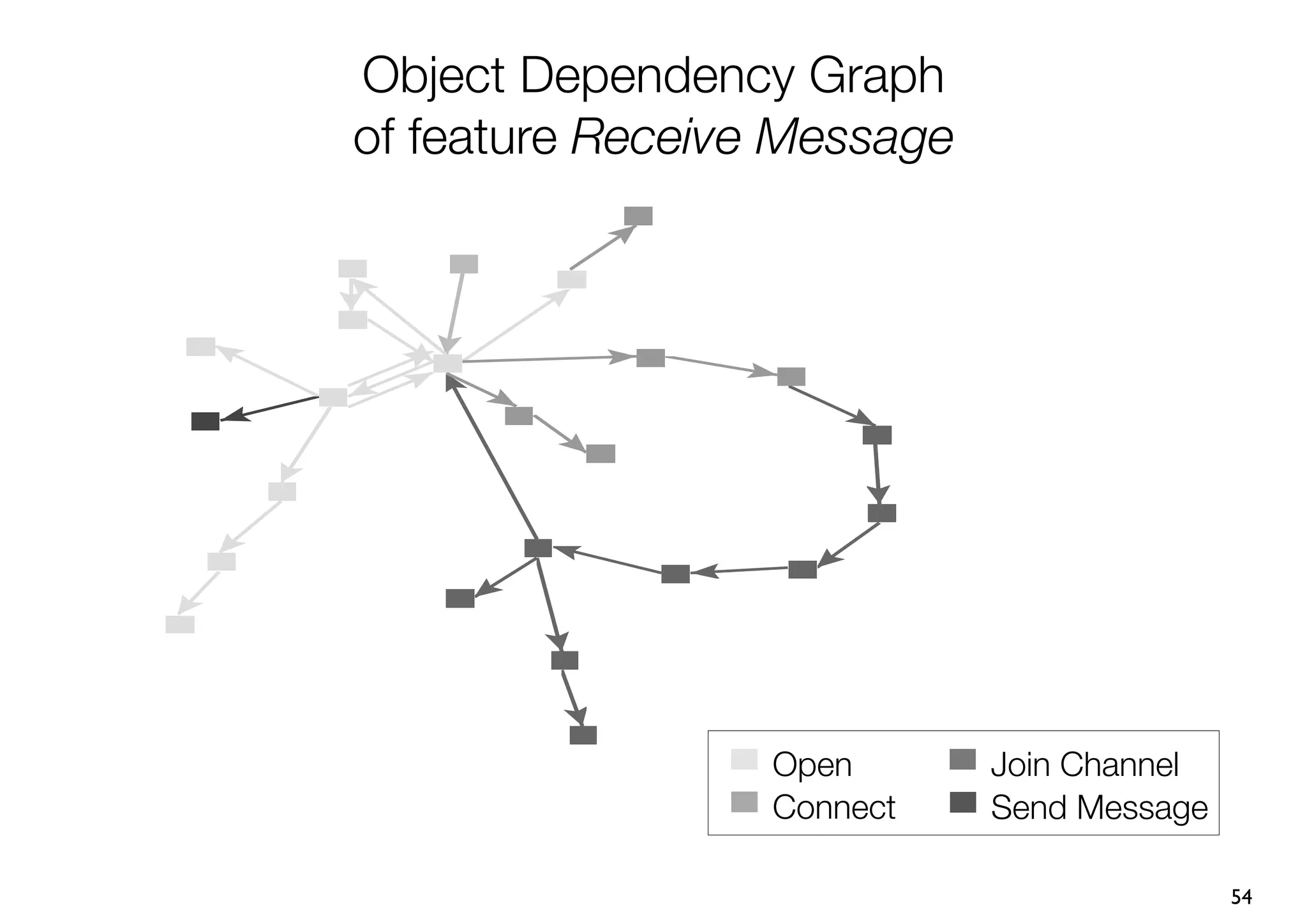

56. Object Dependency Graph
of feature Receive Message
Open Join Channel
Connect Send Message
54

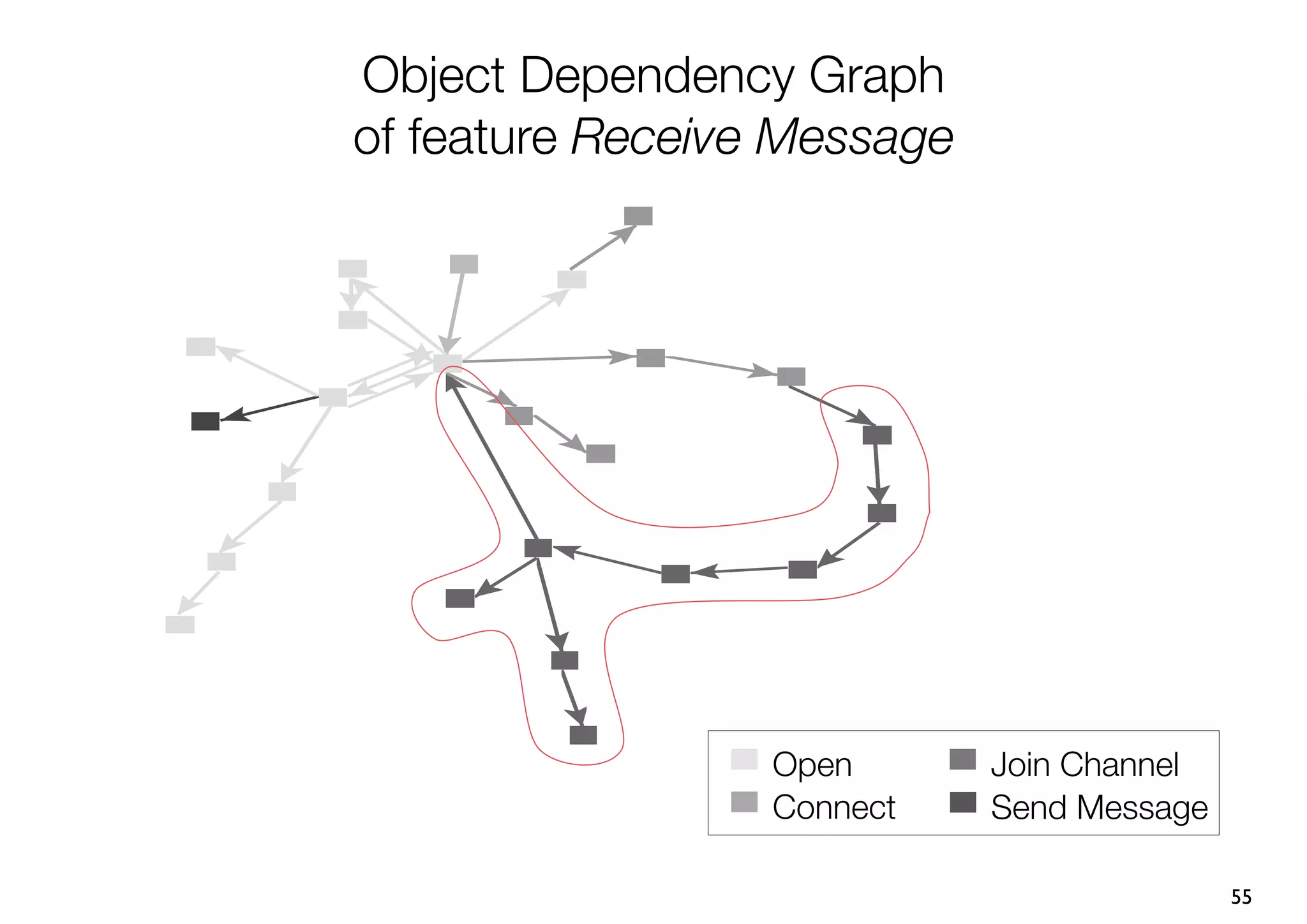

57. Object Dependency Graph
of feature Receive Message
Open Join Channel
Connect Send Message
55

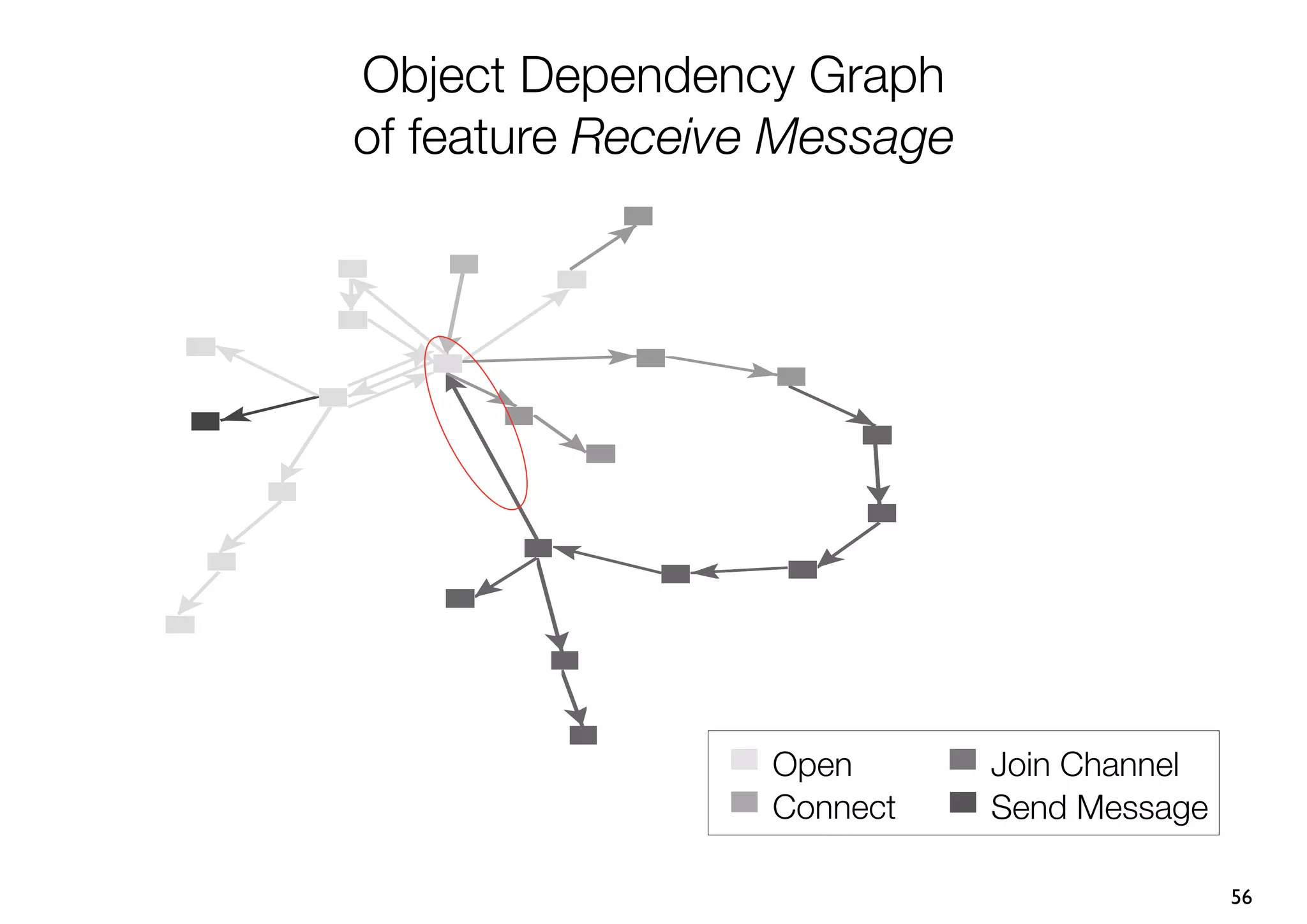

58. Object Dependency Graph
of feature Receive Message
Open Join Channel
Connect Send Message
56

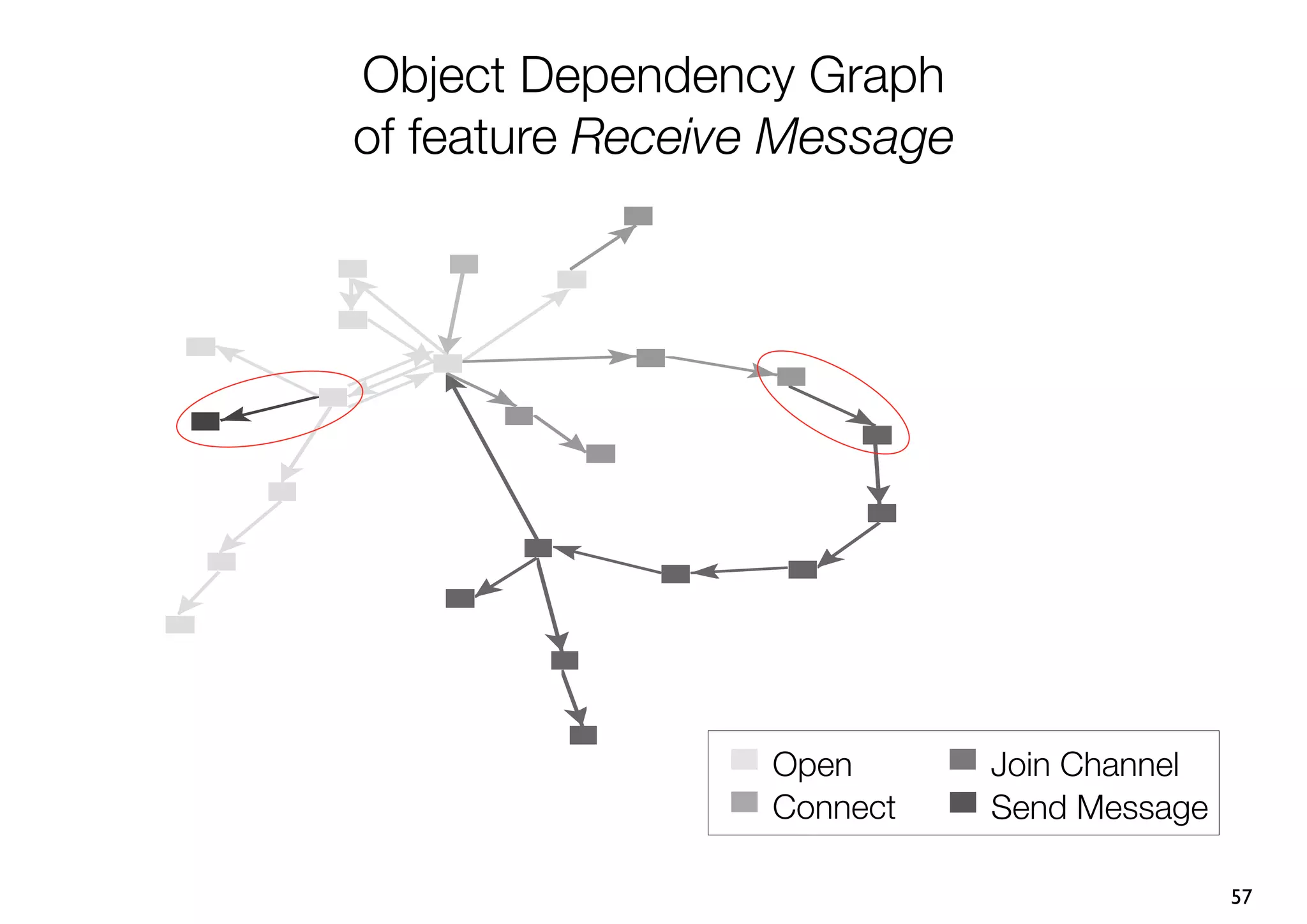

59. Object Dependency Graph
of feature Receive Message
Open Join Channel
Connect Send Message
57

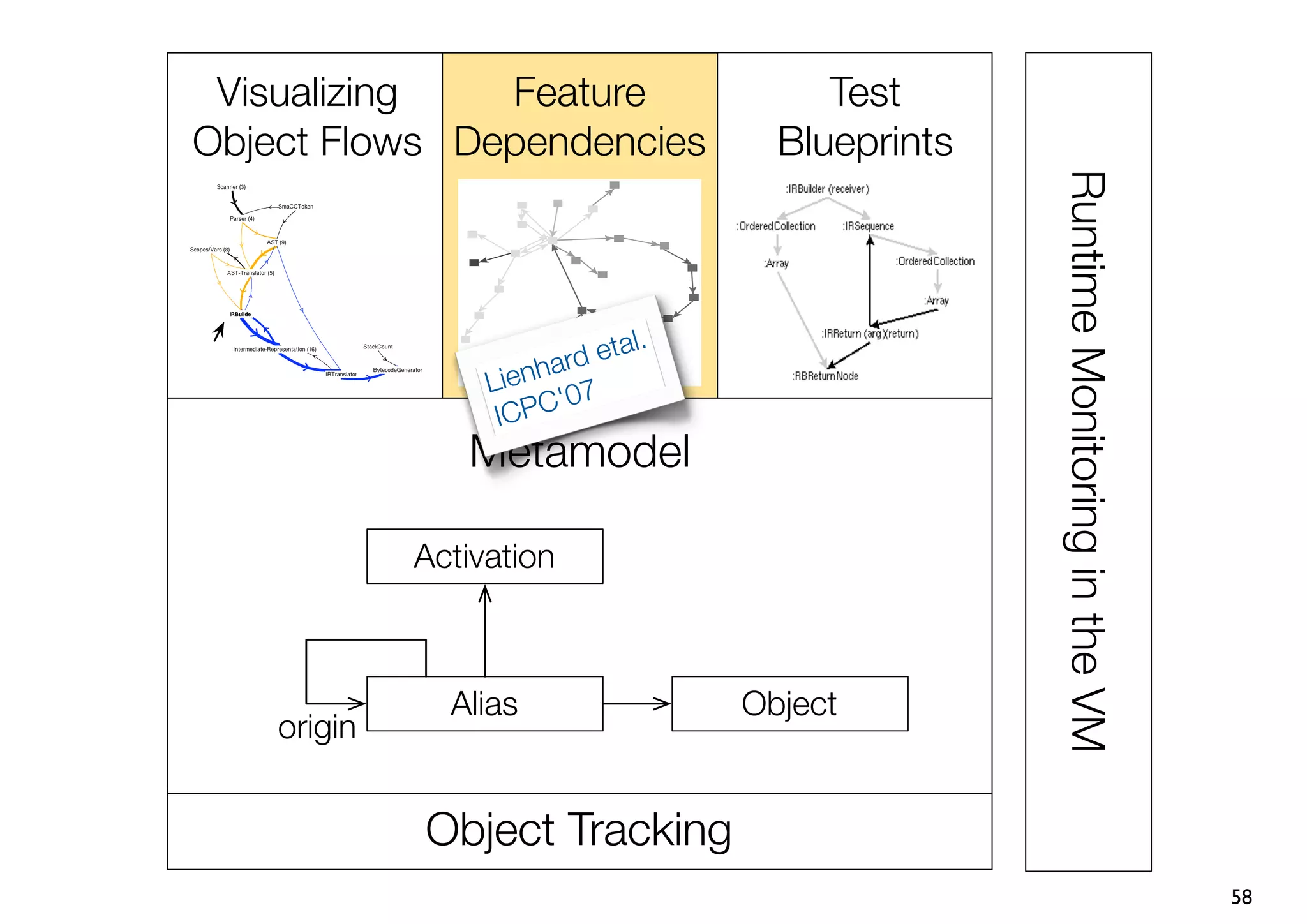

60. Visualizing Feature Test
Object Flows Dependencies Blueprints
Runtime Monitoring in the VM
ta l.
ard e
Lienh 07
'
ICPC
Metamodel
Activation
Alias Object
origin
Object Tracking
58

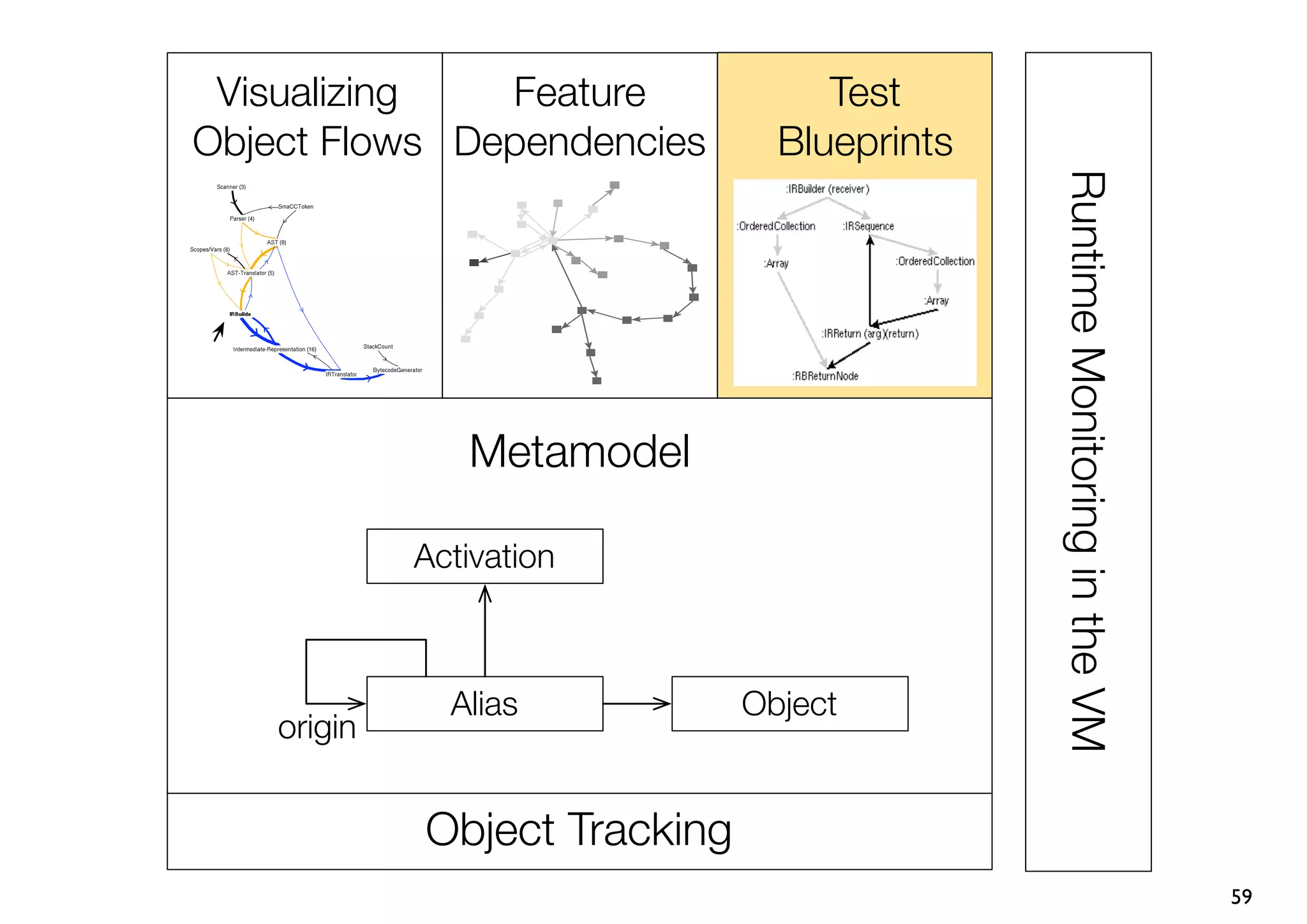

61. Visualizing Feature Test
Object Flows Dependencies Blueprints
Runtime Monitoring in the VM
Metamodel
Activation
Alias Object
origin
Object Tracking
59

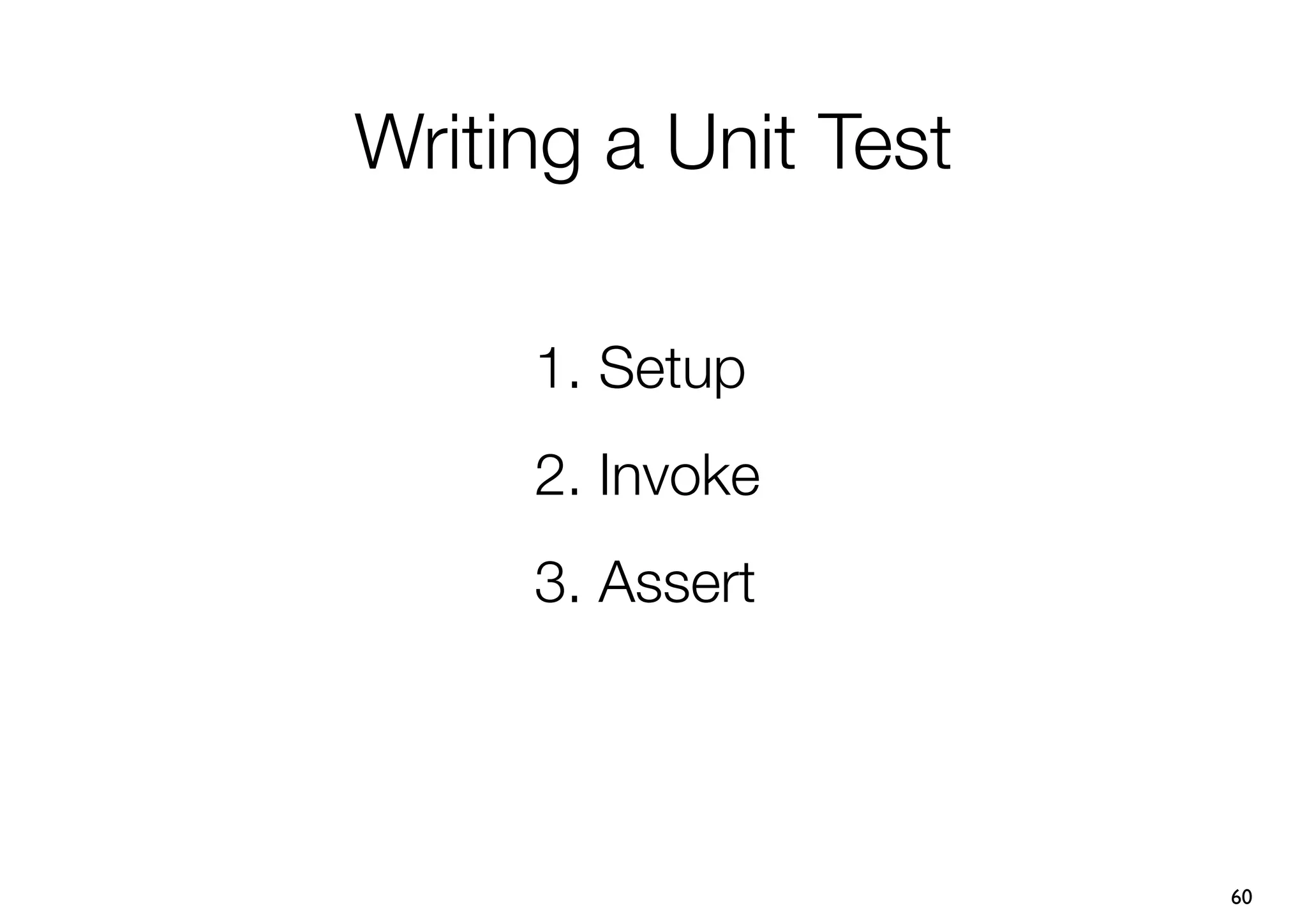

62. Writing a Unit Test
1. Setup
2. Invoke
3. Assert
60

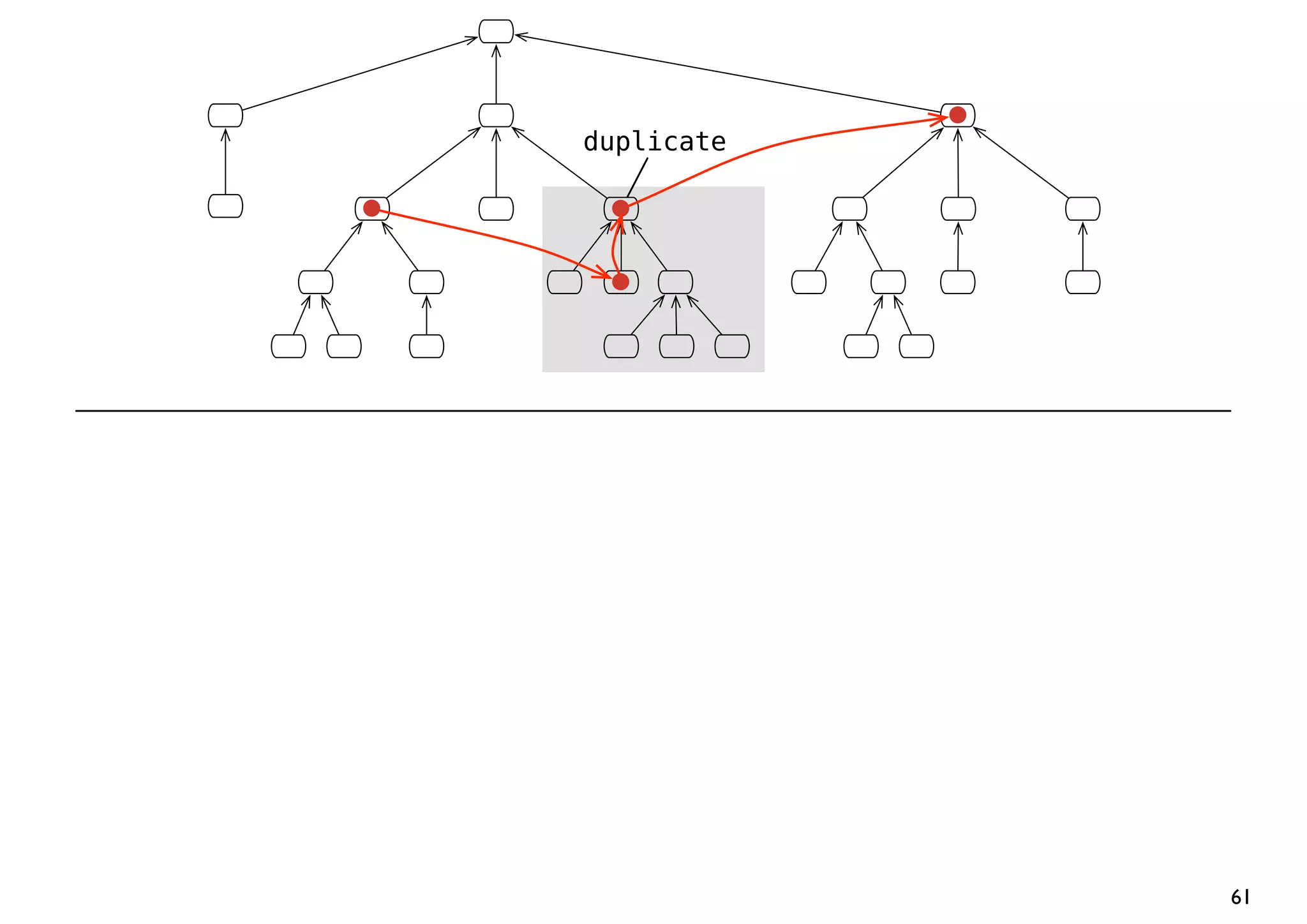

63. duplicate
61

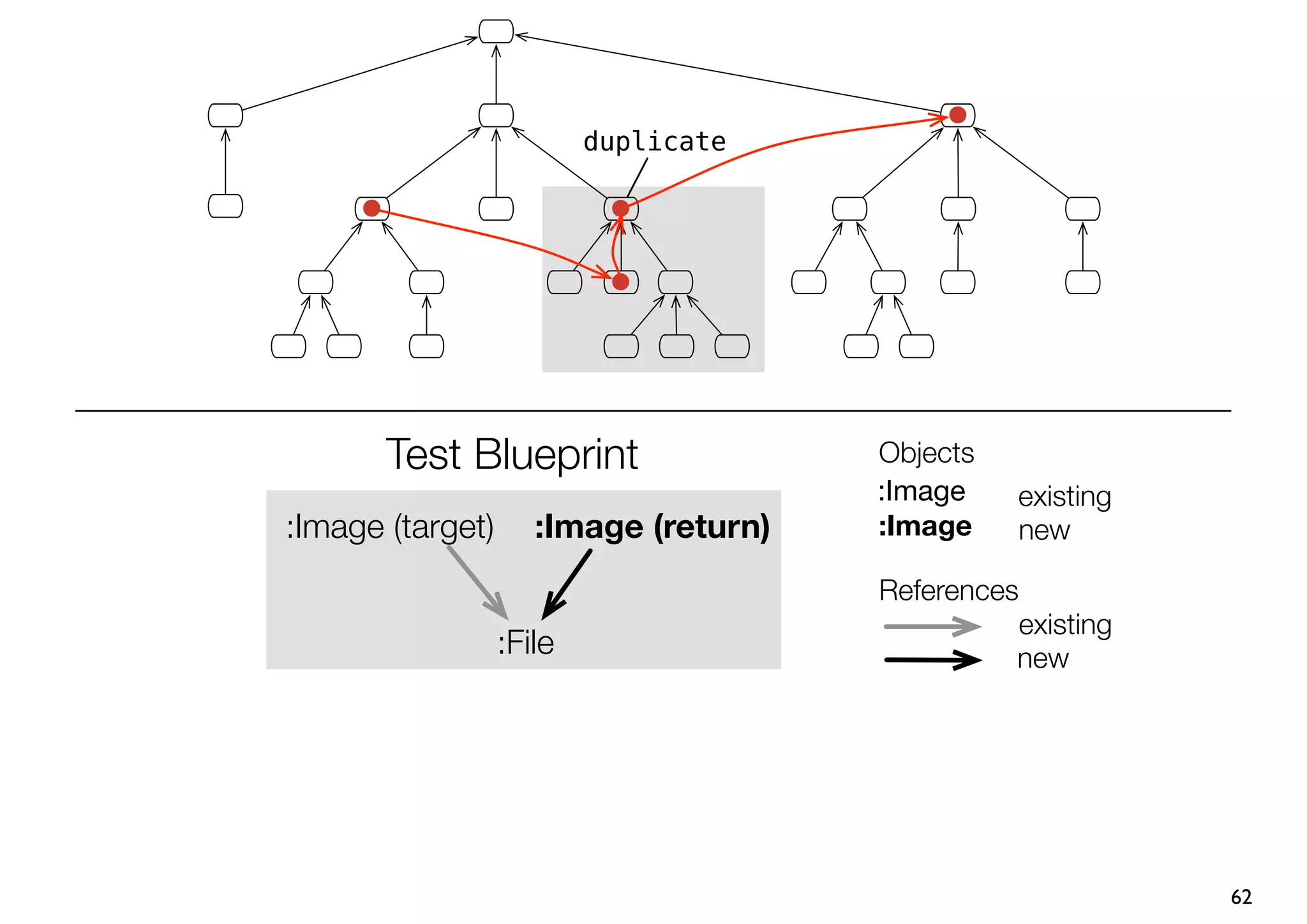

64. duplicate
Test Blueprint Objects
:Image existing
:Image (target) :Image (return) :Image new
References
existing
:File new
62

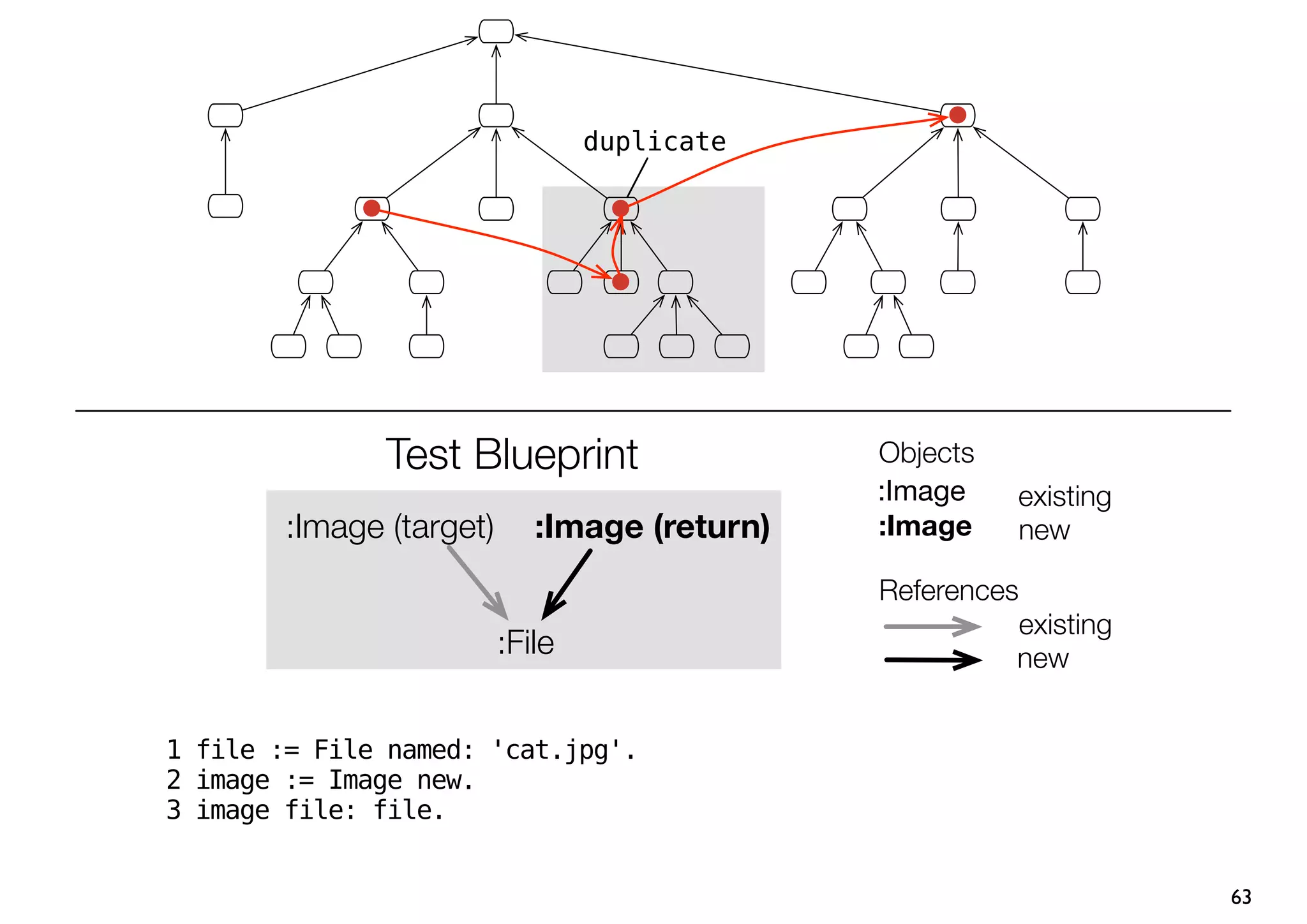

65. duplicate
Test Blueprint Objects
:Image existing
:Image (target) :Image (return) :Image new
References
existing
:File new
1 file := File named: 'cat.jpg'.
2 image := Image new.
3 image file: file.
63

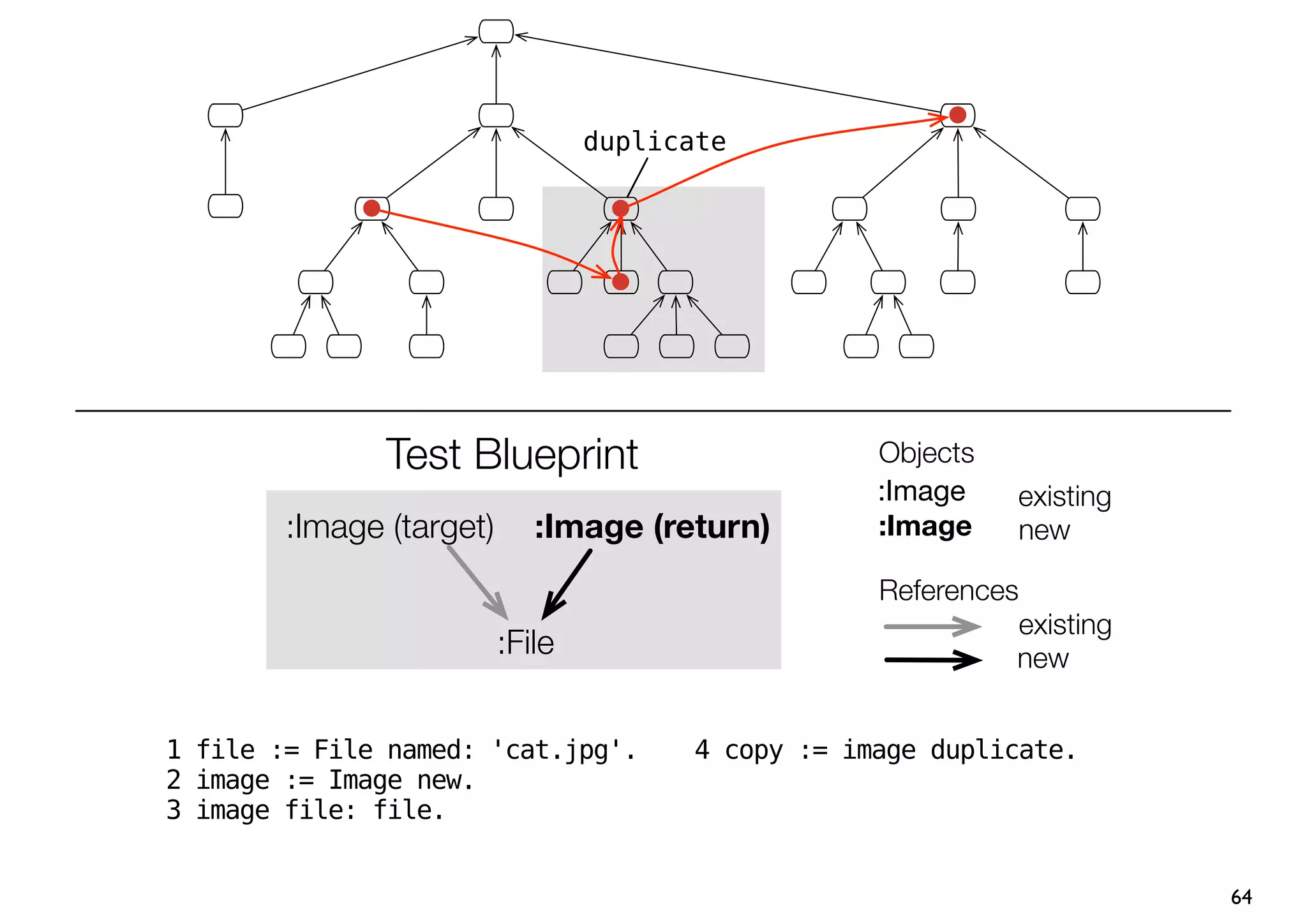

66. duplicate
Test Blueprint Objects
:Image existing
:Image (target) :Image (return) :Image new
References
existing
:File new
1 file := File named: 'cat.jpg'. 4 copy := image duplicate.
2 image := Image new.
3 image file: file.
64

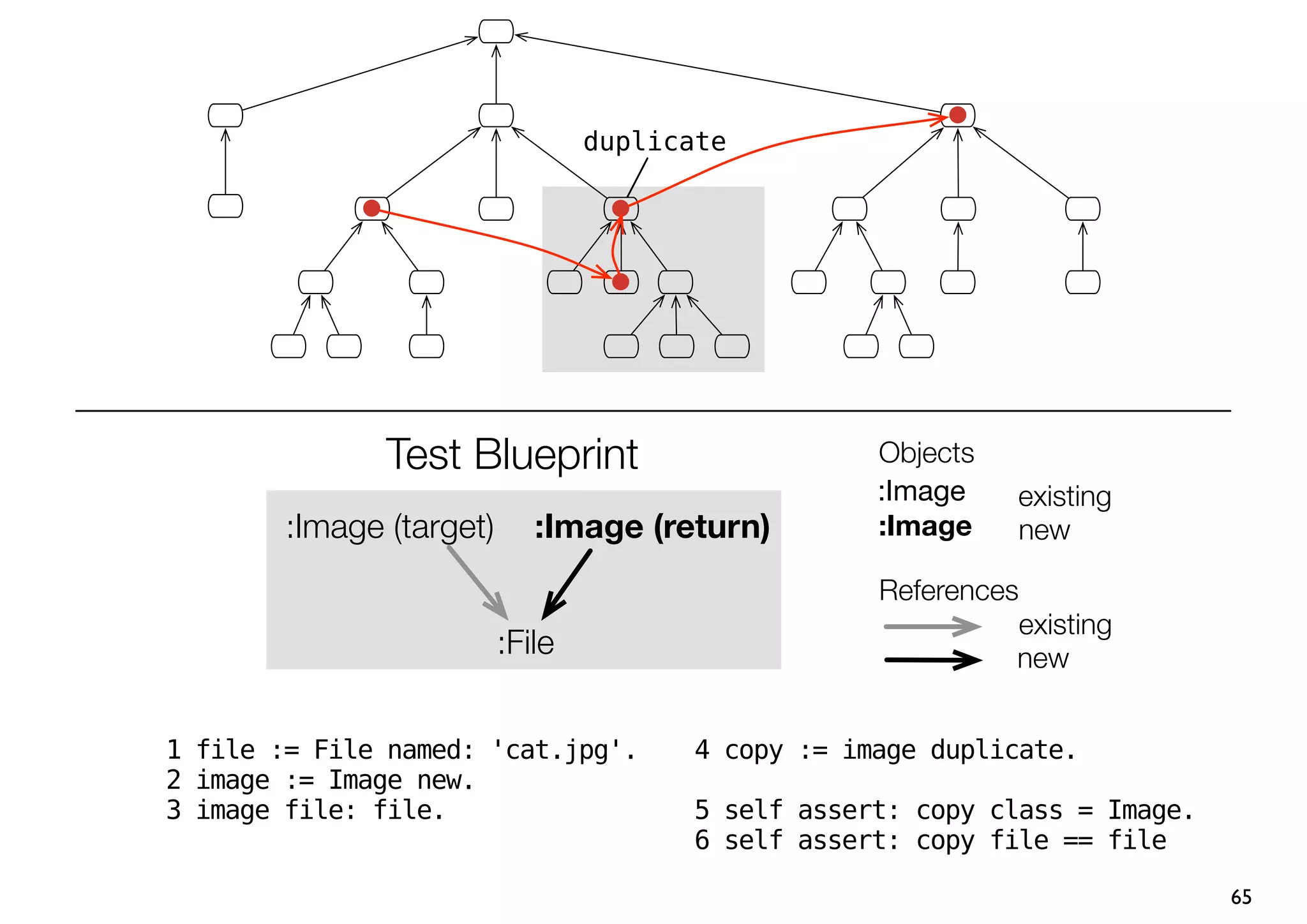

67. duplicate
Test Blueprint Objects
:Image existing
:Image (target) :Image (return) :Image new
References
existing
:File new
1 file := File named: 'cat.jpg'. 4 copy := image duplicate.
2 image := Image new.
3 image file: file. 5 self assert: copy class = Image.
6 self assert: copy file == file
65

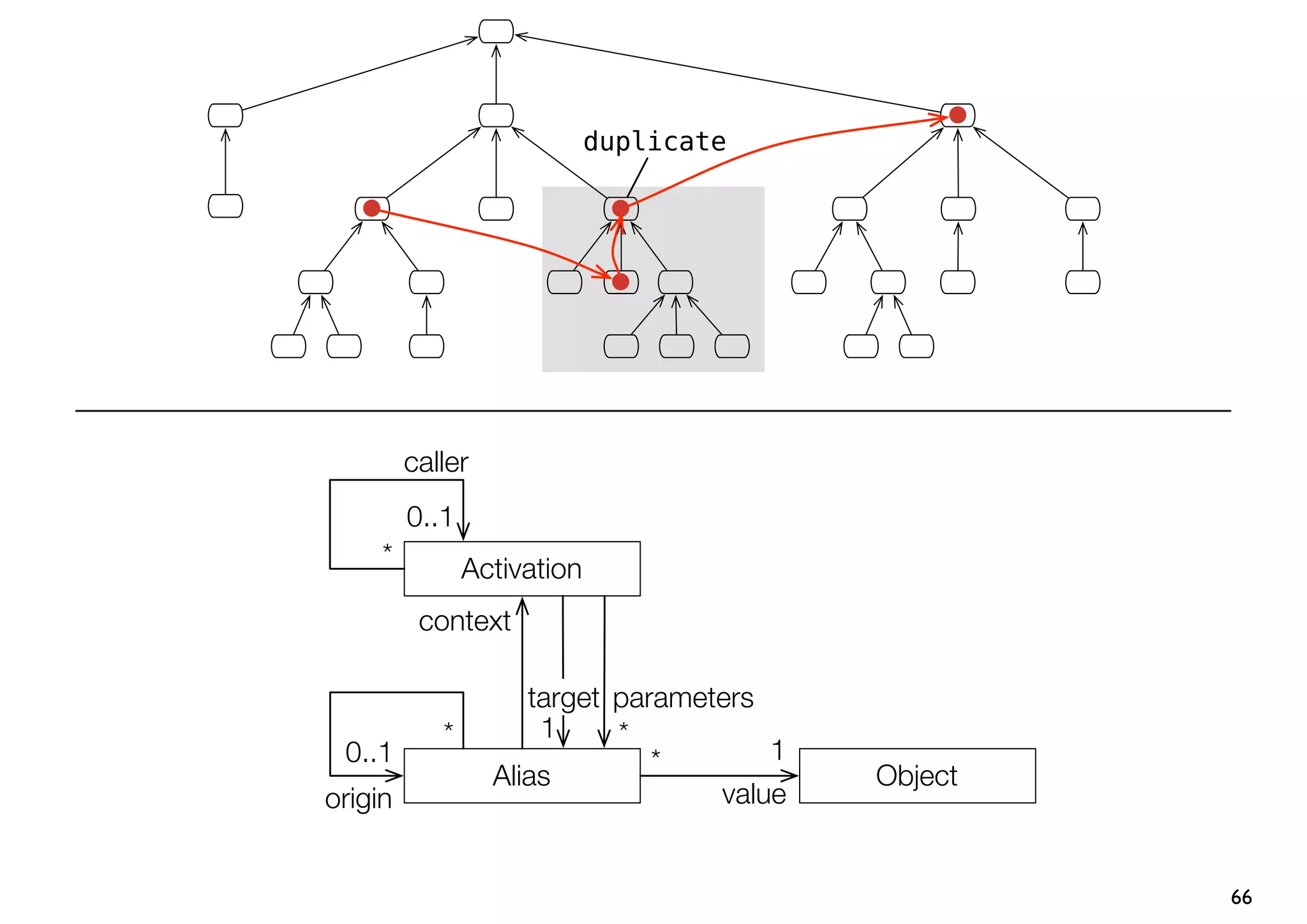

68. duplicate
caller
0..1
* Activation
context
target parameters
* 1 *
0..1 * 1
Alias Object
origin value
66

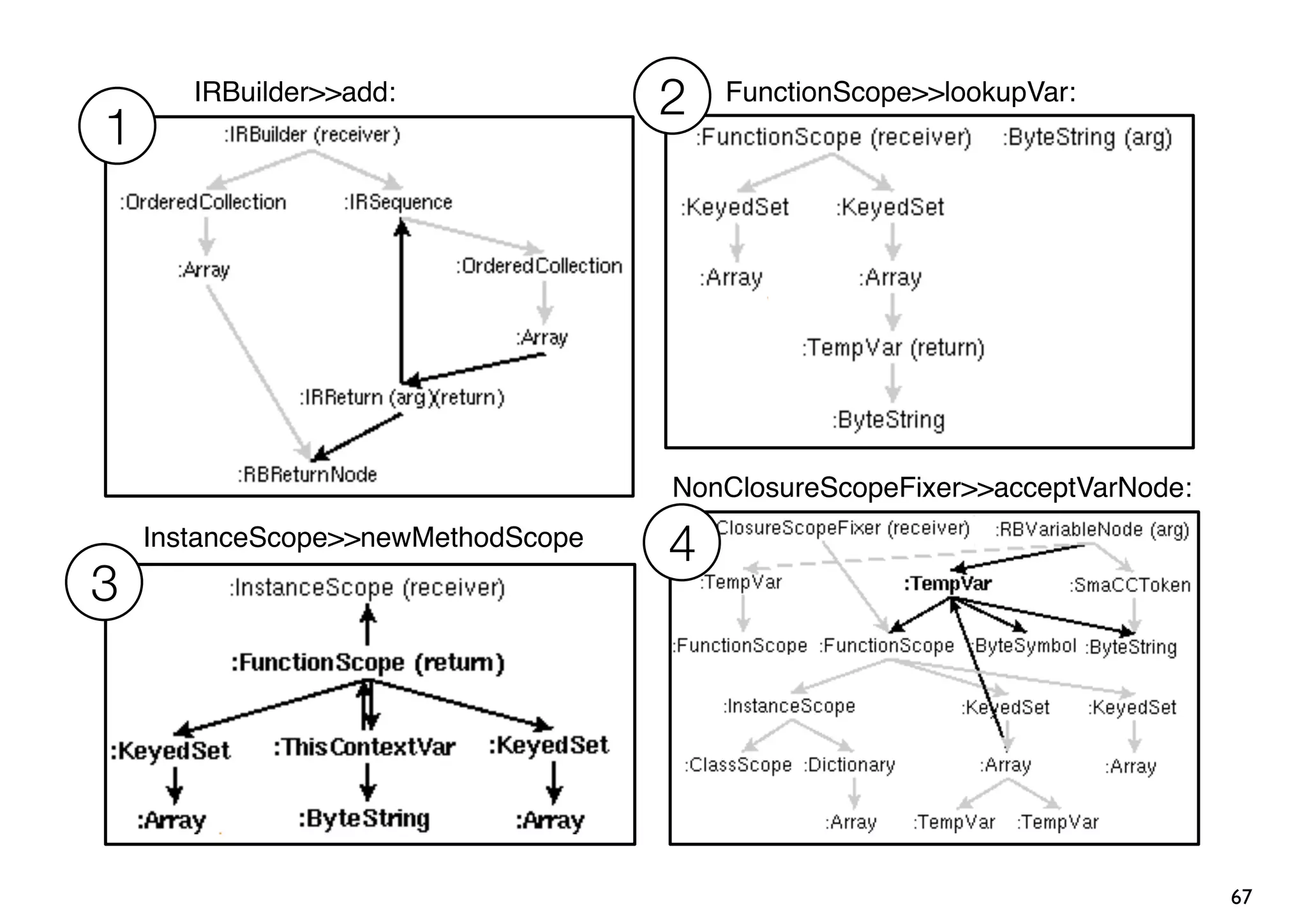

69. IRBuilder>>add: 2 FunctionScope>>lookupVar:
1
NonClosureScopeFixer>>acceptVarNode:
InstanceScope>>newMethodScope
4
3
ace Test Blueprint
67

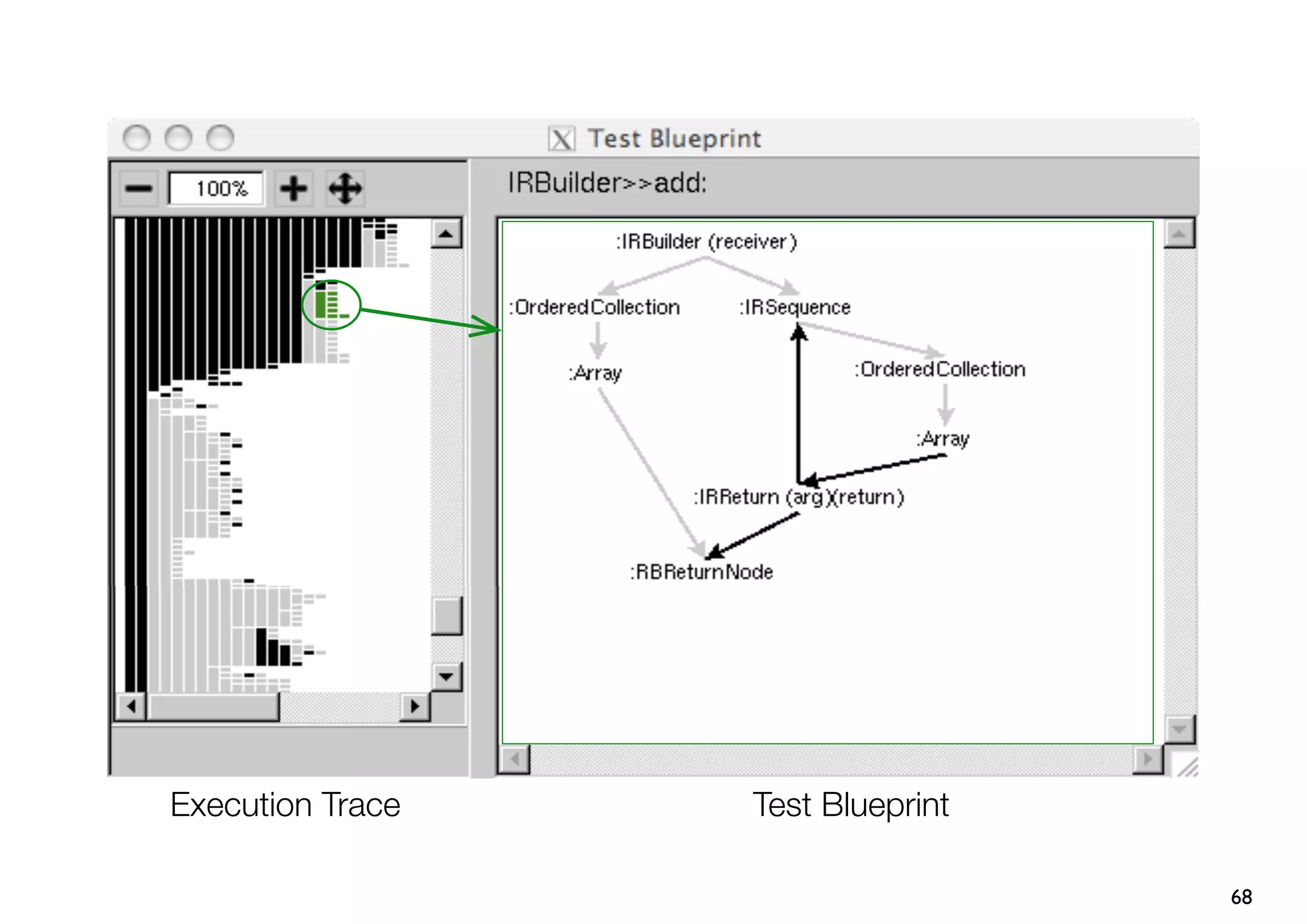

70. Execution Trace Test Blueprint
68

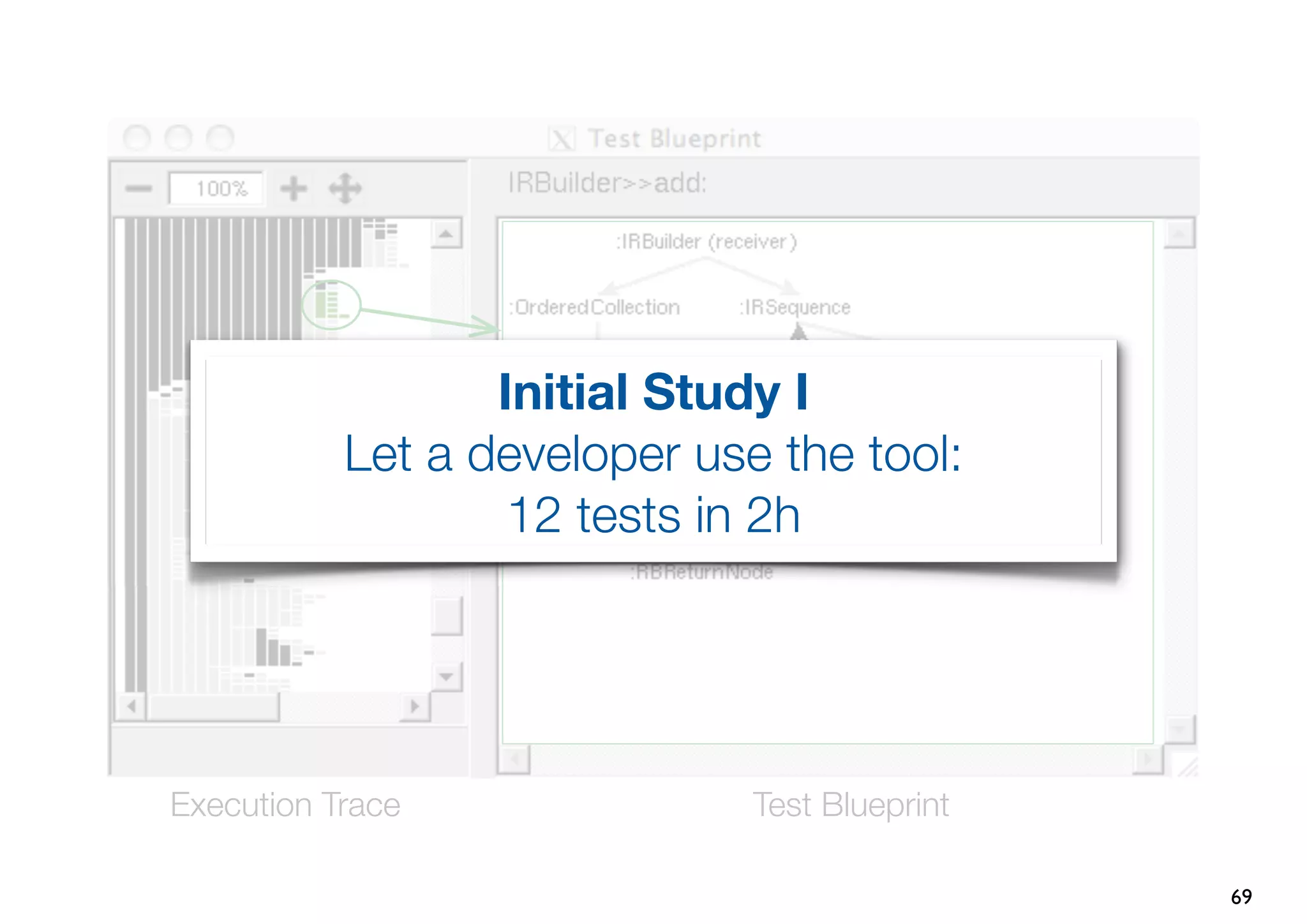

71. Initial Study I
Let a developer use the tool:
12 tests in 2h
Execution Trace Test Blueprint
69

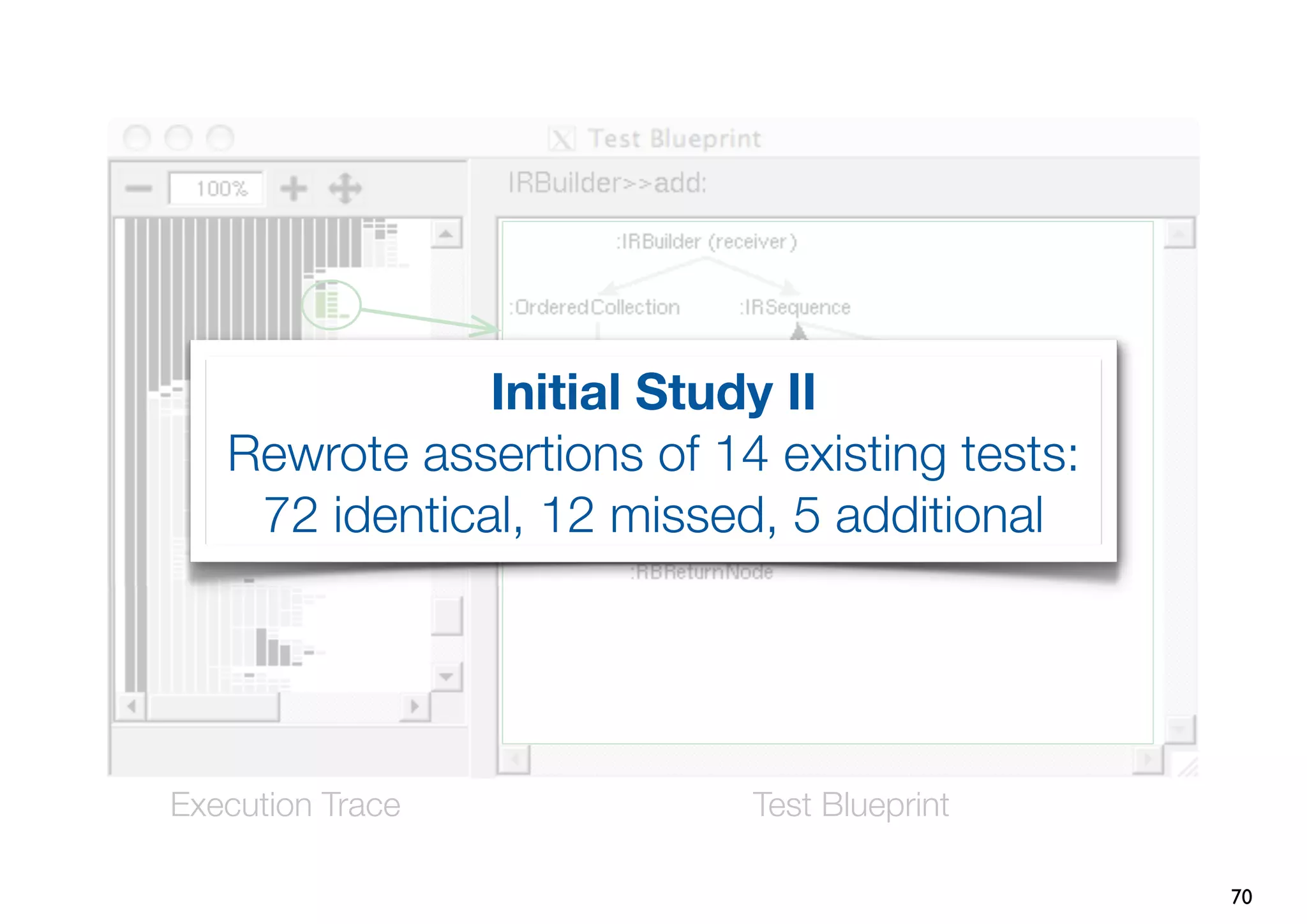

72. Initial Study II
Rewrote assertions of 14 existing tests:
72 identical, 12 missed, 5 additional
Execution Trace Test Blueprint
70

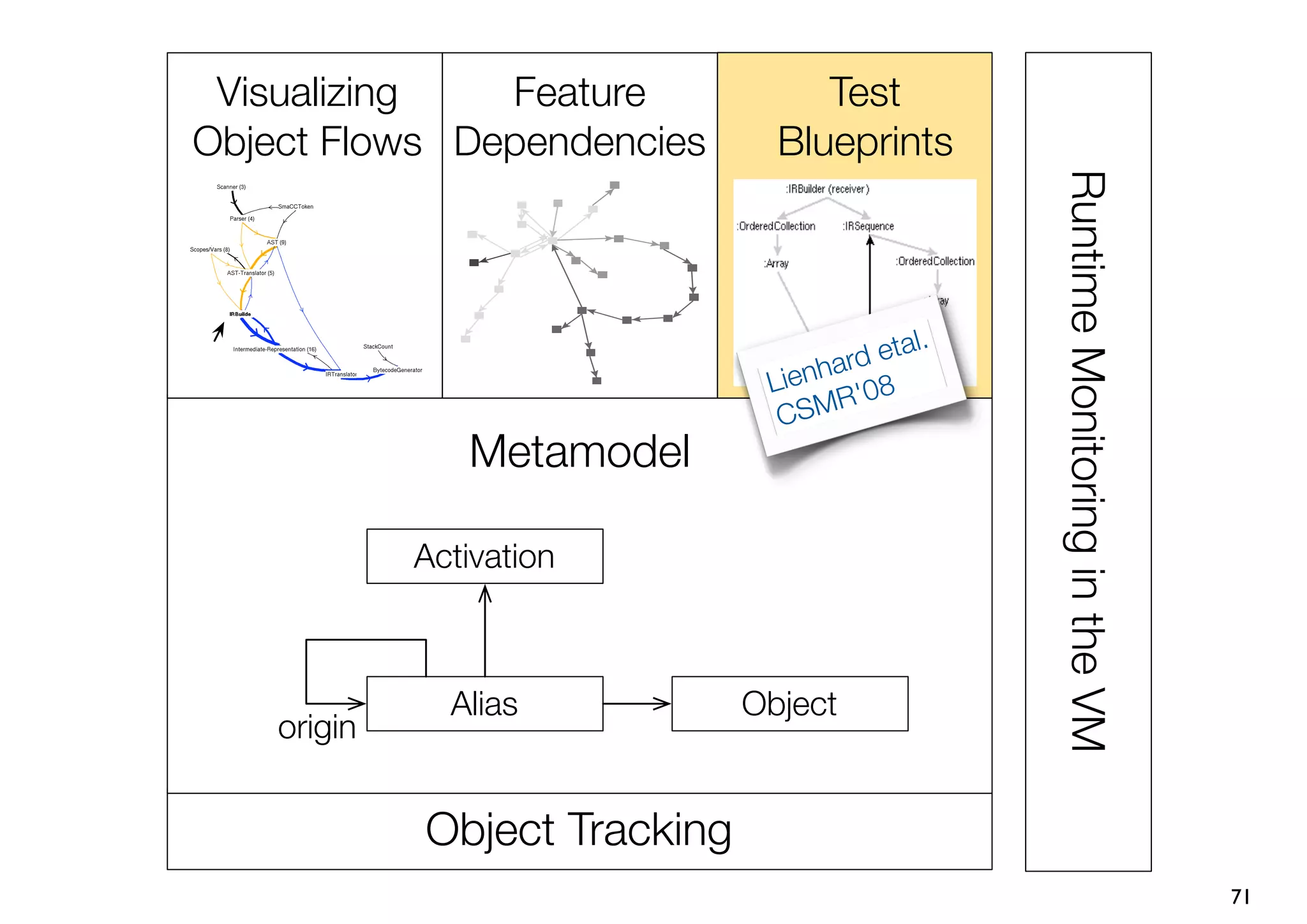

73. Visualizing Feature Test
Object Flows Dependencies Blueprints
Runtime Monitoring in the VM
al.
a rd et
Lienh '08
R
CSM
Metamodel
Activation
Alias Object
origin
Object Tracking
71

74. Visualizing Feature Test
Object Flows Dependencies Blueprints
Runtime Monitoring in the VM
Metamodel
Activation
Alias Object
origin
Object Tracking
72

75. Visualizing Feature Test
Object Flows Dependencies Blueprints
Runtime Monitoring in the VM
Metamodel
Activation
Alias Object
origin
Object Tracking
73

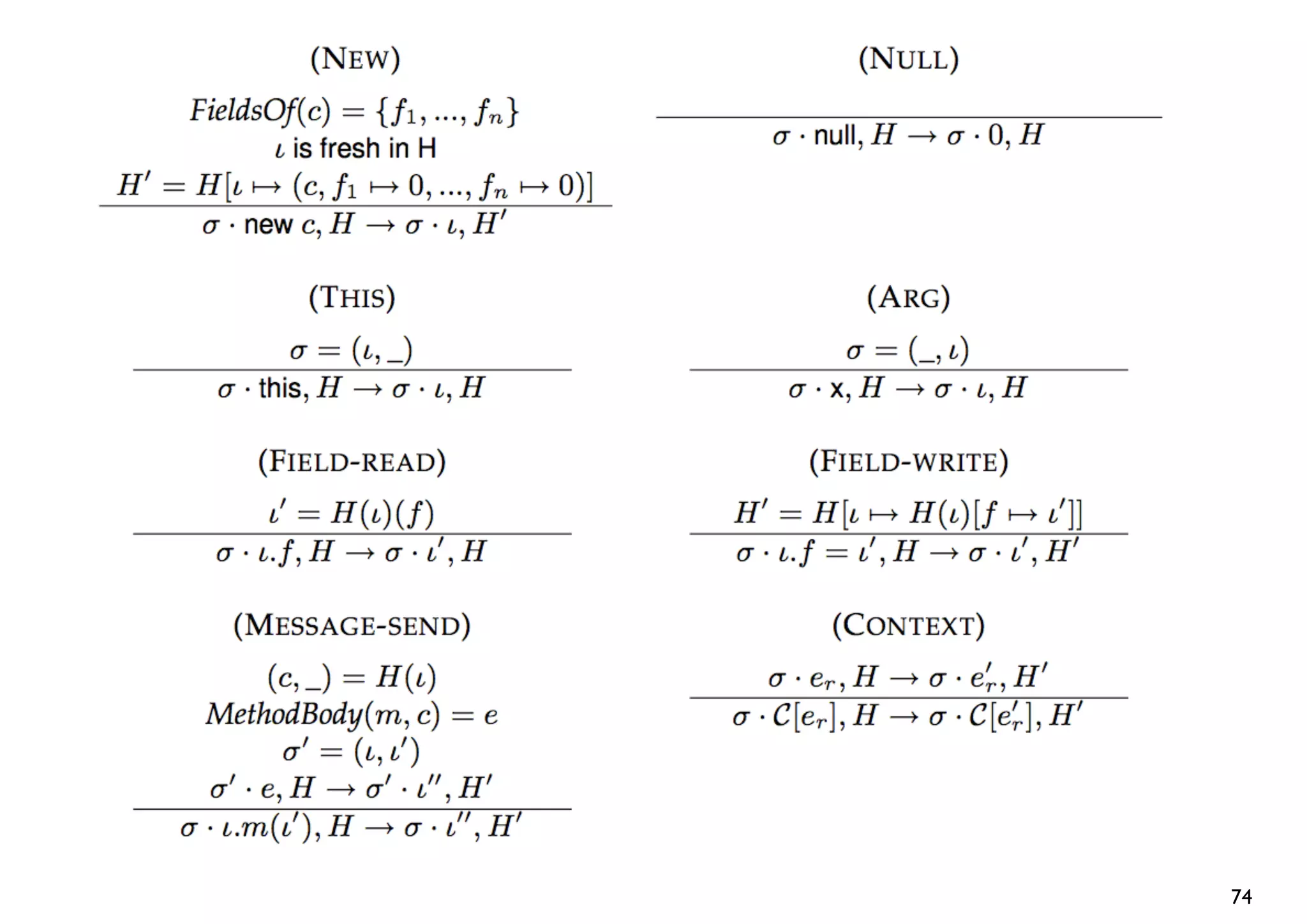

76. 74

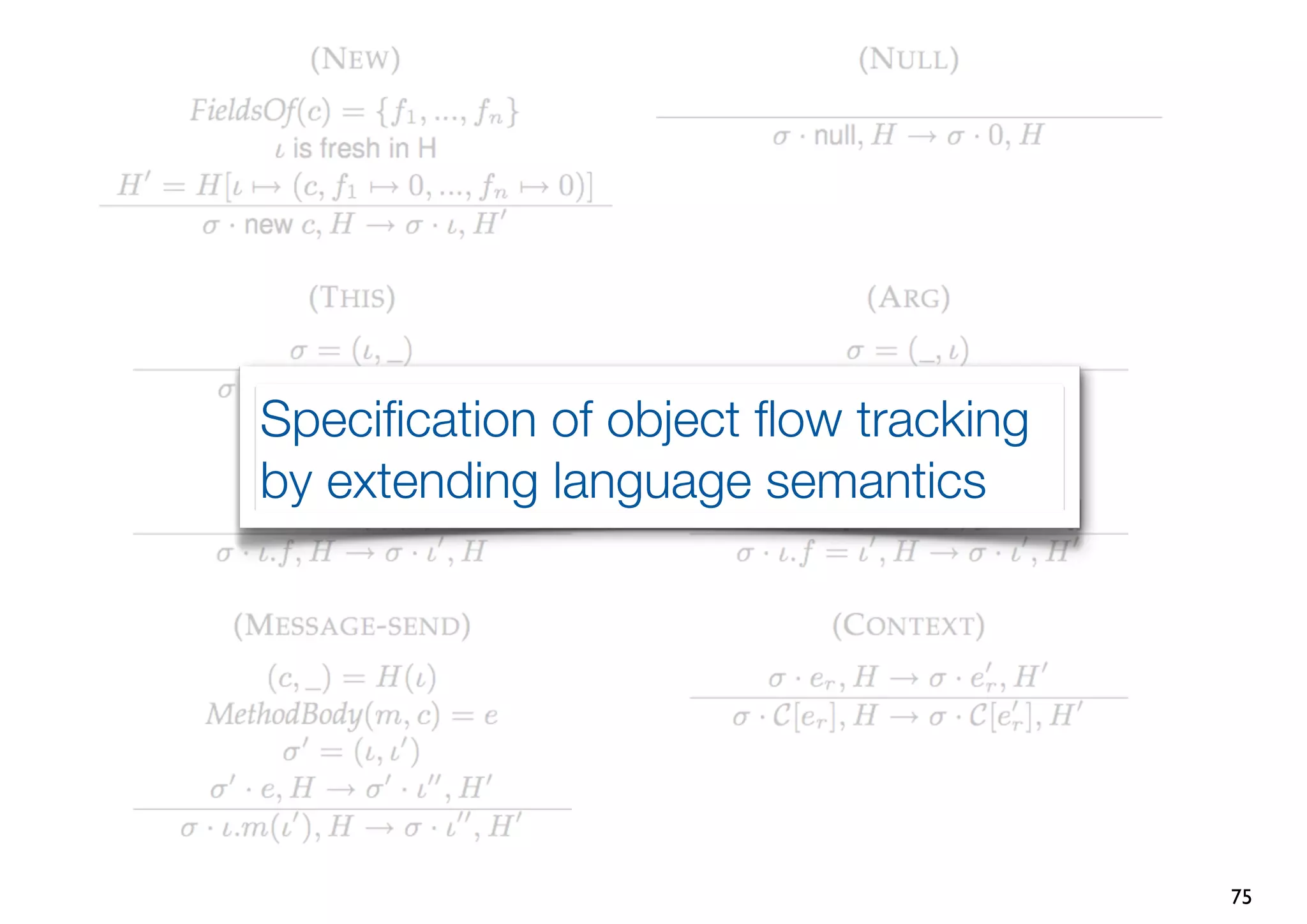

77. Specification of object flow tracking
by extending language semantics
75

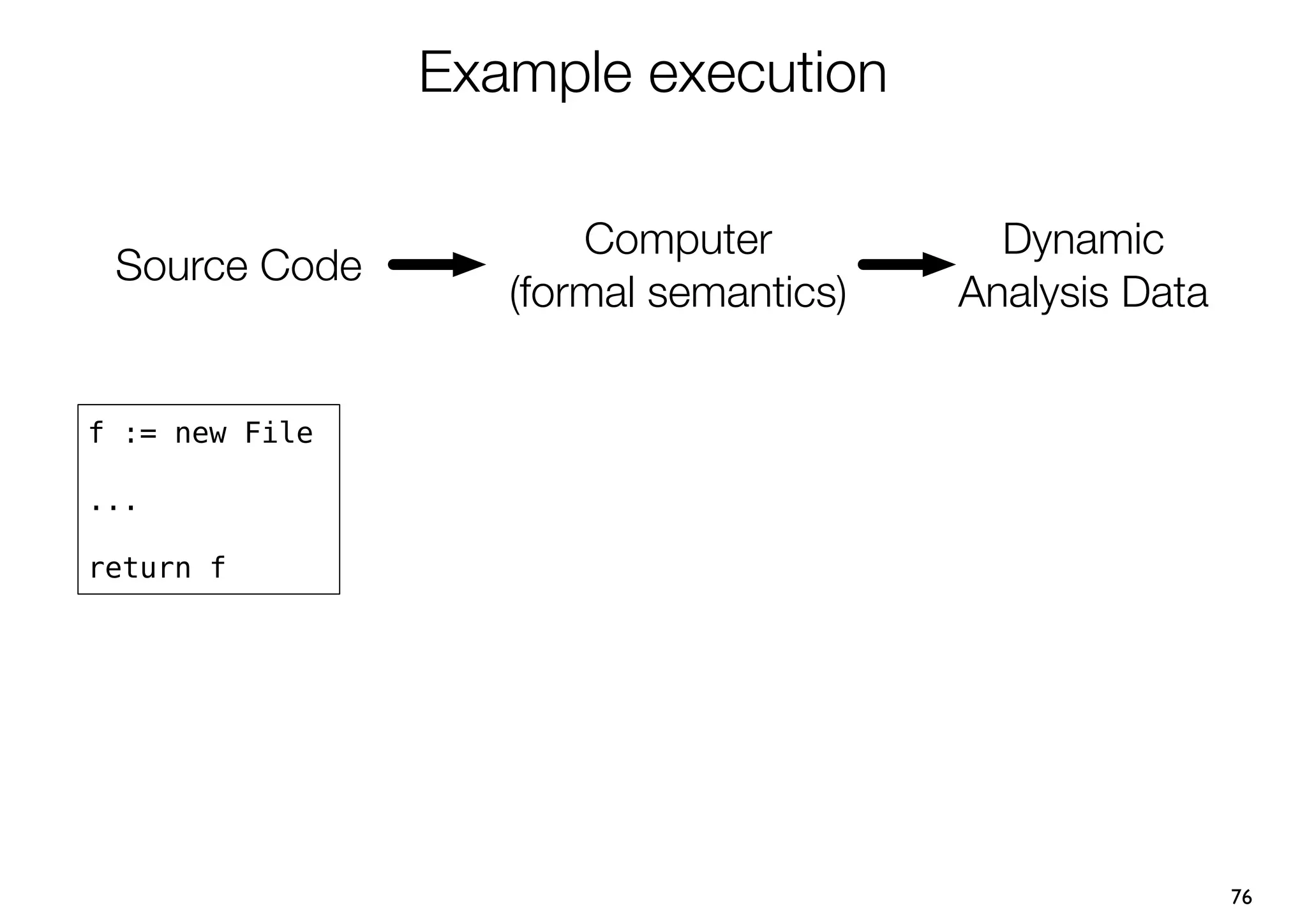

78. Example execution
Computer Dynamic
Source Code
(formal semantics) Analysis Data
f := new File
...
return f
76

79. Example execution
Computer Dynamic
Source Code
(formal semantics) Analysis Data
f := new File allocation
...
return f
77

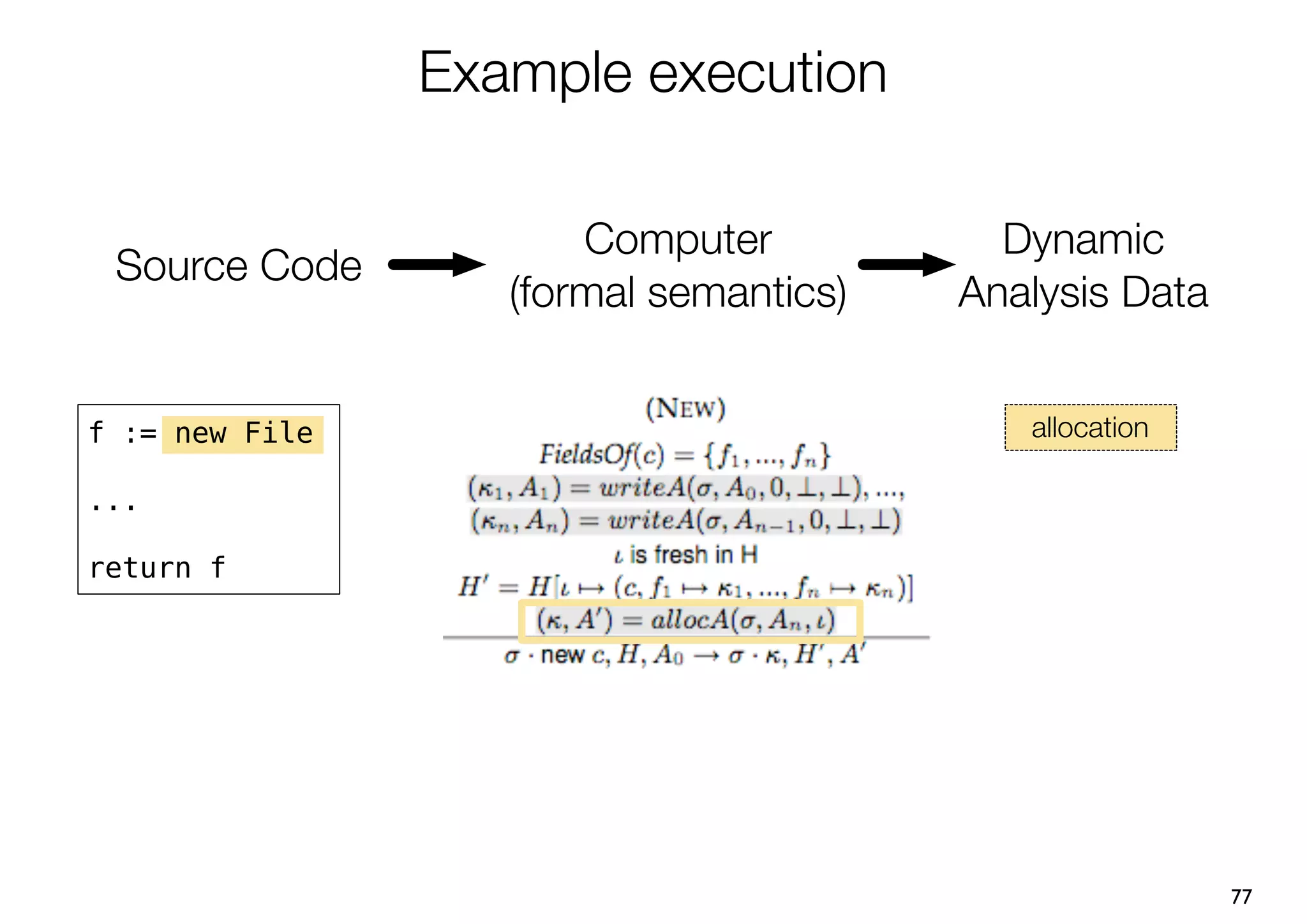

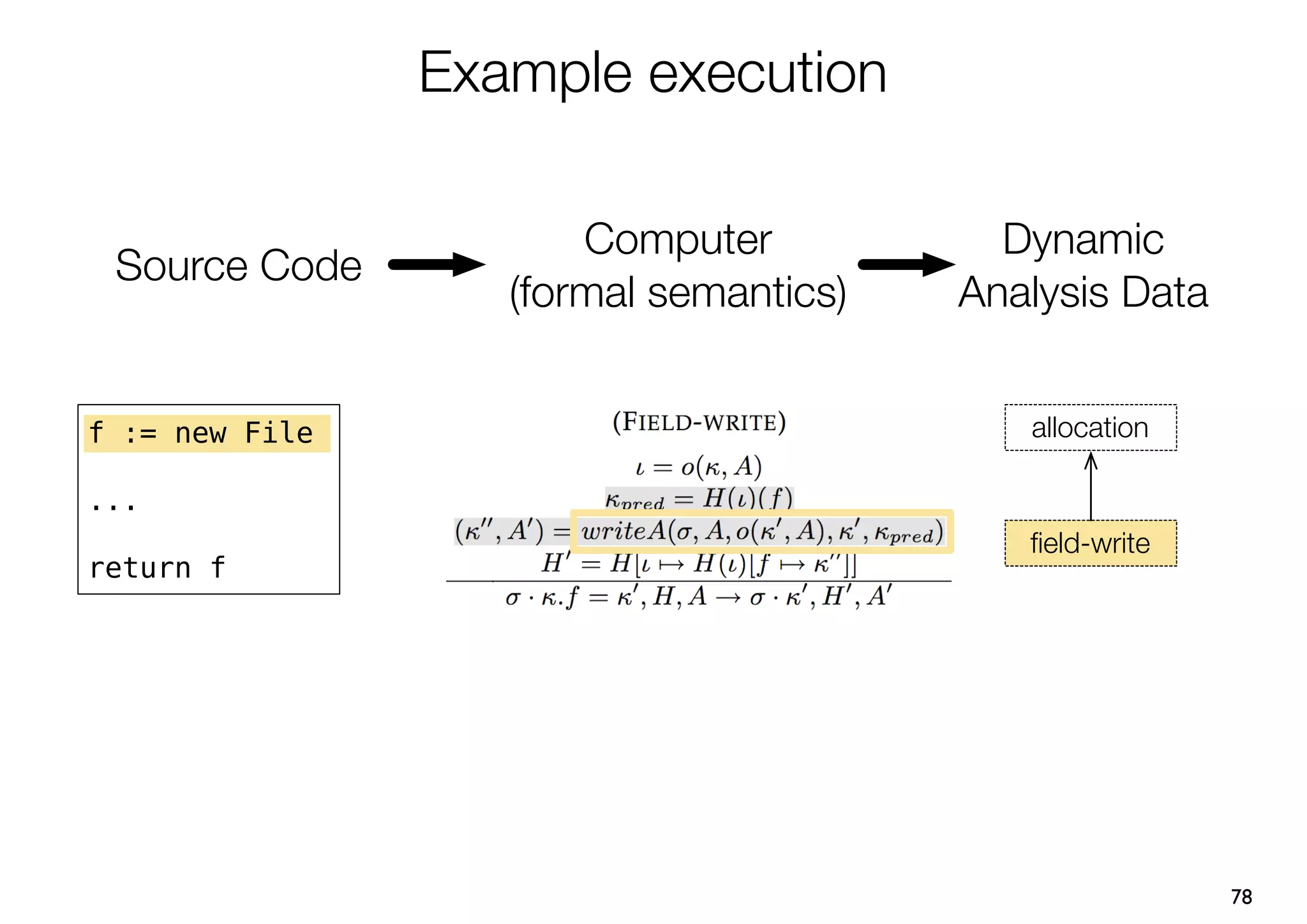

80. Example execution
Computer Dynamic
Source Code
(formal semantics) Analysis Data
f := new File allocation
...
field-write
return f
78

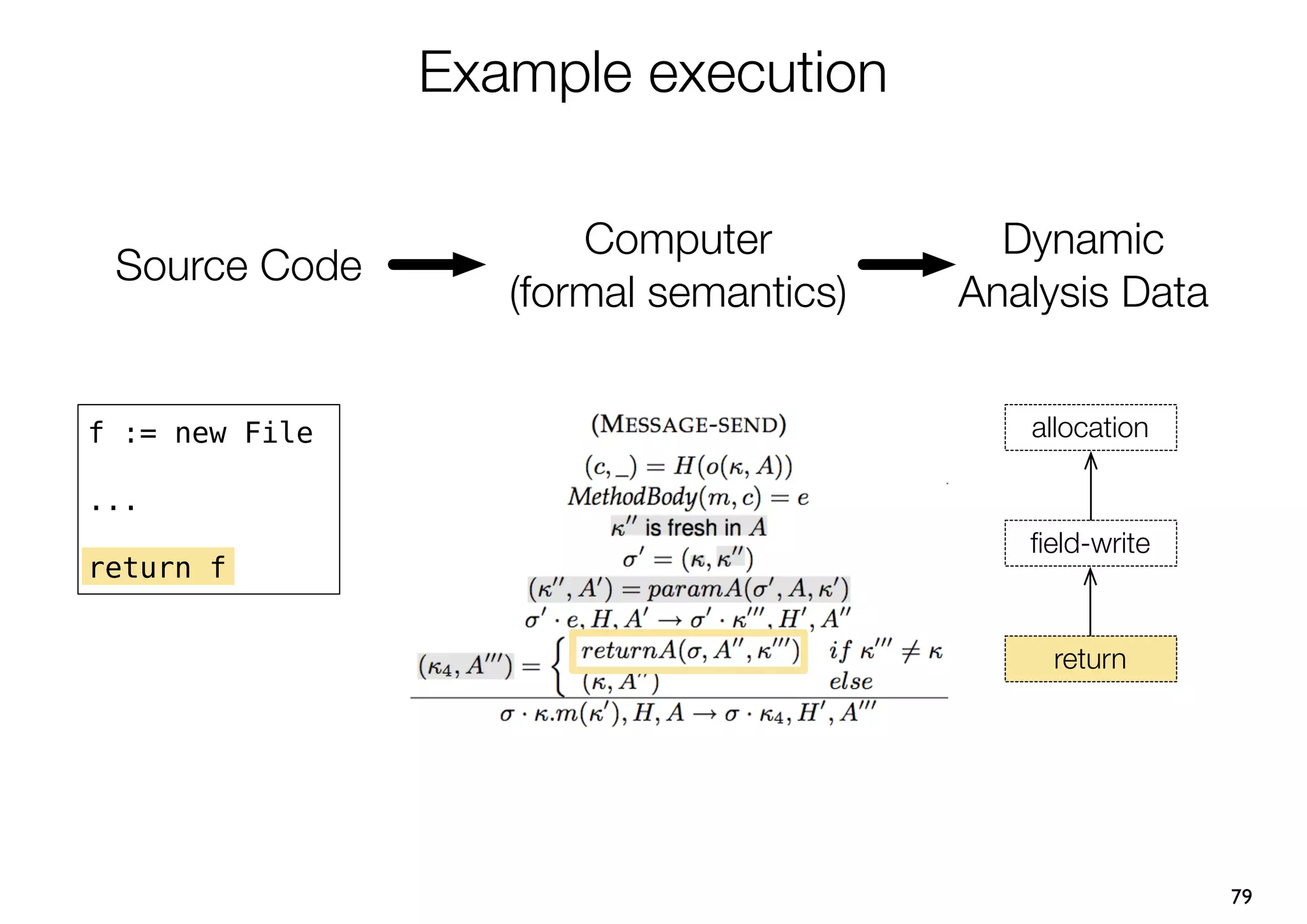

81. Example execution
Computer Dynamic
Source Code
(formal semantics) Analysis Data
f := new File allocation
...
field-write
return f
return
79

82. Visualizing Feature Test
Object Flows Dependencies Blueprints
Runtime Monitoring in the VM
Metamodel
Activation
Alias Object
origin
Object Tracking
80

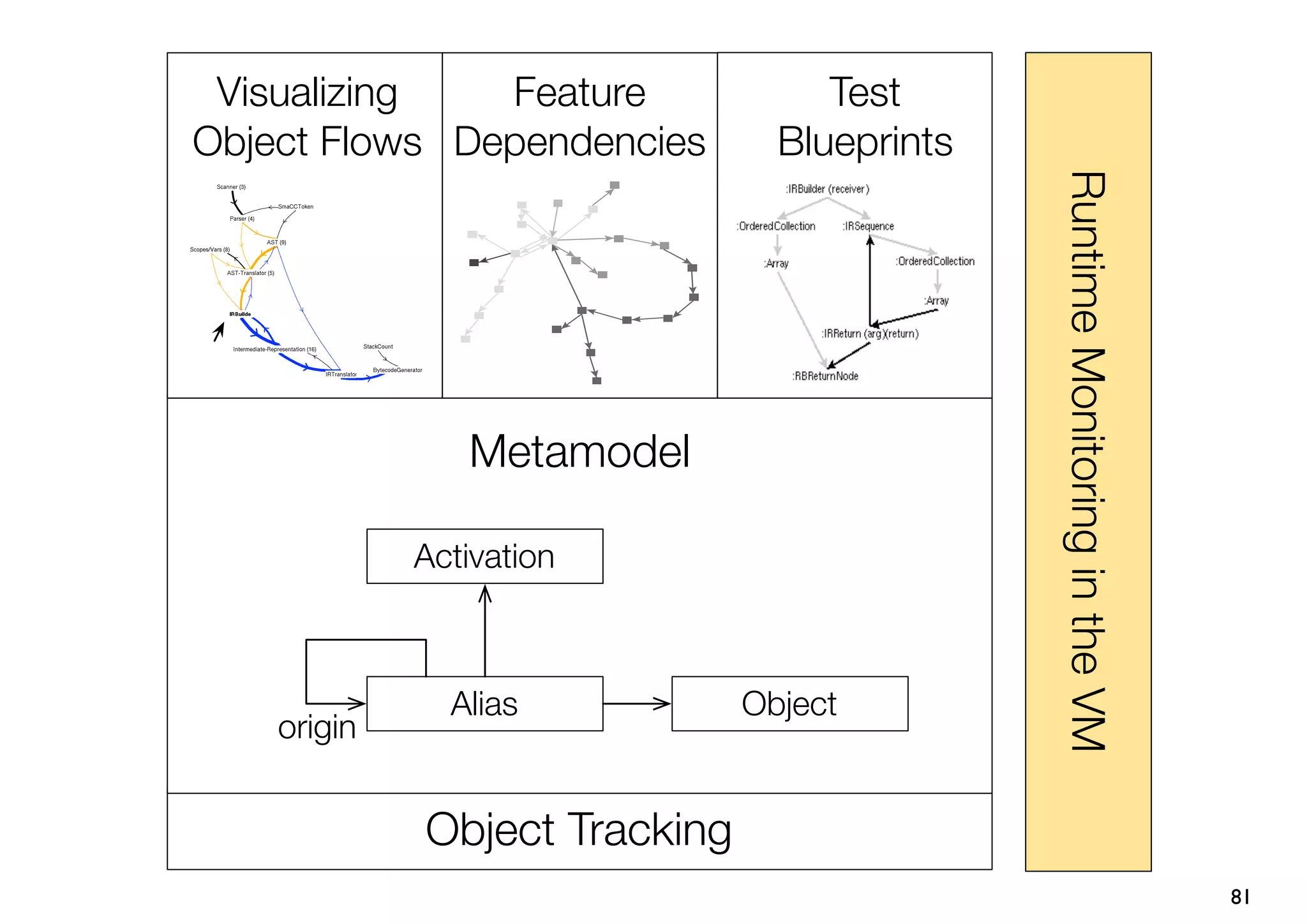

83. Visualizing Feature Test
Object Flows Dependencies Blueprints
Runtime Monitoring in the VM
Metamodel
Activation
Alias Object
origin
Object Tracking
81

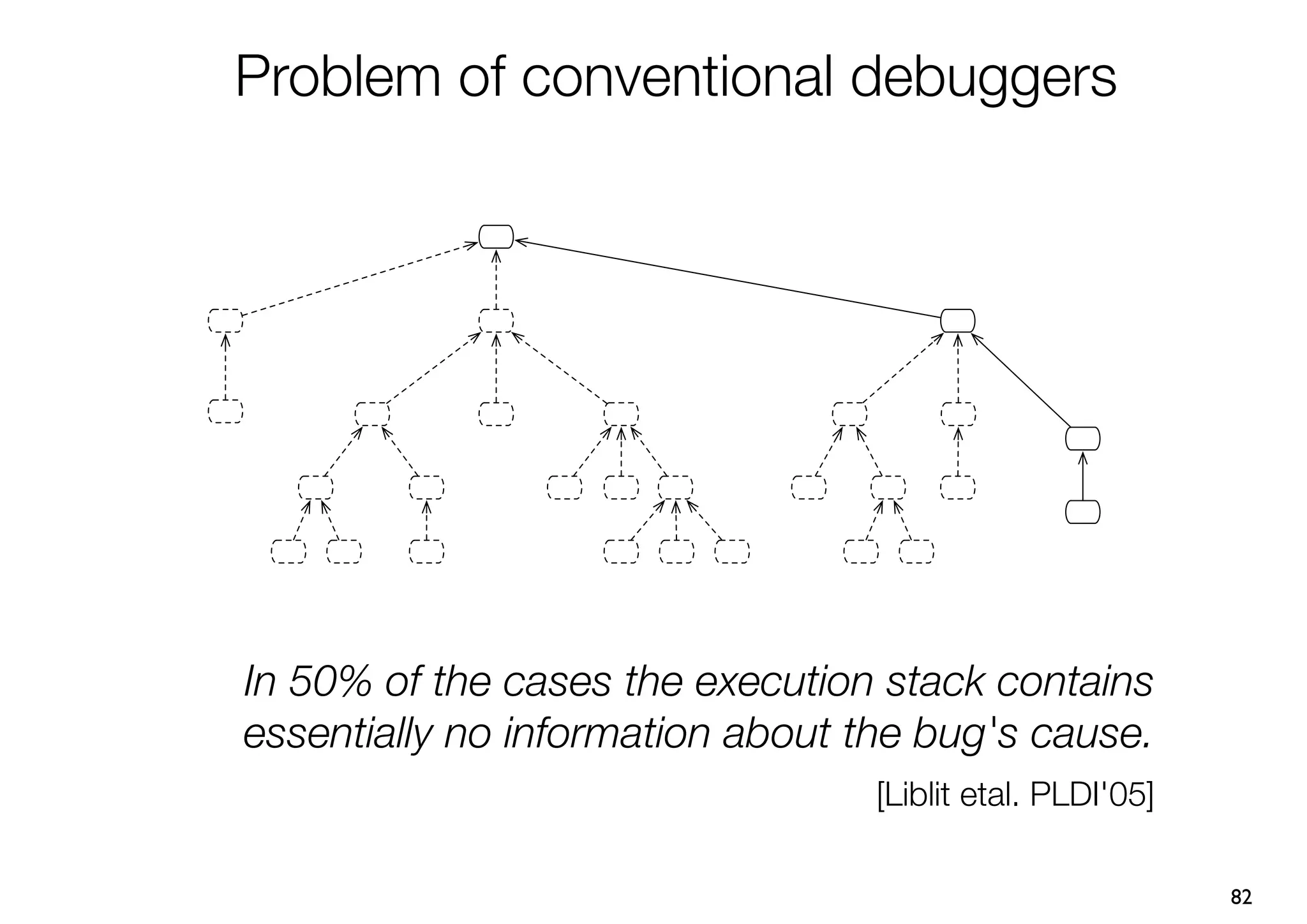

84. Problem of conventional debuggers
In 50% of the cases the execution stack contains
essentially no information about the bug's cause.
[Liblit etal. PLDI'05]
82

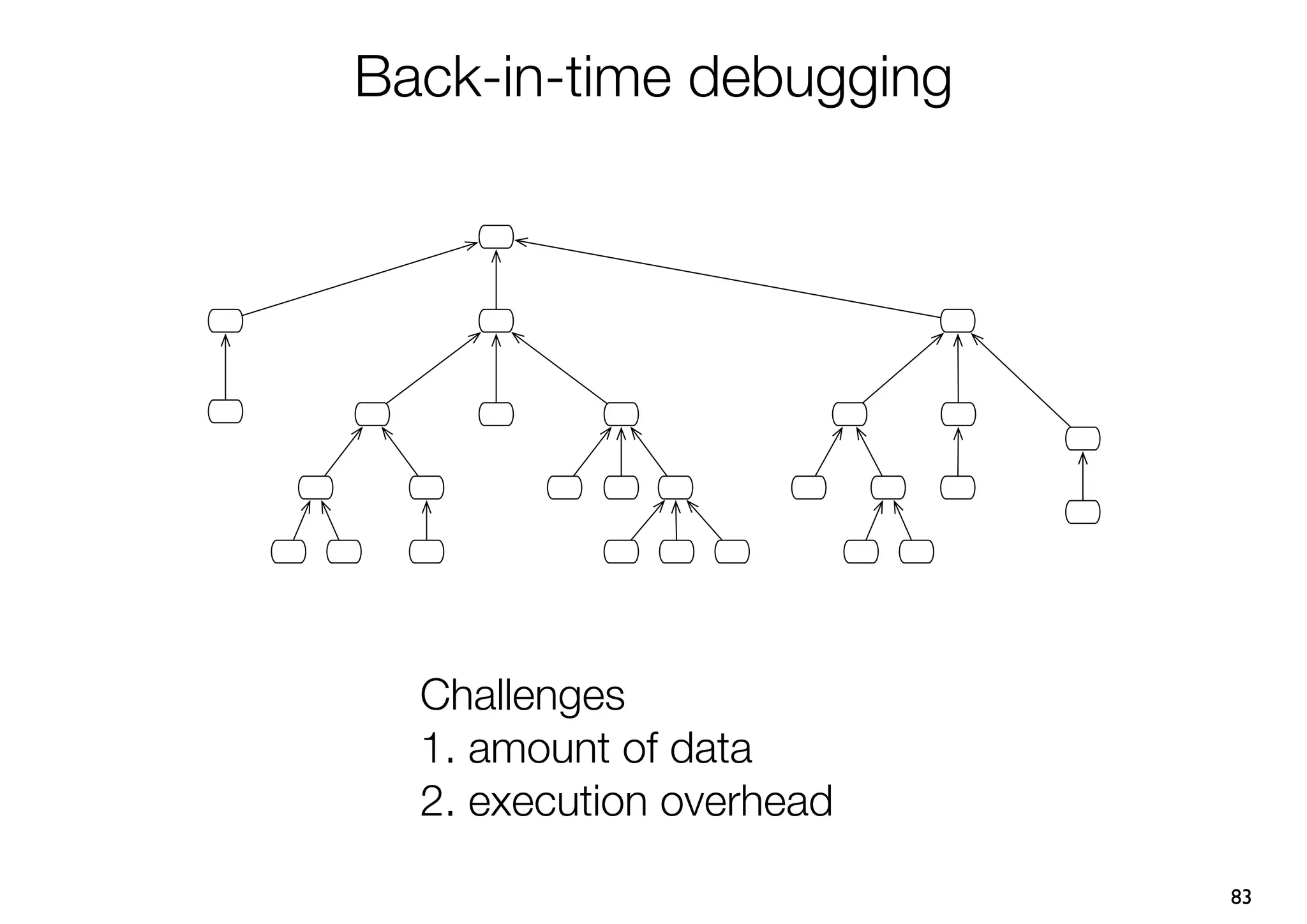

85. Back-in-time debugging
Challenges
1. amount of data
2. execution overhead
83

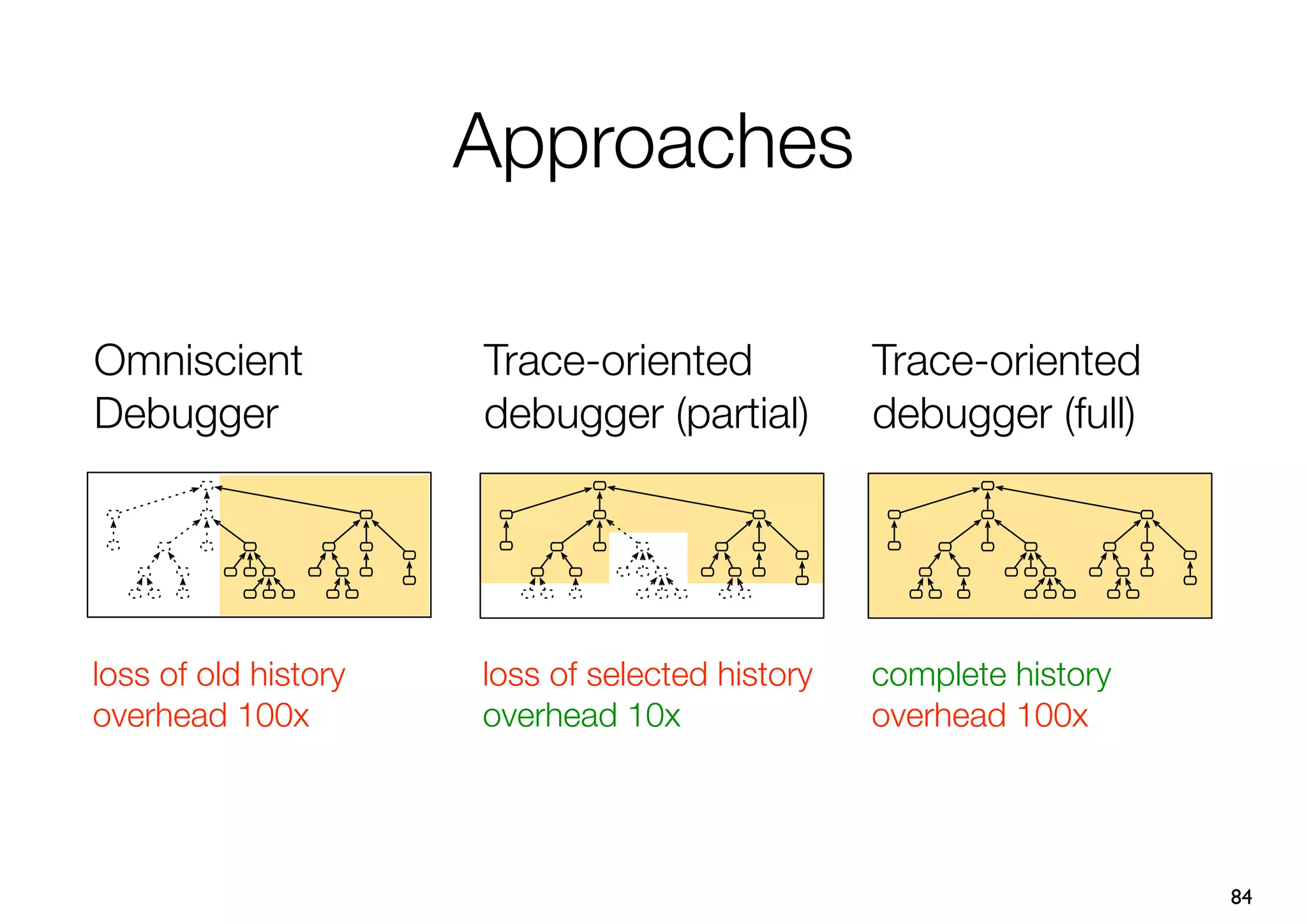

86. Approaches
Omniscient Trace-oriented Trace-oriented
Debugger debugger (partial) debugger (full)
loss of old history loss of selected history complete history
overhead 100x overhead 10x overhead 100x
84

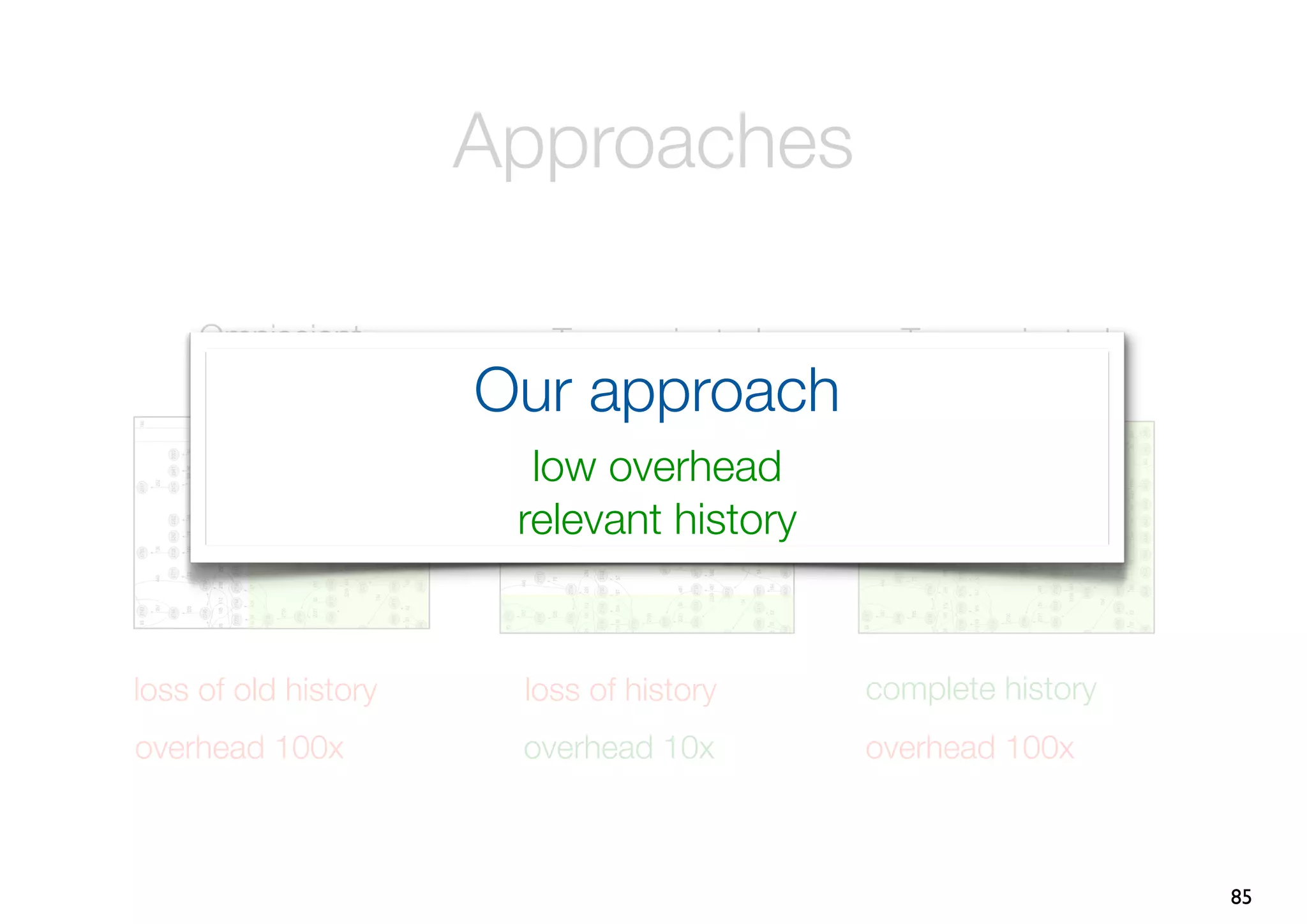

87. Approaches
Omniscient Trace-oriented Trace-oriented
Debugger
Our approach
debugger (partial) debugger (full)
low overhead
relevant history
loss of old history loss of history complete history
overhead 100x overhead 10x overhead 100x
85

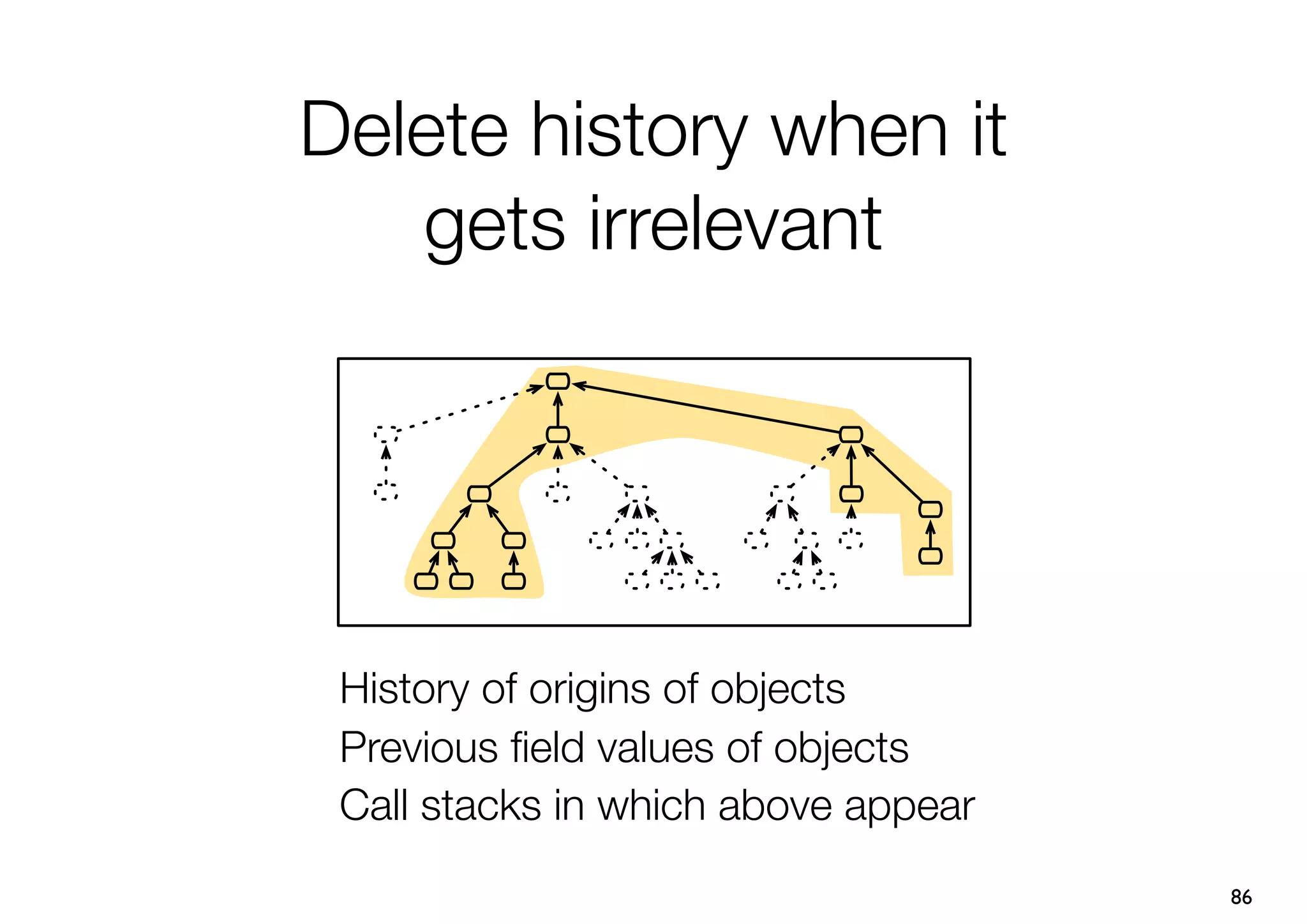

88. Delete history when it
gets irrelevant
History of origins of objects
Previous field values of objects
Call stacks in which above appear
86

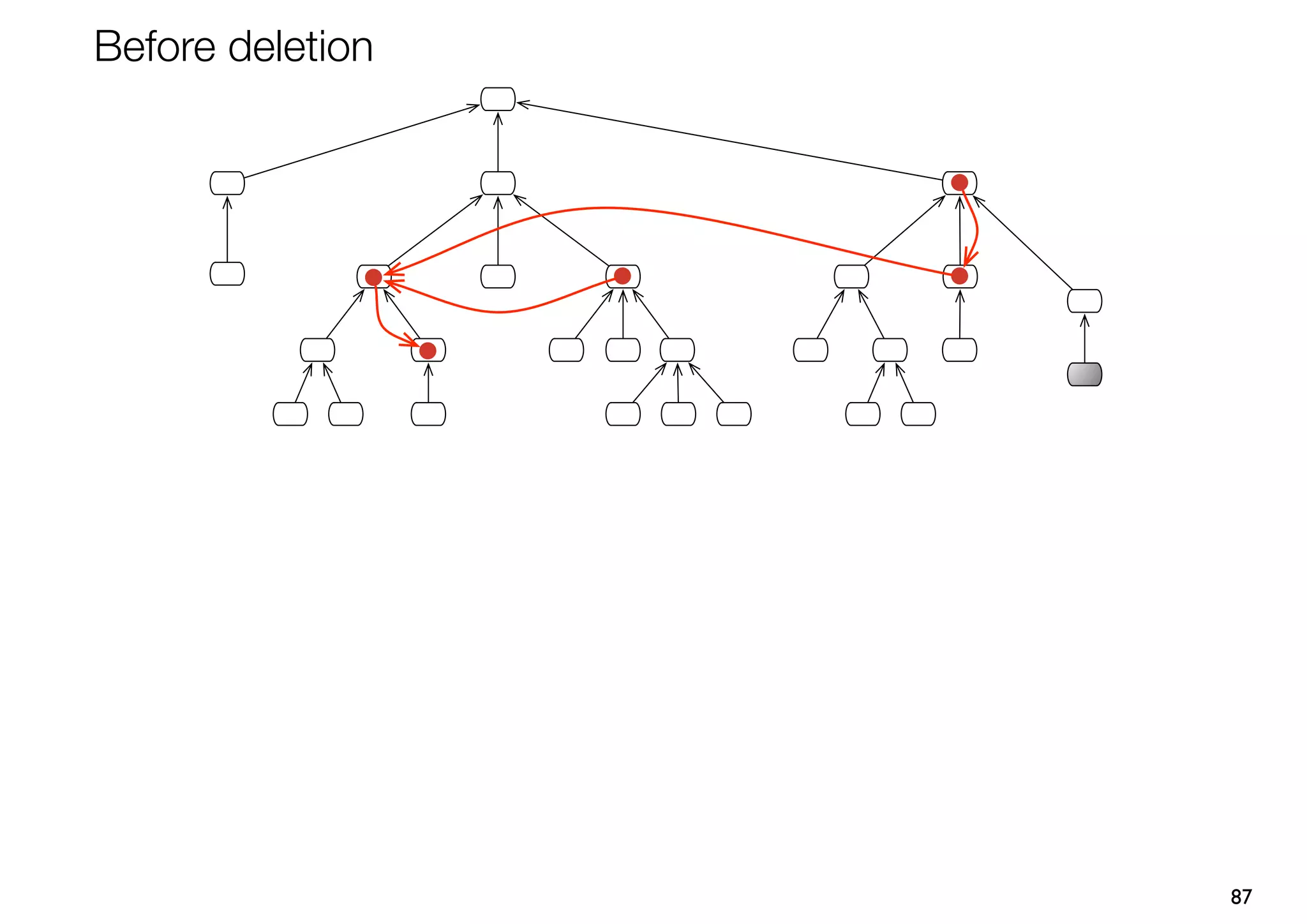

89. Before deletion
87

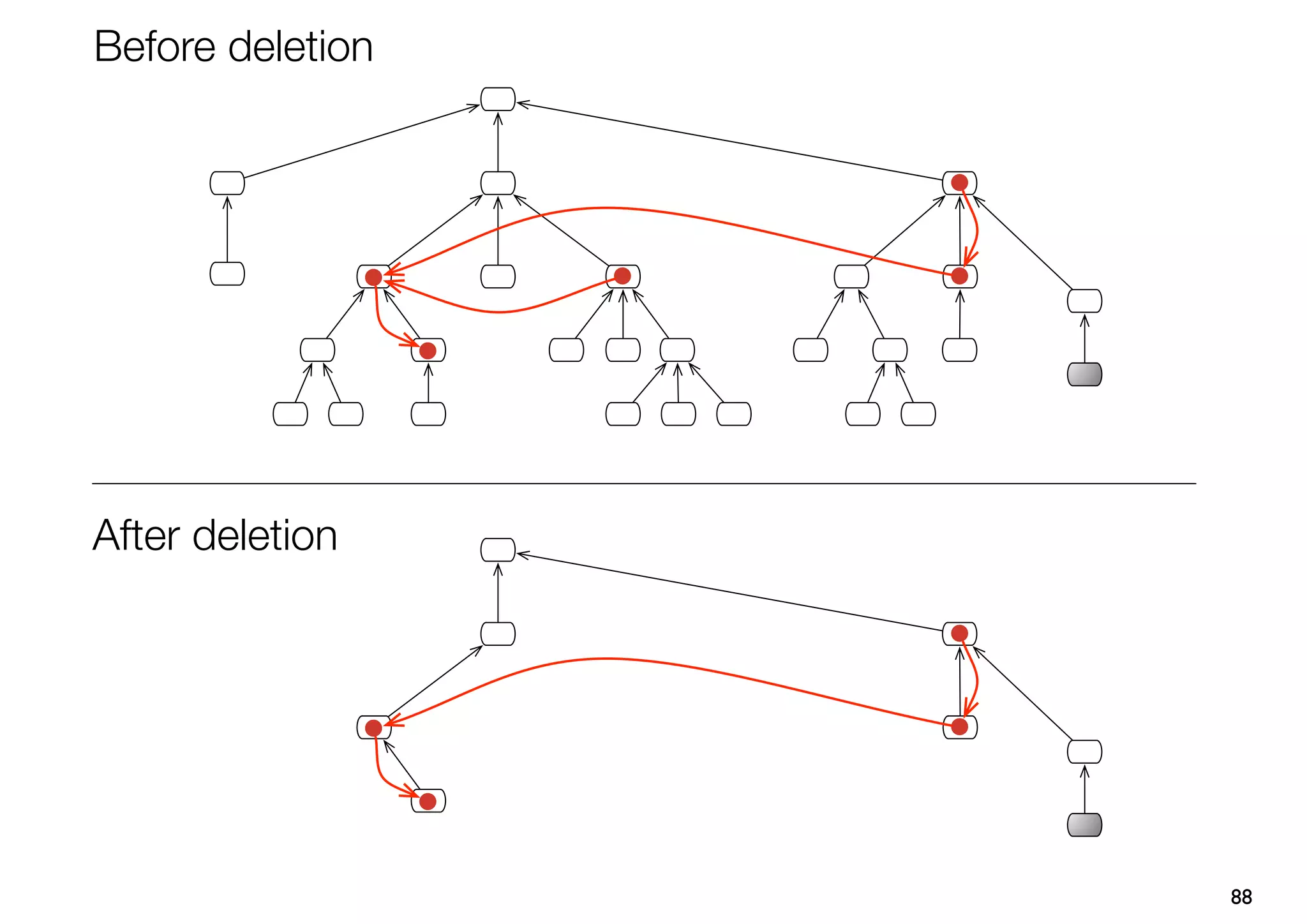

90. Before deletion
After deletion
88

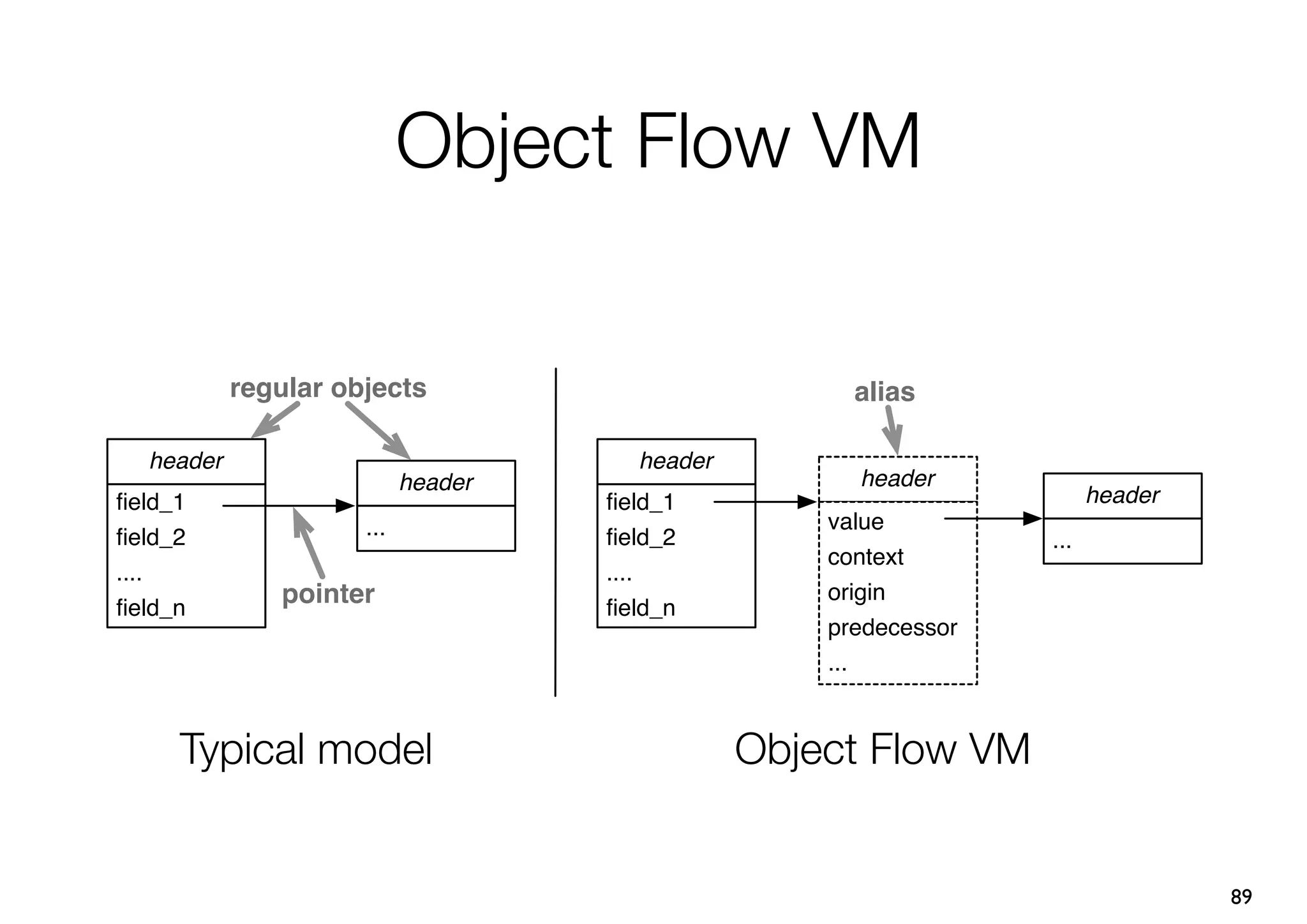

91. Object Flow VM
regular objects alias
header header
header header
field_1 field_1 header
... value
field_2 field_2 ...
context
.... ....
field_n
pointer field_n
origin
predecessor
...
Typical model Object Flow VM
89

92. Capturing historical object state
t1 t2 t3
image := Image new image height: 17 image height: 42
90

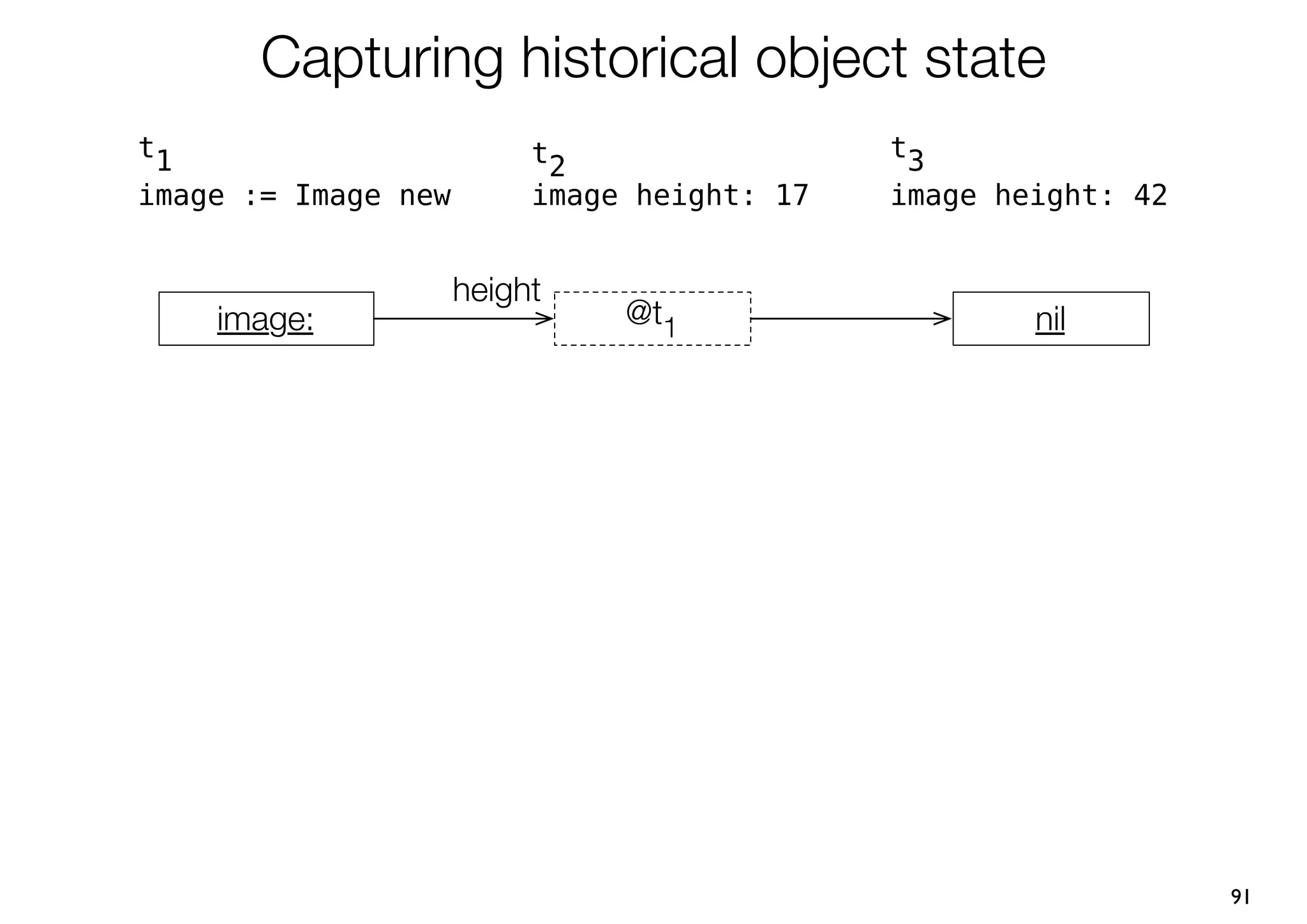

93. Capturing historical object state
t1 t2 t3
image := Image new image height: 17 image height: 42
height
image: @t1 nil
91

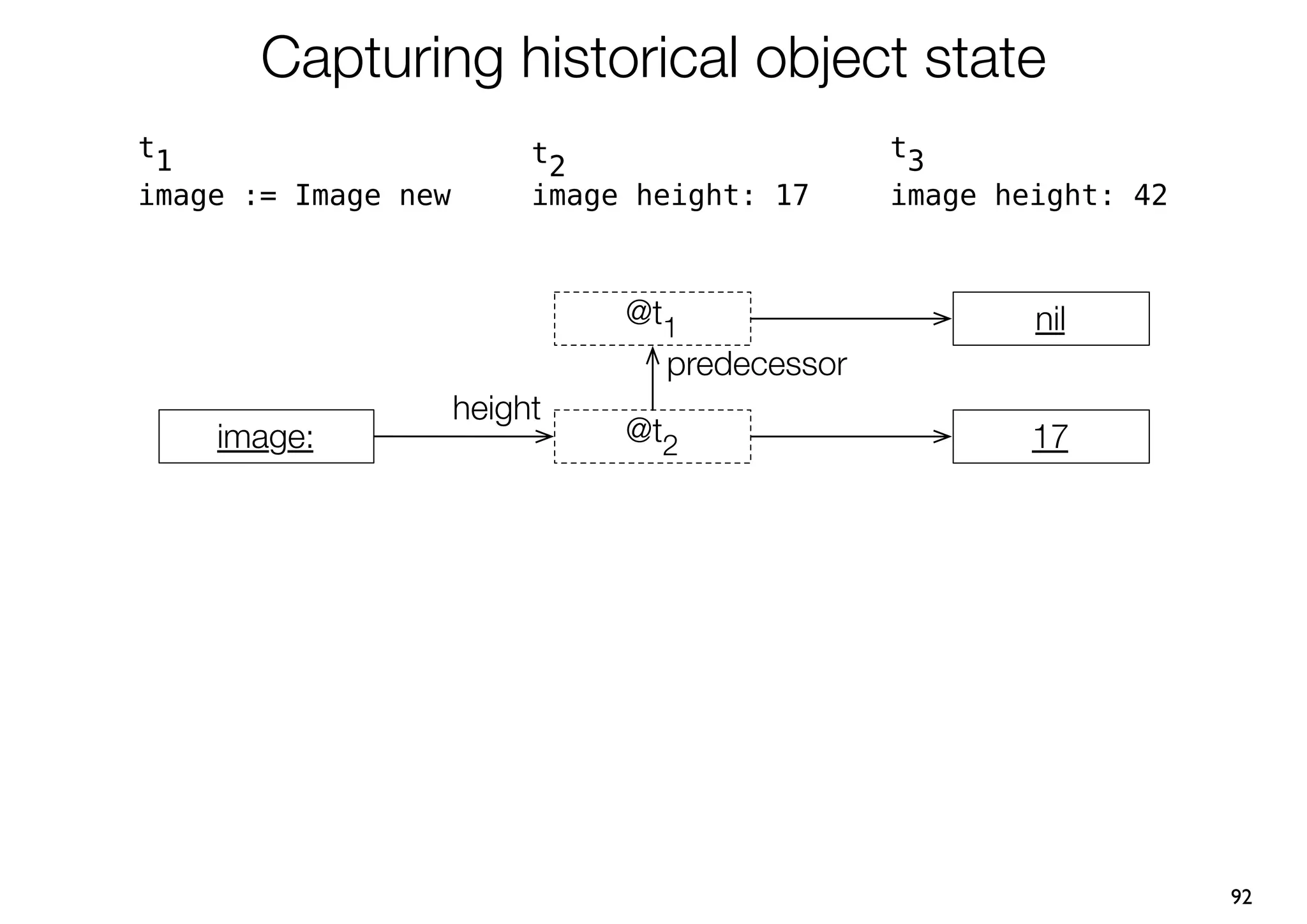

94. Capturing historical object state
t1 t2 t3
image := Image new image height: 17 image height: 42
@t1 nil
predecessor
height
image: @t2 17
92

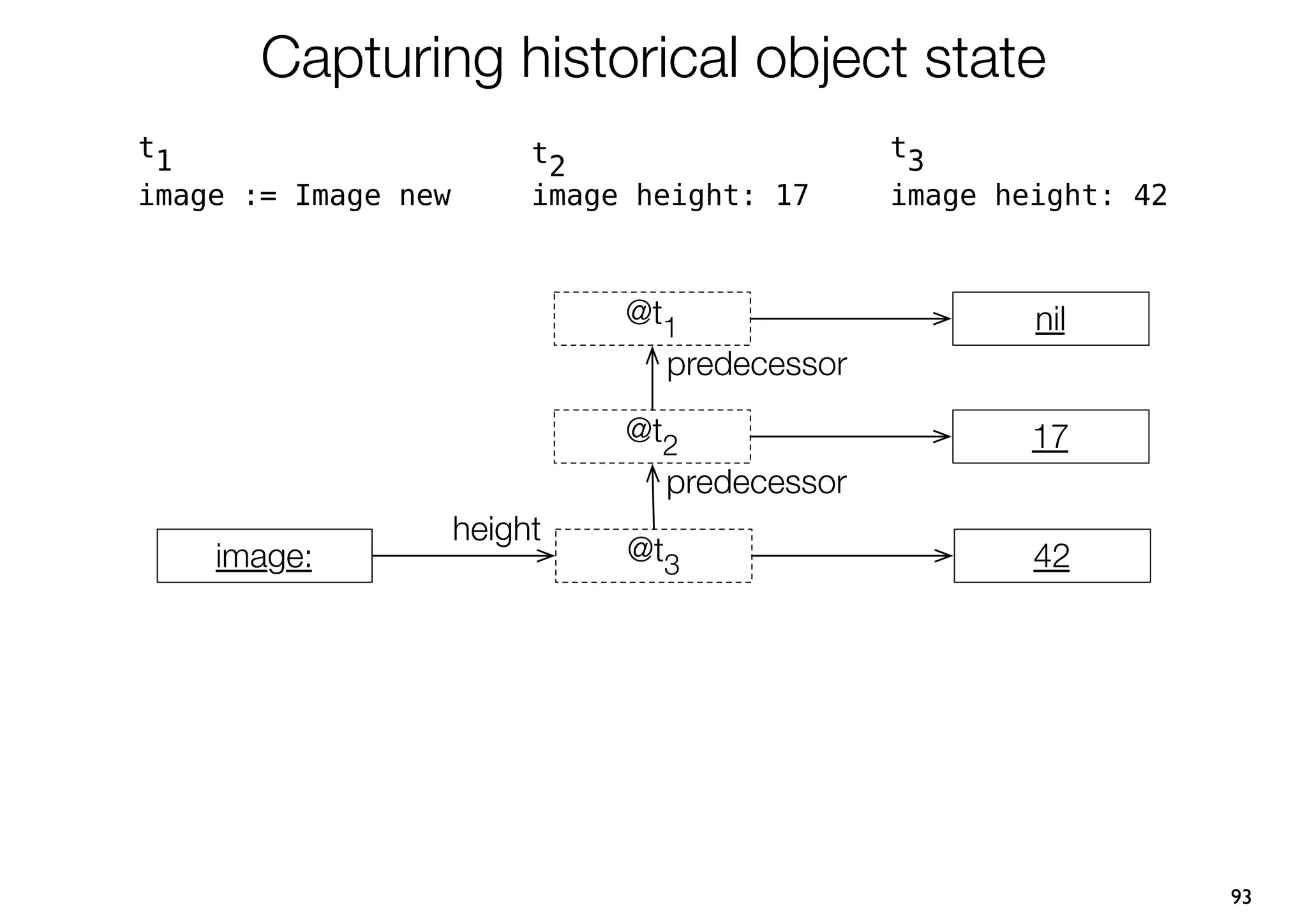

95. Capturing historical object state
t1 t2 t3
image := Image new image height: 17 image height: 42
@t1 nil
predecessor
@t2 17
predecessor
height
image: @t3 42
93

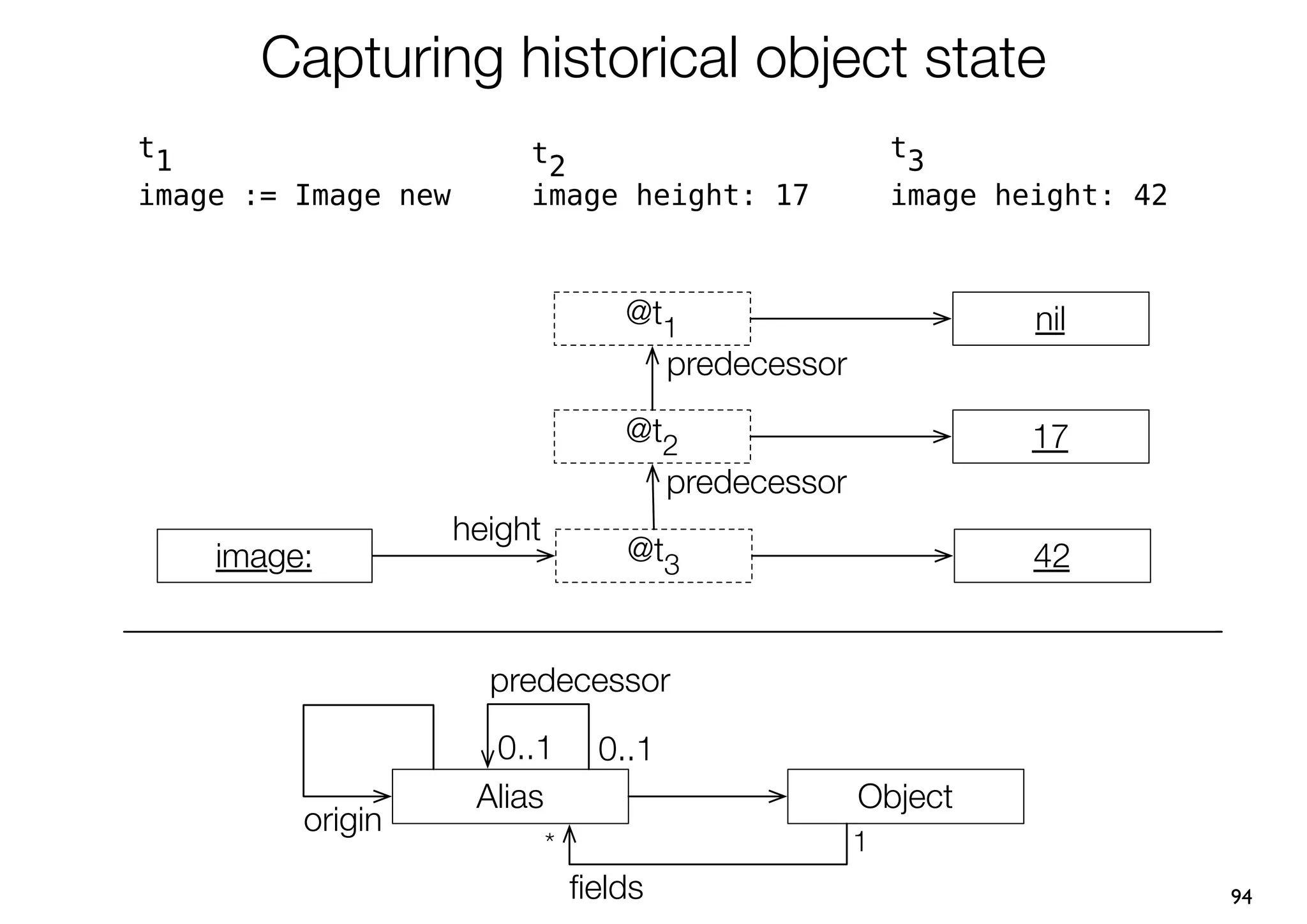

96. Capturing historical object state
t1 t2 t3
image := Image new image height: 17 image height: 42
@t1 nil
predecessor
@t2 17
predecessor
height
image: @t3 42
predecessor
0..1 0..1
Alias Object
origin
* 1
fields 94

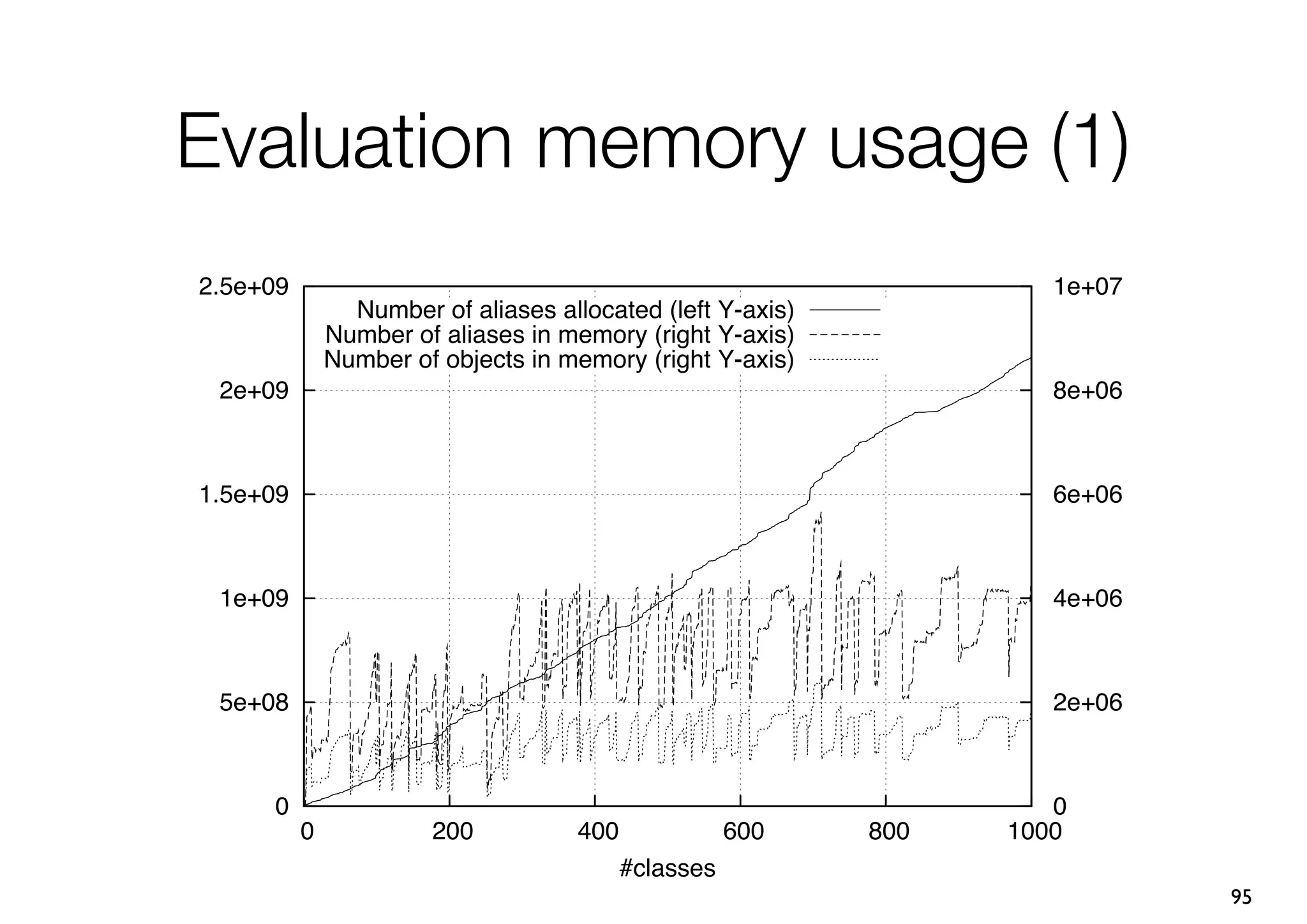

97. Evaluation memory usage (1)
2.5e+09 1e+07
Number of aliases allocated (left Y-axis)
Number of aliases in memory (right Y-axis)
Number of objects in memory (right Y-axis)
2e+09 8e+06
1.5e+09 6e+06
1e+09 4e+06
5e+08 2e+06
0 0
0 200 400 600 800 1000
#classes
95

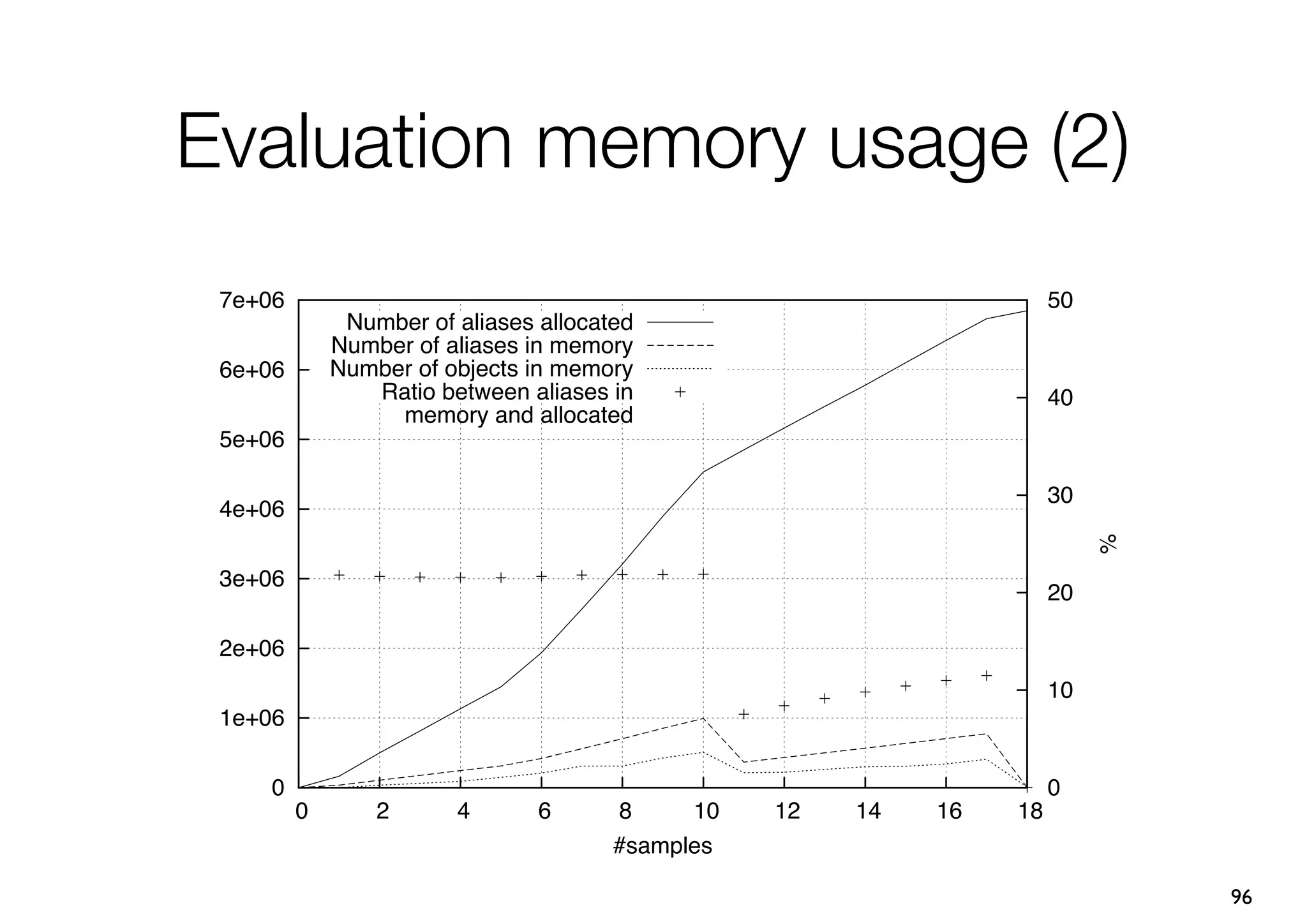

98. Evaluation memory usage (2)
7e+06 50
Number of aliases allocated
Number of aliases in memory
6e+06 Number of objects in memory
Ratio between aliases in 40
memory and allocated
5e+06
30
4e+06
%
3e+06
20
2e+06
10
1e+06
0 0
0 2 4 6 8 10 12 14 16 18
#samples
96

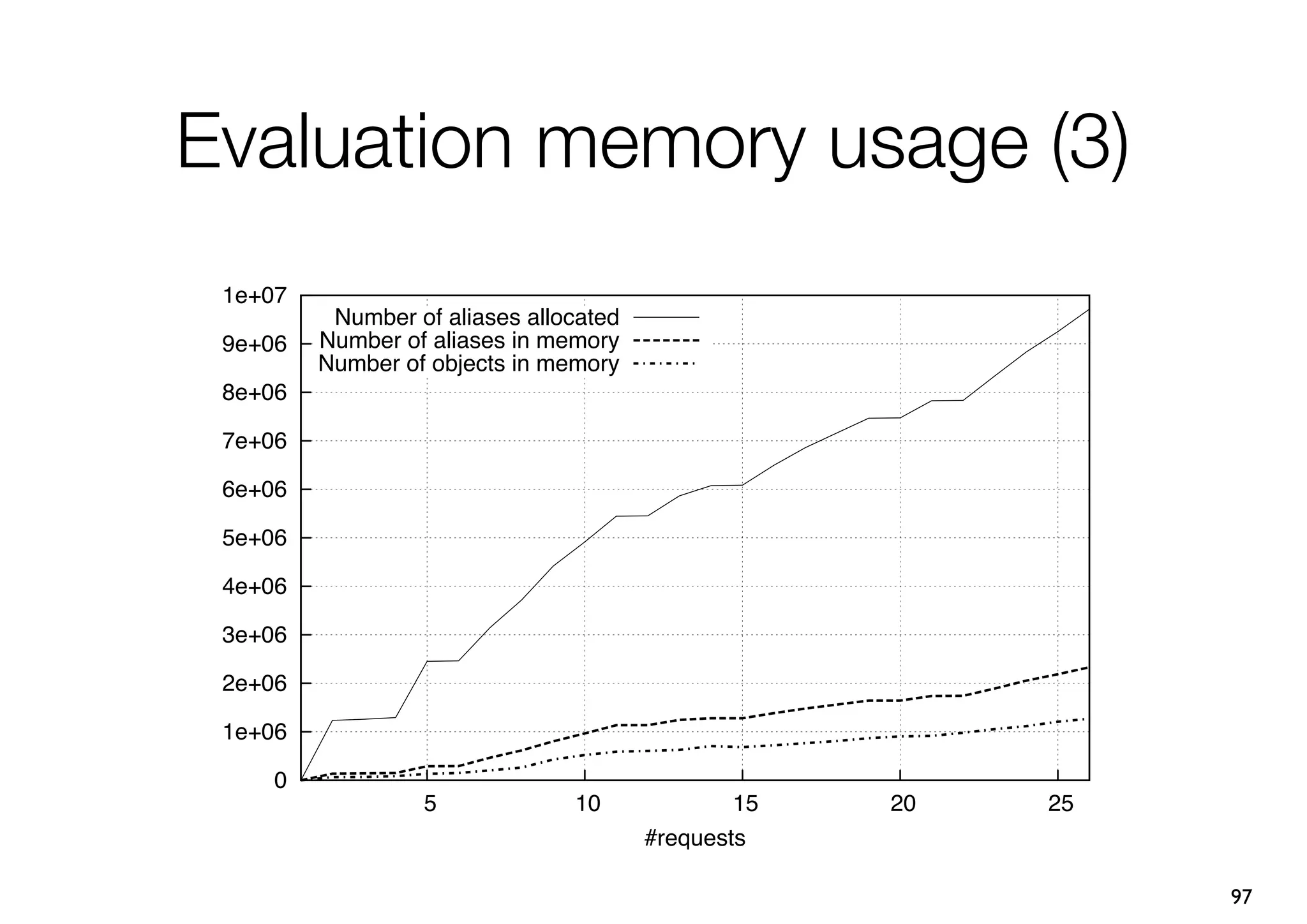

99. Evaluation memory usage (3)
1e+07
Number of aliases allocated
9e+06 Number of aliases in memory
Number of objects in memory
8e+06
7e+06
6e+06
5e+06
4e+06
3e+06
2e+06
1e+06
0
5 10 15 20 25
#requests
97

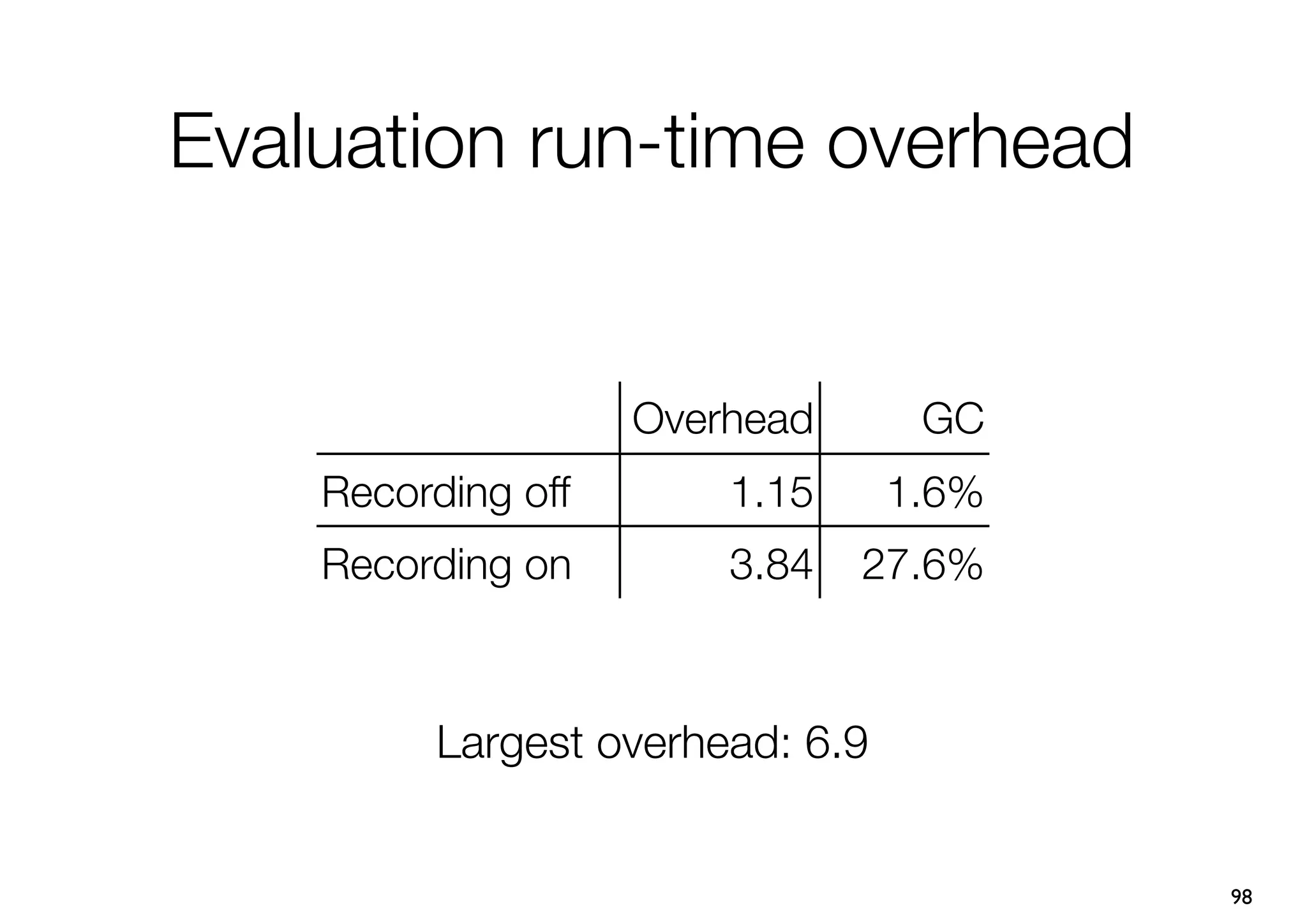

100. Evaluation run-time overhead
Overhead GC
Recording off 1.15 1.6%
Recording on 3.84 27.6%
Largest overhead: 6.9
98

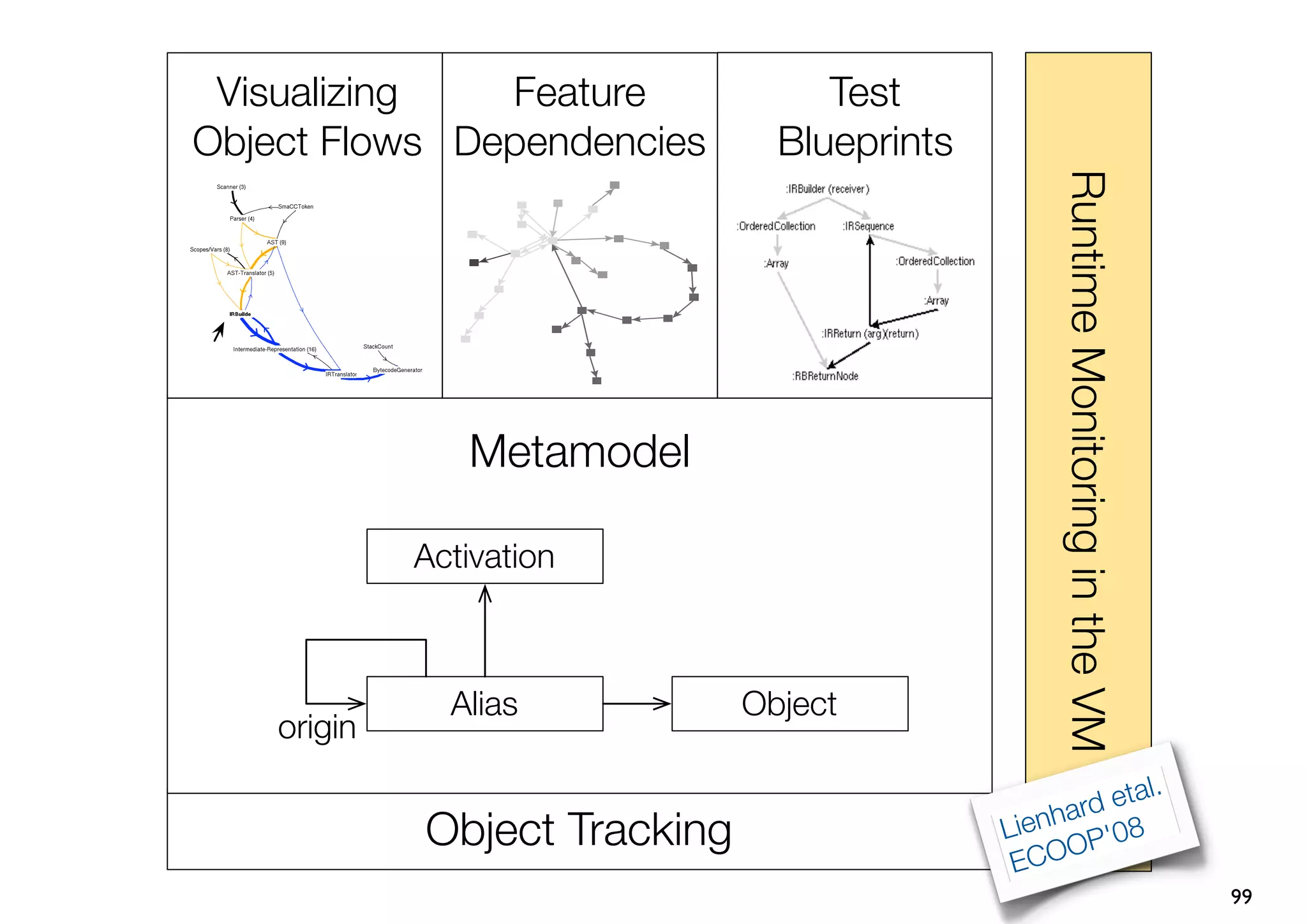

101. Visualizing Feature Test
Object Flows Dependencies Blueprints
Runtime Monitoring in the VM
Metamodel
Activation
Alias Object
origin
al.
a rd et
Object Tracking Lienh P'08
O
ECO
99

102. Visualizing Feature Test
Object Flows Dependencies Blueprints
Runtime Monitoring in the VM
Metamodel
Activation
Alias Object
origin
Object Tracking
