1) Back-in-time debuggers record an execution's complete history to provide more context than a standard call stack when debugging errors. However, this large amount of data can slow programs and overwhelm developers. 2) Flow-centric debugging visualizes object flows through an execution to help developers understand where objects originate. It maps object flows to the execution trace to aid root cause analysis. 3) The Compass debugger implements flow-centric debugging by tracking object flows during program execution and providing a frontend that surfaces this flow data to help developers navigate traces and pinpoint bugs.

1. Flow-Centric,
Back-In-Time
Debugging
Adrian Lienhard, Julien Fierz
and Oscar Nierstrasz
Software Composition Group
University of Bern, Switzerland

2. Debugger call stack
class Account {
Money balance;
void deposit(Money amount) {
NullPointerException >> this.balance += money;
}
...
}
..................

3. Debugger call stack
class Account {
Money balance;
void deposit(Money amount) {
NullPointerException >> this.balance += money;
}
...
}
class Company {
void pay(Money money, Person person) {
person.account().deposit(money);
}
}
...
where does the
account object
come from?

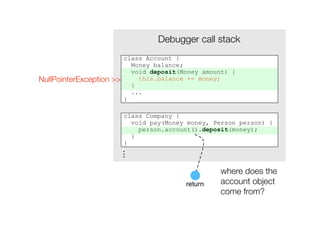

4. Debugger call stack
class Account {
Money balance;
void deposit(Money amount) {
NullPointerException >> this.balance += money;
}
...
}
class Company {
void pay(Money money, Person person) {
person.account().deposit(money);
}
}
...
where does the
return account object
come from?

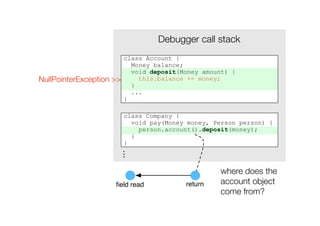

5. Debugger call stack
class Account {
Money balance;
void deposit(Money amount) {
NullPointerException >> this.balance += money;
}
...
}
class Company {
void pay(Money money, Person person) {
person.account().deposit(money);
}
}
...
where does the
field read return account object
come from?

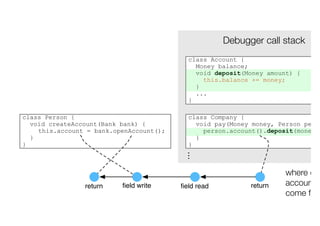

6. Debugger call stack
class Account {
Money balance;
void deposit(Money amount) {
this.balance += money;
}
...
}
class Person { class Company {
void createAccount(Bank bank) { void pay(Money money, Person perso
this.account = bank.openAccount(); person.account().deposit(money);
} }
} }
...
where doe
return field write field read return account o
come from

7. class Acc
Money b
void de
this.
}
...
}
class Bank { class Person { class Com
Account openAccount() { void createAccount(Bank bank) { void pa
return new Account(); this.account = bank.openAccount(); perso
} } }
} } }
...
allocation return field write field read

8. In 50% of the cases the execution stack contains
essentially no information about the bug’s cause.
[Liblit PLDI’05]
current call stack
lost method
executions

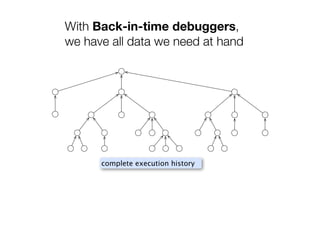

9. With Back-in-time debuggers,
we have all data we need at hand
complete execution history

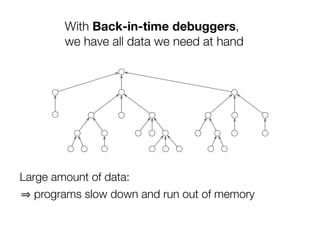

10. With Back-in-time debuggers,
we have all data we need at hand
Large amount of data:
programs slow down and run out of memory

11. With Back-in-time debuggers,
we have all data we need at hand
Large amount of data: h ier et
Popt LA'07
al.
S
OOP
programs slow down and run out of memory ard e
tal.
Lienh P'08
O
ECO

12. With Back-in-time debuggers,
we have all data we need at hand
Large amount of data:
programs slow down and run out of memory
developer may not find the root cause

13. Developer: “where did this object come from?”
?
Problem: how far back in time do we need to step?

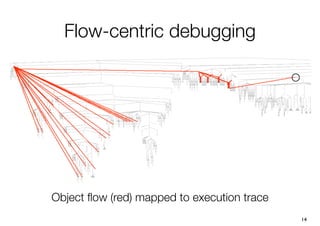

14. Flow-centric debugging
Object flow (red) mapped to execution trace
14

15. Flow-centric debugging
Object flow (red) mapped to execution trace
15

16. The Compass Debugger
Debugging VM tracks
object flow
Debugger frontend makes
object flow accessible
16

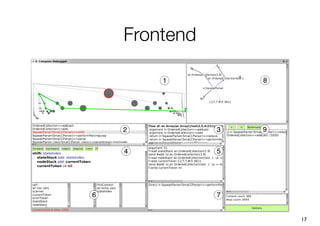

17. Frontend
1 8
2 3 9
4 5
6 7
17

18. Execution trace visualization
selected method
stack
depth
method
start time
18

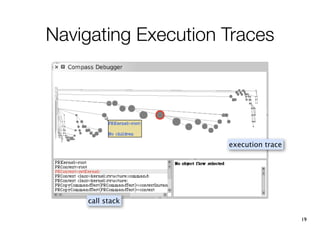

19. Navigating Execution Traces
execution trace
call stack
19

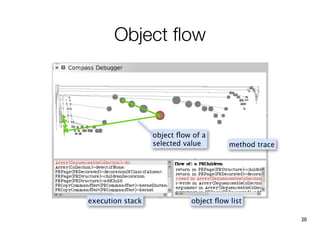

20. Object flow
object flow of a
selected value method trace
execution stack object flow list
20

21. short demo...
21

22. Compass Frontend
Compass Model Dynamic model Static model
Activation
ASTNode
Alias
Object Flow VM
0..1 *
Activation
program caller
1 context
execution
recording
0..1 * *
* 1
Alias Object
origin value
22

23. Conclusion
Conventional back-in-time debuggers adopt
traditional stack-oriented views
Flow-centric views improve the effectiveness
of debugging
Future work: concurrency bugs
Prototype:
http://scg.iam.unibe.ch/research/objectflow
23
