1. ISO C++ DDS PSM
Angelo Corsaro Rick Warren
OMG DDS Co-Chair RTI
PrismTech rick.warren@rti.com
angelo.corsaro@prismtech.com
POC: Angelo Corsaro <angelo.corsaro@prismtech.com>1

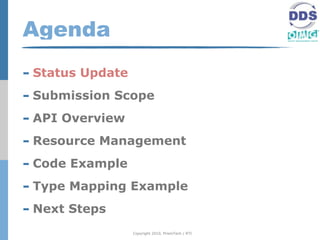

2. Agenda
- Status Update
- Submission Scope
- API Overview
- Resource Management
- Code Example
- Type Mapping Example
- Next Steps
Copyright 2010, PrismTech / RTI

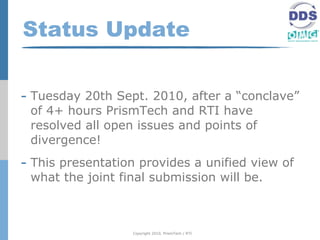

3. Status Update
- Tuesday 20th Sept. 2010, after a “conclave”
of 4+ hours PrismTech and RTI have
resolved all open issues and points of
divergence!
- This presentation provides a unified view of
what the joint final submission will be.
Copyright 2010, PrismTech / RTI

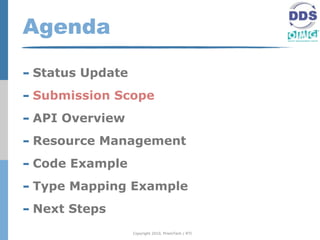

4. Agenda
- Status Update
- Submission Scope
- API Overview
- Resource Management
- Code Example
- Type Mapping Example
- Next Steps
Copyright 2010, PrismTech / RTI
5. Submission Scope
The ISO C++ DDS PSM has the following
scope:
- Full API for DCPS v1.2 PIM
- Full API for Extensible Topics
- ISO C++ mapping of DDS Type System (as
defined in xtypes)
Copyright 2010, PrismTech / RTI
6. Agenda
- Status Update
- Submission Scope
- API Overview
- Resource Management
- Code Example
- Type Mapping Example
- Next Steps
Copyright 2010, PrismTech / RTI

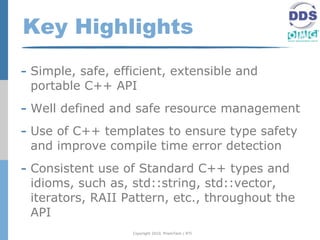

7. Key Highlights
- Simple, safe, efficient, extensible and
portable C++ API
- Well defined and safe resource management
- Use of C++ templates to ensure type safety
and improve compile time error detection
- Consistent use of Standard C++ types and
idioms, such as, std::string, std::vector,
iterators, RAII Pattern, etc., throughout the
API
Copyright 2010, PrismTech / RTI
8. API Organization
DDS type constructors.
Vendor Implementation for
the DELEGATE layer
DELEGATE
tdds idds
Standard API instantiated
from the parametrized API
dds and the vendor
implementation of the
DELEGATE layer.
ANSI/ISO C++ PSM
Copyright 2010, PrismTech / RTI

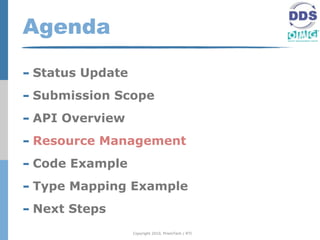

9. Agenda
- Status Update
- Submission Scope
- API Overview
- Resource Management
- Code Example
- Type Mapping Example
- Next Steps
Copyright 2010, PrismTech / RTI

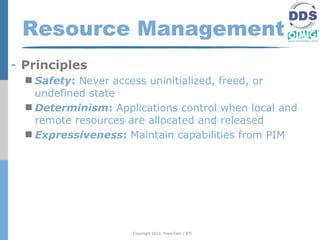

10. Resource Management
- Principles
Safety: Never access uninitialized, freed, or
undefined state
Determinism: Applications control when local and
remote resources are allocated and released
Expressiveness: Maintain capabilities from PIM
Copyright 2010, PrismTech / RTI
11. Resource Management
- Expression of principles differ for
different kinds of types
Reference types: Identity based on reference
• DDS Entities
• Wait sets and conditions
Value types: Identity based on state
• Entity QoS and QoS policies
• Status
• Time and duration
Copyright 2010, PrismTech / RTI
12. Reference Type Usage
- Access is through smart pointers, allocated by
factory methods. These:
Provide null initialization
Throw exception on access to “closed” object
May automatically manage resources
- Examples:
Null pointer:
• Publisher pub;
• if (pub == dds::core::null) { … }
Initialization:
• pub = dp.create_publisher();
Copying reference:
• Publisher pub2 = pub1; —or— Publisher pub2(pub1);
// 2 references to same object
Polymorphism & Down-Casting:
• Entity e = pub; // Publisher pub
• Publisher pub =
dds::core::polymorphic_cast<Publisher>(e);
Copyright 2010, PrismTech / RTI
13. Reference Type Mgmt
- Reference types have close() method
Disposes object and its contained objects
- Service may automatically close objects no longer
in use
“May” gives vendors flexibility to balance determinism,
convenience for their users
Similar to resource management practice in JMS
Common-sense rules:
• If I keep a reference to it, I intend to call it: still in use
• If I set a listener, I want it to call me: still in use
• If I call retain(): still in use
- Summary:
Deterministic way to halt communication, reclaim resources
Deterministic way to continue communication, maintain resources
Flexibility for vendors
Copyright 2010, PrismTech / RTI

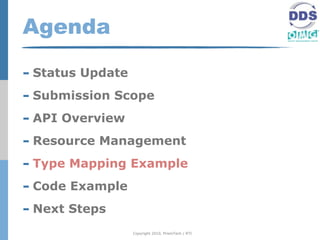

14. Agenda
- Status Update
- Submission Scope
- API Overview
- Resource Management
- Type Mapping Example
- Code Example
- Next Steps
Copyright 2010, PrismTech / RTI
15. DDS Types Mapping
- The ISO C++ API is independent from the
specific mapping used for DDS Topic Types,
as far as generated types have value
semantics
The ISO C++ API can be used with the existing
IDL2C++ type mapping, or
It can be used with the ISO C++ mapping for
DDS Types as defined in the DDS-XTypes
specification
Copyright 2010, PrismTech / RTI
16. ISO C++ Mapping
- Main Characteristics
Use of ISO C++ / StdLib types
Full Attribute Encapsulation via accessors
Container Safe
- Example... see next slide
Copyright 2010, PrismTech / RTI

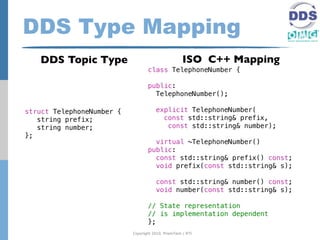

17. DDS Type Mapping
DDS Topic Type ISO C++ Mapping
class TelephoneNumber {
public:
TelephoneNumber();
struct TelephoneNumber { explicit TelephoneNumber(
string prefix; const std::string& prefix,
string number; const std::string& number);
};
virtual ~TelephoneNumber()
public:
const std::string& prefix() const;
void prefix(const std::string& s);
const std::string& number() const;
void number(const std::string& s);
// State representation
// is implementation dependent
};
Copyright 2010, PrismTech / RTI

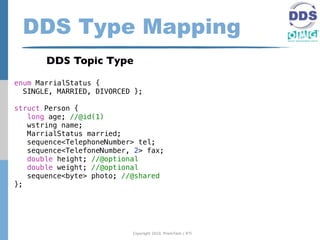

18. DDS Type Mapping
DDS Topic Type
enum MarrialStatus {
SINGLE, MARRIED, DIVORCED };
struct Person {
long age; //@id(1)
wstring name;
MarrialStatus married;
sequence<TelephoneNumber> tel;
sequence<TelefoneNumber, 2> fax;
double height; //@optional
double weight; //@optional
sequence<byte> photo; //@shared
};
Copyright 2010, PrismTech / RTI

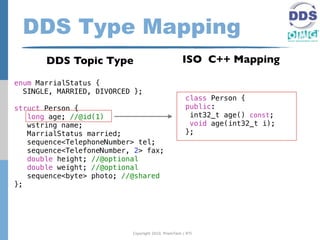

19. DDS Type Mapping
DDS Topic Type ISO C++ Mapping
enum MarrialStatus {
SINGLE, MARRIED, DIVORCED };
class Person {
struct Person { public:
long age; //@id(1) int32_t age() const;
wstring name; void age(int32_t i);
MarrialStatus married; };
sequence<TelephoneNumber> tel;
sequence<TelefoneNumber, 2> fax;
double height; //@optional
double weight; //@optional
sequence<byte> photo; //@shared
};
Copyright 2010, PrismTech / RTI
20. DDS Type Mapping
DDS Topic Type ISO C++ Mapping
enum MarrialStatus {
SINGLE, MARRIED, DIVORCED };
class Person {
struct Person { public:
long age; //@id(1) std::wstring name() const;
wstring name; void name(const std::wstring s);
MarrialStatus married; };
sequence<TelephoneNumber> tel;
sequence<TelefoneNumber, 2> fax;
double height; //@optional
double weight; //@optional
sequence<byte> photo; //@shared
};
Copyright 2010, PrismTech / RTI
21. DDS Type Mapping
DDS Topic Type ISO C++ Mapping
enum MarrialStatus {
SINGLE, MARRIED, DIVORCED };
struct Person {
long age; //@id(1)
wstring name;
MarrialStatus married;
sequence<TelephoneNumber> tel;
sequence<TelefoneNumber, 2> fax;
double height; //@optional
double weight; //@optional
sequence<byte> photo; //@shared
};
class Person {
public:
const std::vector<TelephoneNumber>& tel() const;
void tel(const std::vector<TelephoneNumber>& s);
};
Copyright 2010, PrismTech / RTI
22. DDS Type Mapping
DDS Topic Type ISO C++ Mapping
enum MarrialStatus {
SINGLE, MARRIED, DIVORCED };
struct Person {
long age; //@id(1)
wstring name;
MarrialStatus married;
sequence<TelephoneNumber> tel;
sequence<TelefoneNumber, 2> fax;
double height; //@optional
double weight; //@optional
sequence<byte> photo; //@shared
};

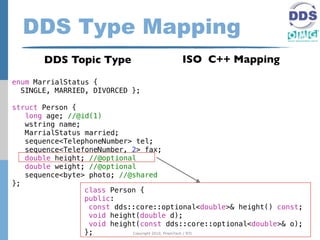

class Person {
public:
const dds::core::optional<double>& height() const;
void height(double d);
void height(const dds::core::optional<double>& o);
}; Copyright 2010, PrismTech / RTI

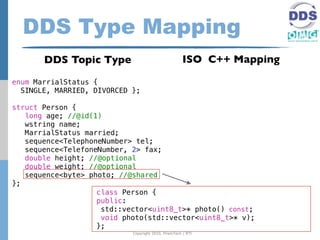

23. DDS Type Mapping
DDS Topic Type ISO C++ Mapping
enum MarrialStatus {
SINGLE, MARRIED, DIVORCED };
struct Person {
long age; //@id(1)
wstring name;
MarrialStatus married;
sequence<TelephoneNumber> tel;
sequence<TelefoneNumber, 2> fax;
double height; //@optional
double weight; //@optional
sequence<byte> photo; //@shared
};
class Person {
public:
std::vector<uint8_t>* photo() const;
void photo(std::vector<uint8_t>* v);
};
Copyright 2010, PrismTech / RTI

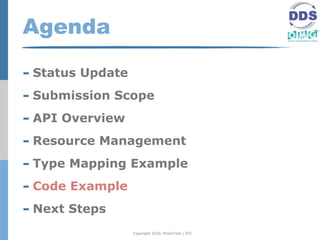

24. Agenda
- Status Update
- Submission Scope
- API Overview
- Resource Management
- Type Mapping Example
- Code Example
- Next Steps
Copyright 2010, PrismTech / RTI
25. Code Example
DDS Topic Type
struct RadarTrack {
string id;
long x;
long y;
};
Copyright 2010, PrismTech / RTI
26. Data Writer
- Create DataWriter
using dds::core; using dds::domain;
using dds::pub; using dds::topic;
DomainId id = 0;
DomainParticipant dp =
theParticipantFactory().create_participant(id);
Publisher pub = dp.create_publisher();
Topic<RadarTrack> topic = dp.create_topic("RadarTrackTopic");
DataWriter<RadarTrack> dw = pub.create_datawriter();
RadarTrack t("T101", 100, 200);
dw.write(t);
Copyright 2010, PrismTech / RTI
27. Data Reader
using dds::core; using dds::domain;
using dds::pub; using dds::topic;
DomainId id = 0;
DomainParticipant dp(id);
DomainParticipant dp =
theParticipantFactory().create_participant();
Publisher sub = dp.create_publisher();
Topic<RadarTrack> topic = dp.create_topic("RadarTrackTopic");
DataReader<RadarTrack> reader = sub.create_datareader();
Copyright 2010, PrismTech / RTI

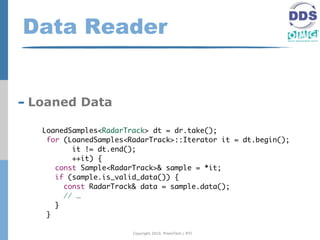

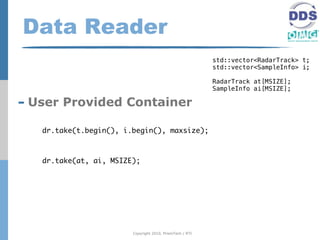

29. Data Reader
- Loaned Data
LoanedSamples<RadarTrack> dt = dr.take();
for (LoanedSamples<RadarTrack>::Iterator it = dt.begin();
it != dt.end();
++it) {
const Sample<RadarTrack>& sample = *it;
if (sample.is_valid_data()) {
const RadarTrack& data = sample.data();
// …
}
}
Copyright 2010, PrismTech / RTI

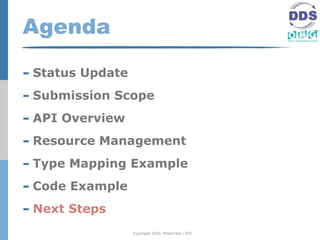

30. Agenda
- Status Update
- Submission Scope
- API Overview
- Resource Management
- Type Mapping Example
- Code Example
- Next Steps
Copyright 2010, PrismTech / RTI

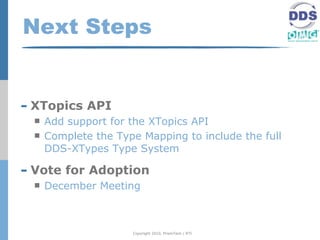

31. Next Steps
- XTopics API
Add support for the XTopics API
Complete the Type Mapping to include the full
DDS-XTypes Type System
- Vote for Adoption
December Meeting
