[2019-07] GraphQL in depth (serverside)

-
GraphQL 
in Depth 
(serverside)
크로키닷컴㈜ 윤상민
2019.7.4

➢ Just a query language
GraphQL is …
type User {
id: ID!
name: String!
}
type Query {
user(id: ID): User
}
query {
user(id: "10") {
id
name
}
}
{
"data": {
"user": {
"id": "10",
"name": "Croquis"
}
}
}
+

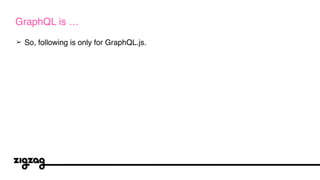

➢ So, following is only for GraphQL.js.
GraphQL is …

import { GraphQLObjectType, GraphQLSchema,
GraphQLString, printSchema } from 'graphql';
const schema = new GraphQLSchema({
query: new GraphQLObjectType({
name: 'RootQueryType',
fields: {
hello: {
type: GraphQLString,
},
},
}),
});
console.log(printSchema(schema));
Define Schema: raw object
schema {
query: RootQueryType
}
type RootQueryType {
hello: String
}

import { GraphQLList, GraphQLNonNull, GraphQLObjectType,
GraphQLSchema, GraphQLString } from 'graphql';
const user = new GraphQLObjectType({
name: 'User', fields: {
name: {
type: GraphQLNonNull(GraphQLString),
} } });
name: 'Query',
fields: {
users: {
type: GraphQLNonNull(GraphQLList(GraphQLNonNull(user))),
} } }) });
Define Schema: custom type
type Query {
users: [User!]!
}
type User {
name: String!
}

import { buildSchema } from 'graphql';
const schema = buildSchema(`
type User {
name: String!
}
type Query {
users: [User!]!
}
`);
Define Schema: using GraphQL schema language

import 'reflect-metadata';
import { buildSchemaSync, Field, ObjectType, Query, Resolver } from 'type-graphql';
@ObjectType()
class User {
@Field()
name: string;
}
@Resolver()
class UserResolver {
@Query((returns) => [User])
users() {
return [];
}
}
const schema = buildSchemaSync({
resolvers: [UserResolver],
});
Define Schema: TypeGraphQL

import { graphql, GraphQLObjectType, GraphQLSchema, GraphQLString } from 'graphql';
fields: {
hello: {
resolve: () => 'World',
},
},
}),
});
console.log(await graphql(schema, '{ hello }’));
// { data: { hello: 'World' } }
Execute Query

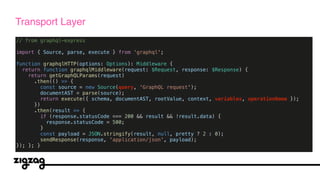

// from graphql-express
import { Source, parse, execute } from 'graphql';
function graphqlHTTP(options: Options): Middleware {
return function graphqlMiddleware(request: $Request, response: $Response) {
return getGraphQLParams(request)
.then(() => {
const source = new Source(query, 'GraphQL request');
documentAST = parse(source);
return execute({ schema, documentAST, rootValue, context, variables, operationName });
})
.then(result => {
if (response.statusCode === 200 && result && !result.data) {
response.statusCode = 500;
}
const payload = JSON.stringify(result, null, pretty ? 2 : 0);
sendResponse(response, 'application/json', payload);
}); }; }
Transport Layer

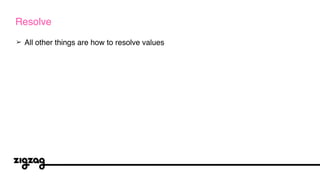

➢ All other things are how to resolve values
Resolve

import { graphql, GraphQLObjectType, GraphQLSchema, GraphQLString } from 'graphql';
fields: {
hello: {
resolve: () => 'World',
},
},
}),
});
console.log(await graphql(schema, '{ hello }'));
Basic Resolver

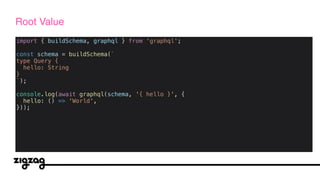

import { buildSchema, graphql } from 'graphql';
type Query {
hello: String
}
`);
console.log(await graphql(schema, '{ hello }', {
hello: () => 'World',
}));
Root Value

type Query {
hello: String
}
`);
schema.getQueryType()!.getFields().hello.resolve = () => {
return 'World';
};
Attach Resolver After Creation

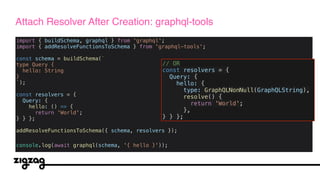

import { addResolveFunctionsToSchema } from 'graphql-tools';
type Query {
hello: String
}
`);
const resolvers = {
Query: {
hello: () => {
return 'World';
} } };
addResolveFunctionsToSchema({ schema, resolvers });
Attach Resolver After Creation: graphql-tools
// OR
const resolvers = {
Query: {
hello: {
type: GraphQLNonNull(GraphQLString),
resolve() {
return 'World';
},
} } };

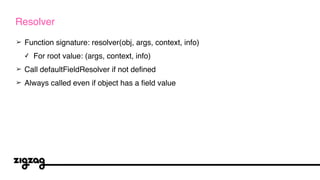

➢ Function signature: resolver(obj, args, context, info)
✓ For root value: (args, context, info)
➢ Call defaultFieldResolver if not defined
➢ Always called even if object has a field value
Resolver

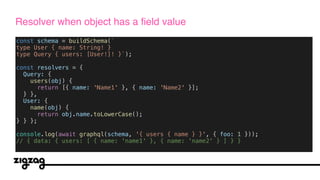

type User { name: String! }
type Query { users: [User!]! }`);
const resolvers = {
Query: {
users(obj) {
return [{ name: 'Name1' }, { name: 'Name2' }];
} },
User: {
name(obj) {
return obj.name.toLowerCase();
} } };
console.log(await graphql(schema, '{ users { name } }', { foo: 1 }));
// { data: { users: [ { name: 'name1' }, { name: 'name2' } ] } }
Resolver when object has a field value

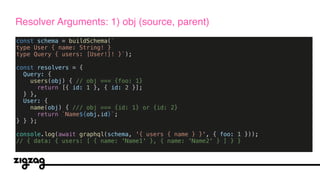

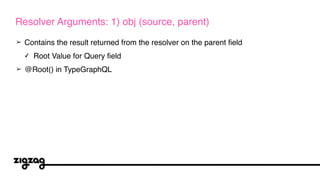

➢ Contains the result returned from the resolver on the parent field
✓ Root Value for Query field
➢ @Root() in TypeGraphQL
Resolver Arguments: 1) obj (source, parent)

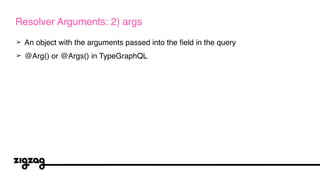

➢ An object with the arguments passed into the field in the query
➢ @Arg() or @Args() in TypeGraphQL
Resolver Arguments: 2) args

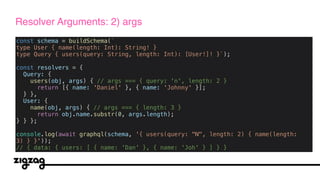

type User { name(length: Int): String! }
type Query { users(query: String, length: Int): [User!]! }`);
const resolvers = {
Query: {
users(obj, args) { // args === { query: 'n', length: 2 }
return [{ name: 'Daniel' }, { name: 'Johnny' }];
} },
User: {
name(obj, args) { // args === { length: 3 }
return obj.name.substr(0, args.length);
} } };
console.log(await graphql(schema, '{ users(query: "N", length: 2) { name(length:
3) } }'));
// { data: { users: [ { name: 'Dan' }, { name: 'Joh' } ] } }
Resolver Arguments: 2) args

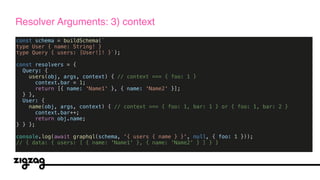

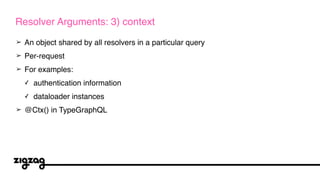

➢ An object shared by all resolvers in a particular query
➢ Per-request
➢ For examples:
✓ authentication information
✓ dataloader instances
➢ @Ctx() in TypeGraphQL
Resolver Arguments: 3) context

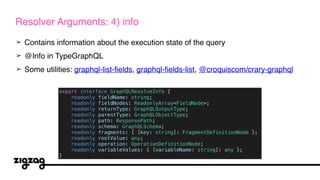

➢ Contains information about the execution state of the query
➢ @Info in TypeGraphQL
➢ Some utilities: graphql-list-fields, graphql-fields-list, @croquiscom/crary-graphql
Resolver Arguments: 4) info
export interface GraphQLResolveInfo {
readonly fieldName: string;
readonly fieldNodes: ReadonlyArray<FieldNode>;
readonly returnType: GraphQLOutputType;
readonly parentType: GraphQLObjectType;
readonly path: ResponsePath;
readonly schema: GraphQLSchema;
readonly fragments: { [key: string]: FragmentDefinitionNode };
readonly rootValue: any;
readonly operation: OperationDefinitionNode;
readonly variableValues: { [variableName: string]: any };
}

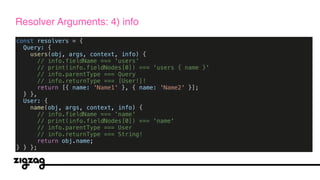

const resolvers = {
Query: {
users(obj, args, context, info) {
// info.fieldName === 'users'
// print(info.fieldNodes[0]) === 'users { name }'
// info.parentType === Query
// info.returnType === [User!]!
} },
User: {
name(obj, args, context, info) {
// info.fieldName === 'name'
// print(info.fieldNodes[0]) === 'name'
// info.parentType === User
// info.returnType === String!
return obj.name;
} } };
Resolver Arguments: 4) info

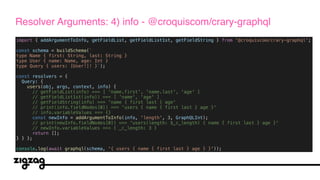

import { addArgumentToInfo, getFieldList, getFieldList1st, getFieldString } from '@croquiscom/crary-graphql';
type Name { first: String, last: String }
type User { name: Name, age: Int }
const resolvers = {
Query: {
users(obj, args, context, info) {
// getFieldList(info) === [ 'name.first', 'name.last', 'age' ]
// getFieldList1st(info)) === [ 'name', 'age' ]
// getFieldString(info) === 'name { first last } age'
// print(info.fieldNodes[0]) === 'users { name { first last } age }'
// info.variableValues === {}
const newInfo = addArgumentToInfo(info, 'length', 3, GraphQLInt);
// print(newInfo.fieldNodes[0]) === 'users(length: $_c_length) { name { first last } age }'
// newInfo.variableValues === { _c_length: 3 }
return [];
} } };
console.log(await graphql(schema, '{ users { name { first last } age } }'));
Resolver Arguments: 4) info - @croquiscom/crary-graphql

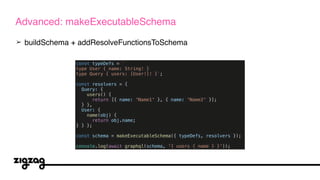

➢ buildSchema + addResolveFunctionsToSchema
Advanced: makeExecutableSchema
const typeDefs = `
type Query { users: [User!]! }`;
const resolvers = {
Query: {
users() {
} },
User: {
name(obj) {
return obj.name;
} } };
const schema = makeExecutableSchema({ typeDefs, resolvers });
console.log(await graphql(schema, '{ users { name } }'));

➢ Generate GraphQL schema objects that delegate to a remote server
Advanced: makeRemoteExecutableSchema
import { HttpLink } from 'apollo-link-http';
import { importSchema } from 'graphql-import';
import { makeRemoteExecutableSchema } from 'graphql-tools';
import fetch from 'node-fetch';
const schema = makeRemoteExecutableSchema({
schema: importSchema(`${__dirname}/schema.graphql`),
link: new HttpLink({
uri: 'http://other.service/graphql',
fetch: fetch,
}),
});

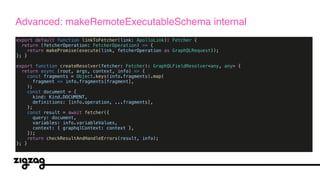

export default function linkToFetcher(link: ApolloLink): Fetcher {
return (fetcherOperation: FetcherOperation) => {
return makePromise(execute(link, fetcherOperation as GraphQLRequest));
}; }
export function createResolver(fetcher: Fetcher): GraphQLFieldResolver<any, any> {
return async (root, args, context, info) => {
const fragments = Object.keys(info.fragments).map(
fragment => info.fragments[fragment],
);
const document = {
kind: Kind.DOCUMENT,
definitions: [info.operation, ...fragments],
};
const result = await fetcher({
query: document,
variables: info.variableValues,
context: { graphqlContext: context },
});
return checkResultAndHandleErrors(result, info);
}; }
Advanced: makeRemoteExecutableSchema internal

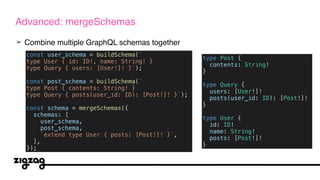

➢ Combine multiple GraphQL schemas together
Advanced: mergeSchemas
const user_schema = buildSchema(`
type User { id: ID!, name: String! }
const post_schema = buildSchema(`
type Post { contents: String! }
type Query { posts(user_id: ID): [Post!]! }`);
const schema = mergeSchemas({
schemas: [
user_schema,
post_schema,
`extend type User { posts: [Post!]! }`,
],
});
type Post {
contents: String!
}
type Query {
users: [User!]!
posts(user_id: ID): [Post!]!
}
type User {
id: ID!
name: String!
posts: [Post!]!
}

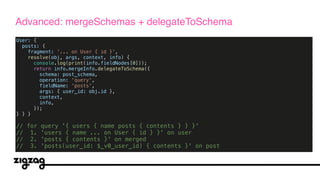

User: {
posts: {
fragment: '... on User { id }',
resolve(obj, args, context, info) {
console.log(print(info.fieldNodes[0]));
return info.mergeInfo.delegateToSchema({
schema: post_schema,
operation: 'query',
fieldName: 'posts',
args: { user_id: obj.id },
context,
info,
});
} } } 
// for query '{ users { name posts { contents } } }'
// 1. 'users { name ... on User { id } }' on user
// 2. 'posts { contents }' on merged
// 3. 'posts(user_id: $_v0_user_id) { contents }' on post
Advanced: mergeSchemas + delegateToSchema

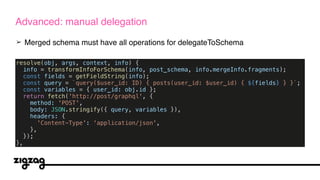

➢ Merged schema must have all operations for delegateToSchema
Advanced: manual delegation
resolve(obj, args, context, info) {
info = transformInfoForSchema(info, post_schema, info.mergeInfo.fragments);
const fields = getFieldString(info);
const query = `query($user_id: ID) { posts(user_id: $user_id) { ${fields} } }`;
const variables = { user_id: obj.id };
return fetch('http://post/graphql', {
method: 'POST',
body: JSON.stringify({ query, variables }),
headers: {
'Content-Type': 'application/json',
},
});
},

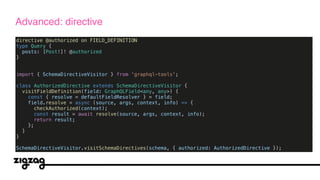

directive @authorized on FIELD_DEFINITION
type Query {
posts: [Post!]! @authorized
}
import { SchemaDirectiveVisitor } from 'graphql-tools';
class AuthorizedDirective extends SchemaDirectiveVisitor {
visitFieldDefinition(field: GraphQLField<any, any>) {
const { resolve = defaultFieldResolver } = field;
field.resolve = async (source, args, context, info) => {
checkAuthorized(context);
const result = await resolve(source, args, context, info);
return result;
};
}
}
SchemaDirectiveVisitor.visitSchemaDirectives(schema, { authorized: AuthorizedDirective });
Advanced: directive

➢ Use DataLoader
➢ Batch function must return an array of values that have same order to an array of
keys
➢ It is common to create a new DataLoader per request (context will be helpful)
Advanced: N+1 problem
import DataLoader from 'dataloader';
resolve(parent, args, context, info) {
if (!context.loader) {
context.loader = new DataLoader((keys) => {
return ['value for keys[0]', 'value for keys[1]', ...];
});
}
return context.loader.load(key);
},

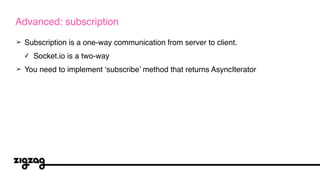

➢ Subscription is a one-way communication from server to client.
✓ Socket.io is a two-way
➢ You need to implement ‘subscribe’ method that returns AsyncIterator
Advanced: subscription

import { PubSub } from 'graphql-subscriptions';
const pubSub = new PubSub();
async function doTask(task_id: number) {
for (let i = 0; i < 10; i++) {
await Bluebird.delay(1000);
pubSub.publish(`doTask-${task_id}`, i);
}
pubSub.publish(`doTask-${task_id}`, 'done');
}
subscription: new GraphQLObjectType({
name: 'RootSubscriptionType',
fields: {
doTaskProgressed: {
args: { task_id: { type: new GraphQLNonNull(GraphQLInt) } },
subscribe: (source, args) => {
const task_id = args.task_id;
return pubSub.asyncIterator(`doTask-${task_id}`);
},
} } }) });
Advanced: subscription - run task in separate thread
- Task will run regardless subscription
- You need ‘done’ to notify task ended

subscription: new GraphQLObjectType({
name: 'RootSubscriptionType',
fields: {
doTaskWithProgress: {
async *subscribe(source, args) {
for (let i = 0; i < 10; i++) {
await Bluebird.delay(1000);
yield i;
}
},
} } }) });
Advanced: subscription - run task in subscribe
- Task will stop when subscription ended
- Subscription will be ended when task ended

➢ graphql-resolvers
✓ combineResolvers, pipeResolvers, allResolvers
✓ resolveDependee, resolveDependees, isDependee
➢ graphql-scalars
✓ DateTime, EmailAddress, NegativeInt, PostalCode, URL, …
➢ Apollo Federation
✓ Replace schema stitching (remote + merge)
Advanced: other packages

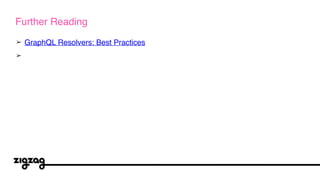

➢ GraphQL Resolvers: Best Practices
➢
Further Reading

-
Thank you
for your attention

[2019-07] GraphQL in depth (serverside)

More Related Content

What's hot

Similar to [2019-07] GraphQL in depth (serverside)

Recently uploaded

[2019-07] GraphQL in depth (serverside)
