WebSocket technology allows for bi-directional and full-duplex communication between clients and servers. The Java API for WebSocket provides annotations and interfaces for implementing WebSocket on both the client- and server-sides in Java applications. Java EE 7 includes several new APIs such as JSON processing, batch processing, concurrency utilities and JMS 2.0. Future versions of Java EE will focus on areas like cloud computing, security, and HTML5 integration.

2. JavaEE.Next():Java EE 7,8
and Beyond
Vijay Nair
vijay.nair@oracle.com
@FusionVJ

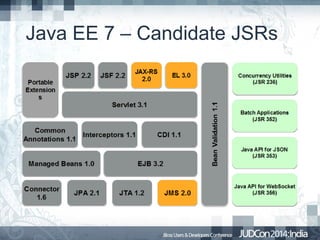

3. Java EE 7 – Candidate JSRs

4. Java EE, Past, Present & Future

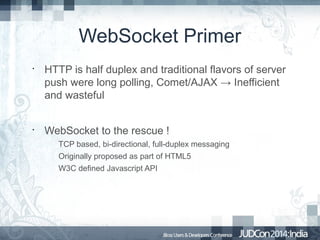

5. WebSocket Primer
•
•
HTTP is half duplex and traditional flavors of server
push were long polling, Comet/AJAX → Inefficient
and wasteful
WebSocket to the rescue !
TCP based, bi-directional, full-duplex messaging
Originally proposed as part of HTML5
W3C defined Javascript API

6. WebSocket Primer
•
In 4 lines
Establish connection (Single TCP Connection)
Send messages in both directions (Bi-directional)
Send messages independent of each other (Full Duplex)
End Connection

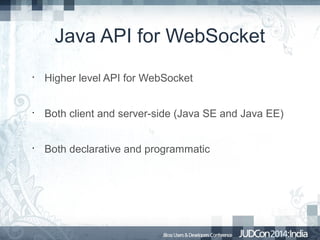

7. Java API for WebSocket
•
Higher level API for WebSocket
•
Both client and server-side (Java SE and Java EE)
•
Both declarative and programmatic

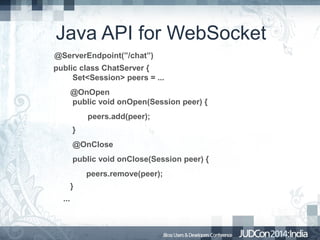

8. Java API for WebSocket
@ServerEndpoint(”/chat”)
public class ChatServer {
Set<Session> peers = ...
@OnOpen
public void onOpen(Session peer) {
peers.add(peer);
}
@OnClose
public void onClose(Session peer) {
peers.remove(peer);
}
...

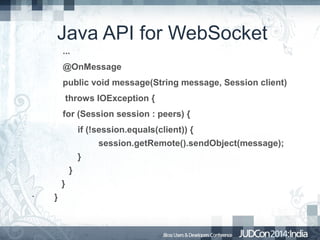

9. Java API for WebSocket
...
@OnMessage
public void message(String message, Session client)
throws IOException {
for (Session session : peers) {
if (!session.equals(client)) {
session.getRemote().sendObject(message);
}
}
}
•
}

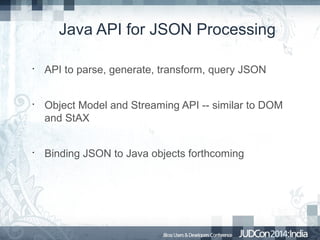

10. Java API for JSON Processing
•
•
•
API to parse, generate, transform, query JSON
Object Model and Streaming API -- similar to DOM
and StAX
Binding JSON to Java objects forthcoming

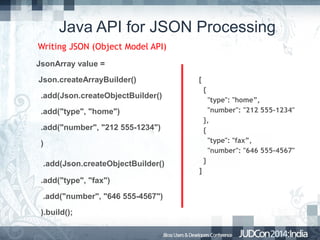

11. Java API for JSON Processing
Writing JSON (Object Model API)
JsonArray value =
Json.createArrayBuilder()
[
{
.add(Json.createObjectBuilder()
"type": "home”,
"number": "212 555-1234"
},
{
"type": "fax”,
"number": "646 555-4567"
}
.add("type", "home")
.add("number", "212 555-1234")
)
.add(Json.createObjectBuilder()
.add("type", "fax")
.add("number", "646 555-4567")
).build();
]

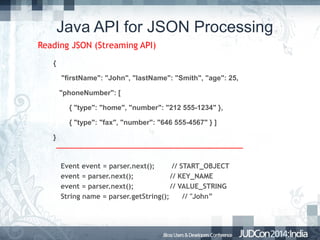

12. Java API for JSON Processing
Reading JSON (Streaming API)
{
"firstName": "John", "lastName": "Smith", "age": 25,
"phoneNumber": [
{ "type": "home", "number": "212 555-1234" },
{ "type": "fax", "number": "646 555-4567" } ]
}
Event event = parser.next();
// START_OBJECT
event = parser.next();
// KEY_NAME
event = parser.next();
// VALUE_STRING
String name = parser.getString();
// "John”

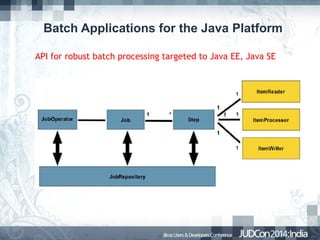

13. Batch Applications for the Java Platform
API for robust batch processing targeted to Java EE, Java SE

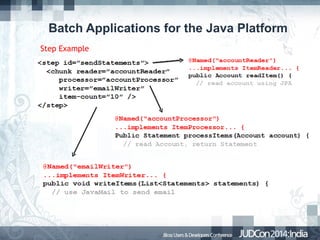

14. Batch Applications for the Java Platform
Step Example

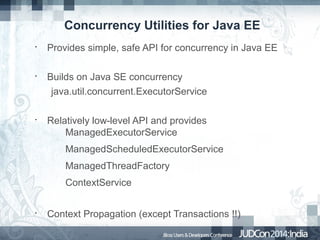

15. Concurrency Utilities for Java EE
•
•
•
Provides simple, safe API for concurrency in Java EE
Builds on Java SE concurrency
java.util.concurrent.ExecutorService
Relatively low-level API and provides
ManagedExecutorService
ManagedScheduledExecutorService
ManagedThreadFactory
ContextService
•
Context Propagation (except Transactions !!)

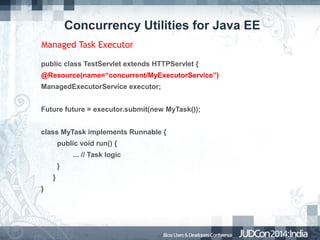

16. Concurrency Utilities for Java EE
Managed Task Executor
public class TestServlet extends HTTPServlet {
@Resource(name=“concurrent/MyExecutorService”)
ManagedExecutorService executor;
Future future = executor.submit(new MyTask());
class MyTask implements Runnable {
public void run() {
... // Task logic
}
}
}

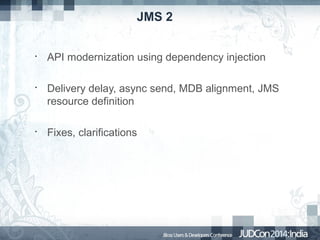

17. JMS 2
•
•
•
API modernization using dependency injection
Delivery delay, async send, MDB alignment, JMS
resource definition
Fixes, clarifications

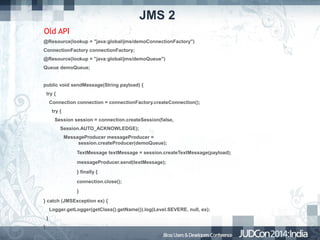

18. JMS 2
Old API
@Resource(lookup = "java:global/jms/demoConnectionFactory")
ConnectionFactory connectionFactory;
@Resource(lookup = "java:global/jms/demoQueue")
Queue demoQueue;
public void sendMessage(String payload) {
try {
Connection connection = connectionFactory.createConnection();
try {
Session session = connection.createSession(false,
Session.AUTO_ACKNOWLEDGE);
MessageProducer messageProducer =
session.createProducer(demoQueue);
TextMessage textMessage = session.createTextMessage(payload);
messageProducer.send(textMessage);
} finally {
connection.close();
}
} catch (JMSException ex) {
Logger.getLogger(getClass().getName()).log(Level.SEVERE, null, ex);
}
}

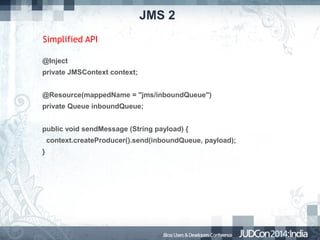

19. JMS 2
Simplified API
@Inject
private JMSContext context;
@Resource(mappedName = "jms/inboundQueue")
private Queue inboundQueue;
public void sendMessage (String payload) {
context.createProducer().send(inboundQueue, payload);
}

20. JMS 2
JMS Resource Definition
@JMSConnectionFactoryDefinition(
name="java:global/jms/demoConnectionFactory",
interfaceName= "javax.jms.ConnectionFactory",
description="ConnectionFactory to use in demonstration")
@JMSDestinationDefinition(
name = "java:global/jms/demoQueue",
description = "Queue to use in demonstration",
interfaceName = "javax.jms.Queue",
destinationName="demoQueue")

21. JMS 2/EJB 3.2
More Standard MDB Properties
@MessageDriven(activationConfig = {
@ActivationConfigProperty(propertyName = "destinationType",
propertyValue = "javax.jms.Queue"),
@ActivationConfigProperty(
propertyName = "destinationLookup",
propertyValue = "jms/OrderQueue"),
@ActivationConfigProperty(
propertyName = "connectionFactoryLookup",
propertyValue = "jms/MyConnectionFactory")})
public class OrderListener implements MessageListener {
...
public void onMessage(Message message) { ... }
...
}

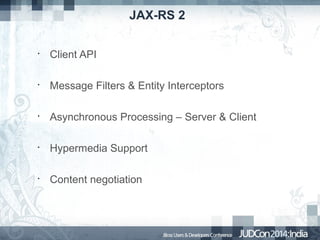

22. JAX-RS 2
•
Client API
•
Message Filters & Entity Interceptors
•
Asynchronous Processing – Server & Client
•
Hypermedia Support
•
Content negotiation

23. JAX-RS 2
Client API
// Get instance of Client
Client client = ClientBuilder.newClient();
// Get customer name for the shipped products
String name = client.target(“../orders/{orderId}/customer”)
.pathParam(”orderId", ”10”)
.queryParam(”shipped", ”true”)
.request()
.get(String.class);

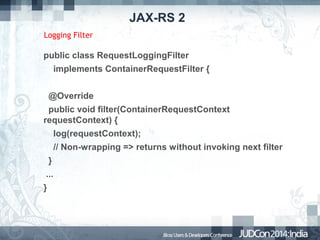

24. JAX-RS 2
Logging Filter
public class RequestLoggingFilter
implements ContainerRequestFilter {
@Override
public void filter(ContainerRequestContext
requestContext) {
log(requestContext);
// Non-wrapping => returns without invoking next filter
}
...
}

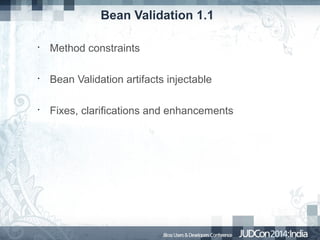

25. Bean Validation 1.1
•
Method constraints
•
Bean Validation artifacts injectable
•
Fixes, clarifications and enhancements

26. Bean Validation 1.1
Method Level Constraints
public void placeOrder(
@NotNull String productName,
@NotNull @Max(“10”) Integer quantity,
@Customer String customer) {
...
}
@Future
public Date getAppointment() {
...
}

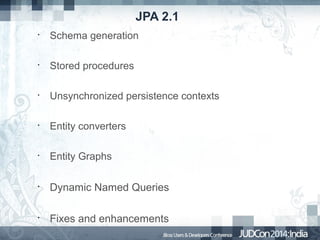

27. JPA 2.1
•
Schema generation
•
Stored procedures
•
Unsynchronized persistence contexts
•
Entity converters
•
Entity Graphs
•
Dynamic Named Queries
•
Fixes and enhancements

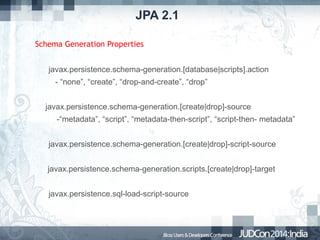

28. JPA 2.1
Schema Generation Properties
javax.persistence.schema-generation.[database|scripts].action
- “none”, “create”, “drop-and-create”, “drop”
javax.persistence.schema-generation.[create|drop]-source
-“metadata”, “script”, “metadata-then-script”, “script-then- metadata”
javax.persistence.schema-generation.[create|drop]-script-source
javax.persistence.schema-generation.scripts.[create|drop]-target
javax.persistence.sql-load-script-source

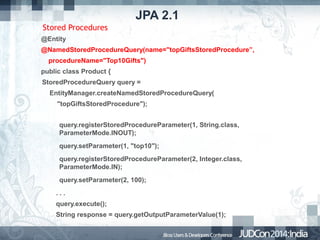

29. JPA 2.1
Stored Procedures
@Entity
@NamedStoredProcedureQuery(name="topGiftsStoredProcedure”,
procedureName="Top10Gifts")
public class Product {
StoredProcedureQuery query =
EntityManager.createNamedStoredProcedureQuery(
"topGiftsStoredProcedure");
query.registerStoredProcedureParameter(1, String.class,
ParameterMode.INOUT);
query.setParameter(1, "top10");
query.registerStoredProcedureParameter(2, Integer.class,
ParameterMode.IN);
query.setParameter(2, 100);
...
query.execute();
String response = query.getOutputParameterValue(1);

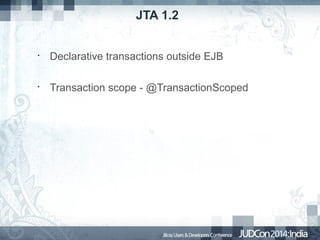

30. JTA 1.2
•
Declarative transactions outside EJB
•
Transaction scope - @TransactionScoped

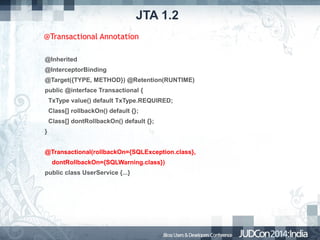

31. JTA 1.2
@Transactional Annotation
@Inherited
@InterceptorBinding
@Target({TYPE, METHOD}) @Retention(RUNTIME)
public @interface Transactional {
TxType value() default TxType.REQUIRED;
Class[] rollbackOn() default {};
Class[] dontRollbackOn() default {};
}
@Transactional(rollbackOn={SQLException.class},
dontRollbackOn={SQLWarning.class})
public class UserService {...}

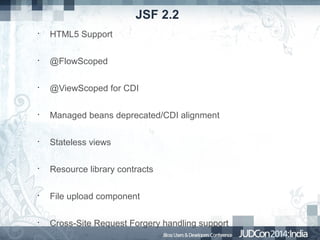

32. JSF 2.2
•
HTML5 Support
•
@FlowScoped
•
@ViewScoped for CDI
•
Managed beans deprecated/CDI alignment
•
Stateless views
•
Resource library contracts
•
File upload component
•
Cross-Site Request Forgery handling support

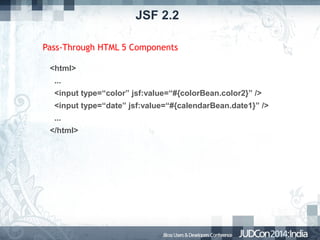

33. JSF 2.2
Pass-Through HTML 5 Components
<html>
...
<input type=“color” jsf:value=“#{colorBean.color2}” />
<input type=“date” jsf:value=“#{calendarBean.date1}” />
...
</html>

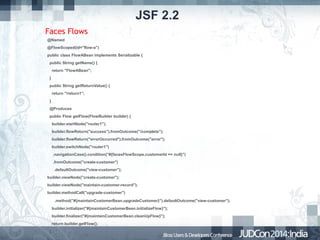

34. JSF 2.2
Faces Flows
@Named
@FlowScoped(id="flow-a")
public class FlowABean implements Serializable {
public String getName() {
return "FlowABean";
}
public String getReturnValue() {
return "/return1";
}
@Produces
public Flow getFlow(FlowBuilder builder) {
builder.startNode("router1");
builder.flowReturn("success").fromOutcome("/complete");
builder.flowReturn("errorOccurred").fromOutcome("error");
builder.switchNode("router1")
.navigationCase().condition("#{facesFlowScope.customerId == null}")
.fromOutcome("create-customer")
.defaultOutcome("view-customer");
builder.viewNode("create-customer");
builder.viewNode("maintain-customer-record");
builder.methodCall("upgrade-customer")
.method("#{maintainCustomerBean.upgradeCustomer}").defaultOutcome("view-customer");
builder.initializer("#{maintainCustomerBean.initializeFlow}");
builder.finalizer("#{maintainCustomerBean.cleanUpFlow}");
return builder.getFlow();
•
•
}

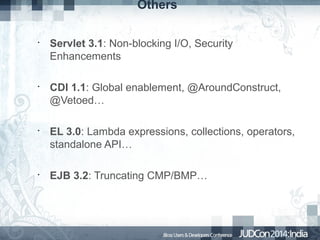

35. Others
•
•
•
•
Servlet 3.1: Non-blocking I/O, Security
Enhancements
CDI 1.1: Global enablement, @AroundConstruct,
@Vetoed…
EL 3.0: Lambda expressions, collections, operators,
standalone API…
EJB 3.2: Truncating CMP/BMP…

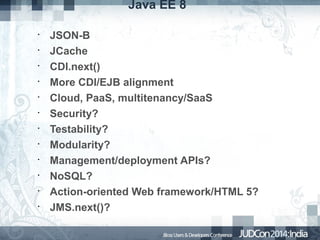

36. Java EE 8
•
•
•
•
•
•
•
•
•
•
•
•
JSON-B
JCache
CDI.next()
More CDI/EJB alignment
Cloud, PaaS, multitenancy/SaaS
Security?
Testability?
Modularity?
Management/deployment APIs?
NoSQL?
Action-oriented Web framework/HTML 5?
JMS.next()?

37. Resources
•
Java EE Tutorials
http://docs.oracle.com/javaee/7/tutorial/doc/home.htm
http://www.programming-simplified.com/index.html
•
Digging Deeper
http://docs.oracle.com/javaee/7/firstcup/doc/home.htm
https://glassfish.java.net/hol/
https://java.net/projects/cargotracker/
•
Java EE 7 Transparent Expert Groups
http://javaee-spec.java.net
•
Java EE 7 Reference Implementation
http://glassfish.org

38. Cargo Tracker
Planned Reference Architectural Blueprint for Java EE 7
utilizing DDD
•
•
•
•
Clean DDD design utilizing almost all the JSRs for Java
EE 7
Demonstrates building of modern mobile/desktop
applications utilizing Java EE 7
Project code is available at
https://java.net/projects/cargotracker/pages/Home
Contributors/Reviewers needed. Ask Reza
Rahman/myself for more details
