What Would Lucky Luke Code? A walkthrough of the tools and tricks we use to maximize performance when building Drupal sites, both backend and frontend

1. WWLLC
What Would
Lucky Luke Code?
Create Drupal sites
with good
performance

2. Henrik
Developer
Mostly backend
@FrontHenrik

3. Frank
Web designer
Mostly front-end
@fragje

4. The frontkom family
Per André Rønsen
Marco Fernandes
CIO/Chief Innovation Officer
Senior Web developer
Fredrik Paus
Élio Cró
Jan-Helge Hansen
COO/Project Manager
Web Developer
Infrastructure / support
Thor André Gretland
Roberto Ornelas
Support & Training
CTO Senior developer
Fábio Neves
Geir Gulland
Hélder Mendes
Bruno Campos
CEO / Web strategist
Web Designer
Web developer
Frank Gjertsen
Elisabeth Gulland
Wilma
Web Designer
Accountant
QA Engineer ;)
Henrik Akselsen
JS/Mobile UX
Web developer

5. Fredrikstad | Madeira

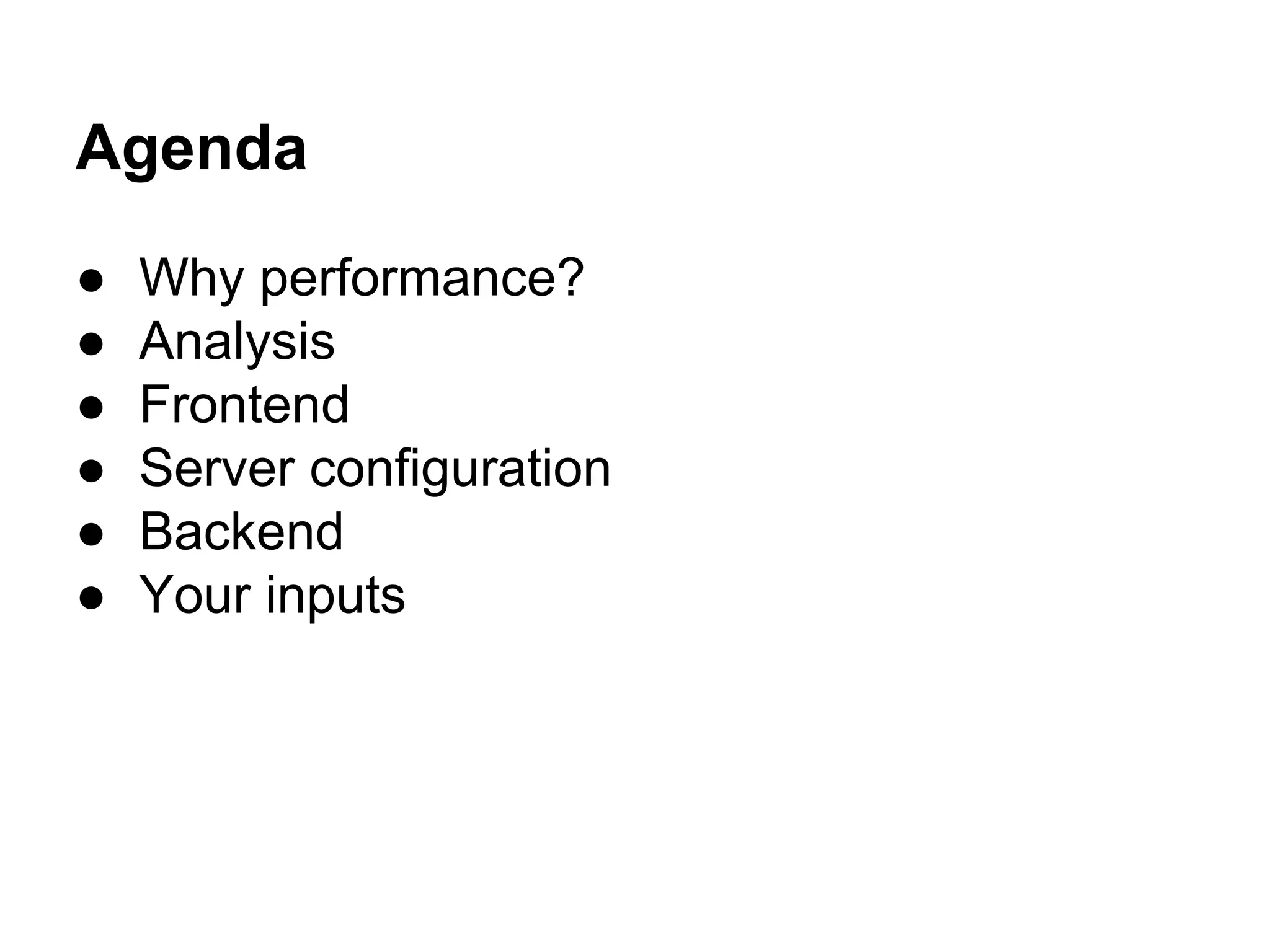

6. Agenda
●
●
●
●
●
●
Why performance?
Analysis
Frontend
Server configuration
Backend
Your inputs

7. SHOWTIME

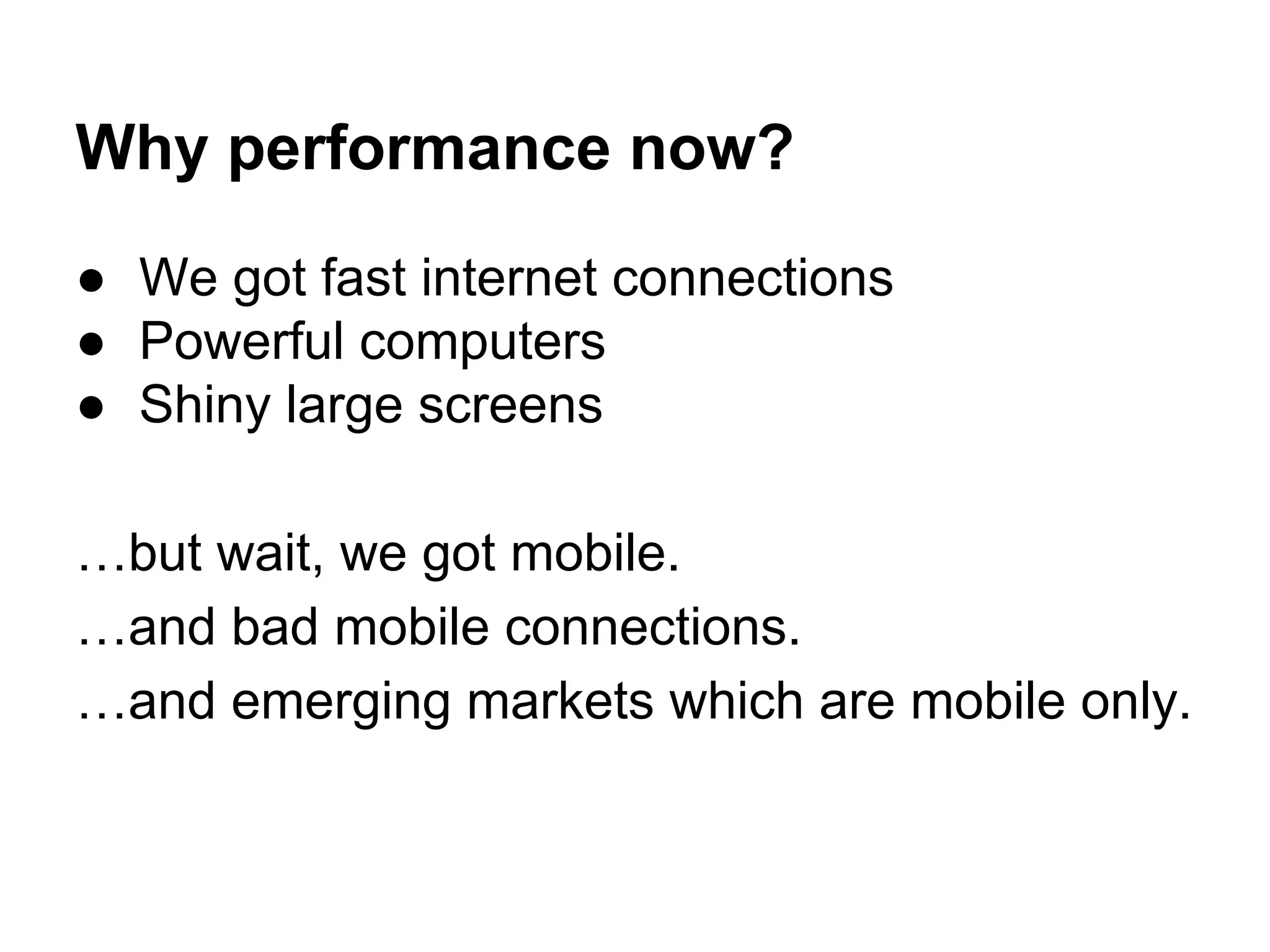

8. Why performance now?
● We got fast internet connections
● Powerful computers
● Shiny large screens
…but wait, we got mobile.
…and bad mobile connections.
…and emerging markets which are mobile only.

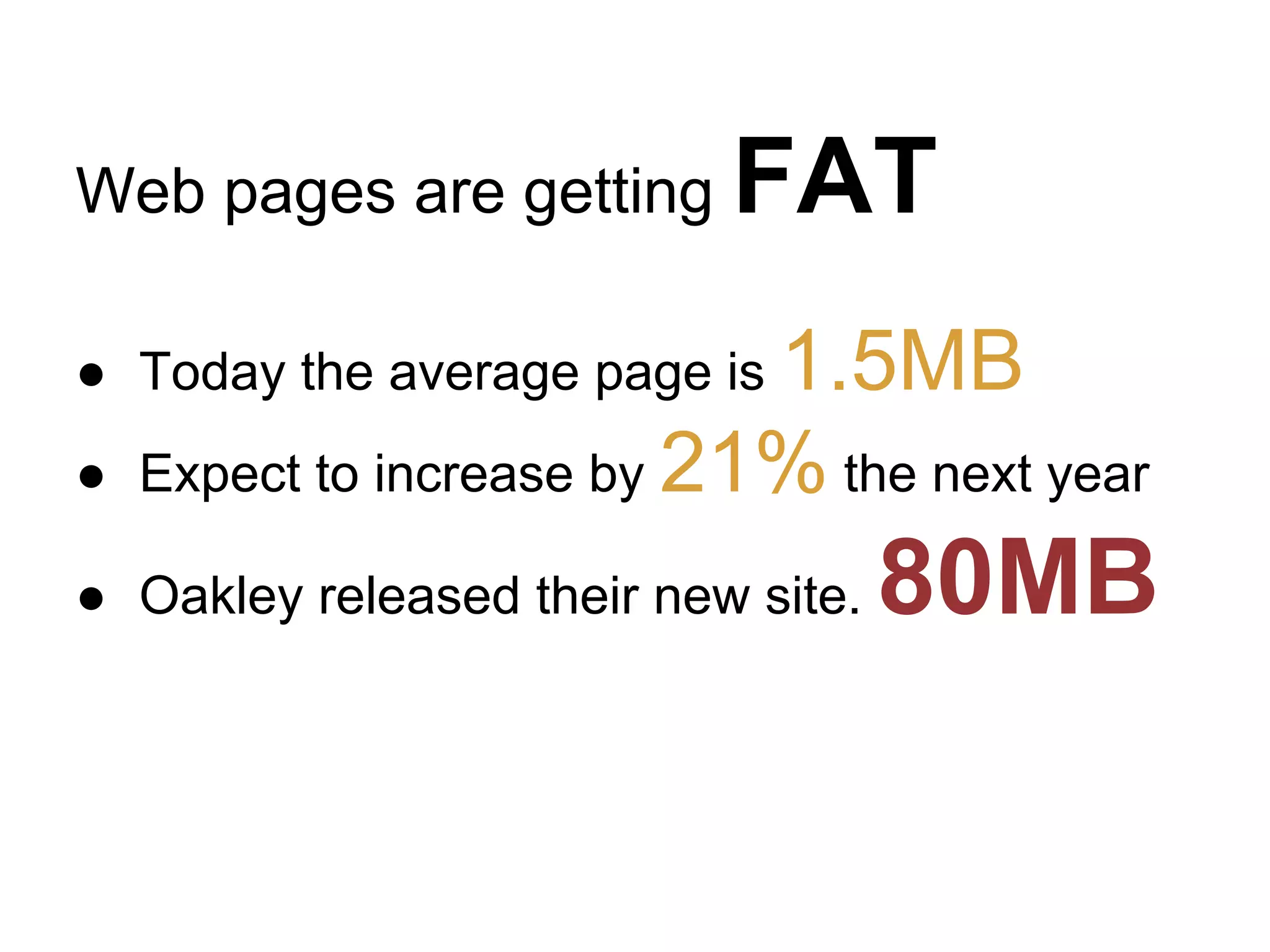

9. Web pages are getting
FAT
1.5MB
Expect to increase by 21% the next year
● Today the average page is
●
● Oakley released their new site.
80MB

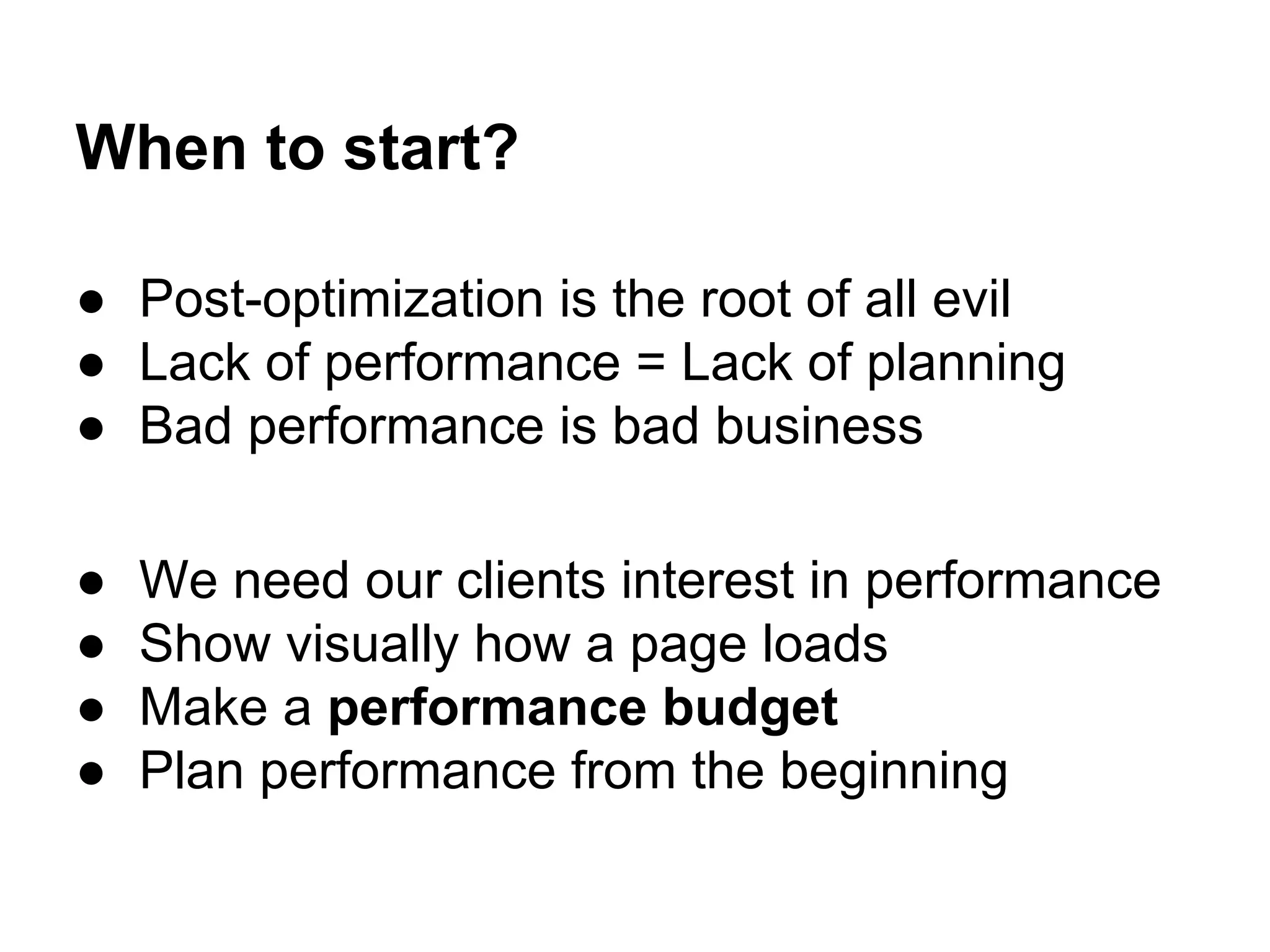

10. When to start?
● Post-optimization is the root of all evil
● Lack of performance = Lack of planning
● Bad performance is bad business
●
●
●
●
We need our clients interest in performance

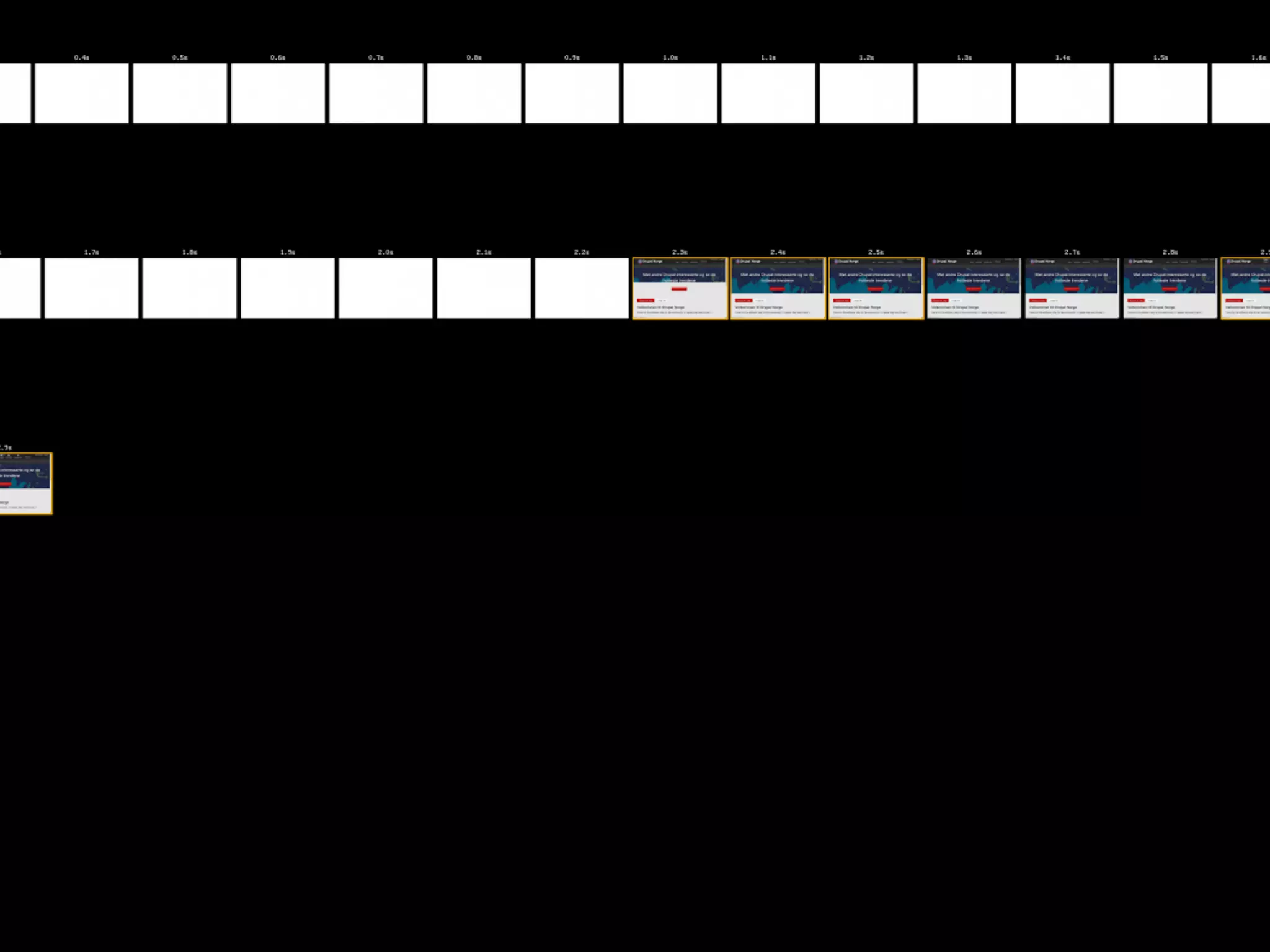

Show visually how a page loads
Make a performance budget
Plan performance from the beginning

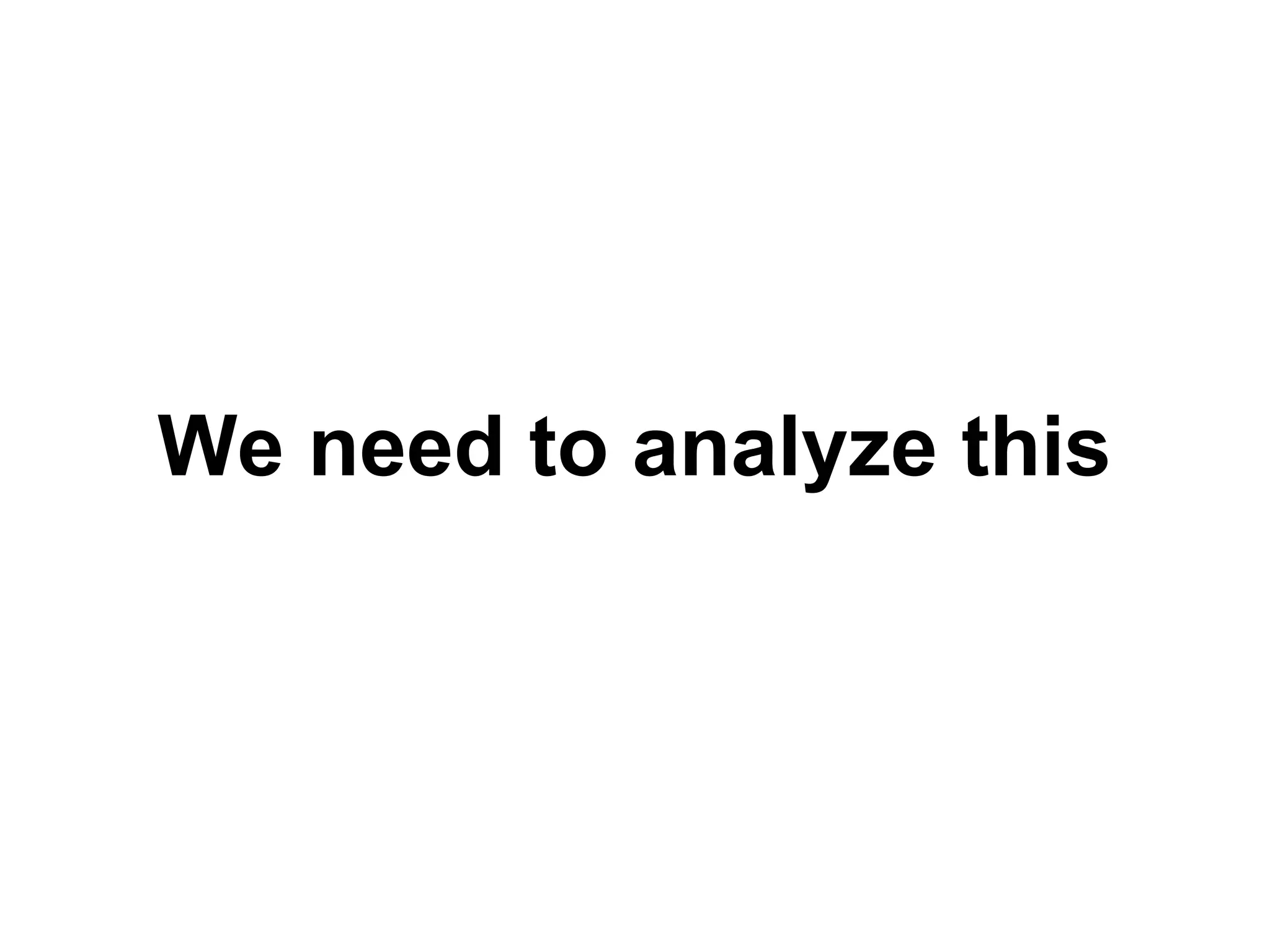

11. We need to analyze this

12. “Yeah, it’s slow, but it’s probably just
[insert wild speculation here]”

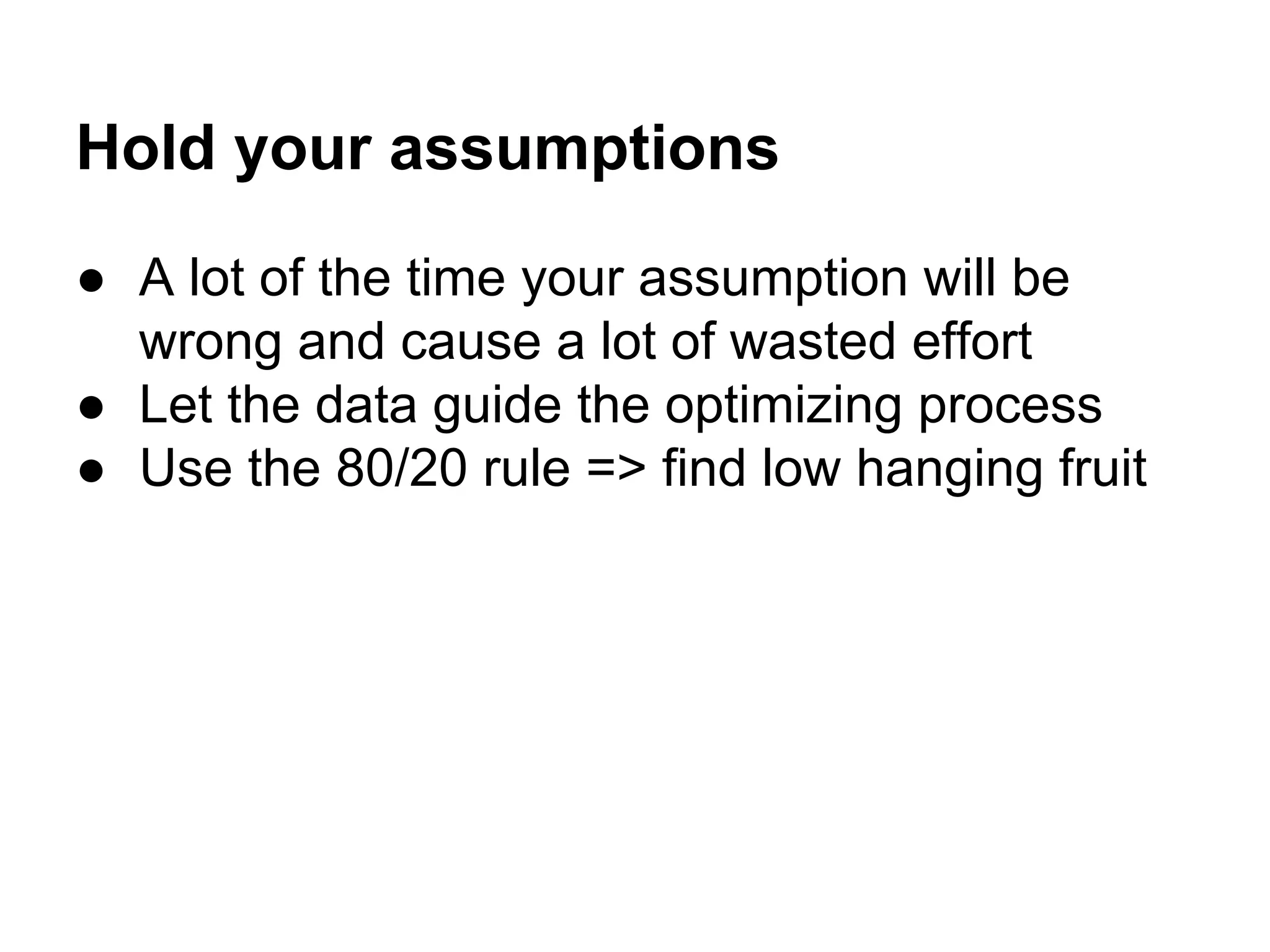

13. Hold your assumptions
● A lot of the time your assumption will be
wrong and cause a lot of wasted effort
● Let the data guide the optimizing process
● Use the 80/20 rule => find low hanging fruit

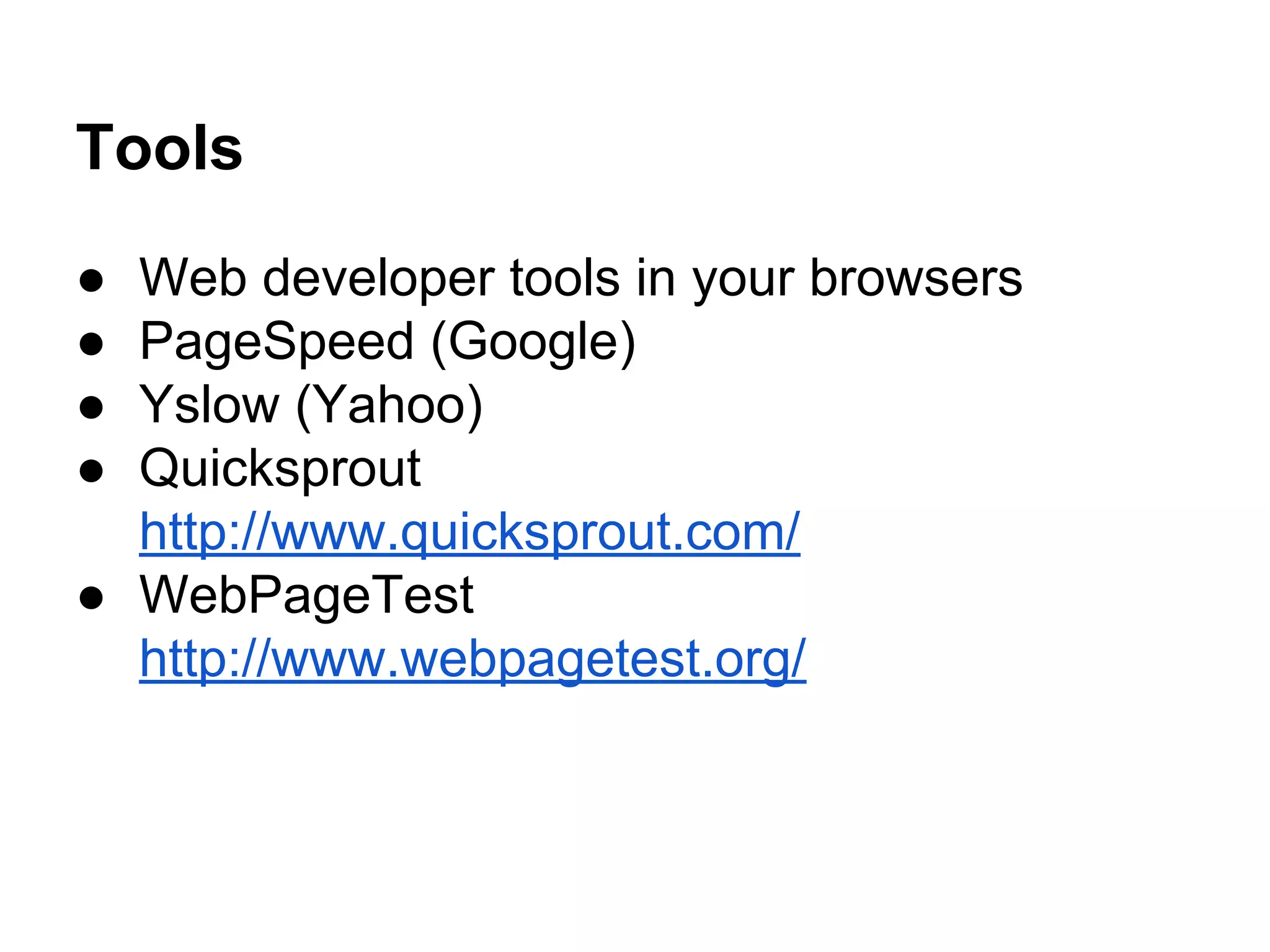

14. Tools
●
●
●
●
Web developer tools in your browsers
PageSpeed (Google)
Yslow (Yahoo)
Quicksprout
http://www.quicksprout.com/
● WebPageTest
http://www.webpagetest.org/

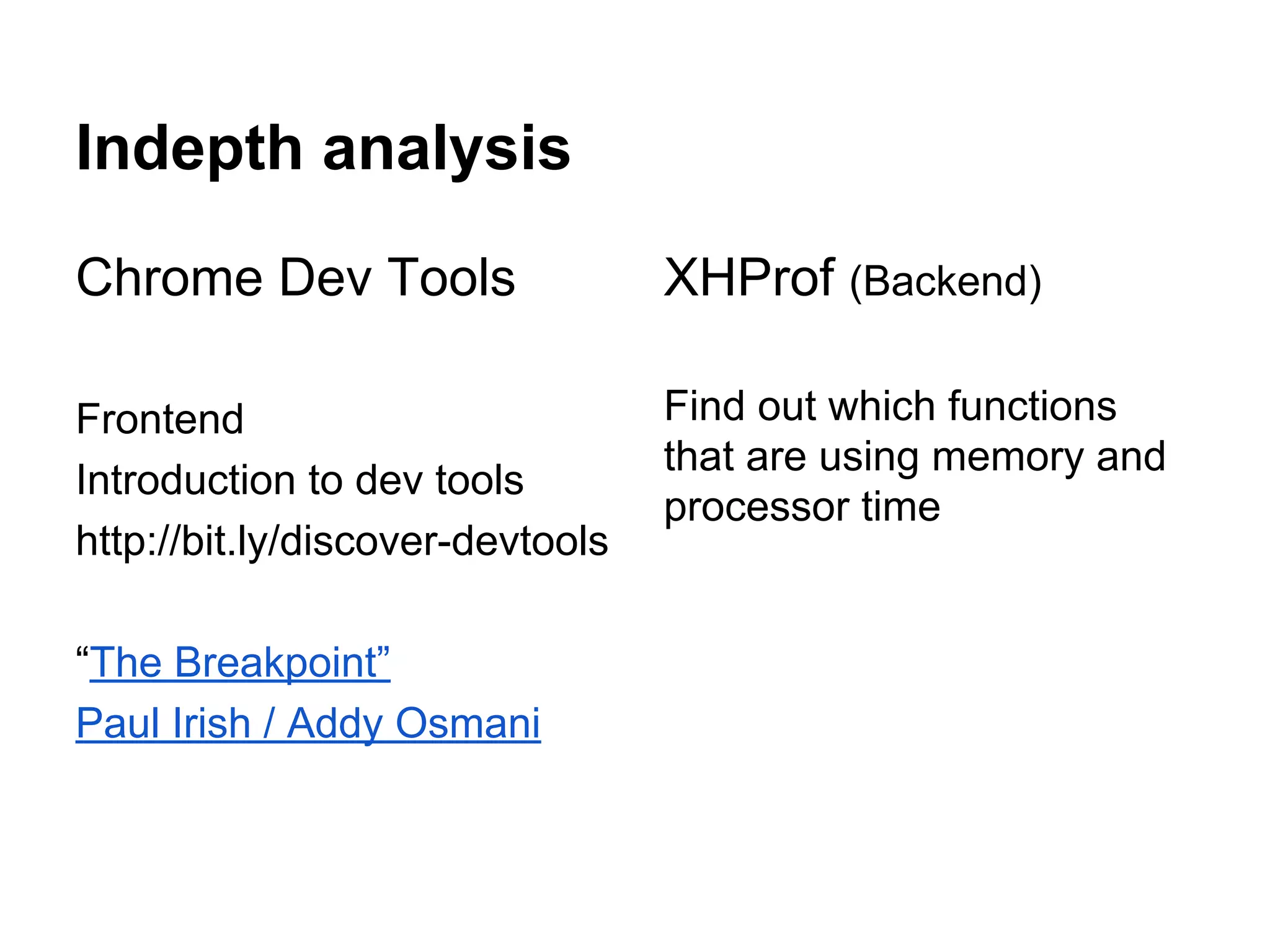

17. Indepth analysis
Chrome Dev Tools
XHProf (Backend)
Frontend
Introduction to dev tools
http://bit.ly/discover-devtools
Find out which functions
that are using memory and
processor time
“The Breakpoint”
Paul Irish / Addy Osmani

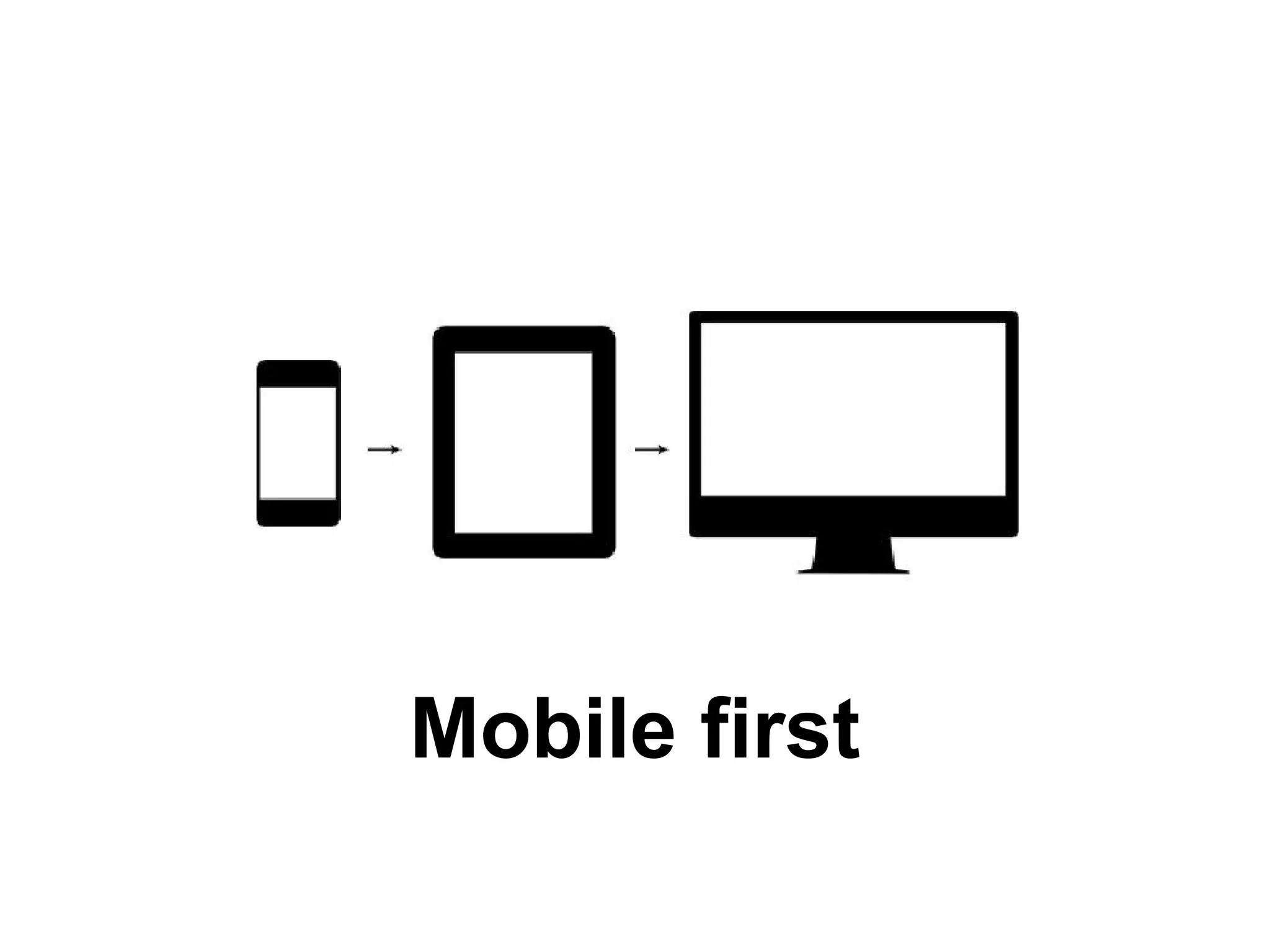

18. Mobile first

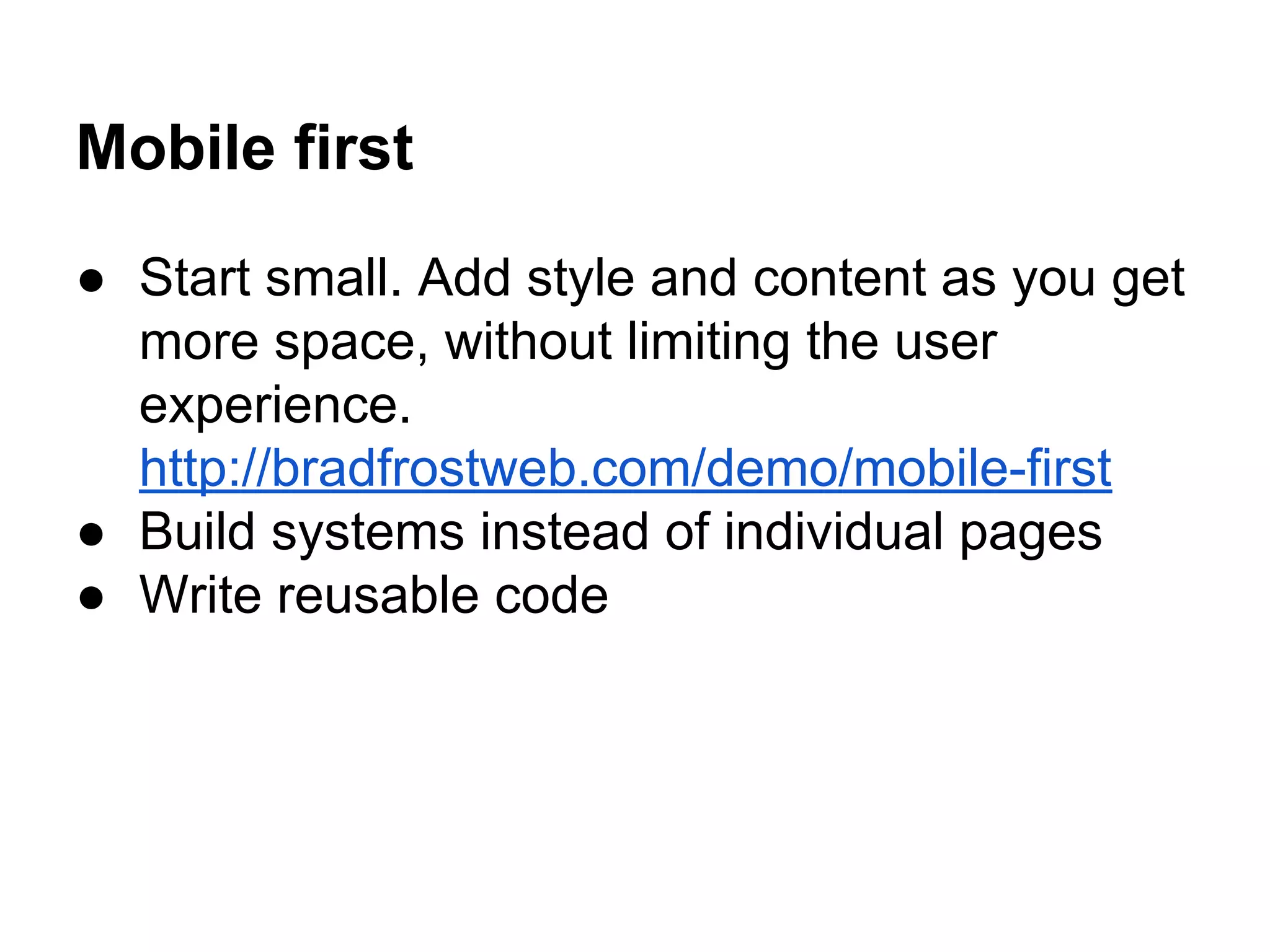

19. Mobile first
● Start small. Add style and content as you get
more space, without limiting the user
experience.
http://bradfrostweb.com/demo/mobile-first
● Build systems instead of individual pages
● Write reusable code

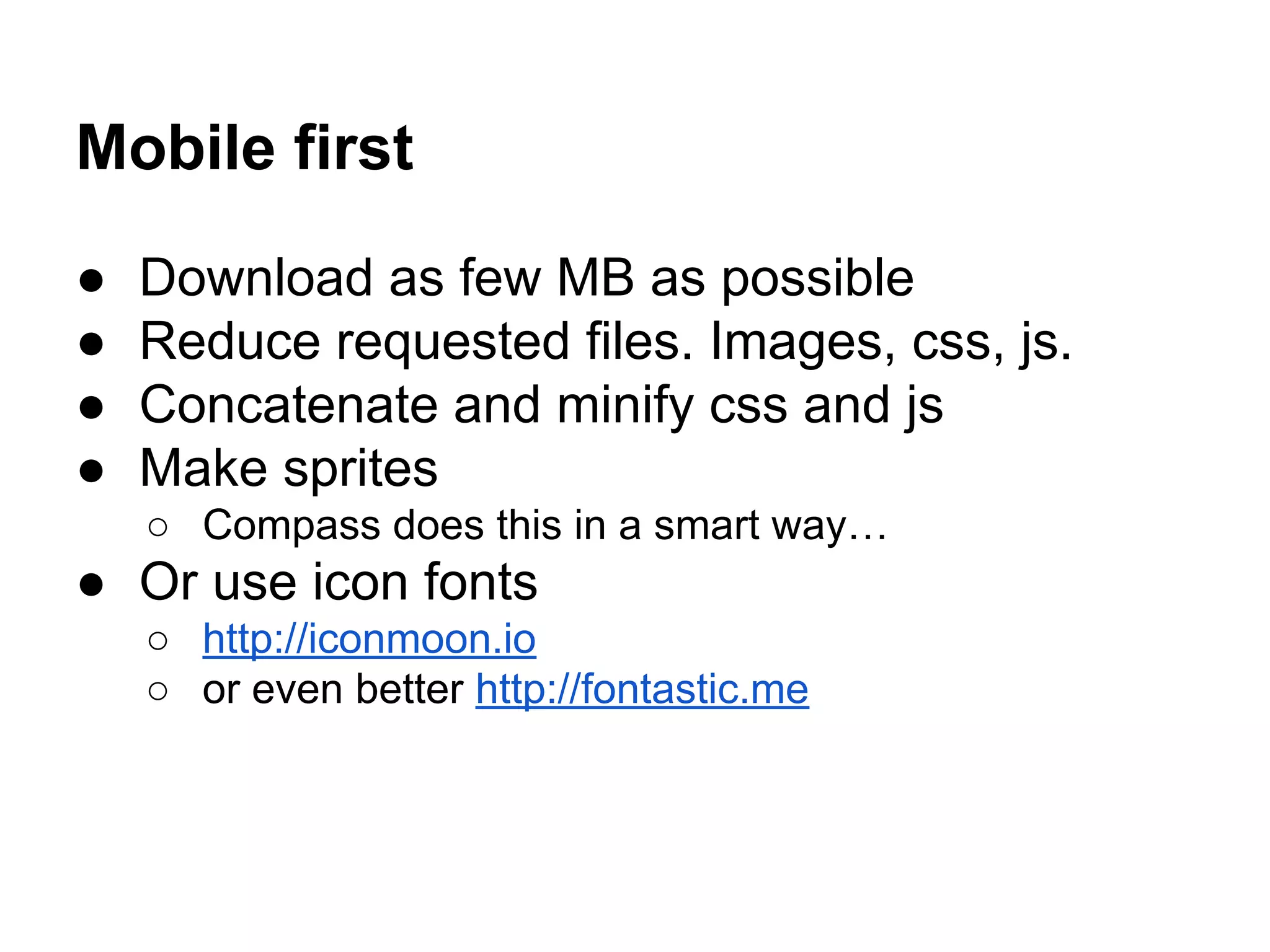

20. Mobile first
●
●
●
●
Download as few MB as possible
Reduce requested files. Images, css, js.
Concatenate and minify css and js
Make sprites
○ Compass does this in a smart way…
● Or use icon fonts
○ http://iconmoon.io
○ or even better http://fontastic.me

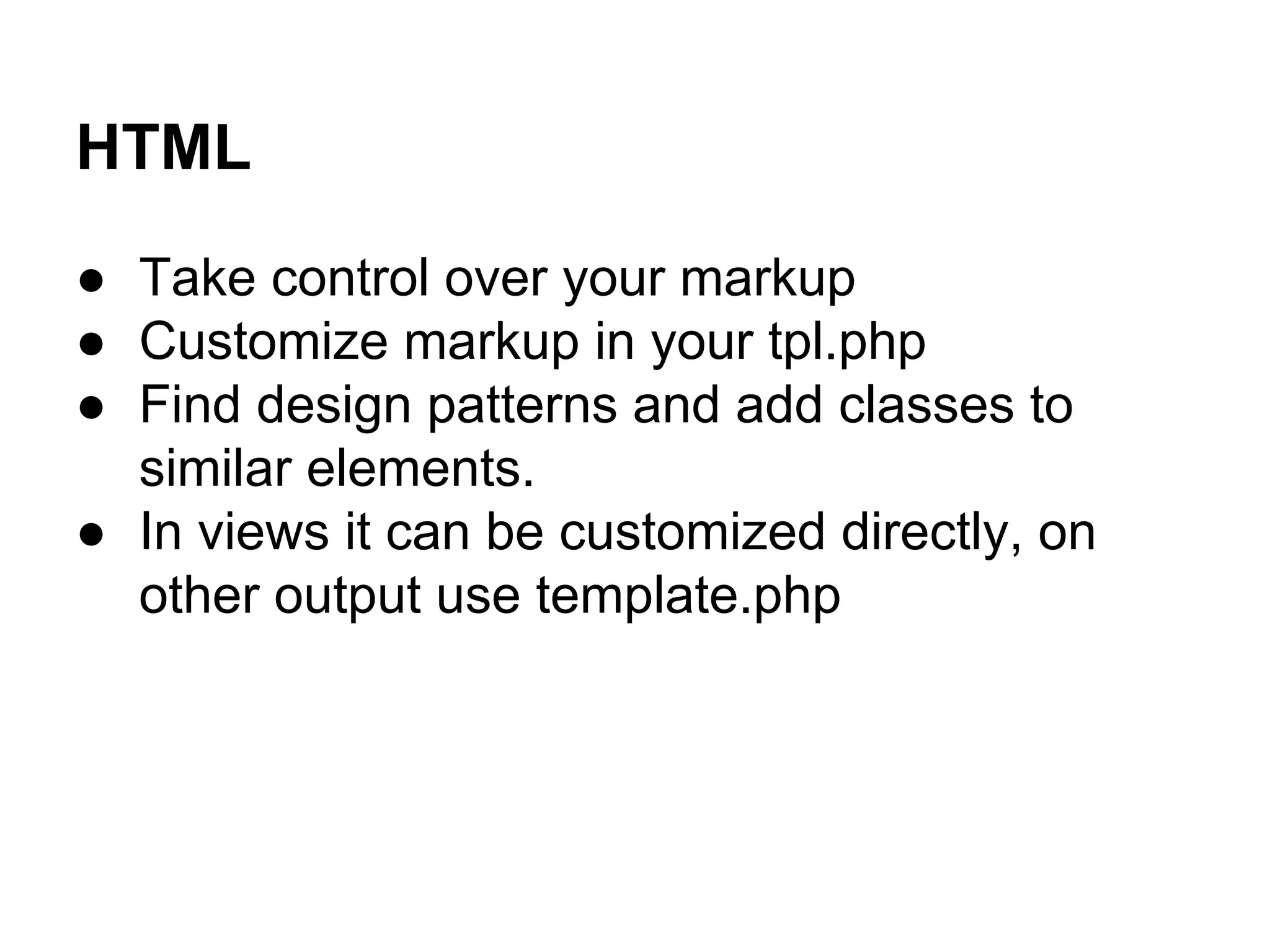

21. HTML
● Take control over your markup
● Customize markup in your tpl.php
● Find design patterns and add classes to
similar elements.
● In views it can be customized directly, on
other output use template.php

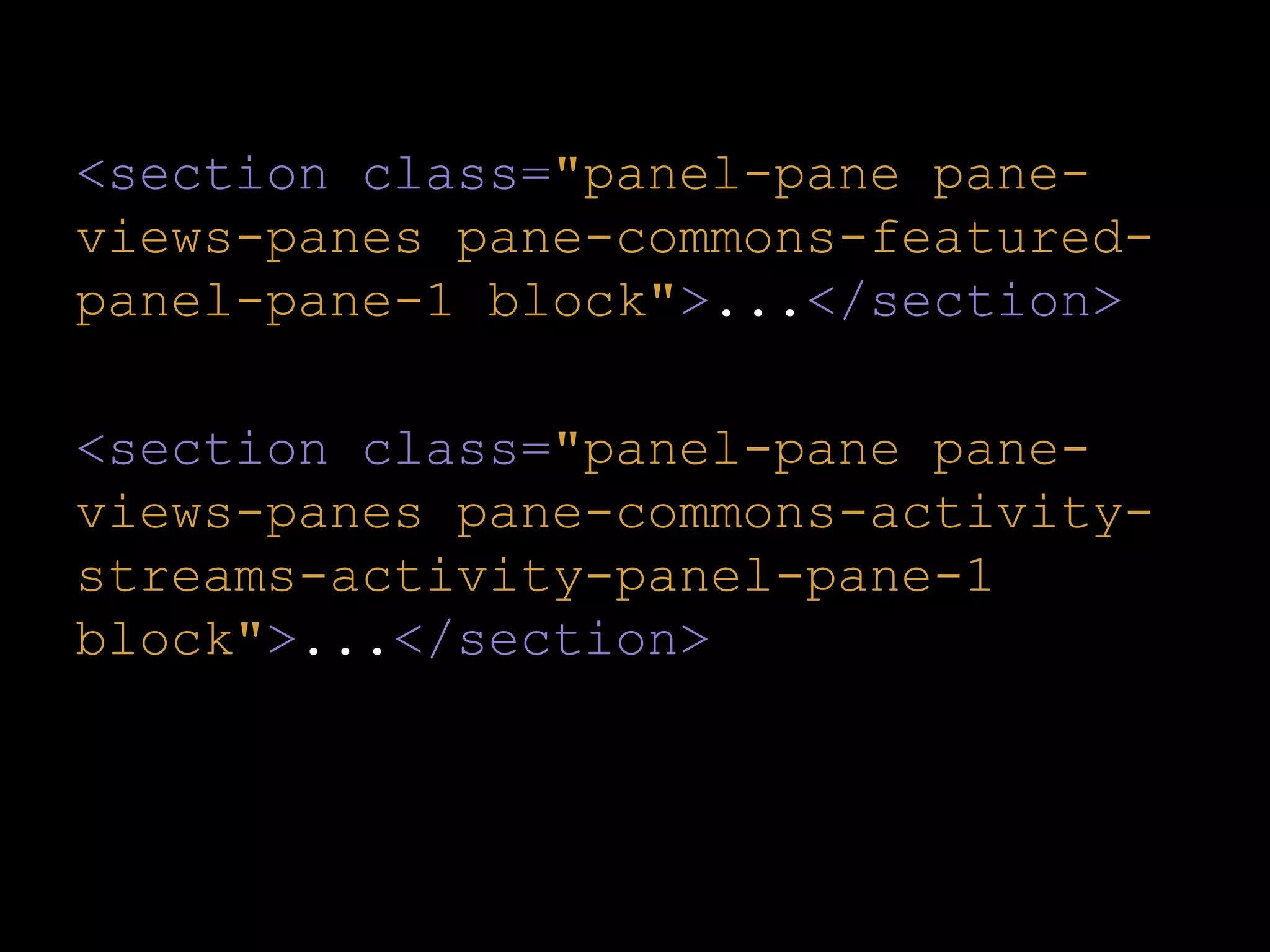

22. <section class="panel-pane paneviews-panes pane-commons-featuredpanel-pane-1 block">...</section>
<section class="panel-pane paneviews-panes pane-commons-activitystreams-activity-panel-pane-1
block">...</section>

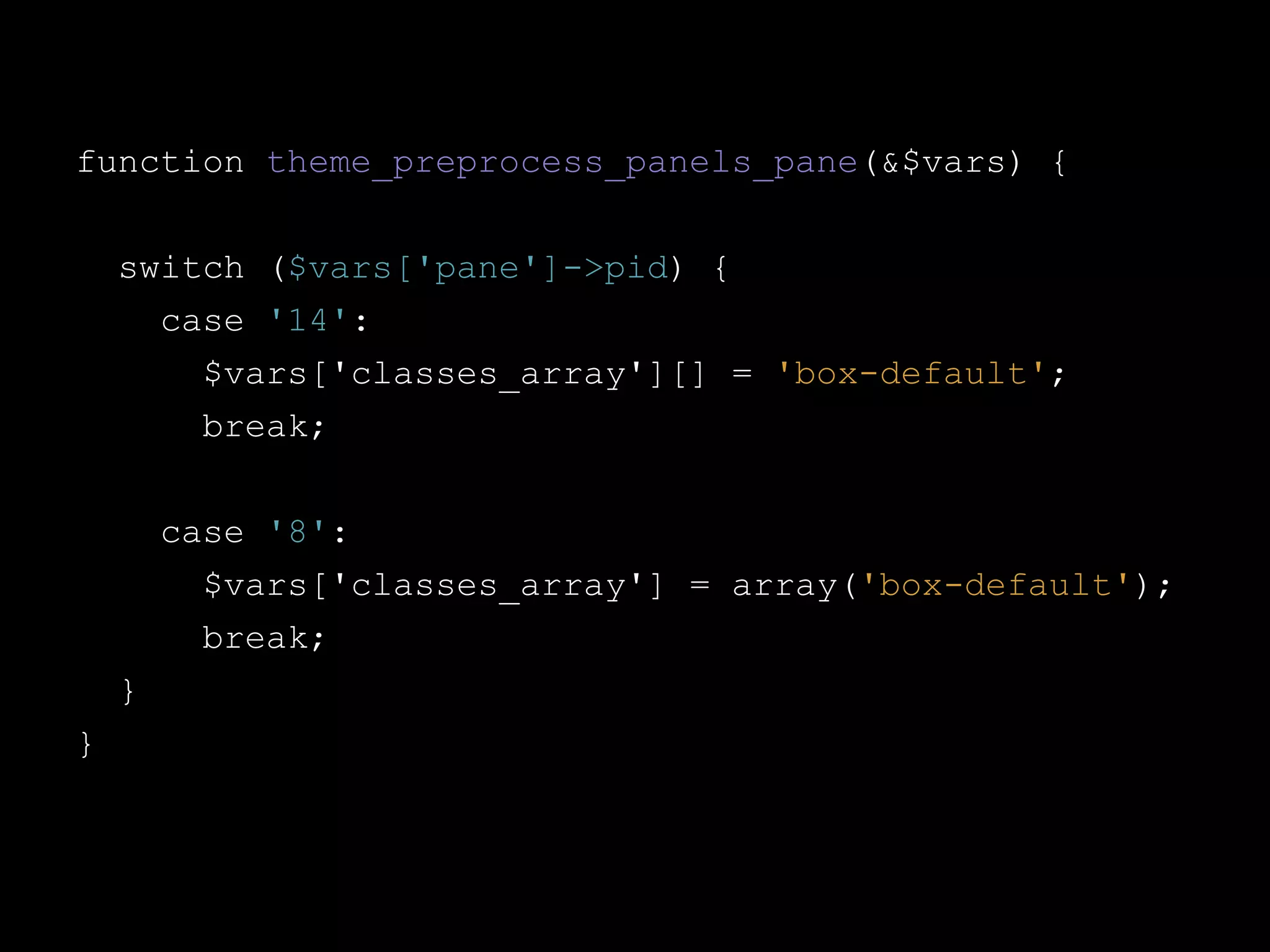

23. function theme_preprocess_panels_pane(&$vars) {
switch ($vars['pane']->pid) {
case '14':
$vars['classes_array'][] = 'box-default';
break;
case '8':
$vars['classes_array'] = array('box-default');
break;
}
}

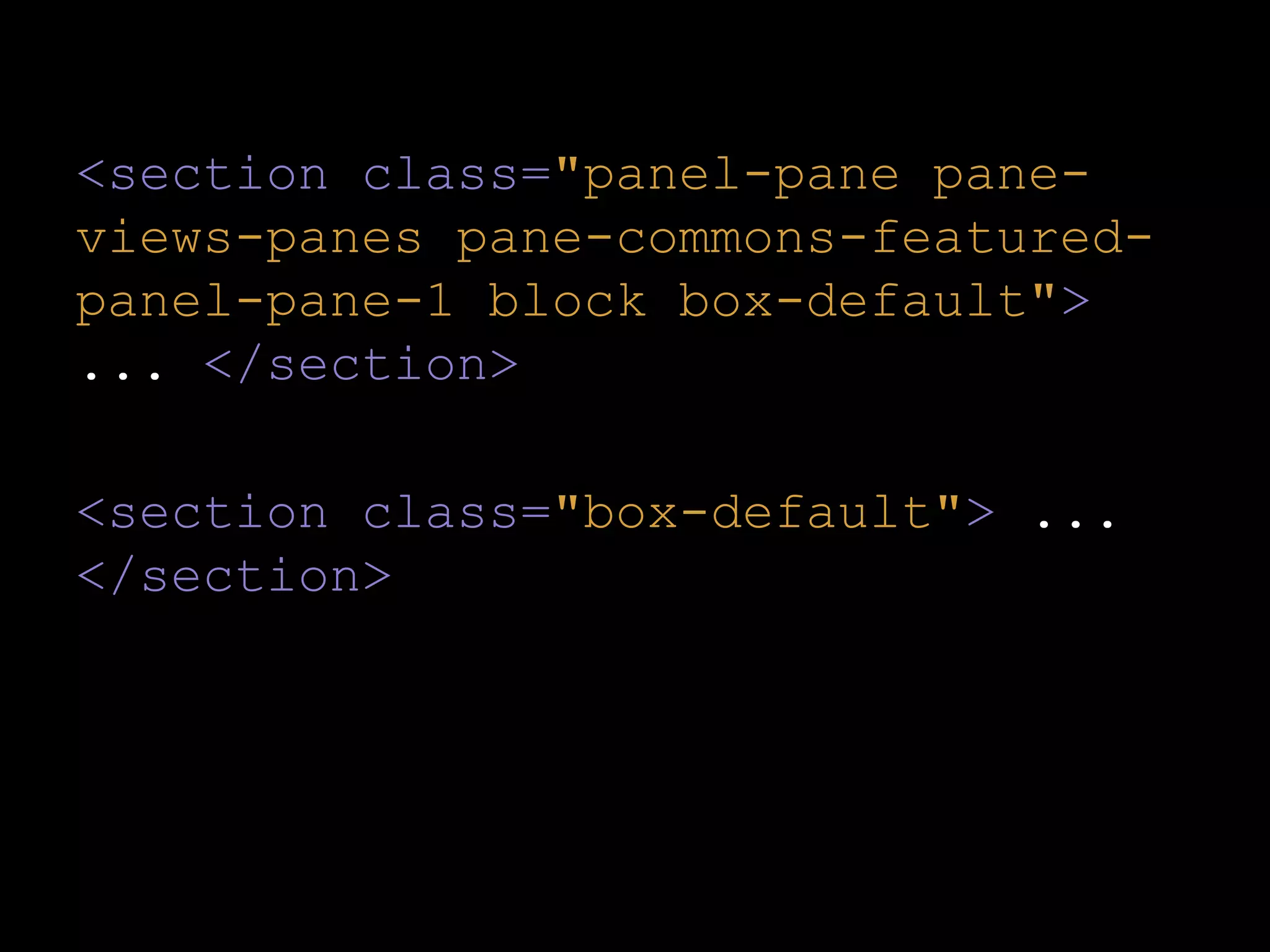

24. <section class="panel-pane paneviews-panes pane-commons-featuredpanel-pane-1 block box-default">
... </section>
<section class="box-default"> ...
</section>

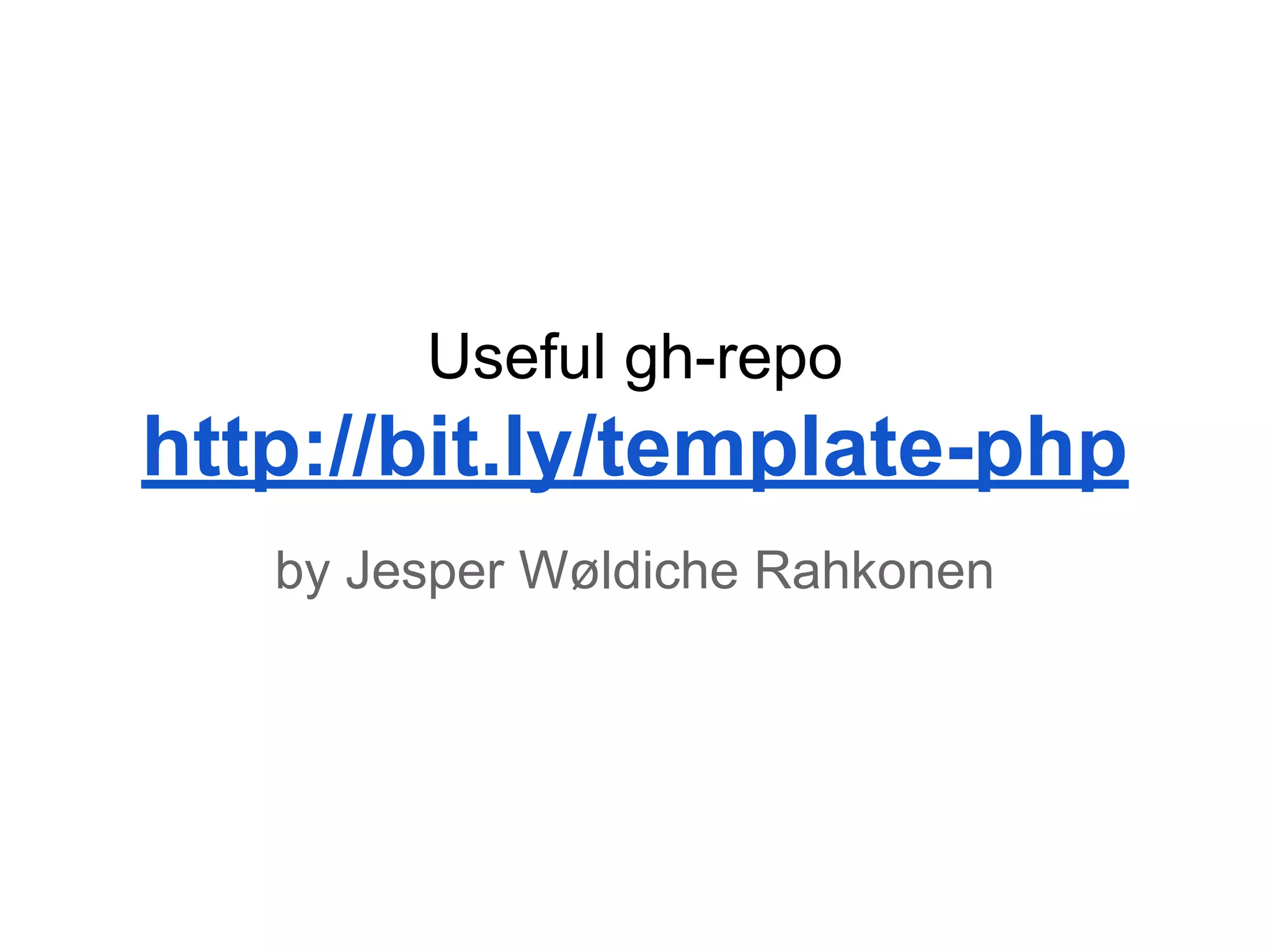

25. Useful gh-repo
http://bit.ly/template-php
by Jesper Wøldiche Rahkonen

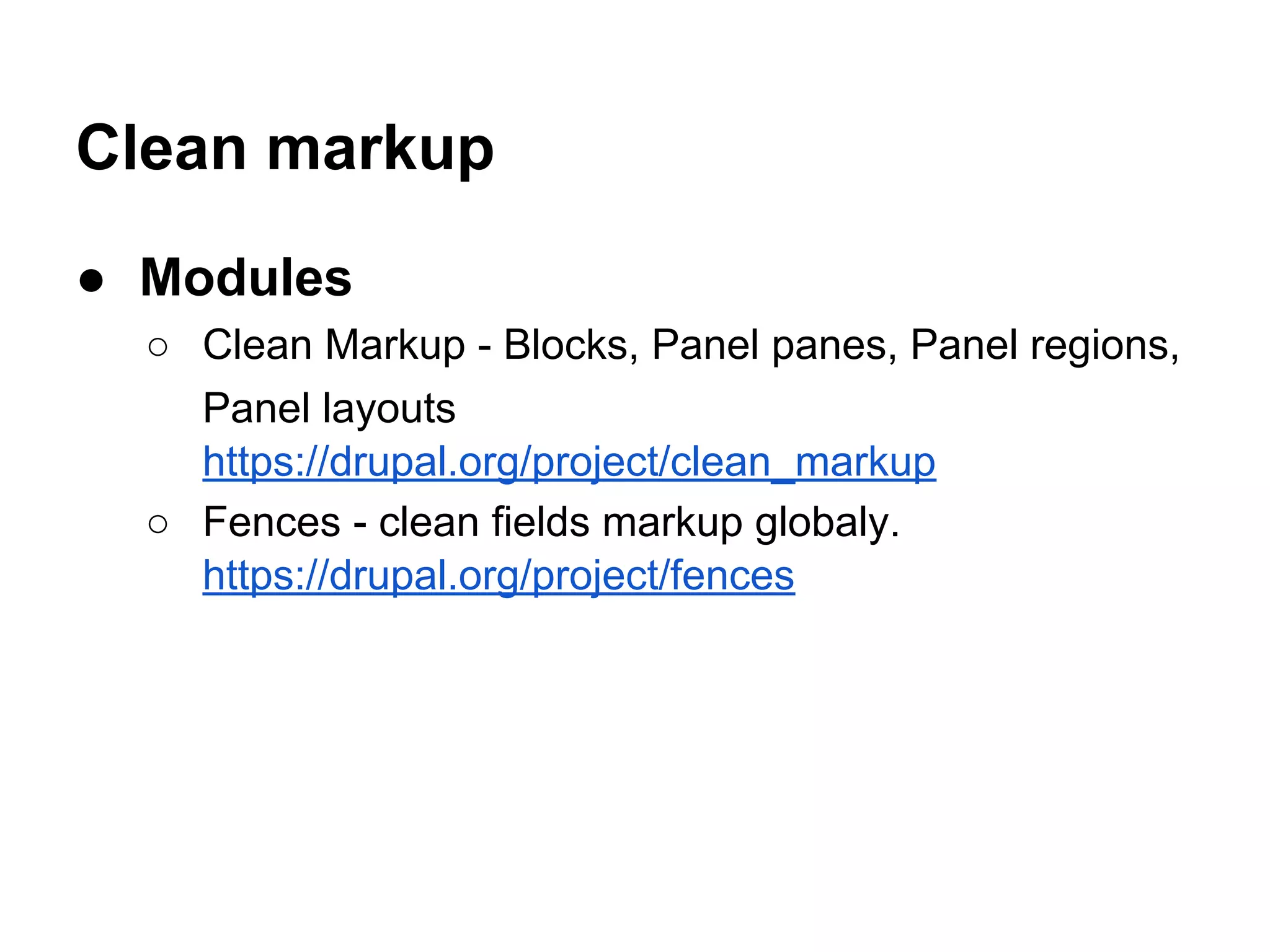

26. Clean markup
● Modules
○ Clean Markup - Blocks, Panel panes, Panel regions,
Panel layouts
https://drupal.org/project/clean_markup
○ Fences - clean fields markup globaly.
https://drupal.org/project/fences

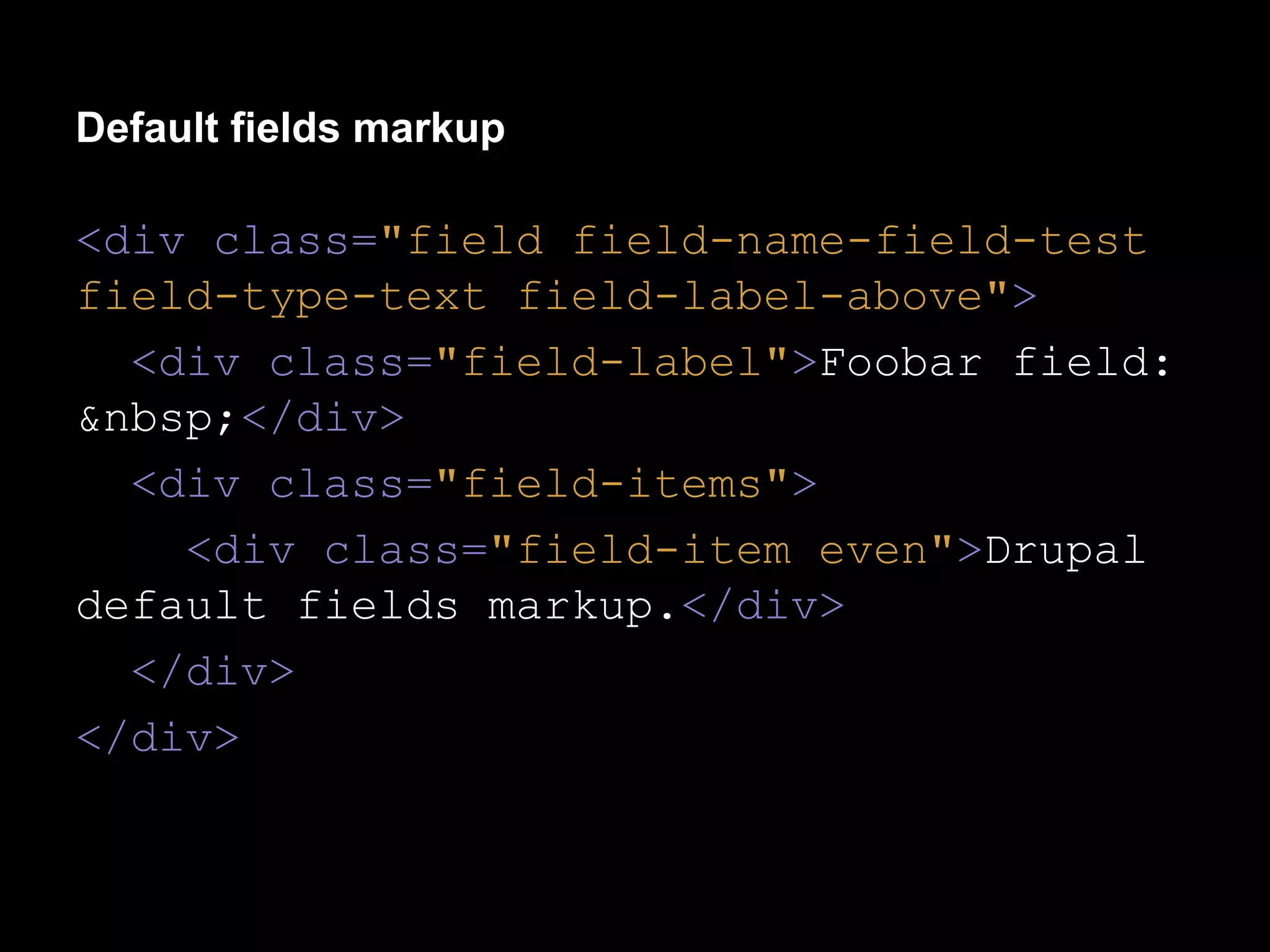

27. Default fields markup
<div class="field field-name-field-test
field-type-text field-label-above">
<div class="field-label">Foobar field:
&nbsp;</div>
<div class="field-items">
<div class="field-item even">Drupal
default fields markup.</div>
</div>
</div>

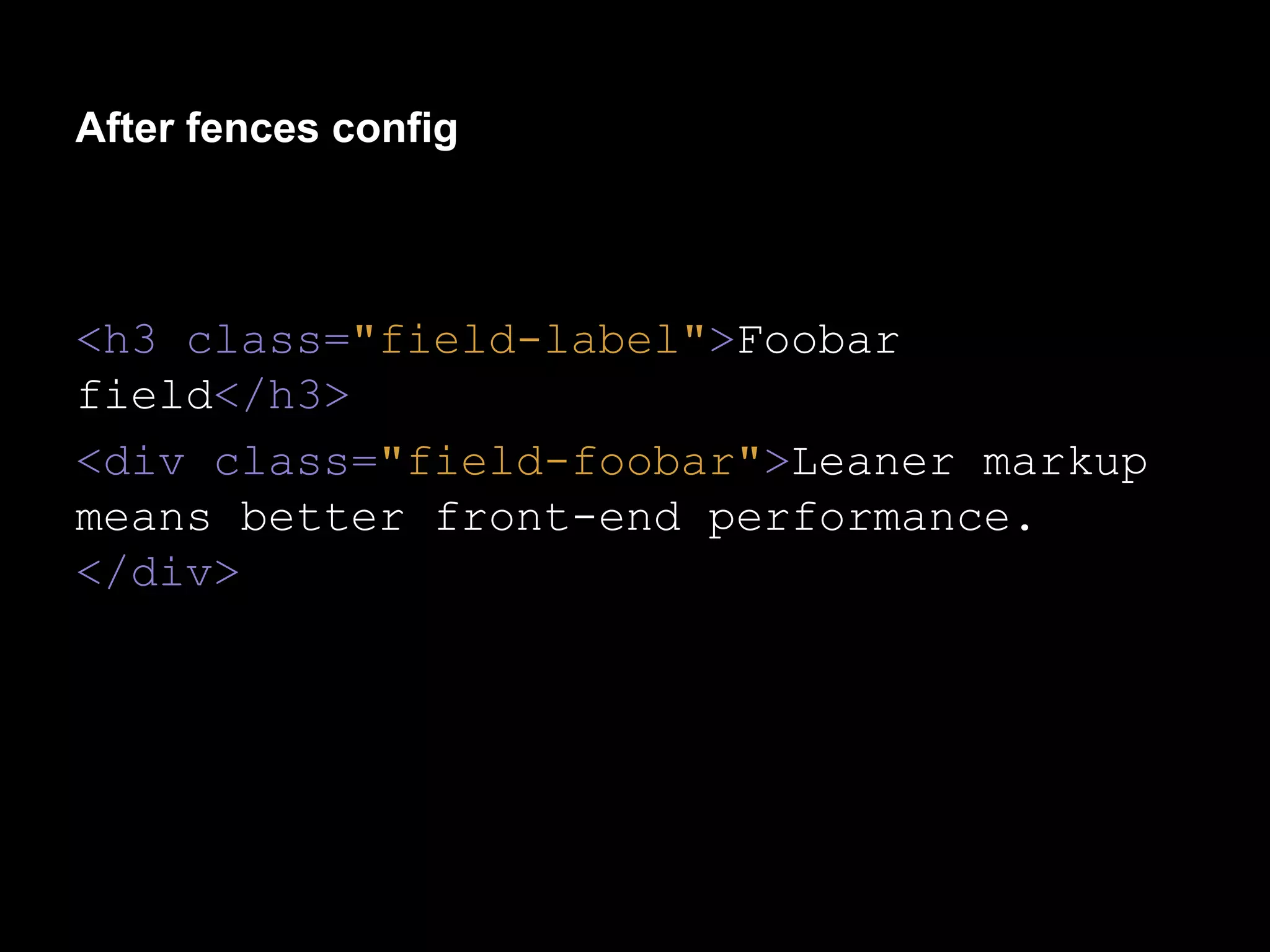

28. After fences config
<h3 class="field-label">Foobar
field</h3>
<div class="field-foobar">Leaner markup
means better front-end performance.
</div>

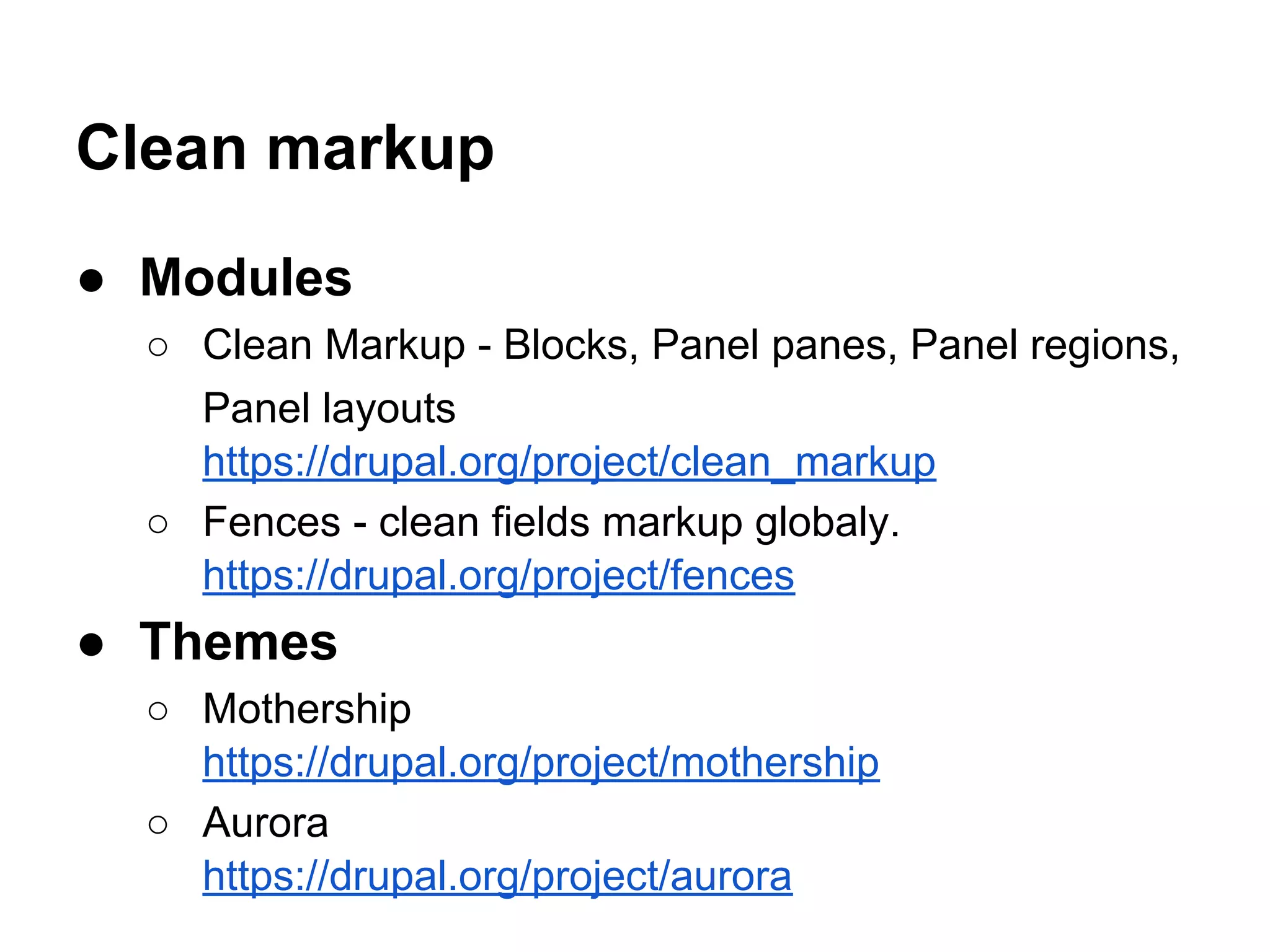

29. Clean markup
● Modules
○ Clean Markup - Blocks, Panel panes, Panel regions,
Panel layouts
https://drupal.org/project/clean_markup
○ Fences - clean fields markup globaly.
https://drupal.org/project/fences
● Themes
○ Mothership
https://drupal.org/project/mothership
○ Aurora
https://drupal.org/project/aurora

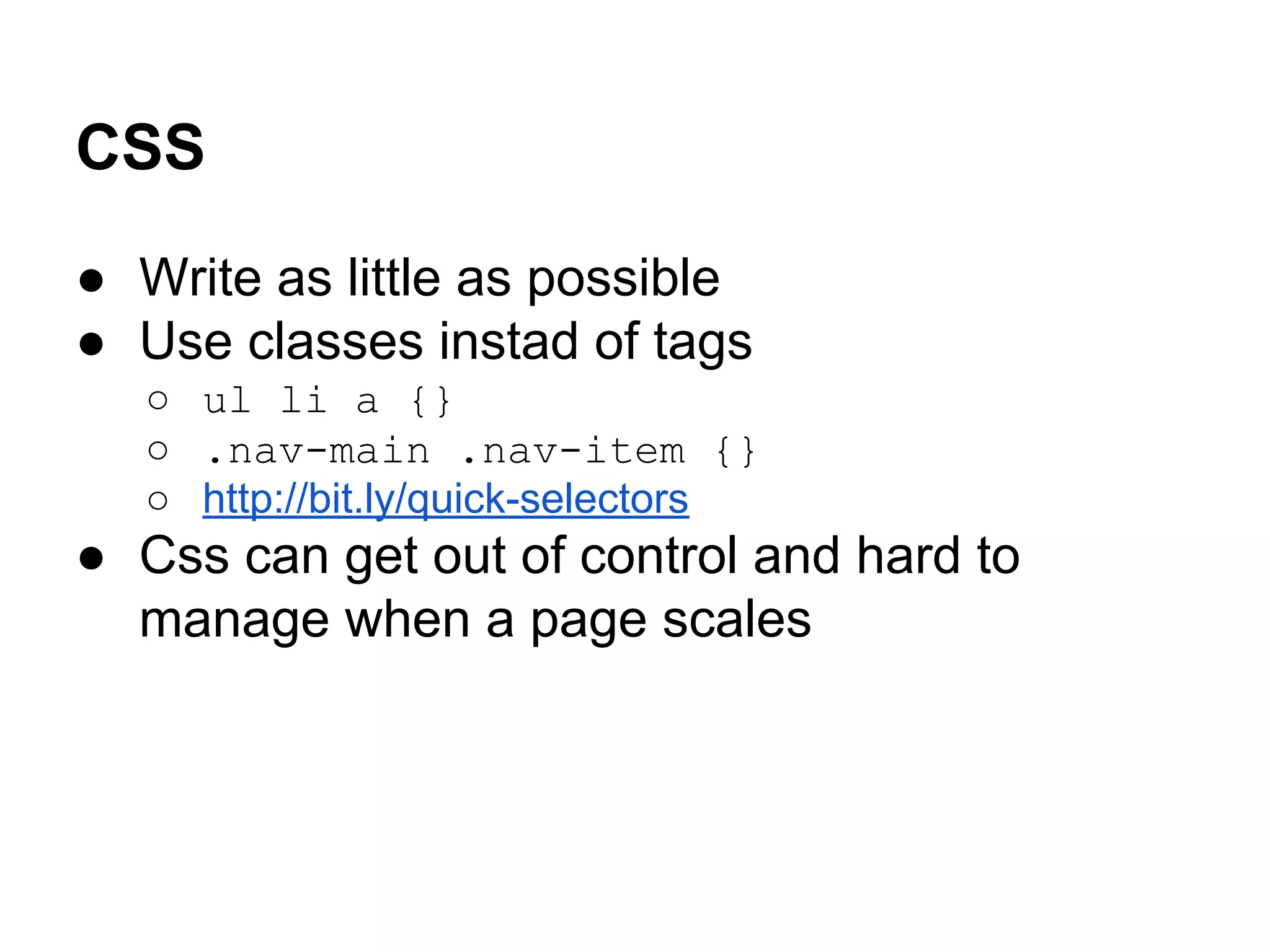

30. CSS
● Write as little as possible
● Use classes instad of tags
○ ul li a {}
○ .nav-main .nav-item {}
○ http://bit.ly/quick-selectors
● Css can get out of control and hard to
manage when a page scales

31. .btn-default, .btn-cta {
text-align: center;
display: inline-block;
background-color: gray;
padding: 5px 10px;
color: white;
}
.btn-cta {
background-color: dodgerblue;
}

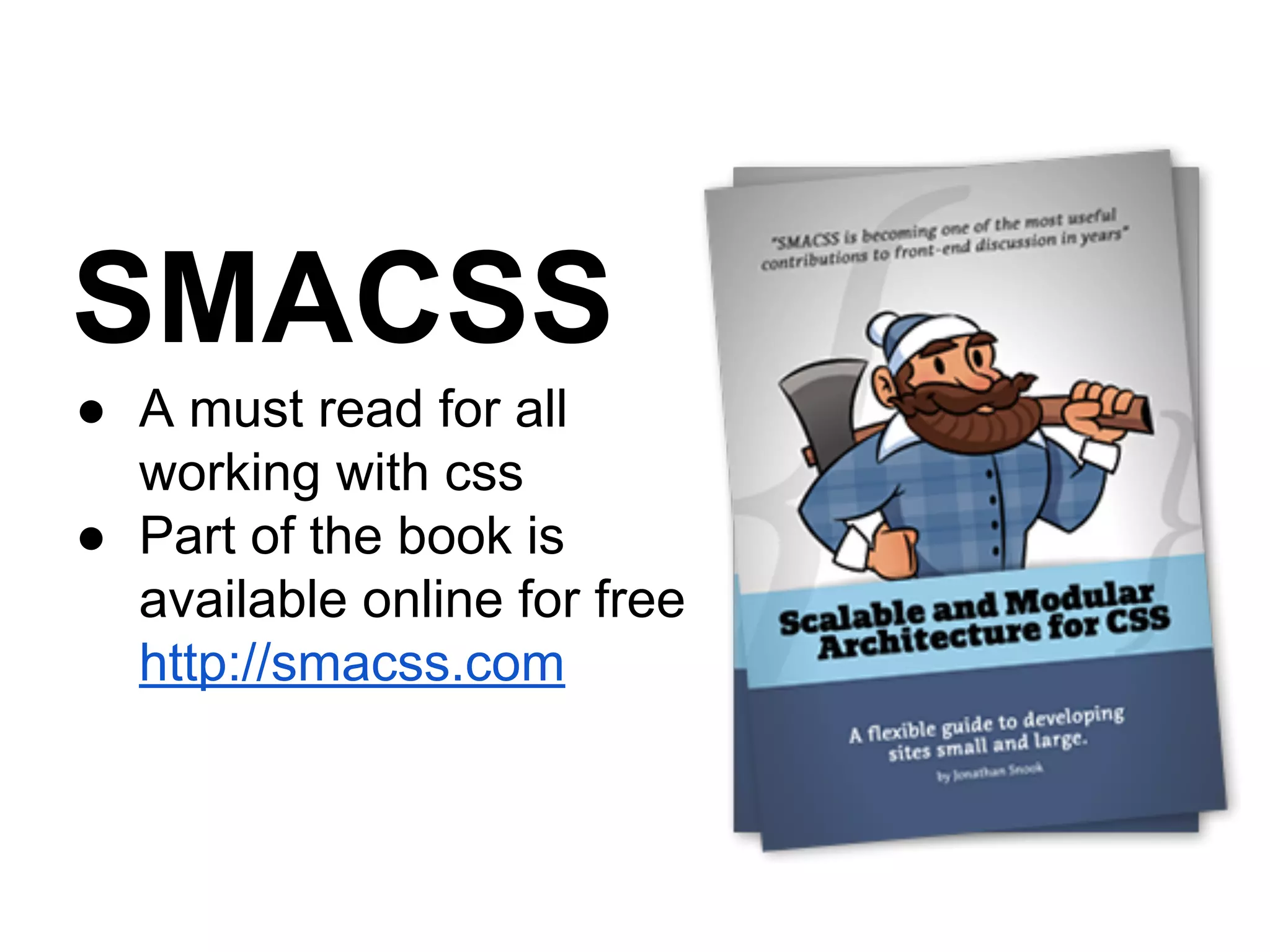

32. SMACSS
● A must read for all
working with css
● Part of the book is
available online for free
http://smacss.com

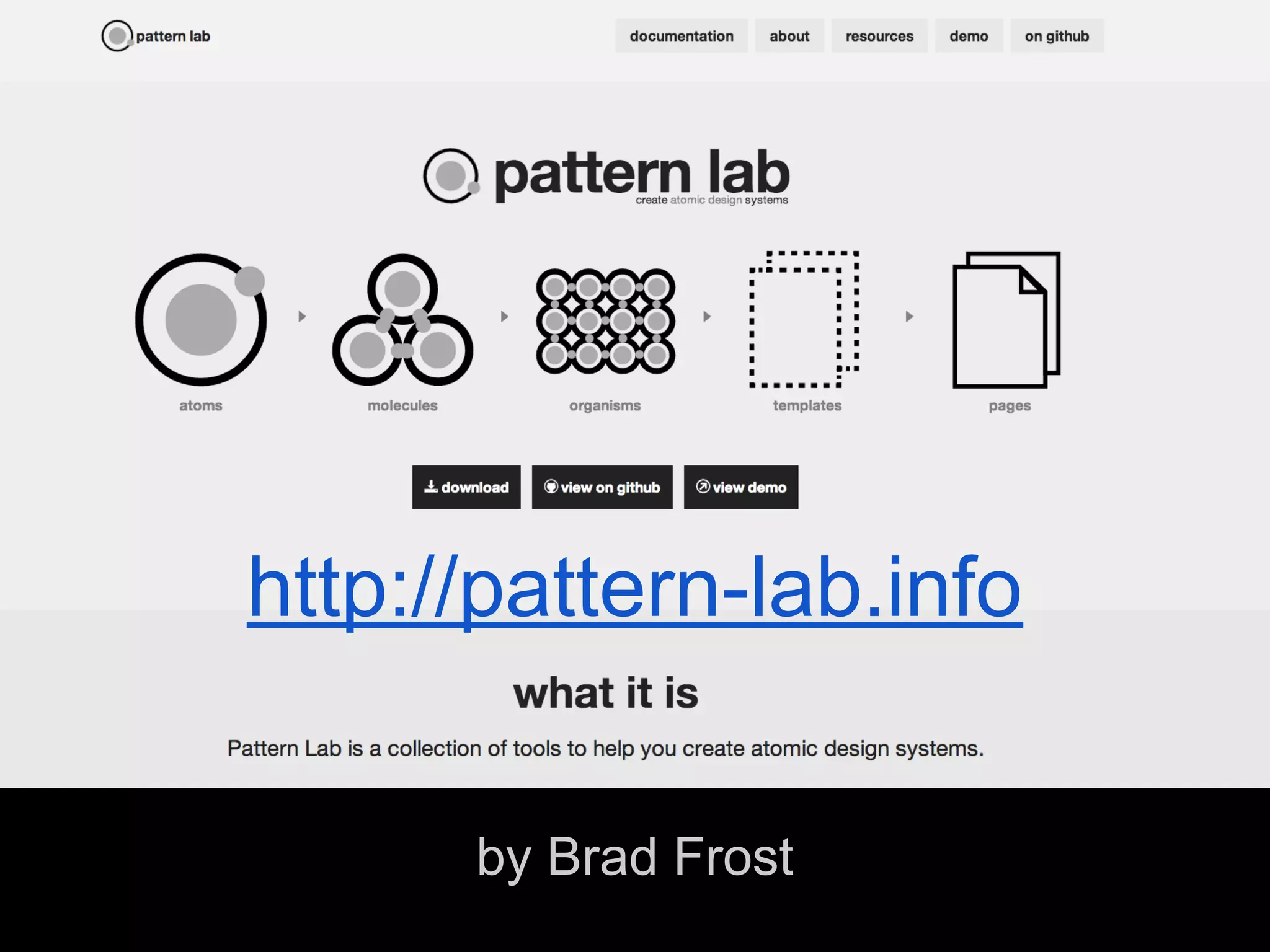

33. http://pattern-lab.info
by Brad Frost

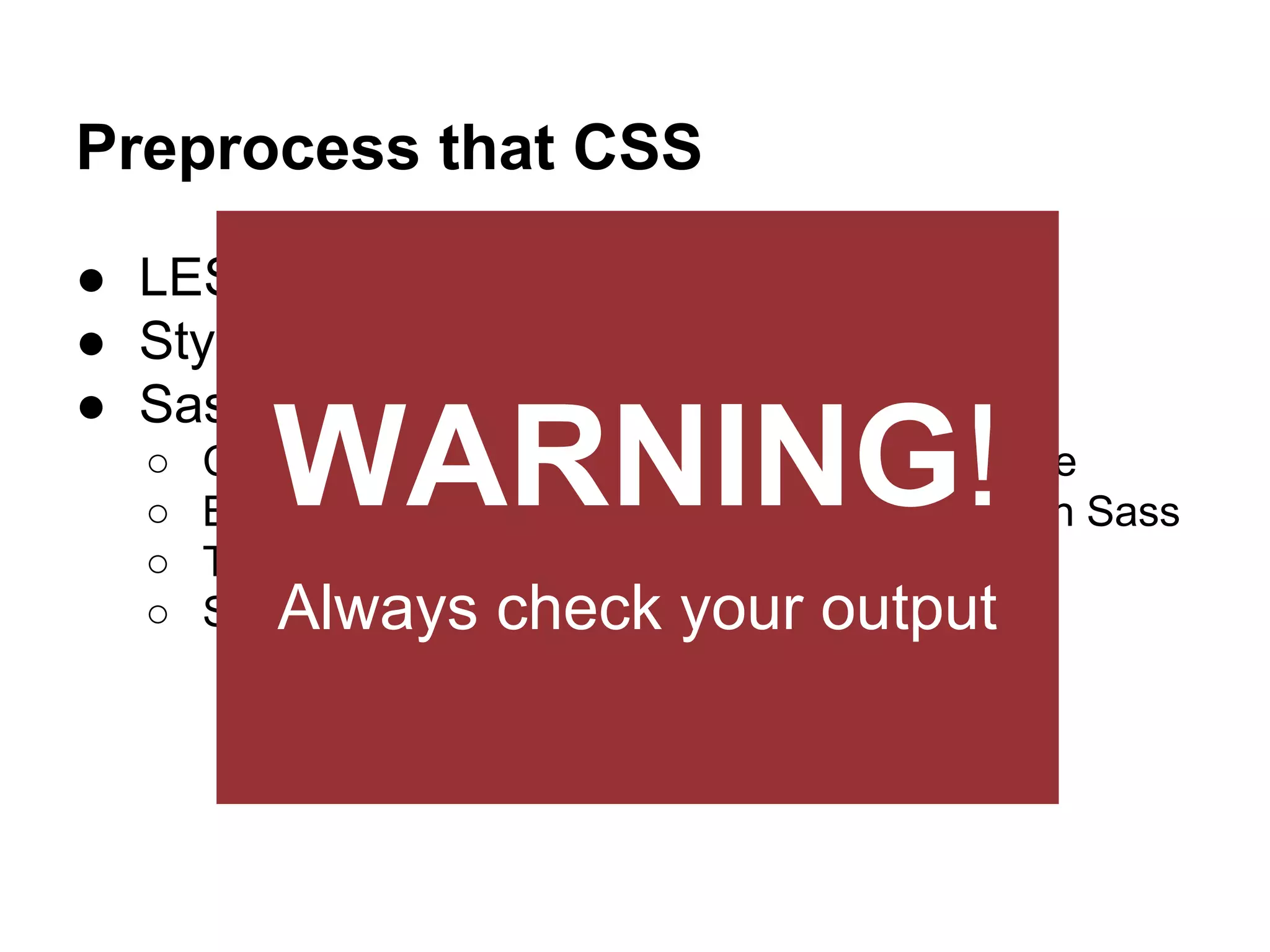

34. Preprocess that CSS
● LESS
● Stylus
● Sass
○
○
○
○
WARNING!
Compass - Sass mixins library and much more
Breakpoint - Really Simple Media Queries with Sass
Toolkit - swiss army knife for PE and RWD
Singularity - Grids withoutyour output
Always check limits

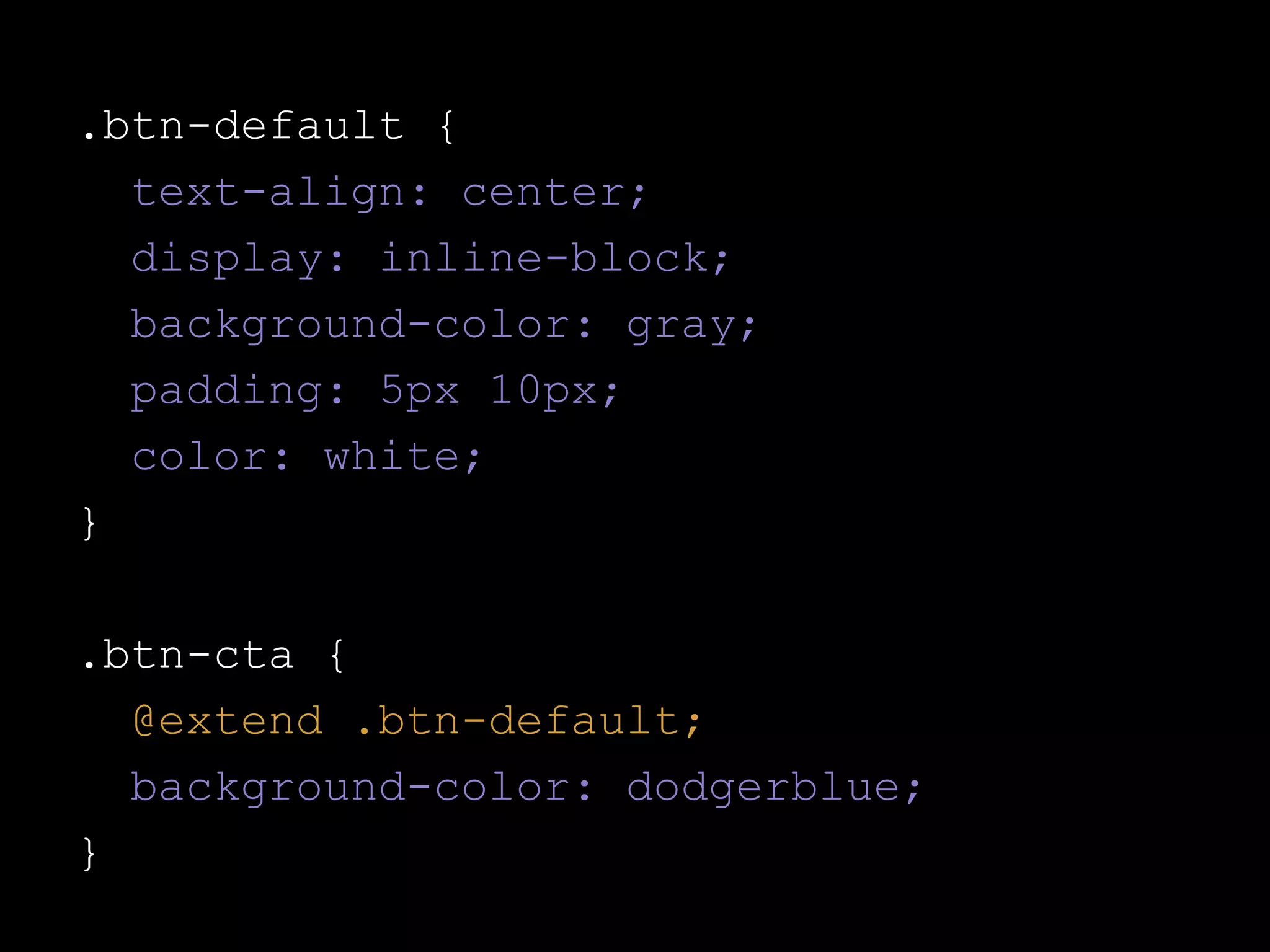

35. .btn-default {
text-align: center;
display: inline-block;
background-color: gray;
padding: 5px 10px;
color: white;
}
.btn-cta {
@extend .btn-default;
background-color: dodgerblue;
}

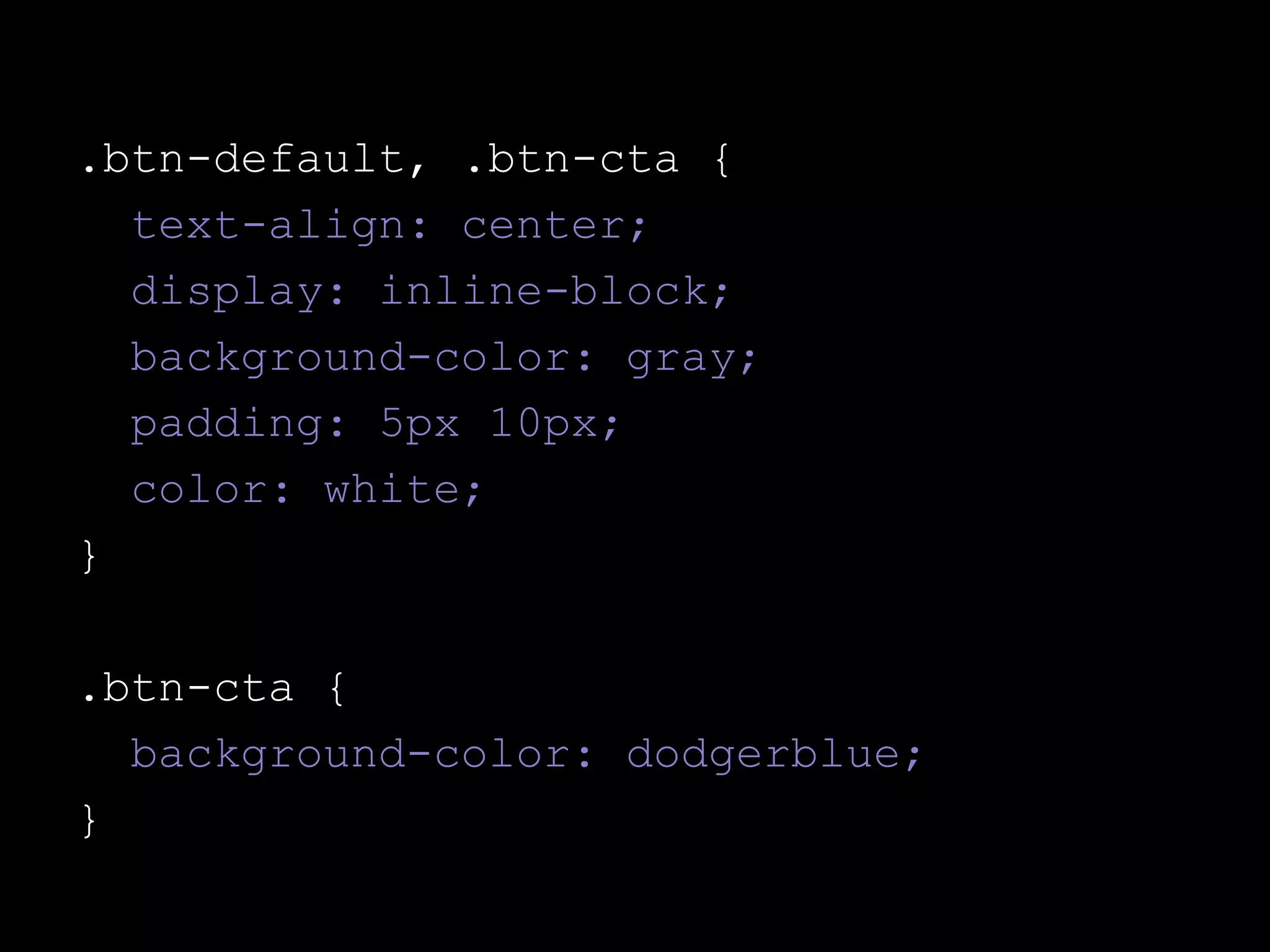

36. .btn-default, .btn-cta {
text-align: center;
display: inline-block;
background-color: gray;
padding: 5px 10px;
color: white;
}
.btn-cta {
background-color: dodgerblue;
}

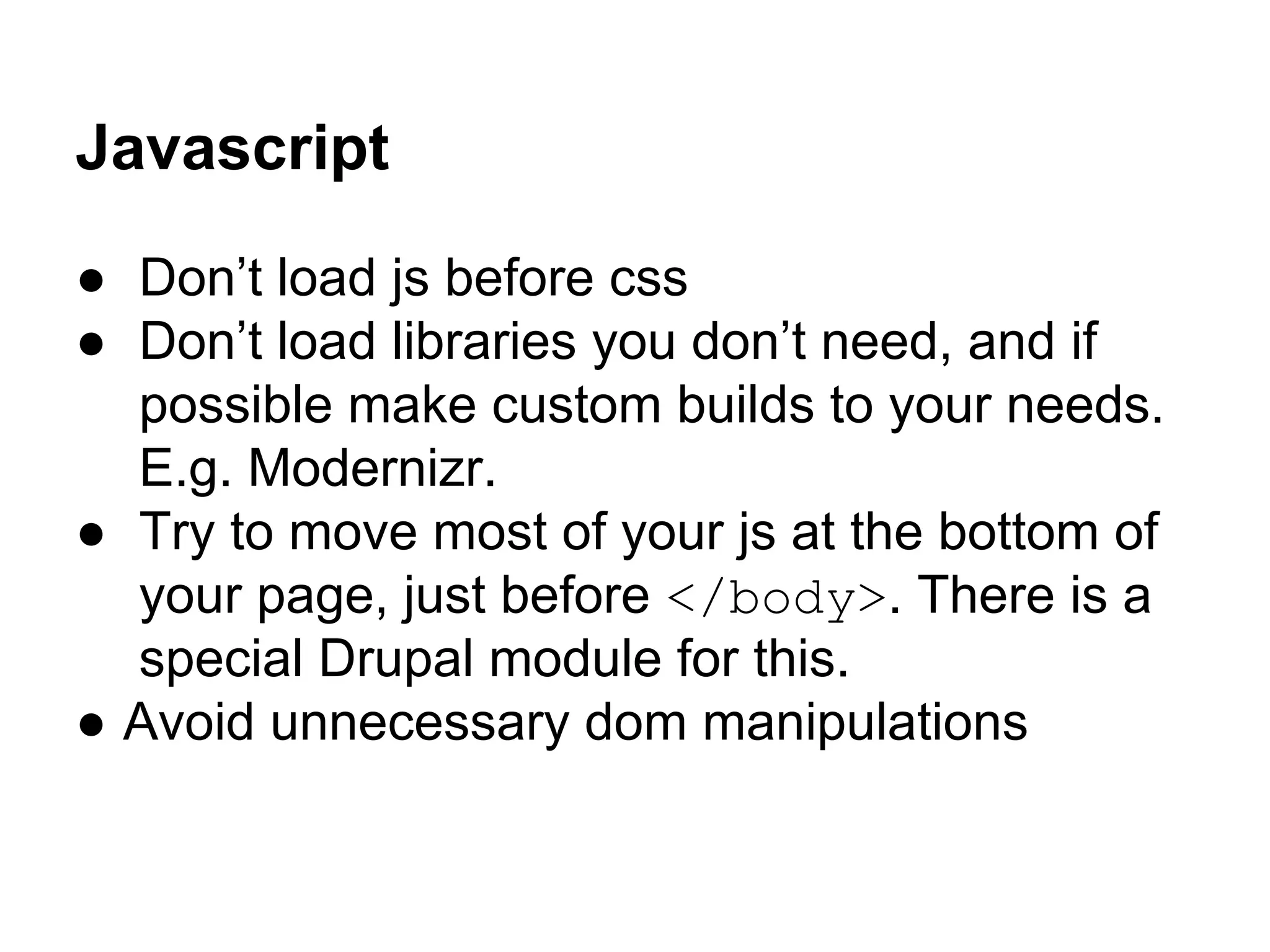

37. Javascript
● Don’t load js before css
● Don’t load libraries you don’t need, and if
possible make custom builds to your needs.
E.g. Modernizr.
● Try to move most of your js at the bottom of
your page, just before </body>. There is a
special Drupal module for this.
● Avoid unnecessary dom manipulations

38. MAGIC
https://drupal.org/project/magic

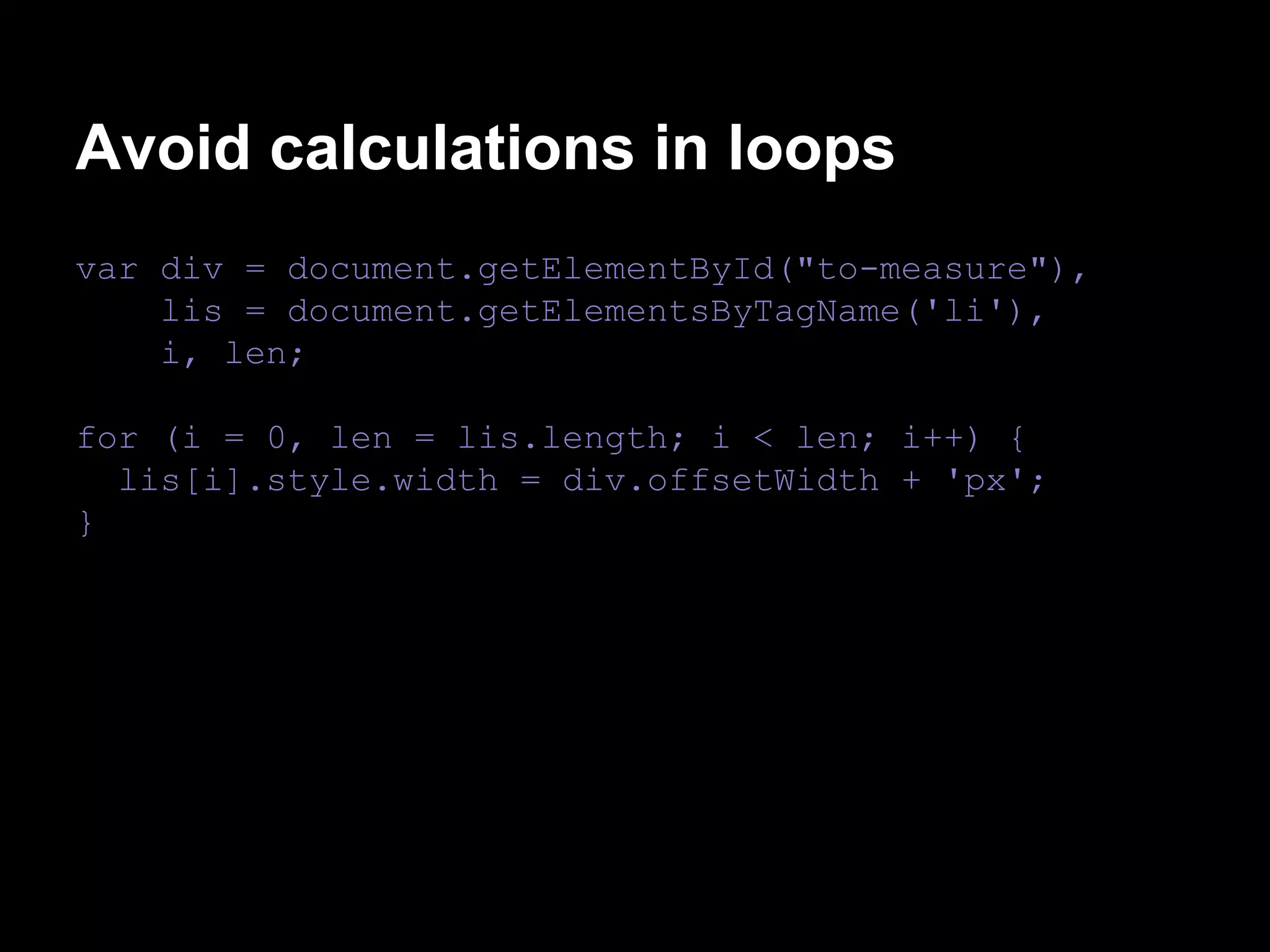

39. Avoid calculations in loops
var div = document.getElementById("to-measure"),
lis = document.getElementsByTagName('li'),
i, len;
for (i = 0, len = lis.length; i < len; i++) {
lis[i].style.width = div.offsetWidth + 'px';
}

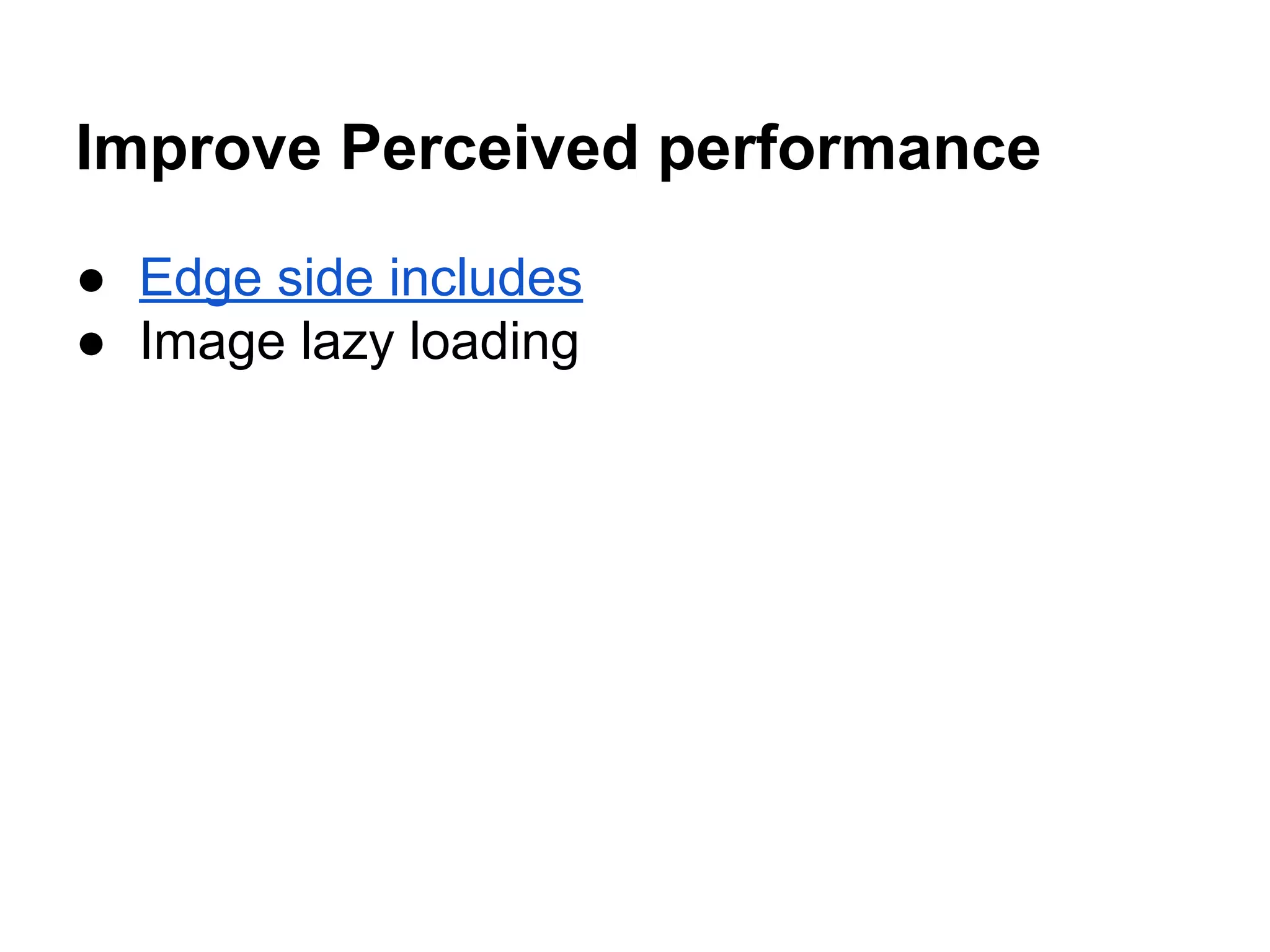

40. Improve Perceived performance
● Edge side includes
● Image lazy loading

41. Configuration
Tweak it up

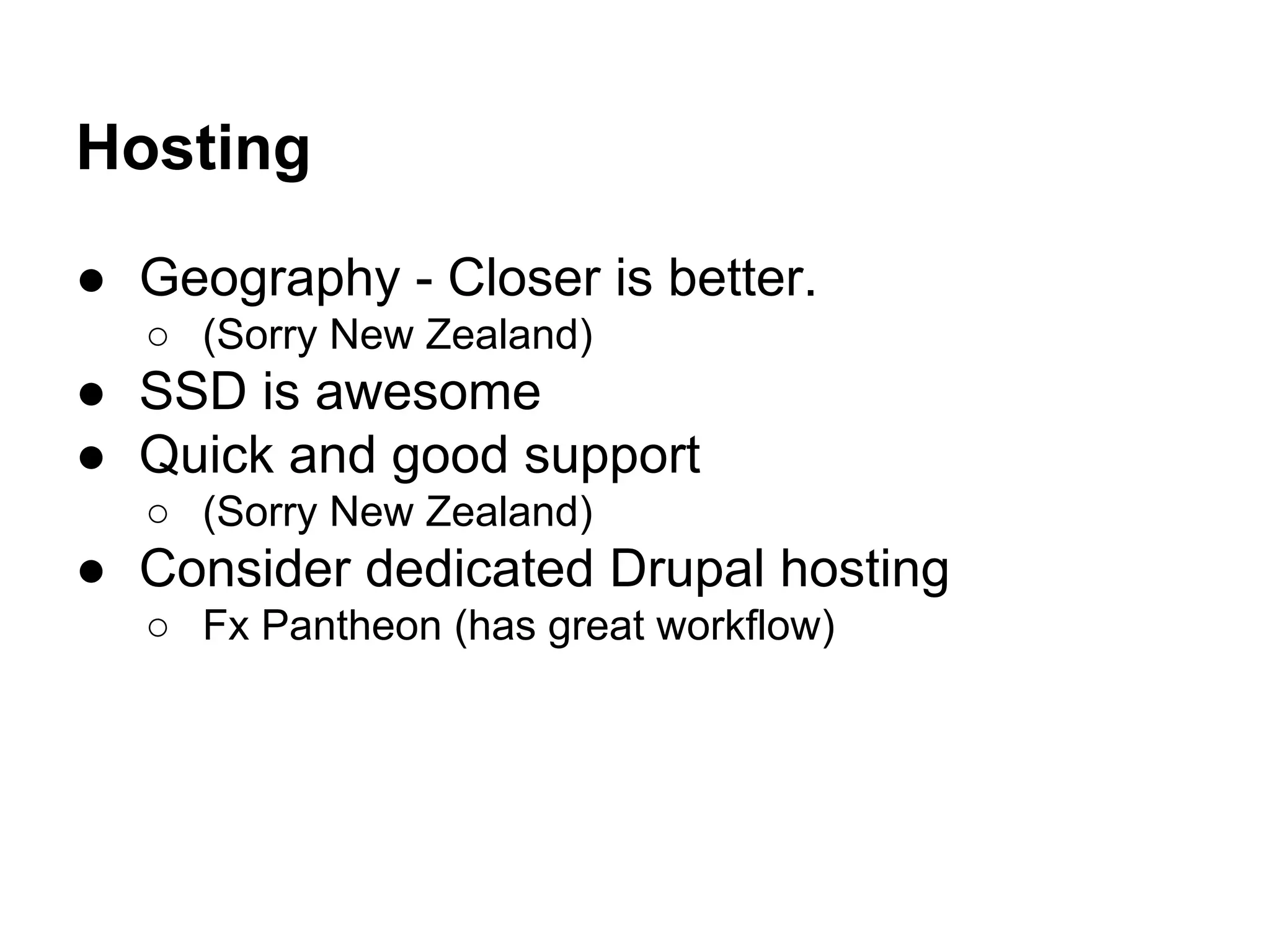

42. Hosting
● Geography - Closer is better.
○ (Sorry New Zealand)
● SSD is awesome
● Quick and good support
○ (Sorry New Zealand)
● Consider dedicated Drupal hosting
○ Fx Pantheon (has great workflow)

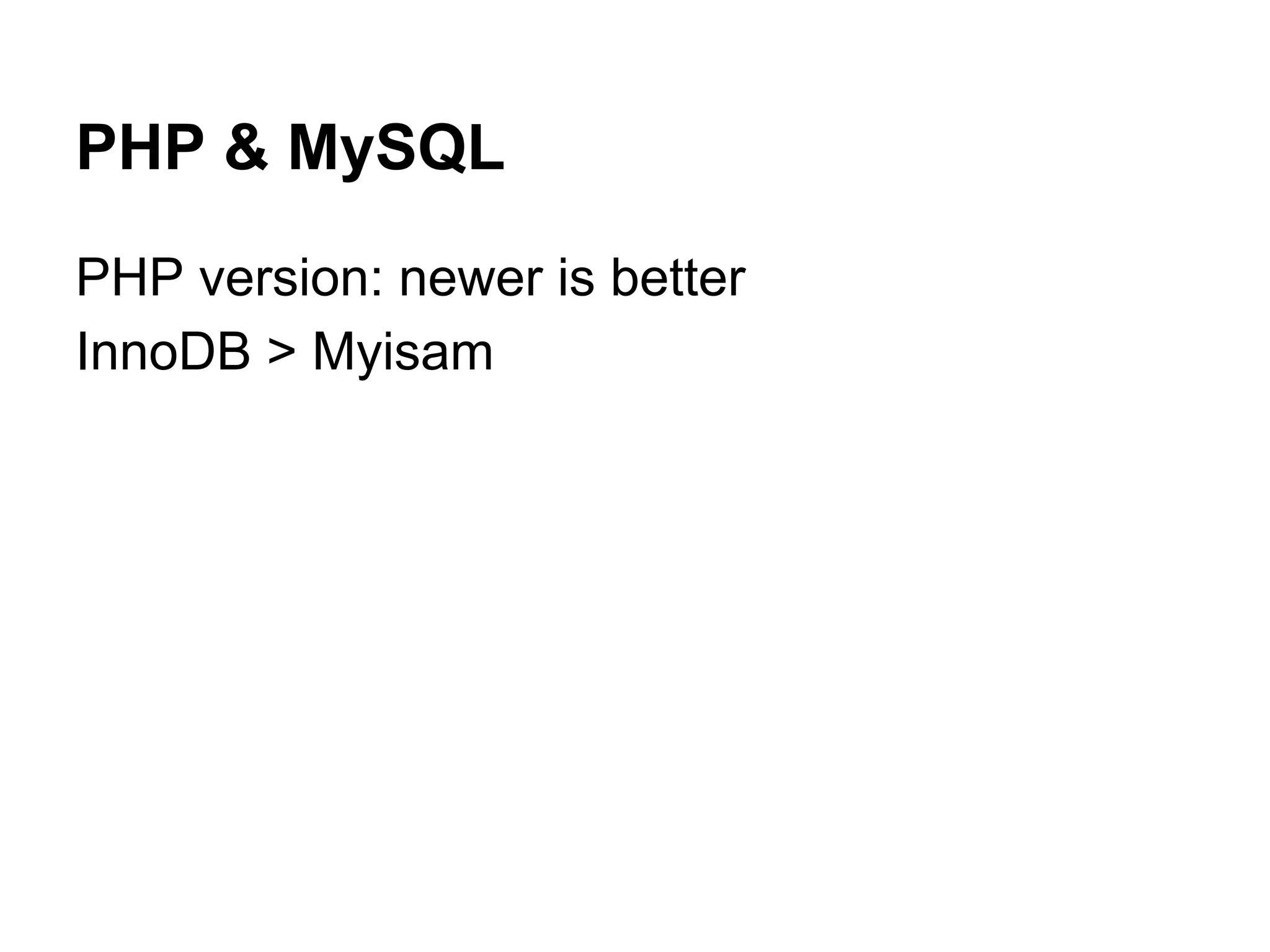

43. PHP & MySQL
PHP version: newer is better
InnoDB > Myisam

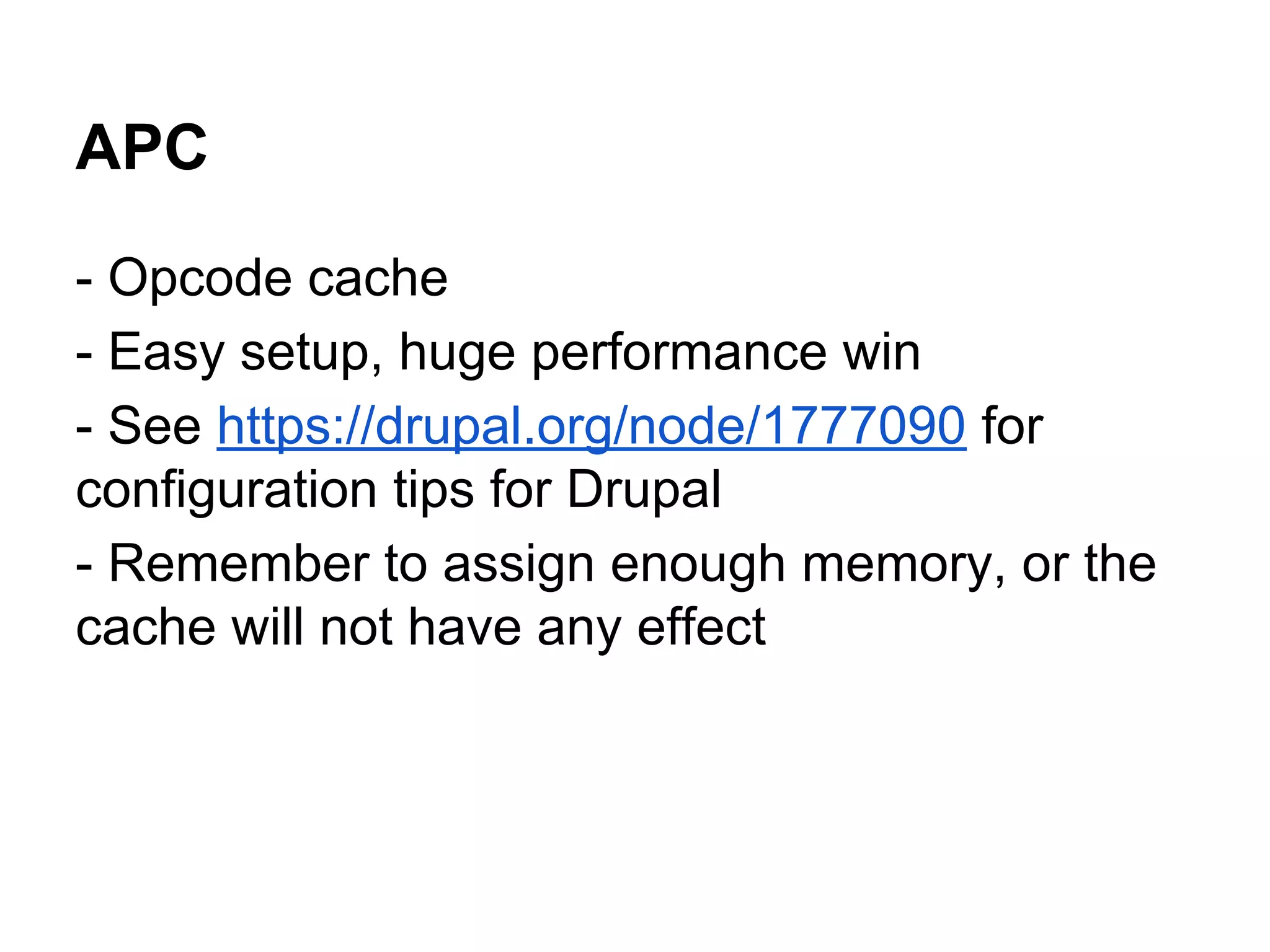

44. APC
- Opcode cache
- Easy setup, huge performance win
- See https://drupal.org/node/1777090 for
configuration tips for Drupal
- Remember to assign enough memory, or the
cache will not have any effect

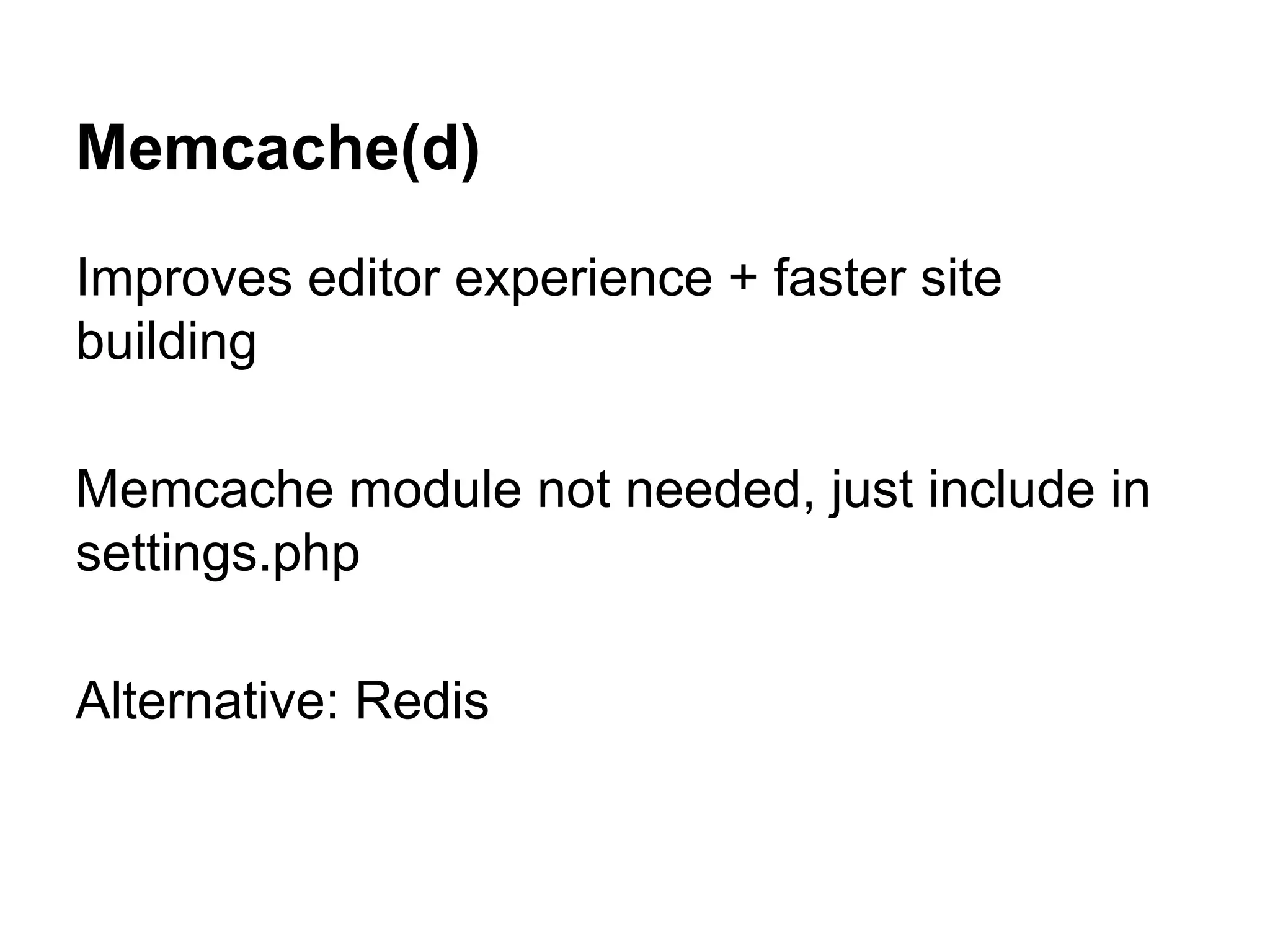

45. Memcache(d)
Improves editor experience + faster site
building
Memcache module not needed, just include in
settings.php
Alternative: Redis

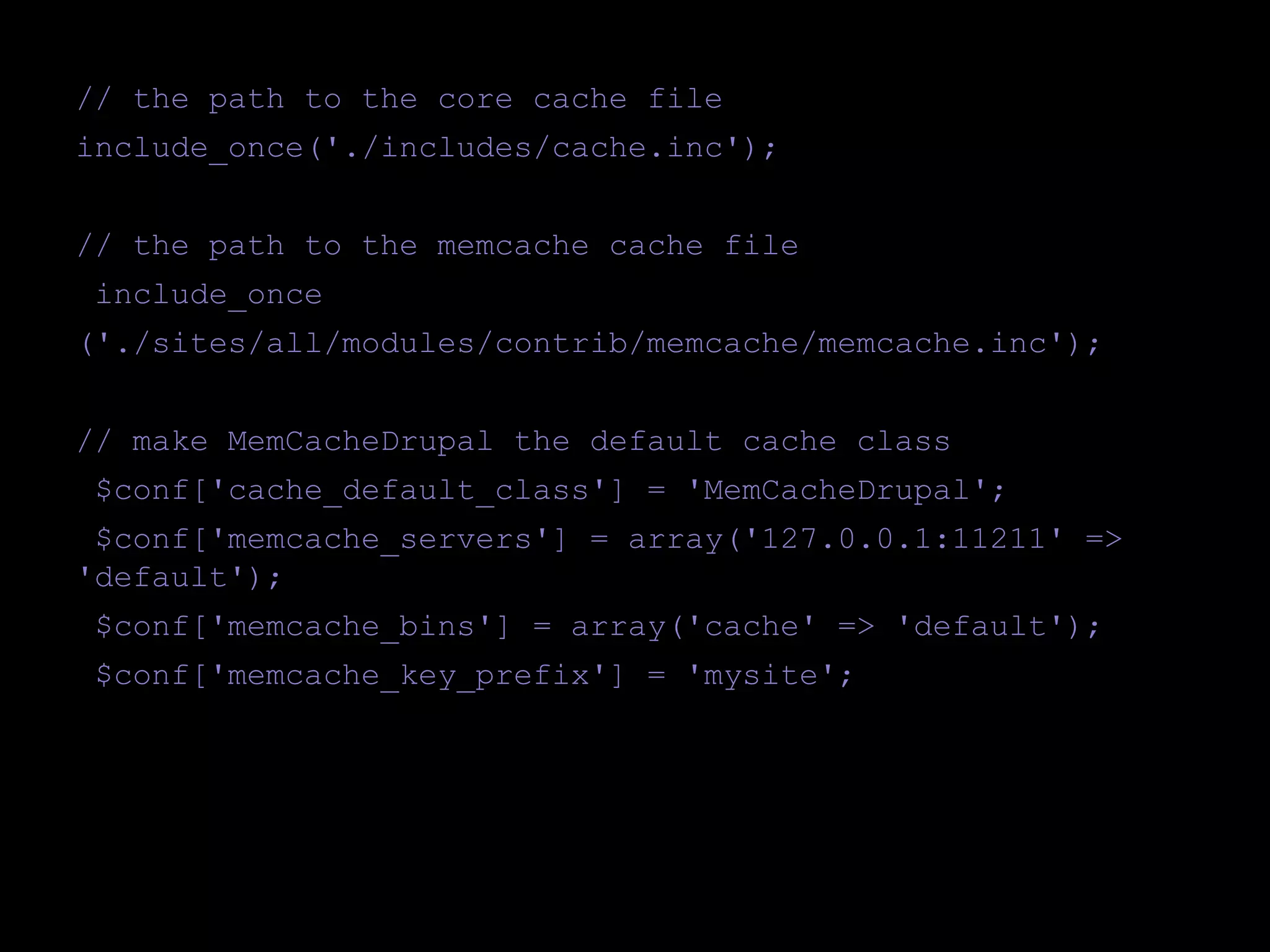

46. // the path to the core cache file
include_once('./includes/cache.inc');
// the path to the memcache cache file
include_once
('./sites/all/modules/contrib/memcache/memcache.inc');
// make MemCacheDrupal the default cache class
$conf['cache_default_class'] = 'MemCacheDrupal';
$conf['memcache_servers'] = array('127.0.0.1:11211' =>
'default');
$conf['memcache_bins'] = array('cache' => 'default');
$conf['memcache_key_prefix'] = 'mysite';

47. First time using memcache

48. Varnish
Boost
(poor man’s
Varnish)
Gzip

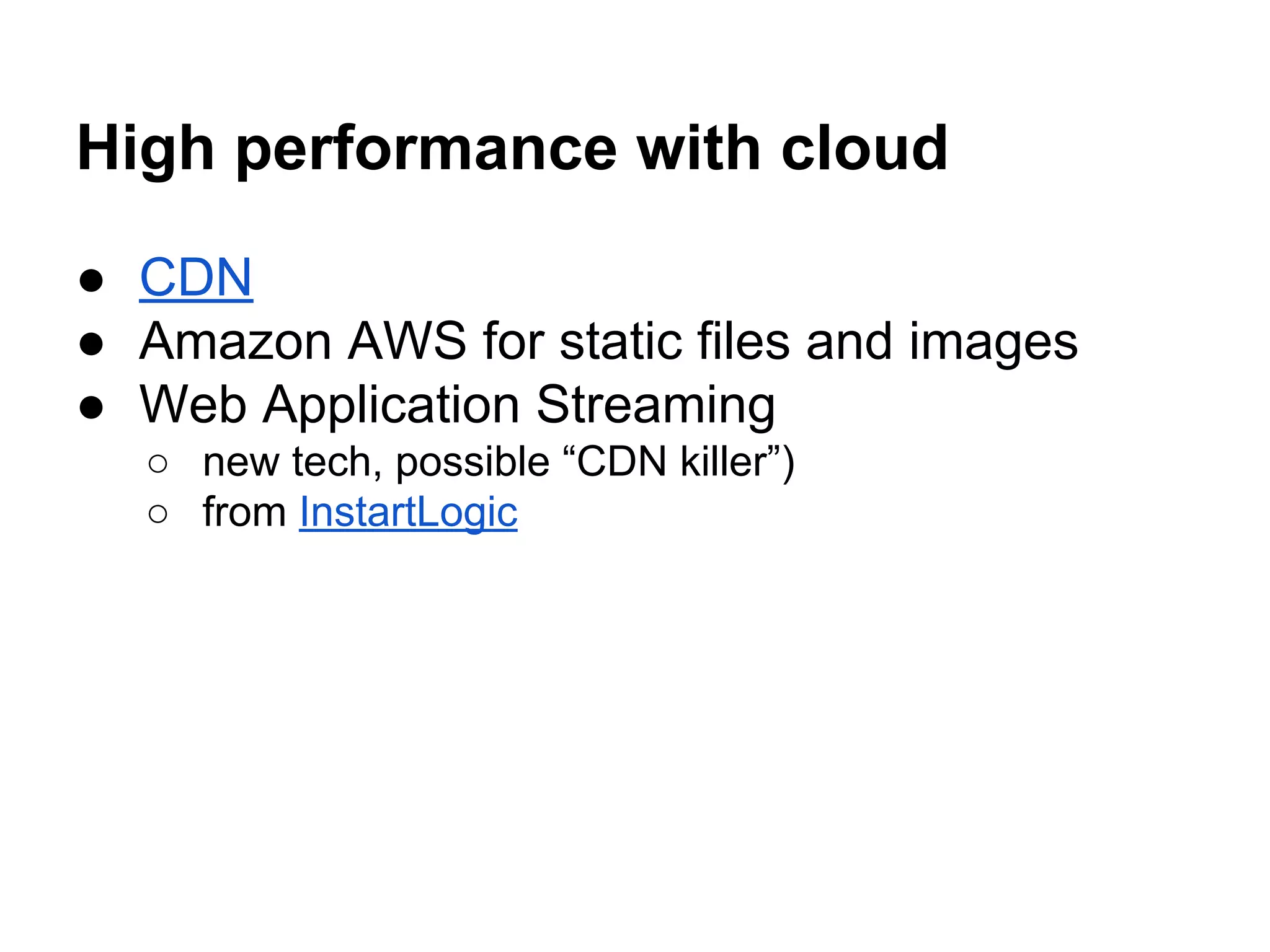

49. High performance with cloud
● CDN
● Amazon AWS for static files and images
● Web Application Streaming
○ new tech, possible “CDN killer”)
○ from InstartLogic

50. Drupal

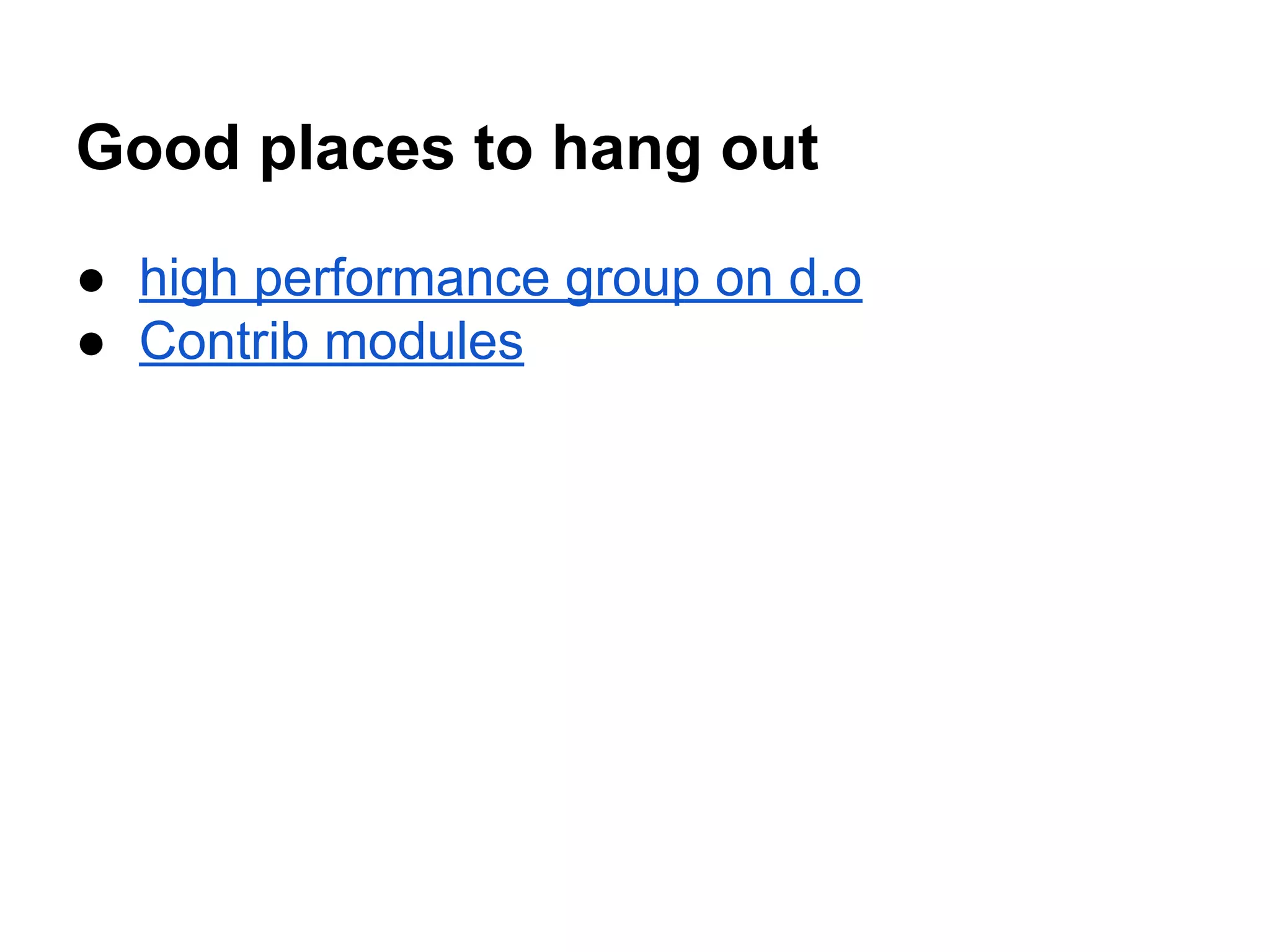

54. Good places to hang out
● high performance group on d.o
● Contrib modules

55. Module strategy
● As few modules as possible
○ Avoid the buffet syndrome
● Check which hooks are used.
○ hook_init() is more important to watch than
hook_openid_normalization_method_info_alter()
● Preferred: Measure before/after install
○ Dive into xhprof
○ Disable suspected performance hogs

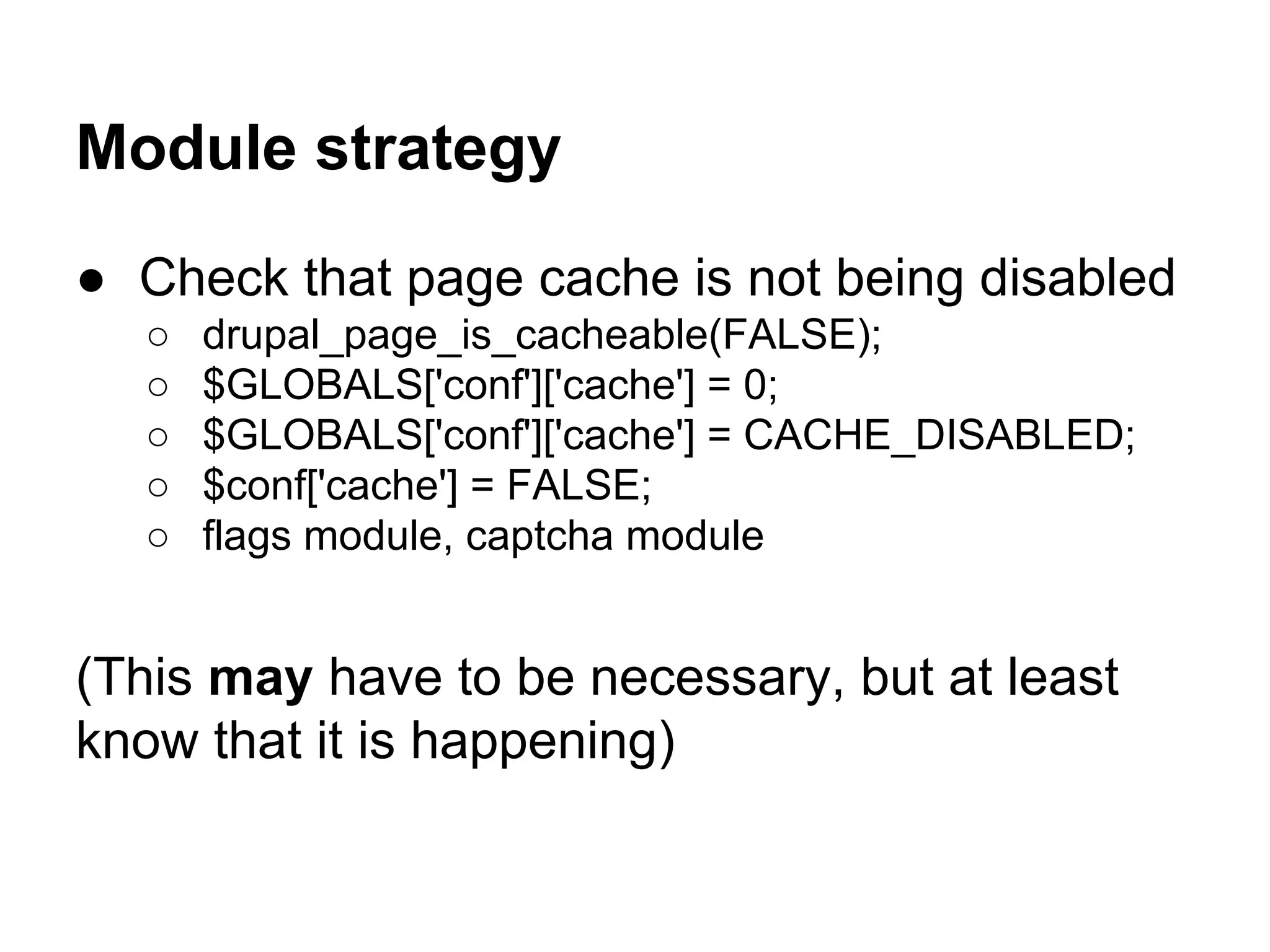

56. Module strategy
● Check that page cache is not being disabled
○
○
○
○
○
drupal_page_is_cacheable(FALSE);
$GLOBALS['conf']['cache'] = 0;
$GLOBALS['conf']['cache'] = CACHE_DISABLED;
$conf['cache'] = FALSE;
flags module, captcha module
(This may have to be necessary, but at least
know that it is happening)

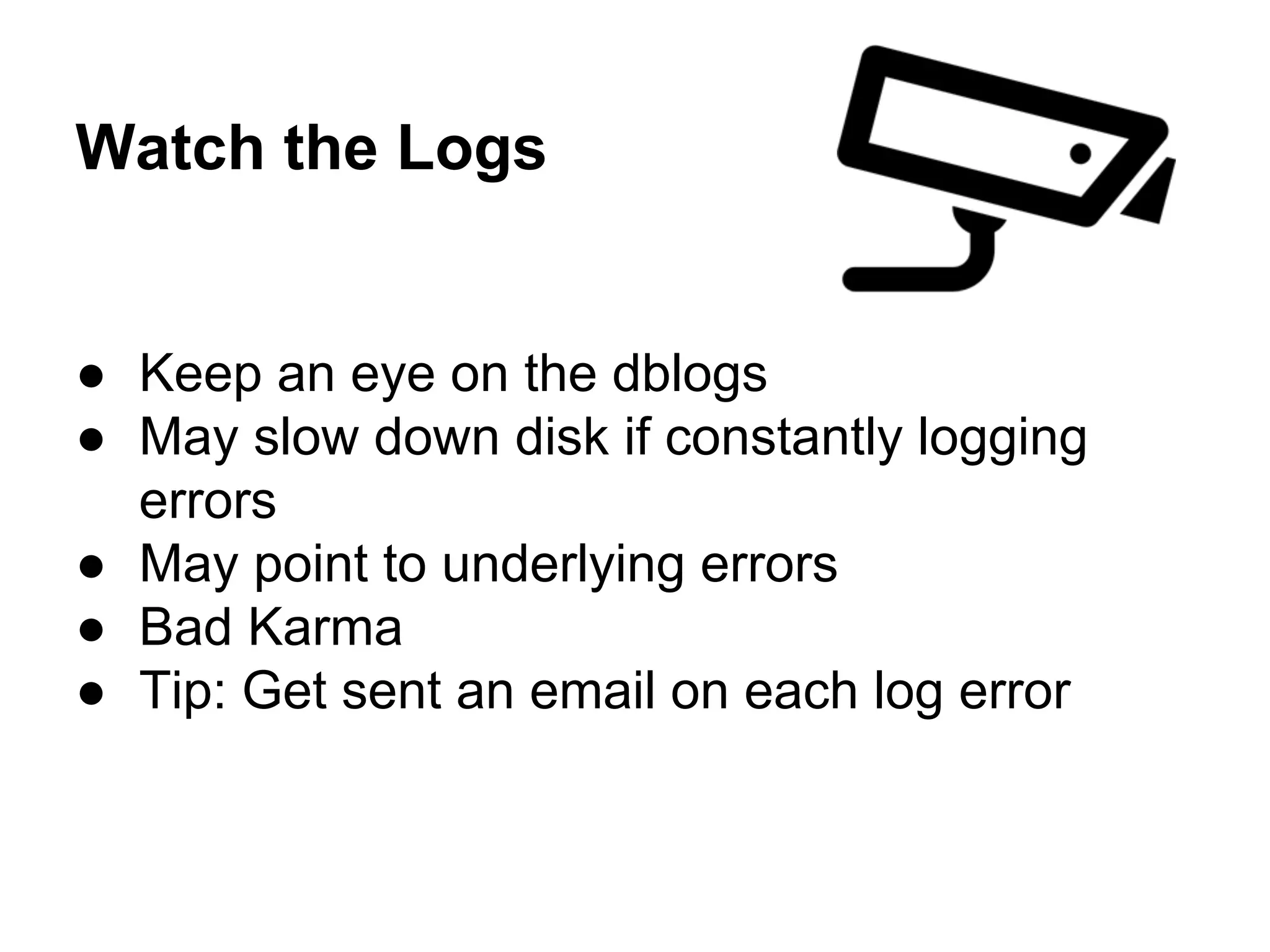

57. Watch the Logs
● Keep an eye on the dblogs
● May slow down disk if constantly logging
errors
● May point to underlying errors
● Bad Karma
● Tip: Get sent an email on each log error

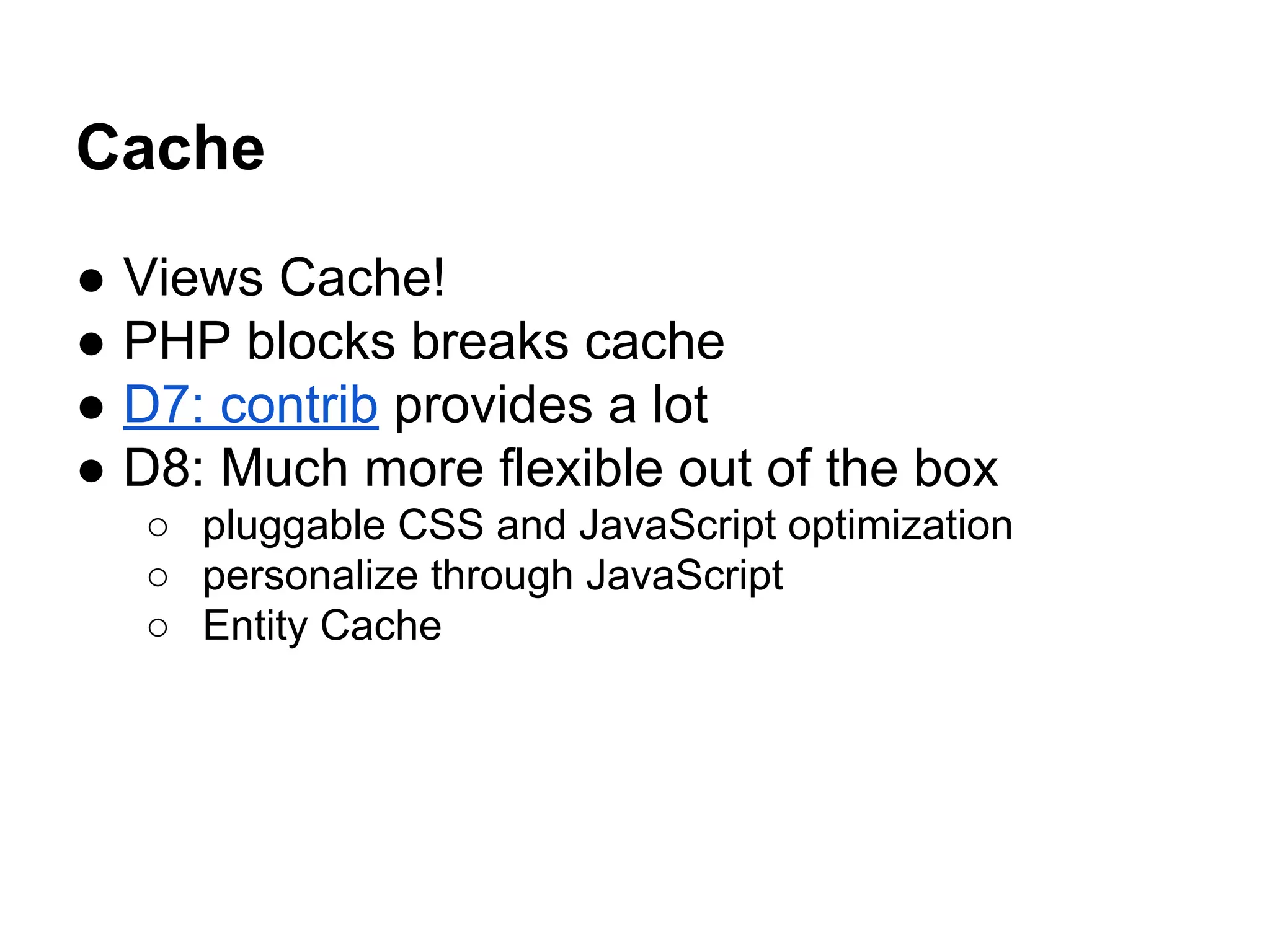

58. Cache
●
●
●
●
Views Cache!
PHP blocks breaks cache
D7: contrib provides a lot
D8: Much more flexible out of the box
○ pluggable CSS and JavaScript optimization
○ personalize through JavaScript
○ Entity Cache

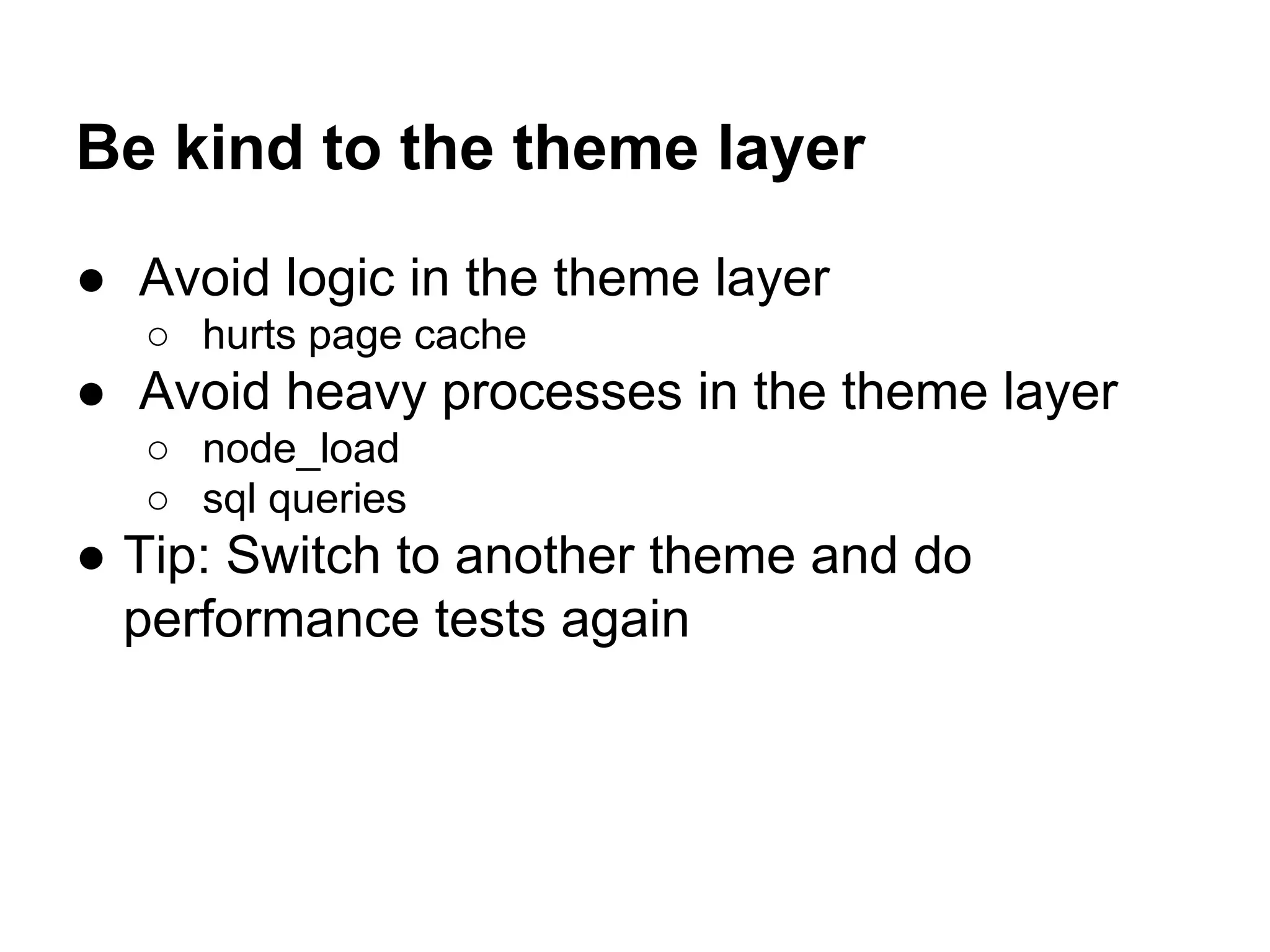

60. Be kind to the theme layer
● Avoid logic in the theme layer
○ hurts page cache
● Avoid heavy processes in the theme layer
○ node_load
○ sql queries
● Tip: Switch to another theme and do
performance tests again

62. Views queries

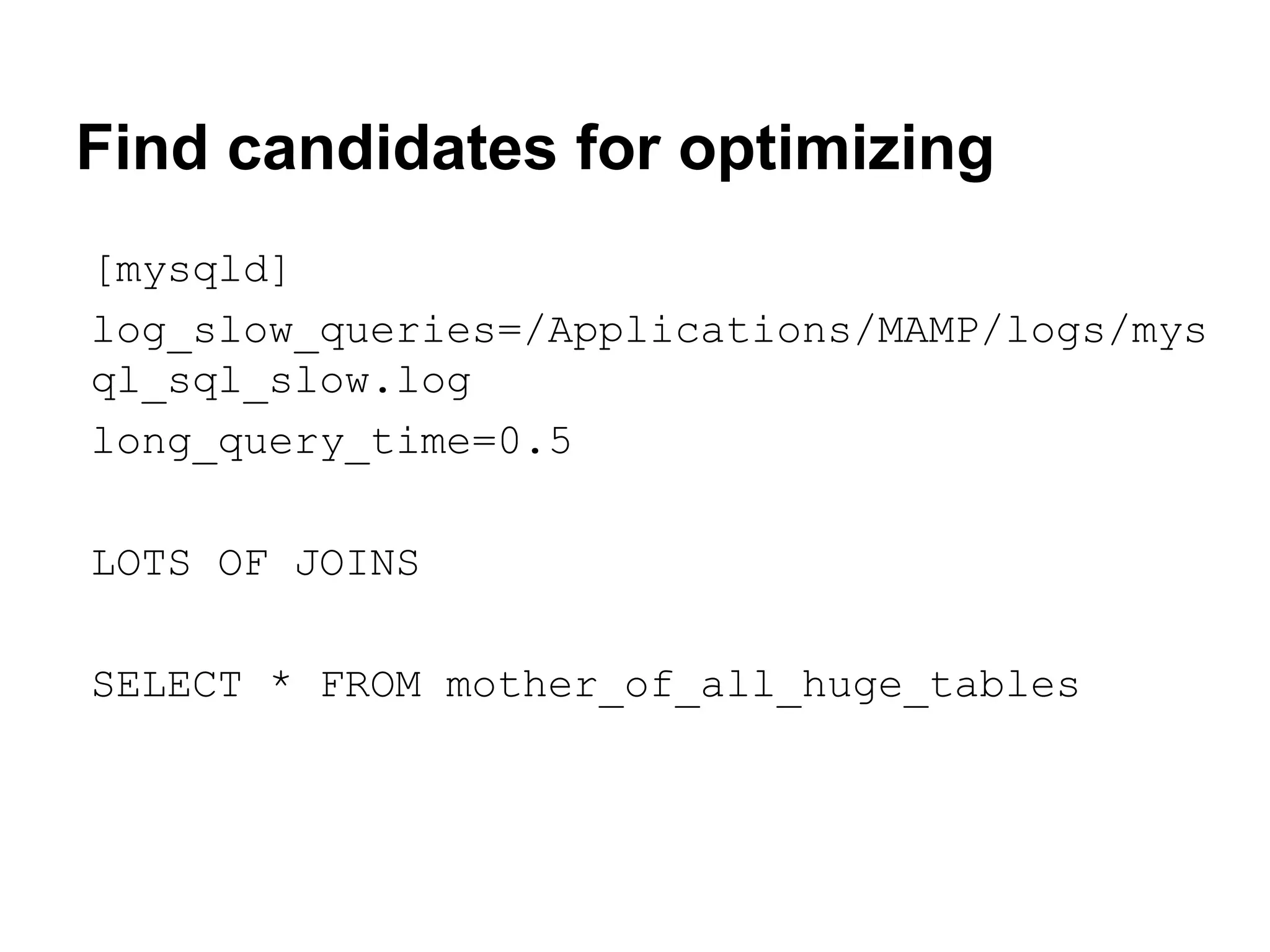

64. Find candidates for optimizing
[mysqld]
log_slow_queries=/Applications/MAMP/logs/mys
ql_sql_slow.log
long_query_time=0.5
LOTS OF JOINS
SELECT * FROM mother_of_all_huge_tables

65. Keep an eye on
PAGERS DISTINCT COUNT JOINS

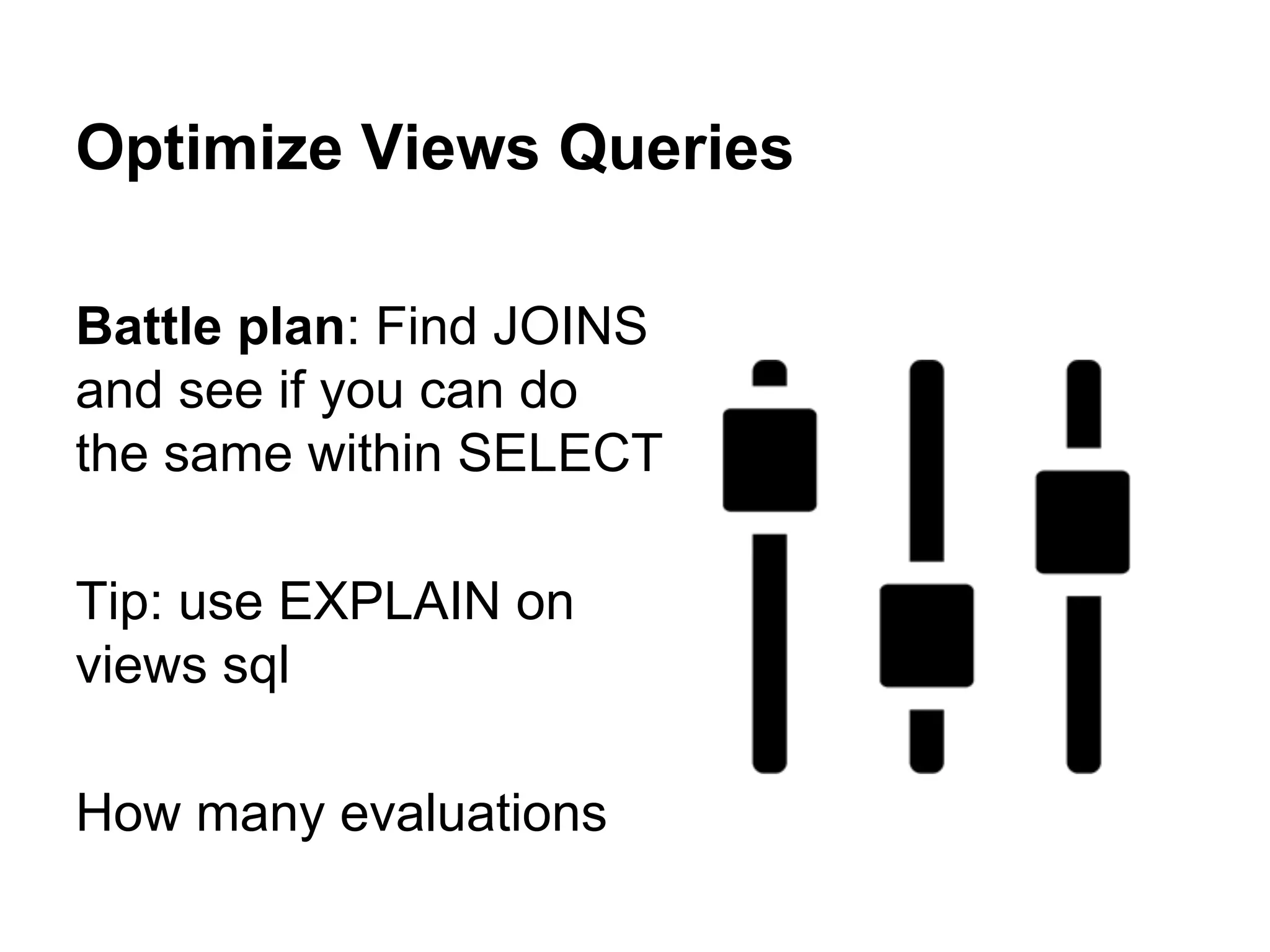

66. Optimize Views Queries
Battle plan: Find JOINS
and see if you can do
the same within SELECT
Tip: use EXPLAIN on
views sql
How many evaluations

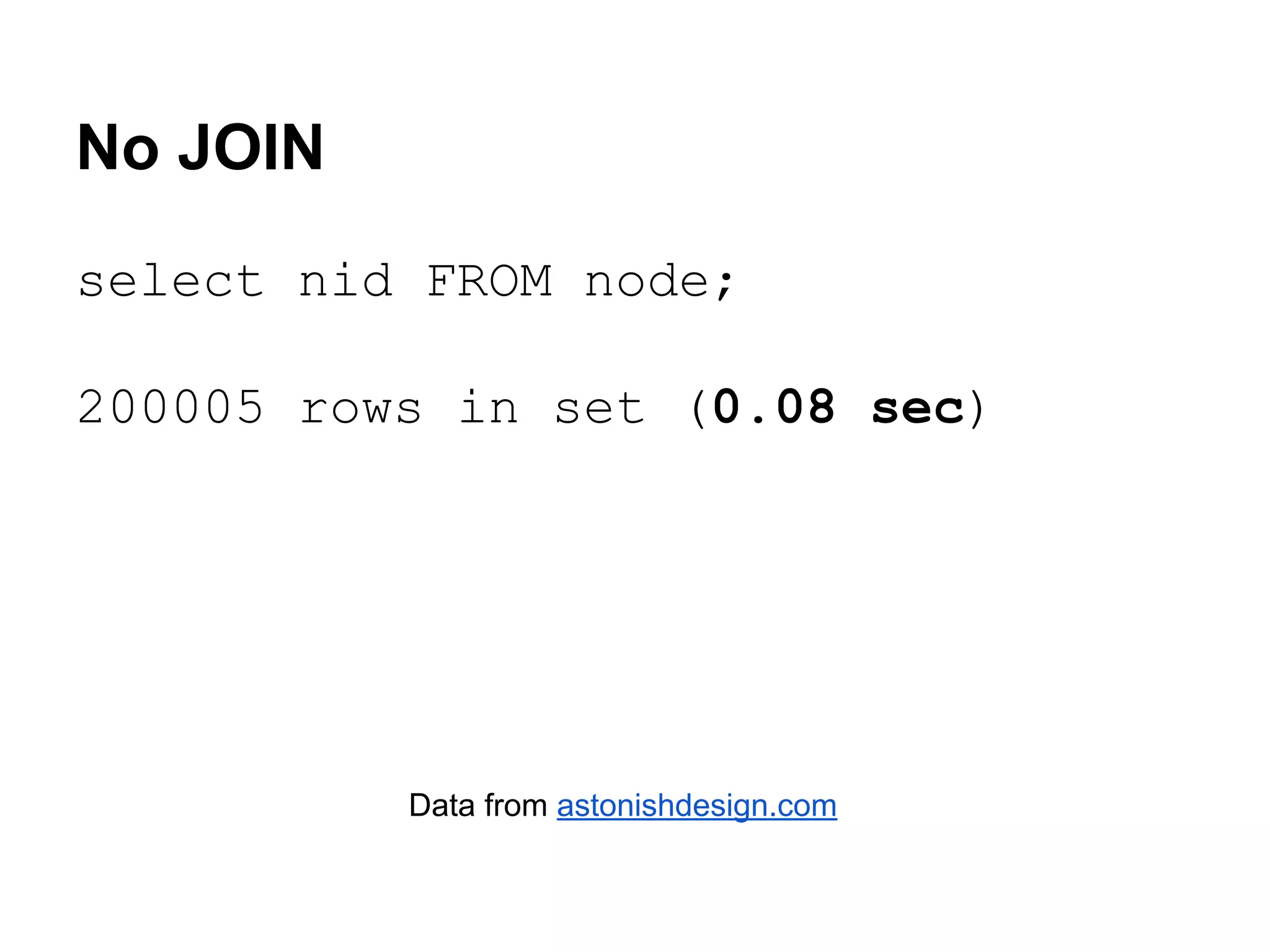

67. No JOIN
select nid FROM node;
200005 rows in set (0.08 sec)
Data from astonishdesign.com

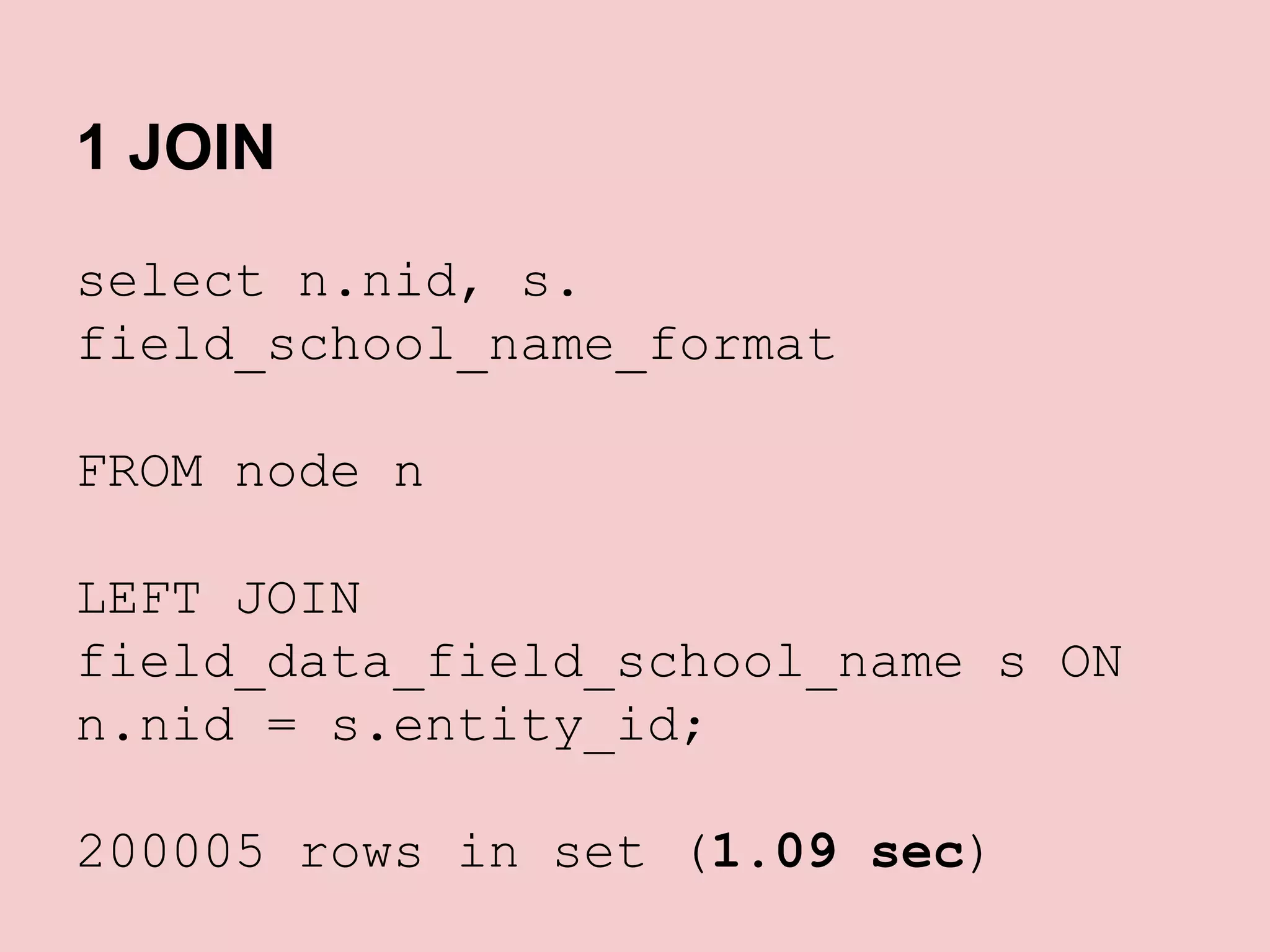

68. 1 JOIN
select n.nid, s.
field_school_name_format
FROM node n
LEFT JOIN
field_data_field_school_name s ON
n.nid = s.entity_id;
200005 rows in set (1.09 sec)

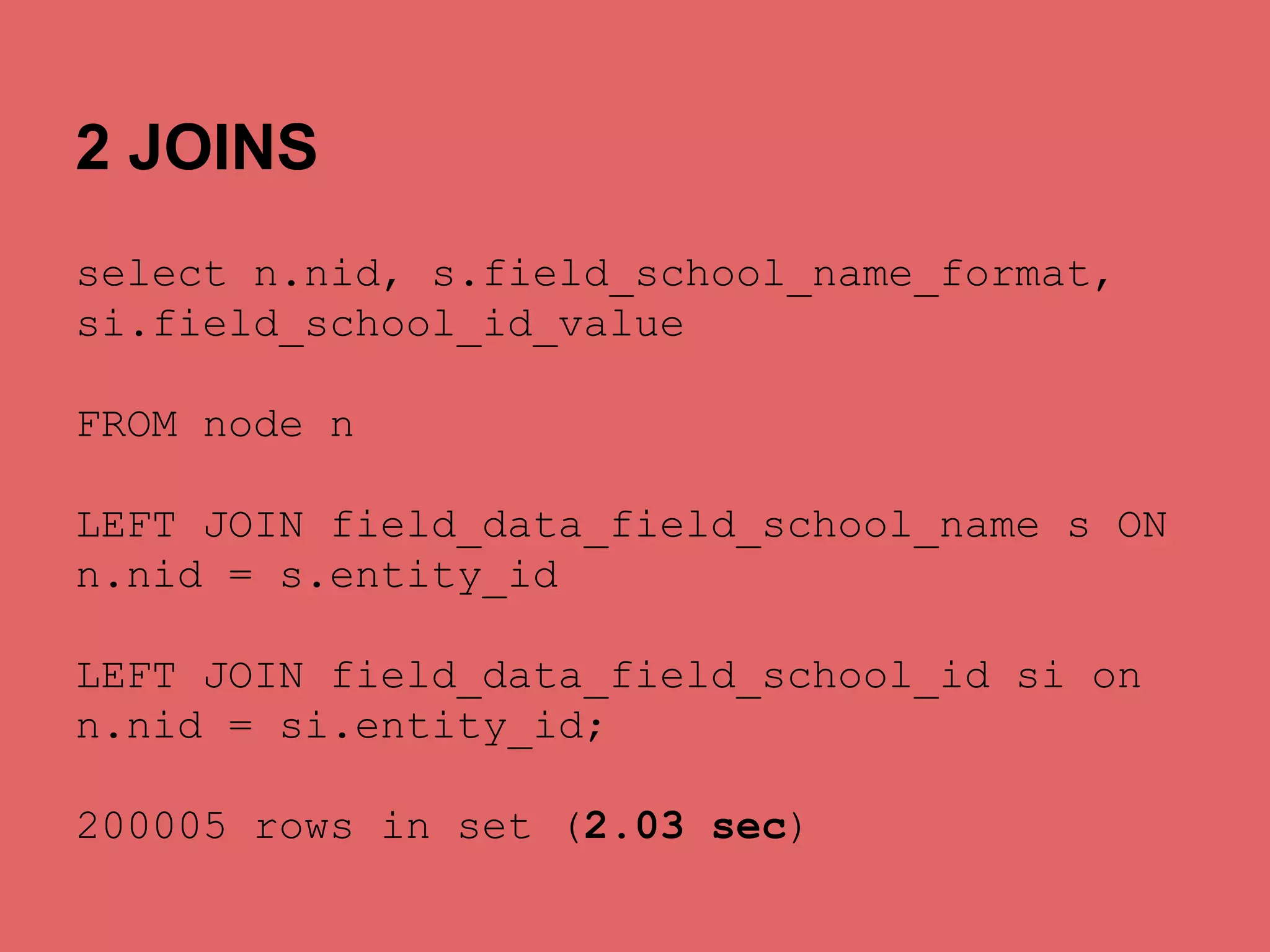

69. 2 JOINS
select n.nid, s.field_school_name_format,
si.field_school_id_value
FROM node n
LEFT JOIN field_data_field_school_name s ON
n.nid = s.entity_id
LEFT JOIN field_data_field_school_id si on
n.nid = si.entity_id;
200005 rows in set (2.03 sec)

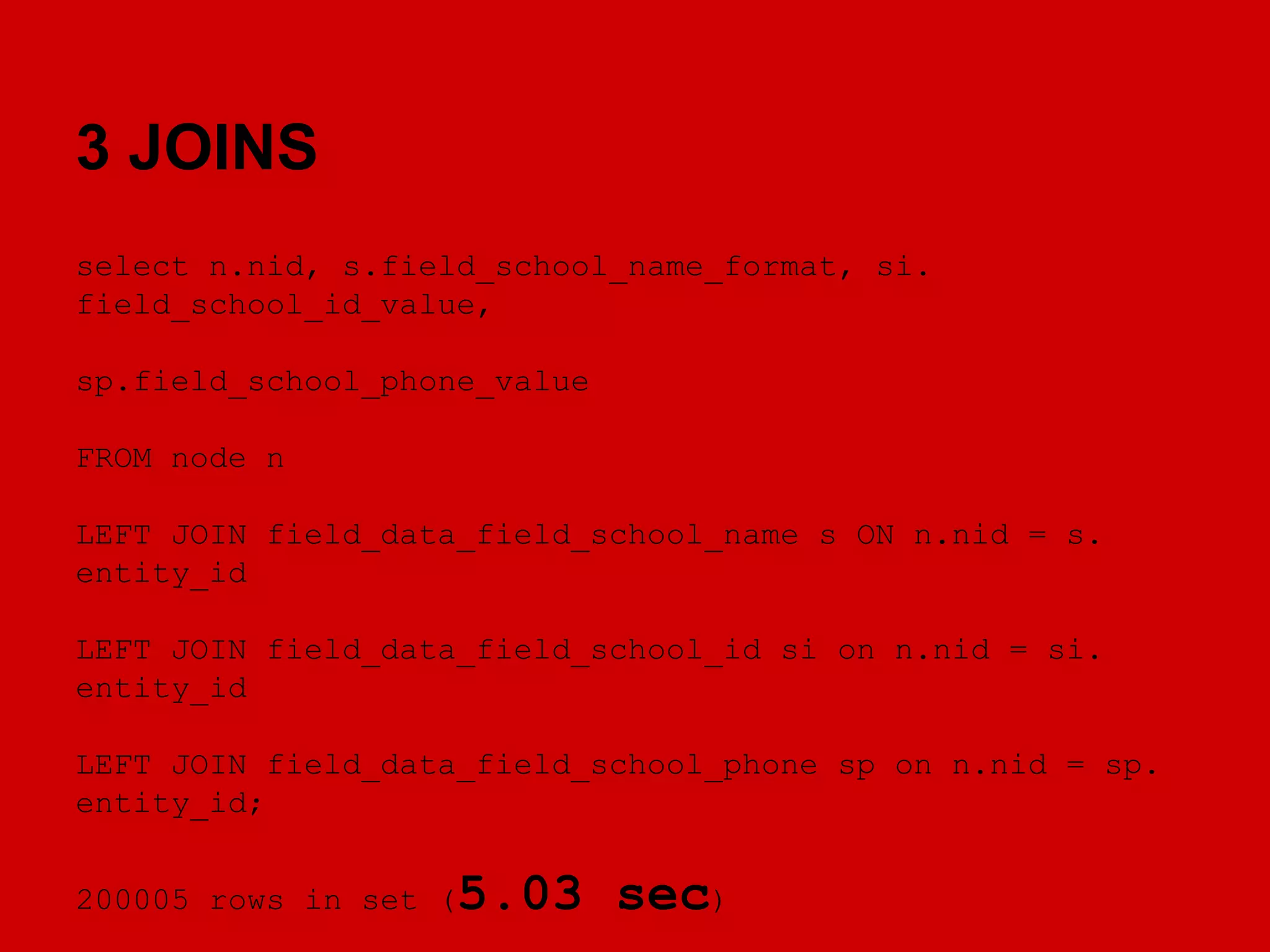

70. 3 JOINS
select n.nid, s.field_school_name_format, si.
field_school_id_value,
sp.field_school_phone_value
FROM node n
LEFT JOIN field_data_field_school_name s ON n.nid = s.
entity_id
LEFT JOIN field_data_field_school_id si on n.nid = si.
entity_id
LEFT JOIN field_data_field_school_phone sp on n.nid = sp.
entity_id;
200005 rows in set (
5.03 sec)

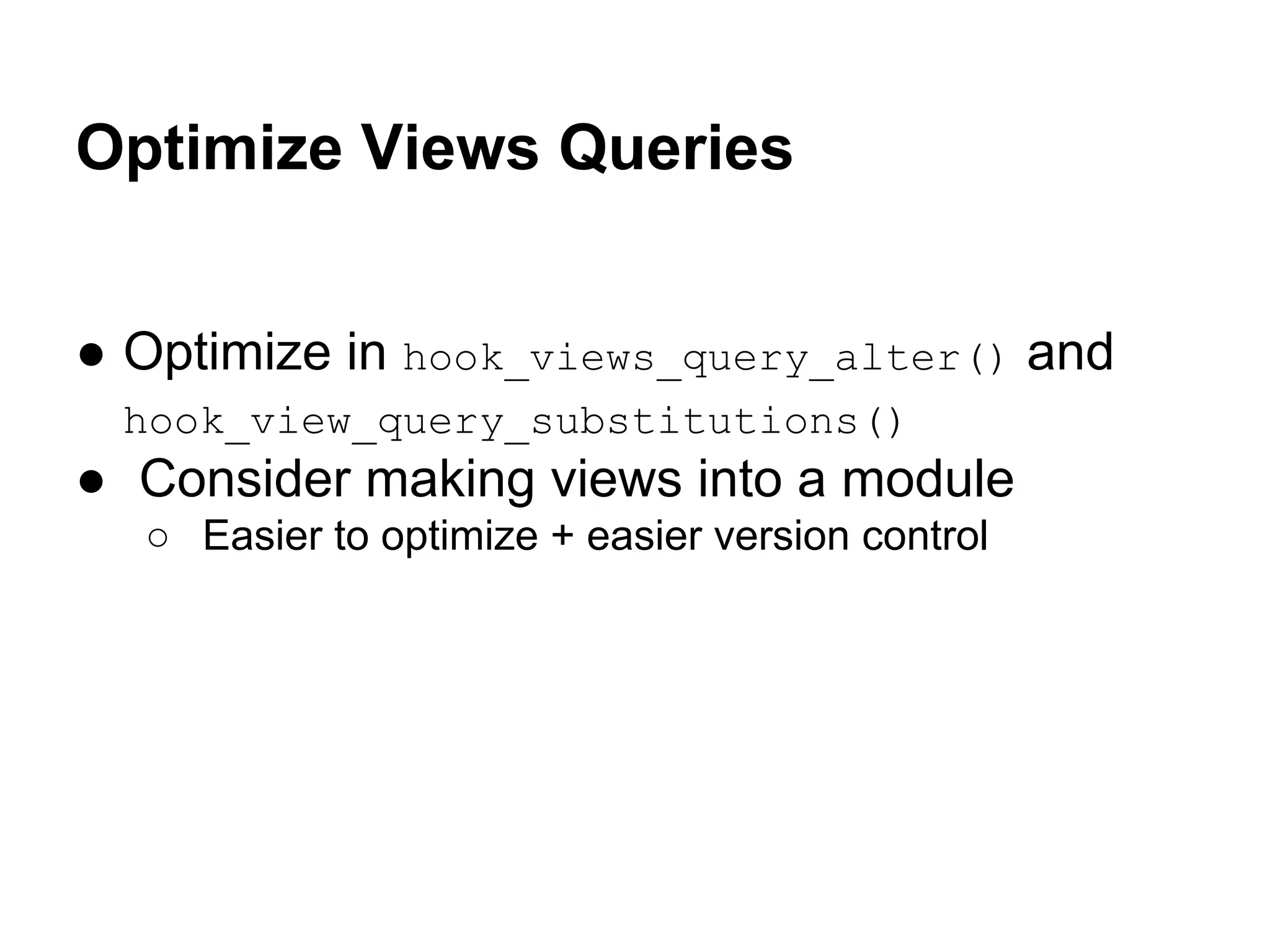

71. Optimize Views Queries
● Optimize in hook_views_query_alter() and
hook_view_query_substitutions()
● Consider making views into a module
○ Easier to optimize + easier version control

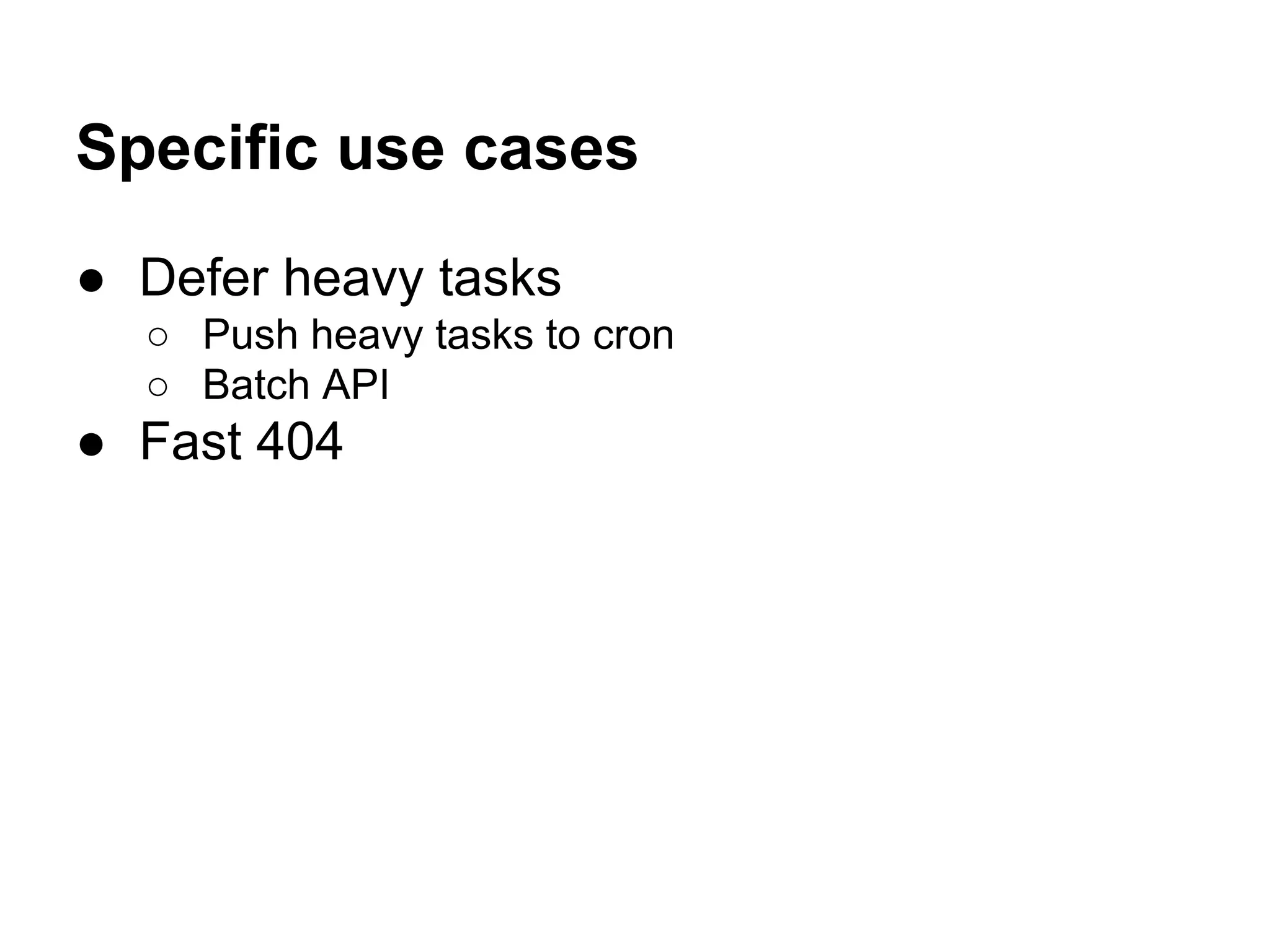

72. Specific use cases
● Defer heavy tasks
○ Push heavy tasks to cron
○ Batch API
● Fast 404

73. Good PHP habits
http://www.phpbench.com/

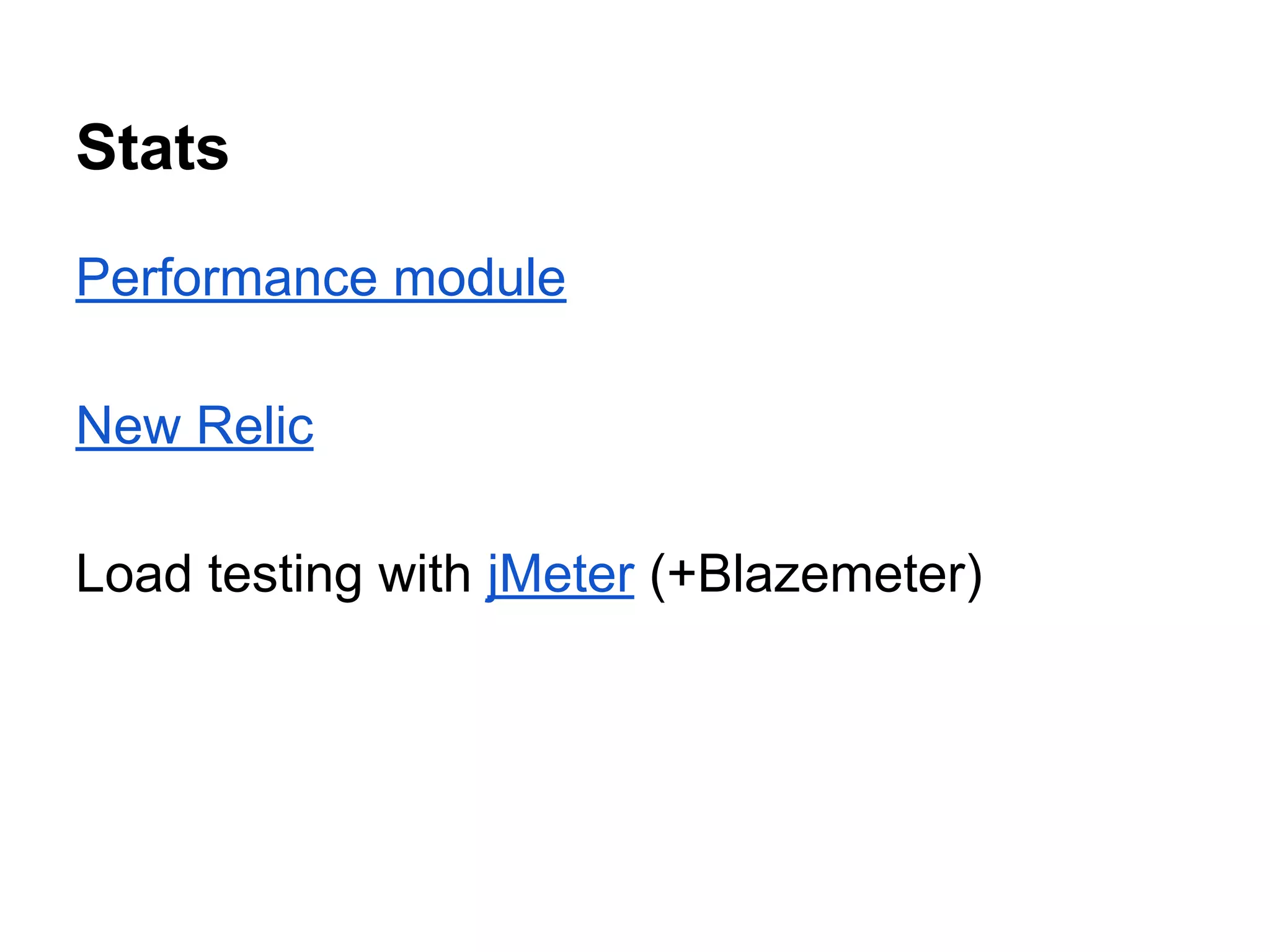

74. Stats
Performance module
New Relic
Load testing with jMeter (+Blazemeter)

75. Bring out the big guns
● Ditch the theme
layer
● Example: NewsFront

76. Now it’s your turn ;-)
