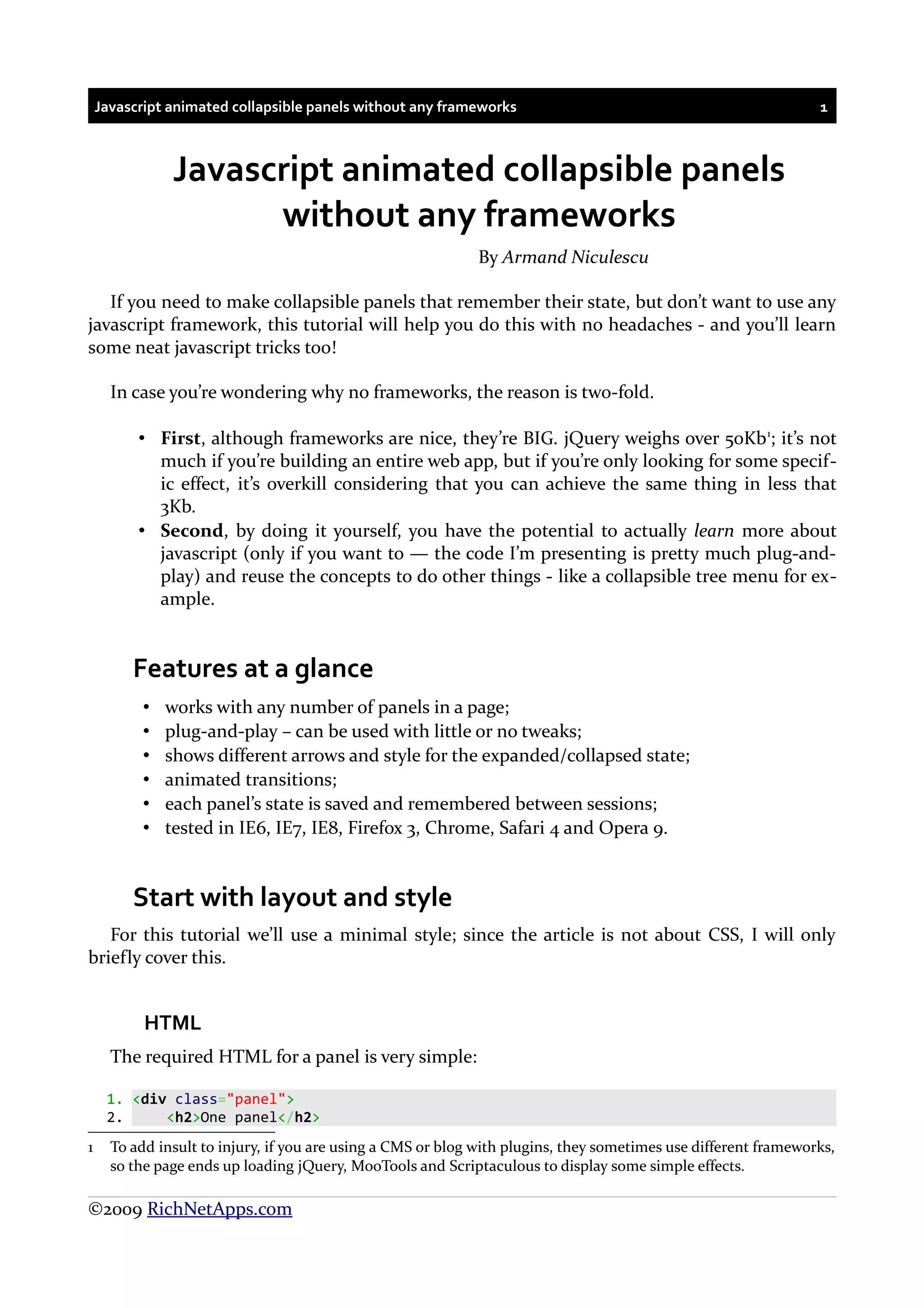

Javascript animated collapsible panels without any frameworks 1

Javascript animated collapsible panels
without any frameworks
By Armand Niculescu

If you need to make collapsible panels that remember their state, but don’t want to use any
javascript framework, this tutorial will help you do this with no headaches - and you’ll learn
some neat javascript tricks too!

In case you’re wondering why no frameworks, the reason is two-fold.

• First, although frameworks are nice, they’re BIG. jQuery weighs over 50Kb 1; it’s not
much if you’re building an entire web app, but if you’re only looking for some specif-
ic effect, it’s overkill considering that you can achieve the same thing in less that
3Kb.
• Second, by doing it yourself, you have the potential to actually learn more about
javascript (only if you want to — the code I’m presenting is pretty much plug-and-
play) and reuse the concepts to do other things - like a collapsible tree menu for ex-
ample.

Features at a glance
• works with any number of panels in a page;
• plug-and-play – can be used with little or no tweaks;
• shows different arrows and style for the expanded/collapsed state;
• animated transitions;
• each panel’s state is saved and remembered between sessions;
• tested in IE6, IE7, IE8, Firefox 3, Chrome, Safari 4 and Opera 9.

Start with layout and style
For this tutorial we’ll use a minimal style; since the article is not about CSS, I will only
briefly cover this.

HTML
The required HTML for a panel is very simple:

1. <div class="panel">
2. <h2>One panel</h2>
1 To add insult to injury, if you are using a CMS or blog with plugins, they sometimes use different frameworks,
so the page ends up loading jQuery, MooTools and Scriptaculous to display some simple effects.

©2009 RichNetApps.com

3. <div class="panelcontent">
4. ... content goes here ...
5. </div>
6. </div>

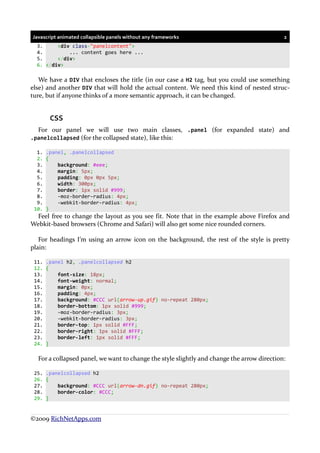

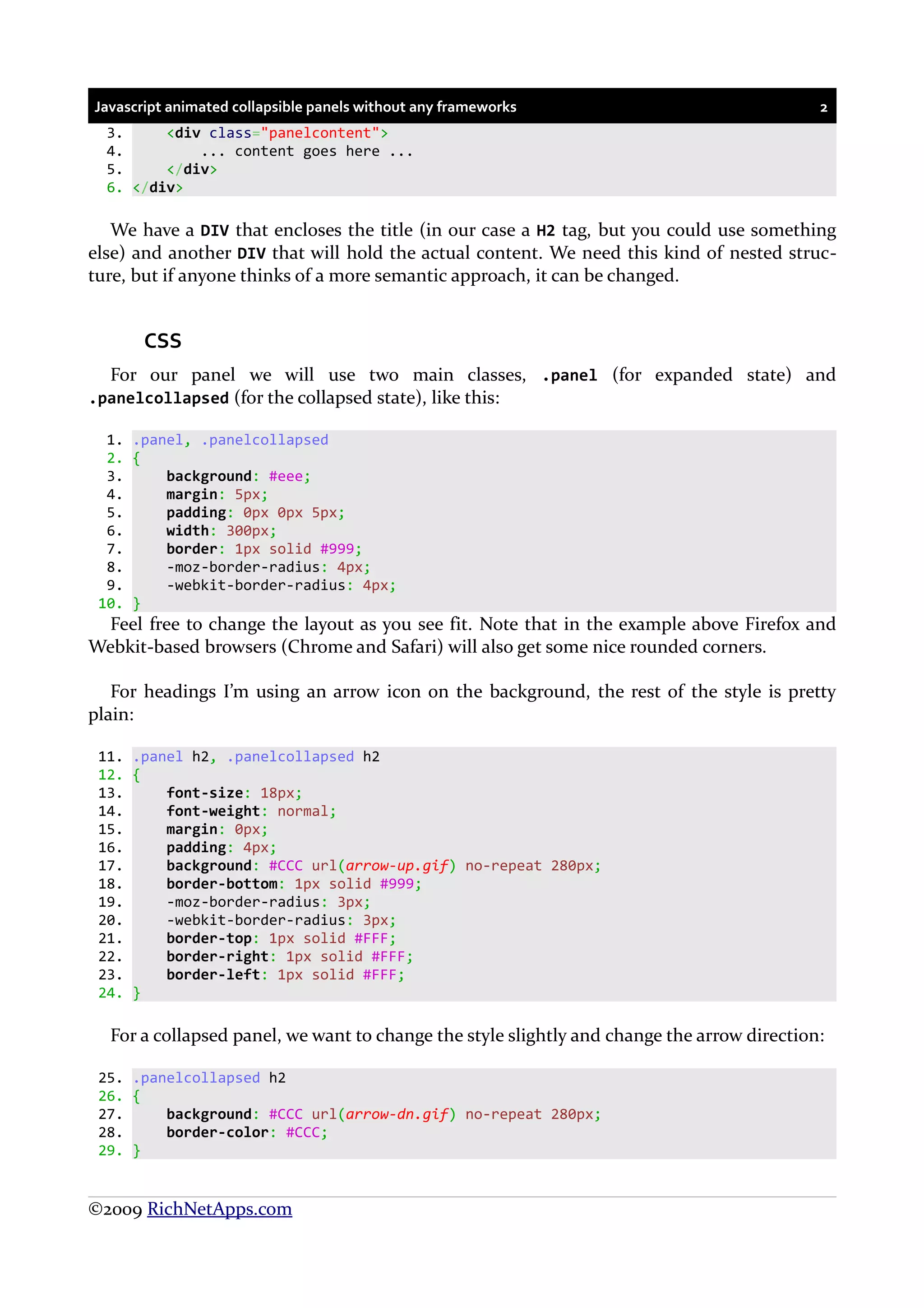

We have a DIV that encloses the title (in our case a H2 tag, but you could use something
else) and another DIV that will hold the actual content. We need this kind of nested struc-
ture, but if anyone thinks of a more semantic approach, it can be changed.

CSS
For our panel we will use two main classes, .panel (for expanded state) and
.panelcollapsed (for the collapsed state), like this:

1. .panel, .panelcollapsed
2. {
3. background: #eee;
4. margin: 5px;
5. padding: 0px 0px 5px;
6. width: 300px;
7. border: 1px solid #999;
8. -moz-border-radius: 4px;
9. -webkit-border-radius: 4px;
10. }
Feel free to change the layout as you see fit. Note that in the example above Firefox and
Webkit-based browsers (Chrome and Safari) will also get some nice rounded corners.

For headings I’m using an arrow icon on the background, the rest of the style is pretty
plain:

11. .panel h2, .panelcollapsed h2
12. {
13. font-size: 18px;
14. font-weight: normal;
15. margin: 0px;
16. padding: 4px;
17. background: #CCC url(arrow-up.gif) no-repeat 280px;
18. border-bottom: 1px solid #999;
19. -moz-border-radius: 3px;
20. -webkit-border-radius: 3px;
21. border-top: 1px solid #FFF;
22. border-right: 1px solid #FFF;
23. border-left: 1px solid #FFF;
24. }

For a collapsed panel, we want to change the style slightly and change the arrow direction:

25. .panelcollapsed h2
26. {
27. background: #CCC url(arrow-dn.gif) no-repeat 280px;
28. border-color: #CCC;
29. }

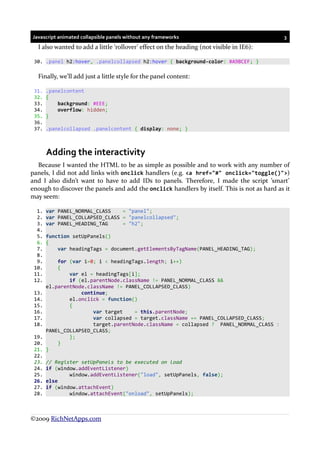

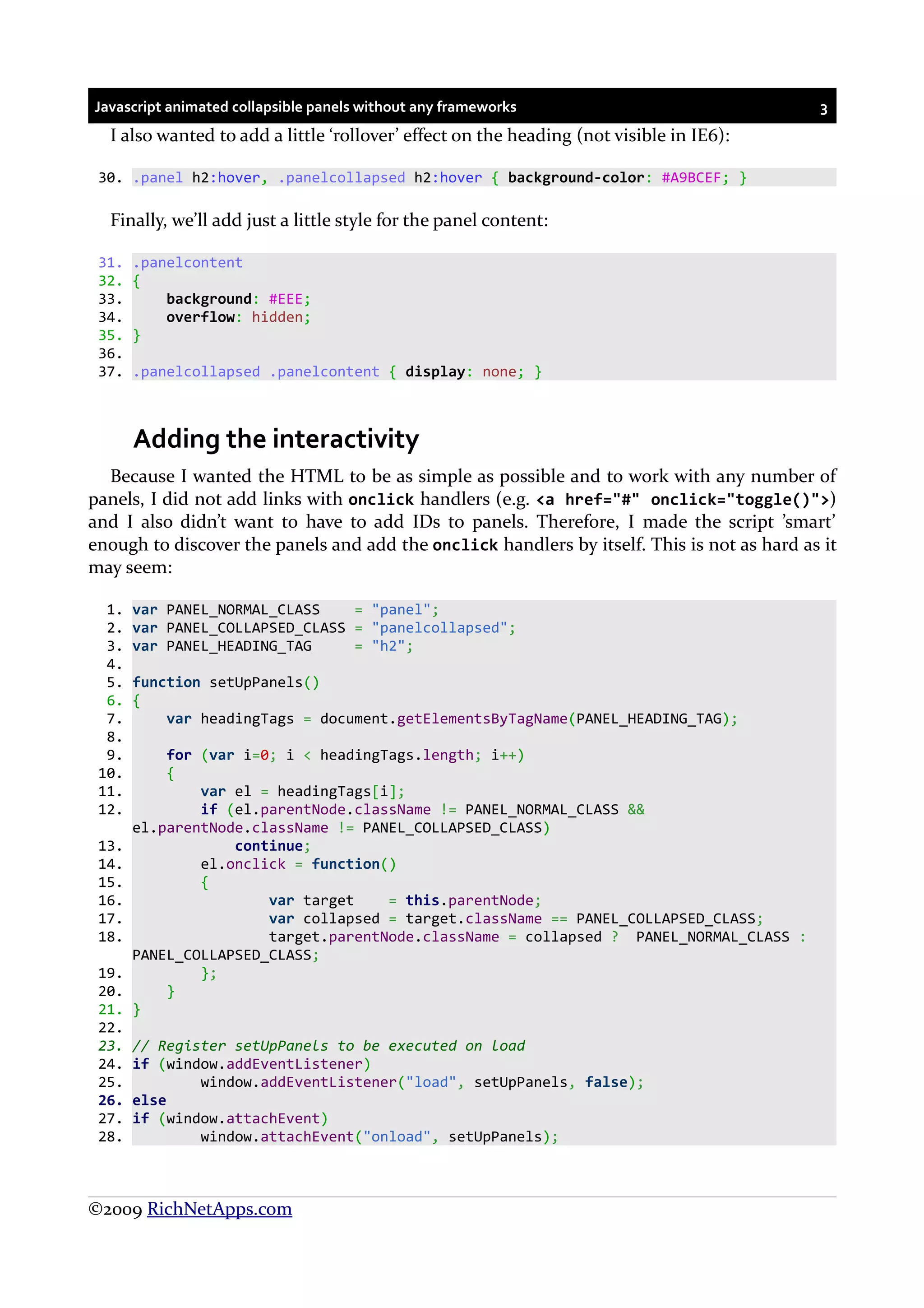

I also wanted to add a little ‘rollover’ effect on the heading (not visible in IE6):

30. .panel h2:hover, .panelcollapsed h2:hover { background-color: #A9BCEF; }

Finally, we’ll add just a little style for the panel content:

31. .panelcontent
32. {
33. background: #EEE;
34. overflow: hidden;
35. }
36.
37. .panelcollapsed .panelcontent { display: none; }

Adding the interactivity
Because I wanted the HTML to be as simple as possible and to work with any number of
panels, I did not add links with onclick handlers (e.g. <a href="#" onclick="toggle()">)
and I also didn’t want to have to add IDs to panels. Therefore, I made the script ’smart’
enough to discover the panels and add the onclick handlers by itself. This is not as hard as it
may seem:

1. var PANEL_NORMAL_CLASS = "panel";
2. var PANEL_COLLAPSED_CLASS = "panelcollapsed";
3. var PANEL_HEADING_TAG = "h2";
4.
5. function setUpPanels()
6. {
7. var headingTags = document.getElementsByTagName(PANEL_HEADING_TAG);
8.
9. for (var i=0; i < headingTags.length; i++)
10. {
11. var el = headingTags[i];
12. if (el.parentNode.className != PANEL_NORMAL_CLASS &&
el.parentNode.className != PANEL_COLLAPSED_CLASS)
13. continue;
14. el.onclick = function()
15. {
16. var target = this.parentNode;
17. var collapsed = target.className == PANEL_COLLAPSED_CLASS;
18. target.parentNode.className = collapsed ? PANEL_NORMAL_CLASS :
PANEL_COLLAPSED_CLASS;
19. };
20. }
21. }
22.
23. // Register setUpPanels to be executed on load
24. if (window.addEventListener)
25. window.addEventListener("load", setUpPanels, false);
26. else
27. if (window.attachEvent)
28. window.attachEvent("onload", setUpPanels);

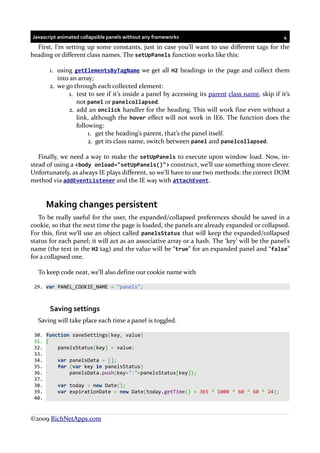

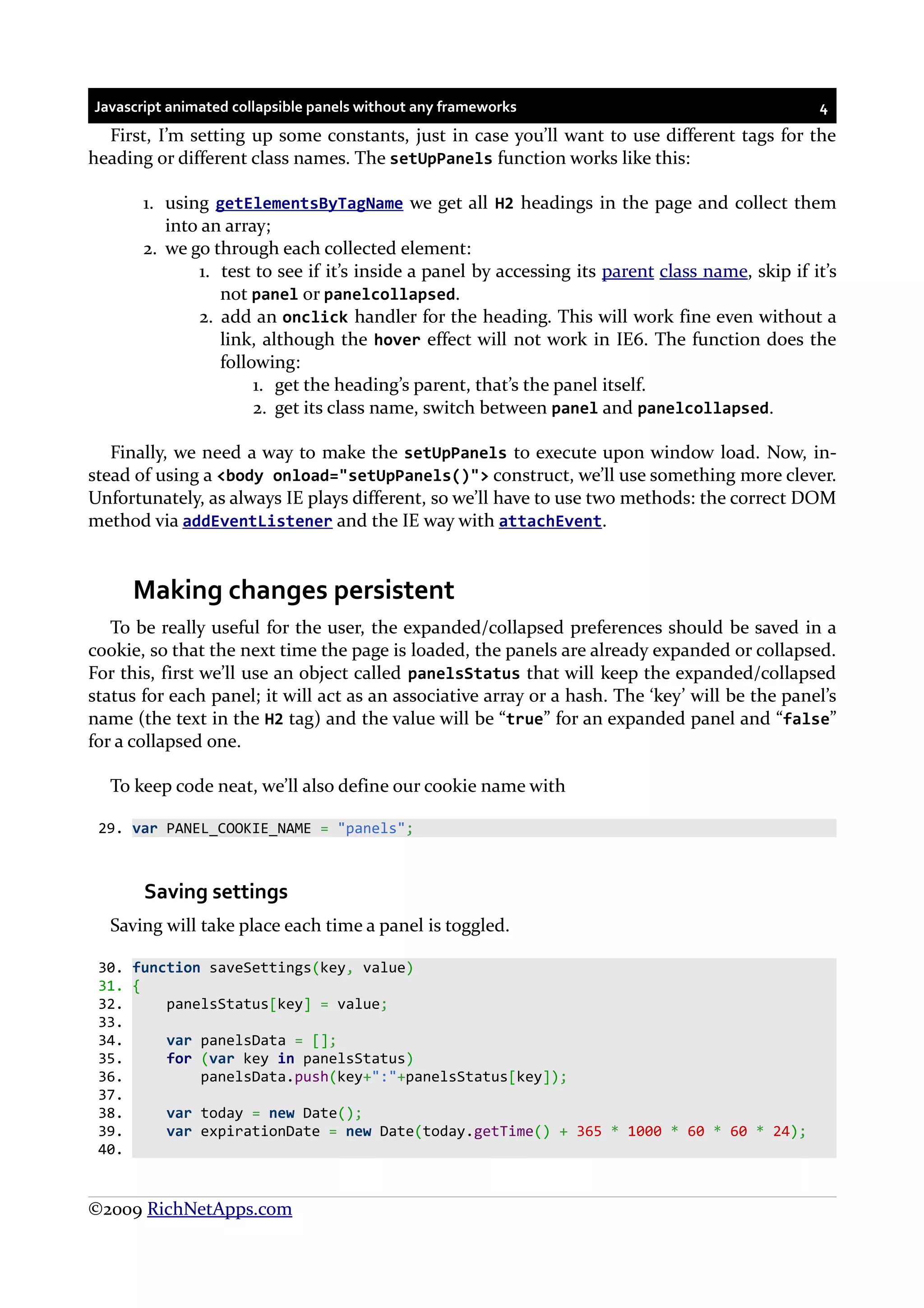

First, I’m setting up some constants, just in case you’ll want to use different tags for the
heading or different class names. The setUpPanels function works like this:

1. using getElementsByTagName we get all H2 headings in the page and collect them
into an array;
2. we go through each collected element:
1. test to see if it’s inside a panel by accessing its parent class name, skip if it’s
not panel or panelcollapsed.
2. add an onclick handler for the heading. This will work fine even without a
link, although the hover effect will not work in IE6. The function does the
following:
1. get the heading’s parent, that’s the panel itself.
2. get its class name, switch between panel and panelcollapsed.

Finally, we need a way to make the setUpPanels to execute upon window load. Now, in-
stead of using a <body onload="setUpPanels()"> construct, we’ll use something more clever.
Unfortunately, as always IE plays different, so we’ll have to use two methods: the correct DOM
method via addEventListener and the IE way with attachEvent.

Making changes persistent
To be really useful for the user, the expanded/collapsed preferences should be saved in a
cookie, so that the next time the page is loaded, the panels are already expanded or collapsed.
For this, first we’ll use an object called panelsStatus that will keep the expanded/collapsed
status for each panel; it will act as an associative array or a hash. The ‘key’ will be the panel’s
name (the text in the H2 tag) and the value will be “true” for an expanded panel and “false”
for a collapsed one.

To keep code neat, we’ll also define our cookie name with

29. var PANEL_COOKIE_NAME = "panels";

Saving settings
Saving will take place each time a panel is toggled.

30. function saveSettings(key, value)
31. {
32. panelsStatus[key] = value;
33.
34. var panelsData = [];
35. for (var key in panelsStatus)
36. panelsData.push(key+":"+panelsStatus[key]);
37.
38. var today = new Date();
39. var expirationDate = new Date(today.getTime() + 365 * 1000 * 60 * 60 * 24);
40.


41. document.cookie = PANEL_COOKIE_NAME + "=" + escape(panelsData.join("|")) +
";expires=" + expirationDate.toGMTString();
42. }

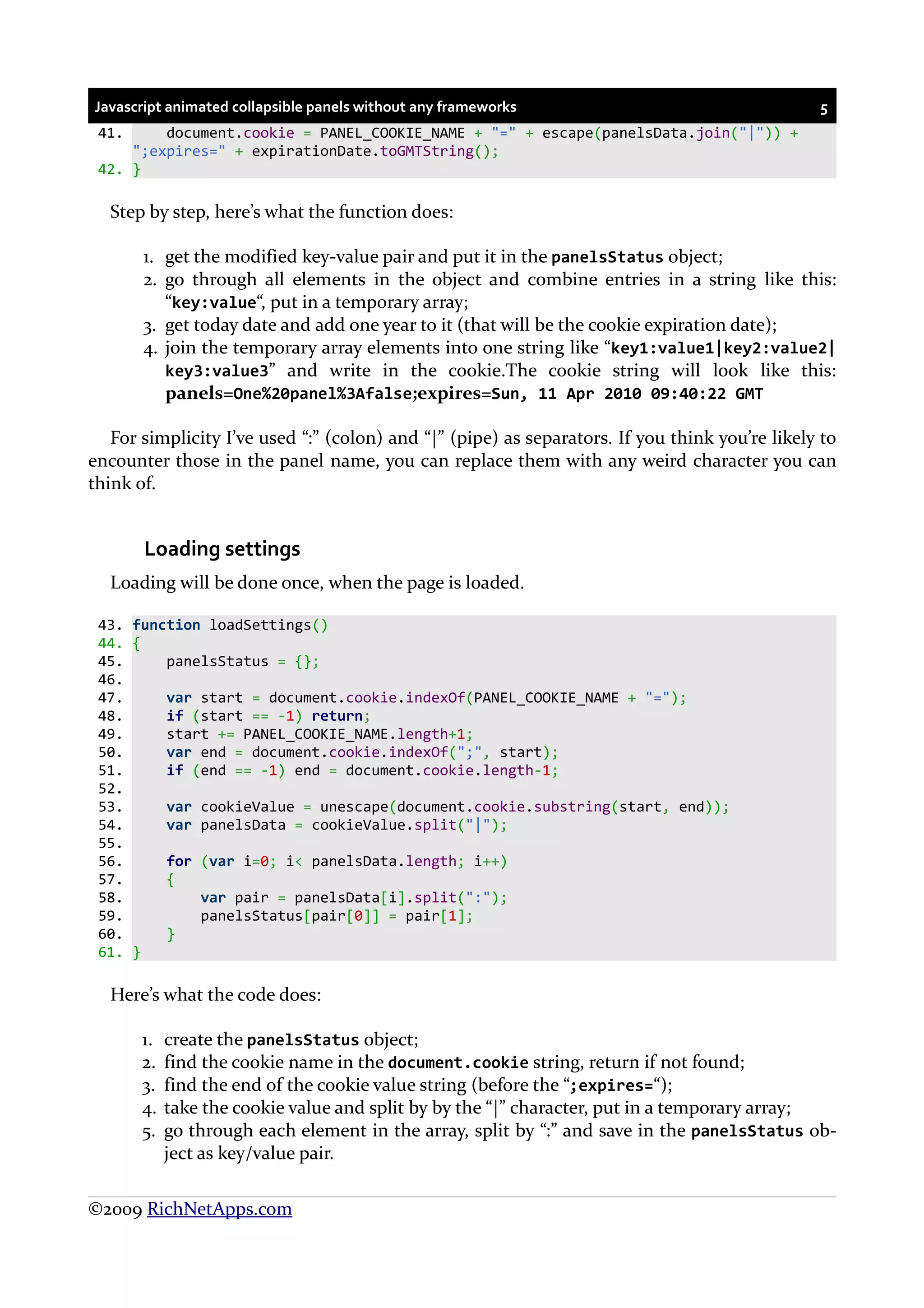

Step by step, here’s what the function does:

1. get the modified key-value pair and put it in the panelsStatus object;
2. go through all elements in the object and combine entries in a string like this:
“key:value“, put in a temporary array;
3. get today date and add one year to it (that will be the cookie expiration date);
4. join the temporary array elements into one string like “key1:value1|key2:value2|
key3:value3” and write in the cookie.The cookie string will look like this:
panels=One%20panel%3Afalse;expires=Sun, 11 Apr 2010 09:40:22 GMT

For simplicity I’ve used “:” (colon) and “|” (pipe) as separators. If you think you’re likely to
encounter those in the panel name, you can replace them with any weird character you can
think of.

Loading settings
Loading will be done once, when the page is loaded.

43. function loadSettings()
44. {
45. panelsStatus = {};
46.
47. var start = document.cookie.indexOf(PANEL_COOKIE_NAME + "=");
48. if (start == -1) return;
49. start += PANEL_COOKIE_NAME.length+1;
50. var end = document.cookie.indexOf(";", start);
51. if (end == -1) end = document.cookie.length-1;
52.
53. var cookieValue = unescape(document.cookie.substring(start, end));
54. var panelsData = cookieValue.split("|");
55.
56. for (var i=0; i< panelsData.length; i++)
57. {
58. var pair = panelsData[i].split(":");
59. panelsStatus[pair[0]] = pair[1];
60. }
61. }

Here’s what the code does:

1. create the panelsStatus object;
2. find the cookie name in the document.cookie string, return if not found;
3. find the end of the cookie value string (before the “;expires=“);
4. take the cookie value and split by by the “|” character, put in a temporary array;
5. go through each element in the array, split by “:” and save in the panelsStatus ob-
ject as key/value pair.

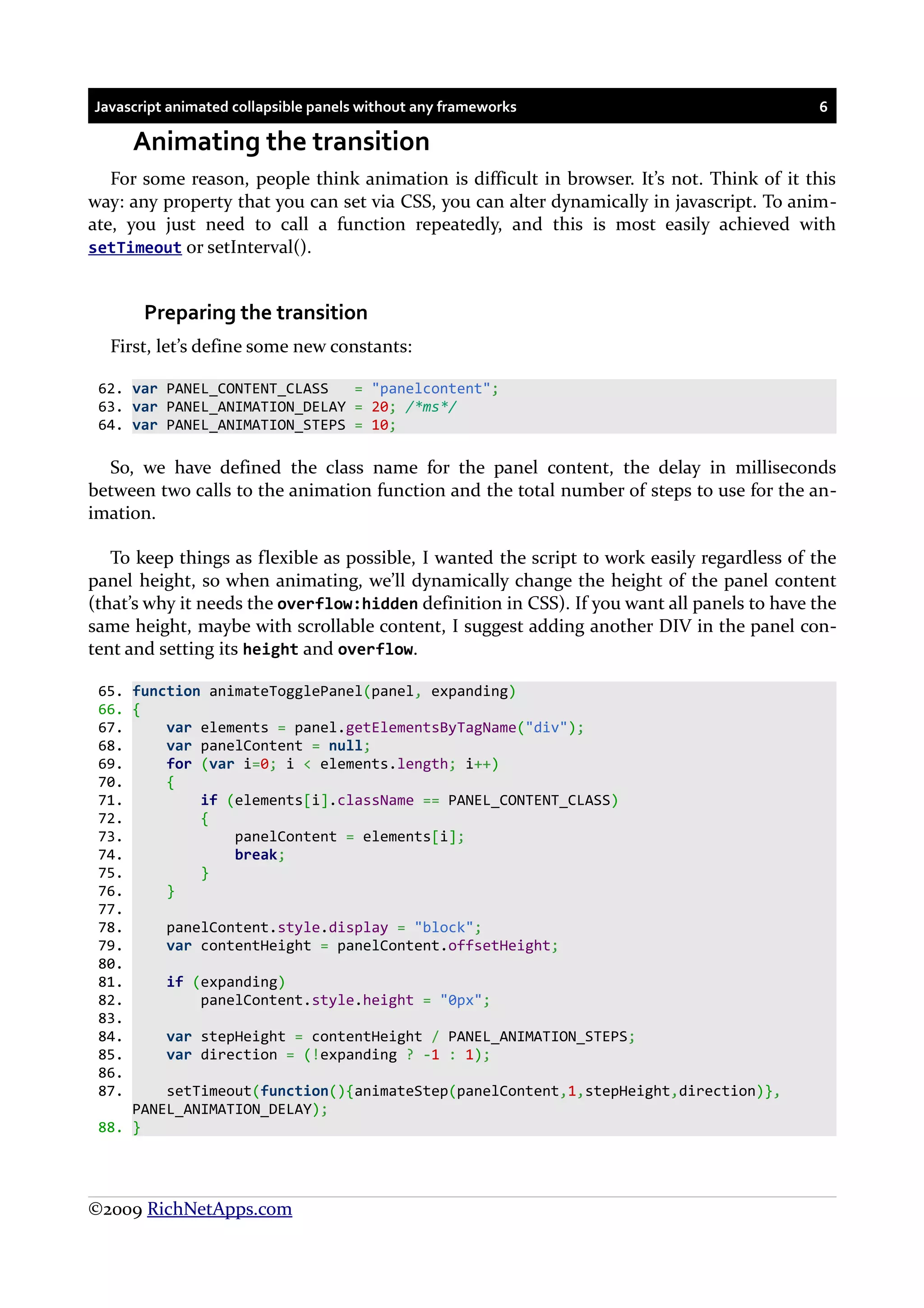

Animating the transition
For some reason, people think animation is difficult in browser. It’s not. Think of it this
way: any property that you can set via CSS, you can alter dynamically in javascript. To anim-
ate, you just need to call a function repeatedly, and this is most easily achieved with
setTimeout or setInterval().

Preparing the transition
First, let’s define some new constants:

62. var PANEL_CONTENT_CLASS = "panelcontent";
63. var PANEL_ANIMATION_DELAY = 20; /*ms*/
64. var PANEL_ANIMATION_STEPS = 10;

So, we have defined the class name for the panel content, the delay in milliseconds
between two calls to the animation function and the total number of steps to use for the an-
imation.

To keep things as flexible as possible, I wanted the script to work easily regardless of the
panel height, so when animating, we’ll dynamically change the height of the panel content
(that’s why it needs the overflow:hidden definition in CSS). If you want all panels to have the
same height, maybe with scrollable content, I suggest adding another DIV in the panel con-
tent and setting its height and overflow.

65. function animateTogglePanel(panel, expanding)
66. {
67. var elements = panel.getElementsByTagName("div");
68. var panelContent = null;
69. for (var i=0; i < elements.length; i++)
70. {
71. if (elements[i].className == PANEL_CONTENT_CLASS)
72. {
73. panelContent = elements[i];
74. break;
75. }
76. }
77.
78. panelContent.style.display = "block";
79. var contentHeight = panelContent.offsetHeight;
80.
81. if (expanding)
82. panelContent.style.height = "0px";
83.
84. var stepHeight = contentHeight / PANEL_ANIMATION_STEPS;
85. var direction = (!expanding ? -1 : 1);
86.
87. setTimeout(function(){animateStep(panelContent,1,stepHeight,direction)},
PANEL_ANIMATION_DELAY);
88. }

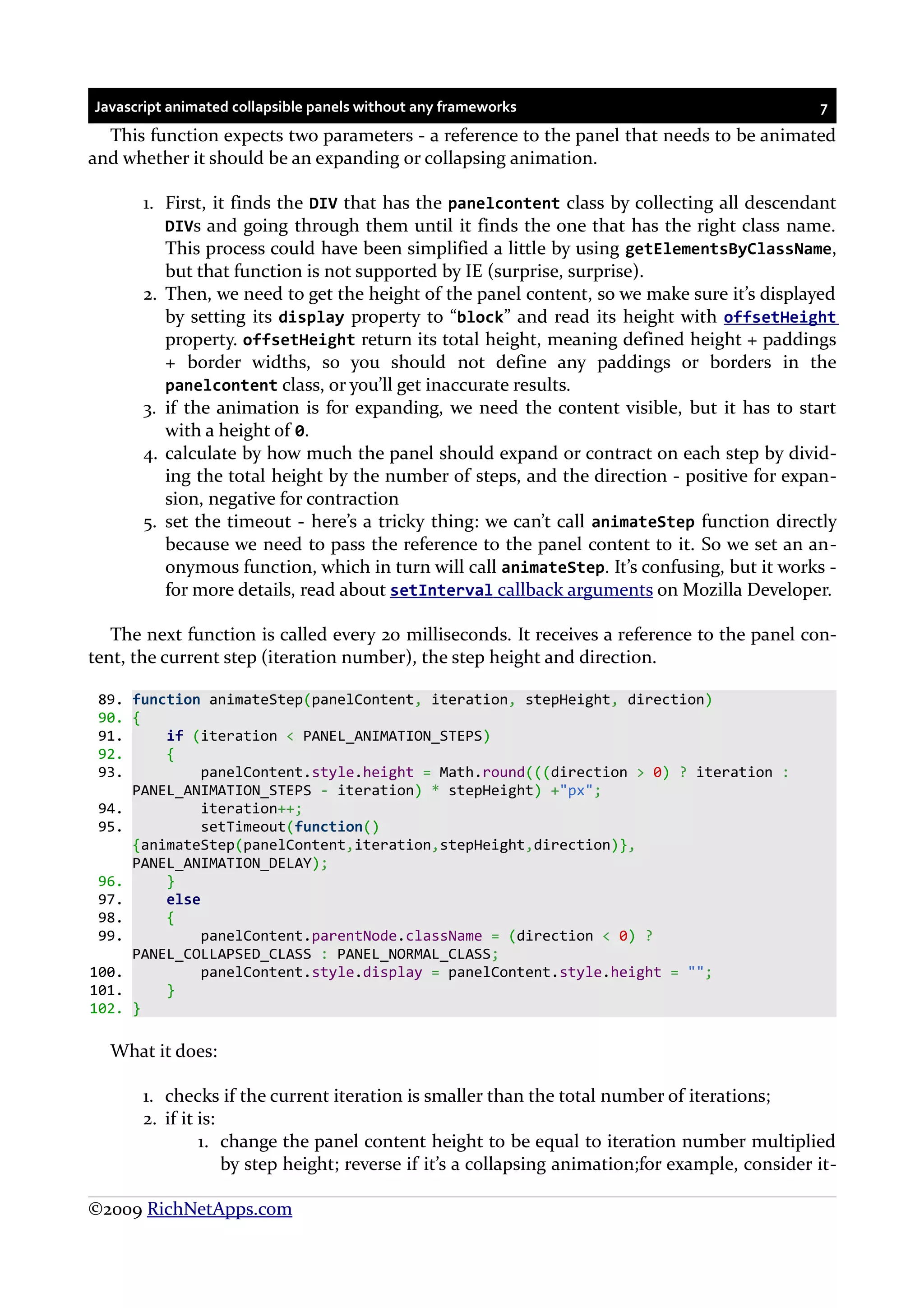

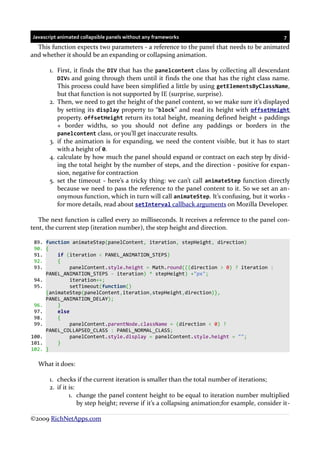

This function expects two parameters - a reference to the panel that needs to be animated
and whether it should be an expanding or collapsing animation.

1. First, it finds the DIV that has the panelcontent class by collecting all descendant
DIVs and going through them until it finds the one that has the right class name.
This process could have been simplified a little by using getElementsByClassName,
but that function is not supported by IE (surprise, surprise).
2. Then, we need to get the height of the panel content, so we make sure it’s displayed
by setting its display property to “block” and read its height with offsetHeight
property. offsetHeight return its total height, meaning defined height + paddings
+ border widths, so you should not define any paddings or borders in the
panelcontent class, or you’ll get inaccurate results.
3. if the animation is for expanding, we need the content visible, but it has to start
with a height of 0.
4. calculate by how much the panel should expand or contract on each step by divid-
ing the total height by the number of steps, and the direction - positive for expan-
sion, negative for contraction
5. set the timeout - here’s a tricky thing: we can’t call animateStep function directly
because we need to pass the reference to the panel content to it. So we set an an-
onymous function, which in turn will call animateStep. It’s confusing, but it works -
for more details, read about setInterval callback arguments on Mozilla Developer.

The next function is called every 20 milliseconds. It receives a reference to the panel con-
tent, the current step (iteration number), the step height and direction.

89. function animateStep(panelContent, iteration, stepHeight, direction)
90. {
91. if (iteration < PANEL_ANIMATION_STEPS)
92. {
93. panelContent.style.height = Math.round(((direction > 0) ? iteration :
PANEL_ANIMATION_STEPS - iteration) * stepHeight) +"px";
94. iteration++;
95. setTimeout(function()
{animateStep(panelContent,iteration,stepHeight,direction)},
96. }
97. else
98. {
99. panelContent.parentNode.className = (direction < 0) ?
PANEL_COLLAPSED_CLASS : PANEL_NORMAL_CLASS;
100. panelContent.style.display = panelContent.style.height = "";
101. }
102. }

What it does:

1. checks if the current iteration is smaller than the total number of iterations;
2. if it is:

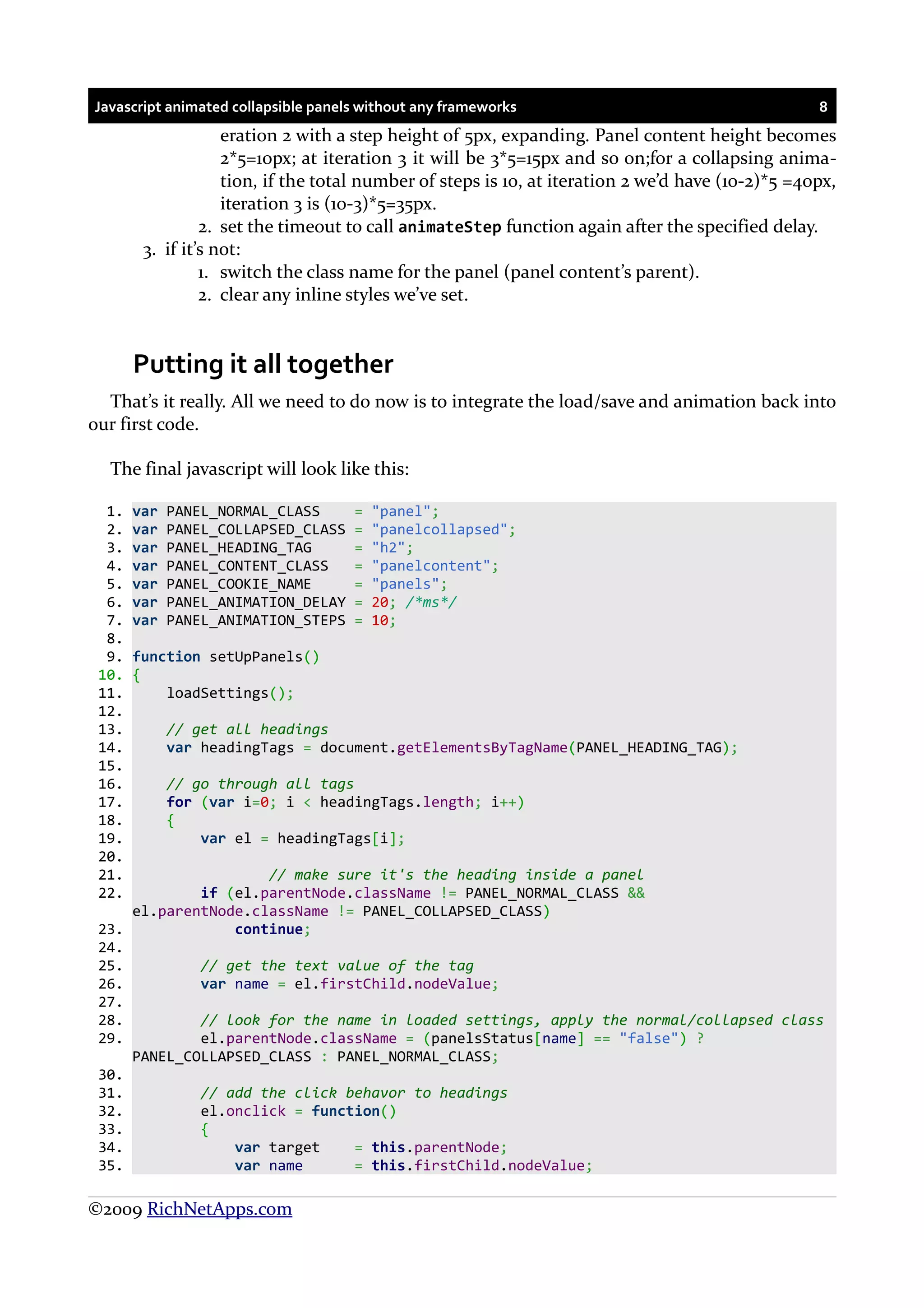

1. change the panel content height to be equal to iteration number multiplied
by step height; reverse if it’s a collapsing animation;for example, consider it-


eration 2 with a step height of 5px, expanding. Panel content height becomes
2*5=10px; at iteration 3 it will be 3*5=15px and so on;for a collapsing anima-
tion, if the total number of steps is 10, at iteration 2 we’d have (10-2)*5 =40px,
iteration 3 is (10-3)*5=35px.
2. set the timeout to call animateStep function again after the specified delay.
3. if it’s not:
1. switch the class name for the panel (panel content’s parent).
2. clear any inline styles we’ve set.

Putting it all together
That’s it really. All we need to do now is to integrate the load/save and animation back into
our first code.

The final javascript will look like this:

1. var PANEL_NORMAL_CLASS = "panel";
2. var PANEL_COLLAPSED_CLASS = "panelcollapsed";
3. var PANEL_HEADING_TAG = "h2";
4. var PANEL_CONTENT_CLASS = "panelcontent";
5. var PANEL_COOKIE_NAME = "panels";
6. var PANEL_ANIMATION_DELAY = 20; /*ms*/
7. var PANEL_ANIMATION_STEPS = 10;
8.
9. function setUpPanels()
10. {
11. loadSettings();
12.
13. // get all headings
14. var headingTags = document.getElementsByTagName(PANEL_HEADING_TAG);
15.
16. // go through all tags
17. for (var i=0; i < headingTags.length; i++)
18. {
19. var el = headingTags[i];
20.
21. // make sure it's the heading inside a panel
22. if (el.parentNode.className != PANEL_NORMAL_CLASS &&
el.parentNode.className != PANEL_COLLAPSED_CLASS)
23. continue;
24.
25. // get the text value of the tag
26. var name = el.firstChild.nodeValue;
27.
28. // look for the name in loaded settings, apply the normal/collapsed class
29. el.parentNode.className = (panelsStatus[name] == "false") ?
30.
31. // add the click behavor to headings
32. el.onclick = function()
33. {
34. var target = this.parentNode;
35. var name = this.firstChild.nodeValue;


36. var collapsed = target.className == PANEL_COLLAPSED_CLASS;
37. saveSettings(name, !collapsed.toString());
38. animateTogglePanel(target, collapsed);
39. };
40. }
41. }
42.
43. /**
44. * Start the expand/collapse animation of the panel
45. * @param panel reference to the panel div
46. */
47. function animateTogglePanel(panel, expanding)
48. {
49. // find the .panelcontent div
50. var elements = panel.getElementsByTagName("div");
51. var panelContent = null;
52. for (var i=0; i < elements.length; i++)
53. {
54. if (elements[i].className == PANEL_CONTENT_CLASS)
55. {
56. panelContent = elements[i];
57. break;
58. }
59. }
60.
61. // make sure the content is visible before getting its height
62. panelContent.style.display = "block";
63.
64. // get the height of the content
65. var contentHeight = panelContent.offsetHeight;
66.
67. // if panel is collapsed and expanding, we must start with 0 height
68. if (expanding)
69. panelContent.style.height = "0px";
70.
71. var stepHeight = contentHeight / PANEL_ANIMATION_STEPS;
72. var direction = (!expanding ? -1 : 1);
73.
74. setTimeout(function(){animateStep(panelContent,1,stepHeight,direction)},
75. }
76.
77. /**
78. * Change the height of the target
79. * @param panelContent reference to the panel content to change height
80. * @param iteration current iteration;
81. * @param stepHeight height increment to be added/substracted in one step
82. * @param direction 1 for expanding, -1 for collapsing
83. */
84. function animateStep(panelContent, iteration, stepHeight, direction)
85. {
86. if (iteration < PANEL_ANIMATION_STEPS)
87. {
88. panelContent.style.height = Math.round(((direction > 0) ? iteration :
PANEL_ANIMATION_STEPS - iteration) * stepHeight) +"px";
89. iteration++;
90. setTimeout(function()


{animateStep(panelContent,iteration,stepHeight,direction)},
91. }
92. else
93. {
94. // set class for the panel
95. panelContent.parentNode.className = (direction < 0) ?
96. // clear inline styles
97. panelContent.style.display = panelContent.style.height = "";
98. }
99. }
100.
101. // ------------------------------------------------------------------------------
102. // Load-Save
103. // ------------------------------------------------------------------------------
104. /**
105. * Reads the "panels" cookie if exists, expects data formatted as key:value|
106. * puts in panelsStatus object
107. */
108. function loadSettings()
109. {
110. // prepare the object that will keep the panel statuses
111. panelsStatus = {};
112.
113. // find the cookie name
114. var start = document.cookie.indexOf(PANEL_COOKIE_NAME + "=");
115. if (start == -1) return;
116.
117. // starting point of the value
118. start += PANEL_COOKIE_NAME.length+1;
119.
120. // find end point of the value
121. var end = document.cookie.indexOf(";", start);
122. if (end == -1) end = document.cookie.length-1;
123.
124. // get the value, split into key:value pairs
125. var cookieValue = unescape(document.cookie.substring(start, end));
126. var panelsData = cookieValue.split("|");
127.
128. // split each key:value pair and put in object
129. for (var i=0; i< panelsData.length; i++)
130. {
131. var pair = panelsData[i].split(":");
132. panelsStatus[pair[0]] = pair[1];
133. }
134. }
135.
136. /**
137. * Takes data from the panelsStatus object, formats as key:value|key:value...
138. * and puts in cookie valid for 365 days
139. * @param key key name to save
140. * @paeam value key value
141. */
142. function saveSettings(key, value)
143. {
144. // put the new value in the object


145. panelsStatus[key] = value;
146.
147. // create an array that will keep the key:value pairs
148. var panelsData = [];
149. for (var key in panelsStatus)
150. panelsData.push(key+":"+panelsStatus[key]);
151.
152. // set the cookie expiration date 1 year from now
153. var today = new Date();
154. var expirationDate = new Date(today.getTime() + 365 * 1000 * 60 * 60 * 24);
155. // write the cookie
156. document.cookie = PANEL_COOKIE_NAME + "=" + escape(panelsData.join("|")) +
";expires=" + expirationDate.toGMTString();
157. }
158.
159. // ---------------------------------------------------------------------------
160. // Register setUpPanels to be executed on load
161. if (window.addEventListener)
162. {
163. // the "proper" way
164. window.addEventListener("load", setUpPanels, false);
165. }
166. else
167. if (window.attachEvent)
168. {
169. // the IE way
170. window.attachEvent("onload", setUpPanels);
171. }

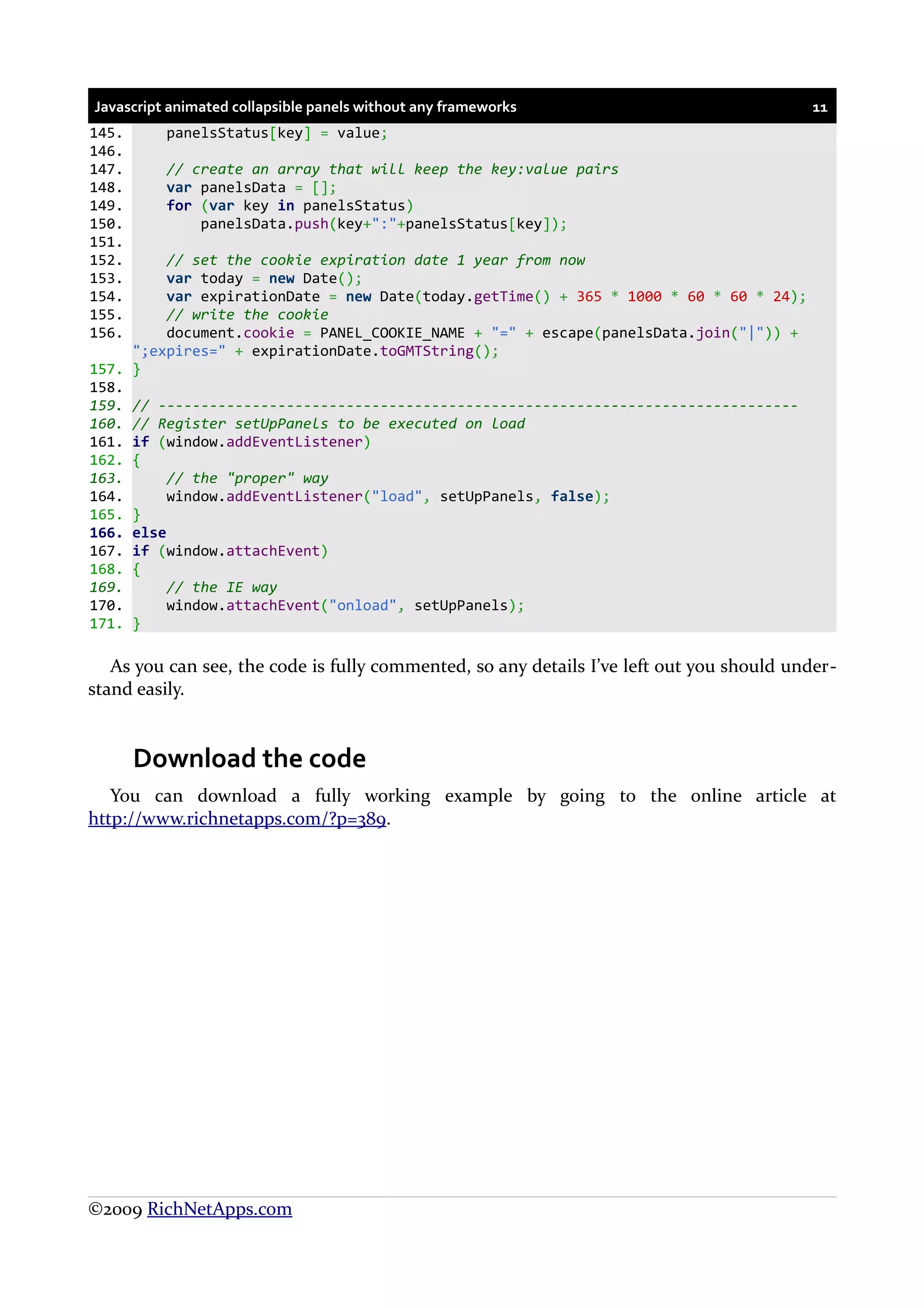

As you can see, the code is fully commented, so any details I’ve left out you should under-
stand easily.

Download the code
You can download a fully working example by going to the online article at
http://www.richnetapps.com/?p=389.


collapsible-panels-tutorial

More Related Content

Similar to collapsible-panels-tutorial

More from tutorialsruby

Recently uploaded

collapsible-panels-tutorial
