Fachgebiet Verteilte Multimodale Informationsverarbeitung
Prof. Dr. Matthias Kranz                                          Technische Universität München

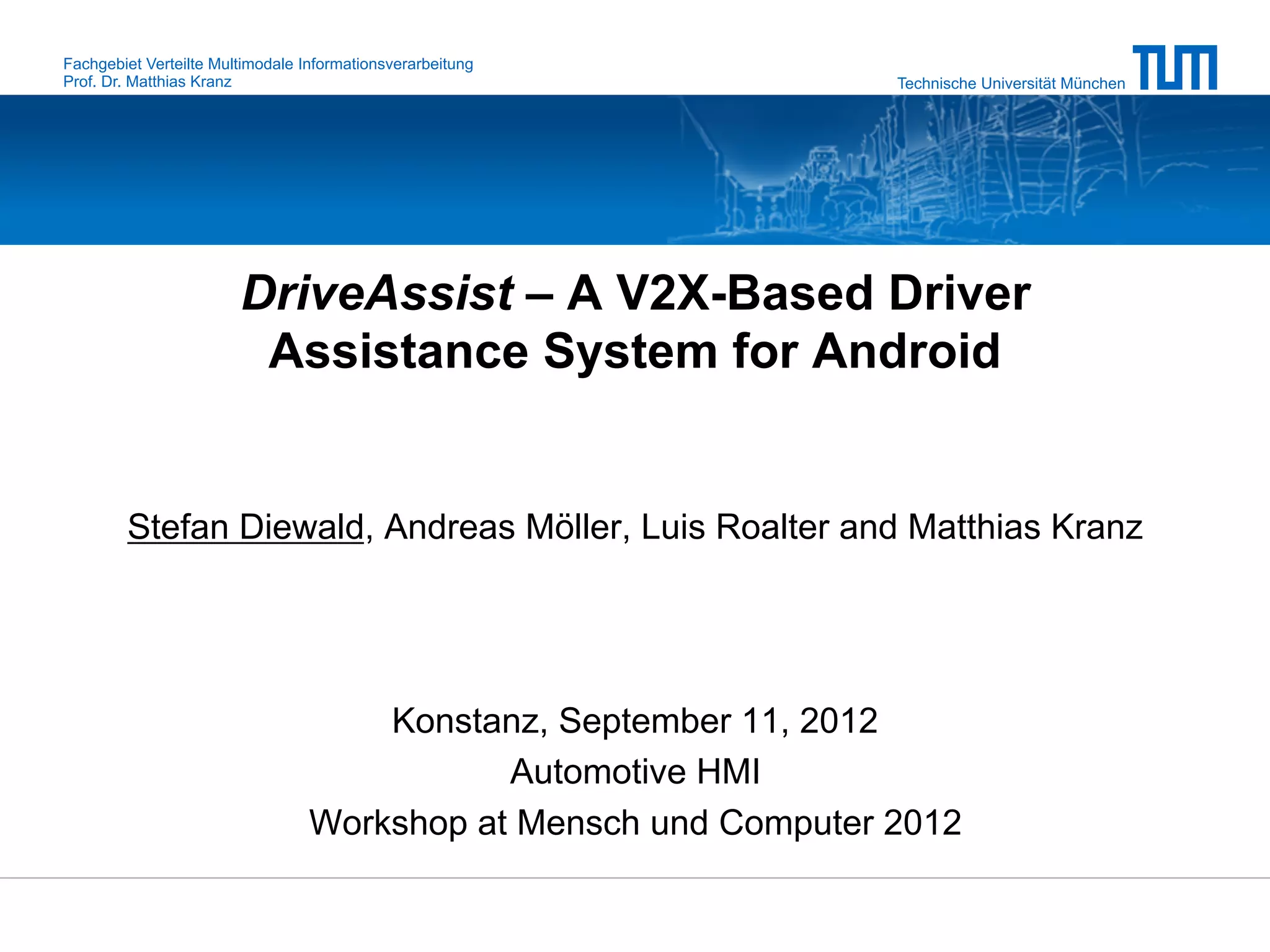

                        DriveAssist – A V2X-Based Driver
                         Assistance System for Android


        Stefan Diewald, Andreas Möller, Luis Roalter and Matthias Kranz




                                      Konstanz, September 11, 2012
                                             Automotive HMI
                                  Workshop at Mensch und Computer 2012
Fachgebiet Verteilte Multimodale Informationsverarbeitung
Prof. Dr. Matthias Kranz                                              Technische Universität München

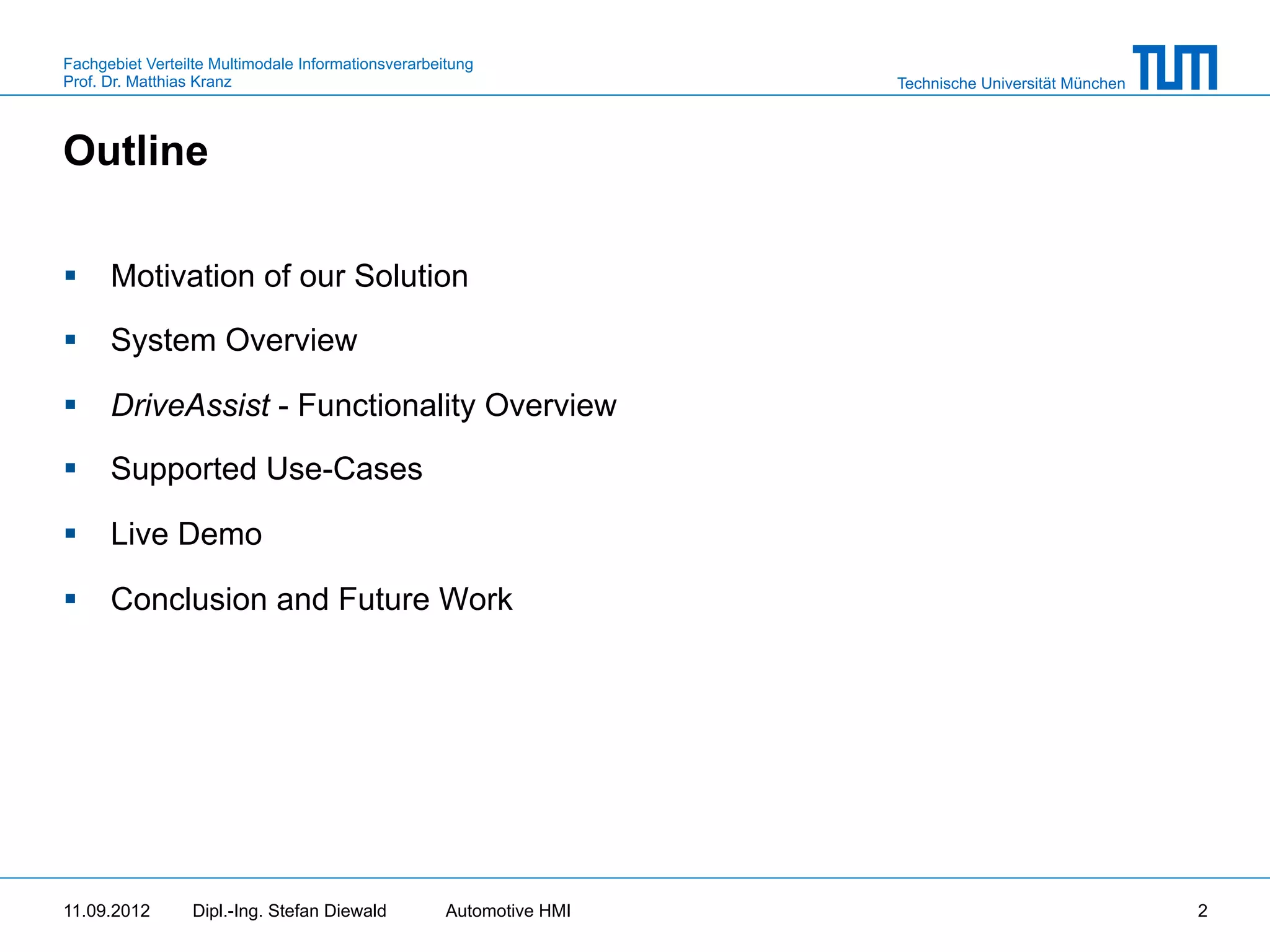

Outline

§  Motivation of our Solution

§  System Overview

§  DriveAssist - Functionality Overview

§  Supported Use-Cases

§  Live Demo

§  Conclusion and Future Work




11.09.2012       Dipl.-Ing. Stefan Diewald           Automotive HMI                                    2
Fachgebiet Verteilte Multimodale Informationsverarbeitung
Prof. Dr. Matthias Kranz                                                        Technische Universität München

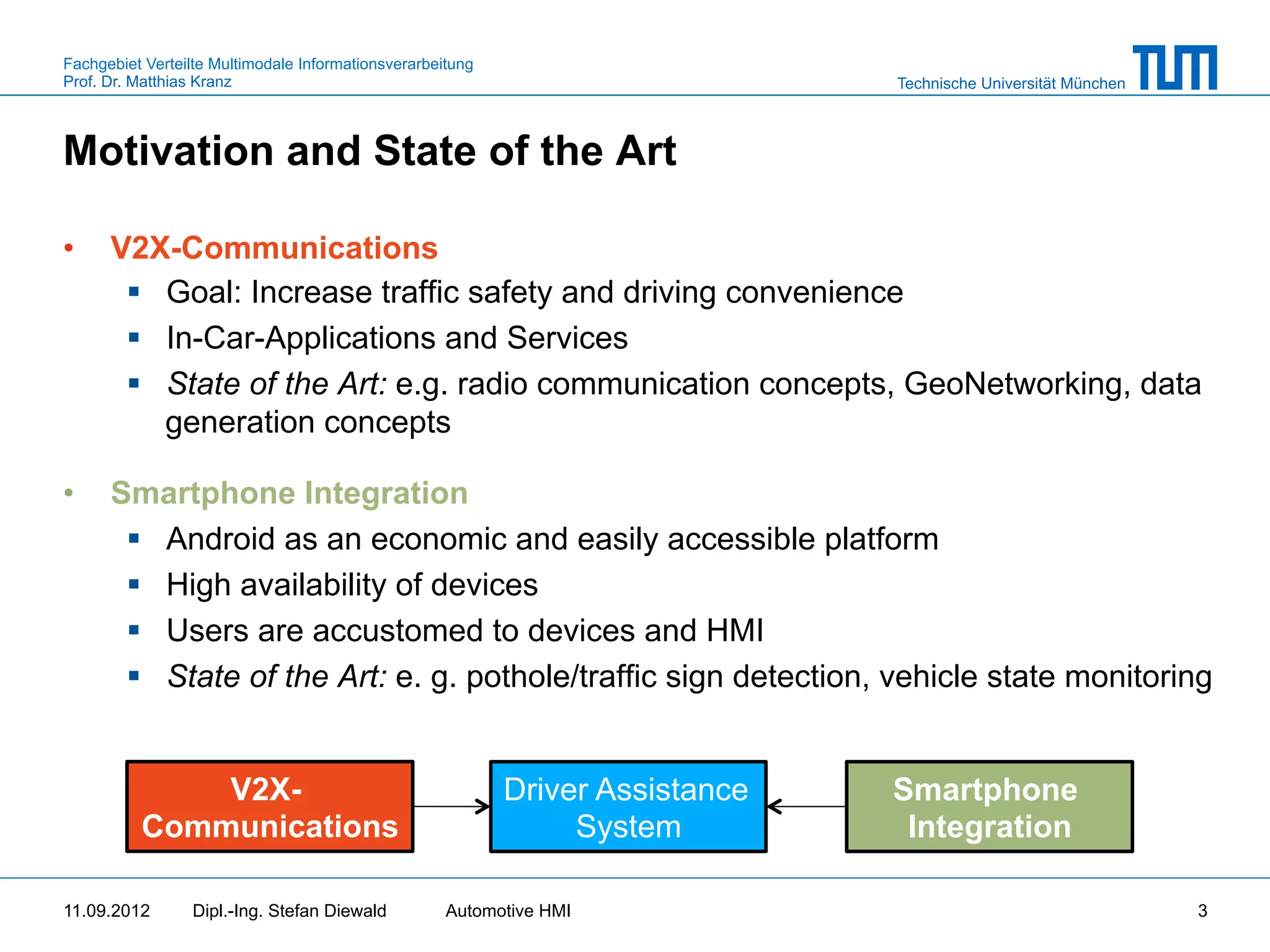

Motivation and State of the Art

•     V2X-Communications
       §  Goal: Increase traffic safety and driving convenience
       §  In-Car-Applications and Services
       §  State of the Art: e.g. radio communication concepts, GeoNetworking, data
           generation concepts

•     Smartphone Integration
       §  Android as an economic and easily accessible platform
       §  High availability of devices
       §  Users are accustomed to devices and HMI
       §  State of the Art: e. g. pothole/traffic sign detection, vehicle state monitoring


              V2X-                                          Driver Assistance   Smartphone
          Communications                                         System          Integration

11.09.2012       Dipl.-Ing. Stefan Diewald           Automotive HMI                                              3
Fachgebiet Verteilte Multimodale Informationsverarbeitung
Prof. Dr. Matthias Kranz                                                               Technische Universität München

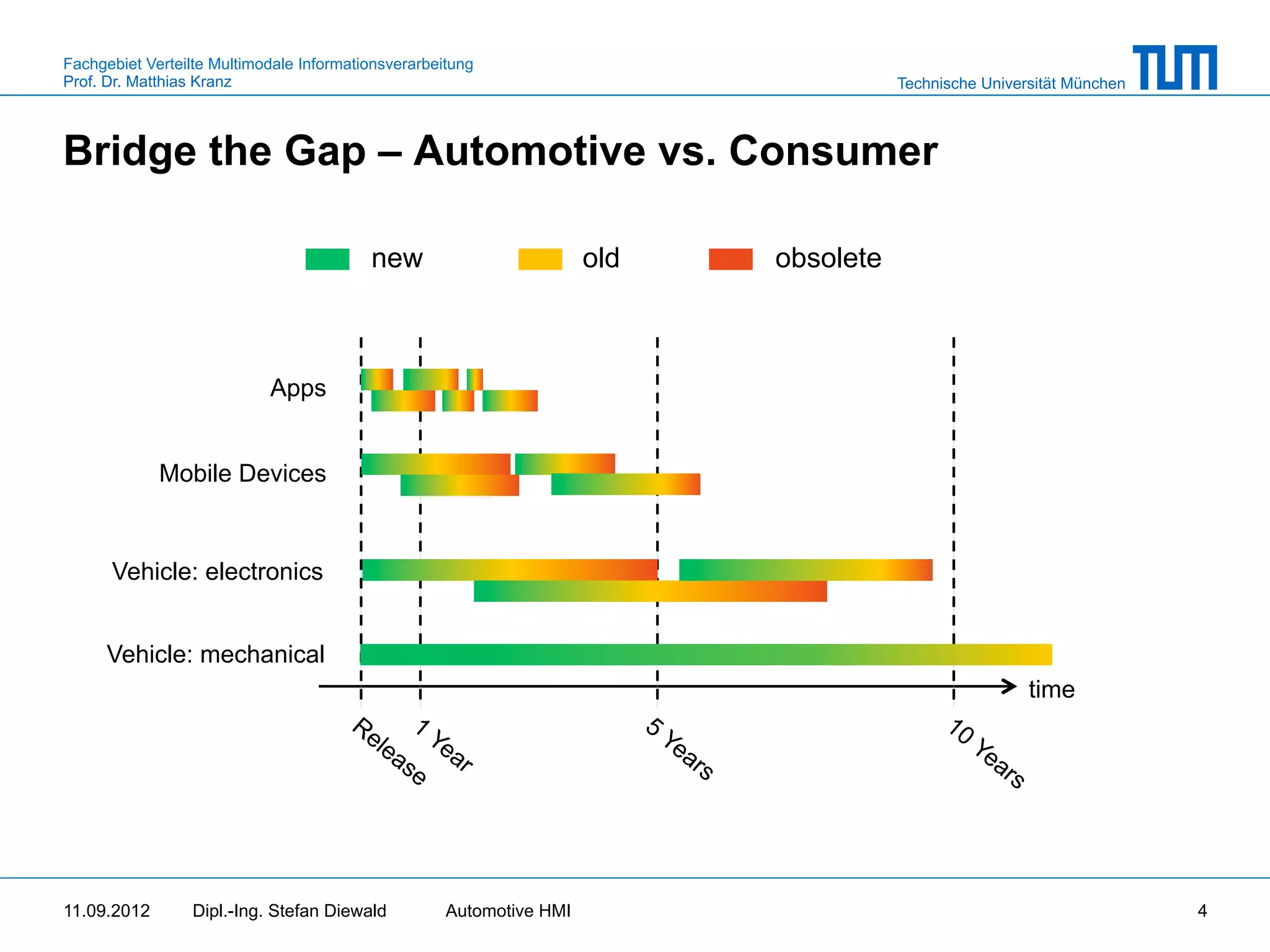

Bridge the Gap – Automotive vs. Consumer

                                          new                         old   obsolete



                            Apps


             Mobile Devices


      Vehicle: electronics


      Vehicle: mechanical
                                                                                                        time




11.09.2012       Dipl.-Ing. Stefan Diewald           Automotive HMI                                                     4
Fachgebiet Verteilte Multimodale Informationsverarbeitung
Prof. Dr. Matthias Kranz                                              Technische Universität München

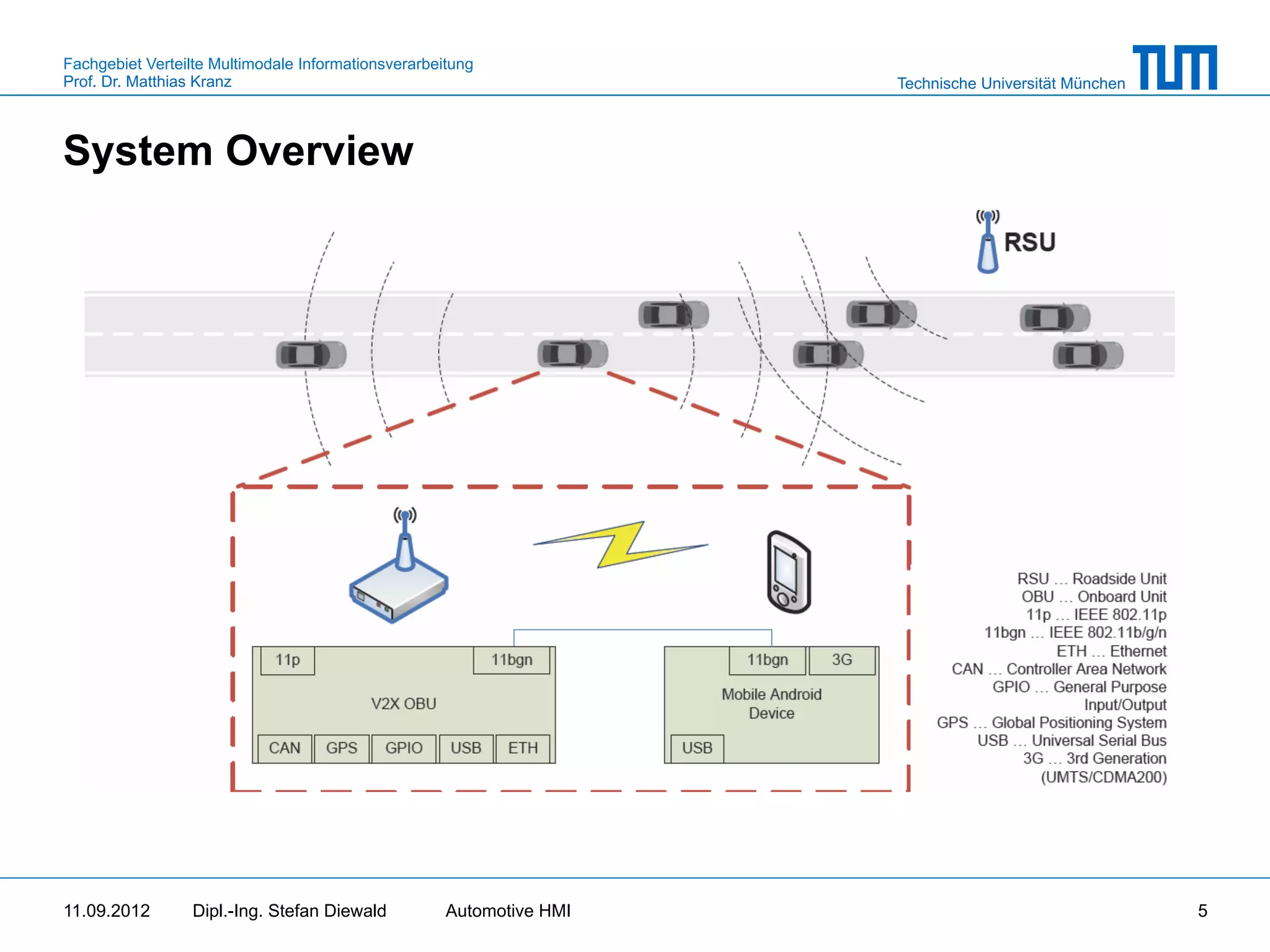

System Overview




11.09.2012       Dipl.-Ing. Stefan Diewald           Automotive HMI                                    5
Fachgebiet Verteilte Multimodale Informationsverarbeitung
Prof. Dr. Matthias Kranz                                              Technische Universität München

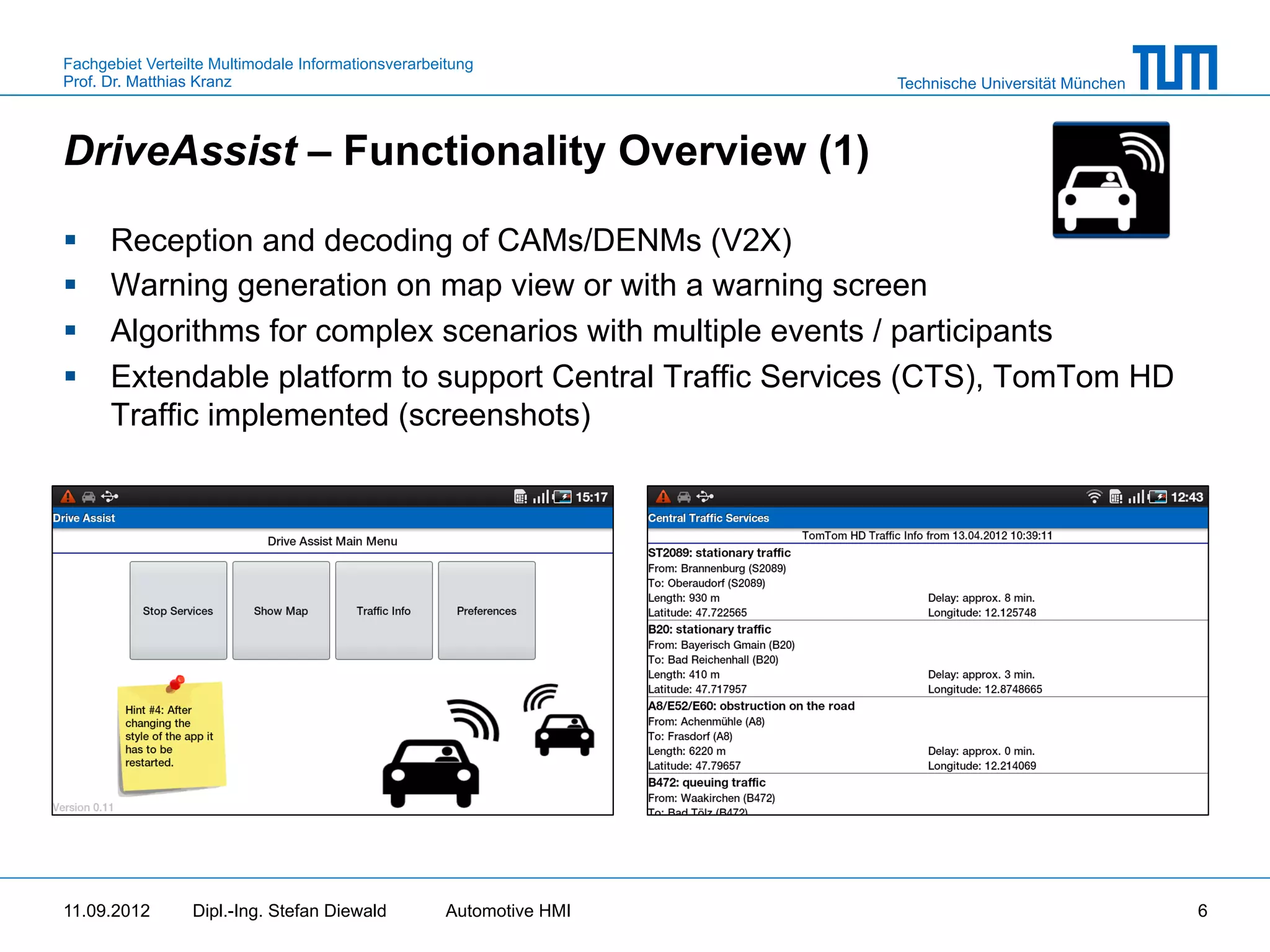

DriveAssist – Functionality Overview (1)

§    Reception and decoding of CAMs/DENMs (V2X)
§    Warning generation on map view or with a warning screen
§    Algorithms for complex scenarios with multiple events / participants
§    Extendable platform to support Central Traffic Services (CTS), TomTom HD
      Traffic implemented (screenshots)




11.09.2012       Dipl.-Ing. Stefan Diewald           Automotive HMI                                    6
Fachgebiet Verteilte Multimodale Informationsverarbeitung
Prof. Dr. Matthias Kranz                                              Technische Universität München

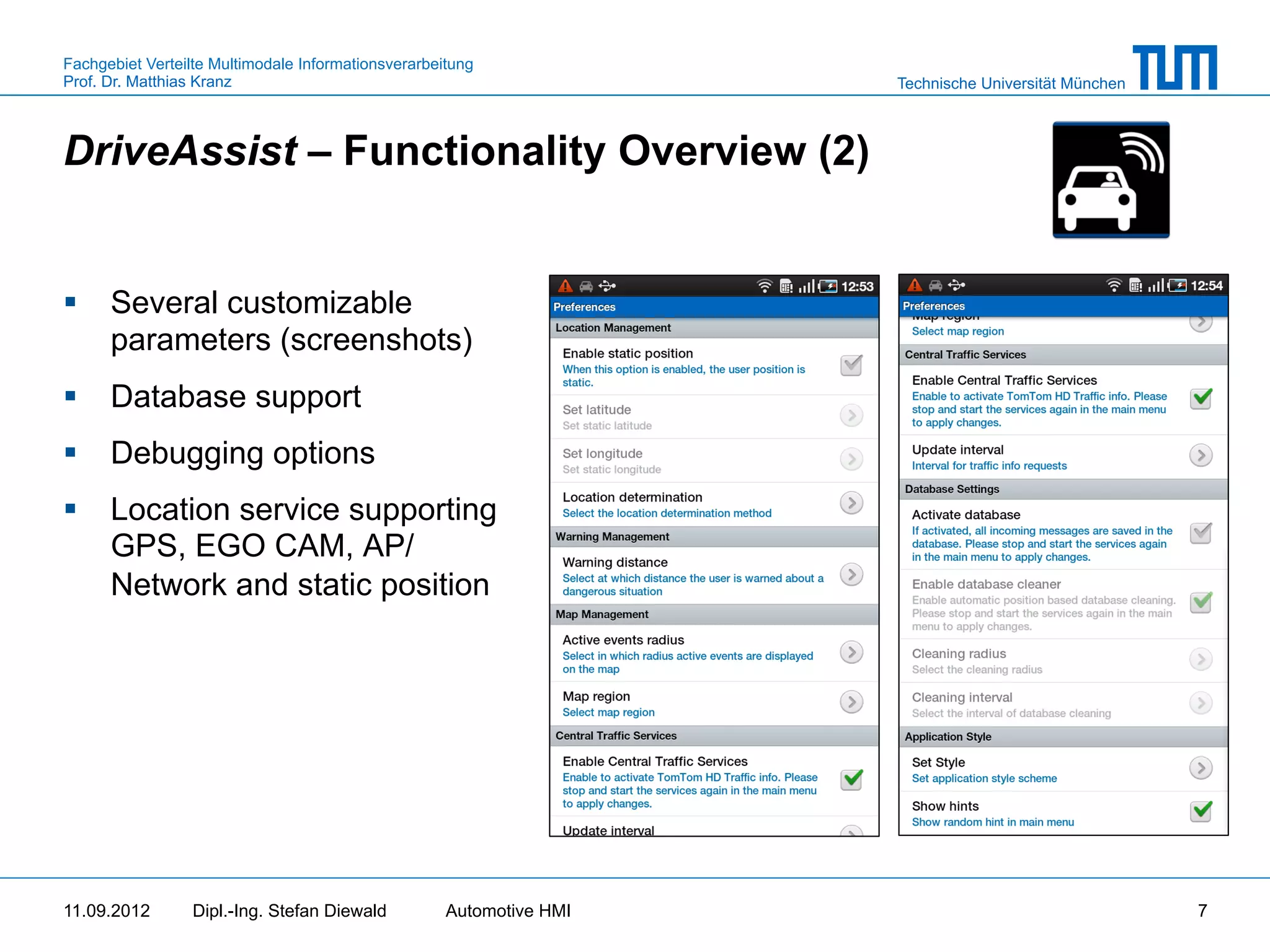

DriveAssist – Functionality Overview (2)


§  Several customizable
    parameters (screenshots)
§  Database support
§  Debugging options
§  Location service supporting
    GPS, EGO CAM, AP/
    Network and static position




11.09.2012       Dipl.-Ing. Stefan Diewald           Automotive HMI                                    7
Fachgebiet Verteilte Multimodale Informationsverarbeitung
Prof. Dr. Matthias Kranz                                              Technische Universität München

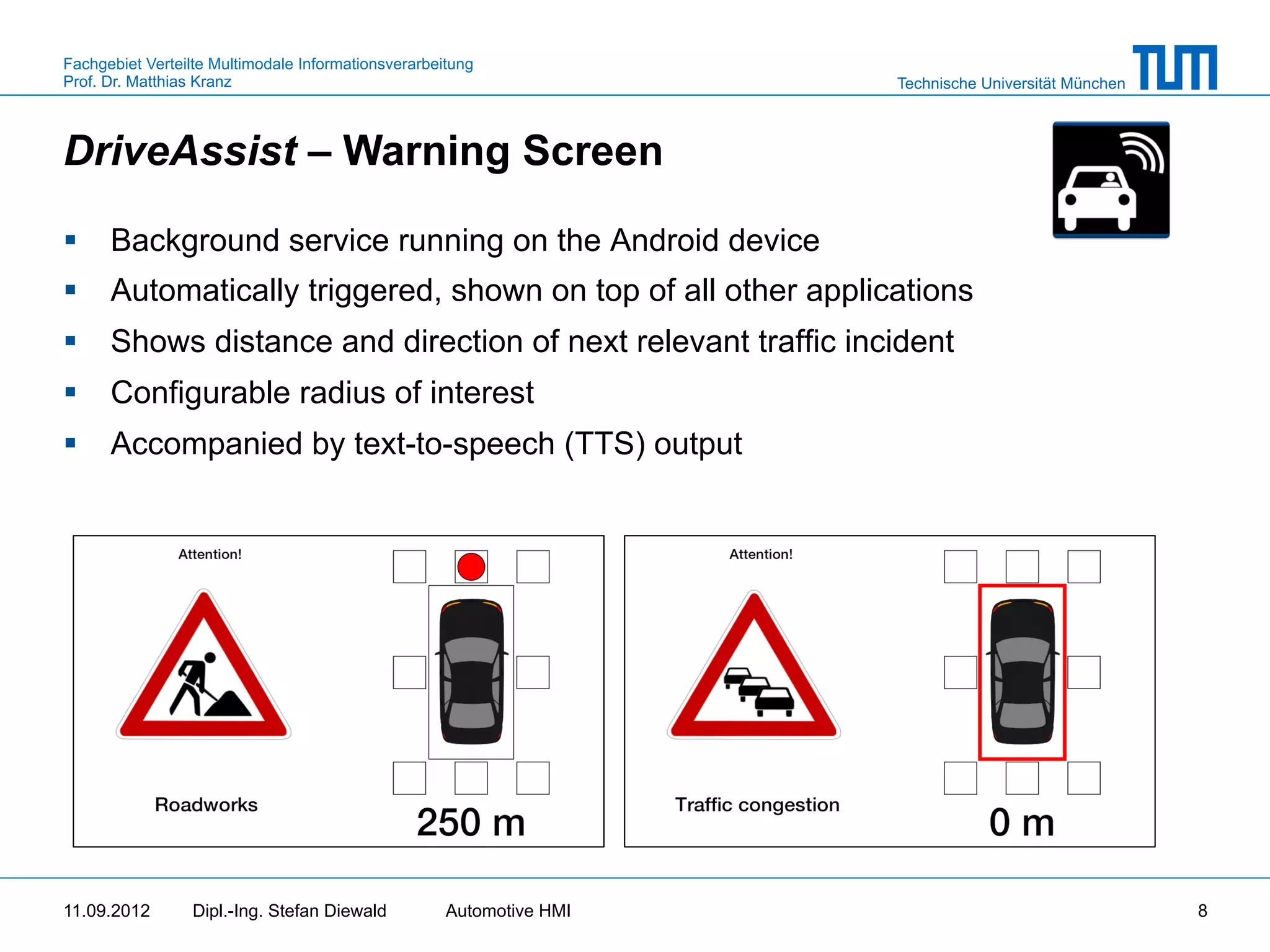

DriveAssist – Warning Screen

§  Background service running on the Android device
§  Automatically triggered, shown on top of all other applications
§  Shows distance and direction of next relevant traffic incident
§  Configurable radius of interest
§  Accompanied by text-to-speech (TTS) output




11.09.2012       Dipl.-Ing. Stefan Diewald           Automotive HMI                                    8
Fachgebiet Verteilte Multimodale Informationsverarbeitung
Prof. Dr. Matthias Kranz                                              Technische Universität München

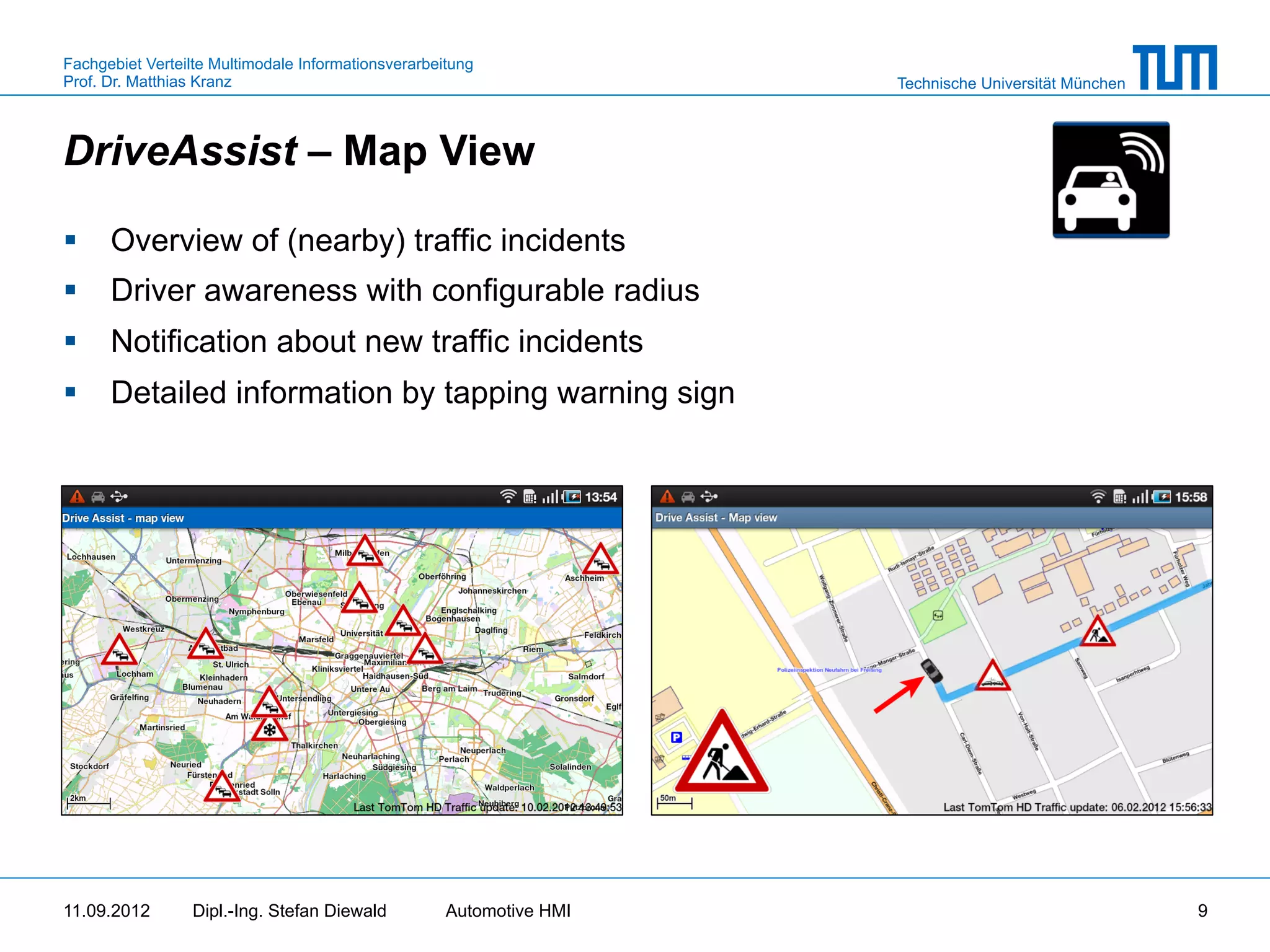

DriveAssist – Map View

§  Overview of (nearby) traffic incidents
§  Driver awareness with configurable radius
§  Notification about new traffic incidents
§  Detailed information by tapping warning sign




11.09.2012       Dipl.-Ing. Stefan Diewald           Automotive HMI                                    9
Fachgebiet Verteilte Multimodale Informationsverarbeitung
       Prof. Dr. Matthias Kranz                                                                               Technische Universität München

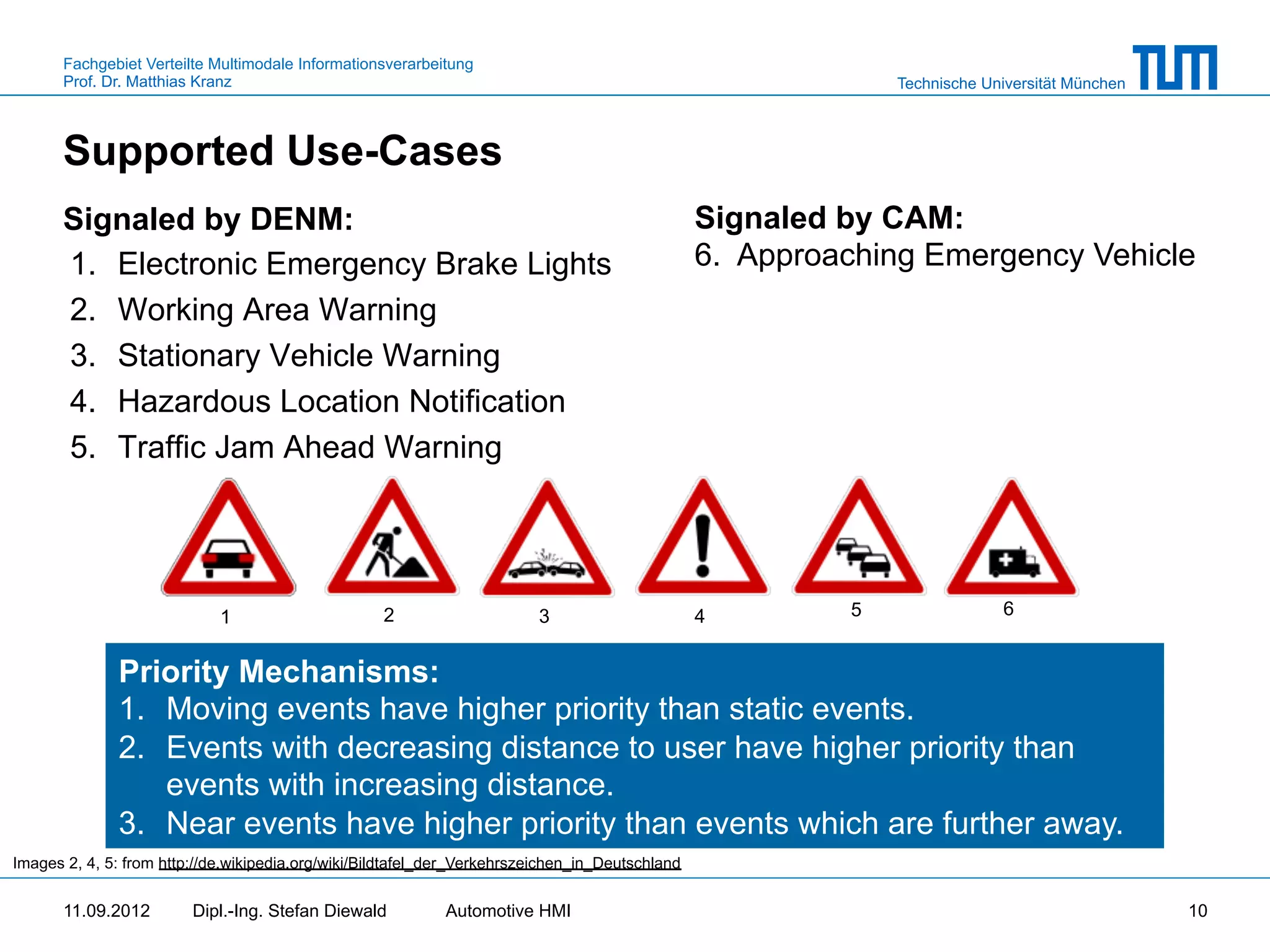

       Supported Use-Cases
       Signaled by DENM:                                                                         Signaled by CAM:
       1.  Electronic Emergency Brake Lights                                                     6. Approaching Emergency Vehicle
       2.  Working Area Warning
       3.  Stationary Vehicle Warning
       4.  Hazardous Location Notification
       5.  Traffic Jam Ahead Warning




                             1                      2                     3                      4        5                6


              Priority Mechanisms:
              1.  Moving events have higher priority than static events.
              2.  Events with decreasing distance to user have higher priority than
                  events with increasing distance.
              3.  Near events have higher priority than events which are further away.
Images 2, 4, 5: from http://de.wikipedia.org/wiki/Bildtafel_der_Verkehrszeichen_in_Deutschland


       11.09.2012        Dipl.-Ing. Stefan Diewald          Automotive HMI                                                                     10
Fachgebiet Verteilte Multimodale Informationsverarbeitung
Prof. Dr. Matthias Kranz                                              Technische Universität München

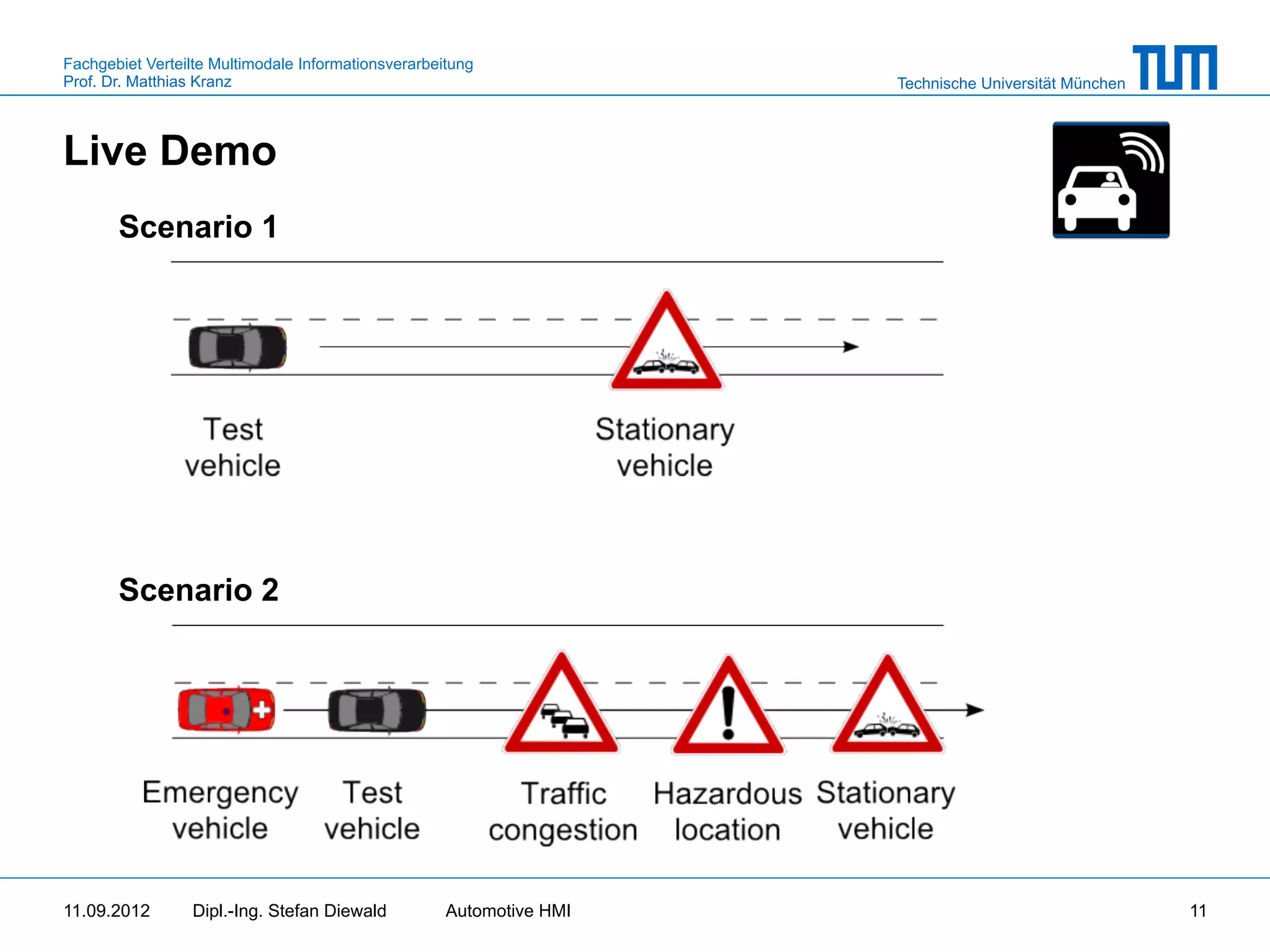

Live Demo
       Scenario 1




       Scenario 2




11.09.2012       Dipl.-Ing. Stefan Diewald           Automotive HMI                                    11
Fachgebiet Verteilte Multimodale Informationsverarbeitung
Prof. Dr. Matthias Kranz                                              Technische Universität München

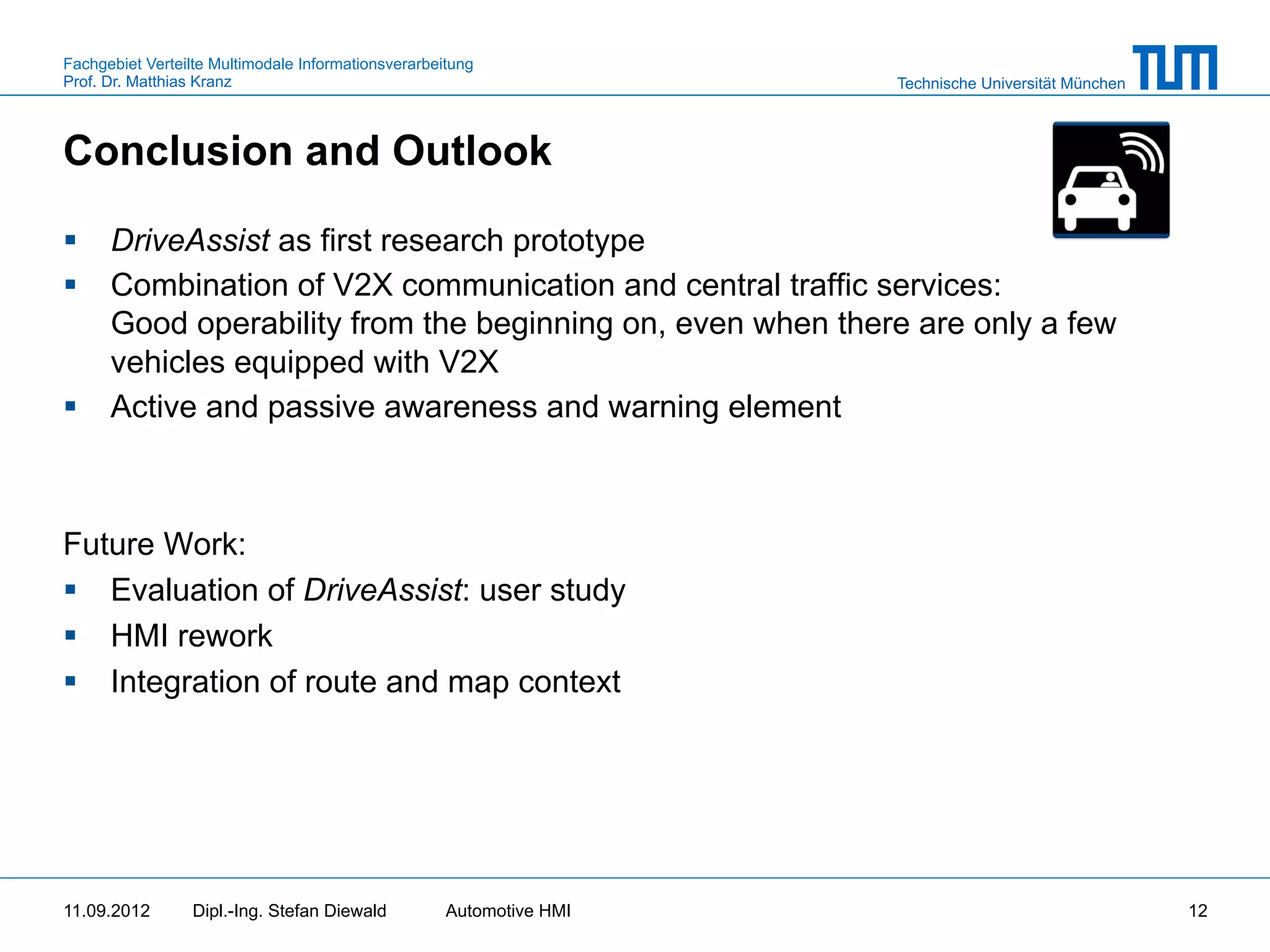

Conclusion and Outlook

§  DriveAssist as first research prototype
§  Combination of V2X communication and central traffic services:
    Good operability from the beginning on, even when there are only a few
    vehicles equipped with V2X
§  Active and passive awareness and warning element



Future Work:
§  Evaluation of DriveAssist: user study
§  HMI rework
§  Integration of route and map context




11.09.2012       Dipl.-Ing. Stefan Diewald           Automotive HMI                                    12
Fachgebiet Verteilte Multimodale Informationsverarbeitung
Prof. Dr. Matthias Kranz                                                       Technische Universität München




                                            DriveAssist – A V2X-Based Driver
                                             Assistance System for Android




11.09.2012       Dipl.-Ing. Stefan Diewald           Automotive HMI                                             13
Fachgebiet Verteilte Multimodale Informationsverarbeitung
Prof. Dr. Matthias Kranz                                               Technische Universität München




                                           Thank you for your attention!
                                                  Questions?




                                                            ?
                                                            ?
                                  stefan.diewald@tum.de
                         www.vmi.ei.tum.de/team/stefan-diewald.html

20.09.2012       Luis Roalter                                                                           14
Fachgebiet Verteilte Multimodale Informationsverarbeitung
Prof. Dr. Matthias Kranz                                       Technische Universität München

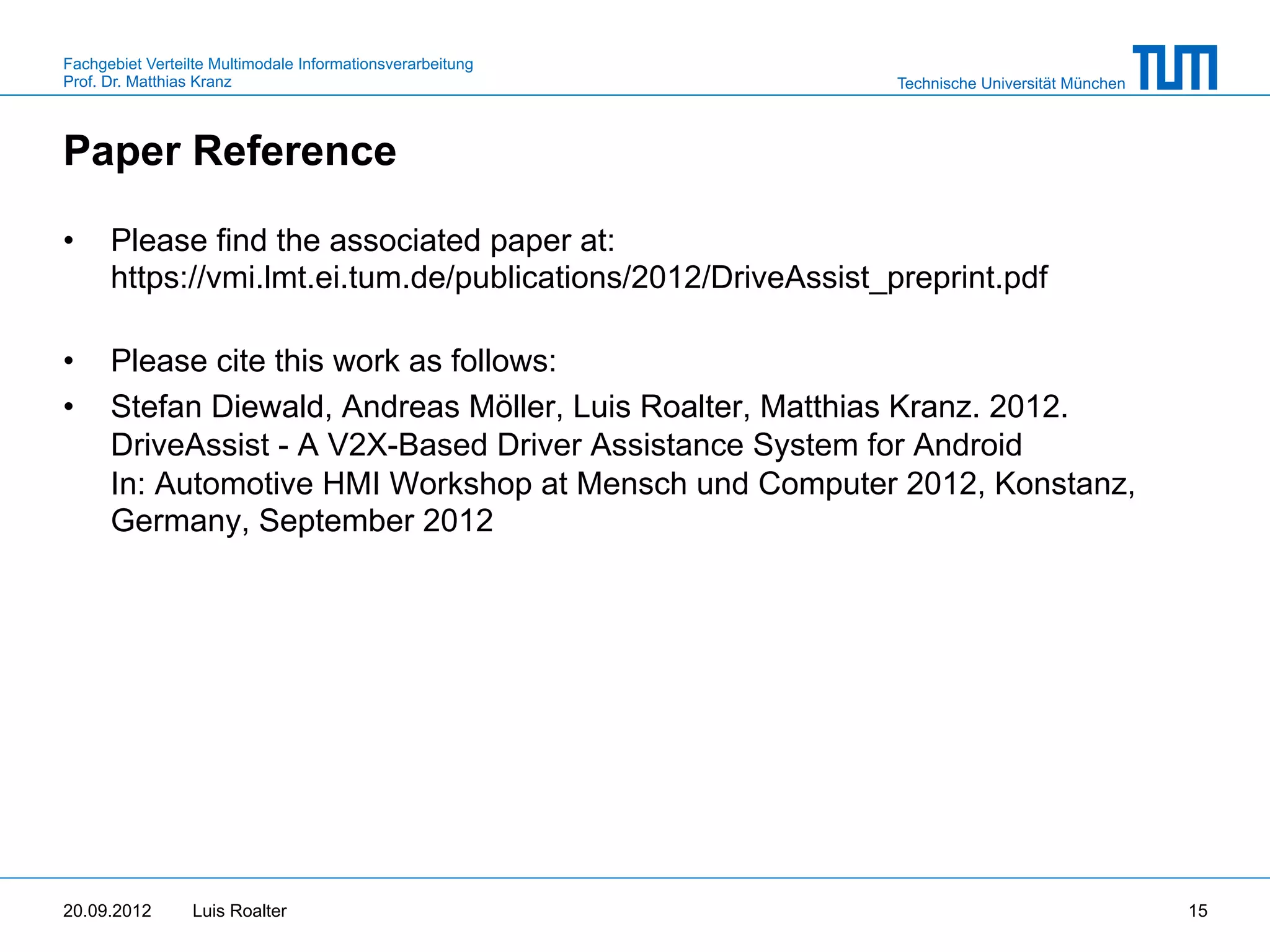

Paper Reference

•     Please find the associated paper at:
      https://vmi.lmt.ei.tum.de/publications/2012/DriveAssist_preprint.pdf

•     Please cite this work as follows:
•     Stefan Diewald, Andreas Möller, Luis Roalter, Matthias Kranz. 2012.
      DriveAssist - A V2X-Based Driver Assistance System for Android
      In: Automotive HMI Workshop at Mensch und Computer 2012, Konstanz,
      Germany, September 2012




20.09.2012       Luis Roalter                                                                   15
Fachgebiet Verteilte Multimodale Informationsverarbeitung
Prof. Dr. Matthias Kranz                                                              Technische Universität München

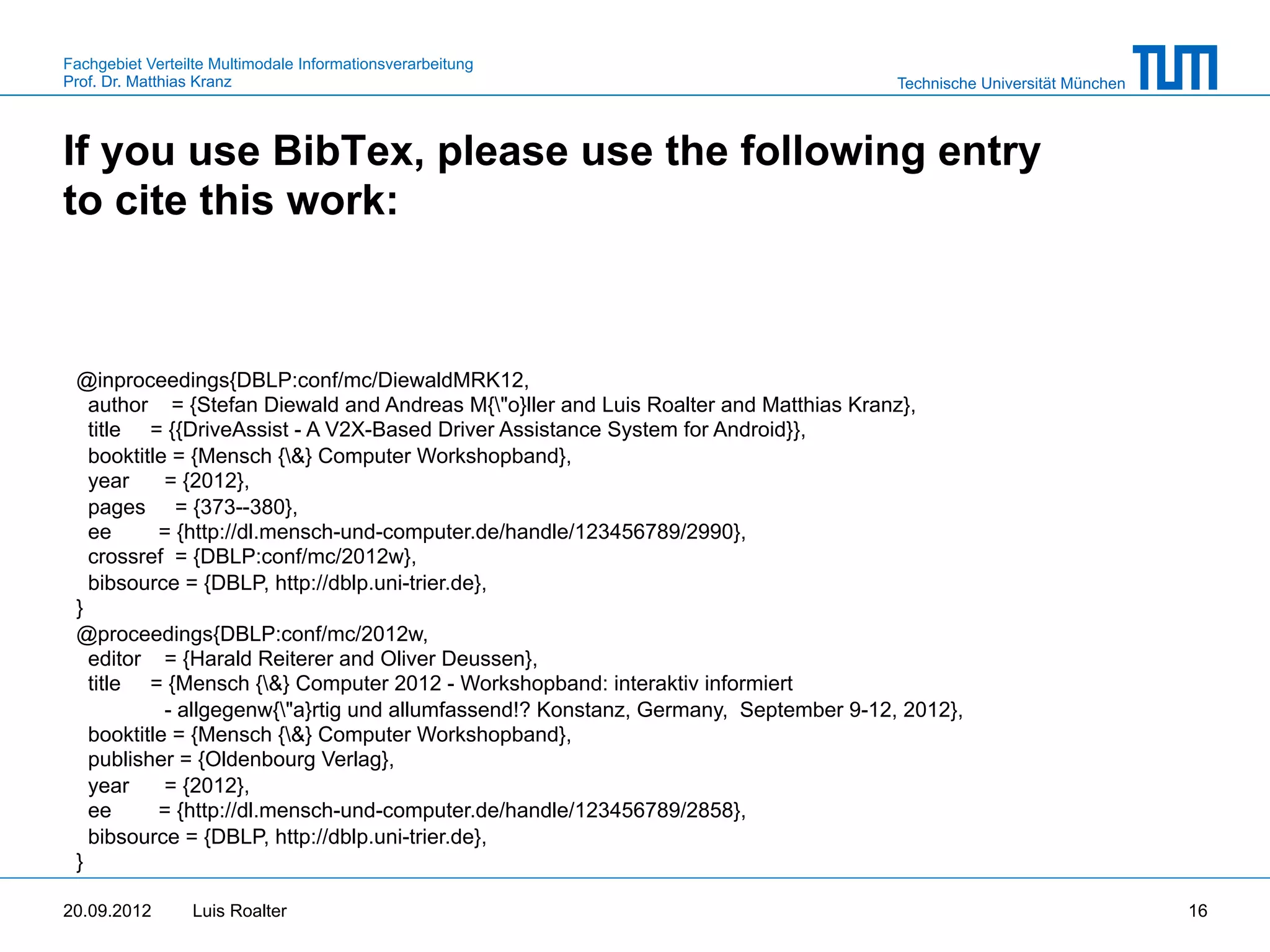

If you use BibTex, please use the following entry
to cite this work:



 @inproceedings{DBLP:conf/mc/DiewaldMRK12,
   author = {Stefan Diewald and Andreas M{"o}ller and Luis Roalter and Matthias Kranz},
   title = {{DriveAssist - A V2X-Based Driver Assistance System for Android}},
   booktitle = {Mensch {&} Computer Workshopband},
   year     = {2012},
   pages = {373--380},
   ee      = {http://dl.mensch-und-computer.de/handle/123456789/2990},
   crossref = {DBLP:conf/mc/2012w},
   bibsource = {DBLP, http://dblp.uni-trier.de},
 }
 @proceedings{DBLP:conf/mc/2012w,
   editor = {Harald Reiterer and Oliver Deussen},
   title = {Mensch {&} Computer 2012 - Workshopband: interaktiv informiert
            - allgegenw{"a}rtig und allumfassend!? Konstanz, Germany, September 9-12, 2012},
   booktitle = {Mensch {&} Computer Workshopband},
   publisher = {Oldenbourg Verlag},
   year     = {2012},
   ee      = {http://dl.mensch-und-computer.de/handle/123456789/2858},
   bibsource = {DBLP, http://dblp.uni-trier.de},
 }

20.09.2012       Luis Roalter                                                                                          16

More Related Content

Viewers also liked

V2X communication on 5G networks
V2X communication on 5G networksV2X communication on 5G networks
V2X communication on 5G networksAngelos Angelidis

Localization in V2X Communication Networks
Localization in V2X Communication NetworksLocalization in V2X Communication Networks
Localization in V2X Communication NetworksStefano Severi

BEB801 Thesis final presentation Marc Miska
BEB801  Thesis final presentation Marc MiskaBEB801  Thesis final presentation Marc Miska
BEB801 Thesis final presentation Marc Miskan7553625

V2X Communications Technology and Challenges
V2X Communications Technology and ChallengesV2X Communications Technology and Challenges
V2X Communications Technology and ChallengesRenesas America

5G and Automative : Cellular V2X (vehicle-to-everything)
5G and Automative : Cellular V2X (vehicle-to-everything)5G and Automative : Cellular V2X (vehicle-to-everything)
5G and Automative : Cellular V2X (vehicle-to-everything)ITU

Cellular V2X is Gaining Momentum
Cellular V2X is Gaining MomentumCellular V2X is Gaining Momentum
Cellular V2X is Gaining MomentumQualcomm Research

Top 5 Deep Learning and AI Stories 3/9
Top 5 Deep Learning and AI Stories 3/9Top 5 Deep Learning and AI Stories 3/9
Top 5 Deep Learning and AI Stories 3/9NVIDIA


Viewers also liked (15)

Session b3. jen duthie data
Session b3. jen duthie dataSession b3. jen duthie data
Session b3. jen duthie data

V2X communication on 5G networks
V2X communication on 5G networksV2X communication on 5G networks
V2X communication on 5G networks

Data Analytics: Challenges and the Internet of Moving Things
Data Analytics: Challenges and the Internet of Moving ThingsData Analytics: Challenges and the Internet of Moving Things
Data Analytics: Challenges and the Internet of Moving Things

Localization in V2X Communication Networks
Localization in V2X Communication NetworksLocalization in V2X Communication Networks
Localization in V2X Communication Networks

BEB801 Thesis final presentation Marc Miska
BEB801  Thesis final presentation Marc MiskaBEB801  Thesis final presentation Marc Miska
BEB801 Thesis final presentation Marc Miska

Technology Roadmap for Vehicle-centric Wireless Communications
Technology Roadmap for Vehicle-centric Wireless CommunicationsTechnology Roadmap for Vehicle-centric Wireless Communications
Technology Roadmap for Vehicle-centric Wireless Communications

V2X, V2I, and the Cellular Infrastructure
V2X, V2I, and the Cellular InfrastructureV2X, V2I, and the Cellular Infrastructure
V2X, V2I, and the Cellular Infrastructure

V2X Communications Technology and Challenges
V2X Communications Technology and ChallengesV2X Communications Technology and Challenges
V2X Communications Technology and Challenges

5G and Automative : Cellular V2X (vehicle-to-everything)
5G and Automative : Cellular V2X (vehicle-to-everything)5G and Automative : Cellular V2X (vehicle-to-everything)
5G and Automative : Cellular V2X (vehicle-to-everything)

Connected and Automated Vehicles (CAVs): Implications for Travel and Infrastr...
Connected and Automated Vehicles (CAVs): Implications for Travel and Infrastr...Connected and Automated Vehicles (CAVs): Implications for Travel and Infrastr...
Connected and Automated Vehicles (CAVs): Implications for Travel and Infrastr...

Connected and Autonomous Vehicles: The Enabling Technologies
Connected and Autonomous Vehicles: The Enabling TechnologiesConnected and Autonomous Vehicles: The Enabling Technologies
Connected and Autonomous Vehicles: The Enabling Technologies

10 Technologies to Watch
10 Technologies to Watch 10 Technologies to Watch
10 Technologies to Watch

Cellular V2X is Gaining Momentum
Cellular V2X is Gaining MomentumCellular V2X is Gaining Momentum
Cellular V2X is Gaining Momentum

Assimilating Self-Driving Cars Into Society: Travel Impacts & Transport Polic...
Assimilating Self-Driving Cars Into Society: Travel Impacts & Transport Polic...Assimilating Self-Driving Cars Into Society: Travel Impacts & Transport Polic...
Assimilating Self-Driving Cars Into Society: Travel Impacts & Transport Polic...

Top 5 Deep Learning and AI Stories 3/9
Top 5 Deep Learning and AI Stories 3/9Top 5 Deep Learning and AI Stories 3/9
Top 5 Deep Learning and AI Stories 3/9


Similar to DriveAssist – A V2X-Based Driver Assistance System for Android

Megatrend: ADAS / AD: Fully digital tool chain Initiative
Megatrend: ADAS / AD: Fully digital tool chain InitiativeMegatrend: ADAS / AD: Fully digital tool chain Initiative
Megatrend: ADAS / AD: Fully digital tool chain Initiativesansam77

Using Computing Methods to Secure VANET
Using Computing Methods to Secure VANETUsing Computing Methods to Secure VANET
Using Computing Methods to Secure VANETDr.Irshad Ahmed Sumra

M2M - Machine to Machine Technology
M2M - Machine to Machine TechnologyM2M - Machine to Machine Technology
M2M - Machine to Machine TechnologySamip jain

Introduction to Android Programming
Introduction to  Android ProgrammingIntroduction to  Android Programming
Introduction to Android ProgrammingPyingkodi Maran

ADAS&ME presentation @ the SCOUT project expert workshop (22-02-2017, Brussels)
ADAS&ME presentation @ the SCOUT project expert workshop (22-02-2017, Brussels)ADAS&ME presentation @ the SCOUT project expert workshop (22-02-2017, Brussels)
ADAS&ME presentation @ the SCOUT project expert workshop (22-02-2017, Brussels)joseplaborda

Transportationmobicloudwebinarv2 0englishedition-130620090944-phpapp02
Transportationmobicloudwebinarv2 0englishedition-130620090944-phpapp02Transportationmobicloudwebinarv2 0englishedition-130620090944-phpapp02
Transportationmobicloudwebinarv2 0englishedition-130620090944-phpapp02Peter Melander

Transform 2014: User-Centric Business Tools Based on Kapow Software™
Transform 2014: User-Centric Business Tools Based on Kapow Software™Transform 2014: User-Centric Business Tools Based on Kapow Software™
Transform 2014: User-Centric Business Tools Based on Kapow Software™Kofax

2.3 Workshop "Next Generation Emergency Services" 27th of July
2.3  Workshop "Next Generation Emergency Services" 27th of July2.3  Workshop "Next Generation Emergency Services" 27th of July
2.3 Workshop "Next Generation Emergency Services" 27th of JulyFraunhofer FOKUS

Wherecamp Navigation Conference 2015 - NDS standardization
Wherecamp Navigation Conference 2015 - NDS standardizationWherecamp Navigation Conference 2015 - NDS standardization
Wherecamp Navigation Conference 2015 - NDS standardizationWhereCampBerlin

Multimedia Communications Lab (KOM) - TU Darmstadt - Research Overview
Multimedia Communications Lab (KOM) - TU Darmstadt - Research OverviewMultimedia Communications Lab (KOM) - TU Darmstadt - Research Overview
Multimedia Communications Lab (KOM) - TU Darmstadt - Research OverviewMultimedia Communications Lab

Mmsys slideshare-intel-nokia
Mmsys slideshare-intel-nokiaMmsys slideshare-intel-nokia
Mmsys slideshare-intel-nokiaRufael Mekuria

Mobile Cloud Computing Challenges and Security
Mobile Cloud Computing Challenges and SecurityMobile Cloud Computing Challenges and Security
Mobile Cloud Computing Challenges and SecurityJohn Paul Prassanna

Invention in science
Invention in scienceInvention in science
Invention in scienceanoop kp

The “Telematics Horizon” V2V and V2I Networking
The “Telematics Horizon” V2V and V2I NetworkingThe “Telematics Horizon” V2V and V2I Networking
The “Telematics Horizon” V2V and V2I NetworkingAlison Chaiken


Similar to DriveAssist – A V2X-Based Driver Assistance System for Android (20)

MobiliNet: A Social Network for Optimized Mobility
MobiliNet: A Social Network for Optimized MobilityMobiliNet: A Social Network for Optimized Mobility
MobiliNet: A Social Network for Optimized Mobility

Gamification-supported Exploration of Natural User Interfaces
Gamification-supported Exploration of Natural User InterfacesGamification-supported Exploration of Natural User Interfaces
Gamification-supported Exploration of Natural User Interfaces

Towards a Holistic Approach for Mobile Application Development in Intelligent...
Towards a Holistic Approach for Mobile Application Development in Intelligent...Towards a Holistic Approach for Mobile Application Development in Intelligent...
Towards a Holistic Approach for Mobile Application Development in Intelligent...

Megatrend: ADAS / AD: Fully digital tool chain Initiative
Megatrend: ADAS / AD: Fully digital tool chain InitiativeMegatrend: ADAS / AD: Fully digital tool chain Initiative
Megatrend: ADAS / AD: Fully digital tool chain Initiative

Using Computing Methods to Secure VANET
Using Computing Methods to Secure VANETUsing Computing Methods to Secure VANET
Using Computing Methods to Secure VANET

M2M - Machine to Machine Technology
M2M - Machine to Machine TechnologyM2M - Machine to Machine Technology
M2M - Machine to Machine Technology

Introduction to Android Programming
Introduction to  Android ProgrammingIntroduction to  Android Programming
Introduction to Android Programming

ADAS&ME presentation @ the SCOUT project expert workshop (22-02-2017, Brussels)
ADAS&ME presentation @ the SCOUT project expert workshop (22-02-2017, Brussels)ADAS&ME presentation @ the SCOUT project expert workshop (22-02-2017, Brussels)
ADAS&ME presentation @ the SCOUT project expert workshop (22-02-2017, Brussels)

Transportationmobicloudwebinarv2 0englishedition-130620090944-phpapp02
Transportationmobicloudwebinarv2 0englishedition-130620090944-phpapp02Transportationmobicloudwebinarv2 0englishedition-130620090944-phpapp02
Transportationmobicloudwebinarv2 0englishedition-130620090944-phpapp02

Transform 2014: User-Centric Business Tools Based on Kapow Software™
Transform 2014: User-Centric Business Tools Based on Kapow Software™Transform 2014: User-Centric Business Tools Based on Kapow Software™
Transform 2014: User-Centric Business Tools Based on Kapow Software™

Tool Support for Prototyping Interfaces
Tool Support for Prototyping InterfacesTool Support for Prototyping Interfaces
Tool Support for Prototyping Interfaces

Update Behavior in App Markets and Security Implications: A Case Study in Goo...
Update Behavior in App Markets and Security Implications: A Case Study in Goo...Update Behavior in App Markets and Security Implications: A Case Study in Goo...
Update Behavior in App Markets and Security Implications: A Case Study in Goo...

2.3 Workshop "Next Generation Emergency Services" 27th of July
2.3  Workshop "Next Generation Emergency Services" 27th of July2.3  Workshop "Next Generation Emergency Services" 27th of July
2.3 Workshop "Next Generation Emergency Services" 27th of July

Wherecamp Navigation Conference 2015 - NDS standardization
Wherecamp Navigation Conference 2015 - NDS standardizationWherecamp Navigation Conference 2015 - NDS standardization
Wherecamp Navigation Conference 2015 - NDS standardization

Multimedia Communications Lab (KOM) - TU Darmstadt - Research Overview
Multimedia Communications Lab (KOM) - TU Darmstadt - Research OverviewMultimedia Communications Lab (KOM) - TU Darmstadt - Research Overview
Multimedia Communications Lab (KOM) - TU Darmstadt - Research Overview

Mmsys slideshare-intel-nokia
Mmsys slideshare-intel-nokiaMmsys slideshare-intel-nokia
Mmsys slideshare-intel-nokia

Mobile Cloud Computing Challenges and Security
Mobile Cloud Computing Challenges and SecurityMobile Cloud Computing Challenges and Security
Mobile Cloud Computing Challenges and Security

Mobile & M2M
Mobile & M2MMobile & M2M
Mobile & M2M

Invention in science
Invention in scienceInvention in science
Invention in science

The “Telematics Horizon” V2V and V2I Networking
The “Telematics Horizon” V2V and V2I NetworkingThe “Telematics Horizon” V2V and V2I Networking
The “Telematics Horizon” V2V and V2I Networking


More from Distributed Multimodal Information Processing Group

More from Distributed Multimodal Information Processing Group (11)

Experimental Evaluation of User Interfaces for Visual Indoor Navigation
Experimental Evaluation of User Interfaces for Visual Indoor NavigationExperimental Evaluation of User Interfaces for Visual Indoor Navigation
Experimental Evaluation of User Interfaces for Visual Indoor Navigation

Visual Authentication - A Secure Single Step Authentication for User Authoriz...
Visual Authentication - A Secure Single Step Authentication for User Authoriz...Visual Authentication - A Secure Single Step Authentication for User Authoriz...
Visual Authentication - A Secure Single Step Authentication for User Authoriz...

Mit mobilem Lernen zur erweiterten Methodenkompetenz
Mit mobilem Lernen zur erweiterten MethodenkompetenzMit mobilem Lernen zur erweiterten Methodenkompetenz
Mit mobilem Lernen zur erweiterten Methodenkompetenz

Investigating Self-Reporting Behavior in Long-Term Studies
Investigating Self-Reporting Behavior in Long-Term StudiesInvestigating Self-Reporting Behavior in Long-Term Studies
Investigating Self-Reporting Behavior in Long-Term Studies

The Smartphone as Mobile Authorization Proxy
The Smartphone as Mobile Authorization ProxyThe Smartphone as Mobile Authorization Proxy
The Smartphone as Mobile Authorization Proxy

GymSkill - A Personal Trainer for Physical Exercises
GymSkill - A Personal Trainer for Physical ExercisesGymSkill - A Personal Trainer for Physical Exercises
GymSkill - A Personal Trainer for Physical Exercises

The Healthcare and Motivation Seat - A Survey with the GewoS Chair
The Healthcare and Motivation Seat - A Survey with the GewoS ChairThe Healthcare and Motivation Seat - A Survey with the GewoS Chair
The Healthcare and Motivation Seat - A Survey with the GewoS Chair

Distributed Networks within ROS: Challenges and Possibilities
Distributed Networks within ROS: Challenges and PossibilitiesDistributed Networks within ROS: Challenges and Possibilities
Distributed Networks within ROS: Challenges and Possibilities

MobiDics: Cooperative Mobile e-Learning for Teachers
MobiDics: Cooperative Mobile e-Learning for TeachersMobiDics: Cooperative Mobile e-Learning for Teachers
MobiDics: Cooperative Mobile e-Learning for Teachers

A Mobile Indoor Navigation System Interface Adapted to Vision-Based Localization
A Mobile Indoor Navigation System Interface Adapted to Vision-Based LocalizationA Mobile Indoor Navigation System Interface Adapted to Vision-Based Localization
A Mobile Indoor Navigation System Interface Adapted to Vision-Based Localization

MobiMed: Comparing Object Identification Techniques on Smartphones
MobiMed: Comparing Object Identification Techniques on SmartphonesMobiMed: Comparing Object Identification Techniques on Smartphones
MobiMed: Comparing Object Identification Techniques on Smartphones


Recently uploaded

Continuing Bonds Through AI: A Hermeneutic Reflection on Thanabots
Continuing Bonds Through AI: A Hermeneutic Reflection on ThanabotsContinuing Bonds Through AI: A Hermeneutic Reflection on Thanabots
Continuing Bonds Through AI: A Hermeneutic Reflection on ThanabotsLeah Henrickson

Oauth 2.0 Introduction and Flows with MuleSoft
Oauth 2.0 Introduction and Flows with MuleSoftOauth 2.0 Introduction and Flows with MuleSoft
Oauth 2.0 Introduction and Flows with MuleSoftshyamraj55

Google I/O Extended 2024 Warsaw
Google I/O Extended 2024 WarsawGoogle I/O Extended 2024 Warsaw
Google I/O Extended 2024 WarsawGDSC PJATK

ASRock Industrial FDO Solutions in Action for Industrial Edge AI _ Kenny at A...
ASRock Industrial FDO Solutions in Action for Industrial Edge AI _ Kenny at A...ASRock Industrial FDO Solutions in Action for Industrial Edge AI _ Kenny at A...
ASRock Industrial FDO Solutions in Action for Industrial Edge AI _ Kenny at A...FIDO Alliance

Easier, Faster, and More Powerful – Notes Document Properties Reimagined
Easier, Faster, and More Powerful – Notes Document Properties ReimaginedEasier, Faster, and More Powerful – Notes Document Properties Reimagined
Easier, Faster, and More Powerful – Notes Document Properties Reimaginedpanagenda

Intro in Product Management - Коротко про професію продакт менеджера
Intro in Product Management - Коротко про професію продакт менеджераIntro in Product Management - Коротко про професію продакт менеджера
Intro in Product Management - Коротко про професію продакт менеджераMark Opanasiuk

BT & Neo4j _ How Knowledge Graphs help BT deliver Digital Transformation.pptx
BT & Neo4j _ How Knowledge Graphs help BT deliver Digital Transformation.pptxBT & Neo4j _ How Knowledge Graphs help BT deliver Digital Transformation.pptx
BT & Neo4j _ How Knowledge Graphs help BT deliver Digital Transformation.pptxNeo4j

WSO2CONMay2024OpenSourceConferenceDebrief.pptx
WSO2CONMay2024OpenSourceConferenceDebrief.pptxWSO2CONMay2024OpenSourceConferenceDebrief.pptx
WSO2CONMay2024OpenSourceConferenceDebrief.pptxJennifer Lim

Extensible Python: Robustness through Addition - PyCon 2024
Extensible Python: Robustness through Addition - PyCon 2024Extensible Python: Robustness through Addition - PyCon 2024
Extensible Python: Robustness through Addition - PyCon 2024Patrick Viafore

Designing for Hardware Accessibility at Comcast
Designing for Hardware Accessibility at ComcastDesigning for Hardware Accessibility at Comcast
Designing for Hardware Accessibility at ComcastUXDXConf

State of the Smart Building Startup Landscape 2024!
State of the Smart Building Startup Landscape 2024!State of the Smart Building Startup Landscape 2024!
State of the Smart Building Startup Landscape 2024!Memoori

Your enemies use GenAI too - staying ahead of fraud with Neo4j
Your enemies use GenAI too - staying ahead of fraud with Neo4jYour enemies use GenAI too - staying ahead of fraud with Neo4j
Your enemies use GenAI too - staying ahead of fraud with Neo4jNeo4j

A Business-Centric Approach to Design System Strategy
A Business-Centric Approach to Design System StrategyA Business-Centric Approach to Design System Strategy
A Business-Centric Approach to Design System StrategyUXDXConf

Behind the Scenes From the Manager's Chair: Decoding the Secrets of Successfu...
Behind the Scenes From the Manager's Chair: Decoding the Secrets of Successfu...Behind the Scenes From the Manager's Chair: Decoding the Secrets of Successfu...
Behind the Scenes From the Manager's Chair: Decoding the Secrets of Successfu...CzechDreamin

Breaking Down the Flutterwave Scandal What You Need to Know.pdf
Breaking Down the Flutterwave Scandal What You Need to Know.pdfBreaking Down the Flutterwave Scandal What You Need to Know.pdf
Breaking Down the Flutterwave Scandal What You Need to Know.pdfUK Journal

Simplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdf
Simplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdfSimplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdf
Simplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdfFIDO Alliance

TEST BANK For, Information Technology Project Management 9th Edition Kathy Sc...
TEST BANK For, Information Technology Project Management 9th Edition Kathy Sc...TEST BANK For, Information Technology Project Management 9th Edition Kathy Sc...
TEST BANK For, Information Technology Project Management 9th Edition Kathy Sc...marcuskenyatta275

Using IESVE for Room Loads Analysis - UK & Ireland
Using IESVE for Room Loads Analysis - UK & IrelandUsing IESVE for Room Loads Analysis - UK & Ireland
Using IESVE for Room Loads Analysis - UK & IrelandIES VE

How Red Hat Uses FDO in Device Lifecycle _ Costin and Vitaliy at Red Hat.pdf
How Red Hat Uses FDO in Device Lifecycle _ Costin and Vitaliy at Red Hat.pdfHow Red Hat Uses FDO in Device Lifecycle _ Costin and Vitaliy at Red Hat.pdf
How Red Hat Uses FDO in Device Lifecycle _ Costin and Vitaliy at Red Hat.pdfFIDO Alliance

Structuring Teams and Portfolios for Success
Structuring Teams and Portfolios for SuccessStructuring Teams and Portfolios for Success
Structuring Teams and Portfolios for SuccessUXDXConf


Recently uploaded (20)

Continuing Bonds Through AI: A Hermeneutic Reflection on Thanabots
Continuing Bonds Through AI: A Hermeneutic Reflection on ThanabotsContinuing Bonds Through AI: A Hermeneutic Reflection on Thanabots
Continuing Bonds Through AI: A Hermeneutic Reflection on Thanabots

Oauth 2.0 Introduction and Flows with MuleSoft
Oauth 2.0 Introduction and Flows with MuleSoftOauth 2.0 Introduction and Flows with MuleSoft
Oauth 2.0 Introduction and Flows with MuleSoft

Google I/O Extended 2024 Warsaw
Google I/O Extended 2024 WarsawGoogle I/O Extended 2024 Warsaw
Google I/O Extended 2024 Warsaw

ASRock Industrial FDO Solutions in Action for Industrial Edge AI _ Kenny at A...
ASRock Industrial FDO Solutions in Action for Industrial Edge AI _ Kenny at A...ASRock Industrial FDO Solutions in Action for Industrial Edge AI _ Kenny at A...
ASRock Industrial FDO Solutions in Action for Industrial Edge AI _ Kenny at A...

Easier, Faster, and More Powerful – Notes Document Properties Reimagined
Easier, Faster, and More Powerful – Notes Document Properties ReimaginedEasier, Faster, and More Powerful – Notes Document Properties Reimagined
Easier, Faster, and More Powerful – Notes Document Properties Reimagined

Intro in Product Management - Коротко про професію продакт менеджера
Intro in Product Management - Коротко про професію продакт менеджераIntro in Product Management - Коротко про професію продакт менеджера
Intro in Product Management - Коротко про професію продакт менеджера

BT & Neo4j _ How Knowledge Graphs help BT deliver Digital Transformation.pptx
BT & Neo4j _ How Knowledge Graphs help BT deliver Digital Transformation.pptxBT & Neo4j _ How Knowledge Graphs help BT deliver Digital Transformation.pptx
BT & Neo4j _ How Knowledge Graphs help BT deliver Digital Transformation.pptx

WSO2CONMay2024OpenSourceConferenceDebrief.pptx
WSO2CONMay2024OpenSourceConferenceDebrief.pptxWSO2CONMay2024OpenSourceConferenceDebrief.pptx
WSO2CONMay2024OpenSourceConferenceDebrief.pptx

Extensible Python: Robustness through Addition - PyCon 2024
Extensible Python: Robustness through Addition - PyCon 2024Extensible Python: Robustness through Addition - PyCon 2024
Extensible Python: Robustness through Addition - PyCon 2024

Designing for Hardware Accessibility at Comcast
Designing for Hardware Accessibility at ComcastDesigning for Hardware Accessibility at Comcast
Designing for Hardware Accessibility at Comcast

State of the Smart Building Startup Landscape 2024!
State of the Smart Building Startup Landscape 2024!State of the Smart Building Startup Landscape 2024!
State of the Smart Building Startup Landscape 2024!

Your enemies use GenAI too - staying ahead of fraud with Neo4j
Your enemies use GenAI too - staying ahead of fraud with Neo4jYour enemies use GenAI too - staying ahead of fraud with Neo4j
Your enemies use GenAI too - staying ahead of fraud with Neo4j

A Business-Centric Approach to Design System Strategy
A Business-Centric Approach to Design System StrategyA Business-Centric Approach to Design System Strategy
A Business-Centric Approach to Design System Strategy

Behind the Scenes From the Manager's Chair: Decoding the Secrets of Successfu...
Behind the Scenes From the Manager's Chair: Decoding the Secrets of Successfu...Behind the Scenes From the Manager's Chair: Decoding the Secrets of Successfu...
Behind the Scenes From the Manager's Chair: Decoding the Secrets of Successfu...

Breaking Down the Flutterwave Scandal What You Need to Know.pdf
Breaking Down the Flutterwave Scandal What You Need to Know.pdfBreaking Down the Flutterwave Scandal What You Need to Know.pdf
Breaking Down the Flutterwave Scandal What You Need to Know.pdf

Simplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdf
Simplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdfSimplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdf
Simplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdf

TEST BANK For, Information Technology Project Management 9th Edition Kathy Sc...
TEST BANK For, Information Technology Project Management 9th Edition Kathy Sc...TEST BANK For, Information Technology Project Management 9th Edition Kathy Sc...
TEST BANK For, Information Technology Project Management 9th Edition Kathy Sc...

Using IESVE for Room Loads Analysis - UK & Ireland
Using IESVE for Room Loads Analysis - UK & IrelandUsing IESVE for Room Loads Analysis - UK & Ireland
Using IESVE for Room Loads Analysis - UK & Ireland

How Red Hat Uses FDO in Device Lifecycle _ Costin and Vitaliy at Red Hat.pdf
How Red Hat Uses FDO in Device Lifecycle _ Costin and Vitaliy at Red Hat.pdfHow Red Hat Uses FDO in Device Lifecycle _ Costin and Vitaliy at Red Hat.pdf
How Red Hat Uses FDO in Device Lifecycle _ Costin and Vitaliy at Red Hat.pdf

Structuring Teams and Portfolios for Success
Structuring Teams and Portfolios for SuccessStructuring Teams and Portfolios for Success
Structuring Teams and Portfolios for Success


DriveAssist – A V2X-Based Driver Assistance System for Android

  • 1. Fachgebiet Verteilte Multimodale Informationsverarbeitung Prof. Dr. Matthias Kranz Technische Universität München DriveAssist – A V2X-Based Driver Assistance System for Android Stefan Diewald, Andreas Möller, Luis Roalter and Matthias Kranz Konstanz, September 11, 2012 Automotive HMI Workshop at Mensch und Computer 2012
  • 2. Fachgebiet Verteilte Multimodale Informationsverarbeitung Prof. Dr. Matthias Kranz Technische Universität München Outline §  Motivation of our Solution §  System Overview §  DriveAssist - Functionality Overview §  Supported Use-Cases §  Live Demo §  Conclusion and Future Work 11.09.2012 Dipl.-Ing. Stefan Diewald Automotive HMI 2
  • 3. Fachgebiet Verteilte Multimodale Informationsverarbeitung Prof. Dr. Matthias Kranz Technische Universität München Motivation and State of the Art •  V2X-Communications §  Goal: Increase traffic safety and driving convenience §  In-Car-Applications and Services §  State of the Art: e.g. radio communication concepts, GeoNetworking, data generation concepts •  Smartphone Integration §  Android as an economic and easily accessible platform §  High availability of devices §  Users are accustomed to devices and HMI §  State of the Art: e. g. pothole/traffic sign detection, vehicle state monitoring V2X- Driver Assistance Smartphone Communications System Integration 11.09.2012 Dipl.-Ing. Stefan Diewald Automotive HMI 3
  • 4. Fachgebiet Verteilte Multimodale Informationsverarbeitung Prof. Dr. Matthias Kranz Technische Universität München Bridge the Gap – Automotive vs. Consumer new old obsolete Apps Mobile Devices Vehicle: electronics Vehicle: mechanical time 11.09.2012 Dipl.-Ing. Stefan Diewald Automotive HMI 4
  • 5. Fachgebiet Verteilte Multimodale Informationsverarbeitung Prof. Dr. Matthias Kranz Technische Universität München System Overview 11.09.2012 Dipl.-Ing. Stefan Diewald Automotive HMI 5
  • 6. Fachgebiet Verteilte Multimodale Informationsverarbeitung Prof. Dr. Matthias Kranz Technische Universität München DriveAssist – Functionality Overview (1) §  Reception and decoding of CAMs/DENMs (V2X) §  Warning generation on map view or with a warning screen §  Algorithms for complex scenarios with multiple events / participants §  Extendable platform to support Central Traffic Services (CTS), TomTom HD Traffic implemented (screenshots) 11.09.2012 Dipl.-Ing. Stefan Diewald Automotive HMI 6
  • 7. Fachgebiet Verteilte Multimodale Informationsverarbeitung Prof. Dr. Matthias Kranz Technische Universität München DriveAssist – Functionality Overview (2) §  Several customizable parameters (screenshots) §  Database support §  Debugging options §  Location service supporting GPS, EGO CAM, AP/ Network and static position 11.09.2012 Dipl.-Ing. Stefan Diewald Automotive HMI 7
  • 8. Fachgebiet Verteilte Multimodale Informationsverarbeitung Prof. Dr. Matthias Kranz Technische Universität München DriveAssist – Warning Screen §  Background service running on the Android device §  Automatically triggered, shown on top of all other applications §  Shows distance and direction of next relevant traffic incident §  Configurable radius of interest §  Accompanied by text-to-speech (TTS) output 11.09.2012 Dipl.-Ing. Stefan Diewald Automotive HMI 8
  • 9. Fachgebiet Verteilte Multimodale Informationsverarbeitung Prof. Dr. Matthias Kranz Technische Universität München DriveAssist – Map View §  Overview of (nearby) traffic incidents §  Driver awareness with configurable radius §  Notification about new traffic incidents §  Detailed information by tapping warning sign 11.09.2012 Dipl.-Ing. Stefan Diewald Automotive HMI 9
  • 10. Fachgebiet Verteilte Multimodale Informationsverarbeitung Prof. Dr. Matthias Kranz Technische Universität München Supported Use-Cases Signaled by DENM: Signaled by CAM: 1.  Electronic Emergency Brake Lights 6. Approaching Emergency Vehicle 2.  Working Area Warning 3.  Stationary Vehicle Warning 4.  Hazardous Location Notification 5.  Traffic Jam Ahead Warning 1 2 3 4 5 6 Priority Mechanisms: 1.  Moving events have higher priority than static events. 2.  Events with decreasing distance to user have higher priority than events with increasing distance. 3.  Near events have higher priority than events which are further away. Images 2, 4, 5: from http://de.wikipedia.org/wiki/Bildtafel_der_Verkehrszeichen_in_Deutschland 11.09.2012 Dipl.-Ing. Stefan Diewald Automotive HMI 10
  • 11. Fachgebiet Verteilte Multimodale Informationsverarbeitung Prof. Dr. Matthias Kranz Technische Universität München Live Demo Scenario 1 Scenario 2 11.09.2012 Dipl.-Ing. Stefan Diewald Automotive HMI 11
  • 12. Fachgebiet Verteilte Multimodale Informationsverarbeitung Prof. Dr. Matthias Kranz Technische Universität München Conclusion and Outlook §  DriveAssist as first research prototype §  Combination of V2X communication and central traffic services: Good operability from the beginning on, even when there are only a few vehicles equipped with V2X §  Active and passive awareness and warning element Future Work: §  Evaluation of DriveAssist: user study §  HMI rework §  Integration of route and map context 11.09.2012 Dipl.-Ing. Stefan Diewald Automotive HMI 12
  • 13. Fachgebiet Verteilte Multimodale Informationsverarbeitung Prof. Dr. Matthias Kranz Technische Universität München DriveAssist – A V2X-Based Driver Assistance System for Android 11.09.2012 Dipl.-Ing. Stefan Diewald Automotive HMI 13

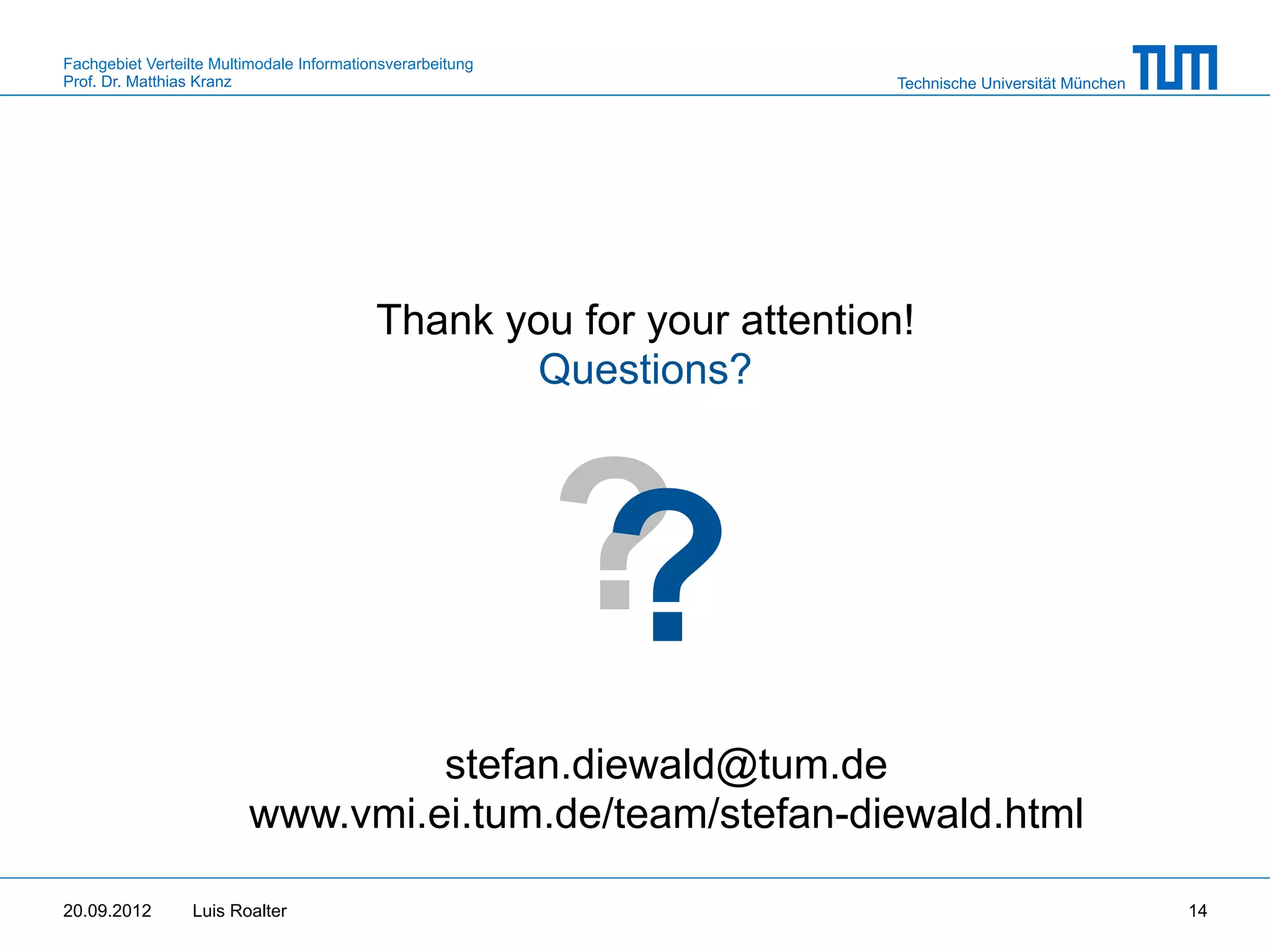

  • 14. Fachgebiet Verteilte Multimodale Informationsverarbeitung Prof. Dr. Matthias Kranz Technische Universität München Thank you for your attention! Questions? ? ? stefan.diewald@tum.de www.vmi.ei.tum.de/team/stefan-diewald.html 20.09.2012 Luis Roalter 14
  • 15. Fachgebiet Verteilte Multimodale Informationsverarbeitung Prof. Dr. Matthias Kranz Technische Universität München Paper Reference •  Please find the associated paper at: https://vmi.lmt.ei.tum.de/publications/2012/DriveAssist_preprint.pdf •  Please cite this work as follows: •  Stefan Diewald, Andreas Möller, Luis Roalter, Matthias Kranz. 2012. DriveAssist - A V2X-Based Driver Assistance System for Android In: Automotive HMI Workshop at Mensch und Computer 2012, Konstanz, Germany, September 2012 20.09.2012 Luis Roalter 15
  • 16. Fachgebiet Verteilte Multimodale Informationsverarbeitung Prof. Dr. Matthias Kranz Technische Universität München If you use BibTex, please use the following entry to cite this work: @inproceedings{DBLP:conf/mc/DiewaldMRK12, author = {Stefan Diewald and Andreas M{"o}ller and Luis Roalter and Matthias Kranz}, title = {{DriveAssist - A V2X-Based Driver Assistance System for Android}}, booktitle = {Mensch {&} Computer Workshopband}, year = {2012}, pages = {373--380}, ee = {http://dl.mensch-und-computer.de/handle/123456789/2990}, crossref = {DBLP:conf/mc/2012w}, bibsource = {DBLP, http://dblp.uni-trier.de}, } @proceedings{DBLP:conf/mc/2012w, editor = {Harald Reiterer and Oliver Deussen}, title = {Mensch {&} Computer 2012 - Workshopband: interaktiv informiert - allgegenw{"a}rtig und allumfassend!? Konstanz, Germany, September 9-12, 2012}, booktitle = {Mensch {&} Computer Workshopband}, publisher = {Oldenbourg Verlag}, year = {2012}, ee = {http://dl.mensch-und-computer.de/handle/123456789/2858}, bibsource = {DBLP, http://dblp.uni-trier.de}, } 20.09.2012 Luis Roalter 16
