1. The DreamLogger is a small device that records VOIP phone calls from 1-25 phones with no technical expertise required for setup. 2. It installs anywhere, stores recordings securely offsite, and is cost-effective for single phone recordings. 3. The device maintains network traffic flow while simultaneously copying and encrypting VOIP packets to send to a virtual recording server for conversion and long-term storage.

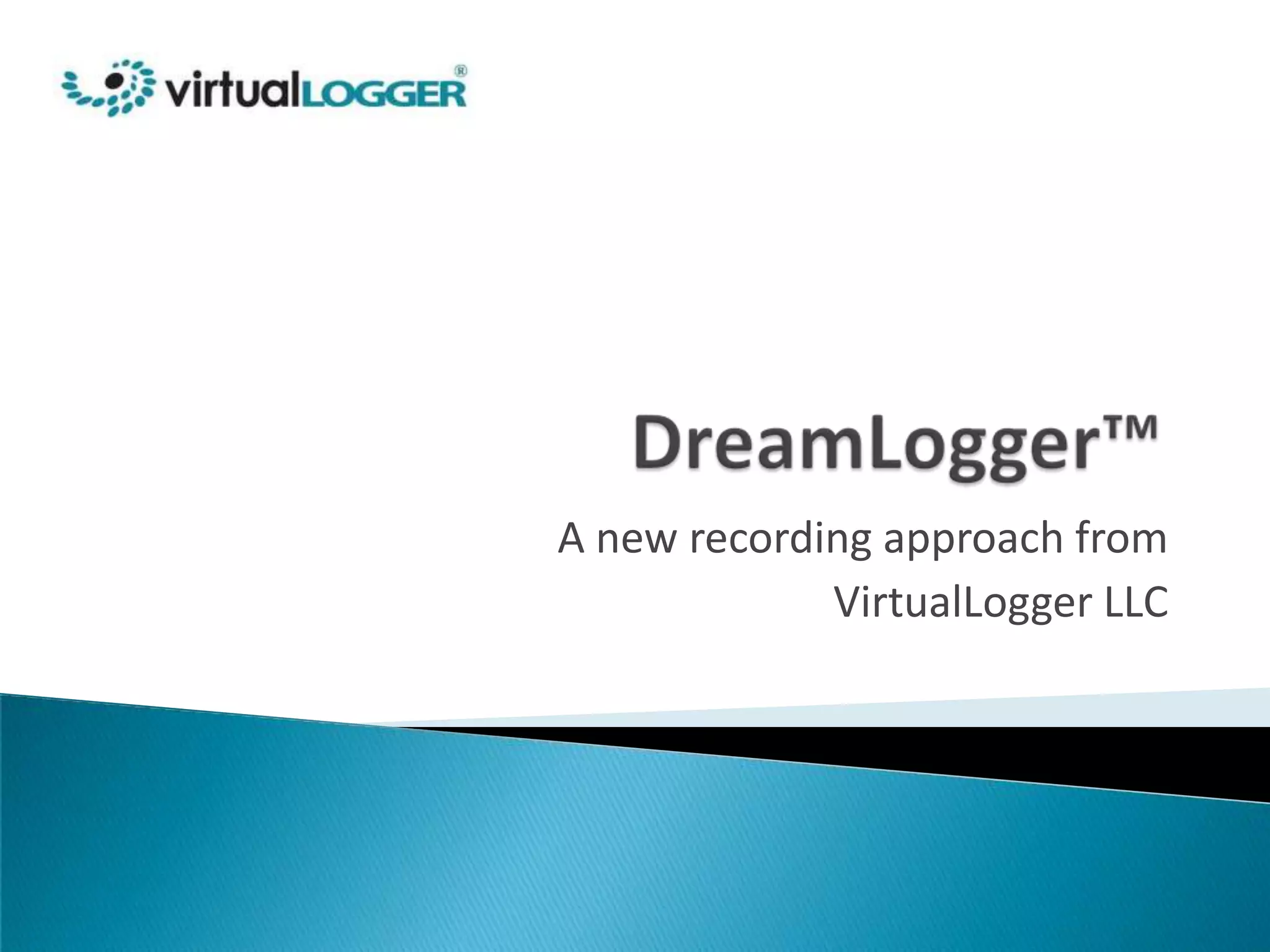

1. A new recording approach from
VirtualLogger LLC

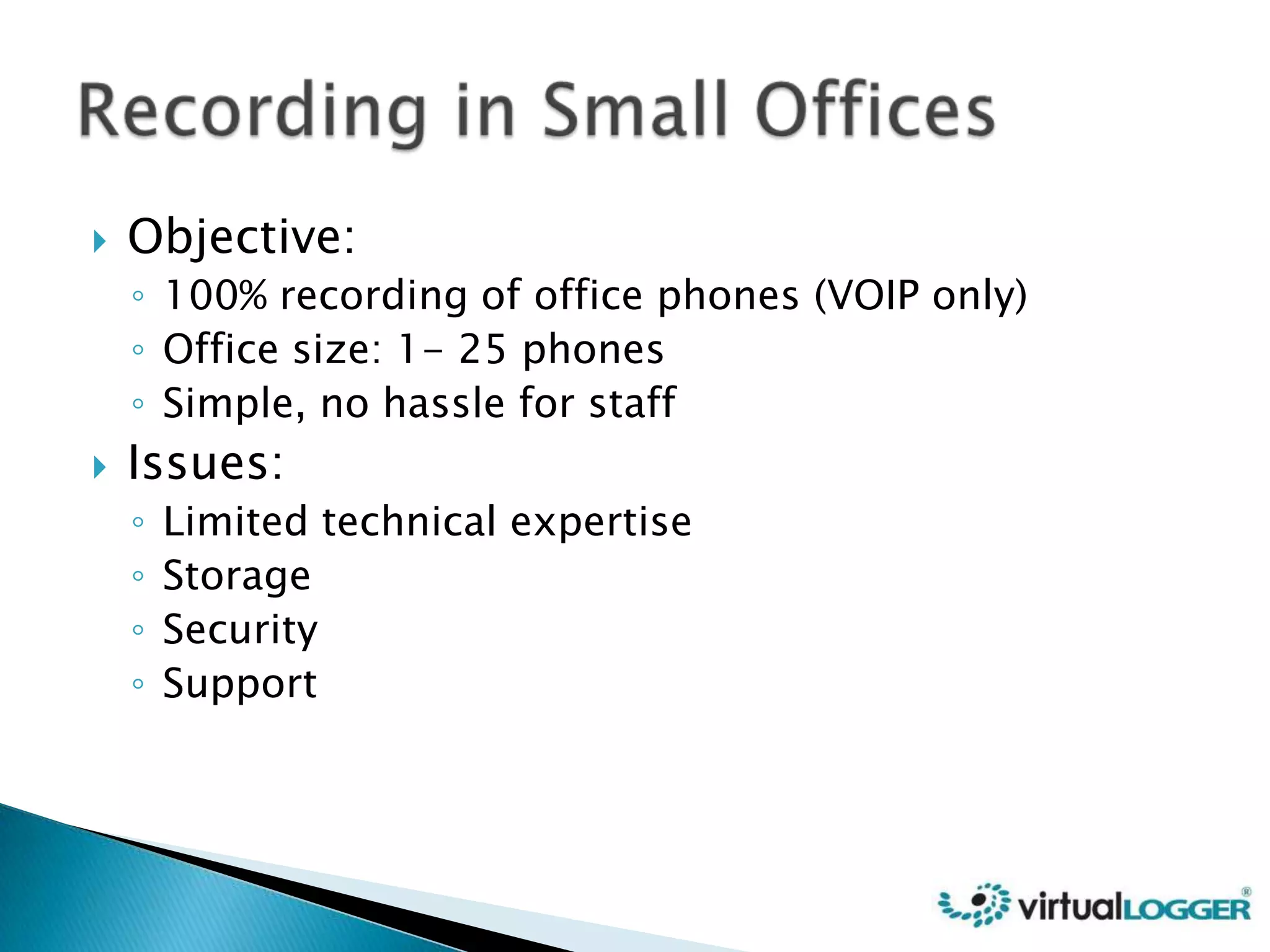

2.  Objective:
◦ 100% recording of office phones (VOIP only)
◦ Office size: 1- 25 phones
◦ Simple, no hassle for staff
 Issues:
◦ Limited technical expertise
◦ Storage
◦ Security
◦ Support

3.  Tiny server installs anywhere
 Records offices up to 25 phones
 Cost-effective for a single phone
 Requires no technical expertise for install
 Highly reliable
 All storage/access is offsite
 Secure: Encrypted, PCI compliant

4.  6.6 (L) x 3.6 (W) x .9 (H) (inches)
 Weight: <12 ounces
 Power input: 100-240VAC/50-60Hz 19W
 Power use: 5V/3.0A
 No fan, no noise
 Suitable for small offices (5 – 25 phones)

5.  Projected form factor:
◦ 11.7 (L) x 5.8 (W) x 3.4 (H) (inches)
◦ Weight: <36 ounces
◦ Power input: 100-240VAC/50-60Hz 19W
◦ Power use: 15V/12.0A
◦ No or very small fan – comparable to a laptop
◦ Suitable for larger offices (25 - 50 phones)
 Added features:
◦ Network bridge operates without power
◦ Larger cache to survive extended network failure

6. For multiple phones:
 Unplug LAN cable to PBX (black dashed line)
 Plug that line into DreamLogger (green dashed line)
 Run new cable from DreamLogger to PBX (green
VOIP Phones
solid line) (dedicated
 Turn on DreamLogger phone sets or
soft phones)
 Also works on cable to LAN switch to phones
Dream
Logger
Internet Router
PBX

7. For a single phone:
 Unplug LAN cable to phone (black dashed line)
 Plug that line into DreamLogger (green dashed line)
 Run new cable from DreamLogger to Phone (green
VOIP Phones
solid line) (dedicated
phone sets or
 Turn on DreamLogger soft phones)
Dream
Logger
Internet Router
PBX

8. 1. DreamLoggger bridge maintains flow of network traffic to PBX or phone
2. Simultaneously, VOIP packets are copied and encrypted
3. Copied packets are sent to VirtualLogger Central Operations
4. At VirtualLogger, VOIP packets converted to WAV files, stored for client use
VOIP Phones
2
Dream
Logger
Router
Internet
1
3
PBX
VirtualLogger
4 Operations Center

9. 1. DreamLogger bridge maintains flow of network traffic to PBX or phone
2. Simultaneously, VOIP (RTP/Call Control) packets are copied and encrypted
3. Copied packets are sent to VOIP recorder
4. Data is processed to simulate packets from SPAN or network tap
5. At recorder, VOIP packets processed per VOIP recording method
VOIP Phones
2
Dream
Logger
Router
Internet
1
3
PBX
Data
conversion
4
VOIP recorder
5

10.  Run cable from SPAN port or network tap to DreamLogger
(green dashed line)
 Run cable from DreamLogger to LAN switch or router
 Turn on DreamLogger
 Eliminates failure point (DreamLogger network bridge) VOIP Phones
(dedicated
 Requires SPAN, mirror port or network tap phone sets or
soft phones)
Dream
Logger
Internet Router
LAN
switch/
PBX
tap

11.  DreamLogger simulates SPAN/tap
◦ No change to Codec or call control packets
◦ Existing encryption is not affected
◦ Recording works as though connected via SPAN/tap
 Works for VOIP calls only
◦ TDM process in development
