Docker Insight
- 1.
- 2. 19 November 2014 Tiago Pires tiago-a-pires@telecom.pt Jérôme Petazzoni jerome@docker.com

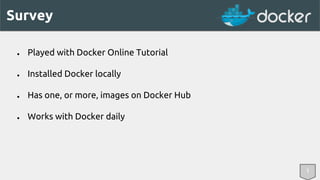

- 3. Survey ● Playedwith Docker Online Tutorial ● Installed Docker locally ● Has one, or more, images on Docker Hub ● Works with Docker daily 1
- 4. Agenda ● Whatis Docker? Why bother? ● Roadmap ● Security ● Advanced Concepts ● Scenarios (Yay !!!) 2
- 5. What is Docker?Why bother? ● Deploy everything, (almost) everywhere ● Reliability, Consistency ● Efficiency (~ native speed) ● Fundamentally… 3

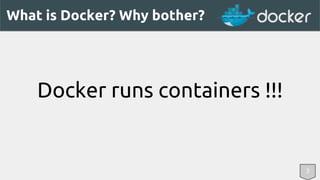

- 6. What is Docker?Why bother? Docker runs containers !!! 3
- 7. What is Docker?Why bother? ● Containers are “lighweight VMs” ○ Own process space, network interface, /sbin/init ● Container = isolated process(es) ● Share kernel with host ● No device emulation 4

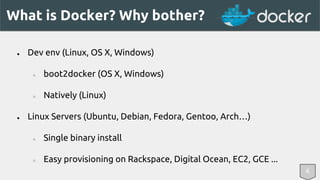

- 8. What is Docker?Why bother? ● Dev env (Linux, OS X, Windows) ○ boot2docker (OS X, Windows) ○ Natively (Linux) ● Linux Servers (Ubuntu, Debian, Fedora, Gentoo, Arch…) ○ Single binary install ○ Easy provisioning on Rackspace, Digital Ocean, EC2, GCE ... 6
- 9. What is Docker?Why bother? 4

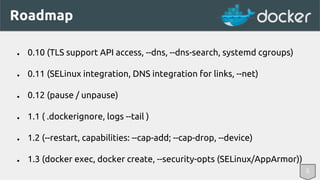

- 10. Roadmap ● 0.10(TLS support API access, --dns, --dns-search, systemd cgroups) ● 0.11 (SELinux integration, DNS integration for links, --net) ● 0.12 (pause / unpause) ● 1.1 ( .dockerignore, logs --tail ) ● 1.2 (--restart, capabilities: --cap-add; --cap-drop, --device) ● 1.3 (docker exec, docker create, --security-opts (SELinux/AppArmor)) 5

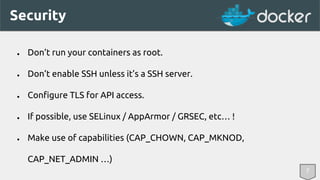

- 11. Security ● Don’trun your containers as root. ● Don’t enable SSH unless it’s a SSH server. ● Configure TLS for API access. ● If possible, use SELinux / AppArmor / GRSEC, etc… ! ● Make use of capabilities (CAP_CHOWN, CAP_MKNOD, CAP_NET_ADMIN …) 7

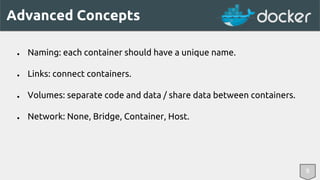

- 12. Advanced Concepts ●Naming: each container should have a unique name. ● Links: connect containers. ● Volumes: separate code and data / share data between containers. ● Network: None, Bridge, Container, Host. 8
- 13. Advanced Concepts 8 ● Logs ○ Create “data container” to hold logs $ docker run --name logs -v /var/log busybox true ○ Start app container with shared volume $ docker run --volumes-from logs app ○ Digging into logs $ docker run -it --volumes-from logs -w /var/log ubuntu bash

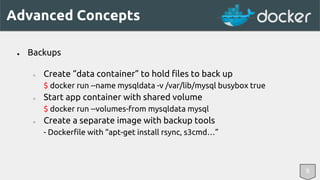

- 14. Advanced Concepts 8 ● Backups ○ Create “data container” to hold files to back up $ docker run --name mysqldata -v /var/lib/mysql busybox true ○ Start app container with shared volume $ docker run --volumes-from mysqldata mysql ○ Create a separate image with backup tools - Dockerfile with “apt-get install rsync, s3cmd…”

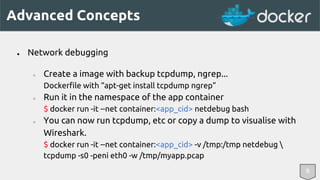

- 15. Advanced Concepts 8 ● Network debugging ○ Create a image with backup tcpdump, ngrep... Dockerfile with “apt-get install tcpdump ngrep” ○ Run it in the namespace of the app container $ docker run -it --net container:<app_cid> netdebug bash ○ You can now run tcpdump, etc or copy a dump to visualise with Wireshark. $ docker run -it --net container:<app_cid> -v /tmp:/tmp netdebug tcpdump -s0 -peni eth0 -w /tmp/myapp.pcap

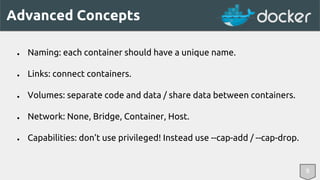

- 16. Advanced Concepts ●Naming: each container should have a unique name. ● Links: connect containers. ● Volumes: separate code and data / share data between containers. ● Network: None, Bridge, Container, Host. 8 ● Capabilities: don’t use privileged! Instead use --cap-add / --cap-drop.

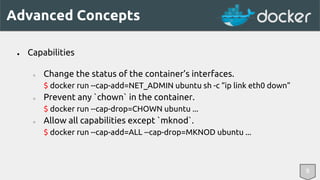

- 17. Advanced Concepts 8 ● Capabilities ○ Change the status of the container’s interfaces. $ docker run --cap-add=NET_ADMIN ubuntu sh -c “ip link eth0 down” ○ Prevent any `chown` in the container. $ docker run --cap-drop=CHOWN ubuntu ... ○ Allow all capabilities except `mknod`. $ docker run --cap-add=ALL --cap-drop=MKNOD ubuntu ...

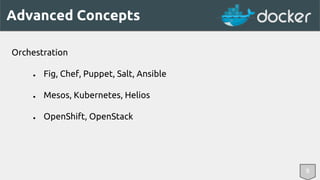

- 18. Advanced Concepts Orchestration ● Fig, Chef, Puppet, Salt, Ansible ● Mesos, Kubernetes, Helios ● OpenShift, OpenStack 8

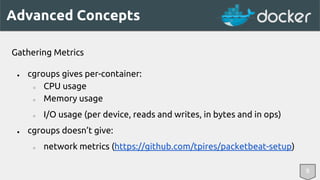

- 19. Advanced Concepts GatheringMetrics ● cgroups gives per-container: ○ CPU usage ○ Memory usage ○ I/O usage (per device, reads and writes, in bytes and in ops) ● cgroups doesn’t give: ○ network metrics (https://github.com/tpires/packetbeat-setup) 8
- 20. Scenarios SHUT UPAND DEMO !!! 9
- 21.
- 22.

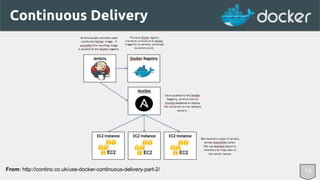

- 23. Continuous Delivery From:http://contino.co.uk/use-docker-continuous-delivery-part-2/ 10

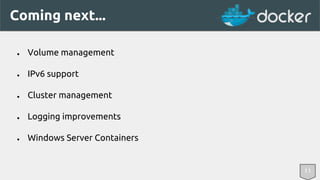

- 24. 11 Coming next... ● Volume management ● IPv6 support ● Cluster management ● Logging improvements ● Windows Server Containers
- 25. Thank you! Twitter@tpires Twitter @jpetazzo tiago-a-pires@telecom.pt jerome@docker.com
