The document compares directional control valves and flow control valves, highlighting their functions and applications in pneumatic systems. Directional control valves direct fluid flow to components like actuators, while flow control valves regulate the speed of fluid flow. Selecting the appropriate valve depends on specific system requirements, such as changing flow paths or achieving precise speed regulation.

1. Directional Control Valves vs.
Flow Control Valves: Key
Differences
Understanding the Core Differences and Applications

2. Overview of Valves in Pneumatic Systems
Valves are crucial components in pneumatic systems, playing a
significant role in regulating and directing fluid flow. This
presentation explores the differences between two key types of
valves: Directional Control Valve and Flow Control Valve.

3. What are Directional Control Valves?
Directional Control Valves are
designed to direct the flow of air or
fluid within a system. Their primary
function is to control the path of
the fluid to various components like
actuators.

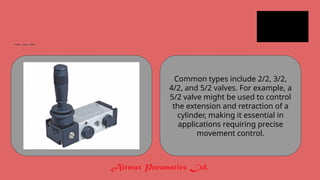

4. Common types include 2/2, 3/2,
4/2, and 5/2 valves. For example, a
5/2 valve might be used to control
the extension and retraction of a
cylinder, making it essential in
applications requiring precise
movement control.

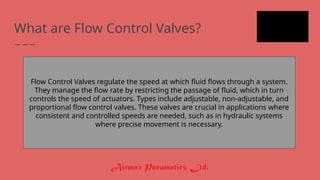

5. What are Flow Control Valves?
Flow Control Valves regulate the speed at which fluid flows through a system.
They manage the flow rate by restricting the passage of fluid, which in turn
controls the speed of actuators. Types include adjustable, non-adjustable, and
proportional flow control valves. These valves are crucial in applications where
consistent and controlled speeds are needed, such as in hydraulic systems
where precise movement is necessary.

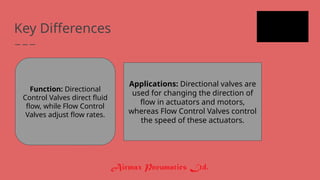

6. Key Differences
Function: Directional
Control Valves direct fluid
flow, while Flow Control
Valves adjust flow rates.
Applications: Directional valves are
used for changing the direction of
flow in actuators and motors,
whereas Flow Control Valves control
the speed of these actuators.

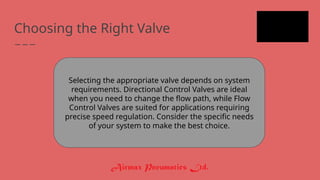

7. Choosing the Right Valve
Selecting the appropriate valve depends on system
requirements. Directional Control Valves are ideal
when you need to change the flow path, while Flow
Control Valves are suited for applications requiring
precise speed regulation. Consider the specific needs
of your system to make the best choice.
