The AQILIM *FIT/LE is a professional video encoder that simplifies live event broadcasting over IPTV networks and multi-screen distribution online. It has flexible input/output options and compatibility with major CDNs. The encoder allows live streaming of events like sports, news, corporate events, and educational sessions via HDMI, SDI, analog or network inputs over HLS and RTMP protocols to IPTV set-top boxes, websites, and mobile devices.

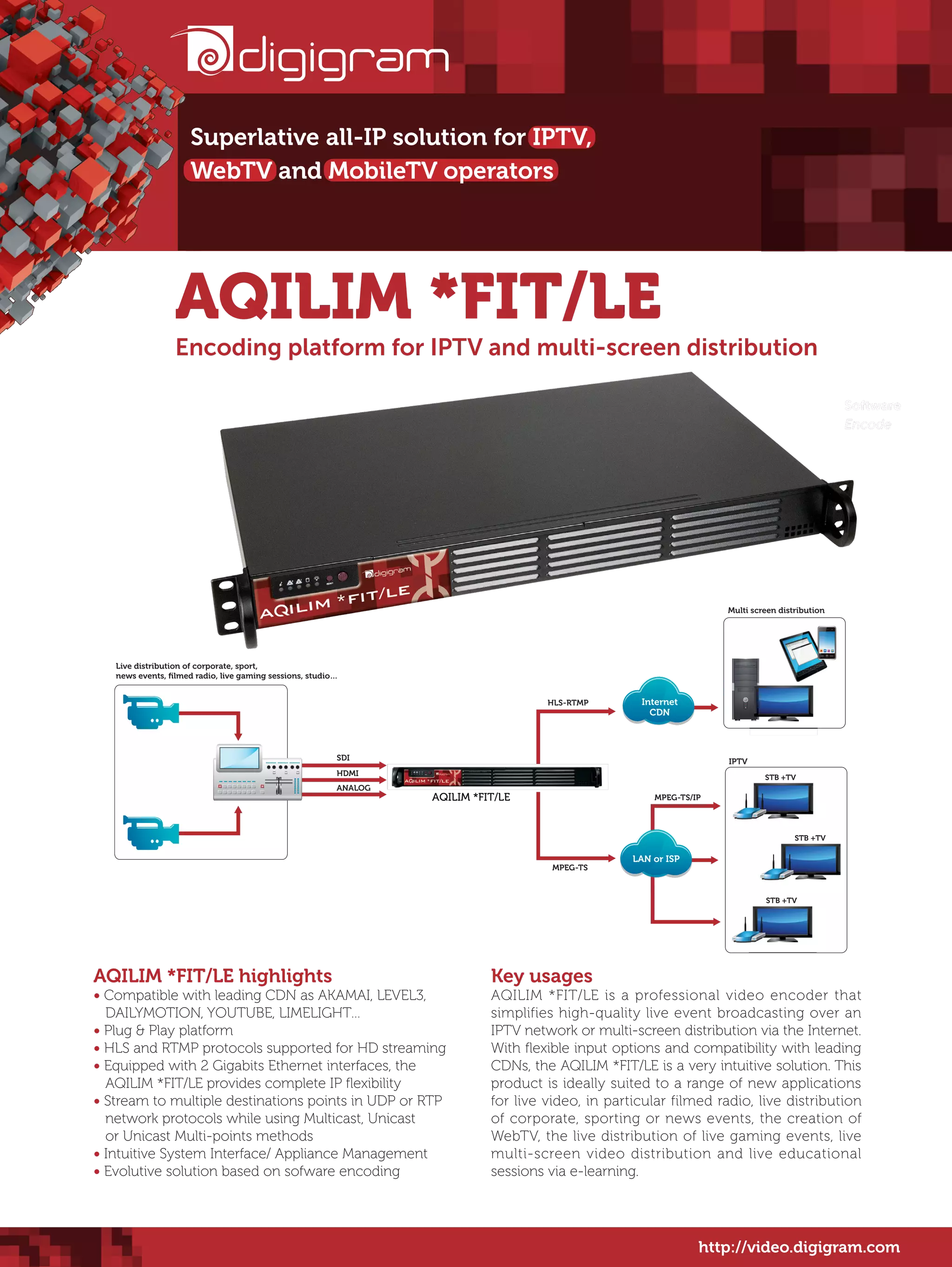

1. Superlative all-IP solution for IPTV,
WebTV and MobileTV operators
AQILIM *FIT/LE
Encoding platform for IPTV and multi-screen distribution
Software
Encode
Multi screen distribution
Live distribution of corporate, sport,
news events, filmed radio, live gaming sessions, studio…
HLS-RTMP
Internet
CDN
SDI
IPTV
HDMI
ANALOG
STB +TV
AQILIM *FIT/LE
MPEG-TS/IP
STB +TV
MPEG-TS
LAN or ISP
STB +TV
AQILIM *FIT/LE highlights
Key usages
• Compatible with leading CDN as AKAMAI, LEVEL3,
DAILYMOTION, YOUTUBE, LIMELIGHT…
• Plug & Play platform
• HLS and RTMP protocols supported for HD streaming
• Equipped with 2 Gigabits Ethernet interfaces, the
AQILIM *FIT/LE provides complete IP flexibility
• Stream to multiple destinations points in UDP or RTP
network protocols while using Multicast, Unicast
or Unicast Multi-points methods
• Intuitive System Interface/ Appliance Management
• Evolutive solution based on sofware encoding
AQILIM *FIT/LE is a professional video encoder that
simplifies high-quality live event broadcasting over an
IPTV network or multi-screen distribution via the Internet.
With flexible input options and compatibility with leading
CDNs, the AQILIM *FIT/LE is a very intuitive solution. This
product is ideally suited to a range of new applications
for live video, in particular filmed radio, live distribution
of corporate, sporting or news events, the creation of
WebTV, the live distribution of live gaming events, live
multi-screen video distribution and live educational
sessions via e-learning.
http://video.digigram.com

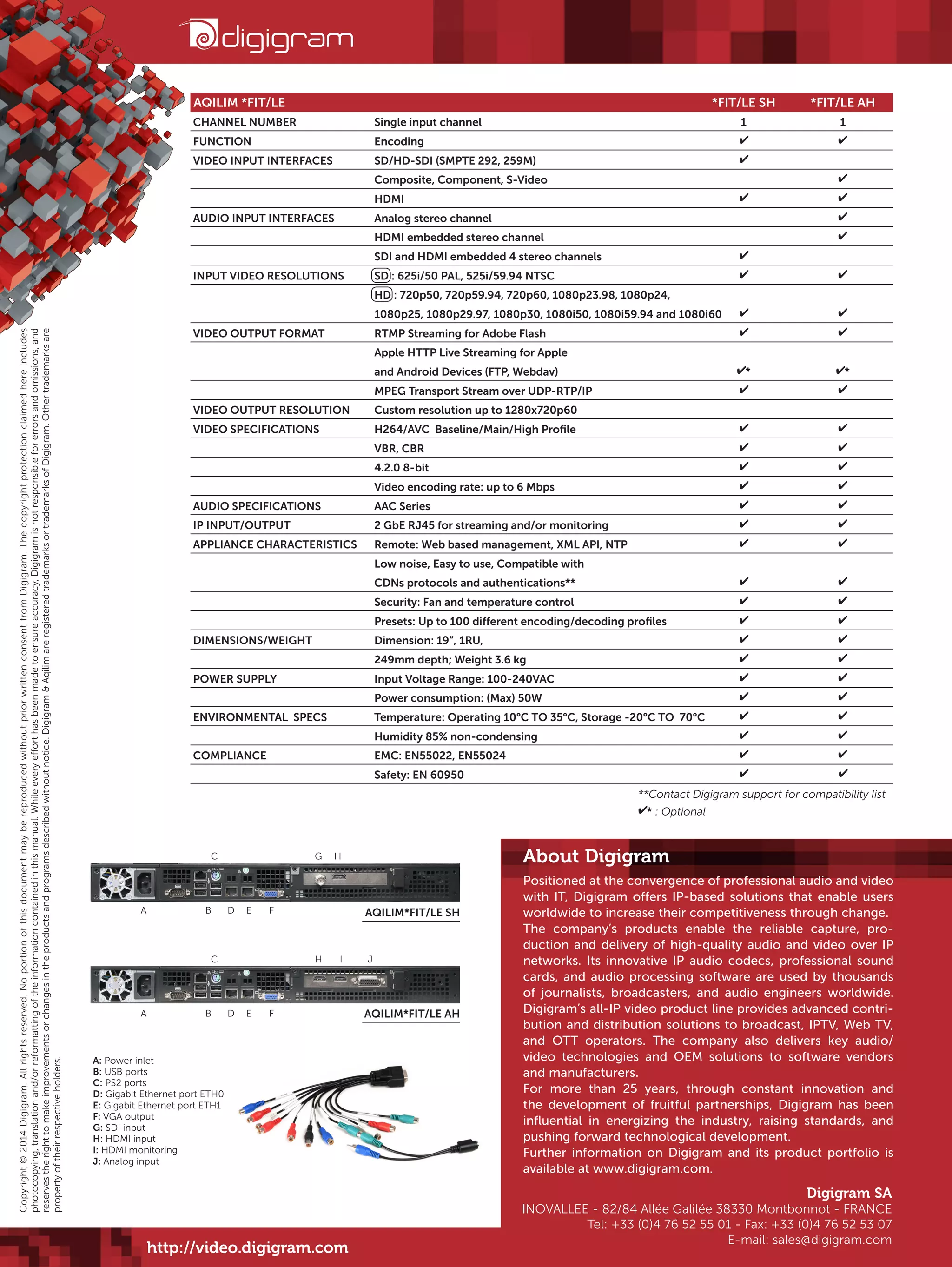

2. AQILIM *FIT/LE
*FIT/LE SH
*FIT/LE AH
CHANNEL NUMBER
Single input channel
1
1
FUNCTION
Encoding
✔
✔
✔
VIDEO INPUT INTERFACES
SD/HD-SDI (SMPTE 292, 259M)
Composite, Component, S-Video
HDMI
AUDIO INPUT INTERFACES
Analog stereo channel
✔
HDMI embedded stereo channel
✔
SDI and HDMI embedded 4 stereo channels
✔
✔
✔
✔
✔
✔
SD : 625i/50 PAL, 525i/59.94 NTSC
HD : 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24,
Copyright © 2014 Digigram. All rights reserved. No portion of this document may be reproduced without prior written consent from Digigram. The copyright protection claimed here includes
photocopying, translation and/or reformatting of the information contained in this manual. While every effort has been made to ensure accuracy, Digigram is not responsible for errors and omissions, and
reserves the right to make improvements or changes in the products and programs described without notice. Digigram & Aqilim are registered trademarks or trademarks of Digigram. Other trademarks are
property of their respective holders.
INPUT VIDEO RESOLUTIONS
1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94 and 1080i60
✔
✔
VIDEO OUTPUT FORMAT
RTMP Streaming for Adobe Flash
✔
✔
Apple HTTP Live Streaming for Apple
and Android Devices (FTP, Webdav)
✔*
✔*
MPEG Transport Stream over UDP-RTP/IP
✔
✔
VIDEO OUTPUT RESOLUTION
Custom resolution up to 1280x720p60
VIDEO SPECIFICATIONS
H264/AVC Baseline/Main/High Profile
✔
✔
VBR, CBR
✔
✔
4.2.0 8-bit
✔
✔
Video encoding rate: up to 6 Mbps
✔
✔
AUDIO SPECIFICATIONS
AAC Series
✔
✔
IP INPUT/OUTPUT
2 GbE RJ45 for streaming and/or monitoring
✔
✔
APPLIANCE CHARACTERISTICS
Remote: Web based management, XML API, NTP
✔
✔
Low noise, Easy to use, Compatible with
CDNs protocols and authentications**
✔
✔
Security: Fan and temperature control
✔
✔
Presets: Up to 100 different encoding/decoding profiles
✔
✔
DIMENSIONS/WEIGHT
Dimension: 19”, 1RU,
✔
✔
249mm depth; Weight 3.6 kg
✔
✔
POWER SUPPLY
Input Voltage Range: 100-240VAC
✔
✔
Power consumption: (Max) 50W
✔
✔
ENVIRONMENTAL SPECS
Temperature: Operating 10°C TO 35°C, Storage -20°C TO 70°C
✔
✔
Humidity 85% non-condensing
✔
✔
COMPLIANCE
EMC: EN55022, EN55024
✔
✔
Safety: EN 60950
✔
✔
**Contact Digigram support for compatibility list
✔* : Optional
C
A
B
G
D
E
F
C
A
B
AQILIM*FIT/LE SH
H
D
E
About Digigram
H
I
F
A: Power inlet
B: USB ports
C: PS2 ports
D: Gigabit Ethernet port ETH0
E: Gigabit Ethernet port ETH1
F: VGA output
G: SDI input
H: HDMI input
I: HDMI monitoring
J: Analog input
J
AQILIM*FIT/LE AH
Positioned at the convergence of professional audio and video
with IT, Digigram offers IP-based solutions that enable users
worldwide to increase their competitiveness through change.
The company’s products enable the reliable capture, production and delivery of high-quality audio and video over IP
networks. Its innovative IP audio codecs, professional sound
cards, and audio processing software are used by thousands
of journalists, broadcasters, and audio engineers worldwide.
Digigram’s all-IP video product line provides advanced contribution and distribution solutions to broadcast, IPTV, Web TV,
and OTT operators. The company also delivers key audio/
video technologies and OEM solutions to software vendors
and manufacturers.
For more than 25 years, through constant innovation and
the development of fruitful partnerships, Digigram has been
influential in energizing the industry, raising standards, and
pushing forward technological development.
Further information on Digigram and its product portfolio is
available at www.digigram.com.
