1. Introduction to Developing Android™
Apps
Using the Salesforce Mobile SDK
Ryan Upton, Salesforce.com, Mobile Evangelist
@ryanjupton

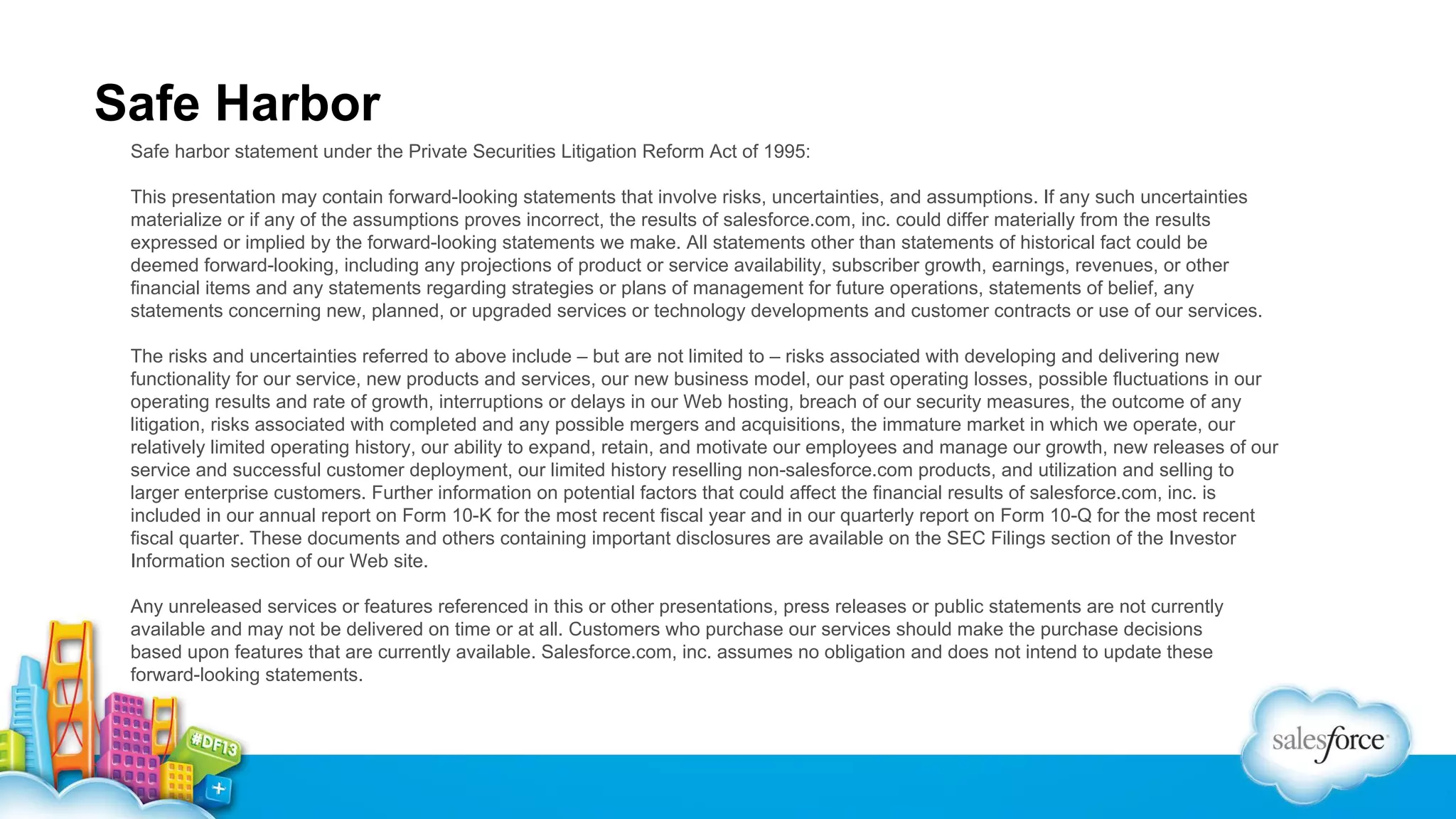

2. Safe Harbor
Safe harbor statement under the Private Securities Litigation Reform Act of 1995:
This presentation may contain forward-looking statements that involve risks, uncertainties, and assumptions. If any such uncertainties
materialize or if any of the assumptions proves incorrect, the results of salesforce.com, inc. could differ materially from the results
expressed or implied by the forward-looking statements we make. All statements other than statements of historical fact could be
deemed forward-looking, including any projections of product or service availability, subscriber growth, earnings, revenues, or other
financial items and any statements regarding strategies or plans of management for future operations, statements of belief, any
statements concerning new, planned, or upgraded services or technology developments and customer contracts or use of our services.
The risks and uncertainties referred to above include – but are not limited to – risks associated with developing and delivering new
functionality for our service, new products and services, our new business model, our past operating losses, possible fluctuations in our
operating results and rate of growth, interruptions or delays in our Web hosting, breach of our security measures, the outcome of any
litigation, risks associated with completed and any possible mergers and acquisitions, the immature market in which we operate, our
relatively limited operating history, our ability to expand, retain, and motivate our employees and manage our growth, new releases of our
service and successful customer deployment, our limited history reselling non-salesforce.com products, and utilization and selling to
larger enterprise customers. Further information on potential factors that could affect the financial results of salesforce.com, inc. is
included in our annual report on Form 10-K for the most recent fiscal year and in our quarterly report on Form 10-Q for the most recent
fiscal quarter. These documents and others containing important disclosures are available on the SEC Filings section of the Investor
Information section of our Web site.
Any unreleased services or features referenced in this or other presentations, press releases or public statements are not currently
available and may not be delivered on time or at all. Customers who purchase our services should make the purchase decisions
based upon features that are currently available. Salesforce.com, inc. assumes no obligation and does not intend to update these
forward-looking statements.

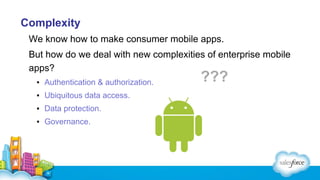

3. Complexity
We know how to make consumer mobile apps.
But how do we deal with new complexities of enterprise mobile
apps?
▪ Authentication & authorization.
▪ Ubiquitous data access.
▪ Data protection.
▪ Governance.
???

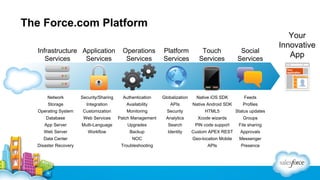

4. The Force.com Platform
Infrastructure Application
Services
Services
Operations
Services
Platform
Services
Touch
Services
Social
Services
Network
Security/Sharing
Authentication
Globalization
Native iOS SDK
Feeds
Storage
Integration
Availability
APIs
Native Android SDK
Profiles
Operating System
Customization
Monitoring
Security
HTML5
Status updates
Database
Web Services
Patch Management
Analytics
Xcode wizards
Groups
App Server
Multi-Language
Upgrades
Search
PIN code support
File sharing
Web Server
Workflow
Backup
Identity
Custom APEX REST
Approvals
Data Center
NOC
Geo-location Mobile
Messenger
Disaster Recovery
Troubleshooting
APIs
Presence
Your
Innovative
App

5. Salesforce.com Mobile SDK for Android
The Salesforce.com Mobile SDK for Android gives developers the
power to create sophisticated mobile apps that leverage the power
of the Force.com platform.
OAuth2
Secure authentication and refresh token
management
API Wrappers
Interact with Salesforce REST APIs with
popular mobile platform languages
App Container
Embed HTML5 apps inside a container to
access powerful native device functionality
Secure Offline Storage
Store business data on a device with enterpriseclass encryption
Push Notifications
Dispatch real-time alerts directly to mobile
devices

6. Simplicity
+
=

7. Getting the SDK
There are two ways to get the Salesforce Mobile SDK for
Android.
▪ Download the SDK
• git clone https://github.com/forcedotcom/SalesforceMobileSDK-Android.git
▪ Forcedroid
• Install Node.js and NPM.
• Use the forcedroid package to install SDK globally or locally.

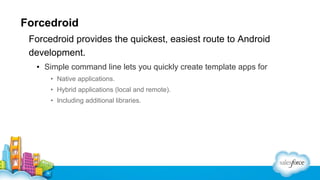

8. Forcedroid
Forcedroid provides the quickest, easiest route to Android
development.
▪ Simple command line lets you quickly create template apps for
• Native applications.
• Hybrid applications (local and remote).
• Including additional libraries.

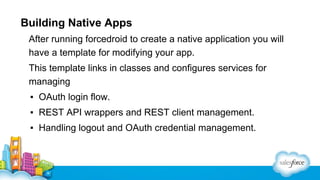

9. Building Native Apps
After running forcedroid to create a native application you will
have a template for modifying your app.
This template links in classes and configures services for
managing
▪ OAuth login flow.
▪ REST API wrappers and REST client management.
▪ Handling logout and OAuth credential management.

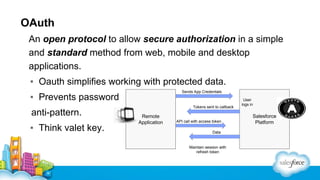

10. OAuth
An open protocol to allow secure authorization in a simple
and standard method from web, mobile and desktop
applications.
▪ Oauth simplifies working with protected data.
Sends App Credentials
▪ Prevents password
anti-pattern.
▪ Think valet key.
Tokens sent to callback
Remote
Application
API call with access token
Data
Maintain session with
refresh token
User
logs in
Salesforce
Platform

11. Force.com REST API
The Force.com REST API lets you integrate with Force.com
applications using simple HTTP methods, in either XML or
JSON formats, making this an ideal API for developing mobile
applications or external clients.
1. Authenticate
login.salesforce.com
Mobile
Application
2. Access API
/services/data/query?
SELECT ID FROM ACCOUNT
3. Get JSON or XML
{“sObject”: “Account”,
“id” : “oax02fdr756aFdad”}
Salesforce
Platform

12. Native Classes
▪ SalesforceSDKManager
▪ RestClient
▪ ClientManager
▪ LoginActivity
▪ SalesforceActivity
▪ PasswordManager
▪ AccountWatcher

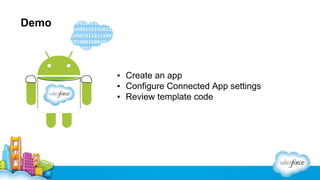

13. Demo
▪ Create an app
▪ Configure Connected App settings
▪ Review template code

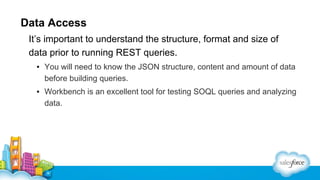

14. Data Access
It’s important to understand the structure, format and size of
data prior to running REST queries.
▪ You will need to know the JSON structure, content and amount of data
before building queries.
▪ Workbench is an excellent tool for testing SOQL queries and analyzing
data.

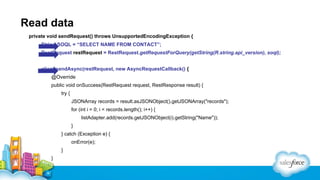

16. Read data
private void sendRequest() throws UnsupportedEncodingException {
String SOQL = “SELECT NAME FROM CONTACT”;
RestRequest restRequest = RestRequest.getRequestForQuery(getString(R.string.api_version), soql);
client.sendAsync(restRequest, new AsyncRequestCallback() {
@Override
public void onSuccess(RestRequest request, RestResponse result) {
try {
JSONArray records = result.asJSONObject().getJSONArray("records");
for (int i = 0; i < records.length(); i++) {
listAdapter.add(records.getJSONObject(i).getString("Name"));
}
} catch (Exception e) {
onError(e);
}
}

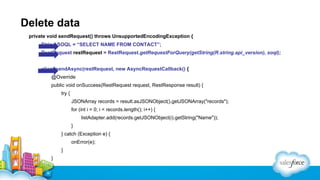

17. Delete data
private void sendRequest() throws UnsupportedEncodingException {
String SOQL = “SELECT NAME FROM CONTACT”;
RestRequest restRequest = RestRequest.getRequestForQuery(getString(R.string.api_version), soql);
client.sendAsync(restRequest, new AsyncRequestCallback() {
@Override
public void onSuccess(RestRequest request, RestResponse result) {
try {
JSONArray records = result.asJSONObject().getJSONArray("records");
for (int i = 0; i < records.length(); i++) {
listAdapter.add(records.getJSONObject(i).getString("Name"));
}
} catch (Exception e) {
onError(e);
}
}

18. Create data
private void sendRequest() throws UnsupportedEncodingException {
String SOQL = “SELECT NAME FROM CONTACT”;
RestRequest restRequest = RestRequest.getRequestForQuery(getString(R.string.api_version), soql);
client.sendAsync(restRequest, new AsyncRequestCallback() {
@Override
public void onSuccess(RestRequest request, RestResponse result) {
try {
JSONArray records = result.asJSONObject().getJSONArray("records");
for (int i = 0; i < records.length(); i++) {
listAdapter.add(records.getJSONObject(i).getString("Name"));
}
} catch (Exception e) {
onError(e);
}
}

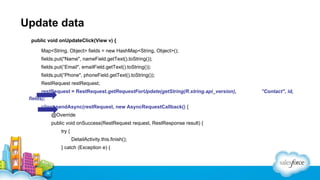

19. Update data
public void onUpdateClick(View v) {
Map<String, Object> fields = new HashMap<String, Object>();
fields.put("Name", nameField.getText().toString());
fields.put(”Email", emailField.getText().toString());
fields.put(”Phone", phoneField.getText().toString());
RestRequest restRequest;
restRequest = RestRequest.getRequestForUpdate(getString(R.string.api_version),
fields);
client.sendAsync(restRequest, new AsyncRequestCallback() {
@Override
public void onSuccess(RestRequest request, RestResponse result) {
try {
DetailActivity.this.finish();
} catch (Exception e) {
”Contact", id,

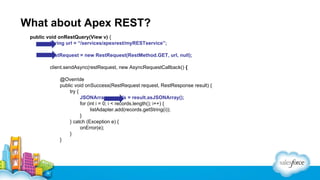

20. What about Apex REST?
public void onRestQuery(View v) {
String url = “/services/apexrest/myRESTservice”;
restRequest = new RestRequest(RestMethod.GET, url, null);
client.sendAsync(restRequest, new AsyncRequestCallback() {
@Override
public void onSuccess(RestRequest request, RestResponse result) {
try {
JSONArray records = result.asJSONArray();
for (int i = 0; i < records.length(); i++) {
listAdapter.add(records.getString(i));
}
} catch (Exception e) {
onError(e);
}
}

21. What about meta data?
public void onGetMetadataClick(View v) {
String objectType = ((EditText) findViewById(R.id.metadata_object_type_text)).getText().toString();
restRequest = RestRequest.getRequestForMetaData(getString(R.string.api_version), objectType);
client.sendAsync(restRequest, new AsyncRequestCallback() {
@Override
public void onSuccess(RestRequest request, RestResponse result) {
try {
JSONArray records = result.asJSONObject().getJSONArray("records");
for (int i = 0; i < records.length(); i++) {
listAdapter.add(records.getJSONObject(i).getString("Name"));
}
} catch (Exception e) {
onError(e);
}
}

22. Demo
▪
Modify template app
▪ Use REST API to query records
▪ Use REST API to update record
▪ Use REST API to call Apex REST

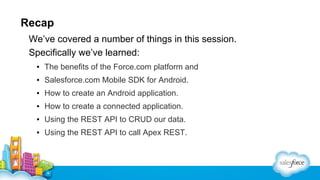

23. Recap
We’ve covered a number of things in this session.
Specifically we’ve learned:
▪ The benefits of the Force.com platform and
▪ Salesforce.com Mobile SDK for Android.
▪ How to create an Android application.
▪ How to create a connected application.
▪ Using the REST API to CRUD our data.
▪ Using the REST API to call Apex REST.
