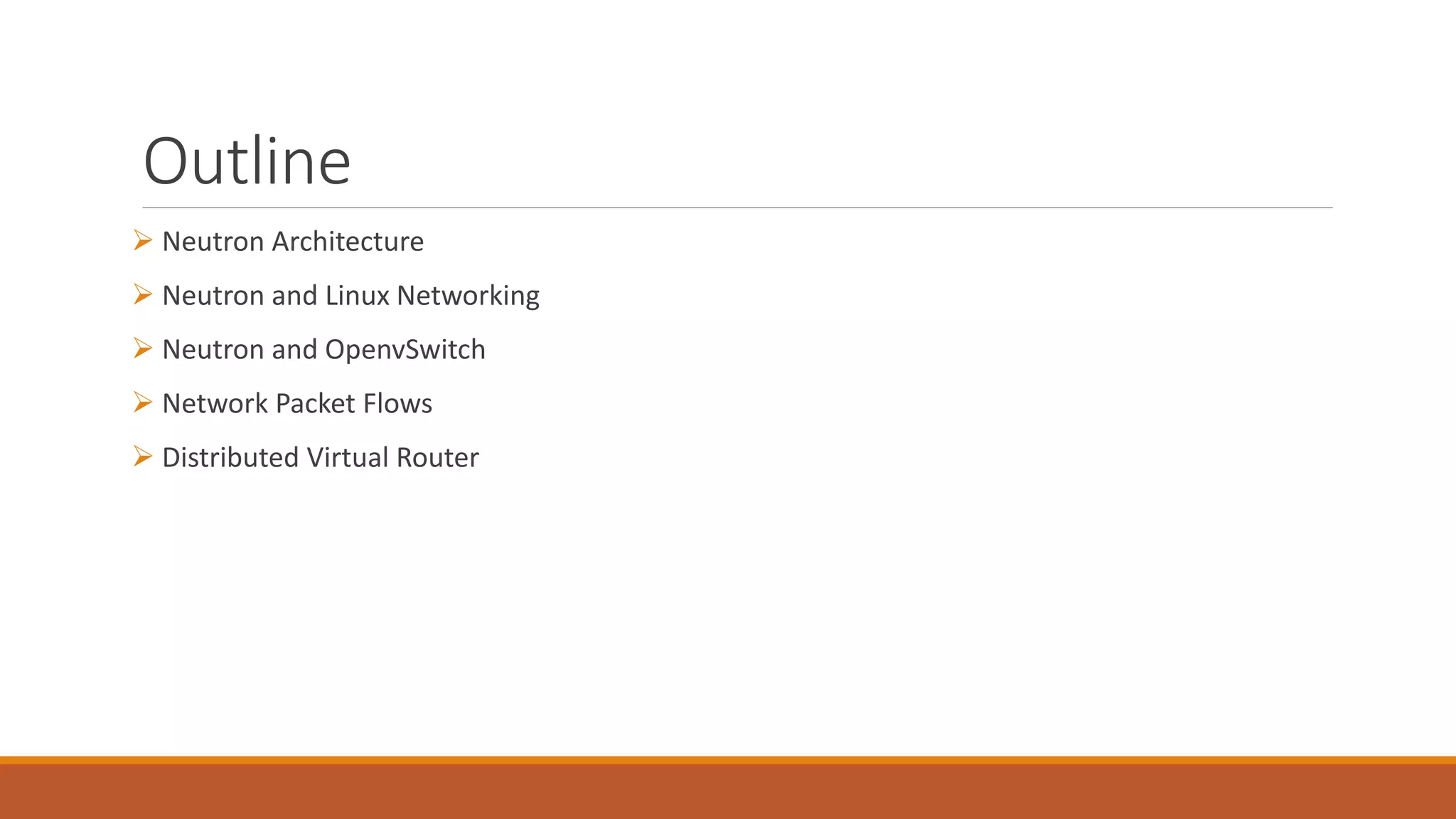

2. Outline
Neutron Architecture

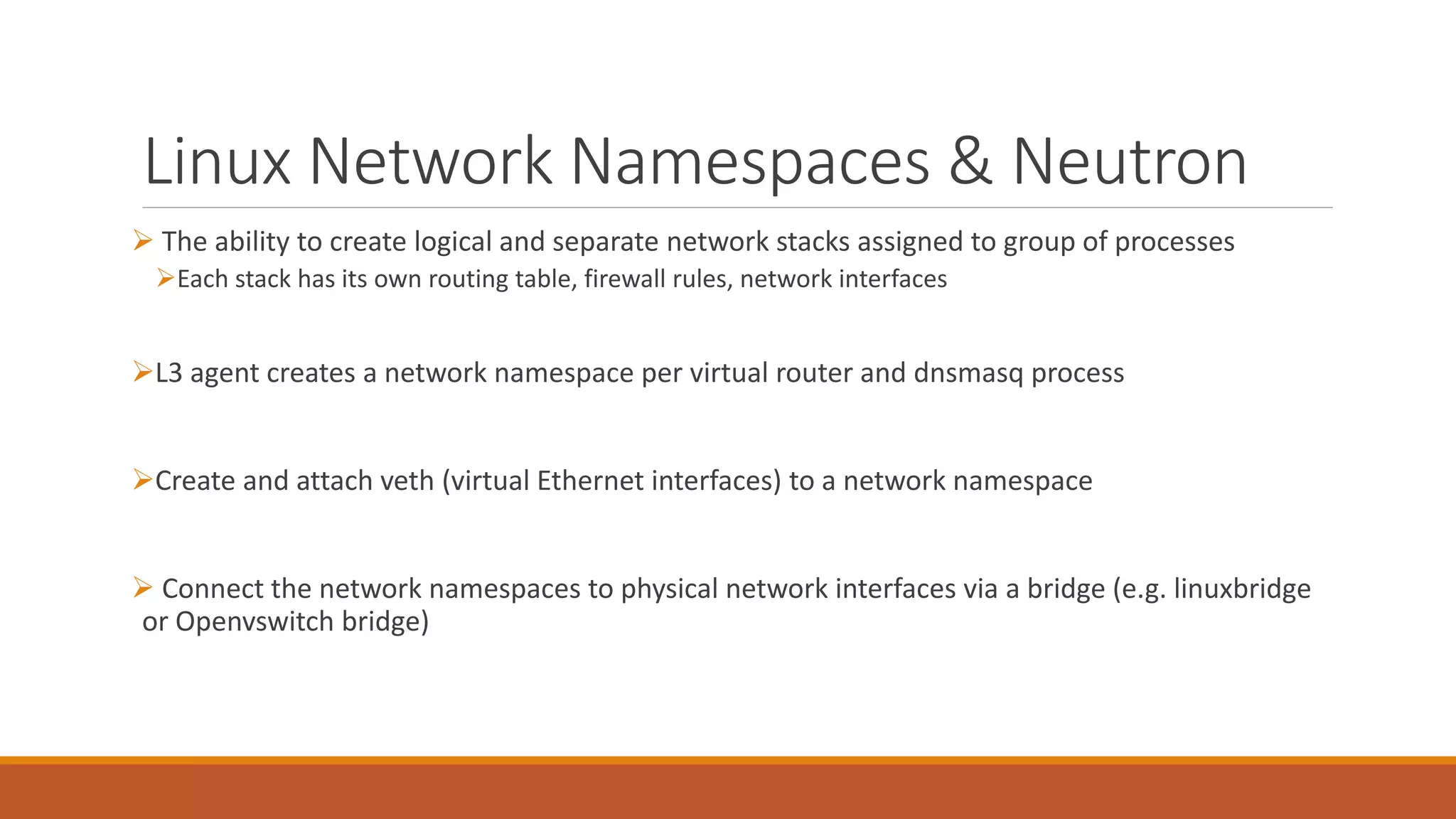

Neutron and Linux Networking
Neutron and OpenvSwitch

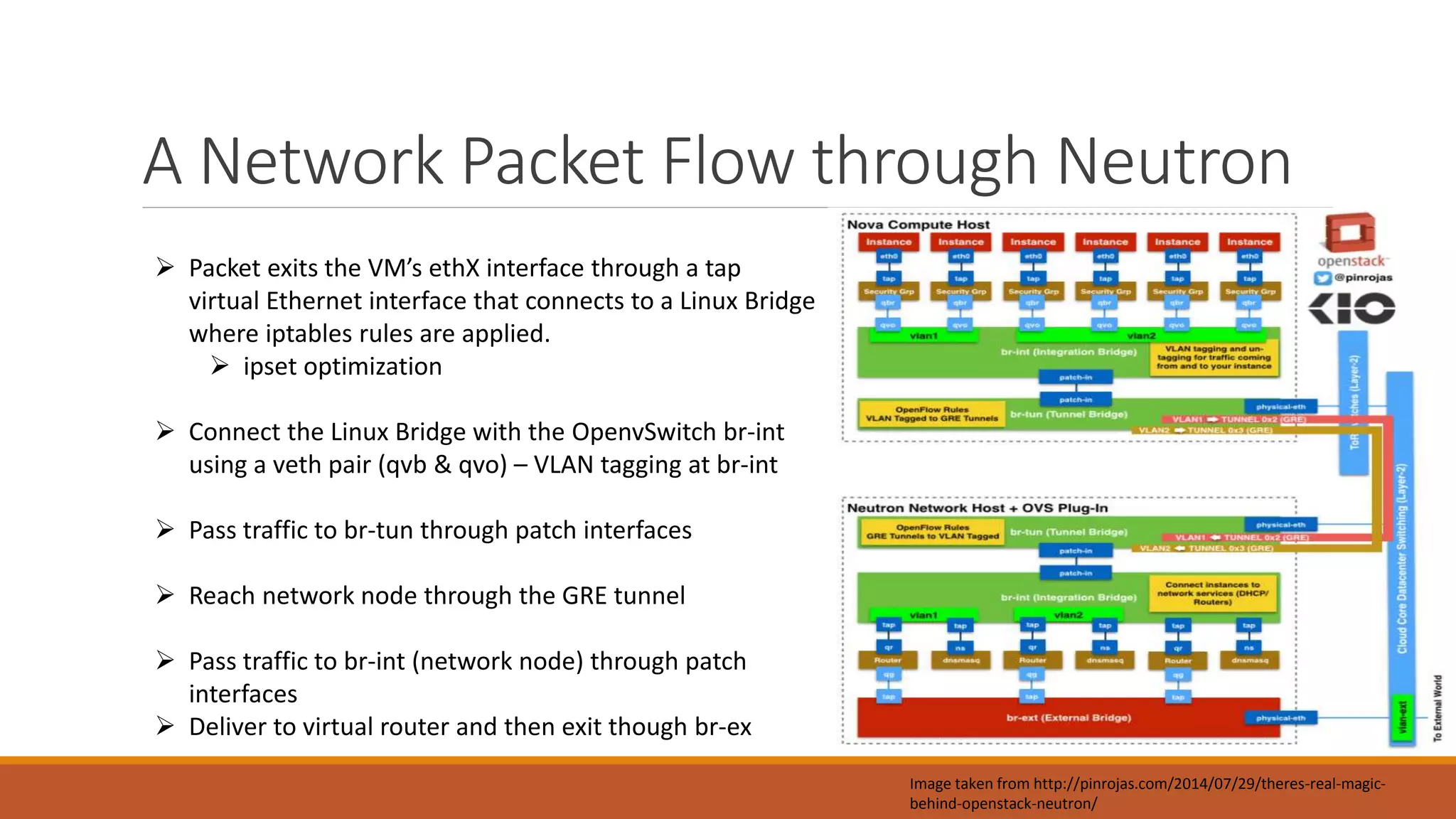

Network Packet Flows

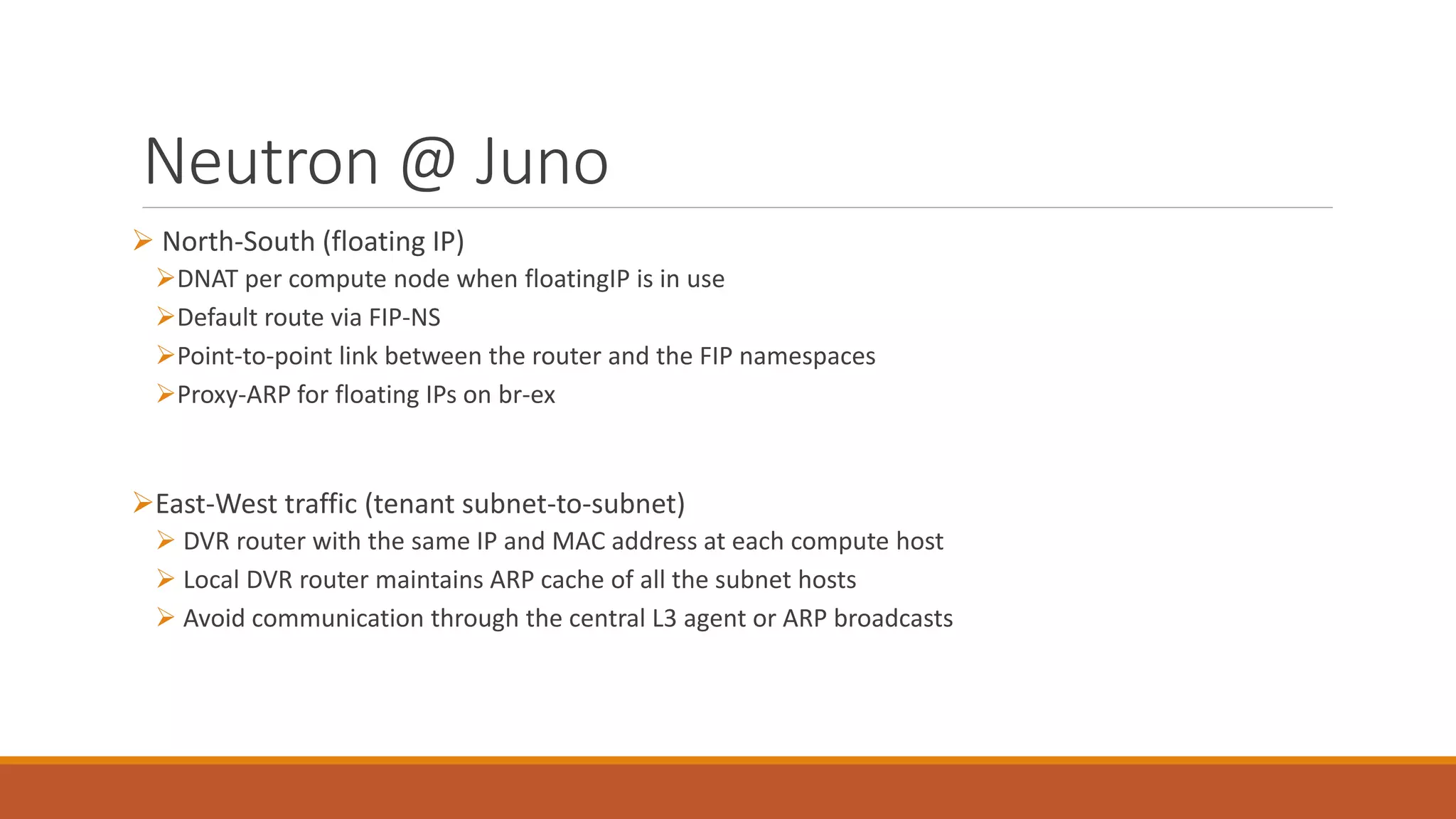

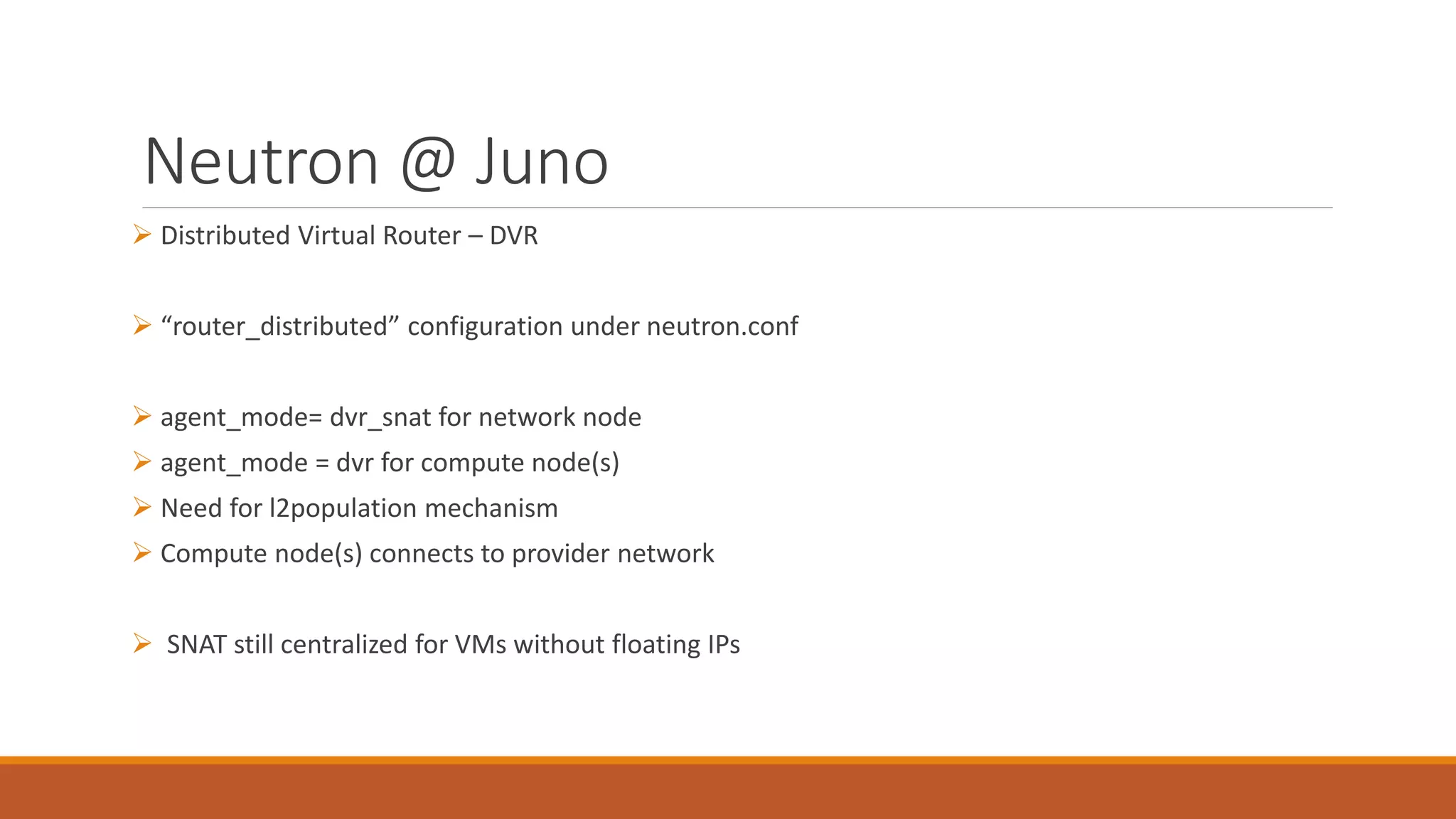

Distributed Virtual Router

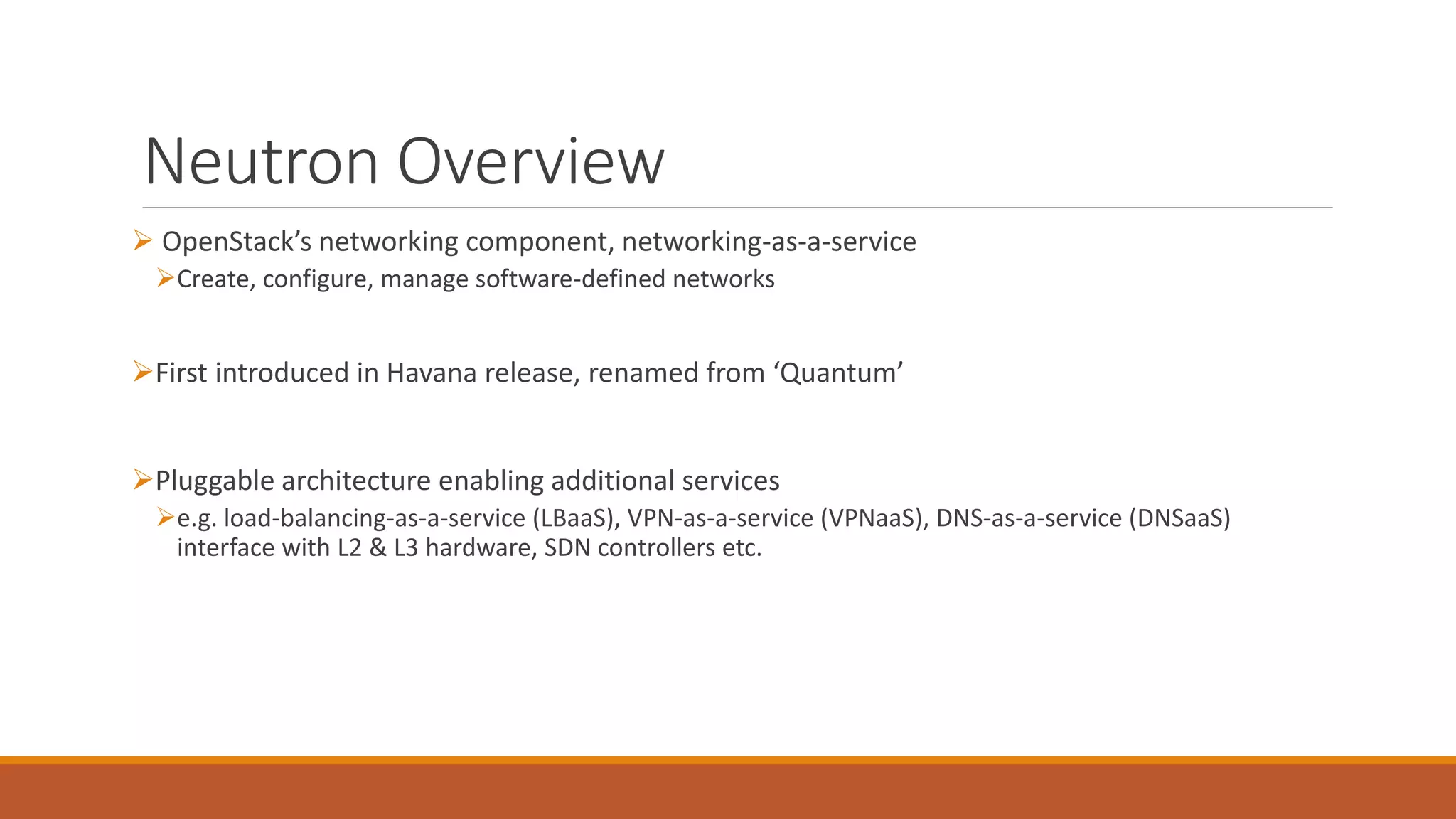

3. Neutron Overview
OpenStack’s networking component, networking-as-a-service
Create, configure, manage software-defined networks
First introduced in Havana release, renamed from ‘Quantum’
Pluggable architecture enabling additional services
e.g. load-balancing-as-a-service (LBaaS), VPN-as-a-service (VPNaaS), DNS-as-a-service (DNSaaS)
interface with L2 & L3 hardware, SDN controllers etc.

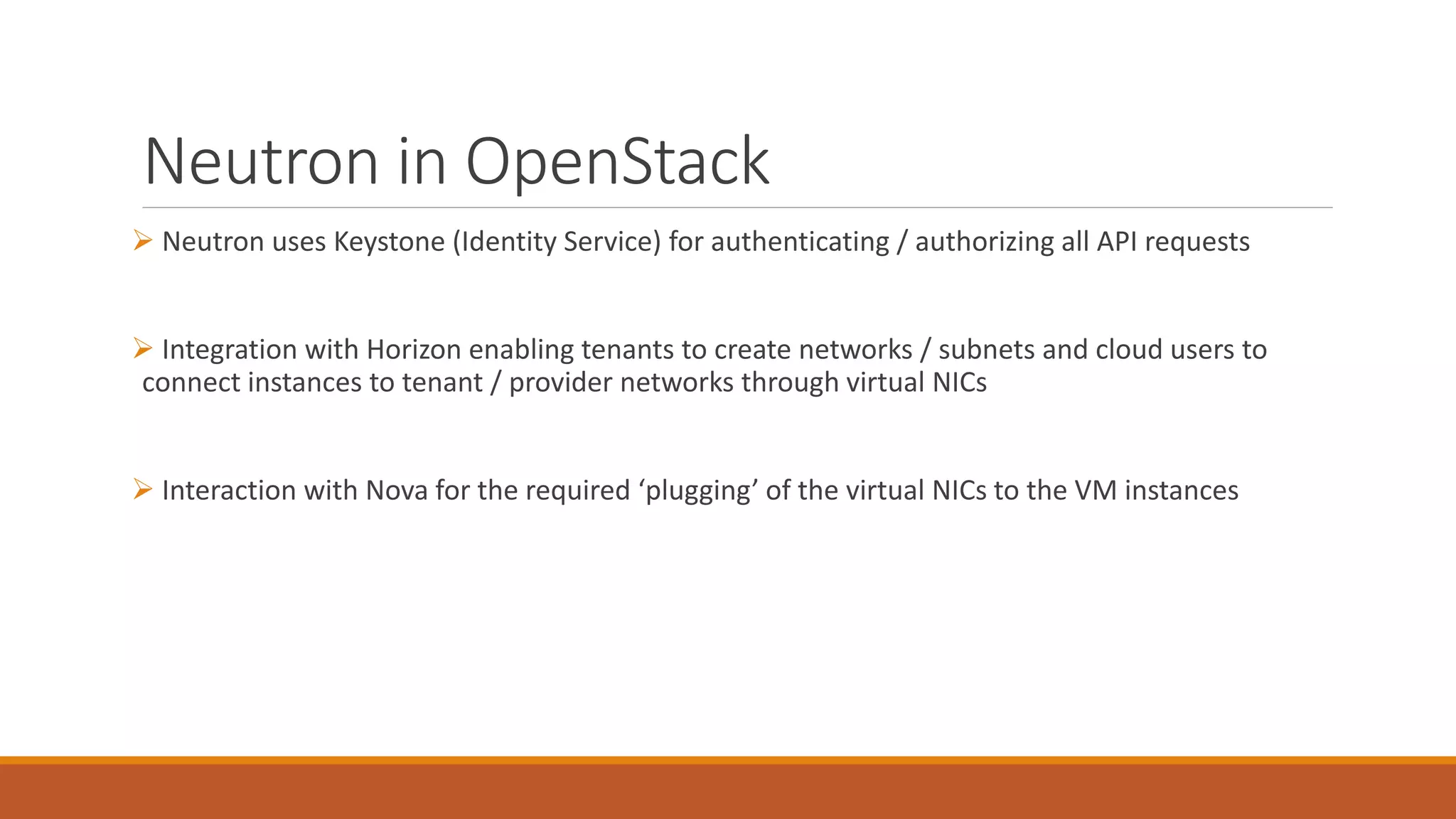

4. Neutron in OpenStack
Neutron uses Keystone (Identity Service) for authenticating / authorizing all API requests
Integration with Horizon enabling tenants to create networks / subnets and cloud users to
connect instances to tenant / provider networks through virtual NICs
Interaction with Nova for the required ‘plugging’ of the virtual NICs to the VM instances

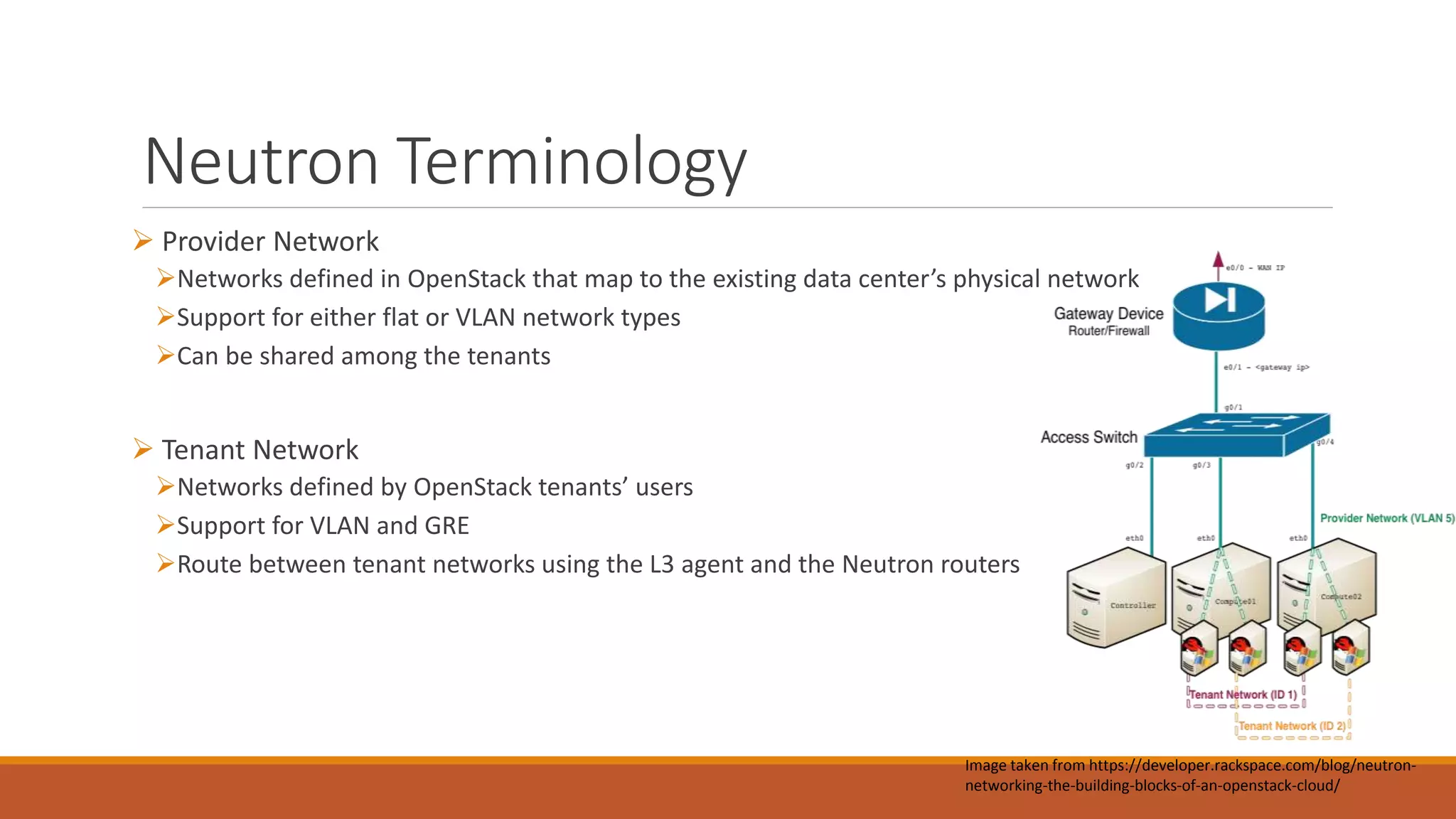

5. Neutron Terminology
Provider Network
Networks defined in OpenStack that map to the existing data center’s physical network
Support for either flat or VLAN network types
Can be shared among the tenants
Tenant Network
Networks defined by OpenStack tenants’ users
Support for VLAN and GRE
Route between tenant networks using the L3 agent and the Neutron routers
Image taken from https://developer.rackspace.com/blog/neutron-
networking-the-building-blocks-of-an-openstack-cloud/

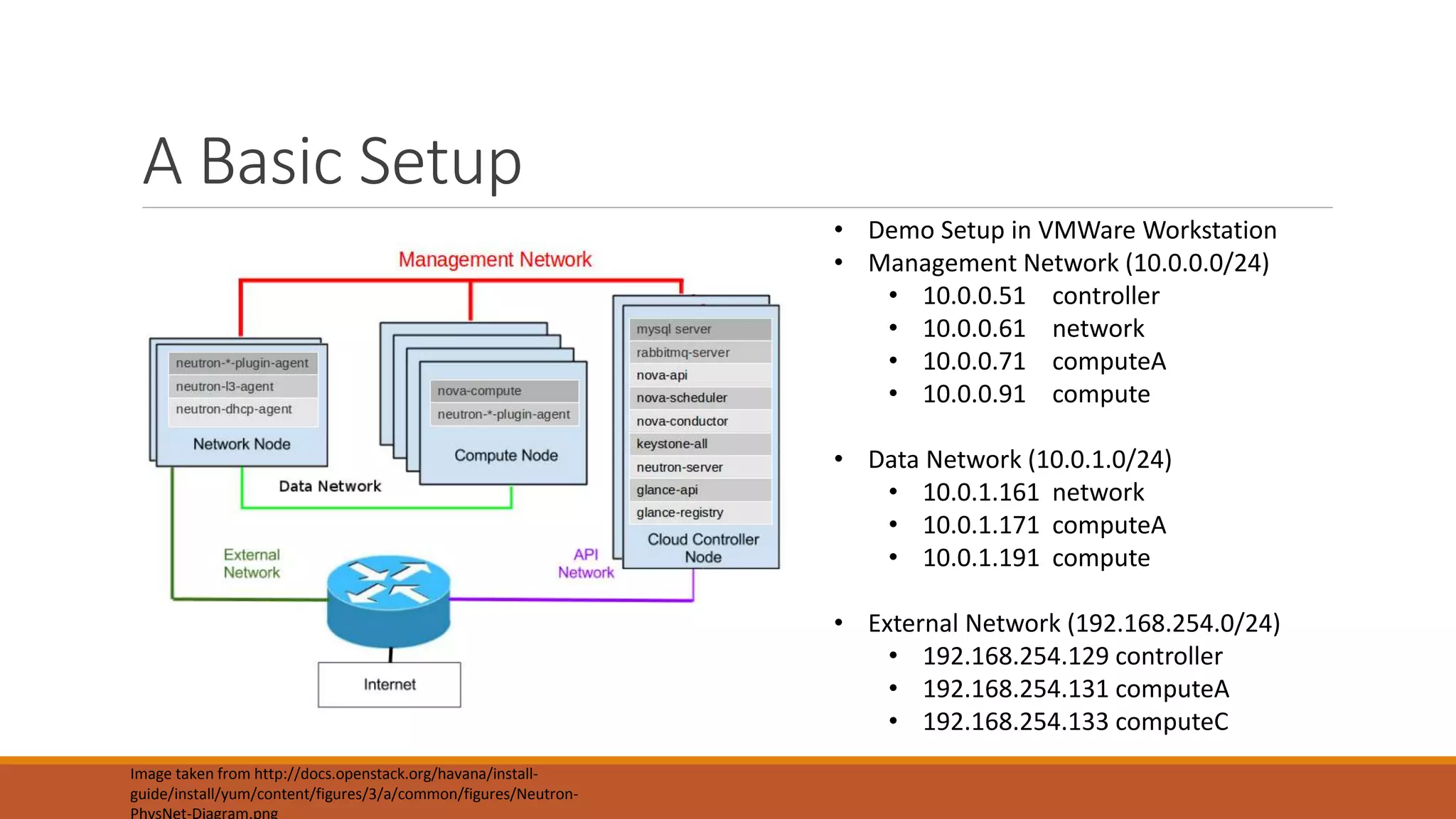

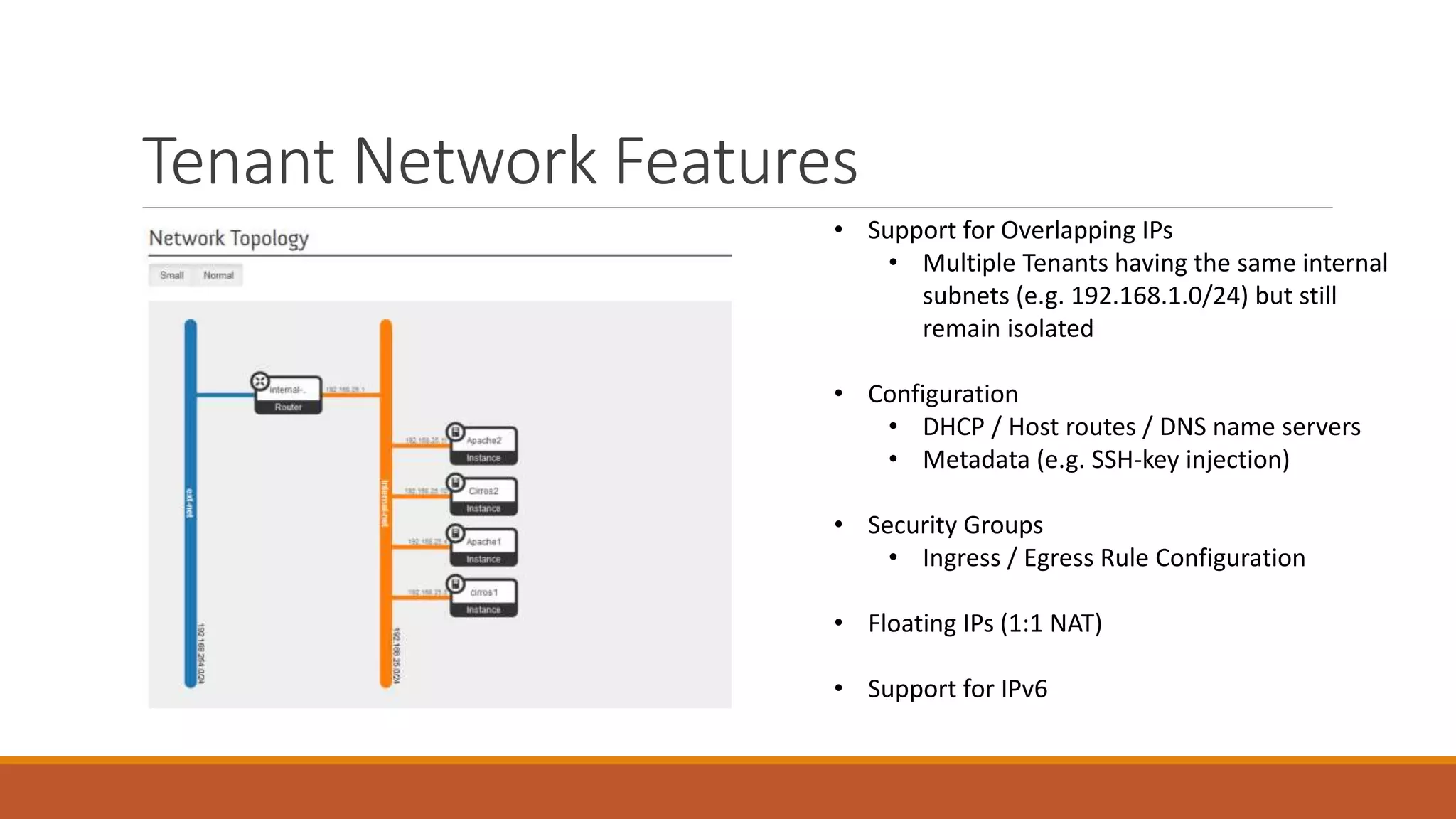

7. Tenant Network Features
• Support for Overlapping IPs
• Multiple Tenants having the same internal
subnets (e.g. 192.168.1.0/24) but still
remain isolated
• Configuration
• DHCP / Host routes / DNS name servers
• Metadata (e.g. SSH-key injection)
• Security Groups
• Ingress / Egress Rule Configuration
• Floating IPs (1:1 NAT)
• Support for IPv6

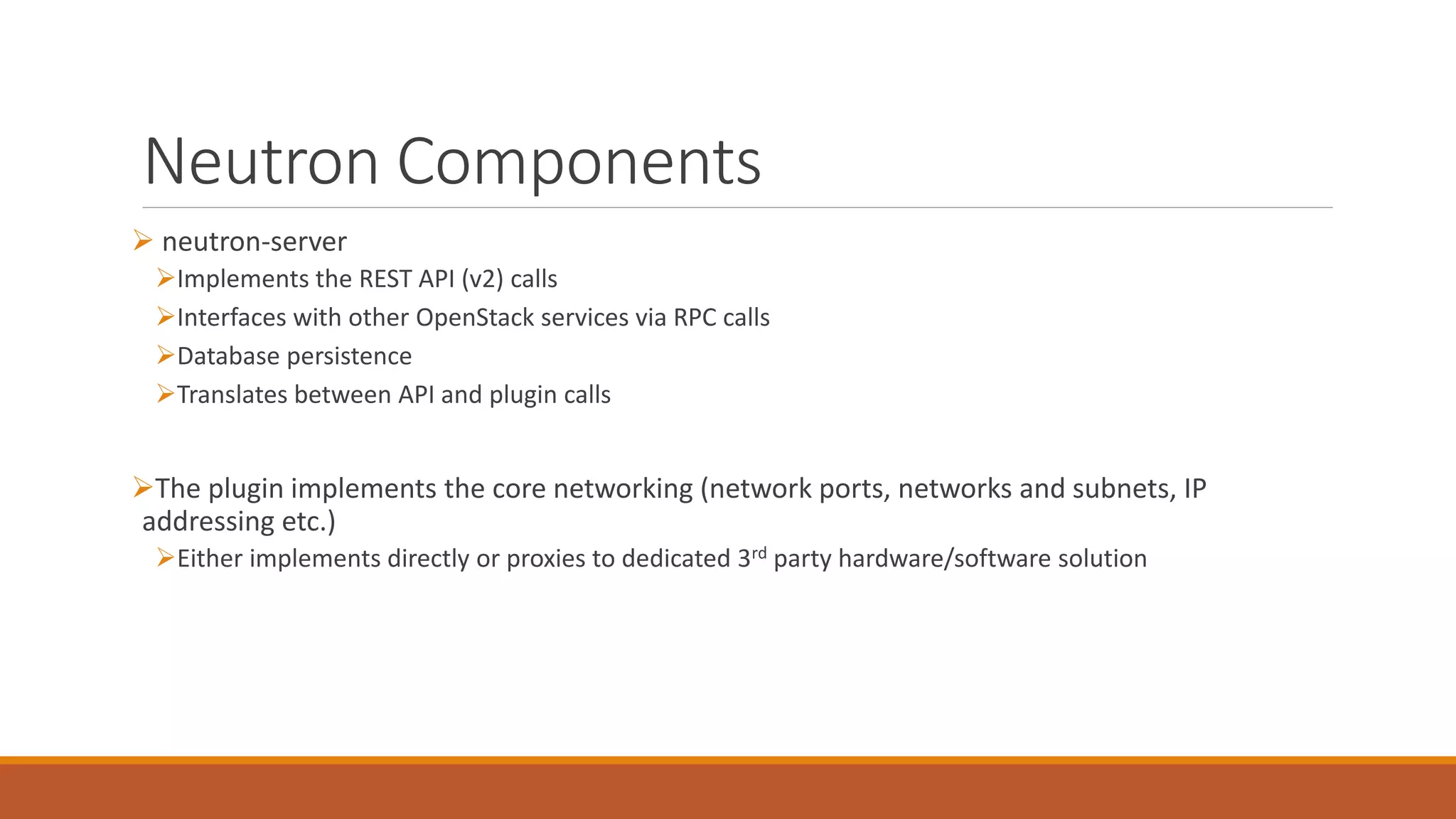

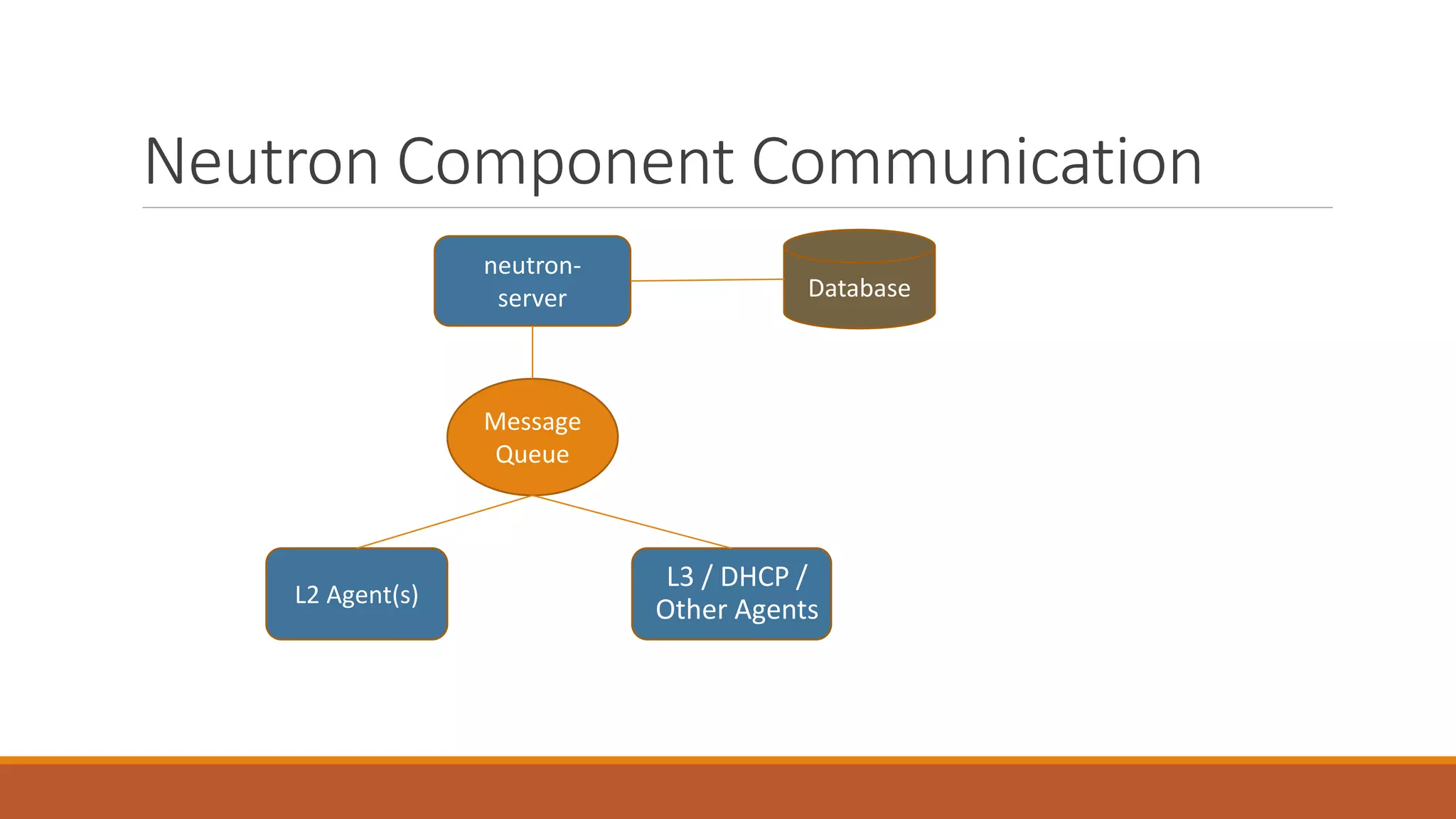

9. Neutron Components
neutron-server
Implements the REST API (v2) calls
Interfaces with other OpenStack services via RPC calls
Database persistence
Translates between API and plugin calls
The plugin implements the core networking (network ports, networks and subnets, IP
addressing etc.)
Either implements directly or proxies to dedicated 3rd party hardware/software solution

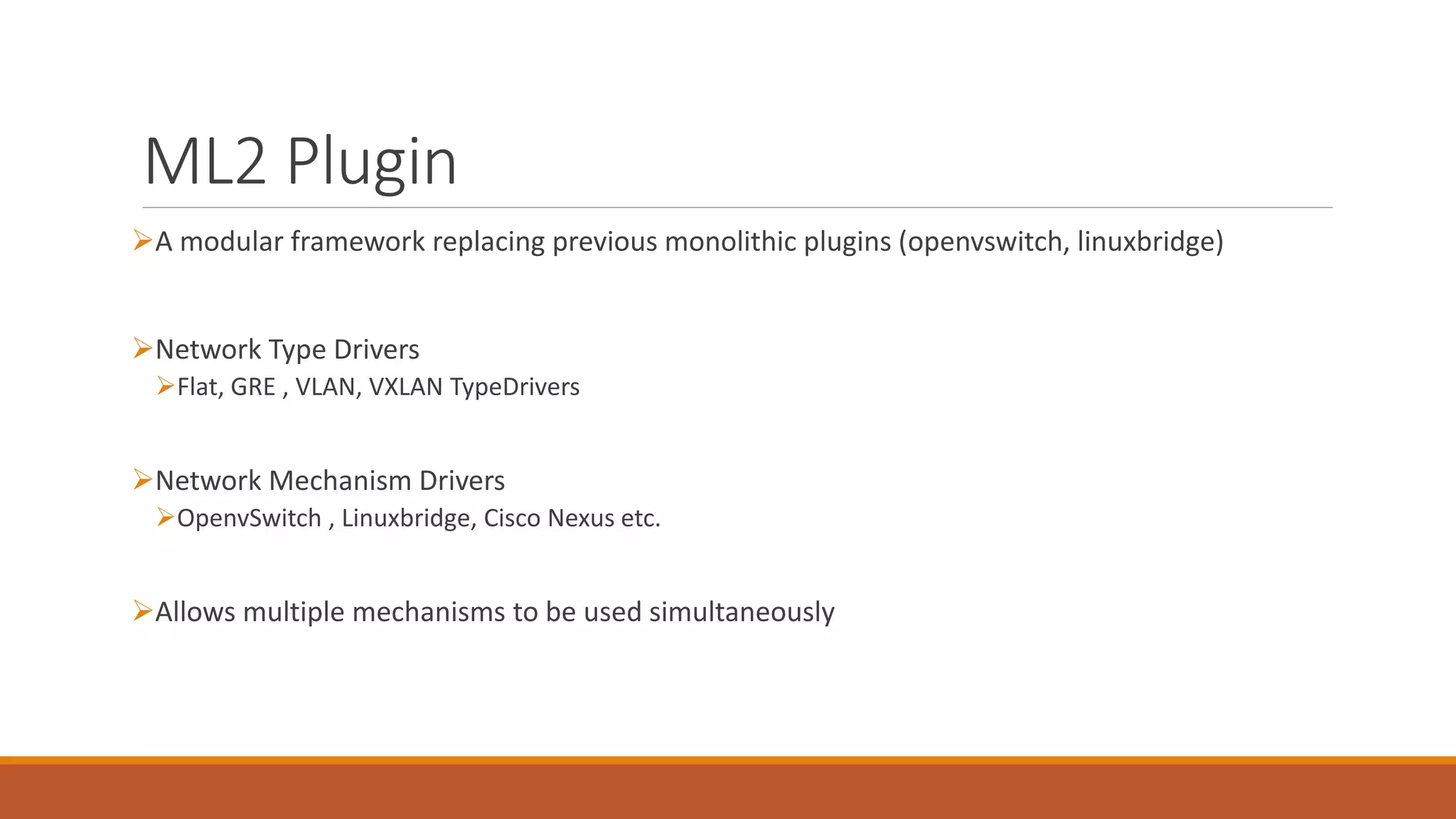

10. ML2 Plugin
A modular framework replacing previous monolithic plugins (openvswitch, linuxbridge)
Network Type Drivers
Flat, GRE , VLAN, VXLAN TypeDrivers
Network Mechanism Drivers
OpenvSwitch , Linuxbridge, Cisco Nexus etc.
Allows multiple mechanisms to be used simultaneously

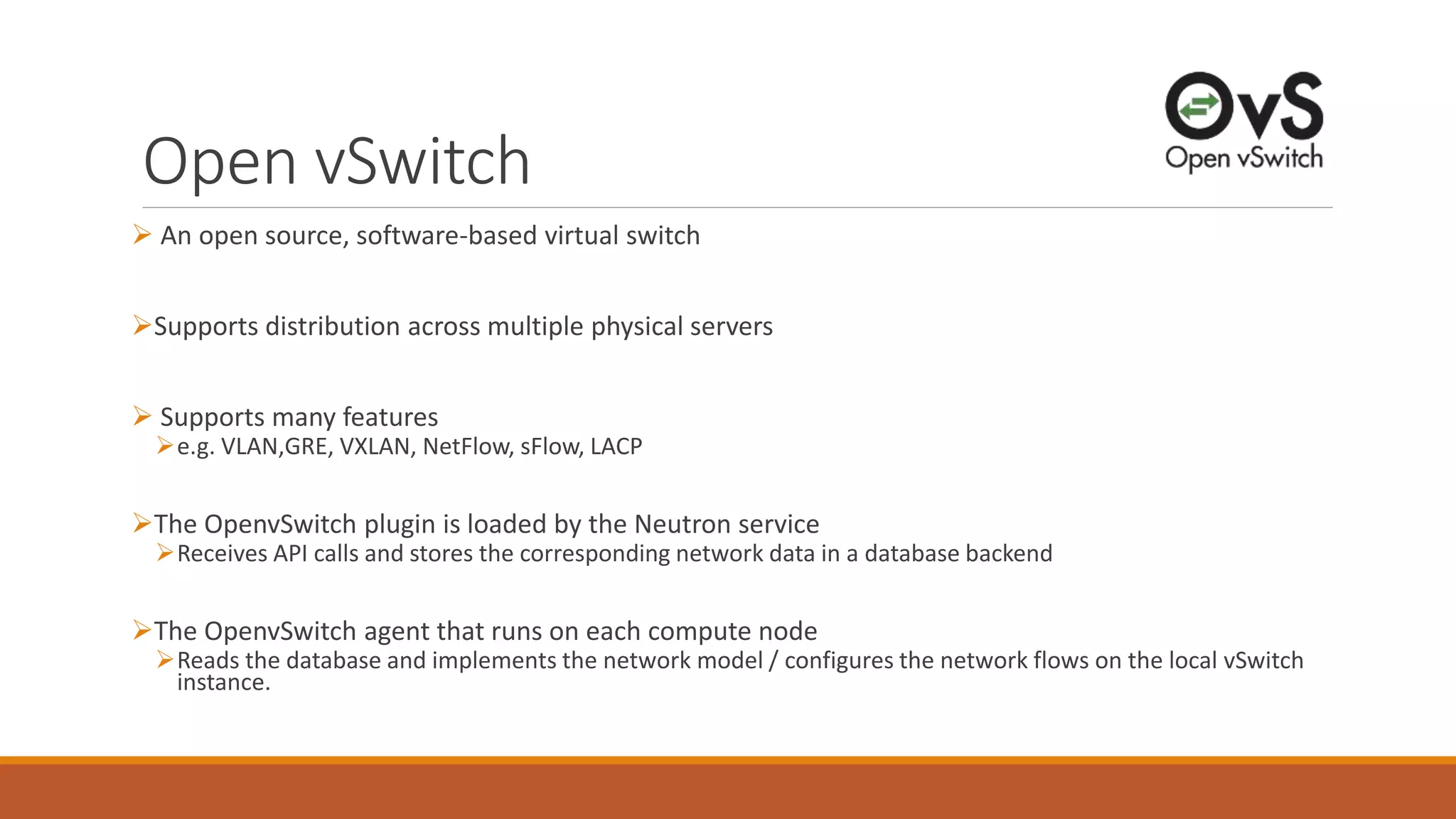

11. Open vSwitch
An open source, software-based virtual switch
Supports distribution across multiple physical servers
Supports many features
e.g. VLAN,GRE, VXLAN, NetFlow, sFlow, LACP
The OpenvSwitch plugin is loaded by the Neutron service
Receives API calls and stores the corresponding network data in a database backend
The OpenvSwitch agent that runs on each compute node
Reads the database and implements the network model / configures the network flows on the local vSwitch
instance.

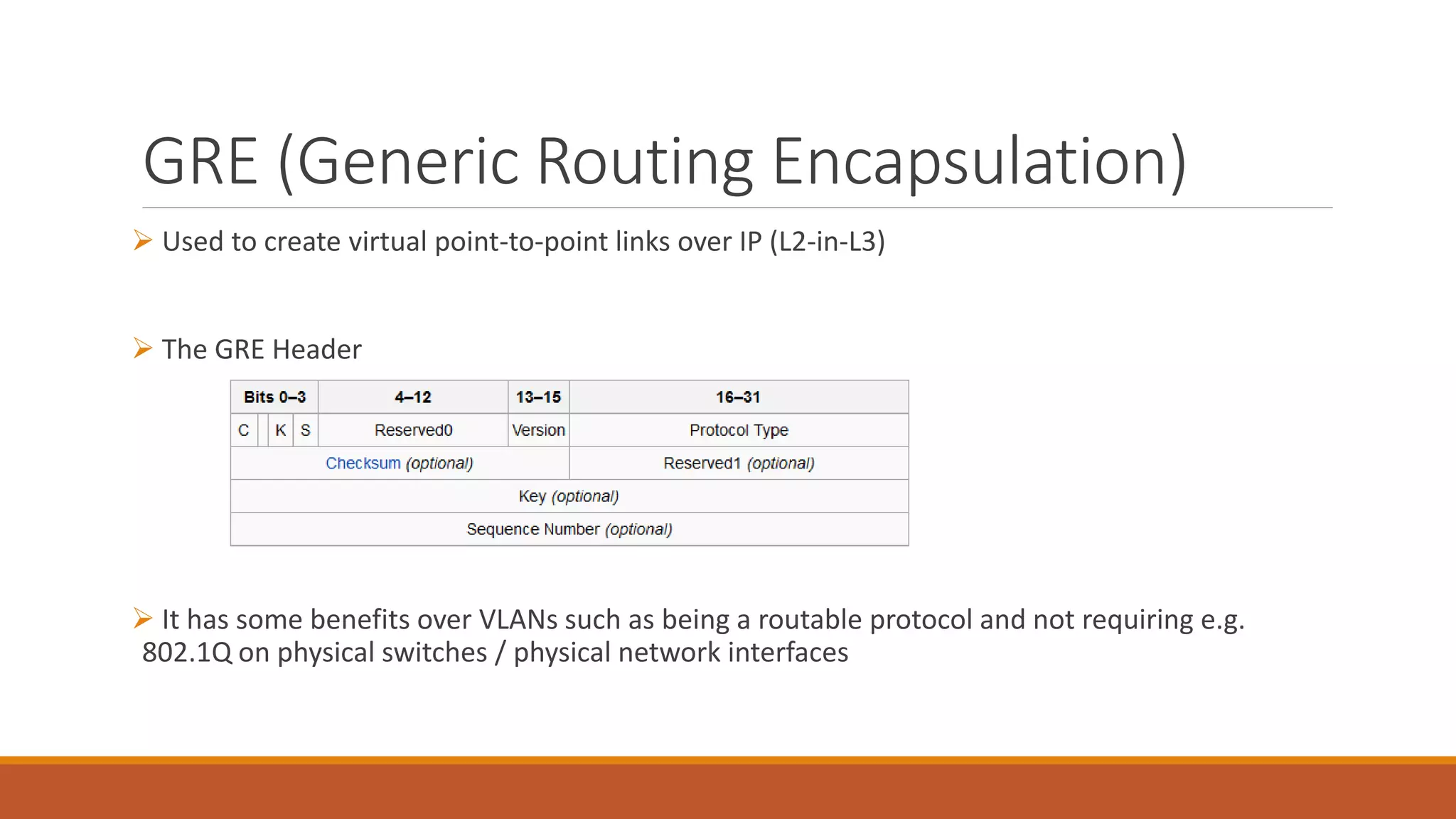

12. GRE (Generic Routing Encapsulation)
Used to create virtual point-to-point links over IP (L2-in-L3)
The GRE Header
It has some benefits over VLANs such as being a routable protocol and not requiring e.g.
802.1Q on physical switches / physical network interfaces
13. Linux Network Namespaces & Neutron
The ability to create logical and separate network stacks assigned to group of processes
Each stack has its own routing table, firewall rules, network interfaces
L3 agent creates a network namespace per virtual router and dnsmasq process
Create and attach veth (virtual Ethernet interfaces) to a network namespace
Connect the network namespaces to physical network interfaces via a bridge (e.g. linuxbridge
or Openvswitch bridge)
14. A Network Packet Flow through Neutron
Image taken from http://pinrojas.com/2014/07/29/theres-real-magic-
behind-openstack-neutron/
Packet exits the VM’s ethX interface through a tap
virtual Ethernet interface that connects to a Linux Bridge
where iptables rules are applied.
ipset optimization
Connect the Linux Bridge with the OpenvSwitch br-int
using a veth pair (qvb & qvo) – VLAN tagging at br-int
Pass traffic to br-tun through patch interfaces
Reach network node through the GRE tunnel
Pass traffic to br-int (network node) through patch
interfaces
Deliver to virtual router and then exit though br-ex
15. Neutron @ Juno
Distributed Virtual Router – DVR
“router_distributed” configuration under neutron.conf
agent_mode= dvr_snat for network node
agent_mode = dvr for compute node(s)
Need for l2population mechanism
Compute node(s) connects to provider network
SNAT still centralized for VMs without floating IPs
16. Neutron @ Juno
North-South (floating IP)
DNAT per compute node when floatingIP is in use
Default route via FIP-NS
Point-to-point link between the router and the FIP namespaces
Proxy-ARP for floating IPs on br-ex
East-West traffic (tenant subnet-to-subnet)
DVR router with the same IP and MAC address at each compute host
Local DVR router maintains ARP cache of all the subnet hosts
Avoid communication through the central L3 agent or ARP broadcasts

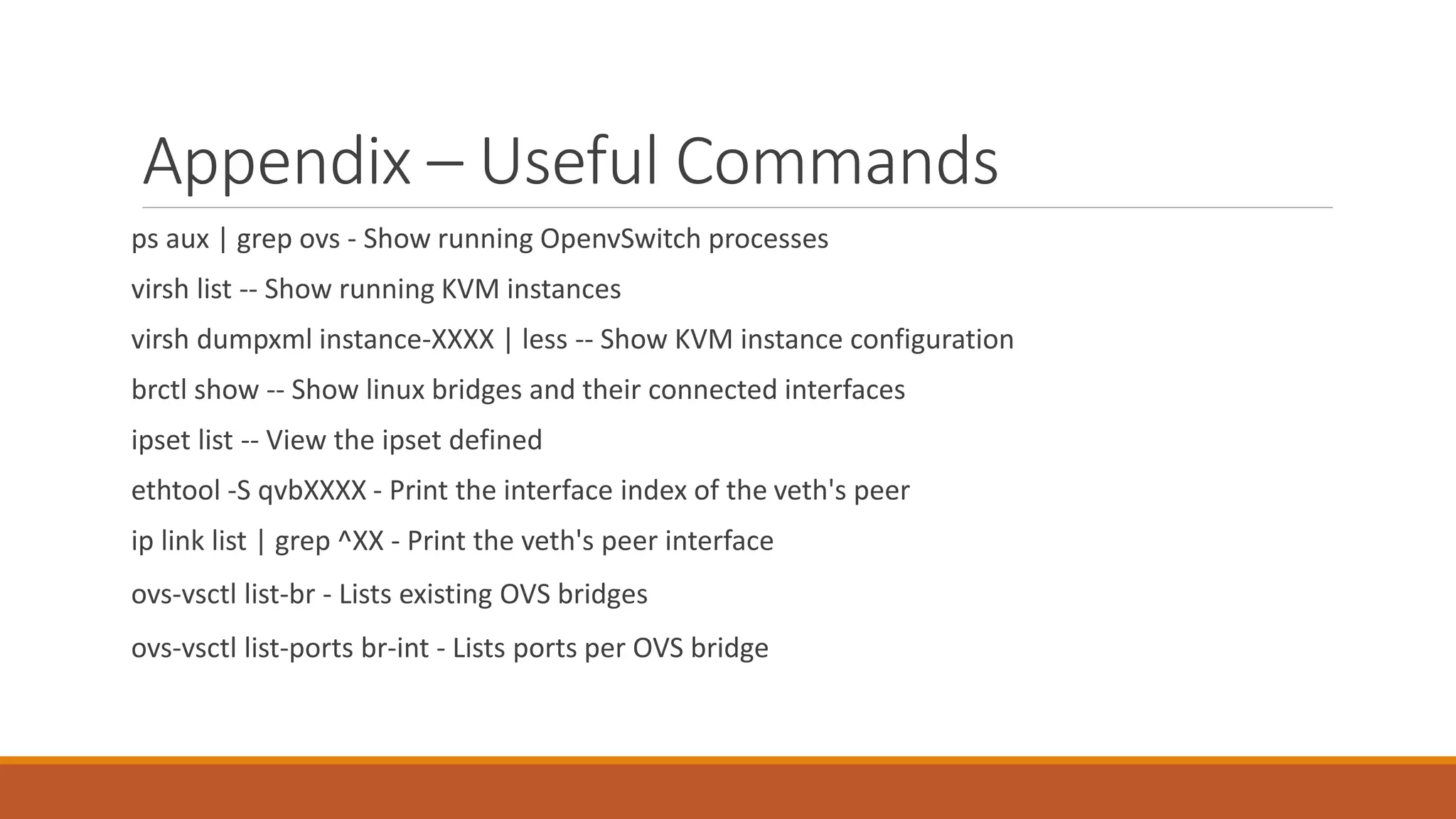

19. Appendix – Useful Commands
ps aux | grep ovs - Show running OpenvSwitch processes
virsh list -- Show running KVM instances
virsh dumpxml instance-XXXX | less -- Show KVM instance configuration
brctl show -- Show linux bridges and their connected interfaces
ipset list -- View the ipset defined
ethtool -S qvbXXXX - Print the interface index of the veth's peer
ip link list | grep ^XX - Print the veth's peer interface
ovs-vsctl list-br - Lists existing OVS bridges
ovs-vsctl list-ports br-int - Lists ports per OVS bridge

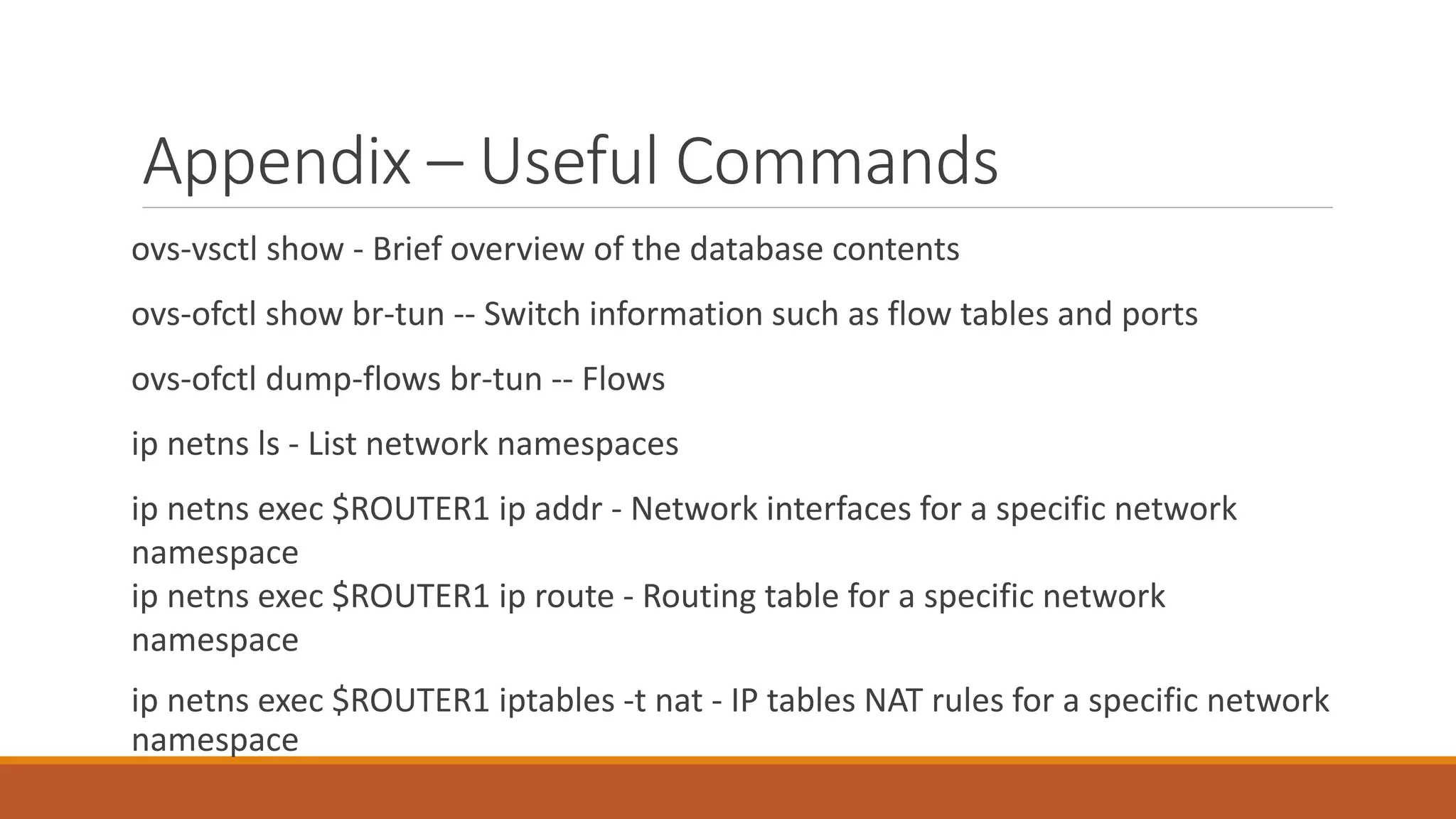

20. Appendix – Useful Commands
ovs-vsctl show - Brief overview of the database contents
ovs-ofctl show br-tun -- Switch information such as flow tables and ports
ovs-ofctl dump-flows br-tun -- Flows
ip netns ls - List network namespaces
ip netns exec $ROUTER1 ip addr - Network interfaces for a specific network
namespace
ip netns exec $ROUTER1 ip route - Routing table for a specific network
namespace
ip netns exec $ROUTER1 iptables -t nat - IP tables NAT rules for a specific network
namespace
