1. © Copyright 2019 Pivotal Software, Inc. All rights Reserved.
Brian McClain
Bryan Friedman
Developing Serverless Applications
on Kubernetes with Knative
Webinar

3. Cover w/ Image

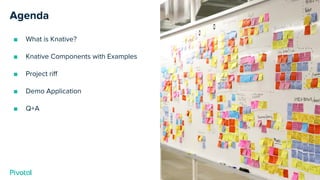

Agenda
■ What is Knative?
■ Knative Components with Examples
■ Project riff
■ Demo Application
■ Q+A

4. Knative: A platform for developers to
build and run serverless applications
atop Kubernetes

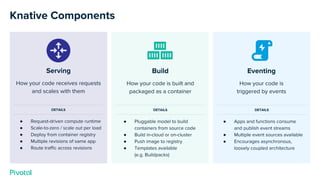

5. Eventing
How your code is
triggered by events
● Apps and functions consume
and publish event streams
● Multiple event sources available
● Encourages asynchronous,
loosely coupled architecture
Build
How your code is built and
packaged as a container
● Pluggable model to build
containers from source code
● Build in-cloud or on-cluster
● Push image to registry
● Templates available
(e.g. Buildpacks)
Serving
How your code receives requests
and scales with them
● Request-driven compute runtime
● Scale-to-zero / scale out per load
● Deploy from container registry
● Multiple revisions of same app
● Route traffic across revisions
DETAILS DETAILS DETAILS
Knative Components

6. Serving
Flexible scaling and routing to your application.
● Automatically deploy containers and configure routing
● Automatically scale up and down, including scale-to-zero
● Point-in-time snapshots of deployments allows multiple versions of
applications at once
● Easy rollbacks, blue-green deployments, partial load testing, etc.

7. {app-name}.{namespace}.{custom-domain}
Serving - Deployment
n-1
n
name.default.example.com

8. Serving - Deployment
apiVersion: serving.knative.dev/v1alpha1
kind: Service
metadata:
name: knative-helloworld
namespace: default
spec:
runLatest:
configuration:
revisionTemplate:
spec:
container:
image: docker.io/gswk/knative-helloworld:latest

9. n+1
Serving - Request Handling
n-1
n
HTTP
knative-helloworld.default.dev.gswkbook.com

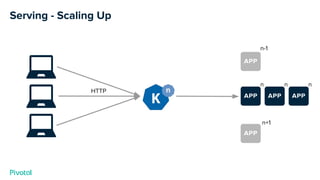

10. n+1
Serving - Scaling Up
n-1
n n n
HTTP

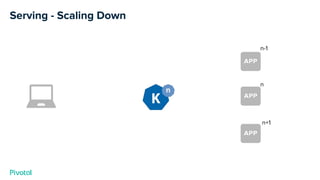

11. n+1
Serving - Scaling Down
n-1
n

12. Serving - Scaling Down

13. n+1
Serving - Scaling Down
n-1
n

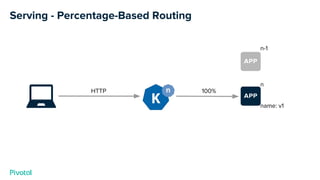

14. Serving - Percentage-Based Routing
n-1
n
HTTP 100%
name: v1

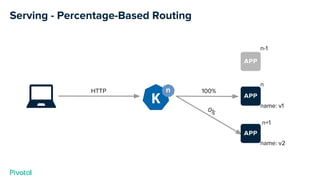

15. n+1
Serving - Percentage-Based Routing
n-1
n
HTTP 100%
0%
name: v1
name: v2

16. n+1
Serving - Percentage-Based Routing
n-1
n
HTTP 50%
50%
name: v2
name: v1

17. n+1
Serving - Percentage-Based Routing
n-1
n
HTTP 0%
100%
name: v2
name: v1

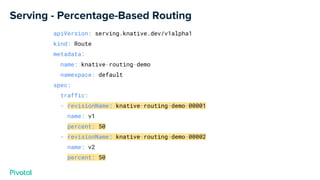

18. Serving - Percentage-Based Routing
apiVersion: serving.knative.dev/v1alpha1
kind: Route
metadata:
name: knative-routing-demo
namespace: default
spec:
traffic:
- revisionName: knative-routing-demo-00001
name: v1
percent: 50
- revisionName: knative-routing-demo-00002
name: v2
percent: 50

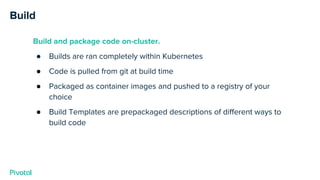

19. Build
Build and package code on-cluster.
● Builds are ran completely within Kubernetes
● Code is pulled from git at build time
● Packaged as container images and pushed to a registry of your
choice
● Build Templates are prepackaged descriptions of different ways to
build code

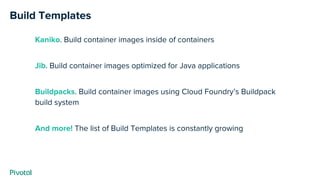

20. Kaniko. Build container images inside of containers
Jib. Build container images optimized for Java applications
Buildpacks. Build container images using Cloud Foundry’s Buildpack
build system
And more! The list of Build Templates is constantly growing
Build Templates

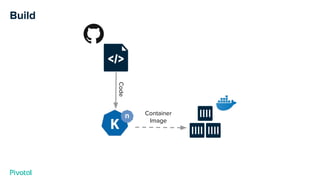

21. Build
Code
Container

22. Build
spec:
runLatest:
configuration:
build:
serviceAccountName: build-bot
source:
git:
url: https://github.com/gswk/knative-build-demo.git
revision: master
template:
name: kaniko
arguments:
- name: IMAGE
value: docker.io/gswk/knative-build-demo:latest

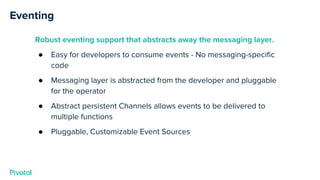

23. Eventing
Robust eventing support that abstracts away the messaging layer.
● Easy for developers to consume events - No messaging-specific
code
● Messaging layer is abstracted from the developer and pluggable
for the operator
● Abstract persistent Channels allows events to be delivered to
multiple functions
● Pluggable, Customizable Event Sources

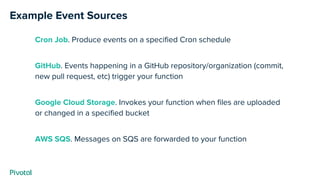

24. Example Event Sources
Cron Job. Produce events on a specified Cron schedule
GitHub. Events happening in a GitHub repository/organization (commit,
new pull request, etc) trigger your function
Google Cloud Storage. Invokes your function when files are uploaded
or changed in a specified bucket
AWS SQS. Messages on SQS are forwarded to your function

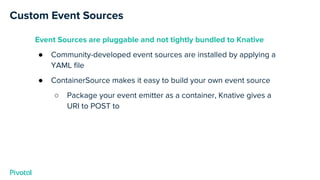

25. Custom Event Sources
Event Sources are pluggable and not tightly bundled to Knative
● Community-developed event sources are installed by applying a
YAML file
● ContainerSource makes it easy to build your own event source
○ Package your event emitter as a container, Knative gives a
URI to POST to

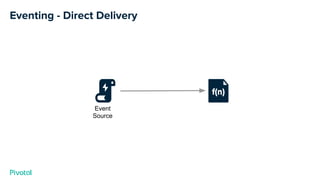

26. Eventing - Direct Delivery
Event
Source

27. Eventing - Fan-Out Delivery
Event
Source
Channel
Subscription
Subscription

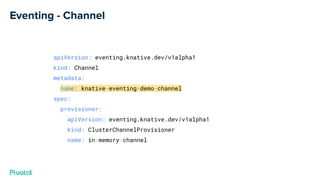

28. Eventing - Channel
apiVersion: eventing.knative.dev/v1alpha1
kind: Channel
metadata:
name: knative-eventing-demo-channel
spec:
provisioner:
apiVersion: eventing.knative.dev/v1alpha1
kind: ClusterChannelProvisioner
name: in-memory-channel

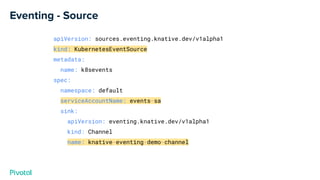

29. Eventing - Source
apiVersion: sources.eventing.knative.dev/v1alpha1
kind: KubernetesEventSource
metadata:
name: k8sevents
spec:
namespace: default
serviceAccountName: events-sa
sink:
apiVersion: eventing.knative.dev/v1alpha1
kind: Channel
name: knative-eventing-demo-channel

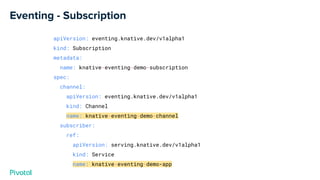

30. Eventing - Subscription
apiVersion: eventing.knative.dev/v1alpha1
kind: Subscription
metadata:
name: knative-eventing-demo-subscription
spec:
channel:
apiVersion: eventing.knative.dev/v1alpha1
kind: Channel
name: knative-eventing-demo-channel
subscriber:
ref:
apiVersion: serving.knative.dev/v1alpha1
kind: Service
name: knative-eventing-demo-app

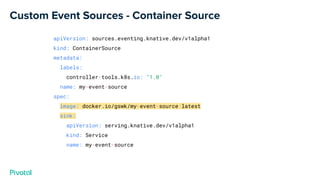

31. Custom Event Sources - Container Source
apiVersion: sources.eventing.knative.dev/v1alpha1
kind: ContainerSource
metadata:
labels:
controller-tools.k8s.io: "1.0"
name: my-event-source
spec:
image: docker.io/gswk/my-event-source:latest
sink:
apiVersion: serving.knative.dev/v1alpha1
kind: Service
name: my-event-source

32. Project riff

33. Evolution of Project riff

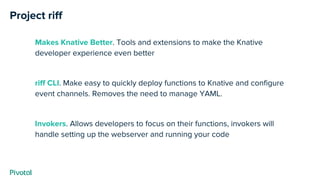

34. Project riff
Makes Knative Better. Tools and extensions to make the Knative
developer experience even better
riff CLI. Make easy to quickly deploy functions to Knative and configure
event channels. Removes the need to manage YAML.
Invokers. Allows developers to focus on their functions, invokers will
handle setting up the webserver and running your code

35. Project riff - Without Invokers
const express = require("express");
const bodyParser = require('body-parser')
const app = express();
app.use(bodyParser.text({type: "*/*"}));
app.post("/", function(req, res) {
res.send("Hello, " + req.body + "!");
});
const port = process.env.PORT || 8080;
app.listen(port, function() {
console.log("Server started on port", port);
});

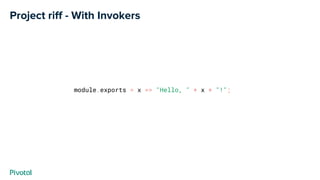

36. Project riff - With Invokers
module.exports = x => "Hello, " + x + "!";

37. Project riff - Deploying Functions

38. Pivotal's commercially supported, opinionated
packaging of riff + Knative.
Expected to run on PKS or Kubernetes anywhere.
Alpha Release Now Available (by request)
General Availability TBD

39. Demo

40. Demo Application - Earthquake Visualization

41. PSQL
Geocoder
Function
Frontend
USGS
Event
Source
USGS
Event
Feed
Demo Application - High-Level Visualization

42. Demo Application - Detailed Visualization
Geocoder
Function
Code
Frontend
Code
HTTP
1
2
3
4
Frontend
Geocoder
Function
USGS
Event
Feed
PSQL
USGS
Event
Source

43. https://pivotal.io/ebooks
Available Now
@BrianMMcClain
@bryanfriedman

44. Join Us At CF
Summit
@BrianMMcClain
@bryanfriedman

45. Questions?
Q+A
