Knative is a platform for deploying and managing serverless workloads on Kubernetes. It provides a simpler way for developers to deploy and run stateless applications and functions. Knative is comprised of three main components - Serving, Build and Eventing. Serving provides a scale-to-zero compute runtime leveraging Istio for traffic routing. Build enables container image building from source. Eventing offers event consumption and publishing through channels and subscriptions. Riff is designed for running functions in response to events and extends Knative by providing additional capabilities like event sources, buses and invokers. Pivotal supports serverless workloads through products like Pivotal Application Service, Pivotal Container Service and Pivotal Function

1. © Copyright 2017 Pivotal Software, Inc. All rights Reserved. Version 1.0
Jay Lee(jaylee@pivotal.io)
Advisory Platform Architect
August 2018
Knative and Riff
Function as a Service

2. Q: What is Knative?
Simpler way for developers to
deploy and run serverless apps and
functions atop Kubernetes and Istio.

3. DeWitt Clinton, Google Cloud
"Pivotal has been instrumental in the design and
delivery of Knative.
We appreciate this partnership, and are excited that
Pivotal plans on commercializing Knative
components on Kubernetes with their Pivotal
Function Service.”

4. Q: What does Knative do?
Source-to-container, by plug-ins (e.g. Cloud Foundry,
Dockerfile) - Deploying new (routable) function to
Kubernetes
Scale with Events (0 to 1, 1 to N, N to 0)
Roll out upgrades to functions, or perform a rollback
Trigger functions when called via HTTP requests; in
progress towards supporting gRPC as well

5. Q: What components are part of Knative?
Serving. It’s a scale-to-zero, request-driven compute runtime which leverages Istio to route
traffic amongst revisions (current versions of apps). The goal of Serving is to provide
Kubernetes extensions for deploying and running serverless workloads.
Build. Provides a pluggable model for building containers from source code. Based on
Google's container builder service. Buildpacks are one style of builds that could be plugged
into this model.
Eventing. Offers a way for apps and functions to consume (and publish) event streams from a
variety of sources. Uses channels (pub/sub destinations for messages), subscriptions
(specifies where messages are dispatched to from channel), and buses (backing provider like
Google Cloud PubSub or Kafka). Encourages an asynchronous, loosely coupled architecture.

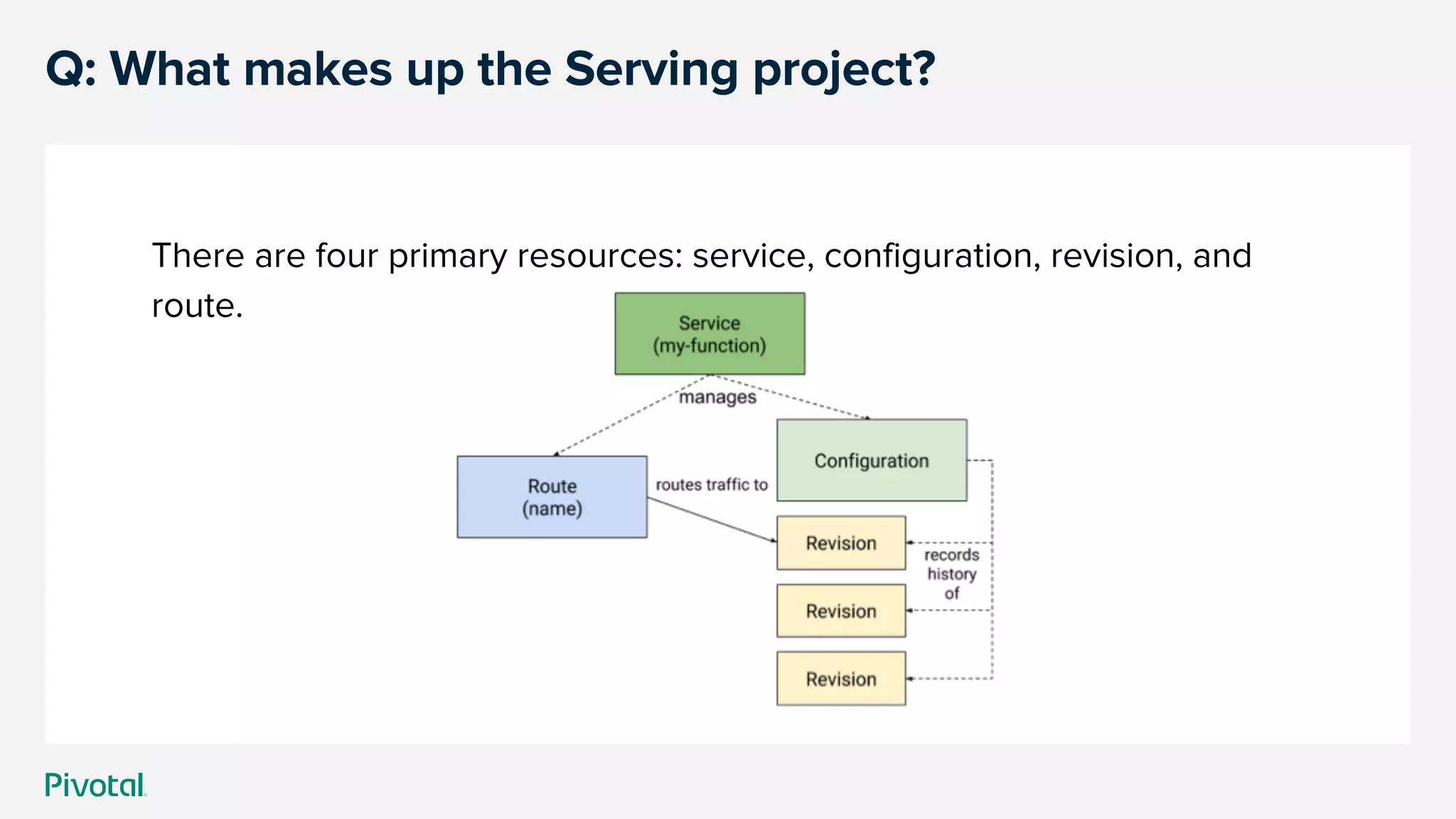

6. Q: What makes up the Serving project?
There are four primary resources: service, configuration, revision, and
route.

7. Q: What makes up the Serving project?
There are four primary resources: service, configuration, revision, and
route.

8. DEMO: Knative

9. Q: What is Riff?
riff is designed for running
Functions in response to Events.

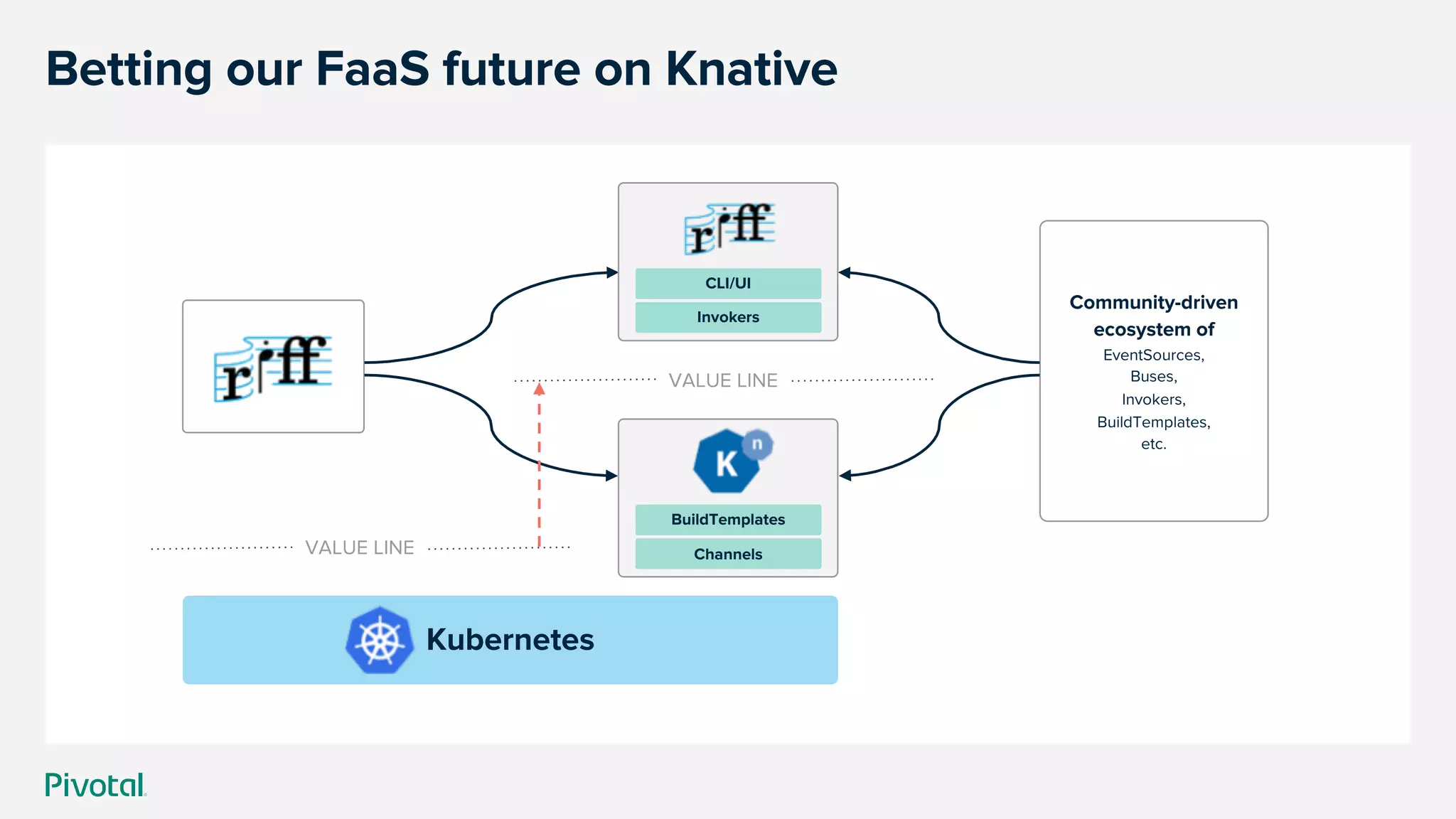

11. Betting our FaaS future on Knative
Community-driven
ecosystem of
EventSources,
Buses,
Invokers,
BuildTemplates,
etc.
Kubernetes
VALUE LINE
BuildTemplates
Channels
CLI/UI
Invokers
VALUE LINE

12. DEMO: riff with
Spring Cloud Function

13. riff
$ riff function create java function-riff --git-repo
https://github.com/eggboy/riff-springcloudfunction.git --artifact
"functio
n-0.0.1-SNAPSHOT.jar" --handler "sayHi" --image eggboy/riff-
function
$ curl -w 'n' -H 'Host: function-riff.default.example.com' -H
'Content-Type: text/plain' http://$SERVICE_IP -d "Jay"

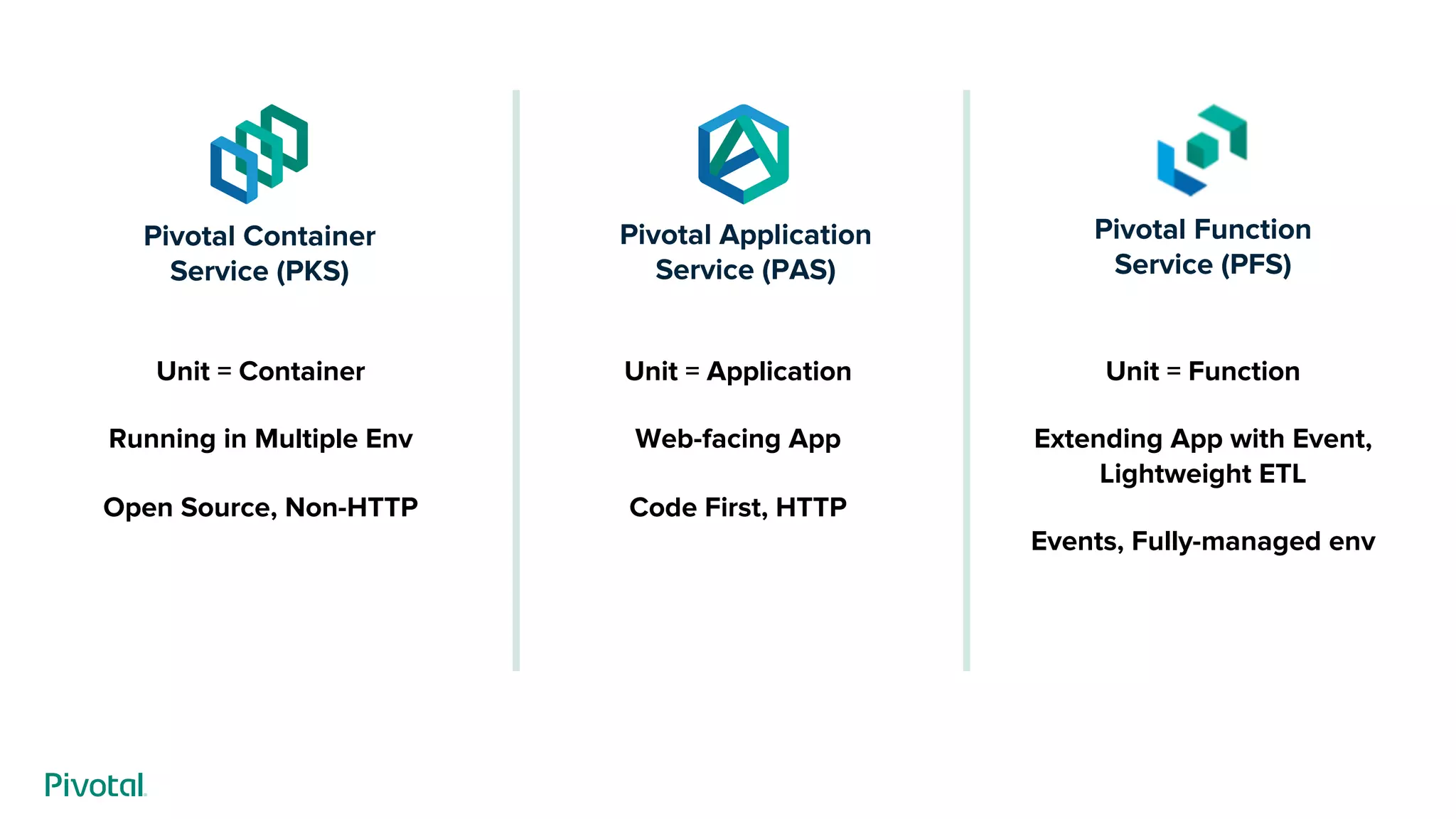

14. Pivotal Application
Service (PAS)
Pivotal Container
Service (PKS)
Pivotal Function
Service (PFS)
Unit = Container
Running in Multiple Env
Open Source, Non-HTTP
Unit = Application
Web-facing App
Code First, HTTP
Unit = Function
Extending App with Event,
Lightweight ETL
Events, Fully-managed env

15. Transforming How The World Builds Software
