1. Developing
Multiplayer
Games in
Unity 3D

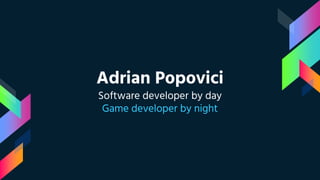

2. Adrian Popovici
Software developer by day
Game developer by night

3. Games
Digital Void Entertainment
Galactic Hunt ∙ Zorah ∙ Pulse
First prizes on gamedev.ro
Future Visions Games
Desert Land 2115
Early access on Steam

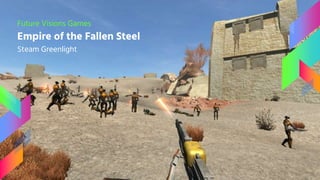

4. Future Visions Games
Empire of the Fallen Steel
Steam Greenlight

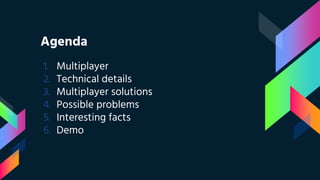

5. Agenda
1. Multiplayer
2. Technical details
3. Multiplayer solutions
4. Possible problems
5. Interesting facts
6. Demo

6. 1
Multiplayer
In general

7. Multiplayer: in general
May not refer to LAN or online only!
Can also be on the same platform:
› Split-Screen: Need for Speed
› Same-Screen: Move or Die - check it out!
› Hotseat: Worms, Disciples 2

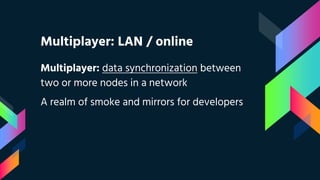

8. Multiplayer: LAN / online
Multiplayer: data synchronization between
two or more nodes in a network
A realm of smoke and mirrors for developers

9. 2
Technical
details
Transport protocols
Architectures
Data transfer models

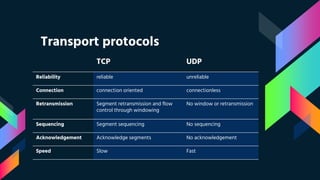

10. Transport protocols
TCP UDP
Reliability reliable unreliable
Connection connection oriented connectionless
Retransmission Segment retransmission and flow
control through windowing
No window or retransmission
Sequencing Segment sequencing No sequencing
Acknowledgement Acknowledge segments No acknowledgement
Speed Slow Fast

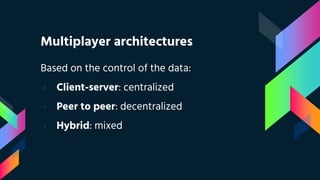

11. Multiplayer architectures
Based on the control of the data:
› Client-server: centralized
› Peer to peer: decentralized
› Hybrid: mixed

12. Client-server

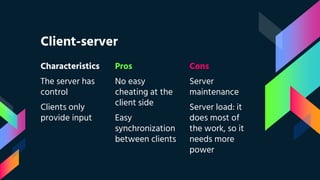

13. Client-server
Characteristics
The server has
control
Clients only
provide input
Pros
No easy
cheating at the
client side
Easy
synchronization
between clients
Cons
Server
maintenance
Server load: it
does most of
the work, so it
needs more
power

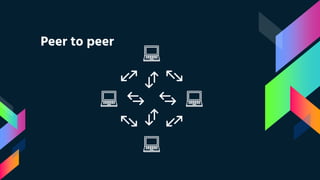

14. Peer to peer

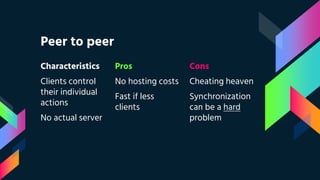

15. Peer to peer
Characteristics
Clients control
their individual
actions
No actual server
Pros
No hosting costs
Fast if less
clients
Cons
Cheating heaven
Synchronization
can be a hard
problem

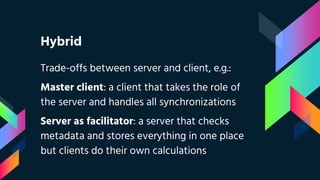

16. Hybrid
Trade-offs between server and client, e.g.:
Master client: a client that takes the role of
the server and handles all synchronizations
Server as facilitator: a server that checks
metadata and stores everything in one place
but clients do their own calculations

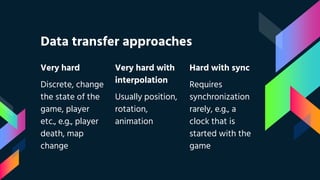

17. Data transfer approaches
Very hard
Discrete, change
the state of the
game, player
etc., e.g., player
death, map
change
Very hard with
interpolation
Usually position,
rotation,
animation
Hard with sync
Requires
synchronization
rarely, e.g., a
clock that is
started with the
game

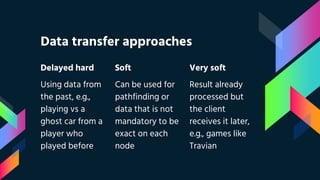

18. Data transfer approaches
Delayed hard
Using data from
the past, e.g.,
playing vs a
ghost car from a
player who
played before
Soft
Can be used for
pathfinding or
data that is not
mandatory to be
exact on each
node
Very soft
Result already
processed but
the client
receives it later,
e.g., games like
Travian

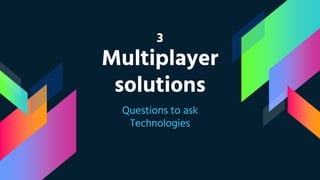

19. 3
Multiplayer
solutions
Questions to ask
Technologies

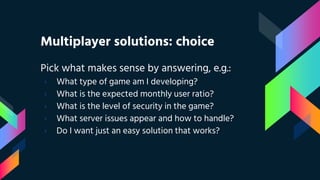

20. Multiplayer solutions: choice
Pick what makes sense by answering, e.g.:
› What type of game am I developing?
› What is the expected monthly user ratio?
› What is the level of security in the game?
› What server issues appear and how to handle?
› Do I want just an easy solution that works?

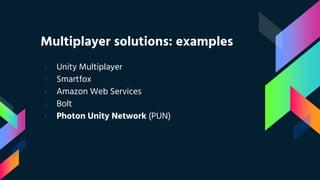

21. Multiplayer solutions: examples
› Unity Multiplayer
› Smartfox
› Amazon Web Services
› Bolt
› Photon Unity Network (PUN)

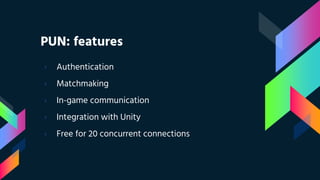

22. PUN: features
› Authentication
› Matchmaking
› In-game communication
› Integration with Unity
› Free for 20 concurrent connections

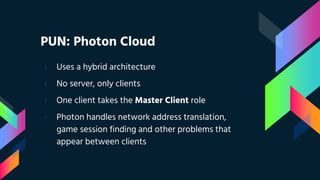

23. PUN: Photon Cloud
› Uses a hybrid architecture
› No server, only clients
› One client takes the Master Client role
› Photon handles network address translation,
game session finding and other problems that
appear between clients

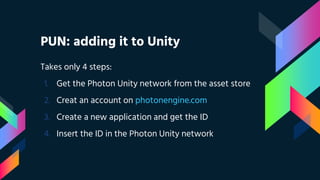

24. PUN: adding it to Unity
Takes only 4 steps:
1. Get the Photon Unity network from the asset store
2. Creat an account on photonengine.com
3. Create a new application and get the ID
4. Insert the ID in the Photon Unity network

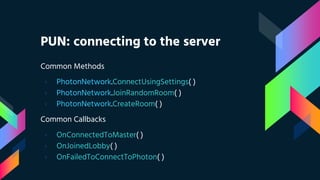

25. PUN: connecting to the server
Common Methods
› PhotonNetwork.ConnectUsingSettings( )
› PhotonNetwork.JoinRandomRoom( )
› PhotonNetwork.CreateRoom( )
Common Callbacks
› OnConnectedToMaster( )
› OnJoinedLobby( )
› OnFailedToConnectToPhoton( )

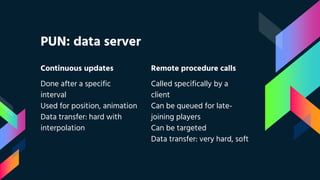

26. Continuous updates
Done after a specific
interval
Used for position, animation
Data transfer: hard with
interpolation
PUN: data server
Remote procedure calls
Called specifically by a
client
Can be queued for late-
joining players
Can be targeted
Data transfer: very hard, soft

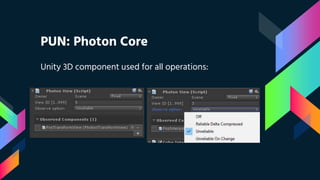

27. PUN: Photon Core
Unity 3D component used for all operations:

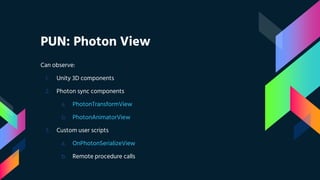

28. PUN: Photon View
Can observe:
1. Unity 3D components
2. Photon sync components
a. PhotonTransformView
b. PhotonAnimatorView
3. Custom user scripts
a. OnPhotonSerializeView
b. Remote procedure calls

29. PUN: Master Client
› Picked uniformly at random by Photon Engine
› Re-picked if the current master disconnects
› There should always be one master at all times
› while a game session is in progress
› Has more power than normal clients
can take ownership of objects
› Should implement the game logic

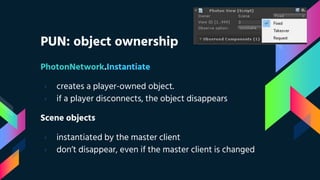

30. PUN: object ownership
PhotonNetwork.Instantiate
› creates a player-owned object.
› if a player disconnects, the object disappears
Scene objects
› instantiated by the master client
› don’t disappear, even if the master client is changed

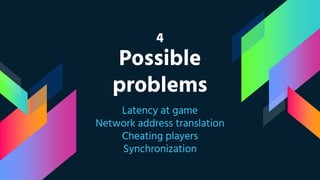

31. 4
Possible
problems
Latency at game
Network address translation
Cheating players
Synchronization

32. Latency At Game: problem
› Multiplayer enemy No. 1
› Affects even LAN networks
› Can create frustration among players
› Probably the most annoying thing
anyone experienced in multiplayer

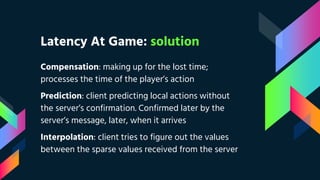

33. Latency At Game: solution
Compensation: making up for the lost time;
processes the time of the player’s action
Prediction: client predicting local actions without
the server’s confirmation. Confirmed later by the
server’s message, later, when it arrives
Interpolation: client tries to figure out the values
between the sparse values received from the server

34. Network Address Translation: problem
Multiplayer games may work in LAN
When the developers decide to take it to the next
level, NAT appears, and it’s here to stay!
Since the IPs over the internet are not the same as
those on the LAN, the connection won’t be possible

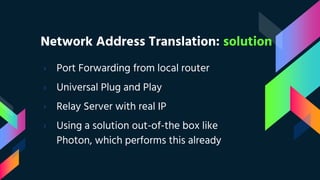

35. Network Address Translation: solution
› Port Forwarding from local router
› Universal Plug and Play
› Relay Server with real IP
› Using a solution out-of-the box like
Photon, which performs this already

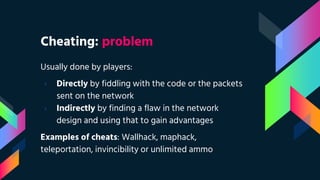

36. Cheating: problem
Usually done by players:
› Directly by fiddling with the code or the packets
sent on the network
› Indirectly by finding a flaw in the network
design and using that to gain advantages
Examples of cheats: Wallhack, maphack,
teleportation, invincibility or unlimited ammo

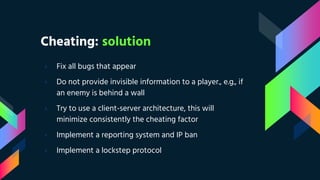

37. Cheating: solution
› Fix all bugs that appear
› Do not provide invisible information to a player., e.g., if
an enemy is behind a wall
› Try to use a client-server architecture, this will
minimize consistently the cheating factor
› Implement a reporting system and IP ban
› Implement a lockstep protocol

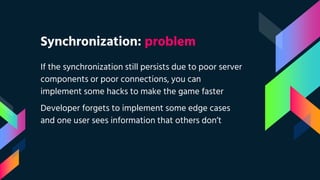

38. Synchronization: problem
If the synchronization still persists due to poor server
components or poor connections, you can
implement some hacks to make the game faster
Developer forgets to implement some edge cases
and one user sees information that others don’t

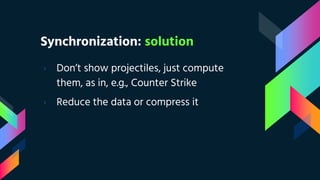

39. Synchronization: solution
› Don’t show projectiles, just compute
them, as in, e.g., Counter Strike
› Reduce the data or compress it

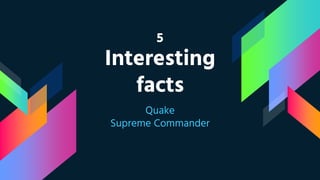

40. 5
Interesting
facts
Quake
Supreme Commander

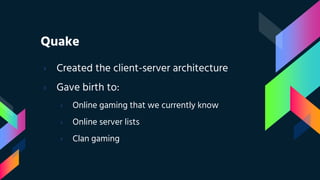

41. Quake
› Created the client-server architecture
› Gave birth to:
› Online gaming that we currently know
› Online server lists
› Clan gaming

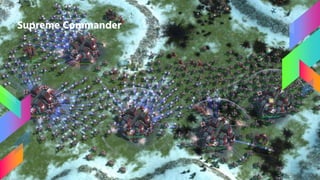

42. Supreme Commander

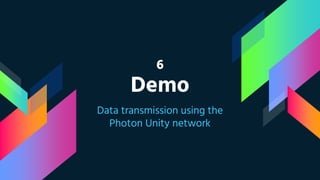

43. 6
Demo
Data transmission using the
Photon Unity network

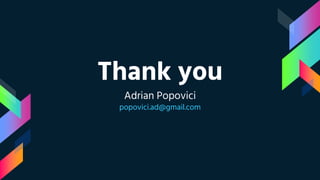

44. Thank you
Adrian Popovici
popovici.ad@gmail.com

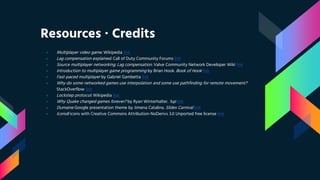

45. Resources ∙ Credits
