@crichardson
Event-driven microservices
with event sourcing and CQRS
Chris Richardson
Founder of Eventuate.io
Founder of the original CloudFoundry.com
Author of POJOs in Action
@crichardson
chris@chrisrichardson.net
http://eventuate.io July 2016

@crichardson

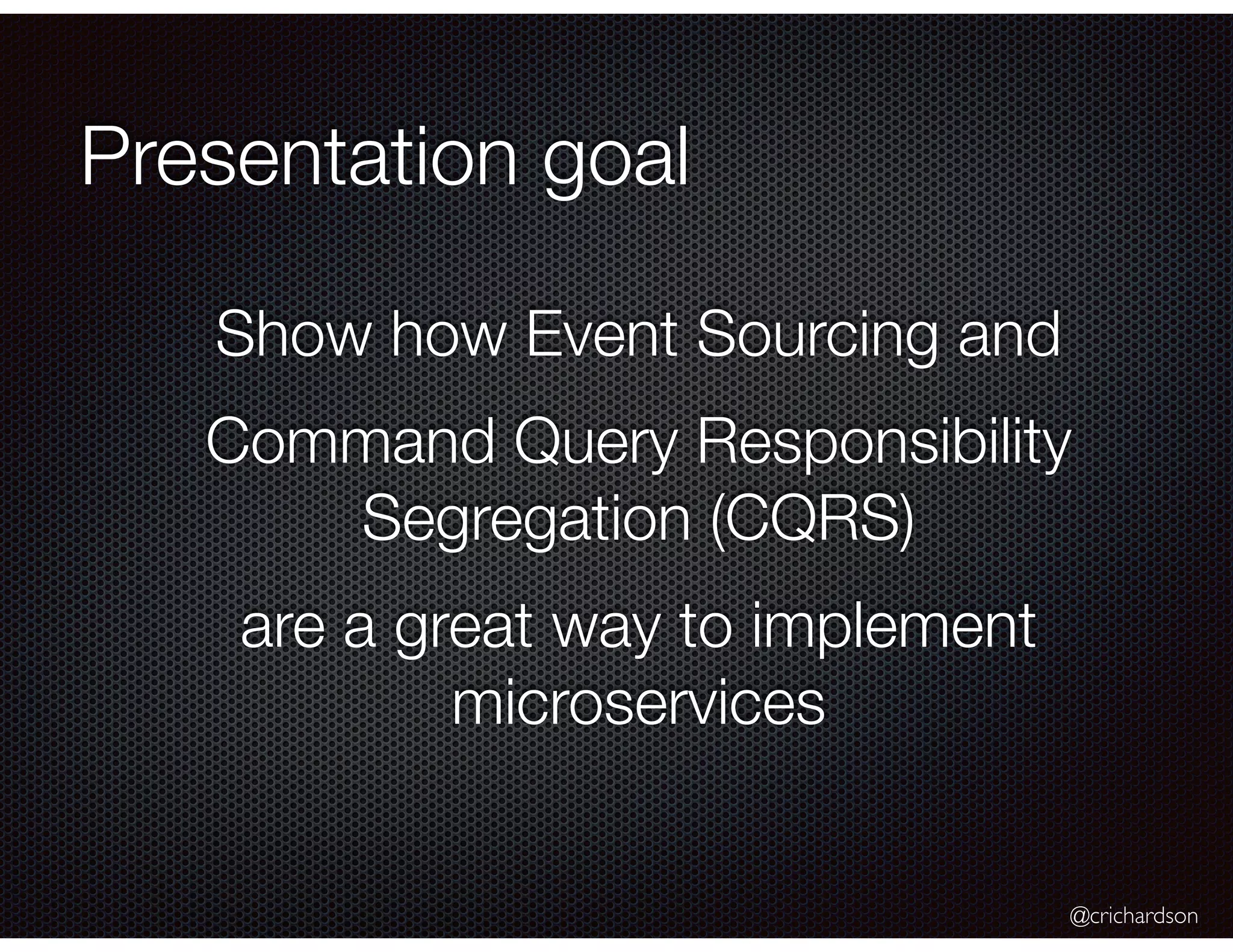

Presentation goal
Show how Event Sourcing and
Command Query Responsibility
Segregation (CQRS)
are a great way to implement
microservices

@crichardson
About Chris
Consultant and trainer
focusing on modern
application architectures
including microservices
(http://www.chrisrichardson.net/)

@crichardson
About Chris
Founder of a startup that is creating
a platform that makes it easier for
developers to write transactional
microservices
(http://eventuate.io)

@crichardson
For more information
http://learnmicroservices.io

@crichardson

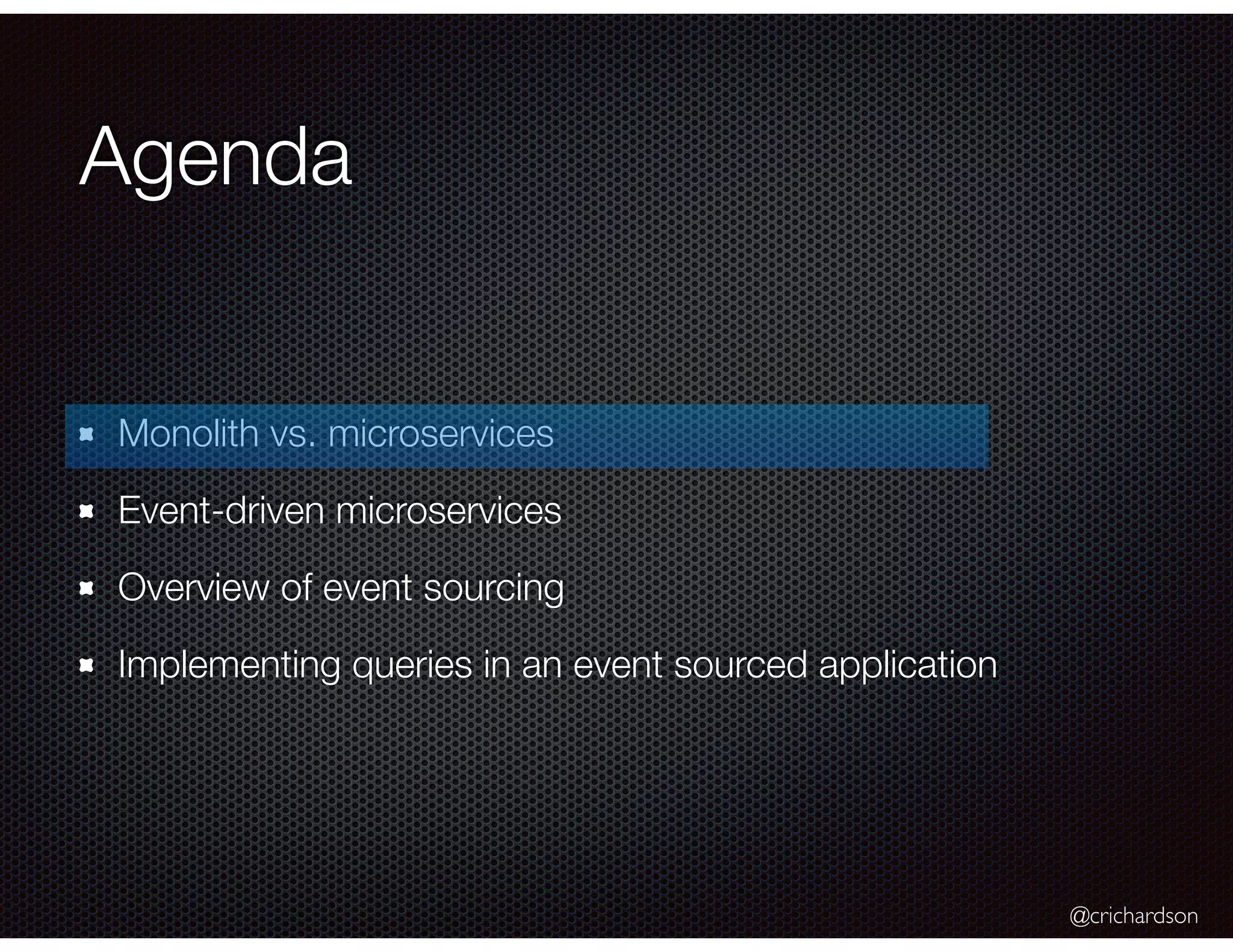

Agenda
Monolith vs. microservices
Event-driven microservices
Overview of event sourcing
Implementing queries in an event sourced application

@crichardson
Let’s imagine you are building
a large, complex application,
e.g. an online store

@crichardson

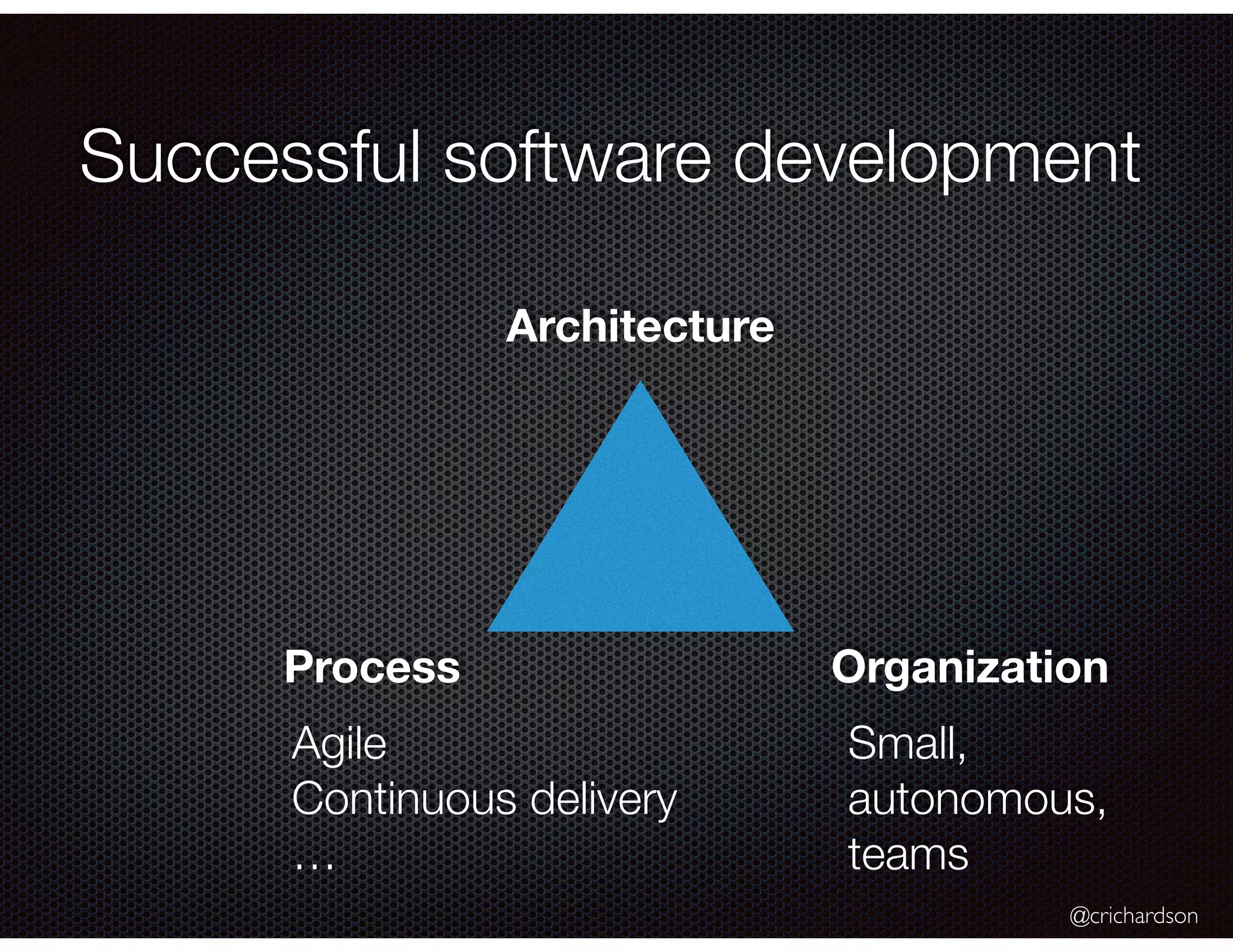

Successful software development
Architecture
Process Organization
Agile
Continuous delivery
…
Small,
autonomous,
teams

@crichardson

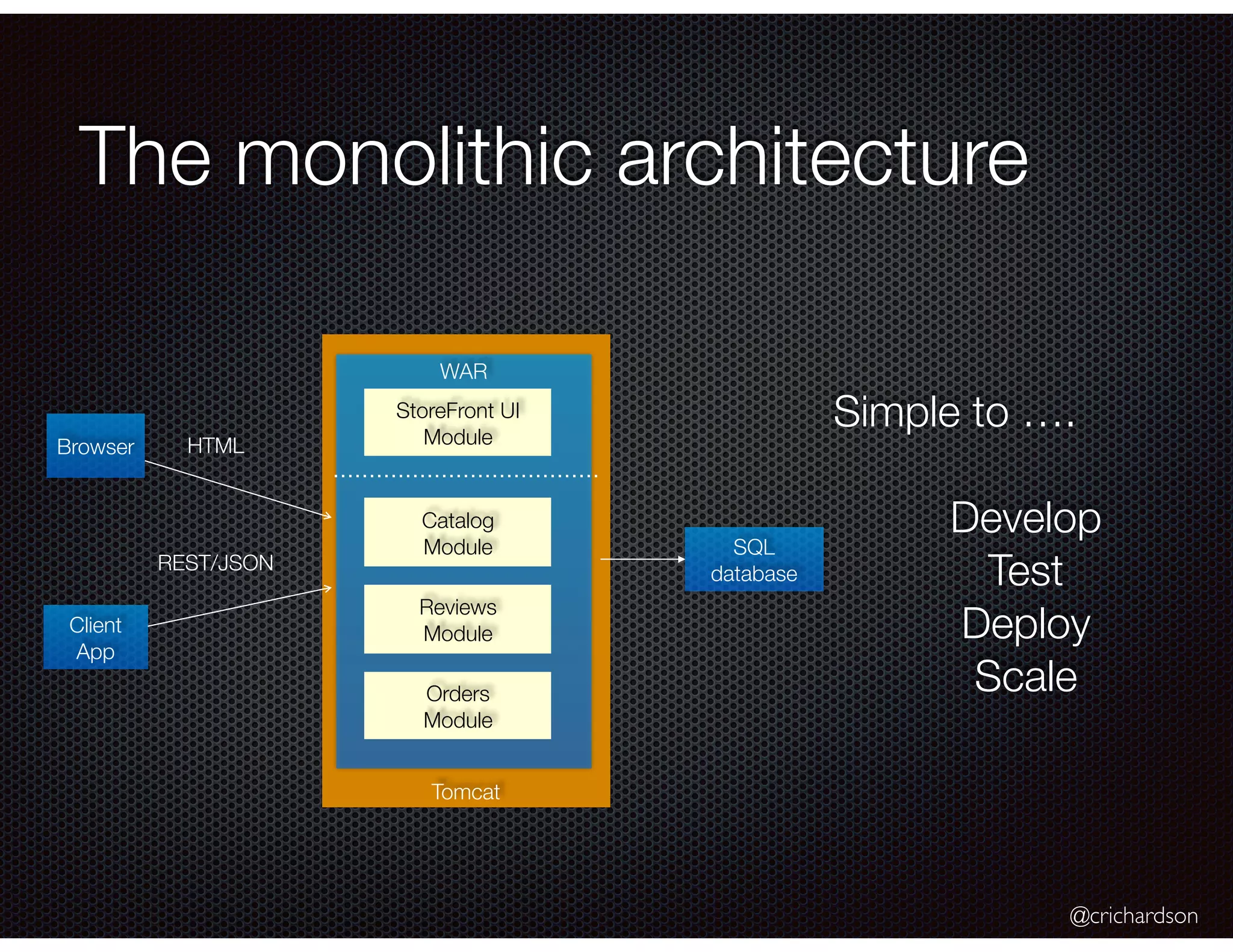

The monolithic architecture
Tomcat
Browser
WAR
SQL
database
HTML
REST/JSON
Client
App
Simple to ….
Develop
Test
Deploy
Scale
Catalog
Module
Reviews
Module
Orders
Module
StoreFront UI
Module

@crichardson
But
successful
applications
keep
growing
….

@crichardson

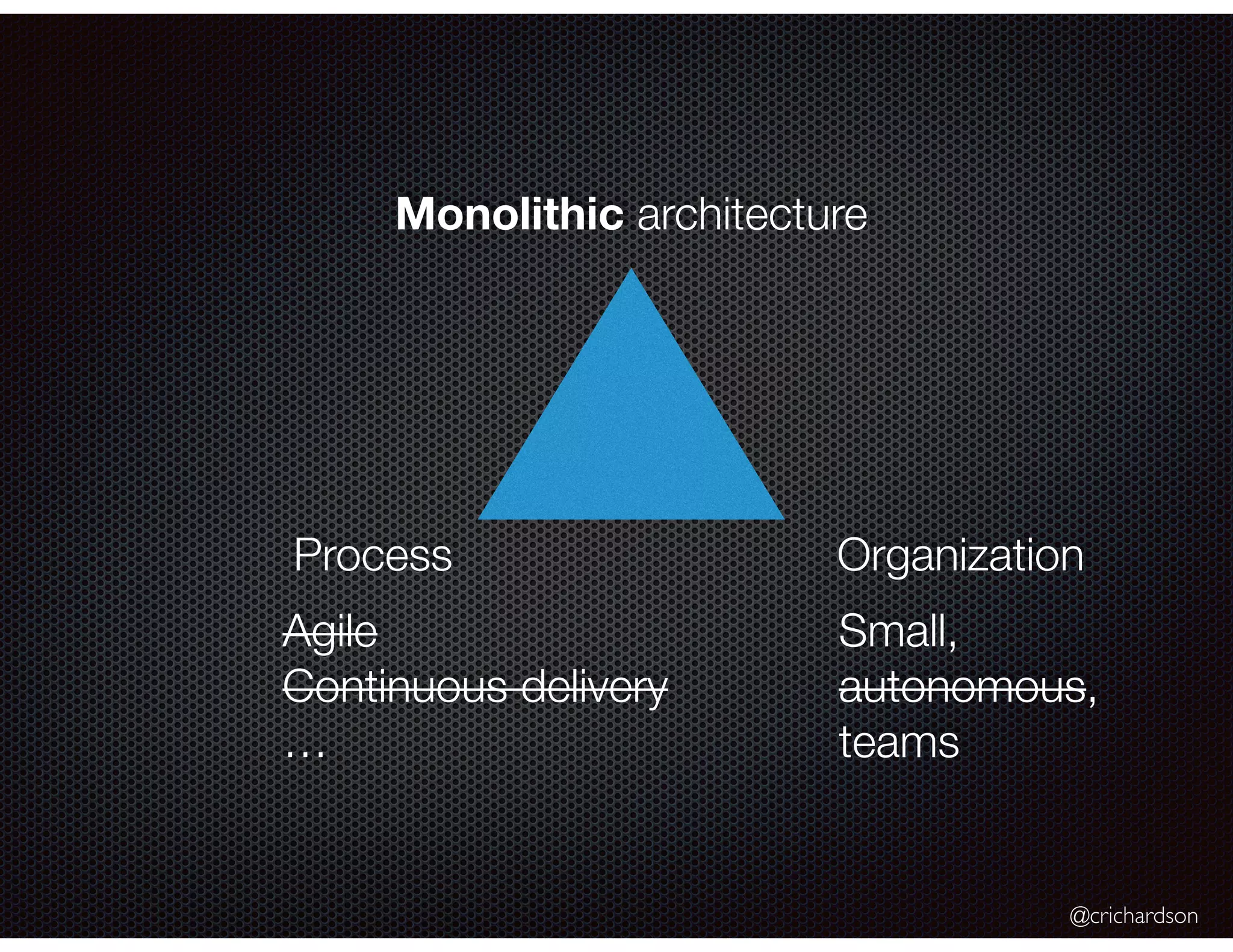

Monolithic architecture
Agile
Continuous delivery
…
Small,
autonomous,
teams

@crichardson

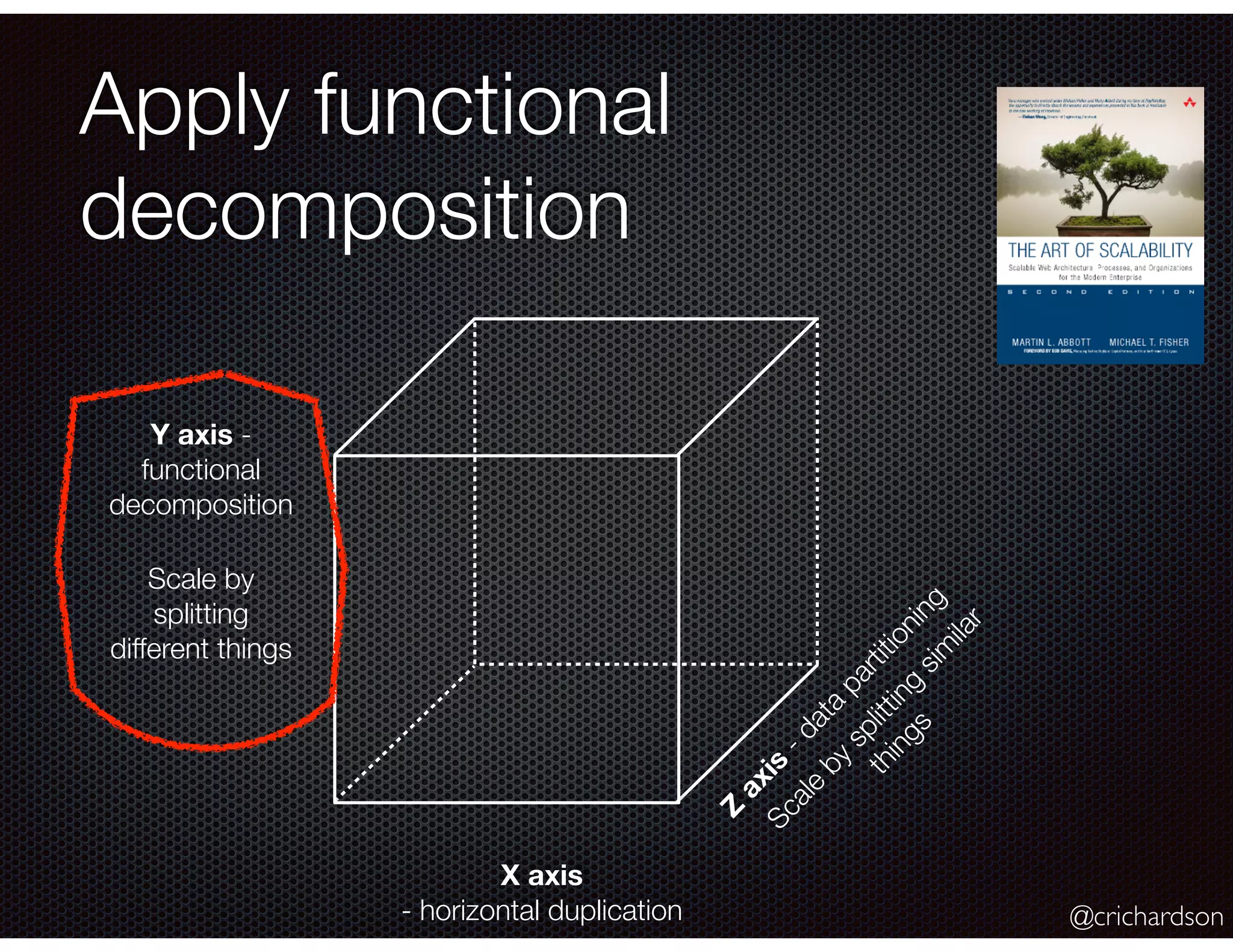

Apply functional
decomposition
X axis
- horizontal duplication
Z
axis
-data
partitioning
Y axis -
functional
decomposition
Scale
by
splitting
sim
ilar
things
Scale by
splitting
different things

@crichardson

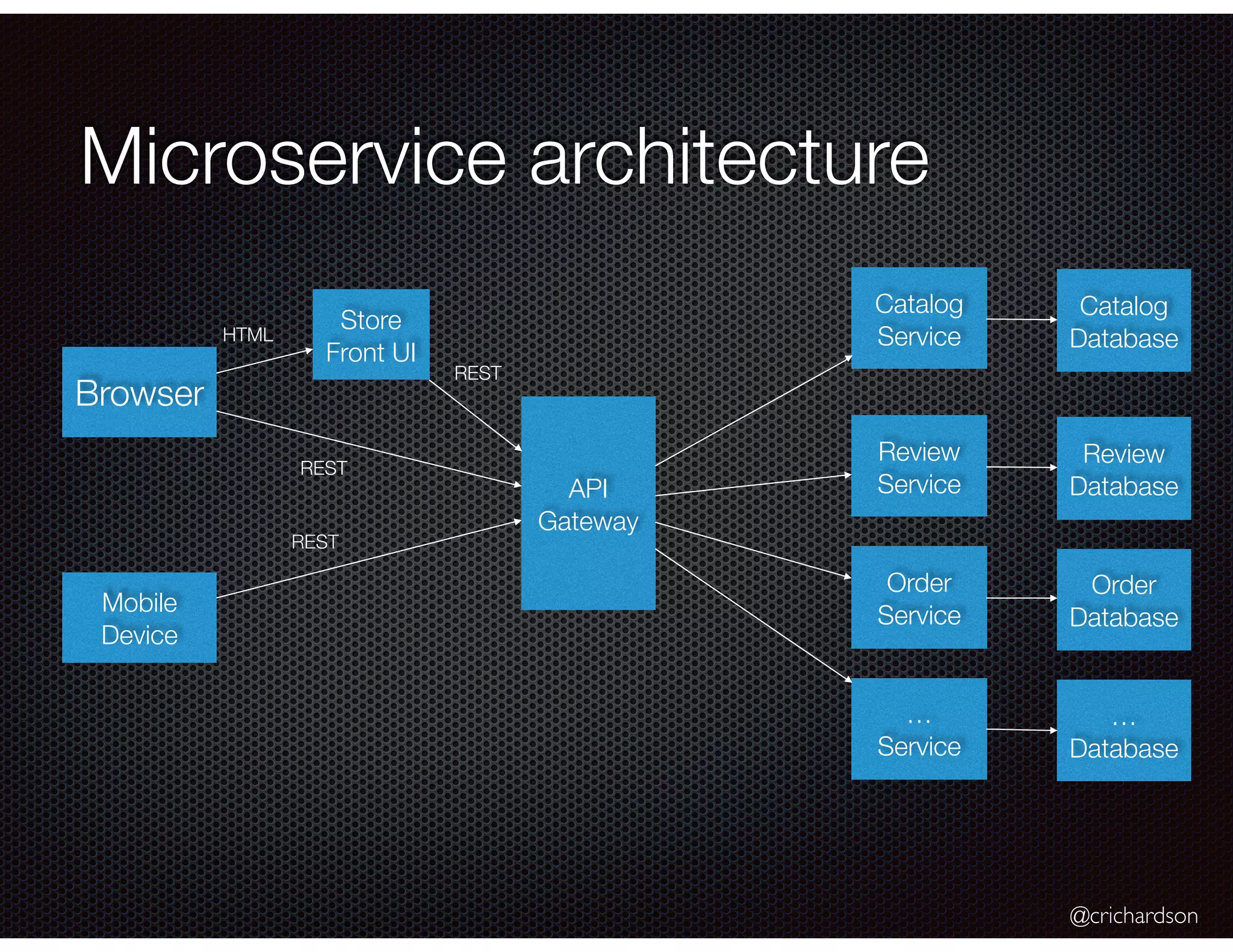

Microservice architecture
Browser
Mobile
Device
Store
Front UI
API
Gateway
Catalog
Service
Review
Service
Order
Service
…
Service
Catalog
Database
Review
Database
Order
Database
…
Database
HTML
REST
REST
REST

@crichardson

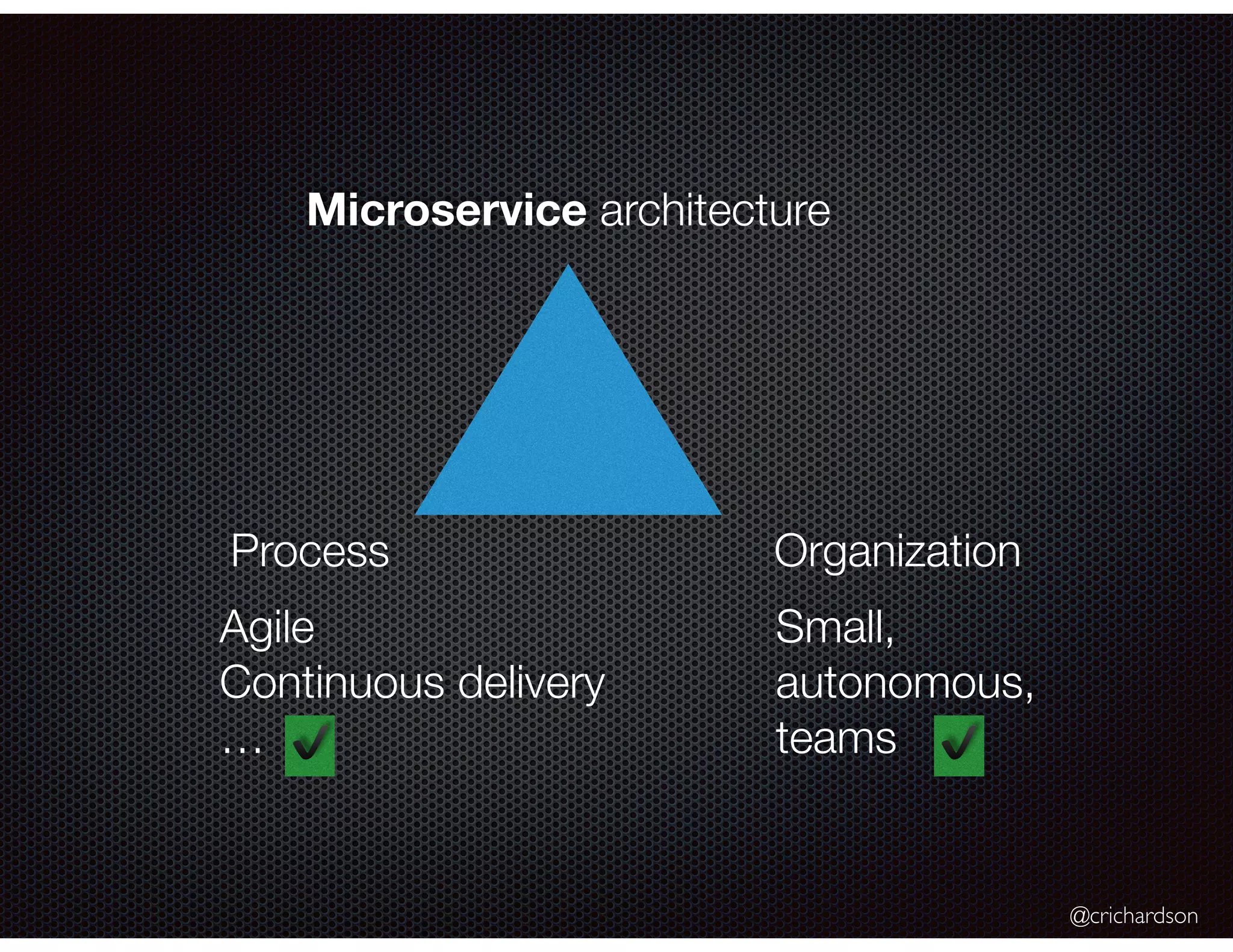

Microservice architecture
Agile
Continuous delivery
…
Small,
autonomous,
teams✔ ✔

@crichardson

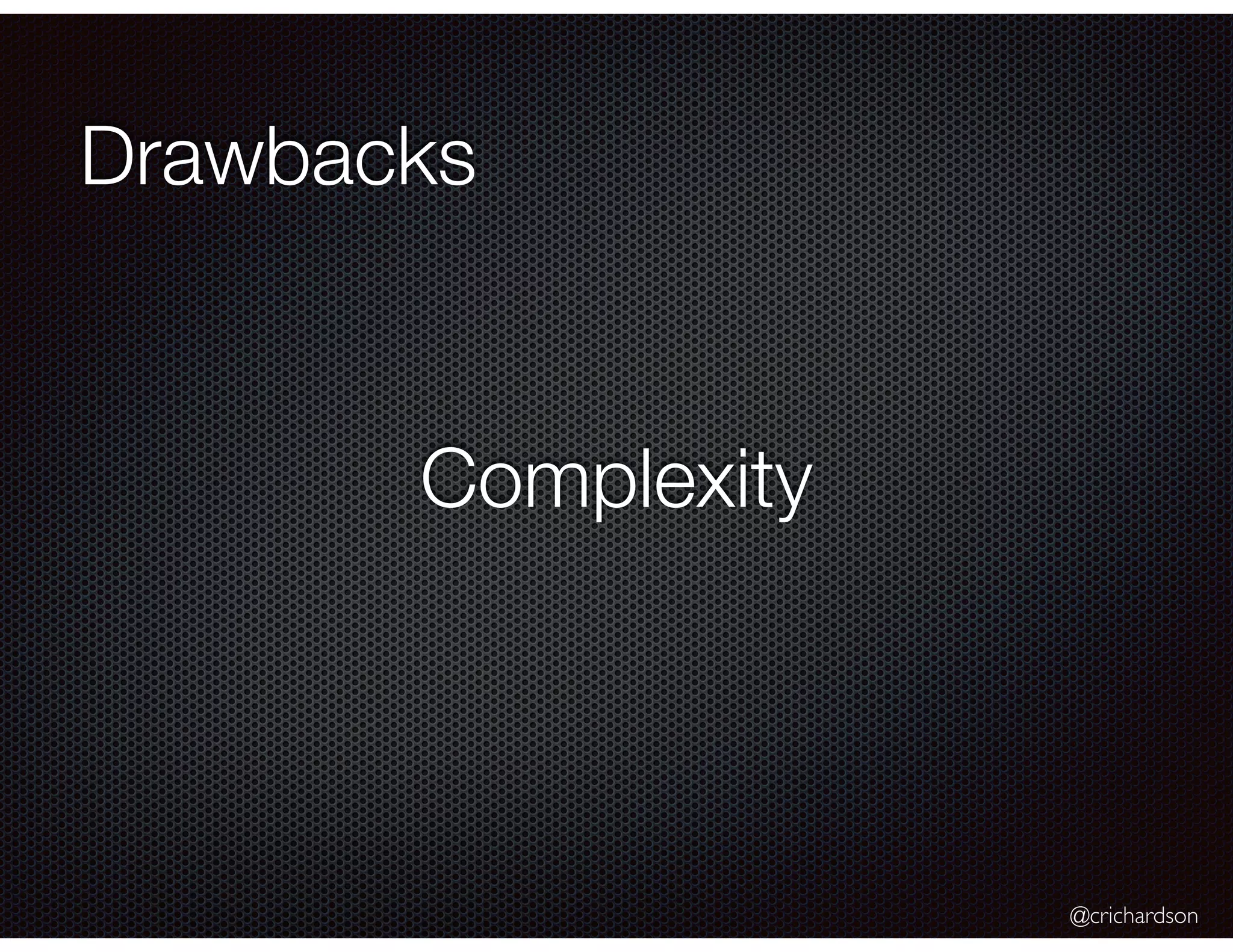

Drawbacks
Complexity

@crichardson

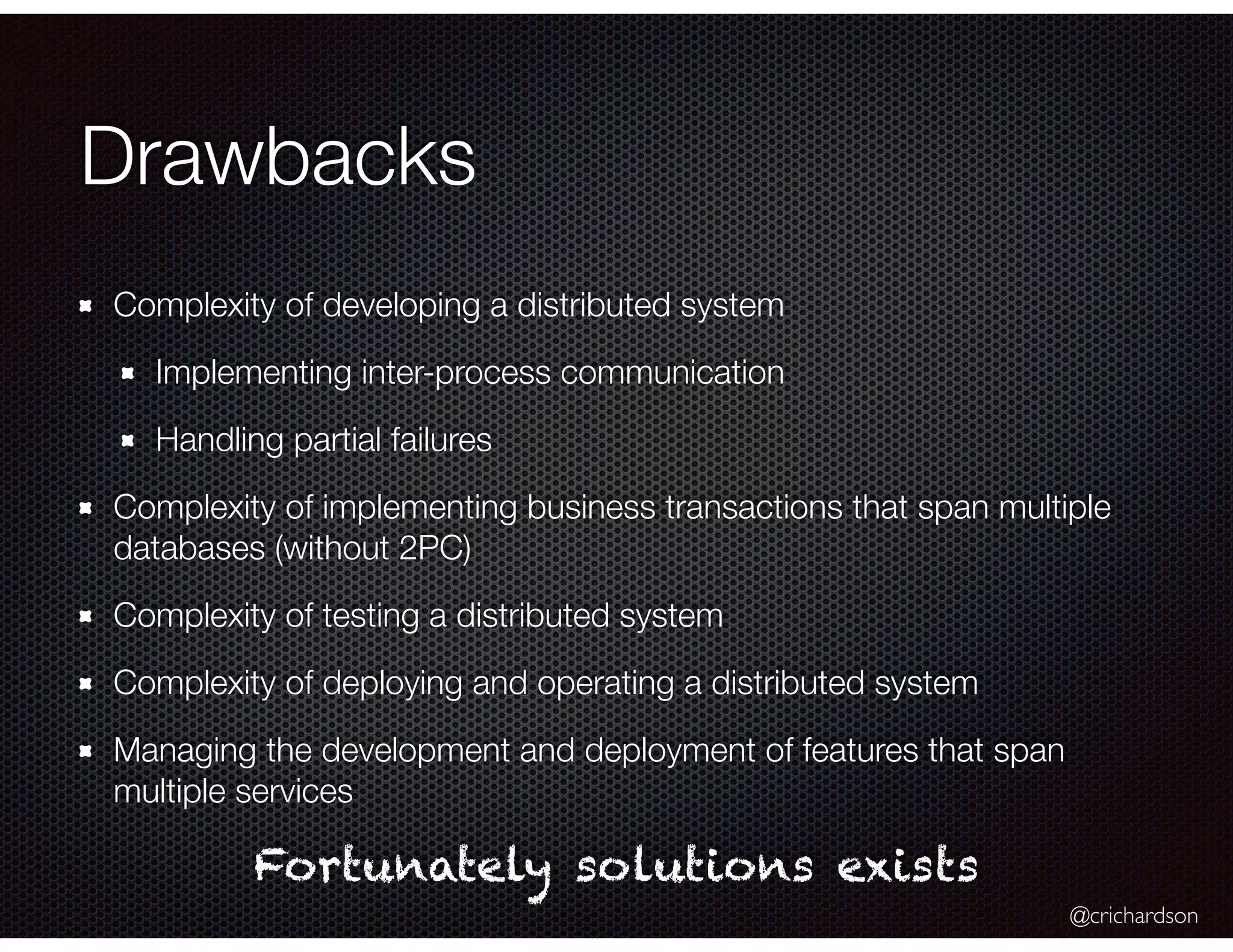

Drawbacks
Complexity of developing a distributed system
Implementing inter-process communication
Handling partial failures
Complexity of implementing business transactions that span multiple
databases (without 2PC)
Complexity of testing a distributed system
Complexity of deploying and operating a distributed system
Managing the development and deployment of features that span
multiple services
Fortunately solutions exists

@crichardson
The beneﬁts typically
outweigh the drawbacks
for
large, complex applications

@crichardson

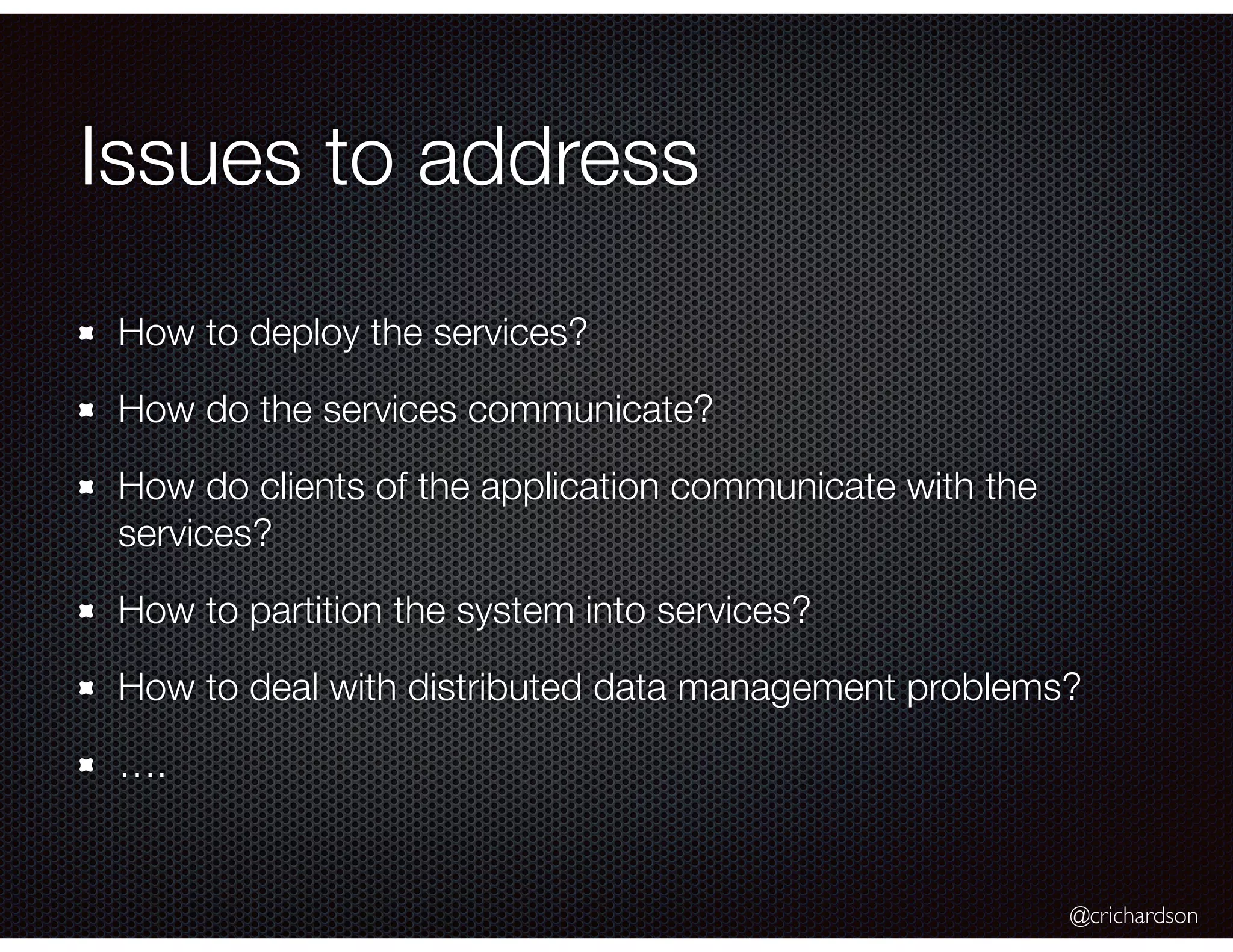

Issues to address
How to deploy the services?
How do the services communicate?
How do clients of the application communicate with the
services?
How to partition the system into services?
How to deal with distributed data management problems?
….

@crichardson

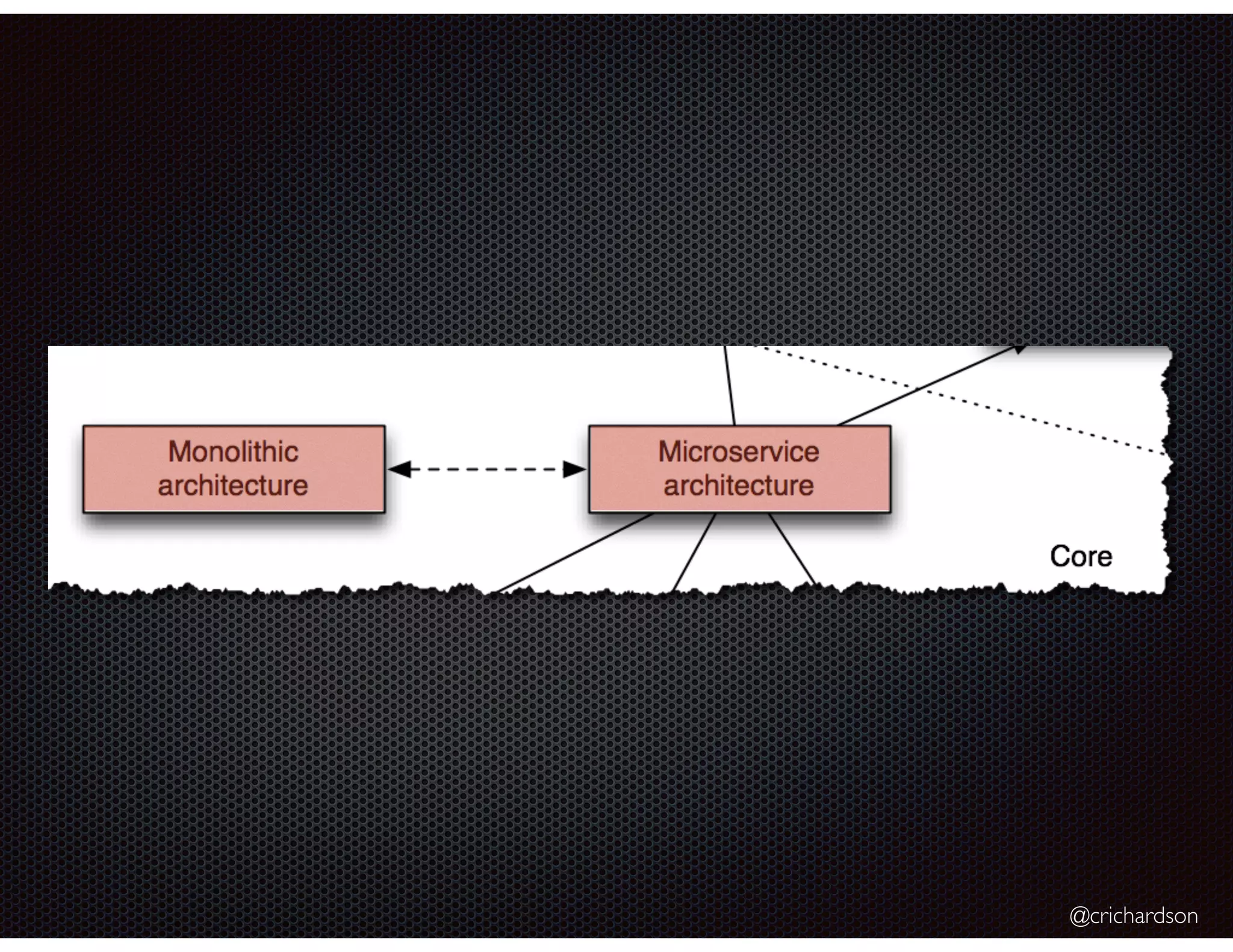

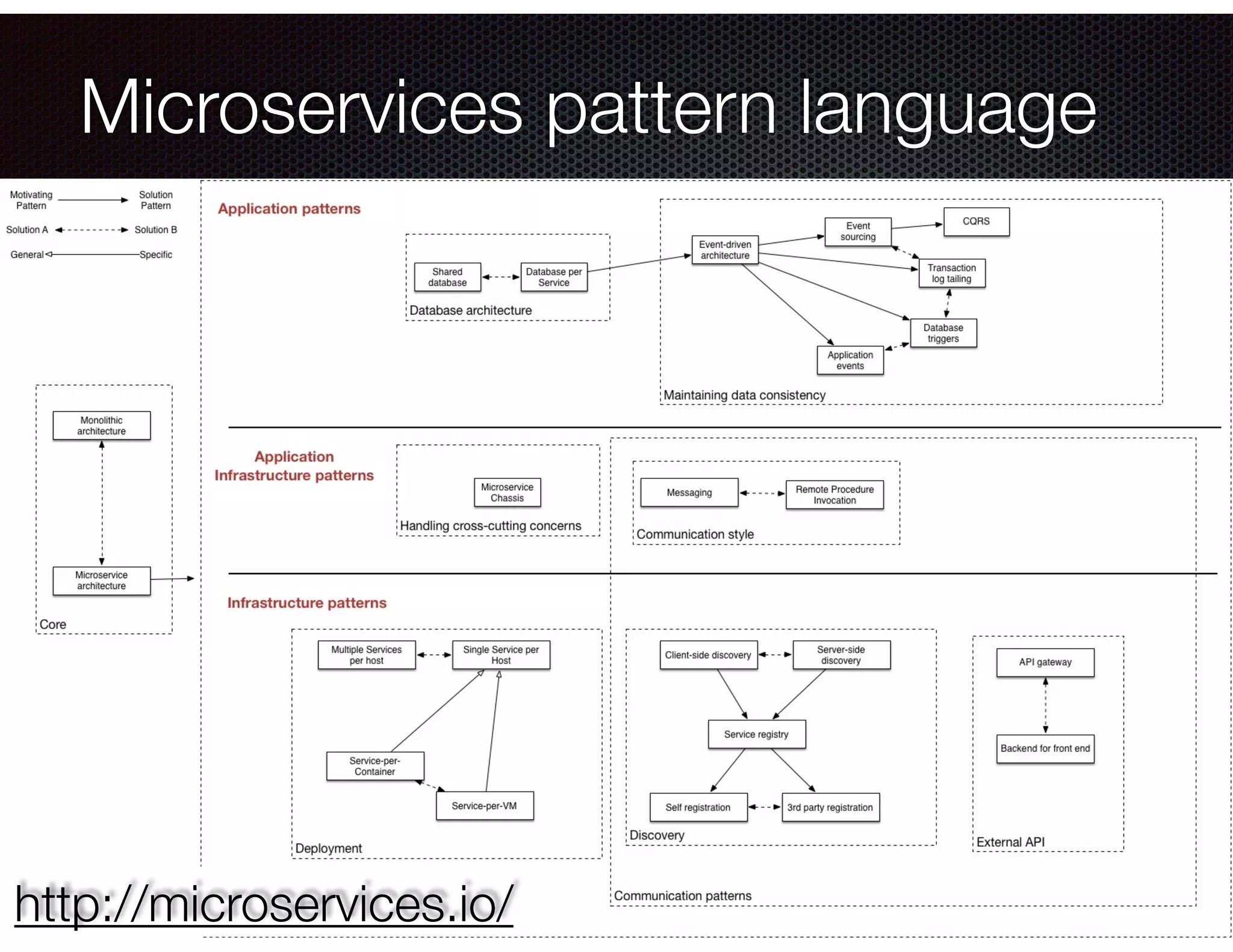

Microservices pattern language
http://microservices.io/

@crichardson

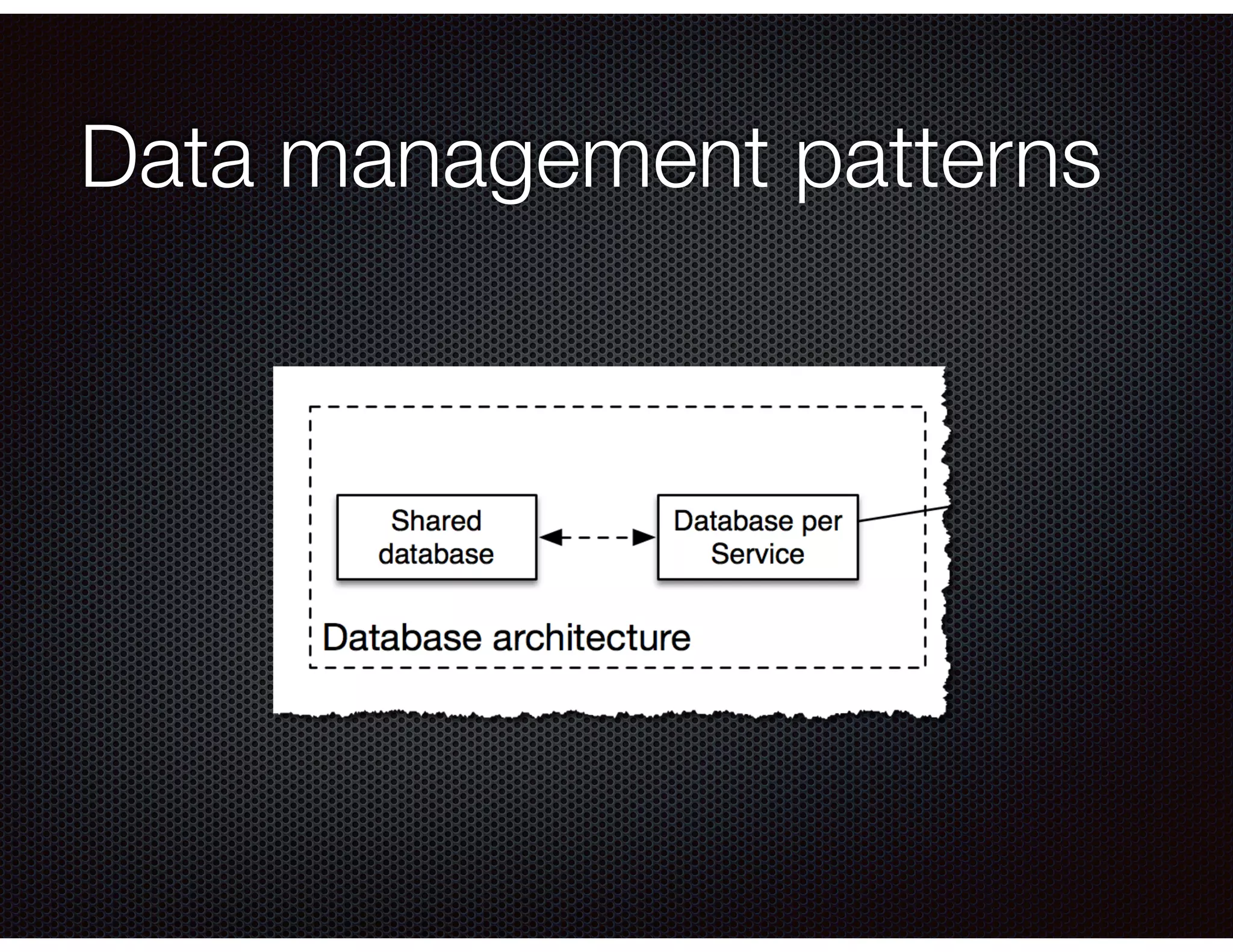

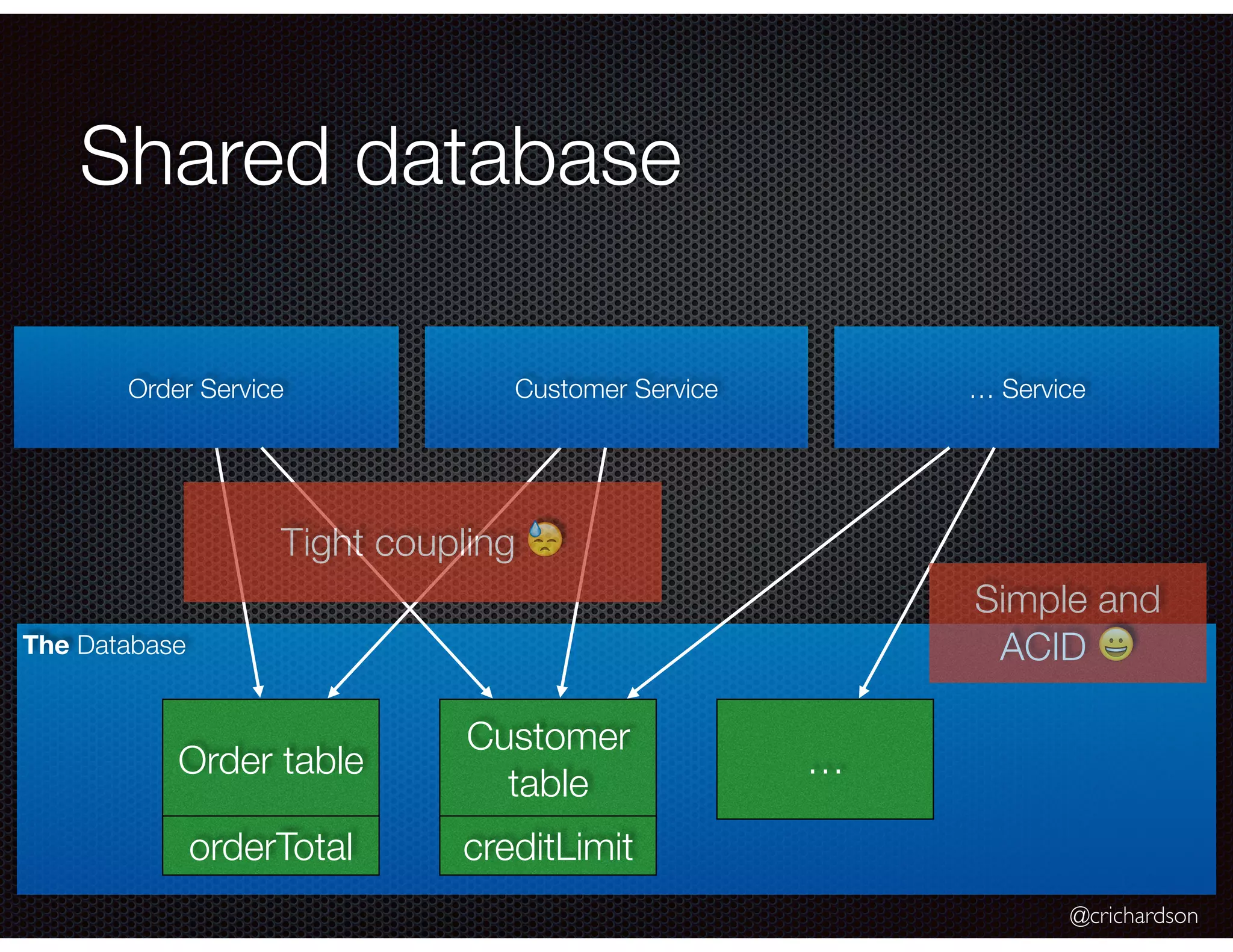

The Database
Shared database
Order Service Customer Service … Service
Order table
Customer
table
…
orderTotal creditLimit
Tight coupling
Simple and
ACID

@crichardson

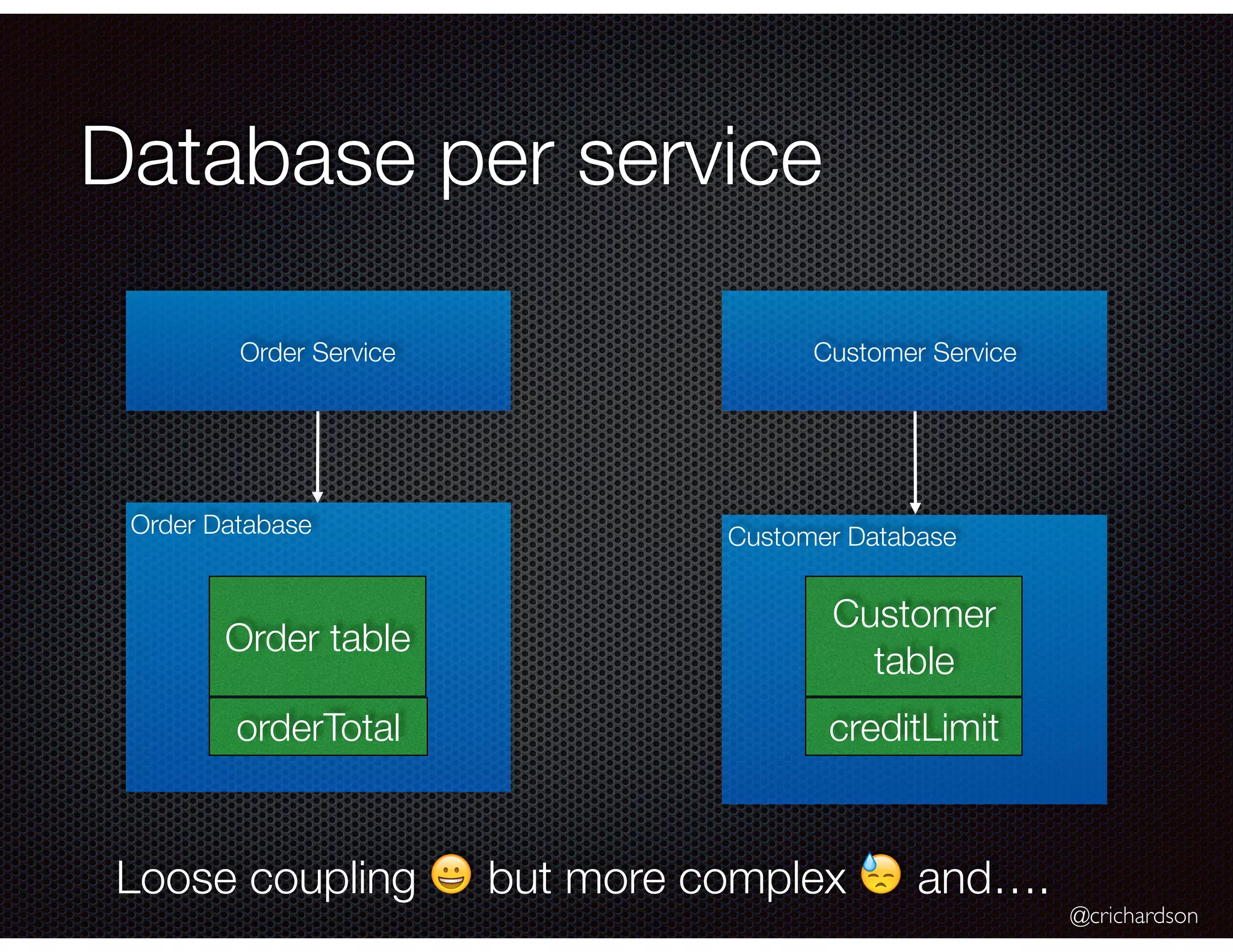

Database per service
Order Service Customer Service
Order Database Customer Database
Order table
Customer
table
orderTotal creditLimit
Loose coupling 😀 but more complex 😓 and….

@crichardson
2PC (aka. distributed
transactions)
is not viable choice
for most modern applications

@crichardson

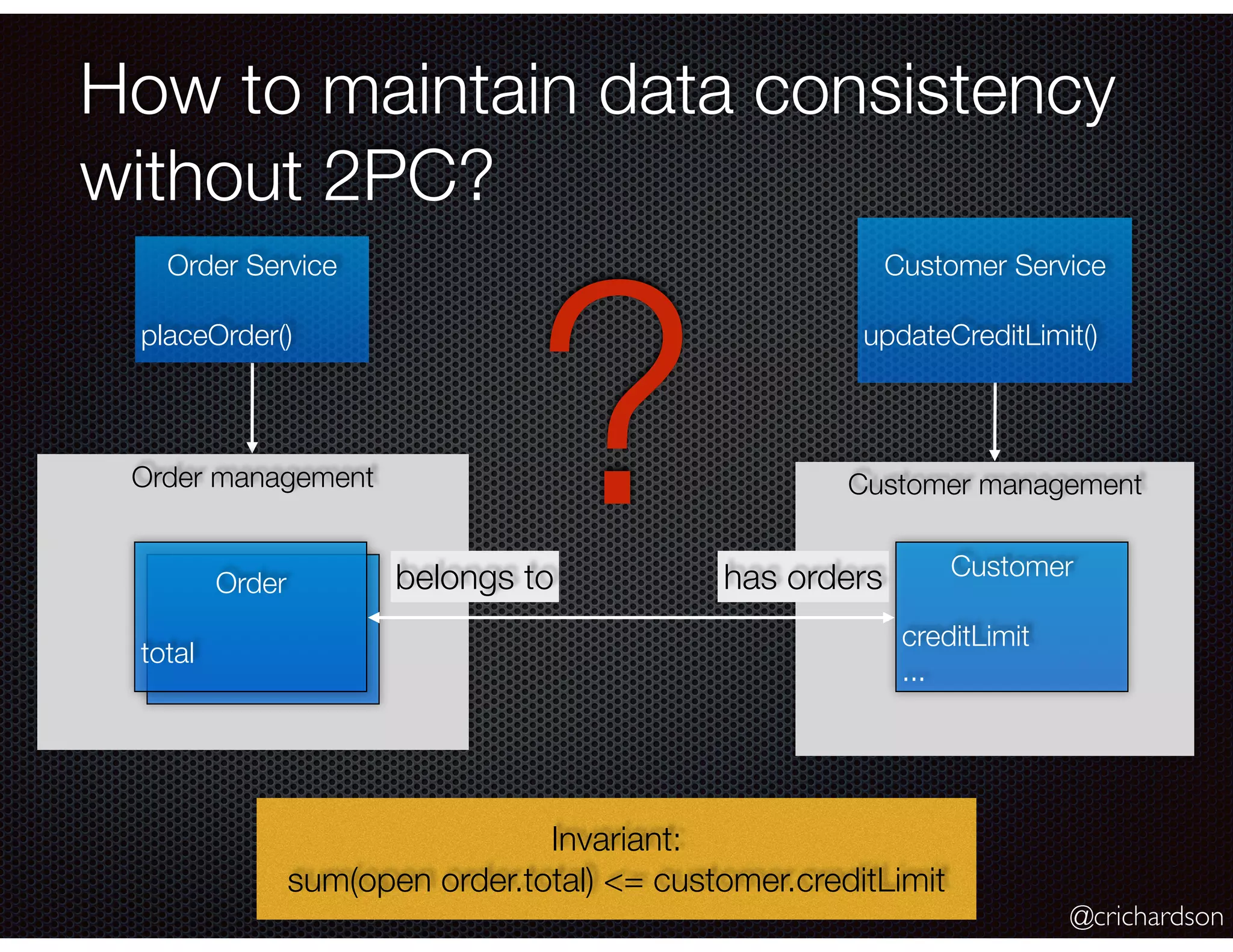

Customer management
How to maintain data consistency
without 2PC?
Order management
Order Service
placeOrder()
Customer Service
updateCreditLimit()
Customer
creditLimit
...
has ordersbelongs toOrder
total
Invariant:
sum(open order.total) <= customer.creditLimit
?

@crichardson

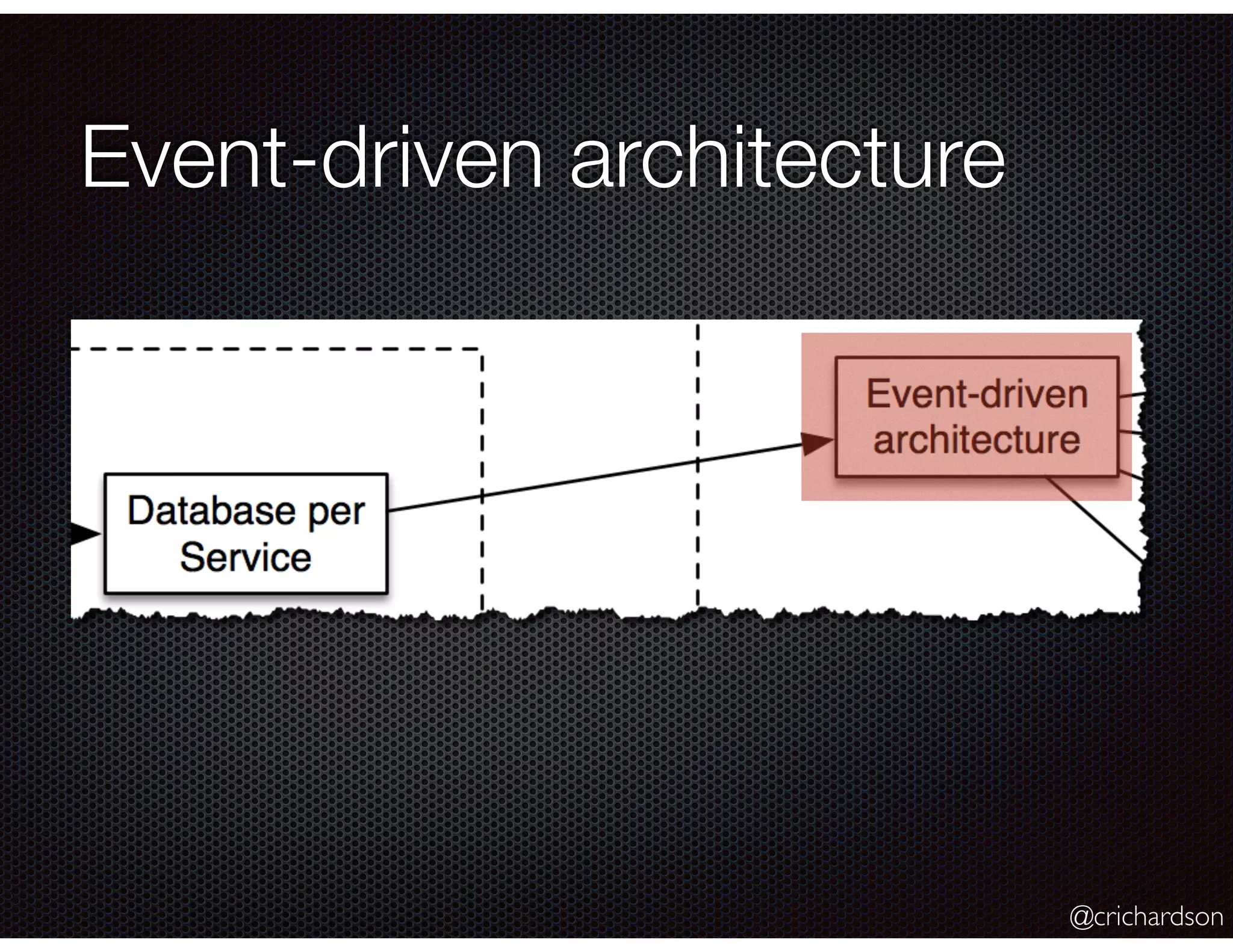

Event-driven architecture

@crichardson

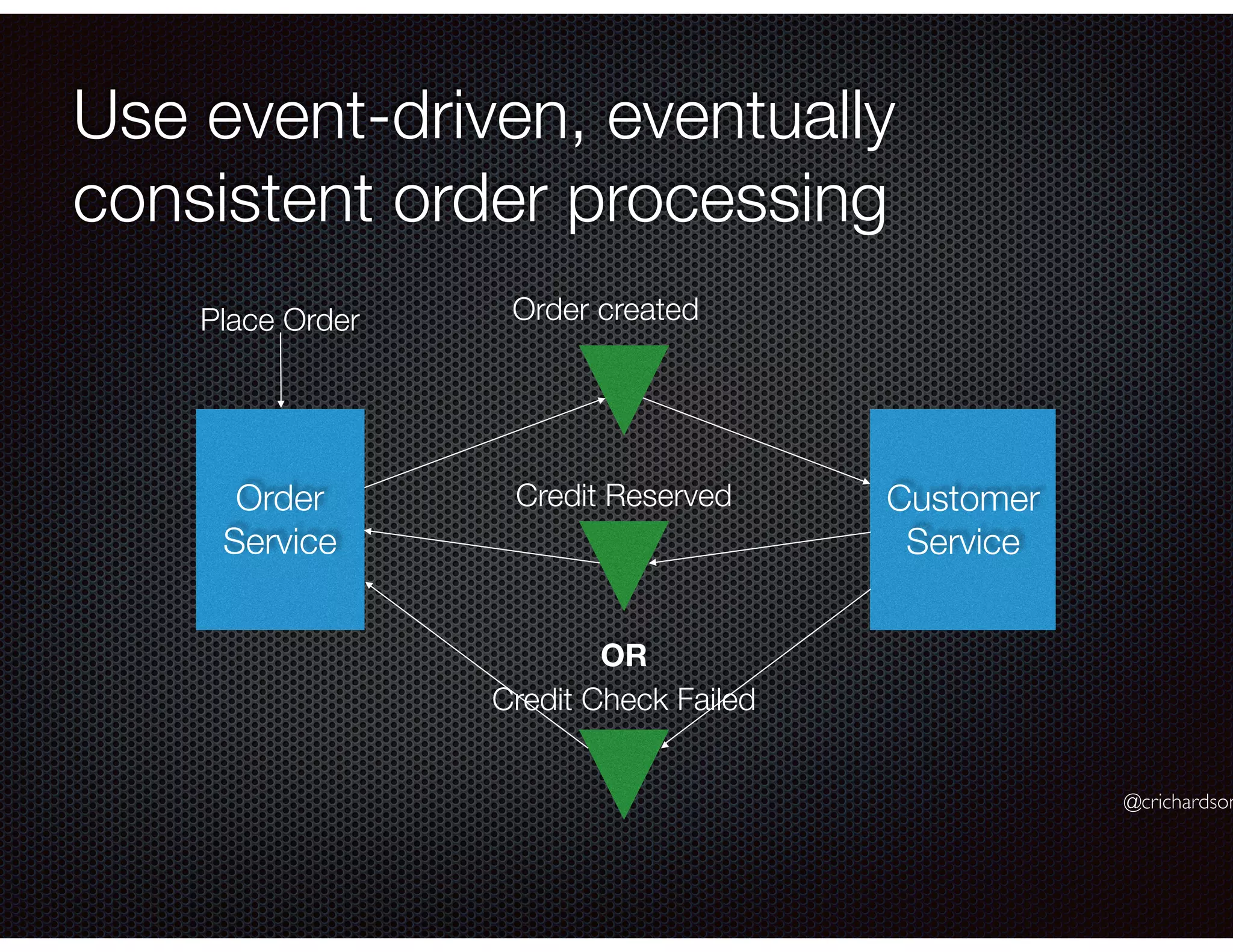

Use event-driven, eventually
consistent order processing
Order
Service
Customer
Service
Order created
Credit Reserved
Credit Check Failed
Place Order
OR

@crichardson

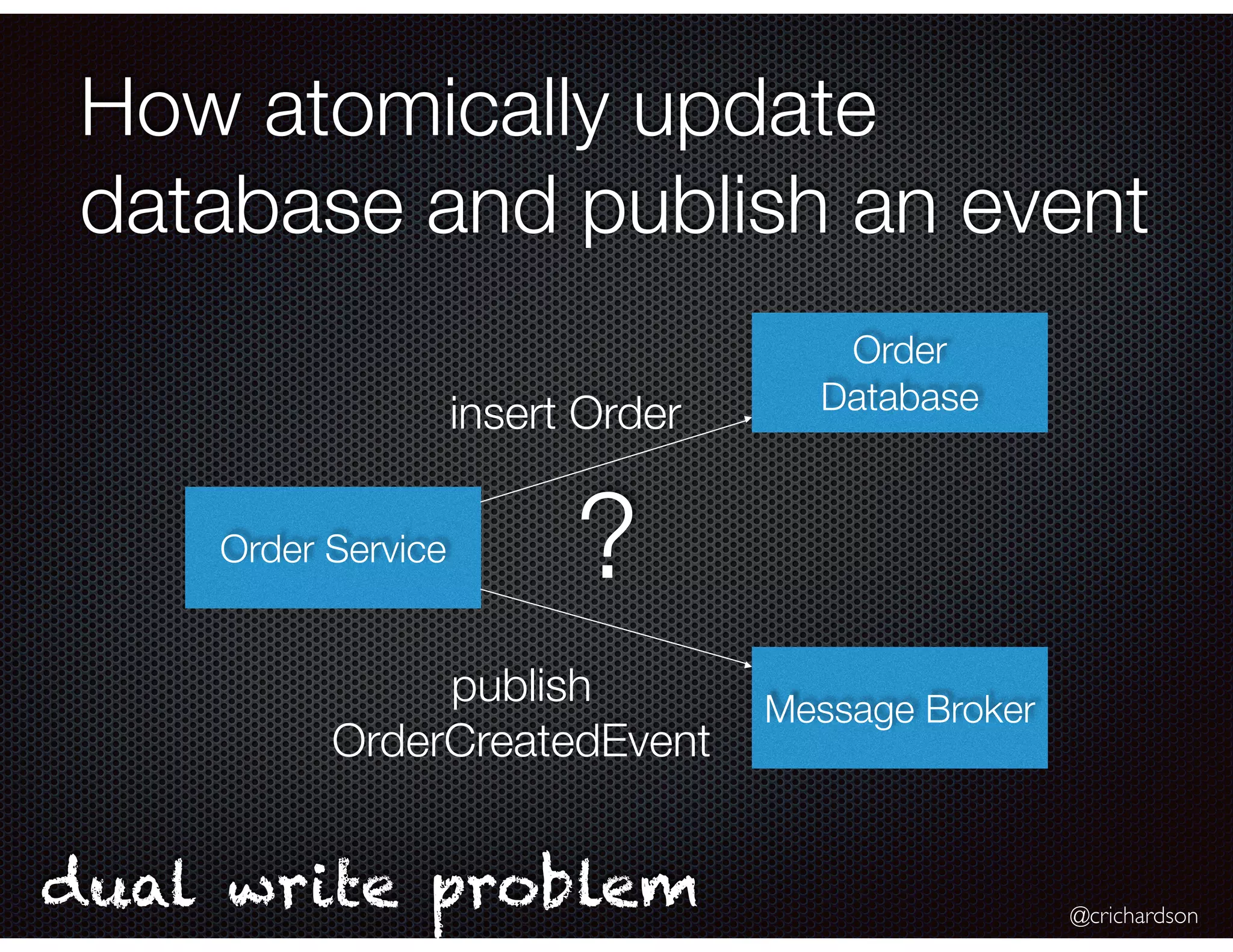

How atomically update
database and publish an event
Order Service
Order
Database
Message Broker
insert Order
publish
OrderCreatedEvent
dual write problem
?

@crichardson

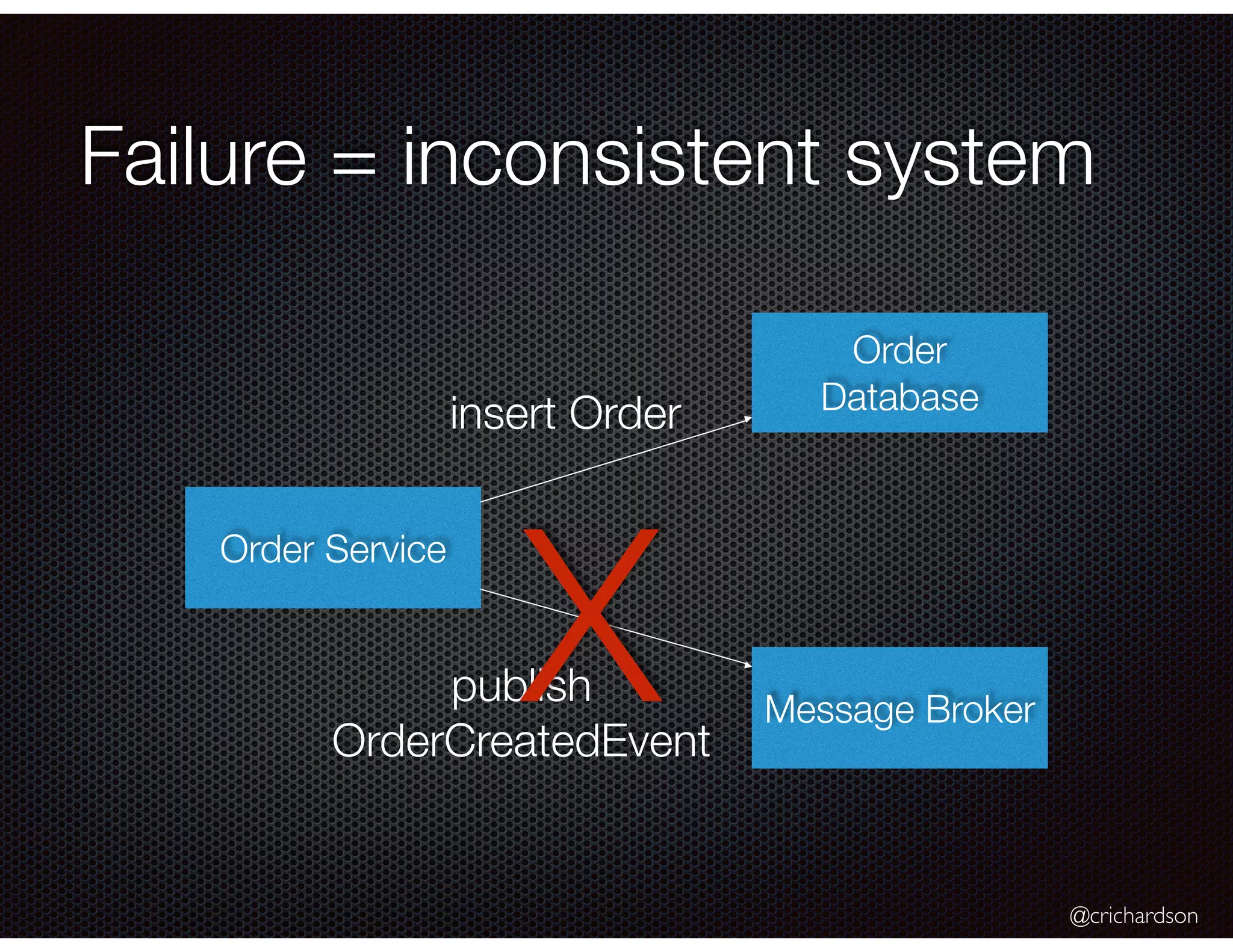

Failure = inconsistent system
Order Service
Order
Database
Message Broker
insert Order
publish
OrderCreatedEvent
X

@crichardson

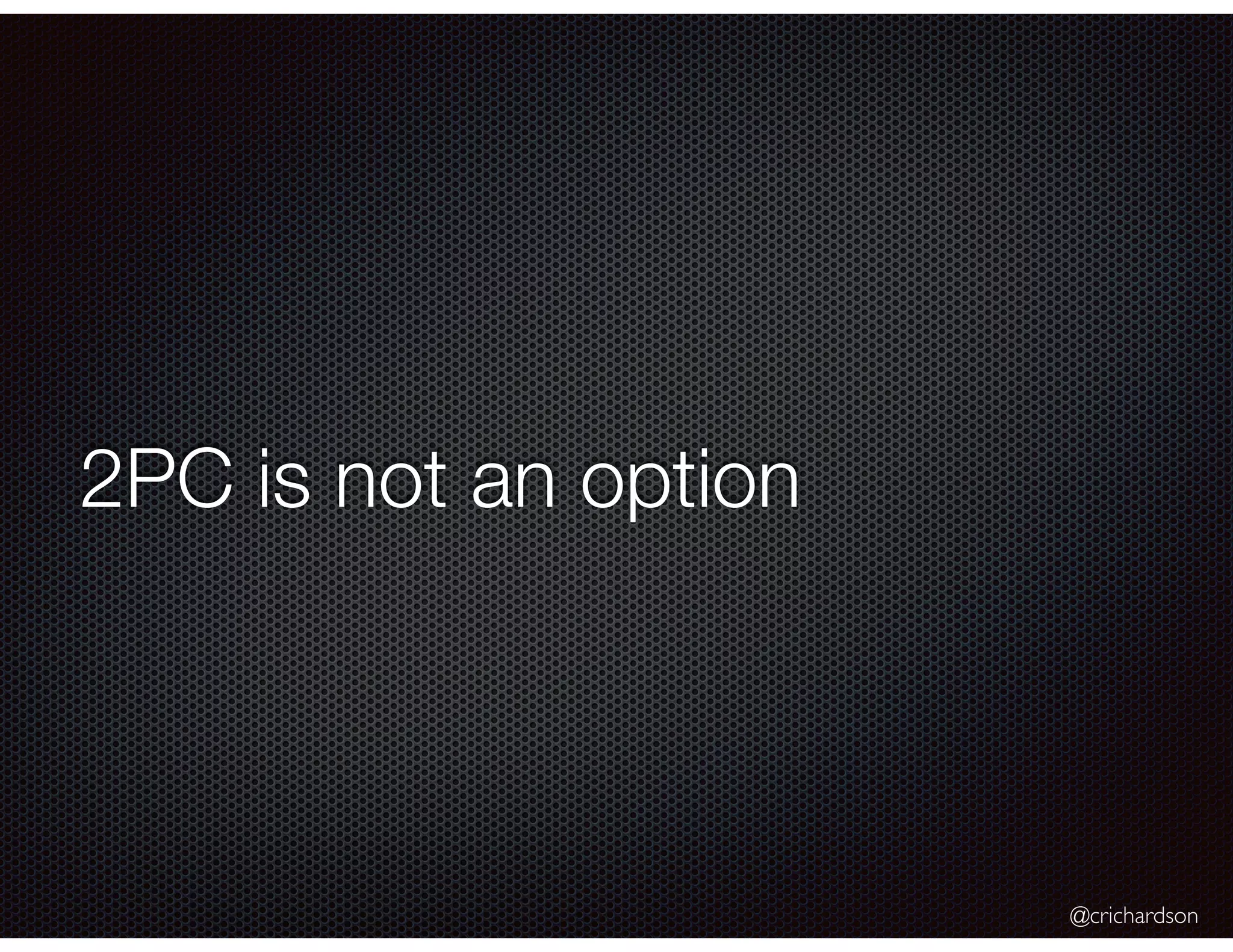

2PC is not an option

@crichardson

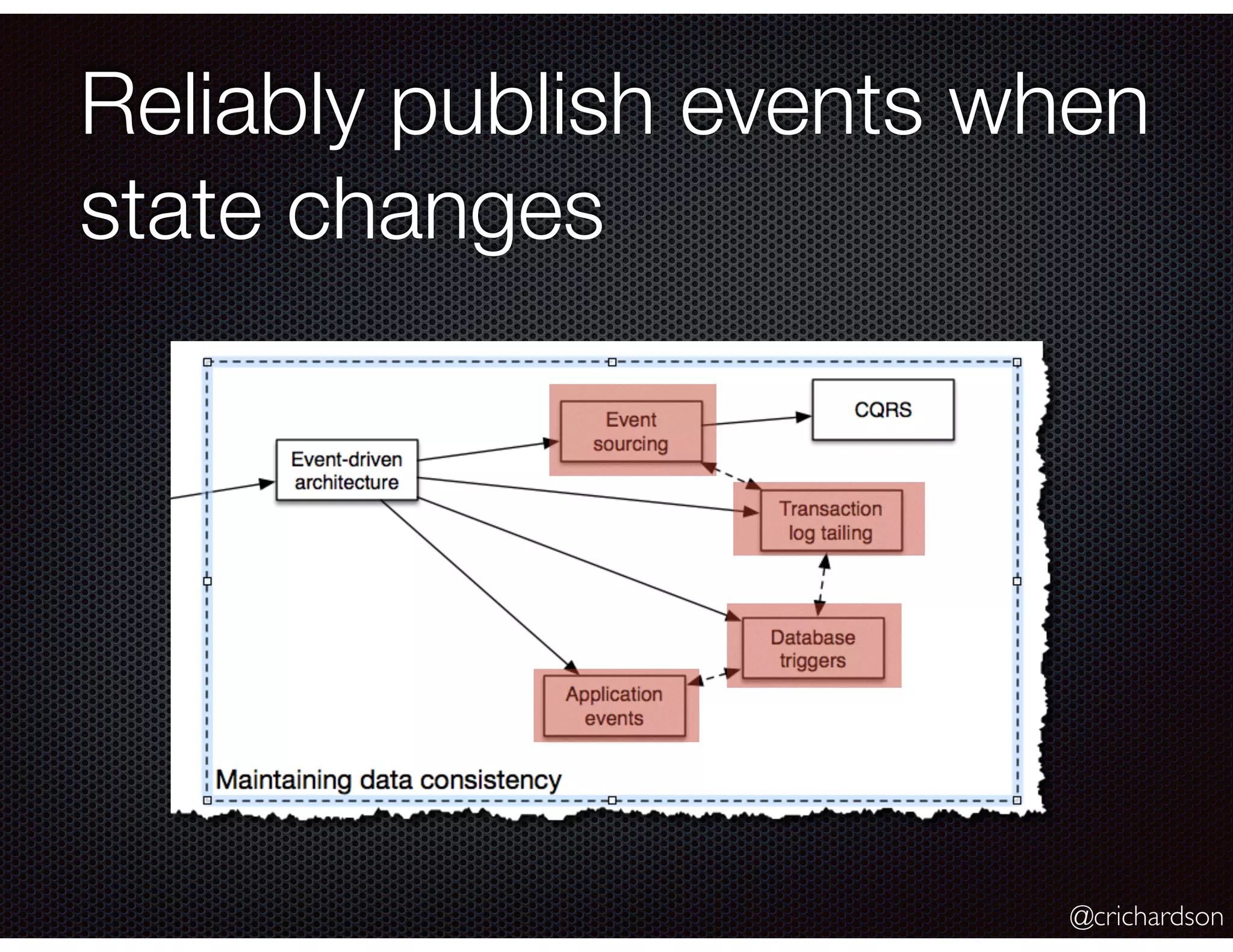

Reliably publish events when
state changes

@crichardson

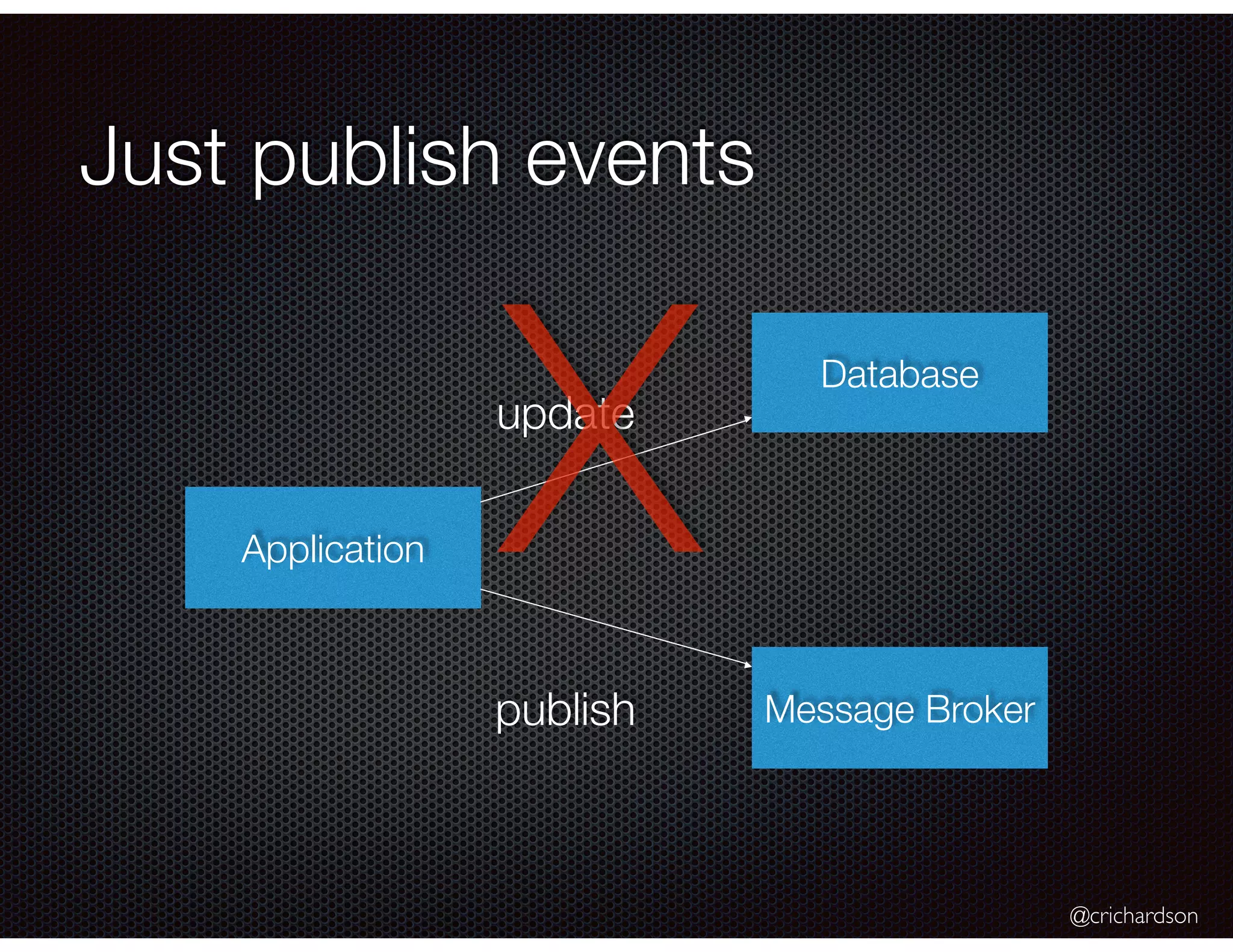

Just publish events
Application
Database
Message Broker
update
publish
X

@crichardson
Event sourcing
For each domain object (i.e. DDD aggregate):
Identify (state changing) domain events, e.g. use Event
Storming
Deﬁne Event classes
For example,
ShoppingCart: ItemAddedEvent, ItemRemovedEvent,
OrderPlacedEvent
Order: OrderCreated, OrderCancelled, OrderApproved,
OrderRejected, OrderShipped

@crichardson

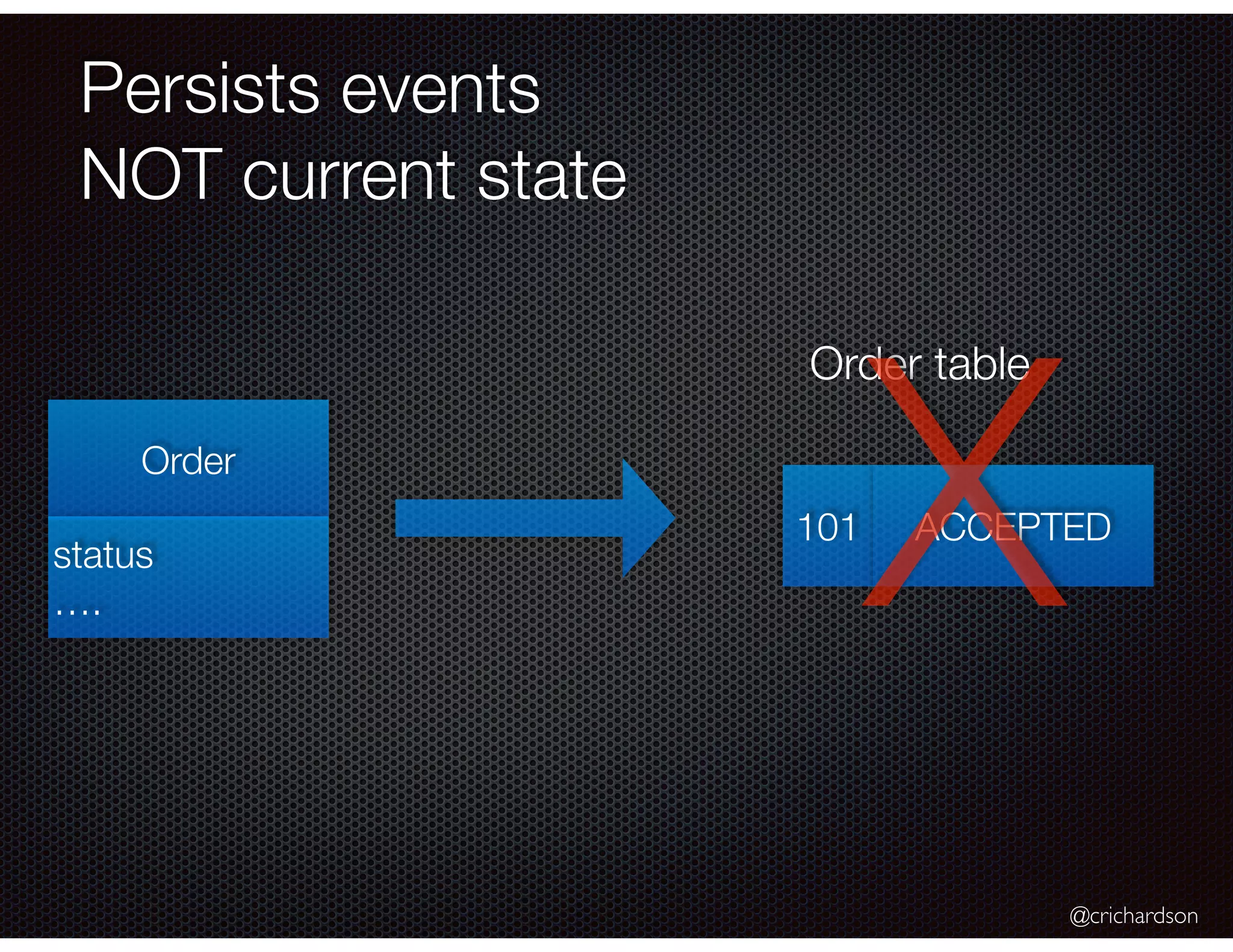

Persists events
NOT current state
Order
status
….
101 ACCEPTED
Order table
X

@crichardson

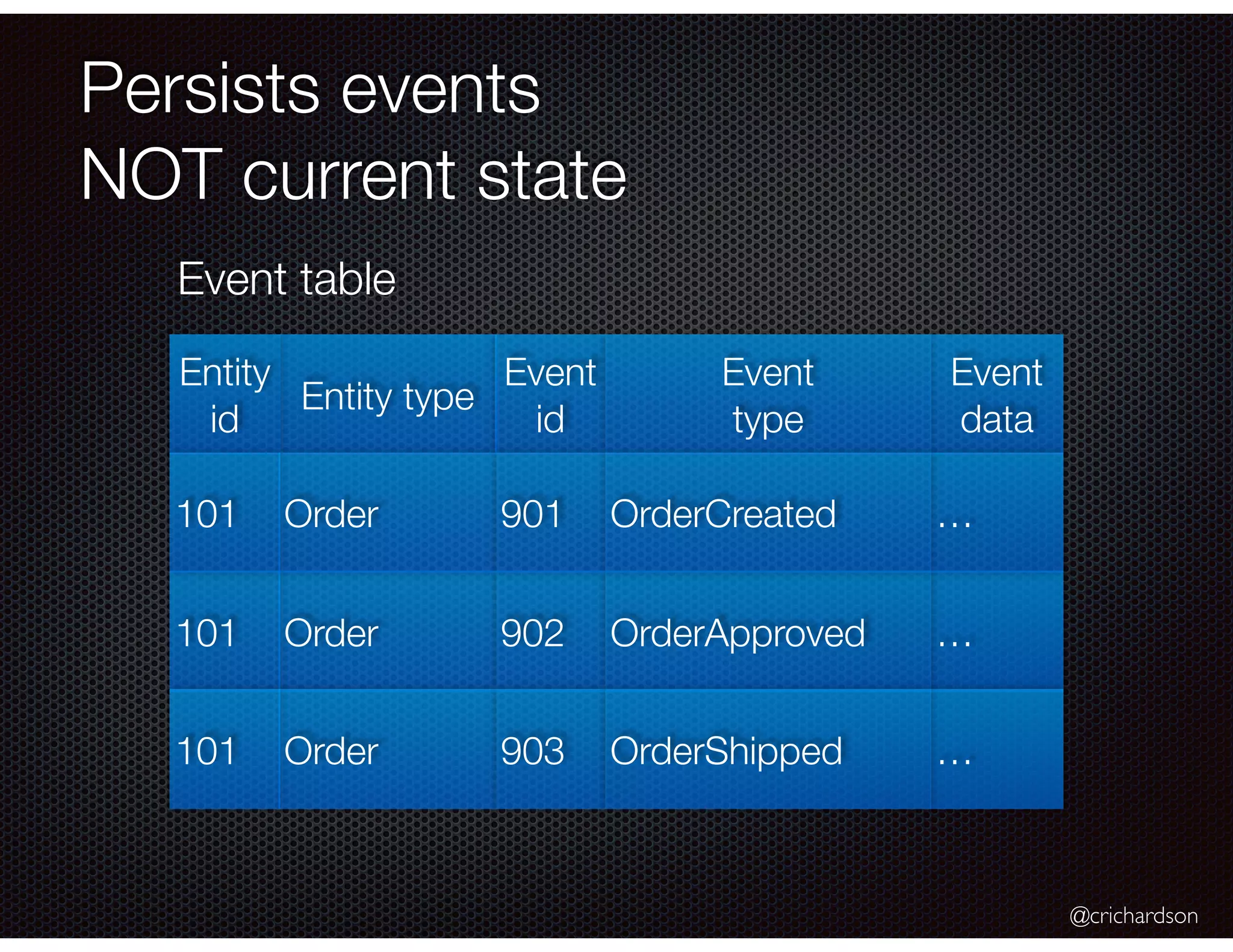

Persists events
NOT current state
Event table
Entity type
Event
id
Entity
id
Event
data
Order 902101 …OrderApproved
Order 903101 …OrderShipped
Event
type
Order 901101 …OrderCreated

@crichardson

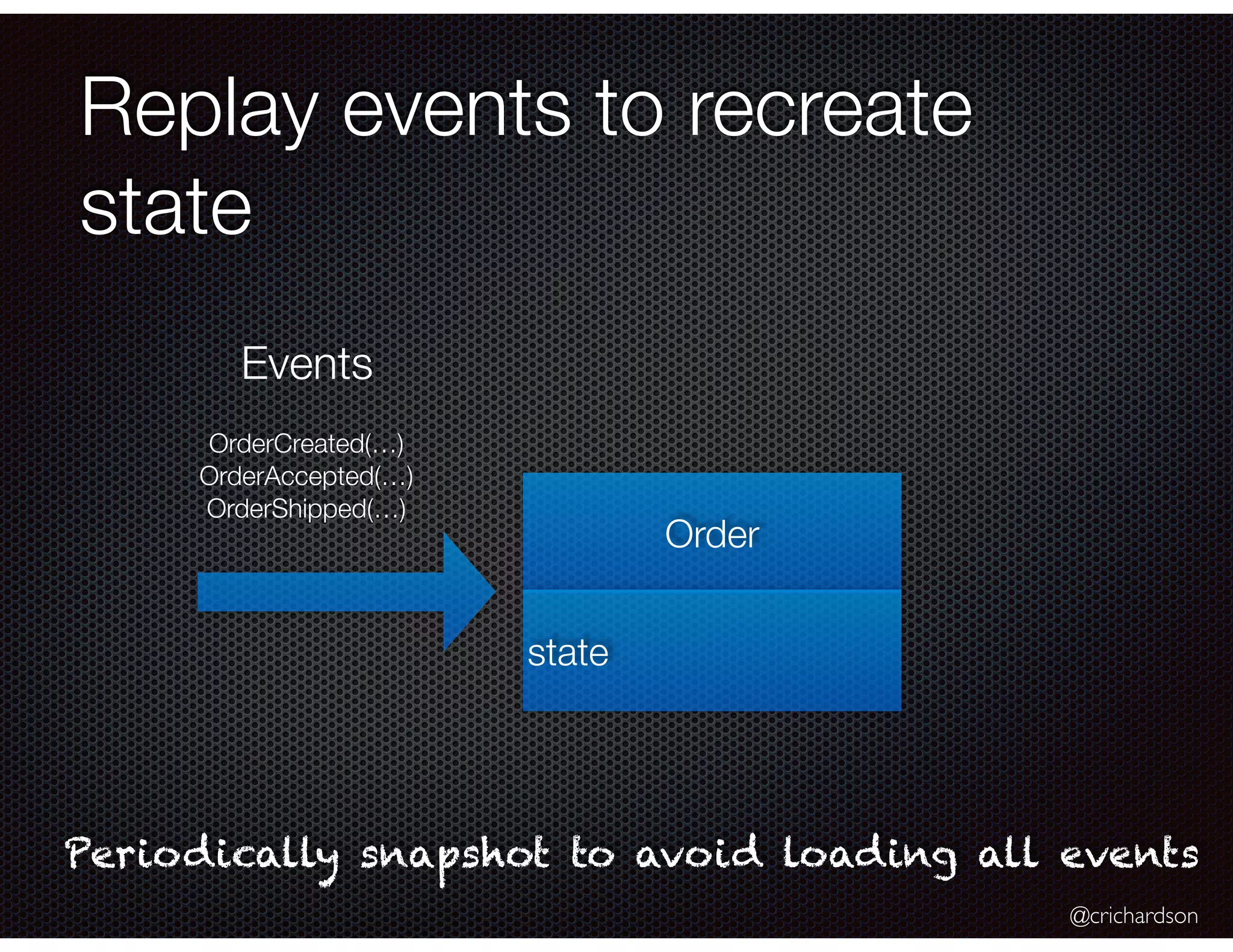

Replay events to recreate
state
Order
state
OrderCreated(…)
OrderAccepted(…)
OrderShipped(…)
Events
Periodically snapshot to avoid loading all events

@crichardson

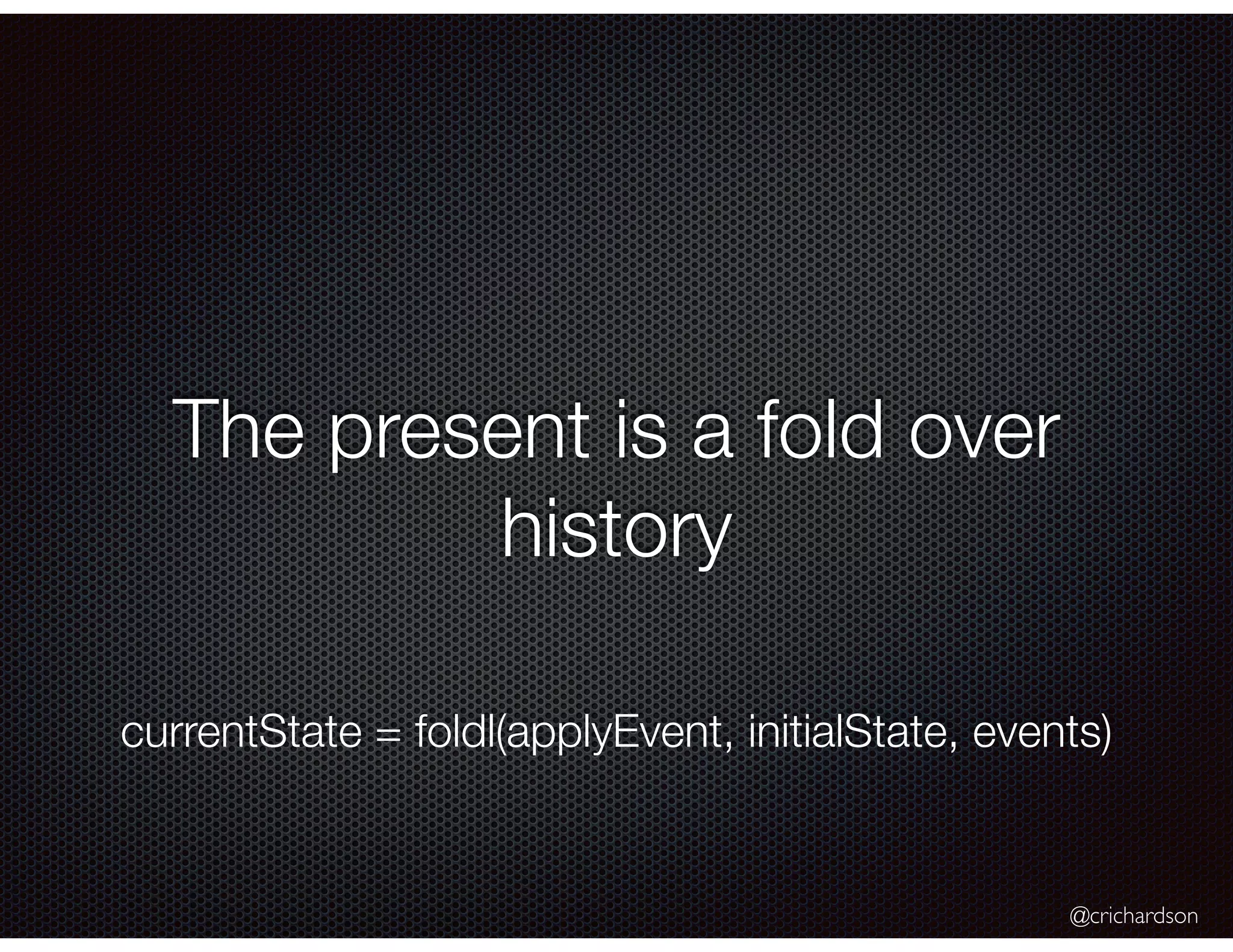

The present is a fold over
history
currentState = foldl(applyEvent, initialState, events)

@crichardson

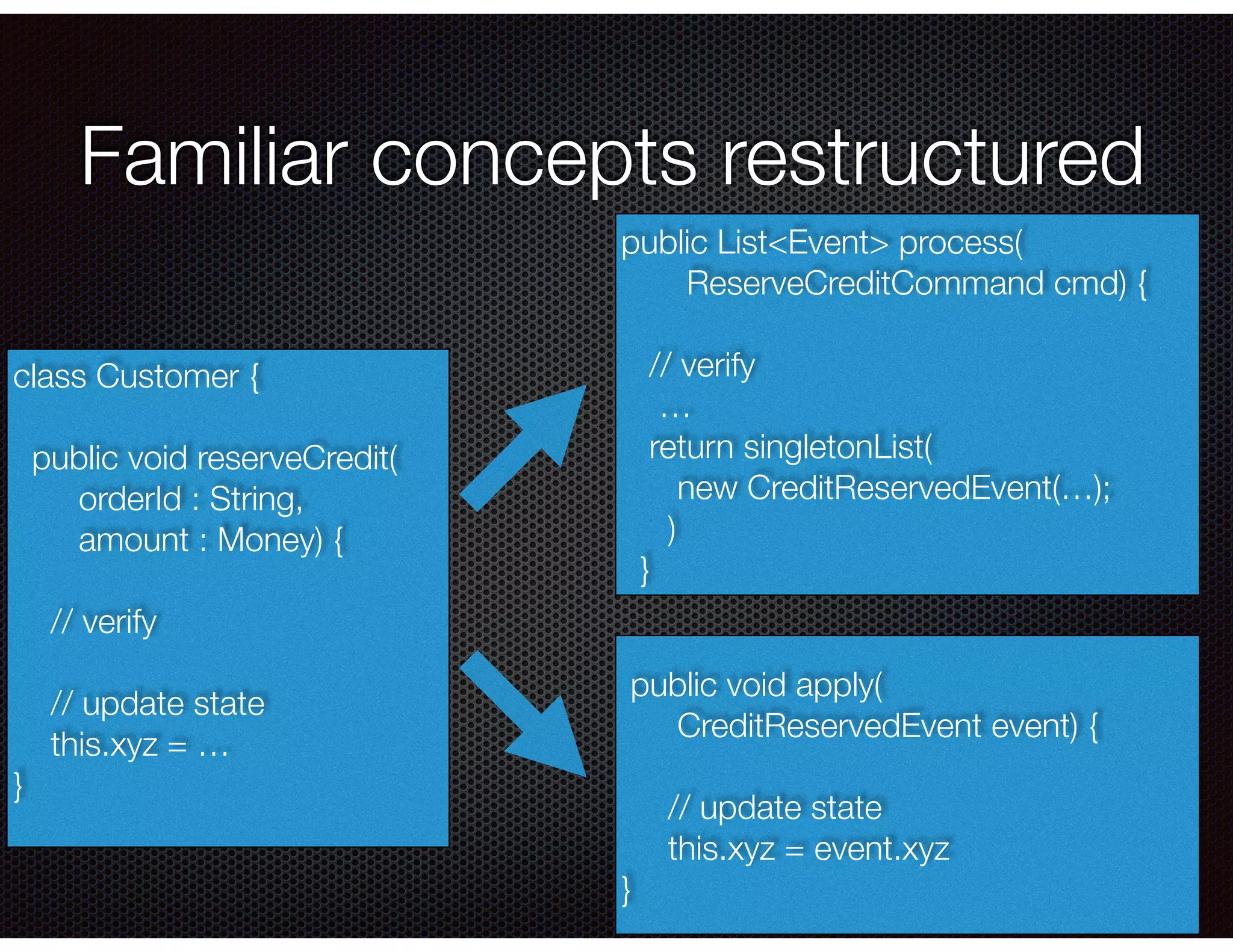

Familiar concepts restructured
class Customer {
public void reserveCredit(
orderId : String,
amount : Money) {
// verify
// update state
this.xyz = …
}
public List<Event> process(
ReserveCreditCommand cmd) {
// verify
…
return singletonList(
new CreditReservedEvent(…);
)
}
public void apply(
CreditReservedEvent event) {
// update state
this.xyz = event.xyz
}

@crichardson

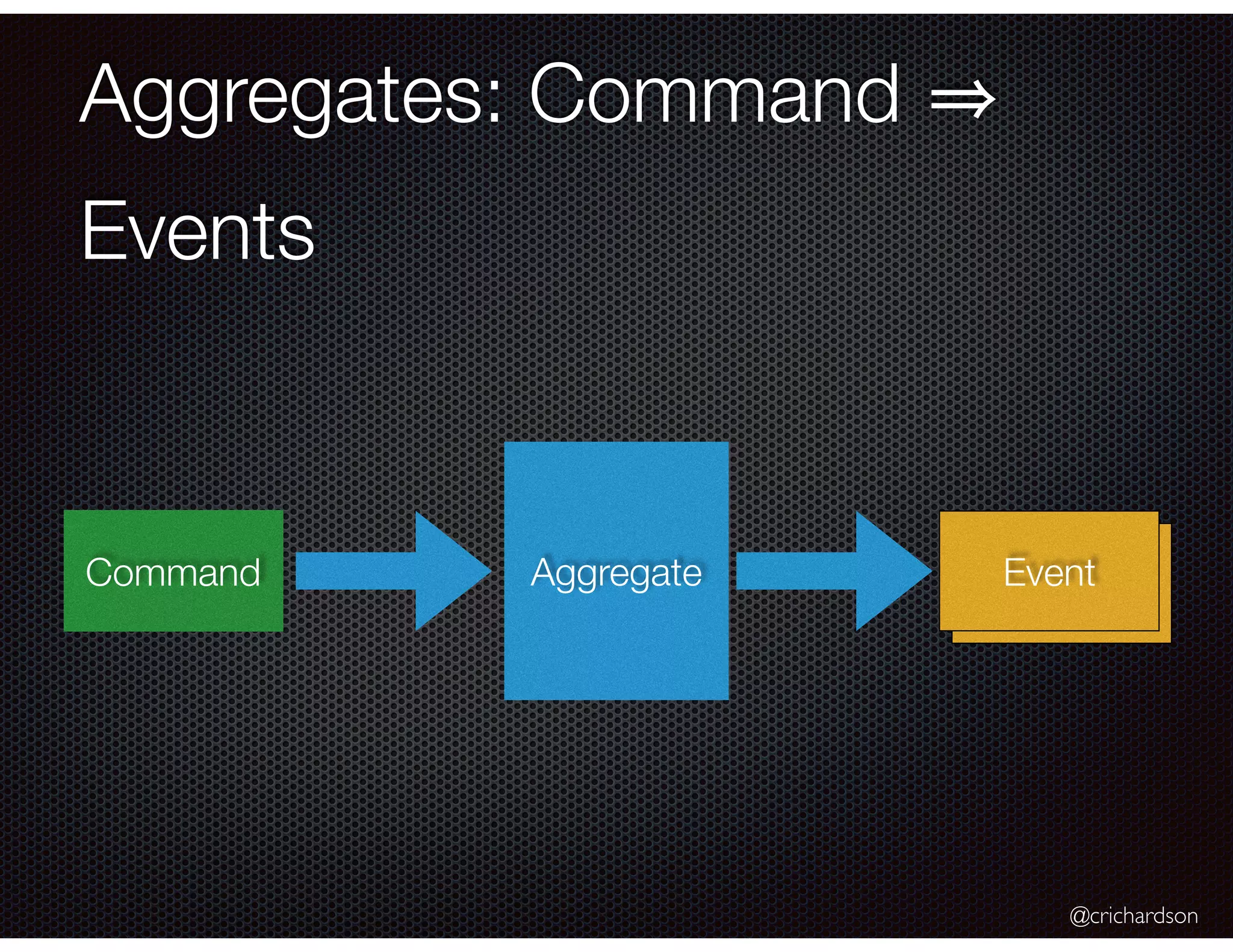

Event
Aggregates: Command
Events
AggregateCommand Event

@crichardson

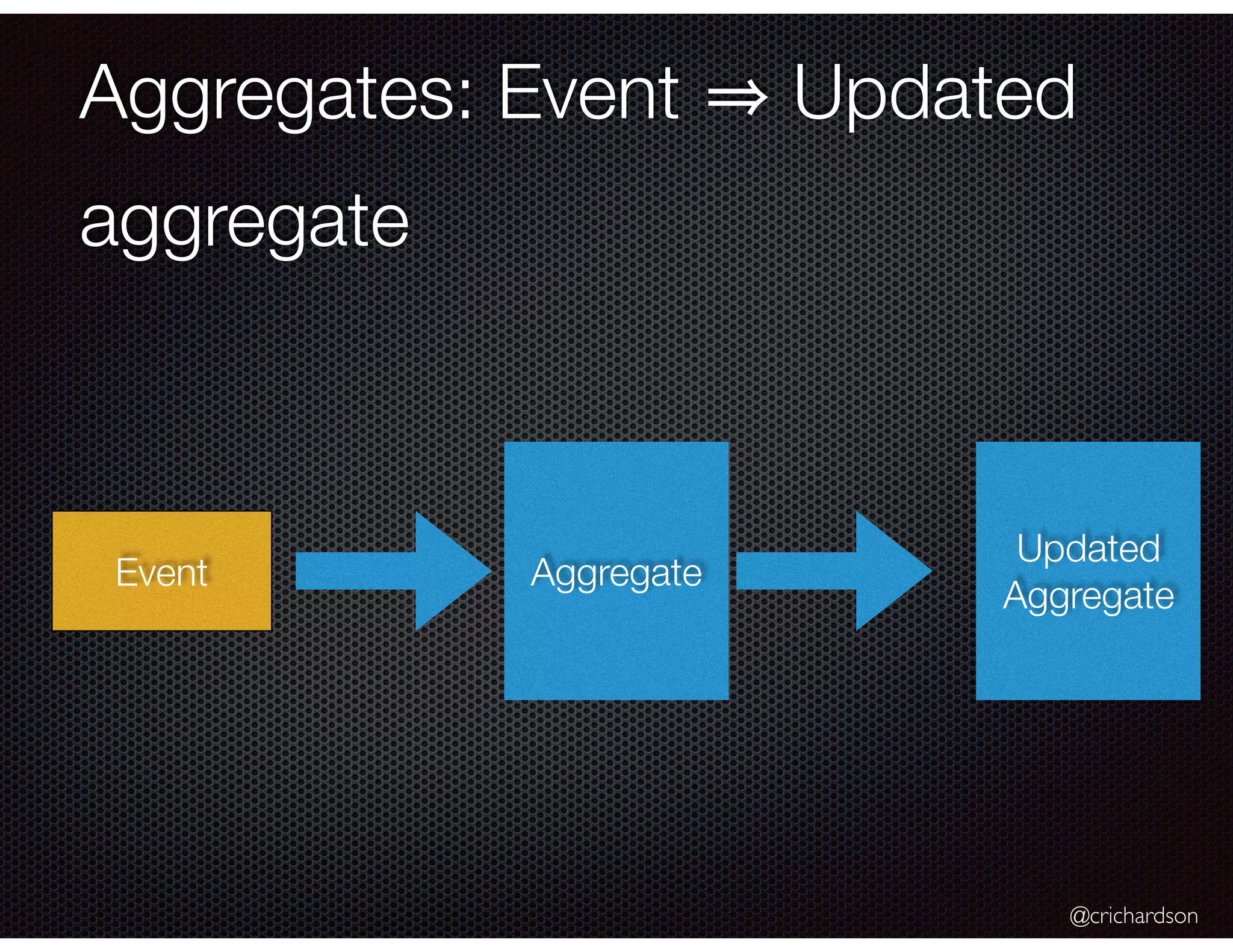

Aggregates: Event Updated
aggregate
AggregateEvent
Updated
Aggregate

@crichardson

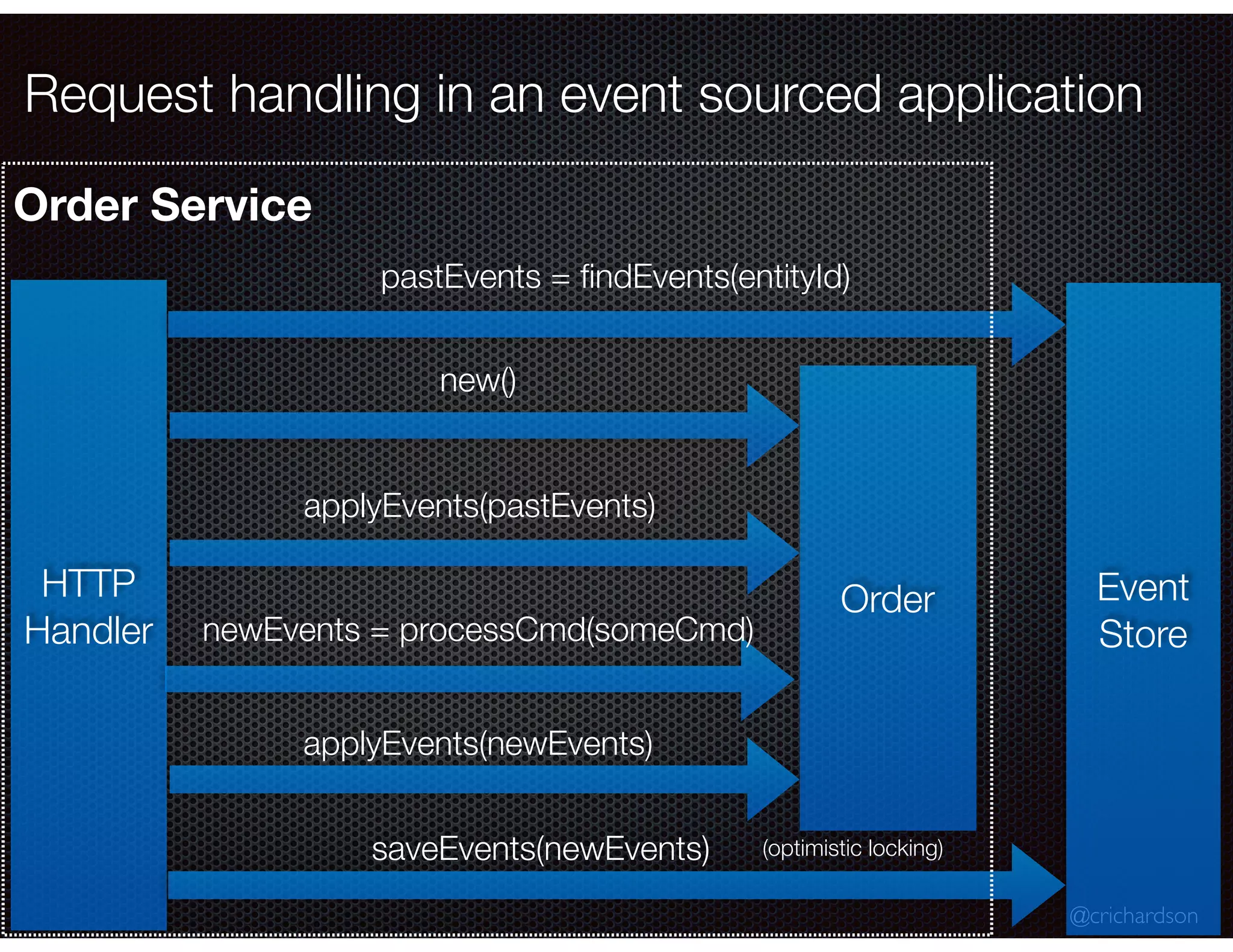

Request handling in an event sourced application
HTTP
Handler
Event
Store
pastEvents = ﬁndEvents(entityId)
Order
new()
applyEvents(pastEvents)
newEvents = processCmd(someCmd)
saveEvents(newEvents) (optimistic locking)
Order Service
applyEvents(newEvents)

@crichardson

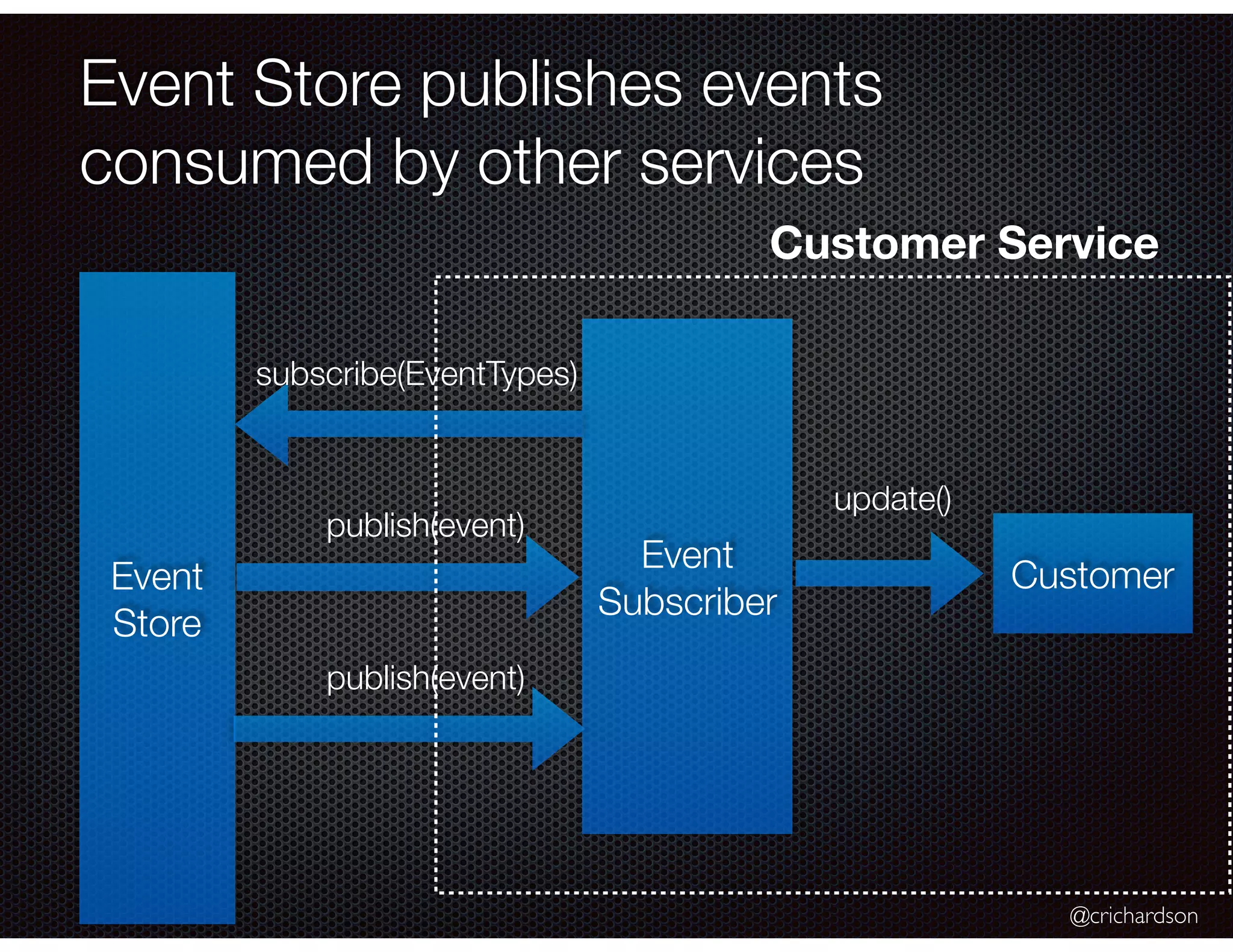

Event Store publishes events
consumed by other services
Event
Store
Event
Subscriber
subscribe(EventTypes)
publish(event)
publish(event)
Customer
update()
Customer Service

@crichardson

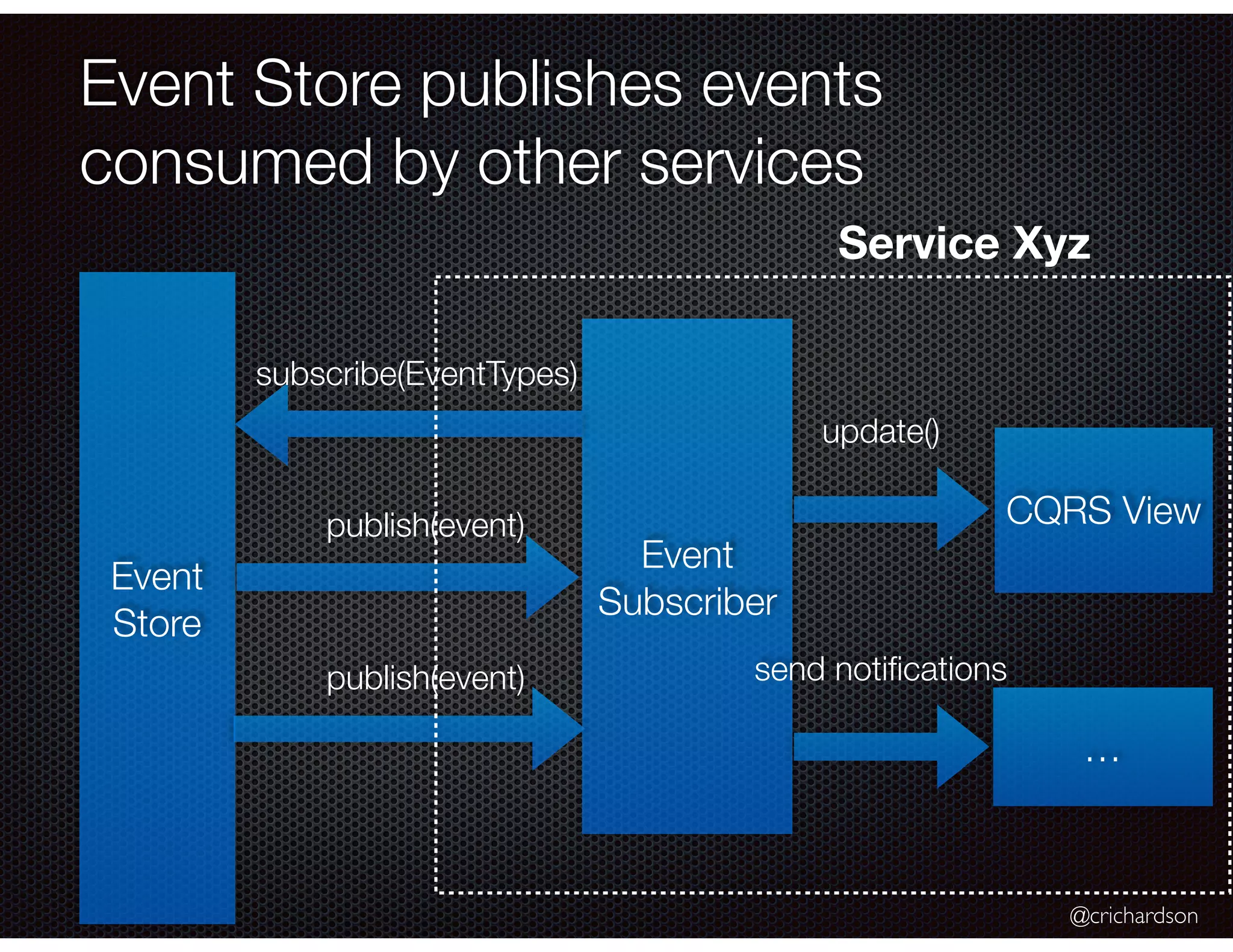

Event Store publishes events
consumed by other services
Event
Store
Event
Subscriber
subscribe(EventTypes)
publish(event)
publish(event)
CQRS View
update()
Service Xyz
send notiﬁcations
…

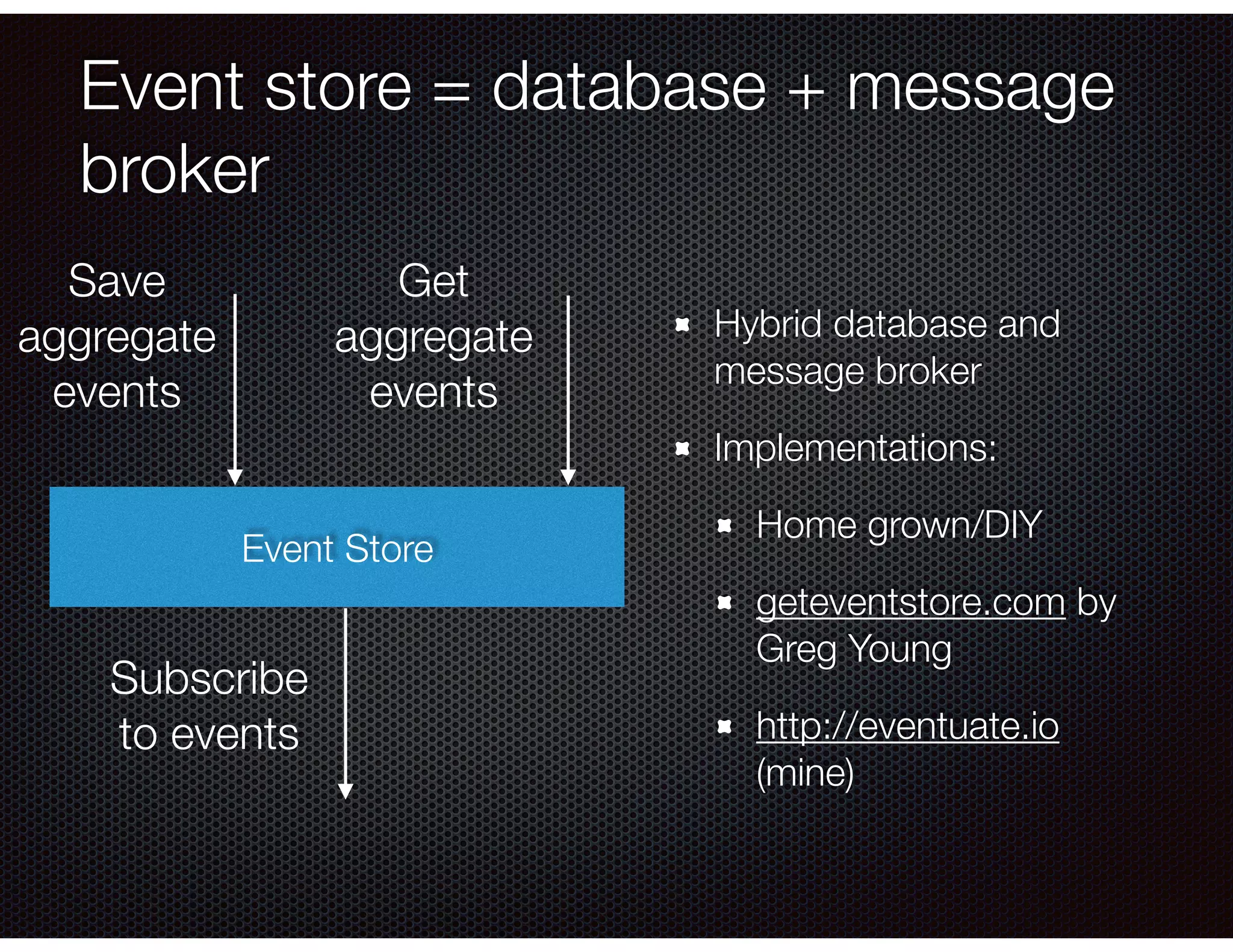

Event store = database + message
broker
Hybrid database and
message broker
Implementations:
Home grown/DIY
geteventstore.com by
Greg Young
http://eventuate.io
(mine)
Event Store
Save
aggregate
events
Get
aggregate
events
Subscribe
to events

@crichardson

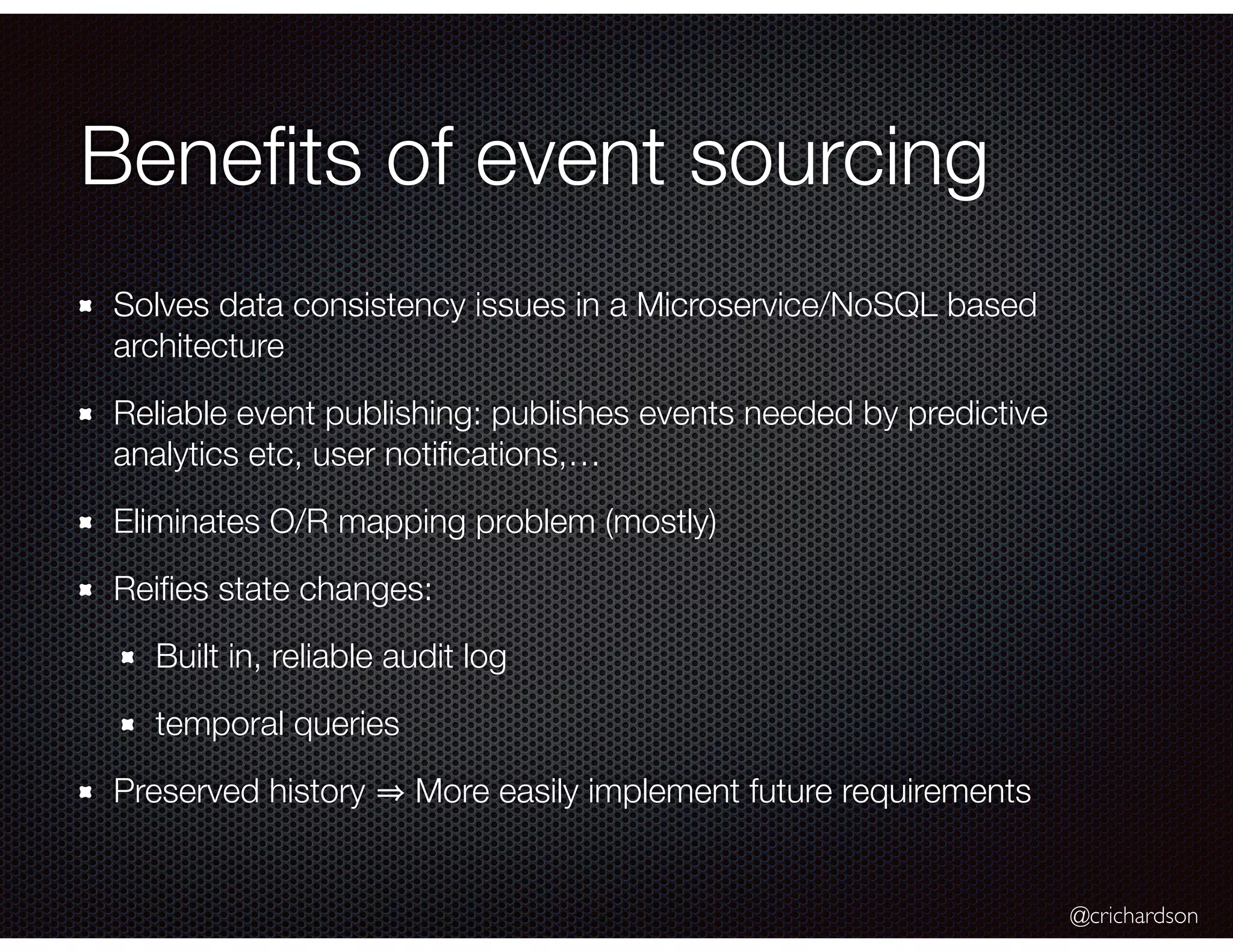

Benefits of event sourcing
Solves data consistency issues in a Microservice/NoSQL based
architecture
Reliable event publishing: publishes events needed by predictive
analytics etc, user notifications,…
Eliminates O/R mapping problem (mostly)
Reifies state changes:
Built in, reliable audit log
temporal queries
Preserved history More easily implement future requirements

@crichardson

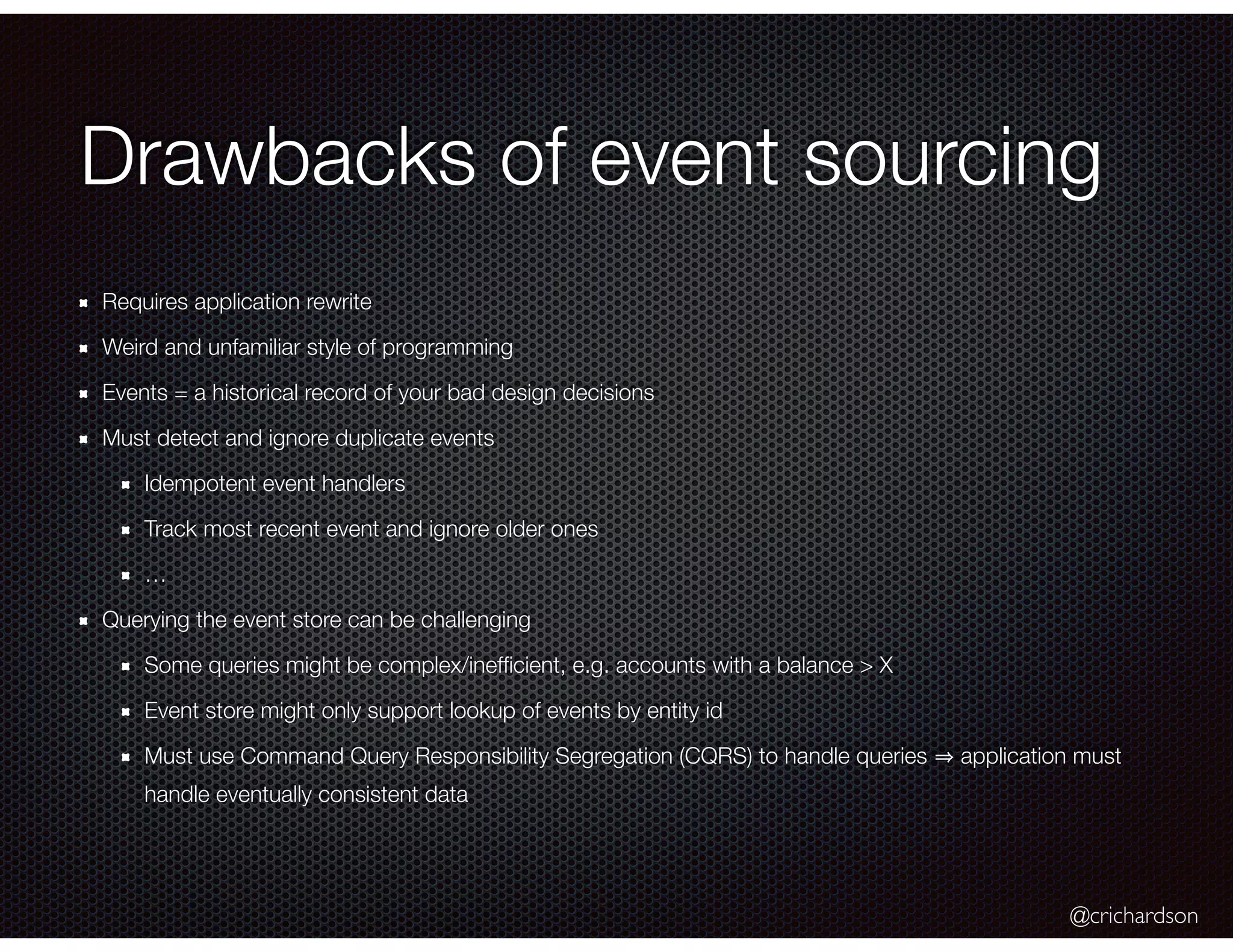

Drawbacks of event sourcing
Requires application rewrite
Weird and unfamiliar style of programming
Events = a historical record of your bad design decisions
Must detect and ignore duplicate events
Idempotent event handlers
Track most recent event and ignore older ones
…
Querying the event store can be challenging
Some queries might be complex/inefﬁcient, e.g. accounts with a balance > X
Event store might only support lookup of events by entity id
Must use Command Query Responsibility Segregation (CQRS) to handle queries application must
handle eventually consistent data

@crichardson

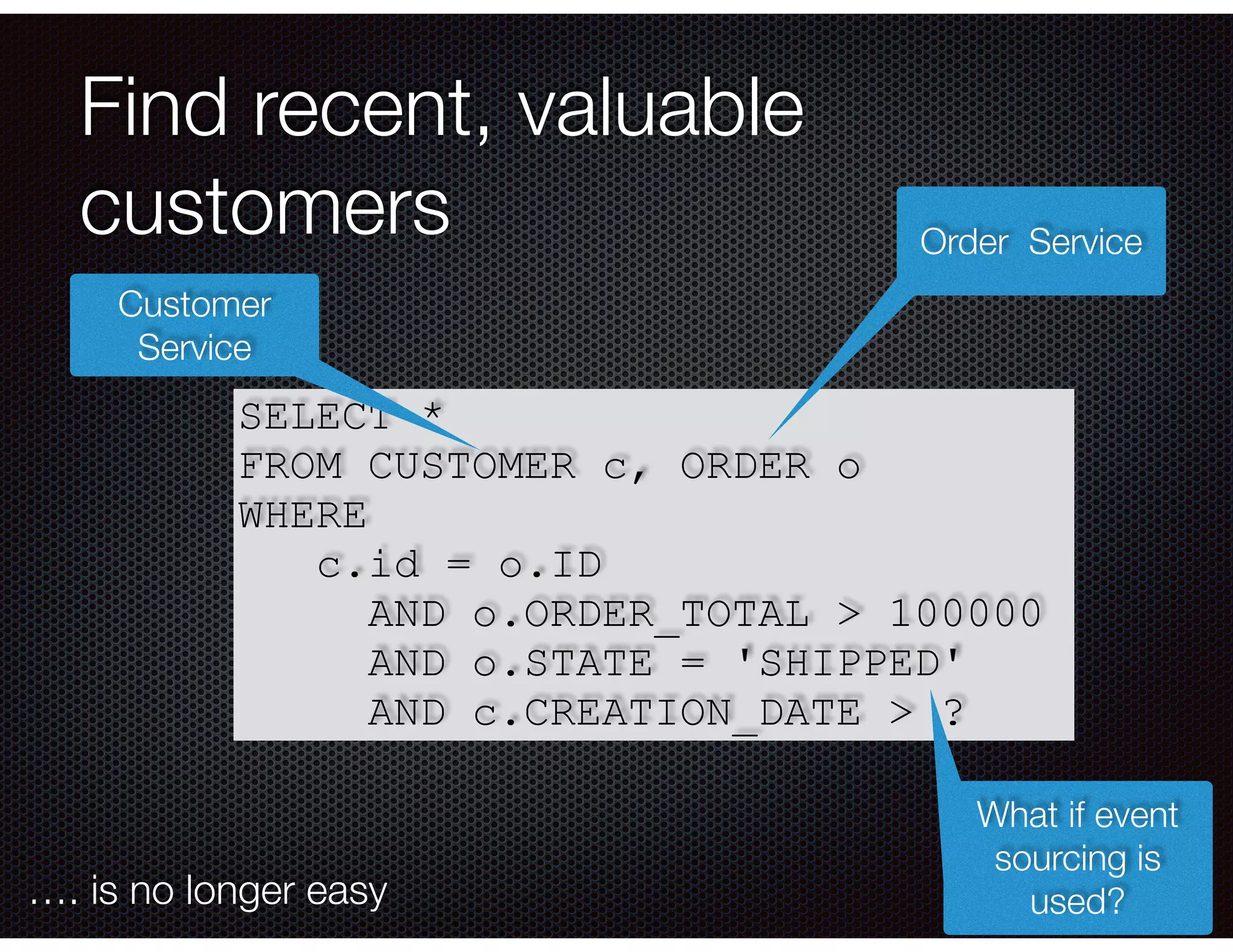

Find recent, valuable
customers
SELECT *
FROM CUSTOMER c, ORDER o
WHERE
c.id = o.ID
AND o.ORDER_TOTAL > 100000
AND o.STATE = 'SHIPPED'
AND c.CREATION_DATE > ?
Customer
Service
Order Service
What if event
sourcing is
used?…. is no longer easy

@crichardson
Use Command Query
Responsibility Segregation
(CQRS)

@crichardson

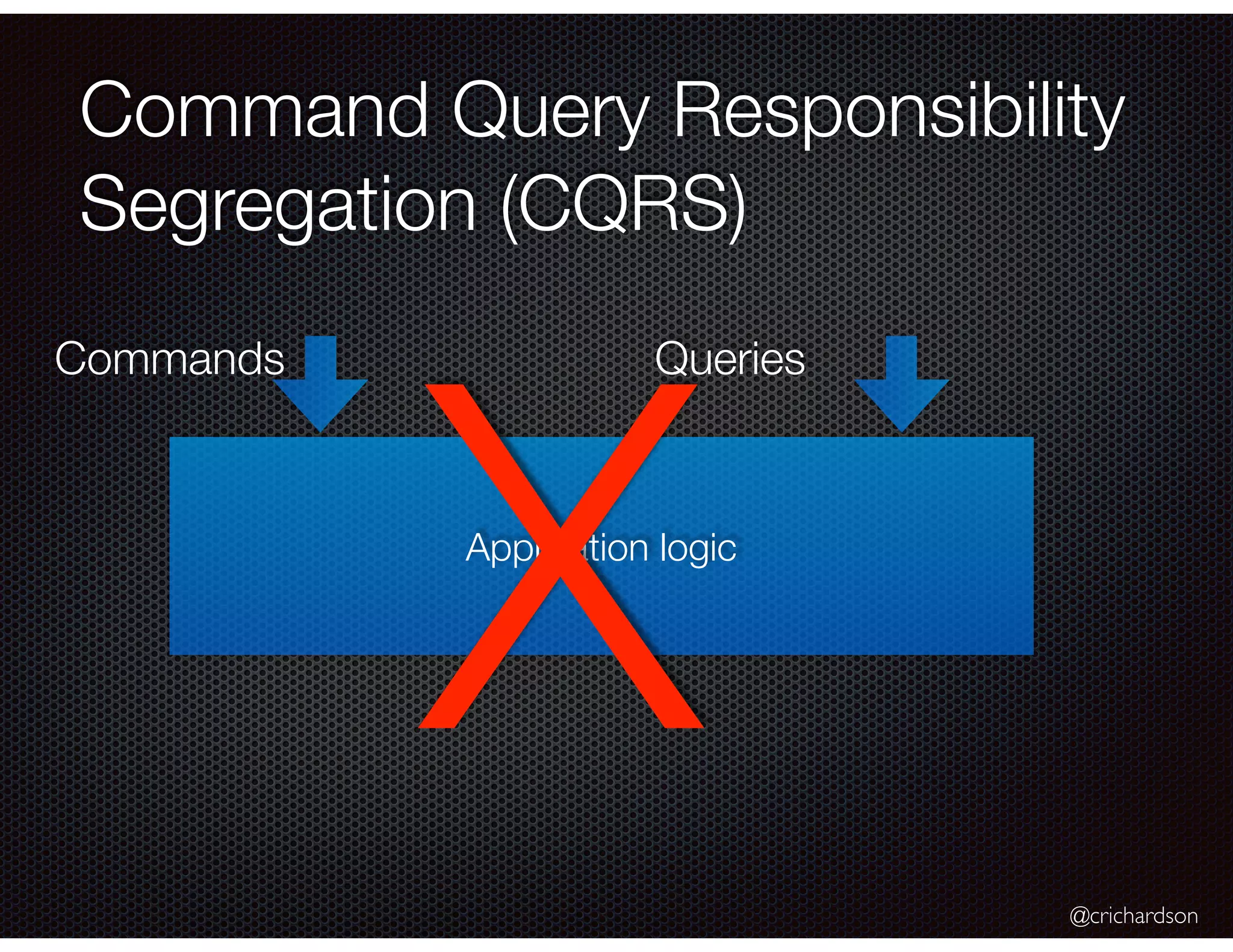

Segregation (CQRS)
Application logic
Commands Queries
X

@crichardson

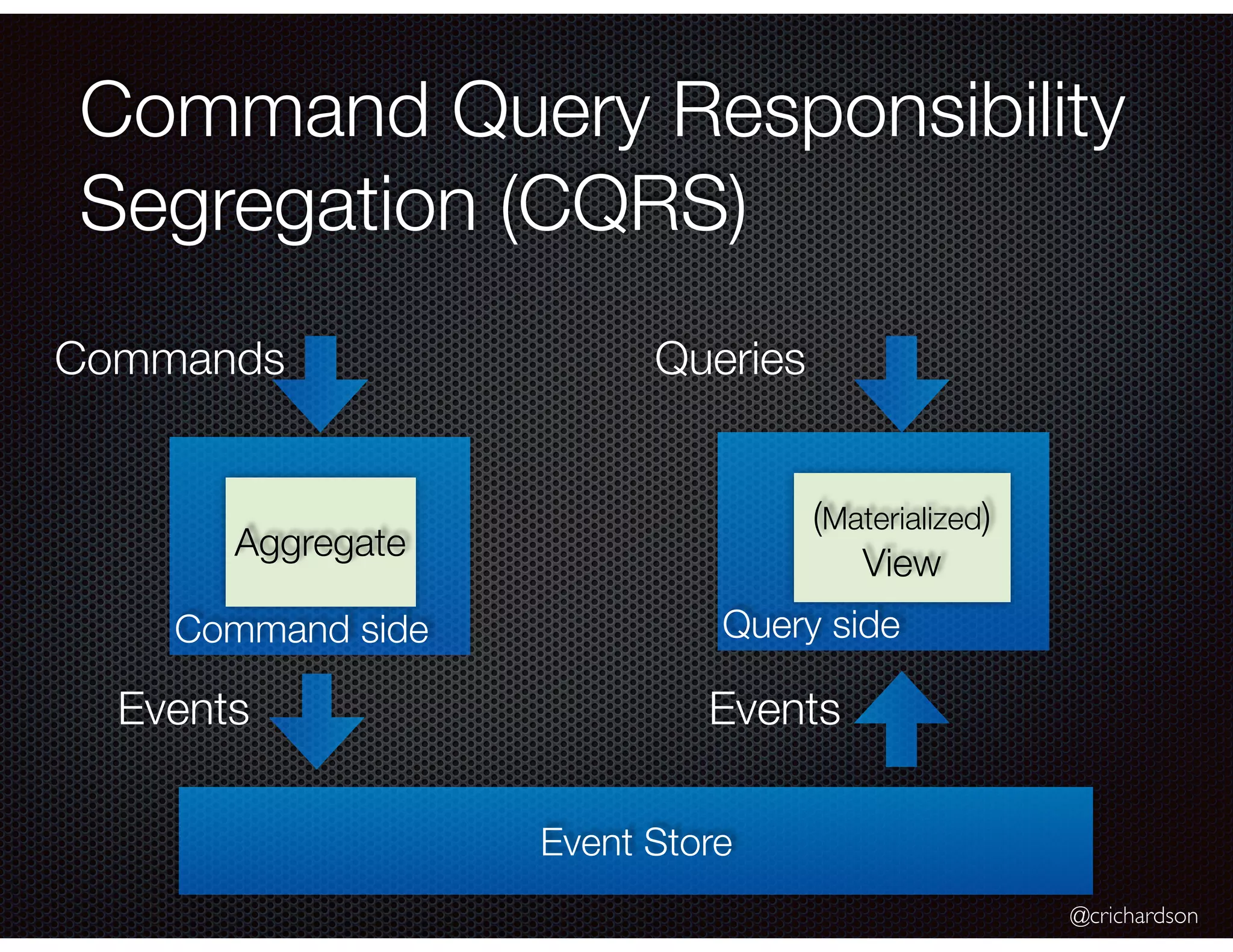

Segregation (CQRS)
Command side
Commands
Aggregate
Event Store
Events
Query side
Queries
(Materialized)
View
Events

@crichardson

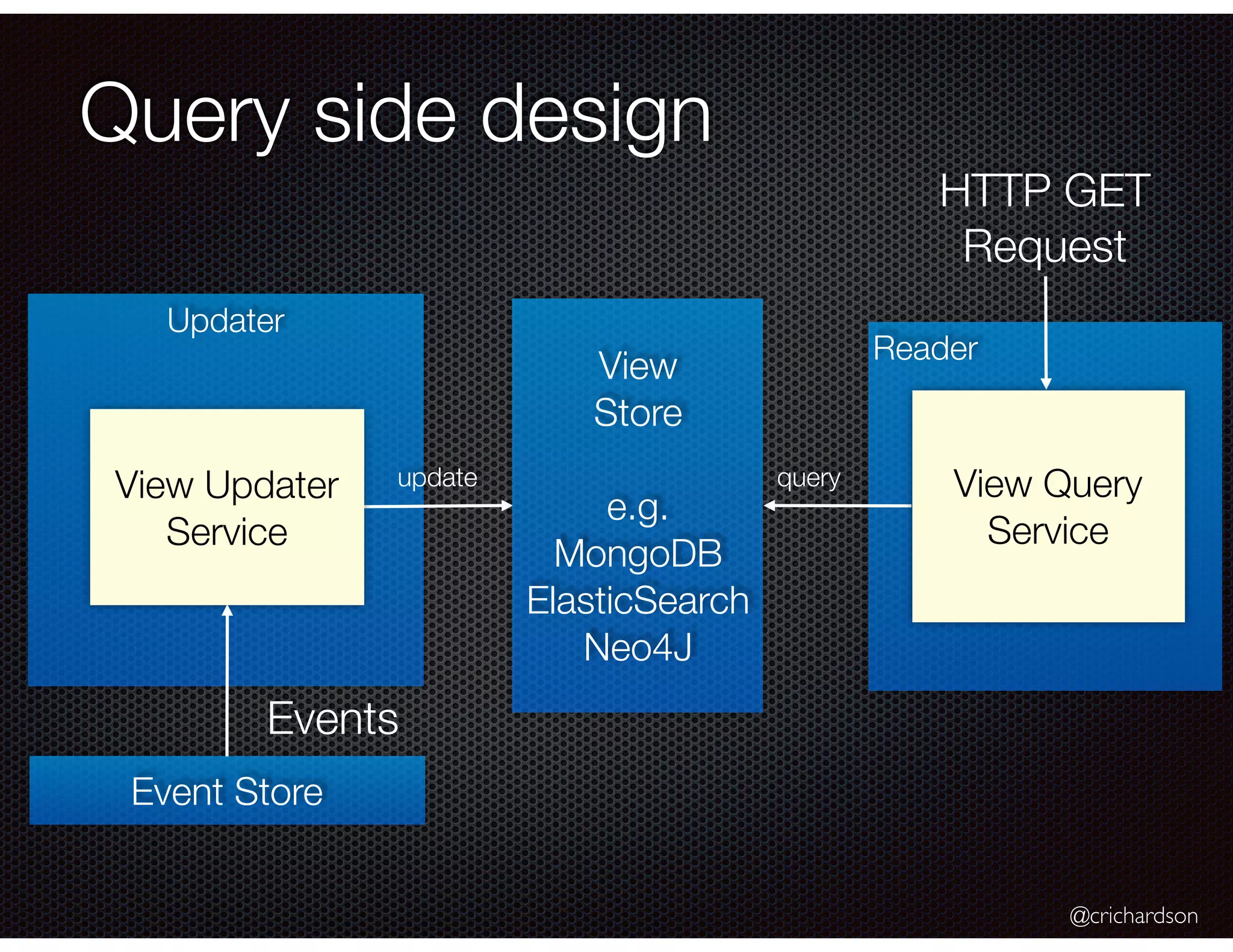

Query side design
Event Store
Updater
View Updater
Service
Events
Reader
HTTP GET
Request
View Query
Service
View
Store
e.g.
MongoDB
ElasticSearch
Neo4J
update query

@crichardson

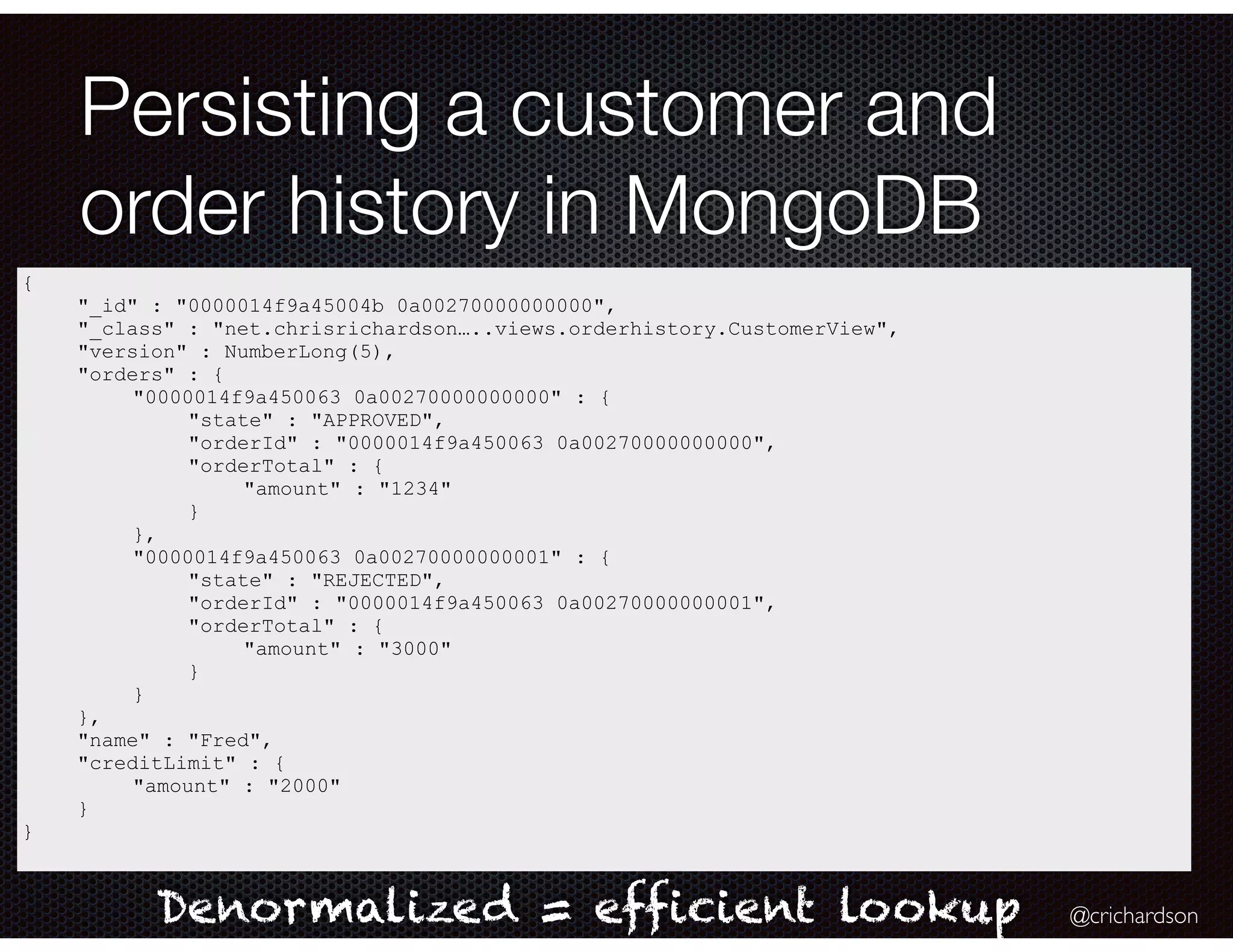

Persisting a customer and
order history in MongoDB
{
"_id" : "0000014f9a45004b 0a00270000000000",
"_class" : "net.chrisrichardson…..views.orderhistory.CustomerView",
"version" : NumberLong(5),
"orders" : {
"0000014f9a450063 0a00270000000000" : {
"state" : "APPROVED",
"orderId" : "0000014f9a450063 0a00270000000000",
"orderTotal" : {
"amount" : "1234"
}
},
"0000014f9a450063 0a00270000000001" : {
"state" : "REJECTED",
"orderId" : "0000014f9a450063 0a00270000000001",
"orderTotal" : {
"amount" : "3000"
}
}
},
"name" : "Fred",
"creditLimit" : {
"amount" : "2000"
}
}
Denormalized = efficient lookup

@crichardson

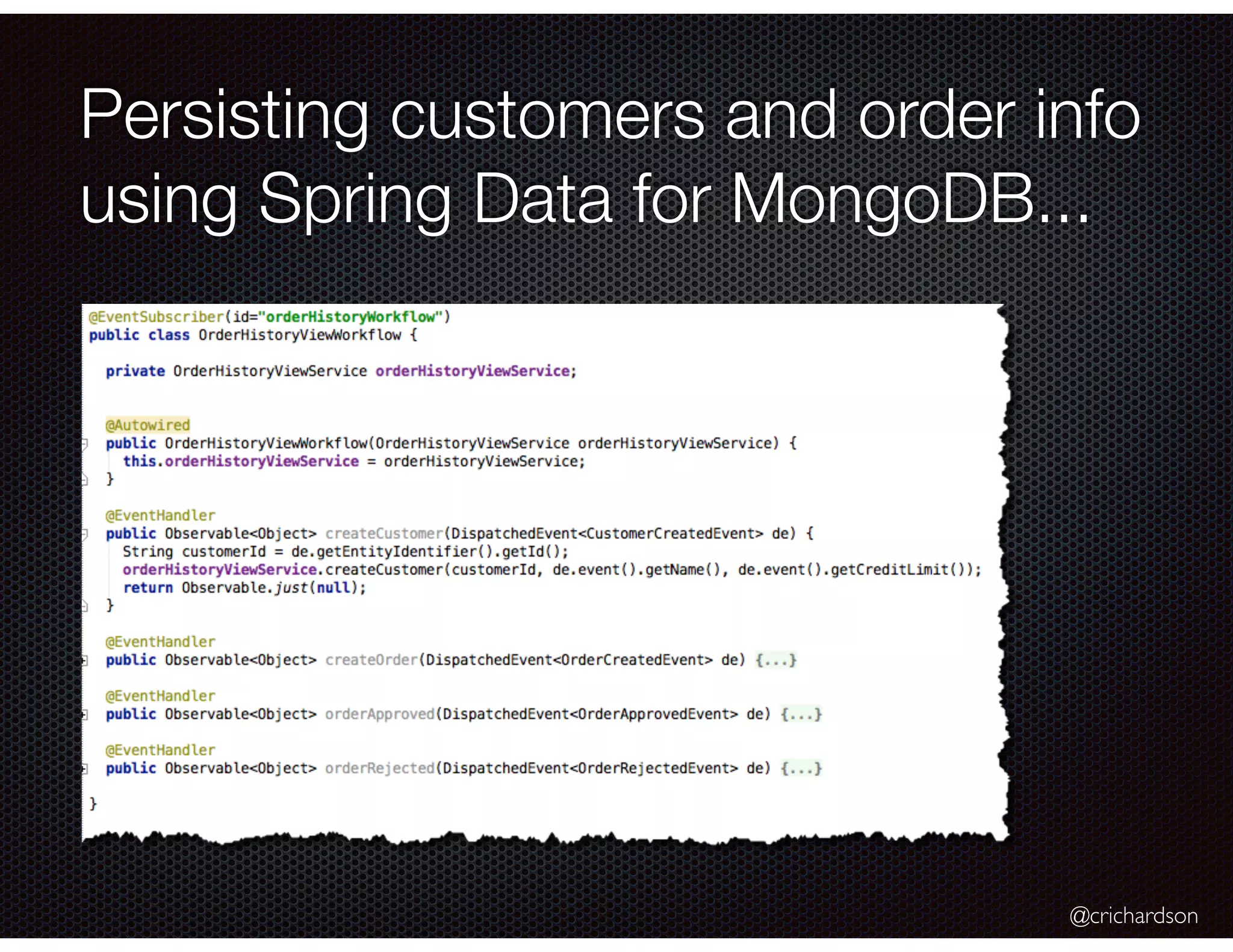

Persisting customers and order info
using Spring Data for MongoDB...

@crichardson

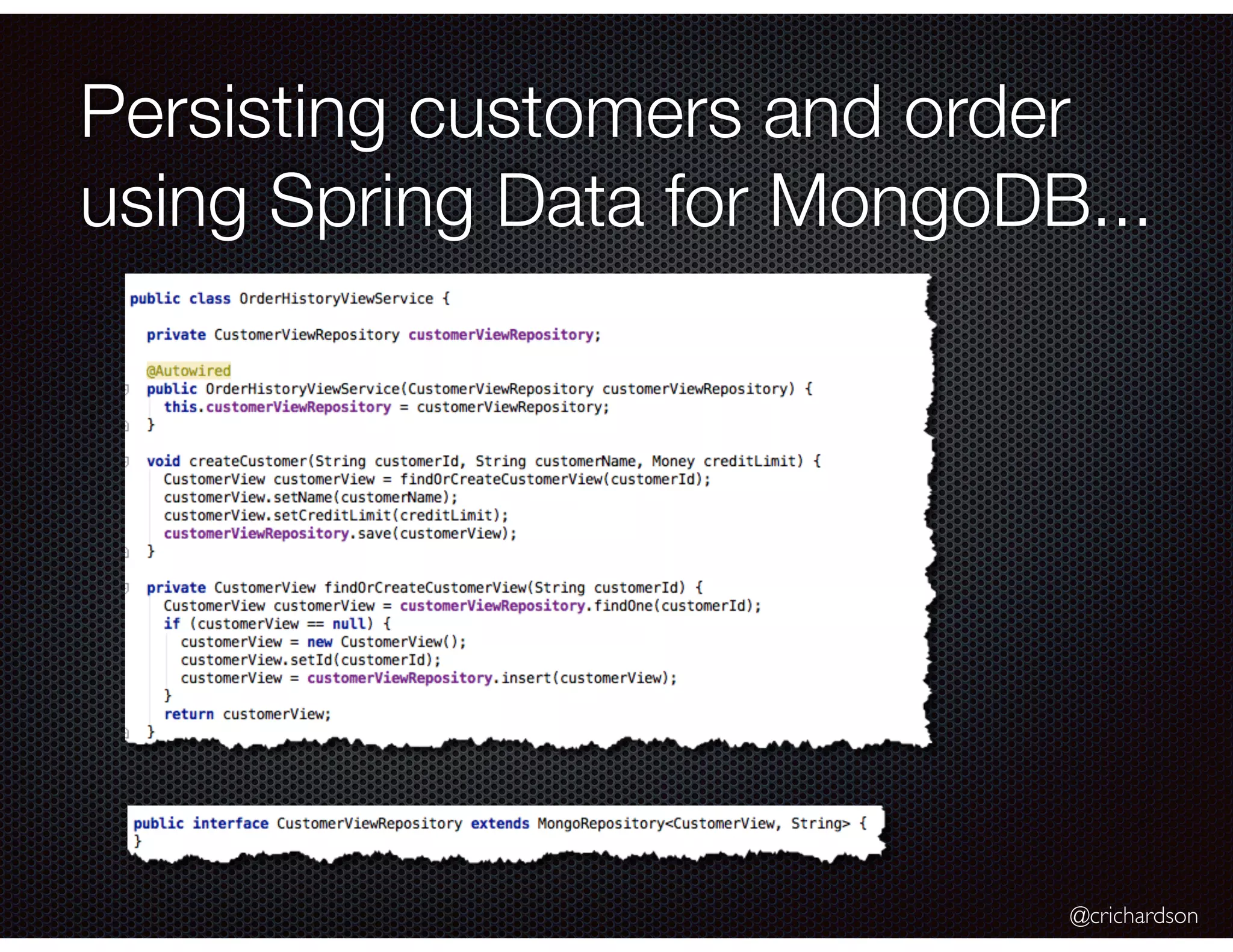

Persisting customers and order
using Spring Data for MongoDB...

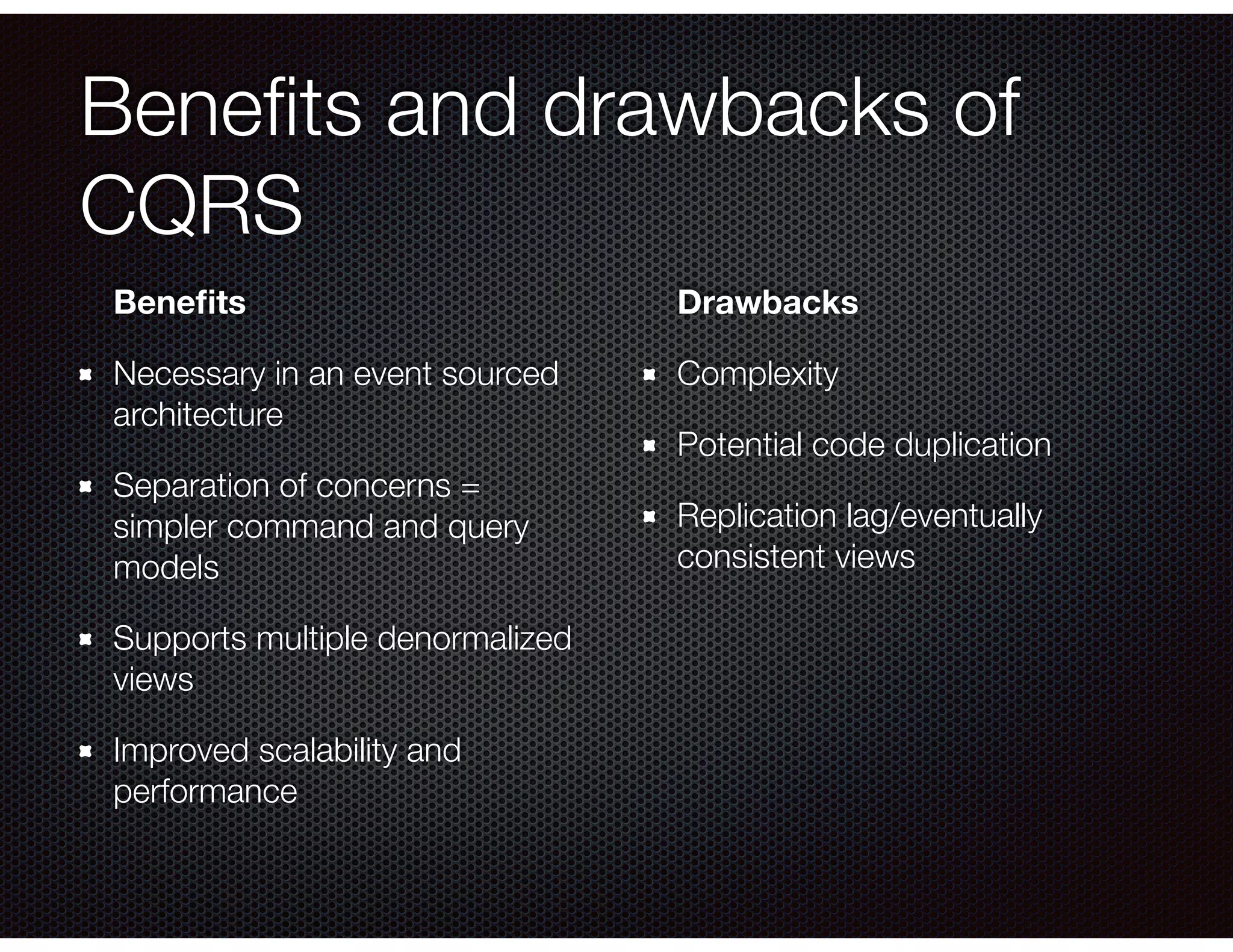

Beneﬁts and drawbacks of
CQRS
Beneﬁts
Necessary in an event sourced
architecture
Separation of concerns =
simpler command and query
models
Supports multiple denormalized
views
Improved scalability and
performance
Drawbacks
Complexity
Potential code duplication
Replication lag/eventually
consistent views

@crichardson

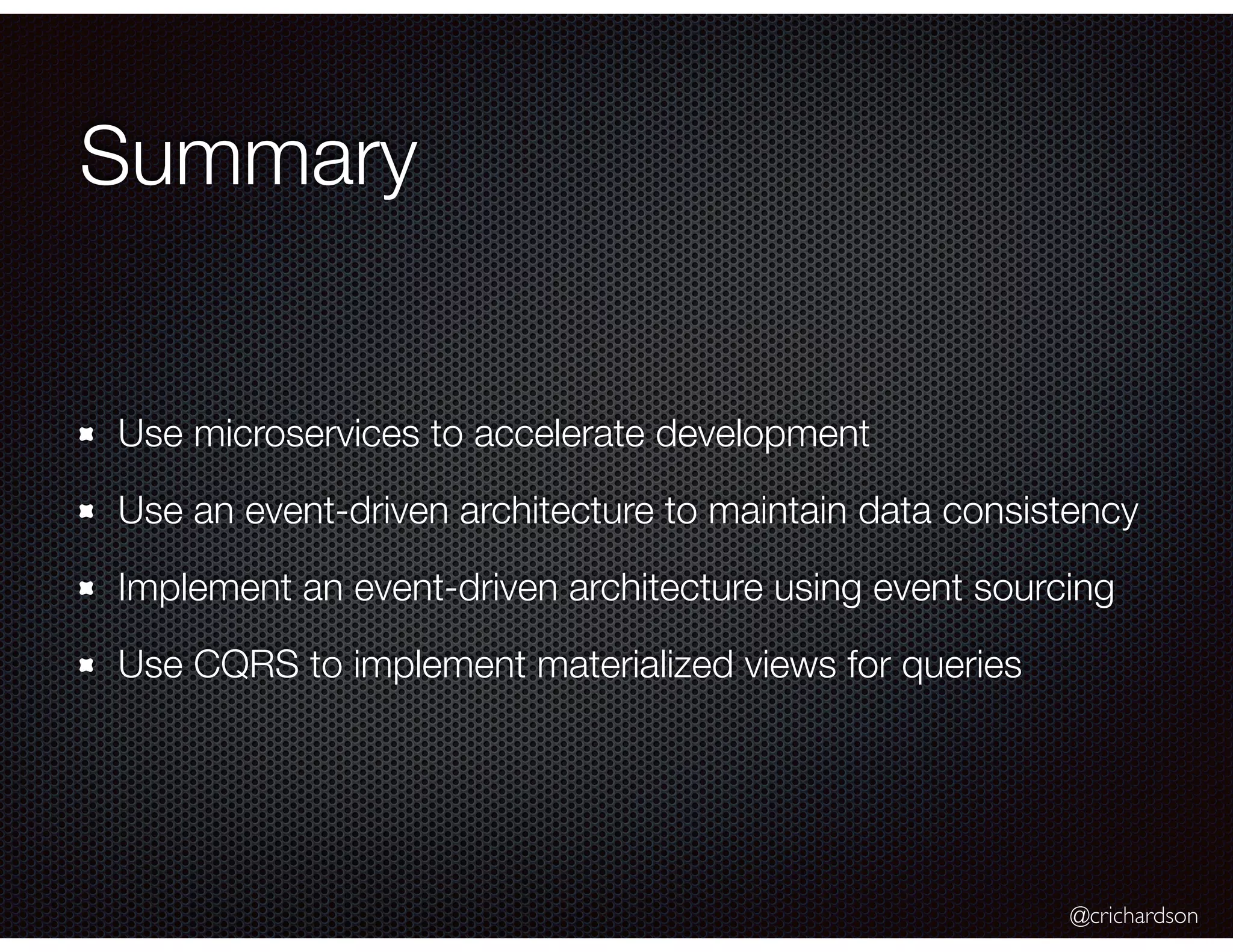

Summary
Use microservices to accelerate development
Use an event-driven architecture to maintain data consistency
Implement an event-driven architecture using event sourcing
Use CQRS to implement materialized views for queries

@crichardson
@crichardson chris@chrisrichardson.net
http://learnmicroservices.io
Questions?
