The document summarizes a case study of a shopping mall located in Hyderabad, India. The 3.12 acre mall was designed by architect Mohammed Aslam. Some key features include a framework construction using RCC and steel beams, landscaped areas to create a green environment, and a front facade designed with Egyptian pylon influences using glass pyramids on top. Circulation was planned to minimize travel distances and ease movement throughout the open plan interior spaces.

1. DESTOP CASE
STUDY
City center mall banjara hills , Hyderabad

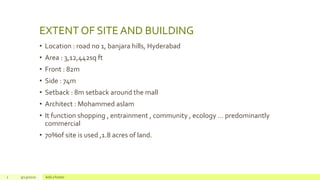

2. EXTENT OF SITE AND BUILDING
• Location : road no 1, banjara hills, Hyderabad
• Area : 3,12,442sq ft
• Front : 82m
• Side : 74m
• Setback : 8m setback around the mall
• Architect : Mohammed aslam
• It function shopping , entrainment , community , ecology … predominantly
commercial
• 70%of site is used ,1.8 acres of land.
2 9/23/2020 Add a footer

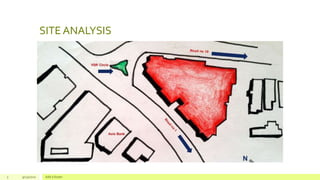

3. SITE ANALYSIS
3 9/23/2020 Add a footer

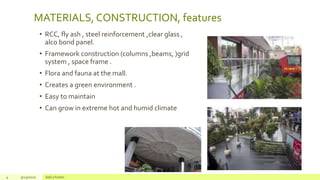

4. MATERIALS, CONSTRUCTION, features
• RCC, fly ash , steel reinforcement ,clear glass ,
alco bond panel.
• Framework construction (columns ,beams, )grid
system , space frame .
• Flora and fauna at the mall.
• Creates a green environment .
• Easy to maintain
• Can grow in extreme hot and humid climate
4 9/23/2020 Add a footer

5. Concept and design ideas
• Egyptian pylons and pyramids : the architect used pylons as concept to design
the front façade of the building and used glass pyramids as the dome on top
of the building .
5 9/23/2020 Add a footer

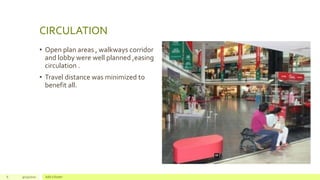

6. CIRCULATION
• Open plan areas , walkways corridor
and lobby were well planned ,easing
circulation .
• Travel distance was minimized to
benefit all.
6 9/23/2020 Add a footer

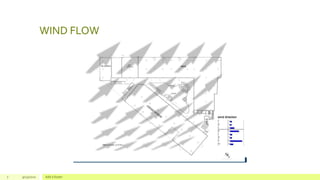

7. WIND FLOW
7 9/23/2020 Add a footer

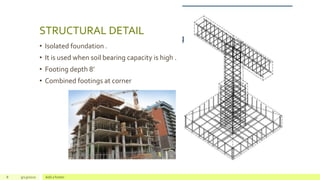

8. STRUCTURAL DETAIL
• Isolated foundation .
• It is used when soil bearing capacity is high .
• Footing depth 8’
• Combined footings at corner
8 9/23/2020 Add a footer

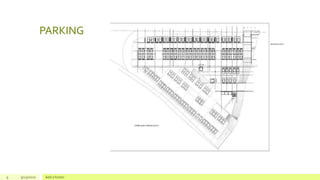

9. PARKING
9 9/23/2020 Add a footer

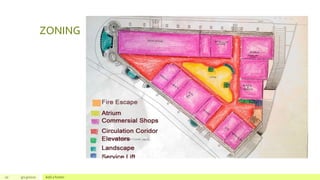

10. ZONING
10 9/23/2020 Add a footer

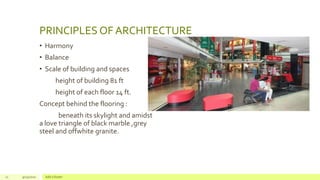

11. PRINCIPLES OF ARCHITECTURE
• Harmony
• Balance
• Scale of building and spaces
height of building 81 ft
height of each floor 14 ft.
Concept behind the flooring :
beneath its skylight and amidst
a love triangle of black marble ,grey
steel and offwhite granite.
11 9/23/2020 Add a footer
