1. Abstract Factory Pattern
From Definition to Implementation
17-Dec-14 Mudasir Qazi - mudasirqazi00@gmail.com 1

2. Contents / Agenda
• Definition
• Advantages and Usage
• Implementation diagram
• Implementation steps 1 to 5
• Test and results
• Difference between Factory and Abstract Factory Patterns.
17-Dec-14 Mudasir Qazi - mudasirqazi00@gmail.com 2

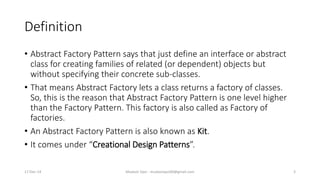

3. Definition
• Abstract Factory Pattern says that just define an interface or abstract
class for creating families of related (or dependent) objects but
without specifying their concrete sub-classes.
• That means Abstract Factory lets a class returns a factory of classes.
So, this is the reason that Abstract Factory Pattern is one level higher
than the Factory Pattern. This factory is also called as Factory of
factories.
• An Abstract Factory Pattern is also known as Kit.
• It comes under “Creational Design Patterns”.
17-Dec-14 Mudasir Qazi - mudasirqazi00@gmail.com 3

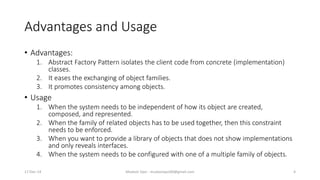

4. Advantages and Usage
• Advantages:
1. Abstract Factory Pattern isolates the client code from concrete (implementation)
classes.
2. It eases the exchanging of object families.
3. It promotes consistency among objects.
• Usage
1. When the system needs to be independent of how its object are created,
composed, and represented.
2. When the family of related objects has to be used together, then this constraint
needs to be enforced.
3. When you want to provide a library of objects that does not show implementations
and only reveals interfaces.
4. When the system needs to be configured with one of a multiple family of objects.
17-Dec-14 Mudasir Qazi - mudasirqazi00@gmail.com 4

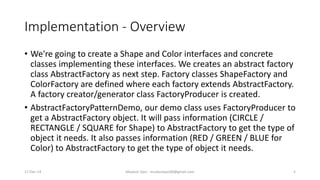

5. Implementation - Overview
• We're going to create a Shape and Color interfaces and concrete
classes implementing these interfaces. We creates an abstract factory
class AbstractFactory as next step. Factory classes ShapeFactory and
ColorFactory are defined where each factory extends AbstractFactory.
A factory creator/generator class FactoryProducer is created.
• AbstractFactoryPatternDemo, our demo class uses FactoryProducer to
get a AbstractFactory object. It will pass information (CIRCLE /
RECTANGLE / SQUARE for Shape) to AbstractFactory to get the type of
object it needs. It also passes information (RED / GREEN / BLUE for
Color) to AbstractFactory to get the type of object it needs.
17-Dec-14 Mudasir Qazi - mudasirqazi00@gmail.com 5

6. Class Diagram
17-Dec-14 Mudasir Qazi - mudasirqazi00@gmail.com 6

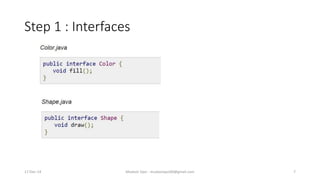

7. Step 1 : Interfaces
17-Dec-14 Mudasir Qazi - mudasirqazi00@gmail.com 7

8. Step 2 : Concrete classes
17-Dec-14 Mudasir Qazi - mudasirqazi00@gmail.com 8

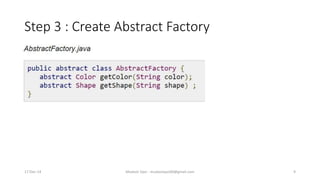

9. Step 3 : Create Abstract Factory
17-Dec-14 Mudasir Qazi - mudasirqazi00@gmail.com 9

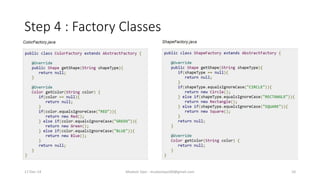

10. Step 4 : Factory Classes
17-Dec-14 Mudasir Qazi - mudasirqazi00@gmail.com 10

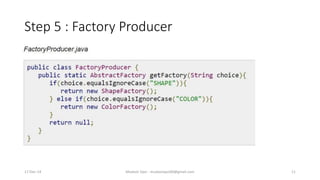

11. Step 5 : Factory Producer
17-Dec-14 Mudasir Qazi - mudasirqazi00@gmail.com 11

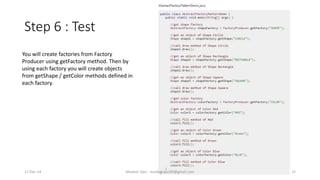

12. Step 6 : Test
You will create factories from Factory
Producer using getFactory method. Then by
using each factory you will create objects
from getShape / getColor methods defined in
each factory.
17-Dec-14 Mudasir Qazi - mudasirqazi00@gmail.com 12

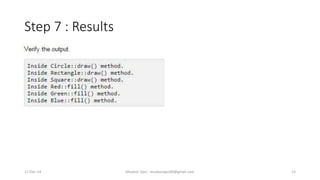

13. Step 7 : Results
17-Dec-14 Mudasir Qazi - mudasirqazi00@gmail.com 13

14. Factory Method vs Abstract Factory
• The methods of an Abstract Factory are implemented as Factory Methods.
Both the Abstract Factory Pattern and the Factory Method Pattern
decouples the client system from the actual implementation classes through
the abstract types and factories. The Factory Method creates objects
through inheritance where the Abstract Factory creates objects through
composition.
• With the Factory pattern, you produce implementations (Apple, Banana,
Cherry, etc.) of a particular interface -- say, IFruit. With the Abstract Factory
pattern, you produce implementations of a particular Factory interface --
say, IFruitFactory. Each of those knows how to create different kinds of fruit.
• Factory method: You have a factory that creates objects that derive from a
particular base class.
Abstract factory: You have a factory that creates other factories, and these
factories in turn create objects derived from base classes. You do this
because you often don't just want to create a single object (as with Factory
method) - rather, you want to create a collection of related objects.
17-Dec-14 Mudasir Qazi - mudasirqazi00@gmail.com 14

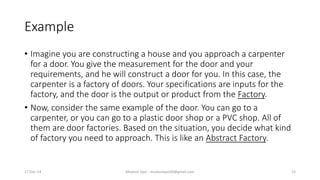

15. Example
• Imagine you are constructing a house and you approach a carpenter
for a door. You give the measurement for the door and your
requirements, and he will construct a door for you. In this case, the
carpenter is a factory of doors. Your specifications are inputs for the
factory, and the door is the output or product from the Factory.
• Now, consider the same example of the door. You can go to a
carpenter, or you can go to a plastic door shop or a PVC shop. All of
them are door factories. Based on the situation, you decide what kind
of factory you need to approach. This is like an Abstract Factory.
17-Dec-14 Mudasir Qazi - mudasirqazi00@gmail.com 15
