1. Abstract Factory
Manohar Thummala
Bharat Khatri
Govind Chintapalli
Mohana Sai Cherukuri

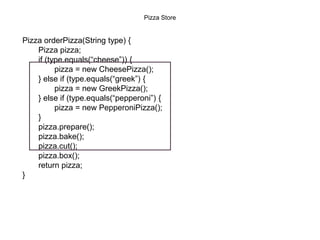

2. Pizza Store

3. Pizza orderPizza(String type) {
Pizza pizza;
if (type.equals(“cheese”)) {
pizza = new CheesePizza();
} else if (type.equals(“greek”) {
pizza = new GreekPizza();
} else if (type.equals(“pepperoni”) {
pizza = new PepperoniPizza();
}
pizza.prepare();
pizza.bake();
pizza.cut();
pizza.box();
return pizza;
}
Pizza Store

4. Problem ?
The problem starts with objects' creation
(new in Java).

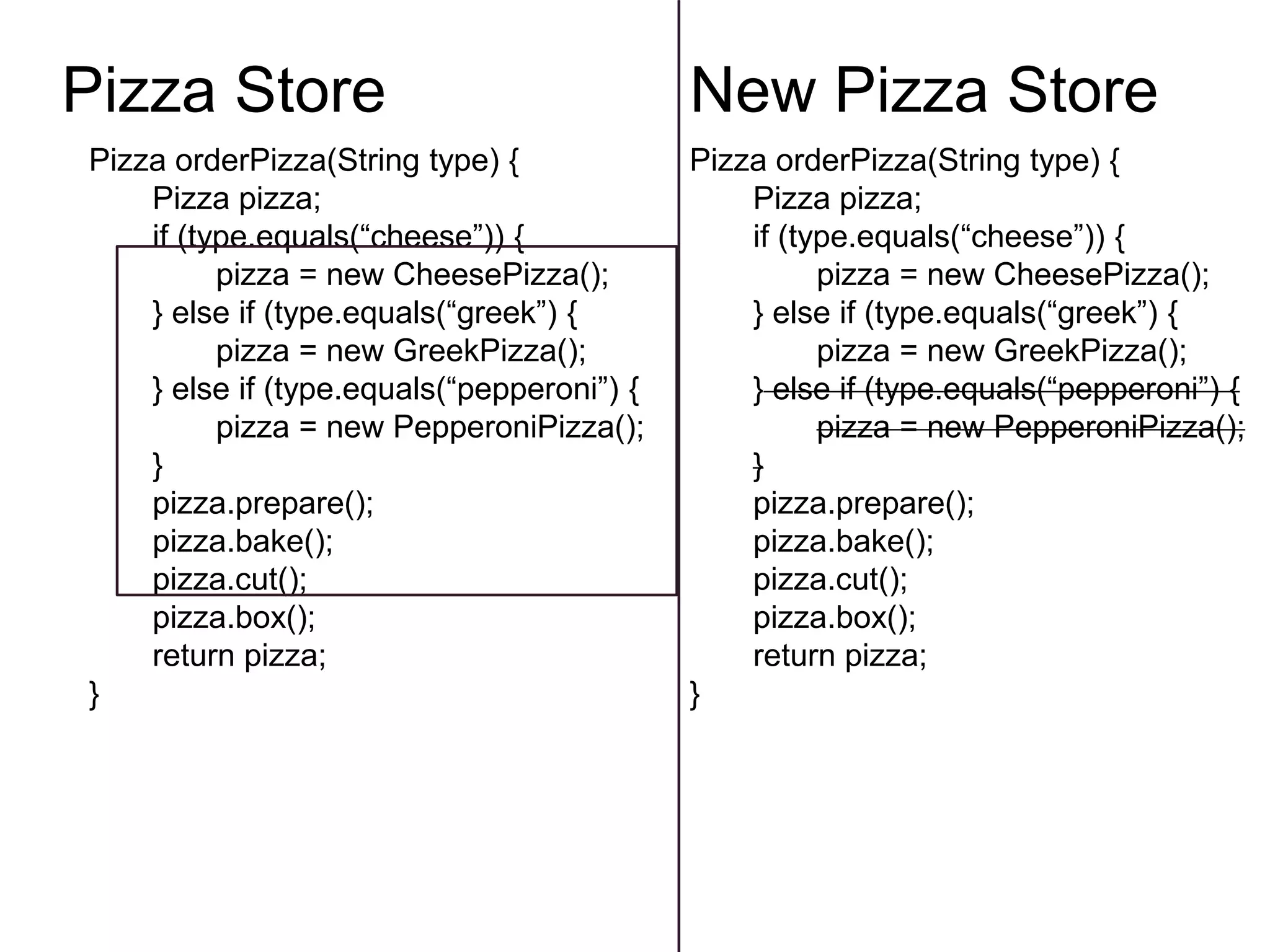

5. Pizza orderPizza(String type) {
Pizza pizza;
if (type.equals(“cheese”)) {
pizza = new CheesePizza();
} else if (type.equals(“greek”) {
pizza = new GreekPizza();
} else if (type.equals(“pepperoni”) {
pizza = new PepperoniPizza();
}
pizza.prepare();
pizza.bake();
pizza.cut();
pizza.box();
return pizza;
}
New Pizza Store
Pizza orderPizza(String type) {
Pizza pizza;
if (type.equals(“cheese”)) {
pizza = new CheesePizza();
} else if (type.equals(“greek”) {
pizza = new GreekPizza();
} else if (type.equals(“pepperoni”) {
pizza = new PepperoniPizza();
}
pizza.prepare();
pizza.bake();
pizza.cut();
pizza.box();
return pizza;
}
Pizza Store

6. Solution
Encapsulate the change into a class which
creates objects.
Product - Objects (that need to be
instantiated)
Factory - The class that encapsulates the
creation of products.
Client - The class that performs actions on the
products.

7. Pizza orderPizza(String type) {
Pizza pizza;
pizza = new SimplePizzafactory
.createPizza(type);
pizza.prepare();
pizza.bake();
pizza.cut();
pizza.box();
return pizza;
}
public class SimplePizzaFactory {
public Pizza createPizza(String type) {
Pizza pizza = null;
if (type.equals(“cheese”)) {
pizza = new CheesePizza();
}
else if(type.equals(“pepperoni”)) {
pizza = new PepperoniPizza();
} else if (type.equals(“clam”)) {
pizza = new ClamPizza();
} else if (type.equals(“veggie”)) {
pizza = new VeggiePizza();
}
return pizza;
}
}

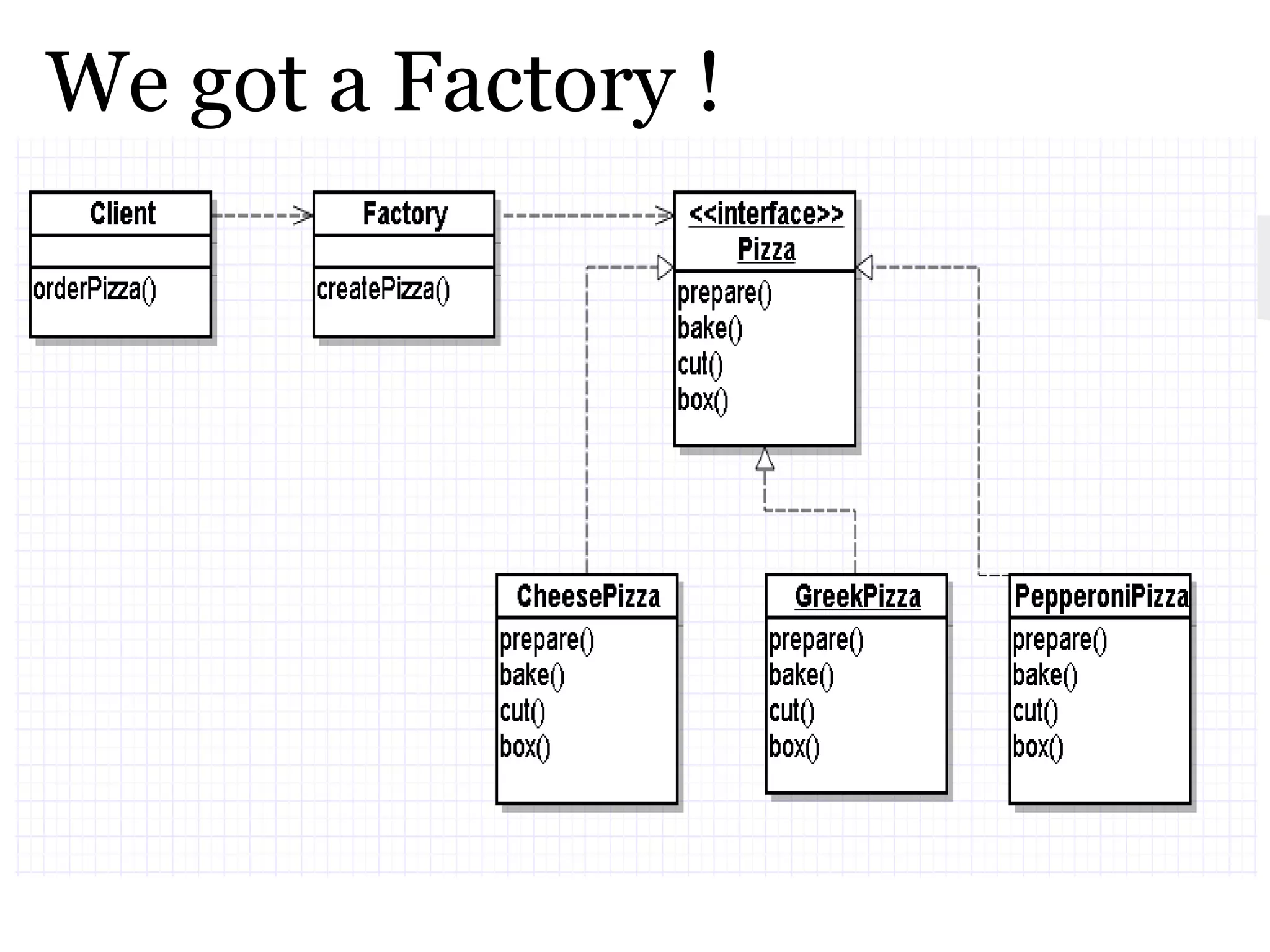

8. We got a Factory !

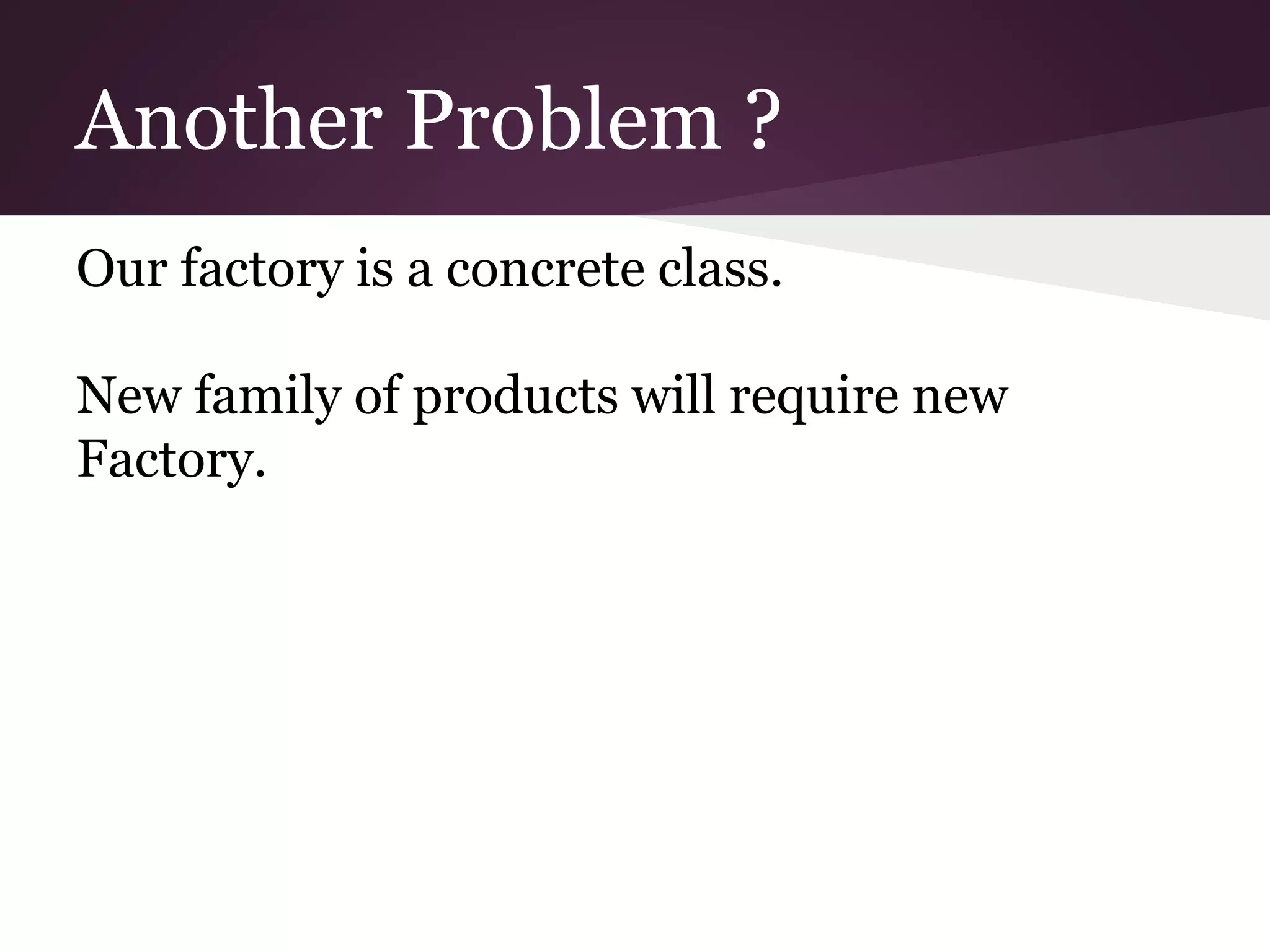

9. Another Problem ?
Our factory is a concrete class.
New family of products will require new
Factory.

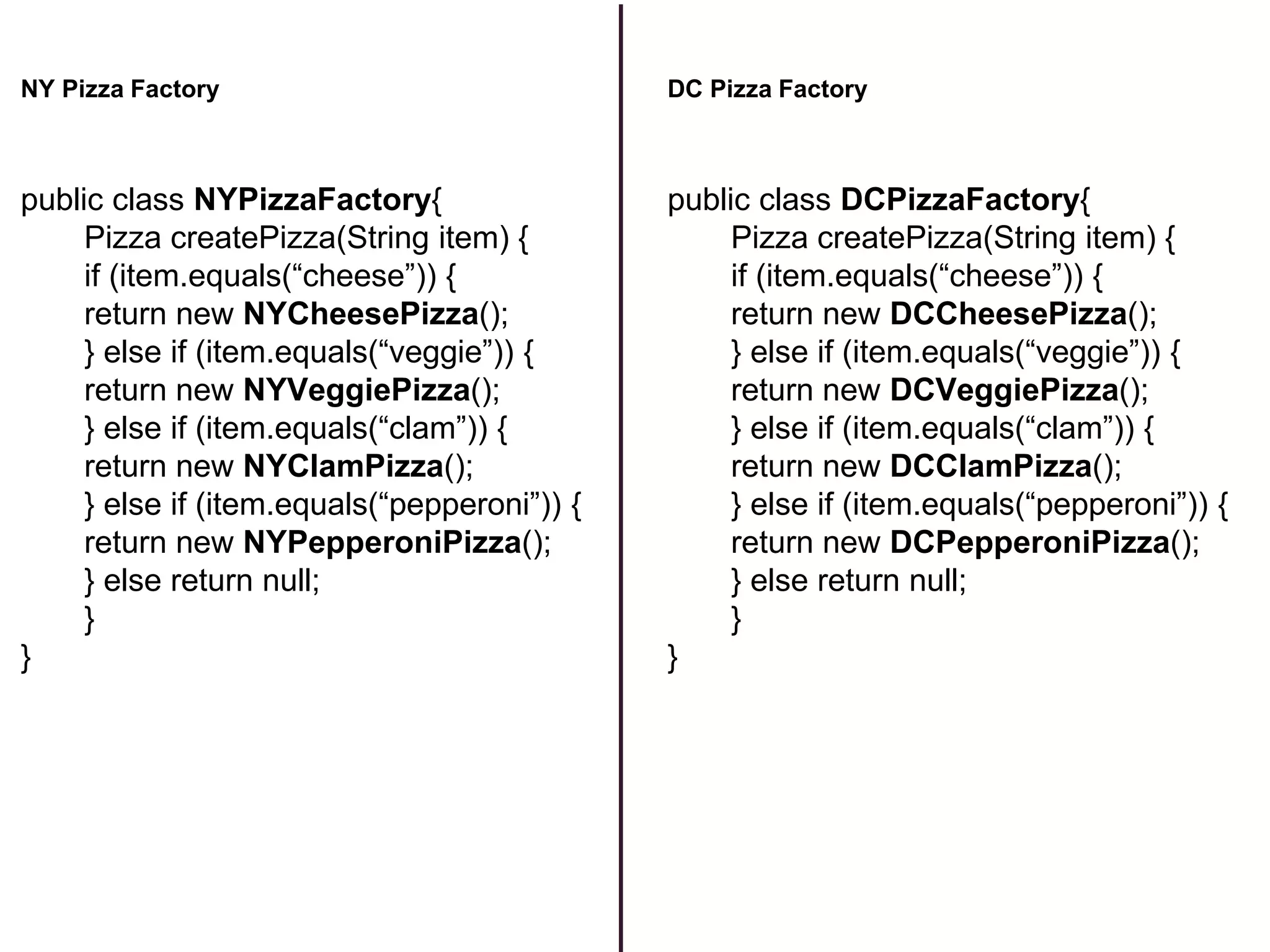

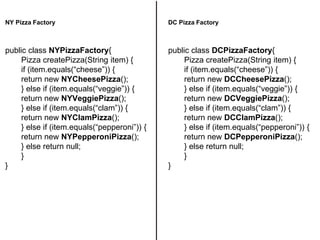

10. DC Pizza Factory
public class DCPizzaFactory{
Pizza createPizza(String item) {
if (item.equals(“cheese”)) {
return new DCCheesePizza();
} else if (item.equals(“veggie”)) {
return new DCVeggiePizza();
} else if (item.equals(“clam”)) {
return new DCClamPizza();
} else if (item.equals(“pepperoni”)) {
return new DCPepperoniPizza();
} else return null;
}
}
NY Pizza Factory
public class NYPizzaFactory{
Pizza createPizza(String item) {
if (item.equals(“cheese”)) {
return new NYCheesePizza();
} else if (item.equals(“veggie”)) {
return new NYVeggiePizza();
} else if (item.equals(“clam”)) {
return new NYClamPizza();
} else if (item.equals(“pepperoni”)) {
return new NYPepperoniPizza();
} else return null;
}
}

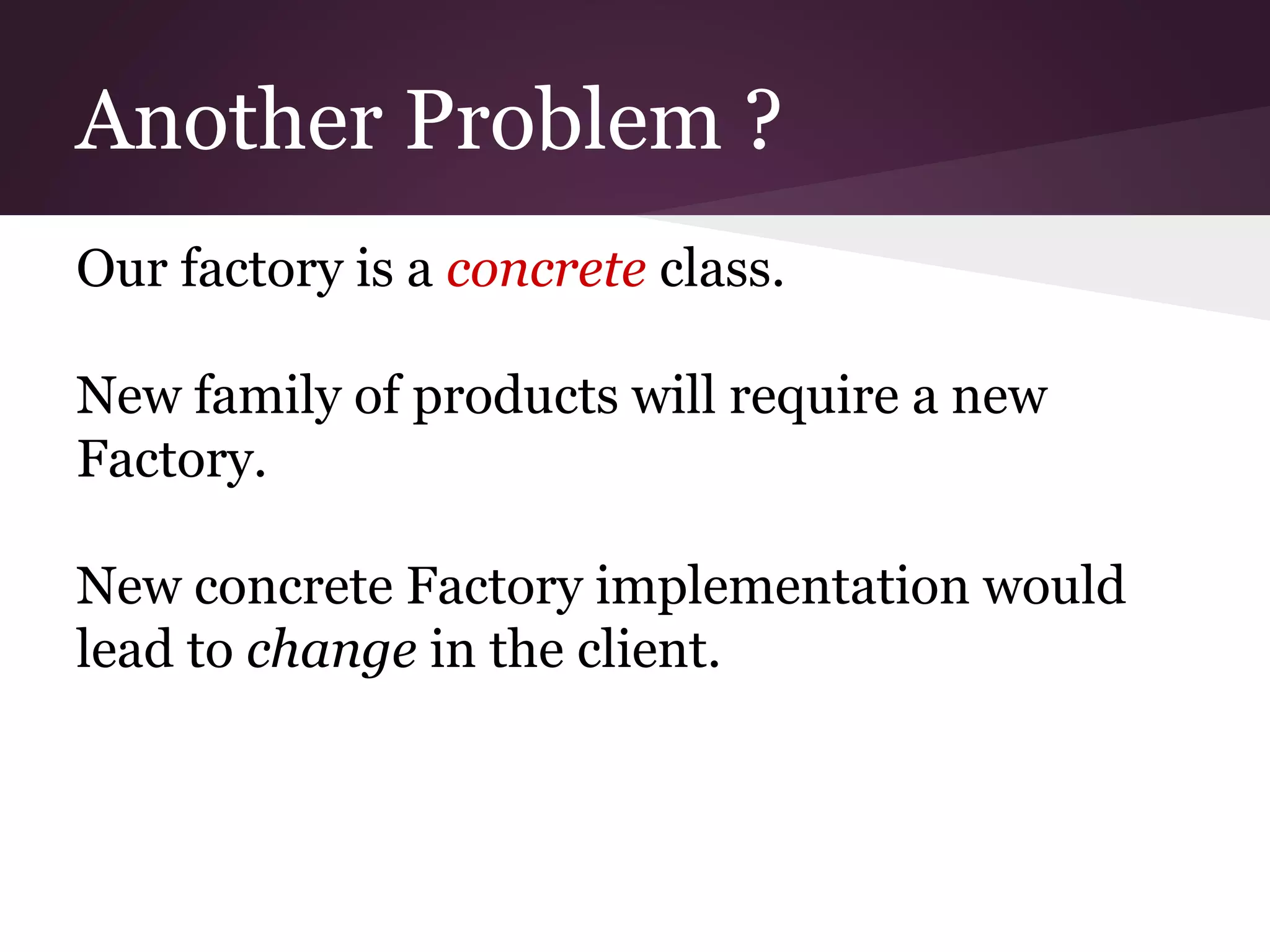

11. Another Problem ?
Our factory is a concrete class.
New family of products will require a new
Factory.
New concrete Factory implementation would
lead to change in the client.

12. Abstract Factory

13. Abstract Factory - Intent
Provide an interface for creating families of
related or dependent objects without
specifying their concrete classes.

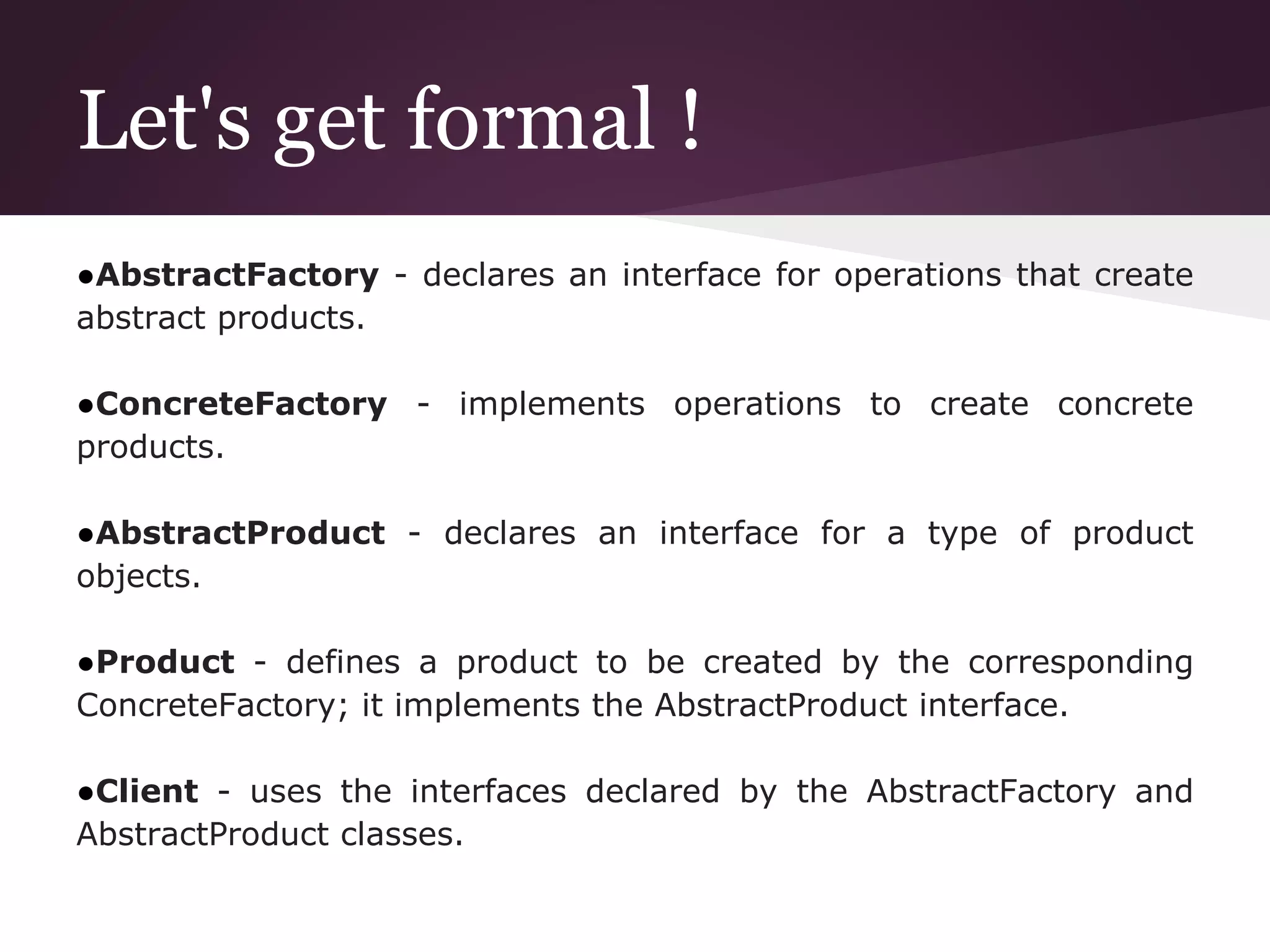

14. Let's get formal !
●AbstractFactory - declares an interface for operations that create
abstract products.
●ConcreteFactory - implements operations to create concrete
products.
●AbstractProduct - declares an interface for a type of product
objects.
●Product - defines a product to be created by the corresponding
ConcreteFactory; it implements the AbstractProduct interface.
●Client - uses the interfaces declared by the AbstractFactory and
AbstractProduct classes.

15. Demonstration

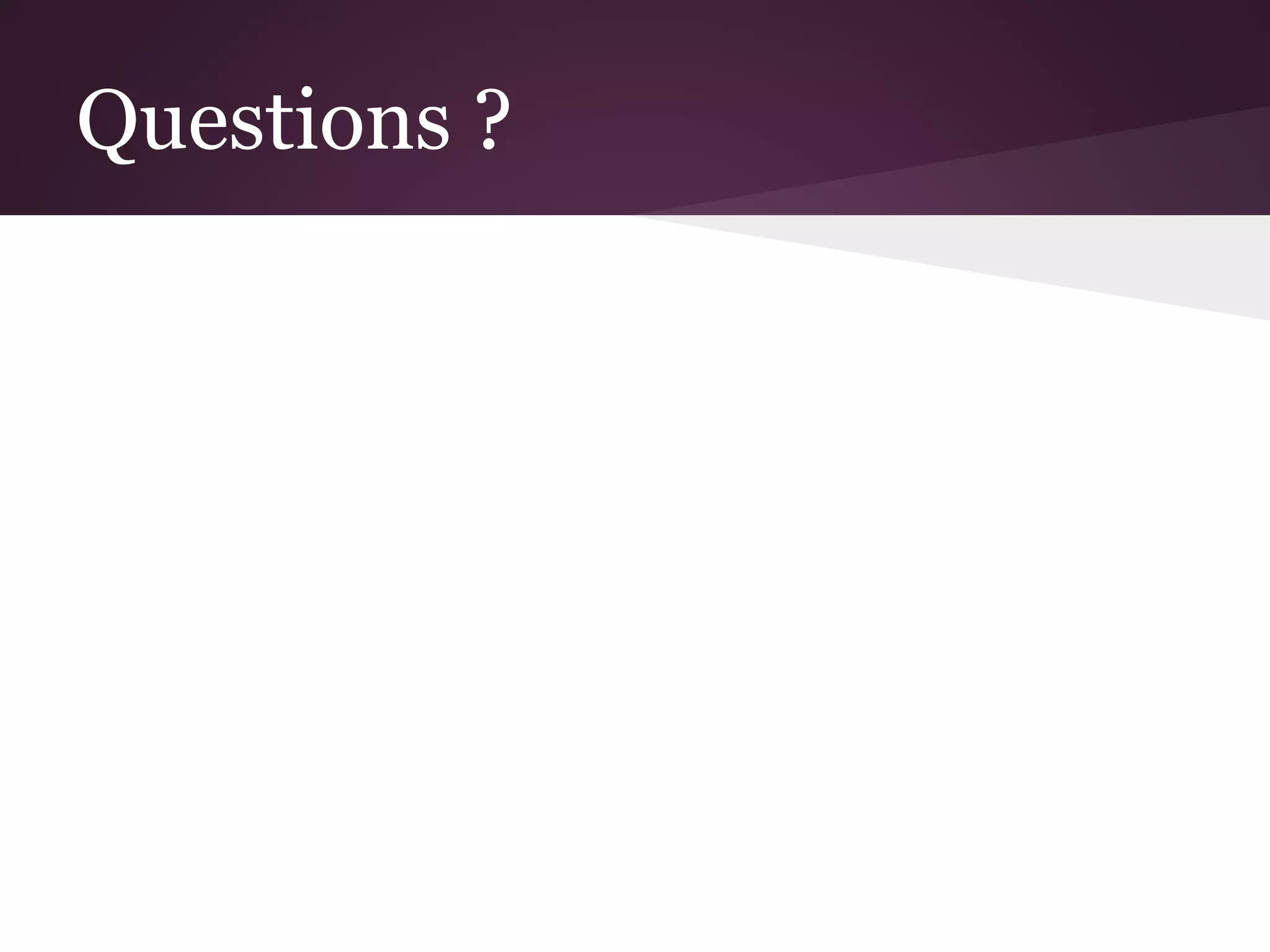

16. Questions ?
