This document provides information about the CPIT-252 Design Patterns course taught by Dr. Asma Cherif. The course covers creational design patterns including the Singleton, Factory Method, Builder, Prototype, and Abstract Factory patterns. Examples and code snippets are provided to illustrate how each pattern works. References used to develop the course material are also listed.

1. CPIT-252
DESIGN PATTERNS
Teacher: Dr. Asma Cherif
Office room: 144S
email: acherif@kau.edu.sa
IT dept.
Course Coordinator: Dr. Asma Cherif
1

2. REFERENCES
Many resources have been used to build this course, if you notice any missing reference please
contact me at acherif@kau.edu.sa
• Roger S. Pressman, "Software Engineering: A Practitioner’s Approach", McGraw-Hill
Science/Engineering/Math; 7 edition (2010)
• GoF book
• Laurent Audibert (developpez.com)
• Dr. Birgit Demuth (OCL)
• Dr. K.M Anderson
• Head First Collection
• Software engineering, Ian Sommerville, ch2- quality management
• www.newthinktank.com
• https://sourcemaking.com
• Derek Banas youtube channel
2

3. CREATIONAL
PATTERNS

4. Creational Patterns
Creational
Patterns
Singleton
Factory
Method
BuilderPrototype
Abstract
Factory
4

5. FACTORY METHOD DESIGN
PATTERN
Class Creational
Known as Virtual Constructor
5

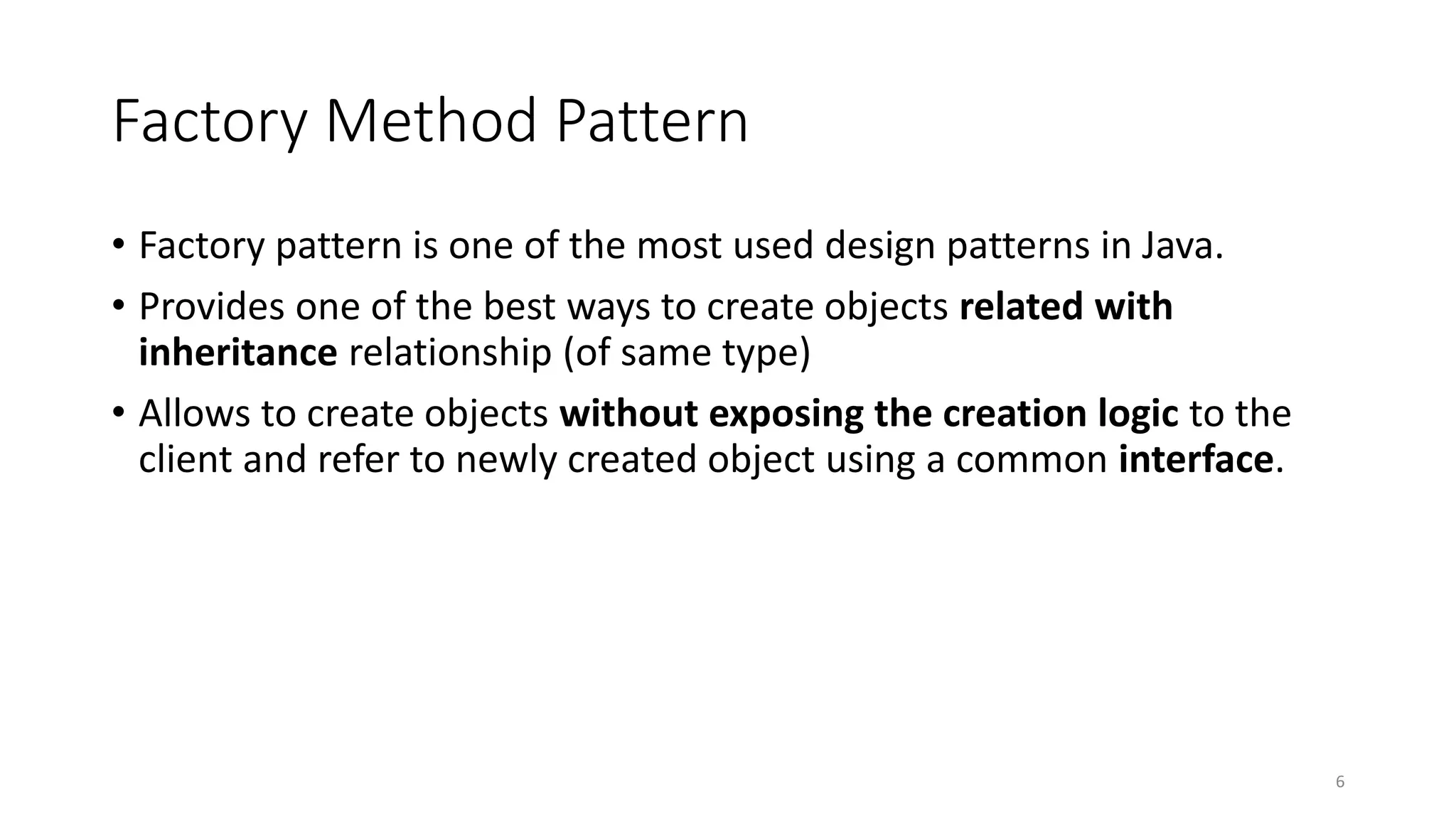

6. Factory Method Pattern
• Factory pattern is one of the most used design patterns in Java.
• Provides one of the best ways to create objects related with
inheritance relationship (of same type)
• Allows to create objects without exposing the creation logic to the
client and refer to newly created object using a common interface.
6

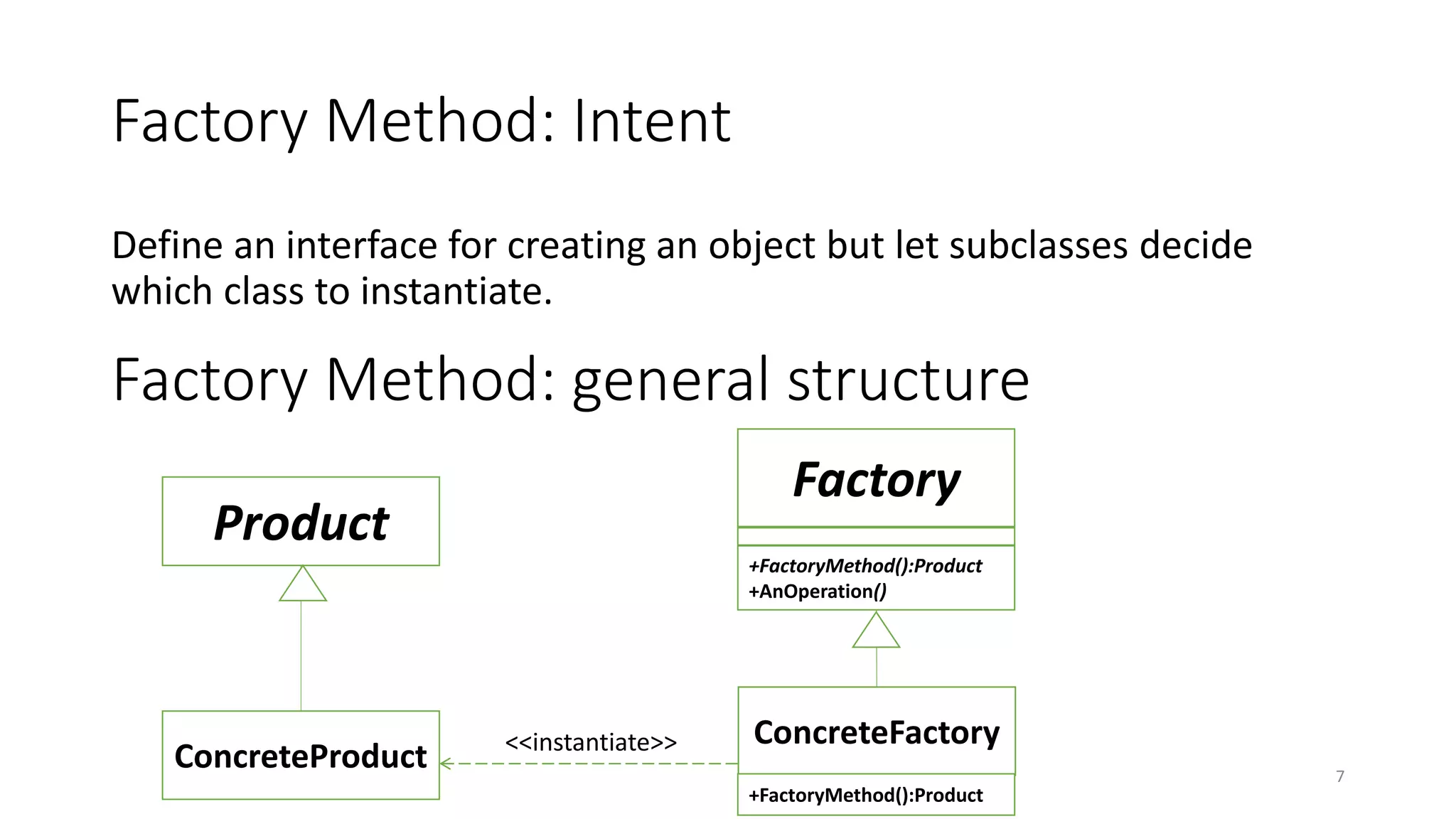

7. Factory Method: Intent
Define an interface for creating an object but let subclasses decide
which class to instantiate.
7
Factory Method: general structure
Product
ConcreteProduct
Factory
+FactoryMethod():Product
+AnOperation()
ConcreteFactory
+FactoryMethod():Product
<<instantiate>>

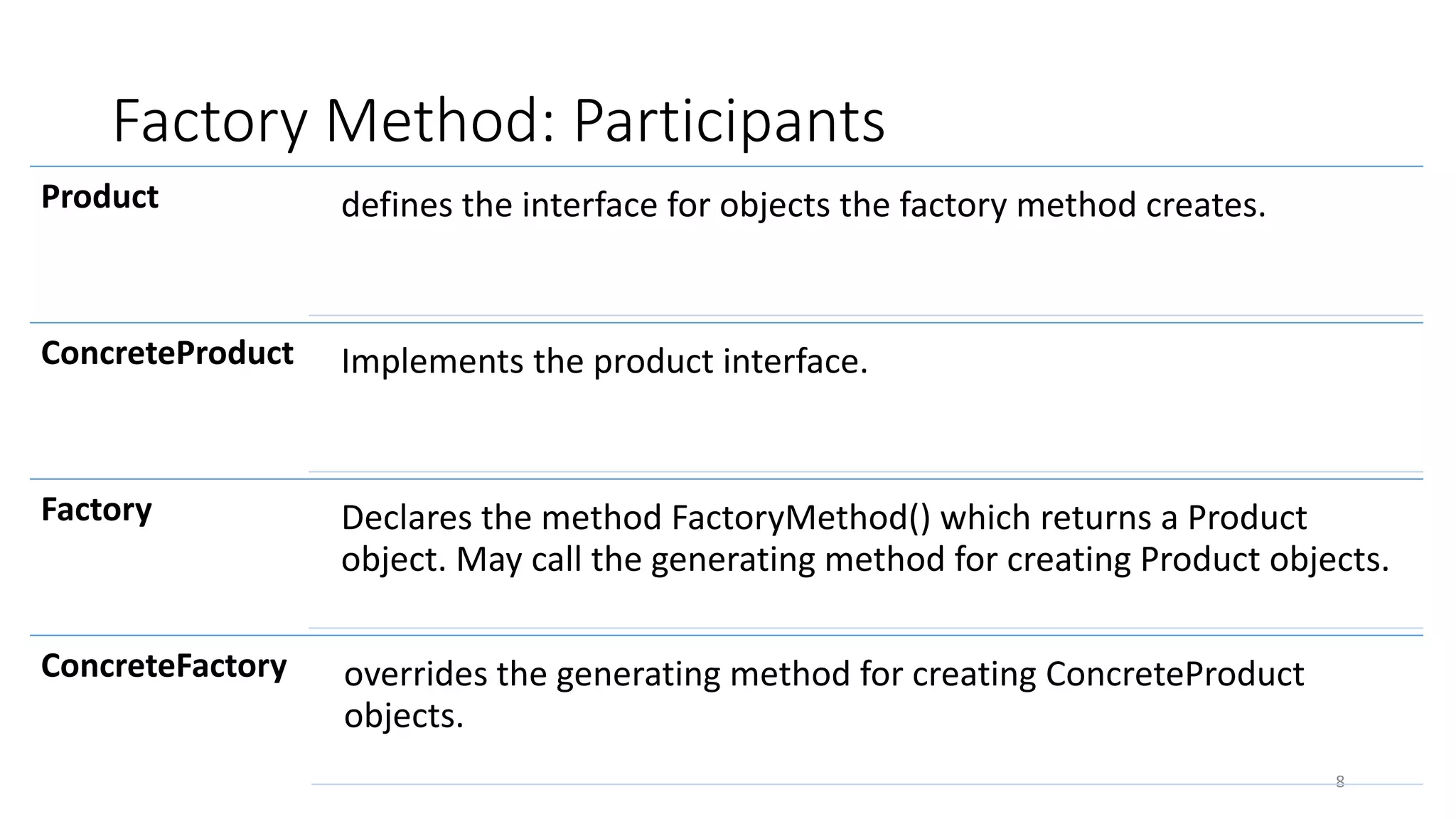

8. Factory Method: Participants
8
Product defines the interface for objects the factory method creates.
ConcreteProduct Implements the product interface.
Factory Declares the method FactoryMethod() which returns a Product
object. May call the generating method for creating Product objects.
ConcreteFactory overrides the generating method for creating ConcreteProduct
objects.

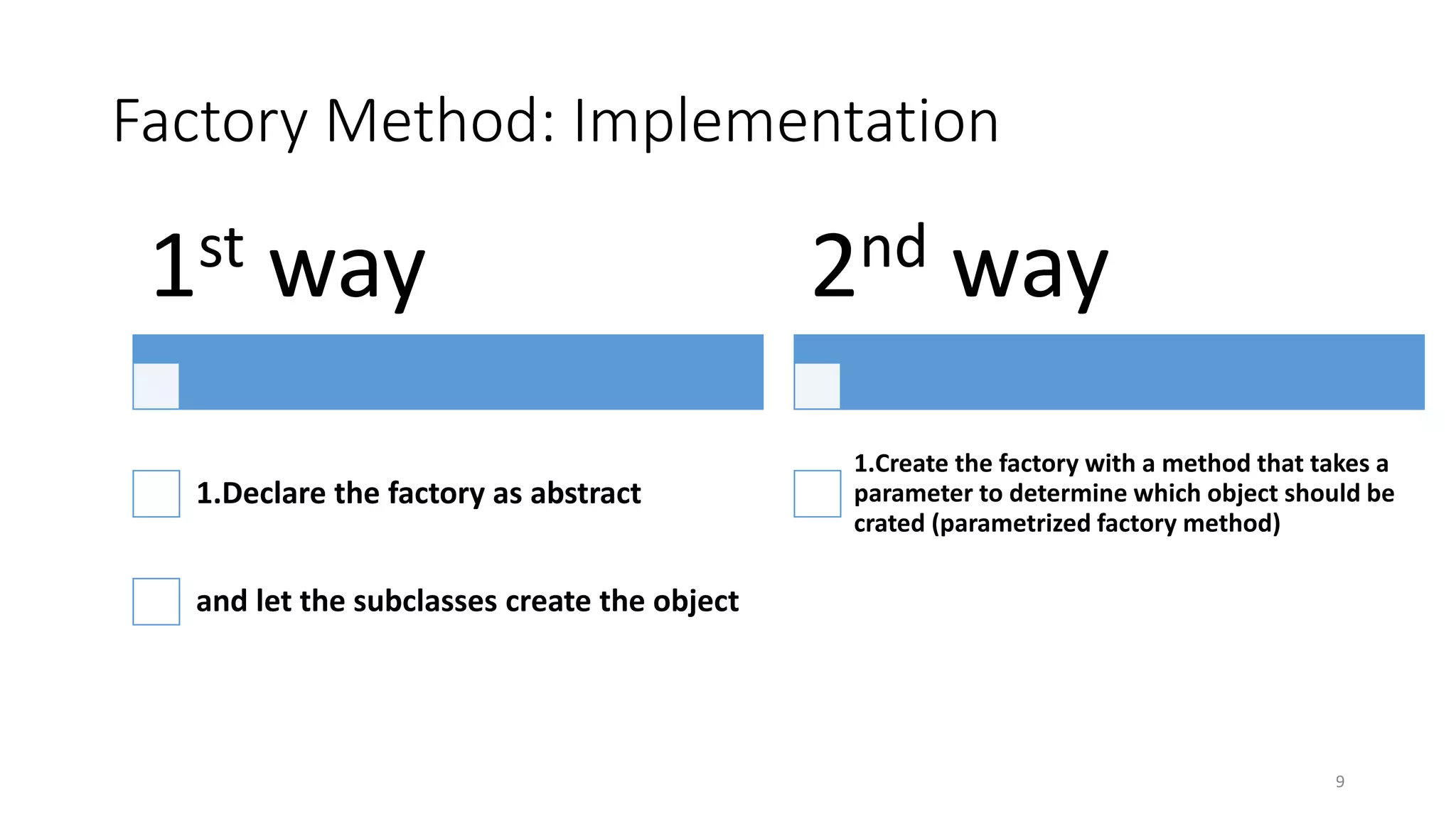

9. Factory Method: Implementation
9
1st way
1.Declare the factory as abstract
and let the subclasses create the object
2nd way
1.Create the factory with a method that takes a
parameter to determine which object should be
crated (parametrized factory method)

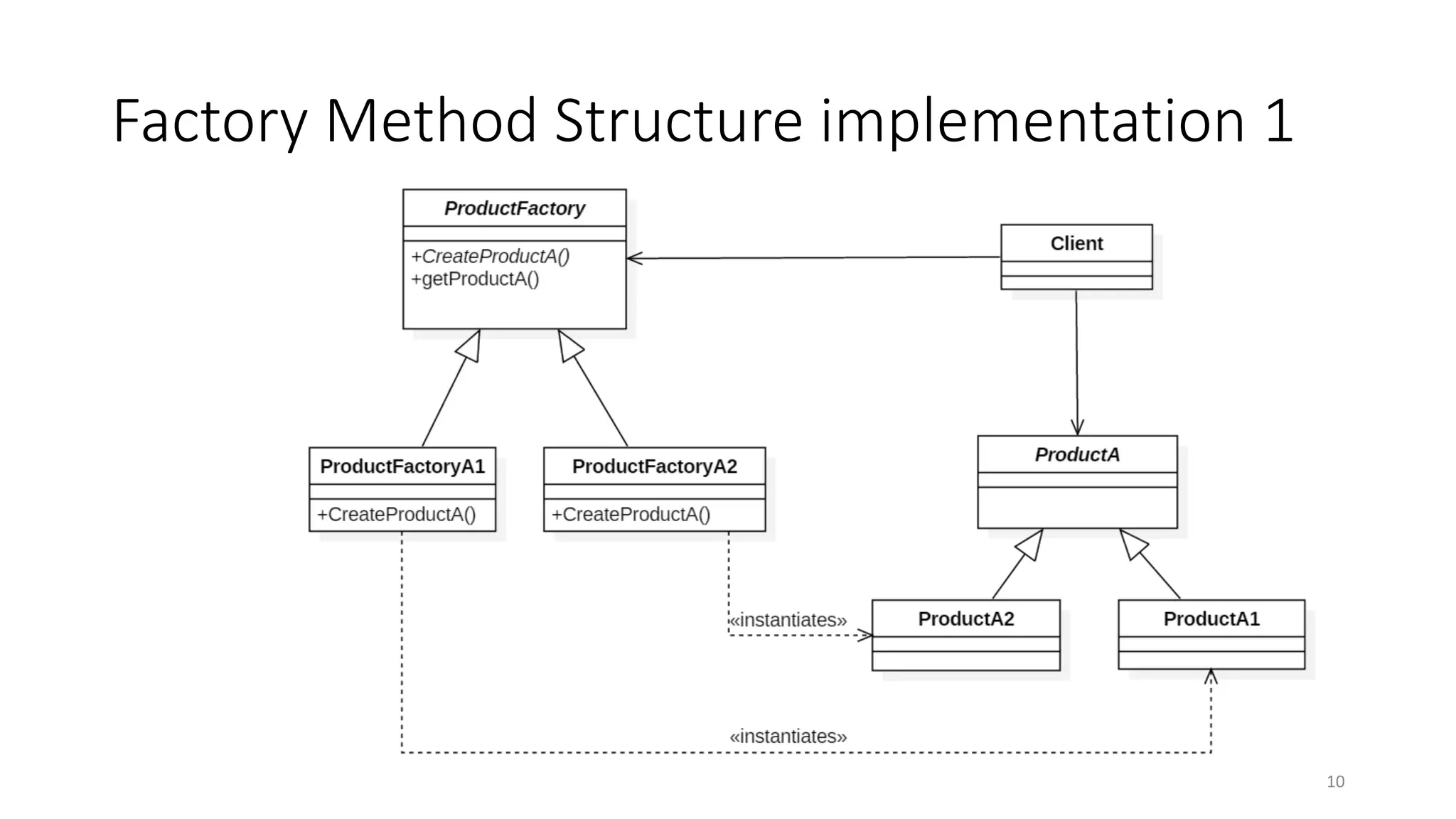

10. Factory Method Structure implementation 1
10

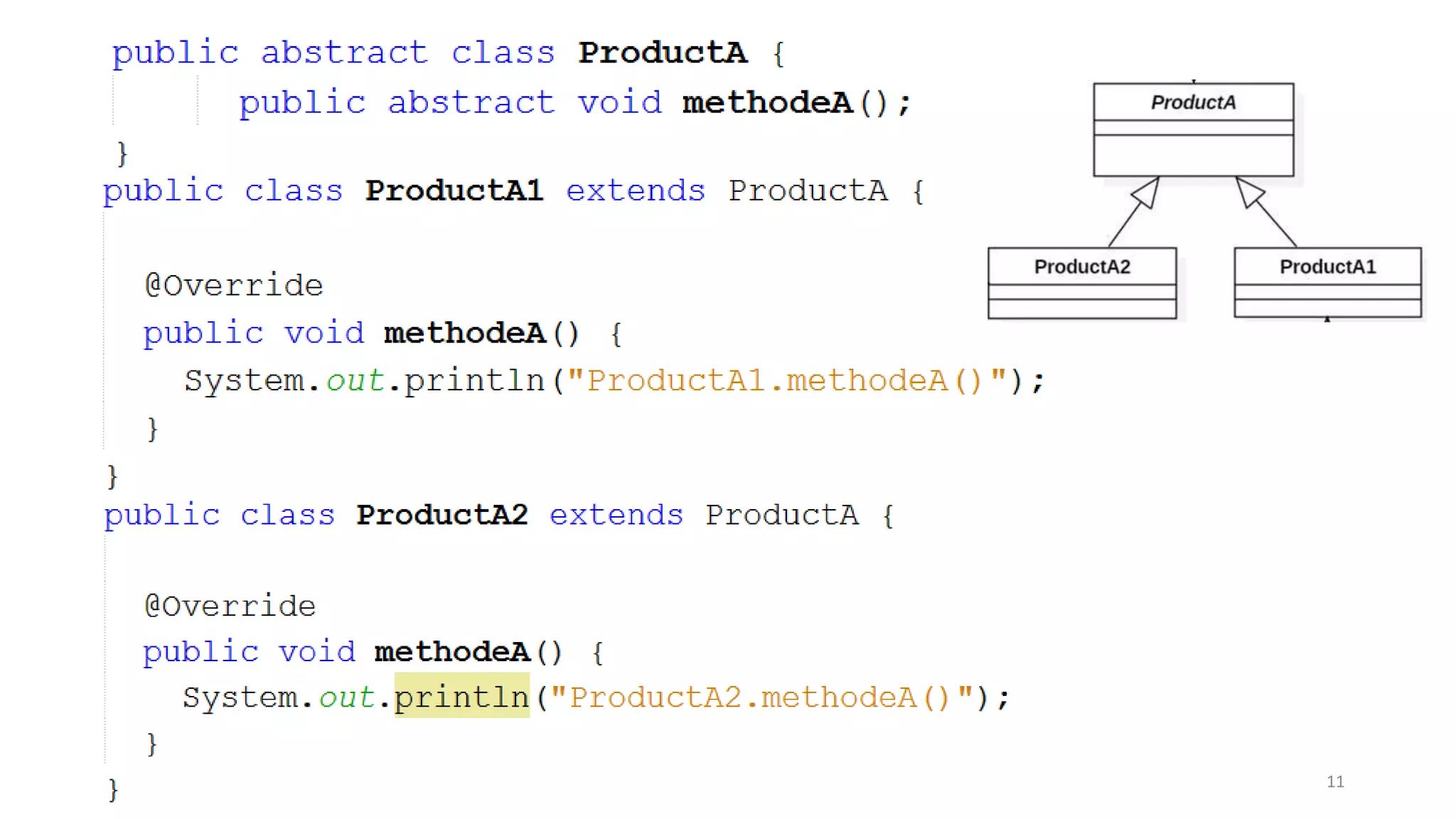

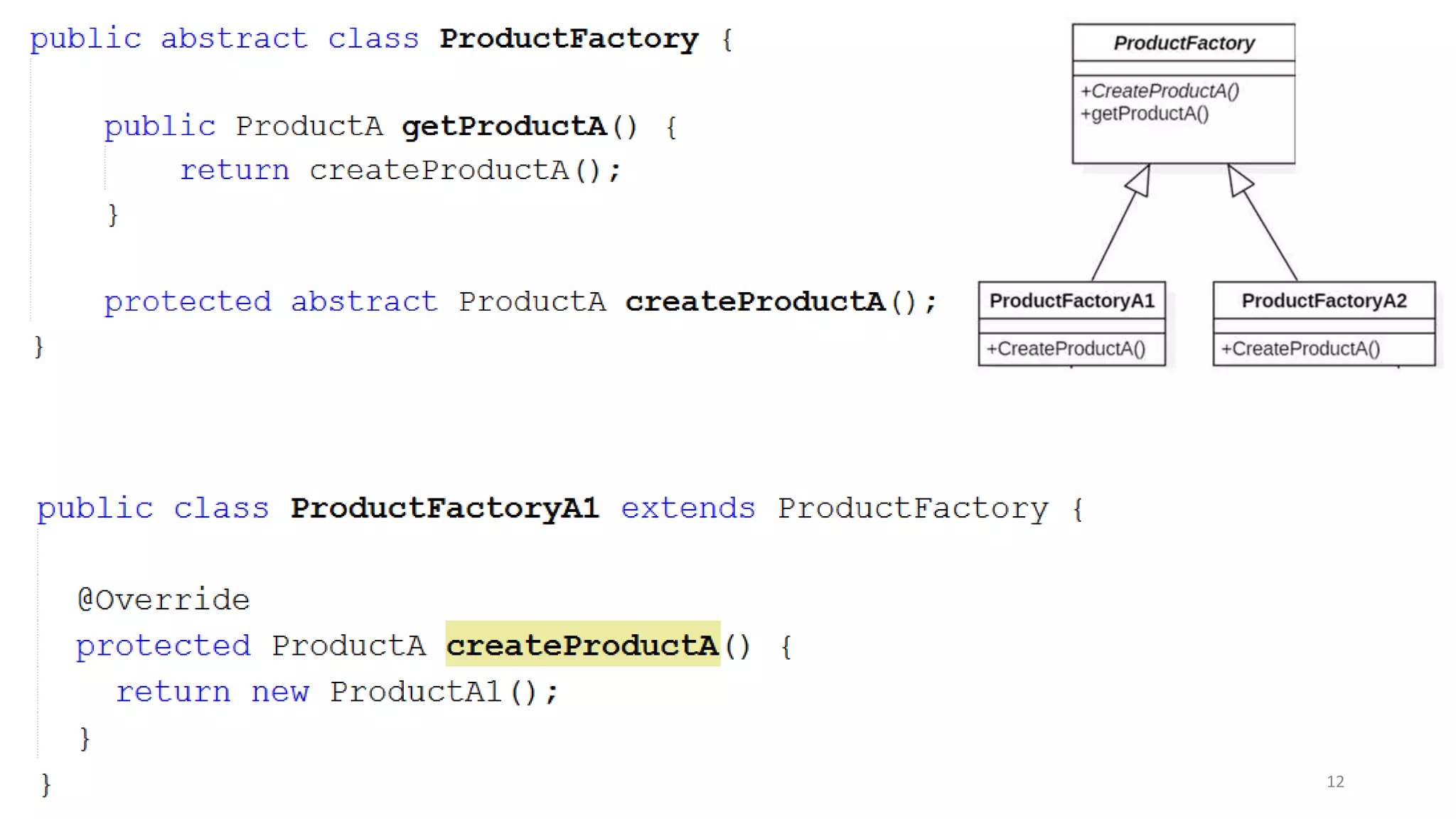

11. 11

12. 12

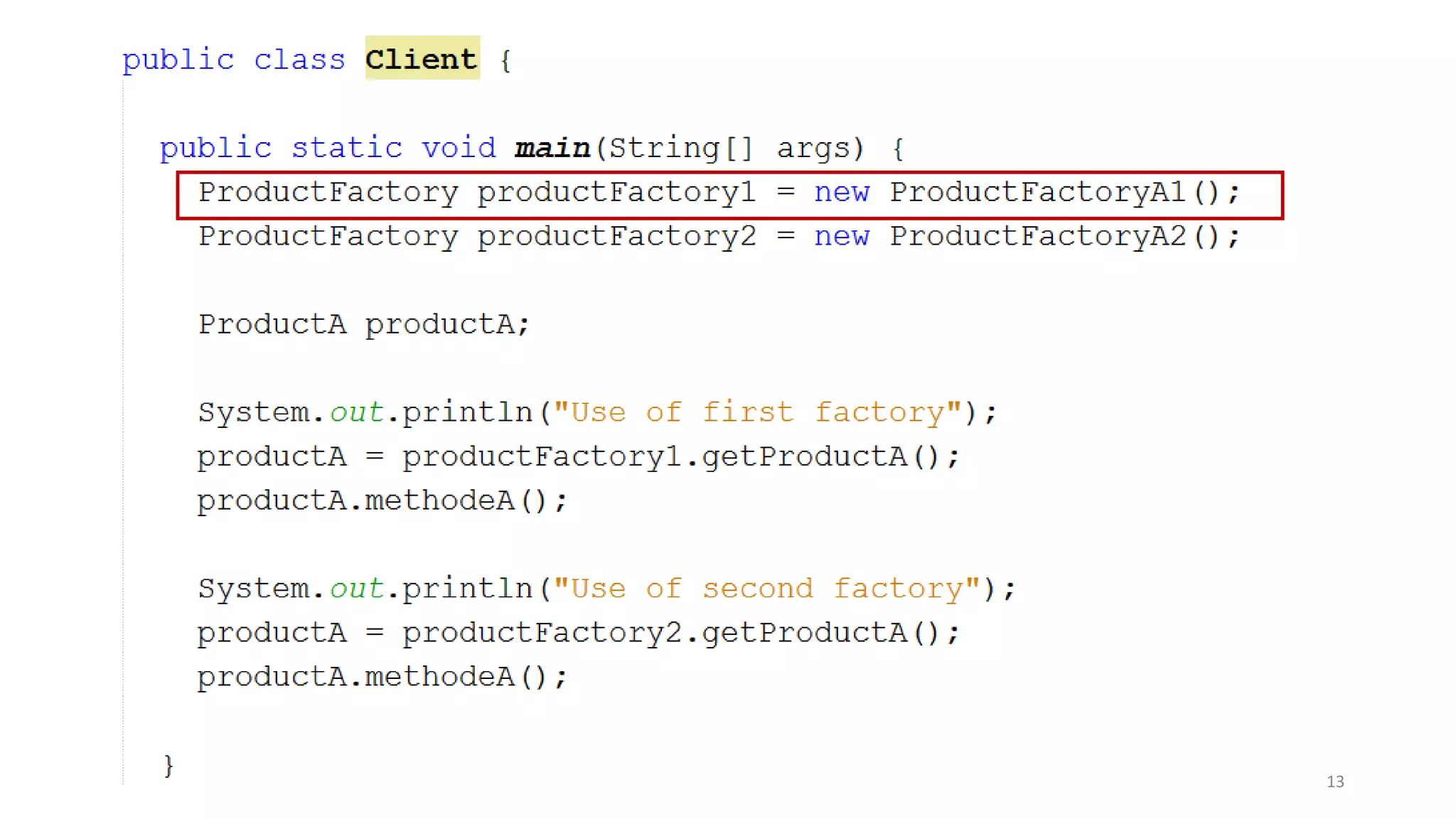

13. 13

14. Factory Method Structure: implementation 2
14

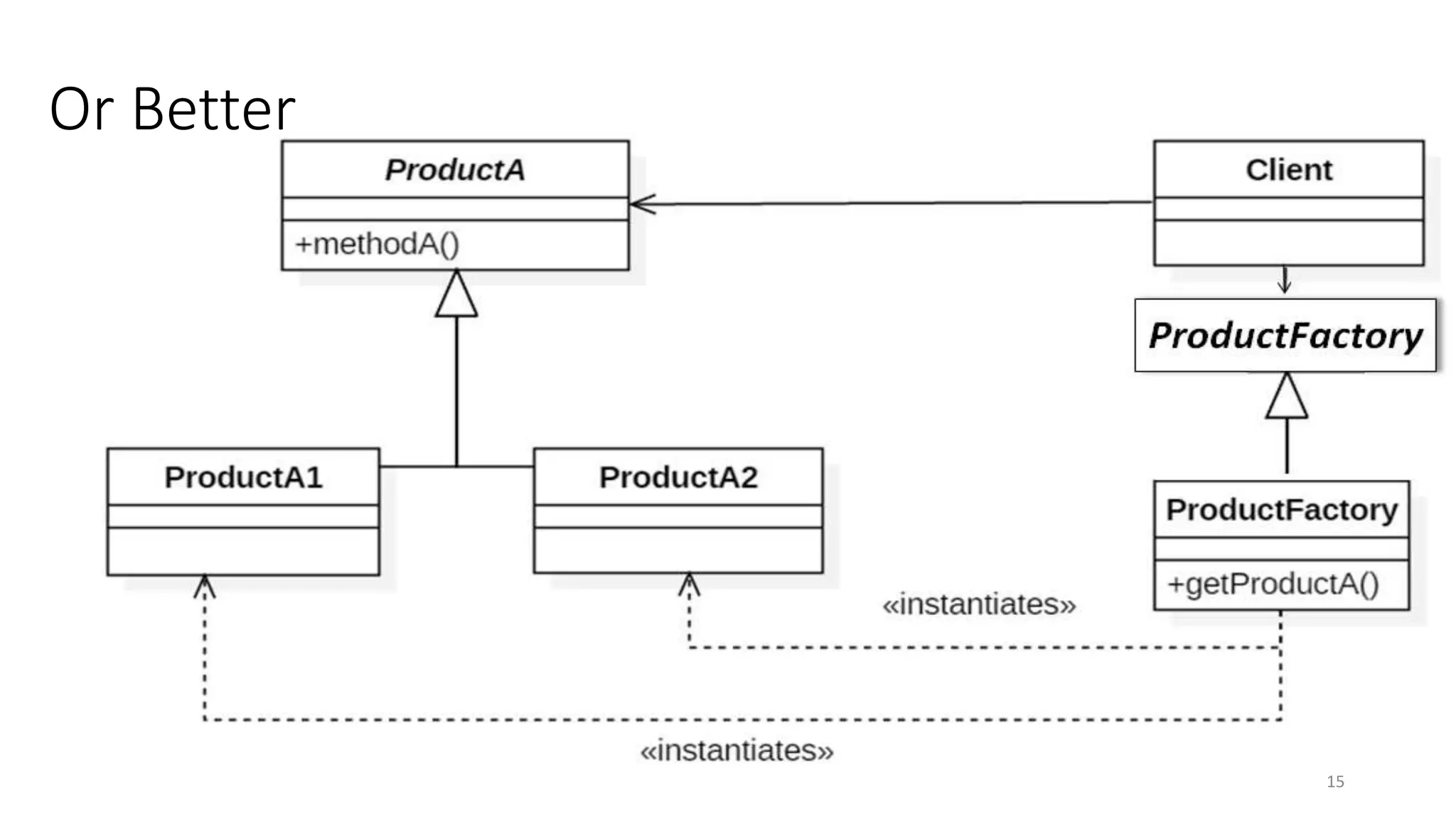

15. Or Better
15

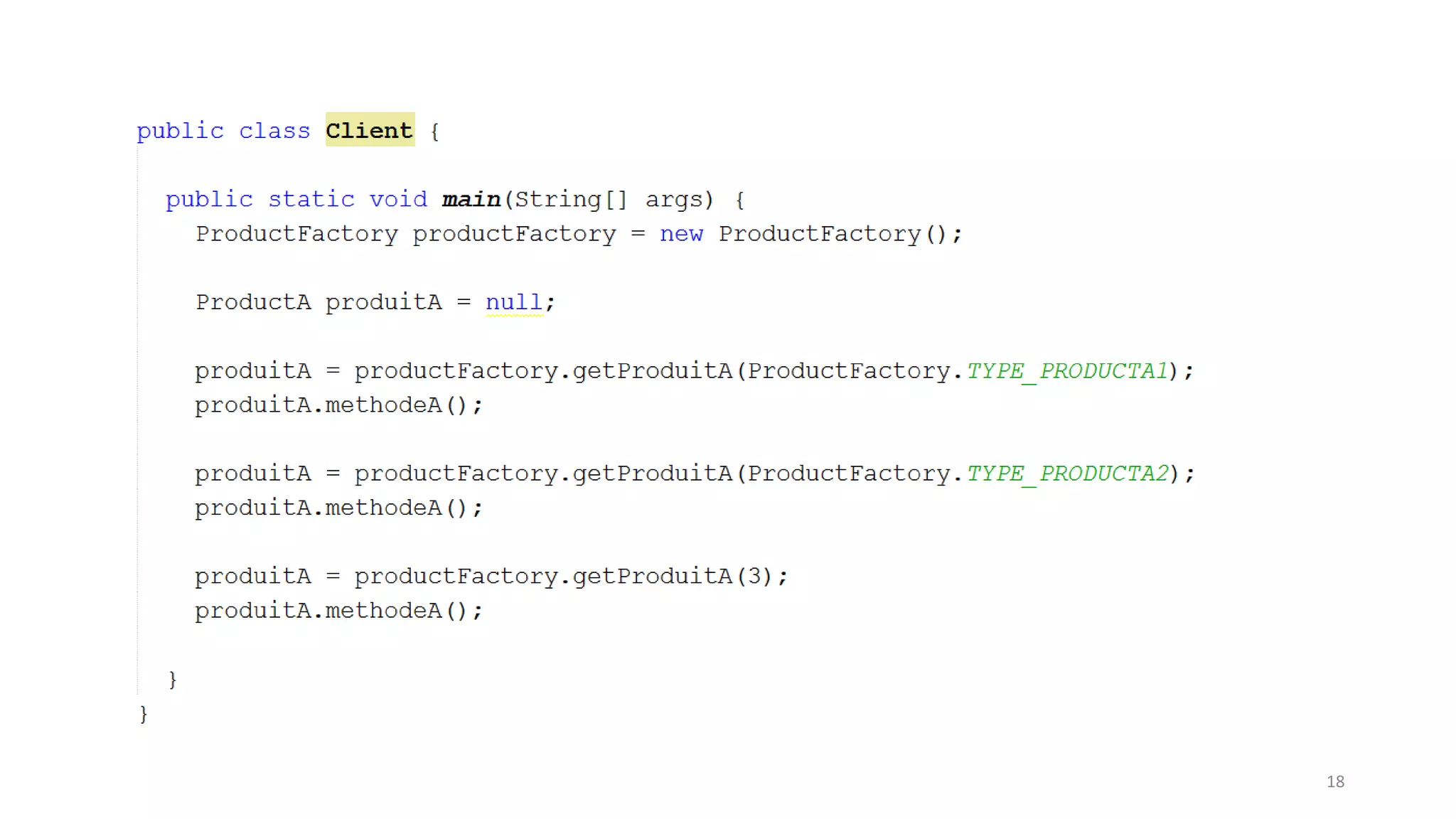

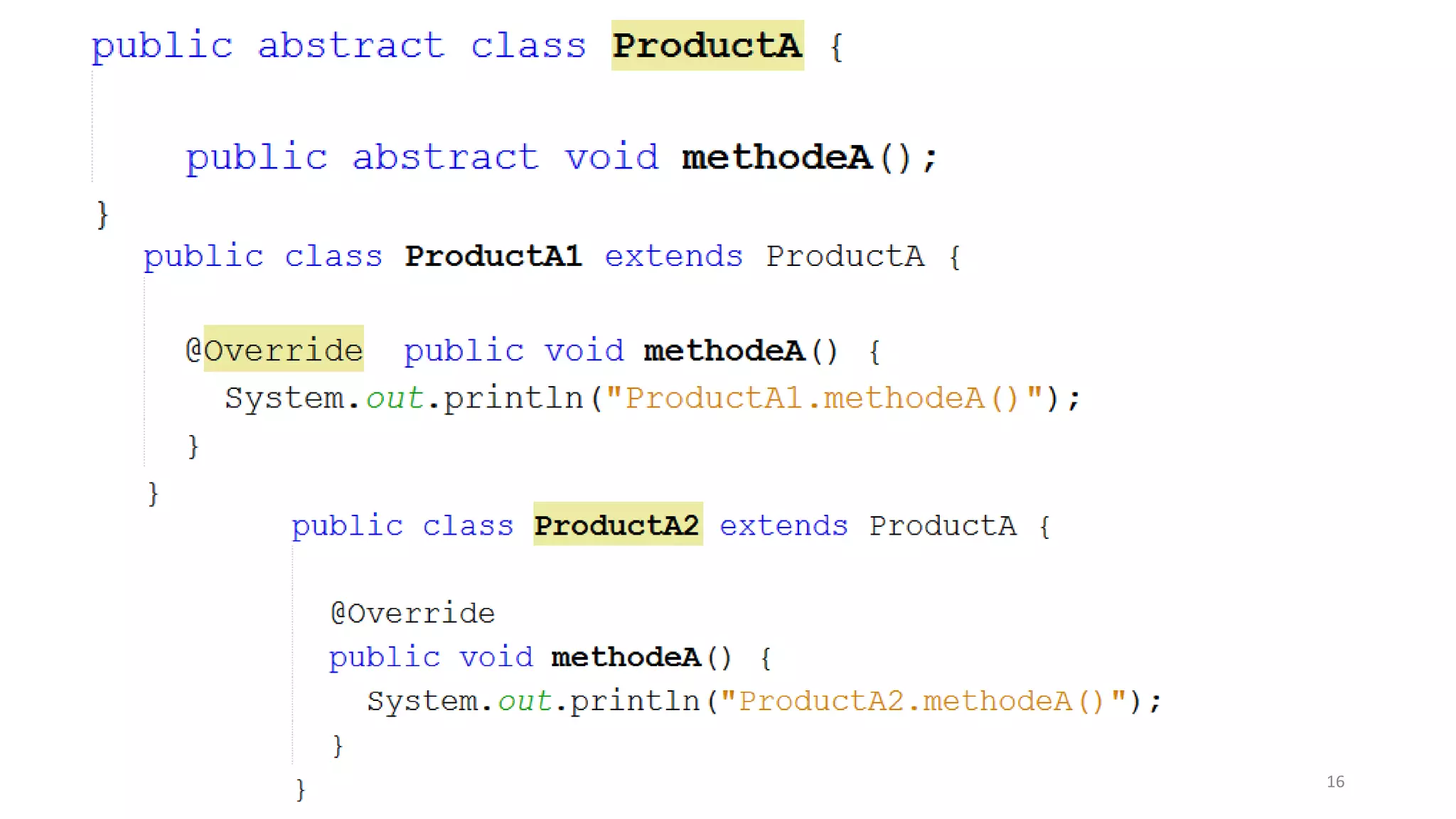

16. 16

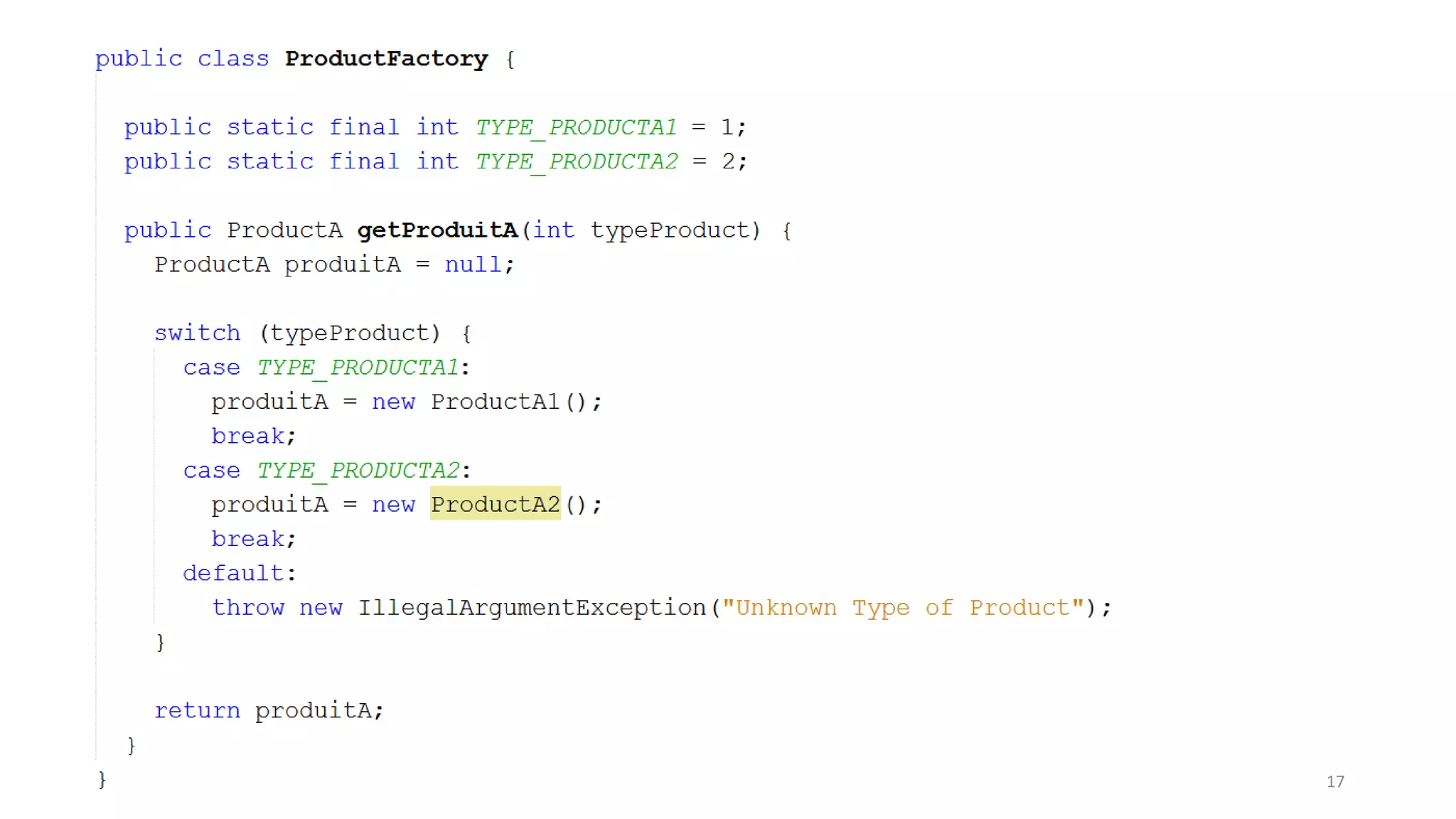

17. 17

18. 18

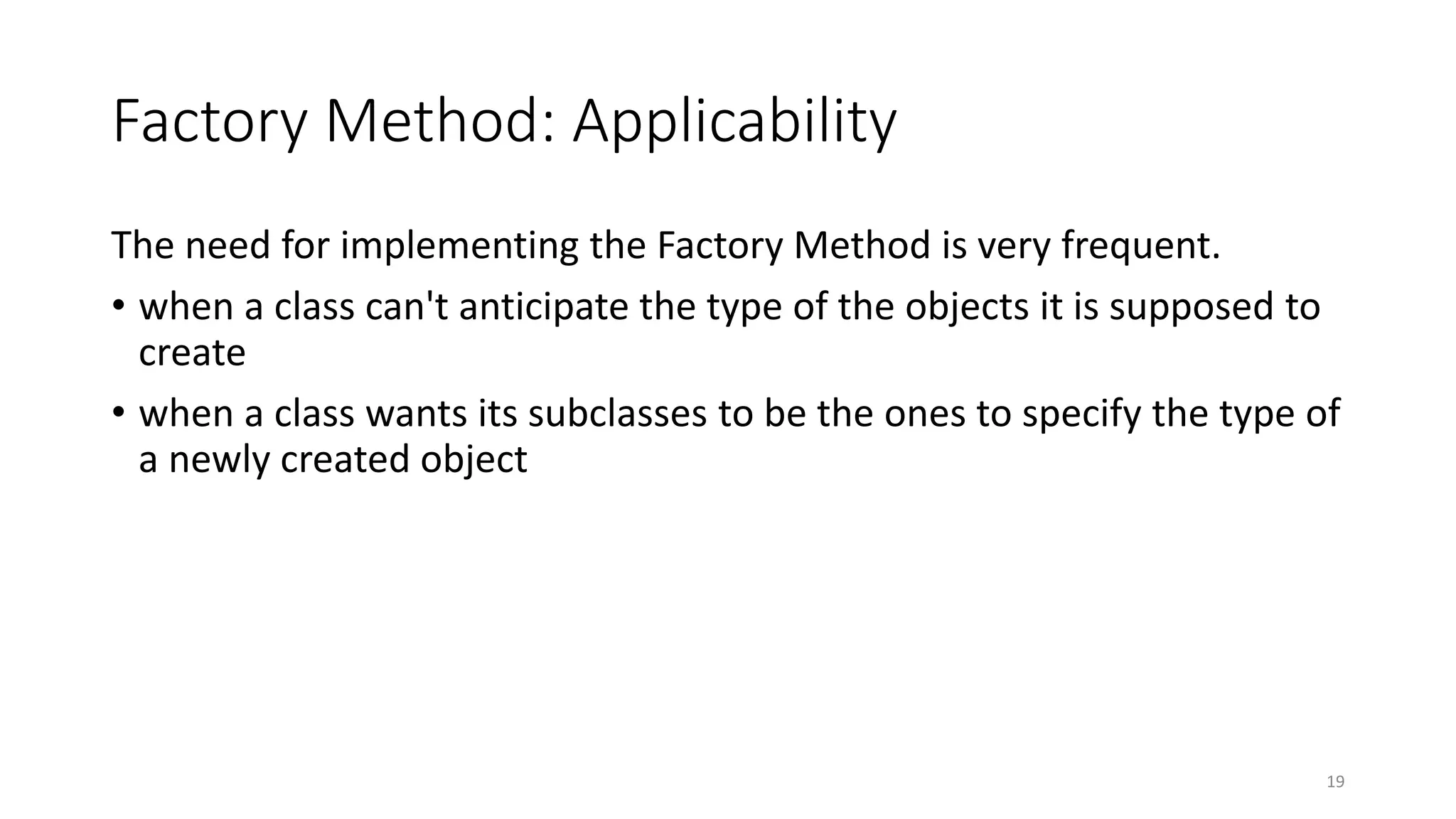

19. Factory Method: Applicability
The need for implementing the Factory Method is very frequent.
• when a class can't anticipate the type of the objects it is supposed to
create
• when a class wants its subclasses to be the ones to specify the type of
a newly created object
19

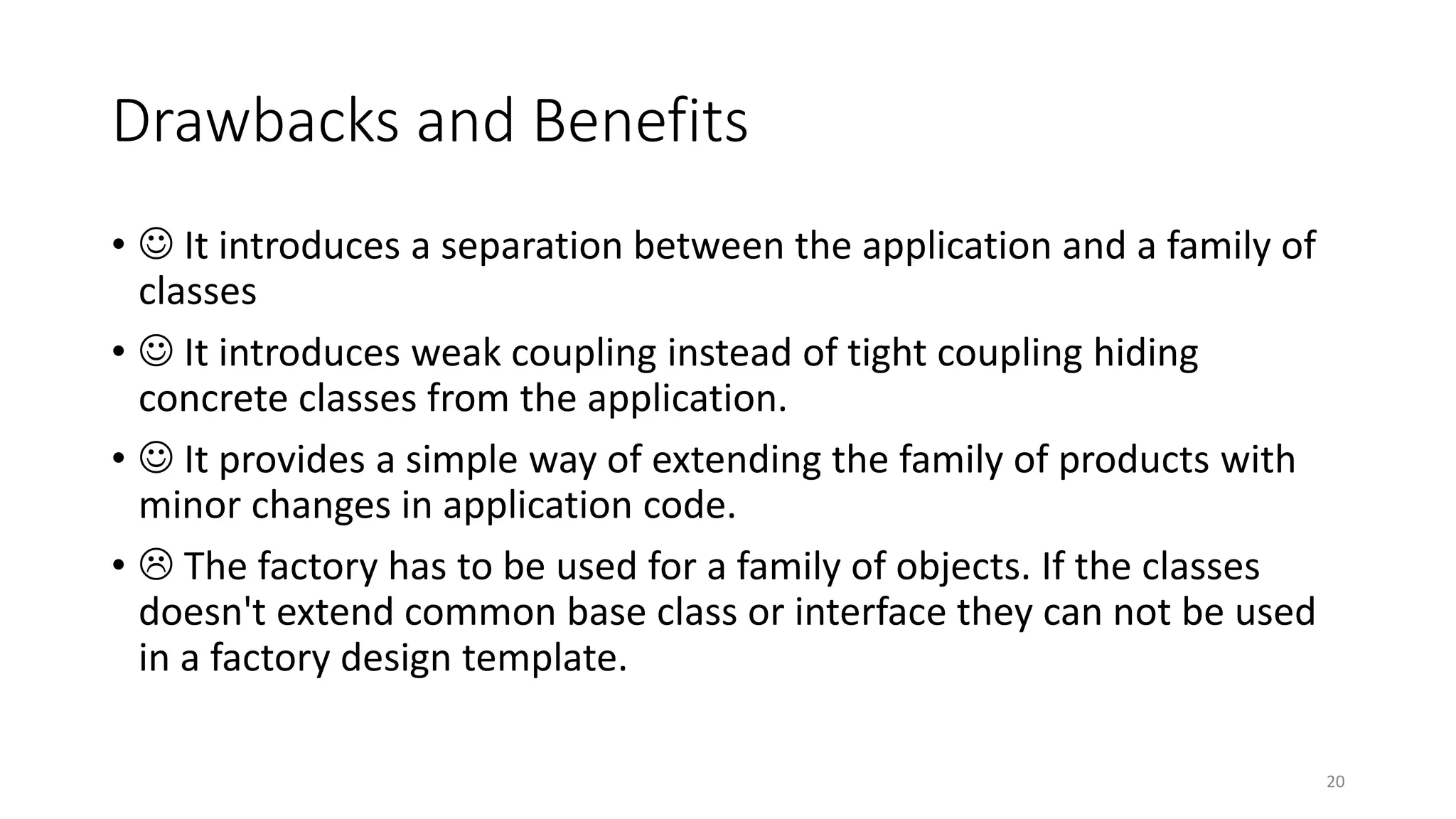

20. Drawbacks and Benefits
•  It introduces a separation between the application and a family of
classes
•  It introduces weak coupling instead of tight coupling hiding
concrete classes from the application.
•  It provides a simple way of extending the family of products with
minor changes in application code.
•  The factory has to be used for a family of objects. If the classes
doesn't extend common base class or interface they can not be used
in a factory design template.
20

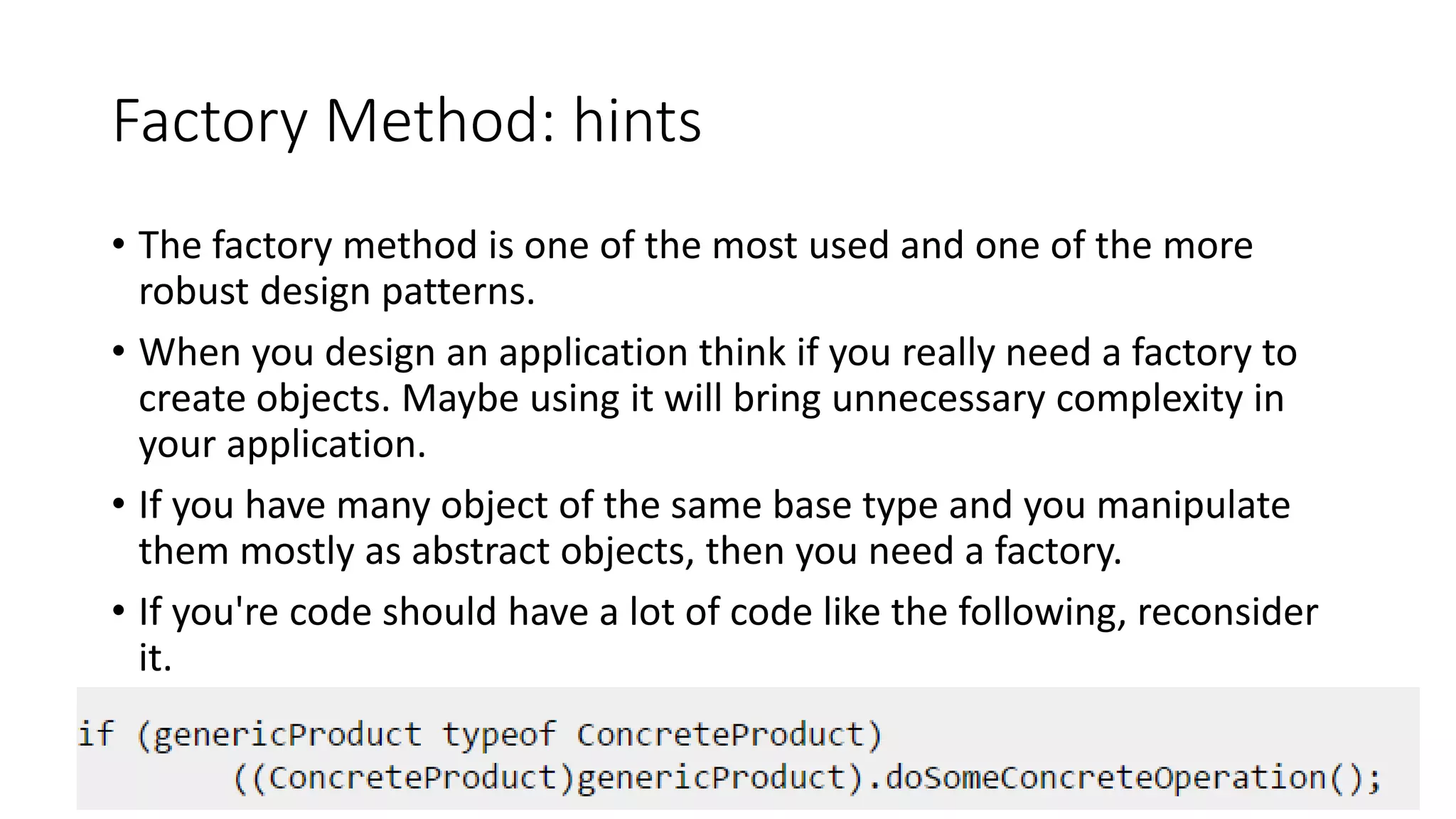

21. Factory Method: hints
• The factory method is one of the most used and one of the more
robust design patterns.
• When you design an application think if you really need a factory to
create objects. Maybe using it will bring unnecessary complexity in
your application.
• If you have many object of the same base type and you manipulate
them mostly as abstract objects, then you need a factory.
• If you're code should have a lot of code like the following, reconsider
it.
21

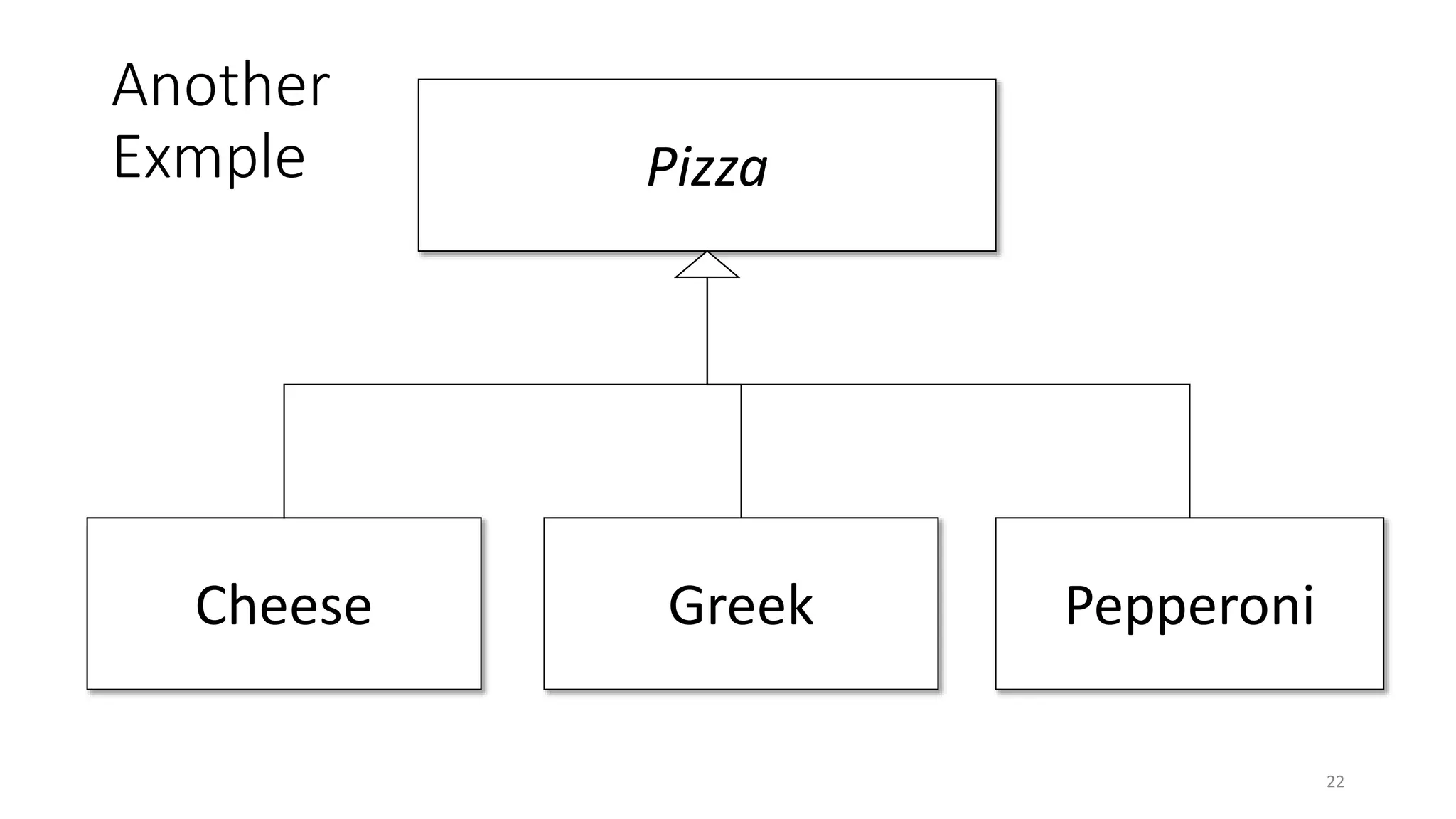

22. Another
Exmple
22
Pizza
Cheese Greek Pepperoni

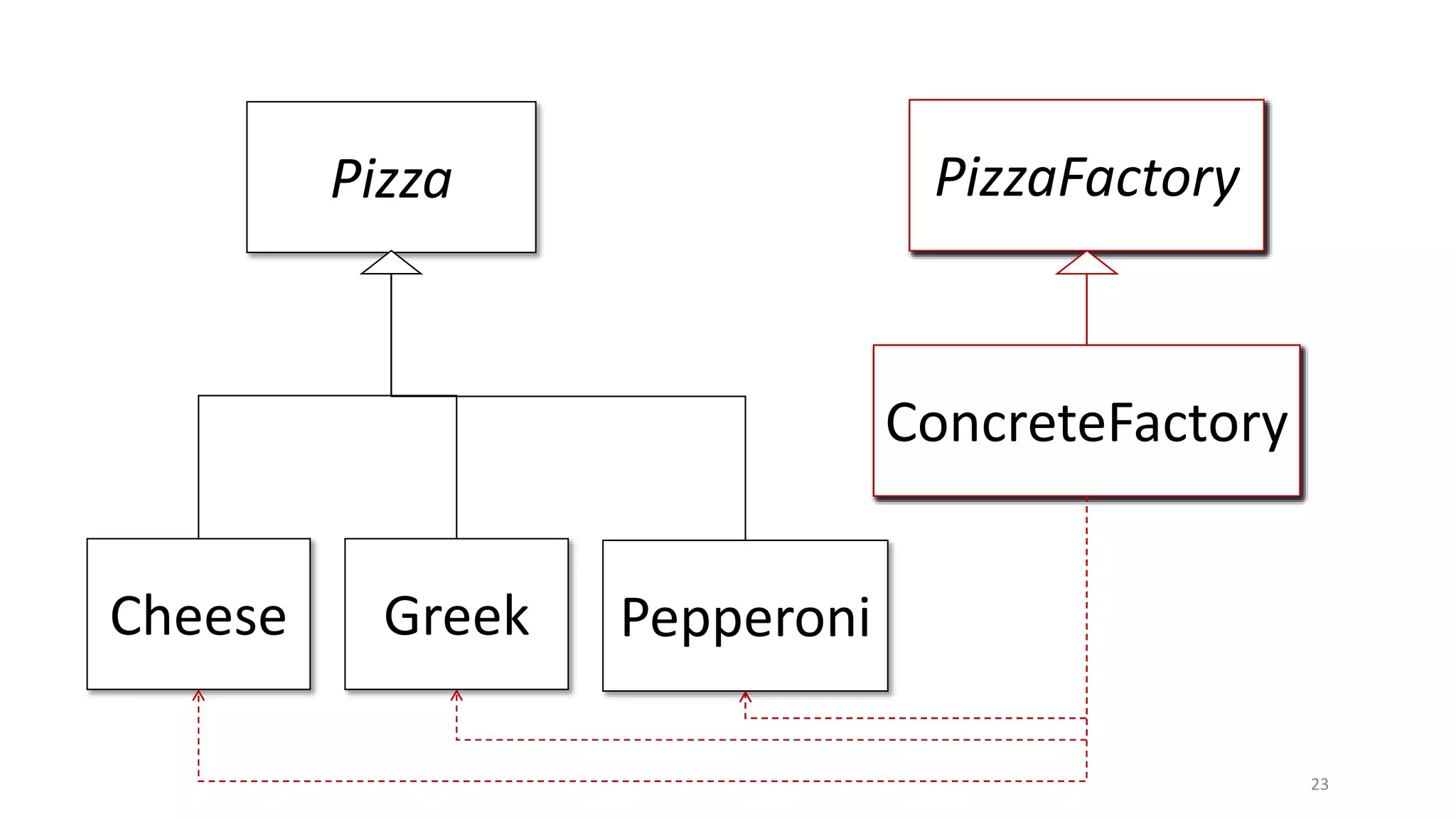

23. 23
Pizza
Cheese Greek Pepperoni
PizzaFactory
ConcreteFactory
PizzaFactory
ConcreteFactory
PizzaFactory
ConcreteFactory
PizzaFactory
ConcreteFactory

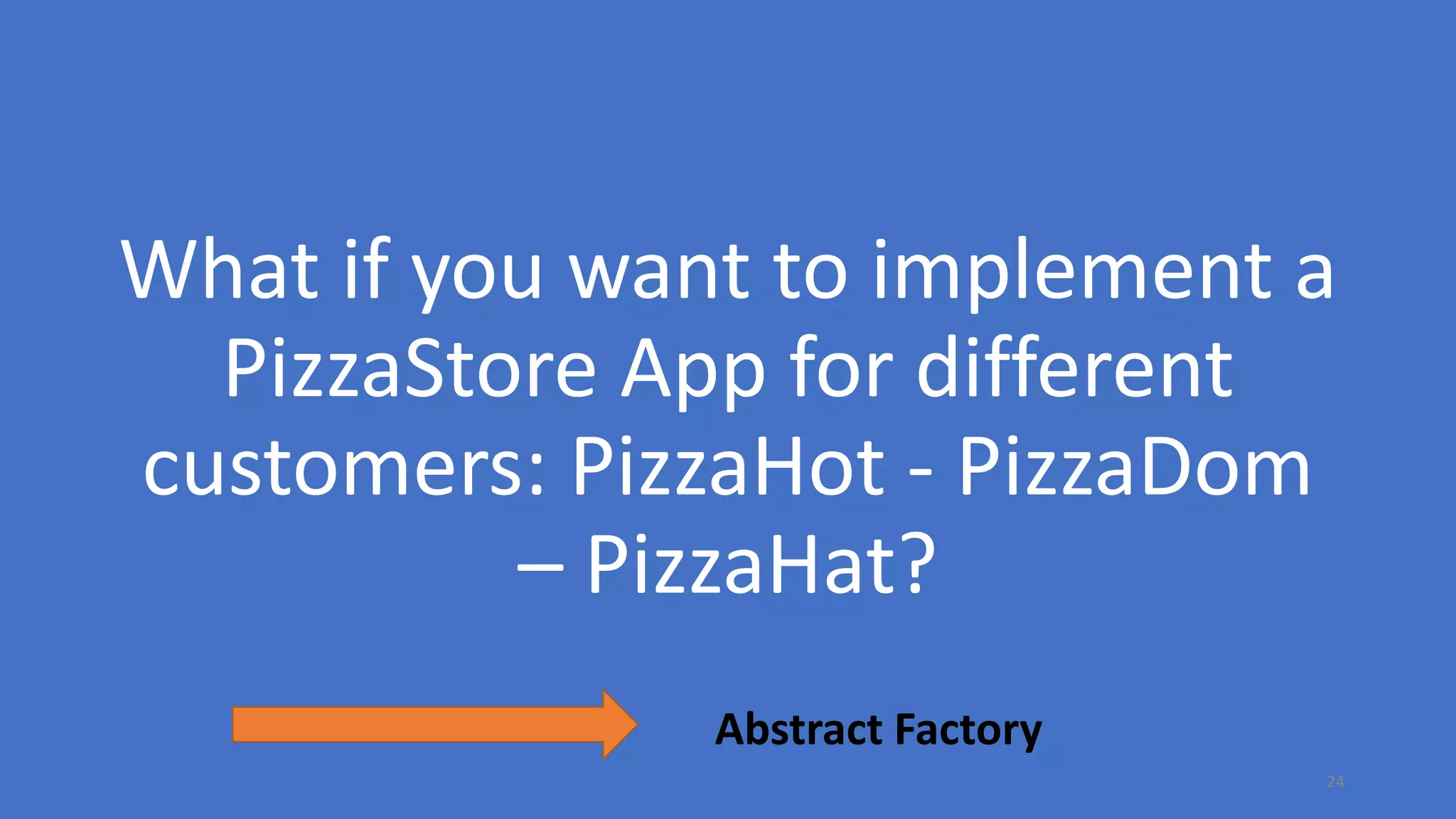

24. What if you want to implement a
PizzaStore App for different
customers: PizzaHot - PizzaDom
– PizzaHat?
24
Abstract Factory

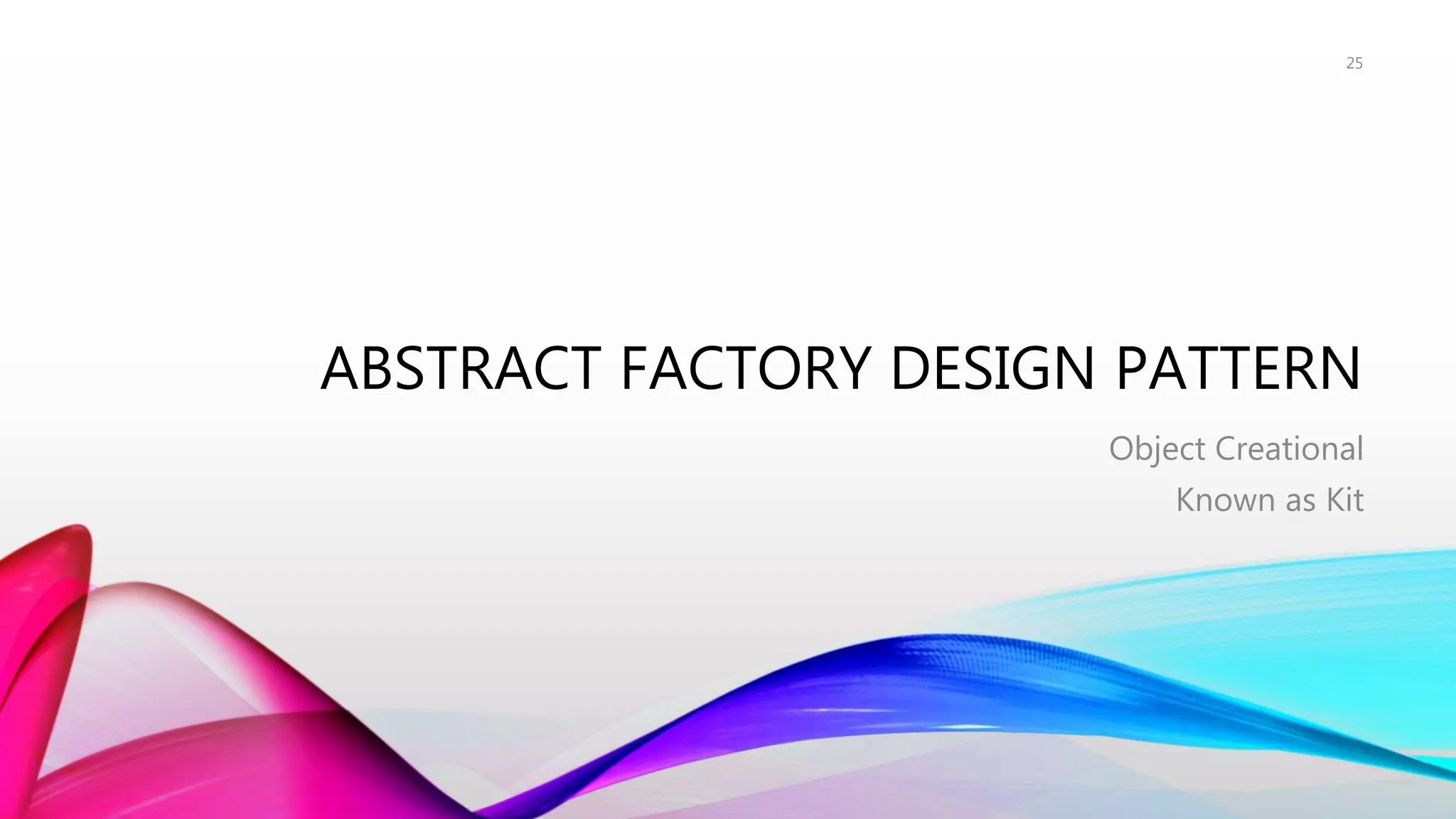

25. ABSTRACT FACTORY DESIGN PATTERN
Object Creational
Known as Kit
25

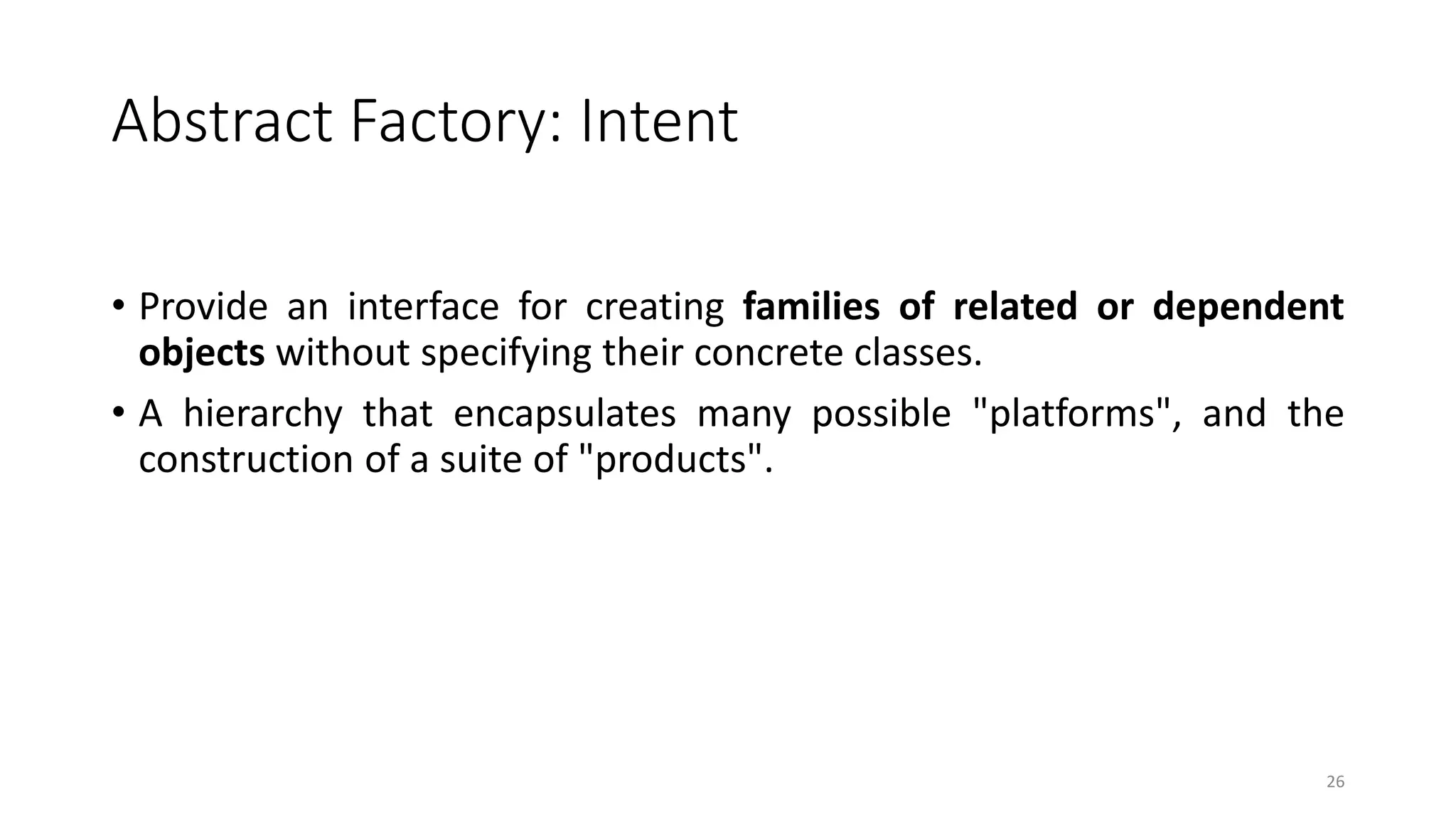

26. Abstract Factory: Intent
• Provide an interface for creating families of related or dependent
objects without specifying their concrete classes.
• A hierarchy that encapsulates many possible "platforms", and the
construction of a suite of "products".
26

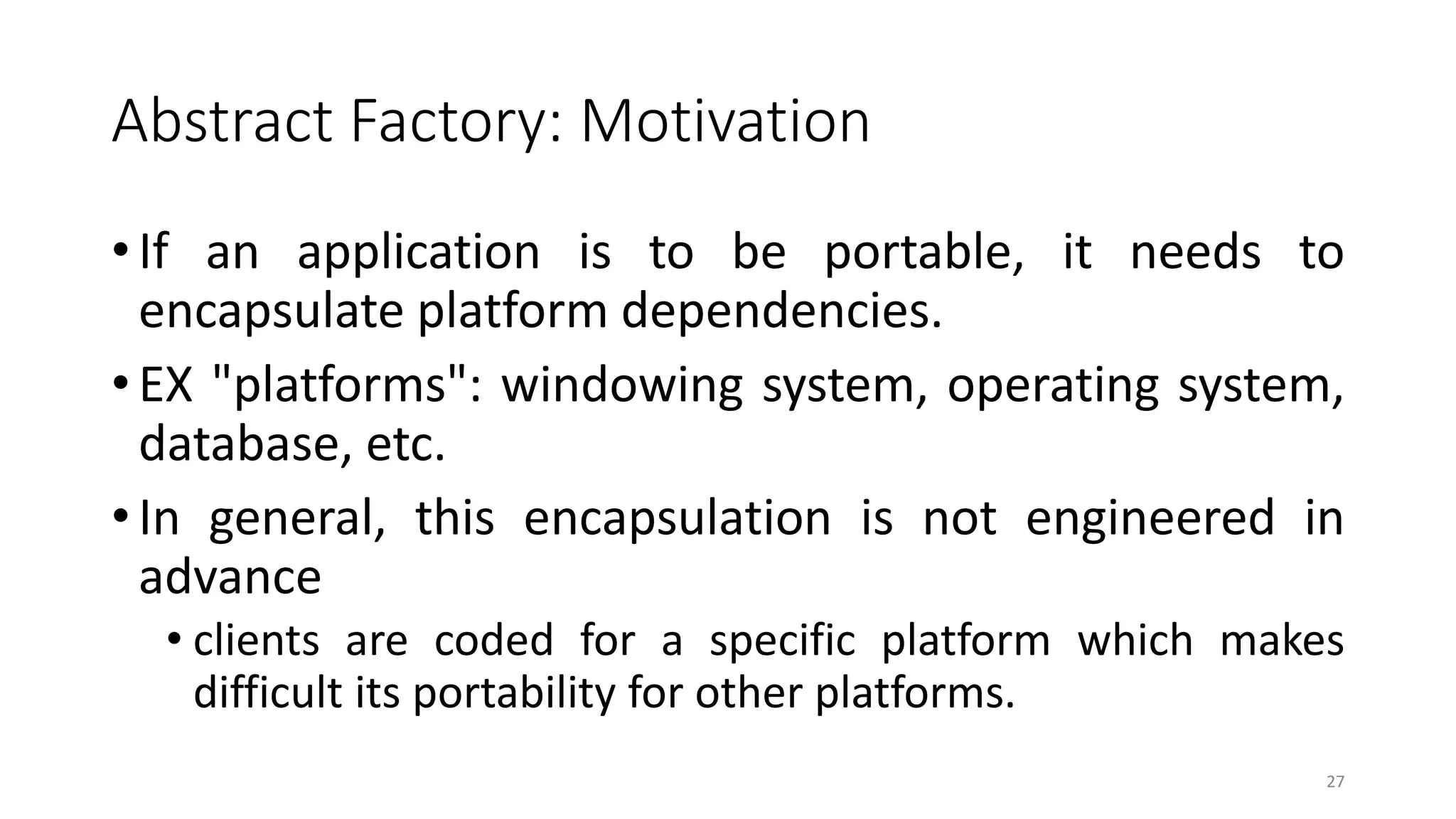

27. Abstract Factory: Motivation
• If an application is to be portable, it needs to
encapsulate platform dependencies.
• EX "platforms": windowing system, operating system,
database, etc.
• In general, this encapsulation is not engineered in
advance
• clients are coded for a specific platform which makes
difficult its portability for other platforms.
27

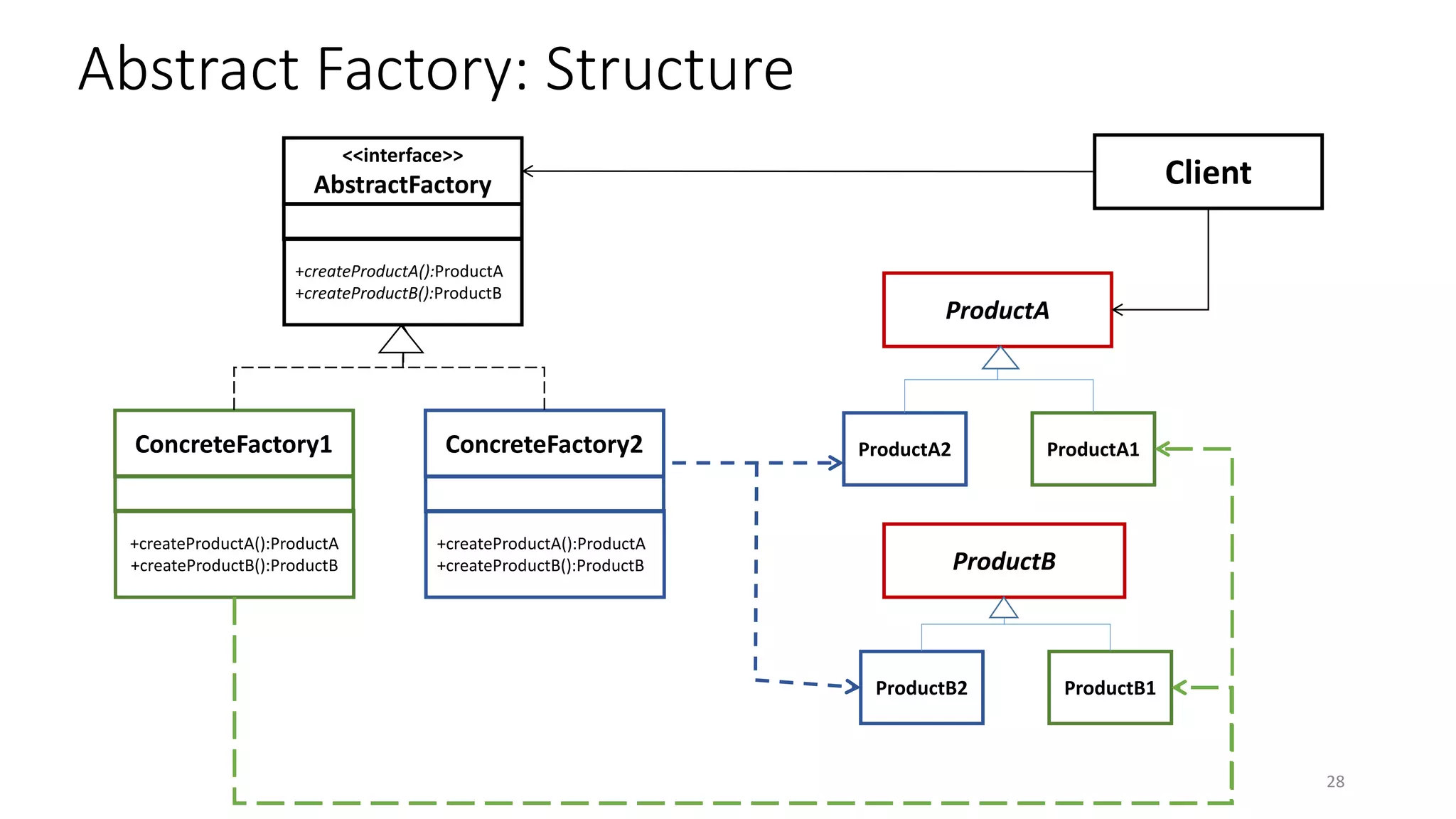

28. Abstract Factory: Structure
28
ProductA
ProductB
ProductA2
ProductB2
ProductA1
ProductB1
ConcreteFactory2
+createProductA():ProductA
+createProductB():ProductB
ConcreteFactory1
+createProductA():ProductA
+createProductB():ProductB
<<interface>>
AbstractFactory
+createProductA():ProductA
+createProductB():ProductB
Client

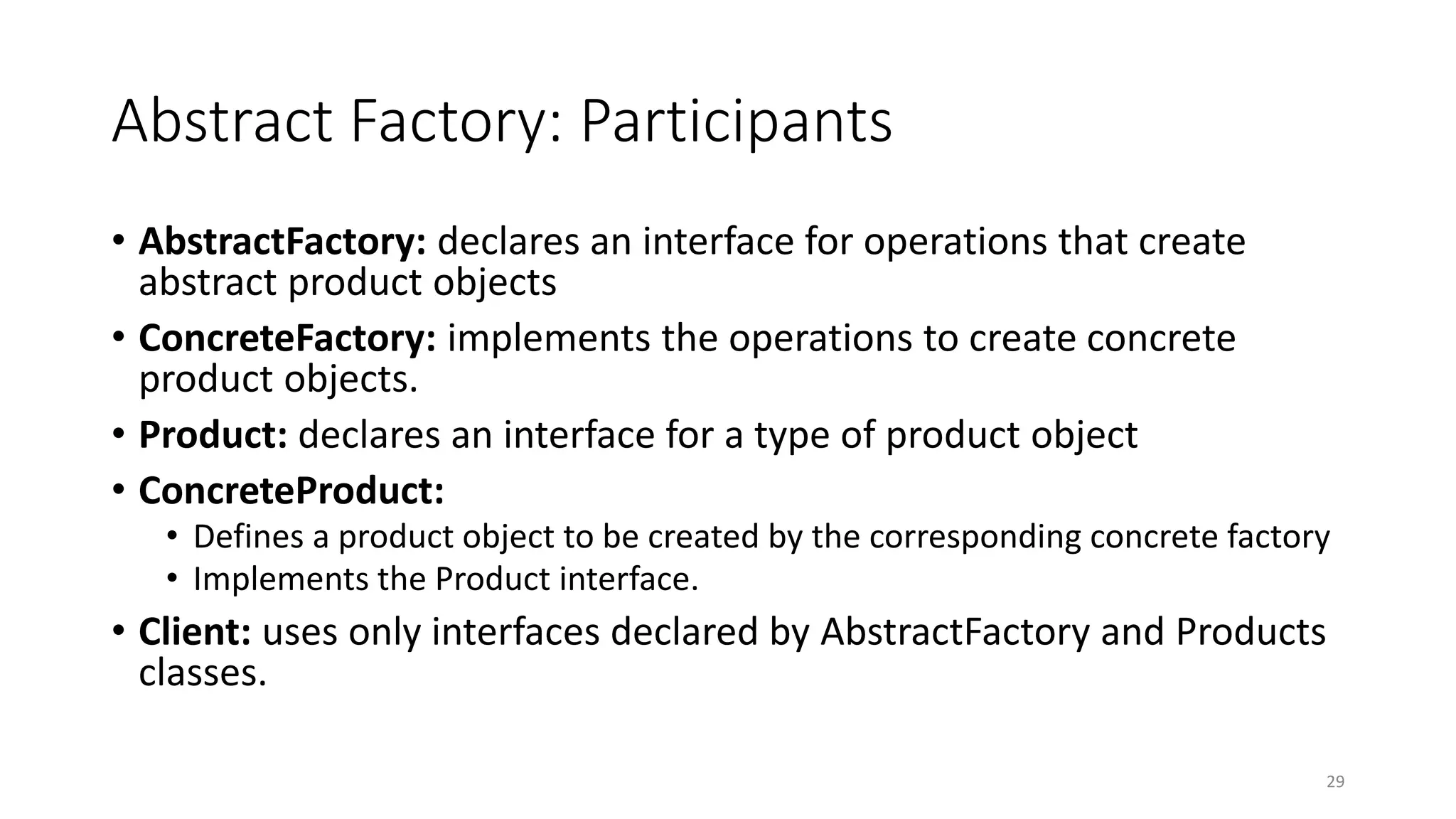

29. Abstract Factory: Participants
• AbstractFactory: declares an interface for operations that create
abstract product objects
• ConcreteFactory: implements the operations to create concrete
product objects.
• Product: declares an interface for a type of product object
• ConcreteProduct:
• Defines a product object to be created by the corresponding concrete factory
• Implements the Product interface.
• Client: uses only interfaces declared by AbstractFactory and Products
classes.
29

30. • Sample code
30

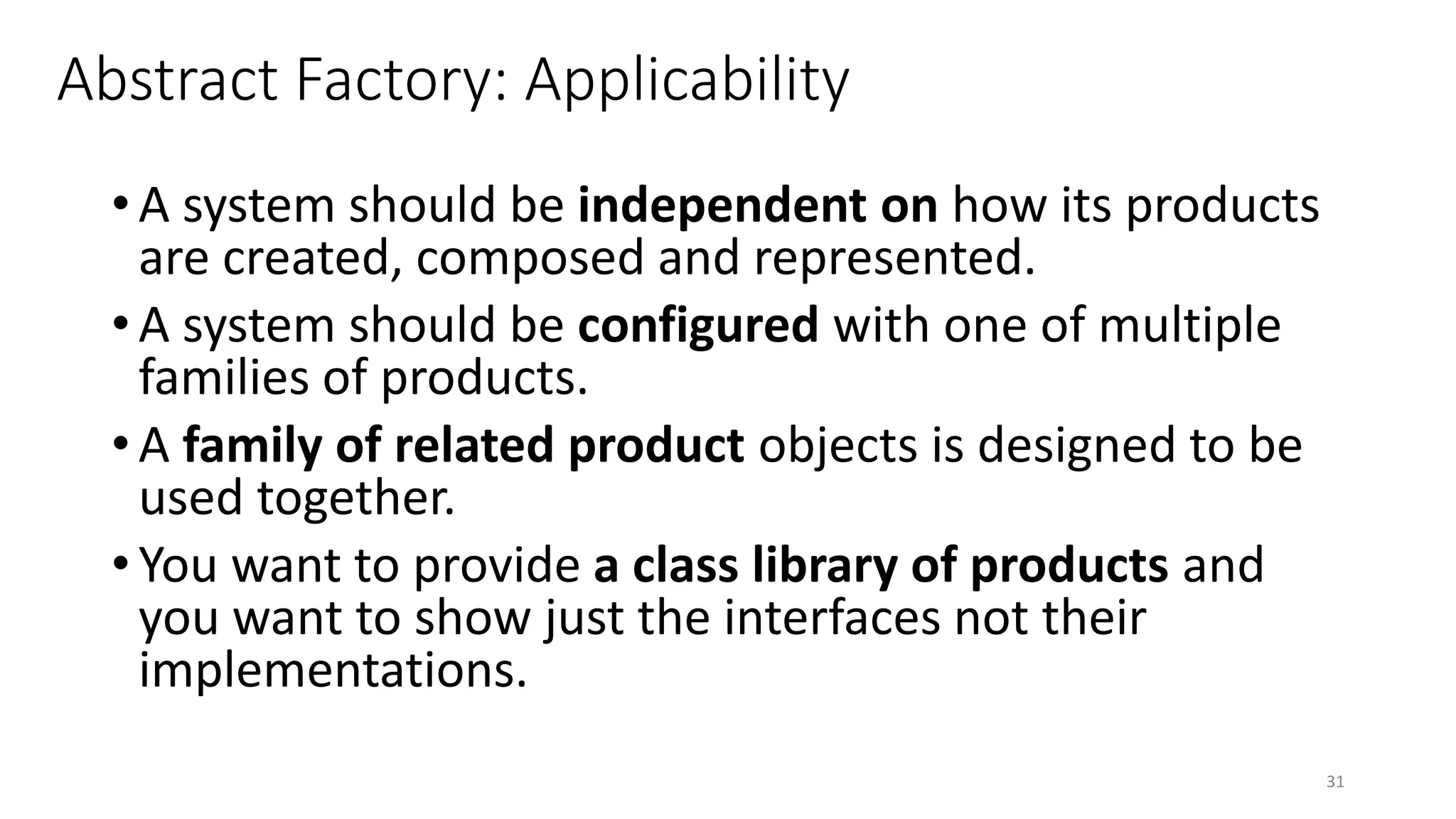

31. Abstract Factory: Applicability
• A system should be independent on how its products
are created, composed and represented.
• A system should be configured with one of multiple
families of products.
• A family of related product objects is designed to be
used together.
• You want to provide a class library of products and
you want to show just the interfaces not their
implementations.
31

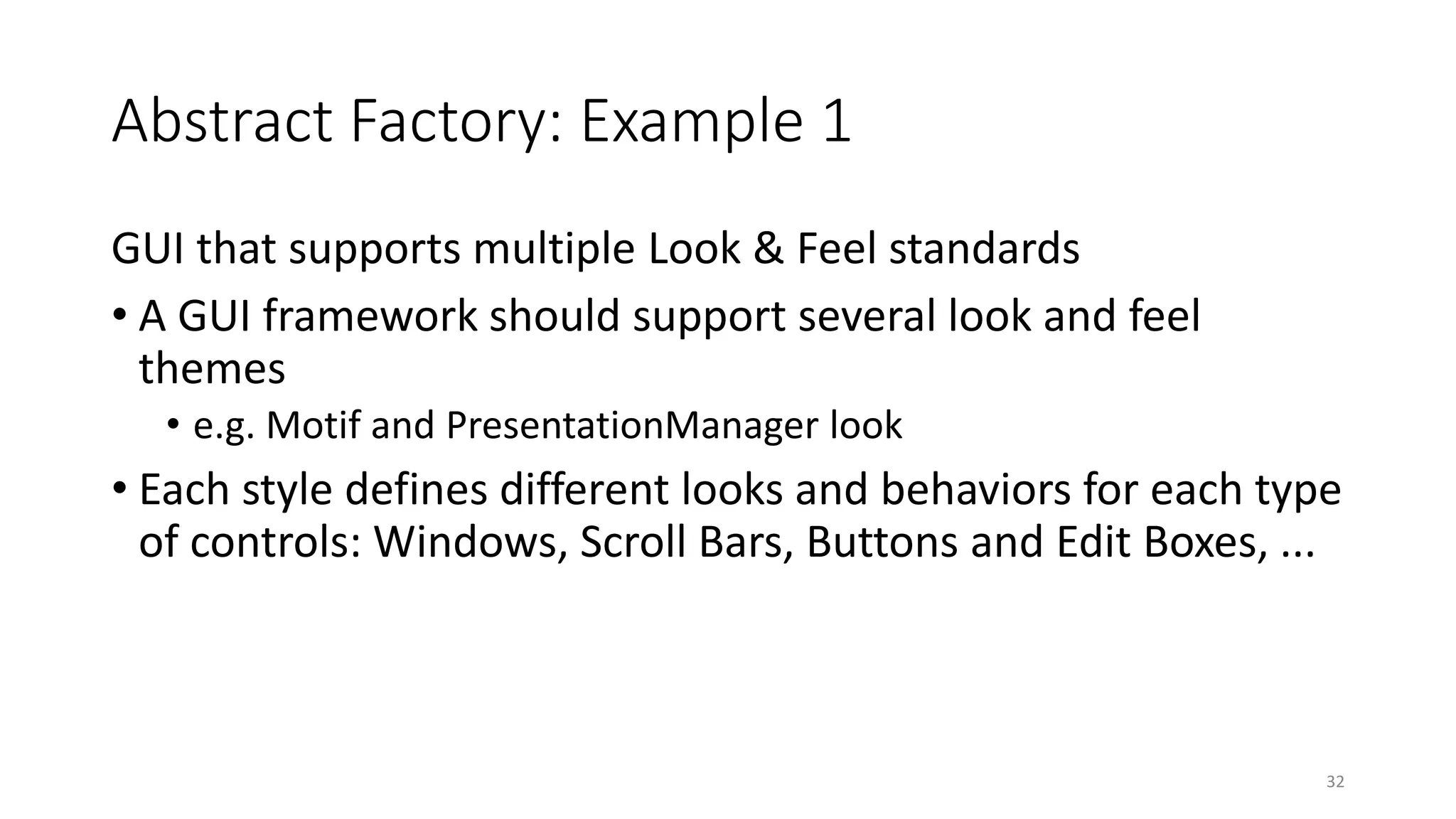

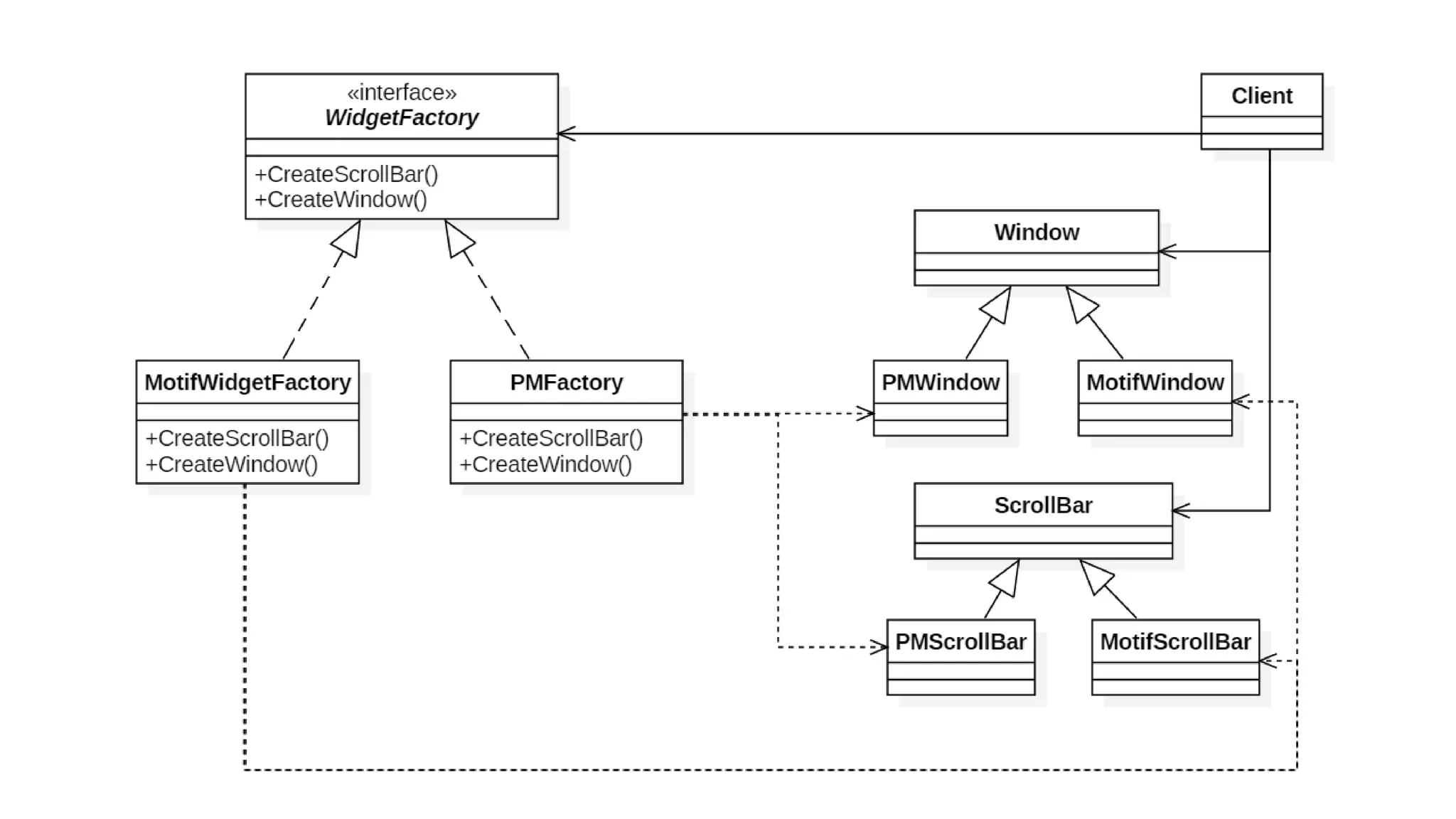

32. Abstract Factory: Example 1
GUI that supports multiple Look & Feel standards
• A GUI framework should support several look and feel
themes
• e.g. Motif and PresentationManager look
• Each style defines different looks and behaviors for each type
of controls: Windows, Scroll Bars, Buttons and Edit Boxes, ...
32

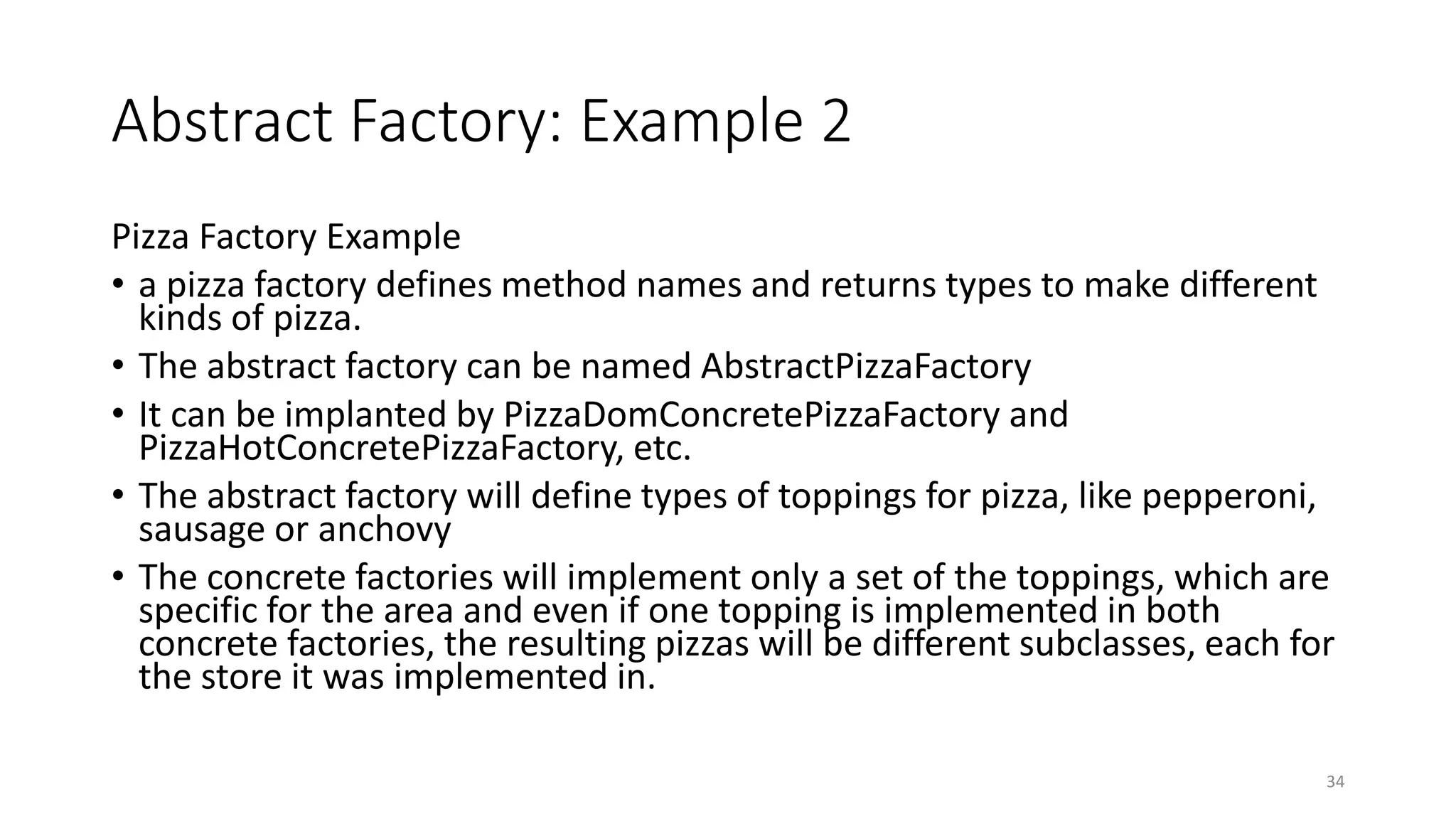

34. Abstract Factory: Example 2
Pizza Factory Example
• a pizza factory defines method names and returns types to make different
kinds of pizza.
• The abstract factory can be named AbstractPizzaFactory
• It can be implanted by PizzaDomConcretePizzaFactory and
PizzaHotConcretePizzaFactory, etc.
• The abstract factory will define types of toppings for pizza, like pepperoni,
sausage or anchovy
• The concrete factories will implement only a set of the toppings, which are
specific for the area and even if one topping is implemented in both
concrete factories, the resulting pizzas will be different subclasses, each for
the store it was implemented in.
34

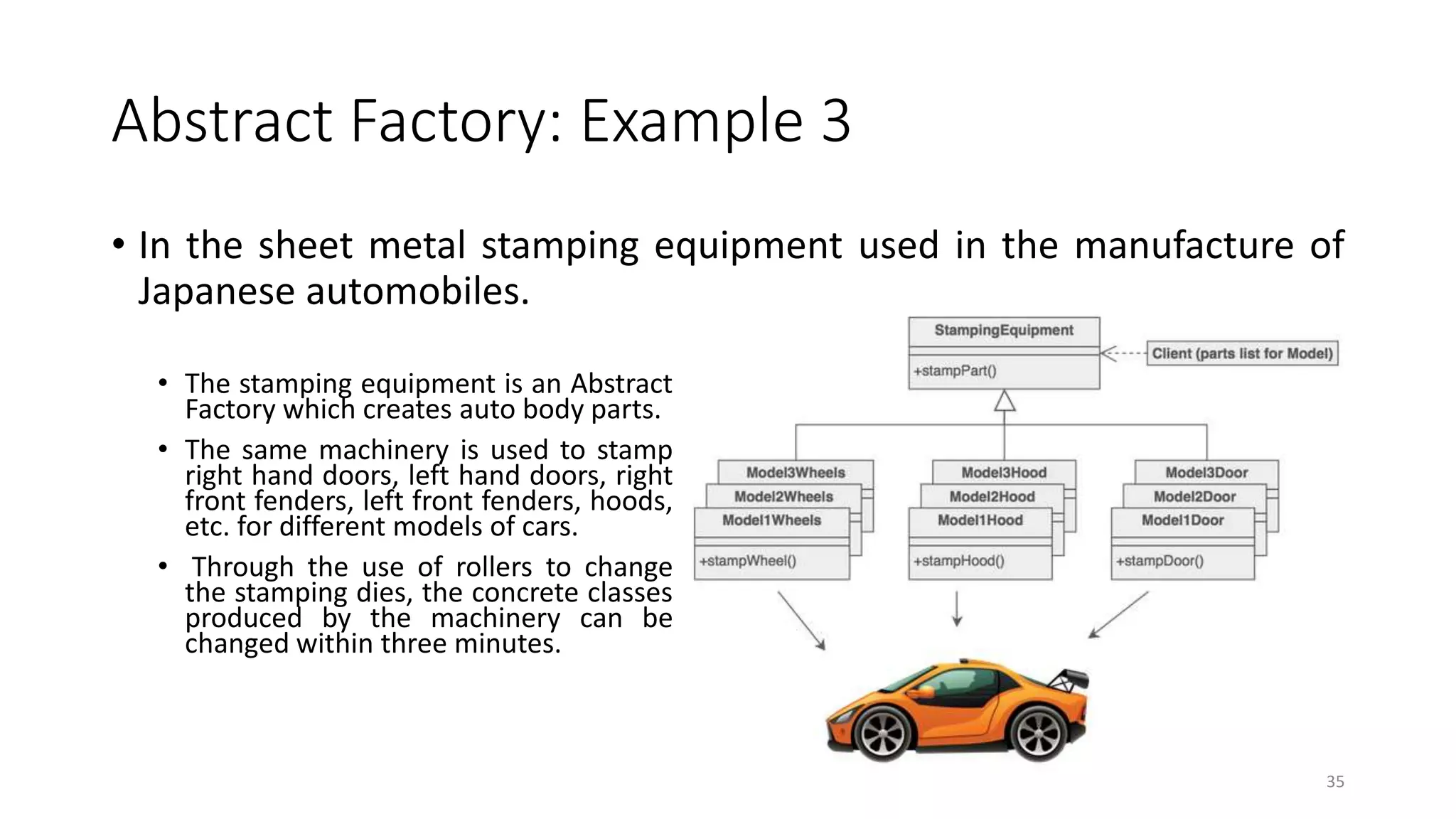

35. Abstract Factory: Example 3
• In the sheet metal stamping equipment used in the manufacture of
Japanese automobiles.
• The stamping equipment is an Abstract
Factory which creates auto body parts.
• The same machinery is used to stamp
right hand doors, left hand doors, right
front fenders, left front fenders, hoods,
etc. for different models of cars.
• Through the use of rollers to change
the stamping dies, the concrete classes
produced by the machinery can be
changed within three minutes.
35

36. PROTOTYPE DESIGN PATTERN
Object Creational
36

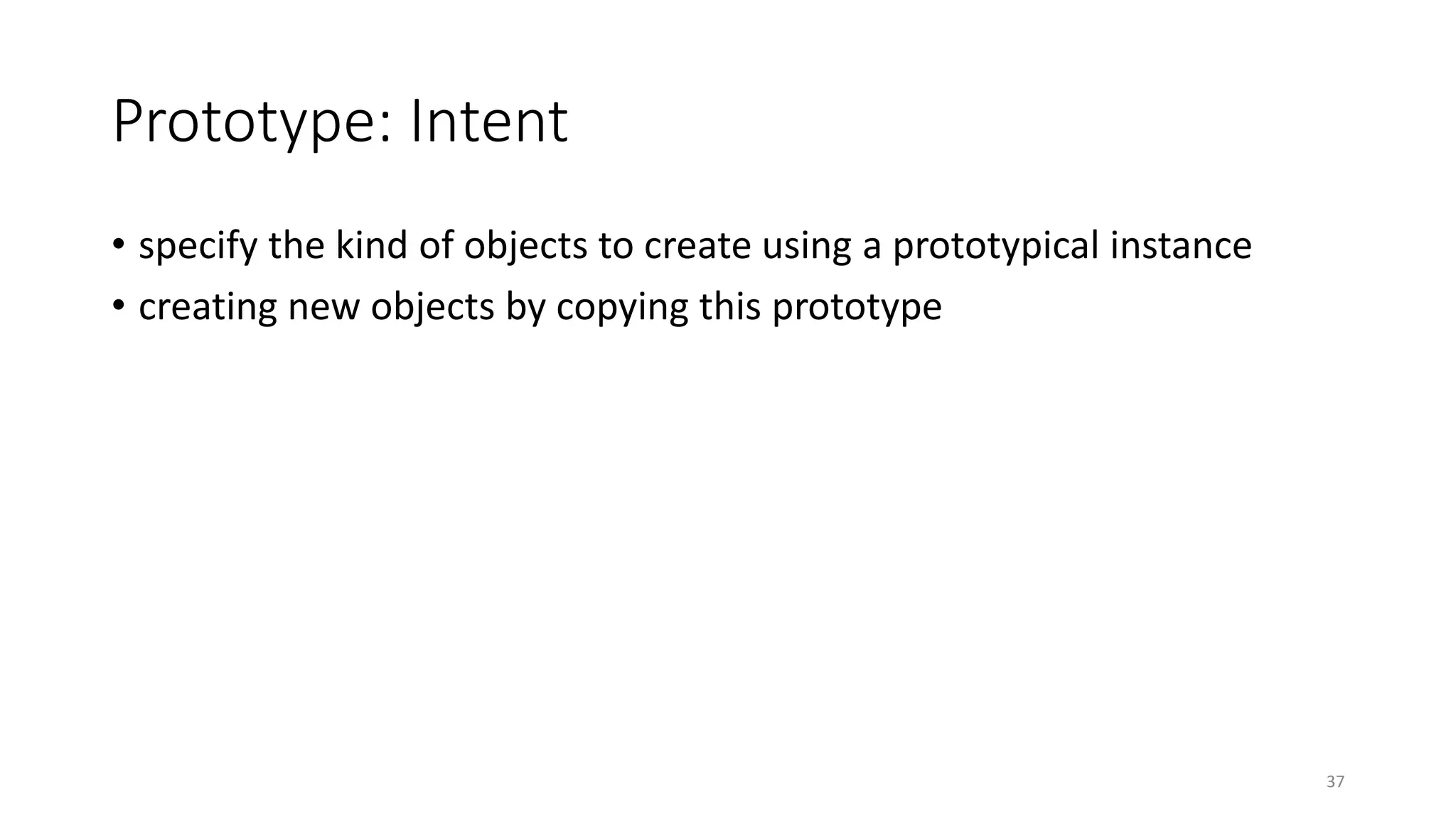

37. Prototype: Intent
• specify the kind of objects to create using a prototypical instance
• creating new objects by copying this prototype
37

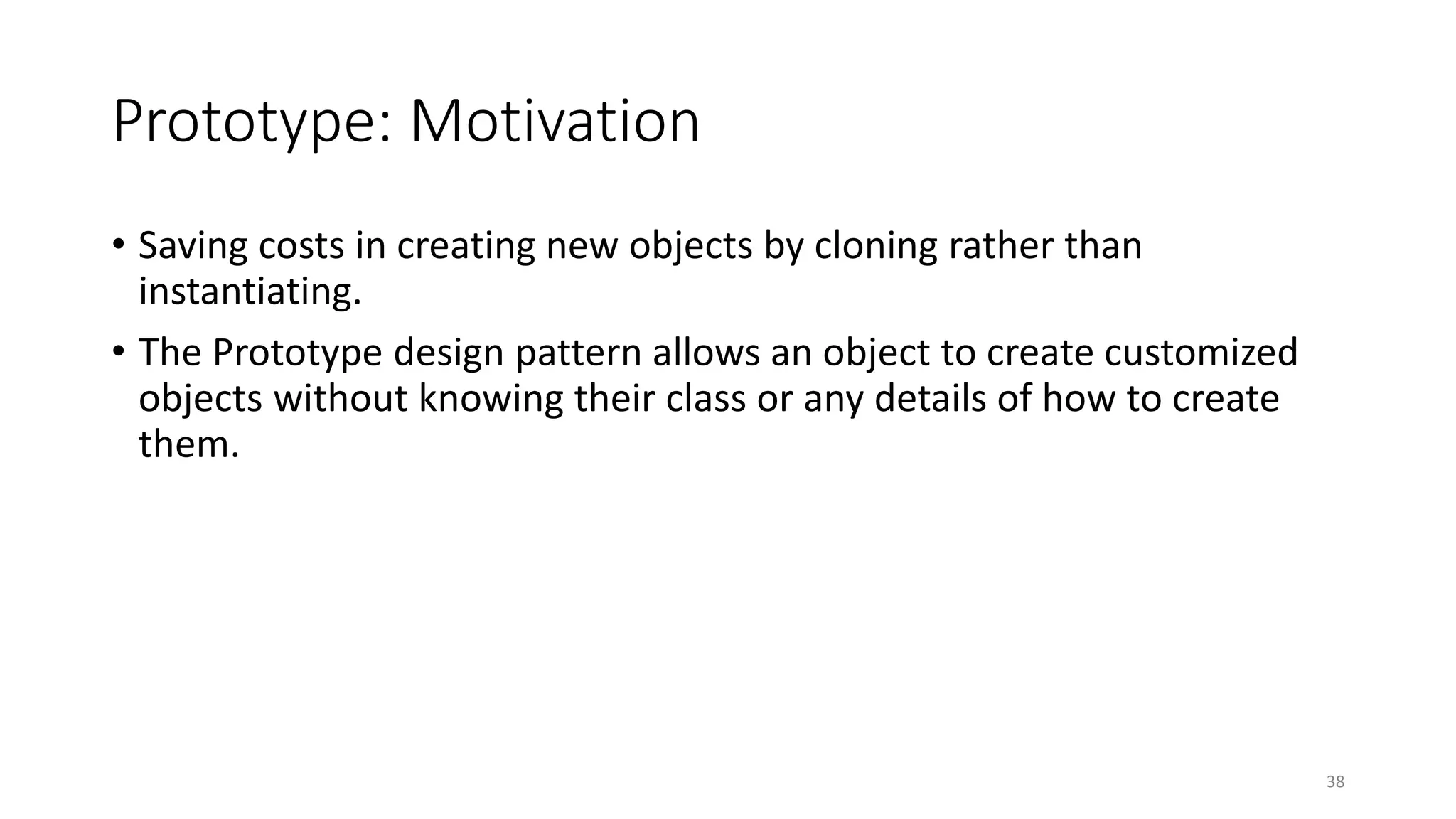

38. Prototype: Motivation
• Saving costs in creating new objects by cloning rather than
instantiating.
• The Prototype design pattern allows an object to create customized
objects without knowing their class or any details of how to create
them.
38

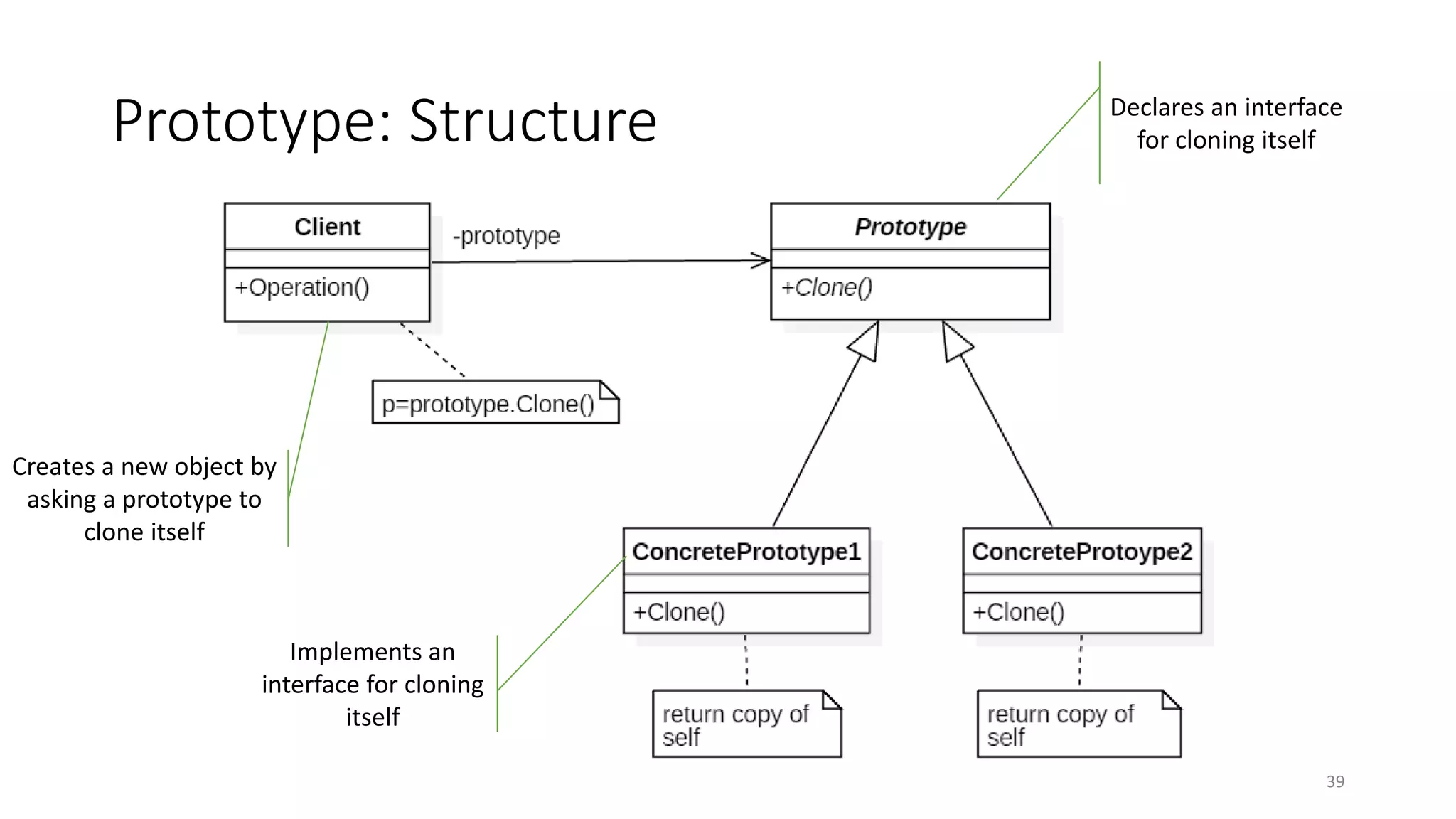

39. Prototype: Structure
39
Declares an interface
for cloning itself
Implements an
interface for cloning
itself
Creates a new object by
asking a prototype to
clone itself

40. Prototype: Sample code
40

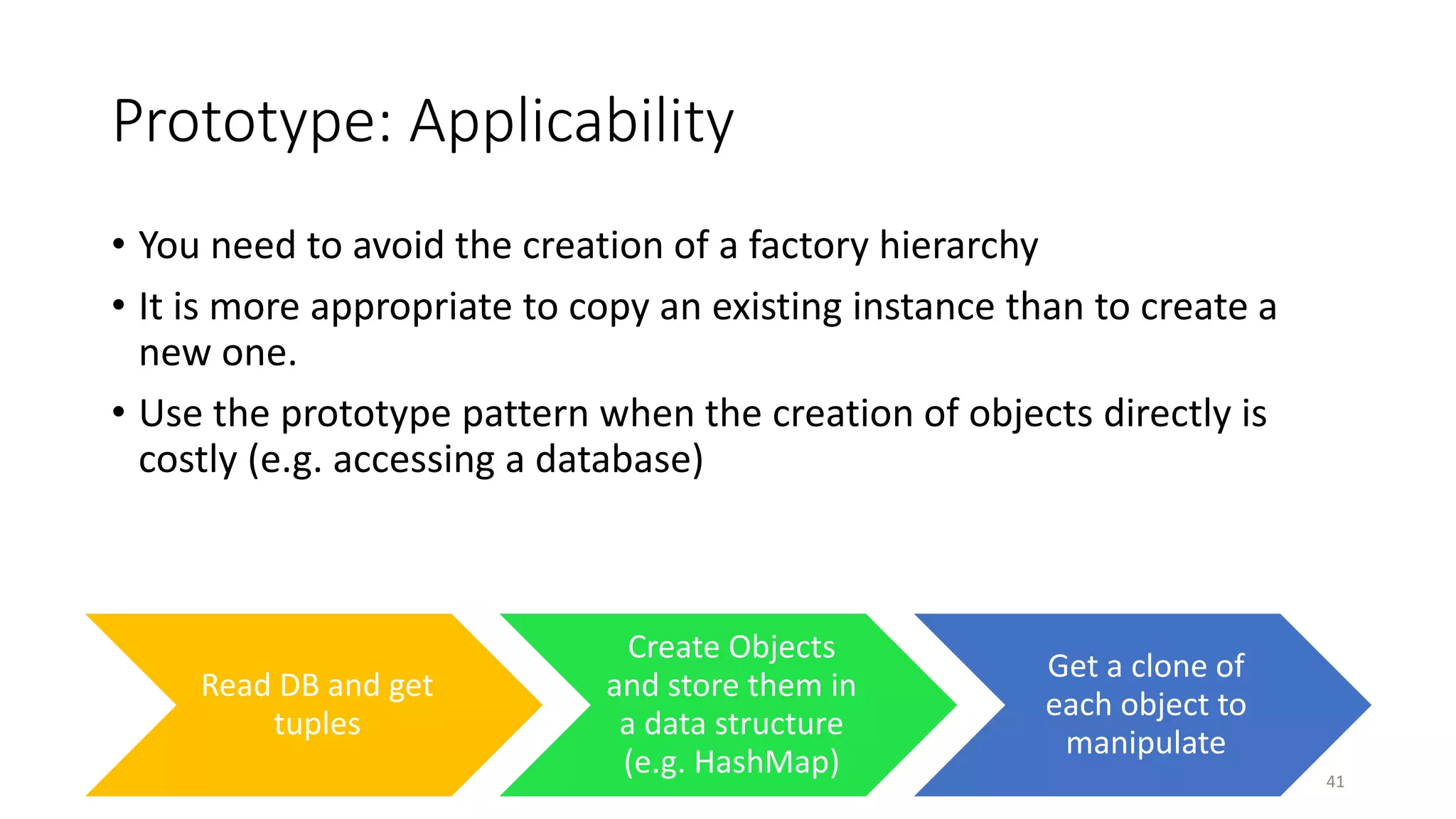

41. Prototype: Applicability
• You need to avoid the creation of a factory hierarchy
• It is more appropriate to copy an existing instance than to create a
new one.
• Use the prototype pattern when the creation of objects directly is
costly (e.g. accessing a database)
41
Read DB and get
tuples
Create Objects
and store them in
a data structure
(e.g. HashMap)
Get a clone of
each object to
manipulate

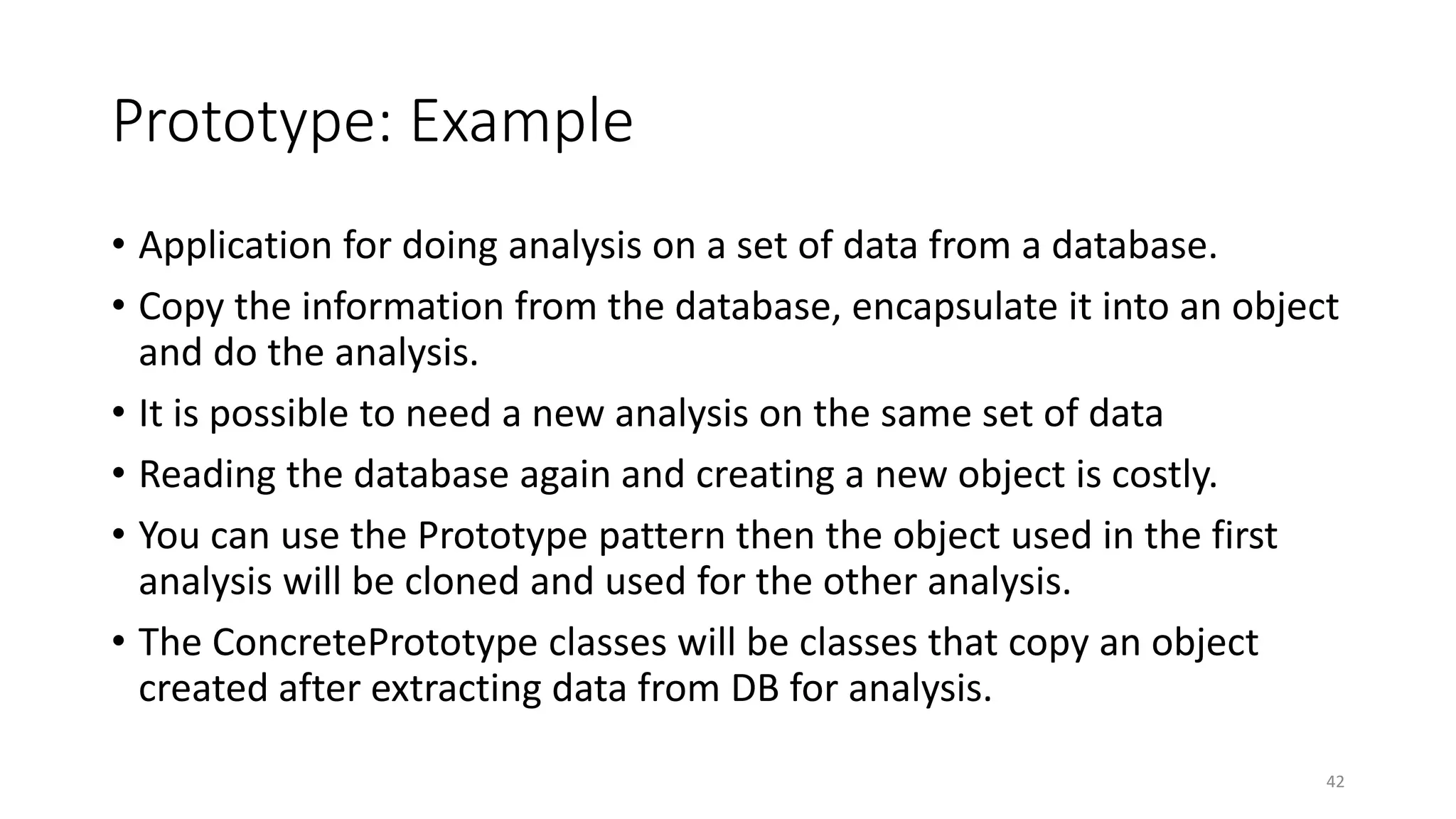

42. Prototype: Example
• Application for doing analysis on a set of data from a database.
• Copy the information from the database, encapsulate it into an object
and do the analysis.
• It is possible to need a new analysis on the same set of data
• Reading the database again and creating a new object is costly.
• You can use the Prototype pattern then the object used in the first
analysis will be cloned and used for the other analysis.
• The ConcretePrototype classes will be classes that copy an object
created after extracting data from DB for analysis.
42

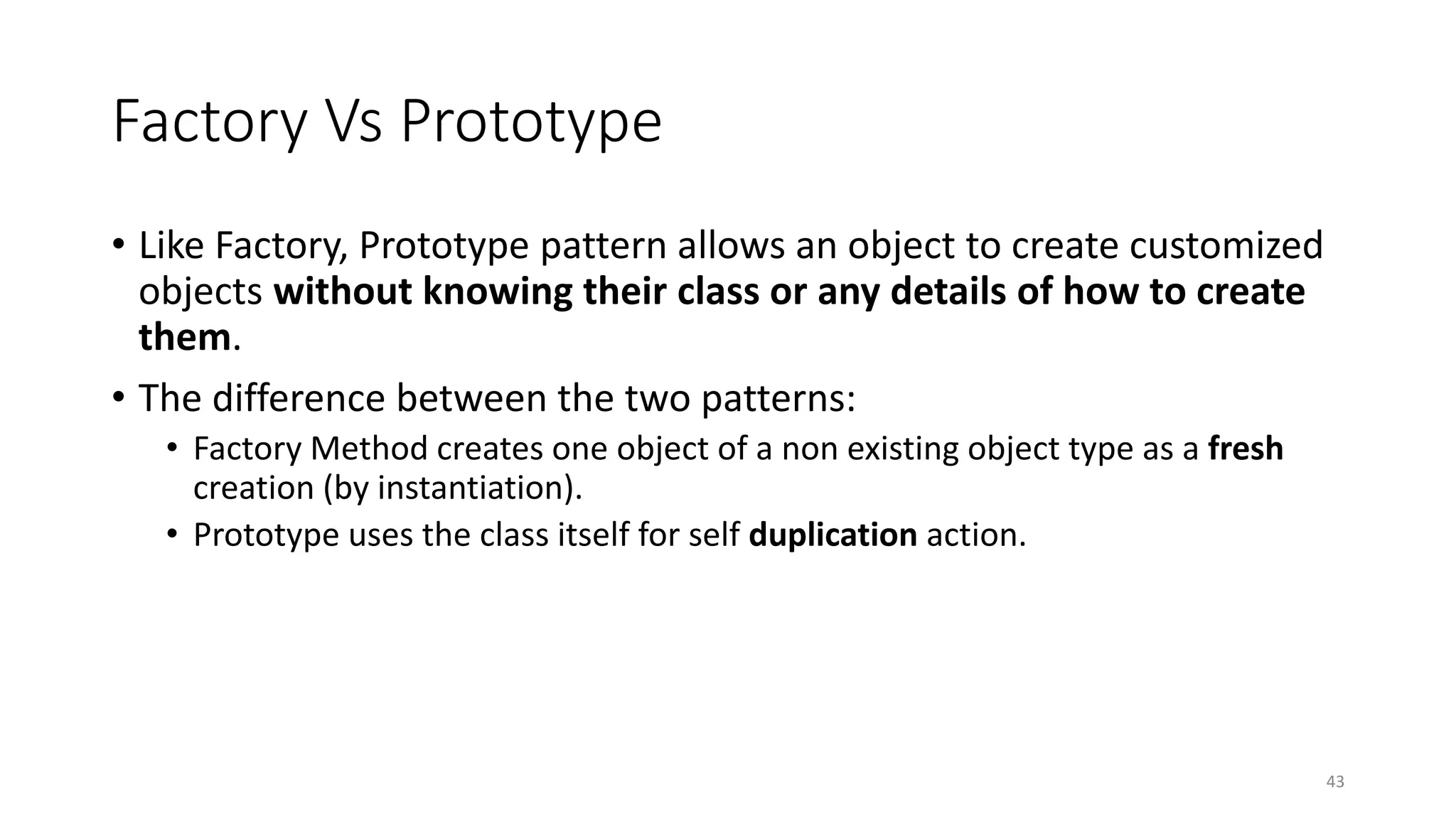

43. Factory Vs Prototype
• Like Factory, Prototype pattern allows an object to create customized
objects without knowing their class or any details of how to create
them.
• The difference between the two patterns:
• Factory Method creates one object of a non existing object type as a fresh
creation (by instantiation).
• Prototype uses the class itself for self duplication action.
43

44. BUILDER DESIGN PATTERN
Object Creational
44

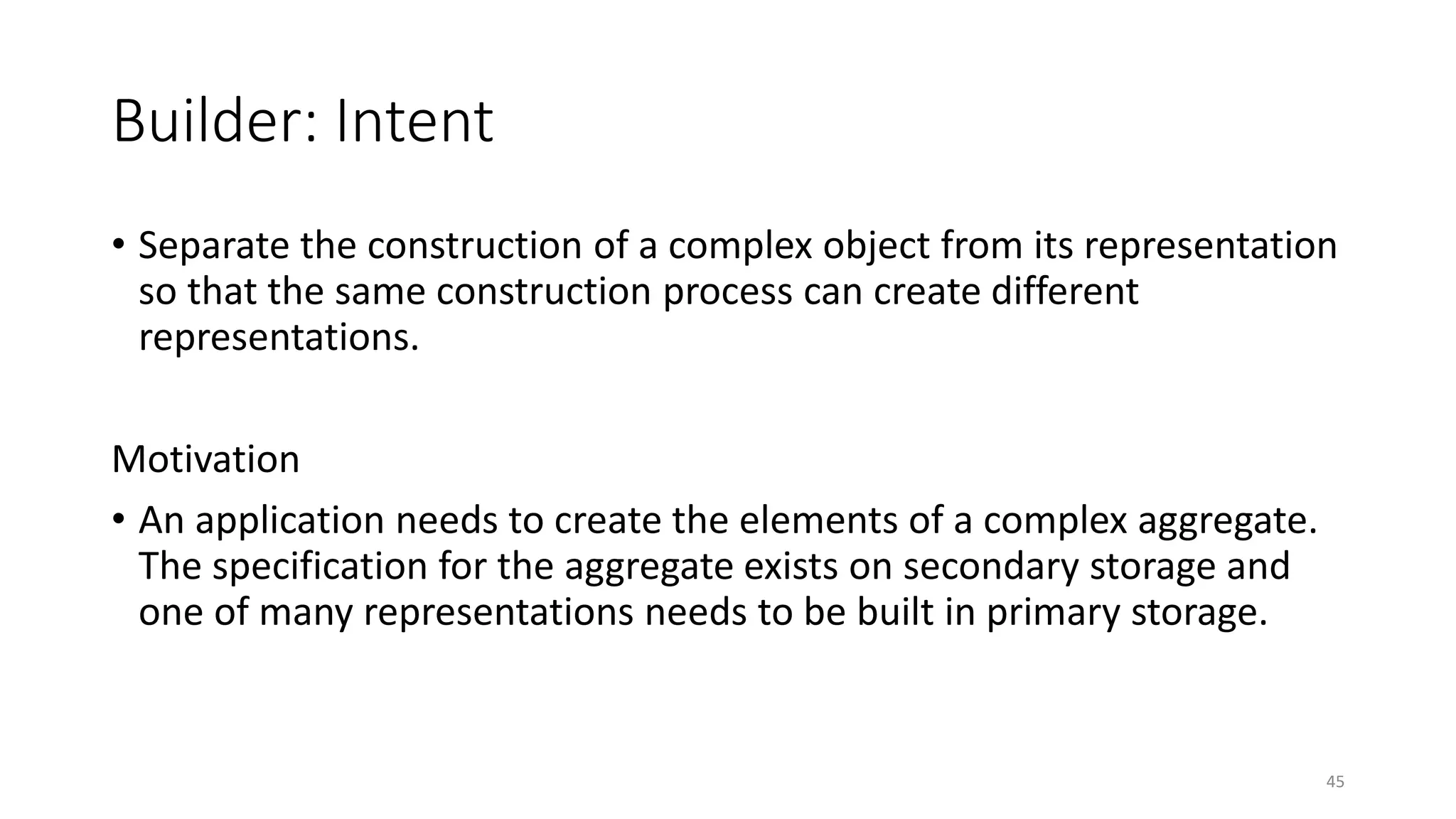

45. Builder: Intent
• Separate the construction of a complex object from its representation
so that the same construction process can create different
representations.
Motivation
• An application needs to create the elements of a complex aggregate.
The specification for the aggregate exists on secondary storage and
one of many representations needs to be built in primary storage.
45

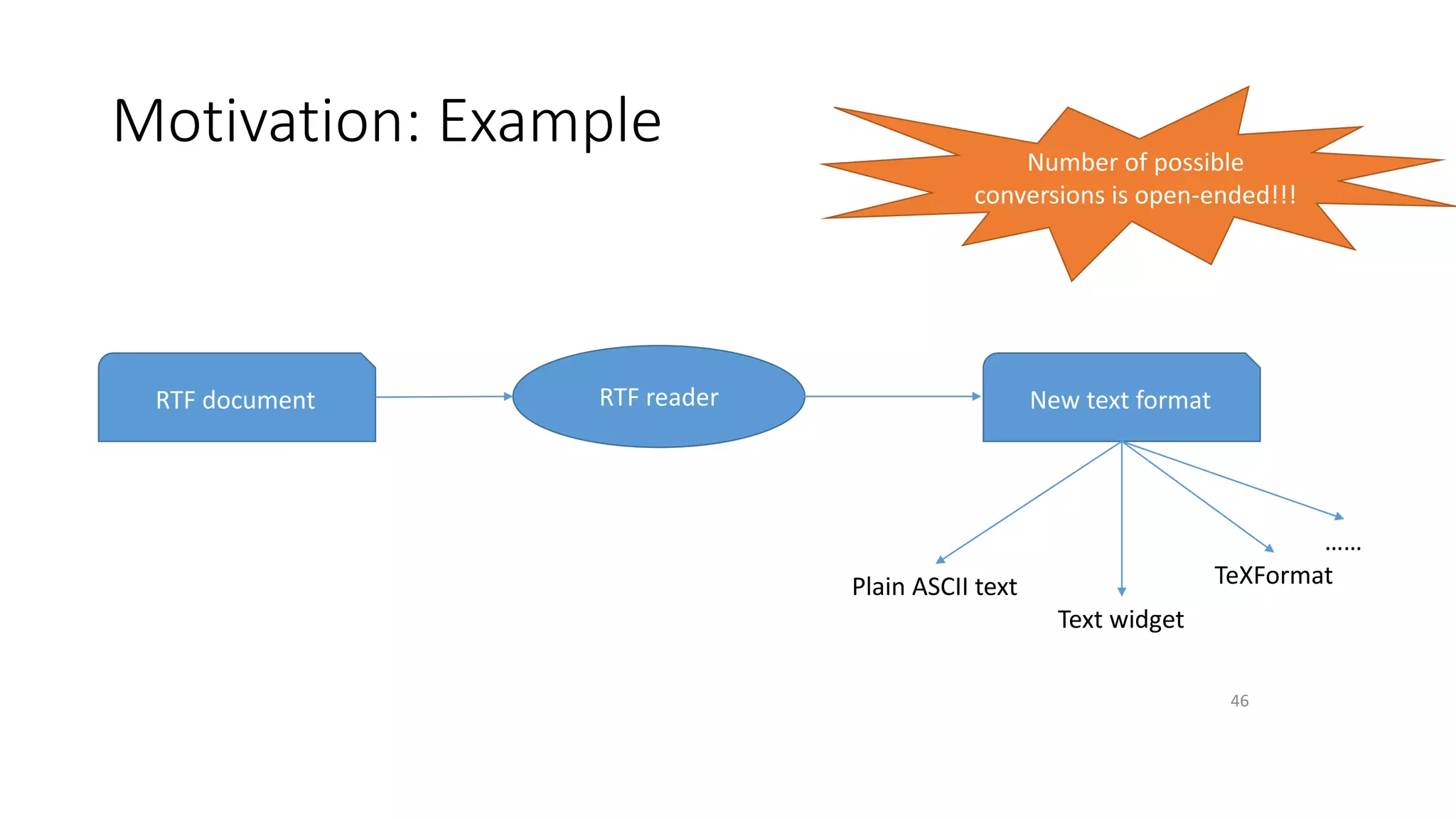

46. Motivation: Example
46
RTF document RTF reader New text format
Plain ASCII text
Text widget
TeXFormat
……
Number of possible
conversions is open-ended!!!

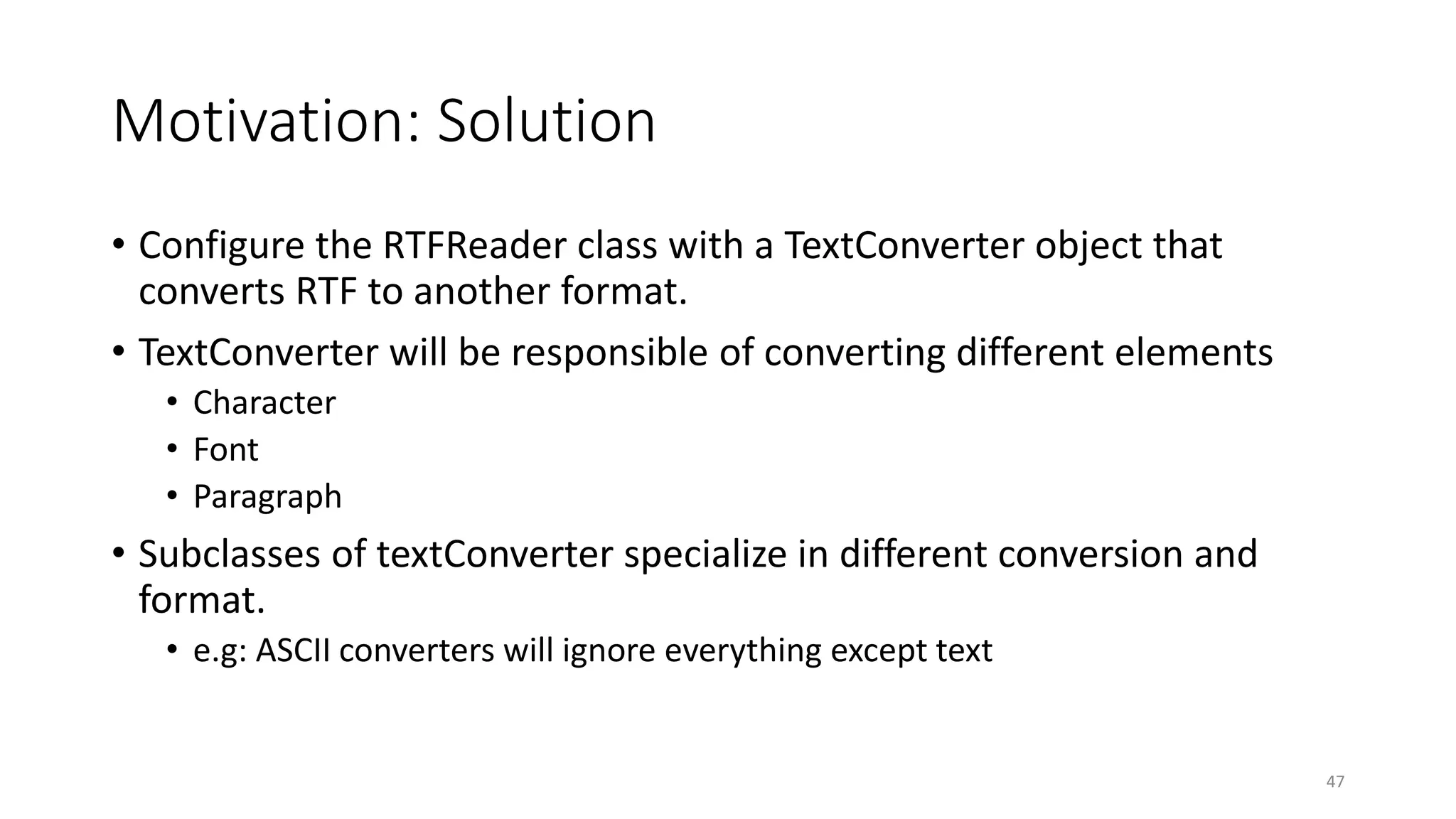

47. Motivation: Solution
• Configure the RTFReader class with a TextConverter object that
converts RTF to another format.
• TextConverter will be responsible of converting different elements
• Character
• Font
• Paragraph
• Subclasses of textConverter specialize in different conversion and
format.
• e.g: ASCII converters will ignore everything except text
47

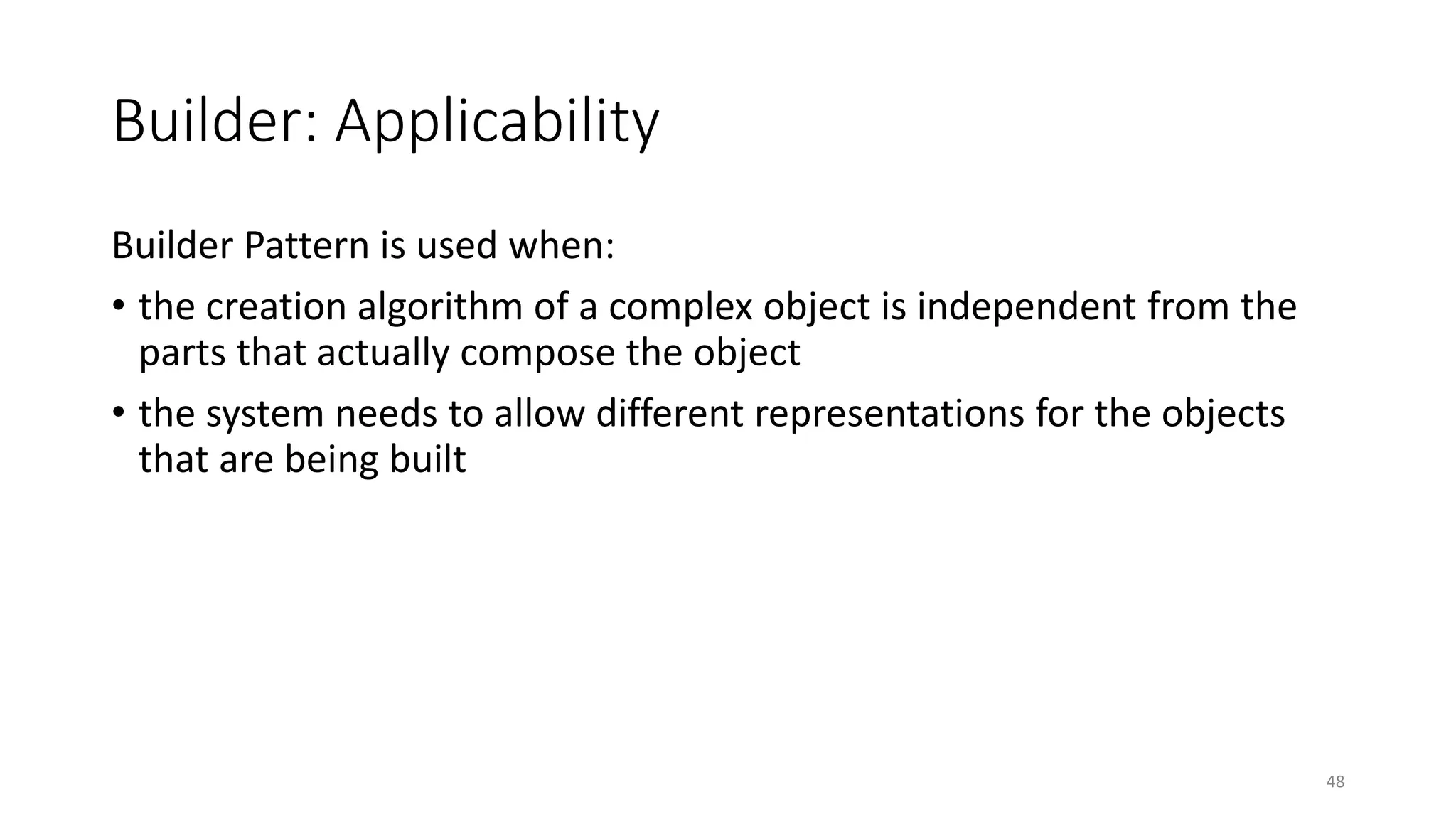

48. Builder: Applicability
Builder Pattern is used when:
• the creation algorithm of a complex object is independent from the
parts that actually compose the object
• the system needs to allow different representations for the objects
that are being built
48

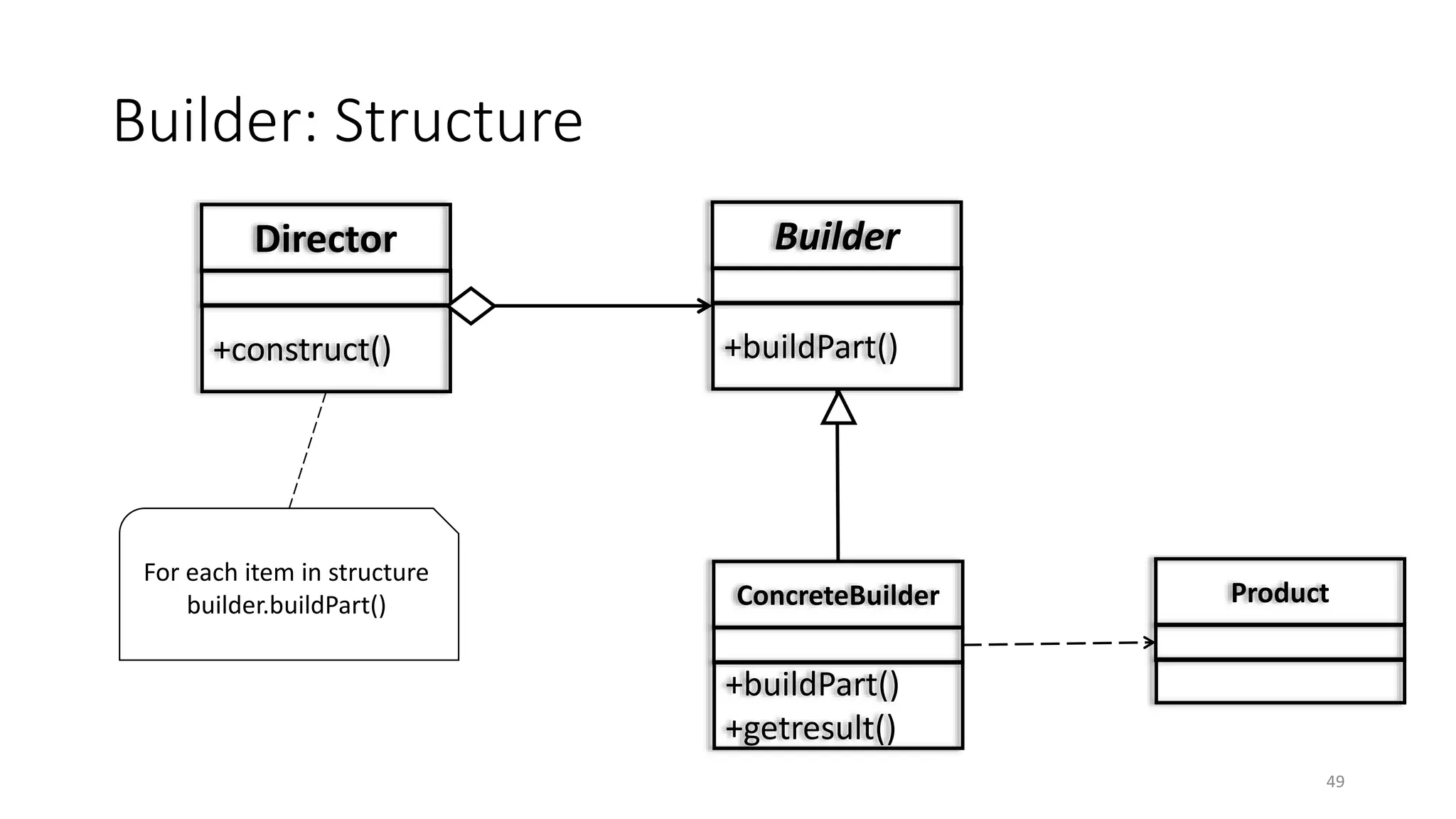

49. Builder: Structure
49
Director
+construct()
Builder
+buildPart()
ConcreteBuilder
+buildPart()
+getresult()
Product
For each item in structure
builder.buildPart()

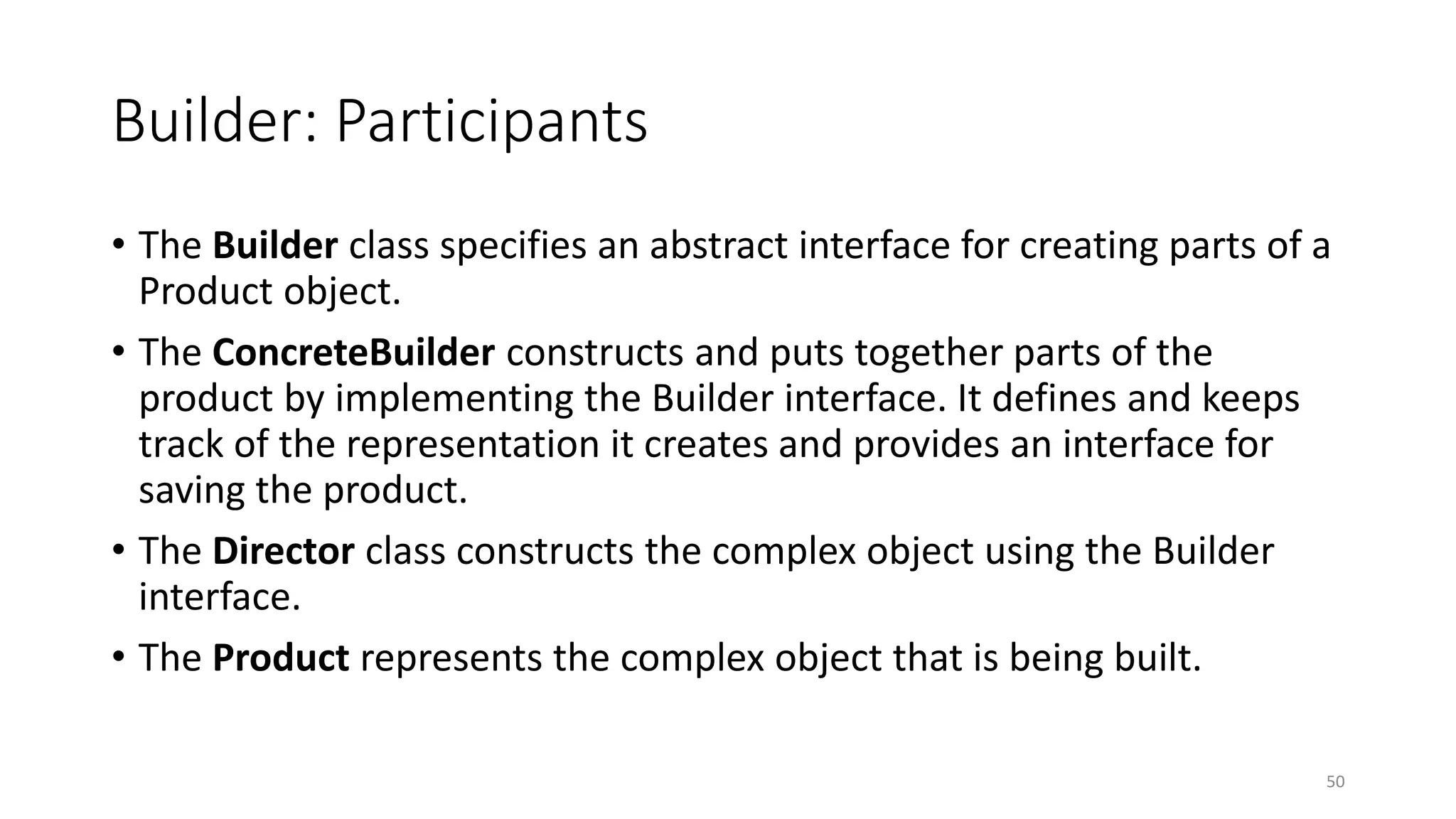

50. Builder: Participants
• The Builder class specifies an abstract interface for creating parts of a
Product object.
• The ConcreteBuilder constructs and puts together parts of the
product by implementing the Builder interface. It defines and keeps
track of the representation it creates and provides an interface for
saving the product.
• The Director class constructs the complex object using the Builder
interface.
• The Product represents the complex object that is being built.
50

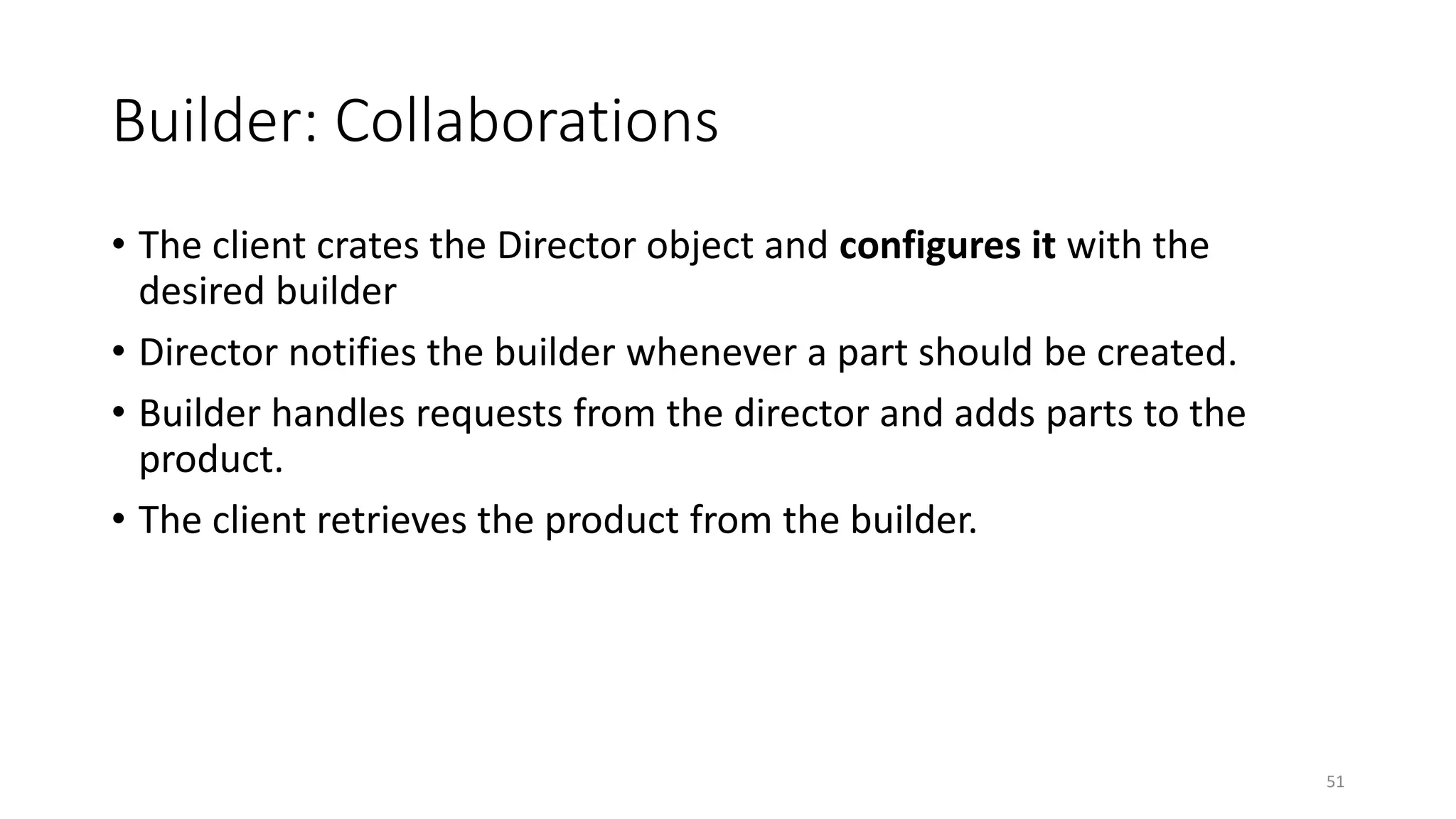

51. Builder: Collaborations
• The client crates the Director object and configures it with the
desired builder
• Director notifies the builder whenever a part should be created.
• Builder handles requests from the director and adds parts to the
product.
• The client retrieves the product from the builder.
51

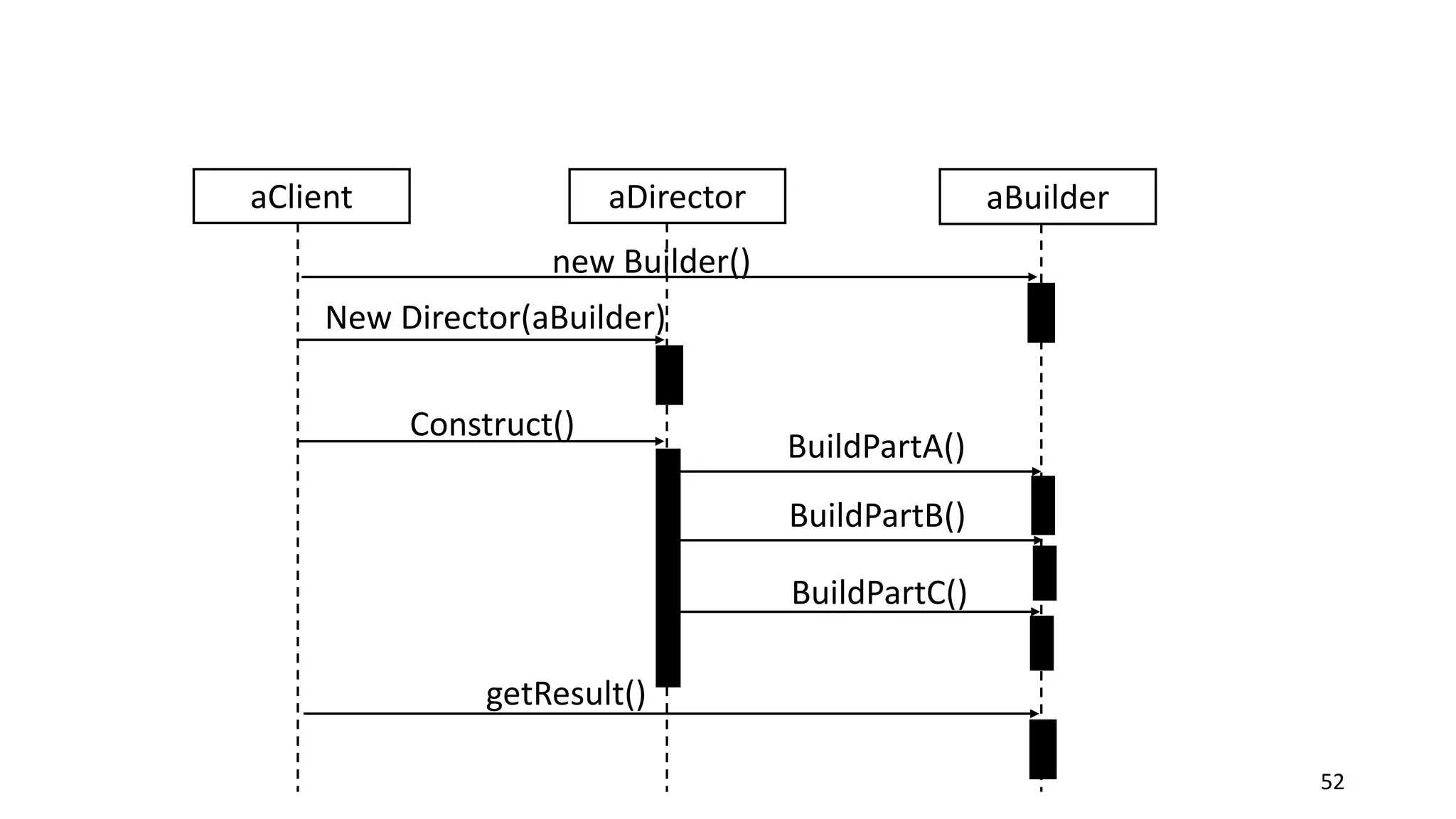

52. 52
aClient aDirector aBuilder
new Builder()
New Director(aBuilder)
Construct()
BuildPartA()
BuildPartB()
BuildPartC()
getResult()

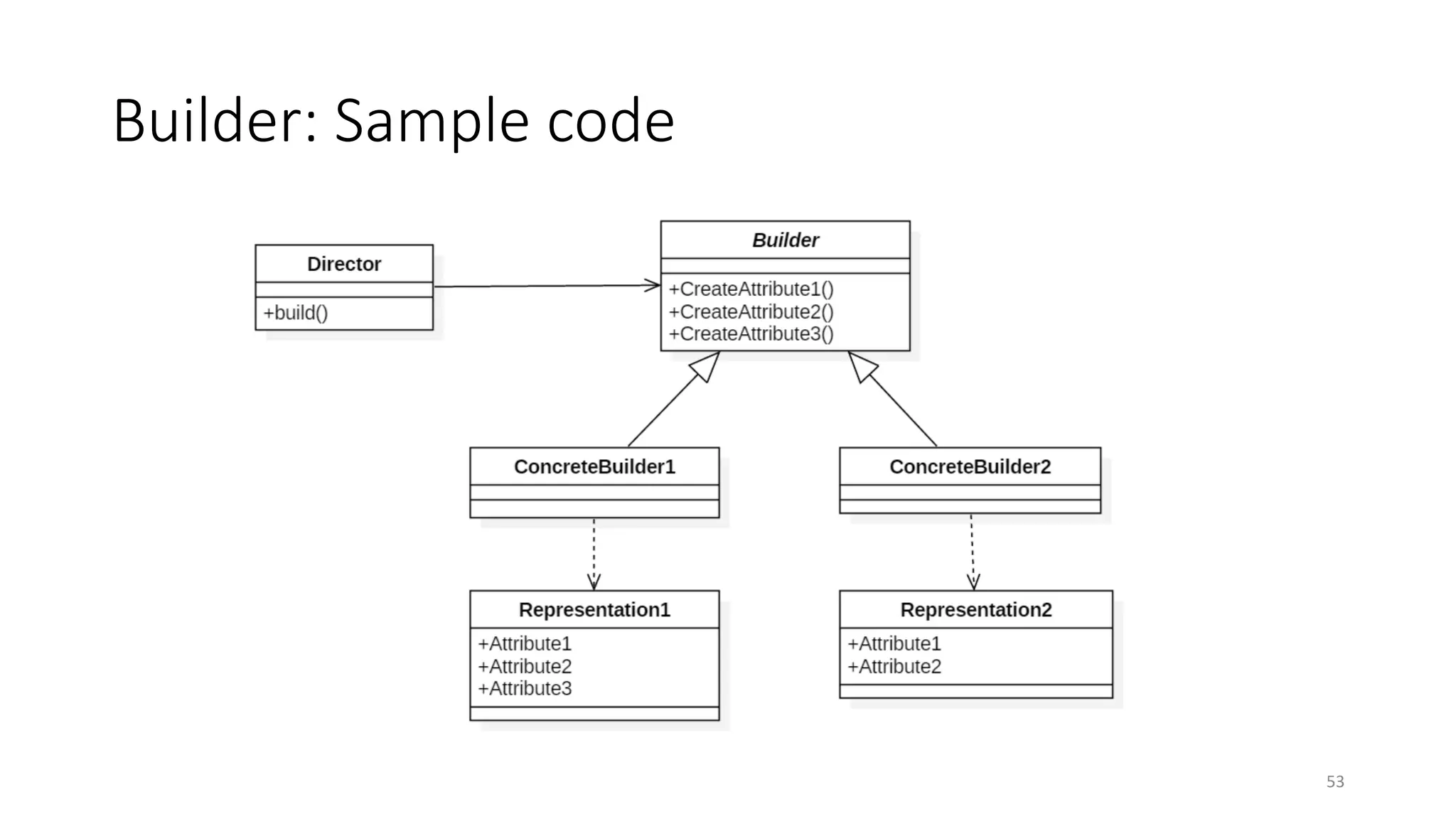

53. Builder: Sample code
53

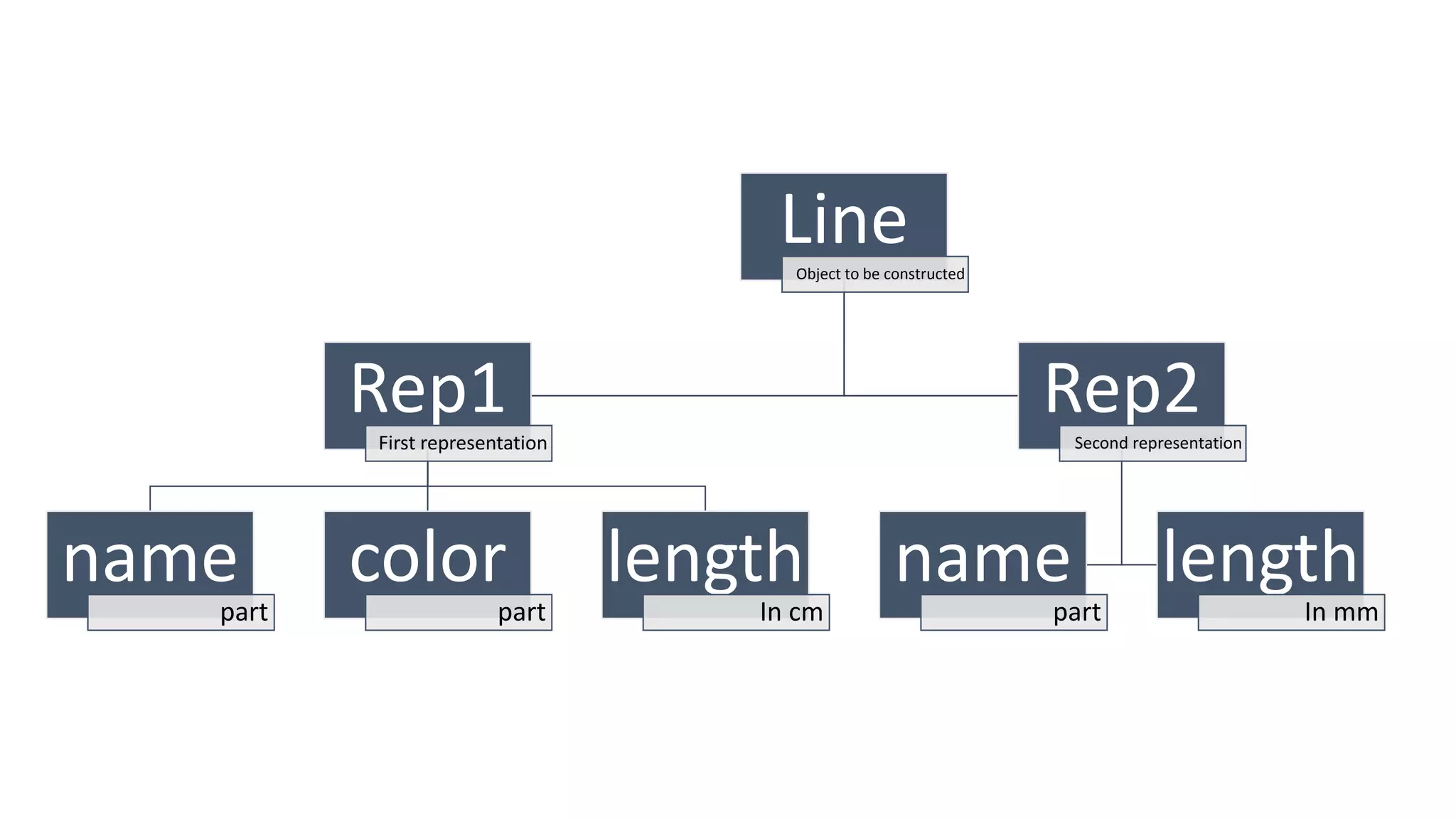

54. LineObject to be constructed
Rep1First representation
name
part
color
part
length
In cm
Rep2Second representation
name
part
length
In mm

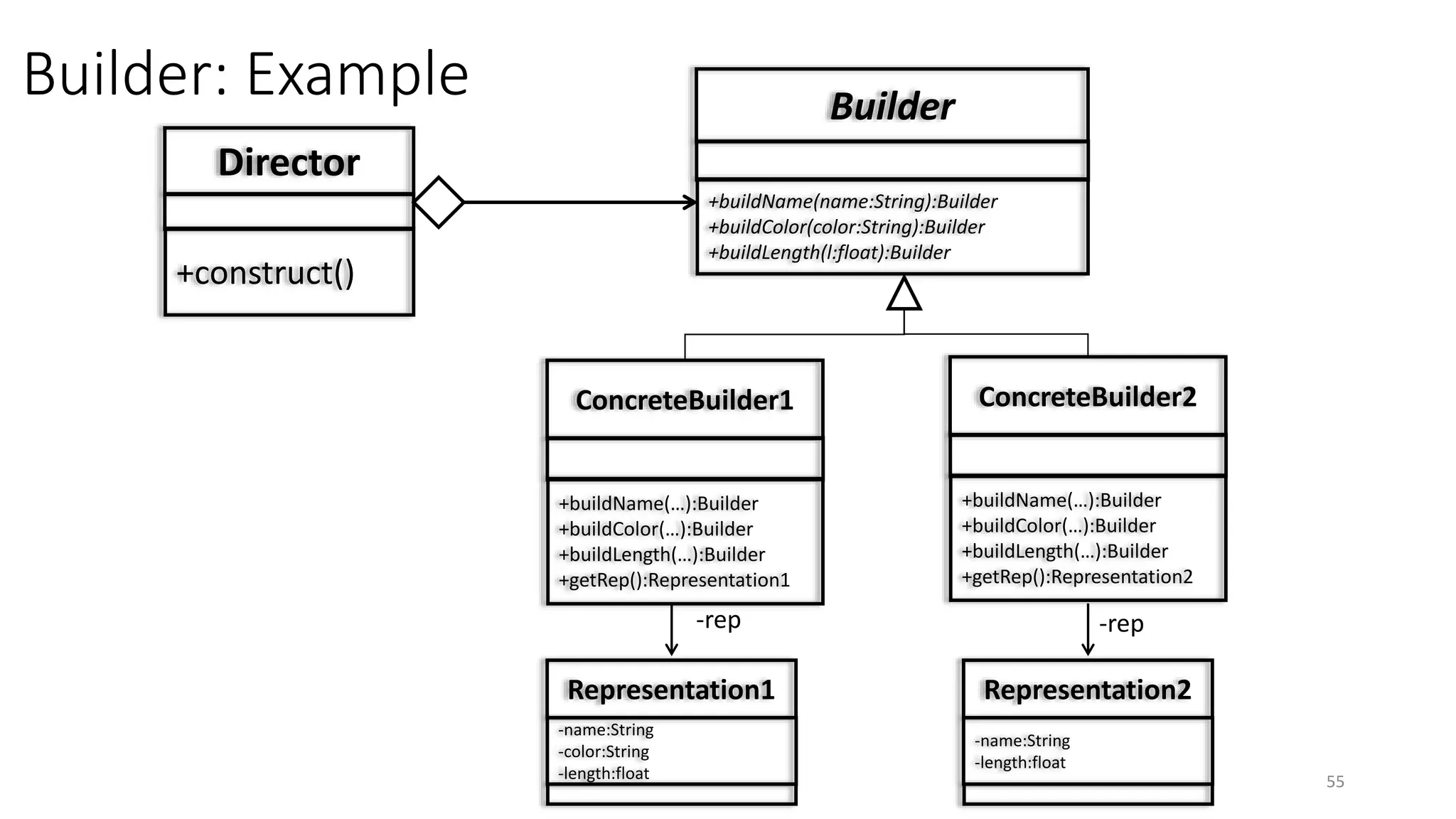

55. Builder: Example
55
Director
+construct()
Builder
+buildName(name:String):Builder
+buildColor(color:String):Builder
+buildLength(l:float):Builder
Representation1
-name:String
-color:String
-length:float
ConcreteBuilder1
+buildName(…):Builder
+buildColor(…):Builder
+buildLength(…):Builder
+getRep():Representation1
ConcreteBuilder2
+buildName(…):Builder
+buildColor(…):Builder
+buildLength(…):Builder
+getRep():Representation2
-rep -rep
Representation2
-name:String
-length:float

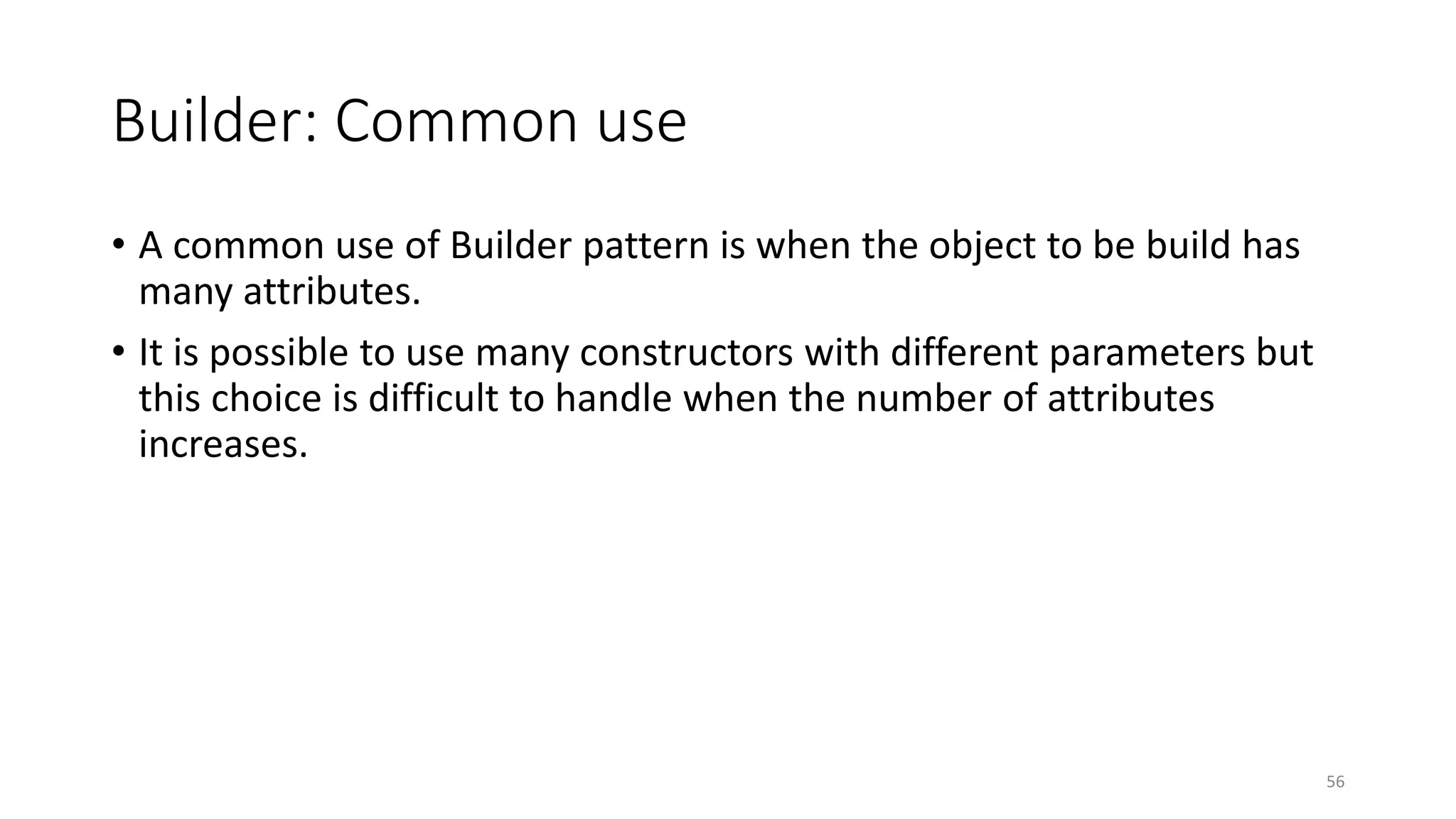

56. Builder: Common use
• A common use of Builder pattern is when the object to be build has
many attributes.
• It is possible to use many constructors with different parameters but
this choice is difficult to handle when the number of attributes
increases.
56

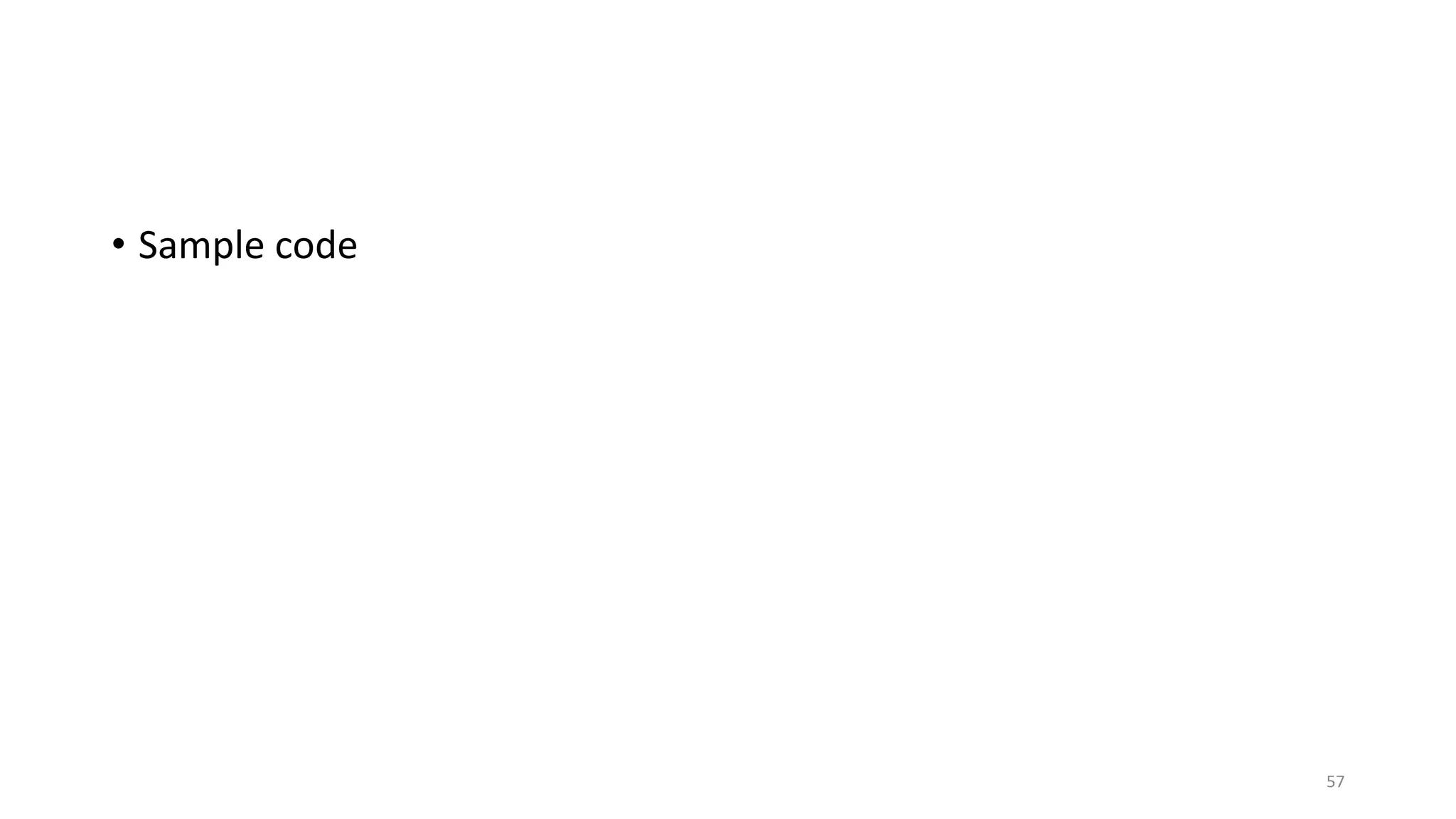

57. • Sample code
57

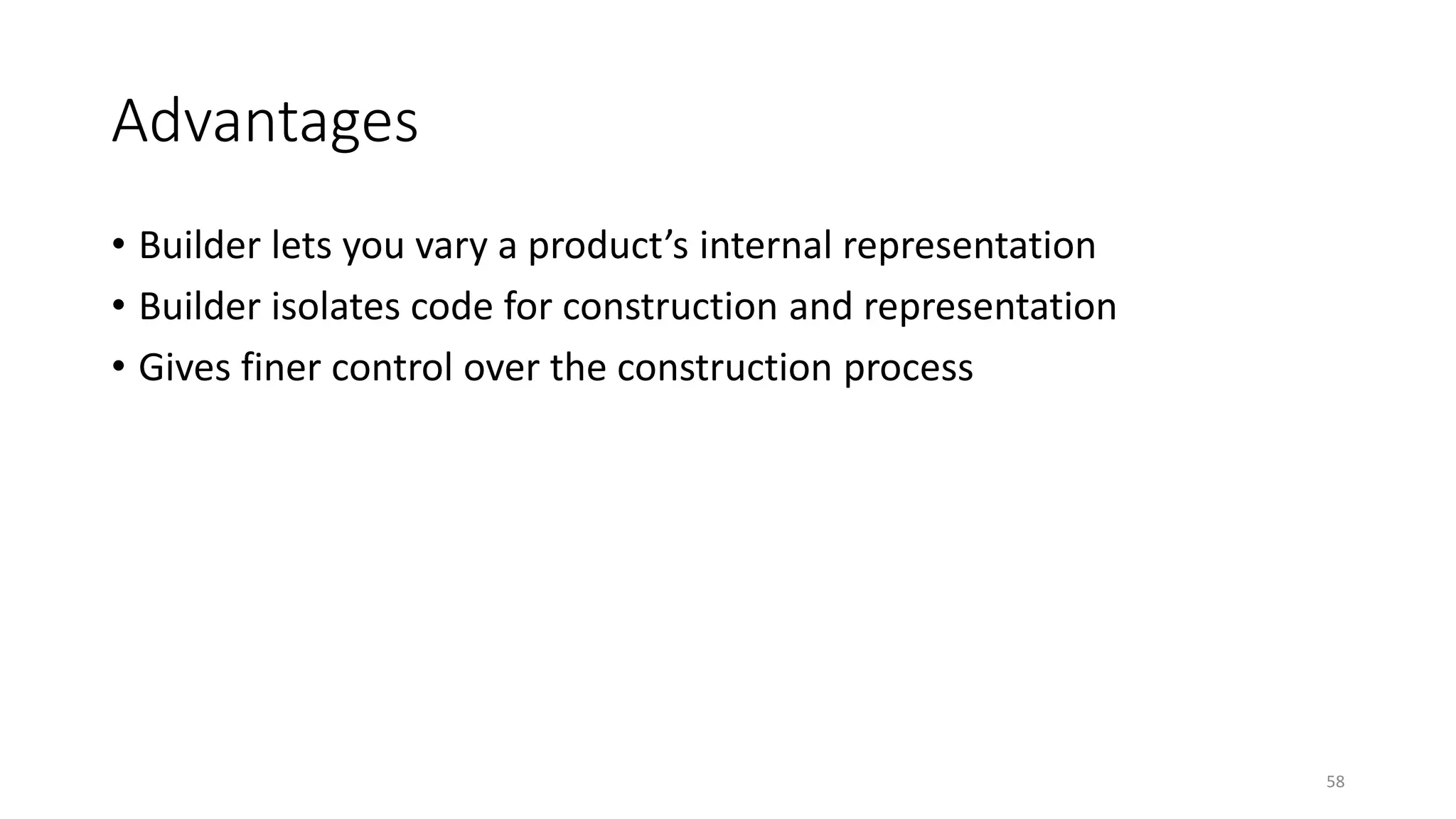

58. Advantages
• Builder lets you vary a product’s internal representation
• Builder isolates code for construction and representation
• Gives finer control over the construction process
58

59. Builder: Example 1
• Construct children's meals.
• Children's meals typically consist of
• a main item,
• a side item,
• a drink, and
• a toy
• There can be variation in the content of the children's meal, but the
construction process is the same.
59

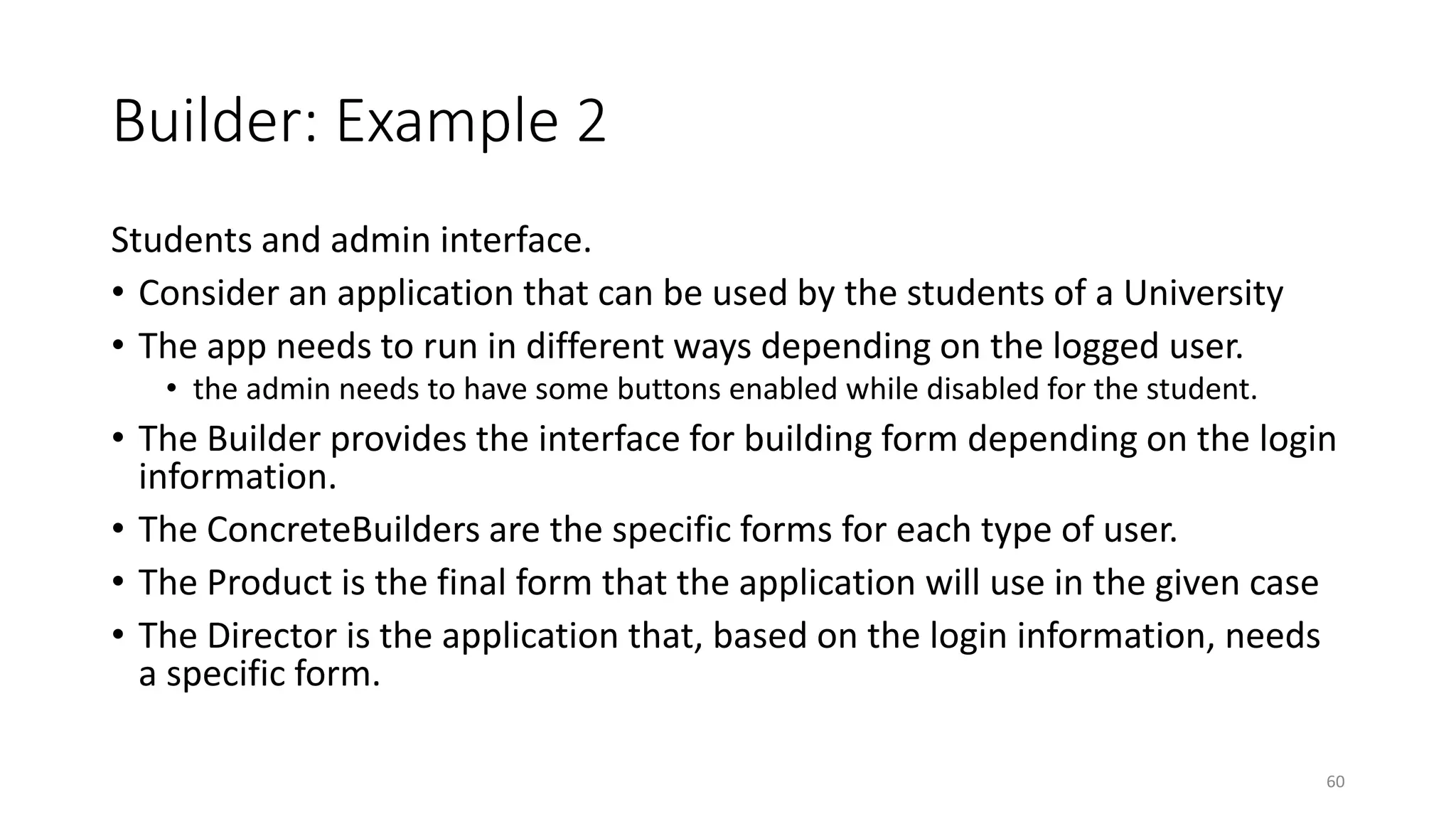

60. Builder: Example 2
Students and admin interface.
• Consider an application that can be used by the students of a University
• The app needs to run in different ways depending on the logged user.
• the admin needs to have some buttons enabled while disabled for the student.
• The Builder provides the interface for building form depending on the login
information.
• The ConcreteBuilders are the specific forms for each type of user.
• The Product is the final form that the application will use in the given case
• The Director is the application that, based on the login information, needs
a specific form.
60

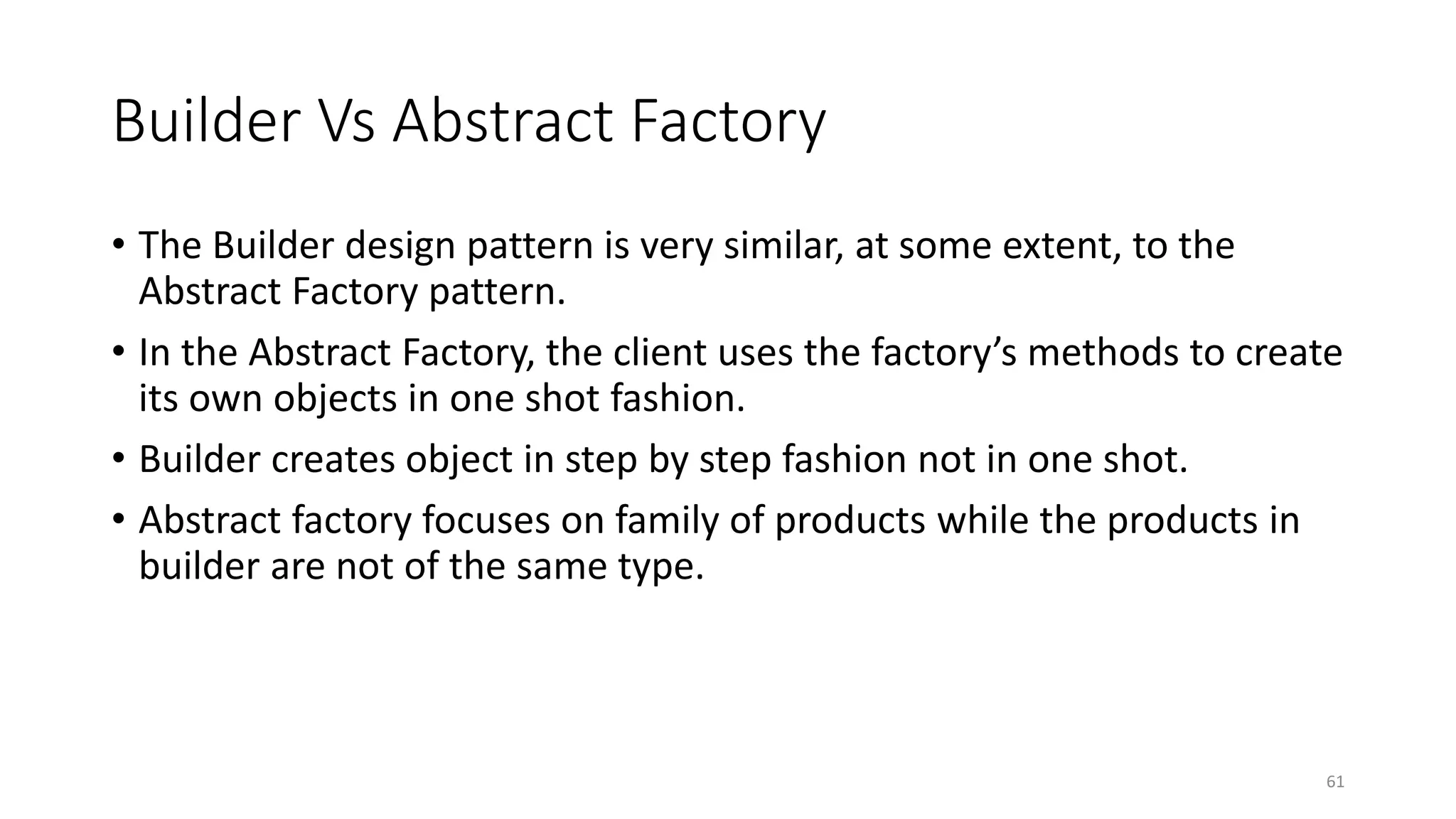

61. Builder Vs Abstract Factory
• The Builder design pattern is very similar, at some extent, to the
Abstract Factory pattern.
• In the Abstract Factory, the client uses the factory’s methods to create
its own objects in one shot fashion.
• Builder creates object in step by step fashion not in one shot.
• Abstract factory focuses on family of products while the products in
builder are not of the same type.
61

62. SINGLETON PATTERN
Object Creational
62

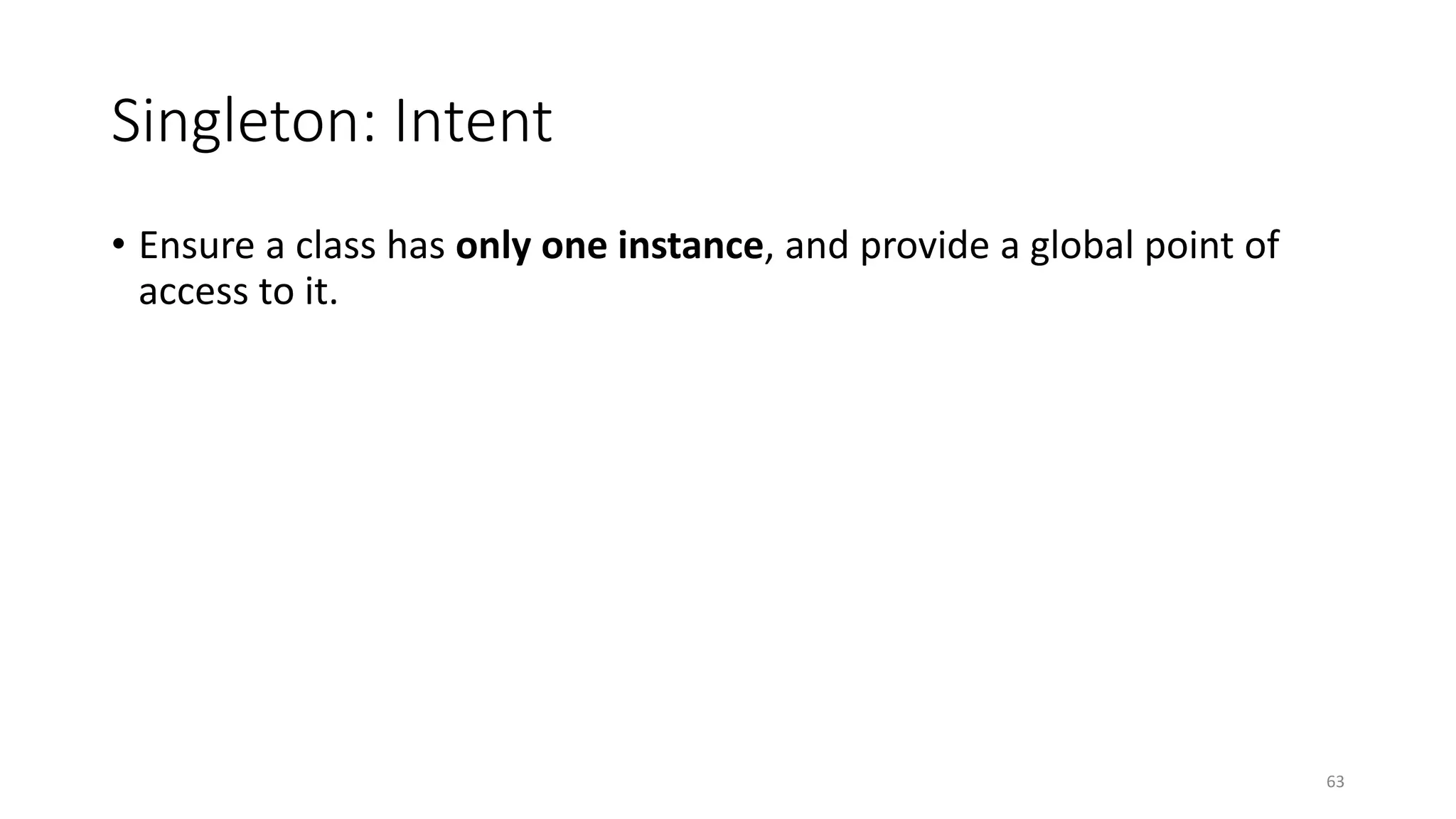

63. Singleton: Intent
• Ensure a class has only one instance, and provide a global point of
access to it.
63

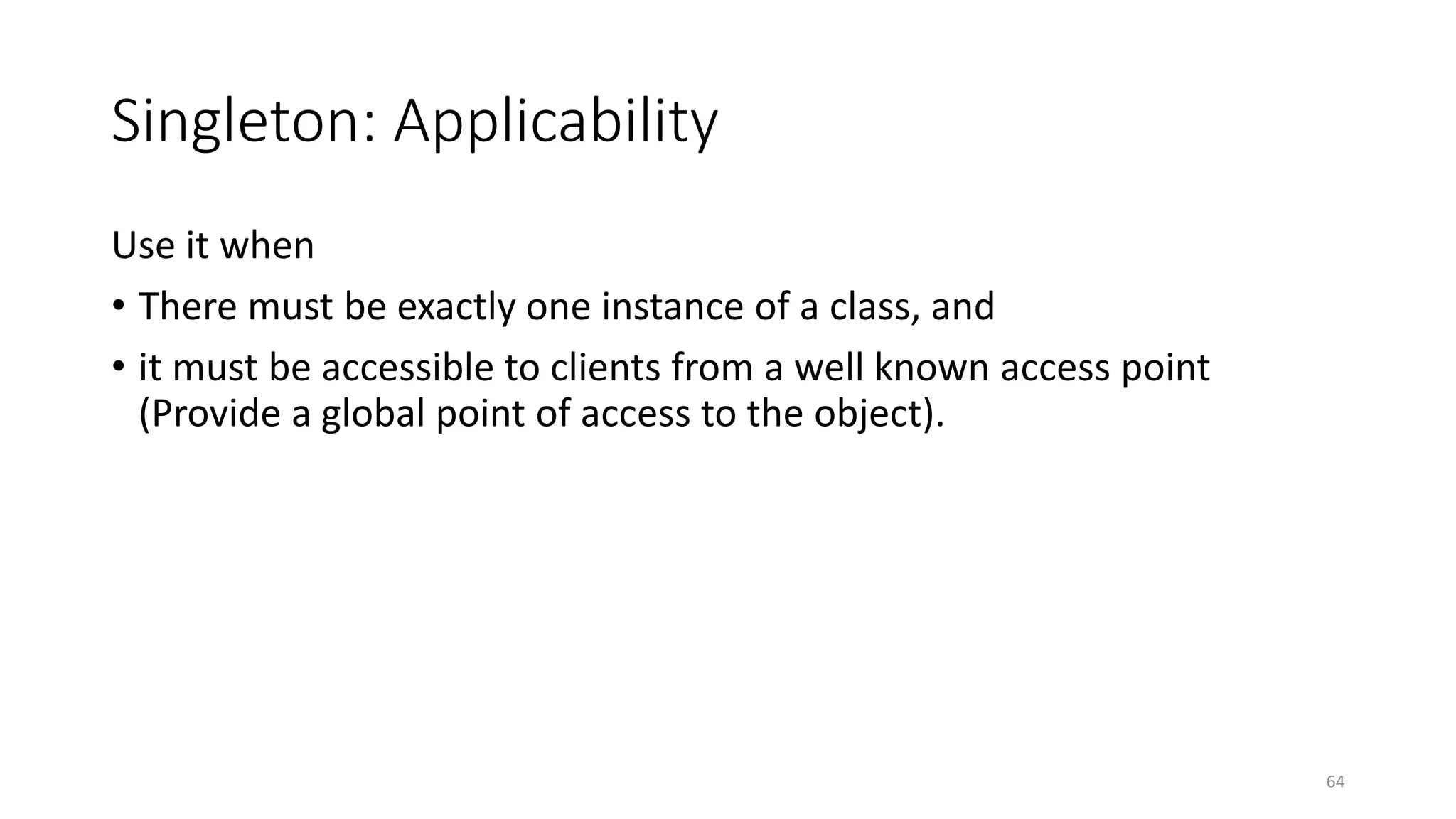

64. Singleton: Applicability
Use it when
• There must be exactly one instance of a class, and
• it must be accessible to clients from a well known access point
(Provide a global point of access to the object).
64

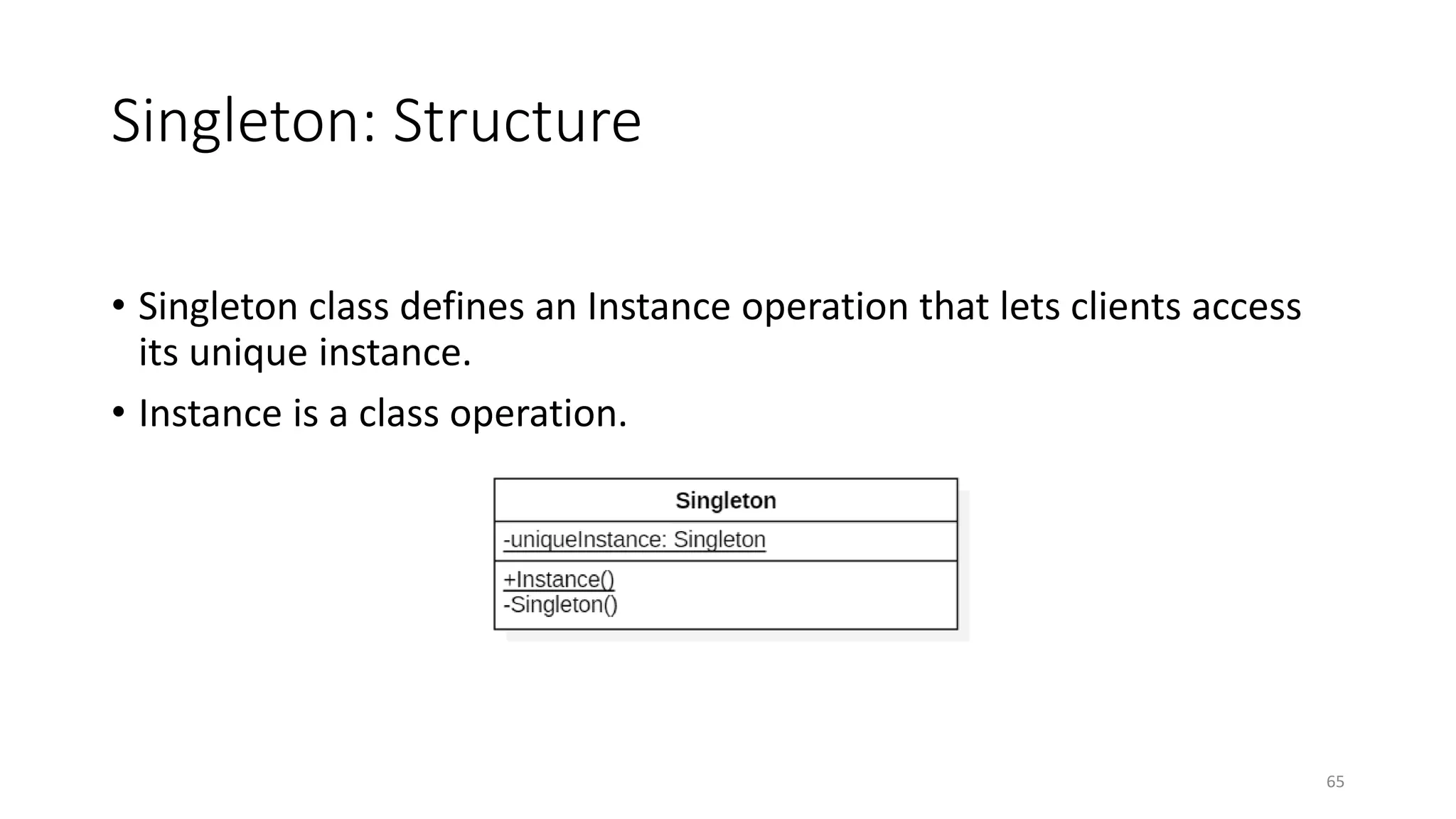

65. Singleton: Structure
• Singleton class defines an Instance operation that lets clients access
its unique instance.
• Instance is a class operation.
65

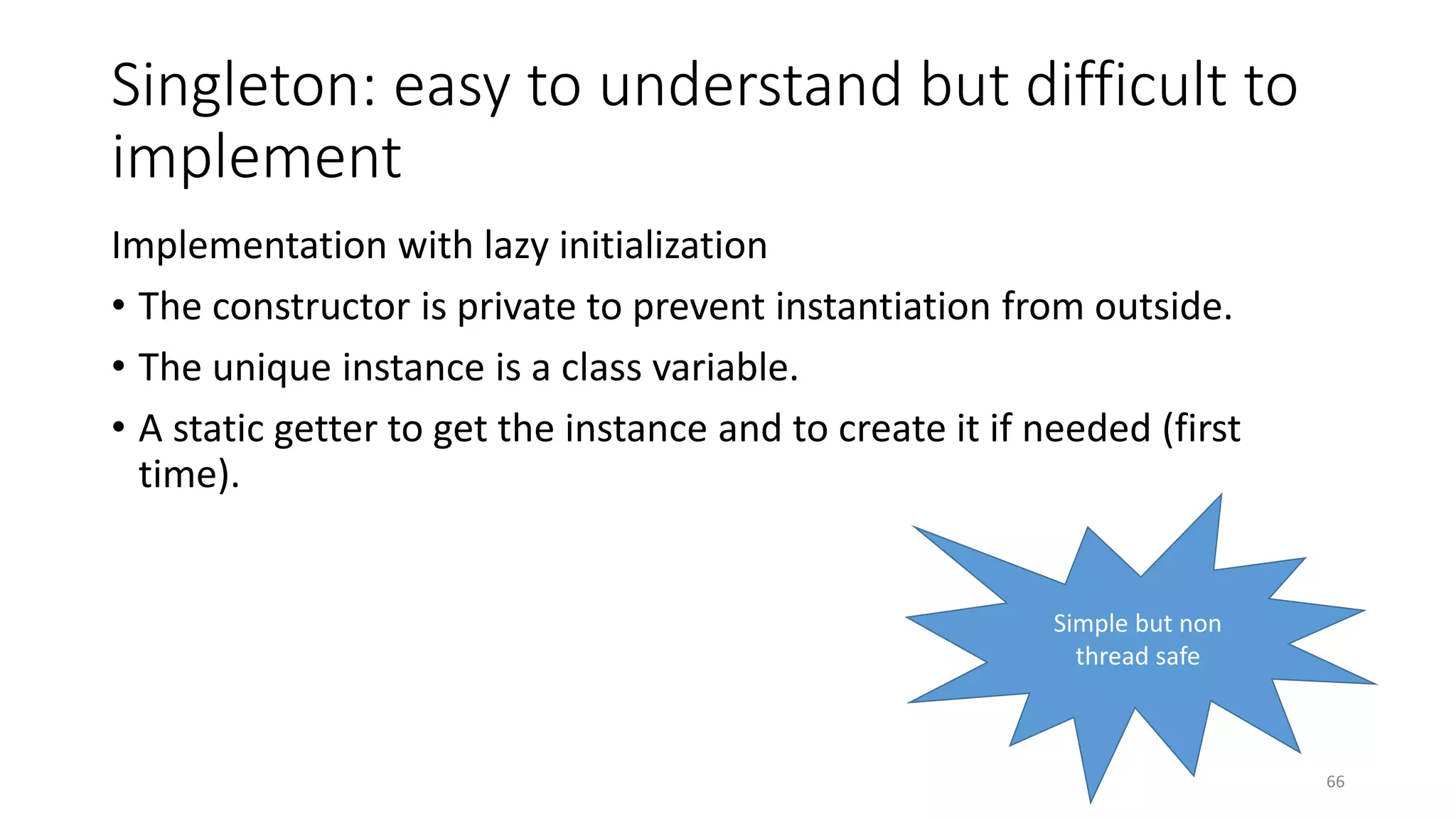

66. Singleton: easy to understand but difficult to
implement
Implementation with lazy initialization
• The constructor is private to prevent instantiation from outside.
• The unique instance is a class variable.
• A static getter to get the instance and to create it if needed (first
time).
66
Simple but non
thread safe

67. Implementation
67

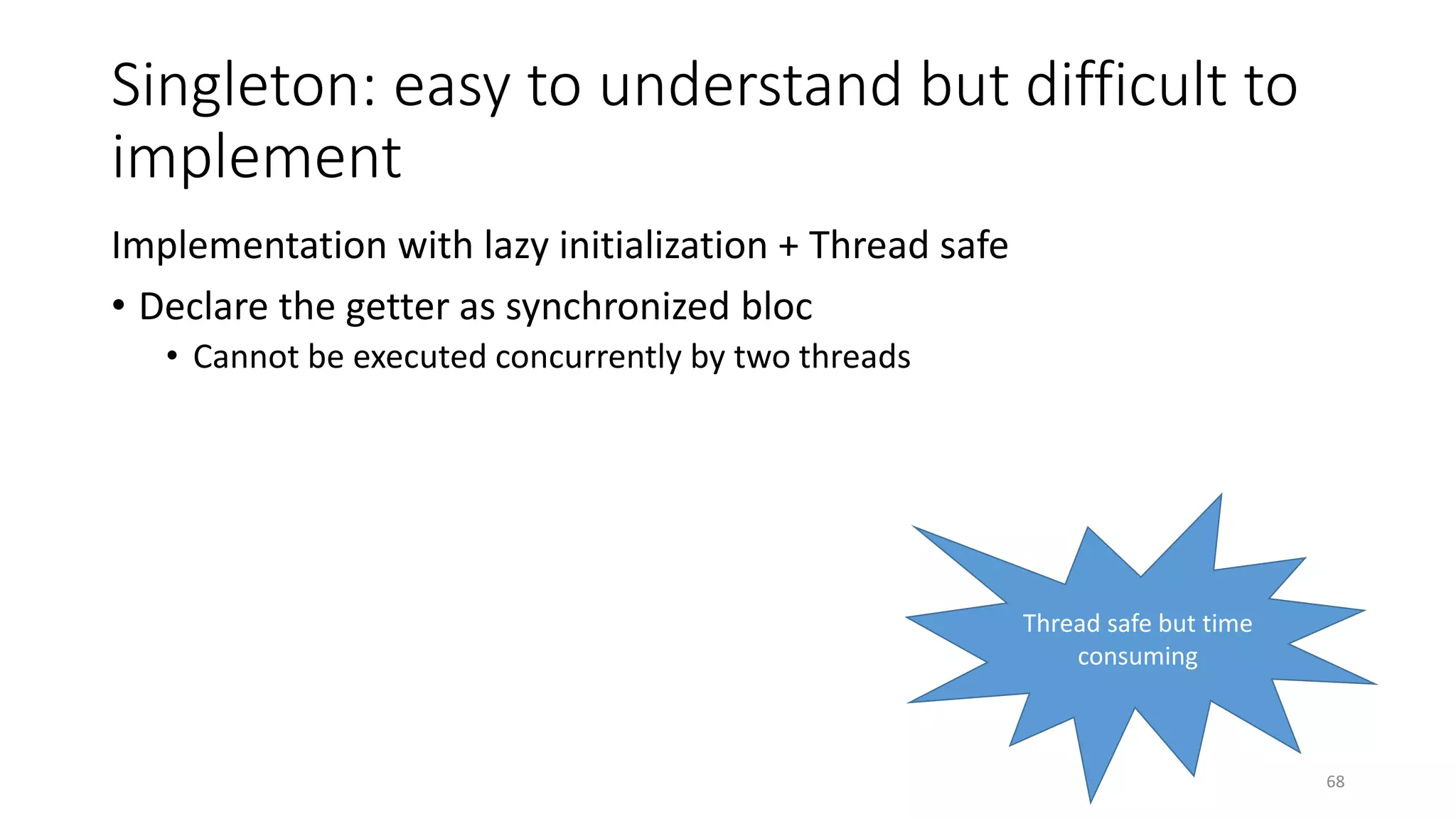

68. Singleton: easy to understand but difficult to
implement
Implementation with lazy initialization + Thread safe
• Declare the getter as synchronized bloc
• Cannot be executed concurrently by two threads
68
Thread safe but time
consuming

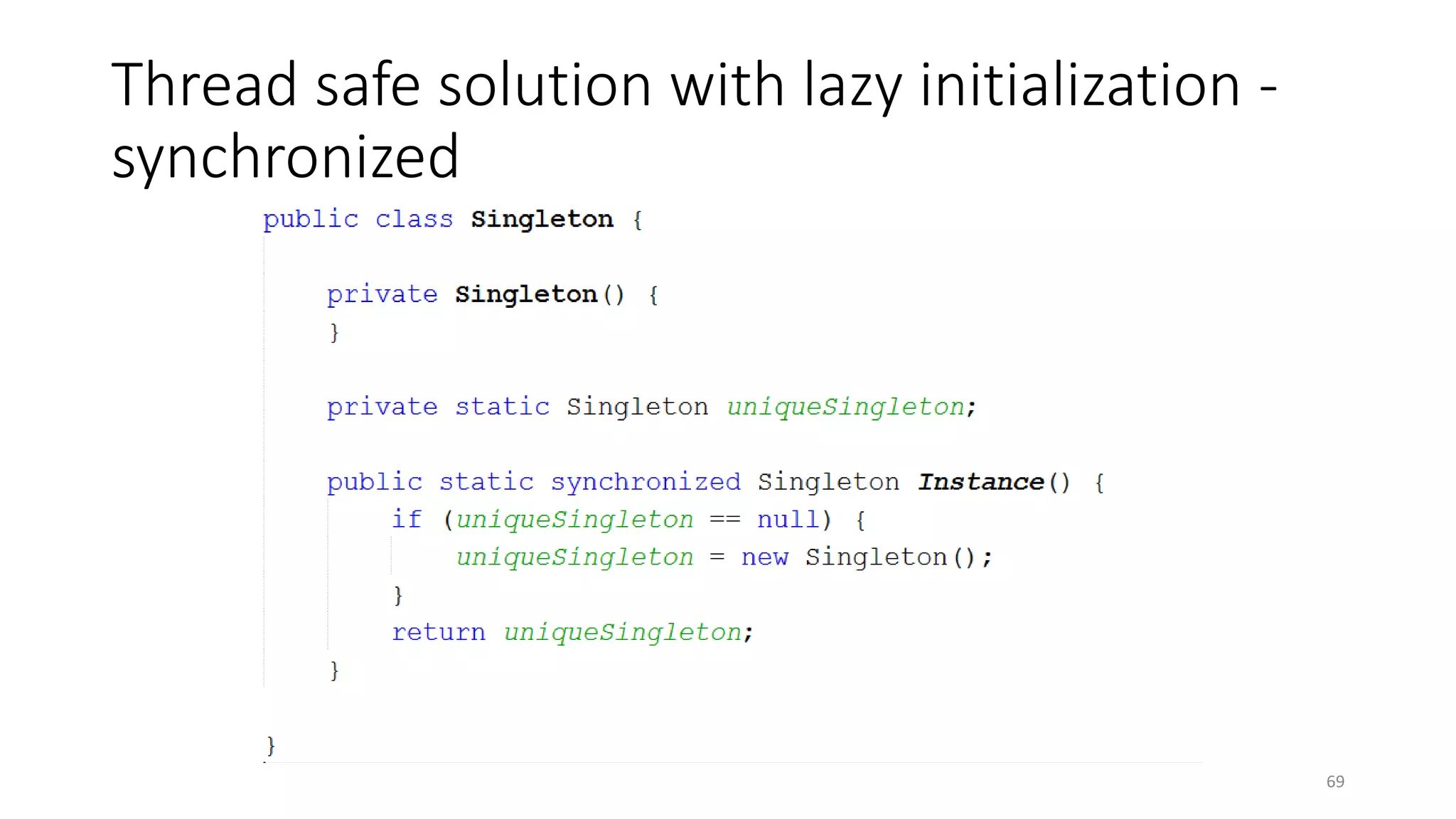

69. Thread safe solution with lazy initialization -
synchronized
69

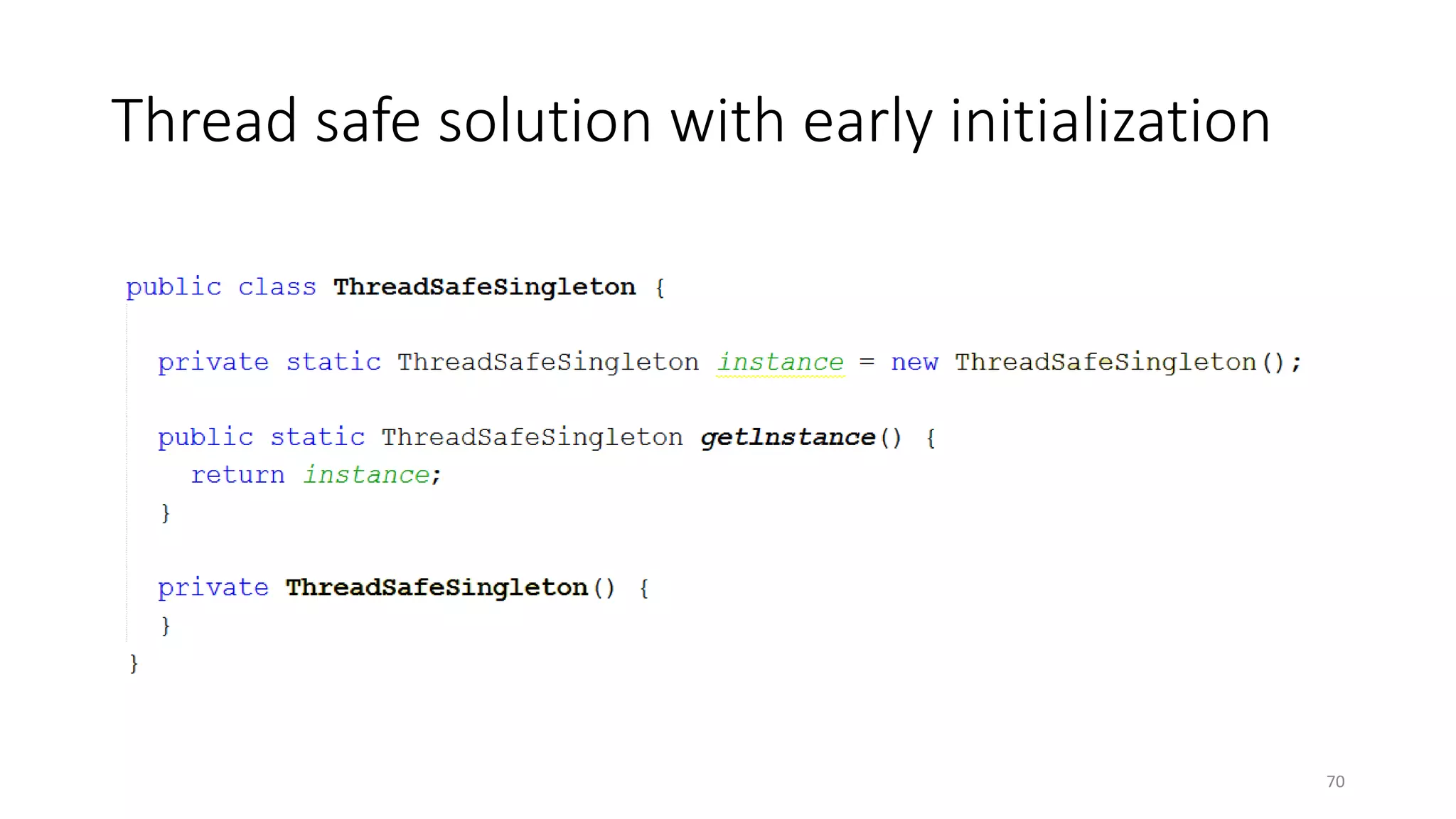

70. Thread safe solution with early initialization
70

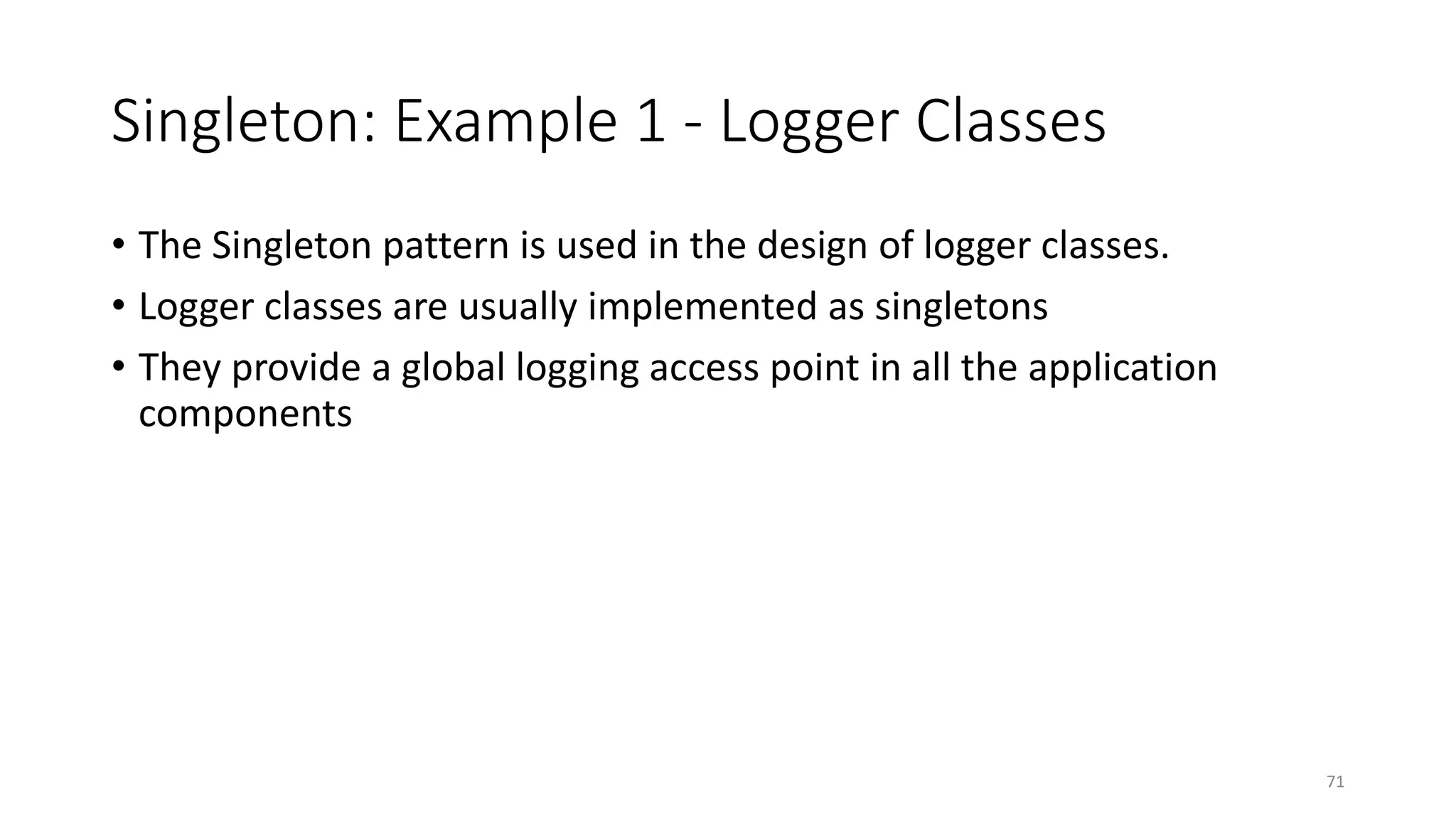

71. Singleton: Example 1 - Logger Classes
• The Singleton pattern is used in the design of logger classes.
• Logger classes are usually implemented as singletons
• They provide a global logging access point in all the application
components
71

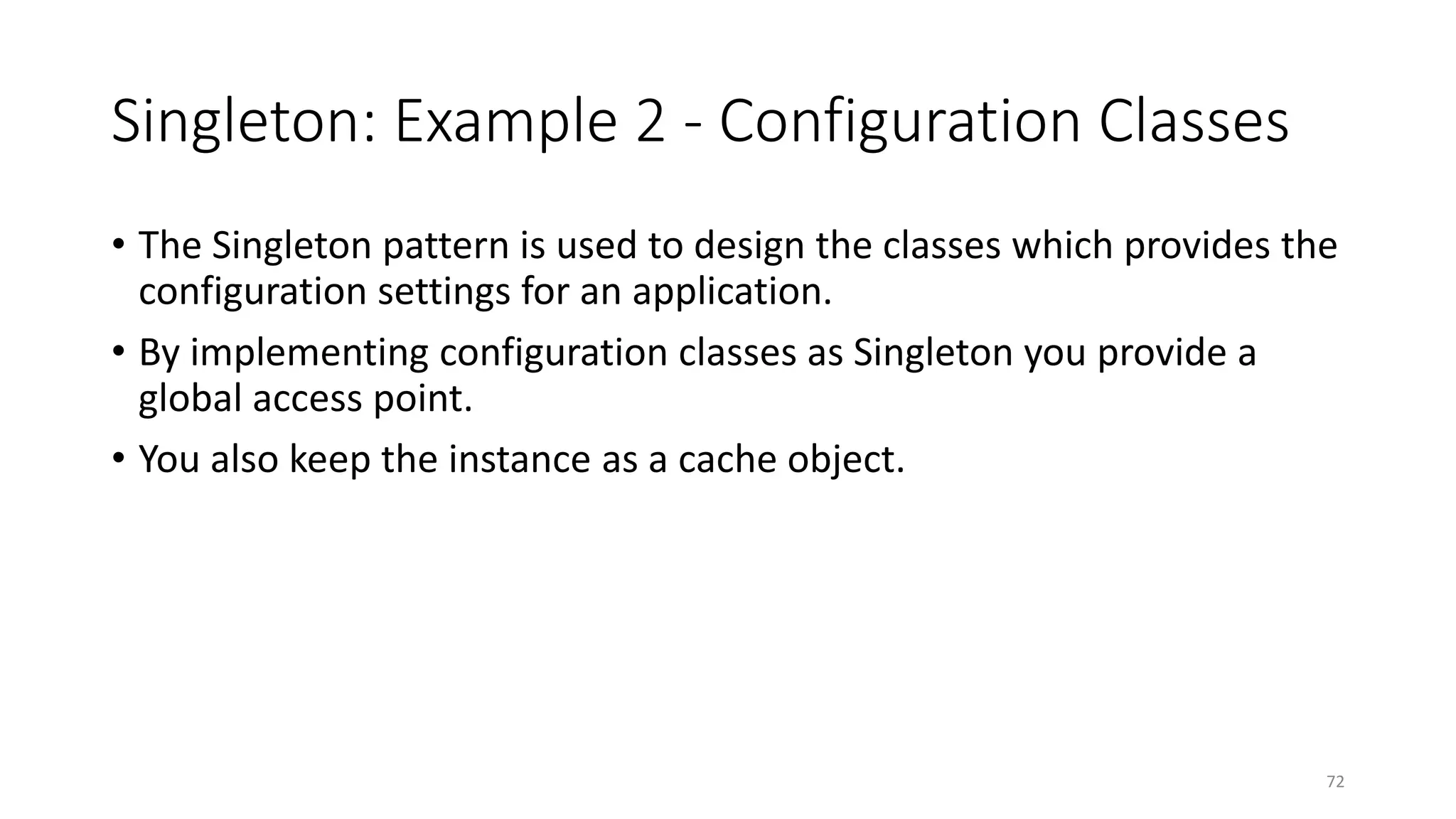

72. Singleton: Example 2 - Configuration Classes
• The Singleton pattern is used to design the classes which provides the
configuration settings for an application.
• By implementing configuration classes as Singleton you provide a
global access point.
• You also keep the instance as a cache object.
72

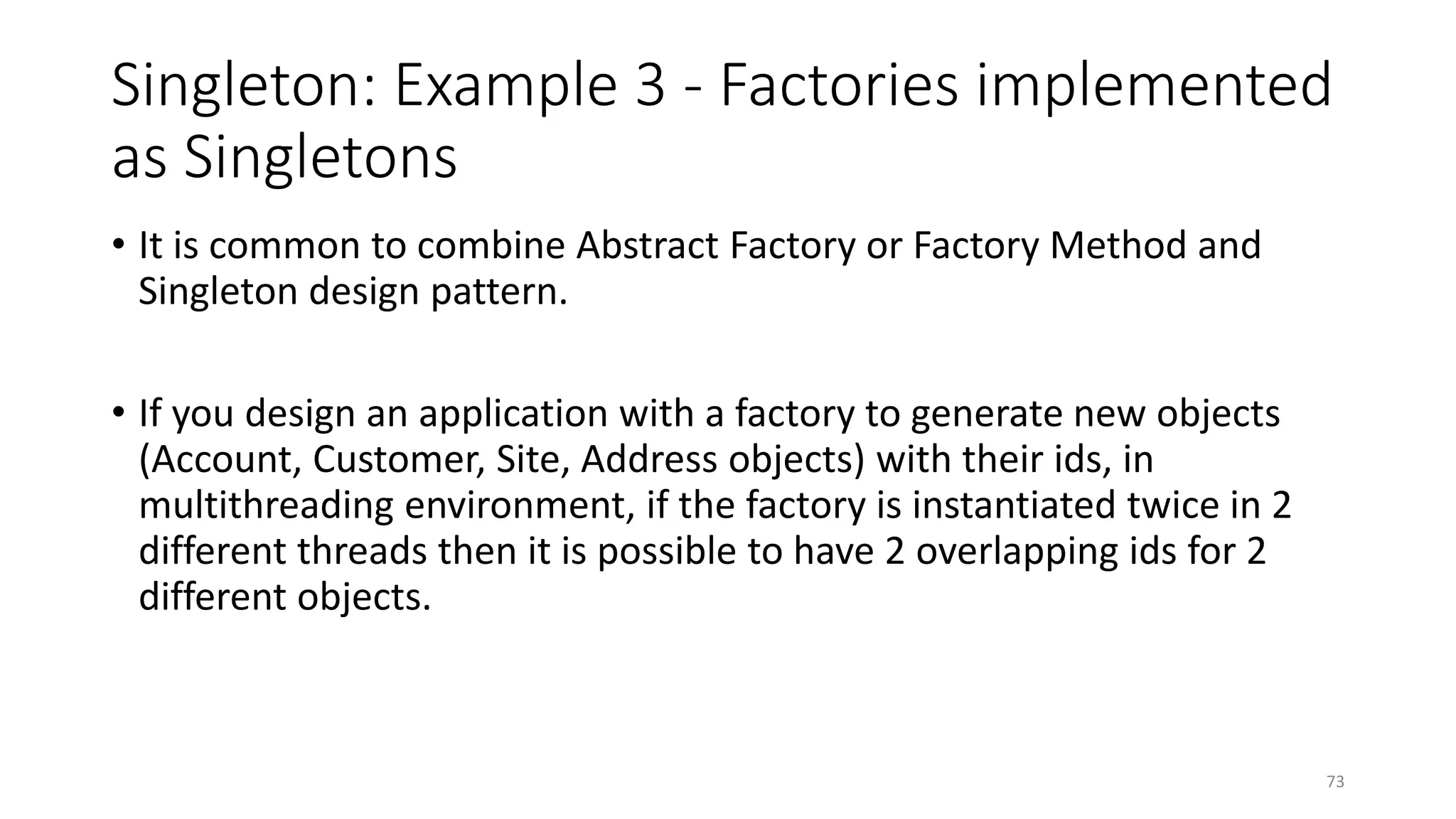

73. Singleton: Example 3 - Factories implemented
as Singletons
• It is common to combine Abstract Factory or Factory Method and
Singleton design pattern.
• If you design an application with a factory to generate new objects
(Account, Customer, Site, Address objects) with their ids, in
multithreading environment, if the factory is instantiated twice in 2
different threads then it is possible to have 2 overlapping ids for 2
different objects.
73
